Configure Process Crash Dump Collection for sfc.exe on Windows

Introduction

This document describes how to collect crash dumps on Windows for the sfc.exe process.

Environment

Platform: Windows endpoint

Product: Cisco Secure Endpoint connector

Tools: Windows Command Prompt; Microsoft Sysinternals ProcDump (procdump64.exe)

Assumed knowledge:

• Cisco Secure Endpoint connector
• Windows Command Prompt

This document is not restricted to software and hardware versions. The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. Review the potential impact of any command before use on a live network.

Cause

• sfc.exe crashes can leave the Cisco Secure Endpoint application in a disabled or disconnected state.
• Windows can invoke a postmortem debugger configured through the AeDebug registry values; ProcDump can be registered as that debugger to capture crash dumps.

Issue

• Cisco Secure Endpoint can enter a disabled or disconnected state if sfc.exe crashes. This can occur after an unexpected Windows shutdown or other Windows activity.
• Windows activates a debugging tool configured in the AeDebug (Application Error Debug) registry values. In this scenario, a program can be pre-selected as the tool to use, which is referred to as the postmortem debugger.

Resolution

Before you begin

1. Confirm administrative access on the Windows endpoint.
2. Confirm C:\Dumps exists (or can be created) and that the account running ProcDump has write access to the folder.
3. Decide whether automatic collection (postmortem debugger registration) or manual collection (on-demand dump) is required.

Download and prepare environment

1. Download Procdump (to be used as the AeDebug postmortem debugger) from Sysinternals Suite.

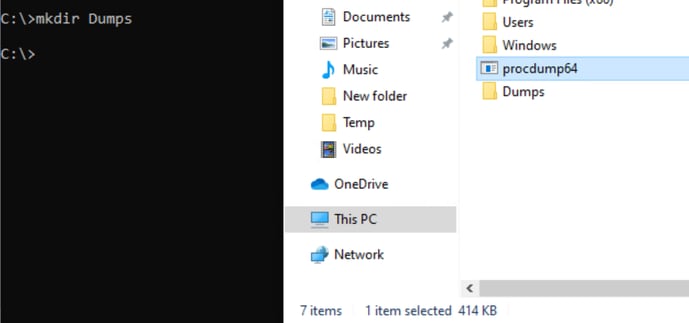

2. Extract procdump64.exe to the C: drive and create the Dumps folder for crash dump collection.

Note: ProcDump (procdump64.exe) supports two dump-collection methods: automatic collection (register ProcDump as the postmortem debugger and specify an output folder) and manual collection (trigger a dump for a specific process ID or process name).

Automatic collection

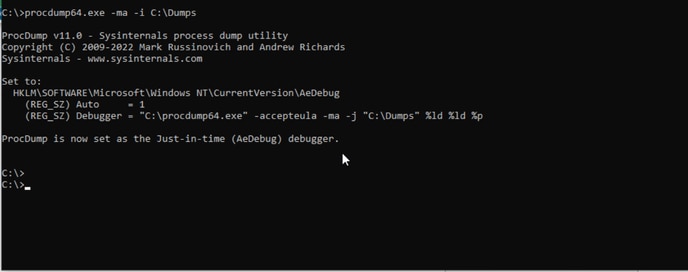

1. Set procdump64.exe as the automatic debugger in the Windows postmortem debugging registry configuration (AeDebug) with this command. When a program crashes, ProcDump saves the crash dump in the specified folder.

procdump64.exe -ma -i C:\Dumps

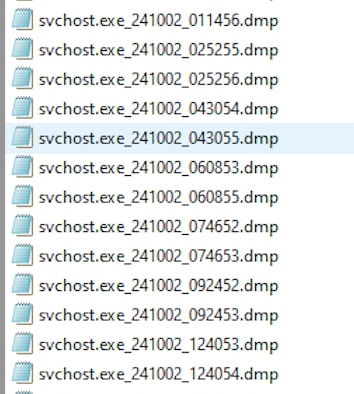

2. Navigate to the C:\Dumps folder. Zip it and share it for analysis.

Uninstall the Automatic Debugger

 

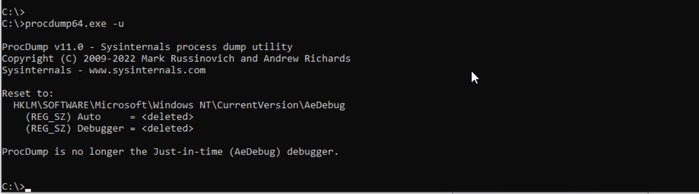

1. To uninstall procdump64.exe, use this command.

procdump64.exe -u

Manual collection

1. Use this command to create a dump on demand.

procdump64.exe -accepteula -ma -e -x c:\Dumps <PID | Process Name>

Example for sfc.exe.

procdump64.exe -accepteula -ma -e -x c:\Dumps "%ProgramFiles%\Cisco\AMP\8.6.1.30582\sfc.exe"

2. Navigate to the C:\Dumps folder. Zip it and share it for analysis.

Crash dump folder compression

Crash dumps can occupy a significant amount of disk space, so it is important to stop procdump once the collection is complete. You can also use the workaround to compress the size of the folder.

Use CLI (Command Line Interface)

Use this command in the command prompt to enable compression.

compact /c /s:c:\Dumps

Use GUI (Graphical User Interface)

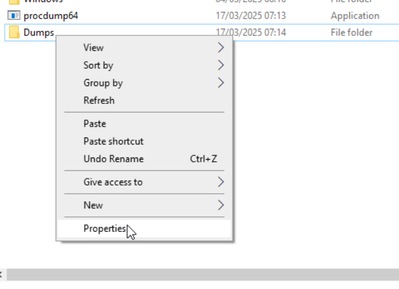

1. Navigate to Properties for the Dumps folder and check the original size of the folder on disk.

 

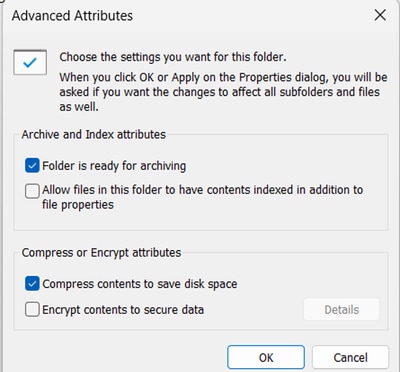

2. In Properties, click Advanced, select Compress contents to save disk space, and click OK to apply the change. This process can take several minutes.

 

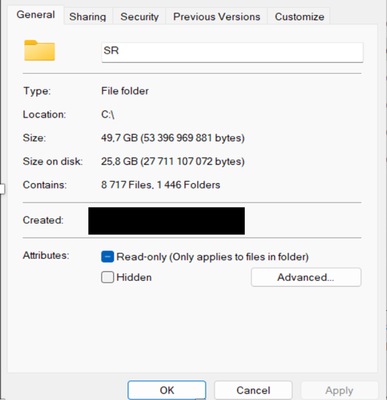

3. In the end, you can observe that the folder size has significantly reduced, almost reaching half of its original size.

 
