Configure Switch with SXP and IBNS 2.0 for Identity-Based Networks

Introduction

This document describes procedures to configure Cisco Switches with SXP and IBNS 2.0 for Identity-Based Networking.

Prerequisites

Components Used

The information in this document is based on these software and hardware versions:

• Identity Services Engine (ISE) version 3.3 patch 4
• Cisco Catalyst switch 3850

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Background Information

Identity control policies define the actions that the Access Session Manager performs in response to specific conditions and endpoint events. Using a consistent policy language, various system actions, conditions, and events can be combined to form these policies.

Control policies are applied on interfaces and are primarily responsible for managing endpoint authentication and activating services on sessions. Each control policy is made up of one or more rules and a decision strategy that determines how those rules are evaluated.

A control policy rule includes a control class (a flexible condition statement), an event that triggers the condition evaluation, and one or more actions. While administrators define which actions are triggered by specific events, some events come with predefined default actions.

Identity Control Policy

Identity Control Policy Configuration Overview

Control policies define system behavior using an event, a condition, and an action. Configuring a control policy involves three main steps:

1. Create control classes:
   A control class defines the conditions required to activate a control policy. Each class can have multiple conditions that evaluate as true or false. You can set whether all, any, or none of the conditions must be true for the class to be considered true. Alternatively, administrators can use a default class that has no conditions and always evaluates as true.
2. Create the control policy:
   A control policy contains one or more rules. Each rule includes a control class, an event that triggers the condition check, and one or more actions. Actions are numbered and executed in order.
3. Apply the control policy:
   Finally, apply the control policy to an interface to activate it.

Identity Control Policy Configuration

The authentication display new-style command converts the legacy configurations in to new style.

switch#authentication display new-style

Interpreting Identity Control Policy

Configure

Switch Configuration

WS-C3850-48F-E#show run aaa

!

aaa authentication dot1x default group radius local

aaa authorization network default group radius local

username admin password 0 xxxxxx

!

!

!

!

radius server ISE1

address ipv4 10.127.197.xxx auth-port 1812 acct-port 1813

pac key xxxx@123

!

!

aaa group server radius ISE2

server name ISE1

!

!

!

!

aaa new-model

aaa session-id common

!

aaa server radius dynamic-author

client 10.127.197.xxx server-key xxxx@123

dot1x system-auth-control

!

WS-C3850-48F-E#show run | in POLICY_Gi1/0/45

policy-map type control subscriber POLICY_Gi1/0/45

service-policy type control subscriber POLICY_Gi1/0/45

WS-C3850-48F-E#show run | sec  POLICY_Gi1/0/45

policy-map type control subscriber POLICY_Gi1/0/45

event session-started match-all

  10 class always do-until-failure

   10 authenticate using dot1x priority 10

event authentication-failure match-first

  5 class DOT1X_FAILED do-until-failure

   10 terminate dot1x

   20 authentication-restart 60

  10 class DOT1X_NO_RESP do-until-failure

   10 terminate dot1x

   20 authenticate using mab priority 20

  20 class MAB_FAILED do-until-failure

   10 terminate mab

   20 authentication-restart 60

  40 class always do-until-failure

   10 terminate dot1x

   20 terminate mab

   30 authentication-restart 60

event agent-found match-all

  10 class always do-until-failure

   10 terminate mab

   20 authenticate using dot1x priority 10

event authentication-success match-all

  10 class always do-until-failure

   10 activate service-template DEFAULT_LINKSEC_POLICY_MUST_SECURE

service-policy type control subscriber POLICY_Gi1/0/45

WS-C3850-48F-E#show run interface gig1/0/45

Building configuration...

Current configuration : 303 bytes

!

interface GigabitEthernet1/0/45

switchport access vlan 503

switchport mode access

access-session host-mode single-host

access-session closed

access-session port-control auto

mab

no cts role-based enforcement

dot1x pae authenticator

service-policy type control subscriber POLICY_Gi1/0/45

end

WS-C3850-48F-E#show run cts

!

cts authorization list ISE2

cts sxp enable

cts sxp connection 10.127.197.xxx password none mode peer speaker hold-time 0 0

cts sxp default source-ip 10.196.138.yyy

cts sxp default password xxxx@123

ISE Configuration

Step 1: Create Authentication and Authorization policies on ISE

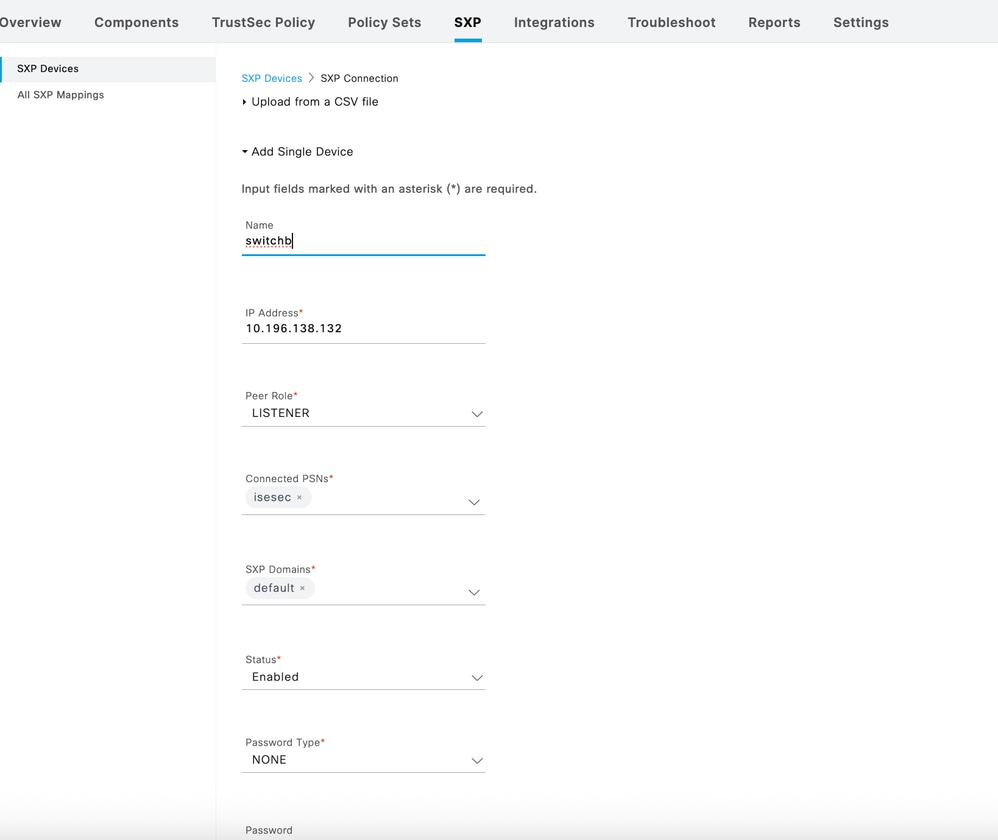

Step 2: Configure a SXP Device on ISE

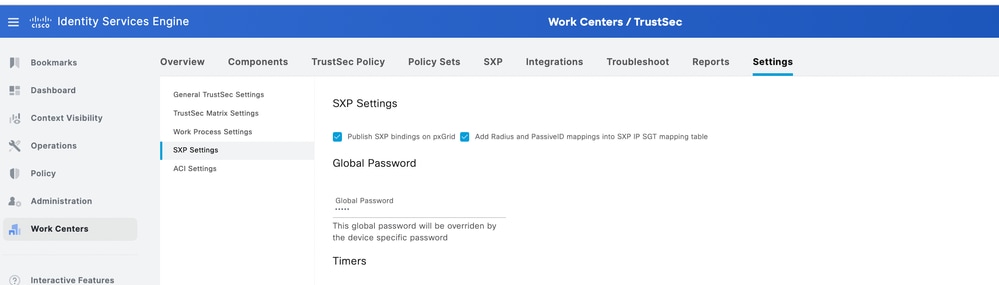

Step 3: Configure Global Password under SXP Settings

Verify

WS-C3850-48F-E#show access-session interface gig1/0/45 details

            Interface:  GigabitEthernet1/0/45

               IIF-ID:  0x1A146F96

          MAC Address:  b496.9126.decc

         IPv6 Address:  Unknown

         IPv4 Address:  Unknown

            User-Name:  divya123

               Status:  Authorized

               Domain:  DATA

       Oper host mode:  single-host

     Oper control dir:  both

      Session timeout:  N/A

    Common Session ID:  000000000000000B95163D98

      Acct Session ID:  Unknown

               Handle:  0x6f000001

       Current Policy:  POLICY_Gi1/0/45

Local Policies:

        Service Template: DEFAULT_LINKSEC_POLICY_MUST_SECURE (priority 150)

      Security Policy:  Must Secure

      Security Status:  Link Unsecured

Server Policies:

Method status list:

       Method           State

        dot1x           Authc Success

WS-C3850-48F-E#

WS-C3850-48F-E(config)#do show cts sxp conn

SXP              : Enabled

Highest Version Supported: 4

Default Password : Set

Default Key-Chain: Not Set

Default Key-Chain Name: Not Applicable

Default Source IP: 10.196.138.yyy

Connection retry open period: 120 secs

Reconcile period: 120 secs

Retry open timer is running

Peer-Sequence traverse limit for export: Not Set

Peer-Sequence traverse limit for import: Not Set

----------------------------------------------

Peer IP          : 10.127.197.xxx

Source IP        : 10.196.138.yyy

Conn status      : On

Conn version     : 4

Conn capability  : IPv4-IPv6-Subnet

Conn hold time   : 120 seconds

Local mode       : SXP Listener

Connection inst# : 1

TCP conn fd      : 1

TCP conn password: none

Hold timer is running

Duration since last state change: 0:00:00:22 (dd:hr:mm:sec)

Total num of SXP Connections = 1

0xFF8CBFC090 VRF:, fd: 1, peer ip: 10.127.197.xxx

cdbp:0xFF8CBFC090  <10.127.197.145, 10.196.138.yyy> tableid:0x0

WS-C3850-48F-E(config)#

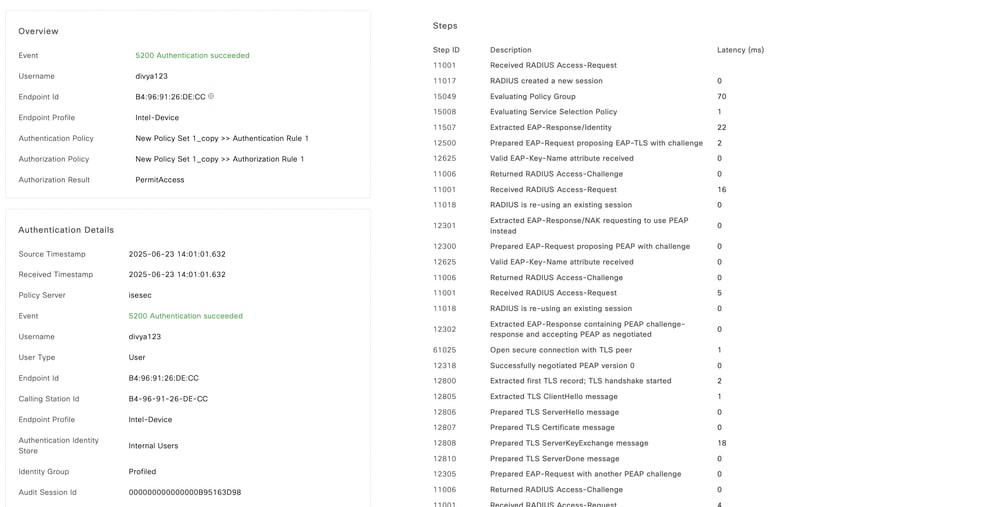

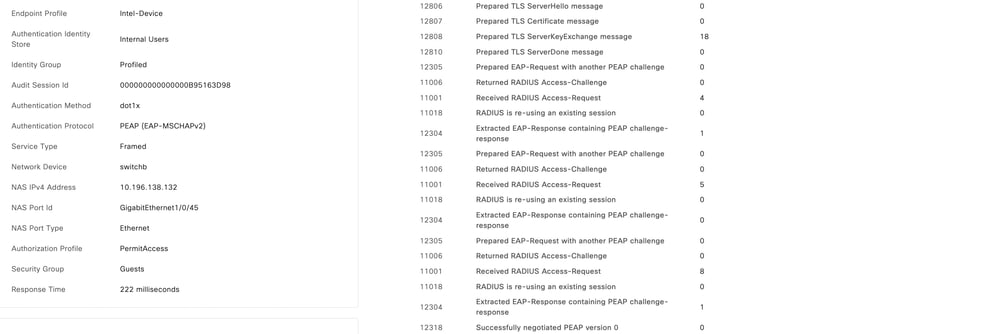

The live log report shows SGT tag Guest applied:

Troubleshoot

Enable this  debug on the switch to troubleshoot dot1x issues:

• debug dot1x all

Log Explanation

dot1x-packet:EAPOL pak rx - Ver: 0x1 type: 0x1 >>>>> EAPoL packet received by switch
dot1x-packet: length: 0x0000

dot1x-ev:[b496.9126.decc, Gig1/0/45] client detected, sending session start event for b496.9126.decc >>>>> dot1x client detected

dot1x-ev:[b496.9126.decc, Gig1/0/45] Dot1x authentication started for 0x26000007 (b496.9126.decc)>>>>> dot1x started

%AUTHMGR-5-START: Starting 'dot1x' for client (b496.9126.decc) on Interface Gig1/0/45 AuditSessionID 0A6A258E0000003500C9CFC3

dot1x-sm:[b496.9126.decc, Gig1/0/45] Posting !EAP_RESTART on Client 0x26000007 />>>>> Requesting client to restart the EAP Proces

dot1x-sm:[b496.9126.decc, Gig1/0/45] Posting RX_REQ on Client 0x26000007 >>>>> waiting fot the EAPoL packet fromt he client

dot1x-sm:[b496.9126.decc, Gig1/0/45] Posting AUTH_START for 0x26000007 >>>>> Starting authentication process

dot1x-ev:[b496.9126.decc, Gig1/0/45] Sending out EAPOL packet >>>>> Identity Request
dot1x-packet:EAPOL pak Tx - Ver: 0x3 type: 0x0
dot1x-packet: length: 0x0005
dot1x-packet:EAP code: 0x1 id: 0x1 length: 0x0005
dot1x-packet: type: 0x1
dot1x-packet:[b496.9126.decc, Gig1/0/45] EAPOL packet sent to client 0x26000007

dot1x-ev:[Gig1/0/45] Received pkt saddr =b496.9126.decc , daddr = 0180.c200.0003, pae-ether-type = 888e.0100.000a
dot1x-packet:EAPOL pak rx - Ver: 0x1 type: 0x0 // Identity Response
dot1x-packet: length: 0x000A

dot1x-sm:[b496.9126.decc, Gig1/0/45] Posting EAPOL_EAP for 0x26000007 >>>>> EAPoL packet(EAP Response) received, preparing request to server

dot1x-sm:[b496.9126.decc, Gig1/0/45] Posting EAP_REQ for 0x26000007 >>>>> Server response received, EAP Request is being prepared

dot1x-ev:[b496.9126.decc, Gig1/0/45] Sending out EAPOL packet
dot1x-packet:EAPOL pak Tx - Ver: 0x3 type: 0x0
dot1x-packet: length: 0x0006
dot1x-packet:EAP code: 0x1 id: 0xE5 length: 0x0006
dot1x-packet: type: 0xD
dot1x-packet:[b496.9126.decc, Gig1/0/45] EAPOL packet sent to client 0x26000007 >>>>> EAP request sent out

dot1x-ev:[Gig1/0/45] Received pkt saddr =b496.9126.decc , daddr = 0180.c200.0003, pae-ether-type = 888e.0100.0006 //EAP response received
dot1x-packet:EAPOL pak rx - Ver: 0x1 type: 0x0
dot1x-packet: length: 0x0006
||
||
||
|| Here a lot of EAPOL-EAP and EAP_REQ events occur as a lot of information is exchanged between the switch and the client
|| If the events after this do not follow, then the timers and the information sent till now need to be checked
||
||
||
dot1x-packet:[b496.9126.decc, Gig1/0/45] Received an EAP Success >>>>> EAP Success recieved from Server

dot1x-sm:[b496.9126.decc, Gig1/0/45] Posting EAP_SUCCESS for 0x26000007 >>>>> Posting EAP Success event

dot1x-sm:[b496.9126.decc,Gig1/0/45] Posting AUTH_SUCCESS on Client 0x26000007 >>>>> Posting Authentication success

%DOT1X-5-SUCCESS: Authentication successful for client (b496.9126.decc) on Interface Gig1/0/45 AuditSessionID 0A6A258E0000003500C9CFC3

dot1x-packet:[b496.9126.decc, Gig1/0/45] EAP Key data detected adding to attribute list >>>>> Additional key data detected sent by server

%AUTHMGR-5-SUCCESS: Authorization succeeded for client (b496.9126.decc) on Interface Gig1/0/45 AuditSessionID 0A6A258E0000003500C9CFC3

dot1x-ev:[b496.9126.decc, Gig1/0/45] Received Authz Success for the client 0x26000007 (b496.9126.decc) >>>>> Authorization Success

dot1x-ev:[b496.9126.decc, Gig1/0/45] Sending out EAPOL packet >>>>> Sending EAP Success to the client
dot1x-packet:EAPOL pak Tx - Ver: 0x3 type: 0x0
dot1x-packet: length: 0x0004
dot1x-packet:EAP code: 0x3 id: 0xED length: 0x0004
dot1x-packet:[b496.9126.decc, Gig1/0/45] EAPOL packet sent to client 0x26000007
