Convert vEdge from vManage Mode to CLI Mode by vManage API
Available Languages
Contents
Introduction
This document describes how to convert vEdge from vManage mode to CLI mode by vManage API.
Prerequisites
Requirements
Cisco recommends that you have knowledge of these topics:
- Cisco Software-defined Wide Area Network (SD-WAN)
- Postman
Components Used
The information in this document is based on these software and hardware versions:
- Cisco vManager version 20.9.4
- Cisco vEdge version 20.9.4
- Postman version 11.63.0
The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.
Background Information
- Cisco SD-WAN vManage API is a REST API interface for controlling, configuring, and monitoring the Cisco devices in an overlay network.
- REST architecture uses a stateless, client–server, cacheable communications protocol.
- REpresentational State Transfer (REST) is an architecture style for designing web-services applications.
- Test API calls can be tried out from swagger UI.
- Sometimes, it is impossible to modify the management mode of vedge through the GUI interface. In such cases, choosing to modify the management mode through the API is another feasible approach.
- The vManage API documentation is accessible via https://<vmanage_ip>:<port>/apidocs for reference on available API calls.
URL Structure Components
https://<vmanage_ip>:<port>/apidocs/#/Configuration%20-%20Template%20Configuration/updateDeviceToCLIMode
|
Command Properties |
Command Syntax |
Description |
|
Protocol |
http:// or https:// |
Protocol over which data is sent between client and server |
|
Server or Host |
<vmanage-ip:port> |
Resolves to the IP and port to which to connect |
|
Resource |
/apidocs/#/Configuration%20-%20Template%20Configuration/updateDeviceToCLIMode |
The location of the data or object of interest |
Access Onboard API Documentation
vManage onboard API documentation is at the URL https://<vmanage_ip>:<port:>/apidocs. This documentation displays APIs available on the current software version.
This requires log in with valid vManage credentials. While multiple privilege levels can view documentation, only a netadmin user is able to execute all of them.
Note: The API documentation page is available to tenants in a multitenant environment, however, certain commands are restricted to the provider only.
vManage then displays a list of categories of available APIs. Click the desired category, followed by the API call itself, which displays these fields:
|
Description/Implementation Notes |
Description of the operation performed. |
|
Parameters |
Required parameters to be specified for the API call. |
|
Request Body (POST/PUT/DELETE) |
Format of the request body. |
|
Responses |
Possible responses which vManage sends to the API. This includes HTTP status code, reason, and the possible response body. |
|
Extensions |
Valid extensions for the call. |
Note: From the 20.6 release, the system introduces these rate limits: Bulk API: 48 requests/minute All other API: 100 requests/second.
Warning: Real-time monitoring APIs are CPU intensive and must be used only for troubleshooting, not continuous monitoring.
Test APIs from the Documentation Tool

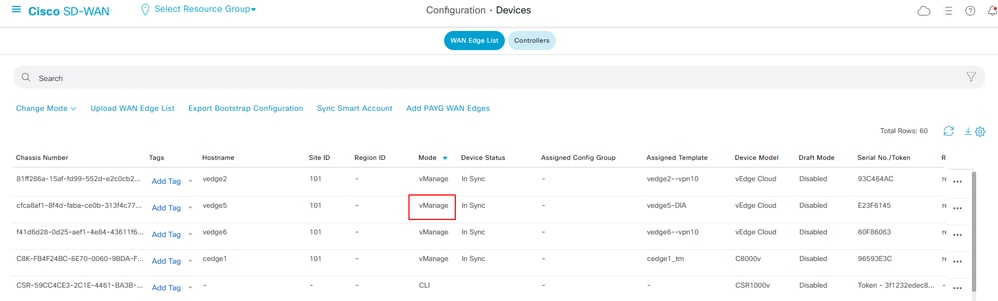

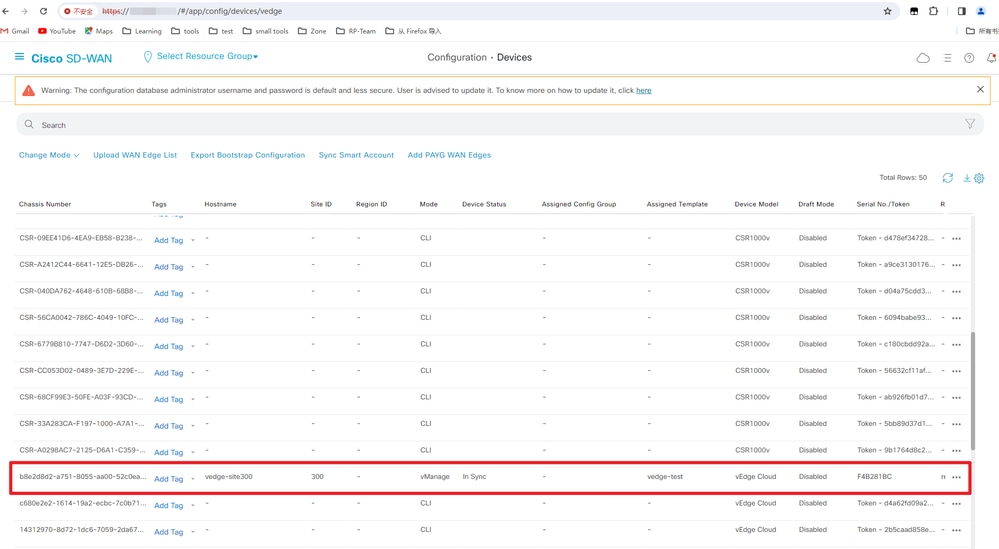

Step 1:Login to the vManage GUI to Check that the Management mode of vEdge is vManage
Step 2:Modify the URL to LoginCisco SD-WAN vManage API

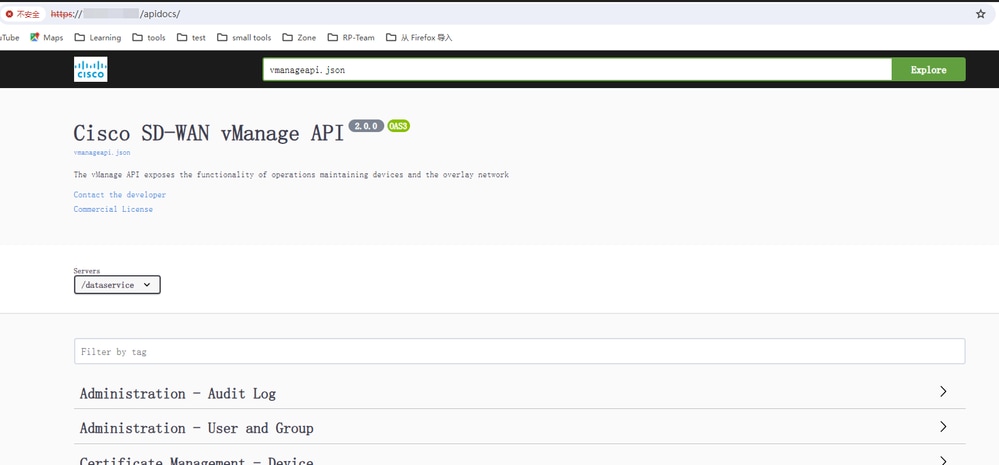

Login https://10.124.x.x/apidocs/
Step 3: Navigate to Configuration - Template Configurationin the Cisco SD-WAN vManage API

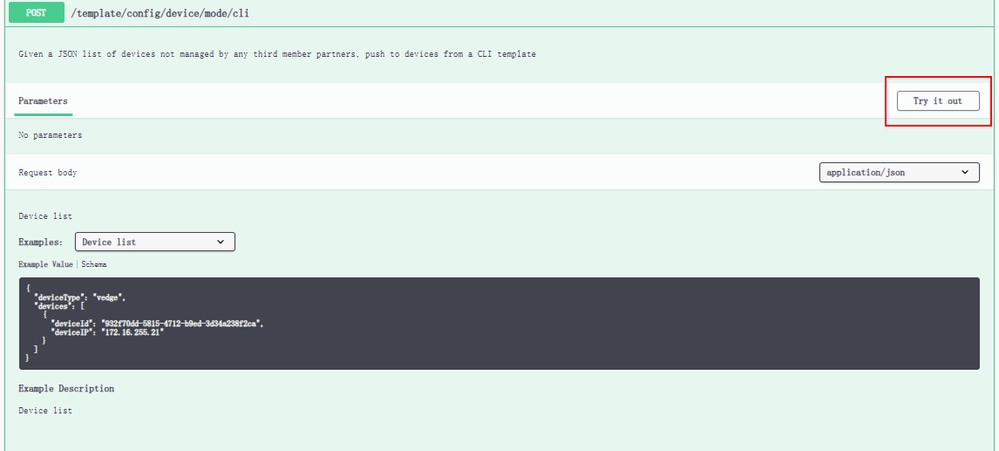

Step 4:ClickTry it out Button

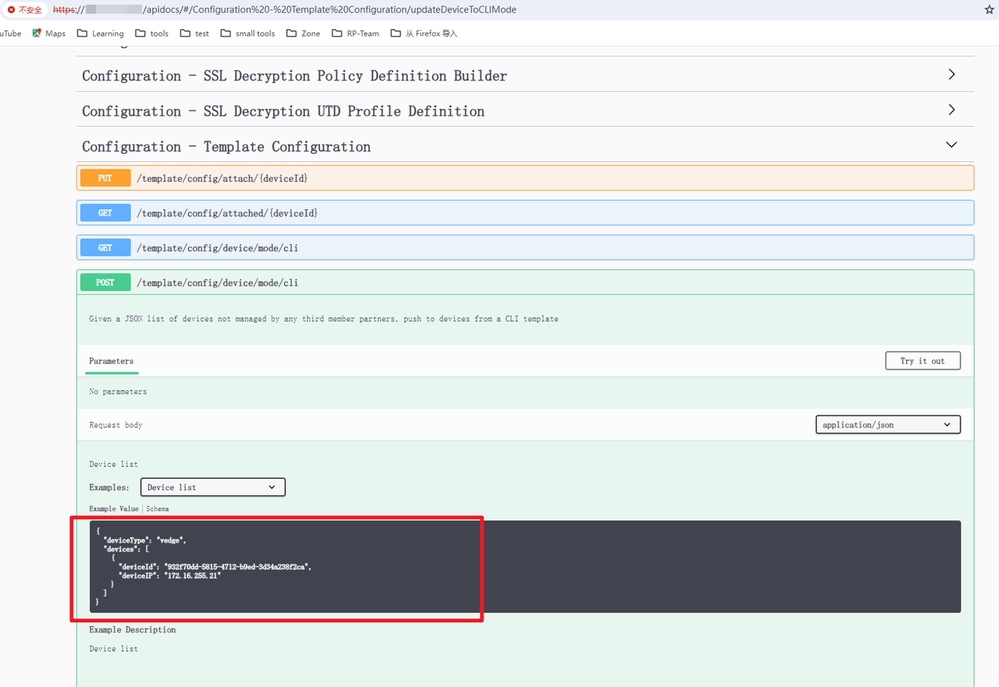

Step 5:Change DeviceId and DeviceIP
- deviceId == uuid
- deviceIP == local-system-ip
Step 6:Click Execute Button

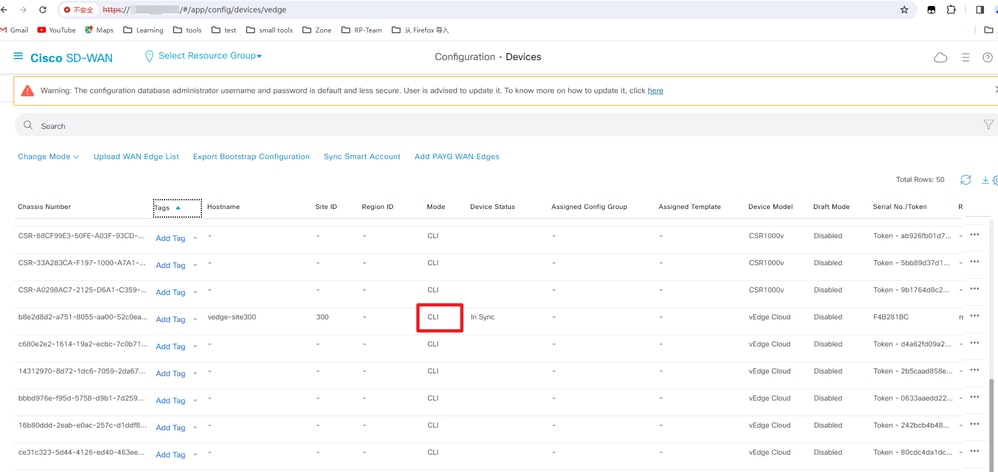

Step 7:Check vEdge mode in vManage GUI
The vedge management mode has been switched from vManage to CLI status.
Test APIs from the Postman Tool
Step 1: Login to vManage and obtain the Session Cookie
Request method: POST

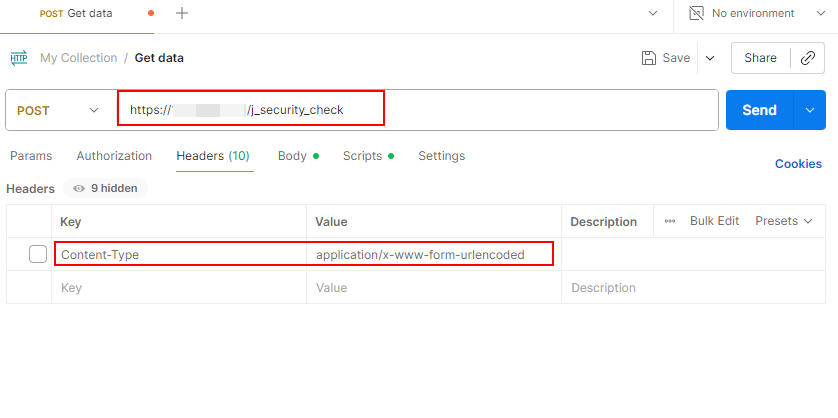

URL: https://<vmanage-ip>/j_security_check
Postman configuration
Headers: Content-Type:application/x-www-form-urlencoded
Body type: x-ww-form-urlencoded

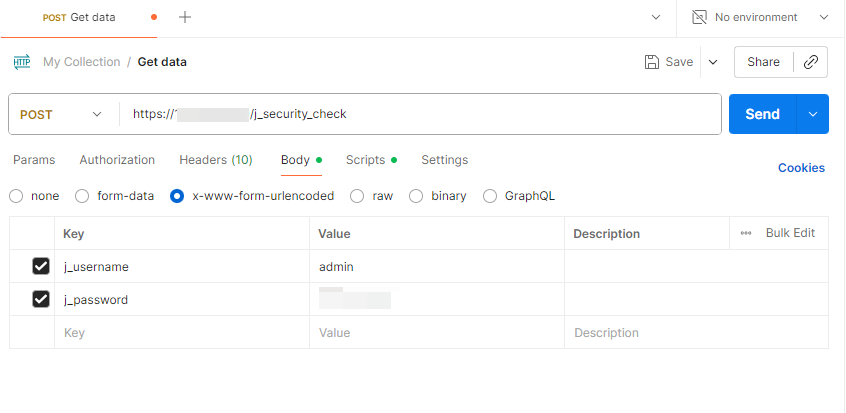

Body content:
- j_username=admin
- j_password=xxx
After a successful login, vManage returns the Cookie of JSESSIONID; Cookies are saved automatically.
Step 2: Obtain the CSRF Token
Request method: GET

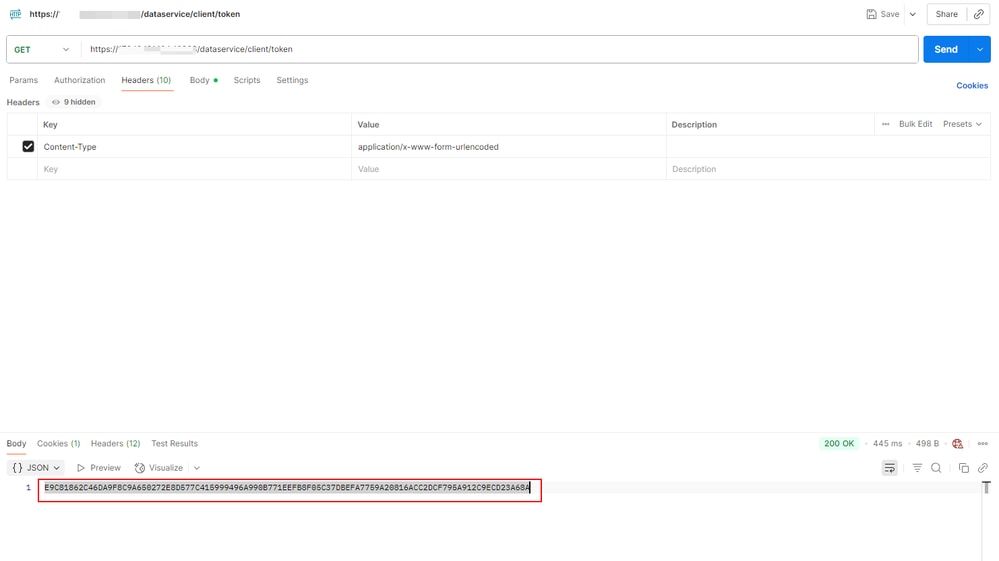

URL: https://<vmanage-ip>/dataservice/client/token
Postman configuration
Headers: Content-Type:application/x-www-form-urlencoded
Body type: x-ww-form-urlencoded
Body content:
- j_username=admin
- j_password=xxx
Step 3:Get the device UUID and IP
Request method: GET

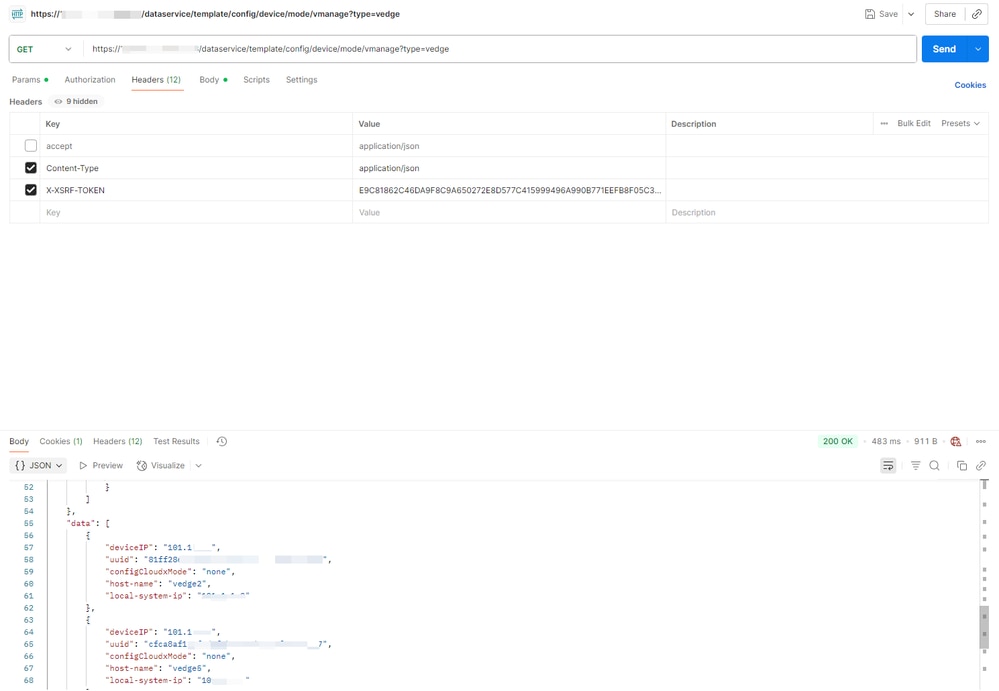

URL: https://<vmanage-ip>/dataservice/template/config/device/mode/vmanage?type=vedge
Postman configuration
Headers:
- Content-Type:application/json
- X-XSRF-TOKEN: E9C81862C46DA9F8C9A650272E8D577C415999496A990B771EEFB8F05C37DBEFA7759A20816ACC2DCF795A912C9ECD23A68A
Body type: x-ww-form-urlencoded
Body content:
- j_username=admin
- j_password=xxx
Step 4: Unbind the configuration template of vEdge
Request method: POST
URL: https://<vmanage-ip>/dataservice/template/config/device/mode/cli
Postman configuration
Headers:
- accept:application/json
- Content-Type:application/json
- X-XSRF-TOKEN: E9C81862C46DA9F8C9A650272E8D577C415999496A990B771EEFB8F05C37DBEFA7759A20816ACC2DCF795A912C9ECD23A68A
Body type: raw (JSON)
Body content:
{"deviceType":"vedge","devices":[{"deviceId":"cfca8af1-8f4d-faba-xxx","deviceIP":"xxx"}]}
