SAFE Secure Campus Architecture Guide

Available Languages

Download Options

  • PDF
    (2.8 MB)
    View with Adobe Reader on a variety of devices
Updated:August 30, 2022

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Available Languages

Download Options

  • PDF
    (2.8 MB)
    View with Adobe Reader on a variety of devices
Updated:August 30, 2022




Overview

The Secure Campus is a place in the network (PIN), a cluster of buildings, where a company does business. This guide addresses campus business flows across all industries and the security used to defend them. Campus examples are company headquarters, or any group of buildings that requires network services. More complex than branches due to physical and logical scale, they support network access for employees, third parties, and customers across multiple buildings and floors.

The Secure Campus is one of the six places in the network within SAFE. SAFE is a holistic approach in which Secure PINs model the physical infrastructure and Secure Domains represent the operational aspects of a network.

The Secure Campus architecture guide provides:

      Business flows typical for campus locations

      Campus threats and security capabilities

      Business flow security architecture

      Design examples and a parts list



Related image, diagram or screenshot

Figure 1.           The Key to SAFE. SAFE provides the Key to simplify cybersecurity into Secure Places in the Network (PINs) for infrastructure and Secure Domains for operational guidance.

SAFE simplifies security by starting with business flows, then addressing their respective threats with corresponding security capabilities, architectures, and designs. SAFE provides guidance that is holistic and understandable.

Related image, diagram or screenshot

Figure 2.           SAFE Guidance Hierarchy

Business Flows

The Secure Campus is where physical presence is important for internal employees, third-party partners, and customers over multiple physical buildings.

      Internally, employees use devices (PCs, laptops, phones, tablets, and other tools) that require access to campus-critical applications, collaboration services like (voice, video, email) and the Internet.

      Third parties, such as service providers and partners, require remote access to applications and devices.

      Customers at the campus use guest Internet access on their phones or tablets.

Graphical user interface, applicationDescription automatically generated

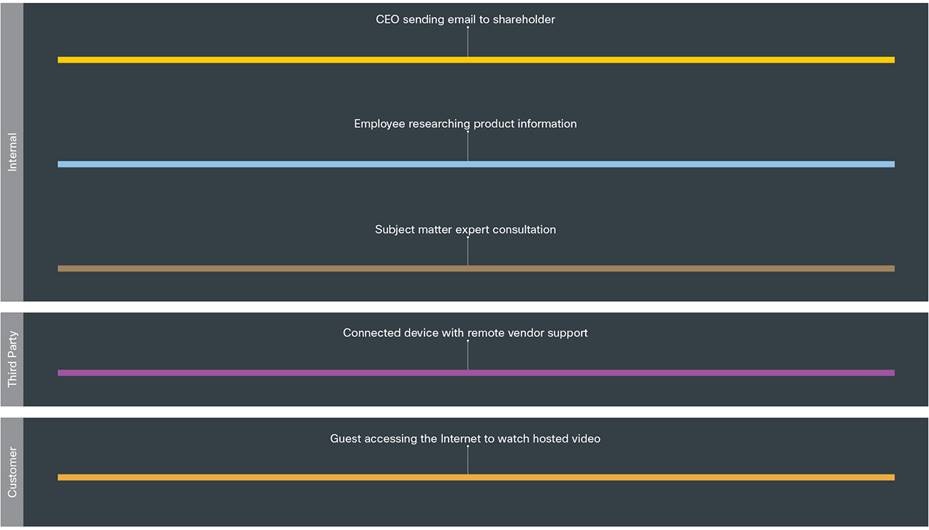

Figure 3.           Campus business use cases are color coded to define where they flow.



Functional Controls

Functional controls are common security considerations that are derived from the technical aspects of the business flows.

Functional Controls

Description

Secure Applications

Applications require sufficient security controls for protection.

Secure Access

Employees, third parties, customers, and devices securely accessing the network.

Secure Remote Access

Secure remote access for employees and third-party partners that are external to the company network.

Secure Communications

Email, voice, and video communications connect to potential threats outside of company control and must be secured.

Secure Web Access

Web access controls enforce usage policy and help prevent network infection.



Graphical user interface, timelineDescription automatically generated

Figure 4.           Campus business flows map to functional controls based on the types of risk they present.



Capability Groups

Campus security is simplified using foundational, access and business capability groups.

Each flow requires access and foundational groups. Additional business activity risks require appropriate controls as shown in figure 5 which often reside outside the branch (non-campus capabilities).

For more information regarding capability groups, refer to the SAFE overview guide.

Graphical user interfaceDescription automatically generated

Figure 5.           Campus security simplified into capability groups

Secure Campus threats and capabilities are defined in the following sections.

Threats

Campuses have many employees, partner and guest users who use email, browse the web, collaborate. With a combination of wired and wireless access, the attack surface extends beyond the building.

The campus has six primary threats:

Phishing

Phishing is social engineering to trick people into clicking on a malicious link or opening an infected attachment of an email.

Messages looks as if they are from a legitimate organization, usually a financial institution, but contains a link to a fake website that replicates the real one

Unauthorized network access

The act of gaining access to a network, system, application or other resource without permission. The attacker could cause damage in many ways, perhaps by accessing sensitive files from a host, by planting a virus, or by hindering network performance by flooding your network with illegitimate packets.

Malware propagation

Devices present in the campus are a big source of contamination. Devices of employees, partners or customers can be infected from multiple sources such as web use, email use, or lateral infection from other devices on the network. Devices accepting credit cards and the Internet of Things are common attack points.

Web-based exploits

Malvertizing and compromised sites hosting exploit kits to take over employee devices using browser vulnerabilities.

BYOD - Larger attack surface

Mobile devices can roam networks increasing chances of compromise, and the spread of infection. The large variety of mobile devices makes security policies and posture checking almost impossible when no device standardization exists. Limited on-device security capabilities (e.g., firewall, anti-malware, browser sand-boxing).

Botnet infestation

Botnets are networks made up of remote-controlled computers, or “bots.” These computers have been infected with an advanced form of malware which allows the devices to be remotely controlled. The controller of a botnet is able to direct the activities of these compromised computers to perform other attacks, steal data, or send spam.

Background patternDescription automatically generated with low confidence

Security Capabilities

The attack surface of the campus is defined by the business flow, which includes the people and the technology present. The security capabilities that are needed to respond to the threats are mapped in Figure 6. The campus security capabilities are listed in table 1. The placement of these capabilities are discussed in the architecture section.

Graphical user interface, applicationDescription automatically generated

Figure 6.           Secure Campus Attack Surface and Security Capabilities



The branch primary threats are mitigated by security capabilities placed within architectural locations that are described in the following attack surface tables. The attack surfaces include Human, Devices, Network, Applications and Management.

Human Attack Surface

IconDescription automatically generated

Users: Employees, third parties, customers, and administrators.

Security Capability

Threat

Logo, iconDescription automatically generated

Identity:

Identity-based access.

IconDescription automatically generated

Attackers accessing restricted information resources.



Devices Attack Surface - Clients

IconDescription automatically generated

Devices such as PCs, laptops, smartphones, tablets.

Security Capability

Threat

IconDescription automatically generated

Client-based Security:

Security software for devices with the following capabilities:





IconDescription automatically generated

Anti-Malware

IconDescription automatically generated

Malware compromising systems.

IconDescription automatically generated

Anti-Virus

IconDescription automatically generated

Viruses compromising systems.

IconDescription automatically generated

Cloud Security

IconDescription automatically generated

Redirection of user to malicious website.

IconDescription automatically generated

Personal Firewall

IconDescription automatically generated

Unauthorized access and malformed packets connecting to client.

IconDescription automatically generated

Posture Assessment:

Client endpoint compliance verification and authorization.

IconDescription automatically generated

Compromised devices connecting to infrastructure.

Network Attack Surface - Wired Network

IconDescription automatically generated

Physical network infrastructure; routers, switches, used to connect access, distribution, core, and services layers together.

Security Capability

Threat

IconDescription automatically generated

Firewall:

Stateful filtering and protocol inspection between campus layers and the outside Internet, and service provider connections to the data center.

IconDescription automatically generated

Unauthorized access and malformed packets between and within the campus.

IconDescription automatically generated

Intrusion Prevention:

Blocking of attacks by signatures and anomaly analysis.

IconDescription automatically generated

Attacks using worms, viruses, or other techniques.

Logo, iconDescription automatically generated

TrustSec:

Policy-based segmentation.

IconDescription automatically generated

Unauthorized access and malicious traffic between campus layers.

Network Attack Surface - Wireless Network

IconDescription automatically generated

Branches vary from having robust local wireless controller security services to a central, cost-efficient model.

Security Capability

Threat

IconDescription automatically generated

Wireless Rogue Detection:

Detection and containment of malicious wireless devices that are not controlled by the company.

IconDescription automatically generated

Unauthorized access and disruption of wireless network.

IconDescription automatically generated

Wireless Intrusion Prevention (WIPS):

Blocking of wireless attacks by signatures and anomaly analysis.

IconDescription automatically generated

Attacks on the infrastructure via wireless technology.

Network Attack Surface - Analysis

A picture containing textDescription automatically generated

Analysis of network traffic within the campus.

Security Capability

Threat

IconDescription automatically generated

Anti-Malware:

Identify, block, and analyze malicious files and transmissions.

IconDescription automatically generated

Malware distribution across networks or between servers and devices.

IconDescription automatically generated

Threat Intelligence: Contextual knowledge of existing and emerging hazards.

IconDescription automatically generated

Zero-day malware and attacks.

IconDescription automatically generated

Flow Analytics:

Network traffic metadata identifying security incidents.

IconDescription automatically generated

Traffic, telemetry, and data exfiltration from successful attacks.



Network Attack Surface - WAN

IconDescription automatically generated

Public and untrusted Wide Area Networks that connect to the company, such as the Internet.

Security Capability

Threat

IconDescription automatically generated

Web Security:

Web, DNS, and IP-layer security and control for the campus.

IconDescription automatically generated

Attacks from malware, viruses, and redirection to malicious URLs.

IconDescription automatically generated

Virtual Private Network(VPN):

Encrypted communication tunnels.

IconDescription automatically generated

Exposed services and data theft of remote workers and third parties.



Network Attack Surface - Cloud

IconDescription automatically generated

Security Capability

Threat

IconDescription automatically generated

Cloud Security:

Web, DNS, and IP-layer security and control in the cloud for the campus.

IconDescription automatically generated

Attacks from malware, viruses, and redirection to malicious URLs

Logo, iconDescription automatically generated

DNS Security

IconDescription automatically generated

Redirection of user to malicious website.

IconDescription automatically generated

Cloud-based Firewall

IconDescription automatically generated

Unauthorized access and malformed packets connecting to services.

IconDescription automatically generated

Software-Defined Perimeter

(SDP/SD-WAN)

IconDescription automatically generated

Easily collecting information and identities.

IconDescription automatically generated

Web Security

Internet access integrity and protections.

IconDescription automatically generated

Infiltration and exfiltration via HTTP.

IconDescription automatically generated

Web Reputation/Filtering:

Tracking against URL-based threats.

IconDescription automatically generated

Attacks directing to a malicious URL.

IconDescription automatically generated

Cloud Access Security Broker (CASB)

Related image, diagram or screenshot

Unauthorized access and data loss.



Applications Attack Surface

IconDescription automatically generated

Security Capability

Threat

IconDescription automatically generated

Server-based Security:

Security software for servers with the following capabilities:





IconDescription automatically generated

Anti-Malware:

Identify, block, and analyze malicious files and transmissions.

IconDescription automatically generated

Malware distribution across servers.

IconDescription automatically generated

Anti-Virus

IconDescription automatically generated

Viruses compromising systems.

IconDescription automatically generated

Cloud Security

Related image, diagram or screenshot

Redirection of session to malicious website.

IconDescription automatically generated

Host-based Firewall

IconDescription automatically generated

Unauthorized access and malformed packets connecting to server.



Management

Security Capability

These security capabilities are required across all PINs:

Identity/authorization

Policy/configuration

Analysis/correlation

Monitoring

Vulnerability management

Logging/reporting

Time synchronization/NTP

Architecture

SAFE underscores the challenges of securing the business. It enhances traditional network diagrams to include a security-centric view of the company’s business. The Secure Campus architectures are logical groupings of security and network capabilities that support campus business use cases. It follows a classic access/distribution/core architecture, scaling as needed by increasing distribution blocks  as floors or buildings are added.

SAFE business flow security architecture depicts a security focus. Traditional design diagrams that depict cabling, redundancy, interface addressing, and specificity are depicted in SAFE design diagrams. Note that a SAFE logical architecture can have many different physical designs.

Related image, diagram or screenshot

Figure 7.           SAFE Model. The SAFE Model simplifies complexity across a business by using Places in the Network (PINs) that it must secure.

Secure Campus

The Secure Campus architecture has the following characteristics:

      Location size consists of multiple buildings/floors that may have multiple business flows

      Many varied devices requiring network connectivity

      Devices (sensors, thermostats, printers, etc.)

      Separate appliances for services for redundancy and maximum uptime

      Wireless connectivity

      Local application services (also in data center or cloud)

Graphical user interfaceDescription automatically generated

Figure 8.           Secure Campus. The Secure Campus business flows and security capabilities are arranged into a logical architecture. The colored business use cases flow through the green architecture icons with the required blue security capabilities.

Attack Surface

The Secure Campus attack surface consists of Humans, Devices, Network, and Applications. The sections below discuss the security capability that defends the threats associated with that part of the surface. Note that the capability might be a service that is supplied from another PIN. For example, the Identity service is prompted to a human, on a user’s device, enforced at the switch, andserved from the Data Center. However, for the sake of simplifying, Identity is depicted logically where the risk exists of supplying credentials: the human.

Human

Typically, humans in the campus are employees, partners, or customers. No amount of technology can prevent successful attacks if the humans in the company, both internal and partner users, are not trained to keep security in mind. One of the biggest problems is that humans are prone to compromise by various types of social exploits such as phishing.

Security training and metrics of adoption are critical elements to reducing the risk of this attack surface.

Administrators have more authority than normal users and the systems they have access to. Additional controls should be used like two-factor authentication, limited access to job function, and logging of their changes.

It is not the purpose of this guide to advise on the specifics. Appropriate identity services defined by policy must be supplied with associated, approved clients and devices.

Graphical user interface, text, application, chat or text messageDescription automatically generated

Figure 9.           Business Use Cases

Devices

Malware propagation, Botnet infestation and a large attack surface are campus threats targeting devices. Perimeter defenses are no longer (if ever) sufficient.

Devices are part of the security reference architecture. A secure company uses the network and the devices connecting to it as baselines for comparison. If you are not using the network as a sensor, you are not secure. This visibility allows for effective containment through intelligent architectural design. It is equally important to ensure that clients (PCs, tablets, phones, and other devices) are participating in security and that malicious devices are quarantined.

Related image, diagram or screenshot

Figure 10.        Campus Devices

Access Layer

Unauthorized network access is the primary threat addressable by the access layer.

The access/distribution/core is classic network hierarchy. The access layer is where users and devices connect to the company network. This layer connects to the distribution or core layer. Its hierarchical organization simplifies network troubleshooting and segments traffic for security. It is the first line of defense within the Secure Campus architecture. The network as a sensor utilizes flow analytics to capture anomalies and provide visibility to attacks.

Its purpose is to identify the users, to assess compliance to policy of devices seeking access to the network, and to respond appropriately. Violations of posture, identity, or anomalous behavior can be enforced.



Graphical user interfaceDescription automatically generated

Figure 11.        Access Layer

Distribution Layer

Distribution layers segregate the access layer from the services layer. These layers provide a distribution method of services that discretely separates business-based traffic into flows, and allows scale as employees are moved, added, or changed.

Graphical user interfaceDescription automatically generated

Figure 12.        Distribution Layer

Core Layer

The core layer provides scale to the distribution blocks and connects them to the foundational security capabilities in the services layer.

A picture containing text, electronicsDescription automatically generated

Figure 13.        Core Layer

Services Layer

Web-based exploits are threat vectors that large campus populations need protection from.

The services layer connects the Secure Campus to the data center via service providers. It connects the access and distribution layers inside the campus to the security and inspection capabilities that secure the separate business flows coming into and out of the campus. Depending on the size of the campus, some security controls are brought into the campus as appliances rather than being served centrally as a service. See the Appendix for proposed options.

Graphical user interfaceDescription automatically generated

Figure 14.        Services Layer

Summary

Today’s companies are threatened by increasingly sophisticated attacks. Campuses are commonly targeted because they are susceptible to physical access and have a large mix of services across increasingly complicated devices.

Cisco’s Secure Campus architecture and solutions defend the business against corresponding threats.

SAFE is Cisco’s security reference architecture that simplifies the security challenges of today and prepares for  the threats of tomorrow.

Appendix

Appendix A - A Proposed Design

The Secure Campus has been deployed in Cisco’s laboratories. Portions of the design have been validated and documentation is available on Cisco Design Zone.

Figure 15 depicts the specific products that were selected within Cisco’s laboratories. It is important to note that the Secure Campus architecture can produce many designs based on performance, redundancy, scale, and other factors. The architecture provides the required logical orientation of security capabilities that must be considered when selecting products to ensure that the documented business flows, threats, and requirements are met.

A screenshot of a computerDescription automatically generated with medium confidence

Figure 15.        Secure Campus Proposed Design, part 1. The building block is connected to the core block.



Related image, diagram or screenshot

Figure 16.        Secure Campus Proposed Design, part 2 shows how multiple floors can be connected to the distribution layer.



Graphical user interfaceDescription automatically generated

Figure 17.        Secure Campus Proposed Design, part 3 illustrates multiple buildings connected to the core block.

Appendix B - Suggested Components

Branch Attack Surface

Branch Security

Suggested Cisco Components

Human

Users

Logo, iconDescription automatically generated

Identity

Identity Services Engine (ISE)

Cisco Secure Access by Duo

Meraki Management

Devices

Endpoints

IconDescription automatically generated

Client-based Security

Cisco Secure Endpoint

Cisco Umbrella

Cisco AnyConnect Secure Mobility Client

IconDescription automatically generated

Posture Assessment

Cisco AnyConnect Secure Mobility Client

Identity Services Engine (ISE)

Meraki Mobile Device Management

Network

Wired Network

IconDescription automatically generated

Firewall

Cisco Secure Firewall

Integrated Services Router (ISR)

Meraki MX

IconDescription automatically generated

Intrusion Prevention

Cisco Secure Firewall

Cisco Secure Firewall on UCS-E

Meraki MX

Logo, iconDescription automatically generated

Access Control+ TrustSec

Wireless Controller/Catalyst Switch

Identity Services Engine (ISE)

Meraki MX

Analysis

IconDescription automatically generated

Anti-Malware

Cisco Secure Endpoint

Advanced Malware Protection (AMP) for Networks

Advanced Malware Protection (AMP) for Web Security

Integrated Services Router (ISR) with SecureX Network Analytics

SecureX Malware Analytics

IconDescription automatically generated

Threat Intelligence

Talos Security Intelligence

SecureX Malware Analytics

Cognitive Threat Analytics (CTA)

IconDescription automatically generated

Flow Analytics

Cisco Secure Firewall

Catalyst Switches

ISR with SecureX Network Analytics

SecureX Network Analytics (Flow Sensor and Collectors)

Wireless LAN Controller

Meraki MX

WAN

IconDescription automatically generated

Web Security

Cisco Secure Firewall

Cisco Secure Web

Umbrella Secure Internet Gateway (SIG)

Meraki MX

IconDescription automatically generated

VPN

Cisco Secure Firewall

Integrated Services Router (ISR) Aggregation Services Router

(ASR)

Meraki MX

Cloud

IconDescription automatically generated

Cloud Security

Umbrella Secure Internet Gateway (SIG)

Cloudlock

Meraki MX

Applications

Service

IconDescription automatically generated

Server-based Security

Cisco Secure Workload

Cisco Umbrella

Appendix C - Feedback

If you have feedback on this design guide or any of the Cisco Security design guides, please send an email to ask-security-cvd@cisco.com.

For more information on SAFE, see www.cisco.com/go/SAFE.







Learn more
