Artificial Intelligence and Machine Learning (AI/ML) applications are being used increasingly in today’s data centers, and the Cisco Nexus® 9000 Series Switches have the hardware and software capabilities to provide the right latency, congestion-management mechanisms, and telemetry to meet the requirements of those applications. The Cisco Nexus 9000 Series Switches address the need for high-performance, power-efficient, compact switching in the networking infrastructure and are designed to support 100G fabrics for next-generation leaf and spine designs.
Large-cloud and data-center networking teams require a flexible, reliable solution that efficiently manages, troubleshoots, and analyzes their IT infrastructure. In addition, they need security, automation, visibility, analytics, and assurance. Coupled with tools such as Nexus Dashboard, Cisco Nexus 9000 Series Switches are ideal platforms for building a high-performance AI/ML network fabric.
Based on the Cisco Silicon One E100 ASIC, the Cisco Nexus 9336C-SE1 is a new 36-port 100G switch. The platform supports cost-effective large-scale deployments, an increased number of endpoints, and is capable of wire-rate encryption. The platform is built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
Designed for the programmable network, the Cisco NX-OS operating system automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets. Cisco Nexus 9336C-SE1 supports Cisco NX-OS and will support VxLAN, L2/L3 (base features) and IPFM use-cases in the first release (10.6.1).
Cisco Nexus 9300 SE1 Switches Capabilities
Note: This datasheet describes hardware capabilities only. Please refer to Cisco Nexus 9336C-SE1 Readme document, NX-OS software release notes and appropriate feature documentation for more details on software support.
Table 1. Cisco Nexus 9300 SE1 Switches Capabilities.
Features and benefits |
Description |
Architectural flexibility |
● Cisco Nexus 9000 Series Switches support Cisco NX-OS VXLAN EVPN, Cisco IP Fabric for Media, Cisco Nexus Dashboard, and IP routed or Ethernet switched Layer-2 fabrics using a comprehensive set of unicast and multicast IPv6/IPv4 and Ethernet protocols.
● Purpose-built Cisco NX-OS Software operating system with comprehensive, proven innovations. The operating system is modular, with a dedicated process for each routing protocol: a design that isolates faults while increasing availability.
● Support for standards-based VXLAN EVPN fabrics, inclusive of hierarchical multisite support (Refer to VXLAN network with MP-BGP EVPN control plane for more information.)
● Three-tier BGP architectures, enabling horizontal, nonblocking IPv6 network fabrics at web scale
● Comprehensive protocol support for Layer-3 (v4 and v6) unicast and multicast routing protocol suites, including BGP, Open Shortest Path First (OSPF), Interior System to Interior System (IS-IS), Enhanced Interior Gateway Routing Protocol (EIGRP), Routing Information Protocol Version 2 (RIPv2), Protocol Independent Multicast Sparse Mode (PIM-SM), Source-Specific Multicast (SSM), and Multicast Source Discovery Protocol (MSDP)
● Segment Routing (SR) allows the network to forward MultiProtocol Label Switching (MPLS) packets and engineer traffic without Resource Reservation Protocol (RSVP) Traffic Engineering (TE). It provides a control-plane alternative for increased network scalability and virtualization.
● Cisco IP Fabric for Media helps you migrate from an SDI router to an IP-based infrastructure. In an IP-based infrastructure, a single cable has the capacity to carry multiple bidirectional traffic flows and can support different flow sizes without requiring changes to the physical infrastructure.
● Cisco Nexus Dashboard provides customers complete observability into their network and solution(s) that can help them to identify and mitigate security threats, realize and remediate performance bottlenecks, adhere to data compliance, and have insight into capacity-planning operations.
|
Extensive programmability |
● Day-0 automation through Power On Auto Provisioning (POAP), drastically reducing provision time
● Industry-leading integrations for leading DevOps configuration management applications, such as Ansible. Extensive Native YANG, and industry-standard OpenConfig model support through RESTCONF/NETCONF/gNMI
● REST API interacting with Data Management Engine (DME)
● Model-driven telemetry enhances network observability
● Third-party application-hosting using Cisco Application Framework (CAF)
|
High scalability, flexibility, and security |
● IEEE 802.1ae MAC security (MACsec) capability on all ports, which allows traffic encryption at the physical layer and provides secure server, border leaf, and leaf-to-spine connectivity
|
AI/ML networking |
● Cisco Nexus 9000 Series Switches support innovative congestion management and flow control algorithms along with the latency and telemetry needed to meet the design requirements of AI/ML fabrics. Refer to Cisco NX-OS release notes to check features supported.
|
Hardware and software high availability |
● Virtual Port-Channel (vPC) technology provides Layer-2 multipathing through the elimination of Spanning Tree Protocol (STP).
● Can-do fabric link in the VXLAN environment, eliminating the need for peer-to-peer VPC
● The Equal-Cost Multipath (ECMP) routing enables the use of Layer-3 fat-tree designs. This feature helps organizations prevent network bottlenecks, increase resiliency, and add capacity with little network disruption.
● Software Maintenance Upgrades (SMUs) contain fixes for a specific defect and provide a quick resolution of critical issues.
● The switches use hot-swappable Power-Supply Units (PSUs) and fans with N+1 redundancy.
|
Cisco Nexus Dashboard |
● Cisco Nexus Dashboard is a platform that transforms data-center networks through simplicity, automation, and analytics. Cisco Nexus Dashboard is a central management console for multiple data center sites and a common platform for hosting Cisco data center operation services. These services are available for all the data center fabrics and provide real-time analytics, visibility, assurance for network policies and operations, as well as policy orchestration for the data center fabrics, such as NX-OS deployments spanning LAN Fabric, SAN, and IP Fabric for Media (IPFM) networks. Cisco Nexus Dashboard 4.1 integrates multiple services like Insights, Orchestrator, and Fabric Controller into a single, seamless platform for data center operations.
|
Table 2. Cisco Nexus 9300-SE1 Series Switches
Model |
Description |
Cisco Nexus 9336C-SE1 Switch |
36 x 40/100-Gbps QSFP28 ports |

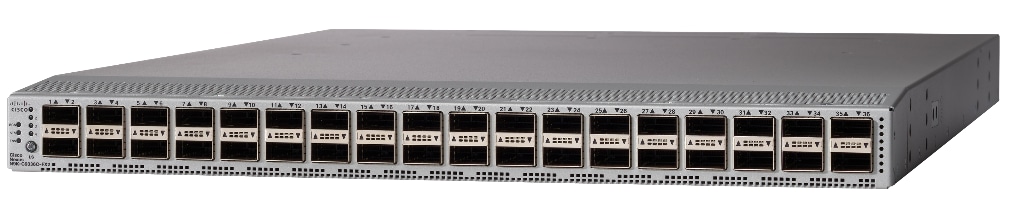

The Cisco Nexus 9336C-SE1 Switch (Figure 1) is a 1RU switch that supports 3.6 Tbps of bandwidth and over 2.1 bpps. The switch can be configured to work as 1/10/25/40/50/100-Gbps offering flexible options in a compact form factor. Breakout is supported on all ports. Please see feature table below for more information.

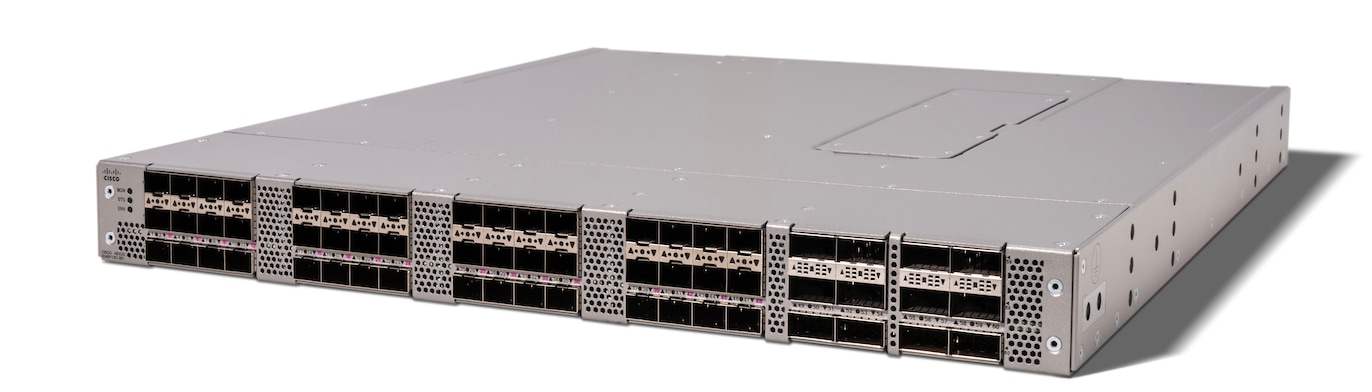

Cisco Nexus 9336C-SE1 Switch
Table 3. Cisco Nexus 9300-SE1 Series Switch specifications
Feature |
Cisco Nexus 9336C-SE1 |
Ports |
36 x 40/100-Gbps QSFP28 ports |
CPU |
6 cores |
System memory |
Default: 32GB Expandable: 32GB |
SSD drive |
128 GB |
System buffer |
64 MB |
Management ports |
2 ports: 1 RJ-45 and 1 SFP |
USB ports |
1 |
RS-232 serial ports |
1 |
Power supplies |
750W/1100W AC port-side intake and port-side exhaust 1100W DC port-side intake and port-side exhaust 1100W HVAC/HVDC port-side intake and port-side exhaust |
Typical power (AC/DC) |
320W |
Maximum power (AC/DC) |
450W |
Input voltage (AC) |
100-240V |
Input voltage |
100-277V |
Input voltage (DC) |
48V to 60V |
Input voltage |
240-360 V |
Frequency (AC) |
50 to 60 Hz |
Fans |
6 |
Airflow |
Port-side intake and exhaust |
Physical dimensions (H x W x D) |
1.72”x17.3”x22.47” |
Acoustics |
Port Side Intake:
● 71.6 dBA at 50% fan speed,
● 79.8 dBA at 70% fan speed,
● 87.6 dBA at 100% fan speed
Port Side Exhaust:
● 71.2 dBA at 50% fan speed,
● 77.8 dBA at 70% fan speed,
● 86.1 dBA at 100% fan speed
|
RoHS compliance |
Yes |
MTBF |
282,250 Hours |
Minimum NX-OS image |
10.6.1 |
Table 4 presents the power supply part numbers compatible with Cisco Nexus 9300-SE1 Series Switches.
Table 4. Power Supply Compatibility
Cisco Nexus 9300-SE1 Series Switches |
Power Supply Part Number |
N9336C-SE1 |
NXA-PAC-750W-PE NXA-PAC-750W-PI NXA-PAC-1100W-PE NXA-PAC-1100W-PI NXA-PDC-1100W-PE NXA-PDC-1100W-PI NXA-PHV-1100W-PE NXA-PHV-1100W-PE |
Table 5 presents the fan part numbers compatible with Cisco Nexus 9300-SE1 Series Switches.
Table 5. Fan Compatibility
Cisco Nexus 9300-SE1 Series Switches |
Fan Part Number |
N9336C-SE1 |
NXA-SFAN-35CFM-PI NXA-SFAN-35CFM-PE |
Table 6 lists the performance and scalability specifications for the Cisco Nexus 9300-SE1 Series Switch. (Check the software release notes for feature support information.)
Table 6. Hardware performance and scalability specifications1
Cisco Nexus 9300-SE1 Series Switches |
|
Maximum number of IPv4 Longest Prefix Match (LPM) routes |
2M |
Maximum number of IPv4 host entries |
1.25M |
Maximum number of IPv6 Longest Prefix Match (LPM) routes |
1M |
Maximum number of IPv6 host entries |
640K |
Maximum number of MAC address entries |
1.25M |
Maximum number of multicast routes |
128K |
Number of Internet Group Management Protocol (IGMP) snooping groups |
128K |
Maximum number of Access Control List (ACL) entries ingress/egress |
136K/136K |
Maximum number of VLANs |
40962 |
Number of Virtual Routing and Forwarding (VRF) instances |
2044 |
Maximum number of ECMP paths |
128-way |
Maximum number of port channels |
5000 |
Maximum number of links in a port channel |
4000 |
Number of active SPAN sessions |
24 |
Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances |
4000 |
Maximum number of Hot-Standby Router Protocol (HSRP) groups |
1000 |
Number of Network Address Translation (NAT) entries |
8000 |
Maximum number of Multiple Spanning Tree (MST) instances |
64 |
Number of queues |
8 |
Table 7 lists the environmental properties, and Table 8 lists the weights of the Cisco Nexus 9300-SE1 Series Switch.
Table 7. Environmental properties
Property |
Description |
Operating temperature |
32 to 104°F (0 to 40°C) |
Nonoperating (storage) temperature |
–40 to 158°F (–40 to 70°C) |
Humidity |
5 to 95% (noncondensing) |
Altitude |
0 to 13,123 ft (0 to 4000m) |
Component |
Weight |
Cisco Nexus 9336C-SE1 without power supplies or fans |
17.4 lb (7.9kg) |
750W AC power supply |
2.1lb (0.95kg) |
1100W AC power supply |
2.3 lb (1kg) |
1100W DC power supply |
2.3 lb (1kg) |
1100W HVDC/HVAC power supply |
2.3 lb (1kg) |
Fan tray: NXA-SFAN-35CFM-PE or NXA-SFAN-35CFM-PI |
0.27 lb (0.12kg) |
Table 9 summarizes regulatory standards compliance for the Cisco Nexus 9300-SE1 Series Switches.
Table 9. Regulatory standards compliance: safety and EMC
Specification |
Description |
Regulatory compliance |
Complies with CE markings according to directives 2004/108/EC and 2006/95/EC. |
Safety |
NEBS
● UL 60950-1 Second Edition
● CAN/CSA-C22.2 No. 60950-1 Second Edition
● EN 60950-1 Second Edition
● IEC 60950-1 Second Edition
● AS/NZS 60950-1
● GB4943
|
EMC: emissions |
● 47CFR Part 15 (CFR 47) Class A
● AS/NZS CISPR22 Class A
● CISPR22 Class A
● EN55022 Class A
● ICES003 Class A
● VCCI Class A
● EN61000-3-2
● EN61000-3-3
● KN22 Class A
● CNS13438 Class A
|
EMC: immunity |
● EN55024
● CISPR24
● EN300386
● KN 61000-4 series
|
RoHS |
The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors. |
Software licensing and optics supported
The software packaging for the Cisco Nexus 9000 Series offers flexibility and a comprehensive feature set. The default system software has a comprehensive Layer-2 security and management feature set. To enable additional functions, including Layer-3 IP unicast and IP multicast routing and Cisco Nexus Data Broker, you must install additional licenses. To meet customer requirements, licensing is available as both subscription and perpetual. The licensing guide illustrates the software packaging and licensing available to enable advanced features.
For the latest software release information and recommendations, refer to the product bulletin at https://www.cisco.com/go/nexus9000.
For details about the optics modules available and the minimum software release required for each supported module, visit https://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html.
Table 10 presents ordering information for the Cisco Nexus 9300-SE1 Series Switches.
Table 10. Ordering information
Part number |
Product description |
Base part numbers |
|
N9336C-SE1 |
Nexus 9300 with 36p 40G/100G QSFP28 ports |
Power supplies |
|
NXA-PAC-750W-PE |
Cisco Nexus 9000 750W AC power supply port-side exhaust |
NXA-PAC-750W-PI |
Cisco Nexus 9000 750W AC power supply, port-side intake |
NXA-PAC-1100W-PE |
Cisco Nexus 9000 1100W AC power supply , port-side exhaust |
NXA-PAC-1100W-PI |
Cisco Nexus 9000 1100W AC power supply, port-side intake |
NXA-PDC-1100W-PE |
Cisco Nexus 9000 1100W DC power supply, port-side exhaust |
NXA-PDC-1100W-PI |
Cisco Nexus 9000 1100W DC power supply, port-side intake |
NXA-PHV-1100W-PE |
Cisco Nexus 9300 1100W power supply, supports HVAC/HVDC, port side exhaust |
NXA-PHV-1100W-PI |
Cisco Nexus 9300 1100W power supply, supports HVAC/HVDC, port side intake |
Fans |
|
NXA-SFAN-35CFM-PE |
Cisco Nexus fan, 35CFM, port-side exhaust airflow |
NXA-SFAN-35CFM-PI |
Cisco Nexus fan, 35CFM, port-side intake airflow |
Accessories |
|
NXK-ACC-KIT-1RU |
Cisco Nexus fixed accessory kit for 4-post rack |
NXK-ACC-KIT-2P |
Cisco Nexus fixed accessory kit for 2-post rack |
Warranty, service, and support
The Cisco Nexus 9300-SE1 Series has a 1-year limited hardware warranty. The warranty includes hardware replacement with a 10-day turnaround from receipt of a Return Materials Authorization (RMA).
Cisco offers a range of professional, solution, and product support services for each stage of your Cisco Nexus 9300-SE1 Series deployment:
● Cisco Data Center Quick Start Service for Cisco Nexus 9000 Series Switches: this offering provides consulting services that include technical advice and assistance to help deploy Cisco Nexus 9000 Series Switch.
● Cisco Data Center Accelerated Deployment Service for Cisco Nexus 9000 Series Switches: this service delivers planning, design, and implementation expertise to bring your project into production. The service also provides recommended next steps, an architectural high-level design, and operation-readiness guidelines to scale the implementation to your environment.
● Cisco Migration Service for Cisco Nexus 9000 Series Switches: this service helps you migrate from Cisco Catalyst® 6000 Series Switches to Cisco Nexus 9000 Series Switches.
● Cisco Product Support: this support service is available globally 24 hours a day, 7 days a week, for Cisco software and hardware products and technologies associated with Cisco Nexus 9000 Series Switches. Enhanced support options delivered by Cisco also include solution support for Cisco ACI, Cisco SMARTnet™ service, and Cisco Smart Net Total Care®* service.
● For more information, visit https://www.cisco.com/go/services.
Cisco environmental sustainability
Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environment sustainability” section of Cisco’s Corporate Social Responsibility (CSR) Report.
Reference links to information about key environmental sustainability topics (mentioned in the “Environment sustainability” section of the CSR Report) are provided in the following table:
Sustainability topic |
Reference |
Information on product material content laws and regulations |
|
Information on electronic waste laws and regulations, including products, batteries, and packaging |
Reference links to product-specific environmental sustainability information that is mentioned in relevant sections of this data sheet are provided in the following table:
Sustainability topic |
Reference |
General |
|
Product compliance |
|
Power |
|
Power supply |
Table 3. Product specifications: power supplies, typical and maximum power specifications |
Material |
|
Unit weight |
|
Dimensions and mean time between failures metrics |
Cisco makes the packaging data available for informational purposes only. It may not reflect the most current legal developments, and Cisco does not represent, warrant, or guarantee that it is complete, accurate, or up to date. This information is subject to change without notice.
Flexible payment solutions to help you achieve your objectives
Cisco Capital® makes it easier to get the right technology to achieve your objectives, enable business transformation, and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.
For more information about the Cisco Nexus 9000 Series and latest software release information and
recommendations, visit https://www.cisco.com/go/nexus9000.
