Cisco Network Convergence System 1014 EDFA2 Line Card Data Sheet

Data Sheet

Available Languages

Download Options

  • PDF
    (352.0 KB)
    View with Adobe Reader on a variety of devices
Updated:May 26, 2025

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Available Languages

Download Options

  • PDF
    (352.0 KB)
    View with Adobe Reader on a variety of devices
Updated:May 26, 2025




With the ushering of the AI era, there is rapid capacity growth in the data center and between data centers. This has driven the need for cloud-scale networking solutions that allow for quick and simple turn-up with enhanced monitoring, deliver performance optimization for capacity scale through modulation and baud-rate innovations, and effectively support multiple vendors’ transponder solutions. The new Cisco® Network Convergence System 1014 (NCS 1014) Metro Open Line System (MOLS) delivers all this and more. It builds upon and takes forward what the Cisco NCS 1001 offered for the metro DCI space. The Cisco NCS 1014 MOLS is a Dense Wavelength-Division Multiplexing (DWDM) line system that is mechanically optimized for data center environments. It is also performance optimized for maximum capacity, provides complete automation of installation and real-time fine-grained monitoring. The latest NCS 1014 chassis allows operators to take full advantage of co-hosting industry leading transponders and pluggable optics with the line system.

Product features and benefits

The all new EDFA2 line card, the central focus of this Metro Open Line System (MOLS) offering, is hosted on the latest Cisco® Network Convergence System (NCS) 1014 platform.

The Cisco NCS 1014 is a compact modular shelf that allows operators to maximize capacity with minimum space and power footprint. At two Rack Units (2RU) and 600 mm rack support, along with four line card slots, one field-replaceable controller card, three redundant fans, and two redundant power supplies, the NCS 1014 is a compact, high-performance offering.

The NCS 1014 offers the following key benefits:

      Allows the co-hosting of next-generation transponders (with 100GE/400GE/800GE clients and high-performance or power-optimized Digital Coherent Optics [DCO] trunks) and open optical line system configuration like the MOLS.

      Supports redundant and field-replaceable units. Two AC and DC power supply units per shelf, and three fans for improved front-to-back air cooling.

      The controller card is accessible from the front and is field replaceable.

      Supports management plane resiliency through redundant and field-replaceable SSD disks with disaster recovery support and headless mode of operation that isolates the management plane and data plane.

      Supports redundancy of the Cisco IOS® XR software image and system configuration across SSDs on the controller card and the shelf.

      Introduces hardware support for precision timing distribution and backplane interconnect for dual-card modes, and remains backward compatible with currently shipping NCS 1004 transponder line cards.

      Supports hardware and software security protection and integrity checks to establish trust in hardware, verify trust in the OS, maintain trust at run-time, and measure trust.

      Supports a remote console, whereby the user can reach the remote node if the console port at the local node is connected.

      Uses Cisco IOS XR7 software, which requires less memory and boots faster. The IOS XR carrier-class software delivers several features such as machine-to-machine APIs based on YANG data models, streaming telemetry for real-time, granular device monitoring, and an infrastructure for third-party applications.

      Supports comprehensive security features across hardware and software, to meet the needs of operators and hyperscalers.

The EDFA2 line card brings the MOLS solution to the NCS 1014 platform. This fully variable gain EDFA amplifier line card contains both a pre-amplifier and a booster amplifier and also integrates a wavelength blocker, a pluggable Optical Time-Domain Reflectometer (OTDR) module, a pluggable Optical Service Channel (OSC) module, and a pluggable link probe. Together with a pair of compact new athermal Arrayed Wave Guide (AWG) multiplexer/demultiplexers, the card enables operators to build an entire open line system solution for network architectures with 400ZR, 400ZR+ (openZR+), and 800ZR DCOs, and more. It’s a truly open line system offering for metro Data Center Interconnect (DCI) applications, with no restriction on what transponder or optics can be carried over.

In a nutshell, the EDFA2 line card hosted on the Cisco NCS 1014 platform brings the MOLS solution to operators – a fully open, fully configurable, and feature-complete line system offering for metro DCI applications.

Related image, diagram or screenshot

Figure 1.

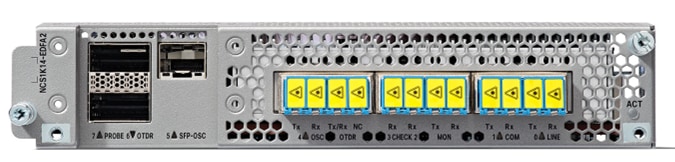

The EDFA2 line card

Integrated amplifier

The new EDFA2 line card on the NCS 1014 platform is optimized for point-to-point DCI applications of today and the future, supporting all baud rates on a fluid definition of spectrum. The module integrates bidirectional EDFA with a mid-stage wavelength blocker within the booster amplifier, allowing operators to perform link-level equalization and setup. Many DCI applications today employ remote or co-hosted interfaces. A normal point-to-point DCI line system solution that is appropriate for such applications usually doesn’t include a Wavelength Selective Switch (WSS) that is capable of equalizing channels of varying launch powers into the link. The distinguishing feature of the Cisco NCS 1014 MOLS EDFA2 line card is the presence of the integrated wavelength blocker that allows operators to perform dynamic equalization and a desired link setup. This allows operators to have a variety of interfaces that are remotely operated or co-hosted and of different baud rates or technologies, extracting maximum performance and value from the network.

The EDFA2 line card is a +23 dBm booster and pre-amplifier that operates on the full 4.8 THz of the C-band. It integrates Optical Channel Monitor (OCM) functionality within the wavelength blocker on the booster direction and hosts an array of pluggable ports for OTDR, OSC, and probe functions.

Pluggable OTDR function

An all new pluggable OTDR module is available alongside the EDFA2 line card of the NCS 1014. This new technology brings OTDR functions into a QSFP-DD Multisource Agreement (MSA)-compliant pluggable form factor. The pluggable module is optionally hosted on the EDFA2 line card faceplate and generates the OTDR signal pulse that is then inserted into the line by the EDFA2 line card. The point-to-point MOLS allows bidirectional OTDR scanning from both directions of the optical fiber. The onboard software is capable of automatically running the OTDR but also allows the operator to customize the function based on different zone profiles, with full alarm and monitoring capabilities integrated. The OTDR scan.SOR file is saved on the box, and span loss and alarm details are supported via telemetry, gRPC Network Operations Interface (gNOI), and OpenConfig.

Related image, diagram or screenshot

Figure 2.

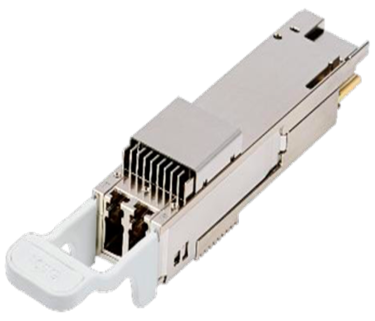

The pluggable QSFP-DD OTDR

Pluggable probe function

The Cisco NCS 1014 MOLS solution boasts another new industry-first feature – a link probe. The EDFA2 line card allows another QSFP-DD MSA-compliant pluggable to be hosted – this is a coherent 100GE QSFP-DD with a receiver performance far beyond the requirements of the point-to-point DCI application. The signal (much like a normal channel) is inserted into the line on day zero and allows operators to study the link performance and characterize it before the actual link turn-up. Such an evaluation gives the operator clear and much required visibility into the Signal-to-Noise Ratio (SNR) that could be achieved on a given link before it has gone live. Since it is the SNR that is being read (and not the Optical SNR [OSNR]), the operator has a clear picture of the link performance regardless of what interface, baud rate, or line rate will be used later. This simplifies the operational activity of link setup for the operator and is a welcome feature, given today’s varying requirements of an operator – either low or full capacity turn-up on day zero. The Cisco NCS 1014 MOLS thus allows operators to set up the link even before the interfaces are procured or installed, enabling link performance-related issues to be highlighted significantly before the link goes into production. It is important to note that the probe channel doesn’t impact or use one of the possible 64 C-band channels but is right beside them as a separate channel.

Pluggable OSC function

The NCS 1014 MOLS also has a pluggable OSC function. The EDFA2 line card hosts another SFP+ MSA-compliant port apart from the two QSFP-DD ports cited above. The operator can host OSC pluggable optics on this port. The point-to-point link discovery, communication, and software control loop algorithms to automatically control the power of the link in different conditions all run over this OSC channel.

Channel add/drop function

The EDFA2 line card on the Cisco NCS 1014 is a next-generation EDFA line card that hosts full link management abilities, OTDR, OSC, and the link probe. But a channel add/drop mechanism is required to make the solution an open line system. Cisco offers two new mux/demux modules to provide this function. The passive AWG modules can be hosted on a separate 1RU mechanical frame beside the Cisco NCS 1014 shelf hosting the EDFA2 line card, while inventory management is achieved over a USB link between the passive module and the NCS 1014 shelf. A 32-channel 150-GHz fixed A/D ports module offers channel add/drop in the odd wavelength list of the C-band spectrum, and another (similar) 32-channel 150-GHz fixed A/D ports module offers channel add/drop in the even wavelength list of the C-band spectrum. Operators can either build a 32-channel 150-GHz solution with one of these modules or interconnect (interleave) them together to build a 64-channel 75-GHz solution, as desired. Both modules have a dedicated port to connect the link-probe channel into. These modules are the standard add/drop modules offered by Cisco alongside the Cisco NCS 1014 MOLS and are custom-fit and suited for most metro DCI applications. But it is interesting to note that the Cisco NCS 1014 MOLS is a fully open and flex line system and thus can support any add/drop architecture with any channel definition and interface type.

Related image, diagram or screenshot

Figure 3.

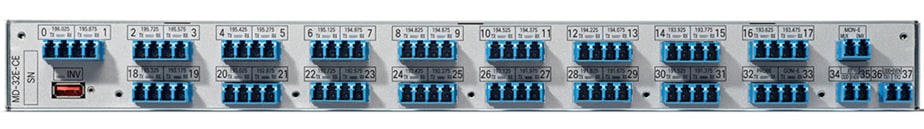

The passive mux/demux modules with the Cisco NCS 1014 MOLS solution

Management

The onboard Cisco IOS XR software on the Cisco NCS 1014 platform allows full Command-Line Interface (CLI)-based configuration and management of the MOLS solution. The Cisco NCS 1014 MOLS also supports OpenConfig and telemetry-based endpoints. From a site and network management software standpoint, the Cisco Optical Site Manager and the Cisco Optical Network Controller both support the NCS 1014 shelf and will be supporting the new EDFA2 line card shortly.

Feature summary

The following table summarizes the features of the NCS 1014 MOLS solution.

Table 1.        Feature summary

Feature

Description

Software compatibility

  Future Cisco IOS XR 25.2.1 for production
  Currently available Cisco IOS XR 25.1.1 for immediate lab testing

Port density

  2 QSFP-DD line side ports per card, 1 for OTDR and 1 for link probe
  1 SFP+ line side port per card for OSC
  6 dual-LC ports: 1 for OSC, 1 for OTDR, 2 for monitor, 1 COM, 1 LINE

Optical feature summary

  Flex-grid open line system
  Any line rate, baud rate, interface type supported
  32, 64, or any channel system
  Automatic link setup
  Automatic Power Control (APC) loop software
  Bidirectional and event-based OTDR scan

Network management

  iPXE and Zero-Touch Provisioning (ZTP)
  Cisco IOS XR CLI
  OpenConfig
  Streaming telemetry, including event-driven telemetry.
  NETCONF, RESTCONF, gNMI, gNOI, gRPC with YANG data models

Physical dimensions
(NCS 1014 EDFA2 line card)

  1.59 in. tall x 7.55 in. wide x 10.90 in. deep (4.04 x 19.18 x 27.69 cm)
  Weight: 3.2 kg (7.05 lb)

Power, temperature, humidity (NCS 1014 EDFA2 line card)

  Power: Typical: 130W; maximum: 160W (including optics hosted)
  Temperature: Long term: 0° to +40°C (32° to 104°F); short term: -5° to +55°C
(23° to 151°F); storage: -40° to +85°C (-40° to +185° F)
  Humidity: 5% to 95% (operational)

Mean time between failures (MTBF) for line card and 2x CIM 8 pluggables

  567,040 hours

Regulatory compliance

Table 2 lists regulatory compliance information for the NCS 1014 platform. Note that all compliance documentation may not be completed at the time of product release. Please check with your Cisco sales representative for countries that are not listed below.

Table 2.        Regulatory compliance

ANSI system

ETSI system

Countries and regions supported

  Canada
  United States
  Korea
  Japan
  European Union
  European Union
  Africa
  CSI
  Australia
  New Zealand
  China
  Korea
  India
  Saudi Arabia
  South America
  EMC (emissions)
  FCC 47CFR15, Class A
  AS/NZS CISPR 32, Class A
  CISPR 32, Class A
  CISPR 22, Class A
  EN55032, Class A
  ICES-003, Class A
  VCCI, Class A
  KN 32, Class A
  KN61000—3-2
  KN61000-3-3
  CNS-13438, Class A
  EMC (immunity)
  IEC/EN61000-4-2 Electrostatic Discharge Immunity
  IEC/EN61000-4-3 Radiated Immunity
  IEC/EN61000-4-4 EFT-B Immunity
  IEC/EN61000-4-5 Surge AC Port
  IEC/EN61000-4-6 Immunity to Conducted Disturbances
  IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations
  KN 35
  EMC (ETSI/EN)
  EN 300 386 Telecommunications Network Equipment (EMC)
  EN55032 Electromagnetic Compatibility of Multimedia Equipment-Emission Requirements
  EN55022 Information Technology Equipment (Emissions)
  EN55035 Electromagnetic Compatibility of Multimedia Equipment-Immunity Requirements
  EN55024 Information Technology Equipment (Immunity)
  EN61000-6-1/EN61000-6-2 Generic Immunity Standard
  EN61000-3-2 Power Line Harmonics
  EN61000-3-3 Voltage Changes, Fluctuations, and Flicker

Safety

  CSA C22.2 #60950-1 – Edition 7, March 2007
  BS/IEC/EN 62368-1
  CAN 22.2 No. 62368-1
  UL 62368-1
  IEC 60950-1 Information technology equipment Safety Part 1: General requirements - Edition 2, 2005 + Amendment 1 2009 + Amendment 2 2013
  EN 60950-1: Edition 2 (2006) Information technology equipment - Safety - Part 1: General requirements + A11:2009 + A1:2010 + A12:2011 + A2:2013
  CE Low Voltage Directive (LVD): 2014/35/EC
  A/NZS 62368.1

Laser

  21CFR1040 (2008/04) (Accession Letter and CDRH Report) Guidance for Industry and FDA Staff (Laser Notice No. 56), May 2019
  IEC 60825-1: 2014-05 Ed. 3.0 Safety of laser products Part 1: Equipment classification, requirements and users guide
  IEC60825-2 Ed.3.2 (2010) Safety of laser products Part 2: Safety of optical fiber communication systems

Optical

  ITU-T G.691
  ITU-T G.975

Quality

  TR-NWT-000332, Issue 4, Method 1 calculation for 20-year Mean Time Between Failures (MTBF)

Table 3 provides the optical specifications of the NCS 1014 EDFA2 line card, and Table 4 provides the same for the mux/demux modules.

Table 3.        Optical specifications of the NCS 1014 EDFA2 line card

Parameter

NCS 1014 EDFA2 line card

Pluggable OTDR

Pluggable OSC

Channel plan/grid

32, 64, any

Wavelength/frequency range

191.375 THz to 196.100 THz

1518 nm

1510 nm

Gain

Booster: 5 to 27 dB

Pre-amplifier: 0 to 36 dB (specified for tilt-controlled operation; up to 39 dB tilt uncontrolled)

Output power

Booster: Up to +23 dBm

Pre-amplifier: Up to +23 dBm

13 dBm (mean launch power)

5.5 dBm

Input power range

Booster: -23 to 16 dBm

Pre-amplifier: -44 to 2 dBm

Receiver sensitivity

120 Km+ (subject to design)

Span reach: 24.7 dB

Dynamic range: 27.7 dB

Rx for FE: -33 dB

Rx for GE: -30.5 dB

Table 4.        Optical specifications of the mux/demux alongside the NCS 1014 MOLS

Parameter

NCS 1014 mux/demux

Channel plan/grid

32 or 64

Wavelength/frequency range

191.375 THz to 196.100 THz

Within: 32 odd channels and/or 32 even channels

Insertion loss

Up to 6.5 dB

Table 5.        Ordering information

Part number

Description

NCS1K14-EDFA2=

NCS 1014 EDFA terminal with equalization

ONS-QSFP-OTDR=

ONS OTDR pluggable module

ONS-SC-PTP-1510=

Multirate GE, FE pluggable optics, 1510nm, C-temp

DP01QSDD-ZT5-A1=

100 GBPS COHERENT QSFP-DD, OpenZR+, C-band Tunable

NCS1K-MD-32O-CE=

NCS 1000 32chs Odd Mux/Demux-150GHz-C-band Enhanced

NCS1K-MD-32E-CE=

NCS 1000 32chs Even Mux/Demux-150GHz-C-band Enhanced

Warranty

The EDFA2 line card has the following warranty:

      Hardware warranty duration: 5 years

      Software warranty duration: 1 year

      Hardware replacement, repair, or refund procedure: Cisco or our service center will use commercially reasonable efforts to ship a replacement part for delivery within 15 working days after receipt of the defective product at Cisco’s site. Actual delivery times of replacement products may vary depending on customer location.

Your formal warranty statement appears in the Cisco Information Packet that accompanies your Cisco product.

Product warranty terms and other information applicable to Cisco products are available at: www.cisco.com/go/warranty.

Cisco environmental sustainability

Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environmental Sustainability” section of Cisco’s Corporate Social Responsibility (CSR) Report.

Reference links to information about key environmental sustainability topics (mentioned in the “Environmental Sustainability” section of the CSR Report) are provided in the following table.

Table 6.        Links to sustainability topics

Sustainability topic

Reference

Information on product material content laws and regulations

Materials

Information on electronic waste laws and regulations, including products, batteries, and packaging

WEEE compliance

Cisco makes the packaging data available for informational purposes only. It may not reflect the most current legal developments, and Cisco does not represent, warrant, or guarantee that it is complete, accurate, or up to date. This information is subject to change without notice.
