Cisco Silicon One E100 Processor Data Sheet



The silicon industry has always been plagued with the trichotomy of switching silicon, routing line card silicon, and routing fabric silicon. Using these three basic building blocks, silicon and system vendors created unique architectures tuned for individual markets and industries. Consequentially, forcing customers to consume and manage these disjointed and dissimilar products caused an explosion in complexity, CapEx, and OpEx for the industry.

The Cisco Silicon One^™ architecture ushers in a new era of networking, enabling one silicon architecture to address a broad market space, while simultaneously providing best-of-breed devices.

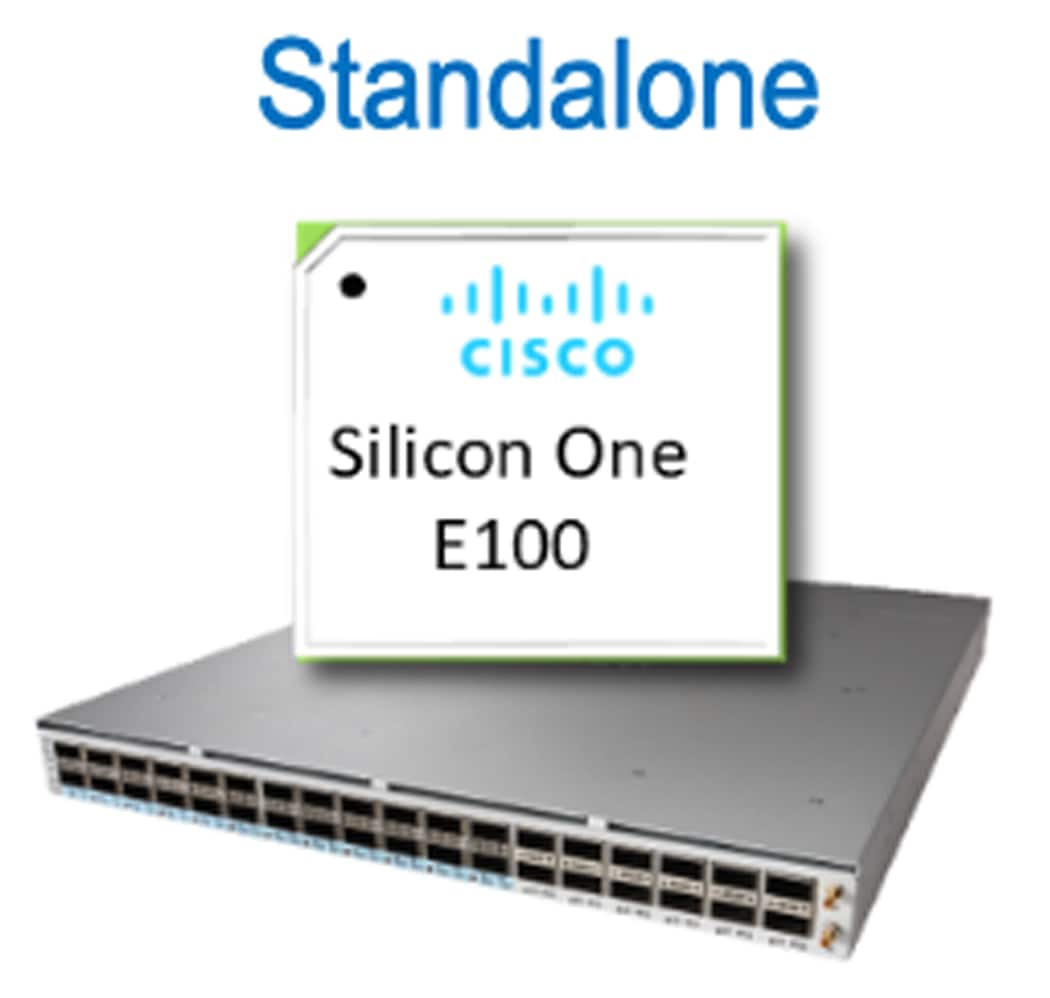

The Cisco Silicon One E100 is a 6.4-Τbps, high-performance, flexible, power-efficient routing/switching silicon for enterprise data centers enabling smooth speed and services upgrades to meet the changing needs of virtualized data centers and automated cloud environments.

The Cisco Silicon One E100 builds on the groundbreaking technology of the Cisco Silicon One devices before it, while increasing the lead over all other switching silicon in the market with focus on high capacity, port density, unmatched scale of services, best-in-class timing, programmability, telemetry and analytics, and security provisions with its support for MACsec and IPsec.

Enterprise data centers are unique and are distinguished by the variety of configuration and evolution paths. E100 has been conceived to enable this non-homogeneity and offers flexibility in the ways it can be used and deployed.



E100 finds its sweet spot in data center spine and leaf architectures and typical bandwidth configurations in the range of 3.2 to 6.4 Tbps. Such systems offer the lowest Total Cost of Ownership (TCO) for cost and power.

The E100 offers versatile deployment options with its large number and individually configured SerDes, allowing seamless transition for data centers from 1 and 10 Gbps speeds to higher speeds like 25 Gbps, 50 Gbps, and 100 Gbps at the server level, and from 10 Gbps and 40 Gbps to 50 Gbps, 100 Gbps, and 400 Gbps at the aggregation layer. Additionally, it boasts large on-chip buffering shared among numerous per port queues. Its efficient operation in fluctuating traffic conditions is enhanced by its ability to differentiate between small and large flows and its support for flowlet load balancing.

E100 stands out with its large Layer 2 and Layer 3 tables supporting highly flexible Layer 2 and Layer 3 configurations and tunneling protocols, its support for large number of flows and flow analytics and telemetry (large ACL and NetFlow tables), and its programmability that meets the performance needs of the ever-evolving virtualized data centers environments.

With its IEEE 802.1ae MAC security support on all ports and all port speeds, it allows traffic encryption at the physical layer. In addition, it supports IPsec for P2P and P2MP IP tunnels, plus encryption across L2VPN and L3VXLAN tunnels.

E100 offers protocol support for lossless transport of RDMA over Converged Ethernet with its support of DCB protocols: (1) Priority-based Flow Control – (PFC) to prevent drops in the network and pause frame propagation per priority class; (2) Enhanced Transmission Selection – (ETS) to reserve bandwidth per priority class in network contention situation, and (3) Explicit Congestion Notification – (ECN) that provides end-to-end notification per IP flow by marking packets that experienced congestion, without dropping traffic.

Product overview

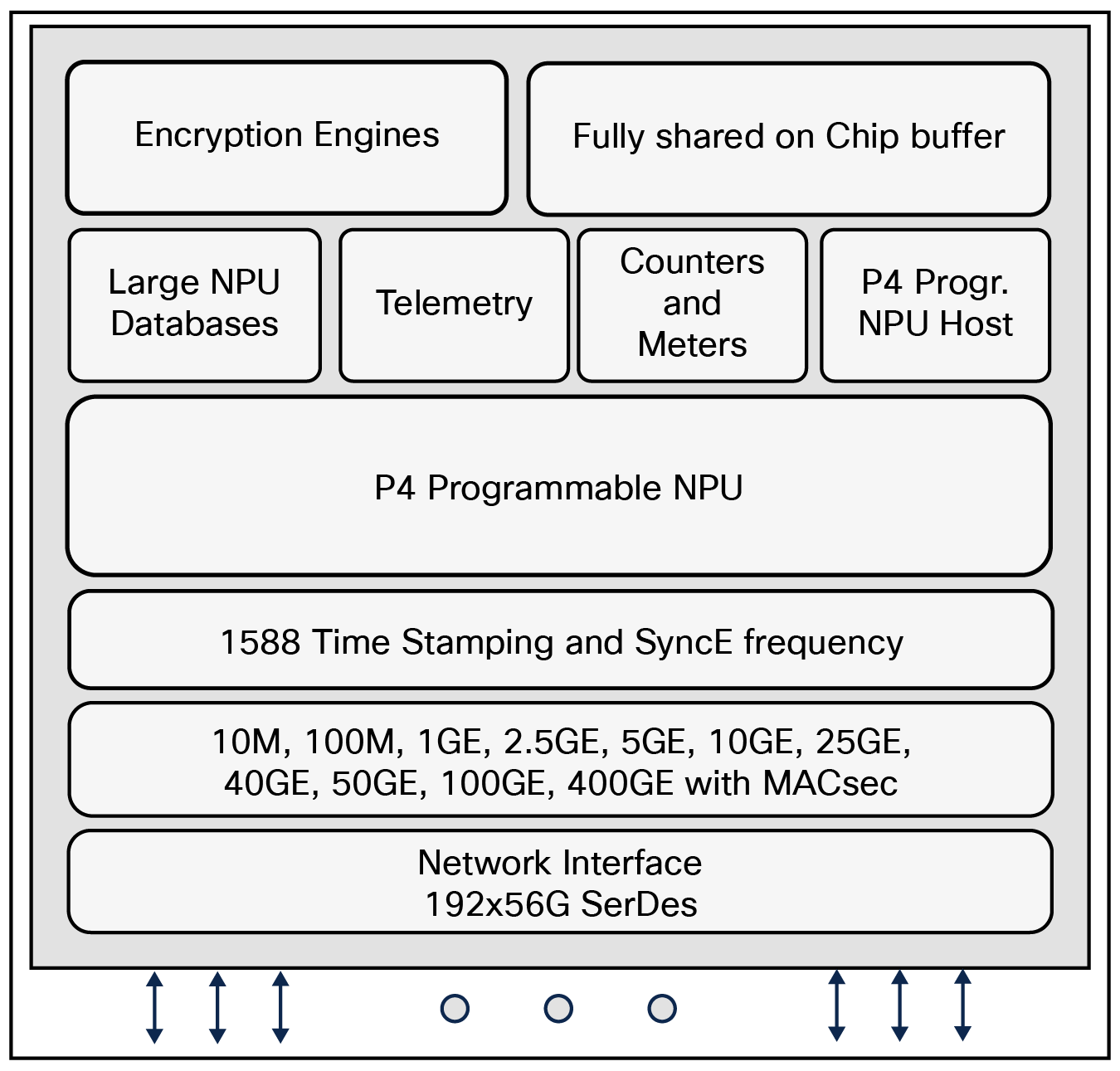

E100 is the first member of the “E” series of Cisco Silicon One processors with 192x56G I/O SerDes and 6.4-Tbps full-duplex packet processing/forwarding routing/switching processing and large on-chip buffering.

Features and benefits

Table 1.        Architectural Features and their Benefits

Technical details

Features

●     192 56G SerDes; SerDes supporting NRZ and PAM4 modulation

●     Flexible port and FEC configurations: supporting 1M/10M/100M/1G/2.5G/5G/10G/25G/50G/100G/200G/400G Ethernet interfaces

●     Support for multi-MAC GSGMII and OSGMII MAC interfaces and Cisco Multigigabit Technology
(10G-mGig)

●     Breakout support: 100G to 4x25G and 400G to 4x100G

●     Large, fully shared, on-die packet buffer

●     Port level flow control: Link-level flow control, Priority Flow Control (PFC) with watchdog timer for deadlock avoidance

●     TSN frame preemption for 10G and 25G ports

●     1-step and 2-step IEEE 1588v2 PTP support; Class-A, B timing for all speeds and Class-C timing on ports of 25G and above; SyncE support

●     Support for lossless transport for RDMA over Converged Ethernet

●     On-chip, high-performance, programmable host NPU for high-bandwidth offline packet processing (for example, OAM processing, MAC learning)

●     Multiple embedded processors for CPU offloading

Traffic management and RoCE RDMA support over Converged Ethernet

●     Support for ingress and egress traffic mirroring

●     Support for link-level (IEEE802.3x), PFC priority-level (802.1Qbb) flow control, and ECN marking

●     Support for Enhanced Transmission Selection (ETS)

●     TM counters and meters

●     Policers and meters: 1R2C and 2R3C policers, color-aware and color-blind policers, policer-based remarking

Network processor

●     Run-to-completion programmable network processor

●     Large and shared fungible tables

●     Line rate even with complex packet processing

●     Support for IPv4 fragmentation

Load balancing and link aggregation (LAG)

●     5-tuple-based hashing

●     Optional internal headers or flow label-based hashing

●     Two-level ECMP

●     Resilient hashing

Instrumentation and telemetry

●     Programmable meters used for traffic policing and coloring

●     Programmable counters used for flow statistics and OAM loss measurements

●     Programmable counters used for port utilization, microburst detection, delay measurements, flow tracking, and congestion tracking

●     Comprehensive IP Measurements (IPM) to monitor, analyze, and optimize IP traffic, reliability and efficiency.

●     Traffic mirroring: (ER) SPAN on drop

●     Support for sFlow and NetFlow

●     Micro-burst detection

●     Elephant flow monitoring

●     Export counters to remote collector

SDK

●     Cisco Silicon One APIs provided in both C++ and Python

●     Switch abstraction interface (APIs)

●     Resource monitoring

●     Express boot

●     Distribution-independent Linux packaging

●     Robust simulation environment enables rapid feature development

●     CPU packet I/O through native Linux network interfaces

●     Monitoring: Show configuration state, device health monitoring, device resource monitoring, counters

Serviceability

●     Single CLI for state and serviceability

●     C++/gRPC automation ready

●     Packet trace: On-demand flow NPU processing analyzer

●     Build-in traffic generator

●     Debug capabilities: Device level, port level, NPU behavior, TM, ASIC table reports

Programmability framework

●     Forwarding application development as well as enhancements via an IDE programming environment

●     At compilation, the forwarding application generates low-level register/memory access APIs and higher-level SDK application APIs

●     Device simulator that can be used for the development of the SDK and applications running over the SDK

E100 SDK

A sample of the features that are currently available and supported by the E100 SDK are listed below. Given that the device is programmable more features are added, as needed.

Table 2.        Highlighted Key Features of the E100 SDK

Product sustainability

Information about Cisco’s Environmental, Social and Governance (ESG) initiatives and performance is provided in Cisco’s CSR and sustainability reporting.

Table 3.        Cisco environmental sustainability information
