Data Sheet

Product Overview

The Cisco® 7304 2-Port OC-3/STM-1 ATM Line Card (Figure 1) is a versatile, high-performance line card that is well suited for a variety of applications. These applications include high-speed WAN uplinks in customer premises equipment (CPE) deployments, high-speed enterprise backbones, and high-speed uplinks for deploying the Cisco 7304 Router as a medium-density, medium-speed, edge-aggregation router in Tier 2 and 3 service provider points of presence (POPs).

Developed for customers that need a combination of performance and deployment flexibility, the Cisco 7304 Router meets current and future requirements for a midrange router. The Cisco 7304 Router delivers high-performance forwarding and hardware-accelerated services in a compact four-rack-unit (4-RU), four-interface slot form factor.

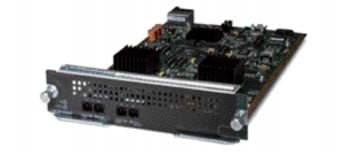

Figure 1

Cisco 7304 2-Port OC-3 ATM Line Card

Powerful and flexible, the Cisco 7304 Router provides multiprotocol support, interface granularity, and high-availability features in a platform that is ideal for deployment in various applications such as high-end enterprise routing, medium-speed and medium-density leased-line aggregation in service provider Tier 2 and 3 POPs, and service provider-managed CPE deployments. Providing WAN connectivity at speeds ranging from DS3 through OC-48/STM-16, and LAN connectivity at speeds up to Gigabit Ethernet (using two 1000 Ethernet ports built into the Cisco NSE-100 route processor), the Cisco 7304 Router supports a wide range of concurrently running applications and lives up to the high standards of the Cisco 7000 Series of midrange routers.

Table 1 lists the features and benefits of the Cisco 7304 2-Port OC-3 ATM Line Card.

Table 1. Features and Benefits


Features	Benefits
Two ports of OC-3 ATM per line card	Enables connectivity options for both enterprise and service provider customers
Up to 155.52 Mbps per port	Provides high-performance routing and connectivity
Online Insertion and Removal (OIR)	Allows for insertion of the card without rebooting the router
Multiprotocol Encapsulation over ATM Adaptation Layer (AAL)5 and classical IP over ATM	Allows flexibility to choose the protocol that best suits customers' needs
2048 virtual circuits per port	Offers high scalability to meet the needs of service providers

Product Specifications

Line Card

• Full-duplex ATM interface

• Unspecified bit rate (UBR) and non-real-time variable bit rate (VBR-nrt) service classes

• OIR

• 16 virtual channel identifier (VCI)/8 virtual path identifier (VPI) bits

• Support for 16- and 32-bit cyclic redundancy checks (CRCs)

• Synchronous Payload Envelope (SPE) scrambling

• 2048 active connections per port, 4096 active virtual circuits per board

• Per-virtual circuit and per-virtual path traffic shaping

• Classical IP and Address Resolution Protocol (ARP) over ATM (RFC 1577)

• Multiprotocol Encapsulation over AAL5 (RFC 1483)

• AAL5, F4/F5 operations, administration, and maintenance (OAM) cells

• User-Network Interface (UNI) 3.0, 3.1, and 4.0, Integrated Local Management Interface (ILMI) 3.0

Table 2 lists the optical specifications for the Cisco 7304 2-Port OC-3 ATM Line Card.

Table 2. Optical Specifications


Fiber Interface	Transmit Power		Wavelength		Input Power	Input Sensitivity	Loss Budgets	Nominal Distance
Multimode (MM)	-20 dBm	-14 dBm	1280 nm	1335 nm	-8 dBm	-23 dBm	0 to 7 dB	1.2 mi (2 km)
Single mode-intermediate reach (SM-IR)	-15 dBm	-8 dBm	1280 nm	1335 nm	-8 dBm	-28 dBm	0 to 12 dB	9 mi (15 km)

Tables 3-5 list the environmental specifications, physical specifications, and line card indicators for the Cisco 7304 2-Port OC-3 ATM Line Card.

Table 3. Environmental Conditions


Cisco 7304 2-Port OC-3/STM-1 ATM Line Card
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	-4° to 149°F (-20° to 65°C)
Operating humidity	5 to 90% (noncondensing)
Altitude	-500 to 6500 ft

Performance

• Two ports of OC-3 ATM at 155.52-Mbps full duplex

MIBs

• See Cisco NSE-100 data sheet for more MIB support

Table 4. Physical Specifications


Cisco 7304 2-Port OC-3/STM-1 ATM Line Card
Height	1.92 in. (4.87 cm)
Width	8.44 in. (21.43 cm)
Depth	12.94 in. (32.87 cm)
Weight	3.0 lb (1.36 kg)
Mean time between failure (MTBF)	5.5 year for system configuration

Table 5. Line Card Indicators


LED Label	Color	State	Function
Status	Green/Yellow	Green	Indicates line card is online
		Yellow	Indicates line card bootstrapping is in progress
		Off	Indicates line card is offline and deactivated
OIR	Green	On	Indicates line card is ready to be removed in command-line interface (CLI)-controlled OIR
OIR	Green	Off	Indicates line card is online
Carrier/alarm	Green/Yellow	Green	Indicates that a valid SONET1 signal has been detected with no alarm conditions
		Yellow	Indicates that an alarm condition is present
		Off	Indicates that no valid SONET signal has been detected
Active/Loopback	Green/Yellow	Green	Indicates that the port has been configured and is enabled
		Yellow	Indicates that the port is in diagnostic loopback mode
		Off	Indicates that the port has not been configured

1. Synchronous

Product Regulatory Compliance

Products bear CE marking, indicating compliance with the 89/366/EEC and 73/23/ECC directives, which include the following safety and EMC standards:

Safety

• UL 60950

• CSA C22.2

• EN60950

• IEC 60950

• TS 001

• AS/NZS 3260

EMC

• FCC Part 15 (CFR 47) Class A

• ICES-003 Class A

• EN55022 Class A

• CISPR 22 Class A

• AS/NZS 3548 Class A

• VCCI Class A

• EN55024

• EN50082-1

• ETS300386

Industry EMC, Safety, and Environmental Standards

• GR-63-Core NEBS Level 3 Requirement

• GR-1089-Core NEBS Level 3 Requirement

• ETS 300-019 Storage Class 1.1

• ETS 300-019 Transportation Class 2.3

• ETS 300-019 Stationary Use Class 3.1

Ordering Information

To order, visit http://www.cisco.com/public/ordering_info.shtml.

Table 6 provides ordering information for the Cisco 7304 2-Port OC-3 ATM Line Card.

Table 6. Ordering Information


Product Number	Product Description
7300-2OC3ATM-MM	2-port OC-3 ATM line card for Cisco 7304 Router, MM
7300-2OC3ATM-MM=	2-port OC-3 ATM line card for Cisco 7304 Router, MM, spare
7300-2OC3ATM-SMI	2-port OC-3 ATM line card for Cisco 7304 Router, SM-IR
7300-2OC3ATM-SMI=	2-port OC-3 ATM line card for Cisco 7304 Router, SM-IR, spare

Service and Support

Cisco offers a wide range of services programs to accelerate customer success. These innovative services programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you to protect your network investment, optimize network operations, and prepare the network for new applications to extend network intelligence and the power of your business. For more information about Cisco Services, see Cisco Technical Support Services or Cisco Advanced Services.

For More Information

For more information about the Cisco 7304 routers, visit http://www.cisco.com/en/US/products/hw/routers/ps352/index.html or contact your local Cisco account representative.
