Revised March 6, 2006
January 18, 2002
NOTICE:
THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.
Products Affected
| Product | Top Assembly | Printed Circuit Assembly | |
|---|---|---|---|
| Part Number | Rev. | Part Number | |
| C6920-DHEI-I/O | 800-07125-01 | all | 73-4972-01 |
Problem Description
This card can only output an MPEG transport stream at a bit rate useable for input to a 64QAM modulator. It does not support the higher MPEG transport steam bit rate which would be required for input to a 256QAM modulator.
Note: This Field Notice does not apply to the C6920-DHEI-I/O-C card.
Background
During the original development of this card at V-Bits (a Cisco acquired company) an assumption was made that the clocking signal required to generate a DigiCable Headend Expansion Interface (DHEI) signal output at a rate required for use with 256 QAM modulators would be provided through the DHEI inputs from the satellite demodulators. This is not the case with current demodulators. Therefore the DHEI I/O card had to be re-engineered at Cisco to internally generate the appropriate clocking signals by the addition of an on-board crystal oscillator circuit.
Problem Symptoms
This board will not function at 256QAM rates. The GUI will return a Parameter out of limits error if the user tries to use it in this mode.
Workaround/Solution
There is no Workaround.
The solution is to RMA the C6920-DHEI-I/O card for a C6920-DHEI-I/O-C card.
How To Identify Hardware Levels

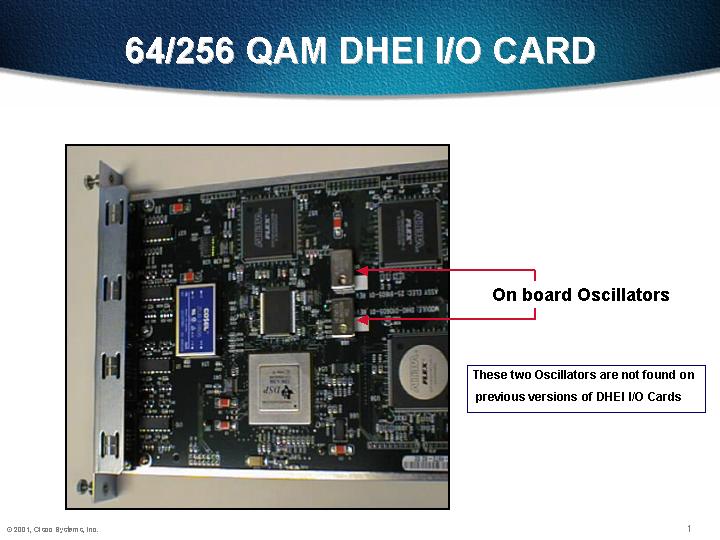

The external label ("DHEI I/O") does not indicate the difference between the two cards. Identification of cards on a running system can easily be checked by using the RateMUX GUI. Select the "Board" pull down option on the main screen, and inspect the revision number of the DHEI I/O card in question. If it returns "DHEI_IO_Rev2" or lower then it does not support QAM 256. If the DHEI I/O card is not in an active system then you can physically inspect the board and check for the presence of two on-board oscillators as indicated in the following picture:
Revision History
| Revision | Date | Comment |
|---|---|---|
| 1.1 | 06-MAR-2006 | Removed Umpire Form |
| 1.0 | 18-JAN-2002 | Initial Public Release |
