Cisco® Physical Access Manager is the management application for the Cisco Physical Access Control solution. It comes installed on hardware and is sold as an appliance. Cisco Physical Access Manager (Figure 1) is used to configure Cisco Physical Access Gateways and Modules, monitor activity, enroll users, and integrate with IT applications and data stores.

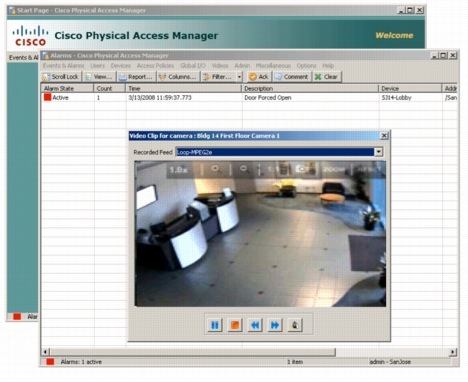

Figure 1. Cisco Physical Access Manager
Table 1 describes the features of Cisco Physical Access Manager.
Table 1. Cisco Physical Access Manager Features
Thick client and web browser support
Cisco Physical Access Manager supports a thick client model for provisioning and operation. Clients running Windows XP or Windows 7 communicate to the Cisco Physical Access Manager for full-featured operations and administrative purposes. Also supported is a Microsoft Internet Explorer 8 browser connection directly to the Cisco Physical Access Control server and gateways for device administration.
Microsoft Active Directory integration
Administrative users of Cisco Physical Access Manager can be configured to use Microsoft Active Directory for authentication.
Badging and enrollment
An optional licensable module enables the creation of badge templates, badge printing, taking user photographs, and enrolling users into the Cisco Physical Access Manager user database.
Cisco Physical Access Gateway hardware can be configured using Cisco Physical Access Manager. The gateway contacts Cisco Physical Access Manager to download pre-provisioned configuration information.
Areas (comprised of a group of doors) and users can be assigned entry permission based on schedules.
Administrative users of the Cisco Physical Access Manager can be assigned permissions. User profiles can be tailored very specifically.
Cardholder credentials can be edited, including systemwide card formats.
Alarm and event management
Cisco Physical Access Manager provides a view of events and alarms in the system. Alarm and event views can be filtered based on several criteria.
Events (contact closure inputs or card access denied, for example) can be associated to actions (activate output contact closures, send an e-mail, etc.). Automation rules can be configured with a trigger, action, and notification. The trigger can be manual or periodic based on schedule and event/alarm. The action could be executing device commands or triggering URLs. Notifications could be sent via email with a report.
Standard and custom reports can be created with Cisco Physical Access Manager.
Cisco Physical Access Manager provides a log of all administrative use of the system, arranged by user.
Enterprise application integration
An optional licensable component allows Cisco Physical Access Manager to be synchronized with data from either external SQL databases or Microsoft Active Directory.
Large numbers of records (including .jpg photographs) can now be imported from external systems into the Cisco Physical Access Manager database using the Cisco Enterprise Data Integration (EDI) tool.
Cisco Video Surveillance Manager integration
Cisco Physical Access Manager dynamically acquires camera inventory from Cisco Video Surveillance Manager and associates cameras to doors. Users can view recorded or live video for every event from the door.
License files (capacity upgrades or feature additions) can be added.
Allows a user to administer the Cisco Physical Access Manager appliance by performing tasks such as IP address assignment.
Access gateway image management
Cisco Physical Access Gateway images can be upgraded using the Cisco Physical Access Manager.
The entire configuration can be backed up to an external server.
A previously backed up configuration can be restored from an external server.
Two Cisco Physical Access Manager appliances can be configured as a pair to provide warm standby redundancy. The secondary appliance needs to be installed with a high-availability license.
HTTP/S URLs can be invoked as a result of any event or alarm. Event data can be inserted in the URL to integrate with any external application that accepts URL invocations. URL actions can be sent from the Cisco Physical Access Manager or directly from the Cisco Physical Access Gateway.
Web services API
A licensable option allows for external systems to use a web services API to integrate with Cisco Physical Access Manager. A SOAP binding over HTTP and HTTPS is supported.
Language packs can be added displaying Cisco Physical Access Manager menu text in a language other than English. For debugging purposes, both English and the local language can be displayed at the same time.
New events generated by the system can be effectively managed while old events can be archived, automatically reducing the event database size.
Events can be excluded from system backups, significantly reducing the backup file size.
Event policies could be set up to suppress alarms from device(s) or all devices from a location based on a schedule.
For example, an education customer can create different event policies for different schools. Each policy can include the alarm type (such as motion detection) together with the cameras assigned to a specific school's location. A schedule can also be associated with the event policy so events are logged only after normal working hours. If each school has different working hours, the user can create multiple schedules and assign them to the event policy for each school.
The Network Time Protocol (NTP) server can be configured for all Cisco Physical Access Gateway modules, or for selected modules, over the network using Cisco Physical Access Manager.
Enrollment reader interface
We now support two methods of quickly enrolling new users into the Cisco Physical Access Manager database: Optical scanners or proximity card enrollment readers.
The optical scanner allows badge administrators to scan government-issued drivers license ID cards. Data from the cards, like the name and address, is automatically extracted and populated into the new personnel records.
Proximity card enrollment readers allow proximity badge data like facility code and ID to automatically populate into the new or existing personnel record, saving valuable time during enrollment.
Table 2 lists the system requirements for server hardware for Cisco Physical Access Manager.
Table 2. Supported Platforms for Cisco Physical Access Manager
Cisco Physical Access Manager Enterprise Data Integration License
Cisco Physical Access Manager Web Services API License
