The Cisco® Physical Access Gateway (Figure 1) is an integral component of the Cisco Physical Access Control solution, and is the primary module used to connect door hardware (readers, locks, etc.) to the IP network. The gateway can connect to a maximum of two doors and associated inputs and outputs.
The Cisco Physical Access Gateway is a mandatory component of any access control deployment. The following optional modules may be connected to the Cisco Physical Access Gateway to control additional doors, inputs, and outputs:
• Cisco Physical Access Gateway Reader Module
• Cisco Physical Access Gateway Input Module
• Cisco Physical Access Gateway Output Module

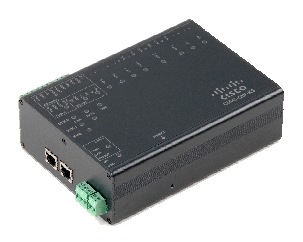

Figure 1. Cisco Physical Access Gateway
Table 1 describes the features of the Cisco Physical Access Gateway.
Table 1. Cisco Physical Access Gateway Features
Up to two doors can be managed by the Cisco Physical Access Gateway.
Additional Module Support
Up to 15 additional modules can be connected to and managed by the Cisco Physical Access Gateway. These modules can be connected on a 3-wire controller area network (CAN) bus. All modules must be within 400 meters (1320 feet) of the Cisco Physical Access Gateway.
External devices such as readers or locks can be powered by the Cisco Physical Access Gateway. The maximum current draw is limited to 650mA at 12 VDC.
250,000 credentials can be cached and encrypted.
150,000 events can be buffered by the door.
All communication is 128-bit Advanced Encryption Standard (AES) encrypted.
Table 2 describes the connectivity and connectors of the Cisco Physical Access Gateway.
Table 2. Cisco Physical Access Gateway Connectors
There are two 10/100 BASE-TX RJ-45 connectors:
• Ethernet 0: This is used to connect the Cisco Physical Access Gateway to the network. This can also be used to supply Power over Ethernet (PoE) to the device.
• Ethernet 1: This is used to access the configuration page.
There is one 10-pin Weigand/clock and data reader interface on the device. This can be configured as two 5-pin Weigand/clock and data interfaces for installations where a 5-pin interface is sufficient.
There are three inputs, each of which can be configured as supervised or unsupervised.
There are three Form C relay outputs, with contacts rated 5A @ 30V DC or 125VAC (resistive). Each can be configured as either Normally Closed (NC) or Normally Open (NO).
Unsupervised input; raises a "tamper" alarm when activated. Can be repurposed for general use by software configuration.
Power Fail Input
Unsupervised input; raises a "power fail" alarm when activated. Can be repurposed for general use by software configuration.
2-pin connector for connecting a 12 to 24 VDC external power source.
The RS-485 interface is reserved for future use.
A 3-wire CAN bus is used to connect additional modules.
The Cisco Physical Access Gateway has a built-in Web server that allows users to configure the device. Table 3 describes the items that can be configured:
• 12 to 24 VDC (+/- 10%) through an external power supply
• 802.3AF-compliant Power over Ethernet (PoE) connected to the Ethernet 0 connector
Table 5 describes the items that ship with the Cisco Physical Access Gateway.
Table 5. Package Contents
Cisco Physical Access Gateway
6 resistors (1K) for input supervision
2 mounting brackets, with 4 screws for each bracket
Regulatory compliance and safety information
Quick start guide
The Cisco Physical Access Gateway is available through Cisco Authorized Technology Provider (ATP) Partners.
Table 6 lists the part numbers for the Cisco Physical Access Gateway.
Table 6. Ordering Information
Cisco Physical Access Gateway
Service and Support
Cisco offers a wide range of services programs to accelerate customer success. These innovative programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you to protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, visit Cisco Technical Support Services or Cisco Advanced Services.
For More Information
For more information about the Cisco Physical Access Gateway, visit http://www.cisco.com/go/eac or contact your local account representative.
