The Cisco® Video Surveillance Services Platform with SCSI offers organizations an economical choice for network digital video recording and playback in deployments that require storage of large amounts of video data. The Small Computer System Interface (SCSI) is a set of standards for connecting devices and transferring data. The Cisco Video Surveillance Services Platform with SCSI provides a SCSI connection to external storage arrays, allowing you to store video data and to view recorded video streams any time, anywhere, from any device.
Using Cisco Video Surveillance Stream Manager Software and providing high-quality MPEG-4 encoding, the Services Platform with SCSI offers a wide array of features in a single component that is easy to use and deploy. It provides a cost-effective, scalable, and flexible way to replace traditional analog or digital video recorders in a variety of video surveillance deployments. Figure 1 shows the Cisco Video Surveillance Services Platform with SCSI.
Figure 1. Cisco Video Surveillance Services Platform with SCSI
The Cisco Video Surveillance Services Platform with SCSI offers a practical solution with flexible deployment options and configuration capabilities. This small but powerful device enables storage of large amounts of high-quality video data on a wide range of industry-standard SCSI storage devices. It is ideal for organizations such as gaming, enterprise, and retail that have the following storage requirements:
• Large amounts of high-quality video images
• Large amounts of video data in third-party data center disk arrays
Primary features and benefits of the Cisco Video Surveillance Services Platform with SCSI include:
• SCSI port (160 MBps) for output of video streams to external storage arrays
• Integrates with operating system and Cisco Video Surveillance Stream Manager Software hosted on a connected SCSI device
• 19-in. rack mountable
• Small (1-RU) form factor
• Inputs from remote networked Cisco Video Surveillance IP Gateway Encoders
• Inputs from supported IP cameras
• MPEG-4 encoding
• Simultaneous video recording and playback
• Multiple simultaneous playback sessions
• Video export capability
• Time, date, and event searches

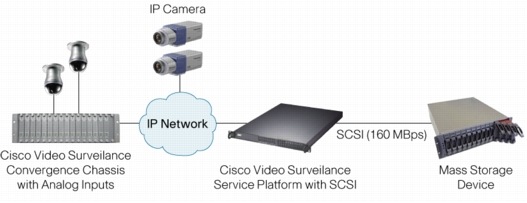

The Cisco Video Surveillance Services Platform with SCSI is designed for video surveillance deployments that implement standards-based external storage arrays with SCSI connections. Figure 2 shows an example of this device in such a deployment.
Figure 2. Cisco Video Surveillance Services Platform with SCSI in a Video Surveillance Deployment

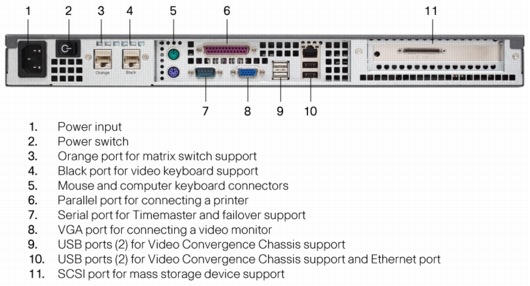

Figure 3 shows the rear panel of the Cisco Video Surveillance Services Platform with SCSI.
Figure 3. Cisco Video Surveillance Services Platform with SCSI (Rear Panel)
Table 1 provides video performance specifications for the Cisco Video Surveillance Services Platform with SCSI.
Table 1. Video Performance
IP (64 kbps, 8 Mbps per channel)
IP (64 kbps, 8 Mbps per channel)
• ISO/IEC 14496-2-1999 (Simple Profile)
720 x 480
720 x 572
704 x 480
704 x 572
704 x 240
704 x 288
352 x 240
352 x 288
Up to 30 fps (NTSC), up to 25 fps (PAL)
Table 2. Mechanical and Environmental Specifications
Rack Unit (RU)
Operating System and Application
Stored on external SCSI device
• SCSI port (160 MBps per channel, full-duplex)
• Ethernet port, 10/100BASE-T for network connectivity
• Three serial ports (2 RJ-45 ports for video keyboards, 1 DB9 port)
Table 3 provides ordering information for the Cisco Video Surveillance Services Platform with SCSI. To place an order, visit the Cisco Ordering Home Page.
Table 3. Ordering Information
Cisco Video Surveillance Services Platform with SCSI for external storage
Cisco Video Surveillance SCSI Cable, 1 Meter
Cisco Video Surveillance SCSI Cable, 2 Meters
Service and Support
Using the Cisco Lifecycle Services approach, Cisco and its partners provide a broad portfolio of end-to-end services and support that can help increase the network's business value and return on investment. This approach defines the minimum set of activities needed, by technology and by network complexity, to help successfully deploy and operate Cisco technologies and optimize their performance throughout the lifecycle of the network.
