For small business employees to communicate effectively with suppliers and customers in today's competitive business environment, they need ready access to information, updated in real time. They also need to stay connected -- to each other and to the business applications they use to do their jobs. With the right solution, your business can collaborate more effectively and problem-solve like never before.
The Cisco® Unified Communications 540 (Figure 1), a central part of the Cisco Smart Business Communications System (SBCS), is an affordable unified communications appliance that provides voice and data communications, voicemail, automated attendant, video, security, and wireless capabilities while integrating with existing desktop applications such as calendar, email, and customer relationship management (CRM) programs. This easy-to-use solution supports up to 32 users and provides flexible deployment options based on your needs, supporting a wide array of IP phones, public switched telephone network (PSTN) interfaces, and Internet connectivity.
The Cisco Smart Business Communications System enables businesses to enhance how they reach, serve, and retain customers. It is a complete small business solution that gives your staff anytime, anywhere access to business information and applications, making it easier than ever to communicate with customers and each other. The SBCS consists of different devices based on your needs, and includes the Cisco Unified Communications 540, Cisco IP phones, PoE Switches, wireless access points, approved third-party applications, and the Cisco Configuration Assistant for management.

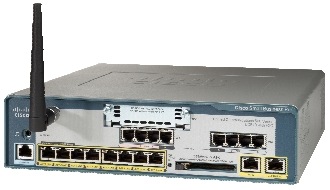

Figure 1. Cisco Unified Communications 540
Key Features with Benefits
Unified Communications
• IP based all-in-one solution designed for small business with up to five sites networked with inter-office dialing
• Flexible call processing deployment options including private branch exchange (PBX) or key system mode, allowing for easy transition to new system based on existing phone system
• Full-featured voice messaging and automated attendant to help improve communication among employees and with customers
• Easy access to voicemail messages from any phone, from the VoiceView Express IP phone display application, or via Microsoft Outlook or Outlook Express
• Fax Mail per user where faxes received are delivered direct to the desktop email client or redirect to any fax machine when checking voice mail via phone
• Choice of Cisco SPA 500 Series IP Phones or Cisco Unified IP Phones 7900 Series, including desktop and wireless handheld models, depending on each user's needs.
• When traveling or working from home, employees can stay in touch using the Cisco IP Communicator soft phone on any Windows PC.
• Video telephony is as easy as making a voice call by adding a Cisco USB video camera to any 7900 Series phone or to the IP Communicator soft phone and can be used between sites.
PSTN Connectivity
• Phone line connectivity using analog lines (FXO) or ISDN Basic Rate Interface (BRI) with optional digital trunks (T1/E1/PRI) providing flexibility to add trunking as the business grows
• Built-in costs saving SIP trunking with preset configurations from major carriers
• Four analog phone connections (FXS) included for support of traditional fax machines or analog phones
Secure Network Foundation
• Network security included at no extra cost, including Cisco IOS® Firewall to protect the entry point into your network.
• Virtual private network (VPN) IPsec for site to site networking and SSL providing remote users highly secure access to the network included.
• An integrated 8-port Power over Ethernet (PoE) LAN switch for IP phones and other SBCS devices allowing for single box small office deployments
• Ability to expand switching capabilities through expansion ports with Cisco Small Business Pro ESW 500 Series Switches, available with Fast Ethernet, Gigabit Ethernet, and PoE allowing for easy configuration using SmartPort roles delivering business growth and flexibility to deploy switching where needed
• Integrated wireless LAN (WLAN) 802.11b/g capability, including support for data and voice giving freedom to employee's to work from any location in the office.
• Optional external Cisco access points to enable mobile networking (data and voice) for larger office spaces, which can help increase employee flexibility and productivity
Applications
• Smart Productivity Applications included with each UC 540 to help enhance employee productivity including:
– Cisco WebEx PhoneConnect allows single-button connection to Cisco WebEx™ meetings saving time when joining conference calls
– Cisco TimeCardView tracks employee hours worked and provides reports to managers of who is in the office plus ability to directly import hours to QuickBooks
– Single Number Reach allows callers to reach employees at their desk or mobile phone for improved customer service or to close sales more quickly
• Cisco Unified CallConnectors, call control, click to dial, inbound screen pop, presence and Instant messaging all integrated with popular Windows PC applications including Microsoft Outlook, Internet Explorer, Microsoft Dynamics CRM, and Salesforce.com
Simplified Configuration and Network Management
• Cisco Configuration Assistant, a Windows based application for easy configuration of the UC 540 and related SBCS devices, including unified communications (phones and software), switching, routing, Smart Productivity Applications plus security
• CCA can simplify deployment of advanced UC540 features such as Basic ACD and Meet-me conferencing, as well as configure UC540 to integrate with approved 3rd party applications.
The Cisco Unified Communications 540 has 1 year of hardware support and 90 days of software support though the Small Business Support Center.
Find detailed warranty information on Cisco.com at the Product Warranties page.
Ordering Information
Cisco Small Business Pro products are exclusively offered though Cisco distribution partners.
Table 1 gives the ordering information for the Cisco Unified Communications 540, licenses, and accessories. Table 2 lists the modules and interface cards available. Table 3 gives the physical specifications for the Cisco Unified Communications 540.
Table 1. Ordering Information
Product SKU
Detailed Description
UC540W-FXO-K9
Cisco Unified Communications 540 with 8 user licenses for UC and integrated messaging, 4 FXO ports, 8 PoE 10/100 ports, integrated wireless, and 1 VIC slot. Upgradable to 32 users max.
UC540W-BRI-K9
Cisco Unified Communications 540 with 8 user licenses for UC and integrated messaging, 2 BRI ports, 8 PoE 10/100 ports, integrated wireless, and 1 VIC slot. Upgradable to 32 users max.
L-UC-PRO-8U=
E-delivery license for the Cisco Unified Communications 500 Series for 8 additional users
ACS-UC500RM-19=
Optional 19-inch rack-mount kit for the Cisco Unified Communications 500 Series
PWR-UC500-220W=
Cisco Unified Communications 500 Series desktop power adapter 120-240 VAC, 220W (Spare)
CON-SBS-SVC4
3-year Cisco Small Business Pro Service
Table 2. Modules and Interface Cards Supported in the single open slot
Product SKU
Description
VIC-4FXS/DID
4-port VIC-FXS/direct inward dialing (DID)
VIC3-4FXS/DID
4-port VIC-FXS/direct inward dialing (DID)
VIC2-FXS
2-port VIC-FXS
VIC2-2FXO
2-port VIC-FXO (universal)
VIC3-2FXS/DID
2-port VIC-FXS/DID (note that the VIC3-2FXS/DID requires Cisco IOS Software Release 12.4(20)T or later)
VIC2-4FXO
4-port VIC-FXO (universal)
VIC2-2BRI-NT/TE
2-port VIC-BRI (network terminal [NT] and terminal equipment [TE])
VWIC2-1MFT-T1/E1
1-port VWIC-T1/E1 for voice (ISDN Primary Rate Interface [PRI] and channel associated signaling [CAS]); data is not supported
Table 3. Physical Specifications
Mounting
Desktop or wall mount included. Optional rack-mount kit available.
Dimensions
(HxWxD)
2.625 x 10.5 x 11.05 in.
(6.67 x 26.67 x 28.07 cm)
Power supply dimensions
(HxWxD)
1.7 x 4 x 7.5 in.
(4.3 x 10.16 x 19.05 cm)
Weight
8 lb (3.63 kg)
Power supply
External 100-240 VAC, 50-60 Hz, 2-4A input current
Cisco Small Business Pro Service for the Cisco Unified Communications 540
The new Cisco Small Business Pro Service provides "peace of mind" coverage at an affordable price, and helps you get the most value from your Cisco Small Business Pro Series solution. This device-level, subscription-based service includes software upgrades and updates, extended access to the Cisco Small Business Support Center, and next-business-day hardware replacement as necessary. It provides community-based support to enable small businesses to share knowledge and collaborate using online forums and wikis to help boost business efficiency, identify and reduce risks, and serve customers better.
For More Information
For more information about Cisco Small Business Pro Series solutions, visit http://www.cisco.com/go/smallbusiness. For more information on the Cisco Unified Communications 500 Series, visit: http://www.cisco.com/go/uc500 or contact your local Cisco account representative.
