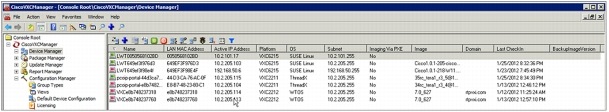

Cisco® Virtualization Experience Client Manager (Cisco VXC Manager) addresses important management requirements for deploying powerful zero clients and thin clients (Figure 1). With its centralized management and administration, Cisco VXC Manager can help IT departments deliver effective remote VXC endpoints support while minimizing end user downtime. Security is assured with Secure HTTP (HTTPS)-based imaging, updates, and downloads.
Cisco VXC Manager delivers organization wide benefits (refer also to Table 1):
– Centralized management
– Collection and organization asset information
– Health-status monitoring
– Automated client settings
– Ability to update client firmware and add applications
• End user IT costs
– Easier, more effective remote support
– Ability to create custom scripts and packages
• Minimized downtime
– Ability to restart or reset VXC endpoints in less than a minute
– Enforced policies and minimized user errors
Table 1. Features and Benefits
• HTTPS-based imaging and updates
• Encrypted network traffic
• Delegated Admin access (Microsoft Active Directory) support
• Complete device imaging, patching, and updates
• Bandwidth throttling for efficiency and reliability
• Software updates and add-ons
Device administration and monitoring
• Device health status and reporting
• Remote shadowing and control
• Default device configuration
• Distributed architecture
• Microsoft SQL Database support
• Multiple remote repository support
Complete asset visibility
• Automated device discovery
• Detailed hardware-asset information
• Installed software asset information
Secure OS Imaging and Management Tool
Cisco VXC Manager provides secure OS imaging and management through a host of features designed to take the work out of managing thousands of thin clients remotely, securely, and effectively.
To provide a highly secure and scalable network architecture, Cisco VXC Manager provides full HTTPS-encrypted1 traffic and the ability to use multiple remote software repositories to optimize network bandwidth.
1 HTTPS based imaging for PCoIP VXC 2111 and VXC 2211 is not supported, uses FTP.
By removing the need to visit all your network zero clients and thin clients, Cisco VXC Manager delivers vastly reduced IT support costs and a far more granular approach to the deployment and management of your user software. This management ranges from vital hour-by-hour monitoring to the efficient issuing of software images, patches, updates, and other add-ons as required to ensure every zero client and thin client remains available and productive. Cisco VXC Manager lowers your total cost of ownership and further maximizes your investment in Cisco Cloud Client Computing.
New features in Cisco VXC Manager 4.9 include the following:
• Recurring Scheduler
– Set recurring schedules for common tasks like shutdown and wake on LAN (WOL)
– Reduce energy consumption by shutting down endpoints during non-operational hours
• Enhanced Actve Directory Integration
– Assign administrators and AD groups to manage a subnet of clients
• Smart scheduling:
– Deploy OS/firmware updates, configurations and software based on the timezone of endpoint devices or based on timezone of the administrator's GUI console
• Flexible: WAN-capable imaging and enhanced asset management
– Supports fully qualified domain names (FQDNs)
– Adds new asset management information collection and display
• Central tracking, management, and support
– Supports asset tracking: Cisco VXC Manager provides detailed hardware and software assets information of your VXC devices, helping you gauge the health and performance of each device, avoid potential problems, and plan for change or growth
• Policy management
– Supports device configuration: Cisco VXC Manager Default Device Configuration (DDC) enables administrators to issue, manage, and update polices automatically across an organization. Devices can be arranged into logical groups, each with its own configuration settings locally or globally
• Enhanced user support and lower costs
– Gives end users the "over the shoulder" support that in the past could be provided only by physical visits to the desktop: With Cisco VXC Manager you can deliver IT support more efficiently and cost-effectively
To summarize, the track and manage features include the following:
• Recurring scheduler
• Active Directory integration
• Detailed hardware-asset information
• Installed software-asset information
• Regular device health-status updates
• Default Device Configuration
• Delegated administration for Policy Management (Active Directory integrated)
• Drastically reduced support costs
• Remote shadowing
Cisco VXC Manager is a server-based application and is licensed per VXC endpoint. Cisco VXC Manager licenses are added when placing Cisco VXC 2111, VXC 2112, VXC 2211, VXC 2212 or VXC 6215 endpoint orders.
Table 2 lists the product specifications for Cisco VXC Manager.
Table 2. Product Specifications
Maximum number of managed clients
Maximum simultaneous imaging
OS compression (for imaging)
HTTP, HTTPS, FTP, and VNC2
Secure device (HTTPS) management and imaging
Administration delegation and segregation (Active Directory integrated)
Remote software repositories
Distributed architecture for scalability and security
Time-zone management and smart scheduling
Automated (profile-based) DDC
2 VNC is not supported with PCoIP VXC 2111 and VXC 2211 for remote shadowing.
Table 3 lists the system requirements for Cisco VXC Manager.
Table 3. System Requirements
1 GB minimum; 1.5 GB recommended
1-GHz Intel or AMD X86 minimum, 2.4 GHz Dual Core Intel or AMD X86 recommended
512 MB minimum; 2 GB recommended3
Server software OS
Microsoft Windows 2003 Standard or Enterprise Server with R2 SP2
Microsoft Windows 2008 Standard or Enterprise Server SP1 32-bit
Microsoft Windows 2008 Enterprise Server R2 64-bit
Microsoft Windows 7 Enterprise Server 32-bit
Microsoft SQL Server 2005
Microsoft SQL Server 2008
Microsoft SQL Express 2005
Microsoft SQL Express 20084
3 May require greater than 2 GB memory for deployments greater than 10,000 endpoints.
4 Microsoft SQL Express 2008 is the default database that ships with VXC Manager 4.9.
