The ONS 15216 Mux/Demux 40 Channel Patch Panel series introduces a-thermal arrayed waveguide grating (AWG) technology, which enables passive dense wavelength-division multiplexing (DWDM) systems to have the same optical performance as active-temperature-controlled AWGs. This technology breakthrough enables enterprises and service providers to deploy 80 channels of DWDM capacity by leveraging a reduced footprint while consuming zero electricity.
Figure 1. ONS 15216 Mux/Demux 40 Channel Patch Panel
The ONS 15216 Mux/Demux 40 Channel Patch Panels are standalone units that contain both a 40 channel optical multiplexer and a 40 channel optical de-multiplexer that are precabled in the units' housing for easy plug-and-play. The ONS 15216 Mux/Demux Patch Panel 50 GHz Interleaver De-Interleaver easily plugs into the ONS 15216 Mux/Demux 40 Channel Patch Panel for in-service capacity upgrade from 40 channels up to 80 channels in a 4RU footprint. Figures 2 through 5 illustrate the different application configurations in which the ONS 15216 Mux/Demux 40 Channel Patch Panel can be deployed.
Features and Benefits
The ONS 15216 Mux/Demux 40 Channel Patch Panels and ONS 15216 Mux/Demux Patch Panel 50 GHz Interleaver De-Interleaver provide the following customer benefits:
• Cost-effective for DWDM applications
• Best-in-class operational efficiency, with zero electrical power requirements
• Connector panel slides forward and locks into place for easy access and maintenance
• Patch panel front door securely locks to prevent accidental tampering with the fiber connections
• Integrated cable routing guides guarantee fiber bend radius to maintain the optimal optical performance and prevent fibers from being pinched
• Low optical insertion loss for improved distance and performance

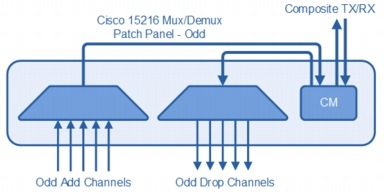

Figure 5. ONS 15216 Mux/Demux 40 Channel Odd Patch Panel Connected to Single Module ROADM Configuration
Product Specifications
Tables 1 through 4 provide optical and mechanical specifications for the ONS 15216 Mux/Demux 40 Channel Patch Panel and the ONS 15216 Mux/Demux Patch Panel 50 Ghz Interleaver De-Interleaver.
Table 1. ONS 15216 Mux/Demux 40 Channel Patch Panel Channel Plan
