Enabling Security Features

---

This chapter provides instructions for enabling and configuring your client adapter's security features.

The following topics are covered in this chapter:

•Using the Client Encryption Manager

•WEP

•Server-Based Authentication

•Getting Started

•Entering a New WEP Key

•Selecting an Existing WEP Key

•Enabling WEP

•Enabling LEAP

Using the Client Encryption Manager

This section explains how to use the Client Encryption Manager (CEM) portion of the ACU to use static Wired Equivalent Privacy (WEP) keys for your client adapter or to use server-based authentication and dynamic WEP keys.

WEP

The ACU enables you to set up to four encryption keys, called WEP keys, for your client adapter. WEP is an optional IEEE 802.11 feature that provides your client adapter and other devices on your wireless network with data confidentiality. Using WEP involves packet-by-packet data encryption by the transmitting device and decryption by the receiving device.

Server-Based Authentication

Server-based authentication through IEEE 802.1x is ideal for organizations with a large user base. To use server-based authentication, your access point must communicate with a RADIUS server, such as Cisco Secure ACS 2.6, with support for an 802.1x for an 802.11 authentication type like LEAP.

You can enable server-based authentication for your client adapter through its firmware and Cisco software (referred to as LEAP). This method provides authentication service to client adapters whose host devices are not running an operating system with built-in EAP support. The term LEAP is used to distinguish authentication provided by the client firmware from authentication provided by a host and its operating system.

LEAP is enabled through the Set LEAP Username and Password screen in the ACU. The username and password entered in this screen are used by the client adapter to authenticate to the RADIUS server and must be re-entered at the start of each new session.

Getting Started

You can access client encryption functions from the ACU main screen by clicking the CEM tab. The CEM pull-down menu appears, providing the following options:

•Change Password

•Enter WEP key(s)

The Change CEM Password option allows you to change the current password.

If your client adapter supports WEP, the Enter WEP keys option allows you to enter up to four WEP keys.

Changing the Password

Follow these steps to change the current CEM password.

---

Note Passwords are case-sensitive and can contain up to 256 characters. The default password is Cisco (uppercase C followed by lowercase isco).

---

---

Step 1 Select Change Password from the CEM pull-down menu. The Change CEM Password screen appears (Figure 4-1).

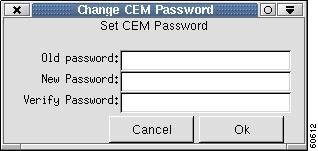

Figure 4-1 Change CEM Password Screen

Step 2 Enter the current password in the Existing Password field.

Step 3 Enter a new password in the New Password field.

---

Tip If you want to disable the CEM password function, type a space for your new password. You are not prompted to enter a password whenever you select the CEM option.

---

Step 4 Re-enter the new password in the Verify New Password field.

Step 5 Click OK.

---

Entering a New WEP Key

Follow these steps to enter a new WEP key for your client adapter. If you wish to select an existing WEP key, go to the "Selecting an Existing WEP Key" section.

---

Step 1 From the Commands pull-down menu, select Enter WEP key. If you did not disable the CEM password function, you are prompted to enter your CEM password in the following screen (Figure 4-2).

Figure 4-2 Enter CEM Password Screen

Step 2 Enter your CEM password and click OK. The Enter WEP keys screen appears (Figure 4-3).

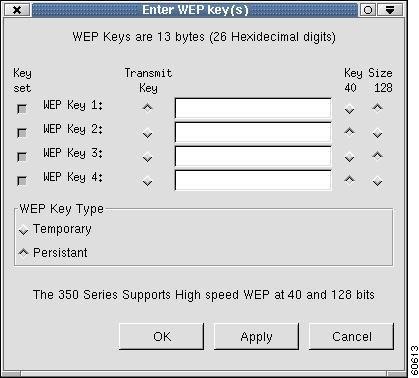

Figure 4-3 Enter WEP keys Screen

---

Note You can create up to four WEP keys. If a WEP key is set, the Key set box is highlighted, and the key length is shown in the right column.

---

Step 3 For the WEP key that you are creating (1, 2, 3, or 4), select a WEP Key Size of 40 or 128 on the right side of the screen. 128-bit client adapters can use 40- or 128-bit keys, but 40-bit adapters can use only 40-bit keys.

---

Note Use of 128-bit WEP is subject to U.S. export restrictions.

---

Step 4 Decide on a WEP key, and enter it in the blank field for the key you are creating. Follow these guidelines to create a new WEP key:

•Your client adapter's WEP key must match the WEP key used by the access point or clients with which you are planning to communicate.

•When you are setting more than one WEP key, the WEP keys must be assigned to the same WEP key numbers for all devices.

•Home networking WEP keys can be comprised of ASCII text.

•General purpose WEP keys are hexadecimal only and can consist of these hexadecimal characters: 0-9, A-F, and a-f.

•WEP keys must contain the following number of characters:

–10 characters for 40-bit WEP keys

–26 characters for 128-bit WEP keys

---

Note After you create a WEP key, you can write over it, but you cannot edit or
delete it.

---

Step 5 Click Transmit Key next to the key that you created to show that this is the key you want to use to transmit packets.

Step 6 Click Persistent under WEP Key Type to allow your client adapter to retain this WEP key even when power to the adapter is removed or the computer in which it is installed is rebooted.

---

Note If you select Temporary, the WEP key is lost when power is removed from your client adapter.

---

Step 7 Click Apply or OK.

---

Selecting an Existing WEP Key

If you want an existing WEP key to be used with your client adapter, follow these instructions.

---

Step 1 From the Commands pull-down menu, select Enter WEP key. The Enter WEP Key(s) screen appears.

The Key set box is highlighted for all existing WEP keys.

---

Note To protect WEP key security, the codes for existing WEP keys do not appear on the screen. Also, you can write over existing keys, but you cannot edit or delete them.

---

Step 2 Click Transmit Key next to the key you want to use to transmit packets.

Step 3 Click Apply or OK.

---

Enabling WEP

---

Note Entering a WEP key does not enable WEP.

---

After you have selected a WEP key, you must access the Aironet Client Utility (ACU) to enable WEP. Follow these steps to enable WEP.

---

Step 1 Click the Commands tab on the ACU main screen. The Commands drop-down menu appears.

Step 2 Click the Edit Properties option. The Properties screen appears.

Step 3 Click the Network Security tab. The Network Security screen appears (Figure 4-4).

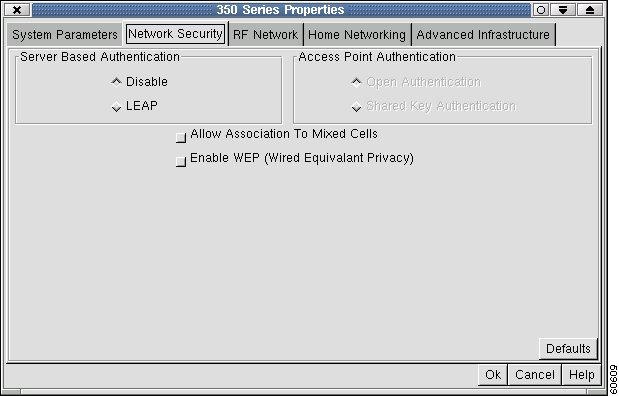

Figure 4-4 Network Security Screen

Step 4 Click the Enable WEP (Wired Equivalent Privacy) box.

Step 5 Click OK to save the setting and return to the ACU main screen.

---

---

Note See the "Setting Network Security Parameters" section for a complete list of all network security parameters.

---

Additional WEP Key Security Features

Client adapter firmware version 4.25.23 and greater support three new security features designed to prevent sophisticated attacks on your wireless network's WEP keys. These features (MIC, TKIP, and broadcast key rotation) do not need to be enabled on the client adapter; they are supported automatically in the driver and firmware version listed above. However, they must be enabled on the access point.

---

Note Access point firmware version 11.10T or later is required to enable these security features. Refer to the Cisco Aironet Access Point Software Configuration Guide for instructions on enabling these security features on the access point.

---

Message Integrity Check (MIC)

MIC prevents bit-flip attacks on encrypted packets. During a bit-flip attack, an intruder intercepts an encrypted message, alters it slightly, and retransmits it, and the receiver accepts the retransmitted message as legitimate. The MIC adds a few bytes to each packet to make the packets tamper-proof.

The ACU screen displays the word "(MIC)" next to the current status if MIC is supported by the client adapter's driver and firmware and is enabled on the access point.

---

Note If you enable MIC on the access point, your client driver must be version 2.0 or greater and client firmware must be version 4.25.2x or greater to support these features; otherwise, the client cannot associate.

---

Enabling LEAP

Follow these steps to enable LEAP for your client adapter.

---

Step 1 From the ACU's Command drop-down menu, click Edit Properties.

Step 2 Open the Network Security screen.

Step 3 Click the LEAP button.

Step 4 Click OK to save the setting to return to the ACU main screen.

Step 5 Click the Commands tab. The Commands drop-down menu appears. Note that the Set Leap Information option is now accessible.

Step 6 Click the Set Leap Information option. The Set Leap Password screen appears (Figure 4-5).

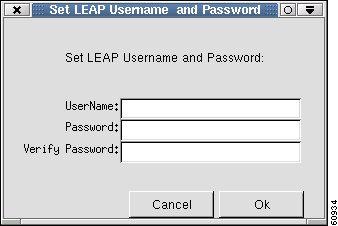

Figure 4-5 Set Leap Password Screen

---

Note Usernames and passwords are case sensitive and can contain up to 32 characters.

---

Step 7 Enter your username in the Username field.

Step 8 Enter your LEAP password in the Password field.

Step 9 Re-enter the password in the Verify Password field.

Step 10 Click OK to return to the ACU main screen. The following parameters in the Network Security screen are changed automatically:

•The Server Based Authentication parameter is set to LEAP enabled.

•The access point Authentication parameter is set to Open Authentication.

•The Enable WEP parameter is set to enabled if the LEAP access point uses WEP.

Your client adapter authenticates to the RADIUS server by using your username and password and receives a session-based WEP key.

---

---

Note After LEAP is enabled, the Server Based Authentication parameter can be used to disable or enable LEAP as desired.

---

---

Note See the "Setting Network Security Parameters" section for a comprehensive listing of all network security parameters.

---

Synchronizing Security Features

In order to use any of the security features discussed in this section, both your client adapter and the access point to which it associates must be set appropriately. Table 4-1 indicates the client and access point settings required for each security feature. This chapter provides specific instructions for enabling security features on your client adapter. Refer to the Cisco Aironet Access Point Software Configuration Guide for instructions on enabling the features on the access point.

Table 4-1 Client and Access Point Security Settings

Security Feature	Client Setting	Access Point Setting
Static WEP with open authentication	Create a WEP key and enable Use Static WEP Keys and Open Authentication	Set up and enable WEP and enable Open Authentication
Static WEP with shared key authentication	Create a WEP key and enable Use Static WEP Keys and Shared Key Authentication	Set up and enable WEP and enable Shared Key Authentication
LEAP Authentication	Enable LEAP	Set up and enable WEP and enable Network-EAP
MIC	Use driver version 2.0 or greater and firmware version 4.25.23 or greater	Set up and enable WEP with full encryption, set MIC to MMH, and set Use Aironet Extensions to Yes
