EU Directive 1999/5/EC: Compliance Information for the Cisco Aironet 1430 Series
Wireless Bridges

January, 2009

This document contains compliance information for the Cisco Aironet 1430 series wireless bridges that is relevant to the European Union and other countries that have implemented the EU Directive 1999/5/EC.

Contents

This document contains these sections:

Scope

Declaration of Conformity with Regard to the EU Directive 1999/5/EC (R&TTE Directive)

CE Marking

National Restrictions

Antennas

Operating Frequency

Configuring Radio Transmit Power

Related Documentation

Obtaining Documentation and Submitting a Service Request

Scope

The information in this document applies to the Cisco Aironet 1430 series wireless bridge products, which currently include the AIR-BR1430UN0-E-K9, AIR-BR1430UN1-E-K9, AIR-BR1430UI0-E-K9, and the AIR-BR1430UI1-E-K9.

Declaration of Conformity with Regard to the EU Directive 1999/5/EC (R&TTE Directive)

This declaration is only valid for configurations (combinations of software, firmware and hardware) supported or provided by Cisco Systems for use within the EU. The use of software or firmware not supported or provided by Cisco Systems may result in the equipment no longer being compliant with the regulatory requirements.

Note The full declaration of conformity for this product can be found in the Getting Started Guide: Cisco Aironet 1430 Series Wireless Bridge, which is available on Cisco.com. See the "Obtaining Documentation and Submitting a Service Request" section for instructions for downloading these documents.

The following standards were applied during the assessment of the product against the requirements of the Directive 1999/5/EC:

•Radio: EN 301.893

•EMC: EN 301 489-1 and EN 301 489-17

•Safety: EN 60950-1, EN 60950-22, and EN 50385

CE Marking

For the Cisco Aironet AIR-BR1430UN0-E-K9, AIR-BR1430UN1-E-K9, AIR-BR1430UI0-E-K9, and the AIR-BR1430UI1-E-K9, the following CE mark and Class-2 identifier are affixed to the equipment and its packaging:

National Restrictions

The 5 470 to 5725 MHz is available in all EU countries as well as in most other European Countries.

The requirements for any country may evolve. Cisco recommends that you check with the local authorities for the latest status of their national regulations for 5-GHz wireless LANs.

Italy

This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless this wireless LAN product is operating within the boundaries of the owner's property, its use requires a "general authorization." Please check http://www.sviluppoeconomico.gov.it/ for more details.

Questo prodotto รจ conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato all'interno del proprio fondo, l'utilizzo di prodotti Wireless LAN richiede una "Autorizzazione Generale". Consultare http://www.sviluppoeconomico.gov.it/ per maggiori dettagli.

Note Although Norway, Switzerland and Liechtenstein are not EU member states, the EU Directive 1999/5/EC has also been implemented in those countries.

Note The regulatory limits for maximum output power are specified in EIRP. The EIRP level of a device can be calculated by adding the gain of the antenna used (specified in dBi) to the output power available at the connector (specified in dBm).

Antennas

This section contains regulatory information for the antennas available for the Cisco Aironet 1430 series wireless bridges.

Products with Integral Antennas:

•AIR-BR1430UI0-E-K9

•AIR-BR1430UI1-E-K9

The 5-GHz wireless bridges—Cisco Aironet AIR-BR1430UI0-E-K9 and AIR-BR1430UI1-E-K9—have integrated antennas which cannot be removed or which are not user accessible. Nevertheless, as regulatory limits are not the same throughout the EU, users may need to adjust the conducted power setting for the radio to meet the EIRP limits applicable in their country or region.

Table 1 Maximum Conducted Power Settings—Integral Antennas

Cisco Part Number
Antenna Gain (dBi)
Regulatory Limit (eirp) (dBm/mW)
Maximum Conducted Power Setting (dBm)1
Antenna Description

AIR-BR1430UI0-E-K9
AIR-BR1430UI1-E-K9

20

30/1000

10

Integral antenna

1 Available conducted power settings for this product are 4, 7, and 10 dBm.


Products with Dedicated (External) Antennas:

•AIR-BR1430UN0-E-K9

•AIR-BR1430UN1-E-K9

The Cisco Aironet AIR-BR1430UN0-E-K9 and the AIR-BR1430UN1-E-K9 wireless bridges are equipped with N-type antenna connectors to allow the use of dedicated (external) antennas available from Cisco.

Table 2 list the antennas that can be used with these products. All antennas where assessed together with the equipment against the requirements of the R&TTE directive. The table also lists the maximum conducted power setting for each of the antennas.

Depending on the country, a different regulatory limit might be applicable. It is therefore the responsibility of the end user to select a power level that, together with the antenna, results in an eirp (radiated power) level that is below the applicable limit.

Table 2 Maximum Conducted Power Settings—External Antennas

Antenna Part Number
Antenna Gain (dBi)
Regulatory Limit (eirp) (dBm/mW)
Maximum Conducted Power Setting (dBm)1
Antenna Name

AIR-ANT5180V-N

8

30/1000

16

Omni-directional antenna

AIR-ANT58G10SSA-N

9.5

16

Sector antenna

AIR-ANT5114P-N

14

16

Patch antenna

AIR-ANT5117S-N

17

13

90-degree sector antenna

1 Available conducted power settings for this product are 4, 7, 10, 13, and 16 dBm.


Operating Frequency

This devices operates within the 5470-MHz to 5725-MHz band.

Configuring Radio Transmit Power

To change the radio transmit power of the bridge, follow these steps:

Step 1 Open a web browser window and enter the IP address of the device you want to configure.

Step 2 Enter your authentication information and click OK.

Note Administrator privileges may be required in order to change these settings.

Step 3 From the bridge home page, click the settings tab.

Step 4 From the network interfaces menu on the left side of the window, click Radio1-802.11N5GHz.

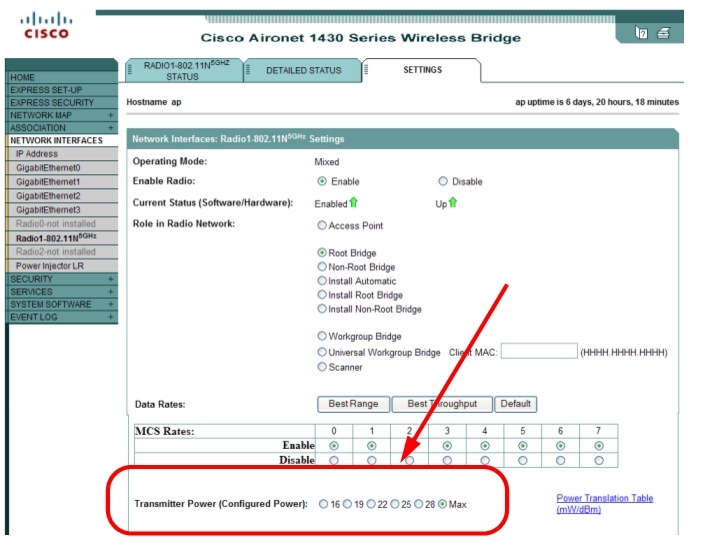

Figure 1 Put Screen Capture of European GUI Here

Step 5 From the Network Interfaces: Radio1-802.11N5GHz Settings page, select one of the radio buttons in the Transmitter Power (Configured Power) section. The available options are 4, 7, 10, 13, and 16 dBm. The default transmit power is 16 dBm.

Step 6 Click Apply to save your changes.

John - See Fred about getting a screen capture of a European bridge GUI that shows this setting. Make sure the Transmitter Power options match the text! Also, verify that "Apply" is correct to save changes.

Related Documentation

These documents provide information about the Cisco Aironet 1430 series wireless bridges. They are available through the following Cisco.com web page:

http://www.cisco.com/en/US/products/hw/wireless/ps5279/tsd_products_support_series_home.html

•Getting Started Guide: Cisco Aironet 1430 Series Wireless Bridge—a basic overview of the setup and installation instructions for the Aironet 1430 series wireless bridges, as well as the complete translated text of all required declarations of conformity.

•Cisco IOS Software Configuration Guide for the Cisco Aironet 1400 Series Wireless Bridge (12.3(8)JA)—detailed configuration information for the Aironet 1400 series wireless bridges.

•Cisco Aironet 1430 Series Wireless Bridge Mounting Instructions—installation and mounting instructions for the Aironet 1430 series wireless bridge.

•Translated Safety Warnings for Cisco Aironet 1430 Series Wireless Bridges—safety warnings and regulatory information for the Aironet 1430 series wireless bridge.

Note If you still have questions regarding the compliance of these products or you cannot find the compliance information you are looking for, please send an e-mail request to Cisco at complianceinfo@cisco.com.
