Cisco Aironet 1520 Series Outdoor Mesh Access Point Hardware Installation Guide, OL-12632-03 - Declarations of Conformity and Regulatory Information [Cisco Aironet 1520 Series]

Table Of Contents

Declarations of Conformity and Regulatory Information

Manufacturers Federal Communication Commission Declaration of Conformity Statement

Industry Canada

Canadian Compliance Statement

Declaration of Conformity for RF Exposure

European Community, Switzerland, Norway, Iceland, and Liechtenstein

Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive)

Guidelines for Operating Cisco Aironet Access Points in Japan

Japanese Translation

English Translation

VCCI Statement for Japan

Administrative Rules for Cisco Aironet Access Points in Taiwan

Chinese Translation

English Translation

Operation of Cisco Aironet Access Points in Brazil

Access Point Models

Regulatory Information

Portuguese Translation

English Translation

Declaration of Conformity Statements

Declaration of Conformity Statements for European Union Countries

Declarations of Conformity and Regulatory Information

This appendix provides declarations of conformity and regulatory information for the
Cisco Aironet 1520 series lightweight outdoor mesh access point.

This appendix contains the following sections:

•Manufacturers Federal Communication Commission Declaration of Conformity Statement

•Industry Canada

•Declaration of Conformity for RF Exposure

•European Community, Switzerland, Norway, Iceland, and Liechtenstein

•Guidelines for Operating Cisco Aironet Access Points in Japan

•VCCI Statement for Japan

•Administrative Rules for Cisco Aironet Access Points in Taiwan

•Operation of Cisco Aironet Access Points in Brazil

•Declaration of Conformity Statements

•Declaration of Conformity Statements for European Union Countries

Manufacturers Federal Communication Commission Declaration of Conformity Statement

Model:

AIR-LAP1522AG-A-K9

FCC Certification number:

AIR-RM1520G-A-K9:

LDK102064

AIR-RM1520A-A-K9:

LDK102063

AIR-RM1520-24-A-K9

LDK102064

AIR-RM1520-49-A-K9

LDK102067

AIR-RM1520-58-A-K9

LDK102068

Manufacturer:

Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA

This device complies with Part 15 rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures:

•Reorient or relocate the receiving antenna.

•Increase separation between the equipment and receiver.

•Connect the equipment to an outlet on a circuit different from which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician.

Caution The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency when using Cisco-supplied antennas. Any changes or modification to the product not expressly approved by Cisco could void the user's authority to operate this device.

Caution To meet regulatory restrictions, the access point must be professionally installed.

Note The use of the 4.9-GHz band requires a license and may be used only by qualified Public Safety operators as defined in section 90.20 of the FCC rules.

Industry Canada

IC Certification Number:

AIR-RM1520G-A-K9:

2461B-102064

AIR-RM1520A-A-K9:

2461B-102063

AIR-RM1520-24-A-K9

2461B-102064

AIR-RM1520-49-A-K9

2461B-102067

AIR-RM1520-58-A-K9

2461B102068

Canadian Compliance Statement

This Class B Digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada.

This device complies with Class B Limits of Industry Canada. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Cisco's access points are certified to the requirements of RSS-210 issue 5, RSP 100, and RSS 102 for spread spectrum devices.

Declaration of Conformity for RF Exposure

This access point product has been found to be compliant to the requirements set forth in CFR 47 Section 1.1307 addressing RF Exposure from radio frequency devices as defined in Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.

Use is permitted with antenna gain not exceeding 17 dBi, as described in filing, with a minimum separation distance of 50 cm between the antenna and all persons during normal operation.

Use is permitted with antenna gain not exceeding 8 dBi, as described in filing, with a minimum separation distance of 20 cm between the antenna and all persons during normal operation.

European Community, Switzerland, Norway, Iceland, and Liechtenstein

Lightweight Access Point Models:

AIR-LAP1522G-E-K9
AIR-LAP1522AG-E-K9

Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive)

This declaration is only valid for configurations (combinations of software, firmware, and hardware) provided and supported by Cisco Systems. The use of software or firmware not provided and supported by Cisco Systems may result in the equipment no longer being compliant with the regulatory requirements.

This device complies with the EMC requirements (EN 60601-1-2) of the Medical Directive 93/42/EEC.

For 2.4 GHz radios, the following standards were applied:

•Radio: EN 300.328-1, EN 300.328-2

•EMC: EN 301.489-1, EN 301.489-17

•Safety: EN 60950

Note This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. For more details, contact Cisco Corporate Compliance.

For 54 Mb/s, 5 GHz access points, the following standards were applied:

•Radio: EN 301.893

•EMC: EN 301.489-1, EN 301.489-17

•Safety: EN 60950

The following CE mark is affixed to the access point with a 2.4 GHz radio and a 54 Mb/sMb/s, 5 GHz radio:

Guidelines for Operating Cisco Aironet Access Points in Japan

This section provides guidelines for avoiding interference when operating Cisco Aironet access points in Japan. These guidelines are provided in both Japanese and English.

Lightweight Access Point Models:

AIR-LAP1522G-P-K9
AIR-LAP1522AG-P-K9

Japanese Translation

English Translation

This equipment operates in the same frequency bandwidth as industrial, scientific, and medical devices such as microwave ovens and mobile object identification (RF-ID) systems (licensed premises radio stations and unlicensed specified low-power radio stations) used in factory production lines.

1. Before using this equipment, make sure that no premises radio stations or specified low-power radio stations of RF-ID are used in the vicinity.

2. If this equipment causes RF interference to a premises radio station of RF-ID, promptly change the frequency or stop using the device; contact the number below and ask for recommendations on avoiding radio interference, such as setting partitions.

3. If this equipment causes RF interference to a specified low-power radio station of RF-ID, contact the number below.

Contact Number: 03-6434-6500

VCCI Statement for Japan

Warning

This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Administrative Rules for Cisco Aironet Access Points in Taiwan

This section provides administrative rules for operating Cisco Aironet access points in Taiwan. The rules are provided in both Chinese and English.

Chinese Translation

English Translation

Administrative Rules for Low-power Radio-Frequency Devices

Article 12

For those low-power radio-frequency devices that have already received a type-approval, companies, business units or users should not change its frequencies, increase its power or change its original features and functions.

Article 14

The operation of the low-power radio-frequency devices is subject to the conditions that no harmful interference is caused to aviation safety and authorized radio station; and if interference is caused, the user must stop operating the device immediately and can't re-operate it until the harmful interference is clear.

The authorized radio station means a radio-communication service operating in accordance with the Communication Act.

The operation of the low-power radio-frequency devices is subject to the interference caused by the operation of an authorized radio station, by another intentional or unintentional radiator, by industrial, scientific and medical (ISM) equipment, or by an incidental radiator.

Operation of Cisco Aironet Access Points in Brazil

This section contains special information for operation of Cisco Aironet access points in Brazil.

Access Point Models

AIR-LAP1522G-N-K9

Regulatory Information

Figure B-1 contains Brazil regulatory information for the AIR-LAP1522G-N-K9 access point.

Figure B-1 Brazil Regulatory Information

Portuguese Translation

Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.

English Translation

This equipment operates on a secondary basis and consequently must accept harmful interference, including interference from stations of the same kind. This equipment may not cause harmful interference to systems operating on a primary basis.

Declaration of Conformity Statements

All the Declaration of Conformity statements related to this product can be found at the following URL:

http://www.ciscofax.com

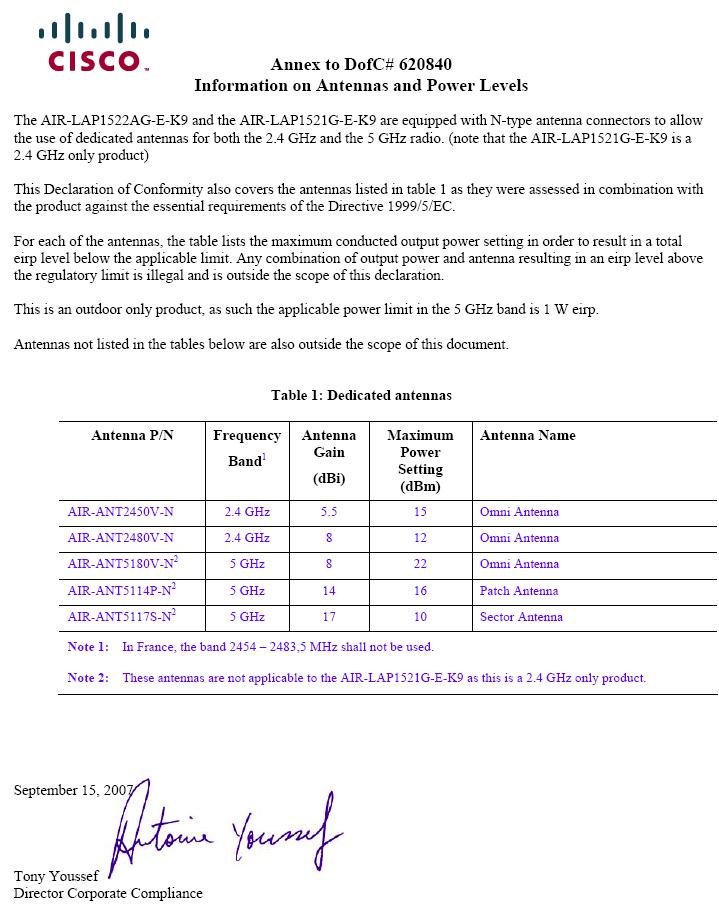

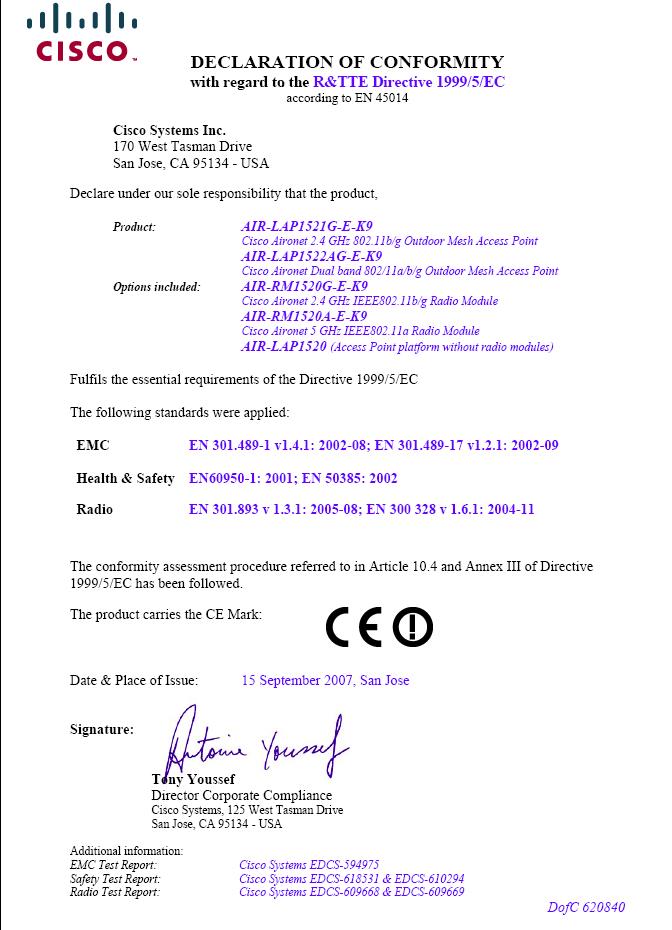

Declaration of Conformity Statements for European Union Countries

The Declaration of Conformity statement for the European Union countries is listed on the following pages:
