Release Notes for the Cisco Media Gateway Controller Software Release 9.2(2)
June 25, 2007
Contents
Introduction
Platform Support
Software Required
Required Swap Space
Host Hardware Requirements
Host Minimum Server Requirements
Media Gateway Hardware Requirements
Local Area Network Switch
Supported Features
Cisco MGC Management
Media Gateway Management
Cisco Signaling Link Terminal Management
Switching Protocols Supported
Related Documentation
Before Installation
After Installation
General Purpose Documents

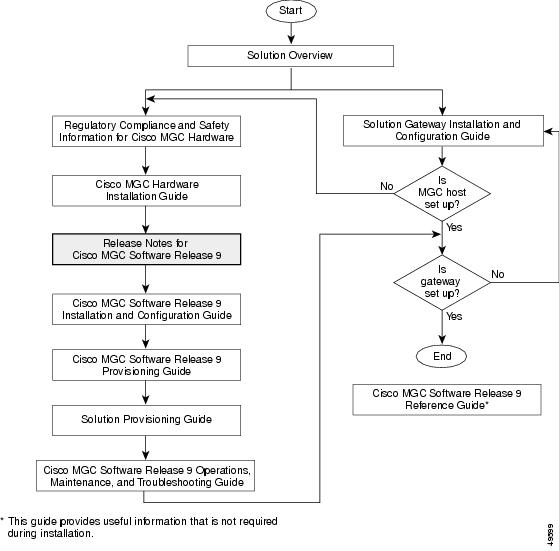

Documentation Map
Installation Notes
Acquiring the Software
Installing and Upgrading the Software
Determining Which Protocol Patches/Families Are Installed On Your System
Determining Your System's Patch Level
New Features in This Release
32 Digit Support in Q.761 Korean ISUP
Seamless Upgrade
Derived FCI and BCI for Interworking
B-Digit Modification Enhancement
No SAM Sent in Hong Kong ISUP
Allow Multiple PCIs In All Protocols
NOA Cause14 32 Digit and Overdecadic for Spain/Italy/Belgium Featurette
NOA Cause14 32 Digit and Overdecadic for Spain/Italy/Belgium Featurette
BTNUP 3.1 KHz Custom Configuration
Software Inventory Control
Software Inventory Control Feature Modification
LNP Enhancements to Q.761_Portugal Protocol
Q767_Singapore.mdo File Created
Payphone Indicator From A-Number Analysis
Country Code Prefix Per Trunk Group Capability
German ISUP 32 Digit Support
Generic Transparency Descriptor Nature of Address Override
VSC3000/SC2200 Code Reference
Automatic Backup Utility
Protocol Packaging
Peruvian ISUP Timer Adjustment
Thailand ISUP with Generic Transparency Descriptor
BT UK ISUP Enhancements
New Version of Times Ten Database Software
Option 1
Option 2
Change to Install Script
Solaris 8 Revision Upgrade
New Cause Code for Call Re-Attempts
Features from Release 9.2(1)T
Time Conditional Routing
Redirecting Number CLI Screening Within a Digit Analysis
Austrian ISUP V2
Mid-Call DTMF Relay for HSI
Dual Ethernet and 4-Link SLT Support
Solaris 8 Support
Protocol Patches
Before Installing a Patch
System Level Equivalency
Patch Test Combinations
CSCOnn045
CSCOnn044
CSCOnn043
CSCOnn042
CSCOnn041
CSCOnn040
CSCOnn039
CSCOnn038
CSCOnn037
CSCOnn036
CSCOnn035
CSCOnn034
CSCOnn033
CSCOnn032
CSCOnn031
CSCOnn030
CSCOnn029
CSCOnn028
CSCOnn027
CSCOnn026
CSCOnn025
CSCOnn024
CSCOnn023
CSCOnn022
CSCOnn021
CSCOnn020
CSCOnn019
CSCOnn018
CSCOnn017
CSCOnn016
CSCOnn015
CSCOnn014
CSCOnn013
CSCOnn012
CSCOnn011
CSCOnn010
CSCOnn009
CSCOnn008
CSCOnn007
CSCOnn006
CSCOnn005
CSCOnn004
CSCOnn003
CSCOnn002
CSCOnn001
CSCOgs043
CSCOgs042
CSCOgs041
CSCOgs040
CSCOgs039
CSCOgs038
CSCOgs037
CSCOgs036
CSCOgs035
CSCOgs034
CSCOgs033
CSCOgs032
CSCOgs031
CSCOgs030
CSCOgs029
CSCOgs028
CSCOgs027
CSCOgs026
CSCOgs025
CSCOgs024
CSCOgs023
CSCOgs022
CSCOgs021
CSCOgs020
CSCOgs019
CSCOgs018
CSCOgs017
CSCOgs016
CSCOgs015
CSCOgs014
CSCOgs013
CSCOgs012
CSCOgs011
CSCOgs010
CSCOgs009
CSCOgs008
CSCOgs007
CSCOgs006
CSCOgs005
CSCOgs004
CSCOgs003
CSCOgs002
CSCOgs001
Supported SS7 Variants and ISUP Transparencies
Known Issues and Operational Recommendations
Installation Patch Tool Removes Packages Before Checking to See If The System Is Down
Using prov-cpy/prov-sync To Commit Configuration Changes on a Fault-Tolerant System
Do Not Use TimesTen Commands in PGW
Modifying the OPC of an SS7 Route
Migration of Dialplans Failed From 7.4(x) to 9.2(x)
CPU Timer Interval Is Not Disabled If CPUTimerInterval Parameter Is Set To 0
Do Not Use the ifconfig UNIX Commands to Shut Down Ethernet Interfaces
Conditional Routing Name Validation
Network Redundancy Between Dual Homed PGW and Single Homed NAS
Suppress CLIDigits Parameter Cannot Be Provisioned on EISUP Trunk1
Switchover Might Take Five to Ten Minutes After Bringing Hme Interfaces Down
Support for Individual IOCC logPrio in XECfgParm.dat
2651 Approved for Use In the PGW 2200
2611s SLTs
Caveats
Resolved Caveats for Software Release 9.2(2)
Open Caveats for Software Release 9.2(2)
Obtaining Documentation
World Wide Web
Documentation CD-ROM
Ordering Documentation
Documentation Feedback
Obtaining Technical Assistance
Cisco.com
Technical Assistance Center
Contacting TAC by Using the Cisco TAC Website
Contacting TAC by Telephone
Release Notes for the Cisco Media Gateway Controller Software Release 9.2(2)
June 25, 2007
These release notes describe the features and caveats for the Cisco media gateway controller (MGC) software Release 9.2(2).
Note
The Cisco MGC Software was formerly called the Cisco Telephony Controller software. Some documentation might use this older name.
Contents
•Introduction
•Platform Support
•Supported Features
•Switching Protocols Supported
•Related Documentation
•Installation Notes
•Determining Which Protocol Patches/Families Are Installed On Your System
•Determining Your System's Patch Level
•New Features in This Release
•Features from Release 9.2(1)T
•Protocol Patches
•Patch Test Combinations
•Known Issues and Operational Recommendations
•Caveats
•Obtaining Documentation
•Obtaining Technical Assistance
Introduction
Interoperability between the old world TDM (Time Division Multiplexing) networks and the new world packet networks is an essential part of the technology adoption life cycle for packet networks. This release of the Cisco PGW 2200 PSTN Gateway provides the bridge between the legacy public switched telephone network (PSTN) and next-generation packet networks - supporting SS7 interconnect for dial and H.323 and SIP networks and intelligent call control and routing for media gateway control protocol (MGCP), session initiation protocol (SIP) and H.323 networks.
The Cisco PGW 2200 provides a consistent and unified interconnection that can handle dialup services, MGCP, SIP, and H.323, as well as future standards. The PGW 2200 allows service providers to deploy and operate multiple network solutions while maintaining a stable interconnection to the PSTN.
Note The Cisco SS7 Interconnect for Voice Gateways 2.0 solution supports the transport of messages between different ISUP variants, except in specific cases where countries have developed variants outside of international standards.
Platform Support
For a list of supported platforms refer to the following documents:
•Cisco Media Gateway Controller Hardware Installation Guide
Chapter 1, Table 1-1, Cisco MGC Host Configurations, at the following url:
http:///univercd/cc/td/doc/product/access/sc/rel7/hrdwrnst/index.htm
•Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide
(Chapter 1) at the following url:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/swinstl/index.htm.
Software Required
For a list of required software, refer to Chapter 1 of the Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide at the following url:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/swinstl/index.htm.
Required Swap Space
For the Cisco MGC software, you need to partition 4 GB of swap space. Setting swap space at installation is recommended; however, you can change swap space at a later date by adding a swap file or repartitioning the swap space using the format menu (for example, reassigning how many cylinders are in each partition). The swap space requirement is determined by the amount of traffic. As traffic increases, you should use the top command in UNIX to see how much swap space is being used; you should then decide if more is needed. You can use the MML command rtrv-ne-health to obtain information from the UNIX top from within MML.
Host Hardware Requirements
Host Minimum Server Requirements
Refer to the Cisco Media Gateway Controller Hardware Installation Guide for the host minimum hardware requirements. Before using the minimum hardware configuration, consult with your Cisco representative to determine the hardware that will give you the best performance results based on your network configuration, proposed traffic, and desired processing power.
Media Gateway Hardware Requirements
Table 1 lists URLs for release notes that document media gateways.
Table 1 Media Gateway Release Notes Locations
Media Gateway Release Notes
|
Release Notes Location
|
MGX8260 (for Cisco SS7 PRI Grooming Application)
|
http://www.cisco.com/univercd/cc/td/doc/product/wanbu/mgx8260/rel1_2/relnotes/120rn826.htm
|
VISM (for Cisco Tandem Offload Application)
|
http://www.cisco.com/univercd/cc/td/doc/product/wanbu/mgx8850/vism21/210rnote.htm
|
Local Area Network Switch
Your application might use one or more local area network (LAN) switches from the Cisco Catalyst Switch family to connect the Cisco MGC host to the MGWs and to the Cisco SLTs.
Note User documentation refers to the Cisco Catalyst 5500 switch family (NEBS-compliant). The Cisco Catalyst 2900 XL is another NEBS-compliant LAN switch that can be used for a small configuration, but current MGC user documentation does not address the Cisco Catalyst 2900 XL. Refer to the Cisco Catalyst 2900 XL documentation for information about this switch.
Note A LAN switch is not provided with the Cisco MGC.
Supported Features
The features listed in Table 2 were inherited from earlier releases of the Cisco MGC Software, and are still supported in Release 9.2(2).
Table 2 Supported Features in Release 9.2(2)
Feature
|
Purpose
|
Long-distance service through both indirect and direct access
|
Replaces the need for traditional TDM equipment.
|
Support for domestic and international dialing plans
|
Provides scalable and flexible service.
|
Support for automatic number identification (ANI) authorization
|
Adds security and prevents fraudulent use of the network.
|
Support for toll-free and 8XX numbers through the service control point (SCP)
|
Allows callers to use the free phone and premium services across the Tandem/Transit network.
|
Centralized element manager
|
Provides a method to configure and monitor the network.
|
ISUP PSTN interconnect with full COT support
|
Provides verification of the voice path.
|
Support for ISDN direct-access lines
|
Allows direct line access to the Cisco MGC.
|
Support for E-ISUP inter-MGC signaling
|
Provides scalable and flexible service.
|
Support for generic routing
|
Provides scalable and flexible service.
|
Support for MGCP 0.1, SGCP 1.0 and 1.1, and SRCP
|
Allows the Cisco MGC to control media gateway connections.
|
Edge-to-edge security
|
Prevents fraudulent use of the network.
|
Support for carrier-grade quality of service (QoS)
|
Replaces the need for traditional TDM equipment.
|
Support for SS7-to-SS7, SS7-to-ISDN, and ISDN-to-ISDN call types
|
Provides scalable and flexible service.
|
Support for voice-band telephony (G.711coding)
|
Provides scalable and flexible service.
|
Support for ISDN data calls
|
Provides scalable and flexible service.
|
Support for echo cancellation
|
Provides scalable and flexible service.
|
Support for Cisco media gateways
|
Protects investment in Cisco equipment.
|
Provides software upgrade of:
•Cisco IOS
•Cisco MGC and Sun Solaris software
•Cisco SLT
|
These upgrade paths:
•Protect investments
•Provide low-cost ownership
•Are part of a complete solution with Cisco IOS software
|
Provides a reliable IP link between Cisco MGC and access servers with Reliable User Datagram Protocol (RUDP)
|
No single point of failure in connection between media gateways and the Cisco MGC.
|
Call detail records for PSTN billing
|
Meets carrier-grade PSTN requirements to migrate existing voice revenue streams to the packet environment and to create new voice service opportunities. Provides a CDR viewer to view billing records.
|
Facility associated signaling provided by the Cisco SLTs (T1/E1 WIC, optional with SS7)
|
•Grooms off the bearer channels and then delivers them to the media gateway.
•Delivers MTP-3 to the MGC host over IP.
|
High Availability platform
|
Established calls are maintained when there is a switchover from the active MGC host to its paired standby host.
|
Sun Solaris 8
|
•Y2K compliant
•Open computing platform
|
•Support for 600 destination point codes (DPCs)
•Support for up to six origination point codes (OPCs) and 48 alias point codes
•Supports 504 PRI D channels
|
•Scales cost-effectively to central office size
•Flexible and scalable
|
Quasi-associated or fully associated signaling
|
Ready for international markets.
|
Complete continuity check (two-wire and four-wire)
|
Meets interconnect requirements.
|
NEBS Level 3 compliant
|
Telco-ready.
|
Several simplex or high availability platform options
|
Cost-effective options.
|
Cisco MGC Management
Table 3 provides an overview of the management components of the Cisco MGC.
Table 3 Management Components of the Cisco MGC
Management Component
|
Description
|
Cisco Voice Service Provisioning Tool (VSPT)
|
The Cisco VSPT is an optional configuration/provisioning tool for the Cisco PGW 2200. You can use its facilities to create, copy, modify, and deploy the configuration for the Media Gateway Controller host.
|
Cisco MGC Node Manager (CMNM)
|
CMNM is both a software requirement and an optional network management tool. It provides network management for the Cisco PGW 2200 that is beyond the provisioning functionality provided by the VSPT. CMNM provides fault, configuration, and performance management for all components of the Cisco MGC node.
|
Alarms
|
The Cisco MGC supports a comprehensive set of alarms (in accordance with ITU X.733):
•Processing errors
•QoS alarms
•Equipment alarms
•Communications alarms
•Environment alarms
You can adjust the severity of alarms and thresholds to match your carrier's severity level definitions. You can also configure the system to generate real-time alarms to local or remote terminals. All alarms are written to a log file in an uncompressed format for easy retrieval.
|
PEG counts
|
You can obtain a variety of usage statistics from the Cisco MGC. The data is recorded real-time and written to a file. You can specify the statistics to be collected and the time intervals for collection and writing to file. Each PEG count record includes:
•Start time
•Duration
•Measured value
•Category
•Element measured
|
Media Gateway Management
The Cisco IOS software installed on the media gateways provides an array of network management components (described in Table 4) designed to meet the needs of today's large, complex networks. These management features provide the following benefits:
•Reduce network bandwidth and processing overhead
•Offload management servers
•Conserve resources
•Ease system configuration tasks
Cisco's integrated management simplifies administrative procedures and shortens the time required to diagnose and fix geographically dispersed networks. Configuration services reduce the cost of installing, upgrading, and reconfiguring network equipment.
Table 4 Network Management Components
Management Component
|
Description
|
SNMP and RMON support
|
Media gateways are fully manageable through use of the Simple Network Management Protocol (SNMP) and imbedded Remote Monitoring (RMON) capabilities:
•SNMP provides for the collection of information about each controller and interface that can be polled through any SNMP-compatible network management system.
•RMON acts as a remote protocol analyzer and LAN probe.
By using the Alarm RMON group, you can set a threshold on any integer-valued Management Information Base (MIB) variable. When the threshold is crossed, an event, defined in the Event RMON group, is triggered. With these capabilities, the system can detect and analyze overload conditions and congestion in real time.
|
Network management systems
|
The media gateways both support calling line identifier and the CiscoView GUI for comprehensive, flexible network management.
CiscoView provides dynamic status, statistics, and comprehensive configuration information for Cisco switches, routers, media gateways, Cisco SLTs, concentrators, and adapters. It displays a graphical view of Cisco devices, provides configuring and monitoring functions, and offers basic troubleshooting.
|
Note CiscoView and RMON are not supported on the Cisco MGX 8260.
Cisco Signaling Link Terminal Management
The Cisco SLT is managed using session manager software. The session manager software also manages the communication sessions between the following pairs of elements:
•Active and standby MGC hosts within an MGC node
•An MGC node and its media gateways for PRI backhaul
•The Cisco SLTs and the active MGC host
•An originating MGC node and a terminating MGC node
The session manager:
•Maintains separate communication sessions between the above pairs of elements.
•Uses Reliable User Datagram Protocol (RUDP) to communicate between the above pairs of elements. RUDP has TCP-like functionality with real-time efficiency.
•In a continuous service configuration, handles additional traffic should a single MGC host, LAN switch, or Cisco SLT fail —with no impact on call processing.
Switching Protocols Supported
The PGW supports multiple signaling protocols, including SS7, PRI (ANSI, ITU, and ETSI), MGCP, H323, and SIP.
Related Documentation
Before Installation
Before you install the Cisco MGC software, consult the following related documentation for information about hardware installation and system requirements:
•The Overview Guide for your solution
•Cisco Media Gateway Controller Hardware Installation Guide:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/hrdwrnst/index.htm
•Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/swinstl/index.htm
•The Gateway Installation Guide for your solution
After Installation
After you install the Cisco MGC software, consult the following related documentation for information on configuring and provisioning your system:
•Cisco Media Gateway Controller Software Release 9 Provisioning Guide:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/prvgde/index.htm
•The Provisioning Guide for your solution
The most recent patch set should be loaded. Patches can be found at the following url:
http://www.cisco.com/kobayashi/sw-center/sw-voice.shtml
General Purpose Documents
•Cisco Media Gateway Controller Software Release 9 Operations, Maintenance, and Troubleshooting Guide http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/omts/index.htm
•Cisco Media Gateway Controller Software Release 9 Messages Reference Guide http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/errmsg/index.htm
•Cisco Media Gateway Controller Software Release 9 MML Command Reference Guide http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/mmlref/index.htm
•Cisco Media Gateway Controller Software Release 9 Dial Plan Guide
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/dplan/index.htm
•Cisco Media Gateway Controller Software Release 9 Billing Interface Guide
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/mgc_mib/index.htm
•Cisco Media Gateway Controller Software Release 9 Management Information Base Guide
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/mgc_mib/index.htm
Documentation Map
Installation Notes
This section contains information and procedures you can use to remove, upgrade, or install the Cisco MGC software. It also contains information about software patches.
Acquiring the Software
The Cisco MGC software is provided to customers on CD. Before installing the software, check the Solution release notes and the web for the most current patch level. If the information on the CD matches the information provided on the web and in the Solution release notes, the software and patch information can be installed directly from the CD.
Complete the following procedure to obtain software patches from CCO:
Step 1 From the Cisco Connection Online page, select the Software Center link(located under Service and Support).
The Technical Assistance Center page displays.
Step 2 From the Technical Assistance Center page, select the Voice Software link (located under Software Products and Downloads).
The Voice Software page displays.
Step 3 From the Voice Software page, select the Login option (located across the top of the page).
A login box displays.
Step 4 Enter your CCO user name and password then press OK.
After authentication the Voice Software page displays.
Step 5 Select the link for the desired software release. Software release links are located under the Cisco Media Gateway Controller heading.
Note Patches can also be obtained from CCO using the following urls:
www.cisco.com/kobayashi/sw-center/sw-voice.shtm
and
http://www.cisco.com/cgi-bin/tablebuild.pl/mgc-922
Installing and Upgrading the Software
Warning Before upgrading from a current version of Software Release 9 to a higher level, you must verify software release version compatibility by contacting Cisco TAC (see Obtaining Technical Assistance) or your Cisco account representative. Software release version incompatibility may cause service disruption.
Warning Before upgrading, refer to the "New Version of Times Ten Database Software" (page 96).
Caution Migration from Cisco MGC Software Release 7.4(x) to Cisco MGC Software Release 9.2(x) fails when the MML names used for the PRI backhaul IP links exceed 16 characters. Before attempting the migration, check all IP link names and ensure that they are 16 characters or less. The migration script uses the existing IP link names to create D-channel components, which are new components in Cisco MGC Software Release 9.(x). To do this, add 4 characters to the existing IP link name. If the existing IP link name is 17 characters or longer, the resultant D-channel name is longer than 20 characters and therefore invalid. (Maximum length of MML names is 20 characters in all releases.)
If you are installing software Release 9.2(2) for the first time, refer to the Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide for instructions.
Note In the Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide, observe the following change: In the "Configuring SNMP Support Resources" sections, SNMP MIB measurements are valid only on the active node. They are not replicated to the standby node.
Caution When upgrading a redundant system, verify that the pom.dataSync parameter (located in /opt/CiscoMGC/etc/XECfgParm.dat) is set to
false to maintain calls and preserve your configuration.
Caution No validation is performed on the IDs you enter. If you enter an invalid ID, the utilities package does not add any accounts.
Note If you have trouble installing the utilities package, make sure that you do not still have a transpath group in your group file (located in /etc).
Determining Which Protocol Patches/Families Are Installed On Your System
Complete the following procedure to determine which protocol patches are installed on your system:
Step 1 cd /opt/SW
Step 2 # ./patch status
The following is an example of the patch status command.
Currently installed protocol packages are:
Note Package 00 is the base protocol software. It must always be installed on your system with any protocol version.
After obtaining a listing of protocol families that are installed on your system, use the protocol family numbers to determine what protocols are included in a package.
The following protocol families are available in Release 9.2(2):
Table 5 Protocol Families for Release 9.2(2)
Protocol Type
|
Protocol Family Number
|
Protocol Family Contents
|
Miscellaneous Protocols
|
01
|
BTNUP_BTNR167
BTNUP_IUP
|
02
|
IETF_DCS
IETF_SIP
MGCPCAS
|
SS7 Protocol Family
|
10
|
ANSISS7_92
ANSISS7_CLEAR
ANSISS7_MCI
ANSISS7_STANDARD
GR317
GR317_C1
GR317_NOTPTX
|
PRI Protocol Family
|
20
|
ATT_41459
ATT_41459_C2
BELL_1268
BELL_1268_C3
BELL_SGCP
|
21
|
ETS_300_102
ETS_300_102_C1
ETS_300_121
ETS_300_172
ETS_300_356
|
Q761 Version 1 Protocol Family
|
30
|
Q761_ARGENTINA
Q761_ARGENTINA_C2
Q761_AUSTRL
Q761_AUSTRL_C2
Q761_BASE
Q761_BELG_BCOM
Q761_BELG_ISUP_CUJO
Q761_BELG_MOBI
|
31
|
Q761_CHILE
Q761_CHINA
Q761_CHINA_MOB
Q761_DANISH
Q761_INDIA
Q761_JAPAN
Q761_KOREAN
Q761_NEWZEALAND
|
32
|
Q761_97VER_BASE
Q761_PERU
Q761_PORTUGAL
Q761_SIEMENS_MOBI
Q761_SINGAPORE
Q761_SINGAPORE_C2
Q761_TAIWAN
Q761_THAILAND
|
33
|
HKTA_2202
ISUPV1_POLI
|
Q761 Version 2 Protocol Family
|
40
|
ISUPV2_32DIG
ISUPV2_AUSTRIAN
ISUPV2_CZECH
ISUPV2_FINNISH96
ISUPV2_FRENCH
ISUPV2_GERMAN
ISUPV2_JAPAN
ISUPV2_KPNPB
|
41
|
ISUPV2_NORWEGIAN
ISUPV2_NTT
ISUPV2_SPANISH
ISUPV2_SWISS
ISUPV2_SWISS_C2
ISUPV2_TELEFONICA
ISUPV2_TOKYO
ISUPV2_VIETNAM
|
Q761 Version 3 Protocol Family
|
50
|
ISUPV3
ISUPV3_FRENCH
ISUPV3_UK
ISUPV3_UK_AXE10
ISUPV3_UK_AXE10_BTNETCHAT
ISUPV3_UK_BTNETCHAT
|
Q721 Protocol Family
|
60
|
Q721_BASE
Q721_BRAZILIAN
Q721_CHINA
Q721_FRENCH
Q721_PHILLIPINE
|
Q767 Protocol Family
|
70
|
Q767_BASE
Q767_BRAZIL
Q767_COLOMBIA
Q767_GUATEMALA Q767_INDONESIA
Q767_ITAL Q767_ITAL_INTERCONNECT Q767_MEXICAN
|
71
|
Q767_RUSS
Q767_SINGAPORE
Q767_SPAN
Q767_SWED
Q767_TELSTRA
Q767_TURKISH
|
Q931 Protocol Family
|
80
|
Q931
Q931_AUSTRALIA
Q931_SINGAPORE
|
Determining Your System's Patch Level
To determine the patch level installed on your system, use the following command:
pkginfo | grep CSCO
The following is an example of the pkginfo command.
application CSCO00015 Cisco Media Gateway Controller Software core system
protocols
application CSCO01015 Cisco Media Gateway Controller Software Miscellaneous
Protocols
application CSCO30015 Cisco Media Gateway Controller Software Q761 Version1
family protocols
application CSCOga000 Cisco Media Gateway Controller Software Licensing
Components
application CSCOga001 Cisco Media Gateway Controller Software Application
application CSCOga002 Cisco Media Gateway Controller Software Database Components
application CSCOga003 Cisco Media Gateway Controller Software SNMP Components
application CSCOga004 Cisco Media Gateway Controller Software Toolkit
Applications
application CSCOgc001 Cisco Media Gateway Controller Software Configuration &
Data Migration
application CSCOgs014 Cisco Media Gateway Controller Software Patch Package
application CSCOgt001 Cisco Media Gateway Controller Software Analyzer/Simulator
utilities CSCOgu000 Cisco Media Gateway Controller Software Common Utilities &
Libraries
utilities CSCOh015 Media Gateway Controller Solaris 8 Patch Cluster
In this example output of pkginfo, protocol patch CSCOnn015 and system patch CSCOgs014 are installed. Additionally, for each protocol patch, an entry is listed for each protocol family that is installed, protocol families 00, 01, and 30 are shown here.
The entry CSCO00015 indicates that protocol patch 015 (indicated by the last three digits) has protocol family 00 (indicated by the two digits preceding the last three digits) installed. The protocol packages are shown as CSCOnnvvv where:
nn—indicates the protocol family
vvv—indicates the version level of the patch
Note For more information on determining your patch level refer to the Protocol Patches section (page 26) of this document.
New Features in This Release
32 Digit Support in Q.761 Korean ISUP
This featurette (CSCec23340) adds 32-digit support to the Q.761 Korean ISUP.
Note For more information, refer to ddts ticket number CSCec23340.
Note This feature was added in patch CSCOnn037.
Seamless Upgrade
The Seamless Upgrade feature has been incorporated in release 9.3(2). To support seamless upgrade from earlier releases to 9.3(2), software changes have been installed using patches. For release 9.2(2), you must have a patch level greater than or equal to CSCOgs020.
Caution When upgrading the PGW 2200 platform from a patch level which does not support Seamless Upgrade to a patch level which does support seamless upgrade, the pom.dataSync parameter (located in XECfgParm.dat) must be set to false. If this parameter is not set to false, the standby system will not transition to the standby state; instead it will remain OOS.
Note Provisioning is not supported when the system is run on mismatched patches (one PGW node has a pre-Seamless Upgrade patch level and its peer has a Seamless Upgrade supported patch).
Note When both PGW 2200 nodes have been upgraded to a Seamless Upgrade supported patch level, normal provisioning can be done.
The following mml commands should not be used if one PGW 2200 node has a pre-Seamless Upgrade patch level and its peer has a Seamless Upgrade supported patch:
•prov-sta
•prov-cpy
•prov-dply
•prov-sync
Note The latest version of a patch is always required. Refer to CCO to determine the latest patch version available.
Derived FCI and BCI for Interworking
This featurette (CSCeb66052) addresses the requirements for setting the Forward Call Indicators (FCI) for ISUP/R2/T1CAS/PRI <-> ISUP interworking and Backward Call Indicators (BCI) for ISUP <-> ISUP/R2/T1CAS/PRI interworking.
These requirements apply to the following ISUP variants:
•Q761_SINGAPORE
•Q767_SINGAPORE
•Q761_BASE
•Q767_BASE
The PGW derives the remote protocol from the GTD Protocol Name field, then sets the FCI and BCI accordingly.
To enable this feature, manually add the following entry to the configurable section of XECfgParm.dat, using a UNIX editor (such as vi):
*.DerivedInterworkingFCIBCIEnable = 1
0 = Feature Disabled (default value), 1 = Feature Enabled
The Echo Control Device field (in the Backward Call Indicators and Nature of Connection Indicators) is now configurable on a SigPath. The property EchoCanRequired can be configured to control this field.
Note This featurette was added in patch CSCOnn036.
For more information, refer to the following documents:
•Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide at the following url:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/swinstl/index.htm
•Cisco Media Gateway Controller Software Release 9 Provisioning Guide at the following url:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/prvgde/index.htm
B-Digit Modification Enhancement
This featurette (CSCdy25786) strips the European number portability configuration (E_PORTED_NUM) output of the gateway number + the called party number (GN+CdPN) to allow the PGW to send out just the GN.
For Hong Kong local number portability (LNP), if a number is ported, a corresponding GN is appended to the CdPN in the IAM. The PGW uses E_PORTED_NUM which gives the number as GN+CdPN. An additional result type is created to allow the B-digit modification to delete the CdPN portion and send out just the GN.
In HK, there are currently 650k ported numbers, each with a unique GN. The GN length varies (2 to 12 digits long). This featurette strips E_PORTED_NUM out put of GN+CdPN from the last digit backward; since the CdPN has a fixed number of digits.
No SAM Sent in Hong Kong ISUP
This featurette (CSCdy30789) enables overlap functionality in HKTA_2202.
Allow Multiple PCIs In All Protocols
This featurette (CSCdx60152) allows multiple PCIs in all protocols. Calls that contain multiple PCIs are not rejected. The first PCI is considered and the second PCI is ignored.
NOA Cause14 32 Digit and Overdecadic for Spain/Italy/Belgium Featurette
This featurette (CSCdy32946) implements the mapping of LNP parameters on thetwo ITU protocols (ISUPV2_TELEFONICA and ISUPV2_SPANISH ITU). The parameters are:
•1— Country specific NOA values
•2—Cause 14 for QoR
•3—32 and Overdecadic Digits support
NOA Cause14 32 Digit and Overdecadic for Spain/Italy/Belgium Featurette
This featurette (CSCdx61723) implements the mapping of LNP parameters on three ITU protocols (Spanish, Italian, and Belgium ISUP). The parameters are:
•1—Country specific NOA values
•2—Cause 14 for QoR
•3—32 and Overdecadic Digits support (Spain requires both; Italian already supports both, and Belgium ISUP already supports Overdecadics).
BTNUP 3.1 KHz Custom Configuration
This featurette (CSCdx05822) extends the function of the existing defaultBC property to include BTNUP-based trunk groups. The property can be set to SPEECH or 3_1_KHZ. The default setting is SPEECH.
If the property is set to 3_1_KHZ, PGW converts the outgoing ISDN 3.1KHz (CAT3) call over the BTNUP TrunkGroup to ISDN speech (CAT2) call. This property has no impact on outgoing ISDN data (CAT1) and speech (CAT2) calls over the BTNUP TrunkGroup.
Software Inventory Control
This featurette (CSCdw61819) detects incompatible software versions residing on test systems in the various Cisco testing facilities. Each software release provides a file containing checksum information for all the libraries and executables being installed. The Software Inventory Control utility generates checksums on the production system then compares those checksums with the values in the installation master file. A discrepancy indicates that the software on the box does not match the software that was originally installed.
Note This featurette does not identify the source of a problem or the correct software to install. It does indicate if a problem exists prior to the testing of incompatible software.
Caution The Software Inventory Control feature uses a 32-bit CRC to calculate checksums. A 32-bit CRC can give over 4 billion possible CRC values (2
32 or 4,294,967,296). With so many CRC values it is possible for two different pieces of data to have the same CRC.
Software Inventory Control Feature Modification
The Software Inventory Control feature has been modified (CSCdy12454) to be less restrictive on the Solaris patches.
•Patches that are installed but not in the input patch list or in the input patch list but not installed are treated as warnings—they may or may not cause problems for the MGC Software.
•Patches that are installed but have a version number different from the version number in the input patch list are reported as errors.
•Warning messages are only displayed if the verbose option (-v) is set.
Note The Software Inventory Control feature requires the Solaris patch cluster version 2.0(4) or higher due to changes in the input data files.
Note As of patch CSCOgs019, the Software Control Inventory feature has been enhanced to recognize the Netra 20 as a legitimate PGW 2200 host platform. Fore more information refer to CSCdy41805.
LNP Enhancements to Q.761_Portugal Protocol
This featurette (CSCdx21249) adds enhancements required to certify the PGW 2200 for interconnect with the PTT to the Portuguese ISUP variant in the Media Gateway Controller (MGC) code. The enhancements are:
•Support for Overdecadic Digits—if a number is ported, the SCP provides a prefix that must be passed outbound to the PTT to allow the correct OLO to receive the call for the subscriber. The format of the prefix to send to the PTT is DXXXYYY<called party number>. The overdecadic D is sent in front of the number. As a requirement, the PGW must support all overdecadic digits (A-F) in Q761_Portugal protocol.
•Mapping of Cause Value 14 in Portugal—switches must act on or generate external cause 14 releases to pass interconnect. The PGW must map external cause 14 releases to an internal release cause code. The PGW must support number portability when operating as an originating switch, transit switch, recipient switch, or donor switch supporting the following scenarios:
–PGW is the Transit Switch and receives a cause 14 from a donor switch. PGW passes the cause 14 to the originating switch which performs the LNP lookup
–PGW is the Donor Switch and after recognizing the number has been ported, generates a cause 14 and passes the cause 14 to the originating switch witch performs the destination LNP lookup.
–PGW is the Originating Switch and receives a cause 14 from a donor switch. PGW performs the destination LNP lookup.
–PGW is the Recipient Switch and routes the ported call.
•Do Not Reject Calls if ACM Contains Multiple PCI (parameter compatibility indicators) Option—currently, the PGW either fails the call with a cause 95 or completes the call but sends CFN messages. The PGW cannot fail calls if the ACM contains multiple options (multiple PCI parameters). As a requirement, because the PCI is not a repeatable parameter, the PGW should act on the first PCI parameter, and ignore the subsequent parameters. This applies to all messages that contain PCI parameters.
Q767_Singapore.mdo File Created
A new .mdo file, Q767_SINGAPORE.mdo, has been created to support the Q767 Singapore IRI/ORI featurette.
Payphone Indicator From A-Number Analysis
This featurette (CSCdv42112) uses A-number analysis in the PGW 2200 to set the payphone indicator in the CPC of the IAM message. You must provision the PGW 2200 with a list of phones that are configured for payphone. The PGW 2200 handles these calls by returning an analysis result that can be used to set or not set the payphone indicator in the CPC of the IAM message. This featurette is generic for all protocols in which the CPC payphone value is 15(0F).
•You must provision the A-digit tree with the CPCMOD result type for all payphone numbers.
•The MML configuration of intermediate CPCMOD results in the result table is consistent with current practice. The following is an example:
NUMAN-ADD:RESULTTABLE:CUSTGRPID="T002", NAME="result45", RESULTTYPE="CPCMOD",
SETNAME="cpcset1', DW1="payphone"
•If you have existing dialplan, update it with following two commands. Otherwise, create a new dialplan with following two commands.
Note Replace xxxx by CUSTGRPID and yyyyyy by DigitString.
numan-add:resulttable:custgrpid="xxxx",resulttype="CPCMOD",dw1="payphone",setname="CPC
MODset",name="CPCMODresult"
numan-add:adigtree:custgrpid="xxxx",digitstring="yyyyyy",callside="originating",setnam
e="CPCMODset"
•Make sure all SS7PATH requiring this feature uses the dialplan. You can assign a dialplan to a SS7PATH using following commands:
Note Replace zzzz by SS7PATH name.
prov-ed:SS7PATH:name="zzzz",CUSTGRPID="xxxx"
prov-add:sigsvcprop:name="zzzz",BOrigStartIndex="1"
prov-add:sigsvcprop:name="zzzz",BTermStartIndex="2"
•Make sure all NASPATH requiring this feature uses dialplan. You can assign dialplan to a NASPATH using following commands:
Note Replace zzzz by NASPATH name.
prov-ed:NASPATH:name="zzzz",CUSTGRPID="xxxx"
prov-add:sigsvcprop:name="zzzz",BOrigStartIndex="1"
prov-add:sigsvcprop:name="zzzz",BTermStartIndex="2"
Country Code Prefix Per Trunk Group Capability
This featurette (CSCdv51699) allows you to route to different carriers for a given destination (on a per trunk group basis) where some carriers use an international format and other carriers use a national format. You can choose to apply or remove a country code and also optionally apply an international prefix.
This featurette introduces four new trunk groups and one new analysis result type which delivers the country code digits used for B-number manipulation. If the analysis result type is retrieved, it supplies the country code digit string that is internally stored until egress trunk group selection. During the final processing stage, the UCM checks to determine whether to prefix the called and calling party numbers with national or international prefixes (0 or 00).
German ISUP 32 Digit Support
This featurette (CSCdv54048) increases the calling and called party number to 32 digits in to the German ISUP protocol module.
Generic Transparency Descriptor Nature of Address Override
This featurette (CSCdv65542) allows the SC2200 to map the nature of address (NOA) parameter that has been modified by the route server into an outgoing IAM message.
VSC3000/SC2200 Code Reference
This featurette (CSCdv65590) renames existing code references from VSC, VSC3000, SC, and SC 2200 to a more generic MGC. These changes are applied to customer viewable area such as properties, messages, alarms, measurements and the GUI screen. Internal code references, such as variable names, will not be changed.
Automatic Backup Utility
This featurette (CSCdv70304) uses a script to backup the configuration data for the Cisco MGC software, select UNIX administrative files, and the Main Memory Database (MMDB). This script only performs full backups. It enables you to perform manual backups, schedule and administer automatic backups, and view a history of the last 30 backup operations performed.
The running of the restoration script must be done in a particular order, based on your network environment and the number of failed Cisco MGCs.
The following items should be noted:
•If your Cisco MGC is a continuous service system, ensure that you perform backup procedures on both Cisco MGC hosts.
•We recommend that you back up your system software during periods of low call volume to minimize the effect of the backup on your call processing.
After completing your backup, you must synchronize the databases on the active and standby Cisco MGCs. Contact TAC for assistance in synchronizing the databases.
Note The backup script is designed to have minimal impact on the CPU. However, we recommend that the script be run at off-peak hours.
For more information on this featurette, refer to the Cisco MGC Software Release 9 Operations, Maintenance, and Troubleshooting Guide at the following url:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/omts/index.htm
Protocol Packaging
This featurette (CSCdv83119) improves the protocol packaging so that you need only load and install protocols that you need. Previously, the entire protocol suite was packaged and delivered together. Delivering all protocols with each build and then each successive patch has the potential to cause usability problems because of the size of the protocol patch packages.
This featurette contains the following modifications:
•The standard installation script was modified to allow the customer to specify which protocol set(s) are required on their platform.
•Only packages containing the desired protocols are installed as part of the standard installation.
After this feature is applied, the same number of packages available with the initial release still exists; however, they have the new nomenclature required to support patching later in the release life cycle and you have the option to install only the packages containing required protocols.
Note You must always download the 00 protocol package when upgrading a protocol patch level. If the 00 protocol package is not downloaded, the upgrade attempt fails. You are advised that the package is missing.
A new directory, /opt/SW, is created during the initial base software installation. You must download all new patches into this directory location. A new shell script is provided with the standard installation and is also installed in the /opt/SW directory. A new alarm, Protocol file missing, has been added.
Peruvian ISUP Timer Adjustment
This featurette (CSCdv87227) changes the T6 timer from 60 seconds to 15 seconds. This reduces the time a call circuit is held.
Thailand ISUP with Generic Transparency Descriptor
This featurette (CSCdw07501) enables you to separate billing records generated by coin boxes from billing records generated by residential phones. Billing is handled by the Radius server on the H.323 network. Records are sorted in the Radius system to separate the coin box calls and residential calls.
BT UK ISUP Enhancements
This featurette (CSCdw32368) provides enhnancements that enable you to use the PGW 2200 as an originating and terminating end node in the network. The Redirecting Number parameter has been mapped to the Last Diverting Line Identity parameter. If both the Redirecting Number parameter and the Last Diverting Line Identity parameter exist in an incoming ISUP IAM message, they are both transferred as they are. If only one of the parameters exists (either Redirecting Number Parameter or Last Diverting Line Identity Parameter) that parameter is mapped to other parameter in the OCC side. When the UK ISUP is used with other protocols and the Redirecting parameter exists, the Redirecting parameter is mapped to th e Redirecting parameter and to the Last Diverting Line Identity parameter in the TCC side.
New Version of Times Ten Database Software
Note If you are migrating from MGC software Release 9.1(5), the requirement to migrate the Times Ten Database information was fulfilled during the 9.1(5) installation and no longer applies when you are installing this release.
Prior to uninstalling the previous release of the MGC software, you must run the following command:
/opt/TimesTen32/32/bin/ttMigrate -c DSN=howdydb /opt/CiscoMGC/etc/migrate.ttdb
If you do not run the migrate command before uninstalling the previous release, the following message displays when you install the new release:
A backup file was found for the database, but no migration file.
A migration file is required before you can upgrade to the latest release of Times Ten. If the previous message displays, complete one of the following procedures.
Option 1
Step 1 Reinstall the previous release of the MGC and run the following command:
/opt/TimesTen32/32/bin/ttMigrate -c DSN=howdydb /opt/CiscoMGC/etc/migrate.ttdb
Step 2 Uninstall the previous release.
Step 3 Reinstall the software.
Option 2
Step 1 If you do not want to save the data from the previous release, remove the file:
/opt/CiscoMGC/etc/export.ttdb
Step 2 Reinstall the software.
Note For option 1 and option 2, after upgrading the software on both machines, run the setup_replication.sh script on the standby MGC.
Change to Install Script
A new performance profile script has been added to this release. The system is automatically installed using a standard performance profile satisfactory for both nailed and switched solutions. This standard profile is a combination of the profiles where you selected to optimize the system to maximize the number of sustainable calls or to optimize the system to maximize the number of calls per second.
The profile takes effect when the MGC is restarted. A performance profile can be selected only at installation time. To change a selection, you must remove and reinstall the system. For more information on the install script, see the "Protocol Patches" section of these release notes.
Solaris 8 Revision Upgrade
This featurette (CSCdw47628) replaces the current version of Solaris 8 (released July 2001) used on the MGC and BAMS platforms with a more current release (October 2001). This upgrade was necessary to support the most recent hardware platform released by Sun (the Sunfire v120). The v120, which requires a Solaris operating system of October 2001 or later, replaces the AC/DC 200.
New Cause Code for Call Re-Attempts
This featurette (CSCeb07238) determines how calls released from the PGW when the following scenarios occur:
•Glare on non-control circuit
•Circuit Block after IAM before ACM
•Circuit Reset after IAM before ACM
•COT failure
The following entry must be manually added to the configurable parameter section of XECfgParm.dat using a UNIX editor (such as vi):
*.GlareReattemptCauseValue=44
Valid values are 1-127; the default value is 44.
If the GlareReattemptCauseValue entry is not added to XECfgParm.dat and patches CSCOnn035 and CSCOgs037 are added to the system, the PGW defaults to a value of 44 for call reattempts and the original behavior of mapping to CV=44 is used.
Note The GlareReattemptCauseValue parameter is not automatically migrated when upgrading from 9.2(2) to a later version of software. After upgrading you must manually re-add the parameter to XECfgParm.dat. After adding the parameter, the PGW must be restarted for the change to take effect.
Note This featurette is for nailed solutions only.
Features from Release 9.2(1)T
Time Conditional Routing
This featurette (CSCuk25661) enables you to provision time and day dependencies into the route selection on the VSC. Time conditional routing allows the route lists to be selected depending on the day of the week and holidays (special days) and a time band. Time of day and type of day (Mon, Tue, Wed, Thu, Fri, Sat, Sun, Holiday (1-3), and Default) are used as keys into the time conditional rouing table; the output from the time conditional routing table is a route list. An example of a time conditional routing table is shown in Table 6.
Table 6 Time Conditional Routing Table
Day
|
Times
|
Route List
|
Monday
|
0000—0900
|
1
|
Monday
|
0901—1700
|
2
|
Monday
|
1701—2200
|
3
|
Monday
|
2201—2359
|
4
|
Tuesday
|
0000—1700
|
3
|
Tuesday
|
1701—2359
|
5
|
Sunday
|
0000—2359
|
2
|
Holiday1
|
0000—2359
|
4
|
Default
|
—
|
2
|
Note The Default entry is the default for type of day selection. It ensures that a route list can be picked up without having to provision every possible type of day into a table.
The following are guidelines on the dimensioning for time conditional routing tables:
•You can have a maximum of 11 days per conditional routing block.
•You can have a maximum of 5 individual route list entries per type of day.
•The recommended maximum number of conditional routing blocks is 1000.
•The time bands are specified using GMT with a granularity of hours and minutes.
Redirecting Number CLI Screening Within a Digit Analysis
This featurette (CSCdu67513) enables the analysis system to use the A-Digit tree for a mapping to BLACKLIST function on the Redirecting CLI value, when the property RedirectingATree is set.
Austrian ISUP V2
This featurette (CSCdv01785) modifies Swiss V2 ISUP V.2 MDO. It removes the UCIC message and create a new MDO for Telecom Austria.
Mid-Call DTMF Relay for HSI
This featurette (CSCdv11334) provides the ability to connect Cisco Call Managers to the PSTN using the VSC with the HSI adjunct as the PSTN gateway; AS5300 and AS5400 media gateways are used. The Cisco Call Manager supports out-of-band DTMF using H.245. The VSC and HSI adjunct receives the H.245 DTMF indications and forwards them to the Media Gateway for relay into the PSTN. The VSC also receives DTMF digits from the PSTN and signals them using H.245 out-of-band signaling to the Cisco Call Manager.
Dual Ethernet and 4-Link SLT Support
This featurette adds SLT support for two IP networks and two additional Session Manager sessions for Backhaul communication. These additions increase the resilience of SLT-VSC communications by supporting two RUDP sessions from each ethernet interface to each VSC.
Solaris 8 Support
This featurette replaces Solaris 2.6 operating environment with Solaris 8. The Solaris 8 operating environment introduces new features that extend its capabilities.
Protocol Patches
Patches are located in the following directory:
/auto/nssu-release/PATCHES/9.2.2/P1/CSCOxx001.pkg
The protocol packaging has been improved so that you need only load and install protocols that you need. Previously, the entire protocol suite was packaged and delivered together.
With the improved packaging protocol:
•The standard installation script allows you to specify which protocol set(s) are required on your platform.
•Only packages containing the desired protocols are installed as part of the standard installation.
The same number of packages available with the initial release still exists; however, they have a new nomenclature that is required to support patching later in the release life cycle and you have the option to install only the packages containing required protocols.
The protocol packages are labeled CSCOnnvvv:
nn—indicates the specific protocols you need for your environment
vvv—indicates the version level of the patch
For example, at the time of the release you are given protocol patch CSCO01000.pkg. The 01 indicates a specific protocol applicable to your environment; 000 indicates the revision level. The next time a set of protocol patches are built, the 000 is incremented by 1 (001).
Note You must always install the 00 protocol package when upgrading a protocol patch level. If the 00 protocol package is not installed, the upgrade attempt fails. The Protocol file missing alarm displays.
Use the patch script (new shell script provided with the standard installation)located in your /opt/SW directory (created during the initial base software installation) to confirm which patch packages you need to install (using the patch status command), and then copy these packages into your local directory (/opt/SW)from the release directory where you can use the script to install the patches.
Note For more information on using the patch status command, refer to the Determining Which Protocol Patches/Families Are Installed On Your System section of this document.
The installation script requires one of the following options:
•Option 1—patch status retrieves the status of the system. Use this option to determine which set of protocol packages are currently installed on your system. The installed protocol packages are required (must be downloaded) to update the software. The exception is if you need a new protocol that was not previously delivered. In this case, you need to download an extra package (the package that the new protocol is delivered in).
•Option 2—patch all automatically searches the local directory (/opt/SW) and the installed system to determine the most recent available patch and automatically updates the system with that patch level. This applies to protocol and system patches. All uninstall and install activities are handled by the script. The command for this is:patch all. The all command does not require a second argument.
•Option 3—patch system [latest |<alternate patch number>] specifies the exact patch level for system patches you choose to install on the system. You can specify any available patch level to be installed. All uninstall and install activities are handled by this script. This option requires one of the following arguments:
–latest —installs the most recently downloaded patch. This argument should be used with the system and protocol commands used in options 3 and 4.
–<number> —indicates the patch number <vvv> that you want to install. This argument should be used with the system and protocol commands used in options 3 and 4.
•Option 4—patch protocol [latest |<alternate patch number>] specifies the exact patch level for protocol patches you choose to install on the system. You can specify any available patch level to be installed. All uninstall and install activities are handled by this script. This option requires one of the following arguments:
–latest —installs the most recently downloaded patch. This argument should be used with the system and protocol commands used in options 3 and 4.
–<number> —indicates the patch number <vvv> that you want to install. This argument should be used with the system and protocol commands used in options 3 and 4.
The following is sample output of option 2, patch all which automatically searches the local directory and the installed system to determine the most recent available patch located in /opt/SW (protocol and system) and automatically updates the system with that patch level.
va-butterfly:104> patch all
The following patches are about to be removed from your system:
The following patches are about to be added to your system from the local directory:
The following patch(es) are about to be added to your system from the local directory:
Are you sure this add/remove scenario is correct? [y] [y,n,?,q]
Before Installing a Patch
Before installing a patch, you must shut down the Cisco MGC application, because the affected programs are part of the running system. To ensure that the MGC application has been shut down, execute the following command:
# /etc/init.d/CiscoMGC stop
After the Cisco MGC has been shut down, verify the currently installed software load to ensure that the patch being installed is both compatible with and meant for the software currently installed. You can verify this using the following command:
# sudo pkgparam CSCOgu000
After shutting down the Cisco MGC and verifying the software load, you can proceed with the installation.
System Level Equivalency
Table 7 provides the system level equivalency for each protocol patch. For example, after installing CSCOnn003, release 9.2(2) is equivalent to release 9.1(5) patch level CSCOgp014 (contains all patches and features included in release 9.1(5) up to patch CSCOgp014).
Table 7 System Level Equivalencies for Protocol Patches
Patch Number
|
System Level Equivalency
|
CSCOnn045
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn044
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn043
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn042
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn041
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn040
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn039
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn038
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn037
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn036
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn035
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn034
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn033
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn032
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn031
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn030
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn029
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn028
|
Release 9.1(5) patch level CSCOgp020
|
CSCOnn027
|
Release 9.1(5) patch level CSCOgp019
|
CSCOnn026
|
Release 9.1(5) patch level CSCOgp019
|
CSCOnn025
|
Release 9.1(5) patch level CSCOgp019
|
CSCOnn024
|
Release 9.1(5) patch level CSCOgp019
|
CSCOnn023
|
Release 9.1(5) patch level CSCOgp019
|
CSCOnn022
|
Release 9.1(5) patch level CSCOgp019
|
CSCOnn021
|
Release 9.1(5) patch level CSCOgp019
|
CSCOnn020
|
Release 9.1(5) patch level CSCOgp019
|
CSCOnn019
|
Release 9.1(5) patch level CSCOgp019
|
CSCOnn018
|
Release 9.1(5) patch level CSCOgp018
|
CSCOnn017
|
Release 9.1(5) patch level CSCOgp018
|
CSCOnn016
|
Release 9.1(5) patch level CSCOgp018
|
CSCOnn015
|
Release 9.1(5) patch level CSCOgp018
|
CSCOnn014
|
Release 9.1(5) patch level CSCOgp017
|
CSCOnn013
|
Release 9.1(5) patch level CSCOgp017
|
CSCOnn012
|
Release 9.1(5) patch level CSCOgp017
|
CSCOnn011
|
Release 9.1(5) patch level CSCOgp017
|
CSCOnn010
|
Release 9.1(5) patch level CSCOgp017
|
CSCOnn009
|
Release 9.1(5) patch level CSCOgp016
|
CSCOnn008
|
Release 9.1(5) patch level CSCOgp015
|
CSCOnn007
|
Release 9.1(5) patch level CSCOgp015
|
CSCOnn006
|
Release 9.1(5) patch level CSCOgp014
|
CSCOnn005
|
Release 9.1(5) patch level CSCOgp014
|
CSCOnn004
|
Release 9.1(5) patch level CSCOgp014
|
CSCOnn003
|
Release 9.1(5) patch level CSCOgp014
|
CSCOnn002
|
Release 9.1(5) patch level CSCOgp013
|
CSCOnn001
|
Release 9.1(5) patch level CSCOgp010
|
Table 8 provides the system level equivalency for each system patch. For example, after installing CSCOgs003, release 9.2(2) is equivalent to release 9.1(5) patch level CSCOgs009 (contains all patches and features included in release 9.1(5) up to patch CSCOgs009).
Table 8 System Level Equivalencies for System Patches
Patch Number
|
System Level Equivalency
|
CSCOgs043
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs042
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs041
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs040
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs039
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs038
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs037
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs036
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs035
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs035
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs034
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs033
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs032
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs031
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs030
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs029
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs028
|
Release 9.1(5) patch level CSCOgs017
|
CSCOgs027
|
Release 9.1(5) patch level CSCOgs016
|
CSCOgs026
|
Release 9.1(5) patch level CSCOgs016
|
CSCOgs025
|
Release 9.1(5) patch level CSCOgs016
|
CSCOgs024
|
Release 9.1(5) patch level CSCOgs016
|
CSCOgs023
|
Release 9.1(5) patch level CSCOgs015
|
CSCOgs022
|
Release 9.1(5) patch level CSCOgs015
|
CSCOgs021
|
Release 9.1(5) patch level CSCOgs015
|
CSCOgs020
|
Release 9.1(5) patch level CSCOgs015
|
CSCOgs019
|
Release 9.1(5) patch level CSCOgs014
|
CSCOgs018
|
Release 9.1(5) patch level CSCOgs014
|
CSCOgs017
|
Release 9.1(5) patch level CSCOgs013
|
CSCOgs016
|
Release 9.1(5) patch level CSCOgs013
|
CSCOgs015
|
Release 9.1(5) patch level CSCOgs013
|
CSCOgs014
|
Release 9.1(5) patch level CSCOgs013
|
CSCOgs013
|
Release 9.1(5) patch level CSCOgs012
|
CSCOgs012
|
Release 9.1(5) patch level CSCOgs012
|
CSCOgs011
|
Release 9.1(5) patch level CSCOgs012
|
CSCOgs010
|
Release 9.1(5) patch level CSCOgs012
|
CSCOgs009
|
Release 9.1(5) patch level CSCOgs012
|
CSCOgs008
|
Release 9.1(5) patch level CSCOgs011
|
CSCOgs007
|
Release 9.1(5) patch level CSCOgs010
|
CSCOgs006
|
Release 9.1(5) patch level CSCOgs010
|
CSCOgs005
|
Release 9.1(5) patch level CSCOgs009
|
CSCOgs004
|
Release 9.1(5) patch level CSCOgs009
|
CSCOgs003
|
Release 9.1(5) patch level CSCOgs009
|
CSCOgs002
|
Release 9.1(5) patch level CSCOgs008
|
CSCOgs001
|
Release 9.1(5) patch level CSCOgs006
|
Patch Test Combinations
Table 9 provides a list of the patch combinations that were used when testing. Use this list to determine which protocol and system patches should be installed before you run the MGC software. It does not matter which patch (protocol or software) is installed first.
Table 9 Patch Test Combinations
Protocol Patch
|
System Patch
|
CSCOnn045
|
CSCOgs043
|
CSCOnn045
|
CSCOgs042
|
CSCOnn044
|
CSCOgs042
|
CSCOnn043
|
CSCOgs042
|
CSCOnn043
|
CSCOgs041
|
CSCOnn042
|
CSCOgs041
|
CSCOnn041
|
CSCOgs040
|
CSCOnn040
|
CSCOgs040
|
CSCOnn039
|
CSCOgs040
|
CSCOnn038
|
CSCOgs040
|
CSCOnn037
|
CSCOgs039
|
CSCOnn037
|
CSCOgs038
|
CSCOnn036
|
CSCOgs038
|
CSCOnn035
|
CSCOgs037
|
CSCOnn034
|
CSCOgs036
|
CSCOnn034
|
CSCOgs035
|
CSCOnn033
|
CSCOgs035
|
CSCOnn032
|
CSCOgs034
|
CSCOnn032
|
CSCOgs033
|
CSCOnn031
|
CSCOgs032
|
CSCOnn030
|
CSCOgs031
|
CSCOnn029
|
CSCOgs030
|
CSCOnn029
|
CSCOgs029
|
CSCOnn028
|
CSCOgs028
|
CSCOnn027
|
CSCOgs027
|
CSCOnn027
|
CSCOgs026
|
CSCOnn026
|
CSCOgs025
|
CSCOnn025
|
CSCOgs024
|
CSCOnn024
|
CSCOgs023
|
CSCOnn023
|
CSCOgs022
|
CSCOnn022
|
CSCOgs021
|
CSCOnn021
|
CSCOgs020
|
CSCOnn020
|
CSCOgs019
|
CSCOnn019
|
CSCOgs018
|
CSCOnn018
|
CSCOgs017
|
CSCOnn017
|
CSCOgs016
|
CSCOnn016
|
CSCOgs015
|
CSCOnn015
|
CSCOgs014
|
CSCOnn014
|
CSCOgs013
|
CSCOnn013
|
CSCOgs013
|
CSCOnn012
|
CSCOgs012
|
CSCOnn011
|
CSCOgs011
|
CSCOnn010
|
CSCOgs010
|
CSCOnn009
|
CSCOgs008
|
CSCOnn008
|
CSCOgs007
|
CSCOnn007
|
CSCOgs006
|
CSCOnn006
|
CSCOgs005
|
CSCOnn005
|
CSCOgs005
|
CSCOnn004
|
CSCOgs004
|
CSCOnn003
|
CSCOgs003
|
CSCOnn002
|
CSCOgs002
|
CSCOnn001
|
CSCOgs001
|
CSCOnn045
Caution The patch script located on CCO has been renamed patch.sh. Download the patch (patch.sh) to the /opt/SW directory on your system and rename it to patch. Permissions for this file should be set to 775. For example:
-rwxrwxr-x 1 root sys 15998 Sep 16 2002 patch
Owner: root
Group: sys
Permissions 775
Protocol patch CSCOnn045 resolves the following DDTS ticket:
Identifier
|
Severity
|
Component
|
Description
|
CSCee01496
|
2
|
mdl
|
RNI not present in IAM reroute message.
|
Additional information:
•Protocol patch CSCOnn044 is superseded by the fixes provided in protocol patch CSCOnn045. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn044
Caution The patch script located on CCO has been renamed patch.sh. Download the patch (patch.sh) to the /opt/SW directory on your system and rename it to patch. Permissions for this file should be set to 775. For example:
-rwxrwxr-x 1 root sys 15998 Sep 16 2002 patch
Owner: root
Group: sys
Permissions 775
Protocol patch CSCOnn044 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCed59724
|
3
|
mdl-ni2
|
PGW should not send ATP when receiving ProgIndIE=3 from NI2+.
|
CSCed60740
|
3
|
mdl
|
IAM with code 11 or code 12 set PGW rejects call.
|
CSCed61002
|
3
|
mdl-q761
|
BCI fields in ISUP CON msg not set by ingress PGW Q761_SINGAPORE var.
|
CSCed67494
|
3
|
mdl-q761
|
Wrong Redirection Count for ISDN to ISUP call.
|
Additional information:
•Protocol patch CSCOnn043 is superseded by the fixes provided in protocol patch CSCOnn044. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn043
Caution The patch script located on CCO has been renamed patch.sh. Download the patch (patch.sh) to the /opt/SW directory on your system and rename it to patch. Permissions for this file should be set to 775. For example:
-rwxrwxr-x 1 root sys 15998 Sep 16 2002 patch
Owner: root
Group: sys
Permissions 775
Protocol patch CSCOnn043 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCed19529
|
3
|
mdl-q767
|
Extra OBCI parameter inserted into CPG message by ingress PGW.
|
CSCed31576
|
3
|
mdl-q761
|
GTD CPC=29 needs to map to Q761_SINGAPORE CPC=2 on egress.
|
Additional information:
•Protocol patch CSCOnn042 is superseded by the fixes provided in protocol patch CSCOnn043. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn042
Caution The patch script located on CCO has been renamed patch.sh. Download the patch (patch.sh) to the /opt/SW directory on your system and rename it to patch. Permissions for this file should be set to 775. For example:
-rwxrwxr-x 1 root sys 15998 Sep 16 2002 patch
Owner: root
Group: sys
Permissions 775
Protocol patch CSCOnn042 resolves the following DDTS ticket:
Identifier
|
Severity
|
Component
|
Description
|
CSCed29090
|
3
|
mdl-ni2
|
PGW early backward message causes ISDN orig call to fail.
|
Additional information:
•Protocol patch CSCOnn041 is superseded by the fixes provided in protocol patch CSCOnn042. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn041
Caution The patch script located on CCO has been renamed patch.sh. Download the patch (patch.sh) to the /opt/SW directory on your system and rename it to patch. Permissions for this file should be set to 775. For example:
-rwxrwxr-x 1 root sys 15998 Sep 16 2002 patch
Owner: root
Group: sys
Permissions 775
Protocol patch CSCOnn041 resolves the following DDTS ticket:
Identifier
|
Severity
|
Component
|
Description
|
CSCed19529
|
3
|
mdl-q767
|
Extra OBCI parameter inserted into CPG message by ingress PGW.
|
Additional information:
•Protocol patch CSCOnn040 is superseded by the fixes provided in protocol patch CSCOnn041. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn040
Caution The patch script located on CCO has been renamed patch.sh. Download the patch (patch.sh) to the /opt/SW directory on your system and rename it to patch. Permissions for this file should be set to 775. For example:
-rwxrwxr-x 1 root sys 15998 Sep 16 2002 patch
Owner: root
Group: sys
Permissions 775
Protocol patch CSCOnn040 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCed02204
|
3
|
mdl-q767
|
ISUP-ISUP CPC mapping is transparent for like-to-unlike SS7 variants.
|
CSCed02233
|
3
|
mdl-ni2
|
PI=8 inserted in NI2+ CONNECT by egress PGW.
|
CSCed04332
|
3
|
mdl-q767
|
NI2 PROG with PI=4 does not trigger ISUP CPG with ATP at ingress PGW.
|
CSCed05356
|
3
|
mdl-ni2
|
SS7 ATP created when recv isdn msgs with PI=8.
|
Additional information:
•Protocol patch CSCOnn039 is superseded by the fixes provided in protocol patch CSCOnn040. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn039
Caution The patch script located on CCO has been renamed patch.sh. Download the patch (patch.sh) to the /opt/SW directory on your system and rename it to patch. Permissions for this file should be set to 775. For example:
-rwxrwxr-x 1 root sys 15998 Sep 16 2002 patch
Owner: root
Group: sys
Permissions 775
Protocol patch CSCOnn039 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCec58264
|
3
|
mdl-ni2
|
PGW to insert PRN in the REL-GTD sent in NI2-DISC.
|
CSCec79449
|
3
|
mdl-ni2
|
PGW needs to treat PRN.prot=uknow as ISUP/ISDN termination without i.
|
Additional information:
•Protocol patch CSCOnn038 is superseded by the fixes provided in protocol patch CSCOnn039. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn038
Caution The patch script located on CCO has been renamed patch.sh. Download the patch (patch.sh) to the /opt/SW directory on your system and rename it to patch. Permissions for this file should be set to 775. For example:
-rwxrwxr-x 1 root sys 15998 Sep 16 2002 patch
Owner: root
Group: sys
Permissions 775
Protocol patch CSCOnn038 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCec24084
|
2
|
mdl-q761
|
PGW fails to generate E-ACM upon NI2-PROG with CPG GTD.
|
CSCec38281
|
2
|
mdl-q761
|
PGW generates BCI parm in ANM GTD causing ISUP Xparency violation.
|
CSCec44788
|
3
|
mdl-q761
|
T38 trigger needs to be aware of peer signaling.
|
CSCec52895
|
3
|
mdl-q761
|
Q761_SINGAPORE should start T6 and T38 simultaneously.
|
Additional information:
•Protocol patch CSCOnn037 is superseded by the fixes provided in protocol patch CSCOnn038. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn037
Protocol patch CSCOnn037 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCec20353
|
2
|
mdl-q761
|
PGW inserts incorrect cld-pty-stat in BCI for q761-sng to T1CAS call.
|
CSCec26560
|
3
|
mdl-q761
|
BCI in CON wrong for Q761 SNG to V2-GW calls.
|
CSCec31582
|
3
|
mdl-q761
|
PGW generates OBCI parm in ACM violating ISUP transparency,ST_P2 singtel
|
CSCec31669
|
3
|
mdl-q761
|
No ATP reqd for non-ISDN terminations as indicated in NI2-GTD.
|
CSCec31673
|
3
|
mdl-q761
|
Set BCI-CldPtyStat=NoInd when No-GTD or GTD-w/o-PRN in NI2-PROG-PI8.
|
CSCec23340
|
6
|
other
|
32 digit support in Q.761 Korean ISUP.
|
Additional information:
•Protocol patch CSCOnn036 is superseded by the fixes provided in protocol patch CSCOnn037. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•CSCec23340—32 Digit Support in Q.761 Korean ISUP—Adds 32-digit support to the Q.761 Korean ISUP.
CSCOnn036
Protocol patch CSCOnn036 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCeb45858
|
2
|
mdl-ni2
|
PGW should not propagate ProgInd into ATP for ISUP-ISUP call w/GTD.
|
CSCeb61738
|
2
|
mdl
|
Netmeeting calls fail when GTD is configured with 9.4.1 PGW.
|
CSCea62111
|
3
|
mdl-q761
|
Call releases with CV#31 iso #102 when no RESUME after SUSPEND.
|
CSCeb44493
|
3
|
mdl-ni2
|
PGW rejects NI2-PROG from GW if ProgInd=5.
|
CSCeb66052
|
6
|
other
|
Derived FCI and BCI for Interworking featurette.
|
Additional information:
•Protocol patch CSCOnn035 is superseded by the fixes provided in protocol patch CSCOnn036. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•Both patches CSCOnn036 and CSCOgs038 must be installed.
•CSCeb66052—Derived FCI and BCI for Interworking featurette—this featurette addresses the requirements for setting the Forward Call Indicators (FCI) for ISUP/R2/T1CAS/PRI <-> ISUP interworking and Backward Call Indicators (BCI) for ISUP <-> ISUP/R2/T1CAS/PRI interworking.
These requirements apply to the following ISUP variants:
–Q761_SINGAPORE
–Q767_SINGAPORE
–Q761_BASE
–Q767_BASE
The PGW derives the remote protocol from the GTD Protocol Name field, then sets the FCI and BCI accordingly.
To enable this feature, manually add the following entry to the configurable section of XECfgParm.dat, using a UNIX editor (such as vi):
*.DerivedInterworkingFCIBCIEnable = 1
0 = Feature Disabled (default value), 1 = Feature Enabled
The Echo Control Device field (in the Backward Call Indicators and Nature of Connection Indicators) is now configurable on a SigPath. The property EchoCanRequired can be configured to control this field.
CSCOnn035
Protocol patch CSCOnn035 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCeb34155
|
2
|
mdl-ni2
|
PGW sends invalid NI2-PROG message for early-ACM scenario.
|
CSCdz22222
|
3
|
mdl-q761
|
CICs stuck in CALL=IN/OUT state on PGW and Idle on gateway.
|
CSCeb37075
|
3
|
mdl-ni2
|
Ingress PGW should not propagate PI=9 from Ni2-PROG to AccsTrnsprt.
|
CSCeb37105
|
3
|
mdl-ni2
|
Egress PGW should send NI2-PROG with PI9 for CPG transparency.
|
CSCeb07238
|
6
|
other
|
New Cause Code for Call Re-Attempts featurette.
|
Additional information:
•Protocol patch CSCOnn034 is superseded by the fixes provided in protocol patch CSCOnn035. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•Both patches CSCOnn034 and CSCOgs037 must be installed.
•CSCeb07238—New Cause Code for Call Re-Attempts— This featurette determines how calls released from the PGW when the following scenarios occur:
–Glare on non-control circuit
–Circuit Block after IAM before ACM
–Circuit Reset after IAM before ACM
–COT failure
The following entry must be manually added to the configurable parameter section of XECfgParm.dat using a UNIX editor (such as vi):
*.GlareReattemptCauseValue=44
Valid values are 1-127; the default value is 44.
If the GlareReattemptCauseValue entry is not added to XECfgParm.dat and patches CSCOnn035 and CSCOgs037 are added to the system, the PGW defaults to a value of 44 for call reattempts and the original behavior of mapping to CV=44 is used.
Note The GlareReattemptCauseValue parameter is not automatically migrated when upgrading from 9.2(2) to a later version of software. After upgrading you must manually re-add the parameter to XECfgParm.dat. After adding the parameter, the PGW must be restarted for the change to take effect.
Note This featurette is for nailed solutions only.
CSCOnn034
Protocol patch CSCOnn034 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCea63564
|
3
|
mdl-q767
|
CV#20 gets mapped to CV#31 iso being passed through.
|
CSCea86351
|
3
|
mdl-ni2
|
PGW should pass CV=4 without changing coding standard.
|
Additional information:
•Protocol patch CSCOnn033 is superseded by the fixes provided in protocol patch CSCOnn034. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn033
Protocol patch CSCOnn033 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCea62136
|
2
|
mdl-ni2
|
PGW handling of early ACM and CPG with GTD not correct.
|
CSCea60697
|
3
|
mdl-ni2
|
No ISUP-transparency for early ACM.
|
CSCea62111
|
3
|
mdl-q761
|
Call releases with CV#31 iso #102 when T6 expires.
|
CSCea63564
|
3
|
mdl-q767
|
CV#20 gets mapped to CV#31 iso being passed through.
|
CSCea81076
|
3
|
mdl-ni2
|
GTD Protocol Name is overwritten by Prot Variant for Q767.
|
CSCea86351
|
3
|
mdl-ni2
|
PGW should pass CV=4 without changing coding standard.
|
Additional information:
•Protocol patch CSCOnn032 is superseded by the fixes provided in protocol patch CSCOnn033. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn032
Protocol patch CSCOnn032 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCea29513
|
2
|
mdl-q761
|
Numbering Plan unkown is changed to spare by the PGW.
|
CSCdz28886
|
3
|
mdl-connctrl
|
CIC states on PGW not synced with bearer ch. states on GW.
|
CSCea12246
|
3
|
protocol
|
sc not mapping *#(over-decadic digits) to B/C.
|
CSCea25631
|
3
|
mdl-callctrl
|
Hung CIC due to race condition between call release and rerouting.
|
Additional information:
•Protocol patch CSCOnn031 is superseded by the fixes provided in protocol patch CSCOnn032. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn031
Protocol patch CSCOnn031 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCea15726
|
3
|
mdl-ni2
|
PGW does not transparently pass cv-4 from NI2 to SS7 side.
|
The BELL_1268_C3 component was updated.
Additional information:
•Protocol patch CSCOnn030 is superseded by the fixes provided in protocol patch CSCOnn031. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn030
Protocol patch CSCOnn030 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz84480
|
3
|
mdl-sip
|
PSTN Rel w/Cause code=31 maps to incorrect SIP error code.
|
Additional information:
•Protocol patch CSCOnn029 is superseded by the fixes provided in protocol patch CSCOnn030. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn029
Protocol patch CSCOnn029 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz67868
|
2
|
mdl-ni2
|
PGW doesnt set the coding type correctly cause IE.
|
CSCdz63415
|
3
|
mdl-ansi-ss7
|
ANSI no response to tx CGB followed by RSC results hung cic.
|
CSCdz64782
|
3
|
mdl-ansi-ss7
|
Stuck cic resulted by glare at two way release mode.
|
This patch provides updates to the following:
•Q761 Protocol Suite
•Q767 Protocol Suite
•ANSISS7 Protocol Suite
Additional information:
•Protocol patch CSCOnn028 is superseded by the fixes provided in protocol patch CSCOnn029. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn028
Protocol patch CSCOnn028 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz46770
|
2
|
mdl
|
Calling party number set to incomplete in O/G IAM message.
|
CSCdz56811
|
2
|
mdl-itu-ss7
|
Unresponded txd CGB followed by RSC cause locked CIC.
|
CSCdz58203
|
3
|
mdl-q761
|
CIC gets stuck on PGW upon glare condition.
|
This patch provides updates to the following:
•Q761 Protocol Suite
•Q767 Protocol Suite
•GTD
Additional information:
•Protocol patch CSCOnn027 is superseded by the fixes provided in protocol patch CSCOnn028. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn027
Protocol patch CSCOnn027 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz32051
|
2
|
mdl-q767
|
Redirecting, Orig-Call and LRN fails EISUP when 32-digits or greater.
|
CSCdz32254
|
3
|
mdl-q721
|
Ring no answer needs to be mapped to cc=19 over NI2
|
CSCdz25233
|
3
|
mdl-q767
|
36-digit_overdecadic calling number dropped as opposed to truncated.
|
This patch provides updates to the following:
•Q761 Protocol Suite
•Q767 Protocol Suite
•Q721 Protocol Suite
•EISPU Protocol suite
Additional information:
•Protocol patch CSCOnn026 is superseded by the fixes provided in protocol patch CSCOnn027. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn026
Protocol patch CSCOnn026 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz19032
|
2
|
protocol
|
PGW2200 can not recognize 3 bytes Release Cause Indicator.
|
CSCdz11570
|
3
|
mdl-callctrl
|
Incorrect Handling of CallCutoffTimer in Standby PGW.
|
CSCdz15685
|
3
|
mdl-callctrl
|
Spontaneous switchover in PGW during Re-routing fo the call.
|
CSCdz08306
|
3
|
mdl-q721
|
CIC status mismatch problem.
|
CSCdz07399
|
6
|
mdl-q767
|
32 Digit Support on Q767_RUSS.
|
This patch provides updates to all protocols.
Additional information:
•Protocol patch CSCOnn025 is superseded by the fixes provided in protocol patch CSCOnn026. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn025
Protocol patch CSCOnn025 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy11273
|
2
|
mdl-ansi-ss7
|
Local Routing Number is lost with SuperCell release.
|
CSCdy62767
|
3
|
mdl-cdr
|
TAG 4106 FirstREL_TM is missing on CDR.
|
CSCdz07472
|
3
|
mdl-connctrl
|
GWNetworkContinuity not loaded for switched call.
|
CSCdy84847
|
3
|
mdl-ni2
|
BCI and OBI are changed on the Ingress Side of the call,ft1_0.
|
CSCdz01570
|
3
|
mdl-pri
|
PRI and NI2C variants do not map all NumberingPlans correctly.
|
CSCdy51717
|
3
|
mdl-q721
|
IAI wont unblock a remotely blocked cic in a switched env.
|
This patch provides updates the following:
•PRI Protocol Suite
•Q721 Protocol Suite
•lcm
•generic analysis
•connection plane manager
Additional information:
•Protocol patch CSCOnn024 is superseded by the fixes provided in protocol patch CSCOnn025. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn024
Protocol patch CSCOnn024 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy68963
|
2
|
engine
|
PGW sends wrong GRSA during HW failure.
|
CSCdy81924
|
2
|
engine
|
Stuck CICs are created when the dpc recover from temporary outage.
|
CSCdy79280
|
2
|
mdl-analysis
|
Incomming prefix number not removed.
|
CSCdw81829
|
3
|
mdl-analysis
|
After switchover the call is not routed to the proper dialplan.
|
CSCdy80014
|
3
|
mdl-cdr
|
Nature Of Address Information is not checkpointed.
|
CSCdy73439
|
3
|
mdl-q761
|
GRS in response to RSC would not clear call in PGW.
|
This patch provides updates to all protocols.
Additional information:
•Protocol patch CSCOnn023 is superseded by the fixes provided in protocol patch CSCOnn024. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn023
Protocol patch CSCOnn023 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy62710
|
2
|
protocol
|
ORI is dropped by ingress PGW in a direct connet call.
|
CSCuk36123
|
2
|
protocol
|
Incorrect behaviour on release collision causes hung cic.
|
CSCdy62835
|
6
|
mdl-q761
|
NOA for called party number should have HK defined values.
|
This patch provides updates the following:
•Q761 Protocol Suite
•Q767 Protocol Suite
•SS7 Protocol Suite
Additional information:
•Protocol patch CSCOnn022 is superseded by the fixes provided in protocol patch CSCOnn023. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn022
Protocol patch CSCOnn022 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy53419
|
2
|
mdl-q761
|
Dropping call when nature of connection has echo control set to 1.
|
CSCdy42418
|
3
|
engine
|
Object ptr rmgBearChan is NULL is added to platform.log after call.
|
CSCdx68938
|
3
|
mdl-callctrl
|
VSC should send endpoint level DLCX when a 515 error response received.
|
CSCdy49450
|
3
|
mdl-q767
|
PGW produces duplicate 1070 CDBs when CICs are unblocked.
|
CSCdy15279
|
6
|
protocol
|
Featurette: Vietnam ISUP Transparency.
|
This patch provides updates the following:
•Q761 Protocol Suite
•Q767 Protocol Suite
•ConnectionPlaneManager
•lcm
Additional information:
•Protocol patch CSCOnn021 is superseded by the fixes provided in protocol patch CSCOnn022. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn021
Protocol patch CSCOnn021 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy44728
|
2
|
mdl-q761
|
PGW does not pass RGN and OCN for HKTA 2200 isup variant.
|
CSCdy41352
|
3
|
mdl-eisup
|
PGW send RSC upon receive EISUP CPG w/PCI Discard Param set.
|
CSCdy31675
|
3
|
mdl-pri
|
Some HLC characteristics are not validated - calls fail.
|
CSCdy40382
|
3
|
mdl-q761
|
PCI generate should be transit interpretation.
|
CSCdy25786
|
6
|
mdl-analysis
|
Featurette for B-Digit Modification Enhancement.
|
CSCdy30789
|
6
|
mdl-q761
|
NO SAM is sent in HK ISUP.
|
This patch provides updates to all protocols.
Additional information:
•Protocol patch CSCOnn020 is superseded by the fixes provided in protocol patch CSCOnn021. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•CSCdy25786—B-Digit Modification Enhancement—This featurette (CSCdy25786) strips the European number portability configuration (E_PORTED_NUM) output of the gateway number + the called party number (GN+CdPN) to allow the PGW to send out just the GN.
For Hong Kong local number portability (LNP), if a number is ported, a corresponding GN is appended to the CdPN in the IAM. The PGW uses E_PORTED_NUM which gives the number as GN+CdPN. An additional result type is created to allow the B-digit modification to delete the CdPN portion and send out just the GN.
In HK, there are currently 650k ported numbers, each with a unique GN. The GN length varies (2 to 12 digits long). This featurette strips E_PORTED_NUM out put of GN+CdPN from the last digit backward; since the CdPN has a fixed number of digits.
•CSCdy30789—No SAM is sent in HK ISUP—This featurette enables overlap functionality in HKTA_2202.
CSCOnn020
Protocol patch CSCOnn020 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy37584
|
2
|
mdl-q761
|
Engine process crash and ioCcConfig not able to write to IPC.
|
CSCdy32910
|
3
|
mdl-btnup
|
BTNUP - ITUReasonCode being over written in CDR by Second REL.
|
CSCuk36578
|
3
|
mdl
|
SS7 release message mapped incorrectly to NI2+.
|
CSCdy20914
|
3
|
mdl-ansi-ss7
|
COT always fail if tone is returned before LPA.
|
CSCdy20931
|
3
|
mdl-ansi-ss7
|
If Initial IAM_w_COT fails subsequent COT fails.
|
CSCdy29781
|
3
|
mdl-btnup
|
BTNUP MGC sends two CCTF on clear at expiry of CSH Timer.
|
CSCdy24943
|
3
|
mdl-q721
|
Change request in Brazilian TUP to send charge in ACMs.
|
CSCdy24945
|
3
|
mdl-q721
|
IAI will not unblock a remotely blocked cic (TUP).
|
CSCdy37745
|
3
|
mdl-q761
|
HKTA_2202 - restriction about noa Calling party removed.
|
CSCdy38088
|
3
|
mdl-q761
|
Q761_KOREAN CPG should be accepted before ACM.
|
This patch provides updates to all protocols.
Additional information:
•Protocol patch CSCOnn019 is superseded by the fixes provided in protocol patch CSCOnn020. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn019
Protocol patch CSCOnn019 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy24009
|
2
|
mdl-ni2
|
No CDRs for segmentation calls with abnormal release.
|
CSCdy07127
|
3
|
mdl-q761
|
Charge indicator request.
|
CSCdy12998
|
3
|
mdl-q761
|
Q761_BELG_BCOM hop count support required for certification.
|
CSCdy20661
|
3
|
mdl-q761
|
PCI on egress should be present when on ingress.
|
CSCdy16761
|
3
|
mdl-btnup
|
H323 > HSI > BTNUP calls have CPC value 0 in IFAM/IAM.
|
CSCuk35488
|
3
|
mdl-sip
|
Incorrect MAPPING of SS7 CPG to SIP.
|
CSCdx60152
|
6
|
ioccc7
|
Allow multiple PCI in all protocols.
|
CSCdy32946
|
6
|
other
|
NOA, Cause 14, 32 Digit, Overdecadic for Spain.
|
This patch provides updates the following:
•Q761 protocol suite
•Q767 protocol suite
•SIP protocols
•BTUNP protocols
Additional information:
•Protocol patch CSCOnn018 is superseded by the fixes provided in protocol patch CSCOnn019. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•CSCdx60152—Allow multiple PCI in all protocols— This featurette allows multiple PCIs in all protocols. Calls that contain multiple PCIs are not rejected. The first PCI is considered and the second PCI is ignored.
•CSCdy32946—NOA, Cause 14, 32 Digit, Overdecadic for Spain—This featurette implements the mapping of LNP parameters on the ISUPV2_TELEFONICA and ISUPV2_SPANISH ITU protocols. The parameters are:
–1— country specific NOA values
–2—Cause 14 for QoR
–3—32 and Overdecadic Digits support
CSCOnn018
Protocol patch CSCOnn018 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy18159
|
2
|
mdl-q761
|
UCIC should not be sent after receiving CFN in ISUPv2_German.
|
CSCdy17792
|
2
|
mdl-sip
|
Forwarded call discontinues after a 183 session progress.
|
CSCdy19818
|
2
|
mdl-sip
|
PGW should have recovery mechanism when CSPS does not forward 487.
|
CSCdy19107
|
3
|
mdl-q761
|
ISUP V2 German: Circuit Not Idle after confusion message was sent.
|
CSCdx82710
|
3
|
mdl-q767
|
CPG does not complete last leg of Q761-to-EISUP-to-Q767 call.
|
CSCdx68011
|
6
|
mdl-q767
|
NOA, Cause 14, 32 Digit and Overdecadic for Sweden featurette.
|
This patch provides updates the following:
•CDR_MAN
•Q761 suite
•Q767 suite
•SIP protocols
Additional information:
•Protocol patch CSCOnn017 is superseded by the fixes provided in protocol patch CSCOnn018. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•CSCdx68011—This featurette implements the mapping of LNP parameters on Swedish ISUP. Its valid values are:
–1—Country specific NOA values
–2—Cause 14 for QoR
–3—32 digit support
CSCOnn017
Protocol patch CSCOnn017 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy14230
|
1
|
mdl-connctrl
|
All calls fail on answer from PGW to HSI.
|
CSCdx84731
|
2
|
mdl-callctrl
|
Call reattempt at the same b channel for isdn nego resend-setup.
|
CSCuk34818
|
2
|
mdl-connctrl
|
Fax tone detect TG prop causes all H.323 calls to fail.
|
CSCuk36076
|
2
|
mdl-sip
|
Media not redirected when SIP re-invite received.
|
CSCuk35748
|
3
|
mdl-sip
|
PGW needs to ACK 487 subsequent to the CANCEL.
|
CSCdy04602
|
3
|
mdl
|
Incorrect BCI in the Connect message with Q767-RUSS.
|
CSCdx58164
|
3
|
mdl-btnup
|
PGW initiated CLR/RAN for ISDN call with BTNUP&MdlMemReduction=1,Mistral
|
CSCdx95586
|
3
|
mdl-cdr
|
CDB 1060 sometimes contains information redundant with 1010.
|
CSCdx78196
|
3
|
mdl-connctrl
|
On ft/mt notification VSC sends different codec string.
|
CSCuk24004
|
3
|
mdl-q761
|
VSC does not transit connected number info and discards call history.
|
CSCuk35763
|
3
|
mdl-q767
|
Tele2Italy: T9 not read from trunk group property.
|
CSCdy11856
|
3
|
mdl-sip
|
Call Forward pstn->ata->pstn hme0 unplugged with CSPS2.0.1.4.
|
CSCdy09331
|
3
|
protocol
|
Wrong release code dumped in CDR with BTNUP.
|
This patch provides updates to all protocols.
Additional information:
•Protocol patch CSCOnn016 is superseded by the fixes provided in protocol patch CSCOnn017. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn016
Protocol patch CSCOnn016 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy07337
|
2
|
mdl-eisup
|
32-digit calling and called numbers are not going through in ISUP.
|
CSCdy07876
|
2
|
mdl-q761
|
Q761 BELG_COM does not support 32 digits.
|
CSCdx93434
|
2
|
engine
|
Calls released with InvalidCallRef after failover.
|
CSCdy01025
|
2
|
mdl-q767
|
ORI insert does not work, ORI is dropped by Ingress SC.
|
CSCdx84748
|
3
|
mdl-q767
|
Wrong cause code on ISUP SUS T2 timer expiry.
|
CSCdx94208
|
3
|
mdl-q767
|
Q767: Several incorrect cause code mappings.
|
CSCdy00998
|
3
|
mdl-connctrl
|
When MDCX for ft/mt notification is NACKed DLCX is sent to one side.
|
CSCdy09017
|
3
|
mdl-cdr
|
CDR has wrong NOA when call goes through EISUP.
|
This patch provides updates to all protocols.
Additional information:
•Protocol patch CSCOnn015 is superseded by the fixes provided in protocol patch CSCOnn016. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn015
Protocol patch CSCOnn015 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy00248
|
2
|
mdl-analysis
|
PGW does not use Port # in SIP Contact info if MGCDomain is SRV record.
|
CSCdx85924
|
3
|
mdl-analysis
|
183 Session progress on Support183=2 or 3 on ACM.
|
CSCdx78195
|
3
|
mdl-connctrl
|
On reception of vbd/vbdt the VSC responds with wrong transaction id.
|
CSCdx95823
|
3
|
mdl-eisup
|
Userbusy Invalid B number calls from EISUP do not create CDR.
|
CSCdx85980
|
3
|
mdl-q767
|
Both collision calls are released with trkgrp property GLARE=1.
|
CSCdx85930
|
3
|
mdl-sip
|
PGW to ignore record route in SIP 180 ringing.
|
CSCdx61723
|
6
|
other
|
NOA Cause14 32 Digit and Overdecadic for Spain/Italy/Belgium featurette.
|
This patch provides updates to all protocols.
Additional information:
•Protocol patch CSCOnn014 is superseded by the fixes provided in protocol patch CSCOnn015. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•CSCdx61723—NOA Cause14 32 Digit and Overdecadic for Spain/Italy/Belgium Featurette—This featurette implements the mapping of LNP parameters on three ITU protocols (Spanish, Italian, and Belgium ISUP). The parameters are:
–1—Country specific NOA values
–2—Cause 14 for QoR
–3—32 and Overdecadic Digits support (Spain requires both; Italian already supports both, and Belgium ISUP already supports Overdecadics).
CSCOnn014
Protocol patch CSCOnn014 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx79979
|
1
|
mdl-callctrl
|
MUTE CALL (mute and released calls after linked dialplan).
|
CSCdx84756
|
3
|
mdl-cdr
|
Release missing in CDR if stp-call used.
|
This patch provides updates to the following:
•lcm
•cdr_man
Additional information:
•Protocol patch CSCOnn013 is superseded by the fixes provided in protocol patch CSCOnn014. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn013
Protocol patch CSCOnn013 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx85531
|
3
|
mdl-analysis
|
BNationalPrefix and BInternationPrefix not functioning on SIP trnkg.
|
This patch provides updates tothe SIP protocols.
Additional information:
•Protocol patch CSCOnn012 is superseded by the fixes provided in protocol patch CSCOnn013. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOnn012
Protocol patch CSCOnn012 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdw54328
|
1
|
mdl-ni2
|
PGW does status query for IS call to gateway after switch-over.
|
CSCuk34932
|
2
|
mdl-analysis
|
Use of dw2=99 negates any B-number digmodstring with patch gs9/nn009.
|
CSCdw66353
|
3
|
mdl
|
IAM will not unblock a remotely blocked circuit in Q767.
|
CSCdx79819
|
3
|
mdl-ansi-ss7
|
Improper release cause code upon receiving GRS.
|
CSCdx66443
|
3
|
mdl-callctrl
|
GTD - node B type behaviour with unrecognised IE - drop by LCM.
|
CSCdx71519
|
3
|
mdl-sip
|
Ingress trunk group missing from CDR for SIP originated calls.
|
Additional information:
•Protocol patch CSCOnn011 is superseded by the fixes provided in protocol patch CSCOnn012. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn011
Protocol patch CSCOnn011 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx55274
|
2
|
mdl-q767
|
Wrong cause value on ingress (SS7) side on ISUP SUS timer expiry.
|
CSCdx56685
|
2
|
mdl-callctrl
|
CIC stuck with call out during load test.
|
CSCuk34257
|
2
|
mdl-eisup
|
Post answer CPG message not passed over EISUP.
|
CSCuk34258
|
2
|
mdl-q761
|
CPG message parameter discarded after transit over SS7.
|
CSCuk34269
|
2
|
mdl-q761
|
Transit of IAM containing CUG is rejected.
|
CSCdx58064
|
2
|
mdl-sip
|
For SIP-PSTN call, cutthrough does not work when distribution is on.
|
CSCdx61480
|
2
|
mdl-q767
|
Q767 call passes when NOA is set to 0 in CalledPtyNum parameter.
|
CSCuk24004
|
3
|
mdl-q761
|
VSC does not transit connected number information and discards call history.
|
CSCdx38642
|
3
|
mdl
|
Kill-call and CDR problems (will not write TimeStamp according to XECfg).
|
CSCdx62621
|
3
|
protocol
|
GTD-EBM support not operational when enabled per gateway.
|
Additional information:
•Protocol patch CSCOnn010 is superseded by the fixes provided in protocol patch CSCOnn011. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn010
Protocol patch CSCOnn010 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx52846
|
2
|
mdl-callctrl
|
RSC/GRS does not clear failed COT CIC.
|
CSCdx51734
|
2
|
mdl-connctrl
|
H323 calls cleared with incorrect location in REL.
|
CSCdx40330
|
2
|
mdl-ni2
|
Stuck-cic results even after successful RESTART procedure.
|
CSCdx52895
|
2
|
mdl-sip
|
Plus sign gets added in front of the number for diversion header.
|
CSCdw53003
|
3
|
mdl-analysis
|
MDP change fails if RTRN_START_ANALYSIS is in call processing path.
|
CSCdx50185
|
3
|
mdl-callctrl
|
TDM trunk group cut-through should be forced to 3 for HSI.
|
CSCdx41389
|
3
|
mdl-q767
|
Q.767: several incorrect cause codes mappings.
|
Additional information:
•Protocol patch CSCOnn009 is superseded by the fixes provided in protocol patch CSCOnn010. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn009
Protocol patch CSCOnn009 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx47581
|
2
|
mdl-analysis
|
AMODDIG does not work.
|
CSCdx50198
|
2
|
mdl-btnup
|
Calls released when Notify message is received containing o:D/T.
|
CSCdx32092
|
2
|
mdl-eisup
|
H323 calls not cleared on 5300 after HSI failure.
|
CSCdx12359
|
2
|
mdl-in
|
INAP trigger module does not support overdecadic digits.
|
CSCdx12373
|
2
|
mdl-in
|
INAP trigger module overwrites NOA values from analysis with orig CC.
|
CSCdx37857
|
3
|
mdl-q761
|
GTD - PDC not passing through.
|
CSCdx21249
|
6
|
protocol
|
LNP Enhancements to Q.761_Portugal Protocol.
|
Additional information:
Note Patches CSCOnn009 and CSCOgs008 are dependent on one another and must both be installed.
•Protocol patch CSCOnn008 is superseded by the fixes provided in protocol patch CSCOnn009. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•CSCdx21249—LNP Enhancements to Q.761_Portugal Protocol—This featurette defines enhancements to the Portuguese ISUP variant in the Media Gateway Controller (MGC) code. The enhancements are required to certify the PGW 2200, working with an Ericsson SCP, for interconnect with the PTT. The enhancements are:
–Support for Overdecadic Digits—if a number is ported, the SCP provides a prefix that must be passed outbound to the PTT to allow the correct OLO to receive the call for the subscriber. The format of the prefix to send to the PTT is DXXXYYY<called party number>. The overdecadic D is sent in front of the number. As a requirement, the PGW must support all overdecadic digits (A-F) in Q761_Portugal protocol.
–Mapping of Cause Value 14 in Portugal—switches must act on or generate external cause 14 releases to pass interconnect. The PGW must map external cause 14 releases to an internal release cause code. The PGW must support number portability when operating as an originating switch, transit switch, recipient switch, or donor switch supporting the following scenarios:
•PGW is the Transit Switch and receives a cause 14 from a donor switch. PGW passes the cause 14 to the originating switch which performs the LNP lookup
•PGW is the Donor Switch and after recognizing the number has been ported, generates a cause 14 and passes the cause 14 to the originating switch witch performs the destination LNP lookup.
•PGW is the Originating Switch and receives a cause 14 from a donor switch. PGW performs the destination LNP lookup.
•PGW is the Recipient Switch and routes the "ported" call.
–Do Not Reject Calls if ACM Contains Multiple PCI (parameter compatibility indicators) Option—currently, the PGW either fails the call with a cause 95 or completes the call but sends CFN messages. The PGW cannot fail calls if the ACM contains multiple options (multiple PCI parameters). As a requirement, because the PCI is not a repeatable parameter, the PGW should act on the first PCI parameter, and ignore the subsequent parameters. This applies to all messages that contain PCI parameters.
CSCOnn008
Protocol patch CSCOnn008 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx09742
|
2
|
mdl
|
SC2200 sent two releases.
|
CSCdx32341
|
2
|
mdl
|
SC does not pass RNI information received in GTD to IAM.
|
CSCdx35775
|
2
|
mdl
|
Call is not re-attempted in case of Glare for non-controlling SP.
|
CSCdx28953
|
2
|
mdl-compiler
|
MDL compiler should not allow integers in element lists.
|
CSCuk33581
|
2
|
mdl-ni2
|
TV fails with Generic number in GTD.
|
CSCdx17410
|
3
|
mdl
|
Upon T33 Timeout SC should send REL with cause Normal Unspecified.
|
CSCdw82503
|
3
|
protocol
|
mdo files no longer supported in release 9.2(2).
|
Additional information:
•Protocol patch CSCOnn007 is superseded by the fixes provided in protocol patch CSCOnn008. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn007
Protocol patch CSCOnn007 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx17286
|
2
|
mdl
|
SC does not map Ni2+ Progress to ISUP ACM after INR / INF.
|
CSCdx19494
|
2
|
mdl-sip
|
Contact header does not have port.
|
CSCdx06785
|
3
|
mdl
|
Receipt of unknown parameters in backward direction - Q.767.
|
CSCuk31918
|
3
|
mdl-callctrl
|
VSC does not request quaratine loop when sending DTMF to gateway.
|
CSCdx08903
|
3
|
mdl-ansi-ss7
|
SC2200 does not accept CCR for remotely blocked CIC.
|
Additional information:
•Protocol patch CSCOnn006 is superseded by the fixes provided in protocol patch CSCOnn007. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn006
Protocol patch CSCOnn006 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCuk33007
|
3
|
mdl-q761
|
Mid-call DTMF not handled correctly from UK-ISUP to HSI.
|
CSCuk33545
|
2
|
mdl-callctrl
|
PGW sends ANM backwards before HSI completes negotiation.
|
Additional information:
•Protocol patch CSCOnn005 is superseded by the fixes provided in protocol patch CSCOnn006. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn005
Protocol patch CSCOnn005 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx13210
|
2
|
mdl
|
REL-CC 111 maps to 98 by SC.
|
CSCdw70720
|
2
|
mdl-ni2
|
Stuck CICs reset-cic does not send RSC.
|
Additional information:
•Protocol patch CSCOnn004 is superseded by the fixes provided in protocol patch CSCOnn005. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn004
Protocol patch CSCOnn004 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx11674
|
1
|
mdl
|
SC sends NI2+ SETUP to NAS before term COT test causing no voicepath.
|
CSCdx05697
|
2
|
mdl-q767
|
blk-cic does not work for single cic.
|
CSCdx07718
|
2
|
mdl-sip
|
PGW adds an extra @ symbol in the Route:header address.
|
CSCdx03183
|
3
|
mdl-q767
|
REL sent instead of RSC when COT received on idle CIC.
|
Additional information:
•Protocol patch CSCOnn003 is superseded by the fixes provided in protocol patch CSCOnn004. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn003
Protocol patch CSCOnn003 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCuk32554
|
1
|
mdl-sip
|
CLI—Unable to Effect CLIR based on SuppressCLiDigits for SIP.
|
CSCdw32993
|
2
|
mdl
|
NOT from EISUP coming from HSI DTMF core dump.
|
CSCdw86561
|
2
|
mdl
|
Cause—Location always mapped to User in ISUP REL Message.
|
CSCdw90392
|
2
|
mdl
|
SC doesnt map Ni2+ Progress to ISUP ACM.
|
CSCdw90720
|
2
|
mdl
|
SC2200 rejects call with ISUP HOP counter=0 with incorrect cause.
|
CSCdw91343
|
2
|
mdl-sip
|
SIP callid missing in 1010 Answer tag in CDR record.
|
CSCdw94447
|
2
|
protocol
|
GTD not sent if Calling Party Number Incomplete indicator= incomplete.
|
CSCuk32755
|
2
|
mdl-sip
|
SIP to UK-ISUP calls do not contain calling line identity.
|
CSCdw91008
|
3
|
mdl
|
SC2200 changes location and coding standard fields in Release message.
|
CSCdx00400
|
3
|
mdl
|
SC need to support Chile ITU-BLUE specs for Recommendation Parameter.
|
CSCdw91044
|
3
|
mdl-q761
|
SC send RSC when it receives an ISUP MSU w/unrecognized message type.
|
CSCdx00903
|
3
|
mdl-q761
|
MDL ISUPV2_CZECH protocol variant does not support IPI=2.
|
Additional information:
•Protocol patch CSCOnn002 is superseded by the fixes provided in protocol patch CSCOnn003. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn002
Protocol patch CSCOnn002 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdw70469
|
2
|
other
|
CIC went locally blocked after calls.
|
CSCuk31901
|
2
|
mdl-q761
|
No RLC sent after REL received on locally blocked circuit.
|
CSCdw66273
|
3
|
mdl
|
IAM message does not include RedirectionInfo IE in nailed solution.
|
CSCuk31917
|
3
|
mdl-eisup
|
DTMF digits not forwarded over EISUP.
|
CSCuk32088
|
1
|
mdl-eisup
|
Incoming calls are dropped when eisup link is put OOS and then IS.
|
CSCdw36850
|
2
|
mdl-ansi-ss7
|
ChargeNumber is dropped when same as calling party number.
|
CSCdw64942
|
2
|
mdl-sip
|
PGW unable to gracefully handle bad SIP headers; needs restart.
|
CSCdw73830
|
2
|
mdl-sip
|
INVITE diversion header is not mapped to re-direct number.
|
CSCdw79416
|
2
|
mdl
|
FCI mapping should be de-coupled from NOA of CDDN.
|
CSCuk31906
|
3
|
callctrl
|
WaitforAnswerTimeout trunk group parameter not being used.
|
CSCdw74149
|
3
|
mdl-sip
|
PGW does not respond to the REFER header.
|
CSCdw72061
|
6
|
mdl-sip
|
Provisioning of Dual CLI.
|
CSCdw73839
|
2
|
mdl-sip
|
SIP to PSTN call released after 15 seconds when divert uncond via CSPS.
|
CSCdw81870
|
2
|
mdl
|
SC always maps SR indicator in SUS/RES message to Network Initiated.
|
CSCdw26901
|
2
|
mdl
|
SS7 CICs in LOCMAN state after gateway reload with active calls.
|
CSCdv59315
|
3
|
mdl
|
Need to remove cause code translation towards NAS.
|
This patch provides updates to:
•sagt
•ca
•sim
•SS7
•MGCP
•SIP
•ioChanMgr
•engine
•mml
•libpolcomp.so
•libpolnuman.so
•libpolroute.so
•lib_cmg.so
•lib_cxn.so
•lib_eng.so
•lib_rmg.so
•toolkit
•iocm
Additional information:
•Protocol patch CSCOnn001 is superseded by the fixes provided in protocol patch CSCOnn002. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Some bug fixes might require components that are contained in both patches. However, the bug might only be listed in either protocol patch CSCOnn002 or system patch CSCOgs002. To ensure that all bug fixes operate as designed, both protocol patch CSCOnn002 and system patch CSCOgs002 must be installed.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOnn001
Protocol patch CSCOnn001 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdw52076
|
2
|
mdl
|
SC2200 resets the circuit.
|
CSCdw42682
|
3
|
mdl-ni2
|
NI2 release state machine ignores LReleaseCont in REL initd. RelSeq.
|
CSCdw42692
|
3
|
mdl-ni2
|
NI2 release state machine ignores LReleaseCont on LinkFail in Conn. state.
|
CSCdw42696
|
3
|
mdl-ni2
|
NI2 rel. state machine does not send LRelComp on linkfail in some scenarios.
|
CSCdw42699
|
3
|
mdl-ni2
|
NI2 release state machine does not send proper signal to LCM on dic colsn.
|
CSCdw45305
|
3
|
mdl-ni2
|
NI2 release state machine does not send right signal to LCM on T305 exp+rcv.RLC.
|
CSCdw45332
|
3
|
mdl-ni2
|
NI2 release state machine does not send right signal to LCM on rcv.RestartAck.
|
CSCdv77873
|
6
|
protocol
|
Support for IRI/ORI parameters in Q.767 featurette.
|
CSCdw43415
|
6
|
protocol
|
Mandatory CLI Over Trunk Group featurette.
|
This patch provides updates to all protocols.
Additional information:
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•This protocol patch contains a new protocol, Q767_SINGAPORE. Since variant.dat has been updated and is included in the CSCOgs001 system patch, these two patches (protocol and system) are both required.
CSCOgs043
System patch CSCOgs043 resolves the following DDTS ticket:
Identifier
|
Severity
|
Component
|
Description
|
CSCsa98155
|
2
|
engine
|
Ghost Calls are created on STBY because of Replicator flap.
|
This patch provides updates to the following:
•lib_cmg.so
Additional information:
•System patch CSCOgs041 is superseded by the fixes provided in system patch CSCOgs042. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs042
System patch CSCOgs042 resolves the following DDTS ticket:
Identifier
|
Severity
|
Component
|
Description
|
CSCed57037
|
3
|
ioccpriip
|
Patch to capture RLM_DTYPE_START_Req as Error Level msgs.
|
This patch provides updates to the following:
•ISDNIP
Additional information:
•System patch CSCOgs041 is superseded by the fixes provided in system patch CSCOgs042. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs041
System patch CSCOgs041 resolves the following DDTS ticket:
Identifier
|
Severity
|
Component
|
Description
|
CSCed30469
|
3
|
engine
|
Unexpected RSC from PGW clears Active Call.
|
This patch provides updates to the following:
•engine
•lib_eng.so
•lib_cmg.so
•lib_rmg.so
•lib_cxn.so
Additional information:
•System patch CSCOgs040 is superseded by the fixes provided in system patch CSCOgs041. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs040
System patch CSCOgs040 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCec57330
|
3
|
ioccc7
|
SS7 core dump when PGW was going down - Not consistent.
|
CSCea59671
|
4
|
mmdb
|
Provide script to remove TimesTen replication.
|
This patch provides updates to the following:
•added delete_replication.sh
Additional information:
•System patch CSCOgs039 is superseded by the fixes provided in system patch CSCOgs040. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs039
System patch CSCOgs039 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCec29137
|
2
|
snmp
|
memory leak in the sagt process.
|
CSCec24423
|
3
|
engine
|
Failed to get FCIBCIEnable property value.
|
CSCec34513
|
3
|
pxelogger
|
Control characters in platform.log messages corrupts grep display.
|
This patch provides updates to the following:
•patch
•engine (and engine libraries)
•sagt
•mmSAgt
•MGCP
•libsa.so
•libpxelog.so
•libxe.so
Additional information:
•System patch CSCOgs038 is superseded by the fixes provided in system patch CSCOgs039. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs038
System patch CSCOgs038 resolves the following DDTS ticket:
Identifier
|
Severity
|
Component
|
Description
|
CSCeb66052
|
6
|
other
|
Derived FCI and BCI for Interworking featurette.
|
This patch provides updates to the following:
•XECfgParm.dat
•propSet.dat
Additional information:
•System patch CSCOgs037 is superseded by the fixes provided in system patch CSCOgs038. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
•Both patches CSCOnn036 and CSCOgs038 must be installed.
•For information on the Derived FCI and BCI featurette, refer to information provided in patch CSCOnn036.
CSCOgs037
System patch CSCOgs037 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCeb33315
|
2
|
provision
|
Migration from 9.2(2) to 9.4(1) fails due to missing percRoute.dat.
|
CSCeb35457
|
3
|
engine
|
Deleted naspath continues to be CheckPointed.
|
CSCeb07238
|
6
|
other
|
New Cause Code for Call Re-Attempts featurette.
|
This patch provides updates to the following:
•engine
•mml
•pom
•XECfgParm.dat
Additional information:
•System patch CSCOgs036 is superseded by the fixes provided in system patch CSCOgs037. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
•Both patches CSCOnn034 and CSCOgs037 must be installed.
•For information on the New Cause Code for Call Re-Attempts featurette, refer to the New Cause Code for Call Re-Attempts in the New Features in This Release section of this document.
CSCOgs036
System patch CSCOgs036 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCea53419
|
3
|
iocm
|
MSO Warmstart Error.
|
CSCea83537
|
3
|
provision
|
corrupted files.dat should not stop the provisioning command.
|
CSCea90444
|
3
|
provision
|
local port number of session set should not be changed via prov-ed.
|
CSCeb06939
|
3
|
engine
|
reset cic clears GW block.
|
CSCeb15001
|
3
|
ioccc7
|
Core from SS7 process due to race condition.
|
This patch provides updates to the following:
•ioChanMgr
•engine
•mml
•libpolcomp.so
•libpol
•SS7
Additional information:
•System patch CSCOgs035 is superseded by the fixes provided in system patch CSCOgs036. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs035
System patch CSCOgs035 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCea19890
|
3
|
mml
|
vld-cic command timed out in variant Q767_BASE.
|
CSCea43229
|
3
|
engine
|
rtrv-admin-state causes core file.
|
CSCea45365
|
3
|
cmm
|
CMM: CDR_Viewer: CDE-Tag_4108 and CDE-Tag_4109 are reversed.
|
CSCea47661
|
3
|
provision
|
No file exported with subdirectory specified in prov-add:files.
|
CSCea47734
|
3
|
mml
|
Incorrect message for prov-dlt:files:name=bcfile.
|
CSCea47883
|
3
|
provision
|
Can not import trkgrp file after prov-dlt:files:name=trkgrp.
|
CSCea63749
|
3
|
provision
|
DialPlan prov err: resulttable:The result .. cannot be connected to.
|
This patch provides updates to the following:
•ioChanMgr
•engine
•mml
•libpolcomp.so
•libpolnuman.so
•presentation.dat
•propSet.dat
•position.dat
Additional information:
•System patch CSCOgs034 is superseded by the fixes provided in system patch CSCOgs035. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs034
System patch CSCOgs034 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCea28944
|
3
|
mmlhelp
|
Invalid target<pt code> need to be removed from prt-call.
|
CSCea37989
|
3
|
engine
|
files.dat corrupted
|
CSCea38411
|
3
|
provision
|
prov-rtrv:siprttrnkgrp dumps junk along with output data.
|
CSCea39925
|
3
|
engine
|
Query-cic and rtrv-cic show different cic state.
|
This patch provides updates to the following:
•mml help
•mml
•engine
•pol
•mmlCommands.dat
Additional information:
•System patch CSCOgs033 is superseded by the fixes provided in system patch CSCOgs034. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs033
System patch CSCOgs033 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCea19223
|
3
|
engine
|
After switchover the call duration in mute call report incorrect.
|
CSCea14695
|
3
|
provision
|
prov-ed:siprttrnkgrp url=new_entry prov-rtrv causes core dump.
|
CSCea20373
|
3
|
ioccisdnl3
|
ISDNL3 core file.
|
CSCea27254
|
3
|
toolkit
|
TOOLKIT: CDR_View: GUI hangs if query on Call_Reference_ID.
|
CSCea22996
|
3
|
ioccxgcp
|
mgcp-1 process terminates when mgcp communication to gw is lost.
|
This patch provides updates to the following:
•MGC Toolkit
•libpol
•MGCP
•ISDNL3
•engine
•mml
Additional information:
•System patch CSCOgs032 is superseded by the fixes provided in system patch CSCOgs033. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs032
System patch CSCOgs032 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCea03671
|
2
|
ioccc7
|
SC not able to send msgs to certain destinations on large configs.
|
CSCea03686
|
2
|
ioccc7
|
Switchover fails to complete: Boxes stopped in standby.
|
CSCea19102
|
2
|
upgrade
|
DialPlan is not migrated while doing upgrade 7.4(11) to 9.4(0.11).
|
CSCdz74989
|
3
|
ioccc7
|
MSO refused warm start-up failed.
|
CSCdz83181
|
3
|
mml
|
MML updates needed for commands involving trunk group.
|
CSCdz85720
|
3
|
engine
|
Manual CIC Block does not work when BLK=GATEWAY & REMAUTO.
|
CSCdz89613
|
3
|
provision
|
Editing individual rttrnkgrp props corrupts trunkGroup AttrubuteIdx.
|
CSCea07185
|
3
|
toolkit
|
TOOLKIT: Measurement_Viewer: CURRENT_STOP_TIME selection broken.
|
CSCea10287
|
3
|
provision
|
sigsvcprop error message misleading.
|
CSCea11634
|
3
|
toolkit
|
TOOLKIT: MGC_Backup and MGC_Restore flickers open/close at startup.
|
CSCea15124
|
3
|
engine
|
Engine does not disconnect from TimesTen database on shutdown.
|
CSCea17264
|
3
|
engine
|
Larger number of engine errors on the standby box for released calls.
|
This patch provides updates to the following:
•MML help
•MGC Toolkit
•replicator
•ISDNIP
•MGCP
•SIP
•EISUP
•ISDNL3
•TALI
•engine
•mml
•SS7
Additional information:
•System patch CSCOgs031 is superseded by the fixes provided in system patch CSCOgs032. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs031
System patch CSCOgs031 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz83084
|
2
|
iocm-sj
|
IOCM comes up in stopped state after upgrading 9.2(2) to 9.3(2).
|
CSCdz50457
|
3
|
engine
|
Core file created.
|
CSCdz85745
|
3
|
usability
|
Inconsistency in naming of IP-Addresses on MGC_Setup.
|
This patch provides updates to the following:
•engine
•IOCM
•mml help
•MGC_Setup
Additional information:
•System patch CSCOgs030 is superseded by the fixes provided in system patch CSCOgs031. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs030
System patch CSCOgs030 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz41460
|
2
|
snmp
|
CIAgent does not detect the SUN V120 ERI ethernet interfaces.
|
CSCdz63501
|
3
|
mmlhelp
|
MML help:prov-exp SIGNAL needs to be removed as a valid TID.
|
This patch provides updates to the following:
•mmlhelp
•mib2agt
Additional information:
•System patch CSCOgs029 is superseded by the fixes provided in system patch CSCOgs030. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs029
System patch CSCOgs029 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz58556
|
3
|
engine
|
PGW - crash after switchover.
|
CSCdz69216
|
3
|
iocceisup
|
EISUP hog CPU.
|
CSCdy48084
|
3
|
iocm
|
rtrv-tc:all Interface Disabled. Must bounce PGW.
|
CSCdz32935
|
3
|
provision
|
Deleted CONDRTE name still appears in prov-exp.
|
CSCdz68301
|
6
|
engine
|
Add Call duration in Suspected mute call log in PGW.
|
CSCdx88717
|
6
|
iocm
|
dmfe interfaces (10/100BaseT) not supported.
|
This patch provides updates to the following:
•libpom.so
•libpolfiles.so
•libpolroute.so
•libda.so
•libpolnuman.so
•lib_cmg.so
•libpolcomp.so
•lib_cxn.so
•lib_eng.so
•lib_rmg.so
•foverd
•EISUP
•MGCP
•ISDNL3
•ioChanMgr
•engine.no_smartalloc
•engine.smartalloc
•pom
•mml
Additional information:
•System patch CSCOgs028 is superseded by the fixes provided in system patch CSCOgs029. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs028
System patch CSCOgs028 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz47294
|
3
|
dumper
|
CDE tag 6004 in CDR file header and footer exceeds limit in spec.
|
CSCdz54239
|
3
|
engine
|
Engine cannot free up bearChan after receiving channel mgmt calls.
|
CSCdz52337
|
3
|
mmlhelp
|
mml-help: Error in prov-add:files session.
|
CSCdz 53889
|
3
|
provision
|
Allow Priority 2 route for Mated STP pair.
|
This patch provides updates to the following:
•libpolcomp.so
•libpolnuman.so
•lib_cmg.so
•lib_eng.so
•cdrDmpr
•mml
•engine.no_smartalloc
•engine.smartalloc
Additional information:
•System patch CSCOgs027 is superseded by the fixes provided in system patch CSCOgs028. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs027
System patch CSCOgs027 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy71765
|
2
|
iocm
|
Dynamic delete and readd of DPC - Mate remains INB.
|
CSCdz42426
|
2
|
upgrade
|
Script needed to replicate Timesten between 9.2(2) and 9.3(2).
|
CSCdz41539
|
3
|
engine
|
Error incorrectly printed in platform log is misleading.
|
CSCdz43256
|
3
|
engine
|
Do not allow dynamic deletion of Trunk with active call.
|
CSCdz37648
|
4
|
engine
|
Need more debug info for mute call.
|
This patch provides updates to the following:
•mod_replication_port.sh
•librudp.so
•libsa.so
•libmmdb.so
•libpom.so
•libpolbase.so
•libpolfiles.so
•libconvutil.so
•libda.so
•libpolroute.so
•libxe.so
•libpolnuman.so
•lib_cmg.so
•libpolcomp.so
•lib_cxn.so
•lib_eng.so
•lib_rmg.so
•cfgM
•almM
•mmdbd
•mmTest
•measMgr
•procM
•cms
•cdrDmpr
•amDmpr
•ISDNIP
•replicator
•EISUP
•SS7
•foverd
•ISDNL3
•TALI
•TCAP
•sagt
•mmSAgt
•ioChanMgr
•mml
•engine.no_smartalloc
•engine.smartalloc
Additional information:
•System patch CSCOgs026 is superseded by the fixes provided in system patch CSCOgs027. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs026
System patch CSCOgs026 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz30575
|
2
|
upgrade
|
Migration of dialplans failed from 7.4(x) to 9.2(x).
|
CSCdz15886
|
3
|
other
|
The config-lib tool changes the dat files ownership under ../etc.
|
CSCdz29535
|
3
|
other
|
chk_inv fails for Solaris patches on Sol8 OS 02/02.
|
CSCdz27504
|
3
|
procm
|
PGW OOS due to IPLINK de-provision.
|
CSCdx65443
|
3
|
provision
|
Dynamic reconfig of some numbering plan trunk group properties fails.
|
CSCdy82535
|
3
|
provision
|
Invalid route priority not detected in provisioning.
|
CSCdz30678
|
3
|
toolkit
|
In MDL environment, get_trc.sh fails as .so files missing.
|
This patch provides updates to the following:
•libpolbase.so
•libpolcomp.so
•libpolfiles.so
•libpolroute.so
•libpolnuman.so
•chk_inv
•procM
•pom
•mml
•Toolbar.tbc
•config-lib
•get_trc.sh
•migrate_cpp_5_6
Additional information:
•System patch CSCOgs025 is superseded by the fixes provided in system patch CSCOgs026. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
•CSCdz30575—Migration of Dialplans Failed from 7.4(x) to 9.2(x)—If you receive the migrating dialplan error during migration, refer to the Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide, Chapter 5, Upgrading to Cisco MGC Software Release 9.3(2), at the following url:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/swinstl/index.htm.
CSCOgs025
System patch CSCOgs025 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz23398
|
2
|
provision
|
STBY comes up OOS if pom.dataSync is set to TRUE.
|
CSCdy46285
|
3
|
engine
|
SC2200:Memory Leak in engine.smartalloc over period of time.
|
CSCdy85209
|
3
|
engine
|
Incorrect clear cause.
|
CSCdz11836
|
3
|
engine
|
SC need to synchronize bearer channel status.
|
CSCdz15685
|
3
|
mdl-callctrl
|
Spontaneous switchover in PGW during Re-routing fo the call.
|
CSCdz14120
|
3
|
pxelogger
|
LogView:Log Default Date/Time-Range off 1hr.
|
This patch provides updates to all libraries and binaries.
Additional information:
•System patch CSCOgs024 is superseded by the fixes provided in system patch CSCOgs025. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs024
System patch CSCOgs024 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdz01483
|
3
|
ioccxgcp
|
mgcp link OOS when more than 1 local IP addresses are used.
|
CSCdy83812
|
3
|
measm
|
Meas Mgr counts duplicate measurements against max limit.
|
CSCdz03288
|
4
|
engine
|
Error log for failed call was chopped.
|
This patch provides updates to:
•libxe.so
•libpolnuman.so
•lib_cmg.so
•MGCP
•engine.no_smartalloc
•engine.smartalloc
Additional information:
•System patch CSCOgs023 is superseded by the fixes provided in system patch CSCOgs024. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs023
System patch CSCOgs023 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy68963
|
2
|
engine
|
PGW sends wrong GRSA during HW failure.
|
CSCdy74282
|
2
|
engine
|
Desired platform field in XECfgParm is case sensitive it should not.
|
CSCdy77004
|
2
|
iocceisup
|
EISUP core when setting eisup links OOS or IS.
|
CSCdy78597
|
2
|
iocceisup
|
EISUP core dump upon switchover.
|
CSCdy21573
|
3
|
engine
|
SVC=Notset is set in IPLNK configuration.
|
CSCdy77222
|
3
|
engine
|
Need to print out error log if mute call is detected.
|
CSCdy69559
|
3
|
iocceisup
|
EISUP link not function correctly after migrating 9.2(2) to 9.3(1)T.
|
This patch provides updates to:
•lib_cmg.so
•lib_cxn.so
•libpolcomp.so
•lib_eng.so
•lib_rmg.so
•engine.no_smartalloc
•engine.smartalloc
•EISUP
Additional information:
•System patch CSCOgs022 is superseded by the fixes provided in system patch CSCOgs023. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs022
System patch CSCOgs022 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy66616
|
1
|
mml
|
Unable to prov more than 32 links error msg with valid batch file.
|
CSCdy61442
|
2
|
engine
|
CPU Timer Interval is not disabled if CPUTimerInterval is set to 0.
|
CSCdx20455
|
2
|
provision
|
SIP: rttrnkgrp entry with type=9 mess up rttrnkgrp & siprttrnkgrp table.
|
CSCdx95892
|
2
|
iocm
|
Dynamic re-add of ss7path, dpc, trunks are not added properly.
|
CSCdy49086
|
2
|
iocm
|
Calls release with NtwkOutOfOrder/Resource-Unavail after failovers.
|
CSCdy50259
|
3
|
ioccxgcp
|
MGCP Retry message in platfrom.log should be printed at all levels.
|
CSCdy48913
|
3
|
iocm
|
MGCP-Link: OFF-DUTY link set back to IS, still shows OFF-DUTY.
|
CSCdy57808
|
3
|
iocm
|
CGB sent when one mgcp link oos, off_duty moves when both link oos.
|
This patch provides updates to:
•libpolcomp.so
•lib_eng.so
•engine.no_smartalloc
•engine.smartalloc
•ioChanMgr
•mml
•MGCP
Additional information:
•System patch CSCOgs021 is superseded by the fixes provided in system patch CSCOgs022. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs021
System patch CSCOgs021 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy57649
|
2
|
provision
|
Provisioning is not blocked during Seamless upgrade.
|
CSCdy62867
|
3
|
engine
|
MGCP ERR: Unrecognized control vector 99.
|
CSCdy51856
|
3
|
iocm
|
When C7LNK-INH is executed twice, link goes into CONFiguration mode.
|
CSCdy56160
|
3
|
provision
|
Invalid conditional routing names allowed in 9.2(2) causing migrate problems.
|
CSCdy21663
|
3
|
toolkit
|
Toolkit: CDR_Viewer: Eight 1060 tags not displayed for EndOfCall-CDB.
|
CSCdy37888
|
3
|
toolkit
|
Retired tags need to be removed from CDR viewer code.
|
CSCdy39103
|
3
|
toolkit
|
Please remove tag 5000 in 1090 and 1100 in the viewer.
|
This patch provides updates to:
•libconvutil.so
•libpolroute.so
•SS7
•MGCP
•SIP
•EISUP
•ISDNL3
•TALI
•pom
•ioChanMgr
•position.dat
Additional information:
•System patch CSCOgs020 is superseded by the fixes provided in system patch CSCOgs021. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
•CSCdy56160—Invalid conditional routing names allowed in 9.2(2) causing migrate problems—In previous 9.2(2) releases, conditional routing name validation did not occur. Therefore, the potential that invalid conditional routing names were created exists.
As of patch CSCOgs021, conditional routing name validation occurs in release 9.2(2). Previously existing configurations should be checked to ensure that invalid names are not used. Conditional routing names should consist of 1-20 alphanumeric characters. If your conditional routing name is invalid, the routeAnalysis.dat file must be edited. Contact TAC so that the engineering team can be notified to have your information modified.
If an invalid conditional routing name is used in release 9.2(2) and you attempt to upgrade to a newer release (9.3(2) and higher), the migration will fail because the validation of the conditional route name fails.
CSCOgs020
System patch CSCOgs020 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy39073
|
2
|
flovr
|
Switchover takes too long when active process crashes.
|
CSCdy45291
|
2
|
ioccxgcp
|
MGCP link shows wrong state in standalone mode.
|
CSCdy46777
|
3
|
engine
|
Blk-cic not operational - no CGB sent out.
|
CSCdy44942
|
3
|
mdl-tools
|
Option G for get_trc.sh does not work.
|
CSCdy44110
|
3
|
mml
|
sta-softw needs to be removed from MML help.
|
CSCdy46328
|
3
|
provision
|
Provisioning should allow different sw-types on same SS7 IOCC.
|
This patch provides updates to:
•lib_cmg.so
•lib_cxn.so
•lib_eng.so
•lib_rmg.so
•libpom.so
•libpolcomp.so
•pom
•replicator
•sagt
•mmSAgt
•ioChanMgr
•engine.no_smartalloc
•engine.smartalloc
•mml
•foverd
•get_trc.sh
•sta-softw.help
•stp-softw.help
Additional information:
•System patch CSCOgs019 is superseded by the fixes provided in system patch CSCOgs020. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•For information on provisioning restrictions imposed while upgrading to patches that support the Seamless Upgrade feature, refer to Seamless Upgrade under the New Features section.
CSCOgs019
System patch CSCOgs019 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy36697
|
2
|
engine
|
Unable to modify SC config due to absence of SS7 route for some dpc.
|
CSCdy11883
|
2
|
ioccsip
|
Either hme down no pgw TRYING response to INVITE.
|
CSCdy15578
|
3
|
iocm
|
OFF_DUTY state of MGCP/IP-LNK is mismatch between active and standby.
|
CSCdy38844
|
3
|
mml
|
MML core dumps on prov-export.
|
CSCdy38706
|
3
|
provision
|
MMLHELP: Get INPUT INVALID TARGET when executing HELP:PROV-EXP.
|
CSCdy41805
|
6
|
other
|
Ratigan - Netra 20 Support.
|
This patch provides updates to:
•chk_inv
•engine.no_smartalloc
•engine.smartalloc
•lib_cmg.so
•lib_cxn.so
•lib_eng.so
•lib_rmg.so
•libpom.so
•ioChanMgr
•mml
Additional information:
•System patch CSCOgs018 is superseded by the fixes provided in system patch CSCOgs019. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•CSCdy41805—The Software Control Inventory feature has been enhanced to recognize the Netra 20 as a legitimate PGW 2200 host platform.
CSCOgs018
System patch CSCOgs018 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy30928
|
2
|
provision
|
prov-add: nailedtrunk cannot add NAS dsttimeslot range 1-31 for E1 SPAN.
|
CSCdy18222
|
2
|
engine
|
set-admin-state: lock causes CGB with immediate release sent to far end.
|
CSCdy12454
|
3
|
other
|
Software inventory control does not properly handle Solaris patches.
|
CSCdy24054
|
3
|
other
|
Software inventory control program cannot find MGC files.
|
This patch provides updates to:
•chk_inv
•engine.no_smartalloc
•engine.smartalloc
•lib_cmg.so
•lib_cxn.so
•lib_eng.so
•lib_rmg.so
•libpolbase.so
•libpolcomp.so
•libpolfiles.so
•libpolnuman.so
•libpolroute.so
•libpom.so
•mmSAgt
•mml
•pom
•replicator
•sagt
Additional information:
•System patch CSCOgs017 is superseded by the fixes provided in system patch CSCOgs018. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs017
System patch CSCOgs017 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy14868
|
2
|
provision
|
Modify nailed trunk SRCSVC field cause DSTTIMESLOT set to junk value.
|
CSCdy07603
|
3
|
provision
|
Invalid CIC are allowed in prov-add:nailedtrnk w/SPANSIZE specified.
|
CSCdy19113
|
3
|
provision
|
Not able to change CLIDefaultAllowed property using mml command.
|
CSCdx68011
|
6
|
engine
|
NOA, Cause 14, 32 Digit and Overdecadic for Sweden.
|
This patch provides updates to:
•libpolbase.so
•libpolcomp.so
•libpolfiles.so
•libpolnuman.so
•libpolroutes.so
•lib_eng.so
•libpom.so
•engine.no_smartalloc
•engine.smartalloc
•pom
•mml
Additional information:
•System patch CSCOgs016 is superseded by the fixes provided in system patch CSCOgs017. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs016
System patch CSCOgs016 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx88061
|
2
|
ioccsip
|
Siplink always in service although hme interface is down.
|
CSCdy11069
|
2
|
ioccsip
|
Need to add maddr parameter to Contact header - TEMPORARY.
|
CSCdy12278
|
2
|
ioccsip
|
PGW fails to recognize its own via in a comma separated list.
|
CSCdy14417
|
2
|
replicator
|
Active calls are ramdomically dropped when testing failover SC2200.
|
CSCdy04577
|
3
|
engine
|
COT_FAIL CIC stuck indefinitely upon failover.
|
CSCdy08358
|
3
|
engine
|
selseq=ITU2 CIC selection information request.
|
CSCdy08356
|
3
|
mdl-cdr
|
Incorrect release cause code in CDR record.
|
CSCdy05018
|
4
|
mml
|
Diaglog command issues need addressed.
|
This patch provides updates to:
•lib_eng.so
•lib_rmg.so
•engine.no_smartalloc
•engine.smartalloc
•replicator
•ioChanMgr
•SIP
•mml
Additional information:
•System patch CSCOgs015 is superseded by the fixes provided in system patch CSCOgs016. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs015
System patch CSCOgs015 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx85634
|
2
|
engine
|
Engine_smartall core dumps during 24 hour test.
|
CSCdy02534
|
2
|
engine
|
Core dump; not able to export dialplans.
|
CSCdx70782
|
3
|
provision
|
numan-rtrv:cause INDEX should be CAUSEVALUE.
|
CSCdx92221
|
3
|
iocm
|
RTRV-RTE shows incorrect state after TFP message.
|
CSCdy10708
|
3
|
mmlhelp
|
Documents need to describe transient state query-cic.
|
CSCdx72511
|
3
|
userdoc
|
Documents need to more clearly define kill-call.
|
This patch provides updates to:
•lib_cmg.so
•lib_eng.so
•lib_cxn.so
•lib_rmg.so
•libpolfiles.so
•libpolnuman.so
•libpolroute.so
•replicator
•engine.no_smartalloc
•engine.smartalloc
•ioChanMgr
•mml
Additional information:
•System patch CSCOgs014 is superseded by the fixes provided in system patch CSCOgs015. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs014
System patch CSCOgs014 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdy00230
|
2
|
other
|
Mulitple call forwards between SIP and PSTN.
|
CSCdx94403
|
3
|
engine
|
When controller is down CGB with immediate release to be sent.
|
CSCdx37330
|
3
|
ioccsip
|
Active system does not show correct state of SIP links.
|
CSCdx37375
|
3
|
ioccsip
|
Wrong state of SIP links when SIP link is set to OOS.
|
CSCdx77744
|
3
|
iocm
|
Setting of EISUP-links leads to mismatch status on EISUP-DEST.
|
CSCdx93172
|
3
|
mml
|
mml does not allow two ip links with same ip address and peer port.
|
CSCdx60231
|
3
|
mmlhelp
|
For BTNUP reset-cic does not work.
|
CSCdx60893
|
3
|
provision
|
Need validation for prova-add:nailed src/dsttimeslot field.
|
CSCdx77137
|
3
|
provision
|
Failures to write provisioning data to disk are not caught.
|
CSCdx92417
|
3
|
provision
|
Prov-add allows duplicate ss7 cics.
|
CSCdx84557
|
3
|
replicator
|
Call synchronization does not occur with only Link B connected.
|
CSCdx61723
|
6
|
other
|
NOA Cause14 32 Digit and Overdecadic for Spain/Italy/Belgium featurette.
|
This patch provides updates to:
•lib_cmg.so
•lib_eng.so
•libconvutil.so
•libda.so
•libpolbase.so
•libpolcomp.so
•libpolfiles.so
•libpolnuman.so
•libpolroute.so
•libpom.so
•replicator
•engine.no_smartalloc
•engine.smartalloc
•SIP
•MGCP
•SS7
•EISUP
•ioChanMgr
•mml
•pom
Additional information:
•System patch CSCOgs013 is superseded by the fixes provided in system patch CSCOgs014. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•CSCdx61723—NOA Cause14 32 Digit and Overdecadic for Spain/Italy/Belgium Featurette—This featurette implements the mapping of LNP parameters on three ITU protocols (Spanish, Italian, and Belgium ISUP). The parameters are:
–1—Country specific NOA values
–2—Cause 14 for QoR
–3—32 and Overdecadic Digits support (Spain requires both; Italian already supports both, and Belgium ISUP already supports Overdecadics).
CSCOgs013
System patch CSCOgs013 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx81270
|
1
|
engine
|
Reload RSIP doesnt recover BLK=GATEWAY CICs in PGW.
|
CSCdx79240
|
2
|
pxelogger
|
Not able to execute mml commands after running load test for 12 hours.
|
CSCdx79984
|
2
|
engine
|
GRS not acked after HW failure.
|
CSCdx80418
|
2
|
engine
|
SC cored when doing manual switch over.
|
CSCdx89870
|
2
|
engine
|
CQM for unequipped circuit fails UCIC response.
|
CSCdx93652
|
2
|
flovr
|
Crashing process can loop indefintely.
|
This patch provides updates to:
•libpxelog.so
•replicator
•sagt
•lib_cmg.so
•lib_cxn.so
•lib_eng.so
•lib_rmg.so
•engine.no_smartalloc
•engine.smartalloc
•mml
Additional information:
•System patch CSCOgs012 is superseded by the fixes provided in system patch CSCOgs013. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs012
System patch CSCOgs012 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx59012
|
2
|
engine
|
VSC releases CICs prior to receive GRA or CGUA.
|
CSCdx77379
|
3
|
engine
|
Timer T19 expired after CGBA received from SS7 network.
|
Additional information:
•System patch CSCOgs011 is superseded by the fixes provided in system patch CSCOgs012. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs011
System patch CSCOgs011 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx67988
|
1
|
engine
|
Excessive call failures stuck cics when sending multiple ISUP parameters.
|
CSCdx56882
|
2
|
engine-sj
|
SC cannot process call with NI2 segmented messages and engine=debug.
|
CSCdx77141
|
2
|
replicator
|
Replicator cores on startup—standalone only.
|
Additional information:
•System patch CSCOgs010 is superseded by the fixes provided in system patch CSCOgs011. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs010
System patch CSCOgs010 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx03812
|
2
|
iocm
|
EISUP links went to COOS afte failover&failback.
|
CSCdx38260
|
2
|
iocm
|
Dynamically deleted/modified NAS links do not work properly.
|
CSCdx17509
|
2
|
replicator
|
After bring hme interfaces down/up problems with switchover for 5 to 10 minutes.
|
CSCdx34803
|
2
|
replicator
|
While 10,000 calls are up on ACTIVE, .4% are not replicated to standby.
|
CSCdx15580
|
3
|
iocm
|
The perf counters generated by PGW are different than documented.
|
CSCdx19122
|
3
|
iocm
|
inb->foos denied for dynamically added ss7 links.
|
CSCdx15297
|
3
|
provision
|
Same peer port should not be allowed for ip links on naspaths on dif.
|
CSCdx46359
|
3
|
provision
|
GTD info not sent to NAS after gtd parameter changes.
|
CSCdx63327
|
4
|
mmlhelp
|
MML help needs to be updated.
|
Additional information:
•System patch CSCOgs009 is superseded by the fixes provided in system patch CSCOgs010. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs009
System patch CSCOgs009 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx61520
|
1
|
engine
|
Sust:Engine coring when blocking CICs.
|
CSCdx61749
|
1
|
provision
|
btnup 3.1KHz not able to associate profile with trunk group.
|
CSCdx63046
|
1
|
provision
|
Deviation in software caused unsuccessful merge.
|
CSCdx56882
|
2
|
engine-sj
|
SC cannot process call with NI2 segmented messages and engine=debug.
|
CSCdx59150
|
2
|
engine-sj
|
Engine core dump for SIP calls in debug mode.
|
CSCdx53255
|
3
|
engine
|
Engine dumps core after an mml sw-over on previous active PGW.
|
CSCdw91618
|
2
|
flovr
|
Slave not active until core file written on Master.
|
CSCdx19122
|
3
|
iocm
|
inb->foos denied for dynamically added ss7 links.
|
CSCdx48770
|
3
|
iocm
|
IOCM generates SW Fail alarm when mgcp link state set to OOS in VSC.
|
CSCdx52198
|
3
|
mml
|
Resultname /Resultsetname.
|
CSCdx33526
|
3
|
mmlhelp
|
Sust:rtrv-eqpt shows card INB but calls are still processed.
|
CSCdx51773
|
4
|
mml
|
SND commands in MML should be removed.
|
Additional information:
•System patch CSCOgs008 is superseded by the fixes provided in system patch CSCOgs009. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs008
System patch CSCOgs008 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx12388
|
2
|
mdl-in
|
Trigger.dat needs updating to support CONTIN and CONNECT cutnpaste.
|
CSCdx48492
|
2
|
mdl-sip
|
Multiple IP A records from DNS are not used when first fails.
|
CSCuk33572
|
2
|
mdl-sip
|
Normal call clearing forwards from SIP client has location 10.
|
CSCdx41413
|
3
|
dumper
|
cdrDmpr incorrectly tries to rm .cdr_xx with var/spool diff file sys.
|
CSCdx42143
|
3
|
ioccc7
|
Cannot use the same SS7 link for ISUP and TUP traffic.
|
CSCdx33524
|
3
|
mml
|
Sust:rtrv-eqpt shows card INB but calls are still processed.
|
CSCdx34340
|
3
|
mml
|
mml prov-rtrv:dchan by SVC field is not working as design.
|
CSCdx35644
|
3
|
mml
|
MML Help command is case sensitive.
|
CSCdx20208
|
3
|
other
|
MGCbackup failed if MGC stopped with a provsioning session open.
|
CSCdx38315
|
3
|
other
|
MGCbackup do not list all scheduled backups setup by different users.
|
CSCdx42730
|
3
|
procm
|
A few problems related to removing dangling channel controller.
|
CSCdx04293
|
3
|
provision
|
Cannot use same SLC in 2 linksets with same APC and different OPC.
|
CSCdx13123
|
3
|
provision
|
Provision allows two sip links to the same IP address on PGW2200.
|
CSCdx18088
|
3
|
provision
|
Max number of route list is 6 instead of 5 for conditional route.
|
CSCdx37984
|
3
|
provision
|
Provisioning should limit the number of RLM ports to 8.
|
CSCdx42119
|
3
|
provision
|
Provisioning should allow different sw-types on same SS7 IOCC.
|
CSCdw61819
|
6
|
other
|
Software Inventory Control.
|
Additional information:
Note Patches CSCOnn009 and CSCOgs008 are dependent on one another and must both be installed.
•System patch CSCOgs007 is superseded by the fixes provided in system patch CSCOgs008. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•CSCdw61819—Software Inventory Control—this featurette detects incompatible software versions residing on test systems in the various Cisco testing facilities. Each software release provides a file containing checksum information for all the libraries and executables being installed. The Software Inventory Control utility generates checksums on the production system then compares those checksums with the values in the installation master file. A discrepancy indicates that the software on the box does not match the software that was originally installed.
This featurette does not identify the source of a problem or the correct software to install. It does indicate if a problem exists prior to the testing of incompatible software.
•CSCdx05822— ISDN Q931 3.1Khz Incorrectly Coded for BTNUP —this featurette extends the function of the existing defaultBC property to include BTNUP-based trunk groups. The property can be set to SPEECH or 3_1_KHZ. The default setting is SPEECH.
If the property is set to 3_1_KHZ, PGW converts the outgoing ISDN 3.1KHz (CAT3) call over the BTNUP TrunkGroup to an ISDN speech (CAT2) call. This property has no impact on outgoing ISDN data (CAT1) and speech (CAT2) calls over the BTNUP TrunkGroup.
Note CSCdx05822 was propagated forward with 9.1(5) patch CSCOgs011.
CSCOgs007
System patch CSCOgs007 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx24991
|
2
|
engine
|
SC2200 core dumped when prov-add:files was done.
|
CSCdw84975
|
3
|
ioccc7
|
MTP-3 Changeback Declaration not implemented.
|
CSCdx33645
|
3
|
ioccpriip
|
Cannot support single NAS interface with dual local interface.
|
Additional information:
•System patch CSCOgs006 is superseded by the fixes provided in system patch CSCOgs007. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs006
System patch CSCOgs006 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx09580
|
2
|
engine
|
Segmented ISDN message sometimes interrupted with other messages.
|
CSCdw77330
|
3
|
mmlhelp
|
help:set-iplnk should be updated for nas links.
|
CSCdx14033
|
2
|
ioccsip
|
Standby shows SIP links IS STDBY after dynamic configuration.
|
CSCdx21171
|
4
|
ioccsip
|
siptool trace filter fails to work.
|
CSCdx07598
|
2
|
iocm
|
Dynamically readding dpc leaves the ss7 dest in INB.
|
CSCdw93244
|
2
|
iocm
|
Cannot bring both linksets with same DPC and different OPC in service.
|
CSCdx16832
|
2
|
ioccxgcp
|
mgcp links shows wrong status on standby.
|
CSCdx08951
|
3
|
iocm
|
Warm-Start Alarm in Active PGW.
|
Additional information:
•System patch CSCOgs005 is superseded by the fixes provided in system patch CSCOgs006. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs005
System patch CSCOgs005 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx10503
|
1
|
ioccsip
|
After failover SIP link goes to OOS CONF.
|
CSCdw91615
|
2
|
engine
|
Engine core after setting signaling service back IS.
|
CSCdw47478
|
2
|
engine-sj
|
SC renegotiates call from NAS when NI2+ message is segmented due to GTD.
|
CSCdx04824
|
2
|
engine-sj
|
ST:GSM update from SC not sent on all NFAS interfaces.
|
CSCdx13228
|
2
|
ioccsip
|
SIP calls are not checked for priority for more than one SIP link.
|
CSCdx13334
|
2
|
ioccsip
|
Second SIP link should show IS offduty.
|
CSCdx14153
|
2
|
provision
|
IOCM does not come to service after adding mgcp links dynamically.
|
CSCdx01749
|
3
|
ioccc7
|
After deleting an ss7-IOCC cannot do switch back.
|
Additional information:
•System patch CSCOgs004 is superseded by the fixes provided in system patch CSCOgs005. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs004
System patch CSCOgs004 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdx11625
|
1
|
dumper
|
CDR Dumper creating files with duplicate sequence numbers.
|
CSCdx10739
|
1
|
engine
|
SS7 to SIP and SIP to SS7 calls not going through.
|
CSCdx10503
|
1
|
ioccsip
|
After failover SIP link goes to OOS CONF.
|
Additional information:
•System patch CSCOgs003 is superseded by the fixes provided in system patch CSCOgs004. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs003
System patch CSCOgs003 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCuk32755
|
2
|
mdl-sip
|
SIP to UK-ISUP calls do not contain calling line identity.
|
CSCdw89597
|
2
|
iocm
|
Dynamic Reconfig fails when adding session set/lnk set.
|
CSCdw91579
|
2
|
mml
|
Profile does not work for SIP trunk.
|
CSCuk31923
|
2
|
provision
|
Calls to emergency numbers should have CPC 00001011.
|
CSCdw47295
|
2
|
replicator
|
Replicator link not recovering when restored after disruption.
|
CSCdw93220
|
3
|
measm
|
MeasCats.dat has invalid ID for H323 measurements.
|
CSCdw69233
|
3
|
mml
|
sta-dns-info command times out with null dns table.
|
CSCdw77330
|
3
|
mmlhfelp
|
help:set-iplnk should be updated for nas links.
|
CSCdw86713
|
3
|
provision
|
prov-add:files can not export ANUMDPSEL data.
|
CSCdw86745
|
3
|
toolkit
|
Toolkit: When option use current time is set the stop timelights up.
|
CSCuk32309
|
3
|
toolkit
|
MGC environment tool configures .stPort incorrectly for 9.2(2).
|
CSCuk32313
|
3
|
toolkit
|
MGC envirnonment tool configures *.platformid incorrectly.
|
CSCdw38322
|
3
|
userdoc
|
Default of isupTransparencyDisabled property should be Disabled.
|
CSCds07249
|
4
|
mdl-tools
|
Toolkit Call Translation has several mispelled words.
|
Additional information:
•System patch CSCOgs002 is superseded by the fixes provided in system patch CSCOgs003. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
CSCOgs002
System patch CSCOgs002 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdw70162
|
1
|
mdl-sip
|
SIP to PSTN calls egress MGCP SDP causes Msoft Mess call failures.
|
CSCdw36636
|
3
|
userdoc
|
Circuit validation test fails.
|
CSCdw43093
|
3
|
iocm
|
Setting siplink to OOS is inconsistent.
|
CSCdw63397
|
3
|
mmlhelp
|
SC2200: MML help for stp-call is wrong.
|
CSCdw64921
|
3
|
mdl-tools
|
MDL trace shows incorrect info with simprint for SIP.
|
CSCdw67569
|
3
|
alrmm
|
IOChanMGR err: Unknown Alarm FORCE NODE RESTART.
|
CSCdw72155
|
3
|
provision
|
Database Migration Fails from 7.4(12) to 9.2(2).
|
CSCuk31908
|
2
|
mdl-eisup
|
SuppressCLIDigits parameter cannot be provisioned on EISUP trunk.
|
CSCdw75242
|
1
|
snmp
|
SNMP mishandles exceptional elements.
|
CSCdw71480
|
2
|
flovr
|
After isolating STANDBY SC STANDBY takes over as ACTIVE.
|
CSCdw75651
|
2
|
ioccsip
|
Sip link stays INB on standby system.
|
CSCdw69070
|
3
|
mmlhelp
|
MML help enhancement needed for rtrv-dns-info.
|
CSCdw69196
|
3
|
mmlhelp
|
MML help enhancement needed for sta-dns-purge.
|
CSCdw70233
|
3
|
mmlhelp
|
Incorrect MML help for dns parameter querytimeout cachesize.
|
CSCdw75676
|
3
|
ioccsip
|
rtrv-dns-info is not reporting status.
|
CSCdw70590
|
3
|
mmlhelp
|
sip trunkgrp type missing in mml help.
|
CSCdw77330
|
3
|
mmlhelp
|
help: set-iplnk should be updated for nas links.
|
CSCdw38322
|
3
|
userdoc
|
Default of isupTransparencyDisabled property should be Disabled.
|
CSCdw42876
|
3
|
engine-sj
|
1110 CDB missing SIP Tag 4203 in both call directions.
|
CSCdw85059
|
3
|
pkg
|
CSCdw57226 still in 9.2(2).
|
Additional information:
•System patch CSCOgs001 is superseded by the fixes provided in system patch CSCOgs002. The superseded patch is removed when using the patch utility script to install a newer version of the patch.
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•The fix for CSCdw67569 adds a new alarm, FORCE NODE RESTART. Modified file: etc/CONFIG_LIB/newalarmCats.dat version /main/br_nssu_9main/br_nssu_9tech/br_nssu_92/br_nssu_922/1
To apply this fix, do one of the following:
–copy etc/CONFIG_LIB/new/alarmCats.dat to etc, etc/active_link, and etc/prov_link
or
–reprovision from new
CSCOgs001
System patch CSCOgs001 resolves the following DDTS tickets:
Identifier
|
Severity
|
Component
|
Description
|
CSCdw47478
|
2
|
engine-sj
|
SC renegotiates call from NAS when NI2+ mesg is segmented due to GTD.
|
CSCdw53360
|
2
|
engine
|
set-admin-state sends contradictory chan state messages to NAS and SS7.
|
CSCdv42989
|
3
|
engine
|
Provisioned CICs are shown as in-state to a gateway link in alarm.
|
CSCdw43400
|
3
|
provision
|
Could not identify the invalid CIC from prov-add:files error message.
|
CSCdw56252
|
3
|
flovr
|
GEN_WARN_FOVERD:Invalid message number.
|
CSCdw57234
|
3
|
provision
|
prov-exp could not export screeing data which has no dialplan.
|
CSCdw40702
|
3
|
install
|
ASCII CDR converter does not work.
|
Additional information:
•Refer to the Patch Test Combinations section of this document to determine which protocol and system patches are needed.
•This system patch includes a new protocol, Q767_SINGAPORE. Variant.dat has been updated and requires that both protocal patch CSCOnn001 and system patch CSCOgs001 are installed.
Supported SS7 Variants and ISUP Transparencies
Table 10 lists the ISUP transparency supported protocols:
Table 10 ISUP Transparency Supported Protocols
Q761 Variants
|
Q767 Variants
|
Other Protocols
|
Q761_Base
|
Q767_Base
|
ANSI
|
Singapore
|
Singapore
|
—
|
Thailand
|
Thailand
|
—
|
Known Issues and Operational Recommendations
This section contains information about known issues and the corresponding workarounds in the
Cisco MGC software release 9.2(2).
Note For more information about Cisco IOS issues and workarounds, see the Cisco IOS release notes for your platform.
Installation Patch Tool Removes Packages Before Checking to See If The System Is Down
When adding a new protocol patch to the system, the patch installation tool removes the current protocol patch, then checks to see if the system is running. If the system has not been stopped, it stops the tool, but does not add the current patch back on the system.
If you add a new protocol patch before stopping the system, you must then stop the system and then add the protocol patch to the system again.
Note For more information, refer to DDTS ticket number CSCec15748.
Using prov-cpy/prov-sync To Commit Configuration Changes on a Fault-Tolerant System
When using the prov-cpy/prov-sync combination to commit configuration changes on a fault-tolerant system the standby might not fully synchronize with the active which results in the second switchover failing. The following non-service affecting workarounds can be used if this problem occurs:
•Use prov-dply, instead of the prov-cpy/prov-sync combination to commit each phase of provisioning on a fault-tolerant system. The prov-dply command ensures that both sides are completely synchronized.
•After using the prov-cpy/prov-sync combination to commit configuration changes, stop and restart the standby. Restarting the standby resynchronizes all states correctly.
Note For more information refer to DDTS number CSCdw63484.
Do Not Use TimesTen Commands in PGW
PGW scripts should be used
Incorrect use of commands might result in database corruption.
TimesTen PGW scripts are located at:
/opt/CiscoMGC/local 3.
If a command is needed for which a script does not exist, you should open a ticket requesting a new script for that command.
Note For more information, refer to DDTS ticket number CSCdz78019.
Modifying the OPC of an SS7 Route
When prov-ed is used to modify the OPC of an SS7ROUTE or SS7PATH, the PGW software must be stopped and restarted before changes take affect. Stopping and restarting the system results in a service-affecting outage. To make a change without stopping and restarting the PGW, complete the following procedure:
Step 1 Start a provisioning session on the active machine.
Step 2 Use prov-dlt to remove the following components:
•SS7ROUTE,
•all associated trunks to the SS7PATH
•SS7PATH
•DPC
Step 3 Execute the prov-dply command.
Step 4 Start a second provisioning session on the active machine.
Step 5 Use prov-add to add the following components:
•DPC
•SS7PATH
•all associated trunks to the SS7PATH
•SS7ROUTE (with the new OPC and linkset changes)
Step 6 Execute the prov-dply command.
Migration of Dialplans Failed From 7.4(x) to 9.2(x)
The software upgrade from 7.4(x) to 9.3(x) involves upgrading the operating system (OS) from Solaris 2.6 to Solaris 2.8. The configuration and TimesTen databases are saved before the OS upgrade and then migrated to 9.3(x) as part of 9.3(x) installation. During migration the following error message is issued and the system does not come up in the standby state.
Migration dialplan file:0102.dialPlan:
Error message: error reading from /opt/CiscoMGC/etc/CONFIG_LIB/tmp_migrate_8.0//
If you receive this error during migration, refer to the Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide, Chapter 5, Upgrading to Cisco MGC Software Release 9.3(2), at the following url:
http://www.cisco.com/univercd/cc/td/doc/product/access/sc/rel9/swinstl/index.htm.
Note For more information refer to CSCdz30575.
CPU Timer Interval Is Not Disabled If CPUTimerInterval Parameter Is Set To 0
The XECfgParm.dat CPUTimerInterval parameter is not disabled when its value is set to 0.
Do Not Use the ifconfig UNIX Commands to Shut Down Ethernet Interfaces
During a failover on the master SC where both ethernet connections are lost, the failover correctly switches to the slave SC. However, after the ethernet connections are restored on the master, the slave SC does not return to standby mode.
Workaround:
Step 1 With the slave in Active mode, execute (as root) on the the Master:
/etc/init.d/CiscoMGC stop
Step 2 After the SC software has stopped, restart it using the following command:
/etc/init.d/CiscoMGC start
Step 3 To verify that the SC has entered the Standby state, return to MML and execute the following command:
Note The ifconfig UNIX commands should not be used to administratively down the ethernet interfaces while the MGC software is running. For more information on this issue, refer to CSCdy59730.
Conditional Routing Name Validation
In previous 9.2(2) releases, conditional routing name validation did not occur. Therefore, the potential that invalid conditional routing names were created exists.
As of patch CSCOgs021, conditional routing name validation occurs in release 9.2(2). Previously existing configurations should be checked to ensure that invalid names are not used. Conditional routing names should consist of 1-20 alphanumeric characters. If your conditional routing name is invalid, the routeAnalysis.dat file must be edited. Contact TAC so that the engineering team can be notified to have your information modified.
Caution If an invalid conditional routing name is used in release 9.2(2) and you attempt to upgrade to a newer release (9.3(2) and higher), the migration will fail because the validation of the conditional route name fails.
Note For more information on this issue, refer to CSCdy56160 and CSCdy58664.
Network Redundancy Between Dual Homed PGW and Single Homed NAS
The MGC provisioning rules have been modified to provide local redundancy on the PGW. You can now configure two IP addresses on the MGW (two ethernet interfaces on the SC side) to one IP address on a NAS. If one ethernet fails, the other ethernet can carry the traffic.
To support this configuration, the following modifications were made:
•Provisioning—modified to allow you to configure sigChans with mutliple IP routes to the same destination.
•IOCM—allows you to switchover to other IP routes if the primary route becomes unavailable.
•IOCC—uses the remote IP address, port, and file descriptor to determine which sigChan a PDU belongs to.
Only one of the two IP routes assigned to the same destination and NETMASK is in the Solaris routing table at a time. If both interfaces are in-service, the I/O Channel Manger selects one of the two IP routes. If the ethernet interface associated with the IP route that is in the Solaris routing table fails, the I/O Channel Manager deletes that IP route from the Solaris routing table and puts the other IP route assigned to the same destination and NETMASK in the Solaris routing table. The original IP route is not restored when the ethernet interface associated with it recovers. The new IP route remains in the Solaris routing table unless the interface associated with it fails.
The following alarms are associated with this feature:
•IP RTE FAIL— generated against an IPLNK or IPSESSION that is provisioned with a next hop address if the system fails to add the required route. This could be due to an invalid or conflicting parameter.
•IP CONF RTE FAIL—generated when an IPLNK or IPSESSION is not using the route that it is configured to use. A conflicting route generated by another signal channel or by another process can cause this.
LIF FAIL—set by the I/O Channel Manager if it determines that the ethernet interface used by the IPSESSON or IPLNK object is not operational. It is cleared when the ethernet interface becomes operational. When set, the LIF FAIL alarm is accompanied by a log message of type GEN_ERR_IPINTF_FAIL that includes the provisioning name and operating system name of the interface that has failed. When cleared, the LIF FAIL alarm is accompanied by a log message of type GEN_INFO_IPINTF_RECOV that also includes the provisioning name and the operating system name of the interface.
An example of a provisioning name is IP_Addr1. An example of a operating system name is hme0. The error message also contains the cause of the failure. A cause of Link Down indicates that the interface has lost carrier. This can be caused by removing the cable or a failure at the ethernet switch. A cause of Admin Down indicates that the interface was taken down using the unix command ifconfig <interface name> down.
Note This configuration is supported in Cisco MGC Software Release 9.2(2) with system patch CSCOgs014 and protocol patch CSCOnn015 or later.
Suppress CLIDigits Parameter Cannot Be Provisioned on EISUP Trunk1
To prevent sending CLI digits to soft-phone applications that might ignore the CLI restriction indication and display the calling number the following workaround can be used:
Step 1 Start a new provisioning session.
Step 2 In the prov-link directory, edit the file propSet.dat file.
Step 3 Add a line after the last EISUP property name, for example:
xxxx EISUP * SuppressCLIDigits 0 2 1 0
where xxxx is the number before the last EISUP property incremented by 1.
Step 4 Use the prov-ed command to set the SuppressCLIDigits value of the EISUP signaling path to 1.
Step 5 Deploy the configuration.
Switchover Might Take Five to Ten Minutes After Bringing Hme Interfaces Down
(CSCdx17509) When the ip links are bounced, but are in a current up state, the standby PGW has a rtrv-ne status of standby, NOT OOS. After attempting an MML>sw-over::confirm on the active unit, an MSO Refused, Warm Start-up in Progress error displays. This problem clears itself after 5 to 10 minutes.
Note This issue is resolved by applying CSCOgs010 or later system patches.
Support for Individual IOCC logPrio in XECfgParm.dat
A new template has been added to XECfgParm.dat that displays the valid process names for logPrio. These values allow you to turn on log priority for individual channel controllers.
The valid components for the logPrio parameter are based on the UNIX file names of the binary executables. The following are the valid component for logPrio:
•EISUP
•ISDNIP
•ISDNL3
•MGCP
•SIP
•SS7
•TALI
•almM
•amDmpr
•cfgM
•ioChanMgr
•engine
•foverd
•measMgr
•mmdbd
•mmSAgt
•pom
•procM
•replicator
•sagt
•TCAP
Note The general parameter ioChanCtl (previously used to set the level for all channel controllers) has been removed.
2651 Approved for Use In the PGW 2200
For releases 7.4(12) and going forward, the 2651 has been approved for use in the PGW 2200. The 2651, used as an SLT, is ordered and shipped as a standard 2651. It ships with a non-SLT image. You must reload it with an SLT image prior to operating the device as an SLT.
2611s SLTs
Current images might need to be downloaded on 2611 SLTs prior to starting live service.
Caveats
This section describes resolved and open caveats for Cisco MGC software Release 9.2(2).
Resolved Caveats for Software Release 9.2(2)
Table 11 lists resolved caveats sorted by severity, then identifier, then component.
Table 11 Resolved Caveats for Software Release 9.2(2)
Identifier
|
Severity
|
Component
|
Description
|
CSCdx79979
|
1
|
mdl-callctrl
|
MUTE CALL (mute and released calls after linked dialplan).
|
CSCdx81270
|
1
|
engine
|
Reload RSIP doesn't recover BLK=GATEWAY CICs in PGW.
|
CSCdy14230
|
1
|
mdl-connctrl
|
All calls fail on answer from PGW to HSI.
|
CSCdy66616
|
1
|
mml
|
Unable to prov more than 32 links error msg with valid batch file.
|
CSCdx55274
|
2
|
mdl-q767
|
Wrong Cause Value sent on ingress(SS7) side on ISUP SUS timer expiry.
|
CSCdx56882
|
2
|
engine-sj
|
SC cant process call with NI2 segmented messages and engine=debug.
|
CSCdx59012
|
2
|
engine
|
VSC releases CICs prior to receive GRA or CGUA.
|
CSCdx79984
|
2
|
engine
|
GRS not acked after HW failure.
|
CSCdx80418
|
2
|
engine
|
SC cored when doing manual switch over.
|
CSCdx84731
|
2
|
mdl-callctrl
|
call re-attempt at the same b channel for isdn nego resend-setup.
|
CSCdx85634
|
2
|
engine
|
Engine_smartall core dumps during 24 hour test.
|
CSCdx88061
|
2
|
ioccsip
|
Siplink always in service although hme interface is down.
|
CSCdx89870
|
2
|
engine
|
CQM for unequipped circuit fails UCIC response.
|
CSCdx93652
|
2
|
flovr
|
Crashing process can loop indefintely.
|
CSCdy02534
|
2
|
engine
|
Core dump while not able to export dialplans.
|
CSCdy11069
|
2
|
ioccsip
|
Need to add maddr parameter to Contact header - TEMPORARY.
|
CSCdy11883
|
2
|
ioccsip
|
Either hme down, no pgw TRYING response to INVITE.
|
CSCdy12278
|
2
|
ioccsip
|
PGW fails to recognise its own via in a comma seperated list.
|
CSCdy14868
|
2
|
provision
|
Modify nailed trunk SRCSVC field cause DSTTIMESLOT set to junk value.
|
CSCdy17792
|
2
|
mdl-sip
|
Forwarded call will disc after a 183 session progress.
|
CSCdy18222
|
2
|
engine
|
set-admin-state:lock causes CGB w/ immediate release sent to far end.
|
CSCdy29781
|
2
|
mdl-btnup
|
BTNUP, MGC sends two CCTF on clear at expiry of CSH Timer.
|
CSCdy30928
|
2
|
provision
|
prov-add:nailedtrnk cannt add nas dsttimeslot range 1-31 for E1 SPAN.
|
CSCdy36697
|
2
|
engine
|
Unable to modify SC config due to absence of SS7 route for some dpc.
|
CSCdy37584
|
2
|
mdl-q761
|
Engine process crash & ioCcConfig not able to write to IPC.
|
CSCdy44728
|
2
|
mdl-q761
|
pgw does not pass RGN and OCN for HKTA 2200 isup variant.
|
CSCdy53419
|
2
|
mdl-q761
|
Dropping call when nature of connection has echo control set to 1.
|
CSCdy57649
|
2
|
provision
|
Sukhoi:Provisioning is not blocked during Seamless upgrade.
|
CSCdy68963
|
2
|
engine
|
PGW sends wrong GRSA during HW failure.
|
CSCdy79280
|
2
|
mdl-analysis
|
Incomming prefix number not removed.
|
CSCdy81924
|
2
|
engine
|
Stuck CICs are created when the dpc recover from temporary outage.
|
CSCdz19032
|
2
|
protocol
|
PGW2200 can not recognize 3 bytes Release Cause Indicator.
|
CSCdz30575
|
2
|
upgrade
|
Migration of Dialplans failed from 7.4(x) to 9.2(x).
|
CSCuk34257
|
2
|
mdl-eisup
|
Post-answer CPG message not passed over EISUP.
|
CSCuk34258
|
2
|
mdl-q761
|
CPG message parameter discarded after transit over SS7.
|
CSCuk34269
|
2
|
mdl-q761
|
Transit of IAM containing CUG is rejected.
|
CSCuk34818
|
2
|
mdl-connctrl
|
Fax tone detect TG prop causes all H.323 calls to fail.
|
CSCuk34932
|
2
|
mdl-analysis
|
Use of dw2=99 negates any B-number digmodstring with patch gs9/nn009.
|
CSCuk36076
|
2
|
mdl-sip
|
Media not redirected when SIP re-invite received.
|
CSCuk36123
|
2
|
protocol
|
Incorrect behaviour on release collision causes hung cic.
|
CSCdx57865
|
3
|
mdl-sip
|
SIP drops plus character in bye messages.
|
CSCdv42989
|
3
|
engine
|
Provisioned CICs are shown as IS to a gateway link in alarm.
|
CSCdw81829
|
3
|
mdl-analysis
|
After switchover the call is not routed to the proper dialplan.
|
CSCdx08903
|
3
|
mdl-ansi-ss7
|
SC2200 does not accept CCR for remotely blocked CIC.
|
CSCdx15580
|
3
|
iocm
|
The perf counters generated by PGW are different than documented.
|
CSCdx38642
|
3
|
mdl
|
Kill-call and CDR problems [Want write TimeStamp according to XECfg].
|
CSCdx46359
|
3
|
provision
|
GTD - gtd info not sent to NAS after gtd param changes.
|
CSCdx62621
|
3
|
protocol
|
GTD - EBM support not operational when enabled per gateway.
|
CSCdx66443
|
3
|
mdl-callctrl
|
GTD - node B type behaviour with unrecognised IE - drop by LCM.
|
CSCdx68938
|
3
|
mdl-callctrl
|
VSC should send endpoint level DLCX when a 515 error response rcvd.
|
CSCdx71519
|
3
|
mdl-sip
|
BT:Ingress trunk group missing from CDR for SIP originated calls.
|
CSCdx72511
|
3
|
mmlhelp
|
docs need to more clearly define kill-call.
|
CSCdx78195
|
3
|
mdl-connctrl
|
On reception of vbd/vbdt the VSC response with wrong transaction id.
|
CSCdx78196
|
3
|
mdl-connctrl
|
On ft/mt notification VSC sends different codec string.
|
CSCdx84748
|
3
|
mdl-q767
|
Wrong cause code on ISUP SUS T2 timer expiry.
|
CSCdx92221
|
3
|
iocm
|
RTRV-RTE show incorrect state after TFP message.
|
CSCdx94208
|
3
|
mdl-q767
|
Q.767: several incorrect CauseCodes mappings (2nd edition).
|
CSCdx94403
|
3
|
engine
|
When controller is down CGB with immediate release to be sent.
|
CSCdy00998
|
3
|
mdl-connctrl
|
When MDCX for ft/mt notification is NACKed DLCX is sent one side.
|
CSCdy04602
|
3
|
mdl
|
Incorrect BCI in the Connect message with Q767-RUSS.
|
CSCdy07603
|
3
|
provision
|
Invalid cic are allowed in prov-add:nailedtrnk w/SPANSIZE specified.
|
CSCdy08356
|
3
|
engine
|
Incorrect release cause code in CDR record.
|
CSCdy10708
|
3
|
mmlhelp
|
docs need to describe transient state query-cic.
|
CSCdy11856
|
3
|
mdl-sip
|
Call Forward pstn->ata->pstn hme0 unplugged with CSPS2.0.1.4.
|
CSCdy12998
|
3
|
mdl-q761
|
Q761_BELG_BCOM - hop count support required for certification.
|
CSCdy17818
|
3
|
engdoc
|
IPCkind [r] in services.dat but not referenced in Data Dictionary.
|
CSCdy18138
|
3
|
engdoc
|
Alarm categories missing from 9.2(X) Data Dictionary EDCS-119626.
|
CSCdy20661
|
3
|
mdl-q761
|
PCI on egress should be present when on ingress.
|
CSCdy20914
|
3
|
mdl-ansi-ss7
|
COT always fail if Tone is returned before LPA.
|
CSCdy20931
|
3
|
mdl-ansi-ss7
|
If Initial IAM_w_COT fails subsequent COT fails as well.
|
CSCdy21573
|
3
|
engine
|
SVC=Notset is set in IPLNK configuration.
|
CSCdy24943
|
3
|
mdl-q721
|
Change request in Brazilian TUP to send charge in ACMs.
|
CSCdy31675
|
3
|
mdl-pri
|
Some HLC characteristics are not validated - calls fail.
|
CSCdy32910
|
3
|
mdl-btnup
|
BTNUP - ITUReasonCode being over written in CDR by Second REL.
|
CSCdy37745
|
3
|
mdl-q761
|
HKTA_2202 - restriction about noa Calling party removed.
|
CSCdy38088
|
3
|
mdl-q761
|
CPG should be accepted before ACM.
|
CSCdy38844
|
3
|
mml
|
MML core dumps on prov-export.
|
CSCdy40382
|
3
|
mdl-q761
|
PCI generate should be transit interpretation.
|
CSCdy42418
|
3
|
engine
|
object ptr rmgBearChan is NULL is added to platform.log after call.
|
CSCdy46777
|
3
|
engine
|
blk-cic not operational - no CGB sent out.
|
CSCdy62767
|
3
|
mdl-cdr
|
TAG 4106 FirstREL_TM is missing on CDB-Tag 1110.
|
CSCdy82535
|
3
|
provision
|
Invalid route priority not detected in provisioning.
|
CSCdy84847
|
3
|
mdl-ni2
|
BCI and OBI are changed on the Ingress Side of the call.
|
CSCdy85209
|
3
|
engine
|
Incorrect clear cause.
|
CSCdz08306
|
3
|
mdl-q721
|
CIC status mismatch problem.
|
CSCdz11836
|
3
|
engine
|
SC need to synchronize bearer channel status.
|
CSCdz27504
|
3
|
procm
|
PGW OOS due to IPLINK de-provision.
|
CSCuk24004
|
3
|
mdl-q761
|
VSC doesn't transit connected number info and discards call history.
|
CSCuk35488
|
3
|
mdl-sip
|
Incorrect MAPPING of SS7 CPG to SIP.
|
CSCuk35748
|
3
|
mdl-sip
|
PGW needs to ACK 487 subsequent to the CANCEL.
|
CSCuk35763
|
3
|
mdl-q767
|
T9 not read from trunk group properties.
|
CSCuk36578
|
3
|
mdl
|
SS7 Release msg mapped incorrectly to NI2+.
|
Open Caveats for Software Release 9.2(2)
Contact your Cisco representative to obtain status on software problem reports (SPRs). For more information on IOS caveats, see the IOS release notes for your platform. Table 12 is sorted by severity, then identifier, then component.
Table 12 Open Caveats for Software Release 9.2(2)
Identifier
|
Severity
|
Component
|
Description
|
Explanation/Workaround
|
CSCdx14471
|
2
|
mdl
|
SC assumes end-to-end ISUP when building and originating SS7 message.
|
On the PGW2200 running software version 9.2(2) in a SS7 Interconnect for Voice Gateway solutions, if a call originates from a signaling type other than R2 or SS7, the PGW2200 processes the incoming NI2 SETUP from the NAS and sends out an IAM to the SS7 switch with both the originating_access_ISDN and ISUP_used_all_the_way parameters equal to 1.
|
CSCdx20455
|
2
|
provision
|
SIP:rttrnkgrp entry with type=9 mess up rttrnkgrp&siprttrnkgrp table.
|
Added a rttrnkgrp entry with type=9 and then tried to modify it to different type (type=7) or delete it, mml did not allow modification and returned SIP related error message.
Did prov-rtrv:rttrnkgrp:"all" and prov-rtrv:siprttrnkgrp:"all". Rttrnkgrp entry with type=9 did not show in rttrnkgrp tables but showed in Siprttrnkgrp tables.
Workaround: delete the entry using prov-dlt:sigrttrnkgrp command instead of Prov-dlt:rttrnkgrp command.
|
CSCdx84731
|
2
|
engine
|
Call reattempt at the same b channel for isdn nego resend-setup.
|
Workaround: None.
|
CSCdx85634
|
2
|
engine
|
Engine_smartall core dumps during 24 hour test.
|
On the Cisco SS7 Interconnect for Voice Gateways Solution the engine process running on the active SC2200 might fail and generate a core dump while proccessing calls and cause a failover to the standby SC2200.
Workaround: None.
|
CSCdx88061
|
2
|
ioccsip
|
Siplink shows as always in service although hme interface is down.
|
With two SIPLNKs configured, the primary one will always be in service even if the associated hme has gone down due to cable or switch failure.
|
CSCdx94735
|
2
|
flovr
|
Switchover takes too long when active process crashes.
|
When a process on the active system crashes, failover does not happen until the core file is produced. If the engine is the process that crashes, the core file can take over a minute to produce, which leaves the node without an active platform for over a minute.
|
CSCdy02534
|
2
|
engine
|
Core dump while not able to export dialplans.
|
When deploying a new set of configurations that had major dialplan changes (dialplan additions and removals), it was not possible to do a prov-exp. The call scenarios that used these dialplans all worked.
|
Obtaining Documentation
The following sections provide sources for obtaining documentation from Cisco Systems.
World Wide Web
You can access the most current Cisco documentation on the World Wide Web at the following sites:
•http://www.cisco.com
•http://www-china.cisco.com
•http://www-europe.cisco.com
Documentation CD-ROM
Cisco documentation and additional literature are available in a CD-ROM package, which ships with your product. The Documentation CD-ROM is updated monthly and may be more current than printed documentation. The CD-ROM package is available as a single unit or through an annual subscription.
Ordering Documentation
Cisco documentation is available in the following ways:
•Registered Cisco Direct Customers can order Cisco Product documentation from the Networking Products MarketPlace:
http://www.cisco.com/en/US/partner/ordering/index.shtml
•Registered Cisco.com users can order the Documentation CD-ROM through the online Subscription Store:
http://www.cisco.com/go/subscription
•Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco corporate headquarters (California, USA) at 408 526-7208 or, in North America, by calling 800 553-NETS(6387).
Documentation Feedback
If you are reading Cisco product documentation on the World Wide Web, you can submit technical comments electronically. Click Feedback in the toolbar and select Documentation. After you complete the form, click Submit to send it to Cisco.
You can e-mail your comments to bug-doc@cisco.com.
To submit your comments by mail, use the response card behind the front cover of your document, or write to the following address:
Attn Document Resource Connection
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Obtaining Technical Assistance
Cisco provides Cisco.com as a starting point for all technical assistance. Customers and partners can obtain documentation, troubleshooting tips, and sample configurations from online tools. For Cisco.com registered users, additional troubleshooting tools are available from the TAC website.
Cisco.com
Cisco.com is the foundation of a suite of interactive, networked services that provides immediate, open access to Cisco information and resources at anytime, from anywhere in the world. This highly integrated Internet application is a powerful, easy-to-use tool for doing business with Cisco.
Cisco.com provides a broad range of features and services to help customers and partners streamline business processes and improve productivity. Through Cisco.com, you can find information about Cisco and our networking solutions, services, and programs. In addition, you can resolve technical issues with online technical support, download and test software packages, and order Cisco learning materials and merchandise. Valuable online skill assessment, training, and certification programs are also available.
Customers and partners can self-register on Cisco.com to obtain additional personalized information and services. Registered users can order products, check on the status of an order, access technical support, and view benefits specific to their relationships with Cisco.
To access Cisco.com, go to the following website:
http://www.cisco.com
Technical Assistance Center
The Cisco TAC website is available to all customers who need technical assistance with a Cisco product or technology that is under warranty or covered by a maintenance contract.
Contacting TAC by Using the Cisco TAC Website
If you have a priority level 3 (P3) or priority level 4 (P4) problem, contact TAC by going to the TAC website:
http://www.cisco.com/tac
P3 and P4 level problems are defined as follows:
•P3—Your network performance is degraded. Network functionality is noticeably impaired, but most business operations continue.
•P4—You need information or assistance on Cisco product capabilities, product installation, or basic product configuration.
In each of the above cases, use the Cisco TAC website to quickly find answers to your questions.
To register for Cisco.com, go to the following website:
http://www.cisco.com/register/
If you cannot resolve your technical issue by using the TAC online resources, Cisco.com registered users can open a case online by using the TAC Case Open tool at the following website:
http://www.cisco.com/tac/caseopen
Contacting TAC by Telephone
If you have a priority level 1(P1) or priority level 2 (P2) problem, contact TAC by telephone and immediately open a case. To obtain a directory of toll-free numbers for your country, go to the following website:
http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml
P1 and P2 level problems are defined as follows:
•P1—Your production network is down, causing a critical impact to business operations if service is not restored quickly. No workaround is available.
•P2—Your production network is severely degraded, affecting significant aspects of your business operations. No workaround is available.
Feedback
