Feature Overview
This feature provides RADIUS interface support on the PGW 2200 for Call Detail Record (CDR) data. CDR data is sent to a preconfigured RADIUS server at the end of the call. CDR data for PSTN-to-IP calls as well as IP-to-PSTN calls is supported. The PGW 2200 can be configured for both RADIUS and normal CRD.
The PGW 2200 generates one RADIUS record for each originating call or terminating call, that is leg 1, leg 2, leg 3, or leg 4. In the call case that traverses a single PGW (Figure 1) or in a Hairpin call (Figure 2), only one originating call and one terminating call are included, therefore only two RADIUS records, leg 1 and leg 4, are sent to the RADIUS server.

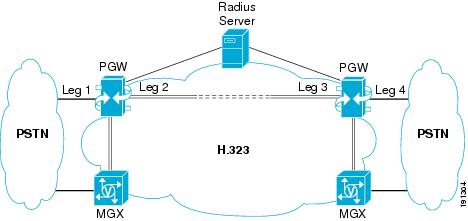

Figure 1 Call Traverses a Single PGW
Figure 2 Hairpin Call
For those calls that span PGWs, since two originating calls and two terminating calls are included, four RADIUS records are sent to RADIUS server. See Figure 3.
Figure 3 RADIUS Call Legs in PGW
Generating RADIUS Authentication Records
The Cisco PGW 2200 Softswitch generates one RADIUS authentication record when the RADIUS sigpath is enabled. Table 1 presents the attributes in an authentication record.
Generating RADIUS Accounting Records
Four RADIUS records are generated for each call, since there are four call legs included in each call. Attributes for each call leg are shown in the following tables:
•
Leg 1—Answer telephony (see Table 2)
•
Leg 2—Originate VoIP (see Table 3)
•
Leg 3—Answer VoIP (Table 4)
•
Leg 4—Originate Telephony Table 4)
Table 2 Leg 1 Attributes
Number IETF Attribute CDR TAG Description Value: Example4
NAS-IP-Address
—
Specifies the IP address of the network access server that is requesting authentication. It is the ipaddress of originating the GW.
209.165.84.198
5
NAS-Port
—
Indicates the physical port number of the network access server that is authenticating the user. It is not useful and is 0 by default.
0
6
Service Type
—
Indicates the type of service requested or the type of service to be provided.
Login
26
Vendor-Specific
—
See Table 5.
—
30
Called-Station Id
4014
Called party number.
1333502
31
Calling-Station-Id
4010
Calling party number.
2333502
32
NAS-Identifier
—
String identifying the network access server originating the Access-Request. It is not useful and is an empty string by default.
pgw
33
Proxy-State
—
Attribute that can be sent by a proxy server to another server when the server is forwarding Access-Requests; this must be returned unmodified in the Access-Accept, Access-Reject, or Access-Challenge and removed by the proxy server before the server sends the response to the network access server. It is not useful and is an empty string by default.
pgw
40
Acct-Status-Type
—
(Accounting) Indicates whether this Accounting-Request marks the beginning of the user service (start) or the end (stop).
Stop
44
Acct-Session-Id
—
(Accounting) A unique accounting identifier that makes it easy to match start and stop records in a log file. This is a call ID.
80
46
Acct-Session-Time
—
(Accounting) Indicates how long (in seconds) the user has received service.
74
77
Connect-Info
—
Indicates the nature of the user's connection. The NAS can send this attribute in an Access-Request or Accounting-Request to indicate the nature of the user's connection.
28800 V42BIS/LAPM
Table 3 Leg 2 Attributes
Number IETF Attribute CDR TAG Description Value: Example4
NAS-IP-Address
—
Specifies the IP address of the network access server that is requesting authentication. It is the IP address of the originating gateway.
209.165.84.198
5
NAS-Port
—
Indicates the physical port number of the network access server that is authenticating the user.
0
6
Service-Type
—
Indicates the type of service requested or the type of service to be provided.
Login
26
Vendor-Specific
—
See Table 5.
30
Called-Station-Id
4014
Called party number.
1333502
31
Calling-Station-Id
4010
Calling party number.
2333502
32
NAS-Identifier
—
String identifying the network access server originating the Access-Request. It is an empty string by default.
pgw
33
Proxy-State
—
Attribute that can be sent by a proxy server to another server when the server is forwarding Access-Requests; this must be returned unmodified in the Access-Accept, Access-Reject, or Access-Challenge and removed by the proxy server before the server sends the response to the network access server. It is an empty string by default.
pgw
40
Acct-Status-Type
—
(Accounting) Indicates whether this Accounting-Request marks the beginning of the user service (start) or the end (stop).
Stop
41
Acct-Delay-Time
—
(Accounting) indicates how many seconds the client has been trying to send a particular record. It is not useful and is 0 by default.
0
44
Acct-Session-Id
—
(Accounting) A unique accounting identifier that makes it easy to match start and stop records in a log file.
80
46
Acct-Session-Time
—
(Accounting) Indicates how long (in seconds) the user has received service.
74
47
Acct-Input-Packets
—
(Accounting) Indicates how many packets have been received from the port over the course of this service being provided to a framed user.
100
77
Connect-Info
—
Indicates the nature of the user's connection. The NAS can send this attribute in an Access-Request or Accounting-Request to indicate the nature of the user's connection.
28800 V42BIS/LAPM
Table 4 Leg 3 and Leg 4 Attributes
Number IETF Attribute CDR TAG Description Value: Example4
NAS-IP-Address
—
Specifies the IP address of the network access server that is requesting authentication. It is the ipaddress of originating gateway.
209.165.84.198
5
NAS-Port
—
Indicates the physical port number of the network access server that is authenticating the user.
0
6
Service-Type
—
Indicates the type of service requested or the type of service to be provided.
Login
26
Vendor-Specific
—
See Table 5.
30
Called-Station-Id
4014
Called party number.
1333502
31
Calling-Station-Id
4010
Calling party number.
2333502
32
NAS-Identifier
—
String identifying the network access server originating the Access-Request. It is an empty string by default.
pgw
33
Proxy-State
—
Attribute that can be sent by a proxy server to another server when forwarding Access-Requests; this must be returned unmodified in the Access-Accept, Access-Reject, or Access-Challenge and removed by the proxy server before sending the response to the network access server. It is an empty string by default.
pgw
40
Acct-Status-Type
—
(Accounting) Indicates whether this Accounting-Request marks the beginning of the user service (start) or the end (stop).
Stop
44
Acct-Session-Id
—
(Accounting) A unique accounting identifier that makes it easy to match start and stop records in a log file.
80
46
Acct-Session-Time
—
(Accounting) Indicates how long (in seconds) the user has received service.
74
77
Connect-Info
—
Indicates the nature of the user's connection. The NAS can send this attribute in an Access-Request or Accounting-Request to indicate the nature of the user's connection.
28800 V42BIS/LAPM
Table 5 Supported VSA Subattributes
Sub-Type
Number VSA Attribute CDR Tag Description Value: Example1
h323-incoming-
conf-id—
Unique number for identifying a calling session on a gateway, where a session is closed when the calling party hangs up.
3C5AEAB9 95C80008 AF27092C 587F34
1
subscriber
—
T1/channel associated signaling (CAS) or E1/R2 signal information about a subscriber.
RegularLine
1
session-protocol
—
Session protocol used for calls between the local and remote routers through IP backbone. Always equal to sip for SIP or Cisco for H.323.
cisco
1
release-source
—
Indicates whether a call was released by the calling party, called party, or an internal or external source.
1
1
alert-timepoint
4102/4103
Alerting time point.
18:27:30.094 PST Fri Aug 25 2000
1
remote-media-
address—
Remote-media gateway IP address.
10.74.57.2
1
in-trunkgroup-label
—
Contains the trunk group label associated with the group of voice ports from which the incoming time-division multiplexing (TDM) call arrived on the gateway.
2000001
1
out-trunkgroup-label
—
Trunk-group label associated with the group of voice ports from which the outgoing TDM call leaves on the gateway.
1000000
1
outgoing-area
—
Gatekeeper identifier, or the destination zone or area, of the outgoing VOIP call.
Egress-zone
1
interface
—
Same as cisco-nas-port
1
gk-xlated-cdn
—
The gatekeeper presented called number in the ACF RAS message. The GK/GKTMP can modify the called number by appending a prefix or it can be left unchanged.
7324501661
1
gw-rxd-cdn
—
Called number as received by the gateway in the incoming signaling message before any translation rules are applied.
3048832
1
gw-final-xlated-cdn
—
Called number to be sent out of the gateway.
3048832
1
coder-type-rate
—
Negotiated coder rate. Specifies the transmit rate of voice/fax compression to its associated call leg for the call.
g711ulaw
1
vad-enable
—
Indicates whether or not voice-activity detection (VAD) is enabled for the voice call.1
enable
1
round-trip-delay
—
Voice packet round-trip-delay, in ms, between the local and remote devices on the IP backbone during the call. 1
2ms
1
early-packets
—
Number of received voice packets that arrived too early for storage in jitter buffer during the call.1
0
1
late-packets
—
Number of received voice packets that arrived too late to be played out with codec during the call.1
0
1
lost-packets
—
Number of voice packets lost during the call.
0
1
h323-ivr-out
—
User-definable AV pairs sent from the voice gateway to the RADIUS server. You can set (write) the value with a customized Tcl IVR script.
Tariff:Unknown
2
cisco-nas-port
—
Incoming port identification on NAS or gateway. The syntax is ISDN <slot number>/<subunit number>:<port number>:D:<channel number>. If the gateway has no subunit, this field is '*'. This VSA has the same function as RADIUS attribute 5 and uses strings assigned by Cisco IOS software to its hardware ports.
ISDN 7/0:12:D:21
23
cisco-h323-remote-
address—
IP address of the H.323 gateway.
209.165.84.104
24
h323-conf-id
5001
Gives the conference ID.
3C5AEAB9 95C80008 0 587F34
25
h323-setup-time
4003
Indicates the setup time for this connection in Coordinated Universal Time (UTC), formerly known as Greenwich Mean Time (GMT) or Zulu time.
18:27:28.032 UTC Wed Dec 9 1998
26
h323-call-origin
—
Indicates the origin of the call relative to the gateway. Possible values are originating and terminating (answer).
answer
27
h323-call-type
—
Indicates call leg type. Possible values are telephony and VOIP.
VOIP
28
h323-connect-time
4005
Indicates the connection time in UTC for this call leg.
18:27:30:094 PST Fri Aug 25 2000
29
h323-disconnect-time
4006/4020
Indicates the time in UTC this call leg was disconnected.
18:27:30.094 PST Fri Aug 25 2000
30
h323-disconnect-
cause2008/3008
Specifies the reason a connection was taken offline per Q.931 specification.
4
31
h323-voice-quality
—
Specifies the impairment factor (ICPIF) affecting voice quality for a call.
5
32
h323-gw-id
—
Indicates the name of the underlying gateway.
bowie.cisco.com, AS5300_5
1 Early-packets, late-packets, round-trip-delay, and vad-enable are not supported because MGX does not send these values to PGW in the way that the IOS gateway does.
Communication with RADIUS Servers
If retransmission of the RADIUS record packets exceeds the defined retry count, PGW regards the IP link between PGW and the RADIUS server as down. In the case, PGW selects another RADIUS server to retransmit those records according to configured order. The server with lowest order is selected as the new primary server. At the same time, the I/O channel controller (IOCC) in the PGW reports the unreachable event to the I/O channel manager (IOCM) and raises a "Radius server unreachable" alarm.
When the RADIUS (RA) IOCC detects recovery of an unreachable RADIUS server, a recover event is sent to IOCM to report recovery in communication with this RADIUS server. IOCM cleans up the "One Radius server unreachable alarm".
If server A is down and the PGW switches to server B, the PGW keeps on communicating with server B even when server A recovers.
If IOCC finds connectivity to all servers is down, an "all connection down" event is sent to IOCM and a "Lost connectivity to all RADIUS servers" alarm is raised. Then IOCM raises a "Radius records need collecting" alarm to tell the operator to copy from RADIUS records. In this situation, IOCC must save all unsent, unacknowledged, and succeeding records to local disk. The file format and location of the records are defined in "Retrieving RADIUS Records from Disk" section.
When RA IOCC detects recovery of either unreachable server, it uses the server as the primary server to send all succeeding records immediately. A recover event is sent to IOCM to report recovery in communication with one RADIUS server. IOCM cleans up the "Lost connectivity to all Radius servers" alarm.
Saving RADIUS Records on Disk
RADIUS records are written on disk in the following situations:
•
Failover. When failover happens, the RA IOCC on the formerly active PGW writes a RADIUS record in shared memory to disk. If some records are saved, IOCC reports this event to IOCM, Then IOCM raises a "Radius records need collecting" alarm to tell the operator to copy those records from the disk.
•
Lost connectivity to all RADIUS servers. See the "Communication with RADIUS Servers" section.
•
Out of memory in IOCC. If IOCC runs out of shared memory, it should save succeeding RADIUS records to local disk to prevent data being lost. The file format is defined in the "Retrieving RADIUS Records from Disk" section. At the same time, a "Radius records need collecting" alarm is raised by the IOCC. After receiving the alarm, the operator copies those local files from the PGW and cleans up the alarm. If shared memory is not full any more, IOCC behaves normally.
Once the records are saved onto a local disk, IOCC does not send them again.
Retrieving RADIUS Records from Disk
The PGW preserves as many RADIUS records as possible during failover. Unsent or unacknowledged records in the PGW that is transitioning from the active host to OOS are written to disk. When a "Radius records need collecting" alarm appears, the operator needs to copy the RADIUS record file from the PGW and then delete them from the PGW. The file is stored at directory /opt/CiscoMGC/var/spool, but it is configurable; you can change it in dmprSink.dat.
The file format is
<prefix>_yyyymmddhhmmss_<number>.csv<prefix> is defined in dmprSink.dat. <number> is generated as it would be for cdrDmpr. One example is
"radius_20060513123456_000001.csv"It is defined in dmprSink.dat; the default value is /opt/CiscoMGC/var/spool.
Rules and Restrictions
•
Basic rule: The PGW generates a RADIUS record for all kinds of call flows.
Some examples are shown below. In the following connections, ( ) denotes the interworking protocol; {}* denotes optional connections that can be repeated zero or more times.
•
The PGW generates a RADIUS record when either OCC or TCC is released.
–
Call ends before TCC create, such as invalid B number. One RADIUS record is produced, corresponding to the OCC.
–
Call ends after TCC create, such as busy, no answer, or released by either side. Two RADIUS records are produced, corresponding to the OCC and TCC respectively.
–
When one side (OCC or TCC) of a call is destroyed and a new one is created for replacement, RADIUS record matched basic rule above at that moment is produced corresponding to the destroyed side. For example:
For an SS7-H.323 call that is rerouted by the PGW to another SS7 destination, the PGW generates an H.323 record when the call leg releases. The PGW also generates two records at the end of rerouted SS7-SS7 call.
For a H.323-SS7 call that is rerouted by the PGW to another H.323 destination, the PGW generates a SS7 record when the call leg releases. The PGW also generates two records at the end of a rerouted H.323-H.323 call.
•
The PGW generates RADIUS records for each of the following CDR events: aborted attempt call event, deselected outgoing circuit CDB record, end of a call CDB, interrupted CDB record, or maintenance CDB record
•
Transfer service is transparent for the PGW; the PGW treats a transferred call normally. If the transferred call goes through the PGW too, the PGW treats it as two separate calls and generates records based on the rules stated above. It does not go through the PGW, the PGW only generates records as normal call For example:
–
For an SS7-H.323 call that is transferred by H.323 to another SS7 destination, there are two separate calls: SS7-H.323 and H.323-SS7. SS7-H.323 call releases after the H.323-SS7 call releases and records the whole conversation during both calls. The PGW generates two RADIUS records for SS7-H.323 and 2 RADIUS records for H.323-SS7.
–
For an SS7-H.323 call that is transferred by H.323 to another H.323 destination, there are two separate calls: SS7-H.323 and H.323-H.323. The SS7-H.323 call releases after the H.323-H.323 call releases and records the whole conversation duration of both calls.The PGW generates only two RADIUS records for an SS7-H.323 call for which the called-party number is the first H.323 number. The PGW also generates RADIUS records for an H.323-H.323 call.
•
Restrictions:
–
The PGW does not generate RADIUS records for H.323 hairpin calls.
Related Documents
This document contains information that is related to this feature. The documents that contain additional information related to the Cisco Media Gateway Controller (MGC) are at the following url:
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
Supported Standards, MIBs, and RFCs
Standards
No new or modified standards are supported by this feature.
MIBs
No new or modified MIBs are supported by this feature.
For more information on the MIBs used in the Cisco MGC software, see the Cisco Media Gateway Controller Release 9 Management Information Base Guide.
This feature supports the following RFCs:
•
RFC 2865, Remote Authentication Dial-In User Service (RADIUS)
•
RFC 2866, RADIUS Accounting
•
RFC 2869, RADIUS Extensions
Prerequisites for Using this Feature
The Cisco PGW 2200 must be running Cisco MGC software Release 9.7(3). Prerequisites for this release can be found in the Release Notes for the Cisco Media Gateway Controller Software Release 9.7(3) at:
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
XECfgParm.dat Configuration Tasks
This section contains the steps necessary for configuration of the Cisco MGC software to support this feature. If you are installing and configuring the Cisco MGC software on your system for the first time, use the procedures in the Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide, return to this section once you encounter the RADIUS parameters in the XECfgParm.dat file.
CautionConfiguration of the Cisco MGC software requires that the system software be shut down. In a simplex system, calls cannot be processed during system shutdown. In a continuous service system, your system loses the ability to maintain calls during a critical event if the system software on one of the PGW hosts is shut down.
To configure the RADIUS values, perform the following steps:
Step 1
If you have not already done so, open the /opt/CiscoMGC/etc/XECfgParm.dat file on the active and standby Cisco PGW hosts using a text editor, such as vi.
Step 2
If you have not already done so, ensure that the pom.dataSync parameter is set to false on the active and standby Cisco PGW hosts.
Step 3
Search for the RADIUS parameters and enter the desired values. See the "XECfgParm.dat Parameter" section for more information on the RADIUS parameters.
a.
RadiusAccounting.output = on or off. The default is off.
b.
RadiusAccounting.numberPort = # The number of local ports that communicate with the RADIUS server. The range is 10 to 99. The default is 20.
c.
RadiusAccounting.smSize = # The size of shared memory in MB. The default is 30. The range is 10 to 199.
Step 4
Save your changes; close the text editor.
Verifying the XECfgParm.dat Changes
To verify the XECfgParm.dat settings for this feature, perform the following steps.
CautionDo not modify the other XECfgParm.dat parameters associated with this feature.
Step 1
Log in to the standby Cisco MGC as root and change directories to the etc subdirectory by entering the following UNIX command:
cd /opt/CiscoMGC/etcStep 2
Open the XECfgParm.dat file using a text editor, such as vi.
Step 3
Search for the RADIUS parameters and verify the displayed values. If the value are correct, proceed to Step 4. Otherwise, correct the values and then proceed to Step 4.
Step 4
Save your changes and close the text editor.
Step 5
Manually stop the Cisco MGC software on the standby Cisco MGC by entering the following UNIX command:
/etc/init.d/CiscoMGC stopStep 6
Once the software shutdown is complete, manually start the Cisco MGC software on the standby Cisco MGC by entering the following command:
/etc/init.d/CiscoMGC startStep 7
Log in to the active Cisco MGC, start an MML session, and enter the following command:
mml> sw-over::confirmAlarms are automatically set until the out-of-service (OOS) Cisco MGC host is returned to an in-service (IS) state.
Step 8
Repeat steps 1 through 7 for the newly standby Cisco MGC host. Once you have verified the settings on both hosts, the procedure is complete.
Configuration Examples
This section provides a configuration example for the XECfgParm.dat parameter associated with this feature. Additional configuration examples for the Cisco MGC software can be found in the Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide at
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
# Radius Accounting Parameters#--------------------------------RadiusAccounting.output = offRadiusAccounting.numberPort = 20RadiusAccounting.smSize = 30Troubleshooting the XECfgParm.dat Configuration
Check Platform.log error information for ra-1 using the keywords "Error" and "ra-1".
For example:
•
The following error information indicates that the RadiusAccounting.numberPort in XECfgParm.dat is not large enough, and you should increase the number:
"raSigPath::isFdIdChanIdUsed(), local port number is not enough, you had better increase it in XECfgParm.dat"•
The following error information indicates that the RadiusAccounting.smSize in XECfgParm.dat is not large enough, and you should increase the size:
"raSigPath::procEngineIDU(),No share memory for incoming message, transId:", if you see this error information, that indicate RadiusAccounting.smSize in XECfgParm.dat is not big enough, just increase it as section XECfgParm.dat shows.Provisioning This Feature
You must start a provisioning session to enable this feature. See the Cisco Media Gateway Controller Software Release 9 Provisioning Guide for details on how to start a provisioning session.
Provisioning Basics
The procedures in this section describe how to start a provisioning session and how to save and activate the changes you have made.
•
Starting a Provisioning Session
•
Saving and Activating Your Provisioning Changes
•
Ending a Provisioning Session Without Saving Activating Your Changes
For more detailed information about provisioning your Cisco MGC, refer to the Cisco Media Gateway Controller Software Release 9 Provisioning Guide.
Starting a Provisioning Session
You may need to start a provisioning session as part of your system operations. To do this, log in to the active Cisco MGC, start an MML session, and enter the following command:
prov-sta::srcver="curr_ver",dstver="mod_ver"Where:
•
curr_ver—The name of the current configuration version. In place of the name of the current configuration version, you can also enter:
–
new—A new default session configuration; no existing source configuration is available.
–
active—Selects the active configuration as the source for configuration changes.
Note
If you do not know the name of your current configuration session, you can use the procedure described in the "Retrieving Data on the Current Provisioning Session" section ".
•
mod_ver—A new configuration version name that contains your provisioning changes.
For example, to use a configuration version called ver1 as the basis for a version to be called ver2, you would enter the following command:
prov-sta::srcver="ver1",dstver="ver2"Once a provisioning session is underway, you can use the prov-add, prov-ed, or prov-dlt MML command to add, modify, or delete components on your system. This document describes how to provision this feature. For more information on provisioning other components on your Cisco MGC, refer to the Cisco Media Gateway Controller Software Release 9 Provisioning Guide.
There are two ways to close your provisioning session: saving and activating your provisioning changes, as described in the "Saving and Activating Your Provisioning Changes" section or ending your provisioning session without saving and activating your changes, as described in the "Ending a Provisioning Session Without Saving Activating Your Changes" section.
Saving and Activating Your Provisioning Changes
When you have completed making provisioning changes in your session, you must enter a command to save and activate your changes. There are two different provisioning MML commands that do this: prov-cpy and prov-dply.
CautionUsing the prov-cpy and prov-dply MML commands can severely impact your system's call processing performance, depending on the extent of your provisioning changes. We recommend that these commands be issued during a maintenance window when traffic is minimal.
The prov-cpy MML command is used to save and activate your changes on simplex Cisco MGC (single host) systems.
Note
When you enter the prov-cpy command, your provisioning session is also automatically ended. If you want to make additional provisioning changes, you must start a new provisioning session as described in the "Provisioning Basics" section.
CautionDo not use the prov-cpy command to save and activate your changes on a continuous-service Cisco MGC (active and standby hosts) system. Saving and activating changes using prov-cpy on such a system requires use of the prov-sync MML command to synchronize the provisioning data on the active and standby hosts. The system does not indicate when the synchronization process fails, which creates problems when a switchover operation occurs.
The prov-dply MML command is used to save and activate your changes on the active and standby
Cisco MGCs in a continuous-service system. This command should not be used on a Cisco MGC in a simplex configuration.
Note
When you enter the prov-dply command, your provisioning session is also automatically ended, unless an error occurs during execution. If you want to make additional provisioning changes, you must start a new provisioning session, as described in the "Starting a Provisioning Session" section.
Ending a Provisioning Session Without Saving Activating Your Changes
If you want to end a provisioning session without saving and activating the changes you have entered, enter the prov-stp MML command. This command ends your current provisioning session and your changes are not committed.
Retrieving Provisioning Data
You can use the prov-rtrv MML command to retrieve information about your current provisioning settings. The ways you can use this command to retrieve provisioning data are described in the following sections:
•
Retrieving Data for an Individual Component
•
Retrieving Data for All Components
•
Retrieving Data for All Components of a Particular Type
•
Retrieving Data on the Current Provisioning Session
•
Retrieving Data on Supported Signaling Protocols
Retrieving Data for an Individual Component
You can retrieve provisioning data on any individual component in your system. To do this, log in to the active Cisco MGC, start an MML session, and enter the following command:
prov-rtrv:component:name=MML_nameWhere:
•
component—The MML component type associated with the desired component. You can find a complete list of MML component types in the Cisco Media Gateway Controller Software Release 9 Provisioning Guide.
•
MML_name—The MML name for the desired component. You can determine the MML names for the various components using the prov-rtrv:all MML command.
For example, to view the provisioning data for an SS7 signaling service called ss7svc1, you enter the following command:
prov-rtrv:ss7path:name="ss7svc1"The response to the command is dependent upon the component type associated with the desired component. For example, to view the properties for an SUA routing key called suakey1, you enter the following command:
prov-rtrv:suakey:name="suakey1"Retrieving Data for All Components
You can retrieve data on all of the components provisioned on your system. To do this, log in to the active Cisco MGC, start an MML session, and enter the following command:
prov-rtrv:allRetrieving Data for All Components of a Particular Type
You can retrieve provisioning data on all components of a particular type on your system. To do this, log in to the active Cisco MGC, start an MML session, and enter the following command:
prov-rtrv:component:"all"Where component is the MML component type associated with the desired component group. You can find a complete list of MML component types in the Cisco Media Gateway Controller Software Release 9 Provisioning Guide.
For example, to view the provisioning data for all SS7 signaling services, you would enter the following command:
prov-rtrv:ss7path:"all"Retrieving Data on the Current Provisioning Session
You can retrieve provisioning data on the current provisioning session. To do this, log in to the active Cisco MGC, start an MML session, and enter the following command:
prov-rtrv:sessionThe system returns a response similar to the following:
MGC-02 - Media Gateway Controller 2003-01-13 13:39:19M RTRV"session=jtest:session"/*Session ID = mml1SRCVER = activeDSTVER = jtest*/Retrieving Data on Supported Signaling Protocols
You can retrieve protocol data on supported signaling protocols. To do this, log in to the active Cisco MGC, start an MML session, and enter the following command:
prov-rtrv:variantsProvisioning Examples
This section lists the provisioning examples for the RADIUS accounting feature.
Add a RADIUS Accounting Server as an External Node
In an open provisioning session, enter the following command to define a RADIUS server as an external node:
Mml> prov-add:EXTNODE:NAME="ranode",TYPE="RACLUSTER",DESC="Radius accounting server cluster"Add a RADIUS Accounting Server Signal Path
In an open provisioning session, enter the following command to define a communication path to a RADIUS accounting server cluster. Each cluster is made up of one or multiple RADIUS servers.
Mml> prov-add:RAPATH:NAME="racluster",DESC="Radius accounting server cluster",EXTNODE="ranode"Add a RADIUS Accounting Server Signal Channel
In an open provisioning session, enter the following commands to define a signal channel to the RADIUS accounting server. This command also associates a RADIUS accounting signal path to this channel.
Mml> prov-add:RASERVER:NAME="raserver1", DESC="radius accounting server1",SVC="racluster", IPADDR=" IP_Addr1",PORT=1660,PEERADDR="10.74.50.170", PEERPORT=1660,IPROUTE=",ORDER=1, KEY="Cisco-h323",TIMEOUT=5,RETRYCOUNT=2, username="Cisco",password="cisco123",authport=1661Mml> prov-add:RASERVER:NAME="raserver2", DESC="radius accounting server2",SVC="racluster", IPADDR=" IP_Addr1",PORT=1660,PEERADDR="10.74.50.171", PEERPORT=1660, IPROUTE=",ORDER =2, KEY="Cisco-h323",TIMEOUT=10,RETRYCOUNT=4, username="Cisco",password="cisco123",authport=1661Retrieve the RADIUS Accounting Server Status
In an open provisioning session, enter the following command to display the status of one or more RADIUS servers. Only one RADIUS server can be in service.
rtrv-raserver:raserver1Troubleshooting Provisioning Data
For more information on troubleshooting the rest of the Cisco MGC software, refer to the Cisco Media Gateway Controller Software Release 9 Operations, Maintenance, and Troubleshooting Guide.
The following sections contain troubleshooting procedures related to provisioning:
Alarm Troubleshooting Procedures
Here are some procedures for resolving alarms that are triggered due to mistakes in the provisioning of the feature. See the "Alarms" section for a list of the alarms generated.
•
Use rtrv-dest:<rapath name> to check the RADIUS accounting signaling path state. If rapath is OOS, that indicates that all the RADIUS servers are down. Check the IP connection for each RADIUS server.
•
Use rtrv-raserver:<server name> or rtrv-raserver:all to check the RADIUS accounting server state. If one RADIUS server is OOS, that indicates that the server is unreachable, either because it is overloaded or because the IP connection to it is down.
•
Use rtrv-alms to check the current alarms.
RADIUS Server Is in OOS State
If the RADIUS server is in OOS state, use snoop or ethereal to catch the packet and check whether the response for a RADIUS request packet is received. If it is not received, check the network connection or the RADIUS server's status. If there is a response, the radius server will be in IS in a short time.
There are three cases for a RADIUS server being OOS because the configuration of the PGW is not consistent with that on the RADIUS server:
•
The IP address of the PGW is not configured in an AAA client on the RADIUS server.
•
The peerport in the RADIUS server configuration is not correct. It should be the RADIUS accounting port number to which the RADIUS server is listening. Commonly, the port RADIUS server used is 1646 or 1813, according to the RFC.
•
The key in the RADIUS server configuration is not correct. It should be the same as the one that is configured on the RADIUS server for this PGW client. For example, if the key of an AAA client configuration on a RADIUS server is "Cisco-h323", it must be also "Cisco-h323" for the RADIUS server configuration on the PGW.
Command Reference
This section documents new, modified, or deleted Man-Machine Language (MML) commands. All other MML commands are documented in the Cisco Media Gateway Controller Software Release 9 MML Command Reference Guide:
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
New MML Commands
This section contains the MML commands that are new for this feature.
PROV-ADD:RAPATH (Release 9.7(3))
PROV-ADD:RASERVER (Release 9.7(3))
RTRV-RASERVER (Release 9.7(3))
Modified MML Commands
This section contains the MML commands that are modified for this feature.
PROV-ADD:EXTNODE (Release 9.7(3))
RTRV-DEST—Retrieve Destination (Release 9.7(3))
Software Changes for this Feature
The following section contains software changes related to this feature:
Alarms
This section lists the alarms that are added or modified to support this feature. For information on the other alarms for the Cisco MGC software, see the Cisco Media Gateway Controller Software Release 9 Messages Reference Guide
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
The alarms that are added for this feature are listed below.
New Alarms
Lost connectivity to all RADIUS servers
Description
All RADIUS servers are unreachable after several retry actions.
Severity
Major (service affecting)
Cause
All RADIUS servers are unreachable after trying several times.
Type
Communication alarm.
Action
Check network traffic and get RADIUS servers up. Log in to the PGW to copy RADIUS files and delete them.
RADIUS records need collecting
Description
Unsent or unack records were saved locally and need collecting.
Severity
Informational (non-service affecting)
Cause
This alarm occurs when failover happens, when connectivity is lost to all servers, or when the shared memory in IOCC is used up.
Type
Processing error alarm.
Action
Log in to the PGW to manually copy RADIUS files and delete them soon. After that, clean up the alarms on your SNMP server.
This alarm notifies you that some records are left in the PGW. It does not display in rtrv-alms. The PGW does not clean up the alarms.
RADIUS server unreachable
Description
RADIUS server is unreachable after several retry actions.
Severity
Potentially service affecting.
Cause
RADIUS server is unreachable after trying several times.
Type
Communication alarm.
Action
Check network traffic and get RADIUS server up.
XECfgParm.dat Parameter
The XECfgParm.dat file configuration parameters added for this feature are in Table 6. For information on the other XECfgParm.dat parameters, see the Cisco Media Gateway Controller Software Release 9 Installation and Configuration Guide at
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
Billing Interface
This section identifies the call detail record (CDR) data added for this feature. For billing interface information for the rest of the Cisco MGC software, see the Cisco Media Gateway Controller Software Release 9 Billing Interface Guide at
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
NAS-IP-ADDRESS
NAS-Port
Service Type
Called-Station-Id
Calling-Station-Id
NAS-Identifier
Proxy-State
Acct-Status-Type
Acct-Delay-Time
Acct-Session-Id
Acct-Session-Time
Acct-Input-Packets
Connect-Info
h323-incoming-conf-id
subscriber
session-protocol
release-source
alert-timepoint
remote-media-address
in-trunkgroup-label
out-trunkgroup-label
outgoing-area
gk-xlated-cdn
gw-rxd-cdn
gw-final-xlated-cdn
coder-type-rate
vad-enable
round-trip-delay
early-packets
late-packets
lost-packets
cisco-nas-port
h323-conf-id
h323-ivr-out
h323-setup-time
h323-call-origin
h323-call-type
h323-connect-time
h323-disconnect-time
h323-disconnect-cause
h323-voice-quality
h323-gw-id
Components
The sections below describe the provisioning components that are added or modified for this feature. For information on the rest of the components in the Cisco MGC software, see the Cisco Media Gateway Controller Software Release 9 Provisioning Guide at
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
New Components
This feature adds the network element (NE) component RASERVER.
External Node Types
This feature adds an external node whose type is RACLUSTER. Only one RACLUSTER is supported.
Obtaining Documentation, Obtaining Support, and Security Guidelines
For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Glossary
Table 49 contains expansions of acronyms and technical terms used in this feature module.
This document is to be used in conjunction with the documents listed in the Related Documents section.
CCDE, CCENT, CCSI, Cisco Eos, Cisco HealthPresence, Cisco IronPort, the Cisco logo, Cisco Nurse Connect, Cisco Pulse, Cisco SensorBase, Cisco StackPower, Cisco StadiumVision, Cisco TelePresence, Cisco Unified Computing System, Cisco WebEx, DCE, Flip Channels, Flip for Good, Flip Mino, Flipshare (Design), Flip Ultra, Flip Video, Flip Video (Design), Instant Broadband, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn, Cisco Capital, Cisco Capital (Design), Cisco:Financed (Stylized), Cisco Store, Flip Gift Card, and One Million Acts of Green are service marks; and Access Registrar, Aironet, AllTouch, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Lumin, Cisco Nexus, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, Continuum, EtherFast, EtherSwitch, Event Center, Explorer, Follow Me Browsing, GainMaker, iLYNX, IOS, iPhone, IronPort, the IronPort logo, Laser Link, LightStream, Linksys, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, PCNow, PIX, PowerKEY, PowerPanels, PowerTV, PowerTV (Design), PowerVu, Prisma, ProConnect, ROSA, SenderBase, SMARTnet, Spectrum Expert, StackWise, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0910R)
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.
© 2009 Cisco Systems, Inc. All rights reserved.
Feedback
