Cisco PGW 2200 Softswitch Release 9.8 Software Installation and Configuration Guide - Chapter 2. Installing the Sun Solaris 10 Operating System [Cisco PGW 2200 Softswitch]

This chapter provides instructions for installing the packages that create the Sun Solaris 10 operating system and its operating environment on the Sun Netra and Sun Fire platforms. The following sections contain these instructions.

Note In the following procedures, your responses to prompts sometimes depend on the disk drive size or other particulars of your system. These are pointed out as you follow the procedures.

•Supported Platforms

•Supported Disk Drives

•Before You Start

•Loading the Sun Solaris 10 Operating System

•Loading the Sun Solaris 10 Operating Environment

Note For procedures on migrating to Solaris 10 and Cisco PGW 2200 Softswitch software Release 9.8, see Chapter 5 "Migrating to Solaris 10 and Cisco PGW 2200 Softswitch Software Release 9.8."

Supported Platforms

This document describes the specific steps necessary for installing the Sun Solaris 10 operating system and the operating environment on the Sun Netra and Sun Fire platforms. Two platform types are used: Sparc-based and Opteron-based. The platforms that are supported for these products are identified in the Cisco PGW 2200 Softswitch Hardware Installation Guide (Release 7 & 9).

Supported Disk Drives

The following disk drives are supported:

•73 GB

•146 GB

Before You Start

Be sure to read the following cautions, notes, and tips before installing the Sun Solaris 10 operating system and the operating environment.

If you purchased the Sun hardware platform from Cisco, the Sun Solaris 10 operating system, the operating environment, and the base Cisco PGW 2200 Softswitch software may already be installed. You can skip the installation of the software. You must install all of the Cisco PGW 2200 Softswitch software patches.

There are two methods to verify if the software was already installed:

•Check if the two files, /opt/jumpstart_log* and /.core_finished, exist on your hardware platform. If the two files exist, the software was already installed.

•Enter man and press Enter. If the system returns the message below, the software was already installed.

<machine name>% man

man: Command not found

Cautions, Notes, and Tips

Note The procedures in this chapter require a working knowledge of the system administration procedures for the Sun Solaris (UNIX) operating system.

Note Be sure to have the required information listed in Chapter 1 "Preparing for Sun Solaris Operating System and Cisco PGW 2200 Softswitch Software Installation," before you begin the installation process.

Note Allow at least 2 hours downtime for the installation of the Cisco PGW 2200 Softswitch software environment.

Note The text in the screens displayed throughout this document might differ slightly from the text displayed on your console. The screen displays are for reference only and should be treated as examples.

Note Most of the steps in the installation process ask you to press F2 to continue. However, F2 does not apply to all console types. If it does not apply on your system, you should press Esc-2 instead.

Tip During the installation process, monitor system output frequently for error messages and correct any error conditions before continuing with the installation.

Loading the Sun Solaris 10 Operating System

This section provides the following instructions for loading the Sun Solaris 10 operating system:

•Devices on Supported Platforms

•Installing the Sun Solaris 10 Operating System for Sparc-based Platforms

•Installing the Sun Solaris 10 Operating System for Opteron-based Platforms

•Configuring Your Host

•Platform-Specific Installation Procedures

•Installing the Sparc-based Solaris 10 Patches Package (CSCOh022)

•Installing the Opteron-based Solaris 10 Patches Package (CSCOh032)

•Installing the Solstice DiskSuite (CSCOh023)

•Installing the Log and Spool File Systems (CSCOh024)

•Installing Cisco BAMS Archive Partition (CSCOh027)

•Installing the Sparc-based Communications and Alarm Software Package (CSCOh026)

•Installing the Opteron-based Communications Software Package (CSCOh036)

•Installing the Verification Test Suite Script Package (CSCOh021)

Devices on Supported Platforms

Table 2-1 shows the Ethernet and disk drive device names for each platform type. This table is referenced throughout this chapter.

Table 2-1 Device Names on the Supported Host Platforms
Platform Type	Ethernet Interfaces				Disk Drives
Platform Type	First	Second	Third	Fourth	First	Second	Third	Fourth
Sun Fire V210 / Netra 210	bge0	bge1	bge2	bge3	c1t0d0	c1t1d0	—	—
Netra 240	bge0	bge1	bge2¹	bge3¹	c1t0d0	c1t1d0	—	—
Sun Fire V40z	bge0	bge1	ce0		c1t0d0	c1t1d0	—	—
Sun Fire X4640	e1000g0	e1000g1	e1000g2	e1000g3	c3t0d0	c3t1d0	—	—
Netra 440	ce0	ce1	—	—	c1t0d0	c1t1d0	c1t2d0¹	c1t3d0¹
Sun Netra X4270	igb0	igb1	igb2	igb3	c3t0d0	c3t1d0	—	—

¹This device is not used currently.

Note If your platform has multiple disk drives, install the Solaris 10 Operating System on the first disk drive only.

Installing the Sun Solaris 10 Operating System for Sparc-based Platforms

The instructions in this section were written to correspond with the instructions in the Cisco Solaris 10 Operating System Jumpstart Disk for Sparc-based Platforms. Other Solaris installations are similar, with slight variations. These instructions will note the differences between the sets of installation instructions.

Step 1 Choose one of the following options to connect the Cisco PGW 2200 Softswitch:

•Connect to the Cisco PGW 2200 Softswitch through a console port.

•Connect a keyboard and monitor to the Cisco PGW 2200 Softswitch.

Step 2 This step is optional—if you decide to skip this step, go to Step 3.

a. Place the system in single-user mode by shutting down the standby machine.

b. When the machine prompts for a password, type either ^ -d to proceed with normal startup, or the root password for system maintenance.

Step 3 Load the appropriate version of the CD-ROM labeled Cisco Solaris 10 Operating System Jumpstart Disk for Sparc-based Platforms into the CD-ROM drive.

Step 4 If the system is currently running, log in as root.

Step 5 Bring the system to the ok prompt by entering the following command:

# init 0

Note If you are prompted to select a language before booting from the CD, go to the ok prompt by sending a break on the console port. On Sun Sparc-based platforms, the key sequence <cr>#. gets you to the system controller prompt.

From the system controller prompt, use the break -y command to break out of the operating system and console -f command to return to the console display. You should see the ok prompt.

Step 6 Boot the system from the CD-ROM drive by entering the appropriate command:

ok boot cdrom - install

Information similar to the following is displayed:

ok boot cdrom - install

SC Alert: Host System has Reset

 Probing system devices

Probing memory

Probing I/O buses

Sun Fire V210, No Keyboard

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

OpenBoot 4.18.5, 2048 MB memory installed, Serial #52030991.

Ethernet address 0:3:ba:19:ee:f, Host ID: 8319ee0f.

Initializing     1MB of memory at addr        103feec000

Initializing     1MB of memory at addr        103fee0000

Initializing     1MB of memory at addr        103f002000

Initializing     1MB of memory at addr        103e002000

Initializing     1MB of memory at addr        1000000000

Initializing     1MB of memory at addr                 0

Rebooting with command: boot cdrom - install

Boot device: /pci@1e,600000/ide@d/cdrom@0,0:f  File and args: - install

SunOS Release 5.10 Version Generic_118833-17 64-bit

Copyright 1983-2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Hardware watchdog enabled

Configuring devices.

Using RPC Bootparams for network configuration information.

Attempting to configure interface bge3...

Skipped interface bge3

Attempting to configure interface bge2...

Skipped interface bge2

Attempting to configure interface bge1...

Skipped interface bge1

Attempting to configure interface bge0...

Skipped interface bge0

Beginning system identification...

Searching for configuration file(s)...

Search complete.

Discovering additional network configuration...

Completing system identification...

Starting remote procedure call (RPC) services: done.

System identification complete.

Starting Solaris installation program...

Searching for JumpStart directory...

<<< using cdrom install_config >>>

Checking rules.ok file...

Using profile: any_machine

Using finish script: any_finish

Executing JumpStart preinstall phase...

Searching for SolStart directory...

Checking rules.ok file...

Using begin script: install_begin

Using finish script: patch_finish

Executing SolStart preinstall phase...

Executing begin script "install_begin"...

Begin script install_begin execution completed.

Processing profile

	- Selecting cluster (SUNWCrnet)

	- Selecting package (SUNWadmc)

	- Selecting package (SUNWadmfw)

	- Selecting package (SUNWcpc)

	- Selecting package (SUNWcpcu)

	- Selecting package (SUNWcstl)

	- Selecting package (SUNWless)

	- Selecting package (SUNWlur)

	- Selecting package (SUNWluu)

	- Selecting package (SUNWmkcd)

	- Selecting package (SUNWmipu)

	- Selecting package (SUNWmipr)

	- Selecting package (SUNWocf)

	- Selecting package (SUNWocfr)

	- Selecting package (SUNWspnego)

	- Selecting package (SUNWter)

	- Selecting package (SUNWtnfc)

	- Selecting package (SUNWucbt)

	- Selecting package (SUNWvld)

	- Selecting package (SUNWvldu)

	- Selecting package (SUNWzsh)

	- Selecting package (SUNWsacom)

	- Selecting package (SUNWroute)

	- Selecting package (SUNWxwfnt)

	- Selecting package (SUNWxwdv)

	- Selecting package (SUNWctpls)

	- Selecting package (SUNWgssdh)

	- Selecting package (SUNWm64cf)

	- Selecting package (SUNWj5rt)

	- Selecting package (SUNWxwplt)

	- Selecting package (SUNWxwplr)

	- Selecting package (SUNWdtcor)

	- Selecting package (SUNWxwice)

	- Selecting package (SUNWxwrtl)

	- Selecting package (SUNWlibC)

	- Selecting package (SUNWmfrun)

	- Selecting package (SUNWi15rf)

	- Selecting package (SUNWmdu)

	- Selecting package (SUNWadmfr)

	- Selecting package (SUNWrsg)

	- Selecting package (SUNWsadmi)

	- Selecting package (SUNWsasnm)

	- Selecting package (SUNWmibii)

	- Selecting package (SUNWxi18n)

	- Selecting package (SUNWtoo)

	- Selecting package (SUNWsprot)

	- Selecting package (SUNWbip)

	- Selecting package (SUNWbind)

	- Selecting package (SUNWbindr)

	- Selecting package (SUNWgzip)

	- Selecting package (SUNWzip)

	- Selecting package (SUNWbash)

	- Selecting package (SUNWtcsh)

	- Selecting package (SUNWgss)

	- Selecting package (SUNWgssc)

	- Selecting package (SUNWgssk)

	- Selecting package (SUNWqos)

	- Selecting package (SUNWqosu)

	- Selecting package (SUNWmdb)

	- Selecting package (SUNWmdbr)

	- Selecting package (SUNWmdbdm)

	- Selecting package (SUNWnfsckr)

	- Selecting package (SUNWnfscr)

	- Selecting package (SUNWnfscu)

	- Selecting package (SUNWifp)

	- Selecting package (SUNWged)

	- Selecting package (SUNW1394)

	- Selecting package (SUNWqfed)

	- Selecting package (SUNWaccr)

	- Selecting package (SUNWaccu)

	- Selecting package (SUNWus)

	- Selecting package (SUNWrsgk)

	- Selecting package (SUNWzebrar)

	- Selecting package (SUNWzebrau)

	- Selecting package (SUNWeurf)

	- Selecting package (SUNWgcmn)

	- Selecting package (SUNWeuodf)

	- Selecting package (SUNWxwacx)

	- Selecting package (SUNWpoolr)

	- Selecting package (SUNWpool)

	- Selecting package (SUNWluzone)

	- Selecting package (SUNWzoner)

	- Selecting package (SUNWzoneu)

	- Selecting package (SUNWbtool)

	- Selecting package (SUNWdtrc)

	- Selecting package (SUNWdtrp)

	- Selecting package (SUNWfss)

	- Selecting package (SUNWinst)

	- Selecting package (SUNWipc)

	- Selecting package (SUNWqus)

	- Selecting package (SUNWqusu)

	- Selecting package (SUNWrcmdc)

	- Selecting package (SUNWdtdmr)

	- Selecting package (SUNWtltk)

	- Selecting package (SUNWtnetc)

	- Selecting package (SUNWtnfd)

	- Selecting package (SUNWtnetd)

	- Selecting package (SUNWtnetr)

	- Selecting package (SUNWsshcu)

	- Selecting package (SUNWsshdr)

	- Selecting package (SUNWsshdu)

	- Selecting package (SUNWsshr)

	- Selecting package (SUNWsshu)

	- Selecting package (SUNWpd)

	- Selecting package (SUNWced)

	- Selecting package (SUNWcart200)

	- Selecting package (SUNWkvmt200)

	- Selecting package (SUNWust1)

	- Selecting package (SUNWatfsr)

	- Selecting package (SUNWatfsu)

	- Selecting package (SUNWrcmdr)

	- Selecting package (SUNWrcmds)

	- Selecting package (SUNWxcu4)

	- Selecting package (SUNWefc)

	- Selecting package (SUNWglmr)

	- Selecting package (SUNWi2cr)

	- Selecting package (SUNWpstl)

	- Selecting package (SUNWbart)

	- Selecting package (SUNWpiclu)

	- Selecting package (SUNWpiclr)

	- Selecting package (SUNWopensslr)

	- Selecting package (SUNWopenssl-commands)

	- Selecting all disks

	- Configuring boot device

	- Using disk (c1t0d0) for "rootdisk"

	- Configuring / (c1t0d0s0)

	- Configuring /var (c1t0d0s1)

	- Configuring swap (c1t0d0s3)

	- Configuring  (c1t0d0s4)

	- Configuring  (c1t0d0s6)

	- Configuring /opt (c1t0d0s5)

	- Deselecting unmodified disk (c1t1d0)

Verifying disk configuration

	- WARNING: Changing the system's default boot device in the EEPROM

Verifying space allocation

	- Total software size:  376.86 Mbytes

Preparing system for Solaris install

Configuring disk (c1t0d0)

	- Creating Solaris disk label (VTOC)

Creating and checking UFS file systems

	- Creating / (c1t0d0s0)

	- Creating /var (c1t0d0s1)

	- Creating /opt (c1t0d0s5)

Beginning Solaris software installation

Starting software installation

	SUNWcsu..........................done.  363.07 Mbytes remaining.

	SUNWcsr..........................done.  359.22 Mbytes remaining.

	SUNWcsl..........................done.  347.35 Mbytes remaining.

	SUNWcnetr........................done.  347.23 Mbytes remaining.

	SUNWckr..........................done.  337.09 Mbytes remaining.

	SUNWkvm.u........................done.  335.16 Mbytes remaining.

	SUNWcar.u........................done.  334.65 Mbytes remaining.

	SUNWcakr.u.......................done.  315.55 Mbytes remaining.

	SUNWxwice........................done.  315.27 Mbytes remaining.

	SUNWcsd..........................done.  315.01 Mbytes remaining.

	SUNWxwrtl........................done.  314.87 Mbytes remaining.

	SUNWzlib.........................done.  314.62 Mbytes remaining.

	SUNWbzip.........................done.  314.36 Mbytes remaining.

	SUNWlibmsr.......................done.  311.13 Mbytes remaining.

	SUNWlibms........................done.  311.09 Mbytes remaining.

	SUNWxwfnt........................done.  299.39 Mbytes remaining.

	SUNWxwdv.........................done.  299.34 Mbytes remaining.

	SUNWxwplr........................done.  299.28 Mbytes remaining.

	SUNWperl584core..................done.  293.83 Mbytes remaining.

	SUNWperl584usr...................done.  272.69 Mbytes remaining.

	SUNWesu..........................done.  270.73 Mbytes remaining.

	SUNWcpp..........................done.  270.63 Mbytes remaining.

	SUNWdtcor........................done.  270.60 Mbytes remaining.

	SUNWxwplt........................done.  249.87 Mbytes remaining.

	SUNWlibC.........................done.  244.13 Mbytes remaining.

	SUNWctpls........................done.  244.05 Mbytes remaining.

	SUNWmfrun........................done.  234.11 Mbytes remaining.

	SUNWtcsh.........................done.  233.72 Mbytes remaining.

	SUNWtecla........................done.  233.09 Mbytes remaining.

	SUNWter..........................done.  231.47 Mbytes remaining.

	SUNWgcmn.........................done.  231.44 Mbytes remaining.

	SUNWpr...........................done.  230.35 Mbytes remaining.

	SUNWtls..........................done.  222.76 Mbytes remaining.

	SUNWdtdmr........................done.  222.73 Mbytes remaining.

	SUNWtltk.........................done.  219.66 Mbytes remaining.

	SUNWkrbr.........................done.  219.58 Mbytes remaining.

	SUNWkrbu.........................done.  217.09 Mbytes remaining.

	SUNWtnetc........................done.  216.92 Mbytes remaining.

	SUNWtnetd........................done.  216.84 Mbytes remaining.

	SUNWtnetr........................done.  216.79 Mbytes remaining.

	SUNWtnfc.........................done.  216.29 Mbytes remaining.

	SUNWtnfd.........................done.  216.20 Mbytes remaining.

	SUNWtoo..........................done.  215.12 Mbytes remaining.

	SUNWucbt.........................done.  215.09 Mbytes remaining.

	SUNWudaplr.......................done.  215.06 Mbytes remaining.

	SUNWudaplu.......................done.  214.81 Mbytes remaining.

	SUNWib...........................done.  213.14 Mbytes remaining.

	SUNWipoib........................done.  213.00 Mbytes remaining.

	SUNWtavor........................done.  212.20 Mbytes remaining.

	SUNWudapltu......................done.  211.75 Mbytes remaining.

	SUNWudapltr......................done.  211.50 Mbytes remaining.

	SUNWaudd.........................done.  210.84 Mbytes remaining.

	SUNWusb..........................done.  209.47 Mbytes remaining.

	SUNWusbs.........................done.  209.39 Mbytes remaining.

	SUNWuedg.........................done.  209.21 Mbytes remaining.

	SUNWugen.........................done.  209.15 Mbytes remaining.

	SUNWuksp.........................done.  209.07 Mbytes remaining.

	SUNWopenssl-libraries............done.  202.10 Mbytes remaining.

	SUNWwbsup........................done.  201.74 Mbytes remaining.

	SUNWinstall-patch-utils-root.....done.  201.71 Mbytes remaining.

	SUNWswmt.........................done.  201.00 Mbytes remaining.

	SUNWuprl.........................done.  200.94 Mbytes remaining.

	SUNWj5rt.........................done.  118.41 Mbytes remaining.

	SUNWocfr.........................done.  118.34 Mbytes remaining.

	SUNWocf..........................done.  117.76 Mbytes remaining.

	SUNWxi18n........................done.  116.78 Mbytes remaining.

	SUNWvld..........................done.  116.73 Mbytes remaining.

	SUNWvldu.........................done.  116.68 Mbytes remaining.

	SUNWnfscr........................done.  116.53 Mbytes remaining.

	SUNWnfsckr.......................done.  115.12 Mbytes remaining.

	SUNWnfscu........................done.  114.83 Mbytes remaining.

	SUNWgzip.........................done.  114.73 Mbytes remaining.

	SUNWgssc.........................done.  114.68 Mbytes remaining.

	SUNWgss..........................done.  114.31 Mbytes remaining.

	SUNWbip..........................done.  114.12 Mbytes remaining.

	SUNWrcmdc........................done.  113.25 Mbytes remaining.

	SUNWrcmds........................done.  112.95 Mbytes remaining.

	SUNWproduct-registry-root........done.  112.93 Mbytes remaining.

	SUNWwsr2.........................done.  112.59 Mbytes remaining.

	SUNWlxml.........................done.  109.19 Mbytes remaining.

	SUNWlexpt........................done.  108.61 Mbytes remaining.

	SUNWxge..........................done.  108.08 Mbytes remaining.

	SUNWxcu4.........................done.  106.87 Mbytes remaining.

	SUNWxwacx........................done.  106.69 Mbytes remaining.

	SUNWsprot........................done.  105.21 Mbytes remaining.

	SUNWzfskr........................done.  104.39 Mbytes remaining.

	SUNWzfsr.........................done.  103.43 Mbytes remaining.

	SUNWsmapi........................done.  102.80 Mbytes remaining.

	SUNWzfsu.........................done.  101.29 Mbytes remaining.

	SUNWrsg..........................done.  101.16 Mbytes remaining.

	SUNWgssdh........................done.  100.84 Mbytes remaining.

	SUNWgssk.........................done.  100.60 Mbytes remaining.

	SUNWeurf.........................done.   96.30 Mbytes remaining.

	SUNWi15rf........................done.   96.16 Mbytes remaining.

	SUNWnisr.........................done.   96.02 Mbytes remaining.

	SUNWnisu.........................done.   93.70 Mbytes remaining.

	SUNWzebrar.......................done.   93.63 Mbytes remaining.

	SUNWzebrau.......................done.   91.44 Mbytes remaining.

	SUNWcpcu.........................done.   90.90 Mbytes remaining.

	SUNWfmdr.........................done.   90.84 Mbytes remaining.

	SUNWfmd..........................done.   86.92 Mbytes remaining.

	SUNWcslr.........................done.   72.42 Mbytes remaining.

	SUNWidnl.........................done.   71.86 Mbytes remaining.

	SUNWmdb..........................done.   66.94 Mbytes remaining.

	SUNWzip..........................done.   66.75 Mbytes remaining.

	SUNWmdbr.........................done.   63.97 Mbytes remaining.

	SUNWpiclu........................done.   60.17 Mbytes remaining.

	SUNWzoner........................done.   60.11 Mbytes remaining.

	SUNWmdr..........................done.   57.74 Mbytes remaining.

	SUNWmdu..........................done.   57.04 Mbytes remaining.

	SUNWadmc.........................done.   55.16 Mbytes remaining.

	SUNWadmfr........................done.   55.14 Mbytes remaining.

	SUNWadmfw........................done.   54.43 Mbytes remaining.

	SUNWadmlib-sysid.................done.   54.17 Mbytes remaining.

	SUNWadmr.........................done.   54.09 Mbytes remaining.

	SUNWadmap........................done.   53.21 Mbytes remaining.

	SUNWlur..........................done.   51.67 Mbytes remaining.

	SUNWluu..........................done.   50.48 Mbytes remaining.

	SUNWluzone.......................done.   50.11 Mbytes remaining.

	SUNWpoolr........................done.   50.08 Mbytes remaining.

	SUNWpool.........................done.   49.24 Mbytes remaining.

	SUNWzoneu........................done.   48.61 Mbytes remaining.

	SUNWluxop........................done.   47.86 Mbytes remaining.

	SUNWses..........................done.   47.76 Mbytes remaining.

	SUNWssad.........................done.   47.45 Mbytes remaining.

	SUNWifp..........................done.   47.17 Mbytes remaining.

	SUNWzsh..........................done.   44.04 Mbytes remaining.

	SUNW1394.........................done.   43.27 Mbytes remaining.

	SUNWinst.........................done.   42.77 Mbytes remaining.

	SUNWintgige......................done.   42.51 Mbytes remaining.

	SUNWipc..........................done.   42.45 Mbytes remaining.

	SUNWipfr.........................done.   42.31 Mbytes remaining.

	SUNWipfu.........................done.   41.04 Mbytes remaining.

	SUNWipged........................done.   40.54 Mbytes remaining.

	SUNWced.u........................done.   39.90 Mbytes remaining.

	SUNWcpc.u........................done.   39.84 Mbytes remaining.

	SUNWbash.........................done.   39.11 Mbytes remaining.

	SUNWaccr.........................done.   39.01 Mbytes remaining.

	SUNWaccu.........................done.   38.64 Mbytes remaining.

	SUNWefc.u........................done.   38.36 Mbytes remaining.

	SUNWiscsir.......................done.   37.68 Mbytes remaining.

	SUNWiscsiu.......................done.   37.12 Mbytes remaining.

	SUNWglmr.u.......................done.   37.04 Mbytes remaining.

	SUNWi2cr.u.......................done.   36.85 Mbytes remaining.

	SUNWloc..........................done.   36.34 Mbytes remaining.

	SUNWpstl.u.......................done.   36.21 Mbytes remaining.

	SUNWus.u.........................done.   36.16 Mbytes remaining.

	SUNWbtool........................done.   34.83 Mbytes remaining.

	SUNWjfca.........................done.   33.98 Mbytes remaining.

	SUNWjfcau........................done.   33.90 Mbytes remaining.

	SUNWjss..........................done.   29.54 Mbytes remaining.

	SUNWkey..........................done.   29.16 Mbytes remaining.

	SUNWatfsr........................done.   29.09 Mbytes remaining.

	SUNWatfsu........................done.   28.81 Mbytes remaining.

	SUNWbart.........................done.   28.76 Mbytes remaining.

	SUNWbindr........................done.   28.71 Mbytes remaining.

	SUNWbind.........................done.   25.60 Mbytes remaining.

	SUNWless.........................done.   25.44 Mbytes remaining.

	SUNWcfcl.........................done.   25.30 Mbytes remaining.

	SUNWcfclr........................done.   25.28 Mbytes remaining.

	SUNWcfpl.........................done.   24.92 Mbytes remaining.

	SUNWcfplr........................done.   24.87 Mbytes remaining.

	SUNWlibsasl......................done.   24.28 Mbytes remaining.

	SUNWchxge........................done.   24.04 Mbytes remaining.

	SUNWlldap........................done.   23.84 Mbytes remaining.

	SUNWluxopr.......................done.   23.17 Mbytes remaining.

	SUNWm64cf........................done.   23.11 Mbytes remaining.

	SUNWcstl.........................done.   22.96 Mbytes remaining.

	SUNWmdbdm........................done.   22.90 Mbytes remaining.

	SUNWmibii........................done.   22.78 Mbytes remaining.

	SUNWsasnm........................done.   21.91 Mbytes remaining.

	SUNWsadmi........................done.   20.91 Mbytes remaining.

	SUNWsacom........................done.   20.61 Mbytes remaining.

	SUNWmipr.........................done.   20.53 Mbytes remaining.

	SUNWmipu.........................done.   20.25 Mbytes remaining.

	SUNWmkcd.........................done.   18.95 Mbytes remaining.

	SUNWdtrc.........................done.   16.86 Mbytes remaining.

	SUNWdtrp.........................done.   16.41 Mbytes remaining.

	SUNWfctl.........................done.   15.97 Mbytes remaining.

	SUNWemlxs........................done.   13.19 Mbytes remaining.

	SUNWemlxu........................done.   12.50 Mbytes remaining.

	SUNWerid.........................done.   12.35 Mbytes remaining.

	SUNWeuodf........................done.   12.23 Mbytes remaining.

	SUNWfchbar.......................done.   12.20 Mbytes remaining.

	SUNWfchba........................done.   10.63 Mbytes remaining.

	SUNWfcip.........................done.   10.44 Mbytes remaining.

	SUNWfcmdb........................done.   10.24 Mbytes remaining.

	SUNWfcp..........................done.    9.95 Mbytes remaining.

	SUNWfcprt........................done.    9.88 Mbytes remaining.

	SUNWfcsm.........................done.    9.73 Mbytes remaining.

	SUNWopenssl-commands.............done.    9.35 Mbytes remaining.

	SUNWopensslr.....................done.    9.30 Mbytes remaining.

	SUNWpd...........................done.    8.64 Mbytes remaining.

	SUNWfss..........................done.    8.53 Mbytes remaining.

	SUNWpiclr........................done.    8.50 Mbytes remaining.

	SUNWpkgcmdsr.....................done.    8.46 Mbytes remaining.

	SUNWpkgcmdsu.....................done.    5.72 Mbytes remaining.

	SUNWged..........................done.    5.47 Mbytes remaining.

	SUNWqfed.........................done.    5.25 Mbytes remaining.

	SUNWqlc..........................done.    4.05 Mbytes remaining.

	SUNWqlcu.........................done.    4.00 Mbytes remaining.

	SUNWqos..........................done.    3.83 Mbytes remaining.

	SUNWqosu.........................done.    3.71 Mbytes remaining.

	SUNWqus..........................done.    3.48 Mbytes remaining.

	SUNWqusu.........................done.    3.45 Mbytes remaining.

	SUNWrcmdr........................done.    3.37 Mbytes remaining.

	SUNWrge..........................done.    3.26 Mbytes remaining.

	SUNWroute........................done.    2.94 Mbytes remaining.

	SUNWrpcib........................done.    2.79 Mbytes remaining.

	SUNWrsgk.........................done.    2.72 Mbytes remaining.

	SUNWsolnm........................done.    2.70 Mbytes remaining.

	SUNWsshcu........................done.    2.27 Mbytes remaining.

	SUNWsshdr........................done.    2.20 Mbytes remaining.

	SUNWsshdu........................done.    1.79 Mbytes remaining.

	SUNWspnego.......................done.    1.68 Mbytes remaining.

	SUNWsshr.........................done.    1.57 Mbytes remaining.

	SUNWsshu.........................done.    1.00 Mbytes remaining.

Completed software installation

Solaris 10 software installation succeeded

Customizing system files

	- Mount points table (/etc/vfstab)

	- Unselected disk mount points (/var/sadm/system/data/vfstab.unselected)

	- Network host addresses (/etc/hosts)

	- Network host addresses (/etc/hosts)

	- Environment variables (/etc/default/init)

Cleaning devices

Customizing system devices

	- Physical devices (/devices)

	- Logical devices (/dev)

Installing boot information

	- Installing boot blocks (c1t0d0s0)

	- Updating system firmware for automatic rebooting

Installation log location

	- /a/var/sadm/system/logs/install_log (before reboot)

	- /var/sadm/system/logs/install_log (after reboot)

Installation complete

Executing SolStart postinstall phase...

Executing finish script "patch_finish"...

Finish script patch_finish execution completed.

Executing JumpStart postinstall phase...

Executing finish script "any_finish"...

any_finish started with SI_CONFIG_DIR = /tmp/install_config

any_finish completed

Finish script any_finish execution completed.

The begin script log 'begin.log'

is located in /var/sadm/system/logs after reboot.

The finish script log 'finish.log'

is located in /var/sadm/system/logs after reboot.

syncing file systems... done

rebooting...

SC Alert: Host System has Reset

 Probing system devices

Probing memory

Probing I/O buses

Sun Fire V210, No Keyboard

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

OpenBoot 4.18.5, 2048 MB memory installed, Serial #52030991.

Ethernet address 0:3:ba:19:ee:f, Host ID: 8319ee0f.

Initializing     1MB of memory at addr        103feec000

Initializing     1MB of memory at addr        103fee0000

Initializing    15MB of memory at addr        103f002000

Initializing    16MB of memory at addr        103e002000

Initializing   992MB of memory at addr        1000000000

Initializing  1024MB of memory at addr                 0

Rebooting with command: boot

Boot device: /pci@1c,600000/scsi@2/disk@0,0:a  File and args:

SunOS Release 5.10 Version Generic_118833-17 64-bit

Copyright 1983-2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Hardware watchdog enabled

Hostname: vtghost

Configuring devices.

Loading smf(5) service descriptions:  1/85

2/85

3/85

...

84/85

85/85

checking ufs filesystems

/dev/rdsk/c1t0d0s5: is logging.

Creating new rsa public/private host key pair

Creating new dsa public/private host key pair

        This system is configured with NFS version 4, which uses a domain

        name that is automatically derived from the system's name services.

        The derived domain name is sufficient for most configurations. In a

        few cases, mounts that cross different domains might cause files to

        be owned by "nobody" due to the lack of a common domain name.

        Do you need to override the system's default NFS version 4 domain

        name (yes/no) ? [no] :

Step 7 Enter no to continue the reconfiguration process and press Enter.

The system displays information similar to the following:

        For more information about how the NFS version 4 default domain

        name is derived and its impact, refer to the man pages for nfs(4)

        and nfsmapid(1m), and the System Administration Guide: Network

        Services.

vtghost console login:

This completes the installation of the Sun Solaris 10 operating system. Proceed to the "Configuring Your Host" section.

Installing the Sun Solaris 10 Operating System for Opteron-based Platforms

The instructions in this section were written to correspond with the instructions in the Cisco Solaris 10 Operating System Startup Disk for Opteron-based Platforms. Other Solaris installations are similar, with slight variations. These instructions will note the differences between the sets of installation instructions.

Step 1 Choose one of the following options to connect the Cisco PGW 2200 Softswitch:

•Connect to the Cisco PGW 2200 Softswitch through a console port.

•Connect a keyboard and monitor to the Cisco PGW 2200 Softswitch.

Note Cisco recommends that you connect to the Cisco PGW 2200 Softswitch using a keyboard and monitor. If you choose to connect through the console port, you need to ensure that Console Redirection is enabled as instructed in Step 6.

Step 2 Follow these steps to connect to the target system through a serial port:

a. Log in to the SP (Service Processor) as an Administrator:

login: root

password: changeme

b. Type the following command to start the ILOM Service Processor (SP) GUI:

start /SP/console

Step 3 This step is optional—if you decide to skip this, go to Step 4.

a. Place the system in single-user mode by shutting down the standby machine.

b. When the machine prompts for a password, type either ^ -d to proceed with normal startup, or the root password for system maintenance.

Step 4 Load the appropriate version of the CD-ROM labeled Cisco Solaris 10 Operating Software Startup Disk for Opteron-based Platforms into the CD-ROM drive.

Note If your servers do not have a CD-ROM drive, see the "Installation of Solaris JS11 through ILOM" section for detailed steps of Jumpstarting servers without physical CD-ROM drive.

Step 5 If the system is currently running, log in as root.

Step 6 Boot the system from the CD-ROM drive by entering the appropriate command:

# reboot

Note You may be prompted during the reboot to enter Ctrl-B or Ctrl-C to open configuration tools for your hardware. You do not need to open any of these tools to complete this installation.

Perform the following steps once the reboot starts:

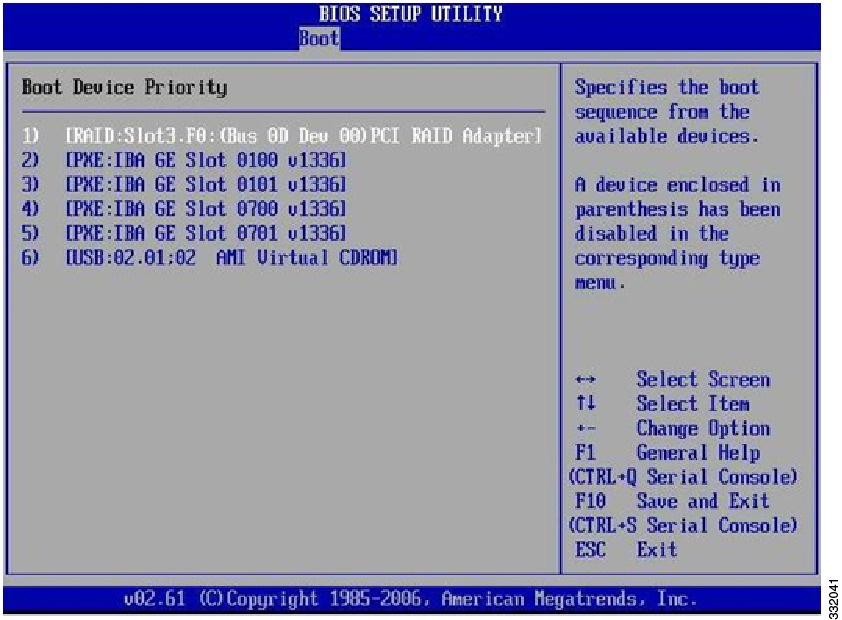

a. Press the F2 key to open the Setup menu. The Setup menu opens after the self-tests have been completed.

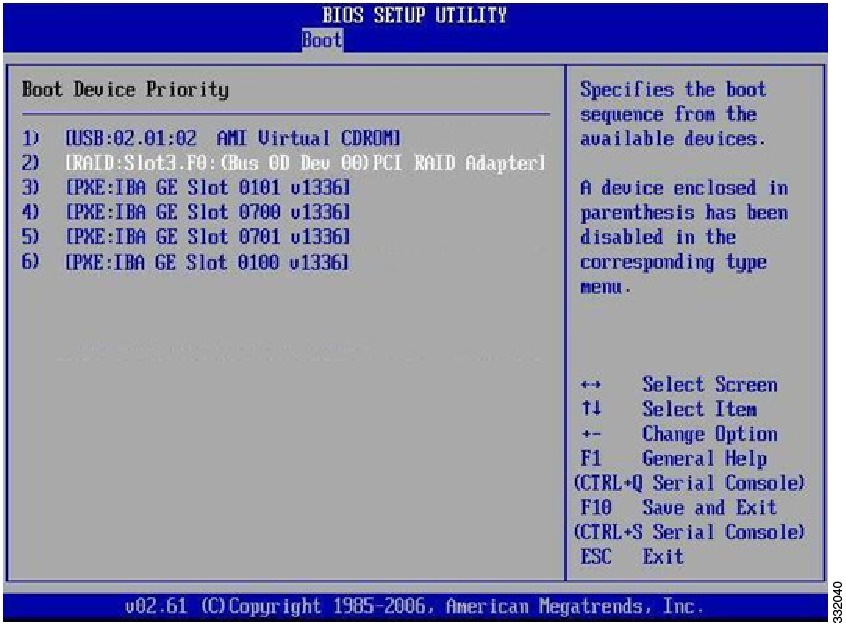

b. Go to the BOOT setup information.

c. Ensure that the CD-ROM is the first bootable device in the list.

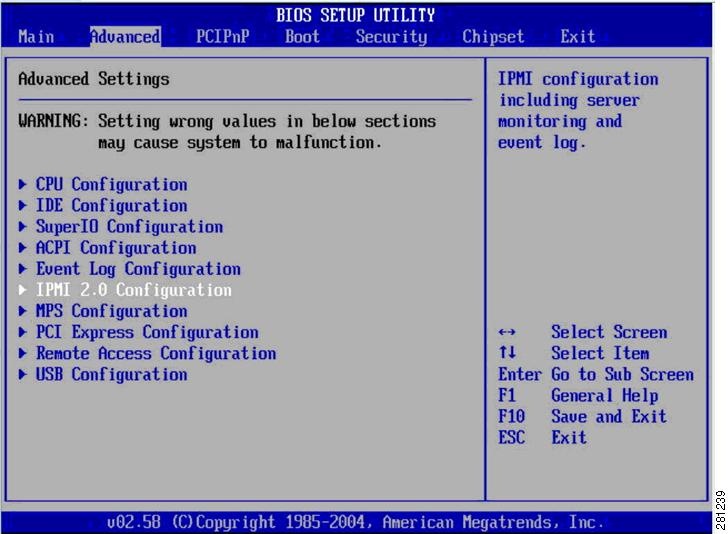

d. Choose the Advanced menu from the category selections at the top of the screen.

e. If you connected to the Cisco PGW 2200 Softswitch using the console port, ensure Console Redirection is set to enable or always.

f. Save your changes and exit the Setup menu.

Information similar to the following is displayed:

ok boot cdrom - install

SC Alert: Host System has Reset

 Probing system devices

Probing memory

Probing I/O buses

SunFire V40z, No Keyboard

Copyright 1998-2004 Sun Microsystems, Inc.  All rights reserved.

OpenBoot 4.13.0, 8192 MB memory installed, Serial #58524225.

Ethernet address 0:3:ba:7d:2:41, Host ID: 837d0241.

Initializing     1MB of memory at addr        103feec000

Initializing     1MB of memory at addr        103fee0000

Initializing     1MB of memory at addr        103f002000

Initializing     1MB of memory at addr        103e002000

Initializing     1MB of memory at addr        1000000000

Initializing     1MB of memory at addr                 0

Rebooting with command: boot cdrom - install

Boot device: /pci@1e,600000/ide@d/cdrom@0,0:f  File and args: - install

SunOS Release 5.10 Version Generic_118833-17 64-bit

Copyright 1983-2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Hardware watchdog enabled

Configuring devices.

Using RPC Bootparams for network configuration information.

Attempting to configure interface bge3...

Skipped interface bge3

Attempting to configure interface bge2...

Skipped interface bge2

Attempting to configure interface bge1...

Skipped interface bge1

Attempting to configure interface bge0...

Skipped interface bge0

Beginning system identification...

Searching for configuration file(s)...

Search complete.

Discovering additional network configuration...

Completing system identification...

Starting remote procedure call (RPC) services: done.

System identification complete.

Starting Solaris installation program...

Searching for JumpStart directory...

<<< using cdrom install_config >>>

Checking rules.ok file...

Using profile: any_machine

Using finish script: any_finish

Executing JumpStart preinstall phase...

Searching for SolStart directory...

Checking rules.ok file...

Using begin script: install_begin

Using finish script: patch_finish

Executing SolStart preinstall phase...

Executing begin script "install_begin"...

Begin script install_begin execution completed.

Processing profile

	- Selecting cluster (SUNWCrnet)

	- Selecting package (SUNWadmc)

	- Selecting package (SUNWadmfw)

	- Selecting package (SUNWcpc)

	- Selecting package (SUNWcpcu)

	- Selecting package (SUNWcstl)

	- Selecting package (SUNWless)

	- Selecting package (SUNWlur)

	- Selecting package (SUNWluu)

	- Selecting package (SUNWmkcd)

	- Selecting package (SUNWmipu)

	- Selecting package (SUNWmipr)

	- Selecting package (SUNWocf)

	- Selecting package (SUNWocfr)

	- Selecting package (SUNWspnego)

	- Selecting package (SUNWter)

	- Selecting package (SUNWtnfc)

	- Selecting package (SUNWucbt)

	- Selecting package (SUNWvld)

	- Selecting package (SUNWvldu)

	- Selecting package (SUNWzsh)

	- Selecting package (SUNWsacom)

	- Selecting package (SUNWroute)

	- Selecting package (SUNWxwfnt)

	- Selecting package (SUNWxwdv)

	- Selecting package (SUNWctpls)

	- Selecting package (SUNWgssdh)

	- Selecting package (SUNWm64cf)

	- Selecting package (SUNWj5rt)

	- Selecting package (SUNWxwplt)

	- Selecting package (SUNWxwplr)

	- Selecting package (SUNWdtcor)

	- Selecting package (SUNWxwice)

	- Selecting package (SUNWxwrtl)

	- Selecting package (SUNWlibC)

	- Selecting package (SUNWmfrun)

	- Selecting package (SUNWi15rf)

	- Selecting package (SUNWmdu)

	- Selecting package (SUNWadmfr)

	- Selecting package (SUNWrsg)

	- Selecting package (SUNWsadmi)

	- Selecting package (SUNWsasnm)

	- Selecting package (SUNWmibii)

	- Selecting package (SUNWxi18n)

	- Selecting package (SUNWtoo)

	- Selecting package (SUNWsprot)

	- Selecting package (SUNWbip)

	- Selecting package (SUNWbind)

	- Selecting package (SUNWbindr)

	- Selecting package (SUNWgzip)

	- Selecting package (SUNWzip)

	- Selecting package (SUNWbash)

	- Selecting package (SUNWtcsh)

	- Selecting package (SUNWgss)

	- Selecting package (SUNWgssc)

	- Selecting package (SUNWgssk)

	- Selecting package (SUNWqos)

	- Selecting package (SUNWqosu)

	- Selecting package (SUNWmdb)

	- Selecting package (SUNWmdbr)

	- Selecting package (SUNWmdbdm)

	- Selecting package (SUNWnfsckr)

	- Selecting package (SUNWnfscr)

	- Selecting package (SUNWnfscu)

	- Selecting package (SUNWifp)

	- Selecting package (SUNWged)

	- Selecting package (SUNW1394)

	- Selecting package (SUNWqfed)

	- Selecting package (SUNWaccr)

	- Selecting package (SUNWaccu)

	- Selecting package (SUNWus)

	- Selecting package (SUNWrsgk)

	- Selecting package (SUNWzebrar)

	- Selecting package (SUNWzebrau)

	- Selecting package (SUNWeurf)

	- Selecting package (SUNWgcmn)

	- Selecting package (SUNWeuodf)

	- Selecting package (SUNWxwacx)

	- Selecting package (SUNWpoolr)

	- Selecting package (SUNWpool)

	- Selecting package (SUNWluzone)

	- Selecting package (SUNWzoner)

	- Selecting package (SUNWzoneu)

	- Selecting package (SUNWbtool)

	- Selecting package (SUNWdtrc)

	- Selecting package (SUNWdtrp)

	- Selecting package (SUNWfss)

	- Selecting package (SUNWinst)

	- Selecting package (SUNWipc)

	- Selecting package (SUNWqus)

	- Selecting package (SUNWqusu)

	- Selecting package (SUNWrcmdc)

	- Selecting package (SUNWdtdmr)

	- Selecting package (SUNWtltk)

	- Selecting package (SUNWtnetc)

	- Selecting package (SUNWtnfd)

	- Selecting package (SUNWtnetd)

	- Selecting package (SUNWtnetr)

	- Selecting package (SUNWsshcu)

	- Selecting package (SUNWsshdr)

	- Selecting package (SUNWsshdu)

	- Selecting package (SUNWsshr)

	- Selecting package (SUNWsshu)

	- Selecting package (SUNWpd)

	- Selecting package (SUNWced)

	- Selecting package (SUNWcart200)

	- Selecting package (SUNWkvmt200)

	- Selecting package (SUNWust1)

	- Selecting package (SUNWatfsr)

	- Selecting package (SUNWatfsu)

	- Selecting package (SUNWrcmdr)

	- Selecting package (SUNWrcmds)

	- Selecting package (SUNWxcu4)

	- Selecting package (SUNWefc)

	- Selecting package (SUNWglmr)

	- Selecting package (SUNWi2cr)

	- Selecting package (SUNWpstl)

	- Selecting package (SUNWbart)

	- Selecting package (SUNWpiclu)

	- Selecting package (SUNWpiclr)

	- Selecting package (SUNWopensslr)

	- Selecting package (SUNWopenssl-commands)

	- Selecting all disks

	- Configuring boot device

	- Using disk (c1t0d0) for "rootdisk"

	- Configuring / (c1t0d0s0)

	- Configuring /var (c1t0d0s1)

	- Configuring swap (c1t0d0s3)

	- Configuring  (c1t0d0s4)

	- Configuring  (c1t0d0s6)

	- Configuring /opt (c1t0d0s5)

	- Deselecting unmodified disk (c1t1d0)

Verifying disk configuration

	- WARNING: Changing the system's default boot device in the EEPROM

Verifying space allocation

	- Total software size:  376.86 Mbytes

Preparing system for Solaris install

Configuring disk (c1t0d0)

	- Creating Solaris disk label (VTOC)

Creating and checking UFS file systems

	- Creating / (c1t0d0s0)

	- Creating /var (c1t0d0s1)

	- Creating /opt (c1t0d0s5)

Beginning Solaris software installation

Starting software installation

	SUNWcsu..........................done.  363.07 Mbytes remaining.

	SUNWcsr..........................done.  359.22 Mbytes remaining.

	SUNWcsl..........................done.  347.35 Mbytes remaining.

	SUNWcnetr........................done.  347.23 Mbytes remaining.

	SUNWckr..........................done.  337.09 Mbytes remaining.

	SUNWkvm.u........................done.  335.16 Mbytes remaining.

	SUNWcar.u........................done.  334.65 Mbytes remaining.

	SUNWcakr.u.......................done.  315.55 Mbytes remaining.

	SUNWxwice........................done.  315.27 Mbytes remaining.

	SUNWcsd..........................done.  315.01 Mbytes remaining.

	SUNWxwrtl........................done.  314.87 Mbytes remaining.

	SUNWzlib.........................done.  314.62 Mbytes remaining.

	SUNWbzip.........................done.  314.36 Mbytes remaining.

	SUNWlibmsr.......................done.  311.13 Mbytes remaining.

	SUNWlibms........................done.  311.09 Mbytes remaining.

	SUNWxwfnt........................done.  299.39 Mbytes remaining.

	SUNWxwdv.........................done.  299.34 Mbytes remaining.

	SUNWxwplr........................done.  299.28 Mbytes remaining.

	SUNWperl584core..................done.  293.83 Mbytes remaining.

	SUNWperl584usr...................done.  272.69 Mbytes remaining.

	SUNWesu..........................done.  270.73 Mbytes remaining.

	SUNWcpp..........................done.  270.63 Mbytes remaining.

	SUNWdtcor........................done.  270.60 Mbytes remaining.

	SUNWxwplt........................done.  249.87 Mbytes remaining.

	SUNWlibC.........................done.  244.13 Mbytes remaining.

	SUNWctpls........................done.  244.05 Mbytes remaining.

	SUNWmfrun........................done.  234.11 Mbytes remaining.

	SUNWtcsh.........................done.  233.72 Mbytes remaining.

	SUNWtecla........................done.  233.09 Mbytes remaining.

	SUNWter..........................done.  231.47 Mbytes remaining.

	SUNWgcmn.........................done.  231.44 Mbytes remaining.

	SUNWpr...........................done.  230.35 Mbytes remaining.

	SUNWtls..........................done.  222.76 Mbytes remaining.

	SUNWdtdmr........................done.  222.73 Mbytes remaining.

	SUNWtltk.........................done.  219.66 Mbytes remaining.

	SUNWkrbr.........................done.  219.58 Mbytes remaining.

	SUNWkrbu.........................done.  217.09 Mbytes remaining.

	SUNWtnetc........................done.  216.92 Mbytes remaining.

	SUNWtnetd........................done.  216.84 Mbytes remaining.

	SUNWtnetr........................done.  216.79 Mbytes remaining.

	SUNWtnfc.........................done.  216.29 Mbytes remaining.

	SUNWtnfd.........................done.  216.20 Mbytes remaining.

	SUNWtoo..........................done.  215.12 Mbytes remaining.

	SUNWucbt.........................done.  215.09 Mbytes remaining.

	SUNWudaplr.......................done.  215.06 Mbytes remaining.

	SUNWudaplu.......................done.  214.81 Mbytes remaining.

	SUNWib...........................done.  213.14 Mbytes remaining.

	SUNWipoib........................done.  213.00 Mbytes remaining.

	SUNWtavor........................done.  212.20 Mbytes remaining.

	SUNWudapltu......................done.  211.75 Mbytes remaining.

	SUNWudapltr......................done.  211.50 Mbytes remaining.

	SUNWaudd.........................done.  210.84 Mbytes remaining.

	SUNWusb..........................done.  209.47 Mbytes remaining.

	SUNWusbs.........................done.  209.39 Mbytes remaining.

	SUNWuedg.........................done.  209.21 Mbytes remaining.

	SUNWugen.........................done.  209.15 Mbytes remaining.

	SUNWuksp.........................done.  209.07 Mbytes remaining.

	SUNWopenssl-libraries............done.  202.10 Mbytes remaining.

	SUNWwbsup........................done.  201.74 Mbytes remaining.

	SUNWinstall-patch-utils-root.....done.  201.71 Mbytes remaining.

	SUNWswmt.........................done.  201.00 Mbytes remaining.

	SUNWsolnm........................done.  185.12 Mbytes remaining.

	SUNWses..........................done.  184.97 Mbytes remaining.

	SUNWsi3124.......................done.  184.82 Mbytes remaining.

Completed software installation

Solaris 10 packages partially installed

Note If you receive a warning message saying "Solaris 10 software installation partially failed", it is ok to proceed.

Customizing system files

	- Mount points table (/etc/vfstab)

	- Unselected disk mount points (/var/sadm/system/data/vfstab.unselected)

	- Network host addresses (/etc/hosts)

	- Network host addresses (/etc/hosts)

	- Environment variables (/etc/default/init)

Cleaning devices

Customizing system devices

	- Physical devices (/devices)

	- Logical devices (/dev)

Installing boot information

	- Installing boot blocks (c1t0d0s0)

	- Updating system firmware for automatic rebooting

Installation log location

	- /a/var/sadm/system/logs/install_log (before reboot)

	- /var/sadm/system/logs/install_log (after reboot)

Installation complete

Executing SolStart postinstall phase...

Executing finish script "patch_finish"...

Finish script patch_finish execution completed.

Executing JumpStart postinstall phase...

Executing finish script "any_finish"...

any_finish started with SI_CONFIG_DIR = /tmp/install_config

any_finish completed

Finish script any_finish execution completed.

The begin script log 'begin.log'

is located in /var/sadm/system/logs after reboot.

The finish script log 'finish.log'

is located in /var/sadm/system/logs after reboot.

syncing file systems... done

rebooting...

SC Alert: Host System has Reset

 Probing system devices

Probing memory

Probing I/O buses

Sun Fire V210, No Keyboard

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

OpenBoot 4.18.5, 2048 MB memory installed, Serial #52030991.

Ethernet address 0:3:ba:19:ee:f, Host ID: 8319ee0f.

Initializing     1MB of memory at addr        103feec000

Initializing     1MB of memory at addr        103fee0000

Initializing    15MB of memory at addr        103f002000

Initializing    16MB of memory at addr        103e002000

Initializing   992MB of memory at addr        1000000000

Initializing  1024MB of memory at addr                 0

Rebooting with command: boot

Boot device: /pci@1c,600000/scsi@2/disk@0,0:a  File and args:

SunOS Release 5.10 Version Generic_118833-17 64-bit

Copyright 1983-2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Hardware watchdog enabled

Hostname: vtghost

Configuring devices.

Loading smf(5) service descriptions:  1/85

2/85

3/85

...

84/85

85/85

checking ufs filesystems

/dev/rdsk/c1t0d0s5: is logging.

Creating new rsa public/private host key pair

Creating new dsa public/private host key pair

        This system is configured with NFS version 4, which uses a domain

        name that is automatically derived from the system's name services.

        The derived domain name is sufficient for most configurations. In a

        few cases, mounts that cross different domains might cause files to

        be owned by "nobody" due to the lack of a common domain name.

        Do you need to override the system's default NFS version 4 domain

        name (yes/no) ? [no] :

Step 7 Enter no to continue the reconfiguration process and press Enter.

The system displays information similar to the following:

        For more information about how the NFS version 4 default domain

        name is derived and its impact, refer to the man pages for nfs(4)

        and nfsmapid(1m), and the System Administration Guide: Network

        Services.

vtghost console login:

Note If you are installing the Sun Solaris 10 Operating System from the Cisco Solaris 10 Operating System Jumpstart Disk for Opteron-based platforms (Version 10/08), you may see the following error message at login:
vtghost console login: Mar 13 00:02:11 vtghost svc.startd[7]: application/cde-printinfo:default failed: transitioned to maintenance (see 'svcs -xv' for details)
When you use svcs -xv to see the details, you find the errors are for Sun Solstice Enterprise Master Agent and the CDE Print Viewer. The Cisco PGW 2200 Softswitch uses neither of the two applications. Ignore them while you log in on the platform.

This completes the installation of the Sun Solaris 10 operating system. Proceed to the "Configuring Your Host" section.

If you are installing the Sun Solaris 10 Operating System from the Cisco Solaris 10 Operating System Jumpstart Disk for Opteron-based platforms (Version 10/08), you may find the following error or warning messages from the log, /var/sadm/system/logs/install_log. You can ignore them.

•WARNING: Selected package is already selected

•pkgadd: ERROR: unable to access pkgmap file

•Solaris 10 software installation partially failed, Solaris 10 packages fully installed, or Solaris 10 packages partially installed

•cp: cannot access /cdrom/boot/platform/i86pc/kernel/unix

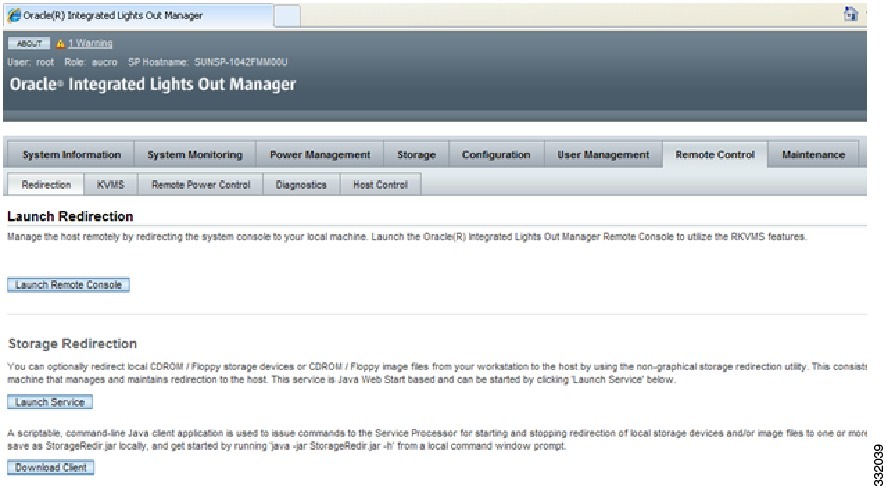

Installation of Solaris JS11 through ILOM

If your servers do not have a CD-ROM drive, a network management tool used with Oracle Integrated lights out Manager (ILOM) is an effective method of accessing and jumpstarting the server by redirecting the CD-ROM drive of your local PC.

Please perform the following procedure to complete the installation through ILOM:

Step 1 Change Network Management IP settings (IPMI) via either BIOS or ILOM CLI (if settings via BIOS is not saved):

Via BIOS

a. Power on the Sun server (for example, X4270 Opteron server), and press F2 to enter BIOS settings page.

b. Click Advanced tab in the BIOS setup utility. You see a screen similar to the one in Figure 2-1.

Figure 2-1 Advanced Tab in the BIOS Setup Utility on the Sun Netra X4270 Platform

c. Highlight IPMI 2.0 Configuration in the list. Then press Enter.

d. Highlight LAN Configuration in the list. Then press Enter.

You see a screen similar to the one in Figure 2-2.

Figure 2-2 LAN Configuration in the BIOS Setup Utility on the Sun Netra X4270 Platform

e. Choose Static in the IP Assignment.

f. Enter IP address, subnet mask, and default gateway as the following example:

IP address = 10.0.2.247

Subnet Mask = 255.255.255.0

Default Gateway = 10.0.2.1

Note The IP address, subnet mask, and default gateway values in the above example is for your reference. You should enter these values according to your actual network configuration.

g. Select Commit and save the changes, then press F10 to exit BIOS.

Via ILOM CLI

a. Connect the Sun Server with a console cable on the SERIAL MGMT port.

b. At the ILOM prompt ->, enter the following commands to configure the IPMI IP settings:

-> set /SP/network pendingipaddress=10.0.2.247

-> set /SP/network pendingipnetmask=255.255.255.0

-> set /SP/network pendingipgateway=10.0.2.1

-> set /SP/network pendingipdiscovery=static

-> set /SP/network commitpending=true

Note The IP address, subnet mask, and default gateway values in the above example is for your reference. You should enter these values according to your actual network configuration.

Step 2 Install Java—As a prerequisite for running Oracle ILOM, please make sure that you have Java installed on your computer (Java 6 or later).

Step 3 Start SP ILOM with the following procedure:

a. Open a browser (preferably Mozilla Firefox v10 or later), and make sure Java support is enabled in the browser settings.

b. Remove or disable Proxy-settings.

c. Enter the SP IP address in the address bar of the browser (for example, https:// 10.0.2.247).

d. Login as root and use the password changeme.

You see a screen similar to the one in Figure 2-3.

Figure 2-3 Sun Integrated Lights Out Manager

e. Click the Remote Control tab. You will see a screen similar to the one shown in Figure 2-4:

Figure 2-4 ILOM-Remote Control Tab

f. Click Launch Service. If a pop up window appears for warnings and security, tick the trust point and click RUN.

You see the Sun ILOM remote console as shown in Figure 2-5.

Figure 2-5 Sun ILOM Remote Console

g. Click Download Client.

h. Save the StorageReDir.jar file in local C: drive. If the file is in .zip format, rename the file and change the extension to .jar format.

Step 4 ILOM Storage Redirection

a. Insert the JS11 Jumpstart CD "PGW-sol10-x86-09..." into the CD-ROM drive of your local PC.

b. Open DOS command prompt on the local computer.

c. Go to C:\>

d. Enter the following command, where D:\ is your local CD-ROM drive label, and IP address is the SP IPMI address of the Sun server:

C:\>java -jar StorageRedir.jar

storageredir>

storageredir> start -r cdrom -t D:\ -u root -s changeme -p 2121 10.0.2.247

If you get the error "unable to connect to port 2121...", try restarting the StorageRedir by following commands:

storageredir> stop -r cdrom  -u root -s changeme -p 2121 10.0.2.247

storageredir> start -r cdrom -t D:\ -u root -s changeme -p 2121 10.0.2.247

e. Re-execute the start command, and you should receive an error like "ERROR: 1: Cdrom redirection has been established". If you do not get the error, the CD-ROM is probably not mounted or redirected.

f. Keep this DOS window running in background.

Step 5 Enable virtual CD-ROM option in BIOS:

Note This step is mandatory in some servers such as Sun Netra X4270 M2 and Sun Fire X4800, to make the local CD-ROM (redirected via ILOM) detectable in the Boot options.

a. Go to the Boot tab in BIOS Setup Utility, and you will see a screen similar to Figure 2-6:

Figure 2-6 BIOS Setup Utility-Boot Tab

b. Set the boot option "AMI Virtual CDROM" to the first priority, as Figure 2-7 shows:

Figure 2-7 Set Priorities in Boot Tab

c. Save the BIOS configuration and exit.

Step 6 ILOM Console

a. In the Remote Control tab of SP ILOM, click Launch Remote Console and it opens in Java.

b. In the Devices tab, select keyboard and mouse.

c. Hard-reboot the Sun server.

d. Wait until the Sun server boots and follow the screen on the Remote Console. Then you will see the message similar to the following:

Initializing Intel(R) Boot Agent GE v1.3.31

PXE 2.1 Build 086 (WfM 2.0)

Initializing and establishing link...

e. When you see a menu of available Boot-Source options, choose the second option "Solaris 10 09/10 - Jumpstart (Console ttya)".

f. Then you will see the message similar to the following:

Initializing................../

g. Connect the Sun server with a console cable on Serial Mgmt port.

Step 7 Console_Jumpstart

a. After you connect to the Sun server with a console cable, you will get a -> prompt.

b. Enter the following command:

-> start /SP/console

c. You will see the Solaris installation steps and decompressing of files on the server (size 665MB).

d. After completion you will receive the message similar to the following:

+ awk {print$1}

+ df -k

+ grep -i cdrom

CDROM=/dev/dsk/c1t0d0p0

+ umount /cdrom

+ sleep 5

+ eject /dev/dsk/c1t0d0p0

Finish script x86-finish execution completed.

The begin script log 'begin.log'

is located in /var/sadm/system/logs after reboot.

The finish script log 'finish.log'

is located in /var/sadm/system/logs after reboot.

Solaris installation program completed.

e. Note down the AMI Virtual CDROM device name (as shown on screen after Solaris installation, in the above example, which is /dev/dsk/c1t0d0p0).

You can also check the device name in the log file /var/sadm/system/logs/ finish.log. It is useful later for mounting the CD-ROM for installing core_finish.

f. After auto-reboot, you will get a # prompt.

g. Enter the following command:

# sys-unconfig

  This program will also halt the system...

  Do you want to continue (y/n) ? Y

h. Press any key to reboot. The Sun server will reboot and show keyboard options.

i. Enter keyboard layout: US-English. If it comes back to # prompt, then do sys-unconfig again as following:

# sys-unconfig

  This program will also halt the system...

  Do you want to continue (y/n) ? Y

j. Press any key to reboot.

k. Continue with the rest of the Jumpstart process by following on-screen instructions or options:

What type of terminal are you using?: [X]  12) X Terminal.

See the "Configuring Your Host" section for details.

Step 8 Install Core_finish by the following two methods:

Method A

a. Re-insert the JS11 Jumpstart CD-ROM "PGW-sol10-x86-09..." into the CD-ROM drive of your local PC.

b. Re-open the console window of the server. Make sure there is a directory "cdrom" under the root "/". If not, please make the directory with the command:

bash# mkdir /cdrom

Then enter the following commands:

bash# cd /

bash# mount -F hsfs -o ro /dev/dsk/<dev_name>  /cdrom

bash# ./cdrom/core_finish/core_finish.sh

where <dev_name> is the AMI Virtual CD-ROM device_name as shown on screen after Solaris installation.

c. Provide the hostname of the server.

d. The CD-ROM will eject after the installation of core_finish is finished.

Method B

a. Copy the provided Corefinish.tar.gz to /cdrom/ on the server.

b. Enter the following commands:

bash# cd /cdrom

bash# gunzip Corefinish.tar.gz

bash# tar -xvf Corefinish.tar

bash# ./cdrom/core_finish/core_finish.sh

c. Provide the hostname of the server.

d. The Jumpstart process is completed.

Configuring Your Host

Step 1 If you are already logged in to your host platform, proceed to Step 2. Otherwise log in as root and use the default password, vtghost. The system displays something similar to the following:

Sep  8 01:15:08 vtghost login: ROOT LOGIN /dev/console

Sun Microsystems Inc.   SunOS 5.10      Generic January 2005.

Step 2 Reconfigure the system by entering the sys-unconfig command and pressing Enter.

A screen similar to the following is displayed:

                        WARNING

This program will unconfigure your system.  It will cause it

to revert to a "blank" system - it will not have a name or know

about other systems or networks.

This program will also halt the system.

Do you want to continue (y/n) ?

Step 3 Enter y to continue the reconfiguration process and press Enter.

Note If you are installing the Sun Solaris 10 Operating System from the Cisco Solaris 10 Operating System Jumpstart Disk for Opteron-based platforms (Version 10/08), you may see the following Time of Day clock error message:

Mar 13 08:15:26 vtghost genunix: WARNING: Time of Day clock error: reason [Jumped by 0x1c21]. -- Stopped tracking Time Of Day clock.
svc.startd: The system is coming down. Please wait.
svc.startd: 64 system services are now being stopped.
Mar 13 08:15:37 vtghost syslogd: going down on signal 15

This error message disappears after the installation of the Opteron-based Communications Software Package (CSCOh036). Ignore the error message at this moment.

The system displays information similar to the following:

svc.startd: The system is coming down.  Please wait.

svc.startd: 57 system services are now being stopped.

Sep  8 01:22:21 vtghost rpcbind: rpcbind terminating on signal.

svc.startd: The system is down.

syncing file systems... done

Program terminated

{1} ok

Step 4 Reboot your system using the method identified for your platform type:

•Sparc-based platforms—Enter the boot command and press Enter to reboot the system.

•Opteron-based platforms—Press any key to reboot the system.

Note If you are installing Solaris 10 on an Opteron-based platform, you might be prompted during the reboot to enter Ctrl-B or Ctrl-C to open configuration tools for your hardware. You do not need to open any of these tools to complete this installation.

The system displays information similar to the following:

SC Alert: Host System has Reset

 Probing system devices

Probing memory

Probing I/O buses

Sun Fire V210, No Keyboard

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

OpenBoot 4.18.5, 2048 MB memory installed, Serial #52030991.

Ethernet address 0:3:ba:19:ee:f, Host ID: 8319ee0f.

Initializing     1MB of memory at addr        103feec000

Initializing     1MB of memory at addr        103fee0000

Initializing    15MB of memory at addr        103f002000

Initializing    16MB of memory at addr        103e002000

Initializing   992MB of memory at addr        1000000000

Initializing  1024MB of memory at addr                 0

Rebooting with command: boot

Boot device: /pci@1c,600000/scsi@2/disk@0,0:a  File and args:

SunOS Release 5.10 Version Generic_118833-17 64-bit

Copyright 1983-2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Hardware watchdog enabled

Hostname: unknown

Configuring devices.

checking ufs filesystems

/dev/rdsk/c1t0d0s5: is logging.

Step 5 If you are installing on a Sparc-based platform, you must select your terminal type when a screen similar to the following is displayed:

What type of terminal are you using?

  1) ANSI Standard CRT

  2) DEC VT52

  3) DEC VT100

  4) Heathkit 19

  5) Lear Siegler ADM31

  6) PC Console

  7) Sun Command Tool

  8) Sun Workstation

  9) Televideo 910

 10) Televideo 925

 11) Wyse Model 50

 12) X Terminal Emulator (xterms)

 13) CDE Terminal Emulator (dtterm)

 13) Other

Type the number of your choice and press Return:

Note On Opteron-based platforms, you can select a terminal type from the picklist, or the default terminal type (from the serial port) is used. We recommend that you use the default terminal while you are installing software.

Enter the number that corresponds to the terminal you are using and press Enter. For example, if you are using an X terminal emulator, type 12 and press Enter.

The system displays information similar to the following:

Creating new rsa public/private host key pair

Creating new dsa public/private host key pair

Configuring network interface addresses: bge0 bge1 bge2 bge3.

Text similar to the following is displayed:

in.rdisc: No interfaces up

- Network Connectivity --------------------------------------------------------

  Specify Yes if the system is connected to the network by one of the Solaris

  or vendor network/communication Ethernet cards that are supported on the

  Solaris CD. Refer to your hardware documentation for the current list of

  supported cards.

  Specify No if the system is connected to a network/communication card that

  is not supported on the Solaris CD, and follow the instructions listed under

  Help.

      Networked

      ---------

      [X] Yes

      [ ] No

-------------------------------------------------------------------------------

     ESC-2_Continue    ESC-6_Help

Step 6 Use the arrow keys to navigate, and press the spacebar to make your selection. Verify that Yes is selected, and press ESC-2 to continue.

Text similar to the following is displayed:

- Configure Multiple Network Interfaces ---------------------------------------

  Multiple network interfaces have been detected on this system.  Specify all

  of the network interfaces you want to configure.

  Note: You must choose at least one interface to configure.

      Network interfaces

      ------------------

      [ ] bge0

      [ ] bge1

      [ ] bge2

      [ ] bge3

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Note This screen may show a different interface, depending on the platform and PCI card that are installed. For details, see Table 2-1 ("Device Names on the Supported Host Platforms").

Caution

The interface configuration prompts do not provide an option to return to a previous step or exit interface configuration. If you enter an incorrect value, power down the Cisco PGW 2200 Softswitch, power up the Cisco PGW 2200 Softswitch, and return to Step 4.

Step 7 Select the interface(s) you want to configure and press ESC-2 to continue.

If you chose to configure a single interface, proceed to Step 9.
If you chose to configure multiple interfaces, proceed to Step 8.

Step 8 Text similar to the following is displayed:

- Primary Network Interface ---------------------------------------------------

  On this screen you must specify which of the following network adapters is

  the system's primary network interface.  Usually the correct choice is the

  lowest number.  However, do not guess; ask your system administrator if

  you're not sure.

  > To make a selection, use the arrow keys to highlight the option and

    press Return to mark it [X].

      Primary network interface

        ----------------

      [ ] bge0

      [ ] bge1

	  [ ] bge2

	  [ ] bge3

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Select your primary network interface and press ESC-2 to continue.

Step 9 Text similar to the following is displayed:

- DHCP for bge0 -----------------------------------------------------------------

  Specify whether or not this network interface should use DHCP to configure

  itself.  Choose Yes if DHCP is to be used, or No if the network interface is

  to be configured manually.

  NOTE: DHCP support will not be enabled, if selected, until after the system

  reboots.

      Use DHCP for bge0

      ----------------

      [ ] Yes

      [X] No

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Step 10 Verify that No is selected and press ESC-2 to continue.

Text similar to the following is displayed:

- Host Name for bge0 -----------------------------------------------------------

  Enter the host name which identifies this system on the network.  The name

  must be unique within your domain; creating a duplicate host name will cause

  problems on the network after you install Solaris.

  A host name must be at least two characters; it can contain letters, digits,

  and minus signs (-).

    Host name for bge0:

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Caution

If you are configuring your system with multiple interfaces, remember that each interface must have a unique name. Using the same name for multiple interfaces causes the installation script to enter a loop, forcing you to reboot your system.

Step 11 Type the host name of the target Netra machine, and press ESC-2 to continue.

Note For machine-specific information such as host name, see your notes in "Preparing for Sun Solaris Operating System and Cisco PGW 2200 Softswitch Software Installation" Table 1-3, "Machine-Specific Checklist" if you used the checklist to note the host name.

Text similar to the following is displayed:

- IP Address for bge0 -----------------------------------------------------------

  Enter the Internet Protocol (IP) address for this network interface.  It

  must be unique and follow your site's address conventions, or a

  system/network failure could result.

  IP addresses contain four sets of numbers separated by periods (for example

  129.200.9.1).

    IP address:

--------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Step 12 Enter the IP address of this interface in dotted decimal format and press ESC-2 to continue.

Note See "Machine-Specific Checklist" in Table 1-3 if you used the checklist to record the IP address.

Text similar to the following is displayed:

- Subnet for bge0 --------------------------------------------------------------

  On this screen you must specify whether this system is part of a subnet.  If

  you specify incorrectly, the system will have problems communicating on the

  network after you reboot.

  > To make a selection, use the arrow keys to highlight the option and

    press Return to mark it [X].

      System part of a subnet

      -----------------------

      [X] Yes

      [ ] No

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Note If you need to modify your IP addresses after you have installed Sun Solaris 10, there are three files you need to update, instead of the two files required in previous releases of Sun Solaris operating system software. The following files must be edited to in order to modify the IP address for an interface:

/etc/inet/hosts
/etc/hostname.inf_name
/etc/inet/ipnodes

Where inf_name is the name of the interface, such as bge1.

Step 13 Verify that Yes is selected (use the arrow keys to move the cursor to Yes and press the spacebar to select it). Press ESC-2 to continue.

A screen similar to the following is displayed:

- Netmask for bge0 -------------------------------------------------------------

  On this screen you must specify the netmask of your subnet.  A default

  netmask is shown; do not accept the default unless you are sure it is

  correct for your subnet.  A netmask must contain four sets of numbers

  separated by periods (for example 255.255.255.0).

    Netmask:

----------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Step 14 Enter the site-specific Subnet Mask for the subnet (see "Site-Specific Information" in Table 1-2, if you recorded the information provided by your site administrator in this table). Press ESC-2 to continue.

Text similar to the following is displayed:

- IPv6 for bge0 -----------------------------------------------------------------

  Specify whether or not you want to enable IPv6, the next generation Internet

  Protocol, on this network interface.  Enabling IPv6 will have no effect if

  this machine is not on a network that provides IPv6 service.  IPv4 service

  will not be affected if IPv6 is enabled.

  > To make a selection, use the arrow keys to highlight the option and

    press Return to mark it [X].

      Enable IPv6 for bge0

      -------------------

      [ ] Yes

      [X] No

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Note The system takes approximately 30 seconds to process this selection. A countdown appears in the display after you activate your choice.

Step 15 Verify that No is selected and press ESC-2 to continue.

Text similar to the following is displayed:

- Set the Default Route for bge0 -----------------------------------------------

  To specify the default route, you can let the software try to detect one

  upon reboot, you can specify the IP address of the router, or you can choose

  None.  Choose None if you do not have a router on your subnet.

  > To make a selection, use the arrow keys to select your choice and press

  Return to mark it [X].

      Default Route for bge0

      --------------------------

      [ ] Detect one upon reboot

      [X] Specify one

      [ ] None

-------------------------------------------------------------------------------

    ESC-2_Continue   ESC-6_Help

Step 16 Verify that Specify one is selected and press ESC-2 to continue.

Text similar to the following is displayed:

- Default Route IP Address for bge0 --------------------------------------------

  Enter the IP address of the default route. This entry will be placed in the

  /etc/defaultrouter file and will be the default route after you reboot

  (example 129.146.89.225).

    Router IP Address for bge0

-------------------------------------------------------------------------------

    ESC_Continue    ESC-6_Help

Step 17 Enter the Router IP address of this interface in dotted decimal format and press ESC-2 to continue.

Note See "Solaris 10 Required Media Checklist" in Table 1-2 if you used the checklist to record the router IP address.

Text similar to the following is displayed:

- Confirm Information for bge0 -------------------------------------------------

  > Confirm the following information.  If it is correct, press F2;

    to change any information, press F4.

                  Primary network interface: Yes

                   Use DHCP: No

                  Host name: va-host

                 IP address: 10.74.49.153

    System part of a subnet: Yes

                    Netmask: 255.255.255.224

                Enable IPv6: No

              Default Route: Specify one

          Router IP Address: 10.74.49.129

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-4_Change    ESC-6_Help

Step 18 Confirm the information displayed. Press ESC-2 to accept the information and continue, or press ESC-4 to go back and make changes.

Note The system takes approximately 30 seconds to process this selection. A countdown appears in the display after you activate your choice.

If you chose to configure a single interface, proceed to Step 20.
If you chose to configure multiple interfaces, proceed to Step 19.

Step 19 Repeat steps 9 through 18 for your next interface. These steps should be repeated until all of your interfaces are configured.

Step 20 Text similar to the following is displayed:

- Configure Security Policy: --------------------------------------------------

  Specify Yes if the system will use the Kerberos security mechanism.

  Specify No if this system will use standard UNIX security.

      Configure Kerberos Security

      ---------------------------

      [ ] Yes

      [X] No

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Step 21 Verify that No is selected and press ESC-2 to continue.

Text similar to the following is displayed:

- Confirm Information -

  > Confirm the following information.  If it is correct, press F2;

    to change any information, press F4.

    Configure Kerberos Security: No

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-4_Change    ESC-6_Help

Step 22 Confirm your previous answer of No and press ESC-2 to continue.

Text similar to the following is displayed:

- Name Service ----------------------------------------------------------------

  On this screen you must provide name service information.  Select the name

  service that will be used by this system, or None if your system will either

  not use a name service at all, or if it will use a name service not listed

  here.

  > To make a selection, use the arrow keys to highlight the option

    and press Return to mark it [X].

      Name service

      ------------

      [ ] NIS+

      [ ] NIS

      [ ] DNS

      [ ] LDAP

      [X] None

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Step 23 Use the arrow keys to move the cursor to None and press the spacebar to select it. Press ESC-2 to continue. Text similar to the following is displayed:

- DNS Search List -------------------------------------------------------------

  On this screen you can enter a list of domains that will be searched when a

  DNS query is made.  If you do not enter any domains, DNS will only search

  the DNS domain chosen for this system.  The domains entered, when

  concatenated, may not be longer than 250 characters.

    Search domain: yourdomain.com

    Search domain:

    Search domain:

    Search domain:

    Search domain:

    Search domain:

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Step 24 Enter the names of the search domains for this system and press ESC-2 to continue.

Note See "Machine-Specific Checklist", Table 1-3, if you used the checklist to record the names of the search domains.

Text similar to the following is displayed:

- Confirm Information ---------------------------------------------------------

  > Confirm the following information.  If it is correct, press F2;

    to change any information, press F4.

          Name service: NONE

          Domain name:

          Server address(es):

          Search domain(s): yourdomain.com

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-4_Change    ESC-6_Help

Step 25 Confirm your previous answers and press ESC-2 to continue.

Text similar to the following is displayed:

- Time Zone -------------------------------------------------------------------

  On this screen you must specify your default time zone.  You can specify a

  time zone in three ways:  select one of the continents or oceans from the

  list, select other - offset from GMT, or other - specify time zone file.

  > To make a selection, use the arrow keys to highlight the option and

    press Return to mark it [X].

      Continents and Oceans

      ---------------------------------------

  -   [ ] Africa

  x   [ ] Americas

  x   [ ] Antarctica

  x   [ ] Arctic Ocean

  x   [ ] Asia

  x   [ ] Atlantic Ocean

  x   [ ] Australia

  x   [ ] Europe

  v   [ ] Indian Ocean

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Step 26 Select the time zone where the system is located.

Note The following two steps show how to set the time zone. The example shows United States Eastern time.

a. Use the arrow keys to move the cursor to Americas and press the spacebar to select it, then press ESC-2 to continue.

Text similar to the following is displayed:

- Country or Region -------------------------------------------------------

  > To make a selection, use the arrow keys to highlight the option and

    press Return to mark it [X].

      Countries and Regions

      --------------------------

  -   [ ] United States

  x   [ ] Anguilla

  x   [ ] Antigua & Barbuda

  x   [ ] Argentina

  x   [ ] Aruba

  x   [ ] Bahamas

  x   [ ] Barbados

  x   [ ] Belize

  x   [ ] Bolivia

  x   [ ] Brazil

  x   [ ] Canada

  x   [ ] Cayman Islands

  v   [ ] Chile    press Return to mark it [X].

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

b. Use the arrow keys to move the cursor to United States and press the spacebar to select it, then press ESC-2 to continue.

Text similar to the following is displayed:

- Time Zone -------------------------------------------------------------------

  > To make a selection, use the arrow keys to highlight the option and

    press Return to mark it [X].

      Time zones

      --------------------------------------------------------

  -   [ ] Eastern Time

  x   [ ] Eastern Time - Michigan - most locations

  x   [ ] Eastern Time - Kentucky - Louisville area

  x   [ ] Eastern Time - Kentucky - Wayne County

  x   [ ] Eastern Standard Time - Indiana - most locations

  x   [ ] Eastern Standard Time - Indiana - Crawford County

  x   [ ] Eastern Standard Time - Indiana - Starke County

  x   [ ] Eastern Standard Time - Indiana - Switzerland County

  x   [ ] Central Time

  x   [ ] Central Time - Michigan - Wisconsin border

  x   [ ] Central Time - North Dakota - Oliver County

  x   [ ] Mountain Time

  v   [ ] Mountain Time - south Idaho & east Oregon

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

c. Use the arrow keys to move the cursor to your time zone (in this example, "Eastern Time" is selected) and press the space bar to select it. Press ESC-2 to continue.

Text similar to the following is displayed:

- Date and Time ---------------------------------------------------------------

  > Accept the default date and time or enter

    new values.

  Date and time: 2008-09-08 02:58

    Year   (4 digits) : 2008

    Month  (1-12)     : 09

    Day    (1-31)     : 08

    Hour   (0-23)     : 02

    Minute (0-59)     : 58

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-6_Help

Step 27 Enter the correct date and time and press ESC-2 to continue.

Text similar to the following is displayed:

- Confirm Information ---------------------------------------------------------

  > Confirm the following information.  If it is correct, press F2;

    to change any information, press F4.

        Time zone: Eastern Time

                   (US/Eastern)

    Date and time: 2008-09-08 02:58:00

-------------------------------------------------------------------------------

    ESC-2_Continue    ESC-4_Change    ESC-6_Help

Step 28 Verify the information and press ESC-2 to continue.

Text similar to the following might be displayed:

        This system is configured with NFS version 4, which uses a domain

        name that is automatically derived from the system's name services.

        The derived domain name is sufficient for most configurations. In a

        few cases, mounts that cross different domains might cause files to

        be owned by "nobody" due to the lack of a common domain name.

        Do you need to override the system's default NFS version 4 domain

        name (yes/no) ? [no] :

Step 29 Enter no to continue the reconfiguration process and press Enter.

Text similar to the following is displayed:

        For more information about how the NFS version 4 default domain

        name is derived and its impact, see the man pages for nfs(4)

        and nfsmapid(1m), and the System Administration Guide: Network

        Services.

rebooting system due to change(s) in /etc/default/init

syncing file systems... done

rebooting...

SC Alert: Host System has Reset

Probing system devices

Probing memory

Probing I/O buses

Note On Opteron-based platforms, you can select a terminal type from the picklist, or the default terminal type (serial port). We recommend that you use the default terminal type while you are installing software.

Sun Fire V210, No Keyboard

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

OpenBoot 4.18.5, 2048 MB memory installed, Serial #52030991.

Ethernet address 0:3:ba:19:ee:f, Host ID: 8319ee0f.

Initializing     1MB of memory at addr        103feec000

Initializing     1MB of memory at addr        103fee0000

Initializing    15MB of memory at addr        103f002000

Initializing    16MB of memory at addr        103e002000

Initializing   992MB of memory at addr        1000000000

Initializing  1024MB of memory at addr                 0

Rebooting with command: boot

Boot device: /pci@1c,600000/scsi@2/disk@0,0:a  File and args:

SunOS Release 5.10 Version Generic_118833-17 64-bit

Copyright 1983-2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Hardware watchdog enabled

Hostname: bge0

checking ufs filesystems

/dev/rdsk/c1t0d0s5: is logging.

bge0 console login: root

Sep  8 03:00:15 bge0 login: ROOT LOGIN /dev/console

Step 30 If you want to enable root access to the Cisco PGW 2200 Softswitch via telnet, follow these steps:

a. Edit the /etc/default/login file, and make the following changes:

–Comment out the line starting with "CONSOLE=" by inserting a "#" in front of this line.

–Add the line "svcadm enable telnet" if you want to enable telnet.

–Add the line "svcadm enable rlogin" if you want to enable remote login.

b. Save your changes to this file.

Step 31 If you want to enable root access to the Cisco PGW 2200 Softswitch via SSH, follow these steps:

a. Edit the /etc/ssh/sshd_config file and change the value of the PermitRootLogin parameter from no to yes.

b. Save your changes to this file.

c. Identify the process ID of the sshd process by entering the following command:

ps -ef | grep ssh

d. Restart the sshd process and activate your changes by entering the following command:

kill -l process_id

Where process_id is the ssh process ID number identified in the previous step.

You have completed configuring your host. Proceed to the "Platform-Specific Installation Procedures" section.

Platform-Specific Installation Procedures

Complete the following steps to install files specific to your Cisco platform:

Step 1 Log in as root and use the default password, vtghost. The system displays something similar to the following:

Sep  8 03:05:15 bge0 login: ROOT LOGIN /dev/console

Last login: Mon Sep 8 03:00:22 on console

Sun Microsystems Inc.   SunOS 5.10      Generic January 2005

Step 2 Reinsert the CD into the CD-ROM drive.

Step 3 Mount the CD-ROM in the cdrom directory by entering the following command:

# mount -F hsfs -o ro /dev/dsk/devname /cdrom

Where devname is the device name for the primary CD-ROM drive. The following device names are valid:

•c0t0d0s0—Device name for primary CD-ROM on a Sparc-based platform.

•c0t0d0p0—Device name for primary CD-ROM on an Opteron-based platform.

Step 4 Run the core_finish script by entering the appropriate command:

•For Sparc-based platforms: ./cdrom/core_finish/core_finish.sh

•For Opteron-based platforms: ./cdrom/core_finish/core_finish.sh

Step 5 Enter the name of your host and press Enter as prompted.

Note Entering the name of your host at this time does not set the UNIX host name value. The value you enter here is used to set up a crash directory: /var/hostname/crash

The system returns a response similar to the following:

Start installation of core extra packages

Adding <SUNWvts>

Processing package instance <SUNWvts> from </opt/xtrapkgs>

SunVTS Framework(sparc) 6.2,REV=2006.05.04.11.52

Using </opt> as the package base directory.

## Processing package information.

## Processing system information.

Installing SunVTS Framework as <SUNWvts>

## Installing part 1 of 1.

/opt/SUNWvts/README

/opt/SUNWvts/bin/.platform_table

/opt/SUNWvts/bin/.sunvts_release

/opt/SUNWvts/bin/.sunvts_sec

/opt/SUNWvts/bin/.sunvts_sec_gss

/opt/SUNWvts/bin/.version

...

/opt/SUNWvts/lib/sparcv9/libvtsutil.so <symbolic link>

/opt/SUNWvts/lib/sparcv9/libvtsutil.so.1

[ verifying class <none> ]

Copyright 2006 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Installation of <SUNWvts> was successful.

Adding <SUNWvtsr>

Processing package instance <SUNWvtsr> from </opt/xtrapkgs>

SunVTS Framework (Root)(sparc) 6.2,REV=2006.05.04.11.52

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   2 package pathnames are already properly installed.

Installing SunVTS Framework (Root) as <SUNWvtsr>

## Installing part 1 of 1.

/etc/opt/SUNWvts/sunvts.conf.example

[ verifying class <none> ]

Copyright 2006 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Installation of <SUNWvtsr> was successful.

Adding <SUNWvtsts>

Processing package instance <SUNWvtsts> from </opt/xtrapkgs>

SunVTS for Tests(sparc) 6.2,REV=2006.05.04.11.52

Using </opt> as the package base directory.

## Processing package information.

## Processing system information.

   14 package pathnames are already properly installed.

Installing SunVTS for Tests as <SUNWvtsts>

## Installing part 1 of 1.

/opt/SUNWvts/bin/bios.bin <symbolic link>

/opt/SUNWvts/bin/cmos.bin <symbolic link>

/opt/SUNWvts/bin/env6test

/opt/SUNWvts/bin/hsclbtest

/opt/SUNWvts/bin/i2c2test

/opt/SUNWvts/bin/nalmtest

...

/opt/SUNWvts/lib/probe/sparcv9/vmemtest_probe.so

/opt/SUNWvts/lib/probe/ssptest_probe.so

/opt/SUNWvts/lib/probe/sunlink_probe.so

[ verifying class <none> ]

Copyright 2006 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Installation of <SUNWvtsts> was successful.

Adding <SUNWexplo>

Processing package instance <SUNWexplo> from </opt/xtrapkgs>

Sun(TM) Explorer Data Collector(all) 5.5,REV=2006.07.14.01.46

## Executing checkinstall script.

Copyright 1996-2006 Sun Microsystems, Inc.

All rights reserved.

Using </opt> as the package base directory.

## Processing package information.

## Processing system information.

Installing Sun(TM) Explorer Data Collector as <SUNWexplo>

## Executing preinstall script.

## Installing part 1 of 1.

/opt/SUNWexplo/LICENSEREADME/LICENSE.txt

/opt/SUNWexplo/LICENSEREADME/THIRDPARTYLICENSEREADME.txt

/opt/SUNWexplo/LICENSEREADME/gzip-1.2.4a.tar.gz

/opt/SUNWexplo/bin/capture.sparc

...

/opt/SUNWexplo/tools/var

/opt/SUNWexplo/tools/vtsst

/opt/SUNWexplo/tools/vxfs

/opt/SUNWexplo/tools/vxvm

[ verifying class <none> ]

## Executing postinstall script.

/usr/bin/catman is not available for use

Please run: catman -w -M /opt/SUNWexplo/man manually

Installation of <SUNWexplo> was successful.

Adding <SUNWexplu>

Processing package instance <SUNWexplu> from </opt/xtrapkgs>

Sun(TM) Explorer Data Collector Config Files(all) 5.5,REV=2006.07.14.01.46

## Executing checkinstall script.

Copyright 1996-2006 Sun Microsystems, Inc.

All rights reserved.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   2 package pathnames are already properly installed.

Installing Sun(TM) Explorer Data Collector Config Files as <SUNWexplu>

## Installing part 1 of 1.

/etc/opt/SUNWexplo/LICENSEREADME/LICENSE.txt

/etc/opt/SUNWexplo/t3files.txt

[ verifying class <none> ]

Modifying /etc/opt/SUNWexplo/1280input.txt

Modifying /etc/opt/SUNWexplo/alominput.txt

Modifying /etc/opt/SUNWexplo/b1600input.txt

Modifying /etc/opt/SUNWexplo/b1600switchinput.txt

Modifying /etc/opt/SUNWexplo/ilominput.txt

Modifying /etc/opt/SUNWexplo/indyinput.txt

Modifying /etc/opt/SUNWexplo/ipmiinput.txt

Modifying /etc/opt/SUNWexplo/saninput.txt

Modifying /etc/opt/SUNWexplo/scinput.txt

Modifying /etc/opt/SUNWexplo/se3kinput.txt

Modifying /etc/opt/SUNWexplo/se6320input.txt

Modifying /etc/opt/SUNWexplo/se6920input.txt

Modifying /etc/opt/SUNWexplo/srscinput.txt

Modifying /etc/opt/SUNWexplo/t3input.txt

[ verifying class <build> ]

## Executing postinstall script.

Installation of <SUNWexplu> was successful.

Adding <SUNWpsr>

Processing package instance <SUNWpsr> from </opt/xtrapkgs>

Solaris Print - LP Server, (root)(sparc) 13.1,REV=2005.01.21.15.53

Using </> as the package base directory.

## Processing system information.

   11 package pathnames are already properly installed.

Installing Solaris Print - LP Server, (root) as <SUNWpsr>

## Executing preinstall script.

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

## Installing part 1 of 1.

19 blocks

[ verifying class <renameold> ]

[ verifying class <preserve> ]

[ verifying class <manifest> ]

## Executing postinstall script.

Installation of <SUNWpsr> was successful.

Adding <SUNWpcr>

Processing package instance <SUNWpcr> from </opt/xtrapkgs>

Solaris Print - Client, (root)(sparc) 13.1,REV=2005.01.21.15.53

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   10 package pathnames are already properly installed.

Installing Solaris Print - Client, (root) as <SUNWpcr>

## Installing part 1 of 1.

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

2 blocks

[ verifying class <preserve> ]

[ verifying class <manifest> ]

## Executing postinstall script.

Installation of <SUNWpcr> was successful.

Adding <SUNWpcu>

Processing package instance <SUNWpcu> from </opt/xtrapkgs>

Solaris Print - Client, (usr)(sparc) 13.1,REV=2005.01.21.15.53

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   4 package pathnames are already properly installed.

Installing Solaris Print - Client, (usr) as <SUNWpcu>

## Installing part 1 of 1.

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

541 blocks

Installation of <SUNWpcu> was successful.

Adding <SUNWpsu>

Processing package instance <SUNWpsu> from </opt/xtrapkgs>

Solaris Print - LP Server, (usr)(sparc) 13.1,REV=2005.01.21.15.53

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   12 package pathnames are already properly installed.

Installing Solaris Print - LP Server, (usr) as <SUNWpsu>

## Installing part 1 of 1.

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

3090 blocks

Installation of <SUNWpsu> was successful.

Adding <SFWsudo>

Processing package instance <SFWsudo> from </opt/xtrapkgs>

Sudo - superuser do(sparc) 1.6.8.5,REV=2006.03.26.16.30

Using </opt> as the package base directory.

## Processing package information.

## Processing system information.

Installing Sudo - superuser do as <SFWsudo>

## Installing part 1 of 1.

/opt/sfw/READMEs/README.SFWsudo

/opt/sfw/bin/sudo

/opt/sfw/etc/sudoers

/opt/sfw/man/man1m/sudo.1m

/opt/sfw/man/man1m/visudo.1m

/opt/sfw/man/man4/sudoers.4

/opt/sfw/sbin/visudo

[ verifying class <none> ]

Sudo is distributed under the following ISC-style license:

   Copyright (c) 1994-1996,1998-2004 Todd C. Miller <Todd.Miller@courtesan.com>

   Permission to use, copy, modify, and distribute this software for any

   purpose with or without fee is hereby granted, provided that the above

   copyright notice and this permission notice appear in all copies.

   THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES

   WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF

   MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR

   ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES

   WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN

   ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF

   OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

   Sponsored in part by the Defense Advanced Research Projects

   Agency (DARPA) and Air Force Research Laboratory, Air Force

   Materiel Command, USAF, under agreement number F39502-99-1-0512.

Additionally, err.c, lsearch.c, fnmatch.c, getcwd.c, snprintf.c, strcasecmp.c,

fnmatch.h, err.h, and fnmatch.3 bear the following UCB license:

   Copyright (c) 1987, 1989, 1990, 1991, 1993, 1994

	The Regents of the University of California.  All rights reserved.

   Redistribution and use in source and binary forms, with or without

   modification, are permitted provided that the following conditions

   are met:

   1. Redistributions of source code must retain the above copyright

      notice, this list of conditions and the following disclaimer.

   2. Redistributions in binary form must reproduce the above copyright

      notice, this list of conditions and the following disclaimer in the

      documentation and/or other materials provided with the distribution.

   3. Neither the name of the University nor the names of its contributors

      may be used to endorse or promote products derived from this software

      without specific prior written permission.

   THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND

   ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

   IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

   ARE DISCLAIMED.  IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE

   FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

   DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS

   OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

   HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT

   LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY

   OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF

   SUCH DAMAGE.

YOU MUST OBSERVE ANY AUTHORS' CONDITIONS WITH RESPECT TO

INDIVIDUAL COMPONENTS PROVIDED WITHIN THIS CODE.  SUPPORT

FOR THE TECHNOLOGIES AND DOCUMENTATION IS NOT PROVIDED

BY SUN MICROSYSTEMS, INC.

THE TECHNOLOGIES AND DOCUMENTATION ARE PROVIDED "AS IS" WITHOUT TECHNICAL

SUPPORT OR WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, OR NON-INFRINGEMENT.

Installation of <SFWsudo> was successful.

SUNW,Sun-Fire-V210 does not need LOM packages

Validating patches...

Loading patches installed on the system...

Done!

Loading patches requested to install.

Done!

Checking patches that you specified for installation.

Done!

Approved patches will be installed in this order:

123526-01

Checking installed patches...

Verifying sufficient filesystem capacity (dry run method)...

Installing patch packages...

Patch 123526-01 has been successfully installed.

See /var/sadm/patch/123526-01/log for details

Patch packages installed:

  SUNWcslr

Validating patches...

Loading patches installed on the system...

Done!

Loading patches requested to install.

Done!

Checking patches that you specified for installation.

Done!

Approved patches will be installed in this order:

119963-08

Checking installed patches...

Verifying sufficient filesystem capacity (dry run method)...

Installing patch packages...

Patch 119963-08 has been successfully installed.

See /var/sadm/patch/119963-08/log for details

Patch packages installed:

  SUNWlibC

Validating patches...

Loading patches installed on the system...

Done!

Loading patches requested to install.

Done!

The following requested patches have packages not installed on the system

Package SUNWarc from directory SUNWarc in patch 119578-30 is not installed on the system.
Changes for package SUNWarc will not be applied to the system.

Package SUNWhea from directory SUNWhea in patch 119578-30 is not installed on the system.
Changes for package SUNWhea will not be applied to the system.

Package FJSVfmd from directory FJSVfmd in patch 119578-30 is not installed on the system.
Changes for package FJSVfmd will not be applied to the system.

Checking patches that you specified for installation.

Done!

Approved patches will be installed in this order:

119578-30

Checking installed patches...

Executing prepatch script...

Temporarily disabling fmd(1M)

Verifying sufficient filesystem capacity (dry run method)...

Installing patch packages...

Patch 119578-30 has been successfully installed.

See /var/sadm/patch/119578-30/log for details

Executing postpatch script...

Re-enabling fmd(1M)

Patch packages installed:

  SUNWckr

  SUNWcsl

  SUNWcsu

  SUNWfmd

Validating patches...

Loading patches installed on the system...

Done!

Loading patches requested to install.

Done!

The following requested patches have packages not installed on the system

Package SUNWarc from directory SUNWarc in patch 118833-36 is not installed on the system.
Changes for package SUNWarc will not be applied to the system.

Package SUNWarcr from directory SUNWarcr in patch 118833-36 is not installed on the
system. Changes for package SUNWarcr will not be applied to the system.

...

Package FJSVpiclu from directory FJSVpiclu in patch 118833-36 is not installed on the
system. Changes for package FJSVpiclu will not be applied to the system.

Checking patches that you specified for installation.

Done!

Approved patches will be installed in this order:

118833-36

Executing prePatch script...

Checking installed patches...

Executing prepatch script...

Disabling kernel module unloading ...

Verifying sufficient filesystem capacity (dry run method)...

Installing patch packages...

Patch 118833-36 has been successfully installed.

See /var/sadm/patch/118833-36/log for details

Executing postpatch script...

Patch packages installed:

  SUNW1394

  SUNWatfsr

  SUNWatfsu

  SUNWaudd

  SUNWbart

  SUNWbtool

  SUNWcakr

  SUNWcar

  SUNWckr

  SUNWcnetr

  SUNWcpcu

  SUNWcsd

  SUNWcsl

  SUNWcslr

  SUNWcsr

  SUNWcsu

  SUNWdtrc

  SUNWdtrp

  SUNWefc

  SUNWesu

  SUNWib

  SUNWintgige

  SUNWipfr

  SUNWipfu

  SUNWipoib

  SUNWkey

  SUNWkrbr

  SUNWkrbu

  SUNWkvm

  SUNWmdb

  SUNWmdbr

  SUNWmdr

  SUNWmdu

  SUNWnfsckr

  SUNWnfscr

  SUNWnfscu

  SUNWnisu

  SUNWopenssl-commands

  SUNWopenssl-libraries

  SUNWpcu

  SUNWpd

  SUNWpiclu

  SUNWpsu

  SUNWqos

  SUNWrcmdc

  SUNWroute

  SUNWrpcib

  SUNWsacom

  SUNWses

  SUNWsmapi

  SUNWssad

  SUNWtavor

  SUNWtoo

  SUNWudapltr

  SUNWudapltu

  SUNWuedg

  SUNWugen

  SUNWuksp

  SUNWuprl

  SUNWusb

  SUNWusbs

  SUNWwbsup

  SUNWxcu4

  SUNWxge

Completed installation of core extra packages

Start core hardening

Changing EEPROM settings..

Enable recording of failed login attempts

      Dump content: kernel pages

       Dump device: /dev/dsk/c1t0d0s3 (swap)

Savecore directory: /var/crash/sh-jingan

  Savecore enabled: yes

Completed core hardening

CORE CD installation completed

Ejecting CORE CD...

Rebooting ..

Note If you are installing the Sun Solaris 10 Operating System from the Cisco Solaris 10 Operating System Jumpstart Disk for Opteron-based platforms (Version 10/08), you may see the following error message close to the end of the system output:
Pattern 'svc:/network/rpc-100083_1/rpc_tcp:default' doesn't match any instances
This error message means the system cannot find the insecure service to remove. Ignore this error message.

Step 6 If you are installing the Sun Solaris 10 operating system from the Cisco Solaris 10 Operating System Jumpstart Disk for Opteron-based platforms (Version 10/08) on the Sun Fire X4640, the Sun Netra X4270, or the Sun Fire V40z platform, check the swap space using the following procedure. Otherwise, proceed to Step 7.

a. Enter the following command and write down the blocks capability.

swap -l

Text similar to the following is displayed:

swapfile              dev   swaplo  blocks   free

/dev/dsk/c3t2d0s3  29,195        8  8401984 8401984

b. Enter the following command and write down the memory size.

prtconf

Text similar to the following is displayed:

System Configuration:  Sun Microsystems  i86pc

Memory size: 8192 Megabytes

c. Make sure the swap space approximately equals half of the memory size using the following equation:

Step 7 If you are installing on a Sparc-based platform, perform the following steps. Otherwise, proceed to Step 8.

a. Change to the root directory by entering the following command and pressing Enter:

# cd /

b. Unmount the cdrom directory from the CD-ROM drive by entering the following command and pressing Enter:

# umount /cdrom

c. Eject the CD from the CD-ROM by entering the following command and pressing Enter:

# eject /dev/dsk/c0t0d0s0

Step 8 Remove the CD from the CD-ROM drive.

This completes the installation of platform-specific data. Proceed to the "Loading the Sun Solaris 10 Operating Environment" section.

Loading the Sun Solaris 10 Operating Environment

This section contains the procedures used to load the software packages that create the Sun Solaris 10 operating environment on your host platforms. Table 2-2 lists the order in which the software packages should loaded onto your system, broken down by platform type.

The currently deployed Solaris 10 patch set is release 3.0(6) which is available on Cisco.com.

•For Sparc-based platforms, go to

http://www.cisco.com/pcgi-bin/tablebuild.pl/mgc-sol10-sparc

•For Opteron-based platforms, go to

http://www.cisco.com/pcgi-bin/tablebuild.pl/mgc-sol10-opteron

Table 2-2 Sun Solaris 10 Operating Environment Package Installation Order
Products			Sparc-based Platforms	Opteron-based Platforms
Cisco PGW 2200 Softswitch	Cisco HSI	Cisco BAMS	Sparc-based Platforms	Opteron-based Platforms
X	X	X	Installing the Sparc-based Solaris 10 Patches Package (CSCOh022)	Installing the Opteron-based Solaris 10 Patches Package (CSCOh032)
X	X	—	Configuring Disk Drives—One of the following: •Systems with 36 GB, 73 GB, and 146 GB disk drives—Installing the Solstice DiskSuite (CSCOh023)	Configuring Disk Drives—One of the following: •Systems with 36 GB, 73 GB, or 146 GB disk drives—Installing the Solstice DiskSuite (CSCOh023)
X	—	—	•Systems with 18 GB disk drives—Installing the Log and Spool File Systems (CSCOh024)
—	—	X	•Cisco BAMS platforms—Installing Cisco BAMS Archive Partition (CSCOh027)
X	X	X	Installing the Sparc-based Communications and Alarm Software Package (CSCOh026)	Installing the Opteron-based Communications Software Package (CSCOh036)
X	X	X	Installing the Verification Test Suite Script Package (CSCOh021)	Installing the Verification Test Suite Script Package (CSCOh021)

Installing the Sparc-based Solaris 10 Patches Package (CSCOh022)

To install the Sparc-based Solaris 10 Operating System Patches package (CSCOh022):

Step 1 If you are using the CD-ROM, load the Cisco Solaris 10 Operating Environment CD into the CD-ROM drive. Enter the following command

# pkgadd -d /cdrom/cdrom0/CSCOh022.pkg

Text similar to the following is displayed:

The following packages are available:

  1  CSCOh022     Media Gateway Controller Solaris 10 Patch Cluster

                  (sparc) 3.0(6)

Select package(s) you wish to process (or 'all' to process

all packages). (default: all) [?,??,q]:

Note You can also download the Sparc-based Solaris 10 operating system patches package (CSCOh022) from Cisco.com. For example, download the CSCOh022 package to the /opt/SW folder on the Sparc-based platform and use the command, pkgadd -d /opt/SW/CSCOh022.pkg.

Step 2 Press Enter to select the default value. Text similar to the following is displayed:

Processing package instance <CSCOh022> from </var/tmp/CSCOh022.pkg>

Media Gateway Controller Solaris 10 Patch Cluster(sparc) 3.0(6)

Cisco Systems, Inc.

## Executing checkinstall script.

CSCOh022 checkinstall log file at /var/tmp/CSCOh022.checkinstall.log

Platform is SUNW,Sun-Fire-V210

Using </opt/sun_install> as the package base directory.

## Processing package information.

## Processing system information.

   1 package pathname is already properly installed.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

The following files are already installed on the system and are being

used by another package:

* /opt/sun_install <attribute change only>

* - conflict with a file which does not belong to any package.

Do you want to install these conflicting files [y,n,?,q]

Step 3 Type y and press Enter to continue. Text similar to the following is displayed:

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <CSCOh022> [y,n,?]

Step 4 Type y and press Enter to continue. Text similar to the following is displayed:

Installing Media Gateway Controller Solaris 10 Patch Cluster as <CSCOh0022>

The system lists the patches that it will install. This list will vary over time. A screen similar to the following is displayed:

....

!!

!!  You must now change directories to /opt/sun_install and

!!  run the installPatches.sh script as root.

!!

Installation of <CSCOh022> was successful.

Step 5 Change directory to /opt/sun_install and run the installPatches script by entering the following commands:

# cd /opt/sun_install

# ./installPatches.sh

Note During the installation of the Solaris 10 patch cluster, some patches might fail with return codes 2, 8, or 35. This is normal and does not indicate a problem with the installation. The following is an explanation of these error codes:

2—Attempting to apply a patch that is already applied.
8—Attempting to patch a package that is not installed.
35—A later version of the patch has already been installed.

Text similar to the following is displayed:

You are running as root - Good...

*** InstallPatches10 begins Wed Sep 10 01:16:25 EDT 2008 ***

VERSION='3.0(6)'

Platform is SUNW,Sun-Fire-V210

Install Solaris 10 patches from set 1 ...

Changed to /var/tmp directory

Now installing each patch from the patch cluster.  There are a large

number of these patches, and the install could take an hour or longer

to complete.  Please be patient.  You can follow the progress of the

install in the following log: /opt/sun_install/installPatches10.log

At least one patch failed to install. This may or may

not indicate a problem. Please look at the log file

after the rest of the patches are applied

Install Solaris 10 patches from set 2 ...

Changed to /var/tmp directory

*** InstallPatches10 ends Wed Sep 10 01:34:40 EDT 2008 ***

*************************************************

*    It is necessary to reboot this machine     *

*     for these patches to be incorporated      *

*   the operating system. Enter the following   *

*    command and press Enter:  reboot -- -r     *

*************************************************

Step 6 Type the following command and press Enter to reboot the target machine.

#reboot -- -r

Note If you used the CD-ROM drive to load the Solaris 10 patch cluster, eject the CD prior to rebooting.

This completes the procedures for installing the Solaris 10 patches for Sparc-based platforms. Go to Table 2-2 if you want to continue with the list for package installation. If you have questions or need assistance, see the "Obtaining Documentation and Submitting a Service Request" section.

Installing the Opteron-based Solaris 10 Patches Package (CSCOh032)

Note If you installed the Sun Solaris 10 Operating System from the Cisco Solaris 10 Operating System Jumpstart Disk for Opteron-based platforms (Version 10/08), you can ignore the following note. After the installation is complete, use the uname -a command to verify the patch level. If the patch level is 137138-09, CSCOh032 is successfully installed.

Note If you install CSCOh032 release 3.0(6) on top of release 3.0(5), run the CSCOh032 installation script once and reboot the system. See the following installation procedure.
If you do NOT install CSCOh032 release 3.0(6) on top of release 3.0(5), you need to run the CSCOh032 installation script twice. First run the CSCOh032 installation script, then reboot the system. Then run the CSCOh032 installation script again and reboot the system. After the second reboot is complete, use the uname -a command to verify the patch level. If the patch level is 127128-11, CSCOh032 is successfully installed.

To install the Opteron-based Solaris 10 Operating System Patches package (CSCOh032):

Step 1 If you are using the CD-ROM, load the Cisco Solaris 10 Operating Environment CD into the CD-ROM drive. Remount the CD-ROM by the command:

# mount -F hsfs -o ro /dev/dsk/<dev_name> /cdrom

where <dev_name> is either "c0t0d0p0", or as seen on screen after jumpstart (see the "Installation of Solaris JS11 through ILOM" section).

# pkgadd -d /cdrom/CSCOh032.pkg

Text similar to the following is displayed:

The following packages are available:

  1  CSCOh032     Media Gateway Controller Solaris 10 Patch Cluster

                  (i386) 3.0(6)

Select package(s) you wish to process (or 'all' to process

all packages). (default: all) [?,??,q]:

Note You can also download the Opteron-based Solaris 10 operating system patches package (CSCOh032) from Cisco.com. For example, download the CSCOh032 package to the /opt/SW folder on the Opteron-based platform and use the command, pkgadd -d /opt/SW/CSCOh032.pkg.

Step 2 Press Enter to select the default value. Text similar to the following is displayed:

Processing package instance <CSCOh032> from </var/tmp/CSCOh032.pkg>

Media Gateway Controller PGW Specific Solaris 10 packages(i386) 3.0(6)

Cisco Systems, Inc.

## Executing checkinstall script.

CSCOh032 checkinstall log file at /var/tmp/CSCOh032.checkinstall.log

Platform is i86pc

This machine is running Solaris 5.10

Using </opt/sun_install> as the package base directory.

## Processing package information.

## Processing system information.

   10 package pathnames are already properly installed.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <CSCOh032> [y,n,?]

Step 3 Type y and press Enter to continue. Text similar to the following is displayed:

Installing Media Gateway Controller Solaris 10 Patch Cluster as <CSCOh0032>

The system lists the patches that it will install. This list varies over time. Text similar to the following is displayed:

....

!!

!!  You must now change directories to /opt/sun_install and

!!  run the installPatches.sh script as root.

!!

Installation of <CSCOh032> was successful.

Step 4 Change directory to /opt/sun_install and run the installPatches script by entering the following commands:

# cd /opt/sun_install

# ./installPatches.sh

Note During the installation of the Solaris 10 patch cluster, some patches might fail with return codes 1, 2, 8, and 35. This is normal and does not indicate a problem with the installation. The following is an explanation of these error codes:

1—The patch has been installed before.
2—Attempting to apply a patch that is already applied.
8—Attempting to patch a package that is not installed.
35—A later version of the patch has already been installed.

Text similar to the following is displayed:

You are running as root - Good...

*** InstallPatches10 begins Tue Jul  8 11:14:25 GMT+8 2008 ***

VERSION='3.0(6)'

Platform is i86pc

Install Solaris 10 patches from set 1 ...

Changed to /var/tmp directory

Now installing each patch from the patch cluster.  There are a large

number of these patches, and the install could take an hour or longer

to complete.  Please be patient.  You can follow the progress of the

install in the following log: /opt/sun_install/installPatches10.log

At least one patch failed to install. This may or may

not indicate a problem. Please look at the log file

after the rest of the patches are applied

Install Solaris 10 patches from set 2 ...

Changed to /var/tmp directory

*** InstallPatches10 ends Tue Jul  8 11:14:41 GMT+8 2008 ***

*************************************************

*    It is necessary to reboot this machine     *

*     for these patches to be incorporated      *

*   the operating system. Enter the following   *

*    command and press Enter:  reboot -- -r     *

*************************************************

Note If you install the Sun Solaris 10 environment package 3.0(6) after you installed the Sun Solaris 10 Operating System from the Cisco Solaris 10 Operating System Jumpstart Disk for Opteron-based platforms (Version 10/08), you may find that no patches were installed from the log, /opt/sun_install/installPatches10.log. This is because the Sun Solaris 10 environment package 3.0(6) is older than the Sun Solaris 10 Operating System on the Jumpstart Disk (Version 10/08). It is normal that no patches were installed.

Step 5 Type the following command and press Enter to reboot the target machine.

#reboot -- -r

Note If you used the CD-ROM drive to load the Solaris 10 patch cluster, eject the CD prior to rebooting.

Note If you have installed the Solaris DiskSuite package (CSCOh023) on your system, the messages below are displayed during system boot. They are normal Solaris DiskSuite startup messages and do not indicate any problem with your system.

WARNING force load of misc /md-trans failed
WARNING force load of misc /md-raid failed
WARNING force load of misc /md-hotspares failed
WARNING force load of misc /md-sp failed

This completes the procedures for installing the Solaris 10 patches for Opteron-based platforms. Go to Table 2-2 if you want to continue with the list for package installation. If you have questions or need assistance, see the "Obtaining Documentation and Submitting a Service Request" section.

Installing the Solstice DiskSuite (CSCOh023)

The Sun Solstice DiskSuite program enables you to use the second disk drive as a mirror of the first to increase the availability of the system.You can install the DiskSuite program by running the scripts described below. The machine reboots several times during the installation process. The scripts minimize the possibility of running the scripts in the wrong order. However, you should ensure that the program is properly installed and take reasonable precautions to run the scripts correctly.

Note You must log in as root to run the following DiskSuite installation script.

Note For the Sun Fire X4640 and Sun Netra X4270 platforms, do not change the default hard disk boot order in the BIOS settings. If the primary disk is changed from the default of c3t0d0, the DiskSuite installation fails.

Step 1 Load the Cisco Solaris 10 Operating Environment CD into the CD-ROM drive. Enter the following command to install the DiskSuite installation scripts:

# pkgadd -d /cdrom/cdrom0/CSCOh023.pkg

Text similar to the following is displayed.

The following packages are available:

  1  CSCOh023     Media Gateway Controller Solaris 10 DiskSuite

                  (sparc,i386) 3.0(6)

Select package(s) you wish to process (or 'all' to process

all packages). (default: all) [?,??,q]:

Note You can also download the Solaris 10 DiskSuite package (CSCOh023) from Cisco.com. For example, download the CSCOh023 package to the /opt/SW folder on the platform and use the command, pkgadd -d /opt/SW/CSCOh023.pkg. Make sure you downloads the platform-specific package for your platform (Sparc-based or Opteron-based).

Step 2 Press Enter to accept the default answer all. Text similar to the following is displayed:

Processing package instance <CSCOh023> from </var/tmp/CSCOh023.pkg>

Media Gateway Controller Solaris 10 DiskSuite(sparc,i386) 3.0(6)

Cisco Systems, Inc.

## Executing checkinstall script.

CSCOh023 checkinstall log file at /var/tmp/CSCOh023.checkinstall.log

Platform is SUNW,Sun-Fire-V210

This machine is running Solaris 5.10

Using </opt/sun_install> as the package base directory.

## Processing package information.

## Processing system information.

   2 package pathnames are already properly installed.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <CSCOh023> [y,n,?]

Step 3 Enter y and press Enter to continue with the installation.

Installing Media Gateway Controller Solaris 10 DiskSuite as <CSCOh023>

## Executing preinstall script.

No PGW software found - this package can be installed

## Installing part 1 of 1.

/opt/sun_install/DiskSuite/admin.file

/opt/sun_install/DiskSuite/install_disksuite_1.sh

/opt/sun_install/DiskSuite/install_disksuite_2.sh

/opt/sun_install/DiskSuite/query_2nd_disk.cmd

/opt/sun_install/DiskSuite/rm_disksuite_1.sh

/opt/sun_install/DiskSuite/rm_disksuite_2.sh

[ verifying class <none> ]

## Executing postinstall script.

!!

!!  You must now change directories to

!!  /opt/sun_install/DiskSuite and run the

!!  install_disksuite_1.sh script as root.

!!

Installation of <CSCOh023> was successful.

Step 4 Change directories. Enter the following command:

cd  /opt/sun_install/DiskSuite

Step 5 Run the first script. Enter the following command:

./install_disksuite_1.sh

Text similar to the following is displayed:

You are running as root - Good...

Output will be logged in  /opt/sun_install/DiskSuite/DiskSuite_1.log

This script installs Disk Suite on an PGW system.

It assumes that Solaris 10 is installed and the disks

are correctly formatted and ready to go.

 **** IMPORTANT NOTE ****

In order to install DiskSuite, you MUST HAVE allocated

an unassigned, 15-30Mb disk partition in disk slice 4

of your primary disk. IF THIS PARTITION DOES NOT EXIST

YOUR DISKSUITE INSTALLATION WILL FAIL, and IT MAY

CORRUPT YOUR DISK!

I will now run a command which will show you the

current disk partitions. You can see the number of

sectors allocated in the column marked Sector Count

If you do not see a line which shows that partition 4

is allocated DO NOT CONTINUE WITH THIS INSTALLATION!

You can see the number of sectors allocated in the

column marked Sector Count. Sectors may vary in size

from 512 bytes to 4096 bytes and perhaps even larger

Warning: Current Disk has mounted partitions.

/dev/dsk/c1t0d0s0 is currently mounted on /. Please see umount(1M).

/dev/dsk/c1t0d0s1 is currently mounted on /var. Please see umount(1M).

/dev/dsk/c1t0d0s3 is currently used by swap. Please see swap(1M).

/dev/dsk/c1t0d0s5 is currently mounted on /opt. Please see umount(1M).

Using Disk Controller c1

If this is not the correct controller, please

exit this script and contact tech support

Here is your current disk partition setup. Look

for partition 4

* /dev/dsk/c1t0d0s0 partition map

* Dimensions:

*     512 bytes/sector

*     424 sectors/track

*      24 tracks/cylinder

*   10176 sectors/cylinder

*   14089 cylinders

*   14087 accessible cylinders

* Flags:

*   1: unmountable

*  10: read-only

*                          First     Sector    Last

* Partition  Tag  Flags    Sector     Count    Sector  Mount Directory

       0      2    00    8201856   4100928  12302783   /

       1      7    00   12302784  10247232  22550015   /var

       2      5    00          0 143349312 143349311

       3      3    01          0   8201856   8201855

       4      0    00   22550016     50880  22600895

       5      0    00   22600896 116647488 139248383   /opt

       6      0    00  139248384   4100928 143349311

Do you want to continue? (y/n) [N]

Step 6 Type y and press Enter to continue the installation. Text similar to the following is displayed:

Searching for disks...done

AVAILABLE DISK SELECTIONS:

       0. c1t0d0 <SUN72G cyl 14087 alt 2 hd 24 sec 424>

          /pci@1c,600000/scsi@2/sd@0,0

       1. c1t1d0 <SUN72G cyl 14087 alt 2 hd 24 sec 424>

          /pci@1c,600000/scsi@2/sd@1,0

Specify disk (enter its number): selecting c1t0d0

[disk formatted]

Warning: Current Disk has mounted partitions.

/dev/dsk/c1t0d0s0 is currently mounted on /. Please see umount(1M).

/dev/dsk/c1t0d0s1 is currently mounted on /var. Please see umount(1M).

/dev/dsk/c1t0d0s3 is currently used by swap. Please see swap(1M).

/dev/dsk/c1t0d0s5 is currently mounted on /opt. Please see umount(1M).

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        save       - save new disk/partition definitions

        inquiry    - show vendor, product and revision

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format>

PARTITION MENU:

        0      - change `0' partition

        1      - change `1' partition

        2      - change `2' partition

        3      - change `3' partition

        4      - change `4' partition

        5      - change `5' partition

        6      - change `6' partition

        7      - change `7' partition

        select - select a predefined table

        modify - modify a predefined partition table

        name   - name the current table

        print  - display the current table

        label  - write partition map and label to the disk

        !<cmd> - execute <cmd>, then return

        quit

partition> Enter table name (remember quotes):

partition>

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        fdisk      - run the fdisk program

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        save       - save new disk/partition definitions

        inquiry    - show vendor, product and revision

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format> Saving new disk and partition definitions

Enter file name["./format.dat"]: format> Searching for disks...done

AVAILABLE DISK SELECTIONS:

       0. c1t0d0 <SUN72G cyl 14087 alt 2 hd 24 sec 424>

          /pci@1c,600000/scsi@2/sd@0,0

       1. c1t1d0 <SUN72G cyl 14087 alt 2 hd 24 sec 424>

          /pci@1c,600000/scsi@2/sd@1,0

Specify disk (enter its number): selecting c1t1d0

[disk formatted]

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        fdisk      - run the fdisk program

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        save       - save new disk/partition definitions

        inquiry    - show vendor, product and revision

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format>

PARTITION MENU:

        0      - change `0' partition

        1      - change `1' partition

        2      - change `2' partition

        3      - change `3' partition

        4      - change `4' partition

        5      - change `5' partition

        6      - change `6' partition

        7      - change `7' partition

        select - select a predefined table

        modify - modify a predefined partition table

        name   - name the current table

        print  - display the current table

        label  - write partition map and label to the disk

        !<cmd> - execute <cmd>, then return

        quit

partition>         0. CISCO

        1. original

Specify table (enter its number)[1]:

partition> Current partition table (CISCO):

Total disk cylinders available: 14087 + 2 (reserved cylinders)

Part      Tag    Flag     Cylinders         Size            Blocks

  0       root    wm     806 -  1208        1.96GB    (403/0/0)     4100928

  1        var    wm    1209 -  2215        4.89GB    (1007/0/0)   10247232

  2     backup    wm       0 - 14086       68.35GB    (14087/0/0) 143349312

  3       swap    wu       0 -   805        3.91GB    (806/0/0)     8201856

  4 unassigned    wm    2216 -  2220       24.84MB    (5/0/0)         50880

  5 unassigned    wm    2221 - 13683       55.62GB    (11463/0/0) 116647488

  6 unassigned    wm   13684 - 14086        1.96GB    (403/0/0)     4100928

  7 unassigned    wm       0                0         (0/0/0)             0

partition> Ready to label disk, continue?

partition>

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        fdisk      - run the fdisk program

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        save       - save new disk/partition definitions

        inquiry    - show vendor, product and revision

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format> Finished disk partitioning...

metadb: waiting on /etc/lvm/lock

d1: Concat/Stripe is setup

d2: Concat/Stripe is setup

d4: Concat/Stripe is setup

d5: Concat/Stripe is setup

d7: Concat/Stripe is setup

d8: Concat/Stripe is setup

d10: Concat/Stripe is setup

d11: Concat/Stripe is setup

d13: Concat/Stripe is setup

d14: Concat/Stripe is setup

d3: Mirror is setup

d6: Mirror is setup

d9: Mirror is setup

d12: Mirror is setup

d15: Mirror is setup

The machine will now reboot.

Wait for the system to come up. Then log in as root,

cd /opt/sun_install/DiskSuite and continue by

executing the script install_disksuite_2.sh

Press the ENTER key to continue:

Step 7 Press Enter to reboot your system.

Step 8 Once the system has completed its reboot, log in as root and change directories to /opt/sun_install/DiskSuite. Enter the following command:

cd /opt/sun_install/DiskSuite

Step 9 Run the second script. Enter the following command:

./install_disksuite_2.sh

Text similar to the following is displayed:

You are running as root - Good...

Output will be logged in  /opt/sun_install/DiskSuite/DiskSuite_2.log

This is part 2 of the script that installs

Disk Suite on an PGW system.

It assumes that Solaris 10 is installed

You should have already run install_disksuite_1.sh

which installs and configures the disks

This script attaches the second disk and starts

 the disk replication process

Do you want to continue? (y/n) [N] y

Step 10 Type y and press Enter to continue the installation. Text similar to the following is displayed:

/dev/dsk/c1t0d0s0 is part of SVM volume stripe:d1. Please see metaclear(1M).

/dev/dsk/c1t0d0s1 is part of SVM volume stripe:d4. Please see metaclear(1M).

/dev/dsk/c1t0d0s3 is part of SVM volume stripe:d7. Please see metaclear(1M).

/dev/dsk/c1t0d0s4 contains an SVM mdb. Please see metadb(1M).

/dev/dsk/c1t0d0s5 is part of SVM volume stripe:d10. Please see metaclear(1M).

/dev/dsk/c1t0d0s6 is part of SVM volume stripe:d13. Please see metaclear(1M).

/dev/dsk/c1t1d0s0 is part of SVM volume stripe:d2. Please see metaclear(1M).

/dev/dsk/c1t1d0s1 is part of SVM volume stripe:d5. Please see metaclear(1M).

/dev/dsk/c1t1d0s3 is part of SVM volume stripe:d8. Please see metaclear(1M).

/dev/dsk/c1t1d0s4 contains an SVM mdb. Please see metadb(1M).

/dev/dsk/c1t1d0s5 is part of SVM volume stripe:d11. Please see metaclear(1M).

/dev/dsk/c1t1d0s6 is part of SVM volume stripe:d14. Please see metaclear(1M).

d3: submirror d2 is attached

d6: submirror d5 is attached

d9: submirror d8 is attached

d12: submirror d11 is attached

d15: submirror d14 is attached

Disk Suite is now configured and will start to

mirror to the second disk. It will take some

time for the disk to be completely mirrored.

Depending on the size of the disk, it may take

up to several hours

The system will repeatedly execute the command:

/usr/sbin/metastat |grep done

When there is no output from this command, the replication

will be complete and this script will terminate

At that time, it will be safe to reboot the machine

Resync in progress: 0 % done Resync in progress: 0 % done Resync in progress: 0

% done Resync in progress: 0 % done Resync in progress: 0 % done

Resync in progress: 0 % done Resync in progress: 0 % done Resync in progress: 0

% done Resync in progress: 2 % done Resync in progress: 0 % done

Resync in progress: 0 % done Resync in progress: 1 % done Resync in progress: 1

% done Resync in progress: 4 % done Resync in progress: 1 % done

Note The system continues to issue these re-synchronization messages until the replication is complete. Once the replication is complete, the system returns a prompt.

Note This portion of the installation is time-intensive. The amount of time required to complete the replication is dependent upon the size of the disk drives in your host. It may take several hours.

Resync in progress: 94 % done

Resync in progress: 96 % done

Resync in progress: 98 % done

The Disk Suite installation is now complete

Press the ENTER key to continue:

Step 11 Press Enter to continue the installation. Text similar to the following is displayed:

The following procedure should be used to add an

alias in the boot rom so you can boot off of the

secondary disk if necessary

Get the information from the system on the second disk

# prtconf -vp |grep pci |grep disk1

NOTE: disk1 is a system maintained standard for the system's

second hard disk. If the prtconf command returns this

information, it can be used to boot the second disk

without any additional changes

To create an alias name other than disk1 for the second

boot disk in the NVRAM, use the information from the

prtconf command (above)

# eeprom nvramrc='devalias backup_root /pci@1f,0/pci@1/scsi@8/disk@1,0'

Check the alias

eeprom |grep nvramrc

#use-nvramrc?=true

nvramrc=devalias backup_root /pci@1f,0/pci@1/scsi@8/disk@1,0

Then bring the machine down to the boot prompt

# /usr/sbin/shutdown -g0 -y -i0

.... system shuts down....

ok boot backup_root

The machine should reboot from the second disk. The following

text will be found in the boot output. This ensures that the

machine was working from the second drive:

 a) Executing last command: boot backup_root

 b) Boot device: /pci@1f,0/pci@1/scsi@8/disk@1,0 File and args:

The boot device listed should match the output from the

nvramrc=  output from above

Step 12 If you want to set up your system to be able to reboot from the second disk, proceed to the "Rebooting from the Mirrored (Secondary) Disk on Sparc-based Platforms" section or the "Rebooting from the Mirrored (Secondary) Disk on Opteron-based Platforms" section. Otherwise, proceed to Step 15.

Step 13 Type the following command and press Enter to reboot your system.

#/usr/sbin/shutdown -g0 -y -i6

The DiskSuite installation is now complete. If you want to configure your system to reboot from the mirrored disk, go to the "Rebooting from the Mirrored (Secondary) Disk on Sparc-based Platforms" section or the "Rebooting from the Mirrored (Secondary) Disk on Opteron-based Platforms" section. If you want to return to the list for package installation, go to Table 2-2.

Rebooting from the Mirrored (Secondary) Disk on Sparc-based Platforms

Caution

Rebooting from the mirrored (secondary) disk is normally done only after a catastrophic failure of the primary disk.

Perform the following procedure to add an alias in the boot ROM so you can boot from the secondary disk, if necessary.

Step 1 Get the information from the system on the second disk that you will boot from. Type the following command and press Enter:

# prtconf -vp | grep pci | grep disk1

Text similar to the following is displayed:

disk1: `/pci@1f,0/pc1@1/scsi@8/disk1,0'

Note Disk1 is a system-maintained standard for the system's second hard disk.

a. If the prtconf command returns the above information, you can use it to boot the second disk without any additional changes. Proceed to Step 4.

b. If you do not wish to use the above default information, create an alias name other than disk1 for the second boot disk in the NVRAM by using the information from the prtconf command (above).

# eeprom nvramrc='devalias backup_root /pci@1f,0/pci@1/scsi@8/disk@1,0'

Step 2 Check the alias you created by typing the following commands and pressing Enter:

eeprom |grep nvramrc

Text similar to the following is displayed:

use-nvramrc?=true

nvramrc=devalias backup_root /pci@1f,0/pci@1/scsi@8/disk@1,0

Note In the steps that follow, wherever you see "disk1" replace it with the alias you configured above.

Step 3 Before shutting down the system, check the progress of the mirroring to make sure that replication is complete. Type the following the command to check the progress of the mirroring. An Okay response means that disk mirroring is complete.

/usr/sbin/metastat

Warning

DO NOT REBOOT until the replication is complete and the mirrors are in the Okay state.

Step 4 When the replication is complete, bring the machine down to the boot prompt. Type the following command and press Enter:

# /usr/sbin/shutdown -g0 -y -i0

Text similar to the following is displayed:

The system is coming down. Please wait.

System services are now being stopped.

The system is down.

Program terminated

ok

Step 5 In OK mode, enter the following command and press Enter:

ok boot disk1

Text similar to the following is displayed:

Res

LOM event: +0h5m53s host resetting

Executing last command: boot disk1

Boot device: /pci@1f,0/pci@1/scsi@8/disk@1,0 File and args:

SunOS Release 5.10 Version Generic_108528-13 64-bit

Copyright 1983-2004 Sun Microsystems, Inc. All rights reserved.

The machine should reboot from the second disk.

Step 6 Verify that the following text is displayed in the boot output (see the output in Step 4, above). This ensures that the machine was working from the second drive:

Executing last command: boot disk1

Boot device: /pci@1f,0/pci@1/scsi@8/disk@1,0 File and args:

Step 7 The boot device listed should match the output from the "nvramrc=" line in Step 2.

This completes the procedures for rebooting from the mirrored (secondary) disk on Sparc-based platforms. If you want to return to the list for package installation, go to Table 2-2.

Rebooting from the Mirrored (Secondary) Disk on Opteron-based Platforms

Caution

Rebooting from the mirrored (secondary) disk is normally done only after a catastrophic failure of the primary disk.

Perform the following procedure to reboot from the mirrored (secondary) disk on Opteron-based platforms.

Step 1 Check the file /boot/grub/menu.lst to make sure that the section for alternate boot exists in the file.

That section is similar to the following:

title alternate boot

root (hd1,0,a)

kernel /platform/i86pc/multiboot

module /platform/i86pc/boot_archive

Step 2 Before shutting down the system, check the progress of the mirroring to make sure that replication is complete. Type the following the command to check the progress of the mirroring. An Okay response means that disk mirroring is complete. At the end of the system output, you see two devices whose Reloc are shown as Yes.

/usr/sbin/metastat

Text similar to the following is displayed:

d12: Mirror

    Submirror 0: d10

      State: Okay

    Submirror 1: d11

      State: Okay

    Pass: 1

    Read option: roundrobin (default)

    Write option: parallel (default)

    Size: 116599770 blocks (55 GB)

...

d14: Submirror of d15

    State: Okay

    Size: 4096575 blocks (2.0 GB)

    Stripe 0:

        Device     Start Block  Dbase        State Reloc Hot Spare

        c3t3d0s6          0     No            Okay   Yes

Device Relocation Information:

Device   Reloc  Device ID

c3t3d0   Yes    id1,sd@n500000e01861aae0

c3t2d0   Yes    id1,sd@n500000e01860a690

Warning

DO NOT REBOOT until the replication is complete and the mirrors are in the Okay state.

Step 3 When the replication is complete, bring the machine down to the boot prompt. Type the following command and press Enter:

# /usr/sbin/shutdown -g0 -y -i6

Text similar to the following is displayed:

Shutdown started.    Thu Aug 14 12:18:21 CDT 2008

Changing to init state 6 - please wait

Broadcast Message from root (pts/1) on sh-agrove Thu Aug 14 12:18:21...

THE SYSTEM sh-agrove IS BEING SHUT DOWN NOW ! ! !

Log off now or risk your files being damaged

Step 4 Choose alternate boot in the GRUB menu and press Enter.

This completes the procedures for rebooting from the mirrored (secondary) disk on Opteron-based platforms. If you want to return to the list for package installation, go to Table 2-2.

Removing the Solstice DiskSuite

Note This section applies to the Cisco PGW 2200 Softswitch Host running either the Cisco PGW 2200 Softswitch or HSI software. You must remove Cisco PGW 2200 Softswitch, HSI, or BAMS software before you remove the DiskSuite. The following procedure works only from platforms that have been mirrored by use of the procedure provided in the "Installing the Solstice DiskSuite (CSCOh023)" section.

This procedure un-mirrors the disk partitions and removes the DiskSuite application from the platform. Use this procedure if a system has DiskSuite installed and you no longer wish to use CSCOh024 to configure the second disk for the log and spool directories.

If the platform is configured with customer-specific information, be sure to back up this information before the partitions are un-mirrored and DiskSuite is removed. Consult the appropriate document, depending on the software installed.

Step 1 Log in as root. Use the metastat command to verify that the state of all the mirrors is Okay.

Step 2 Type the following commands to run the script and press Enter:

cd /opt/sun_install/DiskSuite

./rm_disksuite_1.sh

The ./rm_disksuite_1.sh command detaches the mirrored disks and restores the original disk partition file in /etc/vfstab. The machine reboots after detaching the mirrored disks and restoring the original disk partition file.

Step 3 Log in as root and change directory to /opt/sun_install/DiskSuite. Enter the following command:

cd /opt/sun_install/DiskSuite

Step 4 Run the script ./rm_disksuite_2.sh:

./rm_disksuite_2.sh

This script clears the disk mirrors and removes the DiskSuite software packages from the system.

Step 5 Enter the following command and press Enter to remove the package, CSCOh023:

pkgrm CSCOh023

Text similar to the following is displayed:

The following package is currently installed:

   CSCOh023  Media Gateway Controller Solaris 10 DiskSuite

             (sparc,i386) 3.0(6)

Do you want to remove this package? [y,n,?,q] y

...

Removal of <CSCOh023> was successful.

This completes the DiskSuite removal.

Installing the Log and Spool File Systems (CSCOh024)

Note This section applies to a Cisco PGW 2200 Softswitch host with 18-GB disk drives running the Cisco PGW 2200 Softswitch software.

Note If the DiskSuite software is installed and configured, you must first follow the procedure in the "Removing the Solstice DiskSuite" section to remove the DiskSuite software before configuring the second disk to be used for the log and spool file systems.

To determine whether DiskSuite is installed and configured, run the /usr/sbin/metastat command. If the command is found and it displays the status of mirrors, it indicates that DiskSuite is installed and configured.

Note For the device names for each platform type, see Table 2-1 (Device Names on the Supported Host Platforms).

This procedure enables you to move the log and spool file system to the second disk drive to increase the capacity for log, alarm, measurement, and CDR files. This improves the performance of the host. If CSCOh024 is not installed, your system continues to store log and spool files on the first disk drive. The second disk is defined into two partitions:

•The first partition is the log partition and uses about 30 percent of the disk.

•The second partition is the spool partition that uses 50percent of the disk.

Table 2-3 and Table 2-4 shows sample partition tables for disks 1 and 2 for a Netra t 1400 with 18-GB disk drives.

Table 2-3 18-GB Disk 1 Partition Table (Cisco PGW 2200 Softswitch with Log and Spool Package)
Slice No.	Cisco PGW 2200 Softswitch Host
Slice No.	Slice Name	Slice Size (GB)
0	/	1.00
1	/var	1.40
2		0.00
3		0.00
4		0.00
5	/opt	12.00
6	swap	2.00
7		0.00

Note On disk drives larger than 18 GB, the swap space is 4 GB.

Table 2-4 18-GB Disk 2 Partition Table (Cisco PGW 2200 Softswitch with Log and Spool Package)
Slice No.	Cisco PGW 2200 Softswitch Host
Slice No.	Slice Name	Slice Size (GB)
0	/	1.00
1	swap	2.00
2		0.00
3	/opt/CiscoMGC/var/log	5.70
4	/opt/CiscoMGC/var/spool	9.00
5		0.00
6		0.00
7		0.00

Step 1 Load the Cisco Solaris 10 Operating Environment CD into the CD-ROM drive. From the /var/tmp directory of the target machine, install the Log And Spool Software by entering the following command:

# cd /var/tmp

# pkgadd -d /cdrom/cdrom0/CSCOh024.pkg

Text similar to the following is displayed:

The following packages are available:

  1  CSCOh024     Media Gateway Controller Log and Spool package

                  (sparc) 3.0(6)

Select package(s) you wish to process (or 'all' to process

all packages). (default: all) [?,??,q]:

Note You can also download the Sparc-based log and spool package (CSCOh024) from Cisco.com. For example, download the CSCOh024 package to the /opt/SW folder on the Sparc-based platform and use the command, pkgadd -d /opt/SW/CSCOh024.pkg.

Step 2 Press Enter to accept the default answer all. Text similar to the following is displayed:

Processing package instance <CSCOh024 from </var/tmp/CSCOh024.pkg

Media Gateway Controller Log and Spool package(sparc) 3.0(6)

Cisco Systems, Inc.

## Executing checkinstall script.

CSCOh024 checkinstall log file at /var/tmp/CSCOh024.checkinstall.log

Platform is SUNW,Ultra-80

This machine is running Solaris 5.10

The selected base directory </opt/sun_install> must exist before

installation is attempted.

Do you want this directory created now [y,n,?,q] y

Step 3 Answer y and press Enter to create the directory. Text similar to the following is displayed:

Using </opt/sun_install> as the package base directory.

## Processing package information.

## Processing system information.

   1 package pathname is already properly installed.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

The following files are already installed on the system and are being

used by another package:

* /opt/sun_install <attribute change only>

* - conflict with a file which does not belong to any package.

Do you want to install these conflicting files [y,n,?,q]

Step 4 Answer y and press Enter to install the files. Text similar to the following is displayed:

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <CSCOh024> [y,n,?]

Step 5 Type y and press Enter to continue. Text similar to the following is displayed:

Installing Media Gateway Controller Log and Spool package as <CSCOh024>

## Executing preinstall script.

Platform is SUNW,Ultra-80

This is a known platform

NOTICE: Architecture checks passed

## Installing part 1 of 1.

/opt/sun_install/format_log_spool_start.cmd

/opt/sun_install/install_log_spool

/opt/sun_install/query_2nd_disk.cmd

[ verifying class <none> ]

## Executing postinstall script.

!!

!!  You must now change directories to /opt/sun_install/Log_Spool and

!!  run the ./install_log_spool script as root.

!!

Step 6 Change directory to /opt/sun_install/Log_Spool and run the install_log_spool script.

Note You must first shut down the Cisco PGW 2200 Softswitch before running the install_log_spool script.

# cd /opt/sun_install/Log_Spool

# ./install_log_spool

Text similar to the following is displayed:

Platform is SUNW,Ultra-80

Searching for disks...done

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        save       - save new disk/partition definitions

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format> disk

AVAILABLE DISK SELECTIONS:

       0. c0t0d0 <SUN36G cyl 24620 alt 2 hd 27 sec 107>

          /pci@1f,4000/scsi@3/sd@0,0

       1. c0t1d0 <SUN36G cyl 24620 alt 2 hd 27 sec 107>

          /pci@1f,4000/scsi@3/sd@1,0

Specify disk (enter its number): 1

selecting c0t1d0

[disk formatted]

format> current

Current Disk = c0t1d0

<SUN36G cyl 24620 alt 2 hd 27 sec 107>

/pci@1f,4000/scsi@3/sd@1,0

format> q

2nd Disk device is:    c0t1d0

Disk type is:          SUN36G

Number of Cylinders :  24620

Enter absolute path of the desired mount point for the

      log directory or press enter to accept

      the default [/opt/CiscoMGC/var/log]:

Step 7 Press Enter to accept the default mount point for the log directory or change it if you plan on installing the Cisco PGW 2200 Softswitch software in a different location.

A screen similar to the following is displayed:

Log directory mount point is /opt/CiscoMGC/var/log

Enter absolute path of the desired mount point for the

      spool directory or press enter to accept

      the default [/opt/CiscoMGC/var/spool]:

Step 8 Press Enter to accept the default mount point for the spool directory or change it if you plan on installing the Cisco PGW 2200 Softswitch software in a different location.

A screen similar to the following is displayed:

Spool directory mount point is /opt/CiscoMGC/var/spool

Number of cylinders for log partition: 9848

   Start: 0

   Start: 9847

Number of cylinders for spool partition: 14772

   Start: 9848

   Start: 24619

Build partition table for c0t1d0 ...

Searching for disks...done

selecting c0t1d0

[disk formatted]

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        save       - save new disk/partition definitions

        inquiry    - show vendor, product and revision

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format> p

PARTITION MENU:

        0      - change `0' partition

        1      - change `1' partition

        2      - change `2' partition

        3      - change `3' partition

        4      - change `4' partition

        5      - change `5' partition

        6      - change `6' partition

        7      - change `7' partition

        select - select a predefined table

        modify - modify a predefined partition table

        name   - name the current table

        print  - display the current table

        label  - write partition map and label to the disk

        !<cmd> - execute <cmd>, then return

        quit

partition> 0

Part      Tag    Flag     Cylinders         Size            Blocks

  0       root    wm       0 -   725        1.00GB    (726/0/0)    2097414

Enter partition id tag[root]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[0]: 0

Enter partition size[2097414b, 726c, 1024.13mb, 1.00gb]: 0c

partition> 1

Part      Tag    Flag     Cylinders         Size            Blocks

  1       swap    wu     726 -  3629        4.00GB    (2904/0/0)   8389656

Enter partition id tag[swap]: unassigned

Enter partition permission flags[wu]: wm

Enter new starting cyl[726]: 0

Enter partition size[8389656b, 2904c, 4096.51mb, 4.00gb]: 0c

partition> 3

Part      Tag    Flag     Cylinders         Size            Blocks

  3 unassigned    wm       0                0         (0/0/0)            0

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[0]: 0

Enter partition size[0b, 0c, 0.00mb, 0.00gb]: 0c

partition> 4

Part      Tag    Flag     Cylinders         Size            Blocks

  4 unassigned    wm    3630 - 23156       26.90GB    (19527/0/0) 56413503

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[3630]: 0

Enter partition size[56413503b, 19527c, 27545.66mb, 26.90gb]: 0c

partition> 5

Part      Tag    Flag     Cylinders         Size            Blocks

  5        var    wm   23157 - 23882        1.00GB    (726/0/0)    2097414

Enter partition id tag[var]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[23157]: 0

Enter partition size[2097414b, 726c, 1024.13mb, 1.00gb]: 0c

partition> 6

Part      Tag    Flag     Cylinders         Size            Blocks

  6        usr    wm   23883 - 24608        1.00GB    (726/0/0)    2097414

Enter partition id tag[usr]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[23883]: 0

Enter partition size[2097414b, 726c, 1024.13mb, 1.00gb]: 0c

partition> 7

Part      Tag    Flag     Cylinders         Size            Blocks

  7 unassigned    wm   24609 - 24619       15.52MB    (11/0/0)       31779

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[24609]: 0

Enter partition size[31779b, 11c, 15.52mb, 0.02gb]: 0c

partition> 2

Part      Tag    Flag     Cylinders         Size            Blocks

  2     backup    wm       0 - 24619       33.92GB    (24620/0/0) 71127180

Enter partition id tag[backup]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[0]: 0

Enter partition size[71127180b, 24620c, 34730.07mb, 33.92gb]: 24620c

partition> 3

Part      Tag    Flag     Cylinders         Size            Blocks

  3 unassigned    wm       0                0         (0/0/0)            0

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[0]: 0

Enter partition size[0b, 0c, 0.00mb, 0.00gb]: 9848c

partition> 4

Part      Tag    Flag     Cylinders         Size            Blocks

  4 unassigned    wm       0                0         (0/0/0)            0

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[0]: 9848

Enter partition size[0b, 0c, 0.00mb, 0.00gb]: 14772c

partition> p

Current partition table (unnamed):

Total disk cylinders available: 24620 + 2 (reserved cylinders)

Part      Tag    Flag     Cylinders         Size            Blocks

  0 unassigned    wm       0                0         (0/0/0)            0

  1 unassigned    wm       0                0         (0/0/0)            0

  2 unassigned    wm       0 - 24619       33.92GB    (24620/0/0) 71127180

  3 unassigned    wm       0 -  9847       13.57GB    (9848/0/0)  28450872

  4 unassigned    wm    9848 - 24619       20.35GB    (14772/0/0) 42676308

  5 unassigned    wm       0                0         (0/0/0)            0

  6 unassigned    wm       0                0         (0/0/0)            0

  7 unassigned    wm       0                0         (0/0/0)            0

partition> l

partition> q

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        save       - save new disk/partition definitions

        inquiry    - show vendor, product and revision

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format> q

unknown disk type, assuming the speed is 10000 rpm

Build log filesystem at /dev/rdsk/c0t1d0s3 ...

mkfs -F ufs /dev/rdsk/c0t1d0s3 28450872 107 27 8192 1024 251 1 166 8192 t 0 -1 8 107

Cylinder groups must have a multiple of 16 cylinders with the given parameters

Rounded cgsize up to 256

/dev/rdsk/c0t1d0s3:     28450872 sectors in 9848 cylinders of 27 tracks, 107 sectors

        13892.0MB in 308 cyl groups (32 c/g, 45.14MB/g, 5632 i/g)

super-block backups (for fsck -F ufs -o b=#) at:

 32, 92592, 185152, 277712, 370272, 462832, 555392, 647952, 740512, 833072,

Build spool filesystem at /dev/rdsk/c0t1d0s4 ...

mkfs -F ufs /dev/rdsk/c0t1d0s4 42676308 107 27 8192 1024 251 1 166 8192 t 0 -1 8 107

Cylinder groups must have a multiple of 16 cylinders with the given parameters

Rounded cgsize up to 256

/dev/rdsk/c0t1d0s4:     42676308 sectors in 14772 cylinders of 27 tracks, 107 sectors

        20838.0MB in 462 cyl groups (32 c/g, 45.14MB/g, 5632 i/g)

super-block backups (for fsck -F ufs -o b=#) at:

 32, 92592, 185152, 277712, 370272, 462832, 555392, 647952, 740512, 833072,

Remove any existing entry in /etc/vfstab for c0t1d0s3 or c0t1d0s4

Adding entries to /etc/vfstab

Mounting /opt/CiscoMGC/var/log

Mounting /opt/CiscoMGC/var/spool

Success!!!

This completes the installation of the Log and Spool File system. Go to Table 2-2 if you want to continue with the list for package installation.

Uninstalling the Log and Spool File System

Use the following procedure if you need to remove the Log and Spool File system from the second disk. Contact Cisco TAC if you need assistance (see the "Obtaining Documentation and Submitting a Service Request" section in the Preface).

Note You must be logged in as root to uninstall CSCOh024.

Step 1 Type the following command at the # prompt and press Enter:

cd /opt/sun_install/Log_Spool/
./uninstall_log_spool

Text similar to the following is displayed:

You are running as root - Good...

*** WARNING! LOG FILES WILL NOT BE SAVED ***

Uninstalling this package typically means that the log &
spool directories will be on the same disk as the rest of
the software so there is less space available for those
files. We will not save any existing log or spool files.

*** WARNING! LOG FILES WILL NOT BE SAVED ***

However, they are not being deleted - the log files will
still exist on the second (unmounted) disk drive

It is possible to manually mount that disk and recover
log files if necessary.

If you want to save log files before running this
script, then exit and do so now

Do you want to continue? (y/n) [N] y

Step 2 Type y and press Enter to remove CSCOh024. Text similar to the following is displayed:

Unmount /opt/CiscoMGC/var/log
Unmount /opt/CiscoMGC/var/spool

Update /etc/vfstab

Remove old files...

The Log/Spool software has been removed from the system
Now you can remove the package with the command:

pkgrm CSCOh024

Done!

Step 3 Type the following command and press Enter to continue the removal of CSCOh024.

pkgrm CSCOh024

Step 4 Reboot your machine with the -r option. Type the following command and press Enter:

# reboot -- -r

This completes the removal of the Log and Spool File system from the second disk.

Installing Cisco BAMS Archive Partition (CSCOh027)

The Cisco BAMS application cannot use the Solstice DiskSuite to configure the local disk drives. Use the procedure below to create an archive partition on the disk drives for Cisco BAMS systems.

Note You must log in as root to run the following installation script.

Step 1 Load the Cisco Solaris 10 Operating Environment CD into the CD-ROM drive. Enter the following command to install the Cisco BAMS disk configuration scripts:

pkgadd -d /cdrom/cdrom0/CSCOh027.pkg

Text similar to the following is displayed.

The following packages are available:

  1  CSCOh027     Media Gateway Controller BAMS Archive Partition Package

                  (sparc) 3.0(6)

Select package(s) you wish to process (or 'all' to process

all packages). (default: all) [?,??,q]:

Note You can also download the Sparc-based Cisco BAMS archive partition package (CSCOh027) from Cisco.com. For example, download the CSCOh027 package to the /opt/SW folder on the Sparc-based platform and use the command, pkgadd -d /opt/SW/CSCOh027.pkg.

Step 2 Press Enter to accept the default answer all.

Text similar to the following is displayed:

Processing package instance <CSCOh027> from </var/tmp/CSCOh027.pkg>

Media Gateway Controller BAMS Archive Partition Package(sparc) 3.0(6)

Cisco Systems, Inc.

## Executing checkinstall script.

CSCOh027 checkinstall log file at /var/tmp/CSCOh027.checkinstall.log

Platform is SUNW,Sun-Fire-V210

This machine is running Solaris 5.10

The selected base directory </opt/sun_install> must exist before

installation is attempted.

Do you want this directory created now [y,n,?,q]

Step 3 Answer y and press Enter to create the directory.

Text similar to the following is displayed:

Using </opt/sun_install> as the package base directory.

## Processing package information.

## Processing system information.

   1 package pathname is already properly installed.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

The following files are already installed on the system and are being

used by another package:

* /opt/sun_install <attribute change only>

* - conflict with a file which does not belong to any package.

Do you want to install these conflicting files [y,n,?,q] y

Step 4 Answer y and press Enter to install the files.

Text similar to the following is displayed:

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <CSCOh027> [y,n,?]

Step 5 Type y and press Enter to continue the installation.

Text similar to the following is displayed:

Installing Media Gateway Controller BAMS Archive Partition Package as <CSCOh027>

## Installing part 1 of 1.

[ verifying class <none> ]

## Executing postinstall script.

!!

!!  You must now change directories to

!!  /opt/sun_install/BAMS_archive and run the

!!  ./install_BAMS_archive script as root.

!!

Installation of <CSCOh027> was successful.

Step 6 Change directories. Enter the following command:

cd  /opt/sun_install/BAMS_archive

Step 7 Run the first script. Enter the following command:

./install_BAMS_archive.sh

Text similar to the following is displayed:

Output will be logged in  /opt/sun_install/BAMS_archive/install_BAMS_archive.log

The second hard drive will be reformatted by this script,

all data on this drive will be lost

Do you want to continue with formatting? (y or n)

Installation started on  Wed Jul 9 20:54:33 EDT 2008

Platform is SUNW,Sun-Fire-V210

Searching for disks...done

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        fdisk      - run the fdisk program

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format> disk

AVAILABLE DISK SELECTIONS:

       0. c1t0d0 <SUN72G cyl 14087 alt 2 hd 24 sec 424>

          /pci@1c,600000/scsi@2/sd@0,0

       1. c1t1d0 <SUN72G cyl 14087 alt 2 hd 24 sec 424>

          /pci@1c,600000/scsi@2/sd@1,0

Specify disk (enter its number): 1

selecting c1t1d0

[disk formatted]

format> current

Current Disk = c1t1d0

<SUN72G cyl 14087 alt 2 hd 24 sec 424>

/pci@1c,600000/scsi@2/sd@1,0

format> q

2nd Disk device is:    c1t1d0

Disk type is:          SUN72G

Number of Cylinders :  14087

ARCHIVE directory mount point is /opt/CiscoBAMS/CDR/archive

Number of cylinders for archive partition:

Building format log temp files...

Build partition table for c1t1d0 ...

Searching for disks...done

selecting c1t1d0

[disk formatted]

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        save       - save new disk/partition definitions

        inquiry    - show vendor, product and revision

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format> p

PARTITION MENU:

        0      - change `0' partition

        1      - change `1' partition

        2      - change `2' partition

        3      - change `3' partition

        4      - change `4' partition

        5      - change `5' partition

        6      - change `6' partition

        7      - change `7' partition

        select - select a predefined table

        modify - modify a predefined partition table

        name   - name the current table

        print  - display the current table

        label  - write partition map and label to the disk

        !<cmd> - execute <cmd>, then return

        quit

partition> 0

Part      Tag    Flag     Cylinders         Size            Blocks

  0       root    wm     806 -  1208        1.96GB    (403/0/0)     4100928

Enter partition id tag[root]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[806]: 0

Enter partition size[4100928b, 403c, 402e, 2002.41mb, 1.96gb]: 0c

partition> 1

Part      Tag    Flag     Cylinders         Size            Blocks

  1        var    wm    1209 -  2215        4.89GB    (1007/0/0)   10247232

Enter partition id tag[var]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[1209]: 0

Enter partition size[10247232b, 1007c, 1006e, 5003.53mb, 4.89gb]: 0c

partition> 3

Part      Tag    Flag     Cylinders         Size            Blocks

  3       swap    wu       0 -   805        3.91GB    (806/0/0)     8201856

Enter partition id tag[swap]: unassigned

Enter partition permission flags[wu]: wm

Enter new starting cyl[0]: 0

Enter partition size[8201856b, 806c, 805e, 4004.81mb, 3.91gb]: 0c

partition> 4

Part      Tag    Flag     Cylinders         Size            Blocks

  4 unassigned    wm    2216 -  2220       24.84MB    (5/0/0)         50880

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[2216]: 0

Enter partition size[50880b, 5c, 4e, 24.84mb, 0.02gb]: 0c

partition> 5

Part      Tag    Flag     Cylinders         Size            Blocks

  5 unassigned    wm    2221 - 13683       55.62GB    (11463/0/0) 116647488

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[2221]: 0

Enter partition size[116647488b, 11463c, 11462e, 56956.78mb, 55.62gb]: 0c

partition> 6

Part      Tag    Flag     Cylinders         Size            Blocks

  6 unassigned    wm   13684 - 14086        1.96GB    (403/0/0)     4100928

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[13684]: 0

Enter partition size[4100928b, 403c, 402e, 2002.41mb, 1.96gb]: 0c

partition> 7

Part      Tag    Flag     Cylinders         Size            Blocks

  7 unassigned    wm       0                0         (0/0/0)             0

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[0]: 0

Enter partition size[0b, 0c, 0e, 0.00mb, 0.00gb]: 0c

partition> 2

Part      Tag    Flag     Cylinders         Size            Blocks

  2     backup    wm       0 - 14086       68.35GB    (14087/0/0) 143349312

Enter partition id tag[backup]: backup

Enter partition permission flags[wm]: wm

Enter new starting cyl[0]:

Enter partition size[143349312b, 14087c, 14086e, 69994.78mb, 68.35gb]: 14087c

partition> 0

Part      Tag    Flag     Cylinders         Size            Blocks

  0 unassigned    wm       0                0         (0/0/0)             0

Enter partition id tag[unassigned]: unassigned

Enter partition permission flags[wm]: wm

Enter new starting cyl[0]:

Enter partition size[0b, 0c, 0e, 0.00mb, 0.00gb]: 14087c

partition> p

Current partition table (unnamed):

Total disk cylinders available: 14087 + 2 (reserved cylinders)

Part      Tag    Flag     Cylinders         Size            Blocks

  0 unassigned    wm       0 - 14086       68.35GB    (14087/0/0) 143349312

  1 unassigned    wm       0                0         (0/0/0)             0

  2     backup    wm       0 - 14086       68.35GB    (14087/0/0) 143349312

  3 unassigned    wm       0                0         (0/0/0)             0

  4 unassigned    wm       0                0         (0/0/0)             0

  5 unassigned    wm       0                0         (0/0/0)             0

  6 unassigned    wm       0                0         (0/0/0)             0

  7 unassigned    wm       0                0         (0/0/0)             0

partition> l

partition> q

FORMAT MENU:

        disk       - select a disk

        type       - select (define) a disk type

        partition  - select (define) a partition table

        current    - describe the current disk

        format     - format and analyze the disk

        repair     - repair a defective sector

        label      - write label to the disk

        analyze    - surface analysis

        defect     - defect list management

        backup     - search for backup labels

        verify     - read and display labels

        save       - save new disk/partition definitions

        inquiry    - show vendor, product and revision

        volname    - set 8-character volume name

        !<cmd>     - execute <cmd>, then return

        quit

format> q

Build archive filesystem at /dev/rdsk/c1t1d0s0 ...

Remove any existing entry in /etc/vfstab for c1t1d0

Adding entries to /etc/vfstab

Mounting /opt/CiscoBAMS/CDR/archive

Success!!!

The Cisco BAMS archive partition installation is now complete. If you want to return to the list for package installation, go to Table 2-2.

Installing the Sparc-based Communications and Alarm Software Package (CSCOh026)

This package installs xterm, ntp, and ftp communications software on your host. It also installs the Lights Out Management (LOM) alarm software package if you are installing Solaris 10 on one of the following platforms:

•Sun Fire V120

•Netra 120

•Netra t 1120/1125

•Netra t 1400/1405

•Netra 20

If you are installing Solaris 10 on a Sun Fire V210, Netra 210, Netra 240 or Netra 440 platform, there are no separate alarm software packages to install because the alarm software is installed automatically. This software, ALOM, is integrated within the Solaris 10 operating system. Therefore, previous SUN LOM alarm packages like SUNWlomm (on Sun Fire V120) and SUNWtsalm (on Netra 112X) do not exist on these platforms. For additional information regarding lights-out alarms on the Sun Fire V210, Netra 210, Netra 240 and Netra 440, see the SUN ALOM Guide at http://www.sun.com/servers/alom.html.

Note The installation of this package does not automatically enable ftp communications on your host. If you are installing this software on a Cisco BAMS system or if your host requires that the ftp communications be enabled, you can find instructions for enabling ftp in Step 5 of this procedure.

To install the communications and alarm software on your hosts, perform the following steps:

Step 1 Load the Cisco Solaris 10 Operating Environment CD into the CD-ROM drive. Install this package by entering the following command at the # prompt:

#  pkgadd -d /cdrom/cdrom0/CSCOh026.pkg

Text similar to the following is displayed along with copyright and trademark information:

The following packages are available:

  1  CSCOh026     Media Gateway Controller PGW Specific Solaris 10 packages

                  (sparc) 3.0(6)

Select package(s) you wish to process (or 'all' to process

all packages). (default: all) [?,??,q]:

Note You can also download the Sparc-based communications and alarm software package (CSCOh026) from Cisco.com. For example, download the CSCOh026 package to the /opt/SW folder on the Sparc-based platform and use the command, pkgadd -d /opt/SW/CSCOh026.pkg.

Step 2 Press Enter to accept the default answer of all and install all the packages. Text similar to the following is displayed:

Processing package instance <CSCOh026> from </var/tmp/CSCOh026.pkg>

Media Gateway Controller PGW Specific Solaris 10 packages(sparc) 3.0(6)

Cisco Systems, Inc.

## Executing checkinstall script.

CSCOh026 checkinstall log file at /var/tmp/CSCOh026.checkinstall.log

Platform is SUNW,Sun-Fire-V210

This machine is running Solaris 5.10

Using </opt/sun_install> as the package base directory.

## Processing package information.

## Processing system information.

   2 package pathnames are already properly installed.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <CSCOh026> [y,n,?]

Step 3 Type y and press Enter to continue the installation. Text similar to the following is displayed:

Installing Media Gateway Controller PGW Specific Solaris 10 packages as <CSCOh026>

## Installing part 1 of 1.

/opt/sun_install/SolPkg/137324-01.zip

/opt/sun_install/SolPkg <implied directory>

/opt/sun_install/SolPkg/LOM20.tar.gz

/opt/sun_install/SolPkg/SUNWftpr.tar.gz

/opt/sun_install/SolPkg/SUNWftpu.tar.gz

/opt/sun_install/SolPkg/SUNWnfsckr.tar.gz

/opt/sun_install/SolPkg/SUNWnfscr.tar.gz

/opt/sun_install/SolPkg/SUNWnfscu.tar.gz

/opt/sun_install/SolPkg/SUNWnfsskr.tar.gz

/opt/sun_install/SolPkg/SUNWnfssr.tar.gz

/opt/sun_install/SolPkg/SUNWnfssu.tar.gz

/opt/sun_install/SolPkg/SUNWtftp.tar.gz

/opt/sun_install/SolPkg/SUNWtftpr.tar.gz

/opt/sun_install/SolPkg/SUNWvts.tar.gz

/opt/sun_install/SolPkg/SUNWvtsmn.tar.gz

/opt/sun_install/SolPkg/SUNWvtsr.tar.gz

/opt/sun_install/SolPkg/SUNWvtsts.tar.gz

/opt/sun_install/SolPkg/SUNWxwopt.tar.gz

/opt/sun_install/SolPkg/autoinspkg

/opt/sun_install/SolPkg/autoremovevts

/opt/sun_install/SolPkg/configNtp.sh

/opt/sun_install/SolPkg/gunzip

/opt/sun_install/SolPkg/install_SolPkg.sh

/opt/sun_install/SolPkg/ntp_Sparc.tar.gz

/opt/sun_install/SolPkg/uninstall_SolPkg.sh

[ verifying class <none> ]

## Executing postinstall script.

!!

!!  You must now change directories to

!!  /opt/sun_install/SolPkg and run the

!!  ./install_SolPkg.sh script as root.

!!

Installation of <CSCOh026> was successful.

Step 4 Enter the following commands to change directories and execute the installation script.

cd /opt/sun_install/SolPkg

./install_SolPkg.sh

Text similar to the following is displayed:

Note The following command output is truncated. These lists vary over time.

You are running as root - Good...

x ./SUNWxwopt, 0 bytes, 0 tape blocks

x ./SUNWxwopt/archive, 0 bytes, 0 tape blocks

x ./SUNWxwopt/archive/none.bz2, 625965 bytes, 1223 tape blocks

x ./SUNWxwopt/install, 0 bytes, 0 tape blocks

x ./SUNWxwopt/install/copyright, 93 bytes, 1 tape blocks

x ./SUNWxwopt/install/depend, 344 bytes, 1 tape blocks

x ./SUNWxwopt/install/i.none, 2245 bytes, 5 tape blocks

x ./SUNWxwopt/pkginfo, 473 bytes, 1 tape blocks

x ./SUNWxwopt/pkgmap, 4506 bytes, 9 tape blocks

x ./SUNWxwopt/reloc, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/bin, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib/app-defaults, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib/X11, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib/X11/twm, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib/X11/xdm, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWxwopt

Processing package instance <SUNWxwopt> from </tmp>

X Window System Optional Clients(sparc) 6.6.2.7400,REV=0.2004.12.15

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Using </usr> as the package base directory.

## Processing package information.

## Processing system information.

   6 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWxwopt> [y,n,?] y

Installing X Window System Optional Clients as <SUNWxwopt>

## Installing part 1 of 1.

3379 blocks

Installation of <SUNWxwopt> was successful.

x ./SUNWftpr, 0 bytes, 0 tape blocks

x ./SUNWftpr/install, 0 bytes, 0 tape blocks

x ./SUNWftpr/install/copyright, 93 bytes, 1 tape blocks

x ./SUNWftpr/install/depend, 1036 bytes, 3 tape blocks

x ./SUNWftpr/install/i.ftpaccess, 2849 bytes, 6 tape blocks

x ./SUNWftpr/install/i.ftpusers, 1506 bytes, 3 tape blocks

x ./SUNWftpr/install/i.manifest, 1503 bytes, 3 tape blocks

x ./SUNWftpr/install/i.preserve, 186 bytes, 1 tape blocks

x ./SUNWftpr/install/r.manifest, 1044 bytes, 3 tape blocks

x ./SUNWftpr/pkginfo, 452 bytes, 1 tape blocks

x ./SUNWftpr/pkgmap, 982 bytes, 2 tape blocks

x ./SUNWftpr/reloc, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/etc, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/etc/ftpd, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpaccess, 1518 bytes, 3 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpconversions, 946 bytes, 2 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpgroups, 104 bytes, 1 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftphosts, 108 bytes, 1 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpservers, 114 bytes, 1 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpusers, 198 bytes, 1 tape blocks

x ./SUNWftpr/reloc/var, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/var/svc, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/var/svc/manifest, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/var/svc/manifest/network, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/var/svc/manifest/network/ftp.xml, 1779 bytes, 4 tape blocks

spawn pkgadd -d . SUNWftpr

Processing package instance <SUNWftpr> from </tmp>

FTP Server, (Root)(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   5 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWftpr> [y,n,?] y

Installing FTP Server, (Root) as <SUNWftpr>

## Installing part 1 of 1.

[ verifying class <none> ]

[ verifying class <preserve> ]

[ verifying class <ftpaccess> ]

[ verifying class <ftpusers> ]

[ verifying class <manifest> ]

Installation of <SUNWftpr> was successful.

x ./SUNWftpu, 0 bytes, 0 tape blocks

x ./SUNWftpu/archive, 0 bytes, 0 tape blocks

x ./SUNWftpu/archive/none.bz2, 119958 bytes, 235 tape blocks

x ./SUNWftpu/install, 0 bytes, 0 tape blocks

x ./SUNWftpu/install/copyright, 8644 bytes, 17 tape blocks

x ./SUNWftpu/install/depend, 1130 bytes, 3 tape blocks

x ./SUNWftpu/install/i.none, 2245 bytes, 5 tape blocks

x ./SUNWftpu/pkginfo, 495 bytes, 1 tape blocks

x ./SUNWftpu/pkgmap, 673 bytes, 2 tape blocks

x ./SUNWftpu/reloc, 0 bytes, 0 tape blocks

x ./SUNWftpu/reloc/usr, 0 bytes, 0 tape blocks

x ./SUNWftpu/reloc/usr/sbin, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWftpu

Processing package instance <SUNWftpu> from </tmp>

FTP Server, (Usr)(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2001-2003 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Copyright (c) 1999,2000,2001 WU-FTPD Development Group.  All rights reserved.

                          WU-FTPD SOFTWARE LICENSE

Use, modification, or redistribution (including distribution of any modified

or derived work) in any form, or on any medium, is permitted only if all the

following conditions are met:

1. Redistributions qualify as "freeware" or "Open Source Software" under

   the following terms:

     a. Redistributions are made at no charge beyond the reasonable cost

        of materials and delivery.  Where redistribution of this software

        is as part of a larger package or combined work, this restriction

        applies only to the costs of materials and delivery of this

        software, not to any other costs associated with the larger package

        or combined work.

     b. Redistributions are accompanied by a copy of the Source Code or by

        an irrevocable offer to provide a copy of the Source Code for up

        to three years at the cost of materials and delivery. Such

        redistributions must allow further use, modification, and

        redistribution of the Source Code under substantially the same

        terms as this license. For the purposes of redistribution "Source

        Code" means all files included in the original distribution,

        including all modifications or additions, on a medium and in a

        form allowing fully working executable programs to be produced.

2. Redistributions of Source Code must retain the copyright notices as

   they appear in each Source Code file and the COPYRIGHT file, these

   license terms, and the disclaimer/limitation of liability set forth as

   paragraph 6 below.

3. Redistributions in binary form must reproduce the Copyright Notice,

   these license terms, and the disclaimer/limitation of liability set

   forth as paragraph 6 below, in the documentation and/or other materials

   provided with the distribution. For the purposes of binary distribution

   the "Copyright Notice" refers to the following language:

        Copyright (c) 1999,2000 WU-FTPD Development Group.

        All rights reserved.

        Portions Copyright (c) 1980, 1985, 1988, 1989, 1990, 1991, 1993, 1994

           The Regents of the University of California.

        Portions Copyright (c) 1993, 1994 Washington University in Saint Louis.

        Portions Copyright (c) 1996, 1998 Berkeley Software Design, Inc.

        Portions Copyright (c) 1983, 1995, 1996, 1997 Eric P. Allman.

        Portions Copyright (c) 1998 Sendmail, Inc.

        Portions Copyright (c) 1989 Massachusetts Institute of Technology.

        Portions Copyright (c) 1997 Stan Barber.

        Portions Copyright (c) 1997 Kent Landfield.

        Portions Copyright (c) 1991, 1992, 1993, 1994, 1995, 1996, 1997

           Free Software Foundation, Inc.

        Use and distribution of this software and its source code are

        governed by the terms and conditions of the WU-FTPD Software

        License ("LICENSE").

        If you did not receive a copy of the license, it may be

        obtained online at http://www.wu-ftpd.org/license.html

4. All advertising materials mentioning features or use of this software

   must display the following acknowledgement: "This product includes

   software developed by the WU-FTPD Development Group, the Washington

   University at Saint Louis, Berkeley Software Design, Inc., and their

   contributors."

5. Neither the name of the WU-FTPD Development Group, nor the names of any

   copyright holders, nor the names of any contributors may be used to

   endorse or promote products derived from this software without specific

   prior written permission. The names "wuftpd" and "wu-ftpd" are

   trademarks of the WU-FTPD Development Group and the Washington

   University at Saint Louis.

6. Disclaimer/Limitation of Liability:

   THIS SOFTWARE IS PROVIDED BY THE WU-FTPD DEVELOPMENT GROUP, THE

   COPYRIGHT HOLDERS, AND CONTRIBUTORS, "AS IS" AND ANY EXPRESS OR IMPLIED

   WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

   MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN

   NO EVENT SHALL THE WU-FTPD DEVELOPMENT GROUP, THE COPYRIGHT HOLDERS, OR

   CONTRIBUTORS, BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,

   EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

   PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR

   PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF

   LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

   NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

   SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

7. USE, MODIFICATION, OR REDISTRIBUTION, OF THIS SOFTWARE IMPLIES

   ACCEPTANCE OF ALL TERMS AND CONDITIONS OF THIS LICENSE.

$Id: LICENSE,v 1.4 2000/07/01 17:42:15 wuftpd Exp $

Copyright (c) 1993, 1994  Washington University in Saint Louis

All rights reserved.

   Redistribution and use in source and binary forms, with or without

   modification, are permitted provided that the following conditions are

   met: 1. Redistributions of source code must retain the above copyright

   notice, this list of conditions and the following disclaimer. 2.

   Redistributions in binary form must reproduce the above copyright notice,

   this list of conditions and the following disclaimer in the documentation

   and/or other materials provided with the distribution. 3. All advertising

   materials mentioning features or use of this software must display the

   following acknowledgement: This product includes software developed by the

   Washington University in Saint Louis and its contributors. 4. Neither the

   name of the University nor the names of its contributors may be used to

   endorse or promote products derived from this software without specific

   prior written permission.

   THIS SOFTWARE IS PROVIDED BY WASHINGTON UNIVERSITY AND CONTRIBUTORS

   ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT

   LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

   A PARTICULAR PURPOSE ARE DISCLAIMED.  IN NO EVENT SHALL WASHINGTON

   UNIVERSITY OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,

   INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,

   BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

   LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

   CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT

   LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN

   ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE

   POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 1980, 1983, 1985, 1988, 1989, 1990 Regents of the University of

California.  All rights reserved.

   Redistribution and use in source and binary forms, with or without

   modification, are permitted provided that the following conditions

   are met:

   1. Redistributions of source code must retain the above copyright

      notice, this list of conditions and the following disclaimer.

   2. Redistributions in binary form must reproduce the above copyright

      notice, this list of conditions and the following disclaimer in the

      documentation and/or other materials provided with the distribution.

   3. All advertising materials mentioning features or use of this software

      must display the following acknowledgement:

        This product includes software developed by the University of

        California, Berkeley and its contributors.

   4. Neither the name of the University nor the names of its contributors

      may be used to endorse or promote products derived from this software

      without specific prior written permission.

   THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND

   ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

   IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

   ARE DISCLAIMED.  IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE

   FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

   DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS

   OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

   HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT

   LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY

   OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF

   SUCH DAMAGE.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   2 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWftpu> [y,n,?]

Installing FTP Server, (Usr) as <SUNWftpu>

## Installing part 1 of 1.

577 blocks

Installation of <SUNWftpu> was successful.

spawn pkgrm SUNWvtsmn

The following package is currently installed:

   SUNWvtsmn  SunVTS Man Pages

              (sparc) 6.4,REV=2007.07.05.12.46

Do you want to remove this package? [y,n,?,q] y

## Removing installed package instance <SUNWvtsmn>

## Verifying package <SUNWvtsmn> dependencies in global zone

## Processing package information.

## Removing pathnames in class <none>

/opt/SUNWvts/man/man1m/vtsui.1m

/opt/SUNWvts/man/man1m/vtstty.1m

/opt/SUNWvts/man/man1m/vtsprobe.1m

/opt/SUNWvts/man/man1m/vtsk.1m

/opt/SUNWvts/man/man1m/vts_cmd.1m

/opt/SUNWvts/man/man1m/sunvts.1m

...

/opt/SUNWvts/lib/locale/C <shared pathname not removed>

/opt/SUNWvts/lib/locale <shared pathname not removed>

/opt/SUNWvts/lib <shared pathname not removed>

/opt/SUNWvts <shared pathname not removed>

## Updating system information.

Removal of <SUNWvtsmn> was successful.

spawn pkgrm SUNWvtsr

The following package is currently installed:

   SUNWvtsr  SunVTS Framework (Root)

             (sparc) 6.4,REV=2007.07.05.10.00

Do you want to remove this package? [y,n,?,q] y

## Verifying package <SUNWvtsr> dependencies in global zone

## Processing package information.

## Removing pathnames in class <none>

/etc/opt/SUNWvts/sunvts.conf.example

/etc/opt/SUNWvts

/etc/opt <shared pathname not removed>

/etc <shared pathname not removed>

## Updating system information.

Removal of <SUNWvtsr> was successful.

spawn pkgrm SUNWvtsts

The following package is currently installed:

   SUNWvtsts  SunVTS for Tests

              (sparc) 6.4,REV=2007.07.05.12.46

Do you want to remove this package? [y,n,?,q] y

## Removing installed package instance <SUNWvtsts>

## Verifying package <SUNWvtsts> dependencies in global zone

## Processing package information.

## Removing pathnames in class <none>

/opt/SUNWvts/lib/sparcv9 <shared pathname not removed>

/opt/SUNWvts/lib/probe/sunlink_probe.so

/opt/SUNWvts/lib/probe/ssptest_probe.so

/opt/SUNWvts/lib/probe/sparcv9/xnetlbtest_probe.so

/opt/SUNWvts/lib/probe/sparcv9/vmemtest_probe.so

...

/opt/SUNWvts/bin/cmos.bin

/opt/SUNWvts/bin/bios.bin

/opt/SUNWvts/bin <shared pathname not removed>

/opt/SUNWvts <shared pathname not removed>

## Updating system information.

Removal of <SUNWvtsts> was successful.

spawn pkgrm SUNWvts

The following package is currently installed:

   SUNWvts  SunVTS Framework

            (sparc) 6.4,REV=2007.07.05.10.00

Do you want to remove this package? [y,n,?,q] y

## Removing installed package instance <SUNWvts>

## Verifying package <SUNWvts> dependencies in global zone

## Processing package information.

## Removing pathnames in class <none>

/opt/SUNWvts/lib/sparcv9/libvtsutil.so.1

/opt/SUNWvts/lib/sparcv9/libvtsutil.so

/opt/SUNWvts/lib/sparcv9/libvtsthm.so.1

...

/opt/SUNWvts/bin

/opt/SUNWvts/README

/opt/SUNWvts

## Updating system information.

Removal of <SUNWvts> was successful.

x SUNWvts, 0 bytes, 0 tape blocks

x SUNWvts/archive, 0 bytes, 0 tape blocks

x SUNWvts/archive/none.bz2, 877058 bytes, 1714 tape blocks

x SUNWvts/install, 0 bytes, 0 tape blocks

x SUNWvts/install/checkinstall, 971 bytes, 2 tape blocks

x SUNWvts/install/copyright, 93 bytes, 1 tape blocks

...

x SUNWvts/reloc/sunwvts/lib/locale/c/LC_MESSAGES, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/lib/sparcv9, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWvts

Processing package instance <SUNWvts> from </tmp>

SunVTS Framework(sparc) 6.4,REV=2007.07.05.10.00

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

## Executing checkinstall script.

Using </opt> as the package base directory.

## Processing package information.

## Processing system information.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWvts> [y,n,?] y

Installing SunVTS Framework as <SUNWvts>

## Installing part 1 of 1.

8132 blocks

Installation of <SUNWvts> was successful.

x SUNWvtsts, 0 bytes, 0 tape blocks

x SUNWvtsts/archive, 0 bytes, 0 tape blocks

x SUNWvtsts/archive/none.bz2, 9661272 bytes, 18870 tape blocks

x SUNWvtsts/install, 0 bytes, 0 tape blocks

x SUNWvtsts/install/checkinstall, 1199 bytes, 3 tape blocks

...

x SUNWvtsts/reloc/sunwvts/lib/probe, 0 bytes, 0 tape blocks

x SUNWvtsts/reloc/sunwvts/lib/probe/sparcv9, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWvtsts

Processing package instance <SUNWvtsts> from </tmp>

SunVTS for Tests(sparc) 6.4,REV=2007.07.05.12.46

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

## Executing checkinstall script.

Using </opt> as the package base directory.

## Processing package information.

## Processing system information.

   14 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWvtsts> [y,n,?] y

Installing SunVTS for Tests as <SUNWvtsts>

## Installing part 1 of 1.

94197 blocks

Installation of <SUNWvtsts> was successful.

x SUNWvtsr, 0 bytes, 0 tape blocks

x SUNWvtsr/archive, 0 bytes, 0 tape blocks

x SUNWvtsr/archive/none.bz2, 1280 bytes, 3 tape blocks

x SUNWvtsr/install, 0 bytes, 0 tape blocks

x SUNWvtsr/install/copyright, 93 bytes, 1 tape blocks

x SUNWvtsr/install/depend, 848 bytes, 2 tape blocks

x SUNWvtsr/install/i.none, 2245 bytes, 5 tape blocks

x SUNWvtsr/pkginfo, 563 bytes, 2 tape blocks

x SUNWvtsr/pkgmap, 279 bytes, 1 tape blocks

x SUNWvtsr/reloc, 0 bytes, 0 tape blocks

x SUNWvtsr/reloc/etc, 0 bytes, 0 tape blocks

x SUNWvtsr/reloc/etc/opt, 0 bytes, 0 tape blocks

x SUNWvtsr/reloc/etc/opt/sunwvts, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWvtsr

Processing package instance <SUNWvtsr> from </tmp>

SunVTS Framework (Root)(sparc) 6.4,REV=2007.07.05.10.00

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   2 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWvtsr> [y,n,?] y

Installing SunVTS Framework (Root) as <SUNWvtsr>

## Installing part 1 of 1.

6 blocks

Installation of <SUNWvtsr> was successful.

x SUNWvtsmn, 0 bytes, 0 tape blocks

x SUNWvtsmn/archive, 0 bytes, 0 tape blocks

...

x SUNWvtsmn/reloc/sunwvts/lib/locale/c/help/user_guide/shared/chars, 0 bytes, 0 tape
blocks

x SUNWvtsmn/reloc/sunwvts/man, 0 bytes, 0 tape blocks

x SUNWvtsmn/reloc/sunwvts/man/man1m, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWvtsmn

Processing package instance <SUNWvtsmn> from </tmp>

SunVTS Man Pages(sparc) 6.4,REV=2007.07.05.12.46

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Using </opt> as the package base directory.

## Processing package information.

## Processing system information.

   5 package pathnames are already properly installed.

## Verifying package dependencies.

WARNING:

    The <SUNWdoc> package "Documentation Tools " is a

    prerequisite package and should be installed.

Do you want to continue with the installation of <SUNWvtsmn> [y,n,?] y

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWvtsmn> [y,n,?] y

Installing SunVTS Man Pages as <SUNWvtsmn>

## Installing part 1 of 1.

9419 blocks

Installation of <SUNWvtsmn> was successful.

Archive:  137324-01.zip

   creating: 137324-01/

   creating: 137324-01/SUNWvts/

  inflating: 137324-01/SUNWvts/pkgmap

...

inflating: 137324-01/.diPatch

  inflating: 137324-01/patchinfo

  inflating: 137324-01/prepatch

  inflating: 137324-01/README.137324-01

  inflating: 137324-01/LEGAL_LICENSE.TXT

Validating patches...

Loading patches installed on the system...

Done!

Loading patches requested to install.

Done!

Checking patches that you specified for installation.

Done!

Approved patches will be installed in this order:

137324-01

Checking installed patches...

Executing prepatch script...

Verifying sufficient filesystem capacity (dry run method)...

Installing patch packages...

Patch 137324-01 has been successfully installed.

See /var/sadm/patch/137324-01/log for details

Patch packages installed:

  SUNWvts

  SUNWvtsts

Installation of patch 137324-01 successful

x SUNWnfsckr, 0 bytes, 0 tape blocks

x SUNWnfsckr/archive, 0 bytes, 0 tape blocks

...

x SUNWnfsckr/reloc/kernel/misc, 0 bytes, 0 tape blocks

x SUNWnfsckr/reloc/kernel/misc/sparcv9, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWnfsckr

Processing package instance <SUNWnfsckr> from </tmp>

Network File System (NFS) client kernel support (Root)(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   7 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWnfsckr> [y,n,?] y

Installing Network File System (NFS) client kernel support (Root) as <SUNWnfsckr>

## Installing part 1 of 1.

2762 blocks

Installation of <SUNWnfsckr> was successful.

x SUNWnfscr, 0 bytes, 0 tape blocks

x SUNWnfscr/archive, 0 bytes, 0 tape blocks

x SUNWnfscr/archive/none.bz2, 23793 bytes, 47 tape blocks

x SUNWnfscr/install, 0 bytes, 0 tape blocks

x SUNWnfscr/install/copyright, 93 bytes, 1 tape blocks

x SUNWnfscr/reloc/var/svc/manifest/network/nfs/nlockmgr.xml, 2204 bytes, 5 tape blocks

x SUNWnfscr/reloc/var/svc/manifest/network/nfs/status.xml, 2023 bytes, 4 tape blocks

spawn pkgadd -d . SUNWnfscr

Processing package instance <SUNWnfscr> from </tmp>

Network File System (NFS) client support (Root)(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   11 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWnfscr> [y,n,?] y

Installing Network File System (NFS) client support (Root) as <SUNWnfscr>

## Installing part 1 of 1.

109 blocks

[ verifying class <nfssecconf> ]

[ verifying class <defnfs> ]

[ verifying class <manifest> ]

## Executing postinstall script.

Installation of <SUNWnfscr> was successful.

x SUNWnfscu, 0 bytes, 0 tape blocks

x SUNWnfscu/archive, 0 bytes, 0 tape blocks

x SUNWnfscu/archive/none.bz2, 158114 bytes, 309 tape blocks

x SUNWnfscu/install, 0 bytes, 0 tape blocks

...

x SUNWnfscu/reloc/usr/lib/fs/nfs, 0 bytes, 0 tape blocks

x SUNWnfscu/reloc/usr/lib/nfs, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWnfscu

Processing package instance <SUNWnfscu> from </tmp>

Network File System (NFS) client support (Usr)(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   5 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWnfscu> [y,n,?] y

Installing Network File System (NFS) client support (Usr) as <SUNWnfscu>

## Installing part 1 of 1.

1026 blocks

## Executing postinstall script.

Installation of <SUNWnfscu> was successful.

x SUNWnfsskr, 0 bytes, 0 tape blocks

x SUNWnfsskr/archive, 0 bytes, 0 tape blocks

x SUNWnfsskr/archive/none.bz2, 206990 bytes, 405 tape blocks

x SUNWnfsskr/install, 0 bytes, 0 tape blocks

x SUNWnfsskr/install/copyright, 93 bytes, 1 tape blocks

x SUNWnfsskr/install/depend, 1036 bytes, 3 tape blocks

...

x SUNWnfsskr/reloc/kernel/misc/sparcv9, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWnfsskr

Processing package instance <SUNWnfsskr> from </tmp>

Network File System (NFS) server kernel support (Root)(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   3 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

...

Processing package instance <SUNWtftp> from </tmp>

Trivial File Transfer Server(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Trivial File Transfer Server (Root)(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

NTP, (Root)(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

NTP, (Usr)(sparc) 11.10.0,REV=2005.01.21.15.53

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWntpu> was successful.

Enter the IP address of NTP server:

Step 5 Type the IP address for the NTP server used for your network and press Enter. Text similar to the following is displayed:

NTP is configured and enabled. You can manually change the configuration by modifying
/etc/inet/ntp.conf and disable NTP by run 'svcadm enable ntp'

At any time, you may uninstall the software installed

 by this package with the following commands:

cd /opt/sun_install/SolPkg

./uninstall_SolPkg.sh

 which will uninstall all the solaris software

 installed with this package

NTP software is installed and configured. System reboot is required to activate it. Do you
want to reboot now?[yes|no]

Step 6 You must reboot your system for the changes to take effect. Type yes and press Enter.

Step 7 If you require ftp access to your Cisco PGW 2200 Softswitch by Cisco BAMS or some other product, type the following command and press Enter:

svcadm enable ftp

Note If you need to disable the ftp communications software, use the svcadm disable ftp command. If you need to determine the status of the ftp communications software, use the svcs -a | grep ftp command.

The communications and alarm software installation is now complete. Go to Table 2-2 if you want to continue with the list for package installation.

Installing the Opteron-based Communications Software Package (CSCOh036)

Installing this package adds xterm, ntp, and ftp communications software on your host. To install the communication software on your hosts, perform the following steps:

Step 1 If you are using the CD-ROM, load the Cisco Solaris 10 Operating Environment CD into the CD-ROM drive. Remount the cdrom by command:

# mount -F hsfs -o ro /dev/dsk/<dev_name> /cdrom

where <dev_name> is either "c0t0d0p0", or as seen on screen after jumpstart (see the "Installation of Solaris JS11 through ILOM" section).

Step 2 Install this package by entering the following command:

#  pkgadd -d /cdrom/CSCOh036.pkg

Text similar to the following is displayed along with copyright and trademark information:

The following packages are available:

  1  CSCOh036     Media Gateway Controller PGW Specific Solaris 10 packages

                  (i386) 3.0(6)

Select package(s) you wish to process (or 'all' to process

all packages). (default: all) [?,??,q]:

Note You can also download the Opteron-based Solaris 10 communications software package (CSCOh036) from Cisco.com. For example, download the CSCOh036 package to the /opt/SW folder on the Opteron-based platform and use the command, pkgadd -d /opt/SW/CSCOh036.pkg.

Step 3 Press Enter to accept the default answer of all and install all the packages. Text similar to the following is displayed:

Processing package instance <CSCOh036> from </var/tmp/CSCOh036.pkg>

Media Gateway Controller PGW Specific Solaris 10 packages(i386) 3.0(6)

Cisco Systems, Inc.

## Executing checkinstall script.

CSCOh036 checkinstall log file at /var/tmp/CSCOh036.checkinstall.log

Platform is i86pc

This machine is running Solaris 5.10

Using </opt/sun_install> as the package base directory.

## Processing package information.

## Processing system information.

   2 package pathnames are already properly installed.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <CSCOh036> [y,n,?]

Step 4 Type y and press Enter to continue the installation. Text similar to the following is displayed:

Installing Media Gateway Controller PGW Specific Solaris 10 packages as <CSCOh036>

## Installing part 1 of 1.

/opt/sun_install/SolPkg/install_SolPkg.sh

[ verifying class <none> ]

## Executing postinstall script.

!!

!!  You must now change directories to

!!  /opt/sun_install/SolPkg and run the

!!  ./install_SolPkg.sh script as root.

!!

Installation of <CSCOh036> was successful.

Step 5 Enter the following commands to change directories and execute the installation script:

cd /opt/sun_install/SolPkg

./install_SolPkg.sh

Text similar to the following is displayed:

Note Ellipsis is used in the system output to indicate the omission of the patch lists that it will install. These lists vary over time.

You are running as root - Good...

x /usr/local, 0 bytes, 0 tape blocks

x /usr/local/bin, 0 bytes, 0 tape blocks

x /usr/local/bin/expect, 213936 bytes, 418 tape blocks

x /usr/local/lib, 0 bytes, 0 tape blocks

x /usr/local/lib/libtcl8.4.so, 999804 bytes, 1953 tape blocks

x /usr/local/lib/tcl8.4, 0 bytes, 0 tape blocks

x /usr/local/lib/tcl8.4/auto.tcl, 20911 bytes, 41 tape blocks

x /usr/local/lib/tcl8.4/history.tcl, 9030 bytes, 18 tape blocks

x /usr/local/lib/tcl8.4/init.tcl, 23714 bytes, 47 tape blocks

x /usr/local/lib/tcl8.4/ldAix, 2856 bytes, 6 tape blocks

x /usr/local/lib/tcl8.4/ldAout.tcl, 6802 bytes, 14 tape blocks

...

x ./SUNWxwopt/pkgmap, 4502 bytes, 9 tape blocks

x ./SUNWxwopt/reloc, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/bin, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib/app-defaults, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib/X11, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib/X11/twm, 0 bytes, 0 tape blocks

x ./SUNWxwopt/reloc/openwin/lib/X11/xdm, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWxwopt

Processing package instance <SUNWxwopt> from </tmp>

X Window System Optional Clients(i386) 6.6.2.7400,REV=0.2004.12.15

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Using </usr> as the package base directory.

## Processing package information.

## Processing system information.

   6 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWxwopt> [y,n,?] y

Installing X Window System Optional Clients as <SUNWxwopt>

## Installing part 1 of 1.

2958 blocks

Installation of <SUNWxwopt> was successful.

x ./SUNWftpr, 0 bytes, 0 tape blocks

x ./SUNWftpr/install, 0 bytes, 0 tape blocks

x ./SUNWftpr/install/copyright, 93 bytes, 1 tape blocks

x ./SUNWftpr/install/depend, 1036 bytes, 3 tape blocks

x ./SUNWftpr/install/i.ftpaccess, 2849 bytes, 6 tape blocks

x ./SUNWftpr/install/i.ftpusers, 1506 bytes, 3 tape blocks

x ./SUNWftpr/install/i.manifest, 1503 bytes, 3 tape blocks

x ./SUNWftpr/install/i.preserve, 186 bytes, 1 tape blocks

x ./SUNWftpr/install/r.manifest, 1363 bytes, 3 tape blocks

x ./SUNWftpr/pkginfo, 706 bytes, 2 tape blocks

x ./SUNWftpr/pkgmap, 982 bytes, 2 tape blocks

x ./SUNWftpr/reloc, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/etc, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/etc/ftpd, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpaccess, 1518 bytes, 3 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpconversions, 946 bytes, 2 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpgroups, 104 bytes, 1 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftphosts, 108 bytes, 1 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpservers, 114 bytes, 1 tape blocks

x ./SUNWftpr/reloc/etc/ftpd/ftpusers, 198 bytes, 1 tape blocks

x ./SUNWftpr/reloc/var, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/var/svc, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/var/svc/manifest, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/var/svc/manifest/network, 0 bytes, 0 tape blocks

x ./SUNWftpr/reloc/var/svc/manifest/network/ftp.xml, 1779 bytes, 4 tape blocks

spawn pkgadd -d . SUNWftpr

Processing package instance <SUNWftpr> from </tmp>

FTP Server, (Root)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

This appears to be an attempt to install the same architecture and

version of a package which is already installed.  This installation

will attempt to overwrite this package.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   7 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWftpr> [y,n,?] y

Installing FTP Server, (Root) as <SUNWftpr>

## Installing part 1 of 1.

[ verifying class <none> ]

[ verifying class <preserve> ]

[ verifying class <ftpaccess> ]

[ verifying class <ftpusers> ]

[ verifying class <manifest> ]

Installation of <SUNWftpr> was successful.

x ./SUNWftpu, 0 bytes, 0 tape blocks

x ./SUNWftpu/archive, 0 bytes, 0 tape blocks

x ./SUNWftpu/archive/none.bz2, 98668 bytes, 193 tape blocks

x ./SUNWftpu/install, 0 bytes, 0 tape blocks

x ./SUNWftpu/install/copyright, 8644 bytes, 17 tape blocks

x ./SUNWftpu/install/depend, 1130 bytes, 3 tape blocks

x ./SUNWftpu/install/i.none, 2245 bytes, 5 tape blocks

x ./SUNWftpu/pkginfo, 630 bytes, 2 tape blocks

x ./SUNWftpu/pkgmap, 671 bytes, 2 tape blocks

x ./SUNWftpu/reloc, 0 bytes, 0 tape blocks

x ./SUNWftpu/reloc/usr, 0 bytes, 0 tape blocks

x ./SUNWftpu/reloc/usr/sbin, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWftpu

Processing package instance <SUNWftpu> from </tmp>

FTP Server, (Usr)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2001-2003 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

Copyright (c) 1999,2000,2001 WU-FTPD Development Group.  All rights reserved.

                          WU-FTPD SOFTWARE LICENSE

Use, modification, or redistribution (including distribution of any modified

or derived work) in any form, or on any medium, is permitted only if all the

following conditions are met:

1. Redistributions qualify as "freeware" or "Open Source Software" under

   the following terms:

     a. Redistributions are made at no charge beyond the reasonable cost

        of materials and delivery.  Where redistribution of this software

        is as part of a larger package or combined work, this restriction

        applies only to the costs of materials and delivery of this

        software, not to any other costs associated with the larger package

        or combined work.

     b. Redistributions are accompanied by a copy of the Source Code or by

        an irrevocable offer to provide a copy of the Source Code for up

        to three years at the cost of materials and delivery. Such

        redistributions must allow further use, modification, and

        redistribution of the Source Code under substantially the same

        terms as this license. For the purposes of redistribution "Source

        Code" means all files included in the original distribution,

        including all modifications or additions, on a medium and in a

        form allowing fully working executable programs to be produced.

2. Redistributions of Source Code must retain the copyright notices as

   they appear in each Source Code file and the COPYRIGHT file, these

   license terms, and the disclaimer/limitation of liability set forth as

   paragraph 6 below.

3. Redistributions in binary form must reproduce the Copyright Notice,

   these license terms, and the disclaimer/limitation of liability set

   forth as paragraph 6 below, in the documentation and/or other materials

   provided with the distribution. For the purposes of binary distribution

   the "Copyright Notice" refers to the following language:

        Copyright (c) 1999,2000 WU-FTPD Development Group.

        All rights reserved.

        Portions Copyright (c) 1980, 1985, 1988, 1989, 1990, 1991, 1993, 1994

           The Regents of the University of California.

        Portions Copyright (c) 1993, 1994 Washington University in Saint Louis.

        Portions Copyright (c) 1996, 1998 Berkeley Software Design, Inc.

        Portions Copyright (c) 1983, 1995, 1996, 1997 Eric P. Allman.

        Portions Copyright (c) 1998 Sendmail, Inc.

        Portions Copyright (c) 1989 Massachusetts Institute of Technology.

        Portions Copyright (c) 1997 Stan Barber.

        Portions Copyright (c) 1997 Kent Landfield.

        Portions Copyright (c) 1991, 1992, 1993, 1994, 1995, 1996, 1997

           Free Software Foundation, Inc.

        Use and distribution of this software and its source code are

        governed by the terms and conditions of the WU-FTPD Software

        License ("LICENSE").

        If you did not receive a copy of the license, it may be

        obtained online at http://www.wu-ftpd.org/license.html

4. All advertising materials mentioning features or use of this software

   must display the following acknowledgement: "This product includes

   software developed by the WU-FTPD Development Group, the Washington

   University at Saint Louis, Berkeley Software Design, Inc., and their

   contributors."

5. Neither the name of the WU-FTPD Development Group, nor the names of any

   copyright holders, nor the names of any contributors may be used to

   endorse or promote products derived from this software without specific

   prior written permission. The names "wuftpd" and "wu-ftpd" are

   trademarks of the WU-FTPD Development Group and the Washington

   University at Saint Louis.

6. Disclaimer/Limitation of Liability:

   THIS SOFTWARE IS PROVIDED BY THE WU-FTPD DEVELOPMENT GROUP, THE

   COPYRIGHT HOLDERS, AND CONTRIBUTORS, "AS IS" AND ANY EXPRESS OR IMPLIED

   WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

   MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN

   NO EVENT SHALL THE WU-FTPD DEVELOPMENT GROUP, THE COPYRIGHT HOLDERS, OR

   CONTRIBUTORS, BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,

   EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

   PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR

   PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF

   LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

   NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

   SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

7. USE, MODIFICATION, OR REDISTRIBUTION, OF THIS SOFTWARE IMPLIES

   ACCEPTANCE OF ALL TERMS AND CONDITIONS OF THIS LICENSE.

$Id: LICENSE,v 1.4 2000/07/01 17:42:15 wuftpd Exp $

Copyright (c) 1993, 1994  Washington University in Saint Louis

All rights reserved.

   Redistribution and use in source and binary forms, with or without

   modification, are permitted provided that the following conditions are

   met: 1. Redistributions of source code must retain the above copyright

   notice, this list of conditions and the following disclaimer. 2.

   Redistributions in binary form must reproduce the above copyright notice,

   this list of conditions and the following disclaimer in the documentation

   and/or other materials provided with the distribution. 3. All advertising

   materials mentioning features or use of this software must display the

   following acknowledgement: This product includes software developed by the

   Washington University in Saint Louis and its contributors. 4. Neither the

   name of the University nor the names of its contributors may be used to

   endorse or promote products derived from this software without specific

   prior written permission.

   THIS SOFTWARE IS PROVIDED BY WASHINGTON UNIVERSITY AND CONTRIBUTORS

   ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT

   LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

   A PARTICULAR PURPOSE ARE DISCLAIMED.  IN NO EVENT SHALL WASHINGTON

   UNIVERSITY OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,

   INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,

   BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

   LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

   CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT

   LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN

   ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE

   POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 1980, 1983, 1985, 1988, 1989, 1990 Regents of the University of

California.  All rights reserved.

   Redistribution and use in source and binary forms, with or without

   modification, are permitted provided that the following conditions

   are met:

   1. Redistributions of source code must retain the above copyright

      notice, this list of conditions and the following disclaimer.

   2. Redistributions in binary form must reproduce the above copyright

      notice, this list of conditions and the following disclaimer in the

      documentation and/or other materials provided with the distribution.

   3. All advertising materials mentioning features or use of this software

      must display the following acknowledgement:

        This product includes software developed by the University of

        California, Berkeley and its contributors.

   4. Neither the name of the University nor the names of its contributors

      may be used to endorse or promote products derived from this software

      without specific prior written permission.

   THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND

   ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

   IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

   ARE DISCLAIMED.  IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE

   FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

   DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS

   OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

   HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT

   LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY

   OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF

   SUCH DAMAGE.

Using </> as the package base directory.

## Processing package information.

## Processing system information.

   2 package pathnames are already properly installed.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWftpu> [y,n,?]

Installing FTP Server, (Usr) as <SUNWftpu>

## Installing part 1 of 1.

500 blocks

Installation of <SUNWftpu> was successful.

spawn pkgrm SUNWvtsmn

The following package is currently installed:

   SUNWvtsmn  SunVTS man pages

              (i386) 6.4,REV=2007.07.05.13.25

Do you want to remove this package? [y,n,?,q] y

## Removing installed package instance <SUNWvtsmn>

## Verifying package <SUNWvtsmn> dependencies in global zone

## Processing package information.

## Removing pathnames in class <none>

/opt/SUNWvts/man/man1m/vtsui.1m

/opt/SUNWvts/man/man1m/vtstty.1m

/opt/SUNWvts/man/man1m/vtsprobe.1m

/opt/SUNWvts/man/man1m/vtsk.1m

/opt/SUNWvts/man/man1m/vts_cmd.1m

...

opt/SUNWvts/lib/locale/C <shared pathname not removed>

/opt/SUNWvts/lib/locale <shared pathname not removed>

/opt/SUNWvts/lib <shared pathname not removed>

/opt/SUNWvts <shared pathname not removed>

## Updating system information.

Removal of <SUNWvtsmn> was successful.

spawn pkgrm SUNWvtsr

The following package is currently installed:

   SUNWvtsr  SunVTS Framework (Root)

             (i386) 6.4,REV=2007.07.05.10.11

Do you want to remove this package? [y,n,?,q] y

## Removing installed package instance <SUNWvtsr>

## Verifying package <SUNWvtsr> dependencies in global zone

## Processing package information.

## Removing pathnames in class <none>

/etc/opt/SUNWvts/sunvts.conf.example

/etc/opt/SUNWvts/lib/conf

/etc/opt/SUNWvts/lib

/etc/opt/SUNWvts

/etc/opt <shared pathname not removed>

/etc <shared pathname not removed>

## Updating system information.

Removal of <SUNWvtsr> was successful.

spawn pkgrm SUNWvtsts

The following package is currently installed:

   SUNWvtsts  SunVTS for Tests

              (i386) 6.4,REV=2007.07.05.13.25

Do you want to remove this package? [y,n,?,q] y

## Removing installed package instance <SUNWvtsts>

## Verifying package <SUNWvtsts> dependencies in global zone

## Processing package information.

## Removing pathnames in class <none>

/opt/SUNWvts/lib/probe/xnetlbtest_probe.so

/opt/SUNWvts/lib/probe/vmemtest_probe.so

...

/opt/SUNWvts/bin/.customtest

/opt/SUNWvts/bin <shared pathname not removed>

/opt/SUNWvts <shared pathname not removed>

## Updating system information.

Removal of <SUNWvtsts> was successful.

spawn pkgrm SUNWvts

The following package is currently installed:

   SUNWvts  SunVTS Framework

            (i386) 6.4,REV=2007.07.05.10.11

Do you want to remove this package? [y,n,?,q] y

## Removing installed package instance <SUNWvts>

## Verifying package <SUNWvts> dependencies in global zone

## Processing package information.

## Removing pathnames in class <none>

/opt/SUNWvts/lib/probe/64

/opt/SUNWvts/lib/probe

/opt/SUNWvts/lib/locale/C/help/help_s10.html

/opt/SUNWvts/lib/locale/C/help/help.html

/opt/SUNWvts/lib/locale/C/help/Copyright.libxml2

...

/opt/SUNWvts/README.64

/opt/SUNWvts/README

/opt/SUNWvts

## Updating system information.

Removal of <SUNWvts> was successful.

x SUNWvts, 0 bytes, 0 tape blocks

x SUNWvts/archive, 0 bytes, 0 tape blocks

x SUNWvts/archive/none.bz2, 1176648 bytes, 2299 tape blocks

x SUNWvts/install, 0 bytes, 0 tape blocks

x SUNWvts/install/checkinstall, 971 bytes, 2 tape blocks

x SUNWvts/install/copyright, 93 bytes, 1 tape blocks

x SUNWvts/install/depend, 849 bytes, 2 tape blocks

x SUNWvts/install/i.none, 2245 bytes, 5 tape blocks

x SUNWvts/pkginfo, 546 bytes, 2 tape blocks

x SUNWvts/pkgmap, 6639 bytes, 13 tape blocks

x SUNWvts/reloc, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/bin, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/bin/64, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/bin/pm, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/lib, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/lib/64, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/lib/conf, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/lib/locale, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/lib/locale/c, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/lib/locale/c/help, 0 bytes, 0 tape blocks

x SUNWvts/reloc/sunwvts/lib/locale/c/LC_MESSAGES, 0 bytes, 0 tape blocks

spawn pkgadd -d . SUNWvts

Processing package instance <SUNWvts> from </tmp>

SunVTS Framework(i386) 6.4,REV=2007.07.05.10.11

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

Use is subject to license terms.

## Executing checkinstall script.

Using </opt> as the package base directory.

## Processing package information.

## Processing system information.

## Verifying package dependencies.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <SUNWvts> [y,n,?] y

Installing SunVTS Framework as <SUNWvts>

## Installing part 1 of 1.

9650 blocks

Installation of <SUNWvts> was successful.

...

Processing package instance <SUNWvtsts> from </tmp>

SunVTS for Tests(i386) 6.4,REV=2007.07.05.13.25

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWvtsts> was successful.

...

SunVTS Framework (Root)(i386) 6.4,REV=2007.07.05.10.11

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWvtsr> was successful.

...

SunVTS man pages(i386) 6.4,REV=2007.07.05.13.25

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWvtsmn> was successful.

Archive:  137325-01.zip

   creating: 137325-01/

   creating: 137325-01/SUNWvts/

  inflating: 137325-01/SUNWvts/pkgmap

  inflating: 137325-01/SUNWvts/pkginfo

   creating: 137325-01/SUNWvts/reloc/

   creating: 137325-01/SUNWvts/reloc/SUNWvts/

  inflating: 137325-01/SUNWvts/reloc/SUNWvts/README

  inflating: 137325-01/SUNWvts/reloc/SUNWvts/README.64

...

Patch 137325-01 has been successfully installed.

See /var/sadm/patch/137325-01/log for details

Patch packages installed:

  SUNWvts

  SUNWvtsts

Installation of patch 137325-01 successful

...

Network File System (NFS) client kernel support (Root)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWnfscr> was successful.

...

Network File System (NFS) client support (Usr)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWnfscu> was successful.

...

Network File System (NFS) server kernel support (Root)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWnfsskr> was successful.

...

Network File System (NFS) server support (Root)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWnfssr> was successful.

...

Network File System (NFS) server support (Usr)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWnfssu> was successful.

...

Trivial File Transfer Server(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2007 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWtftp> was successful.

...

Trivial File Transfer Server (Root)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWtftpr> was successful.

...

NTP, (Root)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWntpr> was successful.

...

NTP, (Usr)(i386) 11.10.0,REV=2005.01.21.16.34

Copyright 2005 Sun Microsystems, Inc.  All rights reserved.

...

Installation of <SUNWntpu> was successful.

Enter the IP address of NTP server:

Step 6 Enter the IP address for the NTP server used for your network and press Enter: Text similar to the following is displayed:

NTP is configured and enabled. You can manually change the configuration by modifying
/etc/inet/ntp.conf and disable NTP by run 'svcadm enable ntp'

At any time, you may uninstall the software installed

 by this package with the following commands:

cd /opt/sun_install/SolPkg

./uninstall_SolPkg.sh

 which will uninstall all the solaris software

 installed with this package

NTP software is installed and configured. System reboot is required to activate it. Do you
want to reboot now?[yes|no]

Step 7 You must reboot your system for the changes to take effect. Type yes and press Enter:

Step 8 If you require ftp access to your Cisco PGW 2200 Softswitch by Cisco BAMS or some other product, type the following command and press Enter:

svcadm enable ftp

The communications software installation is now complete. Go to Table 2-2 if you want to continue with the list for package installation.

Installing the Verification Test Suite Script Package (CSCOh021)

The Verification Test Suite (VTS) provides an optional script designed to test configured Sun Solaris 10 platforms used for Cisco PGW 2200 Softswitch, BAMS, and HSI products. VTS test instructions support the following interface cards:

•Sun GigaSwift Ethernet PCI card (order number X1150A)

•Sun 10/100BT Ethernet PCI card (order number X1033)

•Sun Quad Fast Ethernet PCI card (order number X1034A)

Perform all testing with a console log file enabled to capture everything entered at the console input and displayed on the console output. One way to accomplish this is through a terminal server connected to the console port of your platform. You can use the xterm program with the -l -lf <logfile> command line option to create the console log file.

For each target system in the test below, you should archive the console log file along with the VTS log file created with other records.

Note The VTS package is not supported by the Sun Fire X4640 and Sun Netra X4270 platforms.

To install the VTS script package:

Step 1 If you are using the CD-ROM, load the Cisco Solaris 10 Operating Environment CD into the CD-ROM drive.

Remount the cdrom by command:

# mount -F hsfs -o ro /dev/dsk/<dev_name> /cdrom

where <dev_name> is either "c0t0d0p0"(for Opteron), or "c0t0d0s0" (for Sparc), or as seen on screen after jumpstart (see the "Installation of Solaris JS11 through ILOM" section).

Step 2 Type the following command to install the VTS script package and press Enter:

# pkgadd -d /cdrom/CSCOh021.pkg

Text similar to the following is displayed:

The following packages are available:

  1  CSCOh021     Media Gateway Controller Solaris 10 test for SPARC/Opteron

                  (sparc,i386) 3.0(6)

Select package(s) you wish to process (or 'all' to process

all packages). (default: all) [?,??,q]:

Note You can also download the VTS script package (CSCOh021) from Cisco.com. For example, download the CSCOh021 package to the /opt/SW folder on the platform and use the command, pkgadd -d /opt/SW/CSCOh021.pkg. Make sure you downloads the platform-specific package for your platform (Sparc-based or Opteron-based).

Step 3 Press Enter to select all packages. Text similar to the following is displayed:

Processing package instance <CSCOh021> from </var/tmp/CSCOh021.pkg>

Media Gateway Controller Solaris 10 test for SPARC/Opteron(sparc,i386) 3.0(6)

Cisco Systems, Inc.

## Executing checkinstall script.

CSCOh021 checkinstall log file at /var/tmp/CSCOh021.checkinstall.log

Platform is SUNW,Sun-Fire-V210

This machine is running Solaris 5.10

Using </opt/sun_install> as the package base directory.

## Processing package information.

## Processing system information.

   2 package pathnames are already properly installed.

## Verifying disk space requirements.

## Checking for conflicts with packages already installed.

## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user

permission during the process of installing this package.

Do you want to continue with the installation of <CSCOh021> [y,n,?]

Step 4 Answer y and press Enter to continue with the installation. Text similar to the following is displayed:

Installing Media Gateway Controller Solaris 10 test for SPARC/Opteron as <CSCOh021>

## Installing part 1 of 1.

/opt/sun_install/VTSadmin.file

/opt/sun_install/vts/vts_script

/opt/sun_install/vts <implied directory>

/opt/sun_install/vts/vts_script6

[ verifying class <none> ]

## Executing postinstall script.

!!

!!  You must now change directories to /opt/sun_install/vts and

!!  run the ./vts_script script as root.

!!

Installation of <CSCOh021> was successful.

Note If the script completes with a failure message saying "VTS Probe failed - didn't find any DVD/CD drives. /opt/sun_install/vts/vts_script6 failed.", it is ok to proceed. If the script hangs towards completion, press Ctrl-C to exit the script. The environment package CSCOh021 will get installed in both cases.

This completes the VTS installation. If you have questions or need assistance, see the "Obtaining Documentation and Submitting a Service Request" section.

Using the SunVTS Test Package

Use the SunVTS program to test the following:

•CPUs

•Memory

•Ethernet cards

Note In order for you to fully test the Ethernet ports, all Ethernet ports must be configured with valid IP addresses and connected to an Ethernet network with at least one other machine on the network.

•Hard disks

•CD-ROM drive

Note In order for you to pass the DVD/CD drive test, a disk must be in the DVD/CD drive.

•LOM hardware

Normal Unit Test

The normal unit test must be successfully run on each target system before it is shipped to the customer. A normal unit test checks 20 percent of each disk surface. To run a normal unit test, use the following procedure.

Caution

Do not run this test while the application is running because it could adversely affect the application performance.

Step 1 Change directories to the following directory:

# cd /opt/sun_install/vts

Step 2 Enter the following command to start the test:

# ./vts_script

Text similar to the following is displayed:

You are running as root - Good...

Platform is i86pc

OS version is 5.10

Platform type is i386

VTS 64-bit binary path is /opt/SUNWvts/bin/64

OS is 64-bits

checking for VTS packages

Check to see if VTS is already installed

package SUNWvts found

package SUNWvtsr found

package SUNWvtsts found

Check to see if XML is already installed

package SUNWlxml found

VTS version: 6.4,REV=2007.07.05.10.11

Checking to see if rpcbind is running

starting rpc services rpcbind

giving rpcbind a chance to start

Checking to see if vtsk is running

starting vtsk

giving vtsk a chance to start

VTS probe output:

Processor(s)

   CPU(cputest)

      CPU Test

   FPU(fputest)

      Floating Point Unit Test

   dtlb(dtlbtest)

      Data TLB Test

   l1cache(l1dcachetest)

      Level 1 Cache Test

   l2sram(l2sramtest)

      External Cache Test

   system(systest)

      System Configuration=  Sun Microsystems  i86pc

      Memory size= 8064 Megabytes

Memory

   kmem(vmemtest)

      Total Swap: 10392MB

   mem(pmemtest)

      Memory Size:8064MB

   mem(ramtest)

      Total Physical Memory : 8064MB

BMC-Logical-Group

   BMC(bmcenvironment)

      BMC Enviornment test looks good

SCSI-Devices(mpt0)

   c0t2d0(disktest)

      Capacity: 68.36GB

      Controller: mpt0

      Vendor: FUJITSU

      SUN Id: MAY2073RCSUN72G

      Firmware Rev: 0401

      Serial Number: 0605S0157P

      Device Kind :disk

   c0t3d0(disktest)

      Capacity: 68.36GB

      Controller: mpt0

      Vendor: FUJITSU

      SUN Id: MAY2073RCSUN72G

      Firmware Rev: 0401

      Serial Number: 0605S0132W

      Device Kind :disk

IDE-Devices(ata0)

   c3t0d0(cddvdtest)

      Controller: ata0

Bus

   iobus(iobustest)

      platform = SUN

Network

   e1000g0(nettest)

      Host_Name:

      Host Address: 10.74.49.119

      Host ID: 18089793

      Domain Name:

   e1000g1(nettest)

      Host_Name:

      Host Address: 10.0.49.119

      Host ID: 18089793

      Domain Name:

   e1000g2(nettest)

      Host_Name:

      Host Address: 172.16.101.119

      Host ID: 18089793

      Domain Name:

   e1000g3(netlbtest)

      Port Address: Unknown

      Host ID: 18089793

Comm.Ports

   asy0(serialtest)

      Port a -- asy0  /dev/term/a : /devices/ ... :a

USB-Devices

   kbd(usbtest)

      Device information:  USB Keyboard

Unknown platform.  Assuming only one CPU installed

Number of hard disks:        2

Hard disks:

Number of LOM or TSALARM devices:        0

LOM or TSALARM devices:

Number of SSP devices:        0

ALOM (SSP) devices:

Number of NALM devices:        0

NALM devices:

Number of configured network interfaces:        3

Configured network interfaces:

e1000g0

e1000g1

e1000g2

Number of unconfigured network interfaces:        1

Unconfigured network interfaces:

e1000g3

Total number of network interfaces: 4

Number of DVD/CD drives :        1

DVD/CD drives :

c3t0d0

Number of (virtual) CPUs :        2

Note: Dual core CPUs count as two virtual CPUs

(virtual) CPUs :

CPU

normal test

Level 1 Data Cache Test all ...

Floating Point Unit Test all ...

System Test ...

Central Processor Unit Test all ...

Level 1 Data Cache Test all done

System Test done

Central Processor Unit Test all done

Floating Point Unit Test all done

Physical Memory Test ( 8064MB) ...

Physical Memory Test done

Network Test e1000g0 ...

Network Test e1000g1 ...

Network Test e1000g2 ...

Network Loobpack Test e1000g3 ...

DVD/CD Test c3t0d0 ...

Hard Disk Test c0t3d0 20% ...

Hard Disk Test c0t2d0 20% ...

Network Test e1000g0 done

Network Test e1000g1 done

Network Test e1000g2 done

Network Loopback Test e1000g3 done

DVD/CD Test c3t0d0 done

Hard Disk Test c0t3d0 done

Hard Disk Test c0t2d0 done

stopping vtsk

stopping rpcbind

**************************************

************* RESULTS ****************

**************************************

normal test

Number of hard disks:        2

Hard disks:

c0t2d0

c0t3d0

Number of configured network interfaces:        3

Configured network interfaces:

e1000g0

e1000g1

e1000g2

Number of unconfigured network interfaces:        1

Unconfigured network interfaces:

e1000g3

Total number of network interfaces: 4

Number of DVD/CD drives :        1

CD-ROM/DVD drives :

c3t0d0

Number of LOM or TSALARM devices:        0

LOM or TSALARM devices:

Number of SSP devices:        0

ALOM devices:

Number of NALM devices:        0

NALM devices:

Number of (virtual) CPUs :        2

Note: Dual core CPUs count as two virtual CPUs

(virtual) CPUs :

CPU

Amount of physical memory :  8064MB

Amount of swap memory     :  10392MB

number of fatal errors :        0

number of errors       :        0

********** Fatal Errors **************

******* end of Fatal Errors **********

************* Errors *****************

********** end of Errors *************

PPPPPP   AA   SSSSSS SSSSSS

PP  PP  A  A  SS     SS

PPPPPP AAAAAA SSSSSS SSSSSS

PP     AA  AA     SS     SS

PP     AA  AA SSSSSS SSSSSS

Note See Table 2-5 for the approximate amount of time the test will take on the different platforms supported.

Step 3 Once the test completes, examine the console output and the file /opt/sun_install/vts_script.log. Verify that the unit passed the test and that the proper number of hard disks and Ethernet interfaces were detected.

Running a Test in Brief Mode

When run in brief mode, the vts_script tests 1 percent of each disk surface. To run the test in brief mode:

Step 1 Change directories to the /var/tmp directory. Enter the following command:

# cd /var/tmp

Step 2 Enter the following command to start the test:

# /opt/sun_install/vts_script brief

Running a Test in Full Mode

When run in full mode, the vts_script tests 100 percent of each disk surface. To run the test in full mode:

Step 1 Change directories to the /var/tmp directory. Enter the following command:

# cd /var/tmp

Step 2 Enter the following command to start the test:

# /opt/sun_install/vts_script full

vts_script Execution Times

Table 2-5 lists estimated execution times for the VTS scripts on a sampling of Cisco PGW 2200 Softswitch software host platforms.

Note Actual VTS script execution time on your host platforms differs based on the configuration of your hardware. The size of the disks used in your host platforms has the largest single impact on execution time.

Table 2-5 Sample Estimates of VTS Script Execution Times
VTS Version	Platform Type, Number of CPUs, CPU speed, Amount of RAM, Number of Disks, Size of Disks	Brief Mode Execution Time (Hours:Minutes: Seconds)	Normal Mode Execution Time (Hours:Minutes: Seconds)	Full Mode Execution Time (Hours:Minutes: Seconds)
5.1	Netra 120, 1, 440 MHz, 2 GB, 2, 36 GB	0:06:09	1:16:35	Estimate unavailable
6.0	SunFire V120, 1, 648 MHz, 4 GB, 2, 73 GB	0:08:00	0:49:00	2:56:00
5.1	Netra 20, 4, 900 MHz, 4 GB, 2, 73 GB	0:09:36	2:31:00	Estimate unavailable
5.1	SunFire V210, 1, 1340 MHz, 2 GB, 2, 73 GB	0:00:00	0:00:00	0:00:00
6.0	Netra 240, 2, 1280MHz, 4GB, 2, 146 GB	0:10:00	2:32:00	12:29:00
6.0	SunFire V40z, 4, 2192 MHz, 16 GB, 2, 73GB	0:09:00	2:30:00	12:28:00
6.0	Netra 440, 4, 1281 MHz, 8 GB, 4, 146 GB	0:11:00	2:32:00	12:30:00

Removing the VTS Package (CSCOh021)

Use the following procedure to remove the VTS script package from the target system after all tests are complete, all the log files are archived, and the SunVTS software is uninstalled.

Step 1 Type the following command to remove the VTS script package and press Enter:

# pkgrm CSCOh021

Text similar to the following is displayed:

The following package is currently installed:

   CSCOh021  Media Gateway Controller Solaris 10 test for SPARC/Opteron

             (sparc,i386) 3.0(6)

Do you want to remove this package? [y,n,?,q] y

Step 2 Type y and press Enter to remove this package. Text similar to the following is displayed:

## Removing installed package instance <CSCOh021>

This package contains scripts which will be executed with super-user

permission during the process of removing this package.

Do you want to continue with the removal of this package [y,n,?,q]

Step 3 Answer y and press Enter to continue with the installation. Text similar to the following is displayed:

## Verifying package <CSCOh021> dependencies in global zone

## Processing package information.

## Executing preremove script.

## Removing pathnames in class <none>

/var/tmp <shared pathname not removed>

/opt/sun_install/vts/vts_script6

/opt/sun_install/vts/vts_script

/opt/sun_install/VTSadmin.file

/opt/sun_install <shared pathname not removed>

## Updating system information.

Removal of <CSCOh021> was successful.

This completes the Sparc-based Solaris 10 Patch cluster installation procedures.

For Cisco PGW 2200 Softswitch Hosts: The Cisco PGW 2200 Softswitch software can now be loaded.

For Cisco HSI: The Cisco HSI software can now be loaded.

For Cisco BAMS: The BAMS software can now be loaded.

Configuring Lights-Out Management (LOM) or the Integrated Lights Out Manager (ILOM)

The LOM and the ILOM are developed by Sun Microsystems for different hardware platforms. They are dedicated systems of hardware and supporting software that allows you manage the Sun servers remotely. See Sun Microsystems documentation for more information.

This section describes the following configuration procedures for the LOM or the ILOM on different platforms:

•Configuring LOM on Sun Fire V40z Platform

•Configuring ILOM on the Sun Fire X4640 Platform

•Configuring ILOM on the Sun Netra X4270 Platform

•Configuring ILOM on the Sun Fire X4800 Platform

Configuring LOM on Sun Fire V40z Platform

Configuring the Service Processor

See the section "Configuring the Service Processor" in Chapter 2 of the Sun Microsystems document, Sun Fire^TMV20z and Sun Fire^TM V40z Servers--Installation Guide. Follow the steps in "Assigning Static SP Network Settings" in this section.

You can find this document on the Sun Microsystems web site at the following URL,
http://docs.sun.com.

Logging in Service Processor Using Secure HTTP

Follow the following procedure to log in SP using secure HTTP. The procedure is based on the Sun Microsystems document, Sun Fire^TMV20z and Sun Fire^TM V40z Servers--Installation Guide.

You can find this document on the Sun Microsystems web site at the following URL,
http://docs.sun.com.

Step 1 Enter the IP address of the SP in the browser. For example, enter https://10.10.10.1 in the browser. Press Enter.
A window similar to the one in Figure 2-8 is displayed when you log in the SP LOM using secure HTTP for the first time.

Figure 2-8 System Agreement

Step 2 Accept the agreement in the Figure 2-8. A window similar to the one in Figure 2-9 is displayed.

Figure 2-9 Create Initial Manager-level User

Step 3 Enter the user ID and password and confirm the password.
The default user ID/password is admin/admin.

Step 4 Click the check mark button. A window similar to the one in Figure 2-10 is displayed.

Figure 2-10 Warning Message Window

Step 5 Check the check box and click Yes on the warning message window.
A window similar to the one in Figure 2-11 is displayed.

Figure 2-11 LOM Screen

This completes the LOM configuration on Sun Fire V40z platform.

Configuring ILOM on the Sun Fire X4640 Platform

Configuring the Static IP Address Using the Command Line Interface (CLI)

There are several options to connect to the ILOM. Use the following procedure to establish the connection to the ILOM using a serial connection. The following procedure is based on the Sun Microsystems document, Integrated Lights Out Manager (ILOM) Administration Guide, For ILOM 1.1.1.

For other connection options, see the Sun Microsystems document, Sun Fire X4640 Server Operating System Installation Guide. You can find the document on the Sun Microsystems documentation website at:

http://docs.sun.com.

Note This procedure assumes that you have already completed the hardware setup and have applied standby power to your server.

Step 1 Verify that your terminal, laptop, or terminal server is operational.

Step 2 Configure the terminal device or the terminal emulation software running on a laptop or a PC to the following settings:

•8N1: eight data bits, no parity, one stop bit

•9600 baud

•Disable hardware flow control (CTS/RTS)

•Disable software flow control (XON/XOFF)

Step 3 Connect a serial cable from the RJ-45 SERIAL MGT port on the server back panel to a terminal device. See Figure 2-12.

Figure 2-12 Sun Fire X4640 Server Back Panel

Step 4 Press Enter on the terminal device.
The login prompt similar to the following is displayed.

SUNSP0003BA84D777 login:

Note SUNSP is the prefix which is the same for all SPs. 0003BA84D777 is the Ethernet MAC address of the particular SP. Each SP has a unique MAC address.

Step 5 Enter the default user name root. Enter the default password changeme.
The following default command prompt is displayed when you have successfully logged in.
->

Step 6 Enter the following commands.
The addresses in the commands below are examples.

cd /SP/network
set pendingipaddress=10.10.10.1
set pendingipnetmask=255.255.255.0
set pendingipgateway=10.10.10.254
set pendingipdiscovery=static
set commitpending=true

Step 7 Enter the following command and press Enter.
You can see if the configuration in Step 1 has taken effect using this command.

show /SP/network

Step 8 Connect the Ethernet cable to the 10/100 Ethernet port on the back panel of the X4640 server.
See Figure 2-12.

Start ILOM Using Secure HTTP

Follow the following steps to start the ILOM using secure HTTP. These steps are based on Chapter 4, "Using the WebGUI", of the Sun Microsystems document, Integrated Lights Out Manager (ILOM) Administration Guide, For ILOM 1.1.1.

You can find this document on Sun Microsystems web site at the following URL,
http://docs.sun.com.

Step 1 Enter the IP address of the SP in the browser. For example, enter https://10.10.10.1 in the browser. Press Enter.
A window similar to Figure 2-13 is displayed.

Figure 2-13 Integrated Lights Out Manager

Step 2 Enter the default user ID/password: root/changeme. Click Log In.

This completes the ILOM configuration on Sun Fire X4640 platform.

Configuring ILOM on the Sun Netra X4270 Platform

See the "Installation of Solaris JS11 through ILOM" section for detailed steps of redirecting local PC CD-ROM device.

Configuring ILOM on the Sun Fire X4800 Platform

See the "Installation of Solaris JS11 through ILOM" section for detailed steps of redirecting local PC CD-ROM device.

Table Of Contents

Installing the Sun Solaris 10 Operating System

Introduction

Supported Platforms

Supported Disk Drives

Before You Start

Cautions, Notes, and Tips

Loading the Sun Solaris 10 Operating System

Devices on Supported Platforms

Installing the Sun Solaris 10 Operating System for Sparc-based Platforms

Installing the Sun Solaris 10 Operating System for Opteron-based Platforms

Installation of Solaris JS11 through ILOM

Configuring Your Host

Platform-Specific Installation Procedures

Loading the Sun Solaris 10 Operating Environment

Installing the Sparc-based Solaris 10 Patches Package (CSCOh022)

Installing the Opteron-based Solaris 10 Patches Package (CSCOh032)

Installing the Solstice DiskSuite (CSCOh023)

Rebooting from the Mirrored (Secondary) Disk on Sparc-based Platforms

Rebooting from the Mirrored (Secondary) Disk on Opteron-based Platforms

Removing the Solstice DiskSuite

Installing the Log and Spool File Systems (CSCOh024)

Uninstalling the Log and Spool File System

Installing Cisco BAMS Archive Partition (CSCOh027)

Installing the Sparc-based Communications and Alarm Software Package (CSCOh026)

Installing the Opteron-based Communications Software Package (CSCOh036)

Installing the Verification Test Suite Script Package (CSCOh021)

Using the SunVTS Test Package

Normal Unit Test

Running a Test in Brief Mode

Running a Test in Full Mode

vts_script Execution Times

Removing the VTS Package (CSCOh021)

Configuring Lights-Out Management (LOM) or the Integrated Lights Out Manager (ILOM)

Configuring LOM on Sun Fire V40z Platform

Configuring the Service Processor

Logging in Service Processor Using Secure HTTP

Configuring ILOM on the Sun Fire X4640 Platform

Configuring the Static IP Address Using the Command Line Interface (CLI)

Start ILOM Using Secure HTTP

Configuring ILOM on the Sun Netra X4270 Platform

Configuring ILOM on the Sun Fire X4800 Platform
