Configuring the Cisco PGW 2200 Softswitch Software

---

Revised: October 19, 2009, OL-18083-04

This chapter describes how to configure Release 9.8 of the Cisco PGW 2200 Softswitch software.

Quick Guide to Configuring the Cisco PGW 2200 Softswitch Software

---

Note The Cisco PGW 2200 Softswitch software files and processes are located in the /opt/CiscoMGC directory.

---

The following table provides an overview of the Cisco PGW 2200 Softswitch software configuration.

Table 4-1 Quick Guide to Configuring the Cisco PGW 2200 Softswitch Software

Task	Detailed Procedures
Before You Start	on page 4-2
Initial Cisco PGW 2200 Softswitch Software Configuration –Using the Cisco MGC Environment Configuration Tool	on page 4-4 on page 4-8
Using the Cisco MGC Environment Configuration Tool –Verifying the mgcgrp Group –Adding a User with Full MML Privileges –Adding a User with Minimal MML Privileges	on page 4-8 on page 4-11 on page 4-11 on page 4-12
Configuring SNMP Support Resources –Migrating the SNMP Configuration to a More Secure Environment (for Cisco PGW 2200 Softswitch Release 9.3(2) or Later)	on page 4-13 on page 4-14
Configuring the Execution Environment –Changing XECfgParm.dat File Parameters –Changing XECfgParm.dat File Parameters in a Running Fault Tolerant System –Configuring Basic System Information –Specifying IP Addresses –Configuring Engine Parameters –Enabling Call Screening –Configuring Call Detail Record File Output –Configuring the Clearing Location and Default Location Parameters –Configuring Switchover –Initializing the Provisioning Object Manager	on page 4-25 on page 4-26 on page 4-27 on page 4-28 on page 4-30 on page 4-32 on page 4-34 on page 4-34 on page 4-36 on page 4-39 on page 4-41
Configuring SCP Queries –Before You Start –Configuring the trigger.dat File Attributes	on page 4-42 on page 4-43 on page 4-43
Initializing the Call Screening Database –.odbc.ini File Information –Setting Up Replication –Verifying Database Replication –Troubleshooting the Main Memory Database Replication	on page 4-82 on page 4-83 on page 4-83 on page 4-86 on page 4-87
Configuring Cisco ITP-Ls	on page 4-89
Configuring Disk Monitor During Initial Software Configuration	on page 4-90
Configuring the Data Dumper	on page 4-91
Configuring the Data Dumper to Support Cisco BAMS	on page 4-92

---

Note For further information on configuring the Cisco PGW 2200 Softswitch software, see the Cisco PGW 2200 Softswitch Release 9.8 Provisioning Guide.

---

Before You Start

Before you start, verify the following:

•Have your company's internal support and Cisco support contact information readily available so you can get help with the installation if needed. (If you have questions or need assistance, see the "Obtaining Documentation and Submitting a Service Request" section on page x of the Cisco support contact information.)

•Ensure that you have access to the console port on your Cisco PGW 2200 Softswitch host.

---

Caution The Cisco PGW 2200 Softswitch software is case-sensitive. Ensure that you enter parameter names correctly, or the maximum number of configurations will not be modified.

---

Software Directory Structure

Table 4-2 shows the Cisco PGW 2200 Softswitch software directory structure.

---

Caution Do not edit any .dat files (except for the XECfgParm.dat and trigger.dat files). Use MML or the GUI provisioning tool to make changes to your configuration. In addition, only make changes to the call screening database by using MML or the GUI provisioning tool.

---

Table 4-2 Software Directory Structure

Directory	Contents
/etc/init.d	Control scripts, including scripts used to stop and start the software.
/opt/CiscoMGC	Root location of base software installation.
/opt/CiscoMGC/bin	Stores executable Cisco PGW 2200 Softswitch system files.
/opt/CiscoMGC/license	Cisco PGW 2200 Softswitch license files.
/opt/CiscoMGC/local	User accounts home directory.
/opt/CiscoMGC/etc	Contains active configuration data files and the configuration library.
/opt/CiscoMGC/etc/CONFIG_LIB	Library of all configuration data files.
/opt/CiscoMGC/etc/CONFIG_LIB/new	The initial startup configuration supplied with a new installation of the software.
/opt/CiscoMGC/etc/active_link	The active running configuration that has been committed or deployed.
/opt/CiscoMGC/etc/prov_link	The latest provisioned configuration that has not yet been committed or deployed.
/opt/CiscoMGC/etc/cust_specific	Location of configurations that have been exported using the prov-exp MML command.
/opt/CiscoMGC/lib	System software libraries of *.so object files (including protocol and system libraries).
/opt/CiscoMGC/snmp	SNMP support directory. MIBs are named *.my and are in ASN.1 syntax.
/opt/CiscoMGC/var	Contains the log, spool, trace, and Coredump file directories.
/opt/CiscoMGC/var/log	Default platform informational and error logs.
/opt/CiscoMGC/var/spool	Spool files for CDRs and measurements.
/opt/CiscoMGC/var/trace	Location of trace files created by using the sta-trc MML command.
/opt/SW	Cisco PGW 2200 Softswitch software patch files. Note This directory is not created by the default Cisco PGW 2200 Softswitch installation, but is recommended for storing Cisco PGW 2200 Softswitch patch files.
/opt/TimesTen	Call screening database files. Do not edit the database.
/opt/Toolkit	The Toolkit application files.
/opt/sun_install	Contains the scripts used to install Solaris patches.

Initial Cisco PGW 2200 Softswitch Software Configuration

The following required configuration parameters in the XECfgParm.dat file (see Table 4-3) are critical to bringing up the system. For a complete list of the parameters found in the XECfgParm.dat file and how they are used by the Cisco PGW 2200 Softswitch, see Appendix A, "XECfgParm.dat File Parameters."

---

Note The XECfgParm.dat file must be provisioned with the installation of every system. The file consists of set of parameters that are necessary to bring up the system. This set of required parameters is configured via the MGC Environment Configuration Tool.

When you exit the MGC Environment Configuration Tool, the slave file is sent via FTP to the appropriate system.

---

During initial Cisco PGW 2200 Softswitch configuration, we recommend that you put an initial configuration on the active host, otherwise both the active and standby hosts will remain in the stopped state. Do not start the standby host if the active host is not yet provisioned.

When the initial configuration on the active host is deployed, you must change the pom.dataSync parameter to true in the XECfgParm.dat file in the standby host. After setting this parameter to true, you can start the Cisco PGW 2200 Softswitch software on the standby host. As the Cisco PGW 2200 Softswitch software comes up, the data on the standby host is synchronized with the data on the active host. Initiate switchover to bring the active host to the standby state.

To accommodate failover conditions where the current active host can become the standby host, you must also set the pom.dataSync parameter to true on the current active host.

When upgrading the Cisco PGW 2200 Softswitch software: You must set the pom.dataSync parameter to false on the current active host in order to preserve configuration files.

Table 4-3 shows the Cisco PGW 2200 Softswitch configuration parameters.

Table 4-3 Configuration Parameters

Parameter	Description
*.CPUTimerInterval	Samples the frequency of CPU utilization. Prior to Release 9.4(1), this parameter must be set to 0 during the initial configuration of any platform with a single CPU (including Sun Netra t 100/105, Sun Netra V 120, and Sun Netra 120). Default: 3000 msec (3 seconds) Note During the startup of the Cisco PGW 2200 Softswitch software, this parameter will be set automatically to tune the system for optimal performance. For Release 9.4(1) and later, this parameter is set automatically when you specify a Cisco PGW 2200 Softswitch type in the engine.SysVirtualSwitch parameter. Any attempt to modify this parameter is overwritten.
*.desiredPlatformState	Specifies the operating mode of the Cisco PGW 2200 Softswitch.
*.IP_Addr1 through IP_Addr4	Specify the IP addresses being used by the system. Note that *.IP_AddrLocalA, and *.IP_AddrLocal2 are the same as *.IP_Addr1, and *.IP_Addr2, respectively.
*.IP_AddrLocalA and *.IP_AddrLocalB	The local IP addresses of the Cisco PGW 2200 Softswitch. These addresses should match the value of *.IP_AddrLocalA and *.IP_AddrLocalB.
*.IP_AddrPeerA and *.IP_AddrPeerB	The IP address of Cisco PGW 2200 Softswitch peers used for failover.
*.MGC_CDR_NODE_ID	The Cisco PGW 2200 Softswitch System ID used for Call Data Records (CDRs).
*.ownTranspathId	Contains a unique number that identifies the Cisco PGW 2200 Softswitch's virtual switch controller within the ASN (Auxiliary Signaling Network). Default: 01
*.peerTranspathId	Contains a unique number that identifies a peer virtual switch controller within the ASN (Auxiliary Signaling Network). Default: 02
*.platformId	Identifies the Cisco PGW 2200 Softswitch platform. The default value 1 applies to Fault Tolerant mode and Standalone mode. Default: 1
*.SysConnectDataAccess	Controls whether data access is enabled or disabled (if the engine attempts to connect to the MMDB or to call screening database at startup). Values: •true = connect to MMDB or call screening database •false = do not connect to MMDB or call screening database Default: false Note This parameter must be set to true in calling scenarios where Euro-LNP, A Number Screening, or other features requiring real time database access are required. Otherwise, it can remain false for an increase in the available system memory usable for call processing.
*.TCAP.avgInvokePerDialog	Specifies the maximum number of outgoing Invoke messages per dialog. Values: 1-10 Default: 1
*.TCAP.maxSsnNum	Specifies the maximum number of local Subsystem Numbers (SSNs) supported by the Cisco PGW 2200 Softswitch. Values: 1-10 Default: 1
*.transpathId	A unique number that identifies each virtual switch controller within the ASN (Auxiliary Signaling Network). Default: 01
*.Virtual_IP_Addr1 through *.Virtual_IP_Addr2	Specify virtual IP addresses for the Cisco PGW 2200 Softswitch that are used for SIP Failover Support.
engine.SysVirtualSwitch	Indicates whether the Cisco PGW 2200 Softswitch host functions as a signaling controller or a virtual switch controller. Values: •0—Signaling controller (nailed trunks, no auditing is initiated) •1—Virtual switch controller (switched trunks) Default: 0 Note During the startup of the Cisco PGW 2200 Softswitch software, this parameter is be set automatically to tune the system for optimal performance. Note For Release 9.4(1) and later, the values of the parameters listed below are automatically set based on the Cisco PGW 2200 Softswitch type you select, to maximize performance for that configuration. Any attempt to change the values of these parameters is overwritten. engine.SysMdlMemoryReduction engine.CALL_MEM_BLOCK_SIZE engine.CALL_MEM_CHUNK_SIZE *.CPUTimerInterval *.numberOfThreads
pom.dataSync	Indicates that the Provisioning Object Manager (POM) should synchronize the provisioning data at startup. Values: •True— POM does not synchronize provisioning data at startup. •False— POM synchronizes provisioning data at startup. Default: False

Parameters Required for Initial Setup

The following table lists the parameter values that must be defined during the initial installation.

---

Note These parameters are located at the top of the XECfgParm.dat file, thus making it easier to find the parameters required for initial setup.

---

Table 4-4 Parameters Required for Initial Setup

Item	Parameter Name	Default Value	Changed Values
1	*.platformId	1	2, if slave
2	*.transpathId	01	02, if standby
3	*.ownTranspathId	01	02, if standby
4	*.peerTranspathId	02	01, if standby
5	*.MGC_CDR_NODE_ID	MGC-CDR-NODE-STRING	System Id for Call Data Records (CDRs)
6	*.desiredPlatformState	Standalone	Master,slave,standalone
7	*.SysConnectDataAccess	False	True
8	*.IP_AddrLocalA	0.0.0.0	Ifconfig(bge0)
9	*.IP_AddrLocalB	0.0.0.0	Ifconfig(bge1)
10	*.IP_AddrPeerA	0.0.0.0	Slave(ifconfig(bge0))
11	*.IP_AddrPeerB	0.0.0.0	Slave(ifconfig(bge1))
12	*.IP_Addr1	0.0.0.0	Ifconfig(bge0)
13	*.IP_Addr2	0.0.0.0	Ifconfig(bge1)
14	*.IP_Addr3	0.0.0.0	Ifconfig(bge2)
15	*.IP_Addr4	0.0.0.0	Ifconfig(bge3)
16	StPort	0	7000, if Master or 7001 if Slave
17	Engine.SysVirtualSwitch	0	1 for Switched solution
18	Foverd.ipLocalPortA (con 1)	0	1051, if Master or 1052 if Slave
19	Foverd.ipPeerPortA (con 1)	0	1052, if Master or 1051 if Slave
20	Foverd.ipLocalPortA (con 2)	0	1053, if Master or 1054 if Slave
21	Foverd.ipPeerPortA (con 2)	0	1054, if Master or 1053 if Slave
22	Pom.dataSync	False	True if Master or Slave, both sides
23	Diskmonitor.OptFileSys	<blank>	../var/log
24	NumberOfThreads	0	Determined based on the number of CPUs in the Cisco PGW 2200 Softswitch

---

Note For an example of an updated configuration file, see the "Updated Configuration File Sample" section on page D-12.

---

Using the Cisco MGC Environment Configuration Tool

You must configure the basic parameters required to bring the system to an operational mode. Follow these steps to use the MGC Environment Configuration Tool XECfg program:

---

Step 1 Log in as mgcusr, enter the following at the command prompt, and press Enter:

% MGC_Setup

A dialog box displays, warning that the MGC Environment Configuration Tool is for initial system configuration only.

---

Note To run the MGC Environment Configuration Tool in detail mode, enter the command MGC_Setup -detail.

---

Step 2 Click Yes to continue running the XECfg program.

The MGC Environment Configuration Tool screen expands to provide information from the XECfgParm.dat file. Figure 4-1 shows the MGC Environment Configuration Tool screen.

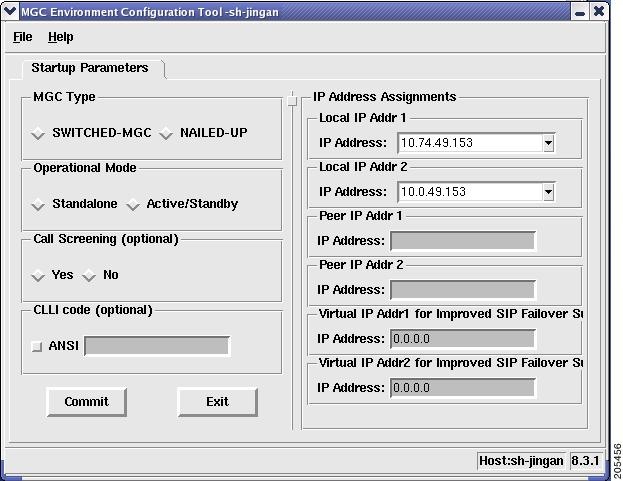

Figure 4-1 MGC Environment Configuration Tool

Table 4-5 explains the startup parameters listed in the MGC Environment Configuration Tool.

Table 4-5 MGC Environment Configuration Tool Startup Parameters

Field	Usage
MGC Type	Indicates whether the Cisco PGW 2200 Softswitch connection type. SWITCHED-MGC specifies a dynamic connection such as a trunk group; NAILED-UP specifies a permanent connection such as a sigpath.
Operational Mode	Indicates the whether the Cisco PGW 2200 Softswitch is operating as a stand-alone system or in a fault-tolerant configuration with an active and standby Cisco PGW 2200 Softswitch. Note If you select Active/Standby, you must provide a peer IP address.
Call Screening	Indicates whether call screening is enabled or disabled on the Cisco PGW 2200 Softswitch. This setting is optional.
CLLI Code	The CLLI code identifying the site where the Cisco PGW 2200 Softswitch is located. This setting is optional.
Local IP Address 1	The primary IP address of the Cisco PGW 2200 Softswitch.
Peer IP Address 1	The IP address of the peer Cisco PGW 2200 Softswitch. A peer IP address is required for a fault tolerant (Active/Standby) system.
Virtual IP Address 1	Additional virtual IP address for the Cisco PGW 2200 Softswitch. Virtual IP addresses can improve failover for SIP connections in the event of a hardware failure.
Virtual IP Address 2	Additional virtual IP address for the Cisco PGW 2200 Softswitch. Virtual IP addresses can improve failover for SIP connections in the event of a hardware failure.
Virtual IP Addr1 for Improved SIP Failover Support	Setting 0.0.0.0 to both will disable the improved SIP failover support. Configuring only one will cause the switchover, if the physical interface where it present fails. Must be from *.IP_Addr1 subnet.
Virtual IP Addr2 for Improved SIP Failover Support	Setting 0.0.0.0 to both will disable the improved SIP failover support. Configuring only one will cause the switchover, if the physical interface where it present fails. Must be from *.IP_Addr2 subnet.

Step 3 Click the Commit button after you have finished setting the parameters.

---

Note The required parameters are the MGC type and its operating mode. There are no default parameters defined when you bring up the XECfg program.

---

The Cisco PGW 2200 Softswitch performs the following actions after you commit the new parameters:

•The XECfg program backs up the current XECfgParm.dat file into the XECfgParm.dat.xyz file, where xyz represents the file version number. The version numbers range from 0 to 19.

•If the operating mode is stand-alone, the Cisco PGW 2200 Softswitch updates the XECfgParm.dat file with new parameters.

•If the operating mode is fault-tolerant, the Cisco PGW 2200 Softswitch updates the XECfgParm.dat file and generates the XECfgParm.data.slave file based on the XECfgParm.dat file.

---

Note There is no backup for the XECfgParm.dat.slave file.

---

•The Cisco PGW 2200 Softswitch comments out old parameters and inserts the new parameters. The Cisco PGW 2200 Softswitch inserts a history line to note updated parameters.

•The Cisco PGW 2200 Softswitch moves required parameters to the top of the file for convenience.

---

Note You can use the comment line to record the file history.

---

Step 4 Click Exit to exit the application.

If you set the Operational Mode to Active/Standby, the XECfg program displays a prompt that allows you to transfer the XECfgParm.dat.slave file to a remote machine when you exit the application. To transfer the file to a remote machine, enter the FTP password. Otherwise, exit the application.

---

Configuring Groups and Users

You must set up groups and users for the Cisco PGW 2200 Softswitch software on each host server. A user must be a member of the "mgcgrp" group to use certain Cisco PGW 2200 Softswitch software functions, such as Man-Machine Language (MML). (MML is an interface that enables you to communicate with the Cisco PGW 2200 Softswitch. Users with full MML privileges have monitor and control access; users with minimal MML privileges have only monitor access. For more information on MML, see the Cisco PGW 2200 Softswitch Release 9.8 Provisioning Guide and the Cisco PGW 2200 Softswitch Release 9 MML Command Reference.)

Verifying the mgcgrp Group

To verify the mgcgrp group, complete the following steps:

---

Step 1 Log in to the Cisco PGW 2200 Softswitch host as root.

Step 2 Change to the /etc directory.

Step 3 Edit the group file to verify the entry for the mgcgrp group. The file should contain the following line:

mgcgrp::20000:

Step 4 Save and close the group file.

Step 5 Edit the passwd file to verify the entry for the mgcusr user. The file should contain the following line:

mgcusr:x:20000:20000::/opt/CiscoMGC/local:/bin/csh

If the file does not contain the line, add it.

Step 6 Save and close the password file.

---

This completes the procedure for verifying the mgcgrp group.

Adding a User with Full MML Privileges

To add a user with full MML privileges, complete the following steps.

---

Caution If your user's home directory differs from /opt/CiscoMGC/local, you must perform Step 6 through Step 7 before using MML.

---

---

Step 1 Log in to the Cisco PGW 2200 Softswitch host as root.

Step 2 Enter the following command:

# useradd -u UID -g mgcgrp -d /opt/CiscoMGC/local -s /bin/csh -m username

UID is a user ID that is an integer from 0 through 2147483647 (excluding the numbers 0, 1, 2, 3, 4, 5, 9, 37, 71, 60001, 60002, and 65534, because they are used by the operating system).

Step 3 Add the new username to the mgcgrp group in the group file:

mgcgrp::20000:username

---

Note The group file is a comma-separated list of user names. If you add more than one user, use commas (with no spaces) to separate one name in the list from another.

---

Step 4 Enter the following command and press Enter:

# passwd username

Step 5 Type the user's password and press Enter twice when prompted.

Step 6 Log in to the Cisco PGW 2200 Softswitch as the new user.

Step 7 Enter the following command and press Enter:

% mml

The MML interface launches. To exit MML, type quit and press Enter.

---

This completes the procedure for adding a user with full MML privileges.

Adding a User with Minimal MML Privileges

To add a user with full MML privileges, complete the following steps.

---

Step 1 Log in to the Cisco PGW 2200 Softswitch host as root.

Step 2 Add a group with minimal MML privileges using the following command:

# groupadd minmml

Step 3 Prepare the .cshrc file for the group with minimal MML privileges using the following commands:

# mkdir /opt/CiscoMGC/local/minmml

# cp /opt/CiscoMGC/local/.cshrc  /opt/CiscoMGC/local/minmml/.cshrc

# chgrp minmml  /opt/CiscoMGC/local/minmml/.cshrc

Step 4 Add a user to the group with minimal MML privileges using the following command:

# useradd -g minmml -d /opt/CiscoMGC/local/minmml -s /bin/csh -m username

Step 5 Change the password for the newly added user using the following command.

# passwd username

Step 6 Type the user's password and press Enter twice when prompted.

Step 7 Log in to the Cisco PGW 2200 Softswitch as the new user.

Step 8 Enter the following command and press Enter to verify the new user's access privileges:

% mml

Text similar to the following is displayed:

Copyright ? 1998-2002, Cisco Systems, Inc.

User has minimal access privileges

sh-passat mml>

To exit MML, type quit and press Enter.

---

This completes the procedure for adding a user with minimal MML privileges.

The group and user configuration is now complete. Continue to the "Configuring SNMP Support Resources" section. If you have questions or need assistance, see the "Obtaining Documentation and Submitting a Service Request" section on page x.

Configuring SNMP Support Resources

The Cisco PGW 2200 Softswitch software includes a Simple Network Management Protocol (SNMP) agent subsystem that provides an alarm management interface on the Cisco PGW 2200 Softswitch. It uses SNMP to report events, or traps (such as alarms), to your SNMP Manager and to provide access to the Cisco PGW 2200 Softswitch Management Information Base (MIB).

---

Note SNMP MIB measurements are only valid on the active node. They are not replicated on the standby node.

---

The SNMP agent subsystem reports the following event categories to your SNMP Manager:

1. Communications

2. Quality of Service

3. Processing

4. Equipment

5. Environment

In a fault tolerant configuration, the SNMP agent subsystem runs on both the active and standby machines.

---

Note If your system is running Cisco PGW 2200 Softswitch software Release 9.3(2) or later, go to the "Migrating the SNMP Configuration to a More Secure Environment (for Cisco PGW 2200 Softswitch Release 9.3(2) or Later)" section for SNMP configuration procedures.

---

---

Note For a sample snmpd.cnf file, see the "Sample Configured snmpd.cnf File" section on page D-13.

---

---

Note Use the config-snmp utility to configure SNMP community names and trap destinations.

---

---

Note SNMP managers such as the Cisco Media Gateway Controller Node Manager (Cisco MNM) or HP OpenView can be used to receive traps.

---

---

Note The config-snmp utility is case-sensitive. It will accept "name1" and "NAME1" as two different entries.

---

Migrating the SNMP Configuration to a More Secure Environment (for Cisco PGW 2200 Softswitch Release 9.3(2) or Later)

If your system is running Cisco PGW 2200 Softswitch software version 9.3(2) or later, Cisco recommends that you migrate the SNMP configuration to a more secure environment by running the config-snmp utility. Use the config-snmp utility to perform the following:

•Modify the snmpd.cnf file to automatically migrate old configuration files to a secure environment.

•Facilitate the addition or deletion of the community string and trap destination.

---

Note There is no limit to the number of community strings that can be added to the configuration.

---

---

Note The config-snmp script only allows you to add or delete an entry to your snmpd.cnf file.

---

Basic Tasks

The following is an overview of the major tasks you must perform to get the SNMP security provided by the config-snmp utility:

1. Run config-snmp utility. See the "Running the config-snmp Utility" section.

2. Add a new snmpCommunityEntry. See the "Adding an SNMP Community Entry" section

3. Make sure that the new snmpCommunityEntry string is recognized and can communicate with your Cisco PGW 2200 Softswitch hosts. See the "Activating the New Settings" section.

4. Delete the old entry that you were using. See the "Deleting an SNMP COMMUNITY" section.

Before You Run the config-snmp Utility

---

Note If you have completed a first-time installation of the Cisco PGW 2200 Softswitch software with Release 9.8 and its associated patches, copy the snmpd.cnf.tmpl to snmpd.cnf before your run the config-snmp utility. Users who have upgraded to Release 9.8 from a previous release do not have to perform this procedure. To copy the snmpd.cnf.tmpl to the snmp.cnf, perform the following steps:

1. Log in as root and enter the following commands:
cd /opt/CiscoMGC/snmp
cp snmpd.cnf.tmpl snmpd.cnf

2. Enter the following commands to restart the snmp daemon:
ps -ef |grep snmpdm

The system will display the process ID for the snmp daemon. Restart the daemon using the
following command:
kill -9 snmpdm_pid

Where snmpdm_pid is the process ID for the snmp daemon.

---

Note that the first instance of ReadAndNotifyToAll in the snmpCommunityEntry will be the only CommunityName used in the Trap.

For example, if your snmpd.cnf file has the following snmpCommunityEntry, you will find only the CommunityName of Iron1 in the Trap.

#Entry type: snmpCommunityEntry

#Format:  snmpCommunityIndex  (text)

#         snmpCommunityName  (text)

#         snmpCommunitySecurityName  (text)

#         snmpCommunityContextEngineID  (octetString)

#         snmpCommunityContextName  (text)

#         snmpCommunityTransportTag  (text)

#         snmpCommunityStorageType  (nonVolatile, permanent, readOnly)

snmpCommunityEntry  Iron1 ron1 ReadAndNotifyToAll localSnmpID - - nonVolatile

snmpCommunityEntry  Iron2 ron2 ReadWriteAll localSnmpID - - nonVolatile

snmpCommunityEntry  Iron3 ron3 ReadAndNotifyToAll localSnmpID - - nonVolatile

snmpCommunityEntry  admin WBnAGZ54 PGWInternalSignal localSnmpID - localAccess \

    nonVolatile

snmpCommunityEntry  readonly public ReadAndNotifyToAll localSnmpID - - \

    nonVolatile

Running the config-snmp Utility

Perform the following steps to run the config-snmp utility:

---

Step 1 Make sure your system has the latest Cisco PGW 2200 Softswitch patches on both Host A and Host B. See the Release Notes for Cisco PGW 2200 Softswitch Release 9.8(1) for detailed information on software patches.

Step 2 On Host A, log in as root user.

Step 3 Check whether the snmpdm or critagt process is running.

---

Note If snmpdm or critagt are not running, call Cisco TAC or contact your Field Engineer for assistance.

---

Enter one of the following commands and press Enter:

a. To check snmpdm:

# ps -ef |grep snmpdm

If the snmpdm process is running, text similar to the following is displayed:

root 12098 27888  0   Jun 16 ?

0:00 /opt/CiscoMGC/snmp/snmpdm -tcplocal -d

b. To check critagt:

# ps -ef |grep critagt

If the critagt process is running, text similar to the following is displayed:

root 27888     1  0   May 19 ?

0:15 /opt/CiscoMGC/snmp/critagt -d

Step 4 To start the config-snmp utility, enter the following commands and press Enter:

# cd /opt/CiscoMGC/local

# config-snmp

The following screen is displayed:

Migrating snmpd.cnf into a more secure setting...

===================   SNMPD Configuration Main Menu  ===================

1. View Configuration Entries

2. Add an SNMP Community

3. Delete an SNMP Community

4. Add a Trap Destination

5. Delete a Trap Destination

6. Activate the New Settings

Enter a selection (1 through 6) or 'q' to quit:

Step 5 To view the configuration entries, enter 1 and press Enter.

The Entries Menu is displayed and you are prompted to make a selection:

=================== Entries Menu ===================

1. sysDescr

2. sysObjectID

3. sysLocation

4. sysContact

5. sysName

6. snmpEnableAuthenTraps

7. MAX_THREADS

8. MAX_PDU_TIME

9. MAX_OUTPUT_WAITING

10. MAX_SUBAGENTS

11. subagent

12. snmpCommunityEntry

13. snmpEngineBoots

14. snmpEngineID

15. SNMP_ENGINE_ID_SRC

16. usmUserEntry

17. vacmSecurityToGroupEntry

18. vacmAccessEntry

19. vacmViewTreeFamilyEntry

20. snmpNotifyEntry

21. snmpTargetAddrEntry

22. snmpTargetParamsEntry

23. snmpNotifyFilterProfileEntry

24. snmpNotifyFilterEntry

25. httpUserNameEntry

Enter a selection (1 through 25) or 'q' to quit to Main Menu:

Step 6 Enter your selection number (1 through 25) to view your configuration entries.

---

Adding an SNMP Community Entry

Continuing from Step 6, above (of the section Running the config-snmp Utility):

---

Step 1 Enter 12 to select snmpCommunityEntry and view the entries:

Text similar to the following and the SNMPD Configuration Main Menu are displayed.

#Entry type: snmpCommunityEntry

#Format:  snmpCommunityIndex  (text)

#         snmpCommunityName  (text)

#         snmpCommunitySecurityName  (text)

#         snmpCommunityContextEngineID  (octetString)

#         snmpCommunityContextName  (text)

#         snmpCommunityTransportTag  (text)

#         snmpCommunityStorageType  (nonVolatile, permanent, readOnly)

snmpCommunityEntry  IT555 T555 ReadWriteAll localSnmpID - - nonVolatile

snmpCommunityEntry  Ijammmy jammmy ReadAndNotifyToAll localSnmpID - -     nonVolatile

snmpCommunityEntry  admin za8RQzBg PGWInternalSignal localSnmpID - localAccess
nonVolatile

===================   SNMPD Configuration Main Menu  ===================

1. View Configuration Entries

2. Add an SNMP Community

3. Delete an SNMP Community

4. Add a Trap Destination

5. Delete a Trap Destination

6. Activate the New Settings

Enter a selection (1 through 6) or 'q' to quit:

Step 2 You are prompted to make a selection. Enter 2 to add an SNMP Community.

The Add CommunityString Menu is displayed and you are asked if you would like to proceed with adding a community string:

=================== Add CommunityString Menu ===================

SnmpCommunityName CommunitySecurityName

cisco cisco

public ReadAndNotifyToAll

-- Where:

CommunitySecurityName SecurityModel Read Write Notification

ReadOnly snmpv1 ApplicationsView - ApplicationsView

ReadOnly snmpv2c ApplicationsView - ApplicationsView

ReadOnly usm ApplicationsView - ApplicationsView

NotifyOnly snmpv1 - - ApplicationsView

NotifyOnly snmpv2c - - ApplicationsView

NotifyOnly usm - - ApplicationsView

ReadWriteAll snmpv1 ApplicationsView ApplicationsView -

ReadWriteAll snmpv2c ApplicationsView ApplicationsView -

ReadWriteAll usm ApplicationsView ApplicationsView -

ReadWriteNotify snmpv1 ApplicationsView ApplicationsView ApplicationsView

ReadWriteNotify snmpv2c ApplicationsView ApplicationsView ApplicationsView

ReadWriteNotify usm ApplicationsView ApplicationsView ApplicationsView

ReadAndNotifyToAll snmpv1 ApplicationsView - ApplicationsView

ReadAndNotifyToAll snmpv2c ApplicationsView - ApplicationsView

ReadAndNotifyToAll usm ApplicationsView - ApplicationsView

CiscoInternalSignal snmpv1 All All All

CiscoInternalSignal snmpv2c All All All

CiscoInternalSignal usm All All All

Would you like to proceed with the Add [n]/[y]?

Step 3 Enter y to proceed (if you enter n to cancel the addition, you return to the SNMPD Configuration Main Menu).

The following text is displayed, prompting you to enter an snmpCommunityName.

Enter snmpCommunityName:

---

Note The snmpCommunityName should be at least three characters in length. The snmpCommunityName can contain numeric characters, but should begin with an alpha character.

---

Step 4 Enter an snmpCommunityName (the following name is an example):

comname1

Text similar to the following is displayed:

Enter CommunitySecurityName (ReadAndNotifyToAll or ReadWriteAll):

Step 5 Enter a community security name (the following security name entry is an example):

ReadAndNotifyToAll

---

Note The CommunitySecurityName (ReadAndNotifyToAll or ReadWriteAll) is case sensitive.

---

Text similar to the following text is displayed:

snmpCommunityName: comname1 is about to be added.  Are you sure that you want to add this
snmpCommunity Name  [y]/[n]?

Step 6 Enter y to add the snmpCommunityName (if you enter n to cancel the addition, you return to the SNMPD Configuration Main Menu):

Text similar to the following is displayed:

Adding snmpCommunity:

snmpCommunityEntry  Icomname1 comname1 ReadAndNotifyToAll localSnmpID - - nonVolatile

===================   SNMPD Configuration Main Menu  ===================

1. View Configuration Entries

2. Add an SNMP Community

3. Delete an SNMP Community

4. Add a Trap Destination

5. Delete a Trap Destination

6. Activate the New Settings

Enter a selection (1 through 6) or 'q' to quit:

Step 7 Enter a selection number, 1 through 6.

For steps on how to execute the selections from the SNMPD Configuration Main Menu, see the following sections:

•Adding an SNMP Community Entry

•Deleting an SNMP COMMUNITY

•Adding a Trap Destination

•Deleting a Trap Destination

•Activating the New Settings

•Verifying the SNMP Configuration Migration

---

Note To complete the migration of the SNMP configuration to a more secure environment, see the "Activating the New Settings" section.

---

---

The procedure for adding an SNMP Community Entry is now complete.

From the SNMPD Configuration Main Menu, choose option 6 (Activate the New Settings) to commit the changes, or select other options (1 through 5) to add or delete a community name or trap.

Deleting an SNMP COMMUNITY

From the SNMPD Configuration Main Menu:

---

Step 1 If you select 3 (Delete an SNMP Community) from the SNMPD Configuration Main Menu, the delete CommunityString Menu is displayed:

---

Note The SNMP Community Names listed in the following display are examples.

---

===================   Delete CommunityString Menu ===================

SnmpCommunityName       CommunitySecurityName

comname1 		               ReadAndNotifyToAll

T555                    ReadWriteAll

jammmy                  ReadAndNotifyToAll

-- Where:

CommunitySecurityName   SecurityModel   Read              Write           Notification

ReadWriteAll            snmpv1          AllMibObjects     AllMibObjects   -

ReadWriteAll            snmpv2c         AllMibObjects     AllMibObjects   -

ReadAndNotifyToAll      snmpv1          AllMibObjects     -               AllMibObjects

ReadAndNotifyToAll      snmpv2c         AllMibObjects     -               AllMibObjects

Would you like to proceed with the Delete  [n]/[y]?

Step 2 Enter y to delete SNMP Community (if you enter n to cancel the deletion, you return to the SNMPD Configuration Main Menu):

Text similar to the following is displayed:

Enter snmpCommunityName:

Step 3 Enter an SnmpCommunityName. Select an SnmpCommunityName from the list that is displayed in Step 1. The SnmpCommunityName T555, is an example:

T555

Text similar to the following is displayed:

snmpCommunityName: T555 is about to be deleted.  Are you sure that you want to delete this
snmpCommunity Name  [y]/[n]?

Step 4 Enter y to confirm the deletion (if you enter n to cancel the deletion, you return to the SNMPD Configuration Main Menu).

Text similar to the following is displayed and you are returned to the SNMPD Configuration Main Menu:

Deleting snmpCommunity= T555

===================   SNMPD Configuration Main Menu  ===================

1. View Configuration Entries

2. Add an SNMP Community

3. Delete an SNMP Community

4. Add a Trap Destination

5. Delete a Trap Destination

6. Activate the New Settings

Enter a selection (1 through 6) or 'q' to quit:

Step 5 Enter your selection. For detailed procedures for your selection, refer to the following list:

•Adding an SNMP Community Entry

•Deleting an SNMP COMMUNITY

•Adding a Trap Destination

•Deleting a Trap Destination

•Activating the New Settings

•Verifying the SNMP Configuration Migration

---

The procedure for deleting an SNMP Community Entry is now complete. Proceed to the selection you entered in the SNMPD Configuration Main Menu.

Adding a Trap Destination

From the SNMPD Configuration Main Menu:

---

Step 1 Select option 4 (Add a Trap Destination) from the SNMPD Configuration Main Menu and press Enter to add a Trap Destination.

The Add Trap Menu is displayed:

---

Note The IP Address (Target Address) listed below is an example of existing Trap entries.

---

=================== Add Trap Menu  ===================

1. TargetAddress: 6.6.6.6:0 , TargetAddrParams: v1ExampleParams , IP Mask:
255.255.255.255:0

Would you like to proceed with the Add  [n]/[y]?

Step 2 Enter y to add a Trap Destination (if you enter n to cancel the addition, you return to the SNMPD Configuration Main Menu).

Text similar to the following is displayed:

Enter IP Address (x.x.x.x):

Step 3 Enter the IP address listed in Step 1:

7.7.7.7

Text similar to the following is displayed:

Enter Trap Type (v1 or v2c):

Step 4 Enter the Trap Type based on your SNMP manager. The following entry is an example:

v1

Text similar to the following is displayed:

'snmpTargetAddrEntry  483 snmpUDPDomain 7.7.7.7:0 100 3 TrapSink  v1ExampleParams
nonVolatile 255.255.255.255:0 2048

' is about to be added.  Are you sure that you want to add this Trap Entry  [n]/[y]?

Step 5 Enter y to add a Trap Destination (if you enter n to cancel the addition, you return to the SNMPD Configuration Main Menu).

Text confirming the addition of the Trap Destination is displayed, followed by the SNMPD Configuration Main Menu:

Adding Trap: snmpTargetAddrEntry  483 snmpUDPDomain 7.7.7.7:0 100 3 TrapSink
v1ExampleParams nonVolatile 255.255.255.255:0 2048

===================   SNMPD Configuration Main Menu  ===================

1. View Configuration Entries

2. Add an SNMP Community

3. Delete an SNMP Community

4. Add a Trap Destination

5. Delete a Trap Destination

6. Activate the New Settings

Enter a selection (1 through 6) or 'q' to quit:

ENTER YOUR SELECTION.

Step 6 Enter your selection. For detailed procedures for your selection, go to the section listed below:

•Adding an SNMP Community Entry

•Deleting an SNMP COMMUNITY

•Adding a Trap Destination

•Deleting a Trap Destination

•Activating the New Settings

•Verifying the SNMP Configuration Migration

---

The procedure for adding a Trap Destination is now complete. Proceed to the selection you entered in the SNMPD Configuration Main Menu.

Deleting a Trap Destination

From the SNMPD Configuration Main Menu:

---

Step 1 To delete a Trap Destination, enter 5 (Delete a Trap Destination):

Text similar to the following is displayed:

=================== Delete Trap Menu  ===================

1. TargetAddress: 7.7.7.7:0 , TargetAddrParams: v1ExampleParams ,

IP Mask: 255.255.255.255:0

2. TargetAddress: 6.6.6.6:0 , TargetAddrParams: v1ExampleParams ,

IP Mask: 255.255.255.255:0

Would you like to proceed with the Delete  [n]/[y]?

Step 2 Enter y to delete a Trap Destination (if you enter n to cancel the deletion, you return to the SNMPD Configuration Main Menu):

Text similar to the following is displayed:

Enter a selection (1 through 2):

---

Note The Target Addresses (1 through 2) shown above are examples only.

---

Step 3 Enter 1 to select the TargetAddress to be deleted:

Text similar to the following is displayed:

Trap is about to be deleted.  Are you sure that you want to delete this Trap Entry
[n]/[y]?

Step 4 Enter y to confirm the deletion (if you enter n to cancel the deletion, you return to the SNMPD Configuration Main Menu).

Text confirming the deleted Trap Entry is displayed and you are returned to the SNMPD Configuration Main Menu. Note that 483 (below) is an internal Trap snmpTargetAddrName.

Deleting Trap snmpTargetAddrName = 483

===================   SNMPD Configuration Main Menu  ===================

1. View Configuration Entries

2. Add an SNMP Community

3. Delete an SNMP Community

4. Add a Trap Destination

5. Delete a Trap Destination

6. Activate the New Settings

Enter a selection (1 through 6) or 'q' to quit:

Step 5 Enter your selection. For detailed procedures for your selection, refer to the following list:

•Adding an SNMP Community Entry

•Deleting an SNMP COMMUNITY

•Adding a Trap Destination

•Deleting a Trap Destination

•Activating the New Settings

•Verifying the SNMP Configuration Migration

---

The procedures for deleting a Trap Destination is now complete. Proceed to the selection you entered in the SNMPD Configuration Main Menu.

Activating the New Settings

From the SNMPD Configuration Main Menu:

---

Step 1 Enter 6 to activate the new settings:

6

Text similar to the following is displayed:

Backing up the current snmpd.cnf to snmpd.cnf.backup.

snmpd.cnf.backup already exists. Do you want to overwrite the file  [y]/[n]?

---

Note If you choose n, your backup file will not be updated.

---

Step 2 Enter y to activate the new settings.

y

Are you sure you would like to Activate the New Settings  [y]/[n]?

---

Note If you choose y, your SNMPD.dat file will be updated and you will be exited from the utility.

If you choose n, your SNMPD.dat file will not be updated and you will be exited from the utility.

---

Step 3 Enter y to activate the new settings (if you enter n to cancel the activation, you return to the SNMPD Configuration Main Menu).

Text similar to the following is displayed:

snmpd.cnf file has been updated.

---

The procedure for activating the new settings is now complete and you are exited from the config-snmp utility. Proceed to the following section, "Verifying the SNMP Configuration Migration".

Verifying the SNMP Configuration Migration

Perform the following steps to verify that your changes were applied by running the config-snmp utility:

---

Step 1 To start the config-snmp utility, type the following command and press Enter:

# config-snmp

Text similar to the following is displayed:

Migrating snmpd.cnf into a more secure setting...

When the SNMPD Configuration Main Menu is displayed, you are prompted to make a selection:

===================   SNMPD Configuration Main Menu  ===================

1. View Configuration Entries

2. Add an SNMP Community

3. Delete an SNMP Community

4. Add a Trap Destination

5. Delete a Trap Destination

6. Activate the New Settings

Enter a selection (1 through 6) or 'q' to quit: 1

Step 2 Enter 1 to view the configuration entries.

The Entries Menu is displayed and you are prompted to make a selection:

===================   Entries Menu  ===================

1. sysDescr

2. sysObjectID

3. sysLocation

4. sysContact

5. sysName

6. snmpEnableAuthenTraps

7. MAX_THREADS

8. MAX_PDU_TIME

9. MAX_OUTPUT_WAITING

10. MAX_SUBAGENTS

11. subagent

12. snmpCommunityEntry

13. communityEntry

14. snmpEngineBoots

15. usmUserEntry

16. vacmAccessEntry

17. vacmSecurityToGroupEntry

18. vacmViewTreeFamilyEntry

19. snmpNotifyEntry

20. snmpTargetAddrEntry

21. snmpTargetParamsEntry

22. snmpNotifyFilterProfileEntry

23. snmpNotifyFilterEntry

24. httpUserNameEntry

Enter a selection (1 through 24) or 'q' to quit to Main Menu:

a. If you select 12 from the SNMPD Configuration Main Menu, the snmpCommunityEntry is displayed, showing the changes you made:

---

Note The following entries are examples only.

---

#Entry type: snmpCommunityEntry

#Format:  snmpCommunityIndex  (text)

#         snmpCommunityName  (text)

#         snmpCommunitySecurityName  (text)

#         snmpCommunityContextEngineID  (octetString)

#         snmpCommunityContextName  (text)

#         snmpCommunityTransportTag  (text)

#         snmpCommunityStorageType  (nonVolatile, permanent, readOnly)

snmpCommunityEntry  Icomname1 comname1 ReadWriteAll localSnmpID - - nonVolatile

snmpCommunityEntry  Ijammmy jammmy ReadAndNotifyToAll localSnmpID - -     nonVolatile

snmpCommunityEntry  admin VD6FZbov PGWInternalSignal localSnmpID - localAccess
nonVolatile

b. If you select 20 from the SNMPD Configuration Main Menu, the Trap Destination information is displayed, showing the changes you made:

---

Note The following entries are examples only.

---

#Entry type: snmpTargetAddrEntry

#Format:  snmpTargetAddrName  (text)

#         snmpTargetAddrTDomain  (snmpUDPDomain, snmpIPXDomain, etc.)

#         snmpTargetAddrTAddress  (transport address,i.e. 192.147.142.254:0)

#         snmpTargetAddrTimeout  (integer)

#         snmpTargetAddrRetryCount  (integer)

#         snmpTargetAddrTagList  (text)

#         snmpTargetAddrParams  (text)

#         snmpTargetAddrStorageType  (nonVolatile, permanent, readOnly)

#         snmpTargetAddrTMask  (transport mask, i.e. 255.255.255.255:0)

#         snmpTargetAddrMMS  (integer)

snmpTargetAddrEntry  531 snmpUDPDomain 6.6.6.6:0 100 3 TrapSink     v1ExampleParams
nonVolatile 255.255.255.255:0 2048

snmpTargetAddrEntry  local snmpUDPDomain 127.0.0.1:0 100 3 localAccess -
nonVolatile 255.255.255.255:0 2048

---

The SNMP support resource configuration is now complete. Continue to the "Configuring the Execution Environment" section to configure the execution environment. If you have questions or need assistance, see the "Obtaining Documentation and Submitting a Service Request" section on page x.

Configuring the Execution Environment

This section provides instructions for configuring the Cisco PGW 2200 Softswitch software execution environment and contains the following topics:

•Configuring Basic System Information

•Specifying IP Addresses

•Configuring Engine Parameters

•Enabling Call Screening

•Configuring Call Detail Record File Output

•Configuring the Clearing Location and Default Location Parameters

•Configuring Switchover

•Initializing the Provisioning Object Manager

The configuration data file, or XECfgParm.dat file (located in /opt/CiscoMGC/etc/XECfgParm.dat), lists all the components in the Cisco PGW 2200 Softswitch software and defines how it operates. You must edit the execution environment parameters in the XECfgParm.dat file to initialize and configure the Cisco PGW 2200 Softswitch software application. For a complete list of the parameters found in the XECfgParm.dat file and how they are used by the Cisco PGW 2200 Softswitch, see Appendix A, "XECfgParm.dat File Parameters."

For samples of configured XECfgParm.dat files, see the "Sample Configured XECfgParm.dat Files for Cisco PGW 2200 Softswitch Release 9.8(1)" section on page D-16.

---

Caution To ensure that your system works as intended, edit only the XECfgParm.dat file parameters which are listed below, and remember that all parameters are case-sensitive.

Do not modify the processes.dat file. This XECfgParm.dat file should remain unmodified, as delivered with the Cisco PGW 2200 Softswitch software. If this file is modified, procM may core dump when you start the Cisco PGW 2200 Softswitch software.

---

Changing XECfgParm.dat File Parameters

For a complete list of the parameters found in the XECfgParm.dat file and how they are used by the Cisco PGW 2200 Softswitch, see Appendix A, "XECfgParm.dat File Parameters."

If you have a fault tolerant system with two Cisco PGW 2200 Softswitch hosts, the XECfgParm.dat files are different for each host. For examples of these XECfgParm.dat files, see the "Sample Configured XECfgParm.dat Files for Cisco PGW 2200 Softswitch Release 9.8(1)" section on page D-16.

To change the XECfgParm.dat file parameters, perform the following steps:

---

Step 1 Log in as root and go to the # prompt.

Step 2 If the Cisco PGW 2200 Softswitch software is running, enter the following command:

# /etc/init.d/CiscoMGC stop

Wait until the system returns the following response:

Signalling procM to shut down

...shutdown complete

Step 3 Change to the /opt/CiscoMGC/etc directory, which contains the XECfgParm.dat file used by your system.

Step 4 Open the XECfgParm.dat file with any text editor, such as vi.

Step 5 Save your changes and close the editor.

Step 6 Restart the Cisco PGW 2200 Softswitch software by entering the following command:

# /etc/init.d/CiscoMGC start

---

Note Do not restart the software yet if you need to configure SCP queries or initialize the call screening database. Complete the instructions in the appropriate sections of this chapter before restarting the software.

---

---

Continue to "Changing XECfgParm.dat File Parameters in a Running Fault Tolerant System" to change parameters without call interruption. Continue to the "Configuring SCP Queries" section to configure Service Control Point (SCP) queries using transaction capabilities application part (TCAP). If you have questions or need assistance, see the "Obtaining Documentation and Submitting a Service Request" section on page x.

Changing XECfgParm.dat File Parameters in a Running Fault Tolerant System

To change parameters in a running fault tolerant system without call interruption, perform the following steps:

---

Step 1 Log in to the active host (Host X) and make your changes. See "Changing XECfgParm.dat File Parameters" section for more specific instructions.

Step 2 Log in to the standby host (Host Y) as root and stop the Cisco PGW 2200 Softswitch software by entering the following command:

# /etc/init.d/CiscoMGC stop

Step 3 Restart the Cisco PGW 2200 Softswitch software on the standby box (Host Y) by entering the following command:

# /etc/init.d/CiscoMGC start

Step 4 Perform switchover on the active host (Host X). Log in to the active host (Host X) and stop the Cisco PGW 2200 Softswitch software by entering the following command:

# /etc/init.d/CiscoMGC stop

Stopping the software on Host X causes switchover to the standby, Host Y. Host Y becomes active and takes over call processing.

---

Tip If Host Y does not take over call processing after switchover, restart the software on Host X to take over the calls. Check the parameters you changed on Host Y and make sure you have the correct values.

---

Step 5 Restart the Cisco PGW 2200 Softswitch software on the now standby host, Host X, by entering the following command:

# /etc/init.d/CiscoMGC start

Step 6 On Host Y, the currently active host, enter the following MML command to switch call processing from Host Y to the newly changed Host X. Host X becomes active:

mml> SW-OVER::CONFIRM

---

Tip If Host X does not take over call processing after switchover, restart the software on Host Y to take over the calls. Check the parameters you changed on Host X and make sure you have the correct values.

---

---

Configuring Basic System Information

---

Note For a complete list of the parameters found in the XECfgParm.dat file and how they are used by the Cisco Cisco PGW 2200 Softswitch, see Appendix A, "XECfgParm.dat File Parameters."

---

To configure basic system information required for your system to function, modify the following parameters in the first section of the XECfgParm.dat file:

Parameter	Modification
*.desiredPlatformState	To determine the desired platform state at initialization, enter one of the following values: •master—If you have two (active and standby) Cisco PGW 2200 Softswitch hosts, and you are editing the file on the active host •slave—If you have two (active and standby) Cisco PGW 2200 Softswitch hosts, and you are editing the file on the standby host •standalone—If you have a simplex system Note The value used is site specific. For example, use the values master and slave if you have two (active and standby) Cisco PGW 2200 Softswitch hosts. Enter standalone if you have a single-host system.
*.numberOfThreads	Prior to Release 9.4(1), the number of threads generated by multithreaded processes such as the engine and the log master, is specified by entering one of the following values: •0—Single CPU (default) •1—Two CPUs •2—Four CPUs Note If you have a multi-CPU system, the engine.SysGeneratedCode parameter must be left as true (the default). For Release 9.4(1) and up, this parameter is set automatically when you specify a Cisco PGW 2200 Softswitch type in the engine.SysVirtualSwitch parameter. Any attempt to modify this parameter is overwritten.
*.ownTranspathId	To identify the local Cisco PGW 2200 Softswitch host in a fault tolerant system, enter the same value that you used for *.transpathID. Note If you have two Cisco PGW 2200 Softswitch hosts in a fault tolerant system, enter this value in the *.peerTranspathID field in the XECfgParm.dat file on the second host server. If you have a simplex system, leave this value blank.
*.peerTranspathId	To identify the peer Cisco PGW 2200 Softswitch host in a fault tolerant system, enter any one- or two-digit integer. The IDs must be unique in an active and standby pair. Note If you have two Cisco PGW 2200 Softswitch hosts in a fault tolerant system, enter the same value that you used for *.transpathID in the XECfgParm.dat file of the second host server in this field. If you have a simplex system, leave it blank.
*.sipModeSelectionControl	Sets SIP processing mode on the Cisco PGW 2200 Softswitch. Values: •1 (B2BUA/optional mode)—SIP-to-SIP calls are processed in B2BUA mode. You can select proxy mode later using a dial plan (A/B analysis). •2 (Fixed Proxy Mode)—SIP-to-SIP calls are processed in proxy mode only. Default: 2 Note In order to use H.248 Protocol—Phase 2 Feature on Release 9.8(1), you must set this parameter to 1.
*.stPort	Port number used between peer components or processes. Enter any unused port number (for example, 7000). If your configuration uses a Cisco ITP-L, enter the port number on the Cisco ITP-L. Note If you have two Cisco PGW 2200 Softswitch hosts in a failover configuration, enter a different number for this value in the XECfgParm.dat file on the secondary host (for example, 7001). Note On a new configuration, we recommend that this parameter be set to 0. This value allows the Cisco ITP-L port to be defined using the PEERPORT parameter of the SESSIONSET. Note SESSIONSET reads the port value that is defined. However, if an *.stPort value other than 0 is defined in XECfgParm.dat (for example, *.stPort=7001), the SESSIONSET value gets overridden by the value in XECfgParm.dat.
*.transpathId	To identify the local Cisco PGW 2200 Softswitch host in a fault tolerant system, enter any one- or two-digit integer. Note If you have two Cisco PGW 2200 Softswitch hosts in a fault tolerant system, this number must be different in the XECfgParm.dat file for each host.
CustSpecificINAPHandling	Controls INAP (Intelligent Network Application Protocol) behavior, including advertised application context. Values: •tinap •finap •rinap •sinap Default: Null To enable network transfer and DTMF transfer services, set this parameter to sinap. The following new CS2 application context is populated in the dialogue body of the INAP message: itu-t(0) recommendation(0) q(17) q1228(1228) cs2(2) ac(3) id-ac-cs2-ssf-scfGenericAC(4) urn:oid:0.0.17.1228.2.3.4
engine.SysVirtualSwitch	To indicate whether the Cisco PGW 2200 Softswitch host functions as a signaling controller or a virtual switch controller, enter one of the following values: •0—Signaling controller (nailed trunks, no auditing is initiated) •1—Virtual switch controller (switched trunks) Note During the startup of the Cisco PGW 2200 Softswitch software, this parameter is be set automatically to tune the system for optimal performance. Note For Release 9.4(1) and up, the values of the parameters listed below are automatically set based on the Cisco PGW 2200 Softswitch type you select, to maximize performance for that configuration. Any attempt to change the values of these parameters is overwritten. engine.SysMdlMemoryReduction engine.CALL_MEM_BLOCK_SIZE engine.CALL_MEM_CHUNK_SIZE *.CPUTimerInterval *.numberOfThreads

Specifying IP Addresses

To specify IP addresses, modify the following parameters in the first section of the XECfgParm.dat file:

---

Note If there are two Ethernet interfaces defined on the Cisco PGW 2200 Softswitch, it is mandatory to have these on distinct subnets.

---

For example, consider the following configuration:

*.IP_AddrLocalA = 172.22.119.108

*.IP_AddrLocalB = 172.22.119.54

This is not a valid combination because they are on the same subnet. The following example illustrates a valid combination:

*.IP_AddrLocalA = 172.22.119.108

*.IP_AddrLocalB = 172.22.120.54

In this example, the subnet mask is 255.255.255.0 (or 255.255.255.128).

If the two Ethernet interfaces are on the same subnet, then one of them must be physically disconnected from the existing subnet and then connected to a different subnet. The new IP address must be appropriately configured on the system. Refer to the manual pages for the UNIX command ifconfig for more information.

Parameter	Modification
*.IP_AddrLocalA	Enter the first local IP address; used for checkpointing and switchover heartbeats. Caution This address is the same value as *.IP_Addr1, and is the bge0 interface. Caution No other machine on the network should have *.IP_AddrLocalA set to 0.0.0.0.
*.IP_AddrPeerA	Enter the first corresponding peer IP address; used for checkpointing and switchover heartbeats. Note If you have two Cisco PGW 2200 Softswitch hosts in a fault tolerant configuration, this value is set to the IP address of the second host.
*.IP_AddrLocalB	Enter the second local IP address; used for checkpointing and switchover heartbeats. This is the address of the bge1 interface. Note If your configuration does not use a secondary Ethernet adapter, leave this address set to the default value, 0.0.0.0.
*.IP_AddrPeerB	Enter the second corresponding peer IP address; used for checkpointing and switchover heartbeats. This is the address of the bge1 interface on the second host. Note If your configuration does not use a secondary Ethernet adapter, leave this address set to the default value, 0.0.0.0.
*.IP_Addr1	Enter the IP address of the bge0 interface.
*.IP_Addr2	Enter the IP address of the bge1 interface (if configured).
*.IP_Addr3	Enter the IP address of the bge2 interface (if configured).
*.IP_Addr4	Enter the IP address of the bge3 interface (if configured).
*.Virtual_IP_Addr1	Enter a virtual IP addresses for the Cisco PGW 2200 Softswitch used for SIP Failover Support (optional).
*.Virtual_IP_Addr2	Enter a virtual IP addresses for the Cisco PGW 2200 Softswitch used for SIP Failover Support (optional).

Configuring Engine Parameters

For the engine to run correctly, you must modify the following parameters in the Engine section of the XECfgParm.dat file:

Parameter	Modification
engine.CALL_MEM_BLOCK_SIZE	Block of memory allocated per call. Used by MDL. Set automatically based on the type of Cisco PGW 2200 Softswitch selected in engine.SysVirtualSwitch. Any attempt to modify this value is overwritten.
engine.CALL_MEM_CHUNK_SIZE	Memory chunks allocated from the block of memory designated with engine.CALL_MEM_BLOCK_SIZE. Set automatically based on the type of Cisco PGW 2200 Softswitch selected in engine.SysVirtualSwitch. Any attempt to modify this value is overwritten.
engine.SendHardwareBlock	To enable the Cisco PGW 2200 Softswitch to send hardware-oriented blocking messages for any blocks that originate from the media gateways: •true—Sends hardware-oriented blocking messages for any blocks that originate from the media gateways. •false—Sends only maintenance-oriented blocking messages for all blocking cases (default). Note The parameter is automatically added to the XECfgParm.dat file during the patch installation.
engine.SysCdrCollection	Designates the format of CDRs. Values: •true—Invalid for Release 7.4 and above. •false—Generates binary format CDRs (default) Default: false Note Do not change this value. Setting this to a value of true for Release 7.4 and higher is not valid and may have deleterious effects on the system.
engine.SysGRSTimerInterval	To specify the interval between blocks of Circuit Group Reset (GRS) messages when the engine.SysGRSBlockSize parameter is used, set to the value required (in milliseconds).
engine.SysGRSBlockSize	Used for flow control of all automatically generated GRS, CGB, and CGU messages which are generated by the Cisco PGW 2200 Softswitch during run time. Typically produced due to propagation of service state changes such as MGCP endpoints changing availability. Specifies the interval, in milliseconds, between blocks of GRS parameters when the engine.SysGRSBlockSize parameter is used. The timer interval runs from the start of sending the first GRS message in each block to the first message in the next block. This parameter operates independently for each SS7 route (each OPC/DPC pair). Value: Any integer Default: 0 Example: 1000
engine.SysGeneratedCode	To determine whether compiled or interpreted code is used, enter one of the following values: •true—System uses compiled code (default). •false—System uses interpreted code (used only for engineering and debugging). Note Compiled code runs faster than interpreted code. Typically, this value should be true. If your configuration uses multiple CPUs, this value must be true.
*.SysConnectDataAccess	This parameter controls if data access is enabled or disabled and if the engine attempts to connect to the MMDB at startup. Set this parameter to true for calling scenarios where European LNP, A-number screening, or other features requiring real-time database access are used. If you do not need real-time database access, set this parameter to false to increase the available system memory that can be used for call processing.

Setting the Call Cutoff Timer

The Cisco PGW 2200 Softswitch call cutoff timer is disabled by default. To set the call cutoff timer, modify the following parameter in the XECfgParm.dat file:

Parameter

Modification

*.CallCutoffTimer

Provides a global system-wide timer, which is started when a call is answered and runs for the pre-configured time. When it expires the call is released in both directions and the call is cleared. This parameter is not dynamically reconfigurable. You must restart your system. Valid values: •Hours: 0 (default), 1-48 (using hour as the unit) •Minutes: 0, 1-2880 (using minute as the unit) •Seconds: 0, 1-1728000 (using second as the unit) Default: 0—Disables the timer. Note You can override this value using the first data word of the CALL_CUTOFF_TIMER result type.

Enabling Call Screening

To initialize the database that stores call screening information, modify the following parameter in the Engine section of the XECfgParm.dat file:

Parameter

Modification

*.SysConnectDataAccess

Controls whether data access is enabled or disabled (whether the engine attempts to connect to the MMDB at startup. Values: •true = connect to MMDB •false = do not connect to MMDB Default: false Note In calling scenarios where Euro-LNP, A Number Screening, or other features requiring real time database access are required, this parameter must be set to true. Otherwise, it can remain false for an increase in the available system memory usable for call processing. Note This parameter replaces the SysScreeningCheck parameter.

Configuring Call Detail Record File Output

To configure call detail record (CDR) file output, modify the following parameters in the Data Dumper and Engine sections of the XECfgParm.dat file:

Parameter	Modification
engine.CDRencodingFormat	To specify the call detail record (CDR) file encoding format, enter one of the following values: •AnsiCDB—North American (default) •ItuCDB—European •CustCDB—Custom
engine.CDRmessageTypes	To specify the Call Detail Blocks (CDBs are the accounting records written at various points in a call) that are generated during a call, enter one of the following sets of values (each number represents a point in a call): •1010, 1020, 1030, 1040, 1050, 1060, 1070, 1080—These are considered the "event-based" set of values. Use this event-based list when you want to receive all CDR records at predefined points in the call. Although each of these CDBs can be specified independently, Cisco suggests that you use the event-based set as a "package" of CDBs for full accounting purposes. Note The event-based setting is required when operating the Cisco PGW 2200 Softswitch in conjunction with the BAMS adjunct. •1060, 1110—Use this value if you want end-of-call summary-type records only. •1071—Use this set of values for BAMS measurements. See the "Detailed CDB Description" section in the Cisco PGW 2200 Softswitch Release 9 Billing Interface Guide for details on each CDB.
engine.CDRtimeStamp	Specifies the time stamp unit in seconds or milliseconds. To specify the CDR file time-stamp unit, enter one of the following values: •S—Seconds. •M—Milliseconds (default). Use this parameter if your configuration uses TCAP or if you want the millisecond granularity in all of your CDR records. Note The M setting is mandatory when operating the Cisco PGW 2200 Softswitch in conjunction with the Cisco BAMS adjunct. The default is M in Cisco PGW 2200 Softswitch Release 9.8(1).

Configuring the Clearing Location and Default Location Parameters

The ClearingLocation and DefaultLocation parameters are used to determine a call's location value. If you require a value other than the default to be sent to the switch, use these parameters to override the Clearing Location and Default Location fields in the Call Context. For example, if you need to define a customer-specific default location for your system, set this value in the DefaultLocation parameter, which overrides the default location specified in the protocol type definition.

Parameter	Modification
ClearingLocation	This property overrides the Clearing Location field in Call Context. Change this value if you need a value other than the default to be sent to the switch. Valid values are: •0—The Cisco PGW 2200 Softswitch software uses the default Clearing Location in Call Context. •1—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_USER •2—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ PRIVATE_LOCAL •3—The  Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ PUBLIC_LOCAL •4—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_TRANSIT •5—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ PUBLIC_REMOTE •6—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ PRIVATE_REMOTE •7—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ INTERNATIONAL •8—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ INTERWORKING •9—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ LOCAL_INTERFACE •10—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ LOCAL_LOCAL •11—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ LOCAL_REMOTE •12—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ PACKET_MANAGER •13—The Cisco PGW 2200 Softswitch software overrides the Clearing Location in Call Context with LOCATION_ UNKNOWN
DefaultLocation	This property overrides the Default Location field in Call Context. Change this value if you need to define a customer-specific default location for your system that can differ from the default location set in the type definition of the protocol. Valid values are: •0—The Cisco PGW 2200 Softswitch software uses the Default Location in Call Context •1—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_USER •2—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ PRIVATE_LOCAL •3—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ PUBLIC_LOCAL •4—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_TRANSIT •5—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ PUBLIC_REMOTE •6—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ PRIVATE_REMOTE •7—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ INTERNATIONAL •8—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ INTERWORKING •9—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ LOCAL_INTERFACE •10—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ LOCAL_LOCAL •11—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ LOCAL_REMOTE •12—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ PACKET_MANAGER •13—The Cisco PGW 2200 Softswitch software overrides the Default Location in Call Context with LOCATION_ UNKNOWN

Configuring Switchover

To configure switchover, modify the following parameters in the foverd section of the XECfgParm.dat file.

Parameter	Modification
foverd.conn1Type	To set the connection type for connection number 1, enter serial or socket. Note Typically, set this value to socket.
foverd.ipLocalPortA	To define the local port number used for IP communication, enter a unique number, keeping the following in mind: •Typically, if Type is socket, set this value to 1051. •If you have two Cisco PGW 2200 Softswitch hosts in a fault tolerant configuration, enter the foverd.ipLocalPortA value in the foverd.ipPeerPortA field in the XECfgParm.dat file on the secondary host. Caution The value of foverd.ipLocalPortA must be unique for every host on the network. Otherwise, active and standby hosts cannot communicate properly. In the instance discussed here, no other machine on the network can have foverd.ipLocalPortA set to 1051. If that happens, the active and standby hosts cannot perform proper switchover.
foverd.ipPeerPortA	To define the peer port number used for IP communication, enter a unique number, keeping the following in mind: •Typically, if Type is socket, set this value to 1052. •If you have two Cisco PGW 2200 Softswitch hosts in a switchover configuration, enter the foverd.ipPeerPortA value in the foverd.ipLocalPortA field in the XECfgParm.dat file on the secondary host. Caution The value of foverd.ipPeerPortA must be unique for every host on the network. Otherwise, active and standby hosts cannot communicate properly. In the instance discussed here, no other machine on the network can have foverd.ipPeerPortA set to 1052. If that happens, the active and standby hosts cannot perform proper switchover.
foverd.conn2Type	To set the connection type for connection number 2, enter serial or socket. Note Typically, set this value to socket.
foverd.ipLocalPortB	To define the secondary local port number used for IP communication, enter a unique number, keeping the following in mind: •Typically, if Type is socket, set this value to 1053. •If you have two Cisco PGW 2200 Softswitch hosts in a switchover configuration, enter this value in the foverd.ipPeerPortB field in the XECfgParm.dat file on the secondary host. Caution The value of foverd.ipLocalPortB must be unique for every host on the network. Otherwise, active and standby hosts cannot communicate properly. In the instance discussed here, no other machine on the network can have foverd.ipLocalPortB set to 1053. If that happens, the active and standby hosts cannot perform proper switchover.
foverd.ipPeerPortB	To define the secondary local port number used for IP communication, enter a unique number, keeping the following in mind: •Typically, if Type is socket, set this value to 1054. •If you have two Cisco PGW 2200 Softswitch hosts in a switchover configuration, enter this value in the foverd.ipLocalPortB field in the XECfgParm.dat file on the secondary host. Caution The value of foverd.ipPeerPortB must be unique for every host on the network. Otherwise, master and slave hosts cannot communicate properly. In the instance discussed here, no other machine on the network can have foverd.ipPeerPortB set to 1054. If that happens, the master and slave hosts cannot perform proper switchover.
foverd.conn3Type	To set the connection type for connection number 3, enter serial or socket. Note Typically, set this value to serial.
foverd.conn3Addr	To specify the address of the peer system, enter a location; for example, /dev/term/a. If your configuration does not use connection number 3, enter /dev/null (default). Note If your configuration uses an 8-port connector as a serial connection for switchover, you must modify the read-write permissions for the connection.
foverd.abswitchPort	To specify the port used for communication with the A/B switch, enter a location; for example, /dev/term/a. Note If your configuration does not use an A/B switch, use the default value (/dev/null).
foverd.heartbeatInterval	Specifies the maximum time in milliseconds between heartbeat messages from the peer switchover daemon. This interval defines the frequency with which the switchover daemon exchanges heartbeat messages with its peer. Default: 1000 milliseconds (1 second).

:

---

Note For more information on switchover, see the Cisco PGW 2200 Softswitch Release 9 Operations, Maintenance, and Troubleshooting Guide.

---

Initializing the Provisioning Object Manager

To configure the Provisioning Object Manager (POM), modify the following parameters in the POM section of the XECfgParm.dat file:

Parameter	Modification
pom.dataSync	Used in a fault tolerant system to indicate that the POM should synchronize the provisioning data at startup. •If you have a standalone system, set this value to false. •If you have a fault tolerant system, set this value to true. Caution If pom.dataSync is set to true for a fault tolerant system, you must ensure that you are running the same version of the Cisco PGW 2200 Softswitch software on both active and standby machines. Otherwise, the wrong version of your data files may be copied to the other machine. Note When the initial Cisco PGW 2200 Softswitch configuration on the active host is deployed, you must change the pom.dataSync parameter to true in the XECfgParm.dat file in the standby host. After setting this parameter to true, you can start the Cisco PGW 2200 Softswitch software on the standby host. As the Cisco PGW 2200 Softswitch software comes up, the data on the standby host is synchronized with the data on the active host and the active host goes into the standby state. To accommodate failover conditions where the current active host can become the standby host, you must also set the pom.dataSync parameter to true on the current active host.
pom.port	Used in a fault tolerant configuration to indicate the port number that the POM uses to communicate with its peer. Enter any integer from 4001 through 4050, or default. Note This is a platform-specific value and depends on your system installation. You should modify this value only if the default port (4001) is being used by another process or application.

Configuring SCP Queries

The SCP translates routing information for the Advanced Intelligent Network (AIN) database queries over TCAP. This section provides instructions for selecting the type of translation you use to enable SCP database queries. If your site or network requires changes, you can enable SCP queries using the prov-ed:inservice command or by manually editing the parameters in the trigger.dat file. The trigger.dat file (located in /opt/CiscoMGC/etc) contains the message-sending table that contains translation values.

This section contains the following topics:

•Before You Start

•Configuring the trigger.dat File Attributes

•Sample trigger.dat File

---

Warning Do not edit trigger.dat file parameters that are not listed below, and remember that all parameters are case-sensitive. Otherwise, your system might not work as intended.

---

---

Note The following Bellcore Standards are supported for US 800 toll-free services:

IN/1 Toll Free Service support: GR-1428
AIN 0.1 Toll Free Service support: GR-2902

---

Before You Start

If you are changing an ANSI query and you need a different Translation Type, you need to know the Translationtype value from the Global Title Translation tables on the Signal Transfer Point (STP). Get this value from the administrator of your STP.

Modifying trigger.dat file parameters with provisioning commands

You can use the prov-ed:inservice command to modify the trigger.dat properties without editing the file directly. The command allows you to modify the service key, global title or subsystem number, global title format, or message sending name.

mml> prov-ed:inservice:name="ansi-ain-800-npa",skortcv=4,gtorssn="ROUTEBYGT",
gtformat="GTTT",msname="ansi-ain-800-npa"

For more information about the prov-ed:inservice command, refer to the Cisco PGW 2200 Softswitch Release 9 MML Command Reference.

Configuring the trigger.dat File Attributes

---

Note The trigger.dat file is not overwritten during software installation. All changes to the trigger.dat file are contained in a file called trigger.template that is installed with the new software. If you modify the trigger.dat file after installing a new software release, you need to view the trigger.template file and copy any changes in that file to your trigger.dat file.

---

---

Caution Improper editing of the trigger.dat file can cause service interruption and prevent the Cisco PGW 2200 Softswitch from correctly performing SCP database queries.

---

You can configure the following Cisco PGW 2200 Softswitch trigger.dat file attributes to perform a Transaction Capabilities Application Part (TCAP) query:

•Translation Type

Configuring the Translation Type Attribute

Perform the following steps to configure the Translation Type (translationType) attribute:

---

Step 1 Back up the trigger.dat file.

Step 2 Determine the Trigger Number that you need to edit. You can get this information from your network administrator.

Step 3 Navigate to directory /opt/CiscoMGC/etc.

Step 4 Open the trigger definition file in an ASCII text editor and search for the string $TriggerTable.

Step 5 Starting after the $TriggerTable line, count the number of rows equal to the TriggerType beginning from the number 1.

---

Note Do not count any row that is blank or that begins with a pound sign (#).

---

Step 6 When you find your row, note down the second number in that row. This number is the index to the $MessageSending table.

---

Caution You must verify that column 2 is equal to 2 or 3 before changing Translation Type. If column 2 is not equal to 2 or 3, this is not an ANSI trigger and Translation Type is not used.

---

Step 7 Edit the file as follows:

a. In the $MessageSending table, select translationType, in column 5 (see Table 4-6).

b. In the table for your translation type, change the value for translationType to a value from 0 through 255. You can get this information from your network administrator.

Step 8 Save your changes and close the editor.

Step 9 For your changes to take effect you must reboot the Cisco PGW 2200 Softswitch by entering the following command:

# /etc/init.d/CiscoMGC start

---

Note If you have installed the Solaris DiskSuite package (CSCOh023) on your system, the messages below are displayed during system boot-up. They are normal Solaris DiskSuite start-up messages and do not indicate any problem with your system.

WARNING force load of misc /md-trans failed
WARNING force load of misc /md-raid failed
WARNING force load of misc /md-hotspares failed
WARNING force load of misc /md-sp failed

---

---

Table 4-6

F1	F2	F3	F4	F5	F6	F7	F8	F9	F10	F11	F12	F13	F14	F15	F16
tcapType	stpScpGroupIndex	msg	asn1Encoding	translationType	tcapBodyType	OS1	OS2	OS3	OS4	OS5	OS6	OS7	OS8	OS9	OS10
# MS 1: Customer 1 LNP
2	0	6	0	255	1	1	0	0	0	0	0	0	0	0	0
# MS 2: Generic LNP
2	0	6	0	255	1	2	0	0	0	0	0	0	0	0	0
# MS 3: Genesys 800
1	1	1	0	0	1	3	0	0	0	0	0	0	0	0	0
# MS 4: ANSI AIN 800 NPA
2	0	6	0	255	1	4	0	0	0	0	0	0	0	0	0
# MS 5: ANSI AIN 800 NPA-NXX
2	0	6	0	255	1	4	0	0	0	0	0	0	0	0	0
# MS 6: ANSI AIN 800 NPA-NXX-XXX
2	0	6	0	255	1	4	0	0	0	0	0	0	0	0	0
# MS 7: ANSI AIN 800 Termination information
2	0	5	0	255	1	5	0	0	0	0	0	0	0	0	0
# MS 8: ANSI PRE AIN 800
3	0	6	0	254	2	6	0	0	0	0	0	0	0	0	0
# MS 9: ANSI PRE AIN 800 Termination information
3	0	5	0	254	2	7	0	0	0	0	0	0	0	0	0

$MessageSending Table Values

Sample trigger.dat File

#--//******************************************************************************

#--//*                                                                            *

#--//* Default Table.trigger                                                      *

#--//*                                                                            *

#--//******************************************************************************

# "$Id: Table.trigger,v 1.25 2000/05/30 14:52:20 rjeffers Exp $";

# "Copyright (c) 2004, 2005 by Cisco Systems, Inc.."

# 41647269616E204B696E6773746F6E

#############

$TriggerTable

#############

# All fields are pointers to records of other types

#

# F1   F2   F3   F4   F5   F6   F7   F8   F9   F10  F11  F12

# MA   IN   RR1  RR2  RR3  RR4  RR5  RR6  RR7  RR8  RR9  RR10

#----------------------------------------------------------

# TT 1: Customer 1 LNP

#----------------------------------------------------------

  1    1    1    2    0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 2: Generic LNP

#----------------------------------------------------------

  2    2    1    3    0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 3: Genesys 800

#----------------------------------------------------------

  3    3    10   4    5    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 4: ANSI AIN 800 NPA

#----------------------------------------------------------

  4    4    10   6    7    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 5: ANSI AIN 800 NPA-NXX

#----------------------------------------------------------

  4    5    10   6    7    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 6: ANSI AIN 800 NPA-NXX-XXXX

#----------------------------------------------------------

  4    6    10   6    7    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 7: ANSI AIN 800 Termination Information

#----------------------------------------------------------

  5    7    10   0    0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 8: ANSI PRE AIN AIN 800

#----------------------------------------------------------

  4    8    10   8    9    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 9: ANSI PRE AIN 800 Termination Information

#----------------------------------------------------------

  5    9    10   0    0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 10: ANSI PRE AIN AIN 800 SSN

#----------------------------------------------------------

  4    10   10   11   9    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 11: ANSI PRE AIN 800 Termination Information SSN

#----------------------------------------------------------

  5    11   10   0    0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 12: CS1/INAP Based CLI Screening

#----------------------------------------------------------

  6    12   15   12   13   14   0    0    0    0    0    0

#----------------------------------------------------------

# TT 13: Specialized Resource Report for CS1/INAP Based CLI Screening

#----------------------------------------------------------

  0    13   15   12   0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 14: INAP Free Phone Service (Service Key = 0)

#----------------------------------------------------------

  7    14   10   16   0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 15: INAP LNP Service (Service Key = 1)

#----------------------------------------------------------

  7    15   10   16   0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 16: INAP Carrier Pre-Selection Service (Service Key =2)

#----------------------------------------------------------

  7    16   10   16   0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 17: INAP LNP for Norway

#----------------------------------------------------------

  8    17   17   18   0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 18: INAP Prepaid Services InitialDP

#----------------------------------------------------------

  9    18   19   20   24   28   0    0    0    0    0    0

#----------------------------------------------------------

# TT 19: INAP Prepaid Services ApplyChargingReport(Approaching Time Period Expiry)

#----------------------------------------------------------

  10   19   19   21   0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 20: INAP Prepaid Services EventReportBCSM

#----------------------------------------------------------

  11   20   19   22   23   0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 21: INAP Prepaid Services ApplyChargingReport (Time Period Expired)

#----------------------------------------------------------

  11   21   19   22   0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 22: INAP Prepaid Services ApplyChargingReport (Final End)

#----------------------------------------------------------

  11   22   0    0    0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 23: INAP LNP for Portugal

#----------------------------------------------------------

  12   23   25   26   27   0    0    0    0    0    0    0

#----------------------------------------------------------

# TT24 :  INAP CS1 Initial DP

#----------------------------------------------------------

  13   24   29   30   31   33   32   0    0    0    0    0

#----------------------------------------------------------

# TT25 :  INAP CS1 Event Report (EventReportBCSM)

#----------------------------------------------------------

  14   26   0    0    0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT26 :  INAP CS1 DisconnectForwardConnection(re-trigger to restore original trigger)

#----------------------------------------------------------

  0    27   29   34   0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT27 :  INAP CS1 Final_End(Apply ChargingReport)

#----------------------------------------------------------

  14   25   0    0    0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT28 :  INAP CS1 Post temp-connection handling

#----------------------------------------------------------

  15   0    0    0    0    0    0    0    0    0    0    0

#----------------------------------------------------------

# TT 29 :  INAP CS2 Initial DP

#----------------------------------------------------------

  13   29   29   30   31   33   32   36   37   38   39   0

#----------------------------------------------------------

# TT 30: ANSI PRE AIN CNAM

#----------------------------------------------------------

  4   30   41    40   0   0    0    41   0    0    0    0

##############

$MessageAction

##############

#

# F1   F2   F3   F4   F5   F6   F7   F8   F9   F10

# ACT1 REQ  ACT2 REQ  ACT3 REQ  ACT4 REQ  ACT5 REQ

#-------------------------------------------------

# MA 1: Customer 1 LNP

#-------------------------------------------------

  1    1    3    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 2: Generic LNP

#-------------------------------------------------

  1    1    2    1    3    0    0    0    0    0

#-------------------------------------------------

# MA 3: Genesys 800

#-------------------------------------------------

  1    1    3    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 4: ANSI AIN 800 / ANSI PRE AIN 800 /ANSI PRE AIN CNAM

#-------------------------------------------------

  1    1    3    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 5: ANSI AIN 800 Termination Information / PRE AIN 800 Termination Information

#-------------------------------------------------

  4    1    0    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 6: CS1/INAP Based CLI Screening InitialDP Query

#-------------------------------------------------

  3    0    0    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 7: INAP Free Phone, LNP & Carrier Pre-Selection Services

#-------------------------------------------------

  3    0    0    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 8: INAP LNP for Norway

#-------------------------------------------------

  3    0    0    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 9: INAP Prepaid Services InitialDP

#-------------------------------------------------

  3    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------

# MA 10: INAP Prepaid Services ApplyChargingReport

#--------------------------------------------------------

  0    0    0    0    0    0    0    0    0    0

#----------------------------------------------------

# MA 11: INAP Prepaid Services EventReportBCSM

#----------------------------------------------------

  0    0    0    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 12: INAP LNP for Portugal

#-------------------------------------------------

  3    0    0    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 13: INAP CS1 Copy STP_SCP_INdex_From_Signal_Data

#-------------------------------------------------

  3    0    0    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 14: INAP CS1 Reinstate Previous trigger

#-------------------------------------------------

  5    0    0    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 15: INAP CS1 Reinstate Previous trigger

#-------------------------------------------------

  6    0    0    0    0    0    0    0    0    0

#-------------------------------------------------

# MA 16: INAP CS1 Provoke SCP Abort

#-------------------------------------------------

  7    0    0    0    0    0    0    0    0    0

###################

$MessageSendingName

###################

#

# Name                  Index

c1-lnp                  1

generic-lnp             2

genesys-800             3

ansi-ain-800-npa        4

ansi-ain-800-npa-nxx    5

ansi-ain-800-npanxxx    6

ansi-ain-800-ti         7

ansi-pre-ain-800        8

ansi-pre-ain-800-ti     9

ansi-pre-ain-800-ssn    10

ansi-pre-ain-800-ts     11

cs1-inap-cli-initdp     12

cs1i-nap-cli-srr        13

inap-freephon-initdp    14

inap-lnp-initdp         15

inap-precarr-initdp     16

inap-lnp-norway         17

inap-pp-initdp          18

inap-pp-charge-atexp    19

inap-pp-bcsm            20

inap-pp-charge-texp     21

inap-pp-charge-final    22

inap-lnp-portugal       23

inap-cs1-initdp         24

inap-cs1-dummy-25       25

inap-cs1-dummy-26       26

inap-cs1-dummy-27       27

inap-cs1-dummy-28       28

inap-cs2-initdp         29

ansi-pre-ain-cnam       30

###############

$MessageSending

###############

#

# F1       F2               F3   F4            F5              F6           F7   F8   F9
F10  F11  F12  F13  F14  F15  F16

# tcapType stpScpGroupIndex msg  asn1Encoding  translationType tcapBodyType OS1  OS2  OS3
OS4  OS5  OS6  OS7  OS8  OS9  OS10

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 1: Customer 1 LNP

#-----------------------------------------------------------------------------------------
-----------------------------------

  2        0                6    0             255             1            1    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 2: Generic LNP

#-----------------------------------------------------------------------------------------
-----------------------------------

  2        0                6    0             255             1            2    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 3: Genesys 800

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        1                1    0             0               1            3    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 4: ANSI AIN 800 NPA

#-----------------------------------------------------------------------------------------
-----------------------------------

  2        0                6    0             255             1            4    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 5: ANSI AIN 800 NPA-NXX

#-----------------------------------------------------------------------------------------
-----------------------------------

  2        0                6    0             255             1            4    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 6: ANSI AIN 800 NPA-NXX-XXX

#-----------------------------------------------------------------------------------------
-----------------------------------

  2        0                6    0             255             1            4    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 7: ANSI AIN 800 Termination information

#-----------------------------------------------------------------------------------------
-----------------------------------

  2        0                5    0             255             1            5    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 8: ANSI PRE AIN 800

#-----------------------------------------------------------------------------------------
-----------------------------------

  3        0                6    0             254             2            6    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 9: ANSI PRE AIN 800 Termination information

#-----------------------------------------------------------------------------------------
-----------------------------------

  3        0                5    0             254             2            7    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 10: ANSI PRE AIN 800 SSN (Same as MS 8 but with SSN stuff)

#-----------------------------------------------------------------------------------------
-----------------------------------

  3        0                6    0             254             2            6    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 11: ANSI PRE AIN 800 Termination information (Same as MS 9 but with SSN stuff)

#-----------------------------------------------------------------------------------------
-----------------------------------

  3        0                5    0             254             2            7    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 12: CS1/INAP Based CLI Screening InitialDP Query

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                1    0             200             1            8    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 13: CS1/INAP Based CLI Screening SpecializedResourceReport

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                2    0             200             1            9    0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 14: INAP InitialDP Query, Free Phone Service

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                1    0             0               1           110   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 15: INAP InitialDP Query, LNP Service

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                1    0             0               1           110   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 16: INAP InitialDP Query, Carrier Pre-Selection Service

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                1    0             0               1           110   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 17: INAP LNP for Norway

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                1    0             0               1           111   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 18: INAP Prepaid Services InitialDP

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                1    0             0               1            12   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 19: INAP Prepaid Services ApplyChargingReport (Approaching Time Period Expiry)

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                2    0             0               3            13   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 20: INAP Prepaid Services EventReportBCSM

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                2    0             0               1            14   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 21: INAP Prepaid Services ApplyChargingReport (Time Period Expired)

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                2    0             0               3            13   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 22: INAP Prepaid Services ApplyChargingReport (Final End)

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                3    0             0               3            13   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 23: INAP LNP for Portugal

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                1    0             0               1            15   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 24: INAP CS1 InitialDP

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                1    0             0               1            16   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 25: INAP CS1 Final end (ApplyChargingReport,)

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                2    0             0               3            18   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 26: INAP CS1 Continue, event report (EventReportBCSM)

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                2   0             0               1            17   0    0
0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 27: INAP CS1 (Dummy entry only to permit Message reception operation data access)

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                2   0             0               1            0   0    0    0
0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 28: INAP CS1 (Dummy entry only to permit Message reception operation data access)

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                2   0             0               1            0   0    0    0
0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
-----------------------------------

# MS 29: INAP CS2 InitialDP

#-----------------------------------------------------------------------------------------
-----------------------------------

  1        0                1    0             0               1            16   0    0
0    0    0    0    0    0    0

#---------------------------------------------------------------------------------

# MS 30 : ANSI PRE AIN CNAM

# tcapType=PRE AIN, msg=query with permission , asn1Encoding=asn1_definite,

# tcapBodyType=sequence, OS= 19

#---------------------------------------------------------------------------------

  3        0                6   0              5             2            19  0    0    0
0    0    0    0    0    0

#################

$OperationSending

#################

#

# F1            F2            F3            F4              F5         F6
F7

# componentType opClass       opCodeFamily  opCodeSpecifier opCodeFlag correlationRequired
PS

#-----------------------------------------------------------------------------------------
----

# OS 1: Customer 1 LNP

#-----------------------------------------------------------------------------------------
----

  6             1             100           3               4          0
1

#-----------------------------------------------------------------------------------------
----

# OS 2: Generic LNP

#-----------------------------------------------------------------------------------------
----

  6             1             100           3               4          0
2

#-----------------------------------------------------------------------------------------
----

# OS 3: Genesys 800

#-----------------------------------------------------------------------------------------
----

  1             1             0             0               1          0
3

#-----------------------------------------------------------------------------------------
----

# OS 4: ANSI AIN 800

#-----------------------------------------------------------------------------------------
----

  6             1             100           3               4          0
4

#-----------------------------------------------------------------------------------------
----

# OS 5: ANSI AIN 800 Termination Information                           Should have
correlationRequired = 1

#-----------------------------------------------------------------------------------------
----

  6             1             103           4               4          0
5

#-----------------------------------------------------------------------------------------
----

# OS 6: ANSI PRE AIN 800

#-----------------------------------------------------------------------------------------
----

  6             1             3             1               3          0
6

#-----------------------------------------------------------------------------------------
----

# OS 7: ANSI PRE AIN 800 Termination Information

#-----------------------------------------------------------------------------------------
----

  2             1             0             0               0          0
7

#-----------------------------------------------------------------------------------------
----

# OS 8: CS1/INAP Based CLI Screening InitialDP Query

#-----------------------------------------------------------------------------------------
----

  1             1             0             0               1          0
8

#-----------------------------------------------------------------------------------------
----

# OS 9: CS1/INAP Based CLI Screening SpecializedResourceReport

#-----------------------------------------------------------------------------------------
----

  1             1             0             49              1          1
0

#-----------------------------------------------------------------------------------------
----

# OS 10: INAP Free Phone, LNP & Carrier Pre-Selection Services InitialDP Query

#-----------------------------------------------------------------------------------------
----

  1             1             0             0               1          0
9

#-----------------------------------------------------------------------------------------
----

# OS 11: INAP LNP for Norway

#-----------------------------------------------------------------------------------------
----

  1             1             0             0               1          0
10

#-----------------------------------------------------------------------------------------
----

# OS 12: INAP Prepaid Services InitialDP

#-----------------------------------------------------------------------------------------
----

  1             2             0             0               1          0
11

#-----------------------------------------------------------------------------------------
----

# OS 13: INAP Prepaid Services ApplyChargingReport

#-----------------------------------------------------------------------------------------
----

  1             2             0             36              1          0
12

#-----------------------------------------------------------------------------------------
----

# OS 14: INAP Prepaid Services EventReportBCSM

#-----------------------------------------------------------------------------------------
----

  1             2             0             24              1          0
13

#-----------------------------------------------------------------------------------------
----

# OS 15: INAP LNP for Portugal

#-----------------------------------------------------------------------------------------
----

  1             1             0             0               1          0
14

#-----------------------------------------------------------------------------------------
----

# OS 16: INAP CS1 InitialDP

#-----------------------------------------------------------------------------------------
----

# componentType opClass       opCodeFamily  opCodeSpecifier opCodeFlag correlationRequired
PS

  1             2             0             0               1          0
15

#-----------------------------------------------------------------------------------------
----

# OS 17: INAP CS1 EventReportBCSM

#-----------------------------------------------------------------------------------------
----

  1             2             0             24              1          0
16

#-----------------------------------------------------------------------------------------
----

# OS 18: INAP CS1 ApplyChargingReport

#-----------------------------------------------------------------------------------------
----

  1             2             0             36              1          0
17

#-----------------------------------------------------------------------------------------
----

# OS 19: ANSI PRE AIN CNAM

# componentType=invoke last, opClass=success and fail report, opFamily=parameter

# opSpecifier=1 for PRE AIN, opFlag=1.local/3.national/4 private,  ps=18

#-----------------------------------------------------------------------------------------
----

  6             1             129            1              3          0
18

#-----------------------------------------------------------------------------------------
----

#################

$ParameterSending

#################

#

# F1   F2   F3   F4   F5   F6   F7   F8   F9   F10  F11  F12  F13  F14  F15  F16  F17  F18
F19  F20  F21  F22  F23  F24  F25  F26  F27  F28  F29  F30

# PA1  REQ  PA2  REQ  PA3  REQ  PA4  REQ  PA5  REQ  PA6  REQ  PA7  REQ  PA8  REQ  PA9  REQ
PA10 REQ  PA11 REQ  PA12 REQ  PA13 REQ  PA14 REQ  PA15 REQ

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 1: Customer 1 LNP

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  100  1    101  1    102  1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 2: Generic LNP

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  100  1    101  1    102  1    103  1    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 3: Genesys 800

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  200  1    201  1    202  1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 4: ANSI AIN 800 (All types)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  100  1    101  1    102  1    103  1    104  1    109  0    110  0    111  0    112  0
113  0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 5: ANSI AIN 800 Termination Information

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  105  1    106  1    107  0    108  0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 6: ANSI PRE AIN 800

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  17   1    2    1    16   0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 7: ANSI PRE AIN 800 Termination Information

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  21   1    20   1    22   0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 8: CS1/INAP Based CLI Screening

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  200  1    201  1    202  1    208  1    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 9: INAP Free Phone, LNP & Carrier Pre-Selection Services

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  200  1    201  1    202  1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 10: INAP LNP for Norway

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  200  1    201  1    202  1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 11: INAP Prepaid Services InitialDP

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  200  1    201  1    202  1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 12: INAP Prepaid Services ApplyChargingReport

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  214  1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 13: INAP Prepaid Services EventReportBCSM

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  217  1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 14: INAP LNP for Portugal

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  200  1    201  1    202  1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 15: INAP CS1 InitialDP

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  200  1    201  1    202  0    208  0    206  0    224  0    219  0    217  0    220  0
221  0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 16: INAP CS1 EventReportBCSM

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  217  1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 17: INAP CS1 ApplyChargingReport

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  214  1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

# PS 18: ANSI PRE AIN CNAM

# 23=generic name, 17=service key

#-----------------------------------------------------------------------------------------
------------------------------------------------------------

  23  1    17  1    0  0    0  0    0  0    0  0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0

#################

$ReceivedResponse

#################

# All fields are pointers to records of other types

#

# F1   F2

# MR   RA

#-----------------------------------------------------------------------------------------
----------

# RR 1: Customer 1 LNP / Generic LNP Default

#-----------------------------------------------------------------------------------------
----------

  0    1

#-----------------------------------------------------------------------------------------
----------

# RR 2: Customer 1 LNP 1st expected

#-----------------------------------------------------------------------------------------
----------

  1    2

#-----------------------------------------------------------------------------------------
----------

# RR 3: Generic LNP 1st expected

#-----------------------------------------------------------------------------------------
----------

  1    3

#-----------------------------------------------------------------------------------------
----------

# RR 4: Genesys 800 1st expected (Result)

#-----------------------------------------------------------------------------------------
----------

  2    6

#-----------------------------------------------------------------------------------------
----------

# RR 5: Genesys 800 2st expected (Error)

#-----------------------------------------------------------------------------------------
----------

  3    4

#-----------------------------------------------------------------------------------------
----------

# RR 6: ANSI AIN 800 With termination status notification

#-----------------------------------------------------------------------------------------
----------

  4    5

#-----------------------------------------------------------------------------------------
----------

# RR 7: ANSI AIN 800

#-----------------------------------------------------------------------------------------
----------

  5    6

#-----------------------------------------------------------------------------------------
----------

# RR 8: ANSI PRE AIN 800 With termination status notification

#-----------------------------------------------------------------------------------------
----------

  6    7

#-----------------------------------------------------------------------------------------
----------

# RR 9: ANSI PRE AIN 800

#-----------------------------------------------------------------------------------------
----------

  7    8

#-----------------------------------------------------------------------------------------
----------

# RR 10: ANSI AIN 800 / PRE AIN 800 Default

#-----------------------------------------------------------------------------------------
----------

  0    9

#-----------------------------------------------------------------------------------------
----------

# RR 11: ANSI PRE AIN 800 With termination status notification SSN

#-----------------------------------------------------------------------------------------
----------

  6    10

#-----------------------------------------------------------------------------------------
----------

# RR 12: CS1/INAP Based CLI Screening, Expected Response 1, End: Connect

#-----------------------------------------------------------------------------------------
----------

  8   11

#-----------------------------------------------------------------------------------------
----------

# RR 13: CS1/INAP Based CLI Screening, Expected Response 2, End: ConnectToResource,
PlayAnnouncement

#-----------------------------------------------------------------------------------------
----------

  9   13

#-----------------------------------------------------------------------------------------
----------

# RR 14: CS1/INAP Based CLI Screening, Expected Response 3, Conintue: ConnectToResource,
PlayAnnouncement

#-----------------------------------------------------------------------------------------
----------

 10   12

#-----------------------------------------------------------------------------------------
----------

# RR 15: CS1/INAP Based CLI Screening, Expected Response 3, Conintue: ConnectToResource,
PlayAnnouncement

#-----------------------------------------------------------------------------------------
----------

  0   13

#-----------------------------------------------------------------------------------------
----------

# RR 16: INAP Free Phone, LNP & Carrier Pre-Selection Services, Expected Response 1, End:
Connect

#-----------------------------------------------------------------------------------------
----------

  11   14

#-----------------------------------------------------------------------------------------
----------

# RR 17: INAP LNP for Norway, Unexpected Response (default action)

#-----------------------------------------------------------------------------------------
----------

  0    15

#-----------------------------------------------------------------------------------------
----------

# RR 18: INAP LNP for Norway, Expected Response (End, Connect)

#-----------------------------------------------------------------------------------------
----------

  12   16

#-----------------------------------------------------------------------------------------
----------

# RR 19: INAP Prepaid Services, Unexpected Response (default action)

#-----------------------------------------------------------------------------------------
----------

  0    17

#-----------------------------------------------------------------------------------------
----------

# RR 20: INAP Prepaid Services, Expected Response (Continue, Connect)

#-----------------------------------------------------------------------------------------
----------

  13   18

#-----------------------------------------------------------------------------------------
----------

# RR 21: INAP Prepaid Services, Expected Response (Continue, ApplyCharging)

#-----------------------------------------------------------------------------------------
----------

  14   18

#-----------------------------------------------------------------------------------------
----------

# RR 22: INAP Prepaid Services, Expected Response (Continue, ReleaseCall)

#-----------------------------------------------------------------------------------------
----------

  15   18

#-----------------------------------------------------------------------------------------
----------

# RR 23: INAP Prepaid Services, Expected Response (Continue, Connect)

#-----------------------------------------------------------------------------------------
----------

  16   18

#-----------------------------------------------------------------------------------------
----------

# RR 24: INAP Prepaid Services, Expected Response (Continue, FurnishChargeInformation,
ReleaseCall)

#-----------------------------------------------------------------------------------------
----------

  17   18

#-----------------------------------------------------------------------------------------
----------

# RR 25: INAP LNP for Portugal, Unexpected Response (default action)

#-----------------------------------------------------------------------------------------
----------

  0    19

#-----------------------------------------------------------------------------------------
----------

# RR 26: INAP LNP for Portugal, Expected Response (Continue, Continue)

#-----------------------------------------------------------------------------------------
----------

  18   20

#-----------------------------------------------------------------------------------------
----------

# RR 27: INAP LNP for Portugal, Expected Response  (Continue, Connect)

#-----------------------------------------------------------------------------------------
----------

  19   21

#-----------------------------------------------------------------------------------------
----------

# RR 28: INAP-Based Prepaid Services, Expected Response (End, Connect)

#-----------------------------------------------------------------------------------------
----------

  20   18

#-----------------------------------------------------------------------------------------
----------

# RR 29: INAP CS1, Unexpected Response (default action)

#-----------------------------------------------------------------------------------------
----------

  0    22

#-----------------------------------------------------------------------------------------
----------

# RR 30: INAP CS1, Expected Response (Continue, Connect, ApplyCharging,
SendChargingInformation,RequestReportBCSMEvent, FurnishCharging)

#-----------------------------------------------------------------------------------------
----------

# MR   RA

  21    23

#-----------------------------------------------------------------------------------------
----------

# RR 31: INAP CS1, Expected Response (Continue, CollectInformation +
RequestReportBCSMEvent)

#-----------------------------------------------------------------------------------------
----------

  22    23

#-----------------------------------------------------------------------------------------
----------

# RR 32: INAP CS1, Expected Response (Continue, ReleaseCall)

#-----------------------------------------------------------------------------------------
----------

  23    26

#-----------------------------------------------------------------------------------------
----------

# RR 33: INAP CS1, Expected Response (Continue, RequestReportBCSMEvent,
EstablishTemporaryConnection)

#-----------------------------------------------------------------------------------------
----------

  24    24

#-----------------------------------------------------------------------------------------
----------

# RR 34: INAP CS1, Expected Response (Continue, DisconnectForwardConnection)

#-----------------------------------------------------------------------------------------
----------

  25    25

#-----------------------------------------------------------------------------------------
----------

# RR 35: INAP CS1, Expected Response (Continue, CallGap - not treated, just ignore)

#-----------------------------------------------------------------------------------------
----------

  0    27

#-----------------------------------------------------------------------------------------
----------

# RR 36: INAP CS2, Expected Response (DL, SL, MCS,DFCwithArg,RRBE, ML, CWA)

#-----------------------------------------------------------------------------------------
----------

  26    28

#-----------------------------------------------------------------------------------------
----------

# RR 37: INAP CS2, Expected Response (CTR,PA,RRBE,CWA)

#-----------------------------------------------------------------------------------------
----------

  27    29

#-----------------------------------------------------------------------------------------
----------

# RR 38: INAP CS2, Expected Response (DFCwithArg, ML, CTR, PA, CWA, RRBE)

#-----------------------------------------------------------------------------------------
----------

  28    30

#-----------------------------------------------------------------------------------------
----------

# RR 39: INAP CS2, Expected Response (CWA,RRBE,CON,CTR,PA)

#-----------------------------------------------------------------------------------------
----------

  29    31

#-----------------------------------------------------------------------------------------

# RR 40: ANSI PRE AIN CNAM Response expected, Take the same action as AIN

#-----------------------------------------------------------------------------------------

  30   32

#-----------------------------------------------------------------------------------------

# RR 41: ANSI PRE AIN CNAM Response unexpected

#-----------------------------------------------------------------------------------------

  0    32

#################

$MessageReceiving

#################

#

# F1   F2   F3   F4   F5   F6   F7   F8   F9   F10  F11  F12  F13  F14  F15  F16  F17  F18
F19  F20  F21

# MSG  OR1  REQ  OR2  REQ  OR3  REQ  OR4  REQ  OR5  REQ  OR6  REQ  OR7  REQ  OR8  REQ  OR9
REQ  OR10 REQ

#-----------------------------------------------------------------------------------------
-------------

# MR 1: Customer 1 LNP / Generic LNP

#-----------------------------------------------------------------------------------------
-------------

  8    1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 2: Genesys 800 (Result)

#-----------------------------------------------------------------------------------------
-------------

  3    2    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 3: Genesys 800 (Error)

#-----------------------------------------------------------------------------------------
-------------

  3    3    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 4: ANSI AIN 800 with termination status notification

#-----------------------------------------------------------------------------------------
-------------

  8    4    1    5    1    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 5: ANSI AIN 800

#-----------------------------------------------------------------------------------------
-------------

  8    4    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 6: ANSI PRE AIN 800 with termination status notification

#-----------------------------------------------------------------------------------------
-------------

  8    6    1    7    1    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 7: ANSI PRE AIN 800

#-----------------------------------------------------------------------------------------
-------------

  8    6    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 8: CS1/INAP Based CLI Screening, End Message w/ Connect

#-----------------------------------------------------------------------------------------
-------------

  3    8    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 9: CS1/INAP Based CLI Screening, End Message w/ ConnectToResource, PlayAnnouncment

#-----------------------------------------------------------------------------------------
-------------

  3    9    1   10    1    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 10: CS1/INAP Based CLI Screening, Continue Message w/ ConnectToResource,
PlayAnnouncment

#-----------------------------------------------------------------------------------------
-------------

  2    9    1    10   1    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 11: INAP Free Phone, LNP & Carrier Pre-Selection Services, End Message w/ Connect

#-----------------------------------------------------------------------------------------
-------------

  3    11   1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 12: INAP LNP for Norway, Expected Response (End, Connect)

#-----------------------------------------------------------------------------------------
-------------

  3    12   1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 13: INAP Prepaid Services, Expected Response (Continue, Connect, ApplyCharging,
RequestReportBCSMEvent, FurnishCharging)

#-----------------------------------------------------------------------------------------
-------------

  2    13   1    14   1    15   1    16   1    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 14: INAP Prepaid Services, Expected Response (Continue, ApplyCharging)

#-----------------------------------------------------------------------------------------
-------------

  2    14    1   0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 15: INAP Prepaid Services, Expected Response (Continue, ReleaseCall)

#-----------------------------------------------------------------------------------------
-------------

  2    17    1   0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 16: INAP Prepaid Services, Expected Response (Continue, Connect)

#-----------------------------------------------------------------------------------------
-------------

  2    13   1    0    0    0   0     0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 17: INAP Prepaid Services, Expected Response (Continue, ReleaseCall,
FurnishChargeInformation)

#-----------------------------------------------------------------------------------------
-------------

  2    17   1    16   0    0   0     0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 18: INAP LNP for Portugal, Expected Response(Continue, Continue)

#-----------------------------------------------------------------------------------------
-------------

  2    18   1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 19: INAP LNP for Portugal, Expected Response(Continue, Connect)

#-----------------------------------------------------------------------------------------
-------------

  2    19   1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 20: INAP-Based Prepaid Services, Expected Response (End, Connect)

#-----------------------------------------------------------------------------------------
-------------

  3    13   1    16   0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 21: INAP CS1 , Expected Response (Continue, Connect, ApplyCharging,
SendChargingInformation,RequestReportBCSMEvent, FurnishCharging)

#-----------------------------------------------------------------------------------------
-------------

  4    20   0    21   0    22   0    23   0    24   0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 22: INAP CS1 , Expected Response (Continue, CollectInformation +
RequestReportBCSMEvent)

#-----------------------------------------------------------------------------------------
-------------

  4    26   1    27   0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 23: INAP CS1 , Expected Response (Continue, ReleaseCall or Continue and optional
RequestReportBCSMEvent)

#-----------------------------------------------------------------------------------------
-------------

  4    25   0   30    0    27   0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 24: INAP CS1 , Expected Response (RRBE, ETC, FCI)

#-----------------------------------------------------------------------------------------
-------------

  4    23   0    28   1    24   0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 25: INAP CS1 , Expected Response (DFC, CONNECT, RRBE, FCI)

#-----------------------------------------------------------------------------------------
-------------

  4    29   0    20   0    23   0    24   0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 26: INAP CS2 , Expected Response (DL, SL, MCS,DFCwithArg,RRBE, ML, CWA)

#-----------------------------------------------------------------------------------------
-------------

  4    32   0   35   0   33   0   38   0    23   0    34   0    31   0    0    0    0    0
0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 27: INAP CS2 , Expected Response (CTR,PA,RRBE,CWA)

#-----------------------------------------------------------------------------------------
-------------

  4    37   0   36   0   23   0    31   0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 28: INAP CS2 , Expected Response (DFCwithArg, ML, CTR, PA, CWA, RRBE)

#-----------------------------------------------------------------------------------------
-------------

  4    38   0   34   0    37   0    36   0   31   0    23   0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 29: INAP CS2 , Expected Response (CWA,RRBE,CON,CTR,PA)

#-----------------------------------------------------------------------------------------
-------------

  4    31   0   23   0    20   0    37   0    36   0    0    0    0    0    0    0   0
0    0    0

# 4    23   1    20   0    37   0    36   0    0    0    0    0    0    0    0    0    0
0    0    0

#-----------------------------------------------------------------------------------------
-------------

# MR 30: ANSI PRE AIN CNAM , msg=response

#-----------------------------------------------------------------------------------------
-------------

  8    39   0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0

###################

$OperationReceiving

###################

#

# F1            F2           F3              F4           F5         F6

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

#----------------------------------------------------------------------

# OR 1: Customer 1 LNP / Generic LNP

#----------------------------------------------------------------------

  6             1            101          1               4          1

#----------------------------------------------------------------------

# OR 2: Genesys 800 (Result)

#----------------------------------------------------------------------

  1             1            0            20              1          2

#----------------------------------------------------------------------

# OR 3: Genesys 800 (Error)

#----------------------------------------------------------------------

  3             1            0            0               1          3

#----------------------------------------------------------------------

# OR 4: ANSI AIN 800

#----------------------------------------------------------------------

  6             1            101          1               4          4

#----------------------------------------------------------------------

# OR 5: ANSI AIN 800 Request for status notification

#----------------------------------------------------------------------

  6             1            103          5               4          5

#----------------------------------------------------------------------

# OR 6: ANSI PRE AIN 800

#----------------------------------------------------------------------

  6             1            4            1               3          6

#----------------------------------------------------------------------

# OR 7: ANSI PRE AIN 800 Request for status notification

#----------------------------------------------------------------------

  6             1            6            1               4          7

#----------------------------------------------------------------------

# OR 8: CS1/INAP Based CLI Screening Connect Operation

#----------------------------------------------------------------------

  1             1            0            20              1          8

#----------------------------------------------------------------------

# OR 9: CS1/INAP Based CLI Screening ConnectToResource Operation

#----------------------------------------------------------------------

  1             1            0            19              1          0

#----------------------------------------------------------------------

# OR 10: CS1/INAP Based CLI Screening PlayAnouncement Operation

#----------------------------------------------------------------------

  1             1            0            47              1          9

#----------------------------------------------------------------------

# OR 11: INAP Free Phone, LNP & Carrier Pre-Selection Services Connect Operation

#----------------------------------------------------------------------

  1             1            0            20              1          10

#----------------------------------------------------------------------

# OR 12: INAP LNP for Norway, Expected Response (Connect)

#----------------------------------------------------------------------

  1             1            0            20              1          11

#----------------------------------------------------------------------

# OR 13: INAP Prepaid Services, Expected Response (Connect)

#----------------------------------------------------------------------

  1             2            0            20              1          12

#----------------------------------------------------------------------

# OR 14: INAP Prepaid Services, Expected Response (ApplyCharging)

#----------------------------------------------------------------------

  1             2            0            35              1          13

#----------------------------------------------------------------------

# OR 15: INAP Prepaid Services, Expected Response (RequestReportBCSMEvent)

#----------------------------------------------------------------------

  1             2            0            23              1          14

#----------------------------------------------------------------------

# OR 16: INAP Prepaid Services, Expected Response (FurnishCharging)

#----------------------------------------------------------------------

  1             2            0            34              1          15

#----------------------------------------------------------------------

# OR 17: INAP Prepaid Services, Expected Response (ReleaseCall)

#----------------------------------------------------------------------

  1             2            0            22              1          16

#----------------------------------------------------------------------

# OR 18: INAP LNP for Portugal, Expected Response (Continue)

#----------------------------------------------------------------------

  1             1            0            31              1          17

#----------------------------------------------------------------------

# OR 19: INAP LNP for Portugal, Expected Response (Connect)

#----------------------------------------------------------------------

  1             1            0            20              1          18

#----------------------------------------------------------------------

# OR 20: INAP CS1 , Expected Response (Connect)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            20              1          19

#----------------------------------------------------------------------

# OR 21: INAP CS1 , Expected Response (ApplyCharging)

#----------------------------------------------------------------------

  1             2            0            35              1          20

#----------------------------------------------------------------------

# OR 22: INAP CS1 , Expected Response (SendChargingInformation)

#----------------------------------------------------------------------

  1             2            0            46              1          21

#----------------------------------------------------------------------

# OR 23: INAP CS1 , Expected Response (RequestReportBCSMEvent)

#----------------------------------------------------------------------

  1             2            0            23              1          22

#----------------------------------------------------------------------

# OR 24: INAP CS1, Expected Response (FurnishCharging)

#----------------------------------------------------------------------

  1             2            0            34              1          23

#----------------------------------------------------------------------

# OR 25: INAP CS1, Expected Response (ReleaseCall)

#----------------------------------------------------------------------

  1             2            0            22              1          24

#----------------------------------------------------------------------

# OR 26: INAP CS1, Expected Response (CollectInformation)

#----------------------------------------------------------------------

  1             2            0            27              1          0

#----------------------------------------------------------------------

# OR 27: INAP CS1, Expected Response (RequestReportBCSMEvents)

#----------------------------------------------------------------------

  1             2            0            23              1          25

#----------------------------------------------------------------------

# OR 28: INAP CS1, Expected Response (EstablishTemporaryConnection)

#----------------------------------------------------------------------

  1             2            0            17              1          26

#----------------------------------------------------------------------

# OR 29: INAP CS1, Expected Response (DisconnectForwardConnection)

#----------------------------------------------------------------------

  1             2            0            18              1          0

#----------------------------------------------------------------------

# OR 30: INAP CS1, Expected Response (Continue operation)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            31              1          0

#----------------------------------------------------------------------

# OR 31: INAP CS2, Expected Response (ContinueWithArgument operation)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            88              1          27

#----------------------------------------------------------------------

# OR 32: INAP CS2, Expected Response (DisconnectLeg operation)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            90              1          28

#----------------------------------------------------------------------

# OR 33: INAP CS2, Expected Response (MergeCallSegments operation)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            91              1          29

#----------------------------------------------------------------------

# OR 34: INAP CS2, Expected Response (MoveLeg operation)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            93              1          30

#----------------------------------------------------------------------

# OR 35: INAP CS2, Expected Response (SplitLeg operation)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            95              1          31

#----------------------------------------------------------------------

# OR 36: INAP CS2, Expected Response (PlayAnnouncement operation)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            47              1          32

#----------------------------------------------------------------------

# OR 37: INAP CS2, Expected Response (ConnectToResource operation)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            19              1          33

#----------------------------------------------------------------------

# OR 38: INAP CS2, Expected Response (DFC With Argument operation)

#----------------------------------------------------------------------

# componentType opClass      opCodeFamily opCodeSpecifier opCodeFlag PR

  1             2            0            86              1          34

#----------------------------------------------------------------------

# OR 39: ANSI PRE AIN CNAM

# componentType=Return result(last), opClass=2:only failure report

# opFamily=network management, opSpecifier=spec acg, opFlag=3:national

#----------------------------------------------------------------------

  2             2            7          1               3          35

###################

$ParameterReceiving

###################

#

# F1   F2   F3   F4   F5   F6   F7   F8   F9   F10  F11  F12  F13  F14  F15  F16  F17  F18
F19  F20  F21  F22  F23  F24  F25  F26  F27  F28  F29  F30  F31  F32  F33  F34  F35  F36
F37  F38  F39  F40  F41  F42  F43  F44  F45

# PA1  REQ  ACT  PA2  REQ  ACT  PA3  REQ  ACT  PA4  REQ  ACT  PA5  REQ  ACT  PA6  REQ  ACT
PA7  REQ  ACT  PA8  REQ  ACT  PA9  REQ  ACT  PA10 REQ  ACT  PA11 REQ  ACT  PA12 REQ  ACT
PA13 REQ  ACT  PA14 REQ  ACT  PA15 REQ  ACT

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 1: Customer 1 LNP / Generic LNP

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  102  1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 2: Genesys 800 (Result)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  205  1    1    206  1    1    204  1    3    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 3: Genesys 800 (Error)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  205  1    1    206  1    1    204  1    3    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 4: ANSI AIN 800 Result

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  102  1    1    110  0    2    113  0    2    114  1    2    115  1    2    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 5: ANSI AIN 800 Status request

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  105  1    4    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 6: ANSI PRE AIN 800 Result

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  8    0    2    4    1    1    18   0    2    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 7: ANSI PRE AIN 800 Status request

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  20   1    4    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 8: CS1/INAP Based CLI Screening Connect Prameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  205  1    1    208  0    1    210  0    1    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 9: CS1/INAP Based CLI Screening PlayAnnouncement Prameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  209  0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 10: INAP Free Phone, LNP & Carrier Pre-Selection Services Connect Prameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  205  1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 11: INAP LNP for Norway Connect Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  205  1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 12: INAP Prepaid Services Connect Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  205  1    1    202  0    1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 13: INAP Prepaid Services ApplyCharging Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  211  1    1    212  0    1    213  0    1    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 14: INAP Prepaid Services RequestReportBCSMEvent Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  216  1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 15: INAP Prepaid Services FurnishCharging Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  215  1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 16: INAP Prepaid Services ReleaseCall Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  218  1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 17: INAP LNP for Portugal Continue Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  0    1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 18: INAP LNP for Portugal Connect Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  205  1    1    210  1    1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 19: INAP CS1 Connect Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  205  1    1    225  0    2    206  0    1    220  0    1    221  0    1    207  0    1
210  0    1    208  0    1    243    0    1    244    0    1    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 20: INAP CS1 ApplyCharging Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  211  1    1    212  0    1    213  0    1    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 21: INAP CS1 SendChargingInformation Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  222  1    1    226  0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 22: INAP CS1 RequestReportBCSMEvent Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  216  1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 23: INAP CS1 FurnishCharging Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  215  1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 24: INAP CS1 ReleaseCall Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  218  1    1    245  0    1    246  0    1    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 25: INAP CS1 RequestReportBCSMEvent Parameters

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  216  1    1    247  0    1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 26: INAP CS1 Etc(Establish temporary connection) ,  Parameter

#        ParameterAssistingSSPIPRoutingAddress, ServiceInteractionIndicators,
ItuAsn1EtcLegIDElem,ItuAsn1EtcCallSegmentIDElem,ItuAsn1EtcCarrierElem

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  223  1    1    207   0   1    253  0    1    254  0    1    229  0    1    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 27: INAP CS2 ContinueWithArgument parameters(ItuAsn1CwaLegIDElem)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  236  1    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 28: INAP CS2 DisconnectLeg
Parameters(ItuAsn1DlLegToBeReleasedElem/ITU_ASN1_DL_LEG_TO_BE_RELEASED,
ItuAsn1DlCauseElem/ITU_ASN1_DL_CAUSE)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  234  1    1    235   0   1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 29: INAP CS2 MergeCallSegments Parameters(SourceCallSegment, TargetCallSegment)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  237  1    1    238   0   1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 30: INAP CS2 MoveLeg Parameters(CallSegmentId, LegId)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  241  1    1    242   0   1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 31: INAP CS2 SplitLeg Parameters(CallSegmentId ,LegId)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  239  1    1    240   0   1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 32: INAP CS1 PlayAnnouncement(InformationToSend, RequestAnnouncementComplete, LegId
CallSegmentId)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  248  1    1    249   0   1    263   0    1    264    0    1    250  0    1    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 33: INAP CS1 ConnectToResource Parameters(serviceInteractionIndicator,
ResourceAddress, )

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  233  0    1    257   0   1    258    0    1    259  0    1    260  0    1   261  0    1
262    0    1    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

# PR 34: INAP CS1 DFC With Argument Parameters(dfc legId or DFC callsegment id, party to
disconnect)

#-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
---------------------------------------------

  255  0    1    256  0   1    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0

#-----------------------------------------------------------------------------------------

# PR 35: ANSI PRE AIN CNAM Result

# 23=GenericName(copy to CC), 8=carrier, 4=routing number, 18=billing indicators

#-----------------------------------------------------------------------------------------

  23  0    2    8  0    2    4  0    1    18    0    2    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0    0
0    0    0    0    0    0    0    0

###############

$ResponseAction

###############

#

# F1   F2   F3   F4   F5   F6   F7   F8   F9   F10  F11  F12  F13  F14  F15

# ACT1 REQ  DAT  ACT2 REQ  DAT  ACT3 REQ  DAT  ACT4 REQ  DAT  ACT5 REQ  DAT

#--------------------------------------------------------------------------

# RA 1: Customer 1 LNP Default & Generic LNP Default

#--------------------------------------------------------------------------

  4    1    2    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 2: Customer 1 LNP 1st Expected

#--------------------------------------------------------------------------

  4    1    2    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 3: Generic LNP 1st Expected

#--------------------------------------------------------------------------

  1    1    0    4    1    2    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 4: Genesys (Error)

#--------------------------------------------------------------------------

  0    0    0    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 5: ANSI AIN 800 with termination status notification

#--------------------------------------------------------------------------

  2    0    1    4    1    3    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 6: Genesys & ANSI AIN AIN 800

#--------------------------------------------------------------------------

  4    1    3    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 7: ANSI PRE AIN 800 with termination status notification

#--------------------------------------------------------------------------

  2    0    4    4    1    3    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 8: ANSI PRE AIN 800

#--------------------------------------------------------------------------

  4    1    3    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 9: 800 Default

#--------------------------------------------------------------------------

  4    1    3    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 10: ANSI PRE AIN 800 with termination status notification SSN

#--------------------------------------------------------------------------

  2    0    5    4    1    3    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 11: CS1/INAP Based CLI Screening, Connect reponse actions

#--------------------------------------------------------------------------

  4    1    6    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 12: CS1/INAP Based CLI Screening, Continue PlayAnnouncement reponse actions

#--------------------------------------------------------------------------

  7    1    7    7    1    8    6    1    9    6    1    10   6    1   11

#--------------------------------------------------------------------------

# RA 13: CS1/INAP Based CLI Screening, End PlayAnnouncement reponse actions

#--------------------------------------------------------------------------

  4    1    12  0    0    0    0    0    0    0    0    0    0    0   0

#--------------------------------------------------------------------------

# RA 14: INAP Free Phone, LNP & Carrier Pre-Selection Services, Connect reponse actions

#--------------------------------------------------------------------------

  4    1    13    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 15: INAP LNP for Norway, Unexpected Response

#--------------------------------------------------------------------------

  4    1    14    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 16: INAP LNP for Norway, Expected Response

#--------------------------------------------------------------------------

  4    1    15    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 17: INAP Prepaid Services, Unexpected Response

#--------------------------------------------------------------------------

  4    1    14    8    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 18: INAP Prepaid Services, Expected Response

#--------------------------------------------------------------------------

  4    1    16    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 19: INAP LNP for Portugal, Unexpected Response

#--------------------------------------------------------------------------

  4    1    14    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 20: INAP LNP for Portugal, Expected Response

#--------------------------------------------------------------------------

  4    1    17    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 21: INAP LNP for Portugal, Expected Response

#--------------------------------------------------------------------------

  4    1    18    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 22: INAP CS1, Unexpected Response

#--------------------------------------------------------------------------

  4    1    19    8    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 23: INAP CS1, Expected Response

#--------------------------------------------------------------------------

  4    1    20    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 24: INAP CS1, Expected Response(Continue,EstablishTempConnection, re-trigger)

#--------------------------------------------------------------------------

  4    1    20    2    1    21    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 25: INAP CS1, Expected Response(Continue,DisconnectForwardConnection, re-trigger)

#--------------------------------------------------------------------------

  4    1    20    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 26: INAP CS1, Expected Response (In Release)

#--------------------------------------------------------------------------

  4    1    20    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 27: INAP CS1, Expected Response (No action - ignoring call gap response )

#--------------------------------------------------------------------------

  0    0    0    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 28: INAP CS2, Expected Response(DL, SL, MCS,DFCwithArg,RRBE, ML, CWA)

#--------------------------------------------------------------------------

  4    1    20    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 29: INAP CS2, Expected Response(CTR,PA,RRBE,CWA)

#--------------------------------------------------------------------------

  4    1    20    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 30: INAP CS2, Expected Response(DFCwithArg, ML, CTR, PA, CWA, RRBE)

#--------------------------------------------------------------------------

  4    1    20    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 31: INAP CS2, Expected Response(RRBE,CON,CTR,PA)

#--------------------------------------------------------------------------

  4    1    20    0    0    0    0    0    0    0    0    0    0    0    0

#--------------------------------------------------------------------------

# RA 32: CNAM ( send action to LCM )

#--------------------------------------------------------------------------

  4    1    23    0    0    0    0    0    0    0    0    0    0    0    0

###########

$ActionData

###########

#

# F1   F2   F3   F4   F5

#-----------------------

# AD 1: ANSI AIN 800  Data for RESULT_ACTION_RE_TRIGGER_VIA_LCM (to send termination
information)

# Trg  Pic   Null Null Null

#--------------------------

  7    13    0    0    0

# AD 2: ANSI LNP Data for RESULT_ACTION_SEND_ACTION_TO_LCM

# Act  Null Null Null  NULL

#--------------------------

  1    0     0    0    0

# AD 3: ANSI AIN / PRE AIN 800 Data for RESULT_ACTION_SEND_ACTION_TO_LCM

# Act  Null Null Null  NULL

#--------------------------

  2    0     0    0    0

# AD 4: ANSI PRE AIN 800  Data for RESULT_ACTION_RE_TRIGGER_VIA_LCM (to send termination
information)

# Trg  Pic   Null Null Null

#--------------------------

  9    13    0    0    0

# AD 5: ANSI PRE AIN 800  Data for RESULT_ACTION_RE_TRIGGER_VIA_LCM (to send termination
information) SSN

# Trg  Pic   Null Null Null

#--------------------------

  11   13    0    0    0

# AD 6: CS1/INAP Based CLI Screeing Data for RESULT_ACTION_SEND_ACTION_TO_LCM information

# Act  Null  Null Null Null

#--------------------------

  3    0     0    0    0

# AD 7: CS1/INAP Based CLI Screeing Data for RESULT_ACTION_RE_TRIGGER_VIA_LCM_COND
information

# Cond Param Val Trg  Pic

#--------------------------

  2    209   1    13   10

# AD 8: CS1/INAP Based CLI Screeing Data for RESULT_ACTION_RE_TRIGGER_VIA_LCM_COND
information

# Cond Param Trg Pic  Null

#--------------------------

  0    209   13   10    0

# AD 9: CS1/INAP Based CLI Screeing Data for RESULT_ACTION_SEND_ACTION_TO_LCM_COND
information

# Cond Param Val Act  Null

#--------------------------

  2    209   1    4    0

# AD 11: CS1/INAP Based CLI Screeing Data for RESULT_ACTION_SEND_ACTION_TO_LCM_COND
information

# Cond Param Act Null Null

#--------------------------

  0    209   4    0    0

# AD 11: CS1/INAP Based CLI Screeing Data for RESULT_ACTION_SEND_ACTION_TO_LCM_COND
information

# Cond Param Val Act  Null

#--------------------------

  2    209   0    5    0

# AD 12: CS1/INAP Based CLI Screeing Data for RESULT_ACTION_SEND_ACTION_TO_LCM information

# Act  Null Null Null Null

#--------------------------

  5    0    0    0    0

# AD 13: INAP Free Phone, LNP & Carrier Pre-Selection Services Data for
RESULT_ACTION_SEND_ACTION_TO_LCM information

# Act  Null Null Null Null

#--------------------------

  3    0    0    0    0

# AD 14: INAP LNP for Norway Data for RESULT_ACTION_SEND_ACTION_TO_LCM information
(IN_RELEASE)

# Act  Null Null Null Null

#--------------------------

  5    0    0    0    0

# AD 15: INAP LNP for Norway Data for RESULT_ACTION_SEND_ACTION_TO_LCM information
(IN_ROUTE)

# Act  Null Null Null Null

#--------------------------

  3    0    0    0    0

# AD 16: INAP Prepaid Services Data for RESULT_ACTION_SEND_ACTION_TO_LCM information
(IN_PREPAID)

# Act  Null Null Null Null

#--------------------------

  6    0    0    0    0

# AD 17: INAP LNP for Portugal Data for RESULT_ACTION_SEND_ACTION_TO_LCM information
(IN_NONE)

# Act  Null Null Null Null

#--------------------------

  0   0   0   0   0

# AD 18: INAP LNP for Portugal Data for RESULT_ACTION_SEND_ACTION_TO_LCM information
(IN_ROUTE)

# Act  Null Null Null Null

#--------------------------

  3   0   0   0   0

# AD 19: INAP CS1 Data for RESULT_ACTION_SEND_ACTION_TO_LCM information (IN_RELEASE)

# Act  Null Null Null Null

#--------------------------

  5    0    0    0    0

# AD 20: INAP CS1 Data for RESULT_ACTION_SEND_ACTION_TO_LCM information (IN_INAP CS1)

# Act  Null Null Null Null

#--------------------------

  7    0    0    0    0

# AD 21: INAP CS1 Data for RESULT_ACTION_RE_TRIGGER_VIA_LCM(Trigger26,PIC-Now)

# Act  Null Null Null Null

#----
