This chapter describes how to provision BTS Call Agents (CAs) and Feature Servers (FSs).
Call Agents
The CA provides signaling and call processing (call setup and teardown) for the BTS. This section describes adding the CA and associated office tables to the BTS. The following table provides example steps to provision the CA and lists examples of CLI commands with mandatory tokens. For all available tokens, see the Cisco BTS 10200 Softswitch CLI Database.
Step
Task
Description and CLI Command
Step 1
Adding CAs.
The Call Agent (call-agent) table has the domain name and tsap addresses of the CA as well as the primary and secondary IP addresses of the EMS.
add call-agent id=CA101;
Step 2
Adding CA profiles.
The Call Agent Profile (ca-agent-profile) table defines the properties (functionality) of the CA. The CA reads this table once every 20 calls. This means that when the CA processes 20 calls per second, changes to this table take effect in one second.
The Call Agent Configuration (ca-config) table defines the defaults for each CA. The defaults are prepopulated at installation. Only change and show commands are valid.
Note The add command is used during installation but additional parameters cannot be added.
The Call Agent Configuration Base (ca-config-base) table is a static table in the EMS to perform constraint checks. This table is not provisionable. Only the show command is allowed. Information in the Call Agent Configuration Base table must match the information in the Call Agent Configuration table.
Step 4
Adding home area codes.
The National Destination Code (ndc-code) table defines the home area codes supported by the CA.
add ndc digit-string=469;
Step 5
Adding exchange codes.
The Exchange Code (exchange-code) table specifies the exchange codes assigned to a particular CA.
add exchange-code ndc=469; ec=255;
Step 6
Adding office codes.
The Office Code (office-code) table specifies the office codes assigned to a particular CA. The office codes defined in this table normally terminate to a subscriber. This table defines the office-code-index (normalized office code) that is used as an index in the DN2Subscriber table.
The Digit Map (digit-map) table tells a media gateway (MGW) how to collect and report dialed digits. The CA uses a default digit map ID for normal digit collection unless a specific digit map ID is assigned to the subscriber. POTS subscribers use a public dialing plan. Centrex subscribers use a customized dialing plan.
Note This digit pattern permits the creation of both 2- and 3-digit VSCs. If the first digit is 2 or 3, the length is 3 digits. If first digit is 4-9, the length is 2 digits. For example: *2-3xxx *4-9xx
Step 8
Adding points of presence.
The CA can serve several geographical regions or Metropolitan Statistical Areas (MSAs) simultaneously. Each geographical region is referred to as a point of presence (POP). Each POP has its own unique dialing and routing characteristics. The Point of Presence (pop) table contains a default dialing and routing characteristics. Each originating entity (subscriber or trunk group) is assigned to a POP. The POP also performs policy routing, for example, it routes the call to the nearest announcement server in the POP or to the nearest interLATA carrier location within a POP.
add pop id=1; state=tx; country=usa; timezone=CST;
Feature Servers
The FS provides access to features through a well-defined interface, Feature Control Protocol (FCP). BTS FS architecture separates feature control from call control with a clear interface defined between them. The CA uses FCP to provide an effective environment for interfacing with multiple FSs. This provides AIN, POTS, Centrex, and 800 services as required during call processing.
A FS is invoked from a detection point (DP). At the DP, the CA checks if any triggers are armed. If they are, the CA checks if the trigger applies to a subscriber, group, or office, in the order specified. If the trigger is applicable, the CA invokes the feature associated with that trigger.
The following table lists the steps for provisioning a BTS FS and provides commands with mandatory tokens.
For all available tokens, see the Cisco BTS 10200 Softswitch CLI Database.
Note When adding an FS, add the entries to the CA as well as the FS tables in the respective FSs. The POTS FS has the Feature Server table, but the AIN FS does not.
Description
Description and CLI Command
Step 1
Adding FSs.
The Feature Server (feature-server) table identifies the location and type of FS (POTS or AIN). It also identifies the IP address of the primary and secondary EMS and MGWs used by the FS. It is updated at both the CA and the applicable FS. The FS can be prepopulated during installation using a script, and it is used to automatically provision the Service Trigger table.
The Feature (feature) table defines characteristics for the features supported by the BTS. Repeat this step for each feature you want to add to the system.
The Vertical Service Code (vsc) table translates a vertical service code, also known as a star code (*XX), to a feature name. This table is preprovisioned, based on the Feature table customer records, during installation.
add vsc digit-string=*72; fname=CFUA;
Step 4
Adding services.
A service is a collection of one or more features that are invoked when a trigger is reached. Each feature within a service can have one or more triggers. Services can be dynamically created within the BTS 10200. The service provider defines a service and the features associated with it. Up to 10 commonly used features can be grouped into a service, and up to 50 services can be provisioned per subscriber. The subscriber is then provisioned with a service-id instead of individual features.
add service id=1; fname1=CFU; fname2=CFB; fname3=CFNA;
fname4=CW;
The following table lists the service types and features available on a POTS or Centrex or Tandem FS.
Service Type
Feature Name
Class of Service Restrictions
900 Blocking
Directory Assistance Blocking
International Blocking
976 Blocking
National Black/White List
International Black/White List
Casual Black/White List
Account Codes
Authorization Codes
Screening
Selective Call Forwarding
Selective Call Acceptance
Selective Call Rejection, Call Block
Distinctive Ringing/Call Waiting
POTS
Analog Direct Inward Dial (DID) for PBX (FXO)
Direct Outward Dial (DOD) for PBX
Multiple Directory Numbers (Teen Service)
Common (POTS and Centrex)
Call Forwarding Unconditional
Remote Activation of Call Forwarding
Remote Call Forwarding
Call Forwarding On Busy
Call Forwarding No Answer
Call Forwarding Redirection
Calling Number Delivery Blocking
Calling Name Delivery Blocking
Calling Identity Delivery and Suppression
Calling Number Delivery
Calling Name Delivery (No External Query)
Calling Identity Delivery on Call Waiting
Anonymous Call Rejection
Automatic Callback (Repeat Dialing)
Automatic Recall (Call Return)
Call Block (Reject Caller)
Call Waiting
Cancel Call Waiting
Customer-Originated Trace
Do Not Disturb
Hotline Service
Warmline Service
Interactive Voice Response Functions
Multiline Hunt Group (MLHG)
Speed Call (1-digit and 2-digit)
Three-Way Calling
Usage-Sensitive Three-Way Calling
Visual Message Waiting Indicator
Basic Centrex
Customized Dialing Plan
Intercom Dialing
Semi/Fully Restricted Lines
DID
Distinctive Alerting/Call Waiting Indication on DID
DOD
Incoming/Outgoing Simulated Facility Group
Call Transfer
Call Hold
Call Park and Call Retrieve
Directed Call Pickup (With and Without Barge-in)
Group Speed Call
Tandem
ANI Screening
Timezones
Table 2-1 lists the various world timezones that the BTS currently supports. Valid time zone values and their associated descriptions are also given.
Table 2-1 Supported Timezones
ID
Description
Billing Field Value
GMT Offset Hours
GMT Offset Minutes
Daylight Start 2004
Daylight End 2004
LOCAL
Local System Time (BDMS)
0
NWE
Northwestern Europe
1
+0
0
03-28-01-00
10-31-02-00
WA
Western Africa
2
+0
0
WE
Western Europe
3
+1
0
03-28-02-00
10-31-03-00
WCA
West Central Africa
4
+1
0
MAL
Malta
5
+1
0
03-28-02-00
10-31-03-00
NAM
Namibia
6
+1
0
09-05-02-00
04-04-02-00
CE
Central Europe
7
+1
0
03-28-03-00
10-31-04-00
ECA
East Central Africa
8
+2
0
ECE
East Central Europe
9
+2
0
03-28-02-00
10-31-03-00
EGY
Egypt
10
+2
0
04-30-00-00
10-01-00-00
GAZ
Gaza
11
+2
0
04-16-00-00
10-15-00-00
ISR
Israel
12
+2
0
04-07-01-00
09-22-01-00
JOR
Jordan
13
+2
0
03-25-00-00
10-22-01-00
LEB
Lebanon
14
+2
0
03-28-00-00
10-31-00-00
SYR
Syria
15
+2
0
04-01-00-00
10-01-00-00
WB
West Bank
16
+2
0
04-07-01-00
09-22-01-00
EA
Eastern Africa
17
+3
0
PG
Persian Gulf
18
+3
0
GEO
Georgia
19
+3
0
03-28-00-00
10-31-00-00
IRQ
Iraq
20
+3
0
04-01-03-00
10-01-04-00
RUS2
Russia Zone 2
21
+3
0
03-28-02-00
10-31-03-00
IRA
Iran
22
+3
30
03-21-00-00
09-21-00-00
AZE
Azerbaijan
23
+4
0
03-28-01-00
10-31-01-00
WIO
Western Indian Ocean
24
+4
0
ME
Middle East
25
+4
0
WAS
Western Asia
26
+4
0
03-28-02-00
10-31-03-00
AFG
Afghanistan
27
+4
30
KYR
Kyrgystan (also Kyrgyzstan)
28
+5
0
03-28-02-30
10-31-02-30
ECAS
Eastern Central Asia
29
+5
0
IO
Indian Ocean
30
+5
0
WCAS
West Central Asia
31
+5
0
03-28-02-00
10-31-03-00
IND
India
32
+5
30
NEP
Nepal
33
+5
45
CAS
Central Asia
34
+6
0
03-28-02-00
10-31-03-00
SAS
Southern Asia
35
+6
0
BC
Burma - Cocos
36
+6
30
RUS6
Russia Zone 6
37
+7
0
03-28-02-00
10-31-03-00
SEAS
South Eastern Asia
38
+7
0
EAS
Eastern Asia
39
+8
0
MON
Mongolia
40
+8
0
03-27-02-00
09-25-03-00
RUS7
Russia Zone 7
41
+8
0
03-28-02-00
10-31-03-00
WAU
Western Australia
42
+8
0
FEAS
Far Eastern Asia
43
+9
0
RUS8
Russia Zone 8
44
+9
0
03-28-02-00
10-31-03-00
NAU
Northern Australia
45
+9
30
SAU
Southern Australia
46
+9
30
10-31-02-00
03-28-03-00
EAU
Eastern Australia
47
+10
0
10-31-02-00
03-28-03-00
QUE
Queensland Australia
48
+10
0
RUS9
Russia Zone 9
49
+10
0
03-28-02-00
10-31-03-00
TAS
Tasmania
50
+10
0
10-03-02-00
03-28-03-00
WP
Western Pacific
51
+10
0
LAU
Lord Howe Island - Australia
52
+10
30
10-31-02-00
03-28-02-00
RUS10
Russia Zone 10
53
+11
0
03-28-02-00
10-31-03-00
WCP
Western Central Pacific
54
+11
0
NOR
Norfolk Island
55
+11
30
NZ
New Zealand
56
+12
0
10-03-02-00
03-21-03-00
RUS11
Russia Zone 11
57
+12
0
03-28-02-00
10-31-03-00
SPO
Southern Pacific Ocean
58
+12
0
CI
Chatham Island
59
+12
45
10-03-02-45
03-21-03-45
SEPO
South Eastern Pacific Ocean
60
+13
0
LI
Line Islands
61
+14
0
SMO
Samoa
62
-11
0
HAW
Hawaii
63
-10
0
AI
Aleutian Islands
64
-10
0
04-04-02-00
10-31-02-00
GI
Gambier Islands
65
-9
0
MI
Marquesas Islands
66
-9
30
ALA
Alaska
67
9
0
04-04-02-00
10-31-02-00
SON
Sonora Mexico
68
-8
0
PI
Pitcairn Islands
69
-8
0
PAC
North American Pacific
70
-8
0
04-04-02-00
10-31-02-00
EBC
Eastern British Columbia
71
-8
0
MNT
North American Mountain
72
-7
0
04-04-02-00
10-31-02-00
ARI
Arizona
73
-7
0
SASK
Saskatechewan
74
-6
0
GAL
Galapagos Islands
75
-6
0
EI
Easter Island
76
-6
0
10-09-10-00
03-13-10-00
CA
Central America
77
-6
0
CEN
North American Central
78
-6
0
04-04-02-00
10-31-02-00
WSAM
Western South America
79
-5
0
WCAR
Western Caribbean
80
-5
0
SOU
Southampton Canada
81
-5
0
IDA
Indiana
82
-5
0
EST
North American Eastern
83
-5
0
04-04-02-00
10-31-02-00
CUB
Cuba
84
-5
0
03-28-00-00
10-31-01-00
BAH
Bahamas
85
-5
0
04-04-02-00
10-31-02-00
ACR
Acre Brazil
86
-5
0
SAM
Central South America
87
-4
0
PAR
Paraguay
88
-4
0
09-05-00-00
04-04-00-00
FI
Falkland Islands
89
-4
0
09-05-02-00
04-18-02-00
CHI
Chile
90
-4
0
10-10-00-00
03-14-00-00
CG
Central Greenland
91
-4
0
CAR
Caribbean
92
-4
0
ATL
North American Atlantic
93
-4
0
04-04-02-00
10-31-02-00
NWF
Newfoundland Canada
94
-3
30
04-04-12-01
10-31-12-01
ELAB
Eastern Labrador Canada
95
-3
30
04-04-02-00
10-31-02-00
SPM
St.Pierre and Miquelon
96
-3
0
04-04-02-00
10-31-02-00
SBRZ
Southern Brazil
97
-3
0
10-17-00-00
02-15-00-00
ESAM
Eastern South America
98
-3
0
EG
Eastern Greenland
99
-3
0
EBRZ
Eastern Brazil
100
-2
0
FEG
Far Eastern Greenland
101
-1
0
CV
Cape Verde
102
-1
0
AZO
Azores
103
-1
0
03-28-00-00
10-31-01-00
ICE
Iceland
104
+0
0
Timezone Localities
Table 2-2 describes the localities covered by the various world timezones that the BTS supports.
Table 2-2 Time zone Localities
ID
Description
Locality Served
LOCAL
Local System Time
NWE
Northwestern Europe
Faroe Islands, Guernsey, Ireland, Isle of Man, Portugal, Canary Islands, United Kingdom
WA
Western Africa
Burkina Faso, Cote d'Ivore, Gambia, Ghana, Guinea, Guinea-Bissau, Liberia, Mali, Mauritania, Morocco, Sao Tome and Principe, Senegal, Sierra Leone, St.Helena, Togo, Western Sahara
WE
Western Europe
Albania, Andorra, Austria, Belgium, Bosnia and Herzegovina, Croatia, Czech Republic, Denmark, France, Germany, Gibraltar, Hungary, Italy, Lichtenstein, Luxembourg, Macedonia, Monaco, Netherlands, Norway, Poland, San Marino, Serbia, Montenegro, Kosovo, Slovakia, Slovenia, Spain, Sweden, Switzerland, Vatican City
WCA
West Central Africa
Algeria, Angola, Benin, Cameroon, Central African Republic, Chad, Congo, Democratic Republic of Congo (west), Equatorial Guinea, Gabon, Niger, Nigeria, Tunisia
MAL
Malta
Malta
NAM
Namibia
Namibia
CE
Central Europe
Bulgaria, Cyprus, Estonia, Finland, Latvia, Lithuania, Moldova, Romania, Turkey, Ukraine
ECA
East Central Africa
Botswana, Burundi, Democratic Republic of Congo (east), Lesotho, Libya, Malawi, Mozambique, Rwanda, South Africa, Swaziland, Zambia, Zimbabwe
Cook Islands, French Polynesia (Society Archipelago, Tuamotu Archipelago, Tubuai Islands), US (Hawaii)
AI
Aleutian Islands
US (Aleutian Islands)
GI
Gambier Islands
French Polynesia (Gambier Islands)
MI
Marquesas Islands
French Polynesia (Marquesas Islands)
ALA
Alaska
US (Alaska)
SON
Sonora Mexico
Mexico (Sonora)
PI
Pitcairn Islands
Pitcairn Islands
PAC
North American Pacific
Canada (Yukon, British Columbia), Mexico (Baja California), US (Washington, Oregon, Idaho-Northern, California, Nevada)
EBC
Eastern British Columbia
Canada (Eastern British Columbia)
MNT
North American Mountain
Canada (Northwest Territory, Nunavut-Western, British Columbia-Southeast, Alberta, Saskatchewan-West), Mexico (Baja California Sur, Chihuahua, Sinaloa, Nayarit), US (Oregon-East, Idaho-Southern, Montana, Wyoming, North Dakota-Southwest, South Dakota-West, Nebraska-West, Kansas-West, Utah, Arizona-Navajo Reservation, Colorado, New Mexico, Texas-Far West)
ARI
Arizona
Arizona
SASK
Saskatchewan
Canada (Saskatchewan)
GAL
Galapagos Islands
Ecuador (Galapagos Islands)
EI
Easter Island
Easter Island
CA
Central America
Belize, Costa Rica, El Salvador, Guatemala, Honduras, Nicaragua
CEN
North American Central
Canada (Nunavut-Central, Ontario-Western, Saskatchewan-East, Manitoba), Mexico (Coahuila, Nuevo Leon, Tamaulipas, Zacatecas, Jalisco, San Luis Potosi, Guanajuato, Aquascalientes, Queretara, Yucatan, Quintana Roo, Campeche, Tabasco, Chiapas, Oaxaca, Veracruz, Guerrero, Michoacan, Colima, Morelos, Tlaxacala, Durango, Edo de Mexico, Hidalgo, Puebla, Federal District), US (North Dakota, South Dakota-Eastern, Nebraska-Eastern, Kansas-Eastern, Minnesota, Iowa, Missouri, Wisconsin, Illinois, Michigan-Western Upper Peninsula, Oklahoma, Texas, Arkansas, Louisiana, Indiana-Southwestern, Indiana-Northwestern, Kentucky-Western, Tennessee-Western, Mississippi, Florida-Far Western)
WSAM
Western South America
Columbia, Ecuador, Peru
WCAR
Western Caribbean
Cayman Islands, Grand Cayman, Haiti, Jamaica, Panama
SOU
Southampton Canada
Canada (Nunavut-Southampton)
IDA
Indiana
US (Indiana)
EST
North American Eastern
Canada (Nunavut-Eastern, Quebec, Ontario-Eastern), Turks and Caicos Islands, US (Michigan, New York, Maine, New Hampshire, Vermont, Massachusetts, Connecticut, Rhode Island, Indiana-Southeastern, Kentucky-Eastern, Tennessee-Eastern, Ohio, Pennsylvania, Virginia, North Carolina, New Jersey, Delaware, Maryland, Washington DC, West Virginia, Alabama, South Carolina, Georgia, Florida)
CUB
Cuba
Cuba
BAH
Bahamas
Bahamas
ACR
Acre Brazil
Brazil (Acre)
SAM
Central South America
Argentina (Mendoza, San Juan), Bolivia, Brazil (Amazonas, Rondonia, Roraima, Mato Grosso, Para-West, Mato Grosso Do Sul), Guyana, Venezuela
PAR
Paraguay
Paraguay
FI
Falkland Islands
UK (Falkland Islands)
CHI
Chile
Chile
CG
Central Greenland
Denmark (Central Greenland)
CAR
Caribbean
Anguilla, Antigua and Barbuda, Aruba, Barbados, British Virgin Islands, Dominican Republic, Dominica, Grenada, Guadeloupe, Martinique, Montserrat, Netherlands Antilles, Puerto Rico, St.Kitts and Nevis, St. Lucia, St Vincent and The Grenadines, Trinidad and Tobago, US Virgin Islands
ATL
North American Atlantic
Bermuda, Canada (Labrador, New Brunswick, Nova Scotia, Prince Edward Island)
NWF
Newfoundland Canada
Canada (Newfoundland)
ELAB
Eastern Labrador Canada
Canada (Labrador-Far Eastern)
SPM
St Pierre and Miquelon
France (St Pierre and Miquelon)
SBRZ
Southern Brazil
Brazil (Minas Gerais, Goias, Distrito Federal, Parana, Espirito Santo, Rio De Janeiro, Sao Paulo, Rio Grande Do Sul, Santa Catarina)
ESAM
Eastern South America
French Guiana, Suriname, Uruguay, Brazil (Para-Eastern, Amapa, Maranhao, Tocantins, Piaui, Ceara, Rio Grande Do Norte, Paraiba, Alagoas, Sergipe, Bahia), Argentina (Buenos Aires, Catamarca, Chaco, Chubut, Cordoba, Corrientes, Entre Rios, Formosa, Jujuy, La Pampa, La Rioja, Misiones, Neuquen, Rio Negro, Salta, San Luis, Santa Cruz, Santa Fe, Santiago del Estero, Tierra del Fuego, Tucuman)
Caution Do not use settings like GMT_MINUS5 or GMT_PLUS5.
If your timezone is not listed, please contact your Cisco representative.
Table 2-3 Timezone Recommendations
BTS Setting
Solaris Setting
US_ALASKA
US/Alaska
US_ALEUTIAN
US/Aleutian
US_ARIZONA
US/Arizona
US_CENTRAL
US/Central
Use this instead of CST or CDT.
US_EAST_INDIANA
US/East-Indiana
US_EASTERN
US/Eastern
Use this instead of EST or EDT.
US_HAWAII
US/Hawaii
US_MICHIGAN
US/Michigan
US_MOUNTAIN
US/Mountain
Use this instead of MST or MDT.
US_PACIFIC
US/Pacific
Use this instead of PST or PDT.
US_SAMOA
US/Samoa
Canada
CANADA_ATLANTIC
Canada/Atlantic
Use this instead of AST or ADT.
CANADA_EAST_SASKATCHEWAN
Canada/East-Saskatchewan
CANADA_MOUNTAIN
Canada/Mountain
CANADA_PACIFIC
Canada/Pacific
CANADA_CENTRAL
Canada/Central
CANADA_EASTERN
Canada/Eastern
CANADA_NEWFOUNDLAND
Canada/Newfoundland
CANADA_YUKON
Canada/Yukon
TOS, DSCP, and PHB
This section describes how BTS supports Type of Service (TOS), Differentiated Services Codepoint (DSCP), and Per-Hop Behavior (PHB). For more information, see the following IETF documents:
•TOS—RFC 791, Internet Protocol
•DSCP—RFC 2474, Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers
•PHB—RFC 2597, Assured Forwarding PHB Group, and RFC 3246, An Expedited Forwarding PHB (Per-Hop Behavior)

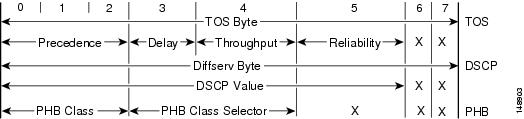

Figure 2-1 shows how the TOS, DSCP, and PHB standards are related.
Figure 2-1 Relationship of TOS, DSCP, and PHB Standards
On the BTS, the parameters for TOS, DSCP, and PHB are provisioned differently depending on the token.
Caution Restart or swtichover the CA to effect changes you make in the ca-config table.
TOS
If the BTS requires TOS parameters as precedence strings, provision tokens as follows:
If the BTS requires Diffserv parameters as bytes, provision a single token as an integer, 0 - 255. The Diffserv byte is based on 8 bits, 2 more bits than the DSCP value. For example, if you want a DSCP value of 24, provision it with 96.
DSCP
If the system requires parameters to be provisioned in the DSCP value format, provision a single token as an integer between 0 and 63. The DSCP value is the decimal equivalent of the first 6 bits of the Diffserv byte.
PHB
If the system requires parameters to be provisioned in the PHB format, provision a single token as one of the following values: CS0, CS1, CS2, CS3, CS4, CS5, CS6, CS7, AF11, AF12, AF13, AF21, AF22, AF23, AF31, AF32, AF33, AF41, AF42, AF43, EF, DEFAULT.
Note Entering the value "DEFAULT" has the same effect as entering "CS0." These values are included in Table 2-5.
Combined PHB/DSCP Format
Some tokens can be provisioned in either the alphanumeric PHB format or the numeric DSCP value format. In this case provision the token as one of the following values: an integer between 0 and 63, CS0, CS1, CS2, CS3, CS4, CS5, CS6, CS7, AF11, AF12, AF13, AF21, AF22, AF23, AF31, AF32, AF33, AF41, AF42, AF43, EF, DEFAULT.
Refer to RFC 791 for additional information on the PRECEDENCE values. The relationship between PRECEDENCE and CSx values is as follows: NETCONTROL=CS7, INTERNETCONTROL=CS6, CRITICAL=CS5, FLASHOVERRIDE=CS4, FLASH=CS3, IMMEDIATE=CS2, PRIORITY=CS1, ROUTINE=CS0/DEFAULT.
Allowed and Default Values
This section lists the provisionable TOS, DSCP, and PHB tokens applicable to each protocol.
Caution Cisco recommends against using any value other than the default. Changing these values from their defaults can significantly impact network performance. Contact Cisco TAC for further information.
Caution If you change any parameters in the ca-config table, these changes do not take effect until the CA platform switches over or restarts.
MGCP Signaling
The MGCP-SIG-DSCP parameter from the CA_CONFIG table is used for signaling between the BTS 10200 and MGWs.
SIP Signaling
The SIA-TRUNK-GRP-LEVEL-SIG-TOS parameter from the CA_CONFIG table applies to SIP signaling. For its changes to take effect, you must performa switchover.
•Y: Use the value provisioned for SIP-SIG-DSCP in the SIP-ELEMENT table for the applicable SIP trunk group.
•N: Use the value provisioned for the system-wide parameter SIA-SIG-DSCP in the CA-CONFIG table.
The SIA-SIG-DSCP parameter from the CA_CONFIG table defines system-level DSCP for SIP calls.
TheSIP-SIG-DSCP parameter in the SIP_ELEMENTtable applies to trunk-level SIP signaling.
CA to FS Signaling
TheSIM-SIG-DSCP parameter from the CA_CONFIG table applies.
FS to CA Signaling
The following values from the CA_CONFIG table apply:
•The FSAIN-SIG-DSCP value is used for internal AIN Feature Server (FSAIN) to CA signaling.
•The FSPTC-SIG-DSCP value is used for internal POTS/Tandem/Centrex Feature Server (FSPTC) to CA signaling.
DQoS Signaling
DQoS signaling uses the Common Open Policy Service (COPS) protocol. The RTP-DSCP from the QOS table applies.
H.323 Signaling
The SIG-DSCP parameter from the H323_GATEWAYtable applies.
COPS and RADIUS Signaling
This section lists the tokens used in provisioning COPS and RADIUS signaling from the QOS and CA_CONFIG tables.
Tip The tokens in this section are provisioned using values between 0 and 255. For an explanation of how to calculate these values, see the "Diffserv" section.
TheQOStable contains the following token (applicable to voice traffic):
•DQOS-CMTS-DSCP-TOS—This value is used for the packets about to enter a provider backbone from the CMTS.
•DQOS-DSCP-TOS-BITMASK—This token specifies particular bits within the IPv4 DSCP/TOS byte.
•DOCSIS-DSCP-TOS—Identifies the DSCP/TOS value that must be matched for packets to be classified onto the IP flow.
•DOCSIS-DSCP-TOS-BITMASK—This token determines what bits in the DSCP/TOS byte are to be used as filters in classifying packets.
Table 2-4 lists the allowed values and default value for each of these tokens.
Mapping of Provisionable TOS, DSCP, and PHB Values
Table 2-8 shows how the provisionable values in the PHB format are mapped to the values in TOS and DSCP formats.
Caution Cisco recommends using the combinations of values in the table. BTS accepts other combinations, depending on format; however, the combinations shown have been tested by Cisco.
Note Binary and Hex values are informational and not used for provisioning.
Table 2-8 Mapping of Provisionable Values in PHB Format to TOS and DSCP Formats1
1Cisco recommends that you use the combinations of values shown in the table. The system will accept certain other combinations of values, depending on the format; however, the combinations shown in the table have been tested by Cisco for proper behavior.
2Hexadecimal equivalent. This value is listed for convenience. It is not used in provisioning the BTS.
3Binary equivalent. This value is listed for convenience. It is not used in provisioning the BTS.
4D = Delay, T = Throughput, R = Reliability. To provision these tokens, enter N for 0 or Y for 1.
When adding an FS, add the entries to the CA as well as the FS tables in the respective FSs. The POTS FS has the Feature Server table, but the AIN FS does not.
