Installing the Bezel Brackets and Vertical Bezels

Parts List

Installing the Bezel Brackets and Vertical Bezels

---

Revised: May 17, 2013, OL-27038-01

Parts List

Table 7-1 List of Brackets Installed in This Chapter

Key	Part Description	Part Number	Qty	Ctn	Notes
1	Bezel/speaker bracket, top center	800-37838-01 Kit #69-2318-xx CTS-TX9000-SPKR	1	8
2	Bezel/speaker bracket, top left	800-37837-01 Kit #69-2318-xx CTS-TX9000-SPKR	1	8
3	Bezel/speaker bracket, top right	800-37886-01 Kit #69-2318-xx CTS-TX9000-SPKR	1	8
4	Bezel mounting bracket, side	800-37851-01 Kit #69-2372-xx CTS-TX9000-SPKR	2	9
5	Bezel mounting bracket, bottom center	700-37702-01 Kit #69-2318-xx CTS-TX9000-SPKR	1	8
6	Bezel mounting bracket, bottom left	700-37703-01 Kit #69-2318-xx CTS-TX9000-SPKR	1	8
7	Bezel mounting bracket, bottom right	700-37701-01 Kit #69-2318-xx CTS-TX9000-SPKR	1	8

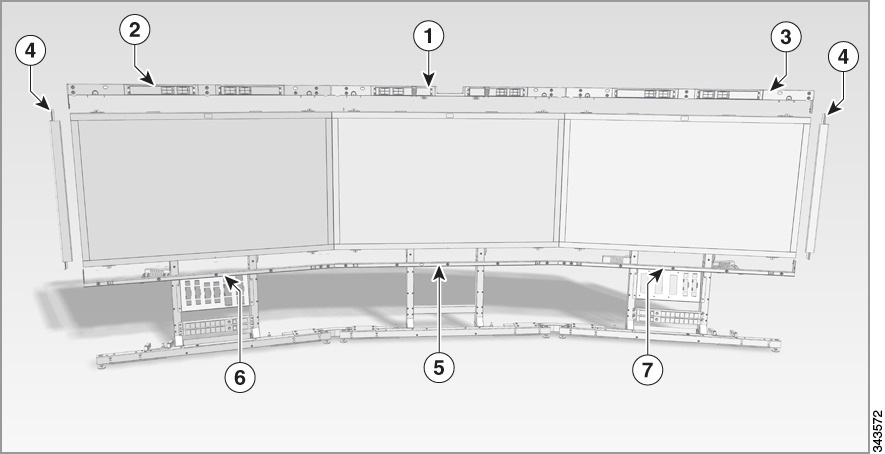

Figure 7-1 Overview of Part Numbers for the Bezel Mounting Brackets and Speakers

Step 1 Install the three top bezel mounting brackets using four screws per bracket.

---

Tip Use the alignment pins to correctly align the bezel brackets to the bezel mounting brackets.

---

Key	Part Description	Part Number	Qty	Ctn	Notes
1	Bezel/speaker bracket, top center	800-37838-01 Kit #69-2318 CTS-TX9000-SPKR	1	8	Not shown in Figure 7-2
2	Bezel/speaker bracket, top left	800-37837-01 Kit #69-2318 CTS-TX9000-SPKR	1	8
3	Bezel/speaker bracket, top right	800-37886-01 Kit #69-2318 CTS-TX9000-SPKR	1	8	Not shown in Figure 7-2
4	M4 x 12mm pan head screw, black	48-2426-01 Kit #69-2358-xx	12	6

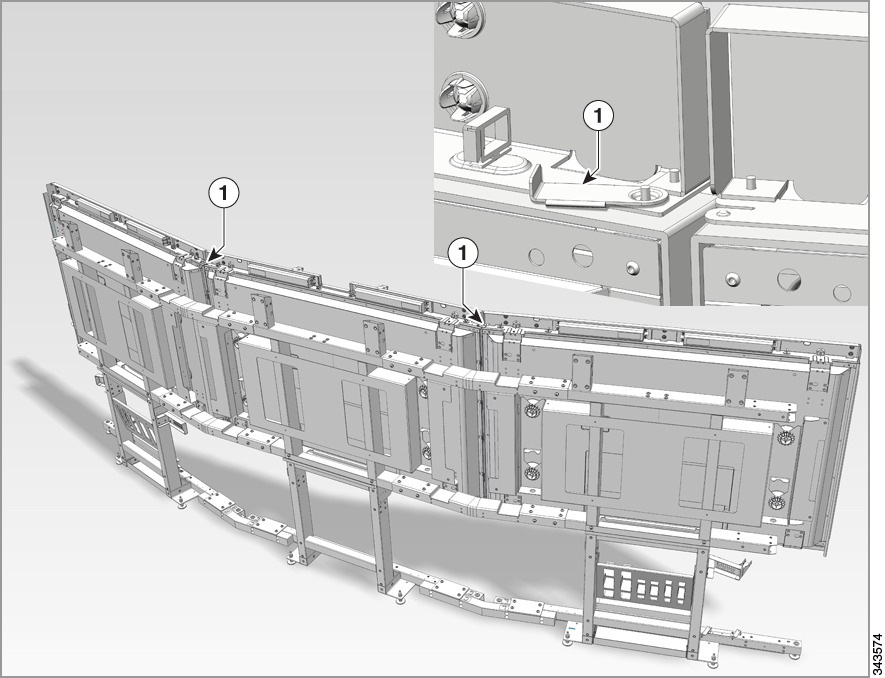

Figure 7-2 Installing the Top Bezel Mounting Brackets

Step 2 Make sure that the flip brackets on the top bezel/speaker brackets are in the unlocked position.

Key	Part Description	Part Number	Qty	Ctn	Notes
1	Flip bracket	N/A	2		Part of center top bezel/speaker bracket

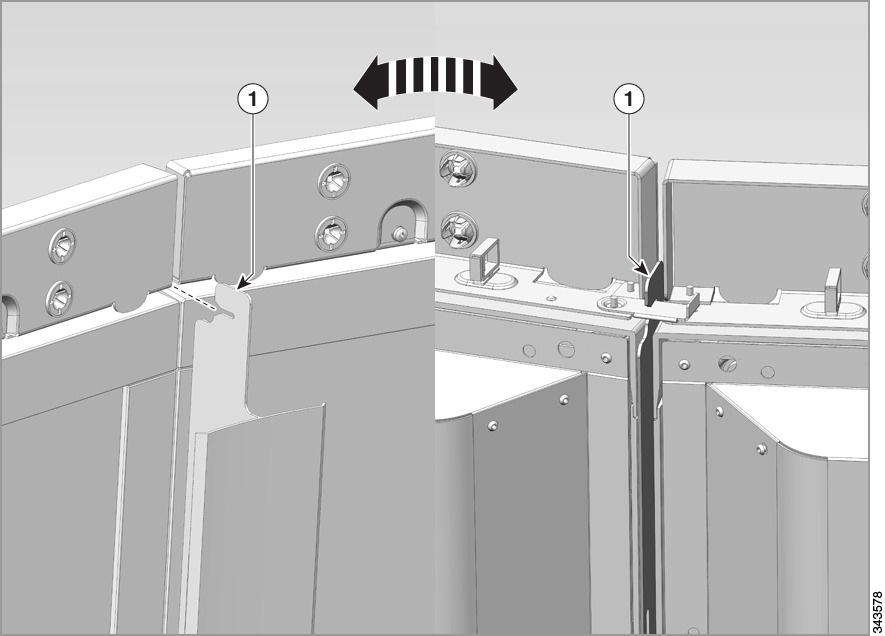

Figure 7-3 Placing the Flip Bracket in the Unlocked Position

Step 3 Install the three bottom bezel mounting brackets using two screws each.

Note the flange mounted on the display bracket; place the bezel mounting bracket between this flange and the display.

Key	Part Description	Part Number	Qty	Ctn	Notes
1	Bezel mounting bracket, bottom center	700-37702-01 Kit #69-2318 CTS-TX9000-SPKR	1	8	Not shown in Figure 7-4
2	Bezel mounting bracket, bottom left	700-37703-01 Kit #69-2318 CTS-TX9000-SPKR	1	8
3	Bezel mounting bracket, bottom right	700-37701-01 Kit #69-2318 CTS-TX9000-SPKR	1	8	Not shown in Figure 7-4
4	M4 x 10mm pan head screw	48-2594-01 Kit #69-2352-01	6	6

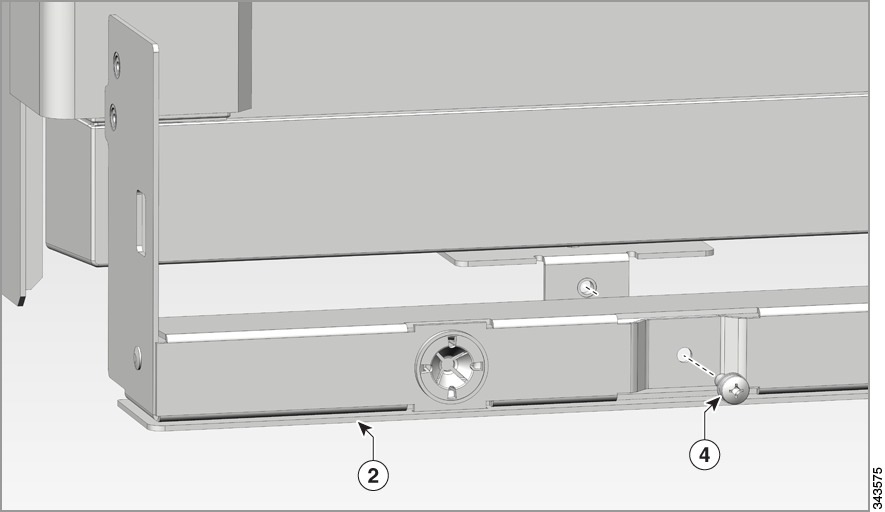

Figure 7-4 Installing the Bottom Bezel Mounting Brackets

Step 4 Install the two side bezel brackets, using four screws on each bracket.

Key	Part Description	Part Number	Qty	Ctn	Notes
1	Bezel mounting bracket, side	800-37851-xx Kit #69-2372-xx CTS-TX9000-SPKR	2	8
2	M3 x 6mm flat head screw	48-0748-xx Kit #69-2359-01	8	6

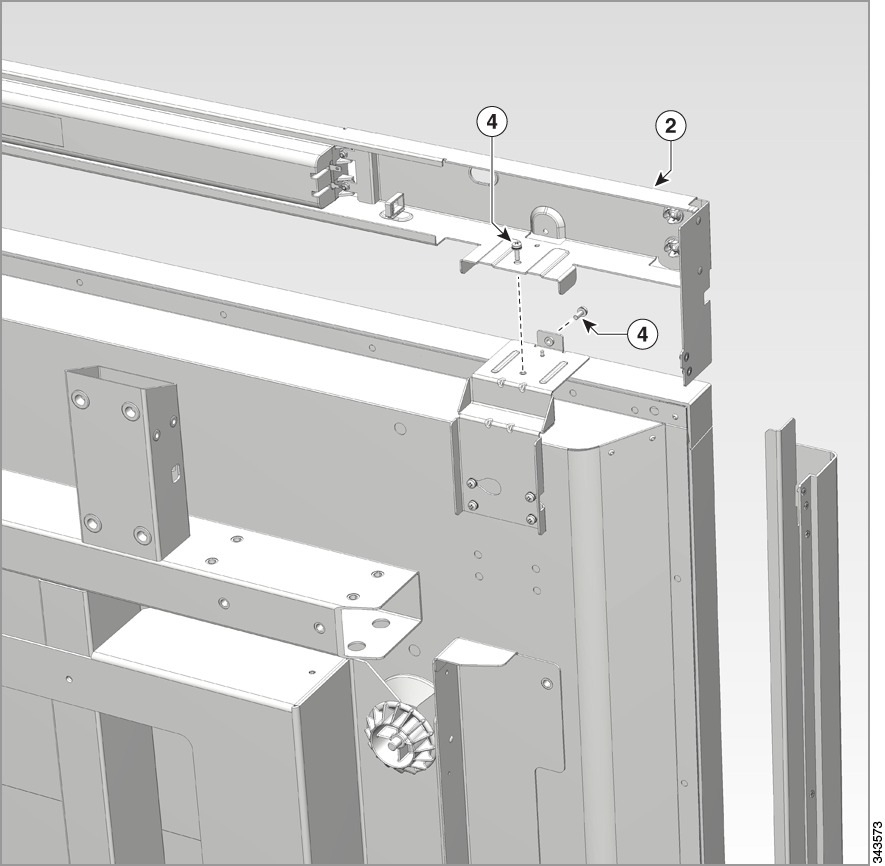

Figure 7-5 Installing the Side Bezel Brackets

Step 5 Rotate the bezel flip brackets to their locked position. Move the brackets in the direction shown in the arrow in Figure 7-6 to lock them.

Key	Part Description	Part Number	Qty	Ctn	Notes
1	Flip bracket	N/A	1		Part of center top bezel/speaker bracket

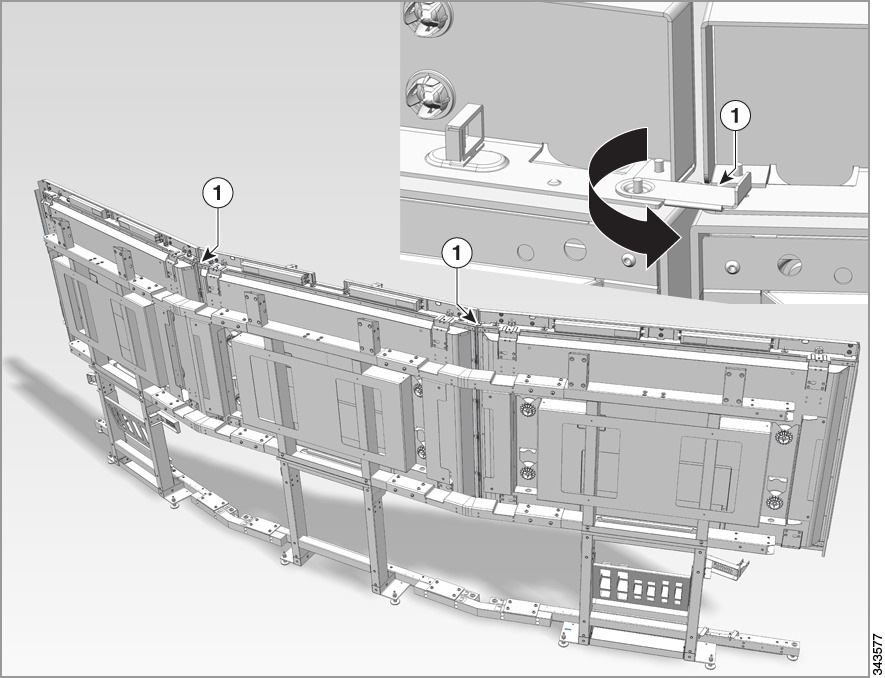

Figure 7-6 Placing the Flip Brackets in the Locked Position

Step 6 Slide the vertical bezels between the displays.

Make sure that the gap between the displays is approximately 2 to 4 mm, and that the gap is approximately the same distance for both sides. If the gap is less or more, adjust the displays by raising or lowering the leveling feet.

---

Note Make sure that the top slot of the vertical bezel fits between the flip bracket. Aligning the slot with the flip bracket places the bezel in the correct vertical orientation.

---

Key	Part Description	Part Number	Qty	Ctn	Notes
1	Vertical bezel	700-37046-xx Kit #69-2372-xx	2	9

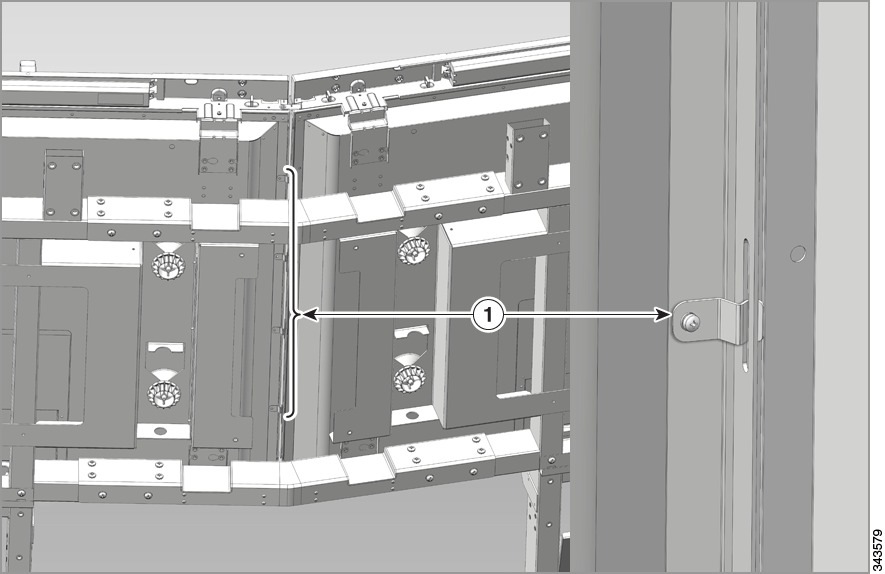

Figure 7-7 Sliding the Vertical Brackets Into the Displays

Step 7 Attach the vertical bezel brackets to the displays by completing the following steps:

a. Remove the screws on each side of the center display.

b. Attach the brackets to the display using the screws you just removed, making sure to place the brackets through the slots in the vertical bezels as shown in Figure 7-8.

Key	Part Description	Part Number	Qty	Ctn	Notes
1	Vertical bezel brackets	700-37618-01 Kit #69-2372-xx	8	9

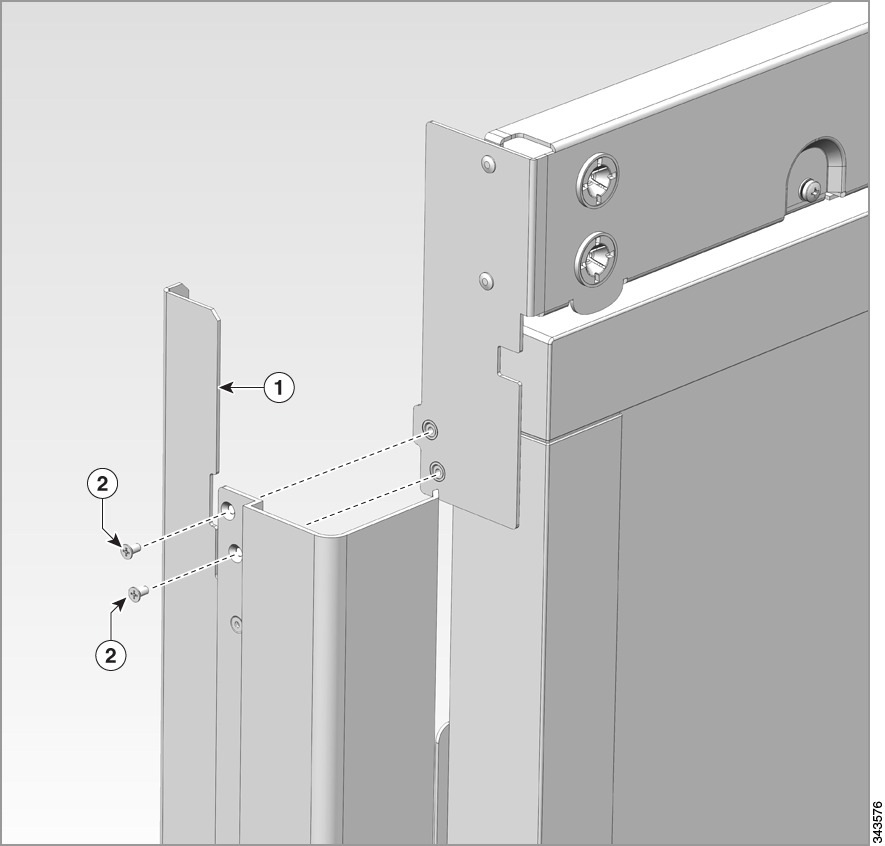

Figure 7-8 Installing the Vertical Bezel Brackets
