Cisco TelePresence System 500-37 Height, Width, and Weight Specifications

---

Revised: October 8, 2008, OL-14522-01

This chapter provides you with the physical (height, width, and weight) measurements of the three CTS-500-37 configurations including shipping measurements and post-assembly measurements and includes the following sections:

•Pedestal Stand-Mounted CTS-500-37 Measurements

•Wall-Mounted CTS-500-37 Measurements

•Table Stand-Mounted CTS-500-37 Measurements

Pedestal Stand-Mounted CTS-500-37 Measurements

Table B-1 provides the measurements of the shipping containers for the pedestal stand-mounted CTS-500-37. This configuration ships on two pallets.

Table B-1 Measurements and Weight of Shipping Containers for Pedestal Stand-Mounted CTS-500-37

Container	Length	Width	Height	Weight
Main container including display	48 inches (122 cm)	33.5 inches (85 cm)	32 inches (81 cm)	218 pounds (99 kg)
Container for pedestal stand	27 inches (69 cm)	56 inches (142 cm)	32 inches (36 cm)	236 pounds (107 kg)

Figure B-1 and Figure B-2 provide you with the physical measurements of both pedestal-mounted CTS-500-37 configurations after assembly.

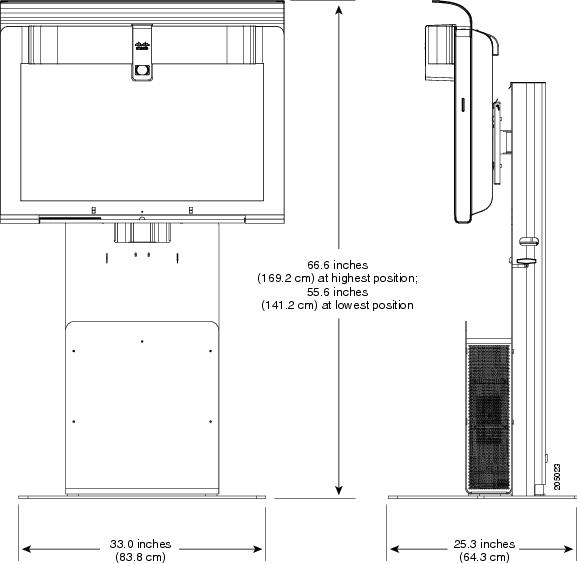

Figure B-1 Freestanding Pedestal-Mounted CTS-500-37 Measurements

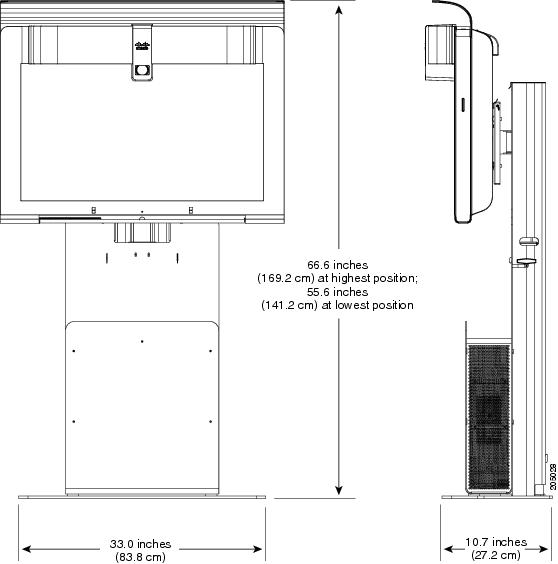

Figure B-2 Measurements for a Pedestal-Mounted CTS-500-37 That Attaches to the Wall

Wall-Mounted CTS-500-37 Measurements

Table B-2 provides the measurements of the shipping containers for the wall-mounted CTS-500-37. This configuration ships on one pallet.

Table B-2 Measurements and Weight of Shipping Containers for Wall-Mounted CTS-500-37

Container	Length	Width	Height	Weight
Main container including display	48 inches (122 cm)	33.5 inches (85 cm)	32 inches (81 cm)	240 pounds (109 kg)

Figure B-3 provides you with the physical measurements of the display and mount for a wall-mounted CTS-500-37 after assembly.

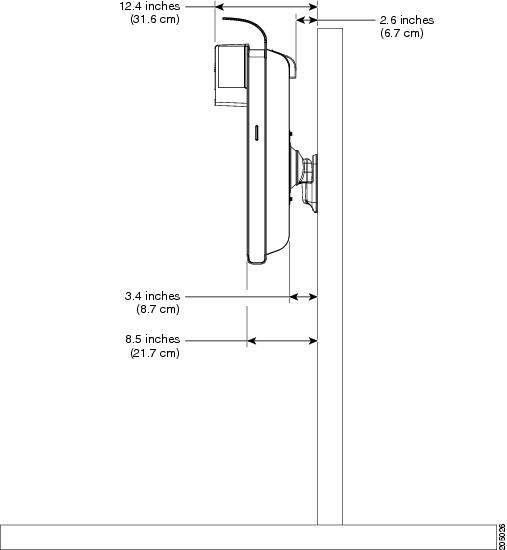

Figure B-3 Display and Mount Measurements for a Wall-Mounted CTS-500-37

Figure B-4 provides you with the physical measurements of the codec assembly you use with the wall-mounted CTS-500-37. The assembly includes the codec, codec cover, and codec base.

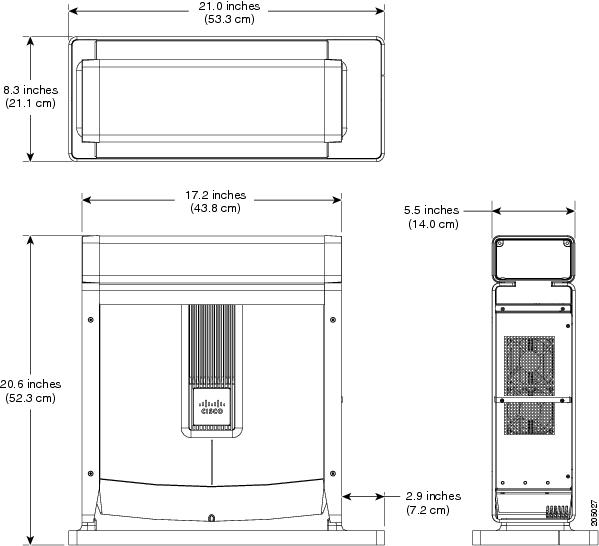

Figure B-4 Codec Assembly Measurements

Table Stand-Mounted CTS-500-37 Measurements

Table B-3 provides you with the measurements of the shipping containers for the table stand-mounted CTS-500-37. This configuration ships on two pallets.

Table B-3 Measurements and Weight of Shipping Containers for Pedestal Stand-Mounted CTS-500-37

Container	Length	Width	Height	Weight
Main container including display	48 inches (122 cm)	33.5 inches (85 cm)	32 inches (81 cm)	230 pounds (99 kg)
Container for table stand	24 inches (61 cm)	36 inches (91 cm)	27 inches (69 cm)	96 pounds (44 kg)

Figure B-5 provides you with the physical measurements for the display and stand components of a table-mounted CTS-500-37 after assembly.

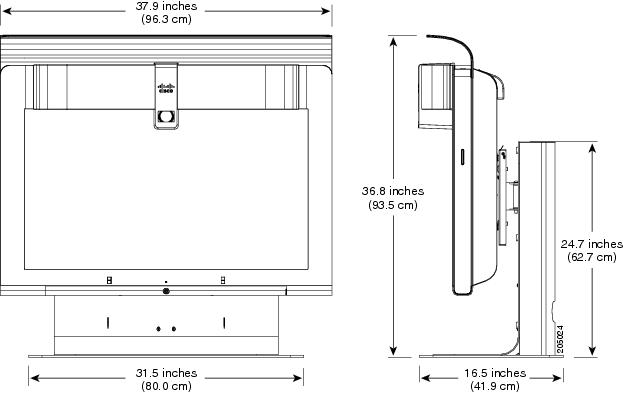

Figure B-5 Table-Mounted CTS-500-37 Display and Stand Dimensions

Figure B-6 provides you with the physical measurements of the codec assembly you use with the table-mounted CTS-500-37. The assembly includes the codec, codec cover, and codec base.

Figure B-6 Codec Assembly Measurements
