Room Recommendations for the Cisco TelePresence System 3010

---

Revised: July 13, 2012, OL-21177-01

This chapter provides you with general room recommendations for the Cisco TelePresence System 3010 (CTS 3010) and includes the following sections:

•Summary of Recommendations, page 2-1

•Room Dimensions, page 2-2

•Lighting Considerations, page 2-4

•Network Port Requirements, page 2-4

•Power Requirements, page 2-5

•HVAC Considerations, page 2-6

Summary of Recommendations

Table 2-1 summarizes the room requirements for the CTS 3010:

Table 2-1 Summarization of Room Requirements for the CTS 3010

Minimum Room Size	Depth / Width / Height 15' x 20' x 8' (4.57 m x 6.10 m x 2.44 m)
Lighting	300-400 lux Facial Light (vertical plane) Twice the facial light or less for Shoulder Light (work surface)
Acoustics	Ambient Noise •45dBA SPL •NC30 Reverberation 150-700ms Acoustic Panel on Side walls
Power	2.96kW Max 4 dedicated circuits Participant convenient ports consume additional power
HVAC	Independent Room Control Typical Cooling 9,500 BTU/Hr
Design	Aesthetic Continuity highly desirable For best video quality: •Avoid high contrast elements such as very dark or bright colors •Avoid glossy finishes •Avoid clutter

Room Dimensions

For the CTS 3010, rectangular rooms are preferred although irregular shaped rooms can also be accommodated. The minimum, recommended, and maximum room sizes for a Cisco TelePresence 3010 system are provided in Table 2-2.

Table 2-2 CTS 3010 Room Dimensions

	Width	Depth	Height
Minimum	20' (6.10 m)	15' (4.57 m)	8' (2.44 m)
Recommended	22' (6.70 m)	19'(5.80 m)	10' (3.05 m)
Maximum	31' (9.45 m)	23' (7.01 m)	10' (3.05 m)

---

Note Ceilings lower than 7' (2.13 m) will not physically support the height of the CTS endpoint lighting façade.

---

The minimum room dimensions are illustrated in Figure 2-1:

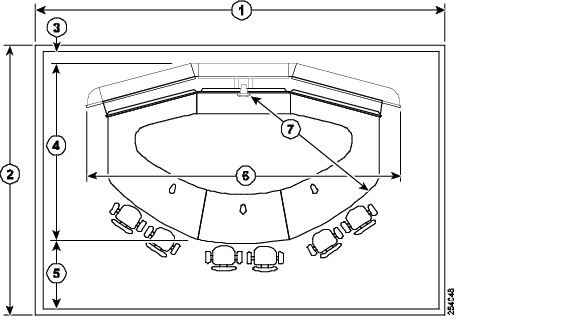

Figure 2-1 CTS 3010 Minimum Room Dimensions

Table 2-3 Callouts for Figure 2-1

Callout	Description
1	Minimum room width 20' (6.10 m). Rooms can be wider.
2	Minimum room length is 15' (4.57 m). Rooms can be longer.
3	Wall behind the TelePresence endpoint. The distance from the unit's frameon the floor to wall must be a minimum of 4" (10.16 cm). If the room is longer than the minimum size, proportionally more space can be left behind the unit for easier access.
4	The CTS 3010 is 10.07' (3.07 m) from the back of the lighting shroud to the table edge.
5	The minimum space between back table and wall is 4.63' (1.41 m).
6	The width of the CTS 3010 is 18' (5.49 m).
7	From the camera to the table edge at the outer chair position is 8.3' (2.53 m).

Lighting Considerations

The CTS 3010 requires the following lighting levels for optimal quality:

Table 2-4 Lighting Measurements

Illumination	Target	Tolerance	Note
Overall illumination lux (= lm/m2)	300-400 lux	+ or - 50 lux Lighting should be evenly dispersed throughout the room.	Measure vertically with the light sensor pointed at wall or intended camera location (not pointed at the ceiling).
Shoulder light/direct down light.	No more than twice the overall illumination of the room.	Generally, shoulder lighting should not be more than 400 lux greater than the overall illumination of the room and never exceed 800 lux.	Measure horizontally at table height with the light sensor pointing at ceiling.
Lighting Dispersion Color Temperature Etc.	For all other general Cisco TelePresence room lighting recommendations, refer to the Cisco TelePresence Room Design Guide at the following URL: http://www.cisco.com/en/US/solutions/ ns669/networking_solutions_products_genericcontent0900aecd80554cb2.html

---

Note For Immersive lighting design, refer to the Immersive Cisco TelePresence Room Design Guide.

---

Network Port Requirements

The CTS 3010 requires a single Gigabit Ethernet port (RJ-45 UTP) installed on the wall behind the system. This port connects the CTS primary codec, which is the main interface between the CTS endpoint and the network, to the network infrastructure.

The CTS primary codec and participant convenience port connectivity options are listed in the table below.

Table 2-5 CTS 3010 Network Access Requirements

Options	# of Ports	Connection	Notes
CTS Codec (Required)	1	Wired	RJ-45 UTP Gigabit Ethernet on wall behind the system.
Option 1 for Participant Convenience Ports	1	Wireless	Customer provides wireless access.
Option 2 for Participant Convenience Ports	1	Wired with switch in room.	An additional RJ-45 UTP port should be provided on the wall behind the system for the switch.
Option 3 for Participant Convenience Ports	6	Wired directly to wall with switch in wiring closet	Six additional RJ-45 UTP ports provided on the wall behind the system.

Please consult with your network administrator on which participant convenience port option is best for your telepresence deployment.

---

Note Any switches installed in the TelePresence room must meet your company's network policies. They must also meet the sound requirements of TelePresence room remediation. Switches should not generate more than 45dB of sound within the TelePresence room.

---

Power Requirements

The Cisco TelePresence System 3010 requires four dedicated 20 amp circuits @120V (US electrical code requires maximum 16 amps on a 20 amp circuit) or four dedicated 10 amp circuits @ 240V. These circuits must be dedicated to the Cisco TelePresence System. Receptacles should be located on the wall behind the system at standard height.

Note: Peripherals such as document cameras or alternate displays will require additional circuits and receptacles. Placement will depend on the type and location of the peripheral device.

Table 2-6 Table 4 CTS 3010 and CTS 3000 Power Consumption

Component	Maximum		Typical		Idle
	kW	Amperage @120V	kW	Amperage @120V	kW	Amperage @120V
65" Plasma Display x3 (CTS 3000)	3.24	27.00	2.34	19.49	0.002	0.02
65" Plasma Display x3 (CTS 3010)	1.71	14.25	1.71	14.25	0.001	0.01
Primary Codec x1	0.30	2.50	0.13	1.30	0.12	1.00
Secondary Codec x2	0.36	3.00	0.23	1.88	0.22	1.80
Lighting Façade Top x3 Sides x2	0.35	2.90	0.35	2.90	0.00	0.00
Auxiliary Control Unit	0.02	0.20	0.02	0.20	0.00	0.00
Projector x1 (CTS 3000)	0.29	2.40	0.23	1.80	0.001	0.01
40" LCD (CTS 3010)	0.22	1.83	0.18	1.50	0.001	0.01
POWER TOTAL for CTS 3000	4.56 kW 38.01 amps @ 120V 19.00 amps @ 240V		3.29 kW 27.57 amps @ 120V 13.70 amps @ 240V		0.34 kW 2.82 amps @ 120V 1.41 amps @ 240V
POWER TOTAL for CTS 3010	2.96 kW 24.68 amps @ 120V 12.34 amps @ 240V		2.61 kW 21.78 amps @ 120V 10.89 amps @ 240V		0.34 kW 2.82 amps @ 120V 1.41 amps @ 240V
Optional: Additional Power Requirements for power in Table Legs
Participant Convenient Ports (6 participants)	1.44	12	0.17	1.30	0.00	0.00

The TelePresence CTS 3010 uses Power Distribution Units (PDUs) to connect the components to the power circuits. The PDUs are attached to the four circuits previously identified. Each PDU must support 20 amps @120V and 10 amps @240V. This applies to both the CTS 3010 and CTS 3000.

---

Note Peripherals such as document cameras or alternate displays require additional circuits and receptacles. Placement depends on the type and location of the peripheral.

---

Table 2-7 CTS 3010 Power Distribution

Circuit	1	2	3	4
Connected to Circuit	1 PDU	1 PDU	2 PDUs	1 Auxiliary Control Unit (ACU)
Connected to PDU or ACU	1 Display 2 Codecs	1 Display 1 Codec	1 40" LCD Display 6 AC Ports for first row seating	1 Display 5 Lighting

Table 2-8 CTS 3000 Power Distribution

Circuit	1	2	3	4
Connected to Circuit	1 PDU	1 PDU	2 PDUs	1 ACU
Connected to PDU or ACU	1 Display 2 Codecs	1 Display 1 Codec	1 Projector 6 AC Ports for first row seating	1 Display 5 Lighting

HVAC Considerations

Planning the cooling for a CTS 3010 TelePresence room is important to ensure the room remains comfortable for participants and to protect the equipment by maintaining normal operating temperatures.

---

Caution HVAC considerations should be given from the initial phase of choosing a room. Installing new cooling (or heating) systems can be time-consuming.

---

The table summarizes the specific BTU output of a CTS 3010 when deployed as recommended and under typical operating conditions. Please provide this information to your building HVAC engineer.

The qualifier typicallly assumes:

•The system is not used constantly 24 hours a day, seven days a week, every week.

•Deployment follows Cisco recommendations.

•The room is located within a building interior.

•The room has proper air circulation.

•The room's walls are painted with neutral colors.

---

Note For more information about specific wall colors, refer to the Cisco TelePresence Wall Color Guide at the following URL:

http://www.cisco.com/en/US/solutions/ns669/
networking_solutions_products_genericcontent0900aecd80554cb2.html

---

•The target room temperature expected is 72-76 degrees F.

•From these guidelines and for typical usage, a diversity factor of 25 percent is assumed which lowers cooling requirements.

---

Note Note: Conditions not consistent with the above may require additional cooling. Consult with your HVAC engineer to define building envelope and unique requirements. Additional equipment such as data displays, document cameras, etc., require additional cooling.

---

Table 2-9 CTS  BTU Output with 25% diversity

	CTS 3000		CTS 3010
Source	Typical KW	Typical Usage BTUs/hr	Typical kW	Typical Usage BTUs/hr
System Power	2.94	7526	2.27	5800
System Lighting	0.35	891	0.35	891
6 Participants (Avg)	0.39	998	0.39	998
3 Laptops (Avg)	0.17	422	0.17	422
Ceiling Lights (1.4w/sqft)	0.53	1357	0.53	1357
	Total Typical Heat Dissipation	11,200 BTU/Hr	Total Typical Heat Dissipation	9,500 BTU/Hr

To ensure efficient cooling of the room, the air intake and outflows should be placed as described in Figure 2-2.

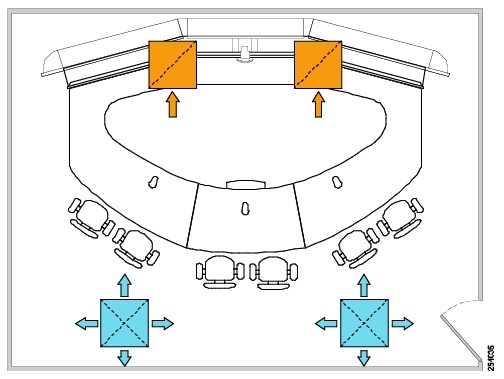

Figure 2-2 HVAC Placement Example

Table 2-10 Callouts for Figure 2-2

Callout	Description
Orange box with one arrow	Air intake.
Blue box with four arrows	Air outflow.

For greater volume of airflow with less noise, we recommend using an NC 30 Rated Diffuser in your HVAC design. HVAC systems without diffusers may generate ambient noise loud enough to interfere with the audio in the room.

Figure 2-3 NC 30 Rated Diffuser
