Installing the Lighting Assembly and Codecs
Parts List
Required and Recommended Tools and Equipment
Building the Lighting Assembly and Codecs
Where to Go Next
Installing the Lighting Assembly and Codecs
Revised: July 13, 2012, OL-21177-01
Parts List
Key
|
Part Description
|
Part/Kit Number
|
Qty
|
Ctn
|
Notes
|
1
|
Top reflector support bracket, inside (for center display frame)
|
700-30971-01
Kit #69-2048-01
|
2
|
4
|
|
2
|
Wide Top reflector support bracket, outside (for right and left display frame
|
700-30970-01
Kit #69-2048-01
|
2
|
4
|
|
3
|
Top reflector, center
|
800-33524-01
Kit #69-2033-01
|
1
|
6
|
|
4
|
Top reflectors, left and right
|
800-33525-01
Kit #69-2048-01
|
2
|
4
|
|
5
|
Top reflector transition piece, left
|
700-23756-01
Kit #69-1613-01
|
1
|
7
|
|
6
|
Top reflector transition piece, right
|
700-23757-01
Kit #69-1613-01
|
1
|
7
|
|
7
|
Side reflector support bracket
|
700-30972-01
Kit #69-2049-01
|
4
|
8
|
|
8
|
Side reflector
|
800-33526-01
Kit #69-2047-01
|
2
|
5
|
|
9
|
Corner reflector
|
700-23758-01
Kit #69-1613-01
|
2
|
7
|
|
10
|
Lower light bracket
|
|
2
|
|
|
11
|
5-foot center light fixture
|
74-5361-xx
CTS-LT-FX-
5FT-GN
|
3
|
1
Sub-carton 9-11
|
|
12
|
4-foot side light fixture
|
74-5362-xx
CTS-LT-FX-
4FT-GN
|
2
|
1
Sub-carton 12-13
|
|
13
|
Diffuser, top left
|
700-30965
Kit #69-2049
|
1
|
8
|
|
14
|
Diffuser, top right
|
700-30967
Kit #69-2049
|
1
|
8
|
|
15
|
Diffuser, center
|
700-30966
Kit #69-2049
|
1
|
8
|
|
16
|
Diffuser, side, left
|
700-30968
Kit #69-2049
|
1
|
8
|
|
17
|
Diffuser, side, right
|
700-30969
Kit #69-2049
|
1
|
8
|
|
18
|
Side reflector stabilizer
|
800-33527 (right)
800-33528 (left)
Kit #69-2048
|
4
|
|
|
19
|
M8 washers
|
49-1252-01
|
|
1
|
|
20
|
M8 x 15.5 serrated washers
|
49-1251-01
|
|
1
|
|
21
|
M8 x 70 mm screws
|
48-2274-01
|
10
|
|
|
22
|
M8 x 20 mm screws
|
48-2273-01
|
10
|
|
|
23
|
M8 x 20 mm pan head screws, white
|
48-2432-01
|
10
|
|
|
24
|
M8 x 12 mm flat-head screws, white
|
48-2433-01
|
10
|
|
|
25
|
Not used
|
|
|
|
|
26
|
Light cups for side reflectors
|
700-31235-01
Kit #69-2049
|
2
|
8
|
|
27
|
10/32 x 0.025 screws
|
48-0599-01
|
20
|
|
|
28
|
M8 x 16 mm pan head screws, black
|
48-2430-01
|
12
|
|
|
29
|
Primary codec
|
800-30638-xx
CTS-CODEC-
PRI-G2
|
1
|
1
Subcarton 18
|
|
30
|
Secondary codec
|
68-2898-xx
|
2
|
1
Subcarton 19-20
|
|
31
|
Not used
|
|
|
|
|
32
|
M5 x 12 mm screws
|
53-2907-01
|
20
|
1
Subcarton 18-20
|
|
33
|
M4 washers
|
49-0735-01
|
20
|
1
Subcarton 18-20
|
|
34
|
Rear cable tray
|
800-33505-01
Kit #69-2049-01
Subkit #69-2043-01
|
2
|
8
|
|
35
|
White reflector hole covering labels
|
|
1
|
1
|
1 sheet. Cut these into small square pieces and use them to hide the holes in the lower part of the side reflector.
|
| |
Label sheet for power and signal cables
|
47-22788-01
Kit #69-2063-01
|
2
|
1
Sub-carton 2
|
Label the cord near the power cord outlet side.
|
| |
Touch-up paint, white
|
74-5247-xx
|
1
|
1
|
Use this paint on the light reflectors to fix any minor cosmetic issues caused by shipping and handling.
|
 |
Warning  Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
|
|
Warning Some system components have metal and plastic edges with hard angles. These edges are exposed until you complete system assembly. Use caution when you move around the system during assembly to avoid contact with any exposed system edges.
|
Caution Metal and plastic edges can be sharp. Cisco recommends you wear safety gloves and safety glasses when attaching the lighting assembly.
Caution The lamp used in this product contains mercury. Dispose of according to local, state, and federal laws.
Note The directions left and right refer to the assembly as you face the Plasma displays.
Required and Recommended Tools and Equipment
The following tools are required to install a Cisco TelePresence 3010 system. Tools that are recommended but not required are indicated by an asterisk.
•#1 Phillips screwdriver
•Stepladder
•Level
Note Cisco recommends a laser level, which greatly speeds the process of levelling the entire system
•Claw hammer or small pry bar (for unpacking)
•Tin snips* (recommended for unpacking)
•Pallet jack or hand cart* (recommended for moving component boxes to installation site)
•Safety gloves
•Safety glasses*
•Box cutters*
•Power screwdriver with 3, 4, 5, and 6 mm (standard or round) Allen bits, or standard 3, 4, 5, and 6 mm Allen wrenches
Tip A round-head Allen bit can work at an angle instead of just straight out, a helpful feature in tight spots.
•Manual screwdrivers, #2 and #4 Phillips and flathead types
•10 mm Metric wrench
•9/64-inch Allen wrench (included with speakers)
•Tape measure
•Level
•Masking tape*
•Tie wraps*
•Knee pads or kneeling cushion*
•Laptop computer attached to network (for troubleshooting or reference)*
•Hand vacuum or facilities vacuum*
•Mechanical lift (optional, for hanging display screens)
Building the Lighting Assembly and Codecs
To build the lighting assembly, complete the following steps.
Step 1 Attach the top and side support brackets to the top of the display assembly.
Figure 4-1 Attaching the Top Support Brackets

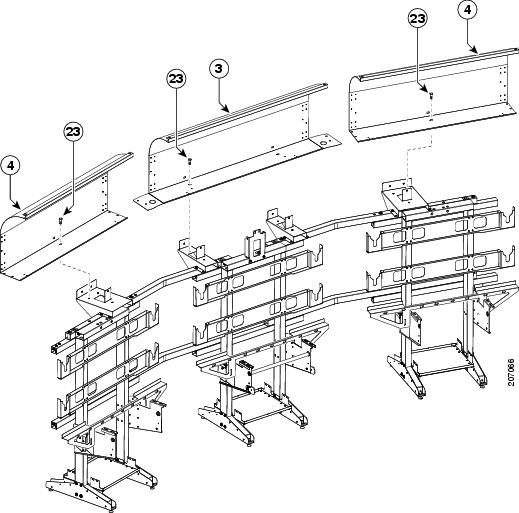

Step 2 Attach the top reflectors to the reflector brackets.
Note To ensure that the reflector pieces overlap seamlessly, tighten the reflectors to the brackets finger-tight only.
Figure 4-2 Attaching the Top Reflectors to the Reflector Brackets

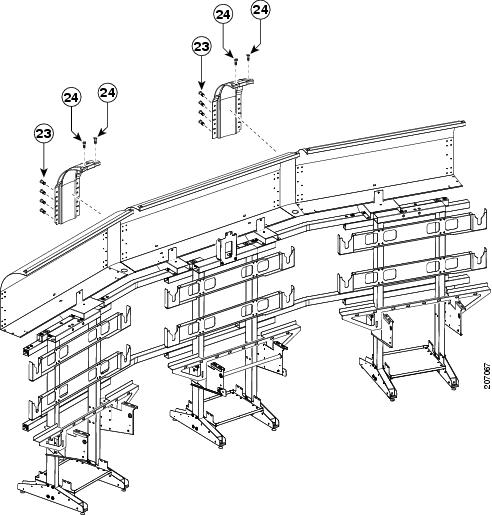

Step 3 Attach the transition pieces to the reflector tops.
Tip Be sure to use the correct screws (flathead flush screws, part number 48-2433-01). For a drawing of the correct screw, see the "List of Fasteners Used in This Document" section.
Note Loosely attach the reflector pieces and do not tighten the fasteners until you install all reflector pieces.
Figure 4-3 Left and Right Reflector Transition pieces

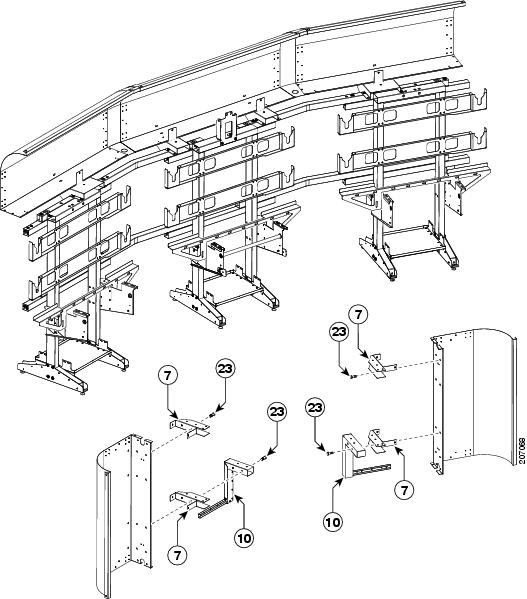

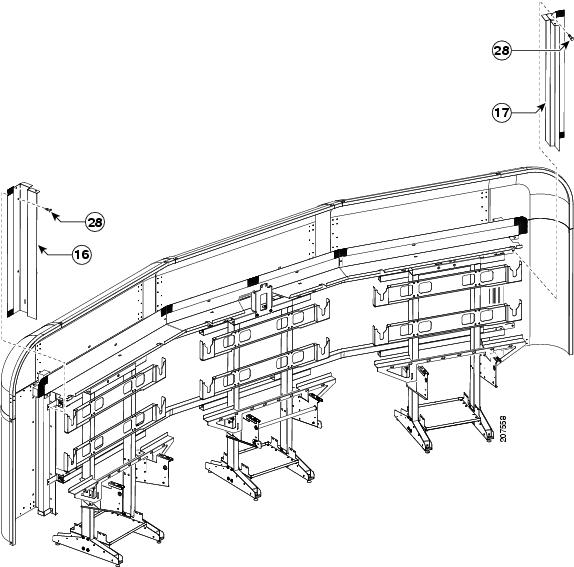

Step 4 Attach the side reflector brackets to the side reflectors.
Figure 4-4 Attaching the Side Reflector Brackets to the Side Reflectors
Step 5 Attach the side reflectors to the assembly structure.
Note Do not tighten screws until assembling all reflector pieces in Step 6.
Figure 4-5 Left and Right (vertical) Reflector Ends

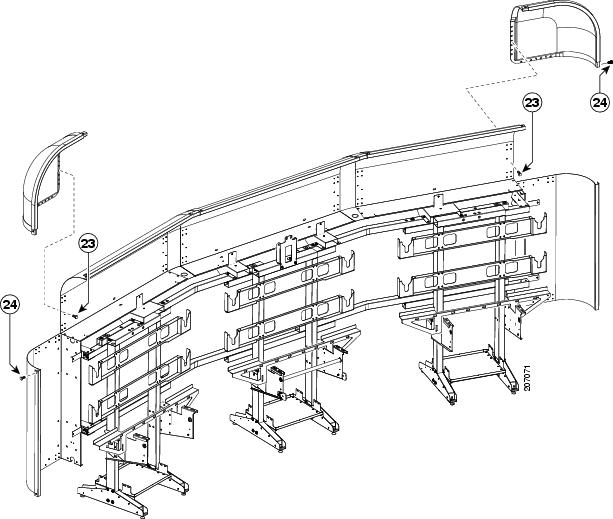

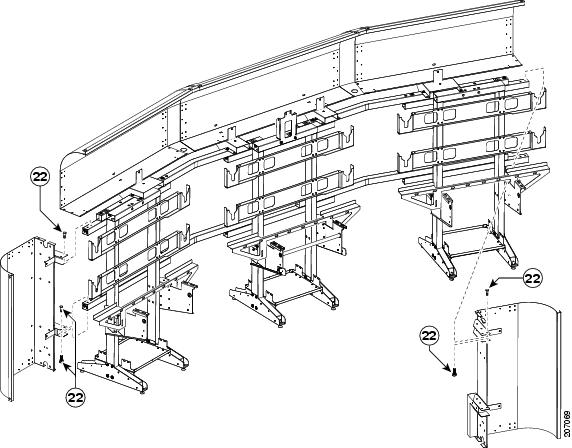

Step 6 Attach the left and right corner reflectors.
Figure 4-6 Left and Right Corner Reflectors

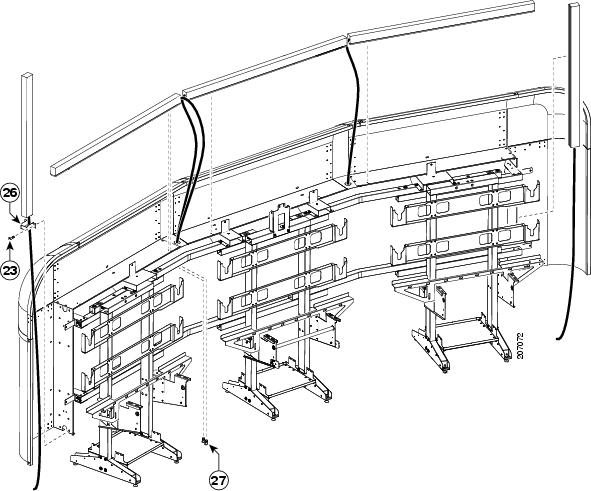

Step 7 Connect the light fixtures to the frame by completing the following steps:
a. Attach the three 5-foot light fixtures to the top of the structure.
Note Install the top light fixtures so that the power cords enter into the holes between the display stands.
b. Attach the lower light bracket (light cup) to the left and right side reflectors.
c. Place the 4-foot light fixtures into the lower light bracket, than attach the fixtures to the sides of the structure.
Note Install the side light fixtures so that the power cords exit from the bottom of the fixtures.
d. Add the cable identification labels to the light fixture cords.
Note Label the cords near the power outlet side. The labels are located in the accessory kit.
Figure 4-7 Light Fixtures

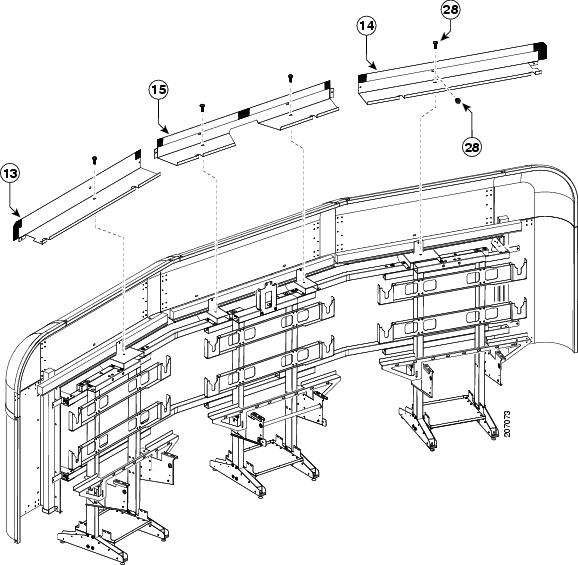

Step 8 Attach the top diffuser panels to the structure.
Note The center diffuser panel is long and bends easily; use care when you install it.
Figure 4-8 Top Diffuser Panels
Step 9 Attach the side diffuser panels to the structure.
Figure 4-9 Side Diffuser Panels

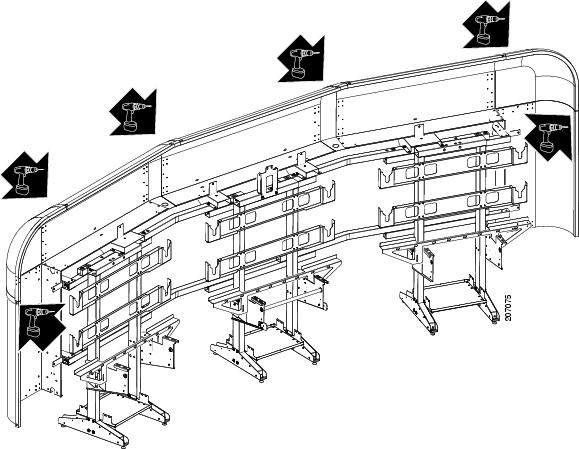

Step 10 Tighten all screws around the perimeter of the reflectors, starting from the middle screws.
Adjust the transition and corner pieces when necessary. When tightened, the reflectors form a "seamless hood" around the lighting assembly.
Figure 4-10 Tightening the Fasteners Around the Perimeter of the Reflector
Step 11 Install the codecs into the tray.
Note Install the codecs so that the Cisco logos point toward the rear of the system. If your system uses a presentation codec, install it in the center tray, in front of the primary codec, with the logo facing the front of the system.
Tip If the screws do not line up with the codec and tray, lift the codec slightly before inserting the screws.
Figure 4-11 Installing Codecs

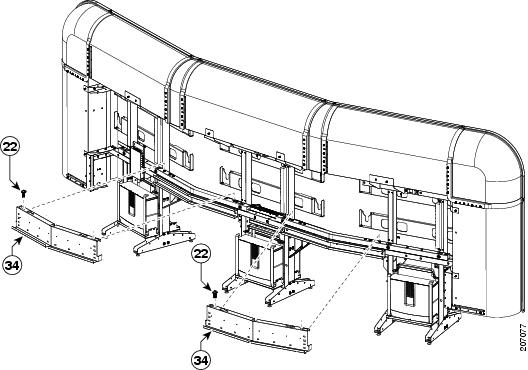

Step 12 Install the cable trays in the rear of the display.
Figure 4-12 Installing the Cable Trays

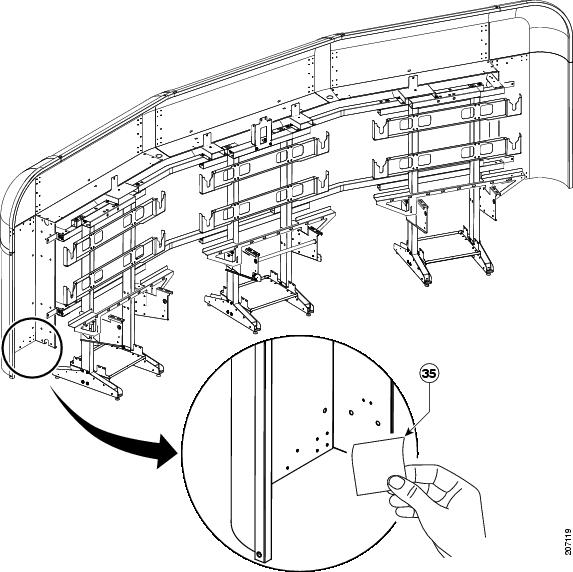

Step 13 Peel off the hole covering labels and use them to cover holes in the reflectors.
Figure 4-13 Covering Reflector Holes
Step 14 If required, use the touch-up paint to cover any imperfections in the paint finish that were caused by shipping, handling, or installation.
Where to Go Next
Continue to Chapter 5 "Mounting the Displays and Building the Display Shelf Assembly," to mount the display and build the display shelves.
