Release Notes for the Catalyst 4500 Series Switch, Cisco IOS Release 12.1(20)EW3

Current Release
12.1(20)EW3—May 11, 2005

Previous Releases
12.1(20)EW2, 12.1(20)EW1, 12.1(20)EW, 12.1(19)EW2, 12.1(19)EW1, 12.1(19)EW, 12.1(13)EW3, 12.1(13)EW1, 12.1(13)EW, 12.1(12c)EW3, 12.1(12c)EW1, 12.1(12c)EW, 12.1(11b)EW1, 12.1(11b)EW, 12.1(8a)EW1, 12.1(8a)EW

Orderable Product Numbers:

•S4KL3-12120EW—Cisco IOS software for the Catalyst 4500 series, basic Layer 3 and voice software image (RIPv1, RIPv2, Static Routes, AppleTalk, and IPX), Release Software Routing, Release 12.1(20)EW (cat4000-i9s-mz.121-20.EW)

•S4KL3E-12120EW—Cisco IOS software for the Catalyst 4500 series Supervisor Engines III and IV, enhanced Layer 3 and voice software image including OSPF, IS-IS, IGRP, and EIGRP, Release 12.1(20)EW (cat4000-i5s-mz.121-20.EW)

•S4KL3K2-12120EW—Cisco IOS software for the Catalyst 4500 series with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, SSHv2, RIPv1, RIPv2, static routes, AppleTalk, and IPX), Release 12.1(20)EW (cat4000-i9k2s-mz.121-20.EW)

•S4KL3EK2-12120EW—Cisco IOS software for the Catalyst 4500 series Supervisor Engines III and IV with 3DES strong encryption, enhanced Layer 3 and voice software image including (OSPF, IS-IS, IGRP, and EIGRP), Release 12.1(20)EW (cat4000-i5k2s-mz.121-20.EW)

•S4KL3-12119EW—Cisco IOS software for the Catalyst 4500 series, basic Layer 3 and voice software image (RIPv1, RIPv2, Static Routes, AppleTalk, and IPX), Release Software Routing, Release 12.1(19)EW (cat4000-i9s-mz.121-19.EW)

•S4KL3E-12119EW—Cisco IOS software for the Catalyst 4500 series Supervisor Engines III and IV, enhanced Layer 3 and voice software image including OSPF, IS-IS, IGRP, and EIGRP, Release 12.1(19)EW (cat4000-i5s-mz.121-19.EW)

•S4KL3K2-12119EW—Cisco IOS software for the Catalyst 4500 series with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, SSHv2, RIPv1, RIPv2, static routes, AppleTalk, and IPX), Release 12.1(19)EW (cat4000-i9k2s-mz.121-19.EW)

•S4KL3EK2-12119EW—Cisco IOS software for the Catalyst 4500 series Supervisor Engines III and IV with 3DES strong encryption, enhanced Layer 3 and voice software image including (OSPF, IS-IS, IGRP, and EIGRP), Release 12.1(19)EW (cat4000-i5k2s-mz.121-19.EW)

•FR-IRC4—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines III and IV with InterDomain Routing Feature License including BGP4

•S4KL3-12113EW—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines III and IV, basic Layer 3 and voice software image (RIP, Static Routes, AppleTalk and IPX), Release 12.1(13)EW

•S4KL3E-12113EW—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines III and IV, enhanced Layer 3 and voice software image including OSPF, IGRP, EIGRP, and IS-IS, Release 12.1(13)EW

•S4KL3K2-12113EW—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines III and IV with 3DES strong encryption, basic Layer 3 and voice software image (SSHv1, RIP, static routes, AppleTalk and IPX), Release 12.1(13)EW

•S4KL3EK2-12113EW—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines III and IV with 3DES strong encryption, enhanced Layer 3 and voice software image including OSPF, IGRP, EIGRP, and IS-IS, Release 12.1(13)EW

•S4KL3-12112EW—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines III and IV, basic Layer 3 software image (RIP, Static Routes, AppleTalk and IPX), Release 12.1(12c)EW

•S4KL3E-12112EW—Cisco IOS software for the Catalyst 4500 Series Supervisor Engines III and IV, enhanced Layer 3 software image including OSPF, IGRP and EIGRP, Release 12.1(12c)EW

•S4KL3-12111EW—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 software image (RIP, static routes), Release 12.1(11b)EW

•S4KL3E-12111EW—Cisco IOS software for the Catalyst 4500 series switch, enhanced Layer 3 software image including OSPF, IGRP and EIGRP, Release 12.1(11b)EW1

•S4KL3-12108EW—Cisco IOS software for the Catalyst 4500 series switch, basic Layer 3 software image (RIP, static routes), Release 12.1(8a)EW

•S4KL3E-12108EW—Cisco IOS software for the Catalyst 4500 series switch, enhanced Layer 3 software image including OSPF, IGRP and EIGRP, Release 12.1(8a)EW1

These release notes describe the features, modifications, and caveats for the Cisco IOS software on the Catalyst 4500 series switch. The most current software release is 12.1(20)EW.

The most current release notes for 12.1(20)EW are available on Cisco.com at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_20/OL_2170.htm

Catalyst 4500 Series Switch Cisco IOS Software Release Strategy

This section describes the Catalyst 4500 series switch Cisco IOS release strategy for the Catalyst 4500 series Supervisor Engines II-Plus, Supervisor Engine III, Supervisor Engine IV,

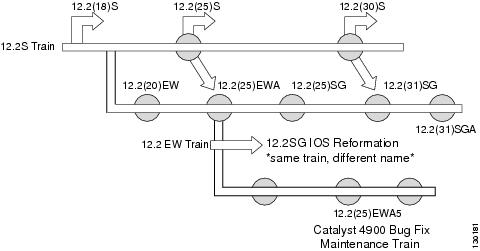

Figure 1 shows the Catalyst 4500 series switch Cisco IOS software release strategy.

Cisco IOS Release 12.1(19)E1 contains only the software and hardware functionality up to and including Cisco IOS Release 12.1(12c)EW1. Subsequent releases on the 12.1 E train, including 12.1(20)E, will be maintenance releases with the Catalyst 4500 feature set in Release 12.1(12c)EW1 feature set. The 12.1 E train is on the General Deployment (GD) track. Cisco IOS software releases are on the 12.1 E train for Catalyst 4500 series switch customers who require the stability of a GD release with a fixed set of features. Cisco IOS releases on the 12.1 E train are not available to Catalyst 4500 series switch Supervisor Engines II-Plus.

Beginning with Release 12.1(13)EW, additional software features and hardware support are introduced in the Cisco IOS 12.1 EW release train for the Catalyst 4500 series switch. Software features such as PBR, DBL, Port Security, and Jumbo Frames, as well as support for the Catalyst 4500 series switch NetFlow Services Card, Supervisor Engine II-Plus, 1000BaseT GBIC, and the AGM module are contained in the 12.1 EW release train. On the 12.1 EW train, the Catalyst 4500 series switch Supervisor Engine II-Plus is supported only in Release 12.1(19)EW and Release 12.1(20)EW. The latest Catalyst 4500 series switch Cisco IOS software release in the 12.1 EW train is Release 12.1(20)EW.

Starting with Release 12.2(18)EW, additional software features and hardware support are introduced in the 12.2 EW release train of Cisco IOS software for the Catalyst 4500 series switch. Software features such as sticky port security, 802.1X accounting, SmartPort macros, as well as support for the Catalyst 4510R chassis, the the IEEE Power over Ethernet (PoE) line cards are contained in the 12.2 EW release train. The Catalyst 4500 series switch Cisco IOS software in the 12.2 EW release train will continue to offer the latest hardware and software features. The 12.2 S mainline releases will be offered in the future to Catalyst 4500 series switch customers for feature consistency across the Catalyst platforms.

Figure 1 Software Release Strategy

Catalyst 4500 Series Switch Cisco IOS Software Release Migration Paths

Cisco IOS Software Release 12.2EW train offers the latest features for the Cisco Catalyst 4500 Series supervisor engines. Customers with Cisco Catalyst 4500 Series supervisor engines who need the latest hardware support and software features should migrate to Cisco IOS Software Release 12.2(25)EWA.

Cisco IOS Software Release 12.2(18)EW1 and all subsequent 12.2(18)EW maintenance releases have only the feature set based on Cisco IOS Software Release 12.2(18)EW for the Cisco Catalyst 4500 Series supervisor engines. Customers with Catalyst 4500 Series supervisor engines who require the stability of a bug fix maintenance release should stay with the Cisco IOS Software Release 12.2(18)EW maintenance releases.

Cisco IOS Software Releases 12.1(19)E1 through 12.1(26)E have only the feature set based on Cisco IOS Software Release 12.1(12c)EW1 for the Cisco Catalyst 4500 Series supervisor engines. Customers with Catalyst 4500 Series supervisor engines who require the stability of a maintenance release should migrate from 12.1E releases to the Cisco IOS Software Release 12.2(18)EW maintenance releases.

For more information on the Catalyst 4500 series switches, visit the following URL: www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/index.htm

Contents

This publication consists of these sections:

•System Requirements

•New and Changed Information

•Upgrading the System Software

•Limitations and Restrictions

•Caveats

•Troubleshooting

•Documentation Updates for Release 12.1(20)EW2

•Related Documentation

•Obtaining Documentation

•Documentation Feedback

•Obtaining Technical Assistance

•Obtaining Additional Publications and Information

System Requirements

This section describes the system requirements:

•Memory Requirements

•Supported Hardware

•Supported Features

•Unsupported Features

Memory Requirements

These are the minimum required memory configurations for Cisco IOS software on the Catalyst 4500 series switch:

•256-MB SDRAM DIMM

•32-MB Flash SIMM

Supported Hardware

The following tables lists the hardware supported on the Catalyst 4500 series switch.

Product Number (append with "=" for spares)

Product Description

Software Version

Minimum

Recommended

Supervisor Engines

WS-X4013+=

Catalyst 4500 Supervisor Engine II-Plus

12.1(19)EW

12.1(19)EW1

WS-X4014=

Catalyst 4000 Supervisor Engine III

12.1(8a)EW

12.1(19)EW1

WS-X4015=

Catalyst 4500 Supervisor Engine IV

12.1(12c)EW

12.1(19)EW1

WS-X4515/2=

Catalyst 4507R Redundant Supervisor Engine IV

12.1(12c)EW

12.1(19)EW1

Gigabit Ethernet Switching Modules

WS-X4232-GB-RJ

32-port 10/100 Fast Ethernet RJ-45, plus 2-port 1000BASE-X (GBIC) Gigabit Ethernet switching module

12.1(8a)EW

12.1(19)EW1

WS-X4302-GB

2-port 1000BASE-X (GBIC) Gigabit Ethernet switching module

12.1(19)EW

12.1(19)EW1

WS-X4306-GB

6-port 1000BASE-X (GBIC) Gigabit Ethernet switching module

12.1(8a)EW

12.1(19)EW1

WS-X4418-GB

18-port 1000BASE-X (GBIC) Gigabit Ethernet switching module

12.1(8a)EW

12.1(19)EW1

WS-X4412-2GB-T

12-port 1000BASE-T Gigabit Ethernet and 2-GBIC ports switching module

12.1(8a)EW

12.1(19)EW1

WS-X4424-GB-RJ45

24-port 10/100/1000BASE-T Gigabit Ethernet switching module

12.1(8a)EW

12.1(19)EW1

WS-X4448-GB-LX

48-port 1000BASE-LX Gigabit Ethernet Fiber Optic interface switching module

12.1(8a)EW

12.1(19)EW1

WS-X4448-GB-RJ45

48-port 10/100/1000BASE-T Gigabit Ethernet switching module

12.1(8a)EW

12.1(19)EW1

WS-X4548-GB-RJ45

48-port 10/100/1000BASE-T Gigabit Ethernet switching module

12.1(19)EW

12.1(19)EW1

Gigabit Interface Converter

WS-G5483=

1000BASE-T Gigabit Interface Convertor

12.1(13)EW

12.1(19)EW1

WS-G5484=

1000BASE-SX Short Wavelength GBIC (multimode only)

12.1(8a)EW

12.1(19)EW1

WS-G5486=

1000BASE-LX/LH Long Haul GBIC (single mode or multimode)

12.1(8a)EW

12.1(19)EW1

WS-G5487=

1000BASE-ZX Extended Reach GBIC (single-handed)

12.1(8a)EW

12.1(19)EW1

DWDM-GBIC-xx.yy

Dense Wavelength-Division Multiplexing Gigabit Interface Convertors

12.1(19)EW

12.1(19)EW1

WDM-GBIC-REC

Receive-only 1000BASE-WDM Gigabit Interface Convertors

12.1(19)EW

12.1(19)EW1

Fast Ethernet Switching Modules

WS-X4124-FX-MT

24-port 100BASE-FX Fast Ethernet switching module

12.1(8a)EW

12.1(19)EW1

WS-X4148-FX-MT

48-port 100BASE-FX Fast Ethernet switching module

12.1(8a)EW

12.1(19)EW1

WS-X4141-FE-LX-MT

48-port 100BASE-LX10 Fast Ethernet switching module

12.1(13)EW

12.1(19)EW1

WS-U4504-FX-MT

4-port 100BASE-FX with MTRJ connectors switching module

12.1(8a)EW

12.1(19)EW1

Ethernet/Fast Ethernet (10/100) Switching Modules

WS-X4148-RJ

48-port 10/100-Mbps Fast Ethernet RJ-45 switching module

12.1(8a)EW

12.1(19)EW1

WS-X4148-RJ21

48-port 10/100-Mbps Fast Ethernet RJ-21 (telco connector) switching module

12.1(8a)EW

12.1(19)EW1

WS-X4148-RJ45V

48-port inline power 10/100BASE-TX switching module

12.1(8a)EW for data support

12.1(11b)EW for data and inline power support

12.1(19)EW1

WS-X4232-RJ-XX

32-port 10/100 Fast Ethernet RJ-45 modular uplink switching module

12.1(8a)EW

12.1(19)EW1

GBIC Modules

CWDM-GBIC-1470

Longwave 1470 nm laser single-mode

12.1(12c)EW

12.1(19)EW1

CWDM-GBIC-1490

Longwave 1490 nm laser single-mode

12.1(12c)EW

12.1(19)EW1

CWDM-GBIC-1510

Longwave 1510 nm laser single-mode

12.1(12c)EW

12.1(19)EW1

CWDM-GBIC-1530

Longwave 1530 nm laser single-mode

12.1(12c)EW

12.1(19)EW1

CWDM-GBIC-1550

Longwave 1550 nm laser single-mode

12.1(12c)EW

12.1(19)EW1

CWDM-GBIC-1570

Longwave 1570 nm laser single-mode

12.1(12c)EW

12.1(19)EW1

CWDM-GBIC-1590

Longwave 1590 nm laser single-mode

12.1(12c)EW

12.1(19)EW1

CWDM-GBIC-1610

Longwave 1610 nm laser single-mode

12.1(12c)EW

12.1(19)EW1

Other Modules

MEM-C4K-FLD64M

Catalyst 4500 CompactFlash, 64 MB Option

12.1(19)EW

12.1(19)EW1

MEM-C4K-FLD128M

Catalyst 4500 CompactFlash, 128 MB Option

12.1(19)EW

12.1(19)EW1

WS-F4531

Catalyst 4500 Series NetFlow Services Card

12.1(13)EW

12.1(19)EW1

PWR-C45-1000AC

Catalyst 4500 1000 Watt AC Power Supply

•Data only

12.1(12c)EW

12.1(19)EW1

PWR-C45-1400DC

Catalyst 4500 1400 Watt DC Power Supply

•with pass through for voice

12.1(13)EW

12.1(19)EW1

PWR-C45-1300ACV

Catalyst 4500 1300 Watt AC Power Supply

•With integrated voice

12.1(12c)EW

12.1(19)EW1

PWR-C45-2800ACV

Catalyst 4500 2800 Watt AC Power Supply

•With integrated voice

12.1(12c)EW

12.1(19)EW1

WS-P4502-1PSU

Catalyst 4500 Auxiliary Power Shelf (25-slot), including one PWR-4502

12.1(19)EW

12.1(19)EW1

PWR-4502

Catalyst 4500 Auxiliary Power Shelf Redundant Power Supply

12.1(19)EW

12.1(19)EW1

WS-X4604-GWY

Cisco Catalyst 4500 Access Gateway Module

12.1(13)EW

12.1(19)EW1

WS-X4095-PEM

Catalyst 4006 Power Entry module

12.1(11b)EW

12.1(19)EW1

WS-P4603-2PSU

Catalyst 4006 Auxiliary Power Shelf (3-slot) including two WS-X4608 power supplies

12.1(11b)EW

12.1(19)EW1

WS-X4008-DC

Catalyst 4006 DC Power Supply

12.1(8a)EW

12.1(19)EW1

WS-X4008=

Catalyst 4006 AC Power Supply

12.1(11b)EW

12.1(19)EW1

Table 1 briefly describes the seven chassis in the Catalyst 4500 series switches. For the chassis listed in the table, refer to Table 2 for software version information.

Table 1 Chassis Description

Product Number (append with "=" for spares)

Description of Modular Chassis

WS-C4503

Catalyst 4503 chassis includes:

•3 slots

•Fan tray

•Supports Supervisor Engine IV, Supervisor Engine III,
and Supervisor Engine II-Plus, Supervisor Engine II

WS-C4506

Catalyst 4500 chassis includes:

•6 slots

•Fan tray

•Supports Supervisor Engine IV, Supervisor Engine III,
and Supervisor Engine II-Plus, and Supervisor Engine II

WS-C4507R

Catalyst 4500 chassis includes:

•7 slots

•Fan tray

•Supports Supervisor Engine IV and Supervisor Engine II-Plus

WS-C4006-S4

Catalyst 4006 chassis includes:

•6 slots

•Fan tray

•2 AC power supplies

•Supports Supervisor Engine IV

WS-C4006-S4-DC

Catalyst 4006 chassis includes:

•6 slots

•Fan tray

•2 DC power supplies

•Supports Supervisor Engine IV

WS-C4006-S3-DC

Catalyst 4006 chassis includes:

•6 slots

•Fan tray

•2 DC power supplies

•Supports Supervisor Engine III

WS-C4006-S3

Catalyst 4006 chassis includes:

•6 slots

•Fan tray

•2 AC power supplies

•Supports Supervisor Engine III

Table 2 lists the software version information for the Catalyst 4500 supervisor engines.

Table 2 Supervisor Engine Support

Supervisor Engine

Software Version

Minimum

Recommended

Supervisor Engine II

Catalyst operating system software

Supervisor Engine II-Plus

12.1(19)EW

12.1(19)EW1

Supervisor Engine III

12.1(8a)EW

12.1(19)EW1

Supervisor Engine IV

12.1(12c)EW

12.1(19)EW1

Supported Features

Table 3 lists the Cisco IOS software features for the Catalyst 4500 series switch.

Table 3 Cisco IOS Feature Set for the Catalyst 4500 Series Switch

Layer 1 Features

10/100/1000BASE-TX half duplex and full duplex

1000BASE-SX,-LX, and long haul (-LX/LH, -ZX) full duplex

Longwave laser single mode GBICs¹

Coarse Wavelength Division Multiplexing (CWDM) GBICs

Dense Wavelength Division Multiplexing (DWDM) GBICs

Layer 2 Bridging Features

Storm control

IP Source Guard

PVRST+

Layer 2 transparent bridging²

Layer 2 MAC³ learning, aging, and switching by software

Unicast MAC address filtering

VMPS⁴ Client

Layer 2 hardware forwarding at 48 Mpps

Layer 2 switch ports and VLAN trunks

Spanning-Tree Protocol (IEEE 802.1D) per VLAN

802.1s and 802.1w

Layer 2 traceroute

Unidirectional Ethernet port

Per-VLAN spanning tree (PVST) and PVST+

Spanning-tree root guard

Spanning-tree Loop guard and PortFast BPDU Filtering

Support for 9216 byte frames

Port security on PVLANs

Private VLANs

Private VLAN DHCP snooping

ISL⁵-based VLAN encapsulation (excluding blocking ports on WS-X4418-GB and WS-X4412-2GB-T)⁶

IEEE 802.1Q-based VLAN encapsulation

Multiple VLAN access port

VLAN Trunking Protocol (VTP) and VTP domains

Support for 4096 VLANs per switch

Unidirectional link detection (UDLD) and aggressive UDLD

Layer 3 Routing, Switching, and Forwarding

Pragmatic General Multicast

IP and IP multicast routing and switching between Ethernet ports

Static IP routing

PBR⁷

Dynamic Buffer Limiting

QoS-based forwarding based on IP precedence

Trusted boundary

Auto QoS

CEF⁸ load balancing

Hardware-based IP CEF routing at 48 Mpps

Up to 128,000 IP routes

Up to 32,000 IP host entries (Layer 3 adjacencies)

Up to 16,000 IP multicast route entries

Multicast flooding suppression for STP changes

Software routing of IPX and AppleTalk

IGMPv1, IGMPv2, and IGMPv3 (Full Support)

VRF-lite

Supported Protocols

IS-IS⁹

DTP¹⁰

RIP¹¹ and RIP II

IGRP¹²

EIGRP¹³

OSPF¹⁴

BGP4¹⁵

MBGP¹⁶

MSDP¹⁷

ICMP¹⁸ Router Discovery Protocol

PIM¹⁹—sparse and dense mode

Static routes

Classless interdomain routing (CIDR)

DVMRP²⁰

SSM

EtherChannel Features

Cisco EtherChannel, Fast EtherChannel, and Gigabit EtherChannel technology across line cards

Load balancing for routed traffic, based on source and destination IP addresses

Load sharing for bridged traffic based on MAC addresses

ISL on the Fast EtherChannel and Gigabit EtherChannel

IEEE 802.1Q on the Fast EtherChannel and Gigabit EtherChannel

Bundling of up to eight Fast Ethernet ports

Bundling of up to eight Gigabit Ethernet ports

Up to 64 active Fast Ethernet port channels

Up to 64 active Gigabit Ethernet port channels

Additional Protocols and Features

SPAN CPU port mirroring

SPAN packet-type filtering

SPAN destination in-packets option

RSPAN²¹

Enhanced VLAN statistics

Netflow version 8

NetFlow Statistics Collection

NetFlow Statistics Export Version 1 and Version 5

Secondary addressing

Bootstrap protocol (BOOTP)

Authentication, authorization, and accounting using TACACS+ and RADIUS protocol

Cisco Discovery Protocol (CDP)

Cisco Group Management Protocol (CGMP) server support

HSRP²² over 10/100 Ethernet, Gigabit Ethernet, Fast EtherChannel, and Gigabit EtherChannel

IGMP²³ snooping version1, version 2, and version 3 (Full Support)

IGMP filtering

Port Aggregation Protocol (PagP)

802.3ad LACP

SSH version 1 and version 2²⁴

Inline power preallocation

show interface capabilities command

IfIndex persistence

UDLR²⁵

Enhanced SNMP MIB support

SNMP²⁶ version 1, version 2, and version 3

SNMP version 3 (with encryption)

DHCP server and relay-agent

DHCP snooping

802.1x port-based authentication

Port flood blocking

Router standard and extended ACLs ²⁷on all ports with no performance penalty

Extended IPX Access Control Lists

VLAN Access Control Lists

PACL²⁸

Local Proxy ARP

Dynamic ARP Inspection on PVLANs

Dynamic ARP Inspection

Per-port QoS²⁹ rate-limiting and shaping

Inline power support for Cisco IP phones

Power redundancy

RPR³⁰

IPX performance enhancements

¹GBICs = 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm

²This is hardware-based transparent bridging within a VLAN.

³MAC = Media Access Control

⁴VMPS = VLAN Management Policy Server

⁵ISL = Inter-Switch Link

⁶Ports 3 thru 18 on the WS-X4418-GB and ports 1 thru 12 on the WS-X4412-2GB

⁷PBR = policy-based routing

⁸CEF = Cisco Express Forwarding

⁹IS-IS = Intermediate System to Intermediate System

¹⁰DTP = Dynamic Trunking Protocol

¹¹RIP = Routing Information Protocol

¹²IGRP = Interior Gateway Routing Protocol

¹³EIGRP = Enhanced Interior Gateway Routing Protocol

¹⁴OSPF = Open Shortest Path First

¹⁵BGP4 = Border Gateway Protocol 4

¹⁶MBGP = Multicast Border Gateway Protocol

¹⁷MSDP = Multicast Source Discovery Protocol

¹⁸ICMP = Internet Control Message Protocol

¹⁹PIM = Protocol Independent Multicast

²⁰DVMRP = Distance Vector Multicast Routing Protocol

²¹RSPAN = Remote SPAN

²²HSRP = Hot Standby Router Protocol

²³IGMP = Internet Group Management Protocol

²⁴SSH = Secure Shell Protocol

²⁵UDLR = Unidirectional Link Detection

²⁶SNMP = Simple Network Management Protocol

²⁷ACLs = Access Control Lists

²⁸PACL = Port Access Control List

²⁹QoS = Quality of Service

³⁰RPR = Supervisor redundancy

Unsupported Features

These features are not supported in Cisco IOS Release 12.1(EW2 for the Catalyst 4500 series switch:

•Bridge groups

•Cisco IOS software-based transparent bridging (also called "fallback bridging")

•Kerberos support for access control

•Community VLANs and two-way community VLANs in private VLANs

•DLSw (data-link switching)

•CLNS routing

•WCCP (Web Cache Communication Protocol)

•Cisco IOS IPX ACLs:

–<1200-1299> IPX summary address access list

•The following ACL types:

–Standard Xerox Network System (XNS) access list

–Extended XNS access list

–DECnet access list

–Protocol type-code access list

New and Changed Information

These sections describe the new and changed information for the Catalyst 4500 series switch running Cisco IOS:

•New Hardware Features in Release 12.1(20)EW2

•New Software Features in Release 12.1(20)EW2

•New Hardware Features in Release 12.1(20)EW1

•New Software Features in Release 12.1(20)EW1

•New Hardware Features in Release 12.1(20)EW

•New Software Features in Release 12.1(20)EW

•New Hardware Features in Release 12.1(19)EW

•New Software Features in Release 12.1(19)EW

•New Hardware Features in Release 12.1(13)EW

•New Software Features in Release 12.1(13)EW

•New Hardware Features in Release 12.1(12c)EW

•New Software Features in Release 12.1(12c)EW

•New Hardware Features in Release 12.1(11b)EW

•New Software Features in Release 12.1(11b)EW

•New Hardware Features in Release 12.1(8a)EW

•New Software Features in Release 12.1(8a)EW

New Hardware Features in Release 12.1(20)EW2

There are no new hardware features in Release 12.1(20)EW2.

New Software Features in Release 12.1(20)EW2

There are no new software features in Release 12.1(20)EW2.

New Hardware Features in Release 12.1(20)EW1

There are no new hardware features in Release 12.1(20)EW1.

New Software Features in Release 12.1(20)EW1

There are no new software features in Release 12.1(20)EW1.

New Hardware Features in Release 12.1(20)EW

There are no new hardware features in Release 12.1(20)EW.

New Software Features in Release 12.1(20)EW

Release 12.1(20)EW provides the following Cisco IOS features for the Catalyst 4500 series switch:

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

•Internet Group Management Protocol (IGMP) v3 snooping enhancements ("Configuring IGMP Snooping and Filtering" chapter)

•Virtual Routing Forwarding-lite ("Configuring VRF-lite" chapter)

•Remote Switched Port ANalyzer ("Configuring SPAN and RSPAN" chapter)

•Pragmatic General Multicast (PGM)

•Port Security on PVLAN ports

•Dynamic ARP Inspection on PVLAN ports

•Authentication, authorization, and accounting using TACACS+ and RADIUS protocol

•Internetwork Packet Exchange (IPX)/AppleTalk access control lists (ACLs)

–<1000-1099> IPX SAP access list

–<800-899> IPX standard access list

–<900-999> IPX extended access list

•Transceiver Optical Monitoring

•Enhanced Simple Network Management Protocol (SNMP) Management Information Base (MIB) support

For more information on these features, refer to these publications:

•Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_20/config/index.htm

•Catalyst 4500 Series Switch Cisco IOS Command Reference at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_20/command/index.htm

New Hardware Features in Release 12.1(19)EW

Release 12.1(19)EW provides the following new hardware for the Catalyst 4500 series switch:

•WS-X4013+—Catalyst 4500 series Supervisor Engine II-Plus

•WS-X4548-GB-RJ45—Catalyst 4500 series 48-port 10/100/1000 RJ-45 Line Card

•WS-X4302-GB—Catalyst 4500 series 2-port Gigabit Ethernet Line Card

•DWDM-GBIC-xx.yy—Cisco DWDM GBICs

•WDM-GBIC-REC—Cisco Receive-only 1000BASE-WDM GBIC

New Software Features in Release 12.1(19)EW

Release 12.1(19)EW provides the following Cisco IOS software features for the Catalyst 4500 series switch:

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

•Storm Control ("Configuring Port-Based Traffic Control" chapter)

•Per-VLAN Rapid Spanning Tree ("Understanding and Configuring STP" chapter)

•Trusted boundary ("Configuring QoS" chapter)

•Auto QoS ("Configuring QoS" chapter)

•Secure access with Secure Shell Protocol (SSHv2)

•show interface capabilities command ("Configuring Port-Based Traffic Control" chapter)

•NetFlow version 8 ("Configuring NetFlow Statistics Collection" chapter)

•Port ACL ("Configuring Network Security with ACLs" chapter)

•Dynamic ARP Inspection ("Understanding and Configuring Dynamic ARP Inspection" chapter)

•IP source guard ("Configuring DHCP Snooping and IP Source Guard" chapter)

Note For any network deployment of Dynamic ARP Inspection, IP Source Guard and the DHCP snooping features, it is essential that you read the white paper "Catalyst 4500 Security Services Best Practices" at the URL:
http://www.cisco.com/en/US/partner/products/hw/switches/ps4324/prod_white_papers_list.html

•CPU port sniffing ("Configuring SPAN" chapter)

•Packet type filtering ("Configuring SPAN" chapter)

•Ingress packets ("Configuring SPAN" chapter)

•Port flood blocking ("Port Unicast and Multicast Flood Blocking" chapter)

•802.1x with VLAN assignment ("Configuring 802.1x Port-Based Authentication" chapter)

•802.1x with guest VLAN ("Configuring 802.1x Port-Based Authentication" chapter)

•IGMP version 3 ("Configuring IGMP Snooping and Filtering" chapter)

•Unidirectional link routing ("Configuring Unidirectional Link Routing" chapter in the Cisco IP and IP Routing Configuration Guide)

•Inline power preallocation ("Environmental Monitoring and Power Management" chapter)

•IPX performance enhancements

The delivery latency for IPX packet forwarding has been significantly improved. For lock-step based protocols with single or small packet window sizes, this results in an increased throughput rate and better responsiveness.

For more information on these features, refer to these publications:

•Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_19/config/index.htm

•Catalyst 4500 Series Switch Cisco IOS Command Reference at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_19/command/index.htm

New Hardware Features in Release 12.1(13)EW

Release 12.1(13)EW provides the following new hardware for the Catalyst 4500 series switch:

•WS-F4531—Catalyst 4500 Series NetFlow Services Card

•WS-G5483—Cisco 1000BASE-T GBIC

•WS-X4604-GWY—Cisco Catalyst 4000 Access Gateway Module

•WS-X4148-FE-LX-MT—48-port 100BASE-LX10 Fast Ethernet switching module

New Software Features in Release 12.1(13)EW

Release 12.1(13)EW provides the following Cisco IOS software features for the Catalyst 4500 series switch.

•The new Layer 2 features are as follows:

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide

–VLAN Management Policy Server (VMPS) client ("Configuring Dynamic VLAN Membership" chapter)

–Support for 9216 byte frames ("Configuring Interfaces" chapter)

–Unicast MAC filtering ("Configuring Network Security with ACLs" chapter)

–Layer 2 traceroute ("Checking Port Status and Connectivity" chapter)

–Unidirectional Ethernet port ("Configuring Unidirectional Ethernet" chapter)

–Private VLAN DHCP snooping ("Configuring PVLANs" chapter)

–Port security ("Configuring Port Security" chapter)

•The new Layer 3 features are as follows:

–PBR (policy-based routing) ("Configuring Policy-Based Routing" chapter)

–Dynamic Buffer Limiting ("Understanding and Configuring QoS" chapter)

•Secure access via secure shell (SSH) Protocol

•Intermediate System to Intermediate System (IS-IS)

•NetFlow VLAN Statistics

•NetFlow Statistics Collection

•NetFlow Statistics Export Version 1 and Version 5

•IEEE 802.3ad ("Understanding and Configuring EtherChannel" chapter)

•Enhanced SNMP MIB support

For more information on these features, refer to these publications:

•Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_13/config/index.htm

•Catalyst 4500 Series Switch Cisco IOS Command Reference at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_13/command/index.htm

New Hardware Features in Release 12.1(12c)EW

Release 12.1(12c)EW provides the following new hardware for the Catalyst 4500 series switch:

•PWR-C45-1000AC—Catalyst 4500 1000 Watt AC Power Supply (data only)

•PWR-C45-2800AC—Catalyst 4500 2800 Watt AC Power Supply (with integrated voice)

•WS-C4503—Catalyst 4503 chassis with 3 slots and a fan

•WS-C4506—Catalyst 4506 chassis with 6 slots and a fan

•WS-C4507R—Cisco Catalyst 4507 chassis with 7 slots and a fan (supports Supervisor Engine IV only)

•WS-X4515—Cisco Catalyst 4500 Supervisor Engine IV

•WS-X4515/2—Cisco Catalyst 4507R Redundant Supervisor Engine IV

•CWDM-GBIC-1470—Longwave 1470 nm laser single-mode

•CWDM-GBIC-1490—Longwave 1490 nm laser single-mode

•CWDM-GBIC-1510—Longwave 1510 nm laser single-mode

•CWDM-GBIC-1530—Longwave 1530 nm laser single-mode

•CWDM-GBIC-1550—Longwave 1550 nm laser single-mode

•CWDM-GBIC-1570—Longwave 1570 nm laser single-mode

•CWDM-GBIC-1590—Longwave 1590 nm laser single-mode

•CWDM-GBIC-1610—Longwave 1610 nm laser single-mode

New Software Features in Release 12.1(12c)EW

Release 12.1(12c)EW provides the following Cisco IOS features for the Catalyst 4500 series switch.

•The new Layer 2 features are as follows:

Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.

–Support for 4096 VLANs per switch (refer to the "Understanding and Configuring VLANs" chapter)

–Support for 1600 byte-sized frames to enable two nested 802.1q headers (802.1q in 802.1q pass-through) and Multiprotocol Label Switching (MPLS) on the network (refer to the "Understanding and Configuring VLANs" chapter)

–Spanning-tree Loop guard and PortFast BPDU Filtering (refer to the "Configuring STP Features" chapter)

–802.1s and 802.1w (refer to the "Understanding and Configuring Multiple Spanning Trees" chapter)

–IGMP filtering on trunks

–PVLAN isolated trunk port (refer to the "Configuring PVLANs" chapter)

–DHCP snooping (refer to the "Understanding and Configuring DHCP Snooping" chapter)

–802.1x port-based authentication (refer to the "Configuring 802.1x Port-Based Authentication" chapter)

–VLAN access control lists (refer to the "Configuring Network Security with ACLs" chapter)

•The new Layer 3 features are as follows:

–Software routing IPX and Appletalk

•Supervisor Engine Redundancy (refer to the "Configuring Supervisor Engine Redundancy on the Catalyst 4507R" chapter)

•Support for SPAN sessions with both received and transmitted traffic (refer to the "Configuring SPAN" chapter)

For more information on these features, refer to these publications:

•Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_12/config/index.htm

•Catalyst 4500 Series Switch Cisco IOS Command Reference at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_12/command/index.htm

New Hardware Features in Release 12.1(11b)EW

Release 12.1(11b)EW provides initial support of the Cisco IOS software for the Catalyst 4006 switch with Supervisor Engine III and the following modules:

•WS-X4148-RJ45V—48-port inline power 10/100BASE-TX switching module with inline power support

•WS-X4095-PEM—Catalyst 4000 DC Power Entry Module

•WS-P4603-2PSU—Catalyst 4000 Auxiliary Power Shelf (3-slot) including two WS-X4608 power supplies

•WS-X4608—Catalyst 4603 Power Supply Unit for WS-P4603

New Software Features in Release 12.1(11b)EW

Release 12.1(11b)EW provides initial support of the Cisco IOS software for the Catalyst 4006 switch with Supervisor Engine III.

•For more information on the following features, refer to these publications:

–Software Configuration Guide for the Catalyst 4006 Switch with Supervisor Engine III at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_11/config/index.htm

–Command Reference for the Catalyst 4006 Switch with Supervisor Engine III at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/12_1_11/command/index.htm

Release 12.1(11b)EW provides these features:

•Multiple VLAN access port (only for data and voice VLANs)

•Inline power management for Cisco IP phones and Aironet 350 Wireless Access Points on the WS-X4148-RJ45V module.

•Power redundancy

•Multicast flooding suppression for STP changes

•IGMP filtering

New Hardware Features in Release 12.1(8a)EW

Release 12.1(8a)EW provides initial support of the Cisco IOS software for the Catalyst 4006 switch with Supervisor Engine III and the following modules:

•WS-X4124-FX-MT—24-port 100BASE-FX Fast Ethernet switching module

•WS-X4148-FX-MT—48-port 100BASE-FX Fast Ethernet switching module

Hierarchical Navigation

Cisco Catalyst 4500 Series Switches

Release Notes for the Catalyst 4500 Series Switch, Cisco IOS, 12.1EW

Downloads

Table Of Contents

Release Notes for the Catalyst 4500 Series Switch, Cisco IOS Release 12.1(20)EW3

Catalyst 4500 Series Switch Cisco IOS Software Release Strategy

Catalyst 4500 Series Switch Cisco IOS Software Release Migration Paths

Contents

System Requirements

Memory Requirements

Supported Hardware

Supported Features

Unsupported Features

New and Changed Information

New Hardware Features in Release 12.1(20)EW2

New Software Features in Release 12.1(20)EW2

New Hardware Features in Release 12.1(20)EW1

New Software Features in Release 12.1(20)EW1

New Hardware Features in Release 12.1(20)EW

New Software Features in Release 12.1(20)EW

New Hardware Features in Release 12.1(19)EW

New Software Features in Release 12.1(19)EW

New Hardware Features in Release 12.1(13)EW

New Software Features in Release 12.1(13)EW

New Hardware Features in Release 12.1(12c)EW

New Software Features in Release 12.1(12c)EW

New Hardware Features in Release 12.1(11b)EW

New Software Features in Release 12.1(11b)EW

New Hardware Features in Release 12.1(8a)EW
