Release Notes for the Catalyst 4900M Series Switch and the Catalyst 4948E Ethernet Switch, Cisco IOS Release 12.2(54)SGx and 12.2(53)SGx
Current Release
12.2(53)SG11—August 18, 2014Previous Release
12.2(54)SG1, 12.2(54)SG, 12.2(54)XO, 12.2(53)SG10, 12.2(53)SG9, 12.2(53)SG8, 12.2(53)SG7, 12.2(53)SG6, 12.2(53)SG5, 12.2(53)SG4, 12.2(53)SG2, 12.2(53)SG1, 12.2(53)SG, 12.2(52)SG, 12.2(50)SG8 12.2(50)SG7, 12.2(50)SG6, 12.2(50)SG5, 12.2(50)SG4, 12.2(50)SG3, 12.2(50)SG2, 12.2(50)SG1, 12.2(50)SG, 12.2(46)SG, 12.2(40)XOThese release notes describe the features, modifications, and caveats for Cisco IOS software on the Catalyst 4900M switch and the Catalyst 4948E Ethernet Switch. The most current software release is Cisco IOS Release 12.2(54)SG.
Cisco Catalyst 4900M Series is a premium extension to the widely deployed Catalyst 4948 Series top of rack Ethernet switches for data center server racks. Optimized for ultimate deployment flexibility, the Catalyst 4900M Series can be deployed for 10/100/1000 server access with 1:1 uplink to downlink oversubscription, mix of 10/100/1000 and 10 GbE servers or all 10GbE servers in the same rack. The Catalyst 4900M is a 320Gbps, 250Mpps, 2RU fixed configuration switch with
8 fixed wire speed X2 ports on the base unit and 2 optional half card slots for deployment flexibility and investment protection. Low latency, scalable buffer memory and high availability with 1+1 hot swappable AC or DC power supplies and field replaceable fans optimize the Catalyst 4900M for any size of data center.With Cisco IOS Release 12.2(54)XO, we Cisco introduced the Catalyst® 4948E Ethernet Switc, which is the first Cisco Catalyst E-Series data center switch built from the start to deliver class-leading, full-featured server-access switching. The switch offers forty-eight 10/100/1000-Gbps RJ45 downlink ports and four 1/10 Gigabit Ethernet uplink ports and is designed to simplify data center architecture and operations by offering service provider-grade hardware and software in a one rack unit (1RU) form factor optimized for full-featured top-of-rack (ToR) data center deployments.
The Cisco Catalyst 4948E Ethernet Switch builds on the advanced technology of the Cisco Catalyst 4948 Switches, the most deployed ToR switch in the industry, with more than 10 million ports deployed worldwide. The Cisco Catalyst E-Series doubles the uplink bandwidth and offers true front-to-back airflow with no side or top venting. Stringent airflow management reduces data center operating costs by providing strict hot-aisle and cold-aisle isolation. Exceptional reliability and serviceability are delivered with optional internal AC and DC 1+1 hot-swappable power supplies and a hot-swappable fan tray with redundant fans.
For more information on Catalyst 4900M and Catalyst 4948E Ethernet Switch, visit:
http://www.cisco.com/en/US/products/ps6021/index.html .
Note
Although this release note and those for Catalyst 4500 Series Switch, the Catalyst 4900 Series Switch, the Catalyst ME 4900 Switch, are unique, they each refer to the same Software Configuration Guide, Command Reference Guide, and System Message Guide.
Cisco IOS Software Packaging
Catalyst 4900M and Catalyst 4948E software features based on Cisco IOS Software 12.2(54)SG will support the IP Base, LAN Base, and Enterprise Services image.
The IP Base image does not support enhanced routing features such as Nonstop Forwarding/Stateful Switchover (NSF/SSO), BGP, Enhanced Interior Gateway Routing Protocol (EIGRP), Open Shortest Path First (OSPF), Intermediate System-to-Intermediate System (IS-IS), Internetwork Packet Exchange (IPX), AppleTalk, Virtual Routing Forwarding (VRF-lite), GLBP, and policy-based routing (PBR). The IP Base image supports Static routes, RIPv1/v2 for IP BASE, and EIGRP-Stub for limited routing on Cisco Catalyst 4900 Series Switches.
The LAN Base image complements the existing IP Base and Enterprise Services images. It is focused on customer access and Layer 2 requirements and therefore many of the IP Base features are not required. The IP upgrade image is available if at a later date you require some of those features.
The Enterprise Services image supports Cisco Catalyst 4948E Ethernet Switch and Cisco Catalyst 4900M Series software features based on Cisco IOS Software 12.2(54)SG, including enhanced routing. BGP capability is included in the Enterprises Services package.
Note

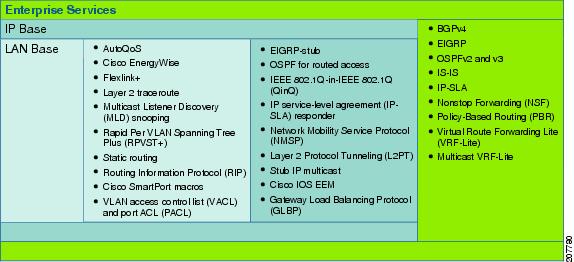

Figure 1 illustrates the three levels of Cisco IOS Software on the Catalyst 4900M Series Switch and the Catalyst 4948E Ethernet Switch.
This is not a detailed list. Please visit Feature Navigator for full package details:
http://tools.cisco.com/ITDIT/CFN/For information on MiBs support, pls refer to this URL:
http://ftp.cisco.com/pub/mibs/supportlists/cat4000/cat4000-supportlist.html
Figure 1 Feature Support by Packages
- S49LB-12254SG(=)—Cisco IOS Software for Cisco Catalyst 4900M Series Switch and Cisco Catalyst 4948E Ethernet Switch (LAN Base image)
- S49LBK9-12254SG(=)—Cisco IOS Software for Cisco Catalyst 4900M Series Switch and Cisco Catalyst 4948E Ethernet Switch (LAN Base image with Triple Data Encryption)
- S49IPB-12254SG(=)—Cisco IOS Software for Cisco Catalyst 4900M Series Switch and Cisco Catalyst 4948E Ethernet Switch (IP Base image)
- S49IPBK9-12254SG(=)—Cisco IOS Software for Cisco Catalyst 4900M Series Switch and Cisco Catalyst 4948E Ethernet Switch (IP Base image with Triple Data Encryption)
- S49ES-12254SG(=)— Cisco IOS Software for Cisco Catalyst 4900M Series Switch and Cisco Catalyst 4948E Ethernet Switch (Enterprise Services image with BGP support)
- S49ESK9-12254SG(=)—Cisco IOS Software forCisco Catalyst 4900M Series Switch and Cisco Catalyst 4948E Ethernet Switch (Enterprise Services image with 3DES and BGP support)
- S49LB-12254XO(=)—Cisco IOS Software for Cisco Catalyst 4948E Ethernet Switch (LAN Base image)
- S49LBK9-12254XO(=)—Cisco IOS Software for Cisco Catalyst 4948E Ethernet Switch (LAN Base image with Triple Data Encryption)S49IPB-12254XO(=)—Cisco IOS Software for Cisco Catalyst 4948E Series Switches (IP Base image)
- S49IPBK9-12254XO(=)—Cisco IOS Software for Cisco Catalyst 4948E Ethernet Switch (IP Base image with Triple Data Encryption)
- S49ES-12254XO(=)— Cisco IOS Software for Cisco Catalyst 4948E Ethernet Switch (Enterprise Services image with BGP support)
- S49ESK9-12254XO(=)—Cisco IOS Software for Cisco Catalyst 4948E Ethernet Switch (Enterprise Services image with 3DES and BGP support)
- WS-C4900-SW-LIC—Catalyst 4948 Ethernet Switch IP Base Upgrade License for LAN Base IOS
- S49MES-12253SG - Cisco IOS Software for Cisco Catalyst 4900M Switches (Enterprise Services image with BGP support)
- S49MESK9-12253SG - Cisco IOS Software for Cisco Catalyst 4900M Switches (Enterprise Services image with 3DES and BGP support)
- S49MIPB-12253SG - Cisco IOS Software for Cisco Catalyst 4900M Switches (IP Base image)
- S49MIPBK9-12253SG - Cisco IOS Software for Cisco Catalyst 4900M Switches (IP Base image with 3DES)
- S45EIPB-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image)
- S45IPBK9-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image with 3DES) (cat4500-ipbasek9-mz)
- S45EES-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)
- S45EESK9-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)
- S45EIPB-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image)
- S45IPBK9-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image with 3DES) (cat4500-ipbasek9-mz)
- S45EES-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)
- S45EESK9-12250SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)
- S45EIPB-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image)
- S45IPBK9-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (IP Base Image with 3DES) (cat4500-ipbasek9-mz)
- S45EES-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)
- S45EESK9-12246SG—Cisco IOS software for the Catalyst 4500 Series Supervisor Engine 6-E (Enterprise Services image) (cat4500-ipbasek9-mz)
- S49IPB-12252SG—Cisco IOS software for the Catalyst 4900 Series (IP Base image) (cat4500-ipbase-mz)
- S49IPBK9-12252SG—Cisco IOS software for the Catalyst 4900 Series (IP Base image with Triple Data Encryption Standard (3DES)) (cat4500-ipbasek9-mz)
- S49ES-12252SG—Cisco IOS software for the Catalyst 4900 Series (Enterprise Services image with BGP support) (cat4500-entservices-mz)
- S49ESK9-12252SG—Cisco IOS software for the Catalyst 4900 Series (Enterprise Services image with 3DES and BGP) (cat4500-entservicesk9-mz)
Cisco IOS Release Strategy
Customers with Catalyst 4948E Ethernet Switch and Catalyst 4900M series switches who need the latest hardware support and software features should migrate to Cisco IOS Release 12.2(54)SG.
Cisco IOS Software Migration

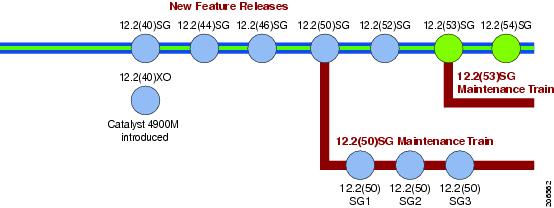

Figure 2 displays the two active, 12.2(31)SGA and 12.2(50)SG, and newly introduced 12.2(53)SG extended maintenance trains.
Support for the Catalyst 4900M platform was introduced in 12.2(40)XO. Moving forward, the Cisco Catalyst 4900M platform has two maintenance trains. The Cisco IOS Release 12.2(53)SG is the latest maintenance train and includes the most recent features including support for OSPF for routed Access
Figure 2 Software Release Strategy for the Catalyst 4900M Series Switch
Support
Support for Cisco IOS Software Release 12.2(54)SG follows the standard Cisco Systems® support policy, available at http://www.cisco.com/en/US/products/products_end-of-life_policy.html
System Requirements
This section describes the system requirements:
- Supported Hardware on the Catalyst 4900M Switch and Catalyst 4948E Ethernet Switch
- Supported Features
- Unsupported Features
Supported Hardware on the Catalyst 4900M Switch
and Catalyst 4948E Ethernet Switchlists the hardware supported on the Catalyst 4900M series switch and the Catalyst 4948E Ethernet Switch.
For Catalyst 4900 and 4948E switch transciever module compatibility information, see the url:
http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html
Supported Features
Note
Table 2 lists the Cisco IOS software features for the Catalyst 4948E Ethernet Switch and Catalyst 4900M series switches.
Table 2 Cisco IOS Software Feature Set for the Catalyst 4948E Ethernet Switch and Catalyst 4900M Series Switches
Layer 2 transparent bridging1
Layer 2 MAC2 learning, aging, and switching by software
VMPS3 Client
Layer 2 Control Policing (Not supported on Supervisor Engine 6-E)
802.1X Multiple Domain Authentication and Multiple Authorization
802.1X Supplicant and Authenticator Switches with Network Edge Access Topology
No. of VLAN support per switch: 2048 (for LAN base), 4096 (for IP Base)
DTP4
RIPv15 and RIPv2, Static Routing
EIGRP6
EIGRP Service Advertisement Framework7
OSPF8
BGP49
MBGP10
MSDP11
ICMP12 Router Discovery Protocol
DVMRP13
NTP14
SCP15
Load balancing for routed traffic, based on source and destination IP addresses
Link Layer Discovery Protocol Media Endpoint Discovery (LLDP-MED)
Authentication, authorization, and accounting using TACACS+ and RADIUS protocol
HSRP16 over Ethernet, EtherChannels - 10/100/1000Mbps, 10 Gbps
IGMP17 snooping version1, version 2, and version 3 (Full Support)
SSH version 1 and version 218
SNMP19 version 1, version 2, and version 3
Router standard and extended ACLs 20on all ports with no performance penalty
PACL21
PBR22
Per-port QoS23 rate-limiting and shaping
Identity ACL Policy Enforcement24
IPv6 Host support (- IPv6 support: Addressing; IPv6: Option processing, Fragmentation, ICMPv6,
TCP/UDP over IPv6; Applications: Ping/Traceroute/VTY/SSH/TFTP, SNMP for IPv6 objects)
Non-stop Forwarding Awareness for EIGRP-stub in IP base for all supervisor engines
OSPF Fast Convergence25
EEM 3.226
PIM Accept Register - Rogue Multicast Server Protection27
IP Multicast Load Splitting (Equal Cost Multipath (ECMP) using S, G and Next-hop)
Unsupported Features
These features are not supported in Cisco IOS Release 12.2(54)SG for the Cisco Catalyst 4948E Ethernet Switch and the Catalyst 4900M series switch:
–
–
- ADSL and Dial access for IPv6
- AppleTalk EIGRP (use native AppleTalk routing instead)
- Bridge groups
- CEF Accounting
- Cisco IOS software IPX ACLs:
–
- Cisco IOS software-based transparent bridging (also called “fallback bridging”)
- Connectionless (CLNS) routing; including IS-IS routing for CLNS. IS-IS is supported for IP routing only.
- DLSw (data-link switching)
- IGRP (use EIGRP instead)
- isis network point-to-point command
- Kerberos support for access control
- LLDP HA
- Lock and key
- NAT-PT for IPv6
- Reflexive ACLs
- Routing IPv6 over an MPLS network
- Two-way community VLANs in private VLANs
- WCCP v1 and v2
- PIM Stub in IP Base
- UniDirectional Link Routing (UDLR)
- NAC L2 IP - Inaccessible authentication bypass
- Packet Based Storm Control
- AutoQoS - VoIP
- Global QoS (enable QoS)
- CER for E-911 Support
- Auto RP
- Cisco-Port-QoS-MIB
- Real Time DiagNosis (GOLD-Lite)
- Time Domain Reflectometry
- HTTP Software Upgrade
- MAC Address Notification
- CFM CoS
New and Changed Information
These sections describe the new and changed information for the Catalyst 4948E Ethernet Switch and the Catalyst 4900M series switch running Cisco IOS software:
- New Hardware Features in Release 12.2(54)SG
- New Software Features in Release 12.2(54)SG
- New Hardware Features in Release 12.2(54)XO
- New Software Features in Release 12.2(54)XO
- New Hardware Features in Release 12.2(53)SG
- New Software Features in Release 12.2(53)SG
- New Hardware Features in Release 12.2(52)SG
- New Software Features in Release 12.2(52)SG
- New Hardware Features in Release 12.2(50)SG5
- New Software Features in Release 12.2(50)SG5
- New Software Features in Release 12.2(50)SG4
- New Software Features in Release 12.2(50)SG4
- New Hardware Features in Release 12.2(50)SG3
- New Software Features in Release 12.2(50)SG3
- New Hardware Features in Release 12.2(50)SG2
- New Software Features in Release 12.2(50)SG2
- New Hardware Features in Release 12.2(50)SG1
- New Software Features in Release 12.2(50)SG1
- New Hardware Features in Release 12.2(50)SG
- New Software Features in Release 12.2(50)SG
- New Hardware Features in Release 12.2(46)SG
- New Software Features in Release 12.2(46)SG
New Hardware Features in Release 12.2(54)SG
Supports hardware introduced in Release 12.2(54)XO and prior releases as well as the following new hardware for the Catalyst 4900M Series Switch and the Catalyst 4948E Ethernet Switch:
New Software Features in Release 12.2(54)SG
Supports software introduced in Release 12.2(54)XO and prior releases.
New Hardware Features in Release 12.2(54)XO
Release 12.2(54)XO provides the following new hardware for the Catalyst 4948E Ethernet Switch.
New Software Features in Release 12.2(54)XO
Release 12.2(54)XO provides the following Cisco IOS software features for the Catalyst 4948E Ethernet Switch:
- 802.1X with User Distribution ("Configuring 802.1X Port-Based Authentication" chapter)
- Auto SmartPort ("Configuring Auto SmartPort Macros" chapter)
- DSCP/CoS via LLDP ("Configuring LLDP, LLDP-MED, and Location Service" chapter
- EEM: Embedded Event Manager 3.2
For details, refer to the URL:
http://www.cisco.com/en/US/docs/ios/netmgmt/configuration/guide/nm_eem_3.2.html
http://www.cisco.com/en/US/docs/ios/saf/configuration/guide/saf_cg.htmlFor details refer to the URL:
http://www.cisco.com/en/US/docs/switches/lan/energywise/phase2/ios/configuration/guide/ew_v2.html
- GOLD Online Diagnostics ("Performing Diagnostics" chapter)
- Identity 4.1 ACL Policy Enhancements ("Configuring Network Security with ACLs" chapter)
- Identity 4.1 Network Edge Access Topology ("Configuring 802.1X Port-Based Authentication" chapter)
- IPSG for Static Hosts (Refer to the Cisco IOS library)
- IPv6 PACL ("Configuring Network Security with ACLs" chapter)
- IPv6 RA Guard ("Configuring Network Security with ACLs" chapter)
- IPv6 Interface Statistics ("Configuring Layer 3 Interfaces" chapter)
- IS-IS for IPv4 ad IPv6 (Refer to the Cisco IOS library)
- Layer Control Packet (extended to Supervisor 6)
- Link State Tracking ("Configuring EtherChannel and Link State Tracking" chapter)
- MAC move and replace ("Administering the Switch" chapter)
- Per-VLAN Learning ("Administering the Switch" chapter)
- PoEP via LLDP ("Configuring LLDP, LLDP-MED, and Location Service" chapter)
- RADIUS CoA ("Configuring 802.1X Port-Based Authentication" chapter)
- Sub-second UDLD (Configuring UDLD" chapter)
- VLAN Translation ("Configuring 802.1Q Tunneling, VLAN Mapping, and Layer 2 Protocol Tunneling" chapter)
- VRF-aware TACACS+ ("Configuring VRF-lite" chapter)
- XML Programmatic Interface (Refer to the Cisco IOS library)
http://www.cisco.com/en/US/docs/ios/netmgmt/configuration/guide/nm_xmlpi_v1.htmlNew Hardware Features in Release 12.2(53)SG3
Release 12.2(53)SG3 provides the following new hardware on the Catalyst 4900M series switch:
Note
New Software Features in Release 12.2(53)SG3
Release 12.2(53)SG3 provides no new features for the Catalyst 4900M series switch.
New Hardware Features in Release 12.2(53)SG
Release 12.2(53)SG provides no new hardware for the Catalyst 4900M switch.
New Software Features in Release 12.2(53)SG
Release 12.2(53)SG provides the following Cisco IOS software features for the Catalyst 4900M switch:
- IP Multicast Load Splitting (Equal Cost Multipath (ECMP) using S, G and Next-hop)
- Cisco Network Assistant (CNA)
- OSPF for Routed Access
OSPF for Routed Access is designed specifically to enable customers to extend Layer 3 routing capabilities to the access or Wiring Closet.
Note OSPF for Routed Access supports only one OSPFv2 and one OSPFv3 instance with a maximum number of 200 dynamically learned routes.
With the typical topology (hub and spoke) in a campus environment, where the wiring closets (spokes) are connected to the distribution switch (hub) forwarding all nonlocal traffic to the distribution layer, the wiring closet switch need not hold a complete routing table. A best practice design, where the distribution switch sends a default route to the wiring closet switch to reach inter-area and external routes (OSPF stub or totally stub area configuration) should be used when OSPF for Routed Access is used in the wiring closet.
Refer to the following link for more details:
http://www.cisco.com/en/US/docs/solutions/Enterprise/Campus/routed-ex.html
With Cisco IOS Release 12.2(53)SG, the IP Base image supports OSPF for routed access. The Enterprise Services image is required if you need multiple OSPFv2 and OSPFv3 instances without route restrictions. Additionally, Enterprise Services is required to enable the VRF-lite feature.
New Hardware Features in Release 12.2(52)SG
Release 12.2(52)SG provides no new hardware for the Catalyst 4900M series switch.
New Software Features in Release 12.2(52)SG
Release 12.2(52)SG provides the following new Cisco IOS software features for the Catalyst 4900M series switch:
–
–
–
- Local WebAuth Enhancement
- Network Mobility Services Protocol
- Online Diagnostics
- PIM Accept Register - Rogue Multicast Server Protection (route-map option is not supported)
- QinQ Tunneling and Layer 2 Protocol Tunneling (“Configuring 802.1Q and Layer 2 Protocol Tunneling” chapter)
Note Support has now been extended to Catalyst 4900M series switch and Supervisor Engine 6L-E.
New Hardware Features in Release 12.2(50)SG5
Release 12.2(50)SG5 provides no new hardware for the Catalyst 4900M series switch.
New Software Features in Release 12.2(50)SG5
Release 12.2(50)SG5 provides no new software for the Catalyst 4900M series switch.
New Hardware Features in Release 12.2(50)SG4
Release 12.2(50)SG4 provides no new hardware for the Catalyst 4900M series switch.
New Software Features in Release 12.2(50)SG4
Release 12.2(50)SG4 provides no new software for the Catalyst 4900M series switch.
New Hardware Features in Release 12.2(50)SG3
Release 12.2(50)SG3 provides the following hardware for the Catalyst 4500 series switch:
Hot-swappable input/output (I/O) converter module that fits into a 10-Gigabit Ethernet X2 slot on a switch or line card module. Hosts one 10-Gigabit Ethernet SFP+ transceiver module.
New Software Features in Release 12.2(50)SG3
Release 12.2(50)SG3 provides no new features for the Catalyst 4500 series switch.
New Hardware Features in Release 12.2(50)SG2
Release 12.2(50)SG2 provides no new hardware for the Catalyst 4900M series switch.
New Software Features in Release 12.2(50)SG2
Release 12.2(50)SG2 provides no new software for the Catalyst 4900M series switch.
New Hardware Features in Release 12.2(50)SG1
Release 12.2(50)SG1 provides no new hardware for the Catalyst 4900M series switch.
New Software Features in Release 12.2(50)SG1
Release 12.2(50)SG1 provides the following new Cisco IOS software features for the Catalyst 4900M series switch:
New Hardware Features in Release 12.2(50)SG
Release 12.2(50)SG provides the following new hardware for the Catalyst 4900M series switch:
New Software Features in Release 12.2(50)SG
Release 12.2(50)SG provides the following Cisco IOS software features for the Catalyst 4900M series switch:
Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.
- Multicast VRF-lite (“Configuring VRF-Lite” chapter)
- IGMP Querier (“Configuring IGMP Snooping” chapter)
- Bidirectional PIM (“Configuring IP Multicast” chapter)
- Private VLAN trunks (“Configuring Private VLANs” chapter)
- DHCP Relay Agent for IPv6 (refer to Cisco IOS Release 12.2 mainline documentation)
- OSPF and EIGRP fast convergence and protection (Refer to the Cisco IOS Release 12.4 documentation)
- CDP 2nd Port Status TLV (no configuration required on the switch)
- Flexible Authentication Sequencing (“Configuring 802.1X” chapter)
- Multi-Authentication (“Configuring 802.1X” chapter)
- Open Authentication (“Configuring 802.1X” chapter)
- Web Authentication (“Configuring Web Authentication” chapter)
- Inactivity Timer (“Configuring 802.1X” chapter)
- Downloadable ACLs (“Configuring Network Security with ACLs” chapter)
- ANCP Client (“Configuring ANCP Client” chapter)
- PPPoE Intermediate Agent (“PPPoE Circuit-Id Tag Processing” chapter)
- VTP version 3 (“Configuring VLANs, VTP, and VMPS” chapter)
- VRF-aware IP services (“Configuring VRF-Lite” chapter)
- Control Plane Policing (“Configuring CPP” chapter)
- boot config command (Refer to the Cisco IOS Release 12.4 documentation)
- Archiving Crashinfo Files (“Configuring Command-Line Interfaces” chapter)
- Unicast MAC filtering (“Configuring Network Security with ACLs” chapter)
- Configuration Rollback
- Cisco TrustSec SGT Exchange Protocol (SXP) IPv4
For more information, refer to the following URLs:
http://www.cisco.com/en/US/docs/ios-xml/ios/sec_usr_cts/configuration/15-2mt/cts-sxp-ipv4.html
New Hardware Features in Release 12.2(46)SG
Release 12.2(46)SG provides no new hardware for the Catalyst 4900M series switch.
New Software Features in Release 12.2(46)SG
Note
Release 12.2(46)SG provides the following Cisco IOS software features for the Catalyst 4500 series switch:
Note The following chapter references are for the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide.
–
- ARP QoS (Refer to the “Configuring QoS” chapter)
- Per-VLAN CTI (Refer to the “Configuring QoS” chapter)
- Flash support for Layer 3 features
- FlexLink and FlexLink+ with MAC Address-Table Move Update (Refer to the “Configuring FlexLink” chapter)
- Ethernet Management Port (Refer to the “Configuring Interfaces” chapter)
- LLDP-MED: location TLV and MIB (Refer to the “Configuring LLDP and LLDP-MED” chapter)
- Enhanced Object Tracking (EOT) ((Refer to the Cisco IOS Release 12.2 documentation)
–
- RSPAN (Refer to the “Configuring SPAN and RSPAN” chapter)
- CFM 802.1ag (Refer to the “Configuring Ethernet CFM and OAM” chapter)
- E-OAM 802.3ah (Refer to the “Configuring Ethernet CFM and OAM” chapter)
- Ethernet Management Port (Refer to the “Configuring Interfaces” chapter)
- Embedded management (Refer to the Cisco IOS Release 12.4 documentation)
- MAC notify MIB (Refer to the Cisco IOS Release 12.4 documentation)
- BGP (Refer to the Cisco IOS Release 12.4 documentation)
- 802.1X Dynamic VLAN Assignment (Refer to the “Configuring 802.1X” chapter)
- 802.1X MAC Authentication Bypass (Refer to the “Configuring 802.1X” chapter)
- 802.1X with VVID/PVID (Refer to the “Configuring 802.1X” chapter)
- Eight configurable queues per port (Refer to the “Configuring QoS” chapter)
- VSS client with PagP+
After configuring VSS dual-active on a Catalyst 6500 switches, the Catalyst 4500 series switch can detect VSS dual-active with PagP+ support.
Minimum and Recommended ROMMON Release
Table 3 lists the minimum and recommended ROMMON releases for Catalyst 4900M switch and Catalyst 4948E Ethernet Switch.
Note
Limitations and Restrictions
Following limitations and restrictions apply to the Cisco Catalyst 4948E Ethernet Switch and the Catalyst 4900M series switch:
- The WS-X4920-GB-RJ45 card performs at wire speed until it operates at 99.6% utilization. Beyond this rate, the card will lose some packets.
- Compact Flash is not supported on a Cisco Catalyst 4900M switch running Cisco IOS Release 12.2(40)XO. Attempting to use Compact Flash may corrupt your data.
- IP classful routing is not supported; do not use the no ip classless command; it will have no effect, as only classless routing is supported. The command ip classless is not supported as classless routing is enabled by default.
- A Layer 2 LACP channel cannot be configured with the spanning tree PortFast feature.
- Netbooting using a boot loader image is not supported. See the “Troubleshooting” section for details on alternatives.
- An unsupported default CLI for mobile IP is displayed in the HSRP configuration. Although this CLI will not harm your system, you might want to remove it to avoid confusion.
Workaround: Display the configuration with the show standby command, then remove the CLI. Here is sample output of the show standby GigabitEthernet1/1 command:
- For HSRP “preempt delay” to function consistently, you must use the standby delay minimum command. Be sure to set the delay to more than 1 hello interval, thereby ensuring that a hello is received before HSRP leaves the initiate state.
Use the standby delay reload option if the router is rebooting after reloading the image.
- You can run only .1q-in-.1q packet pass-through with the Catalyst 4948E Ethernet Switch and Catalyst 4900M series switch.
- For PVST, on Catalyst 4948E Ethernet Switch and Catalyst 4948E series switch VLANs, Cisco IOS Release 12.2(t54)SG supports a maximum of 3000 spanning tree port instances. If you want to use more than this number of instances, you should use MST rather than PVST.
- Because the Catalyst 4948E Ethernet Switch and the Catalyst 4900M series switch supports the FAT filesystem, the following restrictions apply:
–
–
For the Catalyst 4948E Ethernet Switch and the Catalyst 4900M series switch, the rename command has been added for bootflash and slot0. For all other supervisor engines, the rename command is supported for nvram devices only.
–
–
–
–
–
–
- The Fast Ethernet port (10/100) on the supervisor module is active in ROMMON mode only.
- If an original packet is dropped due to transmit queue shaping and/or sharing configurations, a SPAN packet copy can still be transmitted on the SPAN port.
- All software releases support a maximum of 32,768 IGMP snooping group entries.
- Use the no ip unreachables command on all interfaces with ACLs configured for performance reasons.
- The threshold for the Dynamic Arp Inspection err-disable function is set to 15 ARP packets per second per interface. You should adjust this threshold depending on the network configuration. The CPU should not receive DHCP packets at a sustained rate greater than 1000 pps.
- If you first configure an IP address or IPv6 address on a Layer 3 port, then change the Layer 3 port to a Layer 2 port with the switchport command, and finally change it back to a Layer 3 port, the original IP/IPv6 address will be lost.
- If a Catalyst 4948E Ethernet Switch or a Catalyst 4900M series switch requests information from the Cisco Secure Access Control Server (ACS) and the message exchange times out because the server does not respond, a message similar to this appears:
If this message appears, check that there is network connectivity between the switch and the ACS. You should also check that the switch has been properly configured as an AAA client on the ACS.
–
–
–
–
In such a scenario, the ipv6 MTU value programmed in hardware will be different from the ipv6 interface MTU value. This will happen if there is no room in the hw MTU table to store additional values.
You must free up some space in the table by unconfiguring some unused MTU values and subsequently disable/re-enable ipv6 on the interface or reapply the MTU configuration.
- To stop IPSG with Static Hosts on an interface, use the following commands in interface configuration submode:
To enable IPSG with Static Hosts on a port, issue the following commands:
Caution If you only configure the ip verify source tracking [port-security] interface configuration command on a port without enabling IP device tracking globally or setting an IP device tracking maximum on that interface, IPSG with Static Hosts will reject all the IP traffic from that interface.
Note
- Class-map match statements using match ip prec | dscp match only IPv4 packets whereas matches performed with match prec | dscp match both IPv4 and IPv6 packets.
- IPv6 QoS hardware switching is disabled if the policy-map contains IPv6 ACL and match cos in the same class-map with the ipv6 access-list has any mask range between /81 and /127. It results in forwarding packets to software which efficiently disable the QoS.
- Management port does not support non-VRF aware features.
- When you enter the permit any any ? command you will observe the octal option, which is unsupported in Cisco IOS Release 12.2(52)SG.
- A Span destination of fa1 is not supported.
- The "keepalive" CLI is not supported in interface mode on the switch, although it will appear in the running configuration. This behavior has no impact on functionality.
- TDR is only supported on interfaces Gi1/1 through Gi1/48, at 1000BaseT under open or shorted cable conditions. TDR length resolution is +/- 10 m. If the cable is less than 10 m or if the cable is properly terminated, the TDR result displays "0" m. If the interface speed is not 1000BaseT, an "unsupported" result status displays. TDR results will be unreliable for cables extended with the use of jack panels or patch panels.
- Upstream ports on the Catalyst 4900M and Catalyst 4948E Ethernet Switch support flow control auto negotiation in 1G mode only, and flow control is forced in 10G mode. If the interface is configured to auto-negotiate the flow control, and the interface is operating in 10G mode, the system forces flow control to ON and does not auto-negotiate.
- The following guidelines apply to Fast UDLD:
–
–
–
–
–
–
–
The outputs of certain commands, such as show ip route and show access-lists, contain non-deterministic text. While the output is easily understood, the output text does not contain strings that are consistently output. A general purpose specification file entry is unable to parse all possible output.
While a general purpose specification file entry may not be possible, a specification file entry might be created that returns the desired text by searching for text that is guaranteed to be in the output. If a string is guaranteed to be in the output, it can be used for parsing.
For example, the output of the show ip access-lists SecWiz_Gi3_17_out_ip command is this:
The first line is easily parsed because access list is guaranteed to be in the output:
The remaining lines all contain the term host. As a result, the specification file may report the desired values by specifying that string. For example, this line
will produce the following for the first and second rules
and the following for the third statement
Request the output of the show running-config command using NETCONF and parse that output for the desired strings. This is useful when the desired lines contain nothing in common. For example, the rules in this access list do not contain a common string and the order (three permits, then a deny, then another permit), prevent the spec file entry from using permit as a search string, as in the following example:
The XML output of show running-config command includes the following, which can then be parsed programmatically, as desired:
<X-Interface> permit 0000.0000.ffef ffff.ffff.0000 0000.00af.bcef ffff.ff00.0000 appletalk</X-Interface>
- Although the Catalyst 4900M series switch still supports legacy 802.1X commands used in Cisco IOS Release 12.2(46)SG and earlier releases (that is, they are accepted on the CLI), they do not display in the CLI help menu.
- Current IOS software cannot support filenames exceeding 64 characters.
- With Cisco IOS Release 12.2(53)SG3 (and 12.2(54)SG), we changed the default behavior such that your single supervisor, RPR, or fixed configuration switch does not reload automatically. To configure automatic reload, you must enter the diagnostic fpga soft-error recover aggressive command. (CSCth16953)
- For any configuration where the source-interface keyword is used, if you provide an SVI that is associated with a secondary private VLAN, configuration involving the secondary VLAN may be lost when the switch is reloaded. In such scenarios, always use the primary private VLAN.
Caveats
Caveats describe unexpected behavior in Cisco IOS releases. Caveats listed as open in a prior release are carried forward to the next release as either open or resolved.
Note
http://tools.cisco.com/security/center/publicationListing.x
Open Caveats in Cisco IOS Release 12.2(54)SG1
This section lists the open caveats in Cisco IOS Release 12.2(54)SG1:
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes. CSCsk70826)
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- In Cisco IOS Release 12.2(54)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode on the Catalyst 4900M switch, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. CSCsr00333
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. CSCsu43461
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. CSCsu43445
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SG
- On a Catalyst 4900M switch, the host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds. CSCsy37181
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct. CSCsz20149
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored. CSCsz34522
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 and later or 12.2(50)SG6 and later, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When CX1 or SFP+ are plugged into a OneX converter (CVR-X2-SFP10G) in a WS-X4908-10GE, the switch requires 1 minute to boot the link.
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for 4948E, C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
–
–
–
Note To reduce the likelihood of this event, connect at least two physical interfaces between fast UDLD peer switches. You must configure the interfaces with the same neighbor fast hello interval.
–
–
errdisable recovery interval value (between 30 and 86400 sec).–
- On a peer interface on a Catalyst 4948E Ethernet Switch, if errdisabled mode flap detection is set to a very small number (such as 2 flaps in 10 sec), a 10GE link flap may cause the peer interface to enter the errdisabled state.
Workarounds: The Cisco switch default link-flap detection value is 5 flaps in 10 seconds. Use the default value or larger numbers. CSCtg07677xxxx
- If you disable and re-enable IGMP Snooping on a VLAN, the output of the show mac address command does not display the [term] Switch against the multicast entry. Multicast traffic is not impacted.
Workaround: Do shut, then no shut on the SVI. CSCtg72559
- If VLAN load balancing is progressing, and you reconfigure VLAN load balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: Reconfigure VLAN load balancing with a different configuration, by performing the following task:
a.
b.
c.
d.
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes approximately 45 seconds for the system to recognize this action. During this time, all commands indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can cause a “duplicate seeprom” error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- Before large PACLs are fully loaded in hardware, you might observe a false completion messages like the following:
Dec 1 18:44:59.926: %C4K_COMMONHWACLMAN-4-HWPROGSUCCESS: Input Security: pacl - now fully loaded in hardware *Dec 1 18:44:59.926: %C4K_COMMONHWACLMAN-4-ALLACLINHW: All configured ACLs now fully loaded in hardware - hardware switching / QoS restored.Workaround: No functional impact.
You must wait for the ACLs to be programmed before performing other TCAM related changes. CSCtd57063
- RA Guard counters are not incremented in the output of the show ipv6 first-hop counters interface command when Router Advertisement and Router Redirect packets with Destination address FF02::x are dropped.
Workaround: Add the following permit ACEs to the ACL:
- Switch crashes when attaching a service-policy to a target, provided the service-policy contains more than 56 classes each with an explicit marking action, such as :
Workaround: Use tablemap-based marking, if possible. CSC99836
- When you have enabled EPM logging and the client is authenticated via MAB or Webauth, the value of AUTHTYPE is DOT1X in EPM syslog messages irrespective of the authentication method.
Similarly, the show epm sessions command always displays the authentication method as DOT1X.
Workaround: To view the authentication method used for a client, enter the
show authentication sessions command. CSCsx42157
- With CFM enabled globally as well as on an ingress interface, CFM packets received on the interface are not policed with hardware control plane policing.
- When Fallback WebAuth and Multi-host is configured on a port and no PACL exists, "permit ip any any" is installed in the TCAM and all traffic from the host is allowed to pass.
Workaround: Configure an ACL on the port. CSCte18760
- If a port channel is created on a Catalyst 4948E Ethernet Switch 1 Gigabit Ethernet SFP upstream interface and one of the interface links goes down, the average convergence time is roughly 3 sec.
This behaviour is not observed on 10 Gigabit Ethernet SFP+ uplink interfaces.
- With a NEAT configuration on an ASW (Catalyst 4500 series switch) connected to an SSW (Catalyst 3750 series switch) serving as a root bridge and with redundant links between ASW and SSW, the following occur:
–
Workaround: Configure the ASW or any other switch upstream as the root-bridge for all the VLANs. CSCtg71030
- If host-mode multi-domain is configured and authorization succeeds, traffic may not pass from an IP phone or a data device.
- A switch may crash while loading BGP routes if the ip cef accounting non-recursive command is already configured.
Workaround: Disable the ip cef accounting non-recursive command.
- When a switch is configured for MAC Authentication Bypass (MAB) EAP and the AAA server requests EAP-TLS (as the EAP method) first, MAB fails.
–
–
Resolved Caveats in Cisco IOS Release 12.2(54)SG1
This section lists the resolved caveats in Release 12.2(54)SG1:
- Catalyst 4500 series switches may lose the per-vlan maximum mac addresses for port-security when the link goes down. This applies to the following interface configuration :
Workaround: None. CSCti74791..ALL
- When a 4948E uplink or 4712-SFP+E card is used with an SFP and connected to a peer that does not have auto negotiate, the link will not come up with speed nonegotiate configured.
Workaround: Use auto negotiation. CSCtj90069...4900M+4948E Note only?; appears so
- If no vtp is configured on ports that receive VTP updates, a switch no longer processes Layer 2 control traffic (STP and CDP).
Workaround: Upgrade to 12.2(53)SG3, 12.2(50)SG8, or later. CSCth00398 .....ALL
–
–
- A Supervisor Engine 6-E or Supervisor Engine 6L-E running cat4500e-ipbasek9-mz.122-53.SG1 might experience a reload because of interface flapping.
- A Catalyst 4900M or Catalyst 4948E switch running cat4500e-ipbasek9-mz.122-53.SG1 might experience a reload because of interface flapping.
- When software reads the hardware status of a linecard before it fully initializes, a supervisor engine experiences a software-initiated crash.
- The Spanning Tree process disables VLAN on a trunk interface if it was configured for VLAN Mapping Translation.
Workaround: Configure spanning-tree bpdufilter enable in configuration interface mode.
- When at least one 1:1 translation is configured, same to same VLAN mapping is disallowed. This impacts customers who want to switch packets on certain VLANs without VLAN Translation.
If you randomly add or remove VLANs in a VLAN database, SVI traffic stops on some VLANs.
- When the show ip ospf int command is paused while the backup designated router neighbor goes down, a switch may reload when you enter the show ip ospf int command:
The next line in the output of the show ip ospf int command is the following:
If you now advance the output by pressing either Enter or the space bar, the device reloads and the following error message displays:
–
–
Open Caveats in Cisco IOS Release 12.2(54)SG
This section lists the open caveats in Cisco IOS Release 12.2(54)SG:
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes. CSCsk70826)
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- In Cisco IOS Release 12.2(54)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode on the Catalyst 4900M switch, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. CSCsr00333
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. CSCsu43461
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. CSCsu43445
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SG
- On a Catalyst 4900M switch, the host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds. CSCsy37181
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct. CSCsz20149
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored. CSCsz34522
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 and later or 12.2(50)SG6 and later, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When CX1 or SFP+ are plugged into a OneX converter (CVR-X2-SFP10G) in a WS-X4908-10GE, the switch requires 1 minute to boot the link.
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for 4948E, C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
–
–
–
Note To reduce the likelihood of this event, connect at least two physical interfaces between fast UDLD peer switches. You must configure the interfaces with the same neighbor fast hello interval.
–
–
errdisable recovery interval value (between 30 and 86400 sec).–
- On a peer interface on a Catalyst 4948E Ethernet Switch, if errdisabled mode flap detection is set to a very small number (such as 2 flaps in 10 sec), a 10GE link flap may cause the peer interface to enter the errdisabled state.
Workarounds: The Cisco switch default link-flap detection value is 5 flaps in 10 seconds. Use the default value or larger numbers. CSCtg07677xxxx
- If you disable and re-enable IGMP Snooping on a VLAN, the output of the show mac address command does not display the [term] Switch against the multicast entry. Multicast traffic is not impacted.
Workaround: Do shut, then no shut on the SVI. CSCtg72559
- If VLAN load balancing is progressing, and you reconfigure VLAN load balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: Reconfigure VLAN load balancing with a different configuration, by performing the following task:
a.
b.
c.
d.
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes approximately 45 seconds for the system to recognize this action. During this time, all commands indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can cause a “duplicate seeprom” error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- Before large PACLs are fully loaded in hardware, you might observe a false completion messages like the following:
Dec 1 18:44:59.926: %C4K_COMMONHWACLMAN-4-HWPROGSUCCESS: Input Security: pacl - now fully loaded in hardware *Dec 1 18:44:59.926: %C4K_COMMONHWACLMAN-4-ALLACLINHW: All configured ACLs now fully loaded in hardware - hardware switching / QoS restored.Workaround: No functional impact.
You must wait for the ACLs to be programmed before performing other TCAM related changes. CSCtd57063
- RA Guard counters are not incremented in the output of the show ipv6 first-hop counters interface command when Router Advertisement and Router Redirect packets with Destination address FF02::x are dropped.
Workaround: Add the following permit ACEs to the ACL:
- Switch crashes when attaching a service-policy to a target, provided the service-policy contains more than 56 classes each with an explicit marking action, such as :
Workaround: Use tablemap-based marking, if possible. CSC99836
- When you have enabled EPM logging and the client is authenticated via MAB or Webauth, the value of AUTHTYPE is DOT1X in EPM syslog messages irrespective of the authentication method.
Similarly, the show epm sessions command always displays the authentication method as DOT1X.
Workaround: To view the authentication method used for a client, enter the
show authentication sessions command. CSCsx42157
- With CFM enabled globally as well as on an ingress interface, CFM packets received on the interface are not policed with hardware control plane policing.
- When Fallback WebAuth and Multi-host is configured on a port and no PACL exists, "permit ip any any" is installed in the TCAM and all traffic from the host is allowed to pass.
Workaround: Configure an ACL on the port. CSCte18760
- If a port channel is created on a Catalyst 4948E Ethernet Switch 1 Gigabit Ethernet SFP upstream interface and one of the interface links goes down, the average convergence time is roughly 3 sec.
This behaviour is not observed on 10 Gigabit Ethernet SFP+ uplink interfaces.
- With a NEAT configuration on an ASW (Catalyst 4500 series switch) connected to an SSW (Catalyst 3750 series switch) serving as a root bridge and with redundant links between ASW and SSW, the following occur:
–
Workaround: Configure the ASW or any other switch upstream as the root-bridge for all the VLANs. CSCtg71030
- If host-mode multi-domain is configured and authorization succeeds, traffic may not pass from an IP phone or a data device.
- A switch may crash while loading BGP routes if the ip cef accounting non-recursive command is already configured.
Workaround: Disable the ip cef accounting non-recursive command.
- When a switch is configured for MAC Authentication Bypass (MAB) EAP and the AAA server requests EAP-TLS (as the EAP method) first, MAB fails.
–
–
Resolved Caveats in Cisco IOS Release 12.2(54)SG
This section lists the resolved caveats in Release 12.2(54)SG:
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic .
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port. CSCta04665
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules. CSCsz05888
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- A switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the VRF is present in the DUT.
- On a switch running 12.2(54)SG, when the access VLAN is deleted and then restored on a port configured with 802.1X multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface. CSCso50921
- On the Catalyst 4900M, when you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. CSCsv54529
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. CSCsq75342
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family. CSCsq84796
Workaround: Unconfigure all generic QOS policies from the system. CSCsq84853
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. CSCsk66449
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. CSCsk62457
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. CSCsk66449
- On a switch running 12.2(54)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface. CSCso50921
Workaround: Configure the route map to only match on ACL(s). CSCtg22126
- For the SFP+ optical modules SFP-10G-LRM, SFP-10G-LR, and SFP-10G-SRA, a Tx low power alarm displays when either IOS boots or you replace the module.
SFP and 10GBASE-CU SFP+ modules do not show this problem.
This is an initial false alarm upon detection of a new SFP+ module; subsequently, it clears.
- If a third-party non-PoE device is connected to a WS-4648-RJ45V-E or WS-4648-RJ45V+E and PoE is enabled, when the device reboots, the link does not come up.
An error message might display on the device.
Workaround: Disable PoE (through entering the power inline never command in interface configuration mode.
In Cisco IOS Release 12.2(54)SG, you can enter the power inline autoneg-advertise command in global config mode to enable linkup. CSCtb78851
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
Workaround: None. (CSCsl39767)
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
Workaround: Configure the route map to only match on ACL(s). CSCtg22126
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
Workaround: None. (CSCsv42869)
- After three failed authentication attempts, WinXP stops responding to EAPOL requests from the switch that caused the 802.1X timeout (default or configured). After the timeout, WinXP moves to auth-fail VLAN.
Workaround: Attempt an authorization after a timeout.
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- When you load an unsupported Catalyst 4500 software version on WS-C4507R+E and WS-C4510R+E, the following log messages are seen and none of the ports come up:
"%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis type""%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4507R-E, but chassis' serial eeprom chassis type is Unknown chassis type""%C4K_CHASSIS-2-MUXBUFFERTYPENOTSUPPORTED: Mux Buffer in slot <n> of unsupported type 14" (where n is a slot number)Workaround: Load Cisco IOS Release 12.2(54)SG or 12.2(53)SG4 on WS-C4507R+E and WS-C4510R+E.
Open Caveats in Cisco IOS Release 12.2(53)SG11
This section lists the open caveats in Cisco IOS Release 12.2(53)SG11:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: None. (CSCsv42869)
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Workaround: Configure the route map to only match on ACL(s).
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: When creating the file, enter some characters, remove the ftp command, then re-enter it as follows:
- The following messages are displayed when you load an supported version of Catalyst 4500 software on WS-C4507R+E and WS-C4510R+E and none of the ports come up:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4507R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-2-MUXBUFFERTYPENOTSUPPORTED: Mux Buffer in slot <n> of unsupported type 14" (where n is a slot number)Workaround: Load Cisco IOS Releases 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later.
- When you load software images earlier than Cisco IOS Release 12.2(53)SG4, 12.54(SG) or 15.0(1)SG on a redundant WS-C4510R+E or WS-C4507R+E chassis, the active supervisor engines displays the following log message:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis typeThe active supervisor engine also displays following log message for each linecard slot in the chassis:
If the standby supervisor engine boots, the active supervisor engine displays the following message and reboots:
%C4K_REDUNDANCY-2-POSTFAIL_RESET: Power-On Self Test (POST) failure on ACTIVE supervisor detected. Detected the Standby Supervisor bootupFailedWhile active supervisor engine is up, no traffic can be handled by the switch.
The two supervisor engines might alternately reboot continuously.
Workaround: Use Cisco IOS Release 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later images with WS-C4510R+E and WS-C4507R+E chassis.
Resolved Caveats in Cisco IOS Release 12.2(53)SG11
This section lists the resolved caveats in Release 12.2(53)SG11:
- If a switch is running IOS Release 12.2(53)SG6 with Supervisor Engine 2 and a phone and PC are authenticated (or authorized) via MAB while connected to a port in multi-auth mode (with authentication open), both sessions are removed after 30 seconds without any reason:
- If a switch is running IOS Release 12.2(53)SG6 with Supervisor Engine II, the data client receives an authentication session but the session for the voice client is not created in authentication monitor mode (authentication open) with host-mode configured with multi-auth on the port.
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
Open Caveats in Cisco IOS Release 12.2(53)SG10
This section lists the open caveats in Cisco IOS Release 12.2(53)SG10:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: None. (CSCsv42869)
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Workaround: Configure the route map to only match on ACL(s).
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: When creating the file, enter some characters, remove the ftp command, then re-enter it as follows:
- The following messages are displayed when you load an supported version of Catalyst 4500 software on WS-C4507R+E and WS-C4510R+E and none of the ports come up:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4507R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-2-MUXBUFFERTYPENOTSUPPORTED: Mux Buffer in slot <n> of unsupported type 14" (where n is a slot number)Workaround: Load Cisco IOS Releases 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later.
- When you load software images earlier than Cisco IOS Release 12.2(53)SG4, 12.54(SG) or 15.0(1)SG on a redundant WS-C4510R+E or WS-C4507R+E chassis, the active supervisor engines displays the following log message:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis typeThe active supervisor engine also displays following log message for each linecard slot in the chassis:
If the standby supervisor engine boots, the active supervisor engine displays the following message and reboots:
%C4K_REDUNDANCY-2-POSTFAIL_RESET: Power-On Self Test (POST) failure on ACTIVE supervisor detected. Detected the Standby Supervisor bootupFailedWhile active supervisor engine is up, no traffic can be handled by the switch.
The two supervisor engines might alternately reboot continuously.
Workaround: Use Cisco IOS Release 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later images with WS-C4510R+E and WS-C4507R+E chassis.
Resolved Caveats in Cisco IOS Release 12.2(53)SG10
This section lists the resolved caveats in Release 12.2(53)SG10:
- The following message appears during MAC aging or learning on ports where dot1x or port security is configured:
Open Caveats in Cisco IOS Release 12.2(53)SG9
This section lists the open caveats in Cisco IOS Release 12.2(53)SG9:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: None. (CSCsv42869)
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Workaround: Configure the route map to only match on ACL(s).
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: When creating the file, enter some characters, remove the ftp command, then re-enter it as follows:
- The following messages are displayed when you load an supported version of Catalyst 4500 software on WS-C4507R+E and WS-C4510R+E and none of the ports come up:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4507R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-2-MUXBUFFERTYPENOTSUPPORTED: Mux Buffer in slot <n> of unsupported type 14" (where n is a slot number)Workaround: Load Cisco IOS Releases 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later.
- When you load software images earlier than Cisco IOS Release 12.2(53)SG4, 12.54(SG) or 15.0(1)SG on a redundant WS-C4510R+E or WS-C4507R+E chassis, the active supervisor engines displays the following log message:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis typeThe active supervisor engine also displays following log message for each linecard slot in the chassis:
If the standby supervisor engine boots, the active supervisor engine displays the following message and reboots:
%C4K_REDUNDANCY-2-POSTFAIL_RESET: Power-On Self Test (POST) failure on ACTIVE supervisor detected. Detected the Standby Supervisor bootupFailedWhile active supervisor engine is up, no traffic can be handled by the switch.
The two supervisor engines might alternately reboot continuously.
Workaround: Use Cisco IOS Release 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later images with WS-C4510R+E and WS-C4507R+E chassis.
- If a port is configured for Private VLAN and is authorized in a guest VLAN, a traceback appears on the console.
- The following message appears during MAC aging or learning on ports where dot1x or port security is configured:
Resolved Caveats in Cisco IOS Release 12.2(53)SG9
This section lists the resolved caveats in Release 12.2(53)SG9:
- When a trunk port is configured with a native VLAN other than VLAN 1, REP packets are not sent on that VLAN.
Workaround: Retain the default setting (VLAN 1) for the native VLAN on trunks ports. CSCud05521
- The Cisco IOS Software implementation of the virtual routing and forwarding (VRF) aware network address translation (NAT) feature contains a vulnerability when translating IP packets that could allow an unauthenticated, remote attacker to cause a denial of service (DoS) condition.
Cisco has released free software updates that address this vulnerability. Workarounds that mitigate this vulnerability are not available.
This advisory is available at the following link:
http://tools.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-20130327-nat
Note: The March 27, 2013, Cisco IOS Software Security Advisory bundled publication includes seven Cisco Security Advisories. All advisories address vulnerabilities in Cisco IOS Software. Each Cisco IOS Software Security Advisory lists the Cisco IOS Software releases that correct the vulnerability or vulnerabilities detailed in the advisory as well as the Cisco IOS Software releases that correct all Cisco IOS Software vulnerabilities in the March 2013 bundled publication.
Individual publication links are in “Cisco Event Response: Semiannual Cisco IOS Software Security Advisory Bundled Publication” at the following link:
http://www.cisco.com/web/about/security/intelligence/Cisco_ERP_mar13.html
Open Caveats in Cisco IOS Release 12.2(53)SG8
This section lists the open caveats in Cisco IOS Release 12.2(53)SG8:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: None. (CSCsv42869)
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Workaround: Configure the route map to only match on ACL(s).
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: When creating the file, enter some characters, remove the ftp command, then re-enter it as follows:
- The following messages are displayed when you load an supported version of Catalyst 4500 software on WS-C4507R+E and WS-C4510R+E and none of the ports come up:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4507R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-2-MUXBUFFERTYPENOTSUPPORTED: Mux Buffer in slot <n> of unsupported type 14" (where n is a slot number)Workaround: Load Cisco IOS Releases 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later.
- When you load software images earlier than Cisco IOS Release 12.2(53)SG4, 12.54(SG) or 15.0(1)SG on a redundant WS-C4510R+E or WS-C4507R+E chassis, the active supervisor engines displays the following log message:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis typeThe active supervisor engine also displays following log message for each linecard slot in the chassis:
If the standby supervisor engine boots, the active supervisor engine displays the following message and reboots:
%C4K_REDUNDANCY-2-POSTFAIL_RESET: Power-On Self Test (POST) failure on ACTIVE supervisor detected. Detected the Standby Supervisor bootupFailedWhile active supervisor engine is up, no traffic can be handled by the switch.
The two supervisor engines might alternately reboot continuously.
Workaround: Use Cisco IOS Release 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later images with WS-C4510R+E and WS-C4507R+E chassis. CSCtl84092
- If a port is configured for Private VLAN and is authorized in a guest VLAN, a traceback appears on the console.
- When a trunk port is configured with a native VLAN other than VLAN 1, REP packets are not sent on that VLAN.
Workaround: Retain the default setting (VLAN 1) for the native VLAN on trunks ports. CSCud05521
Resolved Caveats in Cisco IOS Release 12.2(53)SG8
This section lists the resolved caveats in Release 12.2(53)SG8:
- While processing a CDP frame, a switch may crash after displaying SYS-2-FREEFREE and SYS-6-MTRACE messages.
Workaround: Enter the no cdp run command to disable CDP. CSCub45763
Open Caveats in Cisco IOS Release 12.2(53)SG7
This section lists the open caveats in Cisco IOS Release 12.2(53)SG7:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: None. (CSCsv42869)
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Workaround: Configure the route map to only match on ACL(s).
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: When creating the file, enter some characters, remove the ftp command, then re-enter it as follows:
- The following messages are displayed when you load an supported version of Catalyst 4500 software on WS-C4507R+E and WS-C4510R+E and none of the ports come up:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4507R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-2-MUXBUFFERTYPENOTSUPPORTED: Mux Buffer in slot <n> of unsupported type 14" (where n is a slot number)Workaround: Load Cisco IOS Releases 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later.
- When you load software images earlier than Cisco IOS Release 12.2(53)SG4, 12.54(SG) or 15.0(1)SG on a redundant WS-C4510R+E or WS-C4507R+E chassis, the active supervisor engines displays the following log message:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis typeThe active supervisor engine also displays following log message for each linecard slot in the chassis:
If the standby supervisor engine boots, the active supervisor engine displays the following message and reboots:
%C4K_REDUNDANCY-2-POSTFAIL_RESET: Power-On Self Test (POST) failure on ACTIVE supervisor detected. Detected the Standby Supervisor bootupFailedWhile active supervisor engine is up, no traffic can be handled by the switch.
The two supervisor engines might alternately reboot continuously.
Workaround: Use Cisco IOS Release 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later images with WS-C4510R+E and WS-C4507R+E chassis. CSCtl84092
- If a port is configured for Private VLAN and is authorized in a guest VLAN, a traceback appears on the console.
- While processing a CDP frame, a switch may crash after displaying SYS-2-FREEFREE and SYS-6-MTRACE messages.
Workaround: Enter the no cdp run command to disable CDP. CSCub45763
- When a trunk port is configured with a native VLAN other than VLAN 1, REP packets are not sent on that VLAN.
Workaround: Retain the default setting (VLAN 1) for the native VLAN on trunks ports. CSCud05521
Resolved Caveats in Cisco IOS Release 12.2(53)SG7
This section lists the resolved caveats in Release 12.2(53)SG7:
- If you use AAA accounting with the broadcast keyword, a switch may either display unpredictable behavior or crash.
Workaround: Do not use AAA accounting with the broadcast keyword. CSCts56125
- A vulnerability exists in the Cisco IOS software that may allow a remote application or device to exceed its authorization level when authentication, authorization, and accounting (AAA) authorization is used. This vulnerability requires that the HTTP or HTTPS server is enabled on the Cisco IOS device.
Products that are not running Cisco IOS software are not vulnerable.
Cisco has released free software updates that address these vulnerabilities.
The HTTP server may be disabled as a workaround for the vulnerability described in this advisory.
This advisory is available at the following link:
http://tools.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-20120328-paiAdditional information on Cisco's security vulnerability policy can be found at the URL:
http://www.cisco.com/en/US/products/csa/cisco-sa-20110126-csg2.html
- A switch operating as a DHCP server where sessions receive DHCP information from a RADIUS server may experience a crash and DHCP related errors.
- A vulnerability in the Multicast Source Discovery Protocol (MSDP) implementation of Cisco IOS Software and Cisco IOS XE Software could allow a remote, unauthenticated attacker to cause a reload of an affected device. Repeated attempts to exploit this vulnerability could result in a sustained denial of service (DoS) condition.
Cisco has released free software updates that address this vulnerability. Workarounds that mitigate this vulnerability are available. This advisory is available at the following link:
http://tools.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-20120328-msdp
Note The March 28, 2012, Cisco IOS Software Security Advisory bundled publication includes nine Cisco Security Advisories. Each advisory lists the Cisco IOS Software releases that correct the vulnerability or vulnerabilities detailed in the advisory as well as the Cisco IOS Software releases that correct all vulnerabilities in the March 2012 bundled publication.
Individual publication links are in ''Cisco Event Response: Semiannual Cisco IOS Software Security Advisory Bundled Publication'' at the following link:
http://www.cisco.com/web/about/security/intelligence/Cisco_ERP_mar12.html%AUTHMGR-7-RESULT: Authentication result 'success' from 'dot1x' for client (Unknown MAC) on Interface Gi5/39 AuditSessionID AC156241000000670001BC9.provided the following conditions apply:
–
authentication event server dead action authorize...
authenticaton event server alive action reinitalize
–
The RADIUS server becomes available again, and the IAB-authorized port transitions to another state.
Open Caveats in Cisco IOS Release 12.2(53)SG6
This section lists the open caveats in Cisco IOS Release 12.2(53)SG6:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: None. (CSCsv42869)
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Workaround: Configure the route map to only match on ACL(s).
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: When creating the file, enter some characters, remove the ftp command, then re-enter it as follows:
- The following messages are displayed when you load an supported version of Catalyst 4500 software on WS-C4507R+E and WS-C4510R+E and none of the ports come up:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4507R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-2-MUXBUFFERTYPENOTSUPPORTED: Mux Buffer in slot <n> of unsupported type 14" (where n is a slot number)Workaround: Load Cisco IOS Releases 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later.
- When you load software images earlier than Cisco IOS Release 12.2(53)SG4, 12.54(SG) or 15.0(1)SG on a redundant WS-C4510R+E or WS-C4507R+E chassis, the active supervisor engines displays the following log message:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis typeThe active supervisor engine also displays following log message for each linecard slot in the chassis:
If the standby supervisor engine boots, the active supervisor engine displays the following message and reboots:
%C4K_REDUNDANCY-2-POSTFAIL_RESET: Power-On Self Test (POST) failure on ACTIVE supervisor detected. Detected the Standby Supervisor bootupFailedWhile active supervisor engine is up, no traffic can be handled by the switch.
The two supervisor engines might alternately reboot continuously.
Workaround: Use Cisco IOS Release 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later images with WS-C4510R+E and WS-C4507R+E chassis.
- If a port is configured for Private VLAN and is authorized in a guest VLAN, a traceback appears on the console.
%AUTHMGR-7-RESULT: Authentication result 'success' from 'dot1x' for client (Unknown MAC) on Interface Gi5/39 AuditSessionID AC156241000000670001BC9.provided the following conditions apply:
–
authentication event server dead action authorize...
authenticaton event server alive action reinitalize
–
The RADIUS server becomes available again, and the IAB-authorized port transitions to another state.
- When a trunk port is configured with a native VLAN other than VLAN 1, REP packets are not sent on that VLAN.
Workaround: Retain the default setting (VLAN 1) for the native VLAN on trunks ports. CSCud05521
Resolved Caveats in Cisco IOS Release 12.2(53)SG6
This section lists the resolved caveats in Release 12.2(53)SG6:
- A switch ignores unicast EAPOL responses, when you use MDA or multi-auth host mode combination with authentication open.
–
–
Workaround: Re-enter the rep preempt segment command.
Workaround: Ensure that a policy is configured on an interface prior to changing a default next-hop in route-map. CSCtr31759
–
–
Workaround: Perform the following task:
1. Disable the SNMP engine with the no snmp-server command.
2. Configure an IPv4 address and an IPv6 address on loopback interfaces.
Workaround: Perform the following task:
1. Disable the SNMP engine with the no snmp-server command.
2. Configure an IP address and an IPv6 address on loopback interfaces.
- When flex link load balancing is used, MAC addresses sourced over the backup interface are not programmed into the dynamic MAC address table. Source address learning is triggered for all traffic from these MAC addresses, which may cause high CPU.
Workaround: Configure static MAC addresses for the source addresses on the backup flex link interface. CSCtr40070
- On networks with round-trip-time (RTT) delay of 5 milisec and over, IP SLA ethernet jitter probes are stuck in NoConnection/Busy/Timeout state:
Issue is likely not to appear in environments with low latency (<5msec).
–
–
- A system may crash if it receives more than 10 MA (Management Address) TLVs per LLDP neighbor entry.
Workaround: Disable LLDP MA TLV sending on the peers. CSCtj22354
Workaround: Use getnext rather than get to list valid indicies for the MIB OID. CSCtr52740
- Flooded multicast traffic is not sent over a port channel interface after a member link or port-channel flaps.
–
–
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
Open Caveats in Cisco IOS Release 12.2(53)SG5
This section lists the open caveats in Cisco IOS Release 12.2(53)SG5:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Workaround: Configure the route map to only match on ACL(s).
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: When creating the file, enter some characters, remove the ftp command, then re-enter it as follows:
- The following messages are displayed when you load an supported version of Catalyst 4500 software on WS-C4507R+E and WS-C4510R+E and none of the ports come up:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4507R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-2-MUXBUFFERTYPENOTSUPPORTED: Mux Buffer in slot <n> of unsupported type 14" (where n is a slot number)Workaround: Load Cisco IOS Releases 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later.
- When you load software images earlier than Cisco IOS Release 12.2(53)SG4, 12.54(SG) or 15.0(1)SG on a redundant WS-C4510R+E or WS-C4507R+E chassis, the active supervisor engines displays the following log message:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis typeThe active supervisor engine also displays following log message for each linecard slot in the chassis:
If the standby supervisor engine boots, the active supervisor engine displays the following message and reboots:
%C4K_REDUNDANCY-2-POSTFAIL_RESET: Power-On Self Test (POST) failure on ACTIVE supervisor detected. Detected the Standby Supervisor bootupFailedWhile active supervisor engine is up, no traffic can be handled by the switch.
The two supervisor engines might alternately reboot continuously.
Workaround: Use Cisco IOS Release 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later images with WS-C4510R+E and WS-C4507R+E chassis.
- If a port is configured for Private VLAN and is authorized in a guest VLAN, a traceback appears on the console.
%AUTHMGR-7-RESULT: Authentication result 'success' from 'dot1x' for client (Unknown MAC) on Interface Gi5/39 AuditSessionID AC156241000000670001BC9.provided the following conditions apply:
–
authentication event server dead action authorize...
authenticaton event server alive action reinitalize
–
The RADIUS server becomes available again, and the IAB-authorized port transitions to another state.
- When a trunk port is configured with a native VLAN other than VLAN 1, REP packets are not sent on that VLAN.
Workaround: Retain the default setting (VLAN 1) for the native VLAN on trunks ports. CSCud05521
Resolved Caveats in Cisco IOS Release 12.2(53)SG5
This section lists the resolved caveats in Release 12.2(53)SG5:
- When you specify a proxy ACL ACE with an extra space, the proxy ACL is not programmed for authenticated and authorized hosts.
–
–
- When reconnecting to a switch using IP device tracking, a Windows Vista, Windows 2008, or Windows 2007 device registers a duplicate address message.
Workaround: Disable gratuitous ARP on the Windows device. CSCtn27420
–
–
Workaround: Disable AAA accounting. CSCtl77241
- When IP SLA probes are configured and active for a period of 72 weeks, and you poll the rttmon mib for probe statistics, the router reloads.
The problem is not observed for another 72 weeks.
- If a device is connected to multiple ports on the switch and no ip routing is configured, ARP entries display in an incorrect VLAN (pv vlan appears in the entry).
Workaround: Configure ip routing. CSCtj20399
- When a switch is using 802.X with web authentication, and you open an http session, you see a login screen using http, rather than https.
This happens only if you use a custom banner configured like the following:
Workaround: Remove the custom banner. CSCtb77378
- If you change the authentication method for a client to webauth before removing the fallback configuration, web authentication is triggered.
–
–
- LLDP packets are sent (.1q) tagged when the native VLAN of the of the dot1q trunk is not the default (VLAN 1).
LLDP IEEE standard requires frames sent untagged. With this issue, some peer devices may reject the tagged LLDP frame.
Workaround: Use the default native VLAN for the trunks. CSCtn29321
- When a redundant power supply is turned off, ciscoEnvMonAlarmContacts returns 00 even though the LED on the supervisor engine is orange.
Workaround: If you include snmp-server enable traps envmon in the device configuration, a ciscoEnvMonSuppStatusChangeNotification is generated when the power supply either turns off or fails. CSCtl72109
- A switch might crash if ip cef accounting non-recursive is configured and BGP routes are being supplied.
Workaround: Disable IP cef accounting. CSCtn68186
–
–
- A power supply can be listed as removed, but continues to function normally. This behavior is illustrated by the following system messages:
%C4K_CHASSIS-3-INSUFFICIENTPOWERSUPPLIESDETECTED: Insufficient power supplies present for specified configuration
- High CPU results from constant MAC learning when multiple REP rings are used, each with a different VLAN list.
Workaround: Ensure that all trunk ports in the REP ring topology have the same list of VLANs, including ports in other REP rings that export STCNs into the REP ring where the problem is observed. CSCto67625
- DHCP clients renewing through a load-balanced DHCP relay on an unnumbered interface may be unable to renew their lease because the renew ACK is lost.
Workaround: Avoid using DHCP load balancing. CSCth00482
- If a switch is configured for multiple authentication host-mode, and an interface on that switch is configured for 802.1X, that interface disallows unidirectional port control, breaking the functionality of Wake on LAN.
Workaround: Use a different host-mode. CSCti92970
Workaround: Allow SSH connections only from trusted hosts. CSCth87458
- If you provide extra space anywhere in between while specifying a proxy ACL ACE, the proxy ACL is not programmed for authenticated and authorized hosts.
–
–
- In multi-auth mode, when you disconnect a PC behind a Cisco IP phone, the data session is not removed.
This behavior is anticipated. In multi-auth mode, the system cannot distinguish between the data client that is attached to the phone and those that are attached to the switch through a hub.
- A switch crashes when you use no set extcommunity cost to remove set extcommunity cost in a route-map and you enter show run.
Workaround: Remove the entire route-map and re-create it. CSCsr23563
- On a SSH and telnet-configured switch, if you configure a banner, then SSH to the router, the banner shows incorrectly:
Here is how you configured the banner:
If you telnet to the router, the banner shows correctly as follows:
- After you boot a reloaded switch in a REP ring topology, the soon-to-be alternate port forwards traffic and causes a loop. This continues until you enter shut and no shut on the alternate port.
Workaround: Enter shut and no shut on the alternate interface. CSCtn03533
- If a static route is configured for an RP address that is reachable from a directly connected network, the switch does not send a PIM register toward the RP.
Workaround: Avoid configuring overlapping IP addresses. CSCtj96095
Open Caveats in Cisco IOS Release 12.2(53)SG4
This section lists the open caveats in Cisco IOS Release 12.2(53)SG4:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Workaround: Configure the route map to only match on ACL(s).
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: When creating the file, enter some characters, remove the ftp command, then re-enter it as follows:
- The following messages are displayed when you load an supported version of Catalyst 4500 software on WS-C4507R+E and WS-C4510R+E and none of the ports come up:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4507R-E, but chassis' serial eeprom chassis type is Unknown chassis type%C4K_CHASSIS-2-MUXBUFFERTYPENOTSUPPORTED: Mux Buffer in slot <n> of unsupported type 14" (where n is a slot number)Workaround: Load Cisco IOS Releases 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later.
- A proxy ACL is not programmed for authenticated and authorized hosts, when you specify a proxy ACL ACE with an extra space
–
–
- When you load software images earlier than Cisco IOS Release 12.2(53)SG4, 12.54(SG) or 15.0(1)SG on a redundant WS-C4510R+E or WS-C4507R+E chassis, the active supervisor engines displays the following log message:
%C4K_CHASSIS-3-CHASSISTYPEMISMATCHINSPROM: Supervisor's FPGA register chassis type is WS-C4510R-E, but chassis' serial eeprom chassis type is Unknown chassis typeThe active supervisor engine also displays following log message for each linecard slot in the chassis:
If the standby supervisor engine boots, the active supervisor engine displays the following message and reboots:
%C4K_REDUNDANCY-2-POSTFAIL_RESET: Power-On Self Test (POST) failure on ACTIVE supervisor detected. Detected the Standby Supervisor bootupFailedWhile active supervisor engine is up, no traffic can be handled by the switch.
The two supervisor engines might alternately reboot continuously.
Workaround: Use Cisco IOS Release 12.2(53)SG4, 12.2(54)SG, 15.0(1)SG or later images with WS-C4510R+E and WS-C4507R+E chassis.
- A switch may crash while loading BGP routes if the ip cef accounting non-recursive command is already configured.
Workaround: Disable the ip cef accounting non-recursive command.
%AUTHMGR-7-RESULT: Authentication result 'success' from 'dot1x' for client (Unknown MAC) on Interface Gi5/39 AuditSessionID AC156241000000670001BC9.provided the following conditions apply:
–
authentication event server dead action authorize...
authenticaton event server alive action reinitalize
–
The RADIUS server becomes available again, and the IAB-authorized port transitions to another state.
- When a trunk port is configured with a native VLAN other than VLAN 1, REP packets are not sent on that VLAN.
Workaround: Retain the default setting (VLAN 1) for the native VLAN on trunks ports. CSCud05521
Resolved Caveats in Cisco IOS Release 12.2(53)SG4
This section lists the resolved caveats in Release 12.2(53)SG4:
- When CX1 or SFP+ are plugged into a OneX converter (CVR-X2-SFP10G) in a WS-X4908-10GE, the later requires 1 minute to boot the link.
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
Open Caveats in Cisco IOS Release 12.2(53)SG2
This section lists the open caveats in Cisco IOS Release 12.2(53)SG2:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
<N/A for 4948E, means that this item moves to 54SG Open>
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
<N/A for 4948E, means that this item moves to 54SG Open>
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When CX1 or SFP+ are plugged into a OneX converter (CVR-X2-SFP10G) in a WS-X4908-10GE, the later requires 1 minute to boot the link.
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Workaround: Configure the route map to only match on ACL(s).
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
- A switch may crash while loading BGP routes if the ip cef accounting non-recursive command is already configured.
Workaround: Disable the ip cef accounting non-recursive command.
%AUTHMGR-7-RESULT: Authentication result 'success' from 'dot1x' for client (Unknown MAC) on Interface Gi5/39 AuditSessionID AC156241000000670001BC9.provided the following conditions apply:
–
authentication event server dead action authorize...
authenticaton event server alive action reinitalize
–
The RADIUS server becomes available again, and the IAB-authorized port transitions to another state.
- When a trunk port is configured with a native VLAN other than VLAN 1, REP packets are not sent on that VLAN.
Workaround: Retain the default setting (VLAN 1) for the native VLAN on trunks ports. CSCud05521
Resolved Caveats in Cisco IOS Release 12.2(53)SG2
This section lists the resolved caveats in Release 12.2(53)SG2:
- A 802.1X port enabled for multi-authentication might not begin learning the MAC address of a successfully authenticated phone.
Workaround: Configure the port in multi-domain mode (rather than multi-auth mode) with the authentication host-mode multi-domain command
- When using subsecond timers for protocols like HSRP or OSPF, writing to bootflash causes high CPU, and potentially, protocol flapping.
Workaround: Avoid lengthy bootflash operations, like copying large files in IOS.
- The 4500-E and 4900M switches running IOS Release 12.2(53)SG1 or 12.2(50)SG6 may crash when the only Qos service-policy in a given VLAN is at the VLAN level.
The problem occurs when the following three conditions are met:
–
–
–
–
–
The port level policy-map should appear as follows.
- A PBR policy is not honored on a Supervisor Engine 6 running Cisco IOS Release 12.2(53)SG or 12.2(52)SG. Packets are forwarded through the normal routing table instead of through policy based routing.
This is a side effect of a heavily shared path.
- Upon upgrading to Cisco IOS Releases 12.2(52)SG, 12.2(52)XO, 12.2(53)SG, or 12.2(53)SG1, if the flash device name differs from the default name flash:, you might observe the following message continuously on your console:
Workaround: Rename the flash device to the default name flash:.
- MAC learning does not work with Guest VLAN, Wake-on-LAN, and port security. When these features are enabled simultaneously in an interface, MAC learning does not work; none of the packets are forwarded.
You will need to disableWake-on-LAN on the interface.
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876
- When a PVLAN isolated port is connected to a router serving as a multicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbors.
Workaround: Do one of the following:
–
–
–
Workarounds: Do one of the following:
–
–
- After a .1X port is enabled for Guest VLAN, if you shut down the port connected to the RADIUS server so that the server goes dead and EAPOL packets are sent on that port, it is authorized in the access VLAN although the server is unreachable.
Workaround: Enter shut, then no shut on the port.
- When a switch enabled for explicit host tracking runs IGMPv3, ports that stopped sending IGMPv3 reports are displayed in the IGMPv3 table until a timeout. This behavior didn’t exist in Cisco IOS Release 12.2(50)SG.
Workaround: Disable explicit host tracking in the affected VLANs.
- On a Catalyst 4900M, on each reload or power off/on, the system clock may lose (decrease) up to 59 seconds.
All software releases up to and including Cisco IOS Releases 12.2(31)SGA9, 12.2(50)SG6 and 12,2(53)SG1 are affected.
Workaround: After rebooting the switch, adjust the system clock with the clock set command.
- A switch running Cisco IOS Release 12.2(53)SG displays the message
%C4K_EBM-4-HOSTFLAPPING: happening between master loopback port and the source port during layer3 (IPv4 and IPv6) packets loop using ethernet oam (EOAM)This message is does not impact performance.
- EnergyWise is enabled and you use the energywise level level recurrence importance importance at minute hour day_of_month month day_of_week interface configuration command to configure a recurring event on a switch. After the time changes from daylight savings time to standard time, the switch might
–
–
This occurs when the time change for the next year occurs after the time change for the current year.
Before the time change occurs, use one of these workarounds:
–
–
–
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- If the router has a (*,G) entry for the group, then a fastdrop entry is not created to block the non-RPF packets from hitting the CPU.
Workaround: Create an ACL to block non-RPF packets from entering non-RPF ports.
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When a switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
Open Caveats in Cisco IOS Release 12.2(53)SG1
This section lists the open caveats in Cisco IOS Release 12.2(53)SG1:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a multicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbors.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876IP Router Option may not work with IGMP version 2.
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When the ports connecting a RADIUS server and a client are placed in different VLANs, and you enter the ip radius source-interface command and perform two SSO switchovers, the authenticated session is lost.
Workaround: Re-authenticate the client.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- When an access-list is attached to an interface under extreme hardware resource exhaustion, the ACL may not be automatically loaded into the hardware even if hardware resources later become available.
No TCAM entries are available for the new access-list.
Workaround: Manually remove and reapply the ACL after freeing hardware TCAM resources by removing or shortening other classification policies on the switch.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- After a .1X port is enabled for Guest VLAN, if you shut down the port connected to the RADIUS server so that the server goes dead and EAPOL packets are sent on that port, it is authorized in the access VLAN although the server is unreachable.
Workaround: Enter shut, then no shut on the port.
- When a switch enabled for explicit host tracking runs IGMPv3, ports that stopped sending IGMPv3 reports are displayed in the IGMPv3 table until a timeout. This behavior didn’t exist in Cisco IOS Release 12.2(50)SG.
Workaround: Disable explicit host tracking in the affected VLANs.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- If the router has a (*,G) entry for the group, then a fastdrop entry is not created to block the non-RPF packets from hitting the CPU.
Workaround: Create an ACL to block non-RPF packets from entering non-RPF ports.
- A 802.1X port enabled for multi-authentication might not begin learning the MAC address of a successfully authenticated phone.
Workaround: Configure the port in multi-domain mode (rather than multi-auth mode) with the authentication host-mode multi-domain command
- On a Catalyst 4900M, on each reload or power off/on, the system clock may lose (decrease) up to 59 seconds.
All software releases up to and including Cisco IOS Releases 12.2(31)SGA9, 12.2(50)SG6 and 12,2(53)SG1 are affected.
Workaround: After rebooting the switch, adjust the system clock with the clock set command.
- When you configure switchport block multicast on a switch running
Cisco IOS Release 12.2(53)SG1 or 12.2(50)SG6, Layer 2 multicast is not blocked.Prior to Cisco IOS Release 12.2(53)SG1, 12.2(50)SG6, the switchport block multicast command would block IP Multicast, Layer 2 multicast, and broadcast traffic (CSCta61825).
- When CX1 or SFP+ are plugged into a OneX converter (CVR-X2-SFP10G) in a WS-X4908-10GE, the later requires 1 minute to boot the link.
- A switch running Cisco IOS Release 12.2(53)SG displays the message
%C4K_EBM-4-HOSTFLAPPING: happening between master loopback port and the source port during layer3 (IPv4 and IPv6) packets loop using ethernet oam (EOAM)This message is does not impact performance.
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- When using subsecond timers for protocols like HSRP or OSPF, writing to bootflash causes high CPU, and potentially, protocol flapping.
Workaround: Avoid lengthy bootflash operations, like copying large files in IOS.
- EnergyWise is enabled and you use the energywise level level recurrence importance importance at minute hour day_of_month month day_of_week interface configuration command to configure a recurring event on a switch. After the time changes from daylight savings time to standard time, the switch might
–
–
This occurs when the time change for the next year occurs after the time change for the current year.
Before the time change occurs, use one of these workarounds:
–
–
–
- Upon upgrading to Cisco IOS Releases 12.2(52)SG, 12.2(52)XO, 12.2(53)SG, or 12.2(53)SG1, if the flash device name differs from the default name flash:, you might observe the following message continuously on your console:
Workaround: Rename the flash device to the default name flash:.
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
- A switch may crash while loading BGP routes if the ip cef accounting non-recursive command is already configured.
Workaround: Disable the ip cef accounting non-recursive command.
%AUTHMGR-7-RESULT: Authentication result 'success' from 'dot1x' for client (Unknown MAC) on Interface Gi5/39 AuditSessionID AC156241000000670001BC9.provided the following conditions apply:
–
authentication event server dead action authorize...
authenticaton event server alive action reinitalize
–
The RADIUS server becomes available again, and the IAB-authorized port transitions to another state.
- When a trunk port is configured with a native VLAN other than VLAN 1, REP packets are not sent on that VLAN.
Workaround: Retain the default setting (VLAN 1) for the native VLAN on trunks ports. CSCud05521
Resolved Caveats in Cisco IOS Release 12.2(53)SG1
This section lists the resolved caveats in Release 12.2(53)SG1:
- When you configure switchport block multicast on a port to block unknown multicast traffic, broadcast traffic is also blocked. Therefore, the port will receive neither unknown multicast or broadcast traffic.
All broadcast traffic (such as ARP request and DHCP discovery) are not received by the port. So, protocols that use such broadcasts stop working.
- On a WS-C4900M chassis running Cisco IOS Release 12.2(50)SG1, EIGRP adjacency breaks provided you do either of the following:
–
–
Workaround: Use static neighbors.
- When a service-policy is attached to a port-channel and that service-policy is configured to match CPU generated packets, the classification statistics do not increment for the CPU generated packets.
Workaround: Configure an access-list to permit the CPU generated packets and apply the ACL to the class-map.
- When you edit a policy-map to add a policer configuration, entering either the
do show policy-map interface or do show policy-map control-plane command causes a system reload.Workaround: Enter either the show policy-map interface and show policy-map control-plane commands in Exec mode and not in policy-map config mode.
- If a policy map is applied on an interface and the interface is inactive (i.e. the port is running in 10GE mode instead of twin gig mode), your WS-C4900M might crash with Vector 0xD00 when you enter the show policy-map interface command.
Workaround: Ensure that the port is active before apply the policy-map or entering the
show policy-map command.The command to activate a previously inactive interface is the following:
hw-module module [module number] port-group [group number] select [gigabitethernet]
- When you configure EnergyWise power control on the PoE ports of a a WS-C4900M with a time-based execution schedule, time entry executes without adjusting for daylight savings time.
Workaround: Manually re-enter all entries with new time settings.
- If many ARP entries (47k) exist and you clear the ARP table, the system reloads and the switch crashes with the message:
Downgrade to Cisco IOS Release 12.2(50)SG3 if needed.
- When you configure a large number of ACLs on a Catalyst 4900M switch and enable statistics, the switch might exhibit high CPU utilization.
Certain applications such as IP Source Guard and QoS enable ACL statistics by default. Configuring such features trigger the high CPU.
High CPU usage is observed through the show proc cpu command. The output of
the show platform health command reveals that the process using a high percentage of CPU is "K5AclCamStatsMan hw".This issue can occur in any release after Cisco IOS Release 12.2(40)SG.
This issue is resolved in Cisco IOS Release 12.2(53)SG1 and 12.2(50)SG6.
Workaround: Reduce the size of the ACL, IPSG, and QoS configurations. If statistics are enabled explicitly for ACLs, disable them with the CLI.
If the high CPU is due to ACLs and IPSG, upgrade to the new software.
If the high CPU is due to the QoS configuration, upgrade the IOS image and enter the
no qos statistics classification command.
- If you enable VTP pruning after a switch is moved to VTP version 3, VLAN pruning does not happen on the trunks.
Workaround: Change the VTP version from 3 to version 2 or 1 and then revert to version 3.
- On a switch running Cisco IOS Release 12.2(50)SG or 12.2(52)SG, when an 802.1X port configured with PVLAN community VLAN receives a new PVLAN assignment from the AAA server, resetting the configuration on this interface may cause the switch to reload.
- When the vlan-port state changes on flexlink ports, the following two messages appear on the console:
A syslog warning message "%SM-4-BADEVENT: Event 'forward' is invalid for the current state 'present': pm_vp .."This issue happens only on flexlink ports under the following two scenarios:
–
–
The syslog and Traceback do not impact functionality. Flexlink states end up with correct states and there is no impact on traffic forwarding.
- Per vlan-port error disable features (dhcp-rate-limit and arp-inspection) do not work on flexlink (without VLAN load balancing). When a violation occurs on the Active link, the corresponding vlan-port will not be error disabled.
The existing per-port error disable (that is, when a violation happens, the entire port will be error disabled) still works on flexlink.
Workaround: Use flexlink with VLAN load balancing.
If you do not want to use vlan load balancing, then enter the
switchport backup interface perfer vlan command on the Active interface, where vlan z is set to an unused vlan on the system
- High CPU utilization might be observed on a switch for a prolonged period of time when a large number of packets on a VLAN/SVI are processed by software.
Open Caveats in Cisco IOS Release 12.2(53)SG
This section lists the open caveats in Cisco IOS Release 12.2(53)SG:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a multicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbors.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876IP Router Option may not work with IGMP version 2.
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When the ports connecting a RADIUS server and a client are placed in different VLANs, and you enter the ip radius source-interface command and perform two SSO switchovers, the authenticated session is lost.
Workaround: Re-authenticate the client.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- If you enable VTP pruning after a switch is moved to VTP version 3, VLAN pruning does not happen on the trunks.
Workaround: Change the VTP version from 3 to version 2 or 1 and then revert to version 3.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- When an access-list is attached to an interface under extreme hardware resource exhaustion, the ACL may not be automatically loaded into the hardware even if hardware resources later become available.
No TCAM entries are available for the new access-list.
Workaround: Manually remove and reapply the ACL after freeing hardware TCAM resources by removing or shortening other classification policies on the switch.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On a switch running Cisco IOS Release 12.2(50)SG or 12.2(52)SG, when an 802.1X port configured with PVLAN community VLAN receives a new PVLAN assignment from the AAA server, resetting the configuration on this interface may cause the switch to reload.
- After a .1X port is enabled for Guest VLAN, if you shut down the port connected to the RADIUS server so that the server goes dead and EAPOL packets are sent on that port, it is authorized in the access VLAN although the server is unreachable.
Workaround: Enter shut, then no shut on the port.
- When a switch enabled for explicit host tracking runs IGMPv3, ports that stopped sending IGMPv3 reports are displayed in the IGMPv3 table until a timeout. This behavior didn’t exist in Cisco IOS Release 12.2(50)SG.
Workaround: Disable explicit host tracking in the affected VLANs.
- When you configure EnergyWise power control on PoE ports with a time-based execution schedule, time entry executes without adjusting for daylight savings time.
Workaround: Manually re-enter all entries with new time settings.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
- High CPU utilization might be observed on a switch for a prolonged period of time when a large number of packets on a VLAN/SVI are processed by software.
Workaround: None. Functionality is unaffected.
Assuming that you configured authentication open on the port and a host is authenticated on that port, if you unconfigure open auth (no authentication open), the STP state becomes blocked on an authenticated port.
The connected host is authenticated so it should be able to send traffic and the STP state should be Forwarding.
Workaround: Enter shut, then no shut on the port.
- When the vlan-port state changes on flexlink ports, the following two messages appear on the console:
A syslog warning message "%SM-4-BADEVENT: Event 'forward' is invalid for the current state 'present': pm_vp .."This issue happens only on flexlink ports under the following two scenarios:
–
–
The syslog and Traceback do not impact functionality. Flexlink states end up with correct states and there is no impact on traffic forwarding.
- Per vlan-port error disable features (dhcp-rate-limit and arp-inspection) do not work on flexlink (without VLAN load balancing). When a violation occurs on the Active link, the corresponding vlan-port will not be error disabled.
The existing per-port error disable (that is, when a violation happens, the entire port will be error disabled) still works on flexlink.
Workaround: Use flexlink with VLAN load balancing.
If you do not want to use vlan load balancing, then enter the
switchport backup interface perfer vlan command on the Active interface, where vlan z is set to an unused vlan on the systemThe following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- When using subsecond timers for protocols like HSRP or OSPF, writing to bootflash causes high CPU, and potentially, protocol flapping.
Workaround: Avoid lengthy bootflash operations, like copying large files in IOS.
- EnergyWise is enabled and you use the energywise level level recurrence importance importance at minute hour day_of_month month day_of_week interface configuration command to configure a recurring event on a switch. After the time changes from daylight savings time to standard time, the switch might
–
–
This occurs when the time change for the next year occurs after the time change for the current year.
Before the time change occurs, use one of these workarounds:
–
–
–
- Upon upgrading to Cisco IOS Releases 12.2(52)SG, 12.2(52)XO, 12.2(53)SG, or 12.2(53)SG1, if the flash device name differs from the default name flash:, you might observe the following message continuously on your console:
Workaround: Rename the flash device to the default name flash:.
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
- A switch may crash while loading BGP routes if the ip cef accounting non-recursive command is already configured.
Workaround: Disable the ip cef accounting non-recursive command.
%AUTHMGR-7-RESULT: Authentication result 'success' from 'dot1x' for client (Unknown MAC) on Interface Gi5/39 AuditSessionID AC156241000000670001BC9.provided the following conditions apply:
–
authentication event server dead action authorize...
authenticaton event server alive action reinitalize
–
The RADIUS server becomes available again, and the IAB-authorized port transitions to another state.
- When a trunk port is configured with a native VLAN other than VLAN 1, REP packets are not sent on that VLAN.
Workaround: Retain the default setting (VLAN 1) for the native VLAN on trunks ports. CSCud05521
Resolved Caveats in Cisco IOS Release 12.2(53)SG
This section lists the resolved caveats in Release 12.2(53)SG:
- On a Catalyst 4900M switch running Cisco IOS Release 12.2(46)SG, if you configure RSPAN, the CPU utilization will be high. This problem can occur when capturing traffic.
- When two Catalyst 4900M switches are attached to an optical ring and an optical switchover is performed on the ring to choose a different path, CRC Align Errors and Sequence Errors might be observed when you issue an end to end ping after the switchover. The ping success rate is between 90 and 100 per cent. The interface errors can occur with data traffic as well.
This issue is seen with the Ten-Gigabit ports of a Catalyst 4900M base board but not with the Ten-Gigabit ports of a WS-X4908-10GE line card.
Workaround: Enter shut, then no shut.
Sometimes you need to do this multiple times before the issue is resolved.
- Entering shut/no shut on the port after configuring port-security vp err disable and a violation occurs.
–
–
–
Workaround: Reapply the identity policy on the interface with the permit icmp command. (CSCsu03507
- When two WS-C4900M chassis are attached to an optical ring and an optical switchover is performed to choose a different path, you might see CRC Align Errors and Sequence Errors after performing an end to end ping. The ping success rate ranges from 90% to 100%.
The errors can also occur with data traffic.
This issue is seen with the TenGigabit ports of the Catalyst 4900M base board. It is not seen with the TenGigabit ports of a WS-X4908-10GE line card.
The issue is seen with release 12.2(44)XO and later releases.
Workaround: Enter shut, then no shut.
You may need to do this multiple times until the issue is resolved.
- When port-security is configured on normal trunks carrying primary and secondary private VLANs, its configuration can be erased from the running-config under the following circumstances:
Entering shut/no shut on the port after deleting a secondary VLAN.
–
–
Open Caveats in Cisco IOS Release 12.2(52)SG
This section lists the open caveats in Cisco IOS Release 12.2(52)SG:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a multicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbors.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876IP Router Option may not work with IGMP version 2.
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When two WS-C4900M chassis are attached to an optical ring and an optical switchover is performed to choose a different path, you might see CRC Align Errors and Sequence Errors after performing an end to end ping. The ping success rate ranges from 90% to 100%.
The errors can also occur with data traffic.
This issue is seen with the TenGigabit ports of the Catalyst 4900M base board. It is not seen with the TenGigabit ports of a WS-X4908-10GE line card.
The issue is seen with release 12.2(44)XO and later releases.
Workaround: Enter shut, then no shut.
You may need to do this multiple times until the issue is resolved.
- When multiple streams of CRC errors are encountered on WS-C4900M configured with OAM Configuration of monitoring the frame errored seconds, OAM does not always report the value of errored frame seconds correctly.
To observe this issue, the following CLIs are configured with window size as the period for monitoring the errors and a low threshold equal to the number of CRC errored seconds seen/expected.
Workaround: Configure a lower value of low threshold such that the frame errors are seen divided into the expected number of frame errored seconds.
- When two Catalyst 4900M switches are attached to an optical ring and you perform an optical switchover to choose a different path, you might observe CRC Align Errors and Sequence after performing an end to end ping. The ping success rate ranges from 90% to 100%. The interface errors can also occur with data traffic.
This issue is seen with the TenGigabit ports of a Catalyst 4900M base board. It is not seen with the TenGigabit ports of a WS-X4908-10GE line card.
Workaround: Enter the commands shut then no shut.
Occasionally, you need to re-enter the commands.
- When .1X with MDA is set in host mode and guest VLAN is enabled, when you pump traffic from a traffic generator at a high rate, a Security violation is wrongly flagged.
- When you enter the show adjacency x.x.x.x internal command for an adjacency, the packet counters are increment correctly but the byte counters remain 0.
- On a redundant switch running Cisco IOS Release 12.2(52)SG, after a ports is authorized through 802.1X, the show dot1x interface statistics command may display empty values on the standby supervisor engine.
The statistics are displayed properly on the active supervisor.
- When the ports connecting a RADIUS server and a client are placed in different VLANs, and you enter the ip radius source-interface command and perform two SSO switchovers, the authenticated session is lost.
Workaround: Re-authenticate the client.
- When multiple streams of CRC errors are encountered on a WS-C4900M chassis configured with OAM monitoring of frame errored seconds, OAM does not report the value of errored frame seconds correctly if you configure the following CLIs:
Workaround: Configure a lower value for the low threshold so that the frame errors are seen divided into the expected number of frame errored seconds.
- If you enable VTP pruning after a switch is moved to VTP version 3, VLAN pruning does not happen on the trunks.
Workaround: Change the VTP version from 3 to version 2 or 1 and then revert to version 3.
- When you request an on demand Call Home message send without specifying a profile name & the specified module returns an unknown diagnostic result, the following error message displays:
*Jan 3 01:54:24.471: %CALL_HOME-3-ONDEMAND_MESSAGE_FAILED: call-home on-demand message failed to send (ERR 18, The alert group is not subscribed)Workaround: Specify a profile name when you enter the diagnostic command.
You might want to avoid requesting on demand send for invalid modules. First, enter the
show module command to check for valid or present modules.
- When an access-list is attached to an interface under extreme hardware resource exhaustion, the ACL may not be automatically loaded into the hardware even if hardware resources later become available.
No TCAM entries are available for the new access-list.
Workaround: Manually remove and reapply the ACL after freeing hardware TCAM resources by removing or shortening other classification policies on the switch.
- If you simultaneously apply a service-policy to a port in the output direction and a service-policy to a vlan-range under that port in the output direction, the class-map hit counters in the output of the
show policy-map interface command are wrong.The queue transmit counters as well as the policing statistics (if any) are correct.
- On a switch running Cisco IOS Release 12.2(50)SG or 12.2(52)SG, when an 802.1X port configured with PVLAN community VLAN receives a new PVLAN assignment from the AAA server, resetting the configuration on this interface may cause the switch to reload.
- After a .1X port is enabled for Guest VLAN, if you shut down the port connected to the RADIUS server so that the server goes dead and EAPOL packets are sent on that port, it is authorized in the access VLAN although the server is unreachable.
Workaround: Enter shut, then no shut on the port.
- When a switch enabled for explicit host tracking runs IGMPv3, ports that stopped sending IGMPv3 reports are displayed in the IGMPv3 table until a timeout. This behavior didn’t exist in Cisco IOS Release 12.2(50)SG.
Workaround: Disable explicit host tracking in the affected VLANs.
- When you configure EnergyWise power control on PoE ports with a time-based execution schedule, time entry executes without adjusting for daylight savings time.
Workaround: Manually re-enter all entries with new time settings.
- On wireless control system (WCS), some device information is incorrectly displayed for PCs sitting behind an lldp-med capable phone. Specifically, WCS displays the phone's serial number, model number, and software version in the PC's device information. All other information about the PC is correctly displayed on WCS.
This only happens when the switch is running network mobility service protocol (nmsp). It does not happen if the phone is CDP enabled.
Workaround: Use VLAN ID or name to differentiate the IP phone and the PC sitting behind the phone on the WCS. Specifically, the IP phone is detected on the voice VLAN, and the displayed information of serial number, model number, and software version is correct. However, a PC sitting behind the phone is detected on a data VLAN, and the displayed device information is wrong and should be ignored.
- When port-security is configured on normal trunks carrying primary and secondary private VLANs, its configuration can be erased from the running-config under the following circumstances:
Entering shut/no shut on the port after deleting a secondary VLAN. (CSCsz73895)
–
–
Entering shut/no shut on the port after configuring port-security vp err disable and a violation occurs. (CSCsz80415)
–
–
–
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- When using subsecond timers for protocols like HSRP or OSPF, writing to bootflash causes high CPU, and potentially, protocol flapping.
Workaround: Avoid lengthy bootflash operations, like copying large files in IOS.
- EnergyWise is enabled and you use the energywise level level recurrence importance importance at minute hour day_of_month month day_of_week interface configuration command to configure a recurring event on a switch. After the time changes from daylight savings time to standard time, the switch might
–
–
This occurs when the time change for the next year occurs after the time change for the current year.
Before the time change occurs, use one of these workarounds:
–
–
–
- Upon upgrading to Cisco IOS Releases 12.2(52)SG, 12.2(52)XO, 12.2(53)SG, or 12.2(53)SG1, if the flash device name differs from the default name flash:, you might observe the following message continuously on your console:
Workaround: Rename the flash device to the default name flash:.
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Resolved Caveats in Cisco IOS Release 12.2(52)SG
This section lists the resolved caveats in Release 12.2(52)SG:
- Under control place policing, control plane classes (the classes that are auto created by the
macro global apply system-cpp command and use predefined ACLs to match traffic) increment both their packet and byte count. So, both counters are non-zero.In contrast, data plane classes (the classes that are configured manually by user written ACLs), the byte counter increments as expected, but the packet count remains 0.
- On a Catalyst 4500, if an isolated private VLAN trunk interface flaps, the ingress and egress per-port per-vlan service policies are no longer applied on the port.
This impacts Cisco IOS Releases 12.2(31)SGA08, 12.2(37)SG, 12.2(40)SG, 12.2(44)SG, 12.2(46)SG, 12.2(50)SG, and 12.2(50)SG1.
For a Classic Series Supervisor Engine, disable and configure QoS on the port.
For example, to configure Gig 2/1 as an isolated private VLAN trunk port, do the following:
You can configure the following EEM script to automate this workaround. QoS will be disabled and re-enabled whenever a port flaps.
- When you run an SNMP (getmany) query on cbQosPoliceStatsTable and cbQosREDClassStatsTable with a single SSH window (session), CPU utilization achives 99 per cent. If you query cbQosPoliceStatsTable and cbQosREDClassStatsTable from 18 SSH sessions, a CPU-HOG error message displays.
Workaround: None, other than stopping the query.
- On a supervisor engine running Cisco IOS Release 12.2(50)SG or later releases with one or more ports configured for single-host mode, MAB, and authentication control-direction in, hosts are not authenticated through MAB when a port is configured for single-host mode and you enter the unidirectional control in command (Wake-on-LAN).
Workaround: Disable the authentication control-direction in command.
If you require authentication control-direction in, configure the port for multi-authentication or Multi-Domain Authentication (MDA).
- On a redundant switch running Cisco IOS Releases 12.2(50)SG or 12.2(50)SG1 where
802.1X VVID and port security are configured on a port, CDP MAC from the non 802.1X capable Cisco IP phone might not be added to the port security table on the standby supervisor engine.This problem is fixed in Cisco IOS Releases 12.2(50)SG2 and 12.2(52)SG.
- On a switch running Cisco IOS Release 12.2(50)SG or 12.2(50)SG1 where 802.1X VVID and port security are configured on a port, inserting a non 802.1X capable Cisco IP phone with LLDP capability and a PC behind it may trigger a security violation.
Workaround: Turn off LLDP (on the switch) and the phone (from Call Manager).
This problem is fixed in 12.2(50)SG2 and 12.2(52)SG.
The key pieces of data are "VECTOR 0" and a MCSR value of 40000000, 20000000, or 10000000.
Workaround: Enter the show platform cpu cache command to launch an IOS algorithm that detects and recovers from parity errors in the CPU's cache. You will obtain a running count of the number of CPU cache parity errors that have been successfully detected and corrected on a running system:
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name (device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
- An Unhandled Rommon Exception occurs while booting a WS-X4013+10GE for Cisco IOS Releases 12.2(31)SGA8, 12.2(31)SGA9, 12.2(46)SG, 12.2(46)SG1, 12.2(50)SG, 12.2(50)SG1.
Workaround: Upgrade to ROMMON version 1.2(31r)SGA4.
- On a switch running Cisco IOS Release12.2(50)SG, supplicants authorized on PVLAN in multi-auth host mode are not moved to an Unauthorized state when the PVLAN is removed.
This problem occurs only when a port is configured with PVLAN and 802.1X multi-auth.
Workaround: Shut down then reopen the interface. (CSCsr58573)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- A router may crash when a privilege-level 15 user logs on with the callback or callback-dialstring attribute.
'This problem is seen on all Catalyst 4500 or 4900 chassis running Cisco IOS Release 12.2.(50)SG. The problem occurs when the following conditions are present:
–
–
–
Workarounds: Do not configure the callback or callback-dialstring attribute for the user. If you use the callback-dialstring attribute in the TACACS+ profile, ensure that the NULL value is not configured. (CSCei62358)
- When you attempt an ISSU upgrade or downgrade between Cisco IOS Release 12.2(50)SG and 12.2(44)SG or 12.2(46)SG, the switch displays a traceback.
Workaround: None. (CSCsw32519)
- Entering the channel-group x mode or channel-protocol followed by lacp or pagp command on an fa1 management interface causes the active supervisor engine to reload.
Port-channel functionality is not supported on the management interface.
This is a configuration error.
Workaround: None. (CSCsv91302)
- On classic series supervisors and Supervisor Engine 6-E running Cisco IOS Release 12.2(50)SG and later releases, egress traffic is not allowed on ports configured for Wake-on-LAN (through the authentication control-direction in command) and Multi-domain Authentication (MDA) (through the authentication host-mode multi-domain command) before the port is authorized.
- An Unhandled Rommon Exception occurs while booting a WS-X4013+10GE for Cisco IOS Releases 12.2(31)SGA8, 12.2(31)SGA9, 12.2(46)SG, 12.2(46)SG1, 12.2(50)SG, 12.2(50)SG1.
Workaround: Upgrade to ROMMON version 1.2(31r)SGA4.
Workaround: Reapply the identity policy on the interface with the permit icmp command. (CSCsu03507
This issue may occur on switches with Supervisor 6(L)-E and 4900M running Cisco IOS Releases 12.2(40)SG, 12.2(44)SG, 12.2(46)SG, 12.2(50)SG-SG5. This issue does not affect switches with Supervisor V-10GE.
Resolved in 12.2(52)SG and beyond and 12.2(50)SG6 and beyond.
- Attempting to use the nested policy-map feature on Supervisor Engine 6-E or 6L-E can cause the switch to reboot.
This issue may occur on switches running Cisco IOS Releases 12.2(40)SG, 12.2(44)SG, 12.2(46)SG, 12.2(50)SG-SG5. This issue does not affect switches with Supervisor V-10GE.
This issue is resolved in 12.2(52)SG (and later) and12.2(50)SG6 (and later) releases.
Workaround: Do not use the nested policy-map feature in Cisco IOS Release 12.2(40)SG and 12.2(44)SG. (CSCsy80664)
- On a switch running Cisco IOS 12.2(52)SG, when a port configured with 802.1X enters per vp errdisable mode because of a violation triggered by port security, DAI, DHCP snooping, or BPDU guard, the port’s 802.1X sessions are not cleared despite the linkdown.
Do not configure 802.1X with other per vp errdisable features.
Open Caveats in Cisco IOS Release 12.2(50)SG8
This section lists the open caveats in Cisco IOS Release 12.2(50)SG8:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name (device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Resolved Caveats in Cisco IOS Release 12.2(50)SG8
This section lists the resolved caveats in Release 12.2(50)SG8:
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- On Cisco IOS Releases 12.2(50)SG7 and 12.2(50)SG6, if you reload a local switch (Catalyst 4900M or Supervisor Engine 6-E) with [speed] full/[duplex] full configuration on interface Fa1, the link on both sides will be down after bootup.
Workaround: Unconfigure 100/Full, execute shut/no shut, then reconfigure 100/Full on the local switch.
Open Caveats in Cisco IOS Release 12.2(50)SG7
This section lists the open caveats in Cisco IOS Release 12.2(50)SG7:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name (device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
- On Cisco IOS Releases 12.2(50)SG7 and 12.2(50)SG6, if you reload a local switch (Catalyst 4900M or Supervisor Engine 6-E) with [speed] full/[duplex] full configuration on interface Fa1, the link on both sides will be down after bootup.
Workaround: Unconfigure 100/Full, execute shut/no shut, then reconfigure 100/Full on the local switch.
Resolved Caveats in Cisco IOS Release 12.2(50)SG7
This section lists the resolved caveats in Release 12.2(50)SG7:
- The 4500-E and 4900M switches running IOS Release 12.2(53)SG1 or 12.2(50)SG6 may crash when the only Qos service-policy in a given VLAN is at the VLAN level.
The problem occurs when the following three conditions are met:
–
–
–
–
–
The port level policy-map should appear as follows.
- A PBR policy is not honored on a Supervisor Engine 6 running Cisco IOS Release 12.2(53)SG or 12.2(52)SG. Packets are forwarded through the normal routing table instead of through policy based routing.
This is a side effect of a heavily shared path.
- In Cisco IOS Releases 12.2(50)SG, 12.2(52)SG and 12.2(53)SG, some GBICs may be deemed incompatible after you upgrade to 12.2(50)SG. The following message may be displayed:
Workarounds: Do one of the following
–
–
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- On PVLAN trunk ports, learned MAC addresses age out unconditionally, resulting in flooding not only at the initial phase of frame delivery, but periodically at every MAC age interval. This behavior makes use of the switchport block unicast command risky, because it prevents communication.
Workaround: None. However, you cannot enter the switchport block unicast command on PVLAN trunk ports.
- When port security is configured or have a static MAC address on an isolated trunk port, the adjacencies for the port are resolved on the primary VLAN rather than on the secondary VLAN.
- When a PVLAN isolated port is connected to a router serving as a multicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbors.
Workaround: Do one of the following:
–
–
–
Workarounds: Do one of the following:
–
–
- On a Catalyst 4900 series switch running Cisco IOS Release 12.2(46)SG and later versions, if you enter the clear port-security dynamic interface fastethernet1 command, the switch reloads.
Do not enter this command if port security is not configured on the interface.
Open Caveats in Cisco IOS Release 12.2(50)SG6
This section lists the open caveats in Cisco IOS Release 12.2(50)SG6:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name (device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a multicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbors.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- On a Catalyst 4900 series switch running Cisco IOS Release 12.2(46)SG and later versions, if you enter the clear port-security dynamic interface fastethernet1 command, the switch reloads.
Do not enter this command if port security is not configured on the interface.
Do not enter this command on fa1.
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- On PVLAN trunk ports, learned MAC addresses age out unconditionally, resulting in flooding not only at the initial phase of frame delivery, but periodically at every MAC age interval. This behavior makes use of the switchport block unicast command risky, because it prevents communication.
Workaround: None. However, you cannot enter the switchport block unicast command on PVLAN trunk ports.
- When port security is configured or have a static MAC address on an isolated trunk port, the adjacencies for the port are resolved on the primary VLAN rather than on the secondary VLAN.
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
- If time is not specified in the link debounce command, the default value depends on the supervisor engine. The default is 10 mS for C4900M, Supervisor Engine 6-E, and Supervisor Engine 6L-E. The default is 100 mS for all other supervisor engines.
Despite the different default value, you can configure any value in the time range.
Resolved Caveats in Cisco IOS Release 12.2(50)SG6
This section lists the resolved caveats in Release 12.2(50)SG6:
- When you run Supervisor Engine 6 with a large number of Layer 3 routes in the system, high CPU utilization may occur when minimal persistent ARP activity exists.
The show processes cpu command indicates that Cat4k Mgmt LoPri consumes a significant amount of CPU. The show platform health command indicates that K5L3FlcMan FwdEntry, K5L3Unciast IFE Review, and K5L3UnicastRpf IFE Review processes are running above their target utilization.
Note that large amounts of incomplete ARP entries may result from a scanning device or virus.
–
–
- When you configure a large number of ACLs on a Supervisor 6-E/6L-E and enable statistics, the switch might exhibit high CPU utilization.
Certain applications such as IP Source Guard and QoS enable ACL statistics by default. Configuring such features trigger the high CPU.
High CPU usage is observed through the show proc cpu command. The output of
the show platform health command reveals that the process using a high percentage of CPU is "K5AclCamStatsMan hw".This issue can occur in any release after Cisco IOS Release 12.2(40)SG.
This issue is resolved in Cisco IOS Release 12.2(53)SG1 and 12.2(50)SG6.
Workaround: Reduce the size of the ACL, IPSG, and QoS configurations. If statistics are enabled explicitly for ACLs, disable them with the CLI.
If the high CPU is due to ACLs and IPSG, upgrade to the new software.
If the high CPU is due to the QoS configuration, upgrade the IOS image and enter the
no qos statistics classification command.
- If many ARP entries (47k) exist and you clear the ARP table, the system reloads and the switch crashes with the message:
Downgrade to Cisco IOS Release 12.2(50)SG3 if needed.
- When using subsecond timers for protocols like HSRP or OSPF, writing to bootflash causes high CPU, and potentially, protocol flapping.
Workaround: Avoid lengthy bootflash operations, like copying large files in IOS.
- ARP entries learned on PVLAN SVIs are not aged out even if the no ip sticky arp command is configured globally.
ARP entries learned on normal SVIs are unaffected.
Workaround: Clear these ARP entries with the clear ip arp command.
- When port security and ARP inspection are configured together, the first ARP packet from a host, which is connected to the switch, could bypass the ARP inspection and be bridged out mistakenly.
Workaround: Disable port security.
- When you exit policy-map configuration mode without making changes to a policy-map on a switch configured with a service-policy for QoS, configuring an output service policy on an EtherChannel interface causes a link flap.
Workarounds: Configure identical policy-maps with different names so that each EtherChannel has its own policy. This action restricts the effect of this link flap to a limited number of EtherChannels.
- When a service-policy is attached to a port-channel and that service-policy is configured to match CPU generated packets, the classification statistics do not increment for the CPU generated packets.
Workaround: Configure an access-list to permit the CPU generated packets and apply the ACL to the class-map.
- High CPU utilization might be observed on a switch for a prolonged period of time when a large number of packets on a VLAN/SVI are processed by software.
Open Caveats in Cisco IOS Release 12.2(50)SG5
This section lists the open caveats in Cisco IOS Release 12.2(50)SG5:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name (device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a multicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbors.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- On a Catalyst 4900 series switch running Cisco IOS Release 12.2(46)SG and later versions, if you enter the clear port-security dynamic interface fastethernet1 command, the switch reloads.
Do not enter this command if port security is not configured on the interface.
Do not enter this command on fa1.
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
Resolved Caveats in Cisco IOS Release 12.2(50)SG5
This section lists the resolved caveats in Release 12.2(50)SG5:
This caveat occurs when a register value is corrupted and you subsequently enable a Layer 3 feature.
Open Caveats in Cisco IOS Release 12.2(50)SG4
This section lists the open caveats in Cisco IOS Release 12.2(50)SG4:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name (device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a multicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbors.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: None. (CSCsv42869)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- On a Catalyst 4900 series switch running Cisco IOS Release 12.2(46)SG and later versions, if you enter the clear port-security dynamic interface fastethernet1 command, the switch reloads.
Do not enter this command if port security is not configured on the interface.
Do not enter this command on fa1.
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
Resolved Caveats in Cisco IOS Release 12.2(50)SG4
This section lists the resolved caveats in Release 12.2(50)SG4:
- A router may crash when a privilege-level 15 user logs on with the callback or callback-dialstring attribute.
'This problem is seen on all Catalyst 4500 or 4900 chassis running Cisco IOS Release 12.2.(50)SG. The problem occurs when the following conditions are present:
–
–
–
Workarounds: Do not configure the callback or callback-dialstring attribute for the user. If you use the callback-dialstring attribute in the TACACS+ profile, ensure that the NULL value is not configured. (CSCei62358)
- On a switch running Cisco IOS Release12.2(50)SG, supplicants authorized on PVLAN in multi-auth host mode are not moved to an Unauthorized state when the PVLAN is removed.
This problem occurs only when a port is configured with PVLAN and 802.1X multi-auth.
Workaround: Shut down then reopen the interface. (CSCsr58573)
Workaround: Reapply the identity policy on the interface with the permit icmp command. (CSCsu03507
They imply no impact to performance.
Workaround: None. (CSCsv17545)
- Entering the channel-group x mode or channel-protocol followed by lacp or pagp command on an fa1 management interface causes the active supervisor engine to reload.
Port-channel functionality is not supported on the management interface.
This is a configuration error.
Workaround: None. (CSCsv91302)
- When you attempt an ISSU upgrade or downgrade between Cisco IOS Release 12.2(50)SG and 12.2(44)SG or 12.2(46)SG, the switch displays a traceback.
Workaround: None. (CSCsw32519)
- On classic series supervisors and Supervisor Engine 6-E running Cisco IOS Release 12.2(50)SG and later releases, egress traffic is not allowed on ports configured for Wake-on-LAN (through the authentication control-direction in command) and Multi-domain Authentication (MDA) (through the authentication host-mode multi-domain command) before the port is authorized.
- On a Catalyst 4900M switch, when you use a WS-X4908-10GE card with CVR-X2-SFP twin gig converters, the giga ports do not link up to the peer device that sends a remote fault. The
show int status | inc gi x/y command indicates notconnect.Similar behavior is observed with Supervisor Engine 6-E uplinks and the WS-X4706-10GE line card.
This behavior is seen in Cisco IOS Releases 12.2(50)SG thru 12.2(50)SG3 when the peer device sends a remote fault.
Open Caveats in Cisco IOS Release 12.2(50)SG3
This section lists the open caveats in Cisco IOS Release 12.2(50)SG3:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds: Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name (device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFP+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+, SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
Workaround: Reapply the identity policy on the interface with the permit icmp command. (CSCsu03507
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configured with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- On a switch running Cisco IOS Release12.2(50)SG, supplicants authorized on PVLAN in multi-auth host mode are not moved to an Unauthorized state when the PVLAN is removed.
This problem occurs only when a port is configured with PVLAN and 802.1X multi-auth.
Workaround: Shut down then reopen the interface. (CSCsr58573)
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed, do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a multicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbors.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: None. (CSCsv42869)
- A router may crash when a privilege-level 15 user logs on with the callback or callback-dialstring attribute.
'This problem is seen on all Catalyst 4500 or 4900 chassis running Cisco IOS Release 12.2.(50)SG. The problem occurs when the following conditions are present:
–
–
–
Workarounds: Do not configure the callback or callback-dialstring attribute for the user. If you use the callback-dialstring attribute in the TACACS+ profile, ensure that the NULL value is not configured. (CSCei62358)
- When you attempt an ISSU upgrade or downgrade between Cisco IOS Release 12.2(50)SG and 12.2(44)SG or 12.2(46)SG, the switch displays a traceback.
Workaround: None. (CSCsw32519)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- Entering the channel-group x mode or channel-protocol followed by lacp or pagp command on an fa1 management interface causes the active supervisor engine to reload.
Port-channel functionality is not supported on the management interface.
This is a configuration error.
Workaround: None. (CSCsv91302)
They imply no impact to performance.
Workaround: None. (CSCsv17545)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- On classic series supervisors and Supervisor Engine 6-E running Cisco IOS Release 12.2(50)SG and later releases, egress traffic is not allowed on ports configured for Wake-on-LAN (through the authentication control-direction in command) and Multi-domain Authentication (MDA) (through the authentication host-mode multi-domain command) before the port is authorized.
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- On a Catalyst 4900M switch, when you use a WS-X4908-10GE card with CVR-X2-SFP twin gig converters, the giga ports do not link up to the peer device that sends a remote fault. The
show int status | inc gi x/y command indicates notconnect.Similar behavior is observed with Supervisor Engine 6-E uplinks and the WS-X4706-10GE line card.
This behavior is seen in Cisco IOS Releases 12.2(50)SG thru 12.2(50)SG3 when the peer device sends a remote fault.
Workaround: Disable auto negotiation at both ends.
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
Resolved Caveats in Cisco IOS Release 12.2(50)SG3
This section lists the resolved caveats in Release 12.2(50)SG3:
- A Catalyst 4900M switch might crash if you insert/remove a TwinGig converter or boot it with installed TwinGig converters.
TwinGig converters are only supported on E-series supervisors and line cards. This bug does not affect systems without installed converters.
Once the switch has booted successfully and has detected all installed TwinGig converters, it is unlikely to crash unless you insert a converter. CSCsz49331
Open Caveats in Cisco IOS Release 12.2(50)SG2
This section lists the open caveats in Cisco IOS Release 12.2(50)SG2:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds:Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name(device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFp+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+ , SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
Workaround: Reapply the identity policy on the interface with the permit icmp command. (CSCsu03507
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configurd with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- On a switch running Cisco IOS Release12.2(50)SG, supplicants authorized on PVLAN in multi-auth host mode are not moved to an Uauthorized state when the PVLAN is removed.
This problem occurs only when a port is configured with PVLAN and 802.1X multi-auth.
Workaround: Shut down then reopen the interface. (CSCsr58573)
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed , do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a mutlicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbours.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: None. (CSCsv42869)
- A router may crash when a privilege-level 15 user logs on with the callback or callback-dialstring attribute.
'This problem is seen on all Catalyst 4500 or 4900 chassis running CiscoIOS Release 12.2.(50)SG. The problem occurs when the following conditions are present:
–
–
–
Workarounds: Do not configure the callback or callback-dialstring attribute for the user. If you use the callback-dialstring attribute in the TACACS+ profile, ensure that the NULL value is not configured. (CSCei62358)
- When you attempt an ISSU upgrade or downgrade between Cisco IOS Release 12.2(50)SG and 12.2(44)SG or 12.2(46)SG, the switch displays a traceback.
Workaround: None. (CSCsw32519)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- Entering the channel-group x mode or channel-protocol followed by lacp or pagp command on an fa1 management interface causes the active supervisor engine to reload.
Port-channel functionality is not supported on the management interface.
This is a configuration error.
Workaround: None. (CSCsv91302)
They imply no impact to performance.
Workaround: None. (CSCsv17545)
- The host's MAC address is not synchronized to the standby supervisor engine after you unconfigure 802.1X on the port and reconnect the host to a IP phone (with CDP port status TLV support) that is connected to the switch.
If the switch were to run a supervisor switchover while in this state, the host's MAC address would not be present in the new active supervisor engine’s MAC address table, causing possible connectivity interruption on the host.
Workaround: Enter the shutdown command, followed by the no shutdown command on the interface. This triggers relearning and synchronizing of the host's MAC to the standby supervisor engine. CSCsw91661
- On classic series supervisors and Supervisor Engine 6-E running Cisco IOS Release 12.2(50)SG and later releases, egress traffic is not allowed on ports configured for Wake-on-LAN (through the authentication control-direction in command) and Multi-domain Authentication (MDA) (through the authentication host-mode multi-domain command) before the port is authorized.
- Class-map hit counters do not increment on the egress policy-map when it is attached to the primary VLAN on a PVLAN trunk ports. However, the traffic is properly classified and the actions configured in the policy are applied properly.
- On a Catalyst 4900M switch, when you use a WS-X4908-10GE card with CVR-X2-SFP twin gig converters, the giga ports do not link up to the peer device that sends a remote fault. The
show int status | inc gi x/y command indicates notconnect.Similar behavior is observed with Supervisor Engine 6-E uplinks and the WS-X4706-10GE line card.
This behavior is seen in Cisco IOS Releases 12.2(50)SG thru 12.2(50)SG3 when the peer device sends a remote fault.
Workaround: Disable auto negotiation at both ends.
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
Resolved Caveats in Cisco IOS Release 12.2(50)SG2
This section lists the resolved caveats in Release 12.2(50)SG2:
- Packets for traffic destined to SNAP host might be dropped if the ARP table indicates that the MAC entry is SNAP.
1. Configure a static ARPA entry for host.
2. Upgrade to a future IOS release containing the fix.
- On a Catalyst 4500 switch running 12.2(50)SG or 12.2(50)SG1, when 802.1X VVID and port security are configured together on a switch port, inserting a non 802.1x capable Cisco IP phone with a PC behind it may trigger a security violation.
- On a Catalyst 4500 series switch, if an isolated private VLAN trunk interface flaps, the ingress per-port per-vlan policer is no longer applied on the port.
Affected Cisco IOS releases include 12.2(31)SGA08, 12.2(37)SG, 12.2(40)SG, 12.2(46)SG, and 12.2(50)SG.
Workaround: Disable and configure QoS, as follows:
- On a Catalyst 4500 redundant switch running Cisco IOS Release 12.2(50)SG or 12.2(50)SG1, when 802.1X VVID and port security are configured together on a switch port, the CDP MAC from the non 802.1X capable Cisco IP phone may not be added to the port security table on the standby supervisor engine.
- Hosts are not authenticated through MAB when you configure a port for single-host mode (with the authentication host-mode single-host command) and Wake-on-LAN (with the
authentication control-direction in command).Workarounds: Disable Wake-on-LAN with the no authentication control-direction in command.
- On a Catalyst 4500 series switch running Cisco IOS Release 12.2(50)SG or 12.2(50)SG1, when you configure both 802.1X VVID and port security together on a switch port, then insert a non-802.1X capable Cisco IP phone with LLDP capability and a PC behind it, you might trigger a security violation. The violation is triggered when the PC behind the phone gets authorized on the port before the IP phone sends LLDP packet.
Workaround: Turn off LLDP on the switch and Cisco IP phone from Call Manager.
Open Caveats in Cisco IOS Release 12.2(50)SG1
This section lists the open caveats in Cisco IOS Release 12.2(50)SG1:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds:Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name(device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFp+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+ , SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
Workaround: Reapply the identity policy on the interface with the permit icmp command. (CSCsu03507
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configurd with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- On a switch running Cisco IOS Release12.2(50)SG, supplicants authorized on PVLAN in multi-auth host mode are not moved to an Uauthorized state when the PVLAN is removed.
This problem occurs only when a port is configured with PVLAN and 802.1X multi-auth.
Workaround: Shut down then reopen the interface. (CSCsr58573)
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed , do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a mutlicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbours.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: None. (CSCsv42869)
- A router may crash when a privilege-level 15 user logs on with the callback or callback-dialstring attribute.
'This problem is seen on all Catalyst 4500 or 4900 chassis running CiscoIOS Release 12.2.(50)SG. The problem occurs when the following conditions are present:
–
–
–
Workarounds: Do not configure the callback or callback-dialstring attribute for the user. If you use the callback-dialstring attribute in the TACACS+ profile, ensure that the NULL value is not configured. (CSCei62358)
- When you attempt an ISSU upgrade or downgrade between Cisco IOS Release 12.2(50)SG and 12.2(44)SG or 12.2(46)SG, the switch displays a traceback.
Workaround: None. (CSCsw32519)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- Entering the channel-group x mode or channel-protocol followed by lacp or pagp command on an fa1 management interface causes the active supervisor engine to reload.
Port-channel functionality is not supported on the management interface.
This is a configuration error.
Workaround: None. (CSCsv91302)
- On a Catalyst 4900M switch, when you use a WS-X4908-10GE card with CVR-X2-SFP twin gig converters, the giga ports do not link up to the peer device that sends a remote fault. The
show int status | inc gi x/y command indicates notconnect.Similar behavior is observed with Supervisor Engine 6-E uplinks and the WS-X4706-10GE line card.
This behavior is seen in Cisco IOS Releases 12.2(50)SG thru 12.2(50)SG3 when the peer device sends a remote fault.
Workaround: Disable auto negotiation at both ends.
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
Resolved Caveats in Cisco IOS Release 12.2(50)SG1
This section lists the resolved caveats in Release 12.2(50)SG1:
- When port security is configured on a port connected to a host via an IP phone and the host is disconnected, the host's MAC address is not removed from the port security MAC address table even if the IP phone and switch support the CDP 2nd port disconnect TLV feature.
Workaround:To remove the host's MAC address from the port security MAC address table, unconfigure and reconfigure port security on the port. (CSCsr74097)
Open Caveats in Cisco IOS Release 12.2(50)SG
This section lists the open caveats in Cisco IOS Release 12.2(50)SG:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds:Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name(device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
- When you configure ip source binding statically on an interface, and then remove linecard on which the interface resides, the entries are not removed from the running config.
Workaround: Before removing a linecard, delete the statically configured ip source binding entries on any of the interfaces on the line-card. (CSCsv54529)
- If you configure OFM on an Etherchannel (with at least two interfaces), when you shut or remove the first member that joined the channel, the CFM neighbor is lost.
Workaround: Clear the errors with the clear ethernet cfm errors command in EXEC mode. (CSCsv43819)
- Duplicate serial number error messages are reported on switching One X Convertor with SFP+, SFP+, X2 to another port, the inserted port enters a faulty status.
This problem impacts X2, OneX converters, and SFp+ on the Supervisor Engine 6-E, and linecards.
Workaround: Remove and reinsert the One X Convertor with SFP+ , SFP+ alone, or X2 after some perceivable delay. (CSCsu43461)
Workaround: Reapply the identity policy on the interface with the permit icmp command. (CSCsu03507
- On a Catalyst 4500 switch running 12.2(50)SG, when the access VLAN is deleted and then restored on a port configurd with 802.1x multi-auth, authorized 802.1X clients cannot pass traffic because the spanning tree remains in a Disabled state after the access VLAN is restored.
This problem occurs when an 802.1X client is authorized on a multi-auth port. After the access VLAN is deleted, then restored, the client is reauthorized but the spanning tree state of the access VLAN remains Disabled.
Workaround: Shut down then reopen the interface.
- On a switch running Cisco IOS Release12.2(50)SG, supplicants authorized on PVLAN in multi-auth host mode are not moved to an Uauthorized state when the PVLAN is removed.
This problem occurs only when a port is configured with PVLAN and 802.1X multi-auth.
Workaround: Shut down then reopen the interface. (CSCsr58573)
- When the switch port configured with 802.1X Multi-Domain Authentication (MDA) and Guest VLAN is connected to a non-802.1X supplicant PC through a hub, the port falls back to guest VLAN. Subsequently, it is stuck in the guest VLAN and ignores all EAPOL traffic from another 802.1X supplicant PC connected to the hub.
Workaround: None. (CSCsu42775)
- VTP databases do not propagate through promiscuous trunk ports. If only promiscuous trunks are configured, users will not see the VLAN updates on the other switches in the VTP domain.
Workaround: For VTP database propagation, configure ISL/dot1q trunk port. (CSCsu43445)
Workarounds: Do one of the following:
–
–
- When you remove an SFP+ from a OneX converter in a X2 slot, it takes roughly 45 seconds for the system to recognize this. Any commands during this time will indicate that the SFP+ is still present. Reinserting the SFP+ in another port or inserting another SFP+ in the same port can result in Duplicate Seeprom error message.
Workaround: When a log message appears indicating that the SFP+ has been removed , do one of the following:
–
–
–
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- The switch does not accept the snmp mib target list vrf command. This CLI is rejected even if the vrf is present in the DUT.
Workaround: None. (CSCsr95941)
- When a PVLAN isolated port is connected to a router serving as a mutlicast source, and you enable igmp snooping, the routers connected to the isolated ports display as PIM neighbours.
Workaround: Do one of the following:
–
–
–
Workaround: Reconfigure tracking on the newly created interface. (CSCsr66876)
- The switch may reload after destroying the expExpressionTable row via SNMP when you enable the debug management expression evaluator command.
Workaround: Remove the above debug command. (CSCsu67323)
Workaround: None. (CSCsv42869)
- A router may crash when a privilege-level 15 user logs on with the callback or callback-dialstring attribute.
'This problem is seen on all Catalyst 4500 or 4900 chassis running CiscoIOS Release 12.2.(50)SG. The problem occurs when the following conditions are present:
–
–
–
Workarounds: Do not configure the callback or callback-dialstring attribute for the user. If you use the callback-dialstring attribute in the TACACS+ profile, ensure that the NULL value is not configured. (CSCei62358)
- When you attempt an ISSU upgrade or downgrade between Cisco IOS Release 12.2(50)SG and 12.2(44)SG or 12.2(46)SG, the switch displays a traceback.
Workaround: None. (CSCsw32519)
- If VLAN Load Balancing is progressing, and you reconfigure VLAN Load Balancing to reflect different blocking ports, manual preemption does not occur.
Workaround: To reconfigure VLAN Load Balancing with a different configuration, do the following:
a.
b.
c.
d.
- After posture validation succeeds, the following benign traceback messages may appear after you unconfigure the global RADIUS and IP device tracking commands:
%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.101 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8%SM-4-BADEVENT: Event 'eouAAAAuthor' is invalid for the current state 'eou_abort': eou_auth 4.1.0.102 Traceback= 101D9A88 10B76BB0 10B76FE0 10B7A114 10B7A340 1066A678 106617F8This applies to classic or E-series Catalyst 4500 supervisor engines running
Cisco IOS Release 12.2(50)SGWorkaround: None. (CSCsw14005)
- Entering the channel-group x mode or channel-protocol followed by lacp or pagp command on an fa1 management interface causes the active supervisor engine to reload.
Port-channel functionality is not supported on the management interface.
This is a configuration error.
Workaround: None. (CSCsv91302)
- On a Catalyst 4900M switch, when you use a WS-X4908-10GE card with CVR-X2-SFP twin gig converters, the giga ports do not link up to the peer device that sends a remote fault. The
show int status | inc gi x/y command indicates notconnect.Similar behavior is observed with Supervisor Engine 6-E uplinks and the WS-X4706-10GE line card.
- On a Catalyst 4900M switch, when you use a WS-X4908-10GE card with CVR-X2-SFP twin gig converters, the giga ports do not link up to the peer device that sends a remote fault. The
show int status | inc gi x/y command indicates notconnect.Similar behavior is observed with Supervisor Engine 6-E uplinks and the WS-X4706-10GE line card.
This behavior is seen in Cisco IOS Releases 12.2(50)SG thru 12.2(50)SG3 when the peer device sends a remote fault.
Workaround: Disable auto negotiation at both ends.
The following conditions may cause a RACL to malfunction:
–
–
Here are two examples of such non-functioning RACL:
- When using dynamic policy installation for a client or host that is authenticated on a secure port, the traffic from the client is not permitted even though the permit ip any any command is specified as the dynamic policy for the client.
This occurs only if the following conditions are satisfied:
–
–
–
Resolved Caveats in Cisco IOS Release 12.2(50)SG
This section lists the resolved caveats in Release 12.2(50)SG:
- With CFM, if the VLAN associated with the service instance or MEP is allocated after the Inward Facing MEP (IFM) is configured on an interface whose status is down, the IFM CC status remains inactive in the output of the show ethernet CFM maintenance local command. Also, the CFM remote neighbor is not seen.
This behavior is only seen when VLAN is allocated after the IFM is configured.
Workaround: Unconfigure with the no ethernet cfm mep level mpid vlan command, then reconfigure the IFM with the ethernet cfm mep level mpid vlan command on the port after the VLAN is allocated. Verify that the C-Status of the IFM is Active with the
show ethernet cfm maintenance-points local command. (CSCsm85460)
- Occasionally, if a PC continues to send traffic behind an 802.1X capable phone that is plugged into a port configured with MDA (Multi-Domain Authentication), MAB (MAC Authentication Bypass) and port security, a 802.1X security violation is triggered if the port observes traffic from the PC before the phone is fully authorized on the port.
Workaround: Authenticate the phone before plugging a PC behind the phone. (CSCsq92724)
- After CFM is disabled globally and then a switch is reloaded with the CFM configuration in place, and after reload when cfm is enabled globally, the cfm meps are being inactive, which results in loss of cfm neighbors.
Workarounds: Do one of the following:
–
–
- When policer or shape or shape values are specified in terms of percentage of link bandwidth on a policy and the interface on which it is attached is forced to a specific speed with the
speed 10/100/1000 command, the applied policer or shape or shape value might correspond to the new forced speed.Service policy has to be configured with percentage police or shape or share values and the link speed is forced to a specific values. For example
Workaround: Either use the speed auto 10/100/1000 command or the absolute policer, shape or shape values rather than percentage values. For example,
- When the trusted boundary feature is enabled on an interface, there is no command to check the current operating state.
Workaround: None. You cannot explicitly check the trusted boundary state. However, you can indirectly determine this state:
The trusted boundary feature ensures whether the packet’s COS/DSCP value will b e trusted or not. When the interface is not in a trusted state, the COS/DSCP fields are forced to zero on a received packet.
A QoS policy exists on that interface that uses that COS/DSCP value for classification. Therefore, if the packet classification is based on the packet value, you can infer that the interface is in a trusted state. (CSCsh72408)
- Cisco IOS software contains a vulnerability in multiple features that could allow an attacker to cause a denial of service (DoS) condition on the affected device. A sequence of specially crafted TCP packets can cause the vulnerable device to reload.
Cisco has released free software updates that address this vulnerability.
Several mitigation strategies are outlined in the workarounds section of this advisory.
This advisory is posted at http://tools.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-20090325-tcp
- Symptoms: Several features within Cisco IOS software are affected by a crafted UDP packet vulnerability. If any of the affected features are enabled, a successful attack will result in a blocked input queue on the inbound interface. Only crafted UDP packets destined for the device could result in the interface being blocked, transit traffic will not block the interface.
Cisco has released free software updates that address this vulnerability.
Workarounds that mitigate this vulnerability are available in the workarounds section of the advisory. This advisory is posted at the following link: http://tools.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-20090325-tcp
Conditions: A device configured for SSLVPN may stop accepting any new SSLVPN connections, due to a vulnerability in the processing of new TCP connections for SSLVPN services. If “debug ip tcp transactions” is enabled and this vulnerability is triggered, debug messages with connection queue limit reached will be observed. This vulnerability is documented in two separate Cisco bug IDs, both of which are required for a full fix: CSCso04657 and CSCsg00102.
- If a redundant switch is in SSO mode or during an ISSU upgrade/downgrade, and the standby supervisor is running IOS software release 12.2(44)SG or 12.2(46)SG, when you enter the
auto qos voip trust command on an interface with an attached service-policy, the standby supervisor engine reboots.Workaround: Remove all service-policies from the interface before entering the
auto qos voip trust command.
- Multiple Cisco products are affected by denial of service (DoS) vulnerabilities that manipulate the state of Transmission Control Protocol (TCP) connections. By manipulating the state of a TCP connection, an attacker could force the TCP connection to remain in a long-lived state, possibly indefinitely. If enough TCP connections are forced into a long-lived or indefinite state, resources on a system under attack may be consumed, preventing new TCP connections from being accepted. In some cases, a system reboot may be necessary to recover normal system operation. To exploit these vulnerabilities, an attacker must be able to complete a TCP three-way handshake with a vulnerable system.
In addition to these vulnerabilities, Cisco Nexus 5000 devices contain a TCP DoS vulnerability that may result in a system crash. This additional vulnerability was found as a result of testing the TCP state manipulation vulnerabilities.
Cisco has released free software updates for download from the Cisco website that address these vulnerabilities. Workarounds that mitigate these vulnerabilities are available.
This advisory is posted at
http://tools.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-20090325-tcpOpen Caveats in Cisco IOS Release 12.2(46)SG
This section lists the open caveats in Cisco IOS Release 12.2(46)SG:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- When policer or shape or shape values are specified in terms of percentage of link bandwidth on a policy and the interface on which it is attached is forced to a specific speed with the
speed 10/100/1000 command, the applied policer or shape or shape value might correspond to the new forced speed.Service policy has to be configured with percentage police or shape or share values and the link speed is forced to a specific values. For example
Workaround: Either use the speed auto 10/100/1000 command or the absolute policer, shape or shape values rather than percentage values. For example,
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- When the trusted boundary feature is enabled on an interface, there is no command to check the current operating state.
Workaround: None. You cannot explicitly check the trusted boundary state. However, you can indirectly determine this state:
The trusted boundary feature ensures whether the packet’s COS/DSCP value will b e trusted or not. When the interface is not in a trusted state, the COS/DSCP fields are forced to zero on a received packet.
A QoS policy exists on that interface that uses that COS/DSCP value for classification. Therefore, if the packet classification is based on the packet value, you can infer that the interface is in a trusted state. (CSCsh72408)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
Workarounds:Disable IGMP snooping on all the relevant VLANs before disabling it globally.
Workaround: Unconfigure all generic QOS policies from the system. (CSCsq84853)
Workaround: Unconfigure any generic QOS policies from the system. The QoS policies with the match any attribute cause IPv6 entries to become active. If the switch is a pure Layer 2 device, remove the generic protocol family attributes and narrow it to the protocol family.
- Initially, REP configured with VLAN Load Balancing (VLB) works correctly. When you issue a force-switchover on the switch, that has a port acting as the secondary ALT port, a loop is induced in the topology.
Workaround: Enter shut, then no-shut on any REP port (of the same segment in which VLB is configured) in the topology. (CSCsq75342)
- In Cisco IOS Release 12.2(46)SG, if flexlink is applied to a pair of etherchannels, then flexlink config may not be applied after a reboot, if the backup EtherChannel is defined after the flexlink configuration.
Workaround: Define the backup etherchannel before applying flexlink command. (CSCsq13477)
- In Cisco IOS Release 12.2(46)SG, if an etherchannel is a member of a flexlink pair, then static MAC addresses configured on the EtherChannel are not moved to the alternate port when the EtherChannel fails (flexlink failure)
Workaround: None. (CSCsq99468)
- Performing a default interface operation on an interface with auto-QoS enabled results in an error message and the loss of the auto-QoS configuration. For example, the following sequence of operation results in a loss of the configuration:
Workaround: Replace the default interface command with the following:
Workaround: Ping the global and link local addresses of the neighbor to ascertain and reinstate reachability. (CSCsq77181)
Workaround: Unconfigure the port channel and the associated physical port, and reconfigure them.
- When a CFM Inward Facing MEP(IFM) is configured on a VLAN that is not allocated on a switch port that is DOWN, the show ethernet cfm maintenance-points local command displays the
IFM CC Status as Inactive. Then, you allocate the VLAN, the CC-status remains Inactive.You only see this symptom if you did not allocate a VLAN before you configure the IFM, then at a later time allocate the same VLAN.
Workaround: Unconfigure, then reconfigure the IFM on the port.
- With CFM, if the VLAN associated with the service instance or MEP is allocated after the Inward Facing MEP (IFM) is configured on an interface whose status is down, the IFM CC status remains inactive in the output of the show ethernet CFM maintenance local command. Also, the CFM remote neighbor is not seen.
This behavior is only seen when VLAN is allocated after the IFM is configured.
Workaround: Unconfigure with the no ethernet cfm mep level mpid vlan command, then reconfigure the IFM with the ethernet cfm mep level mpid vlan command on the port after the VLAN is allocated. Verify that the C-Status of the IFM is Active with the
show ethernet cfm maintenance-points local command. (CSCsm85460)
- Occasionally, if a PC continues to send traffic behind an 802.1X capable phone that is plugged into a port configured with MDA (Multi-Domain Authentication), MAB (MAC Authentication Bypass) and port security, a 802.1X security violation is triggered if the port observes traffic from the PC before the phone is fully authorized on the port.
Workaround: Authenticate the phone before plugging a PC behind the phone. (CSCsq92724)
- Ordinarily, the output of a CFM Traceroute from a MEP normally lists down the next hop name(device/host name) for each hop till the other MEP. When CFM over EtherChannel exists between the two MEPs, CFM Traceroute issued from a MEP does not show the next hop name.
Workaround: None. (CSCso50659)
Workarounds: Do one of the following:
–
–
–
- After CFM is disabled globally and then a switch is reloaded with the CFM configuration in place, and after reload when cfm is enabled globally, the cfm meps are being inactive, which results in loss of cfm neighbors.
Workarounds: Do one of the following:
–
–
- In SSO mode, when a port-channel is created, deleted, and re-created on an active supervisor engine with the same channel-number, the standby port-channel state goes out of sync. After a switch over, the following message displays:
Workaround: When the port channel starts to flap, enter shut and no shut on the port channel. After the first switchover and after deleting the portchannel, create a new channel. (CSCsr00333)
The following conditions may cause a RACL to malfunction:
–
–
Resolved Caveats in Cisco IOS Release 12.2(46)SG
This section lists the resolved caveats in Release 12.2(46)SG:
- When a service-policy is removed from a physical port that is member of an ether channel, a LACP or PAGP protocol-based ether channel goes down. The port-channel members get bundled back in but remain in suspended state due to failure to exchange the protocol packets with the other end.
Workarounds: Before removing the service policy from a ether channel member, remove it from the channel. Then, return it to the channel. (CSCsk70568)
- When using bandwidth percentage actions in a queuing policy-map, the actual bandwidth share differs from that of the configured policy-map.
In a queuing QoS policy, there can be zero or more queuing classes that have an explicit, user specified, bandwidth share specified. There can be zero or more queuing classes that do not have such user specified bandwidth share. The system takes the unallocated bandwidth share and allocates it equally among the latter set of classes.
When using percentage-based bandwidth allocation, if the share comes to less than 1%, the queues corresponding to those classes do not get updated in hardware with the new bandwidth share. These queues get more than the expected share of bandwidth.
Workarounds: Ensure that the unallocated bandwidth percentage is at least equal to the number of queues that do not have the explicit bandwidth percentage command. This should include the default as well as priority queues. (CSCsk77757)
- Not all combinations of features can be simultaneously supported by the hardware. When such a feature combination is configured, packets will be processed in software and a log message indicating this will be generated:
%C4K_HWACLMAN-4-ACLHWLABELERR: Path (in :50, 1006) label allocation failure: SignatureInconsistent - packets will be handled in software, QoS is disabled.One feature combination that can trigger this problem is the attempt to combine a QoS policy that matches on cos bits with IPv6 ACL configuration that matches on IPv6 source addresses that partially mask in the lower 48 bits of the address. (IPv6 subnets in the /81 to /127 range will also trigger this behavior if IPv6 multicast routing is enabled.)
Workaround: Do not configure feature combinations that conflict. Currently the above conflict between QoS policies matching on COS bits and IPv6 configuration with partial masking of the lower 48 bits of the source address is the only known conflicting feature combination. If matching on COS bits is required by the QoS policy, architect the IPv6 network using /80 subnets or larger. (CSCsk79791)
- When a service policy on a port-channel member port is modified, traffic may be dropped for some of the classes.
1. Un-configure the interface(s) on which this policy-map is attached from the portchannel.
3. Configure the interface(s) in the portchannel.
- When two switches are connected back-to-back via two or more links and when a packet is locally- originated, the source IP address may not correspond to the IP address of the outgoing interface. A switch receiving such a packet with unicast RPF feature enabled might drop the incoming packet.
Workaround: None. (CSCsh99124)
- In policy map, if a queuing class with the bandwidth remaining percent <> command sits before a priority queuing class configuration, the bandwidth remaining percent <> command action is applied on reload.
Workaround: Re-apply the policy-map. (CSCsk75793
- A port can be either a member of a portchannel or have auto-QoS applied to it, but not both. The two are mutually exclusive features.
Currently, if it is applied to a port that is already a member of a portchannel, the application is rejected with an error message. However, the reverse is not true. If auto-QoS is applied first and then the port joins a portchannel, the command is accepted.
The following example using port g2/1 shows the type of usage that should be avoided:
This example applies auto-QoS on a port (g2/1) and subsequently makes the port a member of portchannel (10).
Workaround: Do not make a port with auto-QoS enabled a member of a portchannel. (CSCsi95018)
- If exceed burst is not explicitly configured for a dual rate policer, the show policy-map command displays “0” as the burst value.
Workaround: Enter the show policy-map interface command. (CSCsj44237)
- When a queuing policy is attached to a trunk port configured with a per-port per-VLAN QoS policy, the port-level queuing policy is processed as part of a per-VLAN policy and is rejected on bootup.
Queuing policy is supported on a physical interface in the output direction only.
Workaround: After bootup, reattach a queuing policy on a physical interface. (CSCsk87548)
Workaround: Before deleting the port-channel, do the following:
1. Remove any per-port per-VLAN QoS policies, if any.
2. Remove the VLAN configuration on the port-channel with the no vlan-range command.
Workaround: None. (CSCsk45940)
- On rare occasions, a Catalyst 4900M switch may undergo restart if ARP requests are send to all ports on the switch and “debug ip arp” is enabled.
Open Caveats in Cisco IOS Release 12.2(40)XO
This section lists the open caveats in Cisco IOS Release 12.2(40)XO:
The support to handle .1Q packets for software QoS lookup unavailable in the Cisco IOS Release 12.2(40)SG release. (CSCsk66449)
- When a service-policy is removed from a physical port that is member of an ether channel, a LACP or PAGP protocol-based ether channel goes down. The port-channel members get bundled back in but remain in suspended state due to failure to exchange the protocol packets with the other end.
Workarounds: Before removing the service policy from a ether channel member, remove it from the channel. Then, return it to the channel. (CSCsk70568)
- When using bandwidth percentage actions in a queuing policy-map, the actual bandwidth share differs from that of the configured policy-map.
In a queuing QoS policy, there can be zero or more queuing classes that have an explicit, user specified, bandwidth share specified. There can be zero or more queuing classes that do not have such user specified bandwidth share. The system takes the unallocated bandwidth share and allocates it equally among the latter set of classes.
When using percentage-based bandwidth allocation, if the share comes to less than 1%, the queues corresponding to those classes do not get updated in hardware with the new bandwidth share. These queues get more than the expected share of bandwidth.
Workarounds: Ensure that the unallocated bandwidth percentage is at least equal to the number of queues that do not have the explicit bandwidth percentage command. This should include the default as well as priority queues. (CSCsk77757)
- Not all combinations of features can be simultaneously supported by the hardware. When such a feature combination is configured, packets will be processed in software and a log message indicating this will be generated:
%C4K_HWACLMAN-4-ACLHWLABELERR: Path (in :50, 1006) label allocation failure: SignatureInconsistent - packets will be handled in software, QoS is disabled.One feature combination that can trigger this problem is the attempt to combine a QoS policy that matches on cos bits with IPv6 ACL configuration that matches on IPv6 source addresses that partially mask in the lower 48 bits of the address. (IPv6 subnets in the /81 to /127 range will also trigger this behavior if IPv6 multicast routing is enabled.)
Workaround: Do not configure feature combinations that conflict. Currently the above conflict between QoS policies matching on COS bits and IPv6 configuration with partial masking of the lower 48 bits of the source address is the only known conflicting feature combination. If matching on COS bits is required by the QoS policy, architect the IPv6 network using /80 subnets or larger. (CSCsk79791)
- When policer or shape or shape values are specified in terms of percentage of link bandwidth on a policy and the interface on which it is attached is forced to a specific speed with the
speed 10/100/1000 command, the applied policer or shape or shape value might correspond to the new forced speed.Service policy has to be configured with percentage police or shape or share values and the link speed is forced to a specific values. For example
Workaround: Either use the speed auto 10/100/1000 command or the absolute policer, shape or shape values rather than percentage values. For example,
- Under some conditions, one or more flows continue to be dropped because of DBL even after DBL has been removed from the service-policy.
When an output service-policy is attached to an interface and if the policy is configured to apply DBL on a queue, the flows that are enqueued to the queue are subjected to the DBL algorithm. If one or more flows are classified as belligerent (flows do not back-off in response to drops because of congestion in the queue), those flows continue to be classified as belligerent even when DBL is disabled on that queue.
For this condition to persist, the transmit queues in question must remain congested for a long period of time and that congestion must be caused by flows that remain belligerent.
Workaround: Provided the queue in question is non-default (queuing actions are not configured in the class-default class of the policy-map), detach and re-attach the service-policy.
If this happens on the default queue, modifying and resetting some queuing parameters like bandwidth/shape fixes the issue. (CSCsk62457
- When an Catalyst 4900M switch encounters either a fan tray failure or a supervisor critical temperature, the chassis shuts off. The output of the show crashdump command will not indicate the cause of the power-down.
Workarounds: Use the show log command to determine the cause of the power-down.
–
–
- When a service policy on a port-channel member port is modified, traffic may be dropped for some of the classes.
1. Un-configure the interface(s) on which this policy-map is attached from the portchannel.
3. Configure the interface(s) in the portchannel.
- When two switches are connected back-to-back via two or more links and when a packet is locally- originated, the source IP address may not correspond to the IP address of the outgoing interface. A switch receiving such a packet with unicast RPF feature enabled might drop the incoming packet.
Workaround: None. (CSCsh99124)
On a Catalyst 4900M running Cisco IOS Release 12.2(40)SG, all MTU values configured on a line card are set to default when the module is reset. Furthermore, MTU values are not retained for modules that are physically moved.
Workaround: None. (CSCsk52542)
Workaround: Reinsert the X2. (CSCsk43618)
- On rare occasions, if you use an X2 SR transceiver on a WS-X4706-10GE running
Cisco IOS Release 12.2(40)SG, you will observe CRC errors after a reload or power cycle when you insert the card or the X2.Workaround: Reinsert the X2. (CSCsk43618)
- Control plane policing applied to DHCP traffic as identified by the system class-maps system-cpp-dhcp-cs, system-cpp-dhcp-sc, and system-cpp-dhcp-ss may not be effective.
- In policy map, if a queuing class with the bandwidth remaining percent <> command sits before a priority queuing class configuration, the bandwidth remaining percent <> command action is applied on reload.
Workaround: Re-apply the policy-map. (CSCsk75793
- When the CPU transmits .1X packet on an interface that has an egress qos policy attached, the packet is not matched and exits without any QoS marking actions.
When a packet is sent to the CPU it may get sent out on some other interface. If so, the original COS value for a .1X packet cannot be matched by software QoS (as per CSCsk66449). The packet is transmitted with whatever COS value it was generated with (7, for the MLDv1 packets described here).
Part of the root cause of this problem is captured through CSCsk66449, which indicates that the software QoS cannot match against a .1X packet. (CSCsk72544)
- When the trusted boundary feature is enabled on an interface, there is no command to check the current operating state.
Workaround: None. You cannot explicitly check the trusted boundary state. However, you can indirectly determine this state:
The trusted boundary feature ensures whether the packet’s COS/DSCP value will b e trusted or not. When the interface is not in a trusted state, the COS/DSCP fields are forced to zero on a received packet.
A QoS policy exists on that interface that uses that COS/DSCP value for classification. Therefore, if the packet classification is based on the packet value, you can infer that the interface is in a trusted state. (CSCsh72408)
- A port can be either a member of a portchannel or have auto-QoS applied to it, but not both. The two are mutually exclusive features.
Currently, if is applied to a port that is already a member of a portchannel, the application is rejected with an error message. However, the reverse is not true. If auto-QoS is applied first and then the port joins a portchannel, the command is accepted.
The following example using port g2/1 shows the type of usage that should be avoided:
This example applies auto-QoS on a port (g2/1) and subsequently makes the port a member of portchannel (10).
Workaround: Do not make a port with auto-QoS enabled a member of a portchannel. (CSCsi95018)
- If a class-map is configured with exceed-action drop, re-configuring the same class-map with exceed-action transmit causes class-map configurations to conflict for the same class-map.
Workaround: If you plan to change a class-map action, such as exceed-action, you meed to remove the class-map with the no class c1 command under policy-map submode. Then, apply the new class-map with the updated changes.
- Policing actions are not applied if they appear at the child level of a two-level hierarchical policy-map.
The switch supports two-level hierarchical policy-maps. Policing actions can be present at only one of the two levels (parent or child). If they are present at the child level, they are not applied.
- Applying a policy to a VLAN that has been allocated to a routed port causes the internal VLAN to be policed.
Workaround: Avoid creating a VLAN that has been allocated internally to a routed port. (CSCsh60244)
- If exceed burst is not explicitly configured for a dual rate policer, the show policy-map command displays “0” as the burst value.
Workaround: Enter the show policy-map interface command. (CSCsj44237)
- If burst is not explicitly configured for a single rate policer, the show policy-map command displays an incorrect burst value.
Workaround: Enter the show policy-map interface command. (CSCsi71036)
- When a queuing policy is attached to a trunk port configured with a per-port per-VLAN QoS policy, the port-level queuing policy is processed as part of a per-VLAN policy and is rejected on bootup.
Queuing policy is supported on a physical interface in the output direction only.
Workaround: After bootup, reattach a queuing policy on a physical interface. (CSCsk87548)
Workaround: Before deleting the port-channel, do the following:
1. Remove any per-port per-VLAN QoS policies, if any.
2. Remove the VLAN configuration on the port-channel with the no vlan-range command.
Workaround: None. (CSCsk45940)
- When you enter the show policy-map vlan vlan command, unconditional marking actions that are configured on the VLAN are not shown.
Workaround: None. However, if you enter the show policy-map name, the unconditional marking actions are displayed. (CSCsi94144)
Workaround: None. (CSCsl39767)
- On rare occasions, a Catalyst 4900M switch may undergo restart if ARP requests are send to all ports on the switch and “debug ip arp” is enabled.
Workaround: None. (CSCsl26706)
Workaround: None. (CSCsl37599)
The following conditions may cause a RACL to malfunction:
–
–
Troubleshooting
These sections provide troubleshooting guidelines for the Catalyst 4900M series switch running IOS supervisor engines:
- Netbooting from the ROMMON
- Troubleshooting at the System Level
- Troubleshooting Modules
- Troubleshooting MIBs
Netbooting from the ROMMON
Netbooting using a boot loader image is not supported. Instead, use one of the following options to boot an image:
1.
Note The Catalyst 4948E does not contain a compact flash slot.
The ROMMON TFTP boot is very similar to the BOOTLDR TFTP boot, except that:
–
–
To boot from ROMMON, perform the following tasks while in ROMMON mode:
a.
b.
c.
For example, to set the supervisor engine Ethernet port with an IP address 172.16.1.5 and IP mask 255.255.255.0, enter the following command:
d.
e.
f.
For example, to boot the image name cat4500-ipbase-mz located on the TFTP server 172.16.1.8, enter the following command:
Troubleshooting at the System Level
This section contains troubleshooting guidelines for system-level problems:
Troubleshooting Modules
This section contains troubleshooting guidelines for the Catalyst 4900M series switch:
- Whenever you connect an interface that has duplex set to autonegotiate to an end station or another networking device, ensure that the other device is configured for autonegotiation as well. If the other device is not set to autonegotiate, the port set to autonegotiate will remain in half-duplex mode, which can cause a duplex mismatch resulting in packet loss, late collisions, and line errors on the link.
Troubleshooting MIBs
For general information on MIBs, RMON groups, and traps, refer to the Cisco public MIB directory
http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml ).For information on the specific MIBs supported by the Catalyst 4900M series switches, refer to the Catalyst 4000 MIB Support List located at ftp://ftp.cisco.com/pub/mibs/supportlists/cat4000/cat4000-supportlist.html.
Related Documentation
Although their Release Notes are unique, the 4 platforms (Catalyst 4500, Catalyst 4900, Catalyst ME 4900, and Catalyst 4900M) use the same Software Configuration Guide , Command Reference Guide , and System Message Guide . Refer to the following home pages for additional information:
http://www.cisco.com/go/cat4500/docs
http://www.cisco.com/go/cat4900/docs
http://www.cisco.com/en/US/products/ps7009/tsd_products_support_series_home.html
Hardware Documents
Installation guides and notes including specifications and relevant safety information are available at the following URLs:
http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/installation/guide/78-14409-08/4500inst.html
http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/catalyst4500e/installation/guide/Eseries.html
- For information about individual switching modules and supervisors, refer to the Catalyst 4500 Series Module Installation Guide at:
http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_installation_guides_list.html
http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/regulatory/compliance/78_13233.html
http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_installation_guides_list.html
Catalyst 4900 and 4900M hardware installation information is available at:
http://www.cisco.com/en/US/products/ps6021/prod_installation_guides_list.html
- Cisco ME 4900 Series Ethernet Switches installation information is available at:
http://www.cisco.com/en/US/products/ps7009/prod_installation_guides_list.htmlSoftware Documentation
Software release notes, configuration guides, command references, and system message guides are available at the following URLs:
http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_release_notes_list.html
http://www.cisco.com/en/US/products/ps6021/prod_release_notes_list.html
http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/release/note/OL_11511.html
Software documents for the Catalyst 4500 Classic, Catalyst 4500 E-Series, Catalyst 4900, and
Cisco ME 4900 Series Ethernet Switches are available at the following URLs:http://www.cisco.com/en/US/products/hw/switches/ps4324/products_installation_and_configuration_guides_list.html
http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_command_reference_list.html
http://www.cisco.com/en/US/products/hw/switches/ps4324/products_system_message_guides_list.html
Cisco IOS Documentation
Platform-independent Cisco IOS documentation may also apply to the Catalyst 4500 and 4900 switches. These documents are available at the following URLs:
http://www.cisco.com/en/US/products/ps6350/products_installation_and_configuration_guides_list.html
http://www.cisco.com/en/US/products/ps6350/prod_command_reference_list.html
You can also use the Command Lookup Tool at:
http://tools.cisco.com/Support/CLILookup/cltSearchAction.do
http://www.cisco.com/en/US/products/ps6350/products_system_message_guides_list.html
You can also use the Error Message Decoder tool at:
http://www.cisco.com/pcgi-bin/Support/Errordecoder/index.cgi
http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml
Notices
The following notices pertain to this software license.
OpenSSL/Open SSL Project
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit ( http://www.openssl.org/ ).
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
This product includes software written by Tim Hudson (tjh@cryptsoft.com).
License Issues
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org.
Copyright © 1998-2007 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1.
2.
3.
4.
5.
6.
“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit ( http://www.openssl.org/ )”.
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS”' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim Hudson (tjh@cryptsoft.com).
Copyright © 1995-1998 Eric Young (eay@cryptsoft.com). All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com).
Copyright remains Eric Young’s, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1.
2.
3.
“This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)”.
The word ‘cryptographic’ can be left out if the routines from the library being used are not cryptography-related.
4.
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The license and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution license [including the GNU Public License].
