Alerts and Incident Notifications
A Cisco Security Monitoring, Analysis, and Response System (MARS) alert action is a signal transmitted to people or devices, or both, as notification that a MARS rule has fired, and that an incident has been logged. Alert actions can only be configured through the Action parameter of a rule. An alert action determines which alert notification types are sent to which MARS user accounts or user groups.
This chapter contains the following topics:
•
Configure the E-mail Server Settings
•
•
•
Notification Methods
The content of alert notifications is fixed and cannot be customized. The XML notification contains the most information of all the alert notification types.
MARS can transmit alerts by the methods listed in Table 5-1.
Table 5-1 MARS Incident Notification Methods
•
•
•
•
E-mail notifications send the incident ID, matched rule, severity, incident time, Top 3 source-destination address pairs, Top 3 source IPs, Top 3 destination IPs, Top 3 destination TCP/UDP ports, Top 3 event types, and Top 3 reporting devices in the body of the email. For Botnet Traffic Filter rules, Botnet Site information is included in the email (when available).
SMS, and pager alerts send the incident ID, matched rule name, severity, and incident time in SMS and pager formats respectively. You must login to the MARS to view all the incident details.
XML notification sends an email notification of an incident with an attached XML data file (see Figure 5-1). The XML data file contains the same incident details that can be viewed from the GUI, except for path and mitigation information. The XML data file can be sent as a plain-text file or as a compressed gzip file. The XML data filename is constructed with the incident ID number, for example: CS-MARS-Incident-13725095.xml. You can parse and extract data from the XML file with a custom application. For example, you can integrate the XML data with trouble ticketing software. See Appendix D, "Cisco Security MARS XML API Reference" for further information on the MARS XML notification schema and usage guidelines.
MARS SMS text message notifications can be up to 160 characters in length. Because the MARS SMS incident notification exceeds 160 characters, it is sent in three segments.
Pager messages are sent through the MARS internal modem. MARS dials a carrier's IXO/TAP number and uses SNPP to transmit the alpha-numeric page. Pager notifications are still possible when the network is down. Pagers can often receive messages in places where mobile phones are inoperative or forbidden (for instance, hospitals).
•
•
These alerts send the incident ID, matched rule, severity, incident time, Top 3 source-destination address pairs, Top 3 destination TCP/UDP ports, Top 3 event types, and Top 3 reporting devices to MARS devices or applications, all of which must be properly configured within the MARS device administration pages. See the section, Chapter 2, "Security Threat Mitigation (STM) Task Flow Overview" for information on configuring individual devices to work with MARS.
Alert Notification Procedures Table 5-2 provides links and descriptions of related Alert Action configuration procedures.
Table 5-2 Alert Notification Procedures
To send Email, SMS, and XML notifications, MARS requires that you configure the E-mail Server settings.
Complete this procedure to create or modify an alert action.
Create a User—Role, Identity, Password, and Notification Information
Alert notifications can be sent only to user accounts configured on MARS. A new user account can be configured from the User Management tab, or when creating an alert action for a rule. This is where you enter the service provider phone numbers and email addresses for E-mail, SMS, Pager, and XML notification.
Complete this procedure to create a MARS user group other than the default MARS user groups. Unlike default user groups, custom groups can be edited.
Complete this procedure to include a newly created user account into a MARS user group.
MARS Incident Notification Examples
This section contains examples of the following notifications:
•
•
Incident notifications all report Rule ID, Rule Name, incident ID, incident start/end time and Incident Severity. Where applicable, notifications also report the following categories.
•
•
•
•
•
•
•
The following considerations apply:
•
•
•
•
–
•
–
•
•
•
•
•
MARS Email Notification
Example 5-1 shows a typical email alert notification triggered by a Botnet Traffic Filter incident.
Note
Example 5-1 Email Notification With Botnet Site Information
From: notifier.pnmars@cisco.com [mailto:notifier.pnmars@cisco.com]Sent: Friday, June 19, 2009 2:49 PMTo: Lavim Busa (labusa)Subject: CS-MARS Incident Notification (yellow, Rule Name: labusa-notif)The following incident occurred on "pnmars"Start time: Fri Jun 19 14:46:22 2009End time: Fri Jun 19 14:46:29 2009Fired Rule Id: 328056Fired Rule: labusa-notifIncident Id: 607632Incident Severity:yellowTop 3 src-dest address pairs sorted by severity and count (showing 3 of 9):1. N/A -> N/A Severity: yellow Count: 542. 1.2.3.4 -> 4.5.6.7 Severity: yellow Count: 63. 11.22.33.44 -> 41.52.63.74 Severity: yellow Count: 3Top 3 src ip's address sorted by severity and count (showing 3 of 6):1. N/A -> Severity: yellow Count: 542. 1.2.3.4 -> Severity: yellow Count: 63. 11.22.33.44 -> Severity: yellow Count: 5Top 3 dest ip's address sorted by severity and count (showing 3 of 9):1. N/A -> Severity: yellow Count: 542. 4.5.6.7 -> Severity: yellow Count: 63. 41.52.63.74 -> Severity: yellow Count: 3Top 3 dest TCP/UDP ports sorted by severity and count (showing 2 of 2):1. 80 Severity: yellow Count: 112. 80 Severity: green Count: 8Top 3 event types sorted by severity and count (showing 3 of 16):1. Download failed for dynamic filter data file from updater server Severity: yellow Count:92. Authentication failure with dynamic filter updater server Severity: yellow Count:93. Decryption of downloaded dynamic filter data file failed Severity: yellow Count:9Top 3 reporting devices sorted by count (showing 1 of 1):1. asa82 Count: 100Top 3 sites sorted by count (showing 3 of 3):1. cisco.com (Type: black) Count: 62. whitecisco.com (Type: white) Count: 63. altavista.com (Type: grey) Count: 5For more details about this incident please go to:https://pnmars/Incidents/IncidentDetails.jsp?Incident_Id=607632https://pnmars.mars.cisco.com cisco.com/Incidents/IncidentDetails.jsp?Incident_Id=607632https://192.168.1.10/Incidents/IncidentDetails.jsp?Incident_Id=607632https://10.2.4.1/Incidents/IncidentDetails.jsp?Incident_Id=607632For all incidents occurred recently please go to:https://pnmars/Incidents/https://pnmars.mars.cisco.com cisco.com/Incidents/https://192.168.1.10/Incidents/https://10.2.4.1/Incidents/
MARS Syslog Notification
The rule name, reporting device name and event type is limited to 100, 50 and 50 characters respectively.
Example 5-2 shows a MARS syslog notification.
Example 5-2 MARS Syslog Notification
10.2.3.196 Wed Feb 4 14:48:40 2009 <34>Wed Feb 4 14:44:09 2009 %MARS-1-101: Rule 306498 (any) fired and caused green Incident 287020054, starting from Wed Feb 4 14:43:15 2009 to Wed Feb 4 14:43:19 2009 on gVaAdGOCEW, Top 3 src dest addrs pairsshowing 3 of 6 ;; N/A -> N/A Severity: green Count: 4 ;; 10.4.11.10 -> 10.1.1.16 Severity: green Count: 1 ;; 10.4.11.10 -> 10.1.1.17 Severity: green Count: 1, Top 3 dest ports showing 3 of 4 ;; 21 Severity: green Count: 1 ;; 22 Severity: greenCount: 1 ;; 23 Severity: green Count: 1, Top 3 event types showing 3 of 3 ;; Built/teardown/permitted IP connection Severity: green Count: 4 ;; Unknown Device Event Type Severity: green Count: 4 ;; CS-MARS Miscellaneous authentication message Severity: green Count: 1, Top 3 reporting devices showing 3 of 6 ;; gq_2 Count: 4 ;; d1_1 Count: 1 ;; d1_3 Count: 1MARS SNMP Trap Notification
All fields use the same enterprise OID, PROTEGO_ENTERPRISE_NUMBER:16686 but use different sub-OIDs, as follows:
enterprises.16686.1.0 string "MARS-1-101"enterprises.16686.2.0 string "<alert_content>"enterprises.16686.3.0 string "<optional_port_list_for_sudden_traffic_increase_incident>"enterprises.16686.4.0 string "<Top 3 src-dest address pairs>"enterprises.16686.5.0 string "<Top 3 dest TCP/UDP ports>"enterprises.16686.6.0 string "<Top 3 event types>"enterprises.16686.7.0 string "<Top 3 reporting devices>"Example 5-3 shows a MARS SNMP trap notification message.
Example 5-3 MARS SNMP Notification
SNMPv2-SMI::enterprises.16686 10.2.3.196 SNMPv2-SMI::enterprises.16686.1.0 "MARS-1-101" SNMPv2-SMI::en¬terprises.16686.2.0 "<34>Wed Feb 4 14:44:09 2009 %MARS-1-101: Rule 306498 (any) fired and caused green¬ Incident 287020054, starting from Wed Feb 4 14:43:15 2009 to Wed Feb 4 14:43:19 2009 on gVaAdGOCE¬W" SNMPv2-SMI::enterprises.16686.4.0 "Top 3 src-dest address pairs sorted by severity and count showin¬g 3 of 6, N/A -> N/A Severity: green Count: 4, 10.4.11.10 -> 10.1.1.16 Severity: green Count: 1, 10.¬4.11.10 -> 10.1.1.17 Severity: green Count: 1" SNMPv2-SMI::enterprises.16686.5.0 "Top 3 dest TCP/UDP ¬Ports sorted by severity and count showing 3 of 4, 21 Severity: green Count: 1, 22 Severity: green C¬ount: 1, 23 Severity: green Count: 1" SNMPv2-SMI::enterprises.16686.6.0 "Top 3 event types sorted by s¬everity and count showing 3 of 3, Built/teardown/permitted IP connection Severity: green Count: 4, U¬nknown Device Event Type Severity: green Count: 4, CS-MARS Miscellaneous authentication message Seve¬rity: green Count: 1" SNMPv2-SMI::enterprises.16686.7.0 "Top 3 reporting devices sorted by count showi¬ng 3 of 6, gq_2 Count: 4, d1_1 Count: 1, d1_3 Count: 1"MARS XML Notification Email Attachment
Figure 5-1 shows an XML notification with its attached XML data file. When compression is configured, the XML date file arrives as a GZIP compressed file.
Figure 5-1 MARS XML Notification Email Attachment
MARS SMS Notification Example
Example 5-4 shows a Simple Message Service notification.
Example 5-4 MARS SMS Notification
From: notifier.gVaAdGOCEW@cisco.com [mailto:notifier.gVaAdGOCEW@cisco.com]Sent: Wednesday, February 04, 2009 2:05 PMTo: Yi Lin (yilin)Subject: CS-MARS Incident Notification(yellow,Rule Name:System Rule: DoS: Network - Attempt)Incident Id:287020048Configure the E-mail Server Settings
To send alert actions, MARS must be configured to communicate with an e-mail server.
To configure the e-mail server settings, follow these steps:
Step 1
The Device Configuration window appears, as shown in Figure 5-2.
Figure 5-2 MARS Device Configuration Window
Step 2
Step 3
The e-mail server settings for sending alert actions are configured.
Configure a Rule to Send an Alert Action
To send alert notifications to individual users or groups of users, configure the Action parameters of a rule to create an alert action. This procedure configures alerts for pre-existing rules. When you create a rule, the Action parameters are configured after the count number parameter.
Note
To modify or create an alert for an existing rule, follow these steps:
Step 1
Step 2
The Action Selection dialog box, as shown in Figure 5-3, appears below the rule description table. All defined alert actions are listed in the right-hand area of the Action dialog box. An alert action determines which alert notifications are sent to which users or user groups when the rule fires. You can edit or delete existing alert actions or create a new one.
Figure 5-3 Action Selection Dialog
Step 3
•
a.
The alert action is deleted from the left-hand area.
b.
•
a.
The alert action appears in the left-hand area.
b.
•
a.
A delete verification window appears.
b.
The alert action is deleted from the right-hand area.
c.
•
a.
The Alert recipients page appears in a new window, as shown in Figure 5-4.
b.
•
a.
The Alert recipients page appears in an a new window, as shown in Figure 5-4.
b.

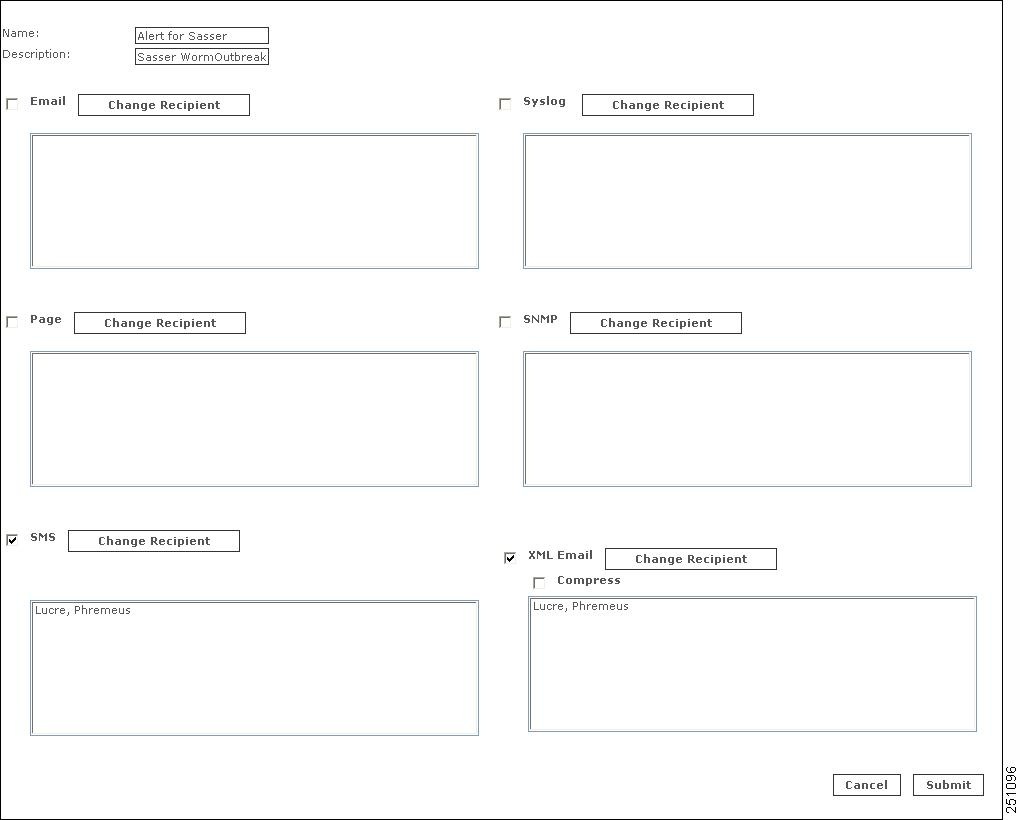

Figure 5-4 Alert Recipients Window
Step 4
Step 5
Recipients for the notification types are as follows:
•
•
•
•
•
Management > IP Management > Host•
Note
Step 6
For E-Mail, Page, SMS, and XML Email, the Select (recipient) dialog box appears, as shown in Figure 5-5.
Figure 5-5 Select Recipient Dialog Box
For Syslog and SNMP, the Select (device) dialog box appears, as shown in Figure 5-6.
Figure 5-6 Device Selection Page
For Distributed Threat Management notification, the Select (IOS-IPS Devices) dialog appears (not shown).
Tip
Step 7
Your selections appear in the left-hand area. To remove items, Ctrl+click the items in the left-hand area, then click Remove. The items are then deleted from the left-hand area.
Step 8
a.
b.
Step 9
You are returned to the Figure 5-4.
Step 10
Step 11
You are returned to the Figure 5-3. Any newly created or edited action alert appears in the right-hand area.
Step 12
Your selections appear in the left-hand area.
Step 13
The Time Range dialog may or may not appear.
Step 14
The Rule Summary table appears.
Step 15
Step 16
Note
Create a User—Role, Identity, Password, and Notification Information
New user accounts and user groups are created on the Management > User Management tab, or as a substep in creating an alert notification recipient (with the Add button on the Select [user] dialog).
To create a MARS user, follow these steps:
Step 1
•
•
The User Configuration page appears, as shown in Figure 5-7.
Figure 5-7 User Configuration Page
Step 2
•
•
•
•
Step 3
Step 4
•
•
•
•
•
•
•
•
•
Step 5
Step 6
This pull-down menu is populated as you add new providers.
Additional service provider information fields appear on the same page, as shown in Figure 5-8.
Figure 5-8 Service Provider Fields to Add or Change a Service Provider
Step 7
Step 8
This is the number the service provider requires for accepting alpha-numeric messages using the IXO/TAP protocol. The format is like a regular phone number, such as: 18001234567. The format of 1-800-1234567 is also acceptable. If dialing "9" is required to access a number outside your private branch exchange, type a "9," before the full telephone number (for example, 9,1-800-1234567).
Step 9
This is the baud rate the service provider requires for the specified phone number. Common values are 1200, 2400, 4800, and 9600.
Step 10
The new user is created, the User Configuration page is closed, and you are returned to the User Management tab.
Create a Custom User Group
You can create a custom user group to help organize the user accounts on your system.
To create a custom user group in addition to the default groups created by MARS, follow these steps:
Step 1
Step 2
Step 3
Step 4
The checked names appear in the left-hand side of the dialog box.
To remove users from the group, pick the users from the left-hand side with Ctrl+click. Click Remove.
The selected names appear in the right-hand side of the dialog box.
Step 5
You are returned to the User Management tab.
Add a User to a Custom User Group
Once you've defined a custom user group, you can add any users that are already defined to that group.
Note
To include a user in a custom user group, follow these steps:
Step 1
Step 2
The members of the group are displayed.
Step 3
Step 4
Step 5
You are returned to the User Management tab.
The user is added to the custom user group.
