System Setup

Installing the Product License and Accessing the Administration Interface

Obtain and Install Cisco NAC Guest Server License

Access Cisco NAC Guest Server Administration Interface

Configuring Network Settings

Date and Time Settings

Access Restrictions

Administration Access

Sponsor Access

Configuring SSL Certificates

Accessing the Guest Server Using HTTP or HTTPS

Generating Temporary Certificates/ CSRs/ Private Key

Downloading Certificate Files

Downloading the Certificate

Downloading the Private Key

Uploading Certificate Files

Configuring Administrator Authentication

Add New Admin Account

Edit Existing Admin Account

Delete Existing Admin Account

Admin Session Timeout

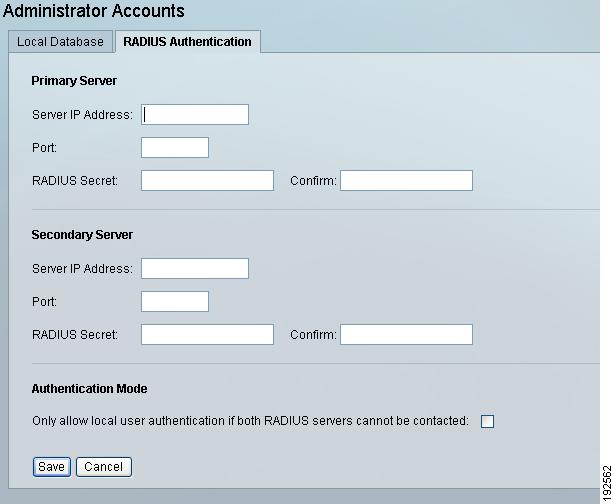

Configuring RADIUS for Administrator Authentication

System Setup

The Cisco NAC Guest Server is administered entirely using a web interface over either HTTP or HTTPS. After initial installation, the system can be configured through the web interface to provide the networking configuration for the appliance and other system settings that are important such as time and the SSL certificate.

This chapter includes the following sections:

•Installing the Product License and Accessing the Administration Interface

•Configuring Network Settings

•Date and Time Settings

•Configuring SSL Certificates

•Configuring Administrator Authentication

Installing the Product License and Accessing the Administration Interface

Before accessing the web administration interface of the Cisco NAC Guest Server, you need to install a product license. You can obtain a license using the instructions in the PAK shipped with the appliance or by registering for a evaluation license at https://tools.cisco.com/SWIFT/Licensing/PrivateRegistrationServlet?FormId=146.

Note For additional details on evaluation licenses refer to Cisco NAC Appliance Service Contract / Licensing Support.

This section describes the following:

•Obtain and Install Cisco NAC Guest Server License

•Access Cisco NAC Guest Server Administration Interface

Obtain and Install Cisco NAC Guest Server License

Use the following steps to obtain and install your FlexLM product license files for Cisco NAC Guest Server.

Step 1 With FlexLM licensing, you receive a Product Authorization Key (PAK) for each Guest Server that you purchase. The PAK is affixed as a sticky label on the Software License Claim Certificate card that is included in your package.

Warning The PAK is NOT the Cisco NAC Guest Server license. The PAK is used to obtain the Cisco NAC Guest Server license, as described below.

Step 2 Log in as a registered CCO user and fill out the Customer Registration form found at the PAK Cisco Technical Support site: http://www.cisco.com/go/license. During customer registration, submit each PAK you received and the eth0 MAC address of your Cisco NAC Guest Server.

Note For convenience, the top part of the Cisco NAC Guest Server License Form as shown in Figure 3-1, lists the MAC address of the Guest Server appliance.

Warning The eth0 MAC address entered in the customer registration form for the Guest Server must be in UPPER CASE (i.e. hexadecimal letters must be capitalized). Do not enter colons (":") in between characters.

Please follow the instructions on the license web pages carefully to ensure that the correct MAC addresses are entered.

Step 3 For each PAK that you submit, a license file is generated and sent to you by email.

Step 4 Save each license file you receive to disk.

Step 5 Open a web browser to the Cisco NAC Guest Server Administration interface by entering the IP address that you configured through the command line as the URL, followed by /admin:

•For HTTP access, open http://<guest_server_ip_address>/admin

•For HTTPS access, open https://<guest_server_ip_address>/admin

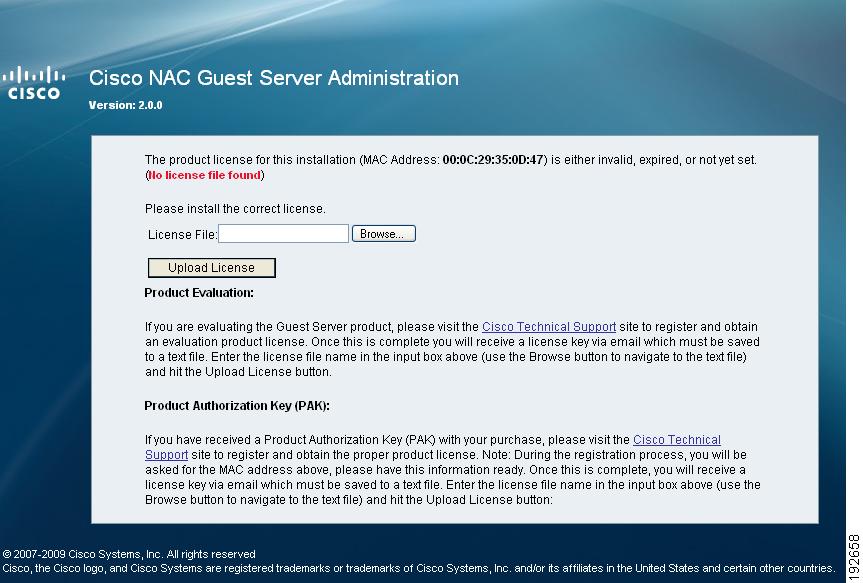

Step 6 In the Cisco NAC Guest Server License Form as shown in Figure 3-1, click the Browse button and locate the license file.

Figure 3-1 Cisco NAC Guest Server License Form (example)

Step 7 Click Upload License to install the license.

Access Cisco NAC Guest Server Administration Interface

Step 1 If you have installed a license, the admin login is automatically displayed. Otherwise, open a web browser to the Cisco NAC Guest Server Administration interface by entering the IP address that you configured through the command line as the URL, followed by /admin:

•For HTTP access, open http://<guest_server_ip_address>/admin

•For HTTPS access, open https://<guest_server_ip_address>/admin

Step 2 The Cisco NAC Guest Server Administration interface is displayed as shown in Figure 3-2. This is the administrator interface to the appliance.

Step 3 Login as the admin user. The default user name/password for the admin console is admin/admin.

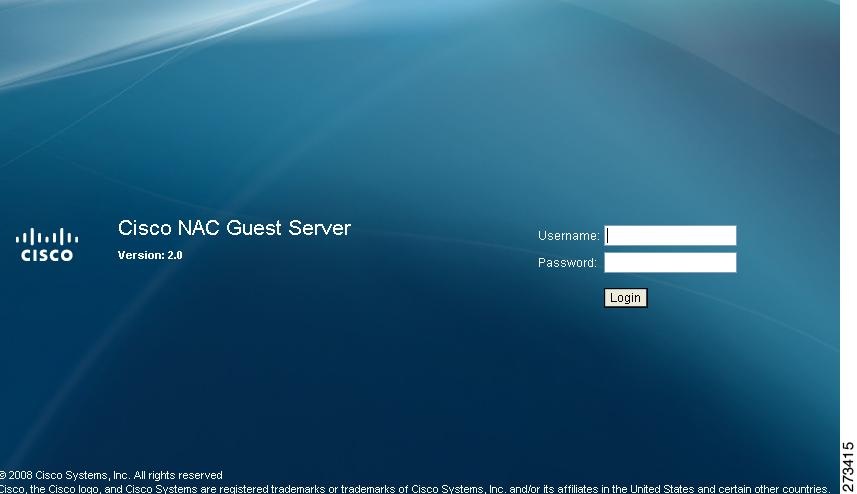

Figure 3-2 Admin Login

Note Cisco recommends setting up SSL access and change the default admin user password for security. Refer to Configuring SSL Certificates and Edit Existing Admin Account for details.

Note Entering the Guest Server IP address without the" /admin" as the URL brings up the sponsor interface. See Chapter 4, "Configuring Sponsor Authentication" for details.

Configuring Network Settings

Configure remaining network settings before performing any other operation. This minimizes the need to restart the appliance later on.

Step 1 Upon logging into the administration interface, by default, the home page displays the Authentication > Sponsors >Authentication Order page as shown in Figure 3-3.

Figure 3-3 Administration Home Page

Step 2 From the administration home page, select Server > Network Settings from the left panel to go to the Network Settings page. This page provides all the network settings that can be changed on the Cisco NAC Guest Server appliance as shown in Figure 3-4.

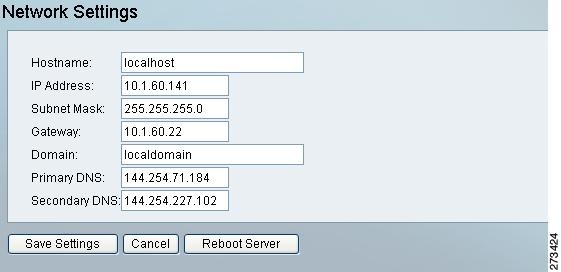

Figure 3-4 Network Settings

You can change the following Network Settings:

•Hostname—Assign the name of the appliance as defined in DNS (without DNS suffix).

•IP Address—Modify the IP address of the eth0 interface on the appliance.

•Subnet Mask—Enter the corresponding subnet mask.

•Gateway—Modify the default gateway for the network to which the appliance is connected.

•Domain—Enter the domain name for your organization (e.g. cisco.com).

•Primary DNS—Enter the IP address of the primary DNS server.

•Secondary DNS—Enter the IP address of the secondary DNS server.

Step 3 Click the Save Settings button to save the changes that you made.

Step 4 Once changes are saved, you need to restart the Guest Server to ensure all processes use the correct IP address. Click the Reboot Server button, and the restart process will begin on the Guest Server within 60 seconds.

Note Modifications to Server settings require a reboot. You can modify and save multiple Server settings at a time before a reboot, but you must click Reboot Server for the changes to be applied.

Date and Time Settings

Correct date and time are critical to the Cisco NAC Guest Server. The Guest Server authenticates guest users based upon the time their accounts are valid. It is important for the time to be correct so that guest accounts are created and removed at the correct time. If possible, Cisco recommends using a Network Time Protocol (NTP) server to synchronize the time and date.

Step 1 From the administration interface, select Server > Date/Time Settings to display the Date/Time Settings page as shown in Figure 3-5.

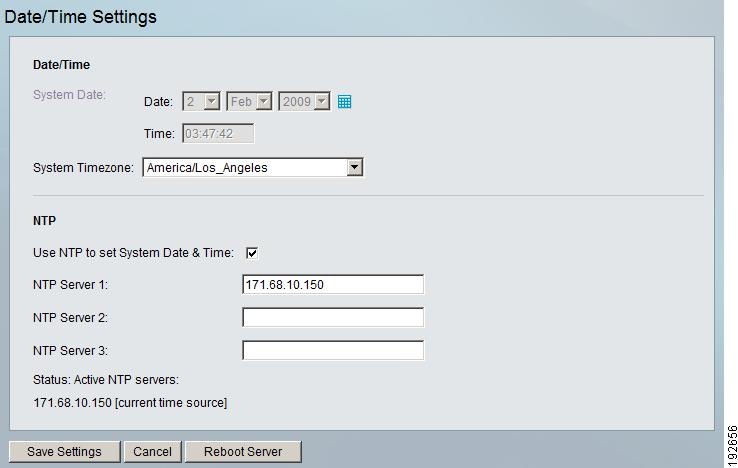

Figure 3-5 Date/Time Settings

Step 2 Select the correct System Date and System Time for the location of the Guest Server.

Step 3 Select the correct System Timezone for the location of the Guest Server.

Step 4 Click the Save Settings button to apply the System Timezone.

Note Changing the System Timezone automatically adjusts the date and time on the server.

Step 5 If you have one, two or three NTP servers available on the network, click the Use NTP to set System Date & Time checkbox.

Step 6 Enter the IP address of each NTP server available into the fields provided.

Step 7 Click the Save Settings button to apply the changes.

Note When setting the NTP server it may take some time for synchronization. Synchronization occurs much faster if the time is set close to the NTP server (and saved by clicking the Save Settings button) before saving the NTP Server settings.

Step 8 Click the Reboot Server button to restart the NTP process so the new settings take effect.

Note If you modify the Server settings, you need to reboot the system. You can modify and save multiple Server settings at a time, but you must click Reboot Server for the changes to be applied.

Access Restrictions

You can configure Cisco NAC Guest Server to restrict access to only certain IP address ranges for the administration interface and the sponsor interface at any one time.

Administration Access

Step 1 From the administration interface, select Server > Access Restrictions and click the Administration tab as shown in Figure 3-6.

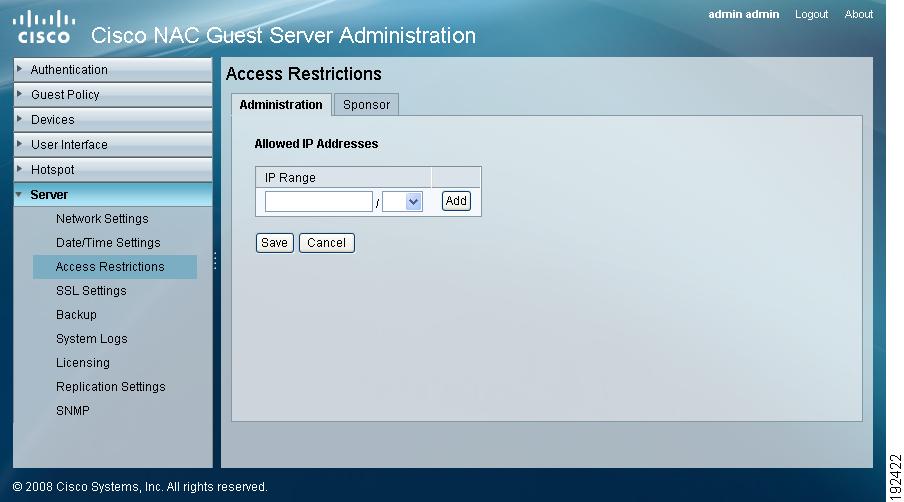

Figure 3-6 Access Restrictions Admin

Step 2 In the Allowed IP Addresses field, type a range of IP addresses that are allowed access to the Guest Server Administration interface, and apply a CIDR subnet range using the dropdown menu.

Step 3 Click Add to add addresses to the list.

Step 4 Click Save to make the changes permanent.

Note Leaving the IP Range field blank allows all IP addresses to access the Administration interface, if users have the required admin account permissions.

Sponsor Access

Step 1 From the administration interface, select Server > Access Restrictions and click the Sponsor tab as shown in Figure 3-7.

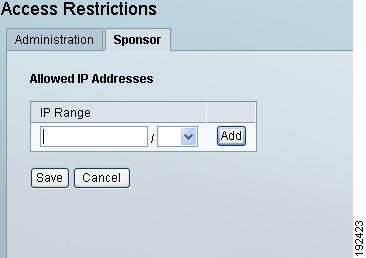

Figure 3-7 Access Restrictions Sponsor

Step 2 Type the range of IP addresses that are allowed to access the Sponsor interface, and apply a CIDR subnet range using the dropdown menu.

Step 3 Click Save to continue.

Note Leaving the IP Range field blank allows all IP addresses to access the Sponsor interface, if users have the required sponsor account permissions.

Note If you modify the Server settings, you need to reboot the system. You can modify and save multiple Server settings at a time, but you must click Reboot Server for the changes to be applied.

Configuring SSL Certificates

Both sponsors and administrators can access the Cisco NAC Guest Server using either HTTP or HTTPS. For more secure access Cisco recommends using HTTPS.

This section describes the following:

•Accessing the Guest Server Using HTTP or HTTPS

•Generating Temporary Certificates/ CSRs/ Private Key

•Downloading Certificate Files

•Uploading Certificate Files

Accessing the Guest Server Using HTTP or HTTPS

You can configure whether sponsors and administrators access the portal using HTTP, HTTP and HTTPS, or HTTPS only.

Step 1 From the administration interface, select Server > SSL Settings from the left panel to display the SSL Settings page as shown in Figure 3-8.

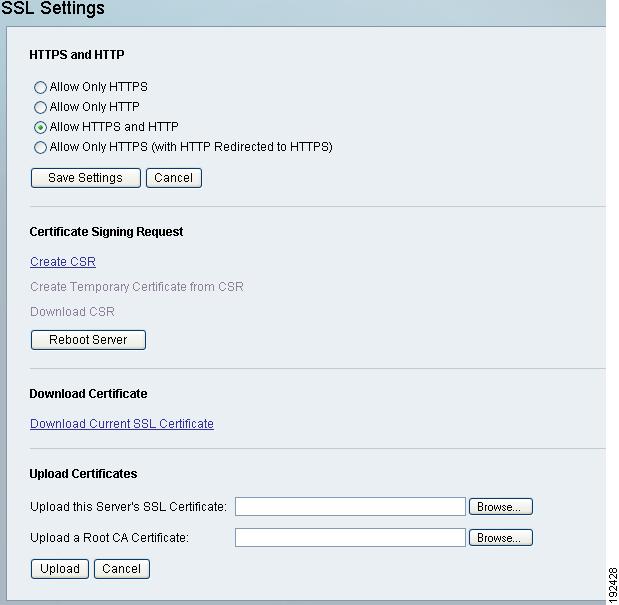

Figure 3-8 SSL Settings Main Page

Step 2 The main SSL Settings page provides the following options:

•Allow Only HTTPS—When selected, only allows HTTPS access to the sponsor or administration interfaces of the Guest Server.

•Allow Only HTTP—When selected, only allows HTTP access to the sponsor or administration interfaces of the Guest Server.

•Allow HTTPS and HTTP—When selected, allows both HTTPS and HTTP access to the sponsor or administration interfaces of the Guest Server.

•Allow Only HTTPS (with HTTP Redirected to HTTPS)—When selected, allows sponsors and administrators to access the portal with HTTPS and standard HTTP; however, sponsors and administrators are redirected via HTTPS if using a standard HTTP connection.

Step 3 When you have made your selection, click the Save Settings button.

Note Modifications to Server settings require a reboot. You can modify and save multiple Server settings at a time before a reboot, but you must click Reboot Server for the changes to be applied.

Generating Temporary Certificates/ CSRs/ Private Key

Cisco NAC Guest Server ships with a default certificate installed. If you are planning on using HTTPS, Cisco strongly recommends generating a new temporary certificate and private key. When doing this, a certificate signing request (CSR) is also generated that can be used to obtain a Certificate Authority (CA) signed certificate.

Step 1 From the administration interface, select Server > SSL Settings from the left hand menu and click the Create CSR link from the center section of the page as shown in Figure 3-9 to bring up the Create CSR form as shown in Figure 3-10.

Figure 3-9 Certificate Signing Request

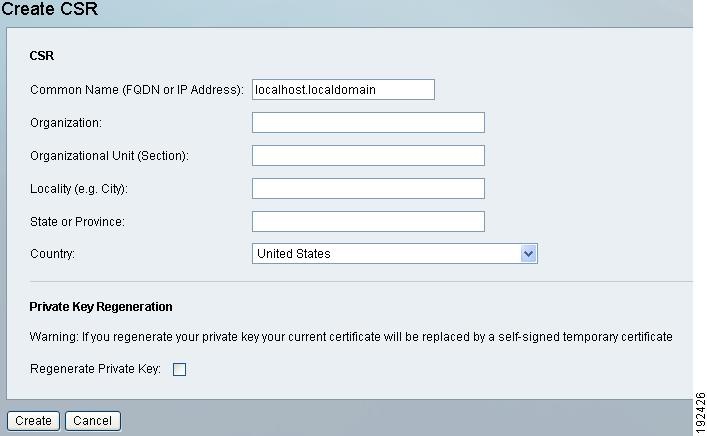

Figure 3-10 Create a CSR

Step 2 Provide the details for the temporary certificate and CSR in the Create CSR form:

•Common Name (FQDN or IP Address)—This is either the IP address of the Cisco NAC Guest Server, or the fully qualified domain name (FQDN) for the Guest Server. The FQDN must resolve correctly in DNS.

•Organization—The name of your organization or company.

•Organizational Unit (Section)—The name of the department or business unit that owns the device.

•Locality (e.g. City)—The city where the server is located.

•State or Province—The state where the server is located.

•Country—Select the relevant country from the dropdown menu.

Step 3 The Regenerate Private Key checkbox is optional and should be used if you think your existing private key has been compromised. If you regenerate your private key, the current certificate is invalidated and a new self-signed temporary certificate is generated using the new private key and CSR. Select this option to regenerate a private key.

Step 4 Click Create.

Step 5 The Certificate Signing Request page is again displayed as shown in Figure 3-9. If you chose to regenerate the private key, you will be prompted to restart the server. You need to restart the server to use the new certificate and private key.

Step 6 The Create Temporary Certificate from CSR and Download CSR options are now available as shown in Figure 3-11.

Figure 3-11 Create CSR and Download CSR

Step 7 Selecting Create Temporary Certificate from CSR generates a temporary certificate from the previously requested Certificate Signing Request that you created in Steps 1 to 4.

Step 8 You can download the CSR by clicking the Download CSR option in Figure 3-11. Once you have sent the CSR to a Certificate Authority and obtained the CA-signed certificate in return, you can upload it by following the instructions in the Uploading Certificate Files.

Step 9 To use the new temporary certificate you must restart the web server process. Click the Reboot Server button as shown in Figure 3-8.

Note Modifications to Server settings require a reboot. You can modify and save multiple Server settings at a time before a reboot, but you must click Reboot Server for the changes to be applied.

Downloading Certificate Files

Downloading the Certificate

Cisco strongly recommends backing up the certificate and private key. The certificate can be downloaded from the administration interface for manual backup to a secure location.

Step 1 From the administration interface, select Server > SSL Settings from the left hand menu.

Step 2 Select Download Current SSL Certificate from the Download Certificate section of the page as shown in Figure 3-12.

Figure 3-12 Download Certificate File

Step 3 Save the SSL Certificate to a secure backup location.

Downloading the Private Key

The private key can only be obtained through an SFTP connection to the Guest Server. For Windows platforms, you can get a free SFTP client from http://winscp.net.

Step 1 Open an SFTP connection to the Cisco NAC Guest Server. The authentication credentials are the same as for the command line. Login with the root username and password you assigned for this account in the initial setup.

Step 2 Download the /etc/pki/tls/private/localhost.key file and store it in a secure backup location.

Uploading Certificate Files

The Cisco NAC Guest Server provides a method of importing/uploading certificate files to the Guest Server appliance. The Upload Certificates option is used to install a CA-signed certificate or to restore Base 64 PEM format certificate files previously backed up.

Note You must upload certificate files in Base 64 PEM format.

The certificate files are not backed up as part of any backup process. You must manually back them up as described in Downloading Certificate Files.

Step 1 From the administration interface, select Server > SSL Settings from the left hand menu.

Step 2 View the Upload Certificates section at the bottom of the page as shown in Figure 3-13.

Figure 3-13 Upload Certificate Files

Step 3 Click the Browse button to locate the SSL Certificate file or Root CA Certificate file you want to upload and click the Upload button.

Warning When uploading a certificate, it must match the private key installed.

Step 4 If uploading a new Server SSL Certificate, you are prompted to restart the server for the certificate to take effect.

Note Modifications to Server settings require a reboot. You can modify and save multiple Server settings at a time before a reboot, but you must click Reboot Server for the changes to be applied.

Configuring Administrator Authentication

Cisco NAC Guest Server has a single default administrator account, called "admin." You can additionally configure the Cisco NAC Guest Server to authenticate administrators against an external RADIUS server. The Admin Accounts pages under the Authentication menu allow you to create, edit and delete additional administrator accounts.

This section describes the following:

•Add New Admin Account

•Edit Existing Admin Account

•Delete Existing Admin Account

•Admin Session Timeout

•Configuring RADIUS for Administrator Authentication

Add New Admin Account

Step 1 From the administration interface, select Authentication > Administrators from the left hand menu.

Step 2 In the Local Database tab of the Administrators page as shown in Figure 3-14, click the Add Administrator button.

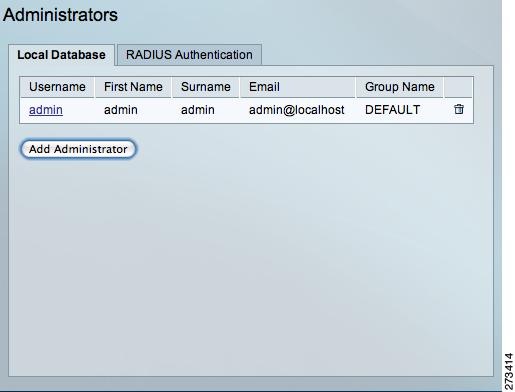

Figure 3-14 Administrator Accounts

Step 3 In the Add Administrator page as shown in Figure 3-15, enter all the admin user credentials.

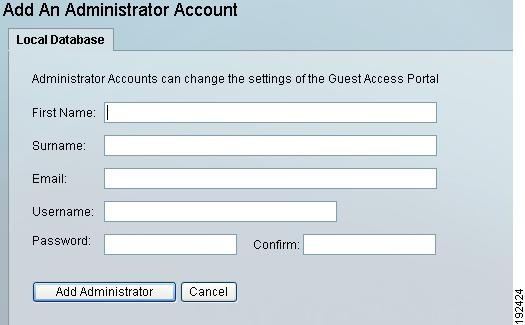

Figure 3-15 Add Admin User

•First Name—Type the first name of the admin user

•Surname—Type the last name of the admin user.

•Email Address—Type the email address of the admin user

•Username—Type the user name for the admin account.

•Password—Type the password for the admin account.

•Confirm—Retype the password for the admin account

Step 4 Click the Add Administrator button.

•If there are any errors, the account is not added and an error message is displayed at the top of the page.

•If successfully added, a success message is displayed at the top of the page and you can add additional admin accounts.

Edit Existing Admin Account

You can modify the settings of admin accounts that are already created.

Step 1 From the administration interface, select Authentication > Administrators from the left hand menu.

Step 2 In the Local Database tab of the Administrators page as shown in Figure 3-16, click the username from the list.

Figure 3-16 Admin Users to Edit

Step 3 In the Edit Administrator page as shown in Figure 3-17, edit the user credentials.

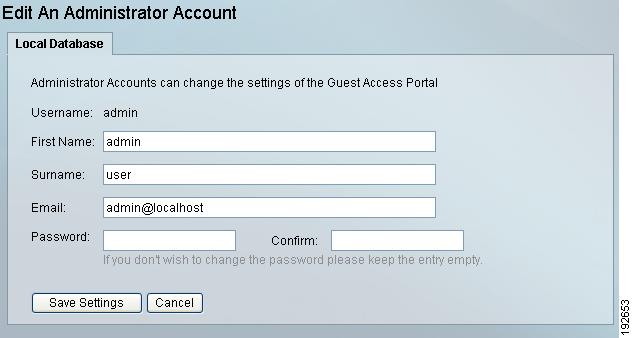

Figure 3-17 Edit Admin Account

•First Name—Edit the first name of the admin user

•Surname—Edit the last name of the admin user.

•Email Address—Edit the email address of the admin user

•Password—Edit the password for the admin account.

•Confirm—Edit the password for the admin account.

Note Cisco recommends using a strong password that is not based on a dictionary word, has a minimum of 6 characters, and contains at least 5 different characters.

Note Leaving the Password and Repeat Password fields empty keeps the existing password.

Step 4 Click the Save Settings button.

•If there are any errors, the account is not changed and an error message is displayed at the top of the page.

•If successfully changed, a success message is displayed at the top of the page and you can make additional changes to the same admin account.

Delete Existing Admin Account

You can remove existing admin accounts from the administration interface.

Step 1 From the administration interface, select Authentication > Administrators from the left hand menu.

Figure 3-18 Select Admin Account to Delete

Step 2 In the Admin Accounts page as shown in Figure 3-18, click the bin icon at the end of the user entry that you want to delete.

Step 3 When prompted, click OK to delete the user or Cancel to cancel the deletion. If successfully deleted, a success message is displayed at the top of the page.

Admin Session Timeout

The Session Timeout defined for the Sponsor interface also applies to the Administration interface. See Session Timeouts, page 4-19 for details.

Configuring RADIUS for Administrator Authentication

Note Cisco NAC Guest Server only allows access to admin users who are successfully authenticated. The RADIUS server must return the IETF Service-Type attribute set to 6 (administrative).

As an alternative to configuring local administrator accounts, you can configure admin users to be authenticated over RADIUS to a RADIUS server. To configure RADIUS authentication for Administrator Authentication, perform the following steps:

Step 1 From the administration interface, select Authentication > Administrators.

Step 2 Click the RADIUS Authentication tab as shown in Figure 3-19.

Figure 3-19 Administrator RADIUS Authentication

Step 3 Type the Server IP Address for the Primary RADIUS Server.

Step 4 Type the Port that RADIUS authentication is running on for that server (default is 1645 or 1812).

Step 5 In the RADIUS Secret field, type the shared secret to be used between the RADIUS Server and the NAC Guest Server.

Step 6 Confirm the secret to make sure that it is set correctly.

Step 7 Enter details for a Secondary RADIUS Server. These details are used when the NAC Guest Server does not receive response from the Primary RADIUS Server. These fields are optional.

Step 8 Check the Authentication Mode checkbox so that Local Admin account is allowed if both the RADIUS Servers cannot be contacted. If this option is unchecked, Local Admin account is allowed if authentication is denied for any one of the RADIUS Servers.

Step 9 Click the Save button to save the Administrator RADIUS settings.

	Cisco NAC Guest Server Installation and Configuration Guide, Release 2.0.1
	System Setup
Cisco NAC Guest Server Installation and Configuration Guide, Release 2.0.1 About This Guide Welcome to Cisco NAC Guest Server Installing Cisco NAC Guest Server System Setup Configuring Sponsor Authentication Configuring Guest Policies Configuring Sponsor User Groups Integrating with Cisco NAC Appliance Configuring RADIUS Clients Guest Activity Logging Guest Account Notification Customizing the Application Configuring Hotspots Backup and Restore Replication and High Availability Management, Logging and Troubleshooting Licensing Sponsor Documentation API Support Open Source License Acknowledgements	Download this chapter System Setup Download the complete book Book-length PDF (PDF - 10 MB) Table Of Contents System Setup Installing the Product License and Accessing the Administration Interface Obtain and Install Cisco NAC Guest Server License Access Cisco NAC Guest Server Administration Interface Configuring Network Settings Date and Time Settings Access Restrictions Administration Access Sponsor Access Configuring SSL Certificates Accessing the Guest Server Using HTTP or HTTPS Generating Temporary Certificates/ CSRs/ Private Key Downloading Certificate Files Downloading the Certificate Downloading the Private Key Uploading Certificate Files Configuring Administrator Authentication Add New Admin Account Edit Existing Admin Account Delete Existing Admin Account Admin Session Timeout Configuring RADIUS for Administrator Authentication System Setup The Cisco NAC Guest Server is administered entirely using a web interface over either HTTP or HTTPS. After initial installation, the system can be configured through the web interface to provide the networking configuration for the appliance and other system settings that are important such as time and the SSL certificate. This chapter includes the following sections: •Installing the Product License and Accessing the Administration Interface •Configuring Network Settings •Date and Time Settings •Configuring SSL Certificates •Configuring Administrator Authentication Installing the Product License and Accessing the Administration Interface Before accessing the web administration interface of the Cisco NAC Guest Server, you need to install a product license. You can obtain a license using the instructions in the PAK shipped with the appliance or by registering for a evaluation license at https://tools.cisco.com/SWIFT/Licensing/PrivateRegistrationServlet?FormId=146. Note For additional details on evaluation licenses refer to Cisco NAC Appliance Service Contract / Licensing Support. This section describes the following: •Obtain and Install Cisco NAC Guest Server License •Access Cisco NAC Guest Server Administration Interface Obtain and Install Cisco NAC Guest Server License Use the following steps to obtain and install your FlexLM product license files for Cisco NAC Guest Server. Step 1 With FlexLM licensing, you receive a Product Authorization Key (PAK) for each Guest Server that you purchase. The PAK is affixed as a sticky label on the Software License Claim Certificate card that is included in your package. Warning The PAK is NOT the Cisco NAC Guest Server license. The PAK is used to obtain the Cisco NAC Guest Server license, as described below. Step 2 Log in as a registered CCO user and fill out the Customer Registration form found at the PAK Cisco Technical Support site: http://www.cisco.com/go/license. During customer registration, submit each PAK you received and the eth0 MAC address of your Cisco NAC Guest Server. Note For convenience, the top part of the Cisco NAC Guest Server License Form as shown in Figure 3-1, lists the MAC address of the Guest Server appliance. Warning The eth0 MAC address entered in the customer registration form for the Guest Server must be in UPPER CASE (i.e. hexadecimal letters must be capitalized). Do not enter colons (":") in between characters. Please follow the instructions on the license web pages carefully to ensure that the correct MAC addresses are entered. Step 3 For each PAK that you submit, a license file is generated and sent to you by email. Step 4 Save each license file you receive to disk. Step 5 Open a web browser to the Cisco NAC Guest Server Administration interface by entering the IP address that you configured through the command line as the URL, followed by /admin: •For HTTP access, open http://<guest_server_ip_address>/admin •For HTTPS access, open https://<guest_server_ip_address>/admin Step 6 In the Cisco NAC Guest Server License Form as shown in Figure 3-1, click the Browse button and locate the license file. Figure 3-1 Cisco NAC Guest Server License Form (example) Step 7 Click Upload License to install the license. Access Cisco NAC Guest Server Administration Interface Step 1 If you have installed a license, the admin login is automatically displayed. Otherwise, open a web browser to the Cisco NAC Guest Server Administration interface by entering the IP address that you configured through the command line as the URL, followed by /admin: •For HTTP access, open http://<guest_server_ip_address>/admin •For HTTPS access, open https://<guest_server_ip_address>/admin Step 2 The Cisco NAC Guest Server Administration interface is displayed as shown in Figure 3-2. This is the administrator interface to the appliance. Step 3 Login as the admin user. The default user name/password for the admin console is admin/admin. Figure 3-2 Admin Login Note Cisco recommends setting up SSL access and change the default admin user password for security. Refer to Configuring SSL Certificates and Edit Existing Admin Account for details. Note Entering the Guest Server IP address without the" /admin" as the URL brings up the sponsor interface. See Chapter 4, "Configuring Sponsor Authentication" for details. Configuring Network Settings Configure remaining network settings before performing any other operation. This minimizes the need to restart the appliance later on. Step 1 Upon logging into the administration interface, by default, the home page displays the Authentication > Sponsors >Authentication Order page as shown in Figure 3-3. Figure 3-3 Administration Home Page Step 2 From the administration home page, select Server > Network Settings from the left panel to go to the Network Settings page. This page provides all the network settings that can be changed on the Cisco NAC Guest Server appliance as shown in Figure 3-4. Figure 3-4 Network Settings You can change the following Network Settings: •Hostname—Assign the name of the appliance as defined in DNS (without DNS suffix). •IP Address—Modify the IP address of the eth0 interface on the appliance. •Subnet Mask—Enter the corresponding subnet mask. •Gateway—Modify the default gateway for the network to which the appliance is connected. •Domain—Enter the domain name for your organization (e.g. cisco.com). •Primary DNS—Enter the IP address of the primary DNS server. •Secondary DNS—Enter the IP address of the secondary DNS server. Step 3 Click the Save Settings button to save the changes that you made. Step 4 Once changes are saved, you need to restart the Guest Server to ensure all processes use the correct IP address. Click the Reboot Server button, and the restart process will begin on the Guest Server within 60 seconds. Note Modifications to Server settings require a reboot. You can modify and save multiple Server settings at a time before a reboot, but you must click Reboot Server for the changes to be applied. Date and Time Settings Correct date and time are critical to the Cisco NAC Guest Server. The Guest Server authenticates guest users based upon the time their accounts are valid. It is important for the time to be correct so that guest accounts are created and removed at the correct time. If possible, Cisco recommends using a Network Time Protocol (NTP) server to synchronize the time and date. Step 1 From the administration interface, select Server > Date/Time Settings to display the Date/Time Settings page as shown in Figure 3-5. Figure 3-5 Date/Time Settings Step 2 Select the correct System Date and System Time for the location of the Guest Server. Step 3 Select the correct System Timezone for the location of the Guest Server. Step 4 Click the Save Settings button to apply the System Timezone. Note Changing the System Timezone automatically adjusts the date and time on the server. Step 5 If you have one, two or three NTP servers available on the network, click the Use NTP to set System Date & Time checkbox. Step 6 Enter the IP address of each NTP server available into the fields provided. Step 7 Click the Save Settings button to apply the changes. Note When setting the NTP server it may take some time for synchronization. Synchronization occurs much faster if the time is set close to the NTP server (and saved by clicking the Save Settings button) before saving the NTP Server settings. Step 8 Click the Reboot Server button to restart the NTP process so the new settings take effect. Note If you modify the Server settings, you need to reboot the system. You can modify and save multiple Server settings at a time, but you must click Reboot Server for the changes to be applied. Access Restrictions You can configure Cisco NAC Guest Server to restrict access to only certain IP address ranges for the administration interface and the sponsor interface at any one time. Administration Access Step 1 From the administration interface, select Server > Access Restrictions and click the Administration tab as shown in Figure 3-6. Figure 3-6 Access Restrictions Admin Step 2 In the Allowed IP Addresses field, type a range of IP addresses that are allowed access to the Guest Server Administration interface, and apply a CIDR subnet range using the dropdown menu. Step 3 Click Add to add addresses to the list. Step 4 Click Save to make the changes permanent. Note Leaving the IP Range field blank allows all IP addresses to access the Administration interface, if users have the required admin account permissions. Sponsor Access Step 1 From the administration interface, select Server > Access Restrictions and click the Sponsor tab as shown in Figure 3-7. Figure 3-7 Access Restrictions Sponsor Step 2 Type the range of IP addresses that are allowed to access the Sponsor interface, and apply a CIDR subnet range using the dropdown menu. Step 3 Click Save to continue. Note Leaving the IP Range field blank allows all IP addresses to access the Sponsor interface, if users have the required sponsor account permissions. Note If you modify the Server settings, you need to reboot the system. You can modify and save multiple Server settings at a time, but you must click Reboot Server for the changes to be applied. Configuring SSL Certificates Both sponsors and administrators can access the Cisco NAC Guest Server using either HTTP or HTTPS. For more secure access Cisco recommends using HTTPS. This section describes the following: •Accessing the Guest Server Using HTTP or HTTPS •Generating Temporary Certificates/ CSRs/ Private Key •Downloading Certificate Files •Uploading Certificate Files Accessing the Guest Server Using HTTP or HTTPS You can configure whether sponsors and administrators access the portal using HTTP, HTTP and HTTPS, or HTTPS only. Step 1 From the administration interface, select Server > SSL Settings from the left panel to display the SSL Settings page as shown in Figure 3-8. Figure 3-8 SSL Settings Main Page Step 2 The main SSL Settings page provides the following options: •Allow Only HTTPS—When selected, only allows HTTPS access to the sponsor or administration interfaces of the Guest Server. •Allow Only HTTP—When selected, only allows HTTP access to the sponsor or administration interfaces of the Guest Server. •Allow HTTPS and HTTP—When selected, allows both HTTPS and HTTP access to the sponsor or administration interfaces of the Guest Server. •Allow Only HTTPS (with HTTP Redirected to HTTPS)—When selected, allows sponsors and administrators to access the portal with HTTPS and standard HTTP; however, sponsors and administrators are redirected via HTTPS if using a standard HTTP connection. Step 3 When you have made your selection, click the Save Settings button. Note Modifications to Server settings require a reboot. You can modify and save multiple Server settings at a time before a reboot, but you must click Reboot Server for the changes to be applied. Generating Temporary Certificates/ CSRs/ Private Key Cisco NAC Guest Server ships with a default certificate installed. If you are planning on using HTTPS, Cisco strongly recommends generating a new temporary certificate and private key. When doing this, a certificate signing request (CSR) is also generated that can be used to obtain a Certificate Authority (CA) signed certificate. Step 1 From the administration interface, select Server > SSL Settings from the left hand menu and click the Create CSR link from the center section of the page as shown in Figure 3-9 to bring up the Create CSR form as shown in Figure 3-10. Figure 3-9 Certificate Signing Request Figure 3-10 Create a CSR Step 2 Provide the details for the temporary certificate and CSR in the Create CSR form: •Common Name (FQDN or IP Address)—This is either the IP address of the Cisco NAC Guest Server, or the fully qualified domain name (FQDN) for the Guest Server. The FQDN must resolve correctly in DNS. •Organization—The name of your organization or company. •Organizational Unit (Section)—The name of the department or business unit that owns the device. •Locality (e.g. City)—The city where the server is located. •State or Province—The state where the server is located. •Country—Select the relevant country from the dropdown menu. Step 3 The Regenerate Private Key checkbox is optional and should be used if you think your existing private key has been compromised. If you regenerate your private key, the current certificate is invalidated and a new self-signed temporary certificate is generated using the new private key and CSR. Select this option to regenerate a private key. Step 4 Click Create. Step 5 The Certificate Signing Request page is again displayed as shown in Figure 3-9. If you chose to regenerate the private key, you will be prompted to restart the server. You need to restart the server to use the new certificate and private key. Step 6 The Create Temporary Certificate from CSR and Download CSR options are now available as shown in Figure 3-11. Figure 3-11 Create CSR and Download CSR Step 7 Selecting Create Temporary Certificate from CSR generates a temporary certificate from the previously requested Certificate Signing Request that you created in Steps 1 to 4. Step 8 You can download the CSR by clicking the Download CSR option in Figure 3-11. Once you have sent the CSR to a Certificate Authority and obtained the CA-signed certificate in return, you can upload it by following the instructions in the Uploading Certificate Files. Step 9 To use the new temporary certificate you must restart the web server process. Click the Reboot Server button as shown in Figure 3-8. Note Modifications to Server settings require a reboot. You can modify and save multiple Server settings at a time before a reboot, but you must click Reboot Server for the changes to be applied. Downloading Certificate Files Downloading the Certificate Cisco strongly recommends backing up the certificate and private key. The certificate can be downloaded from the administration interface for manual backup to a secure location. Step 1 From the administration interface, select Server > SSL Settings from the left hand menu. Step 2 Select Download Current SSL Certificate from the Download Certificate section of the page as shown in Figure 3-12. Figure 3-12 Download Certificate File Step 3 Save the SSL Certificate to a secure backup location. Downloading the Private Key The private key can only be obtained through an SFTP connection to the Guest Server. For Windows platforms, you can get a free SFTP client from http://winscp.net. Step 1 Open an SFTP connection to the Cisco NAC Guest Server. The authentication credentials are the same as for the command line. Login with the root username and password you assigned for this account in the initial setup. Step 2 Download the /etc/pki/tls/private/localhost.key file and store it in a secure backup location. Uploading Certificate Files The Cisco NAC Guest Server provides a method of importing/uploading certificate files to the Guest Server appliance. The Upload Certificates option is used to install a CA-signed certificate or to restore Base 64 PEM format certificate files previously backed up. Note You must upload certificate files in Base 64 PEM format. The certificate files are not backed up as part of any backup process. You must manually back them up as described in Downloading Certificate Files. Step 1 From the administration interface, select Server > SSL Settings from the left hand menu. Step 2 View the Upload Certificates section at the bottom of the page as shown in Figure 3-13. Figure 3-13 Upload Certificate Files Step 3 Click the Browse button to locate the SSL Certificate file or Root CA Certificate file you want to upload and click the Upload button. Warning When uploading a certificate, it must match the private key installed. Step 4 If uploading a new Server SSL Certificate, you are prompted to restart the server for the certificate to take effect. Note Modifications to Server settings require a reboot. You can modify and save multiple Server settings at a time before a reboot, but you must click Reboot Server for the changes to be applied. Configuring Administrator Authentication Cisco NAC Guest Server has a single default administrator account, called "admin." You can additionally configure the Cisco NAC Guest Server to authenticate administrators against an external RADIUS server. The Admin Accounts pages under the Authentication menu allow you to create, edit and delete additional administrator accounts. This section describes the following: •Add New Admin Account •Edit Existing Admin Account •Delete Existing Admin Account •Admin Session Timeout •Configuring RADIUS for Administrator Authentication Add New Admin Account Step 1 From the administration interface, select Authentication > Administrators from the left hand menu. Step 2 In the Local Database tab of the Administrators page as shown in Figure 3-14, click the Add Administrator button. Figure 3-14 Administrator Accounts Step 3 In the Add Administrator page as shown in Figure 3-15, enter all the admin user credentials. Figure 3-15 Add Admin User •First Name—Type the first name of the admin user •Surname—Type the last name of the admin user. •Email Address—Type the email address of the admin user •Username—Type the user name for the admin account. •Password—Type the password for the admin account. •Confirm—Retype the password for the admin account Step 4 Click the Add Administrator button. •If there are any errors, the account is not added and an error message is displayed at the top of the page. •If successfully added, a success message is displayed at the top of the page and you can add additional admin accounts. Edit Existing Admin Account You can modify the settings of admin accounts that are already created. Step 1 From the administration interface, select Authentication > Administrators from the left hand menu. Step 2 In the Local Database tab of the Administrators page as shown in Figure 3-16, click the username from the list. Figure 3-16 Admin Users to Edit Step 3 In the Edit Administrator page as shown in Figure 3-17, edit the user credentials. Figure 3-17 Edit Admin Account •First Name—Edit the first name of the admin user •Surname—Edit the last name of the admin user. •Email Address—Edit the email address of the admin user •Password—Edit the password for the admin account. •Confirm—Edit the password for the admin account. Note Cisco recommends using a strong password that is not based on a dictionary word, has a minimum of 6 characters, and contains at least 5 different characters. Note Leaving the Password and Repeat Password fields empty keeps the existing password. Step 4 Click the Save Settings button. •If there are any errors, the account is not changed and an error message is displayed at the top of the page. •If successfully changed, a success message is displayed at the top of the page and you can make additional changes to the same admin account. Delete Existing Admin Account You can remove existing admin accounts from the administration interface. Step 1 From the administration interface, select Authentication > Administrators from the left hand menu. Figure 3-18 Select Admin Account to Delete Step 2 In the Admin Accounts page as shown in Figure 3-18, click the bin icon at the end of the user entry that you want to delete. Step 3 When prompted, click OK to delete the user or Cancel to cancel the deletion. If successfully deleted, a success message is displayed at the top of the page. Admin Session Timeout The Session Timeout defined for the Sponsor interface also applies to the Administration interface. See Session Timeouts, page 4-19 for details. Configuring RADIUS for Administrator Authentication Note Cisco NAC Guest Server only allows access to admin users who are successfully authenticated. The RADIUS server must return the IETF Service-Type attribute set to 6 (administrative). As an alternative to configuring local administrator accounts, you can configure admin users to be authenticated over RADIUS to a RADIUS server. To configure RADIUS authentication for Administrator Authentication, perform the following steps: Step 1 From the administration interface, select Authentication > Administrators. Step 2 Click the RADIUS Authentication tab as shown in Figure 3-19. Figure 3-19 Administrator RADIUS Authentication Step 3 Type the Server IP Address for the Primary RADIUS Server. Step 4 Type the Port that RADIUS authentication is running on for that server (default is 1645 or 1812). Step 5 In the RADIUS Secret field, type the shared secret to be used between the RADIUS Server and the NAC Guest Server. Step 6 Confirm the secret to make sure that it is set correctly. Step 7 Enter details for a Secondary RADIUS Server. These details are used when the NAC Guest Server does not receive response from the Primary RADIUS Server. These fields are optional. Step 8 Check the Authentication Mode checkbox so that Local Admin account is allowed if both the RADIUS Servers cannot be contacted. If this option is unchecked, Local Admin account is allowed if authentication is denied for any one of the RADIUS Servers. Step 9 Click the Save button to save the Administrator RADIUS settings.
	© 1992-2009 Cisco Systems, Inc. All rights reserved. Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks of Cisco Systems, Inc.
