Features of LAN-Based Switching Technologies
Cisco Catalyst switches allow full integration of voice, video, and data applications in the Cisco ICS 7750 system. The Cisco ICS 7750 system can include the following switches:
•
Catalyst 3524-PWR XL Switch
•Catalyst 4000 Switches
•Catalyst 6000 Switches
The Catalyst 3524-PWR XL switch and Catalyst 4000 switches allow LANs to fully integrate voice, video, and data applications. Catalyst 6000 switches are primarily for enterprise and service provider environments.
Catalyst 3524-PWR XL Switch
The Catalyst 3524-PWR XL switch was developed for use with the Cisco ICS 7750 to allow full integration of voice, video, and data applications. The Catalyst 3524-PWR XL switch has 24 10/100 switched ports with integrated inline power, which provides DC current to devices that can accept power over unshielded twisted pair (UTP) cabling, such as the Cisco 7900 family of IP phones. The Catalyst 3524-PWR XL switch also has two Gigabit Interface Converter (GBIC)-based Gigabit Ethernet ports, which support one full-duplex link (in a point-to-point configuration) or up to nine half-duplex links (in a stack configuration) to other Gigabit Ethernet devices. Figure 7-1 shows the front panel of the Catalyst 3524-PWR XL switch.

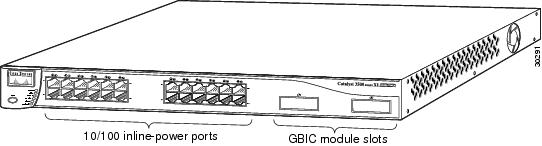

Figure 7-1 Catalyst 3524-PWR XL Switch Front Panel
Figure 7-2 shows the back panel of the Catalyst 3524-PWR XL switch.
Figure 7-2 Catalyst 3524-PWR XL Switch Back Panel
Key Features
The Catalyst 3524-PWR XL switch has the following key features:
•24 autosensing 10/100 Ethernet ports: full-duplex operation delivering up to 200 Mbps.
•Two fixed GBIC-based Gigabit Ethernet ports: full-duplex operation delivering up to 2 Gbps, supports one full-duplex link (in a point-to-point configuration) or nine half-duplex links (in a stack configuration).
•IEEE 802.1p support: dual-priority forwarding queues on each 10/100 and Gigabit Ethernet port, enabling network traffic prioritization and seamless data, voice, and video integration.
•Bandwidth aggregation through Fast EtherChannel and Gigabit EtherChannel technologies, offering from 400 Mbps to Gbps of aggregated bandwidth between switches, to routers, and to individual servers.
•Cisco Inter Switch Link (ISL) and IEEE 802.1Q trunking support on all ports: supports automatic segmentation of phone and data endpoints into separate logical networks.
•Supports 8192 Media Access Control (MAC) addresses.
•IEEE 802.3z compliance and support for Cisco GBIC modules:
–GigaStack GBIC: for creating a 1-Gbps stack configuration of up to nine Catalyst 3500 XL switches; the maximum distance for a GigaStack GBIC-to-GigaStack GBIC connection is 1 m.
–1000BASE-SX GBIC module: for fiber connections of up to 550 m.
–1000BASE-LX/LH GBIC module: for fiber connections of up to 10 km.
–1000BASE-ZX GBIC module: for fiber connections of up to 100 km.
•Cisco Group Management Protocol (CGMP) enables a switch to selectively and dynamically forward routed IP multicast traffic to targeted multimedia end stations, reducing overall network traffic.
•Cisco IOS command-line interface (CLI) support provides a common user interface and command set through the console port or Telnet.
•CiscoView device-management application support.
•Cluster Management Suite support: a web-based tool for managing switch clusters or an individual switch through a single IP address.
•Simple Network Management Protocol (SNMP) support for in-band management.
•Power redundancy: supports an optional Cisco RPS 300 that operates on AC input and supplies DC output.
•Inline power
–Can provide inline power for Cisco IP phones from all 24 10/100 Ethernet ports.
–Autodetection and control of inline phone power on a per-port basis on all 10/100 ports.
–Support for fan-fault and over-temperature detection through Cluster Management Suite (CMS).
Technical Specifications
Table 7-1 lists the technical specifications for the Catalyst 3524-PWR XL switch.
Table 7-1 Technical Specifications for Catalyst 3524-PWR XL Switch
Type
|
Description
|
Dimensions
|
Height: 1.75 in. (4.45 cm)
Width: 11.82 in. (30.02 cm)
Depth: 17.5 in. (44.45 cm)
|
Weight
|
10.25 lb (4.65 kg)
|
Temperature
|
Operating: 32 to 113ºF (0 to 45ºC)
Nonoperating: -4 to 149ºF (-20 to 65ºC)
|
Relative humidity
|
Operating: 10 to 85% (noncondensing)
|
Altitude
|
Operating: 10,000 ft (3000 m)
Nonoperating: 15,000 ft (4570 m)
|
AC input voltage
|
100 to 127/200 to 240 VAC
(autoranging) 50 to 60 Hz
|
DC input voltages
|
-48V at 3A
+12V at 6A
|
Power consumption
|
325W (with 24 IP phones connected)
1100 Btus per hour
|
Performance
|
10.8-Gbps switching fabric
6.5-million pps wire-speed forwarding rate for 64-byte packets
5.4-Gbps maximum forwarding bandwidth
4-MB memory architecture shared by all ports
8-MB DRAM and 4-MB Flash memory
8192 MAC addresses
|
Safety
|
UL 1950, Third Edition
CAN/CSA 22.2 No. 950-95, Third Edition
NOM-019-SCFI
AS/NZS 3260 and TS001-1997
IEC 60950 with all country deviations
EN 60950 with Amendments A1-A4 and A11
CE Marking
|
Emissions
|
FCC Part 15 Class A
EN 55022b Class A (CISPR 22 Class A
VCCI Class A
AS/NZS 3548 Class A
BCIQ
CE Marking
|
Standards
|
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 100BASE-X ports
IEEE 802.1D Spanning-Tree Protocol
IEEE 802.1p CoS prioritization
IEEE 802.1Q VLAN
IEEE 802.3z 1000BASE-X specification
1000BASE-X (GBIC)
1000BASE-SX
1000BASE-LX/LH
1000BASE-ZX
IEEE 802.3u 100BASE-TX specification
IEEE 802.3 10BASE-T specification
|
Mounting options
|
19-in. rack
|
Catalyst 4000 Switches
Catalyst 4000 series switches provide advanced enterprise switching solutions for wiring closets and data centers that include the following key features:
•Layer 2 and Layer 3 switching and services.
•18 million packets-per-second (Mpps) throughput, with 24-Gbps switching bandwidth.
•10/100 Fast Ethernet ports, Gigabit Ethernet ports.
•Power supply bays support redundant, load-sharing, fault-tolerant AC power supplies.
•Meet requirements for device redundancy, link resiliency, and network availability.
•Dedicated bandwidth to individual users, servers, printers, and high-speed connections to company servers.
•Integrated Layer 3 services engine:
–Scalable 6-Mpps Layer 3 services engine of IP, IPX, and IP multicast protocols.
–Up to 224 ports 10/100 Fast Ethernet plus dual Gigabit Ethernet uplinks (GBIC slot), including previously deployed Catalyst 4000 line cards.
–High-performance CPU with Cisco IOS, system software.
–Quality of service (QoS), multiple queues with weighted round robin (WRR) scheduling.
–Comprehensive management tools based on standard CiscoWorks2000 applications.
–Hardware-based access control list (ACL) support on dual Gigabit Ethernet uplinks.
–Inter-switch link (ISL) and 802.1Q trunking on dual Gigabit Ethernet uplinks.
Catalyst 6000 Switches
Catalyst 6000 series switches offer integrated solutions for enterprise and service provider environments that include the following key features:
•Scalable, intelligent multilayer switching for enterprise and Internet service provider (ISP) infrastructures—hardware-based acceleration for Layer 2, 3, and 4 switching and services.
•Intelligent server switching and Web scaling technologies—accelerated server load balancing technique enables delivery of wire-speed server load balancing at rates of 15 Mpps; compliant with Cisco Web Cache Communication Protocol (WCCP) version 2.
•Integrated voice solutions—allows convergence of voice, video, and data wiring closets into a single IP-based network.
•Integrated network monitoring—supports full RMON-1 (RFC 2819) and RMON-2 (RFC 2021).
•LAN/WAN integration—offers security, traffic management, and QoS mechanisms.
