Using the Setup Script

This chapter describes how to power up the Cisco AS5350XM and Cisco AS5400XM universal gateways and configure them using the prompt-driven setup script (also called the System Configuration dialog).

If you prefer to configure the gateway manually, go to the "Exploring Cisco IOS Software" section on page 6 to familiarize yourself with the command-line interface (CLI) and then go to Chapter 3, "Basic Configuration Using the Command-Line Interface," for step-by-step instructions.

The setup script in this chapter is a typical example using a version of Cisco IOS software that may not exactly match your newly loaded software; however, message prompts are similar.

Getting Started

Before you power up the gateway and begin to use the setup script in the System Configuration dialog, make sure you have already connected the cables to the gateway and configured your PC terminal emulation program for 9600 baud, 8 data bits, no parity, and 2 stop bits. Connect to the gateway through the console port; the AUX port is not active. All configuration must be performed from your PC terminal emulation program window.

The prompts and resulting messages vary depending on your responses. For most configurations, you can press Enter to accept the default entries displayed in square brackets ([]).

This section provides the setup scripts for the following hardware configurations:

•Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-CT3

•Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CT1

•Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CE1

Note Information that you enter is in boldface font. Also note that if you make a mistake during the configuration, exit and run the System Configuration dialog again by pressing Ctrl-c, and then type setup at the privileged EXEC (also called enable) mode prompt (AS5350# or AS5400#).

Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-CT3

To use the setup script on the gateway configuring an AS54-DFC-CT3 trunk card and five AS54-DFC-108NP universal port cards, take the following steps.

Step 1 Power up the gateway. The power switch is on the rear panel, at the upper right corner near the power cord, as shown in Figure 6.

Messages begin to appear in your terminal emulation program window.

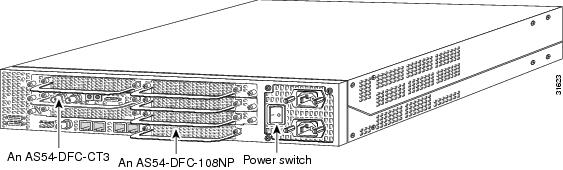

Figure 6 Power Switch Location

Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time are interpreted as the first command typed when the messages stop, which might cause you to power cycle the gateway and start over. It takes a few minutes for the messages to stop.

The messages look similar to the following display.

Note The displayed messages depend on the Cisco IOS software release and feature set you selected. The screen displays in this section are for reference only and might not exactly reflect the messages on your console.
System Bootstrap, Version 12.3(12r)PI6, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2004 by cisco Systems, Inc.
AS5400XM platform with 524288 Kbytes of main memory
Self decompressing the image :
##########################################################################################
##########################################################################################
################################ [OK]
              Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
           cisco Systems, Inc.
           170 West Tasman Drive
           San Jose, California 95134-1706
Cisco IOS Software, 5400 Software (C5400-JS-M), Version 12.3(14)T,  RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2005 by Cisco Systems, Inc.
Compiled Sat 29-Jan-05 02:10 by yiyan
Image text-base: 0x60011068, data-base: 0x61F80000
Cisco AS5400XM (BCM) processor (revision 0x21) with 393215K/131072K bytes of memory.
Processor board ID JAB082904P4
SB-1 CPU at 750MHz, Implementation 1025, Rev 0.3, 256KB L2 Cache
Last reset from IOS reload
Manufacture Cookie Info:
 EEPROM Version 0x4, Board ID 0x4BD,
 Board Hardware Version 1.11, Item Number 800-6572289-01,
 Board Revision 02, Serial Number JAB082904P4.
Processor 0x0, MAC Address badb.adba.d044
2 Gigabit Ethernet interfaces
6 Serial interfaces
648 terminal lines
1 Channelized T3 port
512K bytes of NVRAM.
125184K bytes of ATA External CompactFlash (Read/Write)
Press RETURN to get started!
Step 2 When the following message appears, enter yes to continue:
Would you like to enter the initial configuration dialog? [yes/no]: yes
At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.
Step 3 When the following message appears, enter no to configure all interfaces. Note that if you enter yes, your system will not be configured correctly:
Basic management setup configures only enough connectivity
for management of the system, extended setup will ask you
to configure each interface on the system
Would you like to enter basic management setup? [yes/no]: no
Step 4 When the following message appears, enter yes to see the current interface summary:
First, would you like to see the current interface summary? [yes]: yes
Any interface listed with OK? value "NO" does not have a valid configuration
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         unassigned      NO  unset  up                    up
GigabitEthernet0/1         unassigned      NO  unset  up                    down
Serial0/0                  unassigned      NO  unset  down                  down
Serial0/1                  unassigned      NO  unset  down                  down
.
.
.
Step 5 Enter a hostname for the gateway.
Enter host name [Router]: AS5400
Step 6 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when you view the configuration.
Enter enable secret: lab
Step 7 Enter an enable password. This password is not encrypted (less secure) and can be seen when you view the configuration.
Enter enable password: guessme
Step 8 Enter the virtual terminal password, which is used for remote console access.
Enter virtual terminal password: guessagain
Step 9 Respond to the following prompts as appropriate for your network:
Configure SNMP Network Management? [no]: yes
  Community string [public]:
Configure IP? [no]:
  Configure IGRP routing? [yes]:
    Your IGRP autonomous system number [1]: 15
  Configure bridging? [no]:
Note If you answer no to IGRP, you are prompted to configure RIP.

Step 10 Enter the letter corresponding to the ISDN switch type that matches your telco switch type, or press Enter to accept the default.
Do you want to configure ISDN switch type? [yes]:
  The following ISDN switch types are available:
   [a] primary-4ess
   [b] primary-5ess
   [c] primary-dms100
   [d] primary-net5
   [e] primary-ntt
   [f] primary-ts014
  Enter the switch type [b]:
Step 11 Enter yes to create T1 controllers, then enter the number of T1 controllers you want to create, or press Enter to create all the controllers.
Do you want to create t1 controllers? [yes]: yes
 Enter # of t1 controllers, you want to create under t3 controller [28]:
Configuring controller T3 3/0:
Next, you will be prompted to configure controllers.
These controllers enable users to dial in via ISDN or analog modems.
Step 12 Enter yes to allow users to dial in using ISDN or analog modems.
Do you intend to allow users to dial in? [yes]: yes
There are 10 controllers on this access server. If you want to use
the full capacity of the access server configure all controllers.
Controller CT3 0,1...etc  in software corresponds to Port 0,1...etc
on the back of the access server.
PRI configuration can be configured to controllers all at once
based on your PRI controllers selection. Whereas CAS configuration
will be configured individually for each controller.
Step 13 Enter the number of controllers you will be using for the PRI configuration, or press Enter to configure all controllers.
Enter # of controllers, you will be using for PRI configuration [28]:
Configuring controller parameters:
Step 14 Press Enter for every slot, port, and channel.
Configuring controller t1 3/0:1
 Configuring PRI on this controller.
.
.
.
.
Configuring controller t1 3/0:28
Step 15 Enter yes to use robbed bit signaling on the controller.
  Will you be using CT1 (robbed-bit signaling) on this controller? [yes]: yes
Step 16 Enter your telco framing type.
The following framing types are available: esf | sf
  Enter the framing type [esf]:
Step 17 Enter your telco line code type.
The following linecode types are available: ami | b8zs
  Enter the line code type [b8zs]:
Step 18 Enter the letter corresponding to the signaling type to support modem pooling over the T1 lines, or press Enter to accept the default.
The following line signaling types are available
    [a] e&m-fgb
    [b] e&m-fgd
    [c] e&m-immediate-start
    [d] fgd-eana
    [e] fgd-os
    [f] fxs-ground-start
    [g] fxs-loop-start
    [h] none
    [i] r1-itu
    [j] r1-modified
    [k] r1-turkey
    [l] sas-ground-start
    [m] sas-loop-start
Note Signaling type R1-ITU is not supported on the Cisco AS5400 platform.

Step 19 Enter the tone signaling type.
The following tone signaling types are available:
                 dtmf | mf
  Enter the tone signal type [dtmf]:
Step 20 Enter yes to configure digital number identification service (DNIS).
Do you want to provision DNIS address information? [yes]: yes
Step 21 Repeat Step 15 to Step 20 to configure the remaining controllers.
Step 22 Enter yes to configure the GigabitEthernet0/0 interface to connect the gateway to a LAN, and then respond to the remaining questions to configure the Gigabit Ethernet port.
Do you want to configure GigabitEthernet0/0  interface? [yes]: yes
  Use the 100 Base-TX (RJ-45) connector? [yes]:
Note Full-duplex mode enables simultaneous data transfer between a sending and a receiving station.
Operate in full-duplex mode? [no]:
Operate at 100 Mbps speed? [yes]:
Configure IP on this interface? [yes]:
  IP address for this interface [X.X.X.X]: 172.22.50.10
  Subnet mask for this interface [255.255.0.0] :
  Class B network is 172.22.0.0, 16 subnet bits; mask is /16
Step 23 Repeat Step 22 to configure any other Gigabit Ethernet ports, if necessary.

Step 24 Configure your serial interfaces by responding to the following prompts:
Do you want to configure Serial0/0  interface? [no]: yes
Configure IP on this interface? [no]: yes
Configure IP unnumbered on this interface? [no]:
    Assign to which interface [GigabitEthernet0/0]:
Step 25 Repeat Step 24 to configure any other serial interfaces, if necessary.

After you complete the configuration script, the setup script displays the configuration command script.

Step 26 Go to the "Save the Configuration File" section.

Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CT1

To use the setup script on the gateway configuring two AS54-DFC-8CT1 trunk cards and five AS54-DFC-108NP universal port cards, take the following steps.

Step 1 Power up the gateway. The power switch is on the rear panel, at the upper right corner near the power cord, as shown in Figure 7.

Messages begin to appear in your terminal emulation program window.

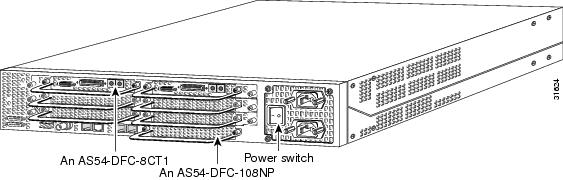

Figure 7 Power Switch Location

Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time are interpreted as the first command typed when the messages stop, which might cause you to power cycle the gateway and start over. It takes a few minutes for the messages to stop.

The messages look similar to the following display.

Note The displayed messages depend on the Cisco IOS software release and feature set you selected. The screen displays in this section are for reference only and might not exactly reflect the messages on your console.
System Bootstrap, Version 12.3(12r)PI6, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2004 by cisco Systems, Inc.
AS5400XM platform with 524288 Kbytes of main memory
Self decompressing the image :
##########################################################################################
##########################################################################################
################################ [OK]
              Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
           cisco Systems, Inc.
           170 West Tasman Drive
           San Jose, California 95134-1706
Cisco IOS Software, 5400 Software (C5400-JS-M), Version 12.3(14)T,  RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2005 by Cisco Systems, Inc.
Compiled Sat 29-Jan-05 02:10 by yiyan
Image text-base: 0x60011068, data-base: 0x61F80000
Cisco AS5400XM (BCM) processor (revision 0x21) with 393215K/131072K bytes of memory.
Processor board ID JAB082904P4
SB-1 CPU at 750MHz, Implementation 1025, Rev 0.3, 256KB L2 Cache
Last reset from IOS reload
Manufacture Cookie Info:
 EEPROM Version 0x4, Board ID 0x4BD,
 Board Hardware Version 1.11, Item Number 800-6572289-01,
 Board Revision 02, Serial Number JAB082904P4.
Processor 0x0, MAC Address badb.adba.d044
2 Gigabit Ethernet interfaces
6 Serial interfaces
648 terminal lines
1 Channelized T3 port
512K bytes of NVRAM.
125184K bytes of ATA External CompactFlash (Read/Write)
Press RETURN to get started!
Step 2 When the following message appears, enter yes to continue:
Would you like to enter the initial configuration dialog? [yes/no]: yes
At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.
Step 3 When the following message appears, enter no to configure all interfaces. Note that if you enter yes, your system will not be configured correctly.
Basic management setup configures only enough connectivity
for management of the system, extended setup will ask you
to configure each interface on the system
Would you like to enter basic management setup? [yes/no]: no
Step 4 When the following message appears, enter no to bypass the current interface summary:
First, would you like to see the current interface summary? [yes]: no
Step 5 Enter a hostname for the gateway.
Configuring global parameters:
Enter host name [Router]: AS5400
The enable secret is a password used to protect access to
privileged EXEC and configuration modes. This password, after
entered, becomes encrypted in the configuration.
Step 6 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when you view the configuration.
Enter enable secret: lab
The enable password is used when you do not specify an
enable secret password, with some older software versions, and
some boot images.
Step 7 Enter an enable password. This password is not encrypted (less secure) and can be seen when you view the configuration.
Enter enable password: guessme
The virtual terminal password is used to protect
access to the router over a network interface.
Step 8 Enter the virtual terminal password, which is used for remote console access.
Enter virtual terminal password: guessagain
Step 9 Respond to the following prompts as appropriate for your network:
Configure SNMP Network Management? [no]: yes
  Community string [public]:
Configure IP? [no]:
  Configure IGRP routing? [yes]:
    Your IGRP autonomous system number [1]: 15
  Configure bridging? [no]:
Note If you answer no to IGRP, you are prompted to configure RIP.

Step 10 Enter the letter corresponding to the ISDN switch type that matches your telco switch type, or press Enter to accept the default.
Do you want to configure ISDN switch type? [yes]:
  The following ISDN switch types are available:
   [a] primary-4ess
   [b] primary-5ess
   [c] primary-dms100
   [d] primary-net5
   [e] primary-ntt
   [f] primary-ts014
  Enter the switch type [b]:
Step 11 Enter yes to allow users to dial in using ISDN or analog modems.
Do you intend to allow users to dial in? [yes]: yes
There are 16 controllers on this access server. If you want to use
the full capacity of the access server configure all controllers.
Controller CT1 0,1,...etc  in software corresponds to Port 0,1,..etc
on the back of the access server.
PRI configuration can be configured to controllers all at once
based on your PRI controllers selection. Where as CAS configuration
will be configured individually for each controller.
Step 12 Enter the number of controllers you will be using for the PRI configuration, or press Enter to configure all controllers.
Enter # of controllers, you will be using for PRI configuration [16]:
Configuring controller parameters:
Step 13 Press Enter for every slot, port, and channel.
Configuring controller T1 1/0:
 Configuring PRI on this controller.
Configuring controller T1 1/1:
 Configuring PRI on this controller.
Configuring controller T1 1/2:
 Configuring PRI on this controller.
Configuring controller T1 1/3:
 Configuring PRI on this controller.
.
.
.
.
Configuring controller T1 2/6:
 Configuring PRI on this controller.
Configuring controller T1 2/7:
 Configuring PRI on this controller.
Configuring interface parameters:
Step 14 Enter yes to configure the GigabitEthernet0/0 interface to connect the gateway to a LAN. Then respond to the remaining questions to configure the Gigabit Ethernet port.
Do you want to configure GigabitEthernet0/0  interface? [yes]: yes
  Use the 100 Base-TX (RJ-45) connector? [yes]:
Note Full-duplex mode enables simultaneous data transfer between a sending and a receiving station.
Operate in full-duplex mode? [no]:
Operate at 100 Mbps speed? [yes]:
Configure IP on this interface? [yes]:
  IP address for this interface [X.X.X.X]: 172.22.50.10
  Subnet mask for this interface [255.255.0.0] :
  Class B network is 172.22.0.0, 16 subnet bits; mask is /16
Step 15 Repeat Step 14 to configure any other Gigabit Ethernet ports, if necessary.

Step 16 Configure your serial interfaces by responding to the following prompts:
Do you want to configure Serial0/0  interface? [no]: yes
Configure IP on this interface? [no]: yes
Configure IP unnumbered on this interface? [no]:
    Assign to which interface [GigabitEthernet0/0]:
Step 17 Repeat Step 16 to configure any other serial interfaces, if necessary.

After you complete the configuration script, the setup script displays the configuration command script.

Step 18 Go to the "Save the Configuration File" section.

Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CE1

To use the setup script on the gateway configuring two AS54-DFC-8CE1 trunk cards and five AS54-DFC-108NP universal port cards, take the following steps.

Step 1 Power up the gateway. The power switch is on the rear panel, at the upper right corner near the power cord, as shown in Figure 8.

Messages begin to appear in your terminal emulation program window.

Figure 8 Power Switch Location

Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time are interpreted as the first command typed when the messages stop, which might cause you to power cycle the gateway and start over. It will take a few minutes for the messages to stop.

The messages look similar to the following display.

Note The displayed messages depend on the Cisco IOS software release and feature set you selected. The screen displays in this section are for reference only and probably will not exactly reflect the messages on your console.
System Bootstrap, Version 12.3(12r)PI6, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2004 by cisco Systems, Inc.
AS5400XM platform with 524288 Kbytes of main memory
Self decompressing the image :
##########################################################################################
##########################################################################################
################################ [OK]
              Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
           cisco Systems, Inc.
           170 West Tasman Drive
           San Jose, California 95134-1706
Cisco IOS Software, 5400 Software (C5400-JS-M), Version 12.3(14)T,  RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2005 by Cisco Systems, Inc.
Compiled Sat 29-Jan-05 02:10 by yiyan
Image text-base: 0x60011068, data-base: 0x61F80000
Cisco AS5400XM (BCM) processor (revision 0x21) with 393215K/131072K bytes of memory.
Processor board ID JAB082904P4
SB-1 CPU at 750MHz, Implementation 1025, Rev 0.3, 256KB L2 Cache
Last reset from IOS reload
Manufacture Cookie Info:
 EEPROM Version 0x4, Board ID 0x4BD,
 Board Hardware Version 1.11, Item Number 800-6572289-01,
 Board Revision 02, Serial Number JAB082904P4.
Processor 0x0, MAC Address badb.adba.d044
2 Gigabit Ethernet interfaces
6 Serial interfaces
648 terminal lines
1 Channelized T3 port
512K bytes of NVRAM.
125184K bytes of ATA External CompactFlash (Read/Write)
Press RETURN to get started!
Step 2 When the following message appears, enter yes to continue:
Would you like to enter the initial configuration dialog? [yes/no]: yes
At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.
Step 3 When the following message appears, enter no to configure all interfaces. Note that if you enter yes, your system will not be configured correctly.
Basic management setup configures only enough connectivity
for management of the system, extended setup will ask you
to configure each interface on the system
Would you like to enter basic management setup? [yes/no]: no
Step 4 When the following message appears, enter yes to see the current interface summary:
First, would you like to see the current interface summary? [yes]: yes
Any interface listed with OK? value "NO" does not have a valid configuration
GigabitEthernet0/0         unassigned      NO  unset  up                    up
GigabitEthernet0/1         unassigned      NO  unset  up                    up
Group-Async0               unassigned      NO  unset  down                  down
Serial0/0                  unassigned      NO  unset  down                  down
Serial0/1                  unassigned      NO  unset  down                  down    .
Step 5 Enter a hostname for the gateway.
Configuring global parameters:
Enter host name [Router]: AS5400
The enable secret is a password used to protect access to
privileged EXEC and configuration modes. This password, after
entered, becomes encrypted in the configuration.
Step 6 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when you view the configuration.
Enter enable secret: lab
The enable password is used when you do not specify an
enable secret password, with some older software versions, and
some boot images.
Step 7 Enter an enable password. This password is not encrypted (less secure) and can be seen when you view the configuration.
Enter enable password: guessme
The virtual terminal password is used to protect
access to the router over a network interface.
Step 8 Enter the virtual terminal password, which is used for remote console access.
Enter virtual terminal password: guessagain
Step 9 Respond to the following prompts as appropriate for your network:
Configure SNMP Network Management? [no]: yes
  Community string [public]:
Configure IP? [no]:
  Configure IGRP routing? [yes]:
    Your IGRP autonomous system number [1]: 15
  Configure bridging? [no]:
Note If you answer no to IGRP, you are prompted to configure RIP.

Step 10 Enter the letter corresponding to the ISDN switch type that matches your telco switch type, or press Enter to accept the default.
Do you want to configure ISDN switch type? [yes]:
  The following ISDN switch types are available:
   [a] primary-4ess
   [b] primary-5ess
   [c] primary-dms100
   [d] primary-net5
   [e] primary-ntt
   [f] primary-ts014
  Enter the switch type [d]:
Step 11 Enter yes to allow users to dial in using ISDN or analog modems.
Do you intend to allow users to dial in? [yes]: yes
There are 16 controllers on this access server. If you want to use
the full capacity of the access server configure all controllers.
Controller E1 0,1,..etc  in software corresponds to Port 0,1,..etc
on the back of the access server.
PRI configuration can be configured to controllers all at once
based on your PRI controllers selection. Where as CAS configuration
will be configured individually for each controller.
Step 12 Enter the number of controllers you will be using for the PRI configuration, or press Enter to configure all controllers.
Enter # of controllers, you will be using for PRI configuration [16]:
Configuring controller parameters:
Step 13 Press Enter for every slot, port, and channel.
Configuring controller E1 1/0:
 Configuring PRI on this controller.
Configuring controller E1 1/1:
 Configuring PRI on this controller.
.
.
.
.
Configuring controller E1 2/6:
 Configuring PRI on this controller.
Configuring controller E1 2/7:
 Configuring PRI on this controller.
Step 14 Enter yes to configure the GigabitEthernet0/0 interface to connect the gateway to a LAN. Then respond to the remaining questions to configure the Gigabit Ethernet port (you can also press Enter to accept the default):
Do you want to configure GigabitEthernet0/0  interface? [yes]: yes
  Use the 100 Base-TX (RJ-45) connector? [yes]:
Note Full-duplex mode enables simultaneous data transfer between a sending and a receiving station.
Operate in full-duplex mode? [no]:
Operate at 100 Mbps speed? [yes]:
Configure IP on this interface? [yes]:
  IP address for this interface [X.X.X.X]: 172.22.50.10
  Subnet mask for this interface [255.255.0.0] :
  Class B network is 172.22.0.0, 16 subnet bits; mask is /16
Step 15 Repeat Step 14 to configure any other Gigabit Ethernet ports, if necessary.

Step 16 Configure your serial interfaces by responding to the following prompts:
Do you want to configure Serial0/0  interface? [no]: yes
Configure IP on this interface? [no]: yes
Configure IP unnumbered on this interface? [no]:
    Assign to which interface [GigabitEthernet0/0]:
Step 17 Repeat Step 16 to configure any other serial interfaces, if necessary.

After you complete the configuration script, the setup script displays the configuration command script.

Step 18 Go to the next section, "Save the Configuration File."

Save the Configuration File

To save the configuration file, follow these steps:

Step 1 Enter 0, 1, or 2 when the following prompt is displayed:
[0] Go to the IOS command prompt without saving this config.
[1] Return back to the setup without saving this config.
[2] Save this configuration to nvram and exit.
Enter your selection [2]:
Use this configuration? [yes/no]: yes
Building configuration...
Use the enabled mode 'configure' command to modify this configuration.
Press RETURN to get started!
%LINK-3-UPDOWN: Interface Ethernet0, changed state to up
%LINK-3-UPDOWN: Interface Serial0, changed state to down
%LINK-3-UPDOWN: Interface Serial1, changed state to down
<Additional messages omitted.>
Step 2 When the messages stop appearing on your screen, press Enter to access the following prompt:
AS5400>
%AT-6-ONLYROUTER: Ethernet0: AppleTalk port enabled; no neighbors found
Note If you see this message, it means that no other routers were found on the network attached to the port.

Step 3 The AS5350> or AS5400> prompt indicates that you are now at the command-line interface (CLI) and you have just completed the basic gateway configuration. However, this is not a complete configuration. At this point you have two options:

•Run the setup script in the System Configuration dialog again and create another configuration. Enter the following commands to repeat the setup script:
AS5400> enable
Password: password
AS5400# setup
•Modify the existing configuration or configure additional features with the CLI as described in the Dial Solutions Configuration Guide, the Dial Solutions Command Reference Guide, the Cisco IOS software configuration guide, and command reference publications. See the "Obtaining Documentation" section on page 21.

Where to Go Next

At this point you can go to Verifying Basic Setup for step-by-step instructions to configure the gateway manually.

You can also refer to the following documents for more advanced configuration topics:

•Cisco IOS software configuration guide

•Command reference publications

•Dial Solutions Configuration Guide

•Dial Solutions Command Reference

These publications are available on the Documentation DVD, or on the World Wide Web from the Cisco home page.

CCDE, CCENT, Cisco Eos, Cisco HealthPresence, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco StadiumVision, Cisco TelePresence, Cisco WebEx, DCE, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0812R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

© 2006, 2009 Cisco Systems, Inc. All rights reserved.

	Cisco AS5350XM and Cisco AS5400XM Universal Gateways Software Configuration Guide
	Using the Setup Script
Cisco AS5350XM and Cisco AS5400XM Universal Gateways Software Configuration Guide Understanding Basic Hardware Architecture and Cisco IOS Software Verifying Basic Setup Basic Configuration Using the Command-Line Interface Continuing Configuration Using the Command-Line Interface Managing and Troubleshooting the Universal Port Card Managing and Troubleshooting the Voice Feature Card Configuring Voice over IP Voice Enhancement Features for Cisco IOS Release 12.4(24)T Using the Setup Script ROM Monitor Comprehensive Configuration Examples	Download this chapter Using the Setup Script Download the complete book Book-Length PDF of Cisco AS5350XM and Cisco AS5400XM Universal Gateways Software Configuration Guide (PDF - 3 MB) Feedback Table Of Contents Using the Setup Script Getting Started Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-CT3 Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CT1 Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CE1 Save the Configuration File Where to Go Next Using the Setup Script This chapter describes how to power up the Cisco AS5350XM and Cisco AS5400XM universal gateways and configure them using the prompt-driven setup script (also called the System Configuration dialog). If you prefer to configure the gateway manually, go to the "Exploring Cisco IOS Software" section on page 6 to familiarize yourself with the command-line interface (CLI) and then go to Chapter 3, "Basic Configuration Using the Command-Line Interface," for step-by-step instructions. The setup script in this chapter is a typical example using a version of Cisco IOS software that may not exactly match your newly loaded software; however, message prompts are similar. Getting Started Before you power up the gateway and begin to use the setup script in the System Configuration dialog, make sure you have already connected the cables to the gateway and configured your PC terminal emulation program for 9600 baud, 8 data bits, no parity, and 2 stop bits. Connect to the gateway through the console port; the AUX port is not active. All configuration must be performed from your PC terminal emulation program window. The prompts and resulting messages vary depending on your responses. For most configurations, you can press Enter to accept the default entries displayed in square brackets ([]). This section provides the setup scripts for the following hardware configurations: •Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-CT3 •Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CT1 •Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CE1 Note Information that you enter is in boldface font. Also note that if you make a mistake during the configuration, exit and run the System Configuration dialog again by pressing Ctrl-c, and then type setup at the privileged EXEC (also called enable) mode prompt (AS5350# or AS5400#). Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-CT3 To use the setup script on the gateway configuring an AS54-DFC-CT3 trunk card and five AS54-DFC-108NP universal port cards, take the following steps. Step 1 Power up the gateway. The power switch is on the rear panel, at the upper right corner near the power cord, as shown in Figure 6. Messages begin to appear in your terminal emulation program window. Figure 6 Power Switch Location Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time are interpreted as the first command typed when the messages stop, which might cause you to power cycle the gateway and start over. It takes a few minutes for the messages to stop. The messages look similar to the following display. Note The displayed messages depend on the Cisco IOS software release and feature set you selected. The screen displays in this section are for reference only and might not exactly reflect the messages on your console. System Bootstrap, Version 12.3(12r)PI6, RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 2004 by cisco Systems, Inc. AS5400XM platform with 524288 Kbytes of main memory Self decompressing the image : ########################################################################################## ########################################################################################## ################################ [OK] Restricted Rights Legend Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Rights clause at FAR sec. 52.227-19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252.227-7013. cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706 Cisco IOS Software, 5400 Software (C5400-JS-M), Version 12.3(14)T, RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2005 by Cisco Systems, Inc. Compiled Sat 29-Jan-05 02:10 by yiyan Image text-base: 0x60011068, data-base: 0x61F80000 Cisco AS5400XM (BCM) processor (revision 0x21) with 393215K/131072K bytes of memory. Processor board ID JAB082904P4 SB-1 CPU at 750MHz, Implementation 1025, Rev 0.3, 256KB L2 Cache Last reset from IOS reload Manufacture Cookie Info: EEPROM Version 0x4, Board ID 0x4BD, Board Hardware Version 1.11, Item Number 800-6572289-01, Board Revision 02, Serial Number JAB082904P4. Processor 0x0, MAC Address badb.adba.d044 2 Gigabit Ethernet interfaces 6 Serial interfaces 648 terminal lines 1 Channelized T3 port 512K bytes of NVRAM. 125184K bytes of ATA External CompactFlash (Read/Write) Press RETURN to get started! Step 2 When the following message appears, enter yes to continue: Would you like to enter the initial configuration dialog? [yes/no]: yes At any point you may enter a question mark '?' for help. Use ctrl-c to abort configuration dialog at any prompt. Default settings are in square brackets '[]'. Step 3 When the following message appears, enter no to configure all interfaces. Note that if you enter yes, your system will not be configured correctly: Basic management setup configures only enough connectivity for management of the system, extended setup will ask you to configure each interface on the system Would you like to enter basic management setup? [yes/no]: no Step 4 When the following message appears, enter yes to see the current interface summary: First, would you like to see the current interface summary? [yes]: yes Any interface listed with OK? value "NO" does not have a valid configuration Interface IP-Address OK? Method Status Protocol GigabitEthernet0/0 unassigned NO unset up up GigabitEthernet0/1 unassigned NO unset up down Serial0/0 unassigned NO unset down down Serial0/1 unassigned NO unset down down . . . Step 5 Enter a hostname for the gateway. Enter host name [Router]: AS5400 Step 6 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when you view the configuration. Enter enable secret: lab Step 7 Enter an enable password. This password is not encrypted (less secure) and can be seen when you view the configuration. Enter enable password: guessme Step 8 Enter the virtual terminal password, which is used for remote console access. Enter virtual terminal password: guessagain Step 9 Respond to the following prompts as appropriate for your network: Configure SNMP Network Management? [no]: yes Community string [public]: Configure IP? [no]: Configure IGRP routing? [yes]: Your IGRP autonomous system number [1]: 15 Configure bridging? [no]: Note If you answer no to IGRP, you are prompted to configure RIP. Step 10 Enter the letter corresponding to the ISDN switch type that matches your telco switch type, or press Enter to accept the default. Do you want to configure ISDN switch type? [yes]: The following ISDN switch types are available: [a] primary-4ess [b] primary-5ess [c] primary-dms100 [d] primary-net5 [e] primary-ntt [f] primary-ts014 Enter the switch type [b]: Step 11 Enter yes to create T1 controllers, then enter the number of T1 controllers you want to create, or press Enter to create all the controllers. Do you want to create t1 controllers? [yes]: yes Enter # of t1 controllers, you want to create under t3 controller [28]: Configuring controller T3 3/0: Next, you will be prompted to configure controllers. These controllers enable users to dial in via ISDN or analog modems. Step 12 Enter yes to allow users to dial in using ISDN or analog modems. Do you intend to allow users to dial in? [yes]: yes There are 10 controllers on this access server. If you want to use the full capacity of the access server configure all controllers. Controller CT3 0,1...etc in software corresponds to Port 0,1...etc on the back of the access server. PRI configuration can be configured to controllers all at once based on your PRI controllers selection. Whereas CAS configuration will be configured individually for each controller. Step 13 Enter the number of controllers you will be using for the PRI configuration, or press Enter to configure all controllers. Enter # of controllers, you will be using for PRI configuration [28]: Configuring controller parameters: Step 14 Press Enter for every slot, port, and channel. Configuring controller t1 3/0:1 Configuring PRI on this controller. . . . . Configuring controller t1 3/0:28 Step 15 Enter yes to use robbed bit signaling on the controller. Will you be using CT1 (robbed-bit signaling) on this controller? [yes]: yes Step 16 Enter your telco framing type. The following framing types are available: esf \| sf Enter the framing type [esf]: Step 17 Enter your telco line code type. The following linecode types are available: ami \| b8zs Enter the line code type [b8zs]: Step 18 Enter the letter corresponding to the signaling type to support modem pooling over the T1 lines, or press Enter to accept the default. The following line signaling types are available [a] e&m-fgb [b] e&m-fgd [c] e&m-immediate-start [d] fgd-eana [e] fgd-os [f] fxs-ground-start [g] fxs-loop-start [h] none [i] r1-itu [j] r1-modified [k] r1-turkey [l] sas-ground-start [m] sas-loop-start Note Signaling type R1-ITU is not supported on the Cisco AS5400 platform. Step 19 Enter the tone signaling type. The following tone signaling types are available: dtmf \| mf Enter the tone signal type [dtmf]: Step 20 Enter yes to configure digital number identification service (DNIS). Do you want to provision DNIS address information? [yes]: yes Step 21 Repeat Step 15 to Step 20 to configure the remaining controllers. Step 22 Enter yes to configure the GigabitEthernet0/0 interface to connect the gateway to a LAN, and then respond to the remaining questions to configure the Gigabit Ethernet port. Do you want to configure GigabitEthernet0/0 interface? [yes]: yes Use the 100 Base-TX (RJ-45) connector? [yes]: Note Full-duplex mode enables simultaneous data transfer between a sending and a receiving station. Operate in full-duplex mode? [no]: Operate at 100 Mbps speed? [yes]: Configure IP on this interface? [yes]: IP address for this interface [X.X.X.X]: 172.22.50.10 Subnet mask for this interface [255.255.0.0] : Class B network is 172.22.0.0, 16 subnet bits; mask is /16 Step 23 Repeat Step 22 to configure any other Gigabit Ethernet ports, if necessary. Step 24 Configure your serial interfaces by responding to the following prompts: Do you want to configure Serial0/0 interface? [no]: yes Configure IP on this interface? [no]: yes Configure IP unnumbered on this interface? [no]: Assign to which interface [GigabitEthernet0/0]: Step 25 Repeat Step 24 to configure any other serial interfaces, if necessary. After you complete the configuration script, the setup script displays the configuration command script. Step 26 Go to the "Save the Configuration File" section. Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CT1 To use the setup script on the gateway configuring two AS54-DFC-8CT1 trunk cards and five AS54-DFC-108NP universal port cards, take the following steps. Step 1 Power up the gateway. The power switch is on the rear panel, at the upper right corner near the power cord, as shown in Figure 7. Messages begin to appear in your terminal emulation program window. Figure 7 Power Switch Location Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time are interpreted as the first command typed when the messages stop, which might cause you to power cycle the gateway and start over. It takes a few minutes for the messages to stop. The messages look similar to the following display. Note The displayed messages depend on the Cisco IOS software release and feature set you selected. The screen displays in this section are for reference only and might not exactly reflect the messages on your console. System Bootstrap, Version 12.3(12r)PI6, RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 2004 by cisco Systems, Inc. AS5400XM platform with 524288 Kbytes of main memory Self decompressing the image : ########################################################################################## ########################################################################################## ################################ [OK] Restricted Rights Legend Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Rights clause at FAR sec. 52.227-19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252.227-7013. cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706 Cisco IOS Software, 5400 Software (C5400-JS-M), Version 12.3(14)T, RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2005 by Cisco Systems, Inc. Compiled Sat 29-Jan-05 02:10 by yiyan Image text-base: 0x60011068, data-base: 0x61F80000 Cisco AS5400XM (BCM) processor (revision 0x21) with 393215K/131072K bytes of memory. Processor board ID JAB082904P4 SB-1 CPU at 750MHz, Implementation 1025, Rev 0.3, 256KB L2 Cache Last reset from IOS reload Manufacture Cookie Info: EEPROM Version 0x4, Board ID 0x4BD, Board Hardware Version 1.11, Item Number 800-6572289-01, Board Revision 02, Serial Number JAB082904P4. Processor 0x0, MAC Address badb.adba.d044 2 Gigabit Ethernet interfaces 6 Serial interfaces 648 terminal lines 1 Channelized T3 port 512K bytes of NVRAM. 125184K bytes of ATA External CompactFlash (Read/Write) Press RETURN to get started! Step 2 When the following message appears, enter yes to continue: Would you like to enter the initial configuration dialog? [yes/no]: yes At any point you may enter a question mark '?' for help. Use ctrl-c to abort configuration dialog at any prompt. Default settings are in square brackets '[]'. Step 3 When the following message appears, enter no to configure all interfaces. Note that if you enter yes, your system will not be configured correctly. Basic management setup configures only enough connectivity for management of the system, extended setup will ask you to configure each interface on the system Would you like to enter basic management setup? [yes/no]: no Step 4 When the following message appears, enter no to bypass the current interface summary: First, would you like to see the current interface summary? [yes]: no Step 5 Enter a hostname for the gateway. Configuring global parameters: Enter host name [Router]: AS5400 The enable secret is a password used to protect access to privileged EXEC and configuration modes. This password, after entered, becomes encrypted in the configuration. Step 6 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when you view the configuration. Enter enable secret: lab The enable password is used when you do not specify an enable secret password, with some older software versions, and some boot images. Step 7 Enter an enable password. This password is not encrypted (less secure) and can be seen when you view the configuration. Enter enable password: guessme The virtual terminal password is used to protect access to the router over a network interface. Step 8 Enter the virtual terminal password, which is used for remote console access. Enter virtual terminal password: guessagain Step 9 Respond to the following prompts as appropriate for your network: Configure SNMP Network Management? [no]: yes Community string [public]: Configure IP? [no]: Configure IGRP routing? [yes]: Your IGRP autonomous system number [1]: 15 Configure bridging? [no]: Note If you answer no to IGRP, you are prompted to configure RIP. Step 10 Enter the letter corresponding to the ISDN switch type that matches your telco switch type, or press Enter to accept the default. Do you want to configure ISDN switch type? [yes]: The following ISDN switch types are available: [a] primary-4ess [b] primary-5ess [c] primary-dms100 [d] primary-net5 [e] primary-ntt [f] primary-ts014 Enter the switch type [b]: Step 11 Enter yes to allow users to dial in using ISDN or analog modems. Do you intend to allow users to dial in? [yes]: yes There are 16 controllers on this access server. If you want to use the full capacity of the access server configure all controllers. Controller CT1 0,1,...etc in software corresponds to Port 0,1,..etc on the back of the access server. PRI configuration can be configured to controllers all at once based on your PRI controllers selection. Where as CAS configuration will be configured individually for each controller. Step 12 Enter the number of controllers you will be using for the PRI configuration, or press Enter to configure all controllers. Enter # of controllers, you will be using for PRI configuration [16]: Configuring controller parameters: Step 13 Press Enter for every slot, port, and channel. Configuring controller T1 1/0: Configuring PRI on this controller. Configuring controller T1 1/1: Configuring PRI on this controller. Configuring controller T1 1/2: Configuring PRI on this controller. Configuring controller T1 1/3: Configuring PRI on this controller. . . . . Configuring controller T1 2/6: Configuring PRI on this controller. Configuring controller T1 2/7: Configuring PRI on this controller. Configuring interface parameters: Step 14 Enter yes to configure the GigabitEthernet0/0 interface to connect the gateway to a LAN. Then respond to the remaining questions to configure the Gigabit Ethernet port. Do you want to configure GigabitEthernet0/0 interface? [yes]: yes Use the 100 Base-TX (RJ-45) connector? [yes]: Note Full-duplex mode enables simultaneous data transfer between a sending and a receiving station. Operate in full-duplex mode? [no]: Operate at 100 Mbps speed? [yes]: Configure IP on this interface? [yes]: IP address for this interface [X.X.X.X]: 172.22.50.10 Subnet mask for this interface [255.255.0.0] : Class B network is 172.22.0.0, 16 subnet bits; mask is /16 Step 15 Repeat Step 14 to configure any other Gigabit Ethernet ports, if necessary. Step 16 Configure your serial interfaces by responding to the following prompts: Do you want to configure Serial0/0 interface? [no]: yes Configure IP on this interface? [no]: yes Configure IP unnumbered on this interface? [no]: Assign to which interface [GigabitEthernet0/0]: Step 17 Repeat Step 16 to configure any other serial interfaces, if necessary. After you complete the configuration script, the setup script displays the configuration command script. Step 18 Go to the "Save the Configuration File" section. Cisco AS5350XM or Cisco AS5400XM with AS54-DFC-8CE1 To use the setup script on the gateway configuring two AS54-DFC-8CE1 trunk cards and five AS54-DFC-108NP universal port cards, take the following steps. Step 1 Power up the gateway. The power switch is on the rear panel, at the upper right corner near the power cord, as shown in Figure 8. Messages begin to appear in your terminal emulation program window. Figure 8 Power Switch Location Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time are interpreted as the first command typed when the messages stop, which might cause you to power cycle the gateway and start over. It will take a few minutes for the messages to stop. The messages look similar to the following display. Note The displayed messages depend on the Cisco IOS software release and feature set you selected. The screen displays in this section are for reference only and probably will not exactly reflect the messages on your console. System Bootstrap, Version 12.3(12r)PI6, RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 2004 by cisco Systems, Inc. AS5400XM platform with 524288 Kbytes of main memory Self decompressing the image : ########################################################################################## ########################################################################################## ################################ [OK] Restricted Rights Legend Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Rights clause at FAR sec. 52.227-19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252.227-7013. cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706 Cisco IOS Software, 5400 Software (C5400-JS-M), Version 12.3(14)T, RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2005 by Cisco Systems, Inc. Compiled Sat 29-Jan-05 02:10 by yiyan Image text-base: 0x60011068, data-base: 0x61F80000 Cisco AS5400XM (BCM) processor (revision 0x21) with 393215K/131072K bytes of memory. Processor board ID JAB082904P4 SB-1 CPU at 750MHz, Implementation 1025, Rev 0.3, 256KB L2 Cache Last reset from IOS reload Manufacture Cookie Info: EEPROM Version 0x4, Board ID 0x4BD, Board Hardware Version 1.11, Item Number 800-6572289-01, Board Revision 02, Serial Number JAB082904P4. Processor 0x0, MAC Address badb.adba.d044 2 Gigabit Ethernet interfaces 6 Serial interfaces 648 terminal lines 1 Channelized T3 port 512K bytes of NVRAM. 125184K bytes of ATA External CompactFlash (Read/Write) Press RETURN to get started! Step 2 When the following message appears, enter yes to continue: Would you like to enter the initial configuration dialog? [yes/no]: yes At any point you may enter a question mark '?' for help. Use ctrl-c to abort configuration dialog at any prompt. Default settings are in square brackets '[]'. Step 3 When the following message appears, enter no to configure all interfaces. Note that if you enter yes, your system will not be configured correctly. Basic management setup configures only enough connectivity for management of the system, extended setup will ask you to configure each interface on the system Would you like to enter basic management setup? [yes/no]: no Step 4 When the following message appears, enter yes to see the current interface summary: First, would you like to see the current interface summary? [yes]: yes Any interface listed with OK? value "NO" does not have a valid configuration GigabitEthernet0/0 unassigned NO unset up up GigabitEthernet0/1 unassigned NO unset up up Group-Async0 unassigned NO unset down down Serial0/0 unassigned NO unset down down Serial0/1 unassigned NO unset down down . Step 5 Enter a hostname for the gateway. Configuring global parameters: Enter host name [Router]: AS5400 The enable secret is a password used to protect access to privileged EXEC and configuration modes. This password, after entered, becomes encrypted in the configuration. Step 6 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when you view the configuration. Enter enable secret: lab The enable password is used when you do not specify an enable secret password, with some older software versions, and some boot images. Step 7 Enter an enable password. This password is not encrypted (less secure) and can be seen when you view the configuration. Enter enable password: guessme The virtual terminal password is used to protect access to the router over a network interface. Step 8 Enter the virtual terminal password, which is used for remote console access. Enter virtual terminal password: guessagain Step 9 Respond to the following prompts as appropriate for your network: Configure SNMP Network Management? [no]: yes Community string [public]: Configure IP? [no]: Configure IGRP routing? [yes]: Your IGRP autonomous system number [1]: 15 Configure bridging? [no]: Note If you answer no to IGRP, you are prompted to configure RIP. Step 10 Enter the letter corresponding to the ISDN switch type that matches your telco switch type, or press Enter to accept the default. Do you want to configure ISDN switch type? [yes]: The following ISDN switch types are available: [a] primary-4ess [b] primary-5ess [c] primary-dms100 [d] primary-net5 [e] primary-ntt [f] primary-ts014 Enter the switch type [d]: Step 11 Enter yes to allow users to dial in using ISDN or analog modems. Do you intend to allow users to dial in? [yes]: yes There are 16 controllers on this access server. If you want to use the full capacity of the access server configure all controllers. Controller E1 0,1,..etc in software corresponds to Port 0,1,..etc on the back of the access server. PRI configuration can be configured to controllers all at once based on your PRI controllers selection. Where as CAS configuration will be configured individually for each controller. Step 12 Enter the number of controllers you will be using for the PRI configuration, or press Enter to configure all controllers. Enter # of controllers, you will be using for PRI configuration [16]: Configuring controller parameters: Step 13 Press Enter for every slot, port, and channel. Configuring controller E1 1/0: Configuring PRI on this controller. Configuring controller E1 1/1: Configuring PRI on this controller. . . . . Configuring controller E1 2/6: Configuring PRI on this controller. Configuring controller E1 2/7: Configuring PRI on this controller. Step 14 Enter yes to configure the GigabitEthernet0/0 interface to connect the gateway to a LAN. Then respond to the remaining questions to configure the Gigabit Ethernet port (you can also press Enter to accept the default): Do you want to configure GigabitEthernet0/0 interface? [yes]: yes Use the 100 Base-TX (RJ-45) connector? [yes]: Note Full-duplex mode enables simultaneous data transfer between a sending and a receiving station. Operate in full-duplex mode? [no]: Operate at 100 Mbps speed? [yes]: Configure IP on this interface? [yes]: IP address for this interface [X.X.X.X]: 172.22.50.10 Subnet mask for this interface [255.255.0.0] : Class B network is 172.22.0.0, 16 subnet bits; mask is /16 Step 15 Repeat Step 14 to configure any other Gigabit Ethernet ports, if necessary. Step 16 Configure your serial interfaces by responding to the following prompts: Do you want to configure Serial0/0 interface? [no]: yes Configure IP on this interface? [no]: yes Configure IP unnumbered on this interface? [no]: Assign to which interface [GigabitEthernet0/0]: Step 17 Repeat Step 16 to configure any other serial interfaces, if necessary. After you complete the configuration script, the setup script displays the configuration command script. Step 18 Go to the next section, "Save the Configuration File." Save the Configuration File To save the configuration file, follow these steps: Step 1 Enter 0, 1, or 2 when the following prompt is displayed: [0] Go to the IOS command prompt without saving this config. [1] Return back to the setup without saving this config. [2] Save this configuration to nvram and exit. Enter your selection [2]: Use this configuration? [yes/no]: yes Building configuration... Use the enabled mode 'configure' command to modify this configuration. Press RETURN to get started! %LINK-3-UPDOWN: Interface Ethernet0, changed state to up %LINK-3-UPDOWN: Interface Serial0, changed state to down %LINK-3-UPDOWN: Interface Serial1, changed state to down <Additional messages omitted.> Step 2 When the messages stop appearing on your screen, press Enter to access the following prompt: AS5400> %AT-6-ONLYROUTER: Ethernet0: AppleTalk port enabled; no neighbors found Note If you see this message, it means that no other routers were found on the network attached to the port. Step 3 The AS5350> or AS5400> prompt indicates that you are now at the command-line interface (CLI) and you have just completed the basic gateway configuration. However, this is not a complete configuration. At this point you have two options: •Run the setup script in the System Configuration dialog again and create another configuration. Enter the following commands to repeat the setup script: AS5400> enable Password: password AS5400# setup •Modify the existing configuration or configure additional features with the CLI as described in the Dial Solutions Configuration Guide, the Dial Solutions Command Reference Guide, the Cisco IOS software configuration guide, and command reference publications. See the "Obtaining Documentation" section on page 21. Where to Go Next At this point you can go to Verifying Basic Setup for step-by-step instructions to configure the gateway manually. You can also refer to the following documents for more advanced configuration topics: •Cisco IOS software configuration guide •Command reference publications •Dial Solutions Configuration Guide •Dial Solutions Command Reference These publications are available on the Documentation DVD, or on the World Wide Web from the Cisco home page. CCDE, CCENT, Cisco Eos, Cisco HealthPresence, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco StadiumVision, Cisco TelePresence, Cisco WebEx, DCE, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries. All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0812R) Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental. © 2006, 2009 Cisco Systems, Inc. All rights reserved.
	Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks
