Step 1 |
enable
|
Enables the privileged EXEC mode. Enter your password if prompted. |
Step 2 |
configure terminal
R1# configure terminal |
Enters the global configuration mode. |
Step 3 |
ip multicast-routing [ distributed ]
R1(config)# ip multicast-routing |
Enables the IP multicast routing. |
Step 4 |
interface loopback loopback_if_number
R1(config)# interface Loopback0 |
Enters the interface configuration mode. |
Step 5 |
description description
R1(config-if)# description Rendezvous Point for Public Net |
Describes the interface. |
Step 6 |
ip address ip_address subnet_mask
R1(config-if)# ip address 22.22.22.22 255.255.255.255 |
Assigns the IP address and subnet mask to the interface. |
Step 7 |
ip pim sparse-mode
R1(config-if)# ip pim sparse-mode |
Enables the PIM sparse mode on the interface. |
Step 8 |
exit
R1(config-if)# exit |
Exits the interface configuration mode. |
Step 9 |
interface gigabitethernet GigabitEthernet_interface_number
R1(config)# interface GigabitEthernet2/0/0 |
Enters the interface configuration mode. |
Step 10 |
ip address ip_address subnet_mask
R1(config-if)# ip address 2.1.1.1 255.255.0.0 |
Assigns the IP address and subnet mask to the interface. |
Step 11 |
ip pim sparse-mode
R1(config-if)# ip pim sparse-mode |
Enables the PIM sparse mode on the interface. |
Step 12 |
exit
R1(config-if)# exit |
Exits the interface configuration mode. |
Step 13 |
interface gigabitethernet GigabitEthernet_interface_number
R1(config)# interface GigabitEthernet4/13 |
Enters the interface configuration mode. |
Step 14 |
ip address ip_address subnet_mask
R1(config-if)# ip address 23.1.1.2 255.255.0.0 |
Assigns the IP address and subnet mask to the interface. |
Step 15 |
ip pim sparse-mode
R1(config-if)# ip pim sparse-mode |
Enables the PIM sparse mode on the interface. |
Step 16 |
exit
R1(config-if)# end |
Exits the interface configuration mode. |
Step 17 |
interface interface_name
R1(config)# interface Vif1 |
Enters the interface configuration mode. |
Step 18 |
ip address ip_address subnet_mask
R1(config-if)# ip address 1.1.1.1 255.255.0.0 |
Assigns the IP address and subnet mask to the interface. |
Step 19 |
ip pim sparse-mode
R1(config-if)# ip pim sparse-mode |
Enables the PIM sparse mode on the interface. |
Step 20 |

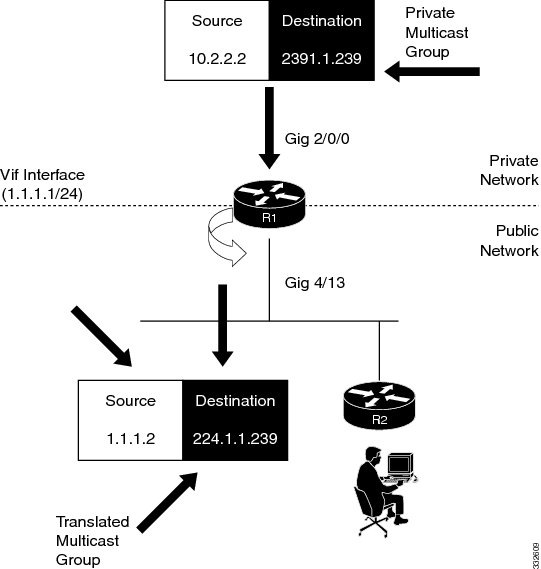

ip service reflect input-interface destination destination-address to new-destination-address mask-len number source new-source-address
R1(config-if)# ip service reflect GigabitEthernet2/0/0 destination 239.1.1.100 to 225.1.1.100 mask-len 32 source 1.1.1.2 |
Matches and rewrites the multicast packets routed onto the virtual interface.
- The matched and rewritten packets are sent back into multicast packet routing (or unicast routing if the destination is unicast), where they are handled like any other packets arriving from an interface.
|
Step 21 |
ip igmp static-group {* | group-address [source {source-address | ssm-map}]}
R1(config-if)# ip igmp static-group 239.1.1.100 |
Configures the router to be a statically connected member of the specified group on the interface, and forwards traffic destined for the multicast group onto the interface.
Note This step is only applicable for multicast-to-multicast and multicast-to-unicast scenarios.
|
Step 22 |
exit
R1(config-if)# end |
Exits the interface configuration mode. |
Step 23 |
ip pim rp-address rp-address
R1(config)# ip pim rp-address 22.22.22.22 |
Configures the address of a PIM RP for a particular group. |
Step 24 |
end
R1(config-controller)# end |
Ends the configuration session. |
