Installing the DB-9 Adapter on the
Cisco ONS 15310-MA
Product Name: 15310-DB9-WW-BITS
This document explains how to install the Cisco ONS 15310-MA DB-9 adapter. It also contains a description of the DB-9 adapter, installation equipment and procedures, and a list of specifications. As appropriate, use this document in conjunction with the Cisco ONS 15310-CL and Cisco ONS 15310-MA Procedure Guide, the Cisco ONS 15310-CL and Cisco ONS 15310-MA Reference Manual, and the Cisco ONS 15310-CL and Cisco ONS 15310-MA Troubleshooting Guide when working with the DB-9 adapter.
This document contains the following sections:
DB-9 Adapter Description
Warning These interfaces are designed for use as intra-building interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE, Issue 4) and require isolation from the exposed OSP cabling. The intra-building port(s) of the equipment or subassembly must not be metallically connected to interfaces that connect to the OSP or its wiring. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring.
The DB-9 adapter allows you to connect the timing signals (building integrated timing supply (BITS), tip connection signal, or ring connection signal) to the chassis in a different way. Typically, the BITS cables attach to the ONS 15310-MA using the BITS clock cable terminated with a DB-9 connector that plugs into the BITS port. However, in some cases, you may not want to use the DB-9 connector to connect such signals, but want to wrap directly the wire on to the pins. In such cases, you can use the DB-9 adapter.
DB-9 Adapter Specifications
–Operating temperature: -40 to + 65 degrees Celsius (-40 to 149 degrees Fahrenheit)
–Operating humidity: 5 to 95%, noncondensing
–1.39 in. x 1.57 in. x 0.79 in. (3.52 cm x 4 cm x 2 cm)
–Weight: Approximately 0.06 lbs (0.025 kg)
Table 1 lists the pin assignments for the DB-9 adapter.
Table 1 Pin Assignments
DB-9 Pin Number Function
Install the DB-9 Adapter on the ONS 15310-MA
The following parts are required to install the DB-9 adapter on the ONS 15310-MA:
•#1 Phillips screwdriver
Step 1 Disassemble the DB-9 adapter transparent plastic cover from the DB-9 adapter body and place the DB-9 adapter body over the desired DB-9 connector. There are two DB-9 connectors on the ONS 15310-MA backplane.
Step 2 Fix the two captive screws already installed on the DB-9 adapter body on to the DB-9 connector.
Step 3 Wrap the wires on the DB-9 adapter pins.
Step 4 Place the DB-9 adapter transparent plastic cover on the DB-9 adapter body.

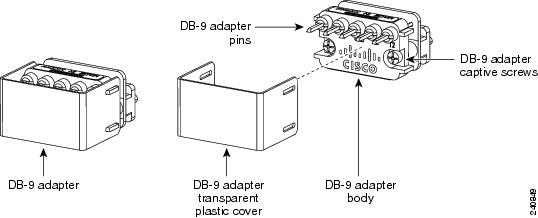

Figure 1 DB-9 Adapter Transparent Plastic Cover Installed on the DB-9 Adapter Body

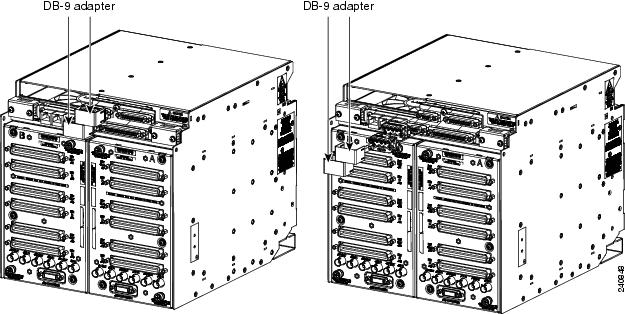

Figure 2 Position of the DB-9 Adapter on the Backplane
•Cisco ONS 15310-CL and Cisco ONS 15310-MA Procedure Guide
•Cisco ONS 15310-CL and Cisco ONS 15310-MA Reference Manual
•Cisco ONS 15310-CL and Cisco ONS 15310-MA Troubleshooting Guide
