Install the Cisco ONS 15310-MA SDH
This chapter provides procedures for installing the Cisco ONS 15310-MA SDH shelf, cards, and fiber-optic cable. To view a summary of the tools and equipment required for installation, see the "Required Tools and Equipment" section.
Before You Begin
This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
1.
H149 Unpack and Inspect the ONS 15310-MA SDH Shelf Assembly—Complete this procedure before continuing with the "NTP-H150 Install the Shelf Assembly" procedure.
2. H150 Install the Shelf Assembly—Complete this procedure to install the shelf assembly in a rack before continuing with the "NTP-H151 Install the Power and Ground" procedure or before completing one of the following optional procedures.
3. H169 Install the Cable Management Bracket—As needed, complete this procedure to install the cable management bracket.
4. H166 Remove the Blank Sheet Metal Covers—As needed, complete this procedure to access the backplane.
5. H167 Install the EIAs—As needed, complete this procedure to install the electrical interface assemblies (EIAs) before continuing with the "NTP-H151 Install the Power and Ground" procedure.
6. H151 Install the Power and Ground—Complete this procedure before continuing with the "NTP-H152 Install the Fan-Tray Assembly" procedure.
7. H152 Install the Fan-Tray Assembly—Complete this procedure before continuing with the "NTP-H153 Install the 15310E-CTX-K9 Cards" procedure.
8. H153 Install the 15310E-CTX-K9 Cards—Complete this procedure to install the common- control/cross-connect cards.
9. H154 Install the Ethernet Cards—As needed, complete this procedure to install an Ethernet card.
10. H187 Install STM-N Cards and Connectors—As needed, complete this procedure to install STM-N cards and connectors.
11. H155 Install the Electrical Cards—As needed, complete this procedure to install an electrical card.
12. H156 Install the Filler Cards—As needed, complete this procedure to install a filler card (blank faceplate) in the expansion slot. If no Ethernet or electrical card is installed in the expansion slot, you must install a filler card.
13. H157 Install Wires to Alarm, Timing, Craft, LAN, and UDC Pin Connections—Complete this procedure to install cables for alarms, timing, LAN, craft, and user data channel (UDC) connections.
14. H158 Install the Electrical Cables—Complete this procedure to connect and route cables that will carry electrical traffic.
15. H159 Install and Remove SFPs—As needed, complete this procedure to install Small Form-factor Pluggables (SFPs) that provide a fiber-optic interface to the 15310E-CTX-K9 card.
16. H160 Install Optical Cables—Complete this procedure to connect and route cables that will carry optical traffic.
17. H164 Perform the Shelf Installation Acceptance Test—Complete this procedure to determine if you have correctly completed all other procedures in the chapter.
18. H161 Preprovision an SFP Slot—As needed, complete this procedure to preprovision SFPs, which provide a fiber-optic interface to the ONS 15310-MA SDH and can be provisioned for various line rates.
19. H162 Preprovision a Card Slot—As needed, complete this procedure to preprovision an empty card slot with a card that will be installed later.
20. H163 Remove and Replace a Card—As needed, complete this procedure to remove and replace an ONS 15310-MA SDH card.
21. H168 Install the Front Door—As needed, complete this procedure to install the front door.
22. H190 Install the Rear Cover—As needed, complete this procedure to install the rear cover.
 |
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
|
|
Warning This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. Statement 1017
|
|
Warning Installation of the equipment must comply with local and national electrical codes. Statement 1074
|
|
Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040
|
|
Warning The intra-building ports of the ONS 15310-MA SDH are suitable only for connecting to intrabuilding or unexposed wiring or cabling. The intra-building ports of ONS 15310-MA SDH must not be metallically connected to interfaces that connect to the outside plant (OSP) or its wiring. These interfaces require isolation from the exposed OSP cabling. The addition of primary protectors do not provide adequate protection when the interfaces are connected metallically to the OSP wiring.
|
Required Tools and Equipment
You will need the following tools and equipment to install and test the ONS 15310-MA SDH.
lncluded Materials
These materials are shipped with the ONS 15310-MA SDH. The number in parentheses provides the quantity of the item included in the package.
•Ground lug (1)
•Screws: panhead, 10-32 x 0.375 (10)
•Screws: panhead, 10-32 x 0.37, green zinc (2)
•Screws: panhead, 12-24 x 0.75 (8)
•Screws: panhead, 10-32 x 0.31 (2)
•Screws: panhead, 8-32 x 0.31 (3)
•Kep nut: 10-32 x 0.170
•Rack mount bracket
•Interconnect plate
•Rack mount bracket for 19-inch rack
•Cable routing bracket
User-Supplied Materials
These materials and tools are required but are not supplied with the ONS 15310-MA SDH.
•Equipment rack (26 inches total width for a 19-inch rack)
•Fuse and alarm panel
•Copper power cable (from fuse and alarm panel to assembly), #12 AWG
•Ground cable, #6 AWG stranded (minimum)
•A 1-inch (minimum) wide copper braid is required to ground the ONS 15310-MA SDH OSP cabinet and is recommended for indoor installations.
•Alarm In cable, unshielded cable terminated with a DB-37 connector
•Alarm Out cable, shielded cable terminated with a DB-25 connector
•Craft port serial cable, CAT-5 terminated with RJ-45
•BITS timing port cable, CAT-3/CAT-5 terminated with DB-9 connector
•User data channel (UDC) cable: EIA/TIA-232 port cable, CAT-5 terminated with RJ-45
•Management LAN cable, CAT-5 terminated with RJ-45
•Single-mode LC fiber jumpers with UPC polish (55 dB or better) for optical interfaces
•E1 cabling, shielded, terminated to a 21-pair #26AWG cable, with dual 64-pin CHAMP connectors at far end with separate transmit and receive, straight termination (optional)
•Shielded coaxial cable terminated with BNC connectors for DS3/E3 ports
•Tie wraps and/or lacing cord
•Labels
Tools Needed
The following tools are needed to complete the procedures in this chapter:
•#2 Phillips screw driver
•Medium slot head screw driver
•Small slot head screw driver
•Wire cutters
•Wire strippers
Test Equipment
The following test equipment is needed to complete the procedures in this chapter:
•Volt meter
•Power meter (for use with fiber optics only)
•Bit error rate (BER) tester, E1 and DS3/E3
Note In this chapter, the terms "ONS 15310-MA SDH" and "shelf assembly" are used interchangeably. In the installation context, these terms have the same meaning. Otherwise, shelf assembly refers to the physical steel enclosure that holds cards and connects power, and ONS 15310-MA SDH refers to the entire system, both hardware and software.
NTP-H149 Unpack and Inspect the ONS 15310-MA SDH Shelf Assembly
Purpose
|
This procedure describes how to unpack the ONS 15310-MA SDH and verify the contents.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Step 1 Complete the "DLP-H1 Unpack and Verify the Shelf Assembly" task.
Step 2 Complete the "DLP-H2 Inspect the Shelf Assembly" task.
Step 3 Continue with the "NTP-H150 Install the Shelf Assembly" procedure.
Stop. You have completed this procedure.
NTP-H150 Install the Shelf Assembly
Purpose
|
This procedure describes how to mount ONS 15310-MA SDH shelf assemblies in a rack.
|
Tools/Equipment
|
#2 Phillips screwdriver
#12-24 mounting screws (4)
#10-32 ear mounting screws (8)
Universal mounting ears (2)
Dual-assembly plate
19-inch-rack mounting ear
Fuse and alarm panel, if not installed
|
Prerequisite Procedures
|
H149 Unpack and Inspect the ONS 15310-MA SDH Shelf Assembly
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Note The ONS 15310-MA SDH is suitable for installation in network telecommunication facilities where National Electric Code (NEC) applies.
|
Warning To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 149°F (65°C). Statement 1047
|
|
Warning To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
· This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
· When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
· If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack. Statement 1006
|
Step 1 Complete the necessary rack mount task H248 Mount a Single ONS 15310-MA SDH in a Rack.
Step 2 Continue with the "NTP-H169 Install the Cable Management Bracket" procedure.
Stop. You have completed this procedure.
NTP-H169 Install the Cable Management Bracket
Purpose
|
This procedure describes how to install the cable management bracket, which is used for routing optical and Ethernet cables.
|
Tools/Equipment
|
#2 Phillips screwdriver
Standard cable management bracket and
three #8-32 x 0.31 inch (0.79 cm) screws (included with the ship kit)
or
Extended cable management bracket (15310-CBLMGT) and
five 8-32 x 0.31 inch (0.79 cm) screws
|
Prerequisite Procedures
|
H150 Install the Shelf Assembly
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
|
Warning The covers are an integral part of the safety design of the product. Do not operate the unit without the covers installed. Statement 1077
|
Step 1 Line up the three screw holes on the rear of the bracket with the screw holes at the bottom of the ONS 15310-MA SDH shelf assembly (Figure 1-1).
Figure 1-1 Installing the Standard Cable Management Bracket
Step 2 To secure the bracket to the shelf, use the screwdriver to install three 8-32 x 0.31 inch (0.79 cm) screws, torqued to 15 to 18 inch-lbs.
Step 3 If you are installing the extended bracket, install two 8-32 x 0.31 inch (0.79 cm) screws, torqued to 15 to 18 inch-lbs, through the top of the bracket directly into the ESD faceplates adjacent to Slots 1 and 6 on either side of shelf (Figure 1-2).
Figure 1-2 Installing the Extended Cable Management Bracket
Step 4 If you plan to install electrical interface assemblies (EIAs), continue with the "NTP-H166 Remove the Blank Sheet Metal Covers" procedure to access the backplane. If not, continue with the "NTP-H151 Install the Power and Ground" procedure.
Stop. You have completed this procedure.
NTP-H166 Remove the Blank Sheet Metal Covers
Purpose
|
This procedure describes how to access the backplane by removing the blank sheet metal covers. The backplane has two sheet metal covers (one on either side).
|
Tools/Equipment
|
#2 Phillips screwdriver
|
Prerequisite Procedures
|
H150 Install the Shelf Assembly
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
|
Warning The covers are an integral part of the safety design of the product. Do not operate the unit without the covers installed. Statement 1077
|
Step 1 Use a Phillips screwdriver to remove the five screws holding each sheet metal cover in place.
Figure 1-3 shows the screw locations of the sheet metal covers installed on the A-side and B-side of the ONS 15310-MA SDH.

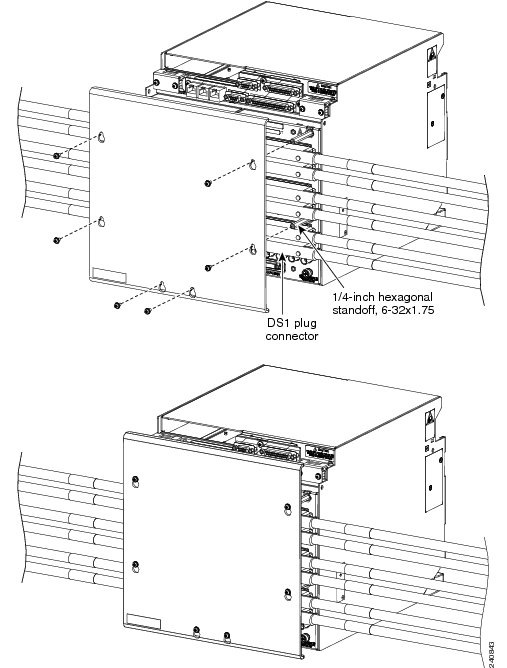

Figure 1-3 Blank Sheet Metal Covers
Step 2 Store the panels for later use. Attach the backplane cover(s) whenever EIA(s) are not installed.
Step 3 If you plan to install electrical interface assemblies (EIAs), continue with the "NTP-H167 Install the EIAs" procedure. If not, continue with the "NTP-H151 Install the Power and Ground" procedure.
Stop. You have completed this procedure.
NTP-H167 Install the EIAs
Purpose
|
This procedure describes how to install electrical interface assemblies (EIAs).
|
Tools/Equipment
|
#2 Phillips screwdriver
High-density EIAs
6-32 x 5/16-inch pan head screws (3, included with EIA)
|
Prerequisite Procedures
|
H169 Install the Cable Management Bracket
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Caution Connect only SELV services to the high-density EIAs on the ONS 15310-MA SDH.
Step 1 Determine which high-density EIA is designed for installation on the B Side and which is designed for installation on the A Side (Figure 1-4).
For both OSP and non-OSP installations on the ONS 15310-MA SDH, following ONS 15310-MA SDH EIAs must be installed:
•15310E-EIA-HDA=, PN 800-29917-01
•15310E-EIA-HDB=, PN 800-29918-01
Note For information about OSP installation, refer to the installation manual provided with the OSP cabinet.

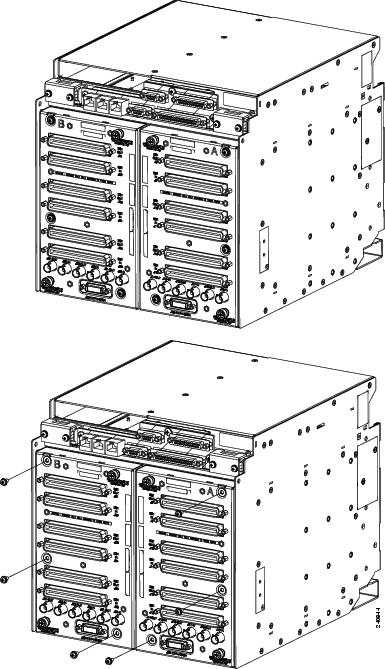

Figure 1-4 High-Density EIA Installation
Step 2 Align the connectors on the EIA you want to install with the mating connectors on the backplane, using the plastic guide posts on the connectors.
Caution Do not firmly apply pressure to the EIA; this could damage the EIA and backplane connectors.
Step 3 Seat the EIA as flat as possible by gently exerting enough pressure with your hands to only partially seat the connectors. Do not try and fully insert the EIA.
Step 4 Locate the two jack screws on the EIA, which are found on the opposite corners (Figure 1-4). (For example, on the B-side EIA, the screws are located in the top right and bottom left corners.)
Step 5 Starting with either jack screw, tighten the thumb screw turn five full turns, then turn the other thumb screw five full turns (Figure 1-5). Alternate between the jack screws until the EIA is full seated onto the chassis and the jack screws are hand tight. The EIA is fully mated when both jack screws are fully threaded into the chassis.
Figure 1-5 EIA Jack Screw
Caution Threading one jack screw completely before threading the other jack screw might result in connector misalignment and damage to the EIA. Do not overtighten the jack screws.
Step 6 Install the remaining three 6-32 x 5/16-inch pan head screws onto the EIA and torque to 8 to 10 in-lbs.
Step 7 Repeat Steps 2 through 6 to install the other EIA, as necessary.
Step 8 Continue with the "NTP-H151 Install the Power and Ground" procedure.
Stop. You have completed this procedure.
NTP-H151 Install the Power and Ground
Purpose
|
This procedure describes how to install power feeds and how to ground the ONS 15310-MA SDH.
|
Tools/Equipment
|
Ground cable, #6 AWG stranded copper conductors, minimum 90 degrees C (194 degrees F).
Copper power cable (from fuse and alarm panel to assembly).
#12 AWG stranded copper conductors, minimum 90 degrees C (194 degrees F).
A 1-inch (minimum) wide copper braid.
|
Prerequisite Procedures
|
H150 Install the Shelf Assembly
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Note A 1-inch (minimum) wide copper braid is required to ground the ONS 15310-MA SDH OSP cabinet and is recommended for indoor installations.
|
Warning This product requires short-circuit (overcurrent) protection, to be provided as part of the building installation. Install only in accordance with national and local wiring regulations. Statement 1045
|
|
Warning Read the installation instructions before connecting the system to the power source. Statement 1004
|
|
Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028
|
|
Warning This equipment must be grounded. Never defeat the ground conductor or operate equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024
|
|
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. Statement 1003
|
|
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
|
|
Warning Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV) requirements under IEC 60950-1 based safety standards. Statement 1033
|
|
Warning A readily accessible two-poled disconnect device must be incorporated in the fixed wiring. Statement 1022
|
|
Warning Use copper conductors only. Statement 1025
|
Note The DC power Battery Return (BR), or positive terminal, must be grounded at the source end. The DC power Battery Return input terminal is not connected to the equipment frame, so it is configured as DC-I as per GR-1089 Issue 4 sec.9.8.3.
Step 1 Verify that the proper fuse panel is installed. The fuses rating must not exceed 15A (Fast acting).
Step 2 Connect the chassis to the office ground. For detailed instructions on grounding, refer to the Cisco ONS Electrostatic Discharge (ESD) and Grounding Guide.
Step 3 Complete the "DLP-H251 Connect Office Power to the ONS 15310-MA SDH" task.
Step 4 Complete the "DLP-H252 Turn On and Verify Office Power to the ONS 15310-MA SDH" task.
Step 5 Continue with the "NTP-H152 Install the Fan-Tray Assembly" procedure.
Stop. You have completed this procedure.
NTP-H189 View Shelf Temperature
Purpose
|
This procedure displays the shelf temperature of the ONS 15310-MA SDH chassis in CTC.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
H29 Log into CTC
|
Required/As Needed
|
As Needed
|
Onsite/Remote
|
Remote
|
Security Level
|
Provisioning or higher
|
Step 1 In shelf view, click the Provisioning > General > Voltage/Temperature tabs. The Voltage/Temperature pane appears.
Step 2 The Voltage/Temperature pane retrieves the temperature of the shelf in degrees Celsius.
Step 3 Click the Reset button to refresh the temperature value.
Stop. You have completed this procedure.
NTP-H152 Install the Fan-Tray Assembly
Purpose
|
This procedure installs the air filter and fan-tray assembly in the
ONS 15310-MA SDH.
|
Tools/Equipment
|
#2 Phillips screwdriver
Fan-tray assembly
Fan filter
|
Prerequisite Procedures
|
H151 Install the Power and Ground
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Caution Do not operate an ONS 15310-MA SDH without a fan-tray air filter. A fan-tray air filter is mandatory for compliance with IEC 60950-1 standard.
Caution You must place the edge of the air filter flush against the front of the fan-tray assembly compartment when installing the fan tray on top of the filter. Failure to do so could result in damage to the filter, the fan tray, or both.
Caution Do not force a fan-tray assembly into place. Doing so can damage the connectors on the fan tray and/or the connectors on the back panel of the shelf assembly.
|
Warning Order Wire (OW) port is an intra-building wiring port to be used for maintenance purposes and is not connected during normal operation. This port must not be connected to any telecommunication network. Statement 1085.
|
Step 1 Install the air filter. The air filter is installed internally in the slot at the top left of the shelf assembly (Figure 1-6). Pull the tab, located at the center of the front of the fan filter, toward you. Make sure the tab is facing up before you install the fan filter.
Figure 1-6 Installing the Fan-Tray Air Filter
Step 2 Slide the air filter into the bracket, and push the tab closed
Step 3 Pull the fan tray ejector all the way out.
Step 4 Use the ejector to slide the fan tray into the shelf assembly until the electrical plug at the rear of the tray plugs into the corresponding receptacle on the backplane.
Step 5 Close the ejector.
Step 6 Use a Phillips screwdriver to tighten the screws at either end of the fan-tray assembly.
Step 7 To verify that the tray has plugged into the backplane, look at the fan tray and listen to determine that the fans are running.
Figure 1-7 shows the location of the fan-tray assembly.
Figure 1-7 Installing the Fan-Tray Assembly
Step 8 Continue with the "NTP-H153 Install the 15310E-CTX-K9 Cards" procedure.
Stop. You have completed this procedure.
NTP-H153 Install the 15310E-CTX-K9 Cards
|
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
|
|
Warning During this procedure, wear grounding wrist straps to avoid electrostatic discharge (ESD) damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Statement 94
|
|
Warning Invisible laser radiation could be emitted from the end of the unterminated fiber cable or connector. Do not stare into the beam directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm could pose an eye hazard. Statement 1056
|
|
Warning Class I (CDRH) and Class 1M (IEC) laser products. Statement 1055
|
|
Warning Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure. Statement 1057
|
|
Warning The Ethernet ports and the LAN port on 15310E-CTX-K9 cards of ONS 15310-MA SDH are intra-building ports and are suitable only for connecting to cat-5 shielded (STP) cabling grounded at both ends. Statement 1084
|
|
Warning The CRAFT ports of ONS 15310-MA SDH are intra-building ports to be used for setup and maintenance purposes by trained personnel and are not connected during normal operation.Statement 1085
|
Caution Do not install a 15310E-CTX-K9 card in an ONS 15310-MA SDH if the ambient temperature exceeds 149 degrees F (65 degrees C).
Caution Always use the supplied ESD wristband when working with a powered ONS 15310-MA SDH. Plug the wristband cable into either of the ESD jacks, on the far left and right faceplates in the shelf. For detailed instructions on how to wear the ESD wristband, refer to the
Cisco ONS Electrostatic Discharge (ESD) and Grounding Guide.
Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.
Step 1 Install a 15310E-CTX-K9 card in Slot 3 or 4 (Figure 1-8):
a. Open the card ejector.
b. Use the ejector at the top of the card and firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot.
c. Verify that the card is inserted correctly and close the ejector on the card.
Note The 15310E-CTX-K9 cards are hot-pluggable, which means they can be inserted or removed without turning off the power to the ONS 15310-MA SDH.
Figure 1-8 Installing a 15310E-CTX-K9 Card
Step 2 Verify the 15310E-CTX-K9 card LED activity:
a. The red FAIL LED turns on for 30 to 45 seconds. It then turns off for 5 seconds, and turns back on for 30 seconds.
b. The red FAIL LED blinks for 20 seconds, and turns off for 5 seconds.
c. All LEDs turn on for 2 seconds.
d. The ACT/STBY LED turns on. It is green if the card is active, or amber if the card is standby.
Step 3 When you log into CTC, verify that the card appears properly in CTC node view.
Step 4 As necessary, continue with the "NTP-H154 Install the Ethernet Cards" procedure.
Stop. You have completed this procedure.
NTP-H154 Install the Ethernet Cards
Note Ethernet cards can be installed in any traffic card slot (Slot 1, 2, 5, or 6).
Caution Do not install CE-100T-8 and ML-100T-8 cards in OSP.
|
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
|
|
Warning Connect the copper Ethernet ports to intrabuilding or nonexposed wiring and cabling only. Statement 1084
|
|
Warning The Ethernet ports and the LAN port on 15310E-CTX-K9 cards of ONS 15310-MA SDH are intra-building ports and are suitable only for connecting to cat-5 shielded (STP) cabling grounded at both ends.Statement 1084
|
|
Warning The CRAFT ports of ONS 15310-MA SDH are intra-building ports to be used for setup and maintenance purposes by trained personnel and are not connected during normal operation.Statement 1085
|
Caution Do not install an Ethernet card in an ONS 15310-MA SDH if the ambient temperature exceeds 149 degrees F (65 degrees C).
Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.
Step 1 Install an Ethernet card (CE-100T-8, CE-MR-6, or ML-100T-8) in a traffic card slot:
a. Open the card ejector.
b. Use the ejector at the top of the card and firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot.
c. Verify that the card is inserted correctly and close the ejector on the card.
Note The Ethernet cards are hot-pluggable, which means they can be inserted or removed without turning off the power to the ONS 15310-MA SDH.
Step 2 Verify the Ethernet card LED activity:
a. Verify that the red FAIL LED is off.
b. Verify that the green ACT LED is on.
Step 3 When you log into CTC, verify that the card appears properly in CTC node view.
Step 4 Complete the "NTP-H159 Install and Remove SFPs" procedure if you are using CE-MR-6 cards.
Step 5 As necessary, continue with the "NTP-H155 Install the Electrical Cards" procedure.
Stop. You have completed this procedure.
NTP-H187 Install STM-N Cards and Connectors
Purpose
|
This procedure installs the optical cards (STM-1, STM1-8, STM-4, STM4-4, STM-16, and STM-64, and MRC-12). The MRC-12 (multirate), OC192SR1/STM64IO Short Reach (STM64-XFP Short Reach), and OC192/STM64 Any Reach(STM64-XFP Any Reach) cards require Small Form-factor Pluggables (SFPs/XFPs) to provide the fiber interface to the cards. On all other optical cards, the fiber is plugged directly into the card. Install according to site plan, if available.
|
Tools/Equipment
|
STM-1, STM-4, STM-16, STM-64, and MRC-12 cards (as applicable)
|
Prerequisite Procedures
|
H150 Install the Shelf Assembly
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
|
Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Statement 94
|
|
Warning Class I (21 CFR 1040.10 and 1040.11) and Class 1M (IEC 60825-1 2001-01) laser products. Statement 291
|
|
Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Statement 1056
|
The following laser activation warning applies only to STM-64 cards with safety keys:
|
Warning The laser is on when the card is booted and the safety key is in the on position (labeled 1). The port does not have to be in service for the laser to be on. The laser is off when the safety key is off (labeled 0). Statement 293
|
Note To simplify subnetwork connection protection (SNCP) to multiplex section-shared protection ring (MS-SPRing) conversion and node addition, install optical cards according to an east (Slots 12 and 13) to west (Slots 5 and 6) configuration. This configuration is not mandatory.
Note If you install a card incorrectly, the FAIL LED flashes continuously.
Note During the boot process, a Locked-enabled, disabled STM-N port will output a line alarm indication signal (AIS-L) to any Unlocked-enabled far-end receivers. See the Cisco ONS 15310-MA SDH Troubleshooting Guide for further information about the AIS-L condition.
Step 1 Install higher-capacity cards first; for example, install an STM-64 card before installing an STM-12 card. Let each card completely boot before installing the next card.
Note "OC192SR1/STM64IO Short Reach" and "OC192/STM64 Any Reach" are the titles that appear on the faceplates of the STM64-XFP cards. In CTC, the cards are abbreviated as STM64-XFP.
Before installing a MRC-12 card, review Table 1-1 for bandwidth limitations based on the slot where the card is installed and the type of cross-connect card installed in the shelf.
Table 1-1 Maximum Bandwidth by Shelf Slot for the MRC-12 in Different Cross-Connect Configurations
XC Card Type
|
Maximum Bandwidth in Slots 1 through 4 and 12 through 17
|
Maximum Bandwidth in Slots 5, 6, 12, or 13
|
XC-VXL-2.5G
|
OC-48
|
OC-48
|
XC-VXC-10G/XC-VXL-10G
|
OC-48
|
OC-192
|
Refer to the card's reference section in the "Optical Cards" chapter of the Cisco ONS 15310-MA SDH Reference Manual for more information about slot and bandwidth restrictions.
Step 2 Open the card latches/ejectors.
Step 3 Use the latches/ejectors to firmly slide the optical card along the guide rails until the card plugs into the receptacle at the back of the slot.
Step 4 Verify that the card is inserted correctly and close the latches/ejectors on the card.
Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.
Note If you install the wrong card in a slot, complete the "NTP-H163 Remove and Replace a Card" procedure.
Step 5 Verify the LED activity:
•The red FAIL LED turns on for 20 to 30 seconds.
•The red FAIL LED blinks for 35 to 45 seconds.
•All LEDs blink once and turn off for 5 to 10 seconds.
•The ACT or ACT/STBY LED turns on. The signal fail (SF) LED can persist until all card ports connect to their far-end counterparts and a signal is present.
Note The booting STM-N card will send an AIS-L to the far-end receiver as long as it is Locked-enabled, disabled.
Step 6 If the card does not boot up properly, or the LED activity does not mimic Step 5, check the following:
•When a physical card type does not match the type of card provisioned for that slot in CTC, the card might not boot. If an optical card does not boot, open CTC and verify that the slot is not provisioned for a different card type before assuming the card is faulty.
•If the red FAIL LED does not turn on, check the power.
•If you insert a card into a slot provisioned for a different card, all LEDs turn off.
•If the red FAIL LED is illuminated continuously or the LEDs behave erratically, the card is not installed properly. Remove the card and repeat Steps 2 to 5.
Step 7 The MRC-12 card requires SFPs and the STM64-XFP cards require XFPs to provide a fiber interface. If you installed any of these cards, preprovision the SFP/XFP using the"NTP-H161 Preprovision an SFP Slot" procedure.
Step 8 Continue with the "NTP-H160 Install Optical Cables" procedure.
Stop. You have completed this procedure.
NTP-H155 Install the Electrical Cards
|
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
|
|
Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Statement 94
|
|
Warning The E1/E3 ports on the ONS 15310-MA SDH are intra-building ports and are suitable only for connecting to shielded cabling grounded at both ends. Statement 1084
|
Note Ensure that the patch panel is grounded before installing the E1_21_E3_DS3_3 or E1_63_E3_DS3_3 electrical cards on the Cisco ONS 15310-MA SDH chassis.
|
Warning When installing the unit, always make the ground connection first and disconnect it last. Statement 42.
|
Note Electrical cards can be installed in any traffic card slot (Slot 1, 2, 5, or 6).
Note In ONS 15310-MA OSP installations, E1/E3 ports are connected to the OSP. The OSP cabinet is equipped with primary and secondary protections. In addition, isolation transformers are also provided.
For information about the various types of cables used in the ONS 15310-MA SDH, refer to "Cisco ONS 15310-MA SDH Shelf Assembly Hardware" chapter, "Cable Description and Installation" section in the Cisco ONS 15310-MA SDH Reference Manual.
Caution Do not install an electrical card in an ONS 15310-MA SDH if the ambient temperature exceeds 149 degrees F (65 degrees C).
Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.
Step 1 Install an electrical card (E1_21_E3_DS3_3 or E1_63_E3_DS3_3) in a traffic card slot:
a. Open the card ejector.
b. Use the ejector at the top of the card and firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot.
c. Verify that the card is inserted correctly and close the ejector on the card.
Note The electrical cards are hot-pluggable, which means they can be inserted or removed without turning off the power to the ONS 15310-MA SDH.
Step 2 Verify the electrical card LED activity:
a. All LEDs (FAIL, ACT/STBY, E1 SF, DS3 SF) turn on for 5 seconds, then turn off.
b. The green ACT/STBY and red FAIL LED turn on for 15 seconds.
c. The red FAIL LED flashes for 10 seconds, then becomes steady red for 30 seconds.
d. While the red FAIL LED is on, the ACT/STBY LED turns green for three seconds, then turns amber. During this time, the E1 SF and DS3 SF LEDs are amber.
e. All LEDs turn off.
f. The ACT/STBY LED turns green (active) or amber (standby).
Step 3 When you log into CTC, verify that the card appears properly in CTC node view.
Step 4 As necessary, continue with the "NTP-H156 Install the Filler Cards" procedure.
Stop. You have completed this procedure.
NTP-H156 Install the Filler Cards
Purpose
|
This procedure installs the filler cards (blank faceplates) in any unused ONS 15310-MA SDH traffic or 15310E-CTX-K9 card slot. The filler cards are detectable in CTC.
|
Tools/Equipment
|
Filler card(s) for empty traffic card slots (15310-EXP-FILLER) and/or a filler card for empty 15310E-CTX-K9 card slots (15310-CTX-FILLER)
|
Prerequisite Procedures
|
H8 Turn On and Verify DC Office Power on the ONS 15310-MA SDH
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Retrieve or higher
|
|
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
|
Caution Make sure you install the appropriate filler card for the slot where you are installing the card. Filler card(s) for empty traffic card slots have the product ID 15310-EXP-FILLER, and filler cards for empty 15310E-CTX-K9 card slots have the product ID 15310-CTX-FILLER.
Step 1 Open the card ejector at the top of the card.
Step 2 Slide the card along the guide rails into the slot.
Step 3 Close the ejector by firmly pushing it downward.
Note The filler cards are hot-pluggable, so they can be inserted or removed without turning off the power to the ONS 15310-MA SDH.
Step 4 When you log into CTC, verify that the card appears properly in CTC node view.
Step 5 Continue with the "NTP-H157 Install Wires to Alarm, Timing, Craft, LAN, and UDC Pin Connections" procedure.
Stop. You have completed this procedure.
NTP-H157 Install Wires to Alarm, Timing, Craft, LAN, and UDC Pin Connections
Purpose
|
This procedure installs alarm, timing, craft (for TL1), LAN (for CTC), and UDC wires.
|
Tools/Equipment
|
Alarm In cable, unshielded cable terminated with a DB-37 connector
Alarm Out cable, unshielded cable terminated with a DB-25 connector
Craft port serial cable, CAT-5 terminated with RJ-45
BITS timing port cable, CAT-3/CAT-5 terminated with DB-9 connector
Note The cable shield must be wire-wrapped to the GND pin of the wire wrap adapter.
User data channel (UDC) cable: EIA/TIA-232 port cable, CAT-5 terminated with RJ-45
Management LAN cable, CAT-5 terminated with RJ-45
|
Prerequisite Procedures
|
H150 Install the Shelf Assembly
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
|
Warning The Alarm, Timing (BITS), Craft, LAN and UDC ports of ONS 15310-MA SDH are intra-building ports. The CRAFT and LAN ports (rear side) of ONS 15310-MA SDH are intra-building ports to be used for setup and maintenance purposes by trained personnel and are not connected during normal operation. The BITS ports are suitable only for connecting to shielded cabling grounded at both ends. Statement 1085.
|
Note The UDC Interface, TL1 Craft Interface, and BITS Interface are not used in OSP installations.
Step 1 Complete the "DLP-H253 Install External Alarm Cables on the ONS 15310-MA SDH" task as needed. An alarm cable is necessary to provision external alarms and external controls.
Step 2 Complete the "DLP-H254 Install Timing Cables on the ONS 15310-MA SDH" task as needed. Timing cables are necessary to provision external timing.
Step 3 Complete the "DLP-H255 Install the Serial Cable for TL1 Craft Interface on the ONS 15310-MA SDH" task as needed. A craft cable is required to use Transaction Language One (TL1) through the craft interface.
Step 4 Complete the "DLP-H256 Install the UDC Cable on the ONS 15310-MA SDH" task to enable UDC circuits. A UDC circuit allows you to create a dedicated data channel between nodes.
Step 5 Complete the "DLP-H257 Install the LAN Cable for the CTC Interface on the ONS 15310-MA SDH" task to provide access to the CTC graphical user interface (GUI).
Step 6 Continue with the "NTP-H158 Install the Electrical Cables" procedure.
Stop. You have completed this procedure.
NTP-H158 Install the Electrical Cables
Purpose
|
This procedure describes how to install the electrical E1 (64-pin Champ) and DS3/E3 (coaxial) cables.
|
Tools/Equipment
|
Shielded coaxial cable terminated with BNC connectors for DS3/E3 ports
64-pin Champ connector terminated to shielded, twisted-pair cable
|
Prerequisite Procedures
|
H157 Install Wires to Alarm, Timing, Craft, LAN, and UDC Pin Connections
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Note The 64-pin champ cables (E1) and 75 ohm coax cables (E3) configurations are different for OSP installations. For information about OSP installation, refer to the installation manual provided with the OSP cabinet.
Note To carry electrical traffic on the ONS 15310-MA SDH, you must install electrical cables.
Step 1 Complete the "DLP-H258 Install CHAMP Cables for E1 Connection" task as needed.
Step 2 Complete the "DLP-H259 Install DS-3/E3 Cables" task as needed.
Step 3 Complete the "DLP-H260 Route Cables" task as needed.
Step 4 Complete the "NTP-H159 Install and Remove SFPs" procedure.
Stop. You have completed this procedure.
NTP-H159 Install and Remove SFPs
Purpose
|
This procedure installs and removes SFPs. SFPs are hot-swappable input/output devices that plug into SFP slots on the ONS 15310-MA SDH faceplate to link the port with the fiber-optic network. SFPs are known as pluggable port modules (PPMs) in CTC. You can preprovision the multirate SFPs using the "DLP-H192 Provision a Multirate Pluggable Port Module" task.
|
Tools/Equipment
|
SFPs appropriate to the ONS 15310-MA SDH. SFP types include STM1, STM4, STM16, Ethernet, Gigabit Ethernet, and Fast Ethernet.
Refer to the "Card Reference" chapter in the Cisco ONS 15310-MA SDH Reference Manual for SFP compatibility.
|
Prerequisite Procedures
|
H151 Install the Power and Ground
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
|
Warning Class 1 laser product. Statement 1008
|
|
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
|
|
Warning For copper SFPs, the Ethernet ports of ONS 15310-MA SDH are intra-building ports and are suitable only for connecting to cat-5 shielded (STP) cabling grounded at both ends. Statement 1084
|
Step 1 Complete the "DLP-H16 Install SFP Connectors" task as needed.
Step 2 Complete the "DLP-H17 Remove SFP Connectors" task as needed.
Step 3 Continue with the "NTP-H160 Install Optical Cables" procedure.
Stop. You have completed this procedure.
NTP-H160 Install Optical Cables
Purpose
|
This procedure describes how to install fiber-optic cables in SFPs on the ONS 15310-MA SDH.
|
Tools/Equipment
|
Single-mode fiber jumpers with LC connectors
Fiber boot
Optical power meter
Optical attenuators, as necessary
|
Prerequisite Procedures
|
H16 Install SFP Connectors
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
|
Warning Class 1 laser product. Statement 1008
|
|
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
|
Note You can install the fiber immediately after installing the SFPs, or wait until you are ready to turn up the network. See Chapter 4 "Turn Up a Network."
Note Inspect and clean all fiber connectors thoroughly. See the "NTP-H109 Clean Fiber Connectors" procedure for instructions. Dust particles can degrade performance. Put caps on any fiber connectors that are not used.
Note To install fiber-optic cables in the ONS 15310-MA SDH, a fiber cable with the corresponding connector type must be connected to the transmit and receive ports on the SFPs. On ONS 15310-MA SDH ports, the transmit and receive fiber for each optical signal are contained within a single SFP port.
Step 1 Measure the optical receive levels using an optical power meter, compare the results with the allowable optical power levels for the installed SFPs, and attenuate accordingly. See Table 1-2 for the minimum and maximum levels for each SFP type.
Table 1-2 Optical Transmit and Receive Levels
SFP
|
Interface
|
Transmitter Output Power Min/Max (dBm)
|
Receiver Input Power Min/Max (dBm)
|
ONS-SI-155-L1
|
STM1
|
-5.0 to 0
|
-34 to -10
|
ONS-SI-155-L2
|
STM1
|
-5.0 to 0
|
-34 to -10
|
ONS-SI-155-I1
|
STM1
|
-15 to -8.0
|
-28 to -8
|
ONS-SI-622-L1
|
STM4
|
-3.0 to 2.0
|
-28 to -8
|
ONS-SI-622-L2
|
STM4
|
-3.0 to 2.0
|
-28 to -8
|
ONS-SI-622-I1
|
STM4/STM1
|
-15 to -8.0
|
-28 to-8
|
ONS-SE-155-1470 through ONS-SE-155-1610
|
STM1
|
0 to +5
|
-34 to -3 (at BER 10-10)
|
ONS-SE-622-1470 through ONS-SE-622-1610
|
STM4
|
0 to +5
|
-28 to -3 (at BER 10-10)
|
ONS-SI-2G-I1=
|
STM16
|
-5.0 to 0
|
-18 to -0
|
ONS-SI-2G-L1=
|
STM16
|
-3 to +2
|
-27 to -9
|
ONS-SI-2G-L2=
|
STM16
|
-3 to +2
|
-28 to -9
|
ONS-SI-2G-S1=
|
STM16
|
-10 to -3
|
-18 to -3
|
ONS-SC-2G-30.3= through ONS-SC-2G-60.6=
|
STM16
|
0 to +4
|
-28 to -9
|
ONS-SE-2G-xxxx
|
STM16
|
-1 to +4 dBm
|
-9 to -29 dBm
|
ONS-SE-Z1
|
STM1
|
-5 to 0 dBm
|
-10 to -23 dBm
|
STM4
|
-5 to 0 dBm
|
0 to -23 dBm
|
STM16
|
-5 to 0 dBm
|
-0 to -18 dBm
|
Step 2 As needed, complete the "DLP-H18 Install Fiber-Optic Cables in a 1+1 Configuration" task.
Step 3 As needed, complete the "DLP-H19 Install Fiber-Optic Cables for Path Protection Configurations" task.
Step 4 As needed, gently route the fiber cables away from the shelf. You might want to use the optional tie-down bar.
Step 5 Continue with the "NTP-H164 Perform the Shelf Installation Acceptance Test" procedure.
Stop. You have completed this procedure.
NTP-H164 Perform the Shelf Installation Acceptance Test
Purpose
|
Use this procedure to perform a shelf installation acceptance test.
|
Tools/Equipment
|
Voltmeter
|
Prerequisite Procedures
|
Applicable procedures in Chapter 1 ""
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
Retrieve or higher
|
Step 1 Complete Table 1-3 by verifying that each procedure was completed.
Step 2 Check each wire and cable connection to make sure all cables are locked securely. If a wire or cable is loose, return to the appropriate procedure in this chapter to correct it.
Step 3 Complete the "DLP-H20 Measure Voltage" task.
Stop. You have completed this procedure.
NTP-H161 Preprovision an SFP Slot
Purpose
|
This procedure preprovisions SFPs, which are referred to as pluggable port modules (PPMs) in CTC. STM1, STM4, STM16, and multirate (STM1/STM4/STM16) PPMs are compatible with the ONS 15310-MA SDH. The SFP slots are located on the 15310E-CTX-K9 card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
Chapter 2 "Connect the PC and Log into the GUI"
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-H29 Log into CTC" task to log into an ONS 15310-MA SDH on the network.
Step 2 Click the Alarms tab and click Synchronize:
a. Verify that the alarm filter is not turned on. See the "DLP-H88 Disable Alarm Filtering" task as necessary.
b. Verify that no unexplained conditions appear on the network. If unexplained conditions appear, resolve them before continuing. Refer to the Cisco ONS 15310-MA SDH Troubleshooting Guide.
c. Complete the "DLP-H223 Export CTC Data" task to export alarm and condition information.
Step 3 In node view, double-click the 15310E-CTX-K9 card.
Step 4 Click the Provisioning > Pluggable Port Modules tabs.
Step 5 In the Pluggable Port Modules pane, click Create. The Create PPM dialog box appears.
Step 6 In the Create PPM dialog box, complete the following:
•PPM—Click the slot number where the SFP is installed from the drop-down list.
•PPM Type—Click the number of ports supported by your SFP from the drop-down list. If only one port is supported, PPM (1 port) is the only option.
Step 7 Click OK. The newly created port appears on the Pluggable Port Modules pane. The row on the Pluggable Port Modules pane turns light blue and the Actual Equipment Type column lists the preprovisioned PPM as unknown until the actual SFP is installed. After the SFP is installed, the row on the pane turns white and the column lists the equipment name.
Step 8 Verify that the PPM appears in the list on the Pluggable Port Modules pane. If it does not, repeat Steps 5 through 7.
Step 9 Repeat Steps 5 through 8 to provision a second PPM.
Step 10 Click OK.
Step 11 When you are ready to install the SFP, complete the "DLP-H16 Install SFP Connectors" task. If you preprovisioned a multirate SFP, you must select the line rate using the "DLP-H193 Provision the Optical Line Rate" task.
Stop. You have completed this procedure.
NTP-H162 Preprovision a Card Slot
Purpose
|
This procedure describes how to preprovision a slot in the software before physical card installation.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
Chapter 2 "Connect the PC and Log into the GUI"
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-H29 Log into CTC" task at the node where you want to preprosivion the slot. If you are already logged in, continue with Step 2.
Step 2 Right-click the empty slot where you will later install a card.
Step 3 From the Add Card shortcut menu, navigate to Ethernet or En and choose the card type you want (CE-100T-8, CE-MR-6, or ML-100T-8 for Ethernet; E1_21_E3_DS3_3 or E1_63_E3_DS3_3 for En).
Note When you preprovision a slot, the card appears purple in the CTC shelf display. When you physically install a card in the slot, the card appears white in the CTC shelf display.
Stop. You have completed this procedure.
NTP-H163 Remove and Replace a Card
|
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
|
Step 1 If you are not logged into CTC and you need to remove a card, continue with Step 3. When you log into CTC, troubleshoot the mismatched equipment (mismatchofEquipment) or Improper Removal (IMPRMVL) alarm using the Cisco ONS 15310-MA SDH Troubleshooting Guide.
Step 2 If you are logged into CTC, on the node view shelf graphic right-click the card that you want to remove and choose Delete Card.
You cannot delete a card if any of the following conditions apply:
•The card is a 15310E-CTX-K9 card. To replace a 15310E-CTX-K9 card, refer to the Cisco ONS 15310-MA SDH Troubleshooting Guide.
•The card is part of an optical protection group; see the "DLP-H138 Delete a Protection Group" task.
Note 1:1 electrical protection groups are created automatically in the ONS 15310-MA SDH and can only be deleted after the protect card of a 1:1 protection group is deleted.
•The card has circuits; see the "DLP-H120 Delete Overhead Circuits" task and the "DLP-H115 Delete Circuits" task.
•The card is being used for timing; see the "DLP-H139 Change the Node Timing Source" task.
•The card has a data communications channel (DCC) termination; see the "DLP-H154 Delete a Section DCC Termination" task or the "DLP-H155 Delete a Line DCC Termination" task.
Note If you do not remove a card from the shelf after you delete it in CTC, it will reboot and reappear in CTC when you add card back.
Step 3 Physically remove the card:
a. Open the card latches/ejectors.
b. Use the latches/ejectors to pull the card forward and away from the shelf.
Step 4 Insert the new card using one of the following procedures:
•H153 Install the 15310E-CTX-K9 Cards
•H154 Install the Ethernet Cards
•H155 Install the Electrical Cards
Stop. You have completed this procedure.
NTP-H168 Install the Front Door
Purpose
|
This procedure replaces the front door and door ground strap after installing cards and fiber-optic cables.
|
Tools/Equipment
|
Front-door kit (53-2617-XX)
•Door hinge
•Door striker
•4-40 screws (8)
•Ground cable
•Hex nuts (2)
|
Prerequisite Procedures
|
H150 Install the Shelf Assembly
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Caution Be careful not to crimp any fiber-optic cables that are connected to the optical cards. Some might not have the fiber boot attached.
Step 1 Place the door hinge flush against the inside of the ONS 15310-MA SDH chassis flange on the left (Figure 1-9).
Figure 1-9 Installing the Front Door
Step 2 Line up the four screw holes on the door hinge with the corresponding screw holes on the flange of the shelf assembly. Make sure the other two holes on the hinge line up with the two holes on the ESD faceplate on the left side of the shelf.
Step 3 Approaching the shelf assembly from the left side, install four 4-40 screws to attach the door hinge to the chassis flange.
Step 4 Install two 4-40 screws through the hinge into the ESD faceplate.
Step 5 Attach the door striker to the right side of the chassis using the remaining two 4-40 screws.
Step 6 Slide the front door downward onto the hinge pins.
Step 7 Using the 5/16-inch nut driver, attach the ground cable to the threaded studs on the door and hinge with two hex nuts. Ensure the ground cable is looped or bent downward to avoid being pinched or caught when the door is closed.
Step 8 Close the front door.
Caution Be careful not to crimp any cables that are connected to the installed cards.
Stop. You have completed this procedure.
NTP-H190 Install the Rear Cover
Purpose
|
This procedure explains how to install the rear cover on an ONS 15310-MA SDH shelf.
|
Tools/Equipment
|
•#2 Phillips screwdriver
•1/4-inch nut driver
•Six 1/4-inch hexagonal standoffs 6-32 x 3.3.25
|
Prerequisite Procedures
|
H158 Install the Electrical Cables
H160 Install Optical Cables
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Note Connect all cables on the backplane before installing the rear cover.
Step 1 Using a #2 Phillips screw driver, remove the six panhead screws from the Electrical Interface Assemblies (EIAs) located on the A-side and B-side of the backplane (Figure 1-10).
Figure 1-10 Removing the Panhead Screws
Step 2 Using the 1/4-inch nut driver, install the six hexagonal standoffs onto the mounting holes that held the six panhead screws.
Step 3 Align the holes on the rear cover with the hexagonal standoffs (Figure 1-11).
Figure 1-11 Installing the Rear Cover
Step 4 Install and tighten the six panhead screws onto the holes on the hexagonal standoffs.
Note You can also reverse the order of the procedure, and install the panhead screws onto the hexagonal standoffs first, place the rear cover on the standoffs, and finally tighten the panhead screws. The rear cover has oval cut-outs to allow this operation.
Stop. You have completed this procedure.
Feedback
