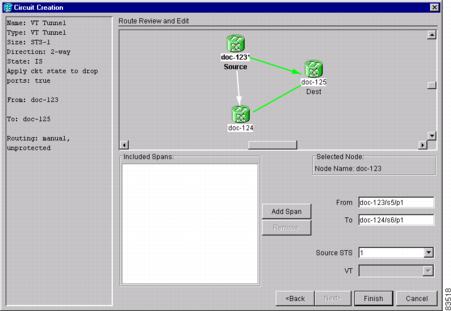

DLP-B219 Provision a VT Tunnel Route
DLP-B220 Provision E-Series Ethernet Ports
DLP-B221 Provision E-Series Ethernet Ports for VLAN Membership
DLP-B222 Provision G-Series Ethernet Ports
DLP-B223 Download an Alarm Severity Profile
DLP-B224 Route Cables Through the Fiber-Optic Cable Storage Drawer
DLP-B225 Enable Alarm Filtering
DLP-B226 Modify Alarm and Condition Filtering Parameters
DLP-B227 Disable Alarm Filtering
DLP-B229 View Circuits on a Span
DLP-B230 Change a Circuit State
DLP-B231 Edit a Circuit Name
DLP-B232 Change Active and Standby Span Color
DLP-B233 Edit Path Protection Circuit Path Selectors
DLP-B241 Clear a BLSR Manual Ring Switch
DLP-B242 Create a BLSR on a Single Node
DLP-B244 Use the Reinitialization Tool to Clear the Database and Upload Software (Windows)
DLP-B245 Use the Reinitialization Tool to Clear the Database and Upload Software (UNIX)
DLP-B246 Provision E-Series Ethernet Card Mode
DLP-B247 Change an Optical Card
DLP-B249 Provision IP Settings
DLP-B250 Set Up or Change Open Shortest Path First Protocol
DLP-B251 Set Up or Change Routing Information Protocol
DLP-B253 Provision Section DCC Terminations
DLP-B254 XTC Active/Standby Switch Test

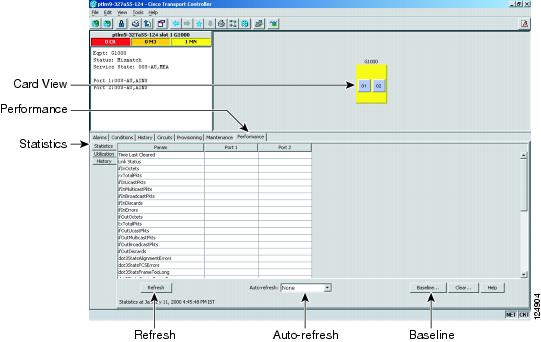

DLP-B256 View Ethernet Statistics PM Parameters

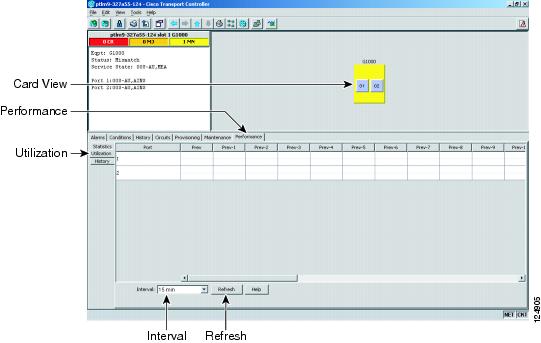

DLP-B257 View Ethernet Utilization PM Parameters

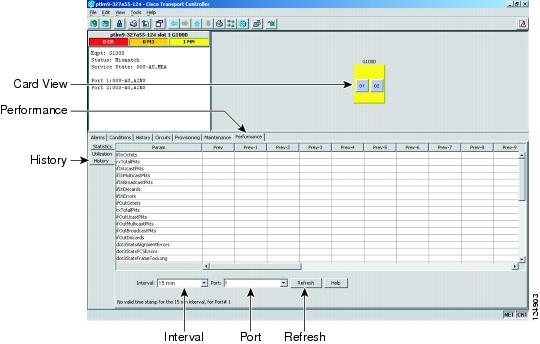

DLP-B258 View Ethernet History PM Parameters
DLP-B259 Refresh Ethernet PM Counts at a Different Time Interval
DLP-B260 Set Auto-Refresh Interval for Displayed PM Counts
DLP-B261 Refresh PM Counts for a Different Port
DLP-B262 Filter the Display of Circuits
DLP-B263 Edit Path Protection Dual-Ring Interconnect Circuit Hold-Off Timer
DLP-B264 Provision Path Trace on Circuit Source and Destination Ports
DLP-B265 Change the Login Legal Disclaimer
DLP-B266 Change IP Settings
DLP-B267 Change to the Default Network View Background Map
DLP-B268 Apply a Custom Network View Background Map
DLP-B269 Enable Dialog Box Do-Not-Display Option
DLP-B271 Change Security Policy on a Single Node
DLP-B272 Change Security Policy on Multiple Nodes
DLP-B273 Modify SNMP Trap Destination
DLP-B293 Perform a Manual Span Upgrade on a Two-Fiber BLSR
DLP-B295 Perform a Manual Span Upgrade on a Path Protection
DLP-B296 Perform a Manual Span Upgrade on a 1+1 Protection Group
DLP-B297 Perform a Manual Span Upgrade on an Unprotected Span
DLP-B298 Check the Network for Alarms and Conditions
DLPs B200 to B299
Note
The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration. Cisco does not recommend using its path protection feature in any particular topological network configuration.
DLP-B200 Inspect and Replace the Disposable Air Filter
Purpose
|
This task ensures that the air filter is free from dirt and dust, thus allowing optimum air flow and preventing dirt and dust from entering the ONS 15327.
|
Tools/Equipment
|
Extra filters
Pinned hex key
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
Inspection required every 30 days. Replace as needed.
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Note The disposable air filter is installed to the right of the fan-tray assembly only, so you must remove the assembly to inspect and replace the disposable air filter.
Step 1 Verify that you are replacing a disposable air filter. The disposable filter is made of spun white polyester that is flame retardant. NEBS 3E and earlier versions of the ONS 15327 use a disposable air filter.
Step 2 Move any cables that are routed in front of the fan-tray assembly and air filter so you can easily slide the filter out (Figure 18-1).
Step 3 Grasp the metal tab at the edge of the filter and slide the filter out of the bracket while being careful not to dislodge any dust that might have collected on the filter.
Figure 18-1 Removing the Disposable Fan-Tray Air Filter
Step 4 Visually inspect the filter material for dirt and dust.
Step 5 If the disposable air filter shows a heavy concentration of dirt and dust, replace it with a new filter.
Step 6 Slide the new air filter back into the shelf (Figure 18-2).
Figure 18-2 Replacing the Disposable Fan-Tray Air Filter
Step 7 Return to your originating procedure (NTP).
DLP-B201 Apply a Lock-On
Purpose
|
This task prevents traffic from being switched from one card to another.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Maintenance or higher
|
Note For a 1+1 optical protection group, only the working card can be placed in the Lock On state.
Step 1 In node view, click the Maintenance > Protection tabs.
Step 2 In the Protection Groups list, click the protection group where you want to apply a lock-on.
Step 3 If you determine that the protect card is in standby mode and you want to apply the lock-on to the protect card, make the protect card active:
a. In the Selected Group list, click the protect card.
b. In the Switch Commands area, click Force.
Step 4 In the Selected Group list, click the active card where you want to lock traffic.
Step 5 In the Inhibit Switching area, click Lock On.
Step 6 Click Yes in the confirmation dialog box.
The lock-on has been applied and traffic cannot be switched to the working card. To clear the lock-on, see the "DLP-B203 Clear a Lock-On or Lockout" task.
Step 7 Return to your originating procedure (NTP).
DLP-B202 Apply a Lockout
Purpose
|
This task switches traffic from one card to another using a lockout, which is a switching mechanism that overrides other manual switching connections (Force, Manual, and Exercise).
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Maintenance or higher
|
Note Multiple lockouts in the same protection group are not allowed.
Note For a 1+1 optical protection group, only the protect card can be placed in the Lock Out state.
Step 1 In node view, click the Maintenance > Protection tabs.
Step 2 In the Protection Groups list, click the protection group that contains the card you want to lock out.
Step 3 In the Selected Group list, click the card you want to lock traffic out of.
Step 4 In the Inhibit Switching area, click Lock Out.
Step 5 Click Yes in the confirmation dialog box.
The lockout has been applied and traffic is switched to the opposite card. To clear the lockout, see the "DLP-B203 Clear a Lock-On or Lockout" task.
Note Provisioning a lockout raises a LOCKOUT-REQ or an FE-LOCKOUT-PR condition in Cisco Transport Controller (CTC). Clearing the lockout switch request clears these conditions.
Step 6 Return to your originating procedure (NTP).
DLP-B203 Clear a Lock-On or Lockout
Purpose
|
This task clears a lock-on or lockout.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
B201 Apply a Lock-On or
B202 Apply a Lockout
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Maintenance or higher
|
Step 1 In node view, click the Maintenance > Protection tabs.
Step 2 In the Protection Groups list, click the protection group that contains the card you want to clear.
Step 3 In the Selected Group list, click the card you want to clear.
Step 4 In the Inhibit Switching area, click Unlock.
Step 5 Click Yes in the confirmation dialog box.
The lock-on or lockout is cleared.
Step 6 Return to your originating procedure (NTP).
DLP-B204 Clean Multi Fiber-Optic Cable Connectors
Purpose
|
This task cleans the multi fiber optic connectors
|
Tools/Equipment
|
Cleaning Cartridge for multi fiber optic connectors
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not stare into the beam or view directly with optical instruments. Statement 1051
Step 1 Remove the protective cap on the optical fiber cable connector.
Step 2 Read the manufacturer (cleaning cartridge) instructions to insert the connector into the cleaning cartridge.
Step 3 Slide the lever on the cartridge to swipe the connector surface.
Step 4 Insert the fiber connector into the applicable adapter or attach a dust cap to the fiber connector.
Note If you must replace a dust cap on a connector, first verify that the dust cap is clean.
Step 5 Return to your originating procedure (NTP).
DLP-B205 Clean Fiber Connectors with CLETOP
Purpose
|
This task cleans the fiber connectors with CLETOP.
|
Tools/Equipment
|
Type A fiber optic connector cleaner (CLETOP reel)
Optical receiver cleaning stick
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Step 1 Remove the dust cap from the fiber connector.
Step 2 Press the lever down to open the shutter door. Each time you press the lever, you expose a clean wiping surface.
Step 3 Insert the connector into the CLETOP cleaning cassette slot, rotate one quarter turn, and gently swipe downwards.
Step 4 Use an inspection microscope to inspect each fiber connector for dirt, cracks, or scratches. If the connector is not clean, repeat Steps 1 through 3.
Step 5 Insert the fiber connector into the applicable adapter or attach a dust cap to the fiber connector.
Note If you must replace a dust cap on a connector, first verify that the dust cap is clean. To clean the dust cap, wipe the outside of the cap using a dry lint free wipe and the inside of the dust cap using a CLETOP stick swab (14100400).
Step 6 Return to your originating procedure (NTP).
DLP-B206 Clean the Fiber Adapters
Purpose
|
This task cleans the fiber adapters.
|
Tools/Equipment
|
CLETOP stick swab
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Step 1 Remove the dust plug from the fiber adapter.
Step 2 Insert a CLETOP stick swab (14100400) into the adapter opening and rotate the swab.
Step 3 Place dust plugs on the fiber adapters when not in use.
Step 4 Return to your originating procedure (NTP).
DLP-B208 Provision a DS-3 Circuit Source and Destination
Purpose
|
This task provisions an electrical circuit source and destination for a DS-3 circuit.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note After you have selected the circuit properties in the Circuit Source dialog box according to the specific circuit creation procedure, you are ready to provision the circuit source.
Step 1 From the Node drop-down list, choose the node where the source will originate.
Step 2 From the Slot drop-down list, choose the slot containing the XTC card where the circuit will originate.
Step 3 From the Port drop-down list, choose the source XTC card as appropriate.
Step 4 If you need to create a secondary source, for example, a path protection bridge/selector circuit entry point in a multivendor path protection, click Use Secondary Source and repeat Steps 1 through 3 to define the secondary source. If you do not need to create a secondary source, continue with Step 5.
Step 5 Click Next.
Step 6 From the Node drop-down list, choose the destination (termination) node.
Step 7 From the Slot drop-down list, choose the slot containing the destination card. The destination is typically a XTC card. You can also choose an OC-N card to the map DS-3 circuit to a synchronous transport signal (STS).
Step 8 Depending on the destination card, choose the destination port or STS from the submenus that display based on the card selected in Step 2. See Table 5-2 on page 5-3 for a list of valid options. CTC does not display ports, STSs, Virtual Tributarys (VTs), or DS-1s if they are already in use by other circuits. If you and a user working on the same network choose the same port, STS, VT, port, or DS-1 simultaneously, one of you will receive a Path in Use error and be unable to complete the circuit. The user with the incomplete circuit needs to choose new destination parameters.
Step 9 If you need to create a secondary destination, for example, a path protection bridge/selector circuit exit point in a multivendor path protection, click Use Secondary Destination and repeat Steps 6 through 8 to define the secondary destination.
Step 10 Click Next.
Step 11 Return to your originating procedure (NTP).
DLP-B212 Create a User Data Channel Circuit
Purpose
|
This task creates a user data channel (UDC) circuit on the ONS 15327. A UDC circuit allows you to create a dedicated data channel between nodes.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-B24 Verify Card Installation, page 3-2
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In network view, click the Provisioning > Overhead Circuits tabs.
Step 2 Click Create.
Step 3 In the Overhead Circuit Creation dialog box, complete the following fields in the Circuit Attributes area:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces).
•Type—Choose either User Data-F1 or User Data D-4-D-12 from the drop-down list.
Step 4 Click Next.
Step 5 In the Circuit Source area, complete the following:
•Node—Choose the source node.
•Slot—Choose the source slot.
•Port—If available, choose the source port.
Step 6 Click Next.
Step 7 In the Circuit Destination area, complete the following:
•Node—Choose the destination node.
•Slot—Choose the destination slot.
•Port—If available, choose the destination port.
Step 8 Click Finish.
Step 9 Return to your originating procedure (NTP).
DLP-B214 Change the Service State for a Port
Purpose
|
This task puts a port in service or removes a port from service.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note To provision Ethernet ports, see the "DLP-B220 Provision E-Series Ethernet Ports" task or the "DLP-B222 Provision G-Series Ethernet Ports" task.
Step 1 On the node view shelf graphic, double-click the card with the ports you want to put in or out of service. The card view appears.
Step 2 Click the Provisioning > Line tabs on all cards except the G-Series card. For the G-Series card, click the Provisioning > Port tab.
Step 3 In the Admin State column for the target port, choose one of the following from the drop-down list:
•IS—Puts the port in the In-Service and Normal (IS-NR) service state.
•OOS, DSBLD—Puts the port in the Out-of-Service and Management, Disabled (OOS-MA,DSBLD) service state. In this service state, traffic is not passed on the port until the service state is changed to IS-NR; Out-of-Service and Management, Maintenance (OOS-MA,MT); or Out-of-Service and Autonomous, Automatic In-Service (OOS-AU,AINS).
•OOS, MT—Puts the port in the OOS-MA,MT service state. This service state does not interrupt traffic flow and loopbacks are allowed, but alarm reporting is suppressed. Raised fault conditions, whether or not their alarms are reported, can be retrieved on the CTC Conditions tab or by using the TL1 RTRV-COND command. Use the OOS-MA,MT service state for testing or to suppress alarms temporarily. Change to the IS-NR or OOS-AU,AINS service states when testing is complete.
•IS, AINS—Puts the port in the OOS-AU,AINS service state. In this service state, alarm reporting is suppressed, but traffic is carried and loopbacks are allowed. After the soak period passes, the port changes to IS-NR. Raised fault conditions, whether their alarms are reported or not, can be retrieved on the CTC Conditions tab or by using the TL1 RTRV-COND command.
For more information about port service states, refer to the "Administrative and Service States" appendix of the Cisco ONS 15327 Reference Manual.
Step 4 If the port is in loopback (OOS-MA,LPBK & MT) and you set the Admin State to IS, a confirmation window displays indicating that the loopback will be released and that the action could be service affecting. To continue, click Yes.
Step 5 If you set the Admin State to IS,AINS, set the soak period time in the AINS Soak field. This is the amount of time that the port will stay in the OOS-AU,AINS service state after a signal is continuously received. When the soak period elapses, the port changes to the IS-NR service state.
Step 6 Click Apply.
Step 7 As needed, repeat Step 2 through Step 6 for each port.
Step 8 Return to your originating procedure (NTP).
DLP-B217 BLSR Exercise Ring Test
Purpose
|
This task tests the bidirectional line switched ring (BLSR) functionality without switching traffic. Ring exercise conditions are reported and cleared within 10 to 15 seconds.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 From the View menu, choose Go to Network View.
Step 2 Click the Provisioning > BLSR tabs.
Step 3 Click the row of the BLSR you will exercise, then click Edit.
Step 4 Exercise the west port:
a. Right-click the west port of any BLSR node and choose Set West Protection Operation. (To move a graphic icon, press Ctrl while you drag and drop it to a new location.)
Note The squares on the node icons represent the BLSR working and protect channels. You can right-click either channel.
b. In the Set West Protection Operation dialog box, choose EXERCISE RING from the drop-down list. Click OK.
c. In the Confirm BLSR Operation dialog box, click Yes.
On the network view graphic, an E appears on the BLSR channel where you invoked the exercise. The E will display for 10 to 15 seconds, then disappear.
Step 5 Exercise the east port:
a. Right-click the east port of any BLSR node and choose Set East Protection Operation.
Note For two-fiber BLSRs, the squares on the node icons represent the BLSR working and protect channels. You can right-click either channel. For four-fiber BLSRs, the squares represent ports. Right-click either working or protect ports.
b. In the Set East Protection Operation dialog box, choose EXERCISE RING from the drop-down list.
c. Click OK.
d. In the Confirm BLSR Operation dialog box, click Yes.
On the network view graphic, an E appears on the BLSR channel where you invoked the exercise. The E will appear for 10 to 15 seconds, then disappear.
Step 6 In the CTC window, click the History tab. Verify that the node where you exercised the ring has an Exercising Ring Successfully (EXERCISE-RING) condition. Other conditions include EXERCISE-RING-REQ and FE-EXERCISING-RING.
If you do not see any BLSR exercise conditions, click the Filter button and verify that filtering is not turned on. Also, check that alarms and conditions are not suppressed for a node or BLSR trunk (span) cards. See the "NTP-B72 Suppress Alarms or Discontinue Alarm Suppression" procedure on page 7-7 for more information.
Step 7 Click the Alarms tab.
a. Verify that the alarm filter is not on. See the "DLP-B227 Disable Alarm Filtering" task as necessary.
b. Verify that no unexplained alarms appear on the network. If alarms are present, investigate and resolve them before continuing. Refer to the Cisco ONS 15327 Troubleshooting Guide if necessary.
c. Complete the "DLP-B41 Export CTC Data" task on page 16-34 to export alarm data to a file on your hard drive.
Step 8 From the File menu, choose Close to close the BLSR window.
Step 9 Return to your originating procedure (NTP).
DLP-B218 Provision Path Protection Selectors During Circuit Creation
Purpose
|
This task provisions path protection selectors during circuit creation. Complete this task only if the circuit will be routed on a path protection.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
The Circuit Creation wizard Circuit Attributes page must be open.
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note Provisioning SD-P or SF-P thresholds in the Circuit Attributes page of the Circuit Creation wizard sets the values only for path protection-protected spans. The circuit source and destination use the node default values of 10E-4 for SD-P and 10E-6 for SF-P for unprotected circuits and for the source and drop of path protection circuits.
Step 1 In the Circuit Attributes page of the Circuit Creation wizard, set the path protection path selectors:
•Provision working go and return on primary path—Check this box to route the working path on one fiber pair and the protect path on a separate fiber pair. This feature only applies to bidirectional path protection circuits.
•Revertive—Check this check box if you want traffic to revert to the working path when the conditions that diverted it to the protect path are repaired. If you do not choose Revertive, traffic remains on the protect path after the switch.
•Reversion time—If Revertive is checked, click the Reversion time field and choose a reversion time from the drop-down list. The range is 0.5 to 12.0 minutes. The default is 5.0 minutes. This is the amount of time that will elapse before the traffic reverts to the working path. Traffic can revert when conditions causing the switch are cleared.
•SF threshold—For STS circuits, set the path protection path-level signal failure (SF) bit error rate (BER) thresholds. Unavailable for VT circuits.
•SD threshold—For STS circuits, set the path protection path-level signal degrade (SD) BER thresholds. Unavailable for VT circuits.
•Switch on PDI-P—For STS circuits, check this check box if you want traffic to switch when an STS payload defect indication is received. Unavailable for VT circuits.
Step 2 Return to your originating procedure (NTP).
DLP-B219 Provision a VT Tunnel Route
Purpose
|
This task provisions the route for a manually routed VT tunnel.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
The Circuit Creation wizard Route Review and Edit page must be open.
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In the Circuit Creation wizard in the Route Review and Edit page, click the source node icon if it is not already selected. Arrows indicate the available spans for routing the tunnel from the source node.
Step 2 Click the arrow of the span you want the VT tunnel to travel. The arrow turns white. In the Selected Span area, the From and To fields display the slot and port that will carry the tunnel. The source STS appears. Figure 18-3 shows an example.
Figure 18-3 Manually Routing a VT Tunnel
Step 3 If you want to change the source STS, change it in the Source STS field; otherwise, continue with the next step.
Step 4 Click Add Span. The span is added to the Included Spans list and the span arrow turns blue.
Step 5 Repeat Steps 2 to 4 until the tunnel is provisioned from the source to the destination node through all intermediary nodes.
Step 6 Return to your originating procedure (NTP).
DLP-B220 Provision E-Series Ethernet Ports
Purpose
|
This task enables ports for the E-Series card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security
|
Provisioning or higher
|
Step 1 In node view, double-click the Ethernet card that you want to provision.
Step 2 Click the Provisioning > Ether Port tabs.
Step 3 For each Ethernet port, provision the following parameters:
•Port Name—If you want to label the port, type a port name.
•Mode—Choose a speed and duplex setting compatible with the Ethernet port cabled directly to this E-Series Ethernet port. Valid choices for the E-Series card port are Auto, 10 Half, 10 Full, 100 Half, or 100 Full.
•Enabled—Check this check box to activate the corresponding Ethernet port.
•Priority—Choose a queuing priority for the port. Options range from 0 (Low) to 7 (High). Priority queuing (IEEE 802.1Q) reduces the impact of network congestion by mapping Ethernet traffic to different priority levels. Refer to the priority queuing information in the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327. This parameter does not apply to an E-Series card in port-mapped mode.
•Stp Enabled—Check this check box to enable Spanning Tree Protocol (STP) on the port. This parameter does not apply to an E-Series card in port-mapped mode.
•HDLC Encapsulation—Choose an encapsulation type for the packet-over-SONET (POS) circuit.
–If the far-end ONS 15327 E-Series card is configured with LEX, choose LEX. Otherwise, choose Proprietary (default) when you connect an ONS 15327 E-Series card to an ONS 15454 E-Series card or ONS 15327 E-Series card.
–Choose LEX when you connect an ONS 15327 E-Series card in port-mapped mode to a compatible ONS Ethernet card that is not an E-Series.
Note The high-level data link control (HDLC) LEX encapsulation option is not supported on ONS 15454 E-Series cards.
Step 4 Click Apply.
Step 5 If the E-Series card is configured as Multi-card EtherSwitch Group or Single-card EtherSwitch:
a. Repeat Steps 1 through 4 for all other E-Series card ports in that VLAN.
b. Configure all other E-Series card ports in that VLAN for VLAN membership. See the "DLP-B221 Provision E-Series Ethernet Ports for VLAN Membership" task for instructions.
Step 6 If the E-Series card is configured in port-mapped mode and the second card in the point-to-point circuit is also an E-Series card (ONS 15327 or ONS 15454), repeat Steps 1 through 4 for the second E-Series card's corresponding Ethernet port.
Step 7 If the E-Series card is configured in port-mapped mode and the second card in the point-to-point circuit is an ML-Series card, configure the ML-Series card with LEX encapsulation and a 16-bit cyclic redundancy check (CRC). Refer to the Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327 for ML-Series card provisioning information.
Step 8 Return to your originating procedure (NTP).
DLP-B221 Provision E-Series Ethernet Ports for VLAN Membership
Purpose
|
This task provisions E-Series card ports for VLAN membership. It does not apply to E-Series cards in port-mapped mode.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view, double-click the E-Series card graphic to open the card.
Step 2 Click the Provisioning > Ether VLAN tabs.
Step 3 To put a port in a VLAN:
a. Click the port and choose either Tagged or Untag. Table 18-1 shows valid port settings.
Table 18-1 VLAN Settings
Setting
|
Description
|
--
|
A port marked with this symbol does not belong to the VLAN.
|
Untag
|
The ONS 15327 will tag ingress frames and strip tags from egress frames.
|
Tagged
|
The ONS 15327 will process ingress frames according to the VLAN ID; egress frames will not have their tags removed.
|
b. If a port is a member of only one VLAN, choose Untag from the Port column in the VLAN row. Choose -- for all the other VLAN rows in that Port column.
Note The VLAN with Untag selected can connect to the port, but other VLANs cannot access that port.
c. Choose Tagged at all VLAN rows that need to be trunked. Choose Untag at VLAN rows that do not need to be trunked, for example, the default VLAN.
Note Each Ethernet port must attach to at least one untagged VLAN. A trunk port connects multiple VLANs to an external device, such as a switch, which also supports trunking. A trunk port must have tagging (IEEE 802.1Q) enabled for all the VLANs that connect to that external device.
Step 4 After each port is in the appropriate VLAN, click Apply.
Note If Tagged is chosen, the attached external Ethernet devices must recognize IEEE 802.1Q VLANs.
Step 5 Return to your originating procedure (NTP).
DLP-B222 Provision G-Series Ethernet Ports
Purpose
|
This task provisions G-Series Ethernet ports.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
Required to enable Ethernet traffic on G-Series cards
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view, double-click the G-Series card graphic to open the card.
Step 2 Click the Provisioning > Port tabs.
Step 3 If you want to label the port, click in the Port Name field and type a port name.
Step 4 Click in the Admin State field and choose a state for the port. See "DLP-B214 Change the Service State for a Port" task for more information.
Step 5 If you want to permit the acceptance of jumbo size Ethernet frames, in the Max. Size field, choose Jumbo. If you do not want to permit jumbo size Ethernet frames, choose 1548.
Note The maximum frame size of 1548 bytes enables the port to accept valid Ethernet frames that use protocols, such as Inter-Switch Link (ISL). ISL adds 30 bytes of overhead and might cause the frame size to exceed the traditional 1518 byte maximum.
Step 6 If you want to change the flow control threshold settings for the card, click in the Watermarks field and select one of the flow control threshold settings:
–Default—Best setting for general use.
–Low Latency—Best for subrate applications, such as voice-over-IP (VoIP) over an STS-1.
–Custom—Allows you to specify an exact buffer size threshold for Flow Ctrl Lo and Flow Ctrl Hi. The flow control high setting is the watermark for sending the "Pause On" frame to the attached Ethernet device; this frame signals the device to temporarily stop transmitting. The flow control low setting is the watermark for sending the "Pause Off" frame, which signals the device to resume transmitting.
Step 7 Check the Auto Negotiation check box to enable autonegotiation on the port (default). If you do not want to enable autonegotiation control, uncheck the box.
Step 8 Click this Flow Control check box to enable flow control on the port (default). If you do not want to enable flow control, uncheck the box.
Step 9 Click in the Payload Type field and select a CRC size to set the G-Series card's LEX encapsulation:
–LEX-FCS-16 is 16-bit (2 byte) CRC.
–LEX-FCS-32 is 32-bit (4 byte) CRC.
Note An Encapsulation Mismatch Path (ENCAP-MISMATCH-P) alarm appears when a point-to-point circuit is created between two Ethernet card ports with incompatible Encapsulation payload types.
Step 10 Click Apply.
Step 11 Refresh the Ethernet statistics:
a. Click the Performance > Statistics tabs.
b. Click the Refresh button.
Note Reprovisioning an Ethernet port on the G-Series card does not reset the Ethernet statistics for that port.
Step 12 Return to your originating procedure (NTP).
DLP-B223 Download an Alarm Severity Profile
Purpose
|
This task downloads a custom alarm severity profile from a network-drive accessible CD-ROM, floppy disk, or hard disk location.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 To access the alarm profile editor from network view, click the Provisioning > Alarm Profiles tabs.
Step 2 To access the profile editor from node or card view, click the Provisioning > Alarm Profiles > Alarm Profile Editor tabs.
Step 3 Click Load.
Step 4 If you want to download a profile that exists on the node, click From Node in the Load Profile(s) dialog box.
a. Click the node name that you are logged into in the Node Names list.
b. Click the name of the profile in the Profile Names list, such as Default.
Step 5 If you want to download a profile that is stored locally or on a network drive, click From File in the Load Profile(s) dialog box.
a. Click Browse.
b. Navigate to the file location in the Open dialog box.
c. Click Open.
Note The Default alarm profile list contains alarm and condition severities that correspond when applicable to default values established in Telcordia GR-253-CORE.
Note All default or user-defined severity settings that are Critical (CR) or Major (MJ) are demoted to Minor (MN) in Non-Service-Affecting (NSA) situations as defined in Telcordia GR-474.
Step 6 Click OK.
The downloaded profile appears at the right side of the Alarm Profiles window.
Step 7 Right-click anywhere in the downloaded profile column to display the profile editing shortcut menu.
Step 8 Click Store.
Step 9 In the Store Profile(s) dialog box, click To Node(s).
a. Choose the node(s) where you want to save the profile:
–If you want to save the profile to only one node, click the node in the Node Names list.
–If you want to save the profile to all nodes, click Select All.
–If you do not want to save the profile to any nodes, click Select None.
–If you want to update alarm profile information, click Synchronize.
b. Click OK.
Step 10 Return to your originating procedure (NTP).
DLP-B224 Route Cables Through the Fiber-Optic Cable Storage Drawer
Step 1 Open the cable storage drawer by pushing in the tabs to release the locked drawer (Figure 18-4).
Figure 18-4 Opening the Fiber-Optic Cable Storage Drawer
Step 2 Pull out the cable storage drawer.
Step 3 Lock the drawer in the open position by pushing the latch at drawer down into the lock position (Figure 18-5).
Figure 18-5 Locking the Cable Storage Drawer
Step 4 Route the cable down the left side of the chassis and into the drawer.
Step 5 Continue to route the cable through the drawer around the round cable retainers to the right side.
Step 6 Pull the cable up out of the right side of the drawer.
Step 7 Repeat Steps 4 through 6 to continue cabling the system.
Step 8 Unlock the drawer by moving the latch back into an upright position and close the drawer.
Step 9 Push the drawer shut until it clicks in place.
Step 10 Return to your originating procedure (NTP).
DLP-B225 Enable Alarm Filtering
Purpose
|
This task enables alarm filtering for alarms, conditions, or event history in all network nodes.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 At node, network, or card view, click the Alarms tab.
Step 2 Click the Filter tool at the lower-right side of the bottom toolbar.
Alarm filtering is enabled if the tool is selected and disabled if the tool is raised (not selected).
Alarm filtering will be enabled in the card, node, and network views of the Alarms tab at the node and for all other nodes in the network. If, for example, the Alarm Filter tool is enabled in the Alarms tab of the node view at one node, the Alarms tab in the network view and card view of that node will also show the tool enabled. All other nodes in the network will also have the tool enabled.
If you filter an alarm in card view, the alarm will still be displayed in node view. In this view, the card will display the color of the highest-level alarm. The alarm is also shown for the node in the network view.
Step 3 If you want alarm filtering enabled when you view conditions, repeat Steps 1 and 2 using the Conditions window.
Step 4 If you want alarm filtering enabled when you view alarm history, repeat Steps 1 and 2 using the History window.
Step 5 Return to your originating procedure (NTP).
DLP-B226 Modify Alarm and Condition Filtering Parameters
Step 1 At node, network, or card view, click the Alarms tab, Conditions tab, or History tab.
Step 2 Click the Filter button at the lower-left of the bottom toolbar.
The filter dialog box appears, displaying the General tab. Figure 18-6 shows the Alarm Filter dialog box; the Conditions and History tabs have similar dialog boxes.
Figure 18-6 Alarm Filter Dialog Box General Tab
In the General tab Show Severity box, you can choose which alarm severities will show through the alarm filter and provision a time period during which filtered alarms show through the filter. To change the alarm severities shown in the filter, go to Step 3. To change the time period filter for the alarms go to Step 4.
Step 3 In the Show Severity area, click the check boxes for the severities [Critical (CR), Major (MJ), Minor (MN), or Not Alarmed (NA)] that you want to be reported at the network level. Leave severity check boxes deselected (unchecked) to prevent those severities from appearing.
When alarm filtering is disabled, all alarms show.
Step 4 In the Time area, click the Show alarms between time limits check box to enable it. Click the up and down arrows in the From Date, To Date, and Time fields to modify what period of alarms are shown.
To modify filter parameters for conditions, continue with Step 5. If you do not need to modify them, continue with Step 6.
Step 5 Click the filter dialog box Conditions tab (Figure 18-7).
Figure 18-7 Alarm Filter Dialog Box Conditions Tab
When filtering is enabled, conditions in the Show list are visible and conditions in the Hide list are invisible.
•To move conditions individually from the Show list to the Hide list, click the > button.
•To move conditions individually from the Hide list to the Show list, click the < button.
•To move conditions collectively from the Show list to the Hide list, click the >> button.
•To move conditions collectively from the Hide list to the Show list, click the << button.
Note Conditions include alarms.
Step 6 Click Apply and OK.
Alarm and condition filtering parameters are enforced when alarm filtering is enabled (see the "DLP-B225 Enable Alarm Filtering" task), and are not enforced when alarm filtering is disabled (see the "DLP-B227 Disable Alarm Filtering" task).
Step 7 Return to your originating procedure (NTP).
DLP-B227 Disable Alarm Filtering
Purpose
|
This task turns off specialized alarm filtering in all network nodes so that all severities are reported in CTC.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
B225 Enable Alarm Filtering
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 At the node, network, or card view, click the Alarms tab.
Step 2 Click the Filter tool at the lower-right side of the bottom toolbar.
Alarm filtering is enabled if the tool is indented and disabled if the tool is raised (not selected).
Step 3 If you want alarm filtering disabled when you view conditions, click the Conditions tab and click the Filter tool.
Step 4 If you want alarm filtering disabled when you view alarm history, click the History tab and click the Filter tool.
Step 5 Return to your originating procedure (NTP).
DLP-B229 View Circuits on a Span
Step 1 From the View menu in node view, choose Go to Network View. If you are already in network view, continue with Step 2.
Step 2 Right-click the green line containing the circuits you want to view and choose one of the following:
•Circuits—To view BLSR, path protection, 1+1, or unprotected circuits on the span.
•PCA Circuits—To view circuits routed on a BLSR protected channel. This option does not display if the span you right-clicked is not a BLSR span.
In the Circuits on Span dialog box, you can view the following information for circuits provisioned on the span:
•STS—Displays STSs used by the circuits.
•VT—Displays VTs used by the circuits (VT circuits).
•Path Protection—(path protection span only) If checked, path protection circuits are on the span.
•Circuit—Displays the circuit name.
•Switch State—(path protection span only) Displays the switch state of the circuit, that is, whether any span switches are active. For path protection spans, switch types include: CLEAR (no spans are switched), MANUAL (a Manual switch is active), FORCE (a Force switch is active), and LOCKOUT OF PROTECTION (a span lockout is active).
Note You can perform other procedures from the Circuits on Span dialog box. If the span is in a path protection, you can switch the span traffic. See the "DLP-B197 Initiate a Path Protection Force Switch" task on page 17-83 for instructions. If you want to edit a circuit on the span, double-click the circuit. See the "DLP-B231 Edit a Circuit Name" task or the "DLP-B233 Edit Path Protection Circuit Path Selectors" task for instructions.
Step 3 Return to your originating procedure (NTP).
DLP-B230 Change a Circuit State
Purpose
|
This task changes the state of a circuit.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Click the Circuits tab (in either node or network view).
Step 2 Click the circuit with the state that you want to change.
Note You cannot edit the circuit state if the circuit is routed to nodes with a CTC software release earlier than Release 3.4. These circuits will automatically be in service (IS).
Step 3 From the Tools menu, choose Circuits > Set Circuit State.
Step 4 In the Set Circuit State dialog box, choose the administrative state from the Target Circuit Admin State drop-down list:
•IS—Puts the circuit cross-connects in the IS-NR service state.
•OOS,DSBLD—Puts the circuit cross-connects in the OOS-MA,DSBLD service state. Traffic is not passed on the circuit.
•IS,AINS—Puts the circuit cross-connects in the OOS-AU,AINS service state. When the connections receive a valid signal, the cross-connect service states automatically change to IS-NR.
•OOS,MT—Puts the circuit cross-connects in the OOS-MA,MT service state. This service state does not interrupt traffic flow and allows loopbacks to be performed on the circuit, but suppresses alarms and conditions. Use the OOS,MT administrative state for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to IS, OOS, or IS,AINS when testing is complete.
Note Alternatively, you can choose the circuit on the Circuits tab, click the Edit button, then click the State tab in the Edit Circuits window.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15327 Reference Manual.
Step 5 If you want to apply the state to the circuit source and destination ports, check the Apply to drop ports check box.
Step 6 Click Apply.
Step 7 If a confirmation dialog box appears, click Yes to continue. If the Circuit State Transitions dialog box appears, view the results and click OK.
CTC will not change the service state of the circuit source and destination port in certain circumstances. For example, if a port is in loopback (OOS-MA,LPBK & MT), CTC will not change the port to IS-NR. In another example, if the circuit size is smaller than the port, such as a VT1.5 circuit on an STS port, CTC will not change the port service state from IS-NR to OOS-MA,DSBLD. If CTC cannot change the port service state, you must change the port service state manually. For more information, see the "DLP-B214 Change the Service State for a Port" task.
Step 8 Return to your originating procedure (NTP).
DLP-B231 Edit a Circuit Name
Purpose
|
This task edits a circuit name.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Click the Circuits tab (in either node or network view).
Step 2 Click the circuit you want to rename, then click Edit.
Step 3 In the General tab, click the Name field and edit or rename the circuit.
Note Names can be up to 48 alphanumeric and/or special characters. However, to ensure that a monitor circuit can be created on this circuit, do not make the name longer than 44 characters because monitor circuits will add "_MON" (four characters) to the circuit name.
Step 4 Click Apply.
Step 5 From File menu, select Close.
Step 6 In the Circuits window, verify that the circuit was correctly renamed.
Step 7 Return to your originating procedure (NTP).
DLP-B232 Change Active and Standby Span Color
Purpose
|
This task changes the color of active (working) and standby (protect) circuit spans on the detailed circuit map of the Edit Circuits window. By default, working spans are green and protect spans are purple.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 From the Edit menu in node view, choose Preferences.
Step 2 In the Preferences dialog box, click the Circuit tab.
Step 3 Complete one or more of the following steps, as required:
•To change the color of the active (working) span, continue with Step 4.
•To change the color of the standby (protect) span, continue with Step 5.
•To return active and standby spans to their default colors, continue with Step 6.
Step 4 As needed, change the color of the active span:
a. In the Span Colors area, click the colored square located near the word Active.
b. In the Pick a Color dialog box, click the color for the active span, or click the Reset button if you want the active span to display the last applied (saved) color.
c. Click OK to close the Pick a Color dialog box. If you want to change the standby span color, continue with Step 5. If not, click OK to save the change and close the Preferences dialog box, or click Apply to save the change and keep the Preferences dialog box open.
Step 5 As needed, change the color of the standby span:
a. In the Span Colors area, click the colored square located near the word Standby.
b. In the Pick a Color dialog box, click the color for the standby span, or click the Reset button if you want the standby span to display the last applied (saved) color.
c. Click OK to save the change and close the Preferences dialog box, or click Apply to save the change and keep the Preferences dialog box open.
Step 6 As needed, return the active and standby spans to their default colors:
a. From the Edit menu, choose Preferences.
b. In the Preferences dialog box, click the Circuits tab.
c. Click the Reset to Defaults button.
d. Click OK to save the change and close the Preferences dialog box, or click Apply to save the change and keep the Preferences dialog box open.
Step 7 Return to your originating procedure (NTP).
DLP-B233 Edit Path Protection Circuit Path Selectors
Purpose
|
This task changes the path protection signal fail and signal degrade thresholds, the reversion and reversion time, and the payload defect indication-path (PDI-P) settings for one or more path protection circuits.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-B44 Provision Path Protection Nodes, page 4-18
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 From the View menu, choose Go to Network View.
Step 2 Click the Circuits tab.
Step 3 Click the path protection circuit(s) you want to edit. To change the settings for multiple circuits, press the Shift key (to choose adjoining circuits) or the Ctrl key (to choose nonadjoining circuits) and click each circuit you want to change.
Step 4 From the Tools menu, choose Circuits > Set Path Selector Attributes.
Note Alternatively, for single circuits you can click the Edit button, then click the UPSR Selectors tab on the Edit Circuits window.
Step 5 In the Path Selectors Attributes dialog box, edit the following path protection selectors, as needed:
•Revertive—If checked, traffic reverts to the working path when conditions that diverted it to the protect path are repaired. If the check box is not checked, traffic does not revert.
•Reversion Time (Min)—If Revertive is checked, this value sets the amount of time that will elapse before traffic reverts to the working path. The range is 0.5 to 12 minutes in 0.5 minute increments.
•In the VT Circuits Only area, set the following thresholds:
–SF Ber Level—Sets the path protection signal failure BER threshold.
–SD Ber Level—Sets the path protection signal degrade BER threshold.
•In the STS Circuits Only area, set the following thresholds:
–SF Ber Level—Sets the path protection signal failure BER threshold.
–SD Ber Level—Sets the path protection signal degrade BER threshold.
–PDI-P—When checked, traffic switches if an STS payload defect indication is received.
Step 6 Click OK and verify that the changed values are correct.
Step 7 Return to your originating procedure (NTP).
DLP-B241 Clear a BLSR Manual Ring Switch
Purpose
|
This task clears a Manual ring switch.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 From the View menu, choose Go to Network View.
Step 2 Click the Provisioning > BLSR tabs.
Step 3 Choose the BLSR and click Edit.
Tip To move an icon to a new location, for example, to see BLSR channel (port) information more clearly, click an icon on the Edit BLSR network graphic and while pressing Ctrl, drag the icon to a new location.
Step 4 Right-click the BLSR node channel (port) where the Manual ring switch was applied and choose Set West Protection Operation or Set East Protection Operation, as applicable.
Step 5 In the dialog box, choose CLEAR from the drop-down list. Click OK.
Step 6 Click Yes in the Confirm BLSR Operation dialog box. The letter "M" is removed from the channel (port) and the span turns green on the network view map.
Step 7 From the File menu, choose Close.
Step 8 Return to your originating procedure (NTP).
DLP-B242 Create a BLSR on a Single Node
Purpose
|
This task creates a BLSR on a single node. The task is used when you add a node to an existing BLSR or when you delete and then recreate a BLSR temporarily on one node.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Step 1 In node view, click the Maintenance > BLSR tabs.
Step 2 In the Suggestion dialog box, click OK.
Step 3 In the Create BLSR dialog box, enter the BLSR information:
•Ring Type—Enter 2 Fiber. You cannot provision four-fiber BLSRs on ONS 15327s.
•Ring Name—Enter the ring name of the BLSR where you are adding the node.
•Node ID—Enter the node ID. If the node is being added to a BLSR, use an ID that is not used by other BLSR nodes.
•Ring Reversion—Enter the ring reversion time of the existing BLSR.
•West Line—Enter the slot on the node that will connect to the existing BLSR through the node's west line.
•East Line—Enter the slot on the node that will connect to the existing BLSR through the node's east line.
Step 4 Click OK.
Note Alarms appear and the BLSR is Incomplete until the node is connected to other BLSR nodes.
Step 5 Return to your originating procedure (NTP).
DLP-B244 Use the Reinitialization Tool to Clear the Database and Upload Software (Windows)
Caution Restoring a node to the factory configuration deletes all cross-connects on the node.
Step 1 Insert the ONS 15327 SONET System Software CD, Version 6.0.x, into the computer CD-ROM drive. If the CTC Installation Wizard appears, click Cancel.
Step 2 From the Windows Start menu, choose Run. In the Run dialog box, click Browse and navigate to the CISCO15327 folder on the software CD.
Step 3 In the Browse dialog box Files of Type field, choose All Files.
Step 4 Choose the RE-INIT.jar file and click Open. The NE Re-Initialization window appears (Figure 18-8).
Figure 18-8 Reinitialization Tool in Windows
Step 5 Complete the following fields:
•GNE IP—If the node you are reinitializing is accessed through another node configured as a gateway network element (GNE), enter the GNE IP address. If you have a direct connection to the node, leave this field blank.
•Node IP—Enter the node name or IP address of the node that you are reinitializing.
•User ID—Enter the user ID needed to access the node.
•Password—Enter the password for the user ID.
•Upload Package—Check this box to send the software package file to the node. If unchecked, the software stored on the node is not modified.
•Force Upload—Check this box to send the software package file to the node even if the node is running the same software version. If unchecked, reinitialization will not send the software package if the node is already running the same version.
•Activate/Revert—Check this box to activate the uploaded software (if the software is a later than the installed version) or revert to the uploaded software (if the software is earlier than the installed version) as soon as the software file is uploaded. If unchecked, the software is not activated or reverted after the upload, allowing you to initiate the functions later from the node view Maintenance > Software tabs.
•Re-init Database—Check this box to send a new database to the node. (This is equivalent to the CTC database restore operation.) If unchecked, the node database is not modified.
•Confirm—Check this box if you want a warning message displayed before any operation is performed. If unchecked, reinitialization does not display a warning message.
•Search Path—Enter the path to the CISCO15327 folder on the CD drive.
Step 6 Click Go.
Caution Before continuing with the next step, verify that the database to upload is correct. You cannot reverse the upload process after you click Yes.
Step 7 Review the information on the Confirm NE Re-Initialization dialog box, then click Yes to start the reinitialization.
The reinitialization begins. After the software is downloaded and activated, and the database is uploaded to the TCC2/TCC2P cards, "Complete" appears in the status bar and the TCC2/TCC2P cards will reboot. Wait a few minutes for the reboot to complete.
Step 8 After the reboot is complete, log into the node using the "DLP-B60 Log into CTC" task on page 16-59.
Step 9 Complete the "NTP-B25 Set Up Name, Date, Time, and Contact Information" procedure on page 3-3 and "NTP-B25 Set Up Name, Date, Time, and Contact Information" procedure on page 3-3.
Step 10 Return to your originating procedure (NTP).
DLP-B245 Use the Reinitialization Tool to Clear the Database and Upload Software (UNIX)
Caution Restoring a node to the factory configuration deletes all cross-connects on the node.
Step 1 Insert the ONS 15327 SONET System Software CD, Version 6.0.x, into the computer CD-ROM drive. If the CTC Installation Wizard appears, click Cancel.
Step 2 To find the recovery tool file, go to the CISCO15327 directory on the CD (usually /cdrom/cdrom0/CISCO15327).
Step 3 If you are using a file explorer, double-click the RE-INIT.jar file. If you are working with a command line interface, run java -jar RE-INIT.jar. The NE Re-Initialization window appears (Figure 18-8)
Step 4 Complete the following fields:
•GNE IP—If the node you are reinitializing is accessed through another node configured as a GNE, enter the GNE IP address. If you have a direct connection to the node, leave this field blank.
•Node IP—Enter the node name or IP address of the node that you are reinitializing.
•User ID—Enter the user ID needed to access the node.
•Password—Enter the password for the user ID.
•Upload Package—Check this box to send the software package file to the node. If unchecked, the software stored on the node is not modified.
•Force Upload—Check this box to send the software package file to the node even if the node is running the same software version. If unchecked, reinitialization will not send the software package if the node is already running the same version.
•Activate/Revert—Check this box to activate the uploaded software (if the software is a later than the installed version) or revert to the uploaded software (if the software is earlier than the installed version) as soon as the software file is uploaded. If unchecked, the software is not activated or reverted after the upload, allowing you to initiate the functions later from the node view Maintenance > Software tabs.
•Re-init Database—Check this box to send a new database to the node. (This is equivalent to the CTC database restore operation.) If unchecked, the node database is not modified.
•Confirm—Check this box if you want a warning message displayed before any operation is performed. If unchecked, reinitialization does not display a warning message.
•Search Path—Enter the path to the CISCO15327 folder on the CD drive.
Step 5 Click Go.
Caution Before continuing with the next step, verify that the database to upload is correct. You cannot reverse the upload process after you click Yes.
Step 6 Review the information on the Confirm NE Re-Initialization dialog box, then click Yes to start the reinitialization.
The reinitialization begins. After the software is downloaded and activated and the database is uploaded to the TCC2/TCC2P cards, "Complete" appears in the status bar and the TCC2/TCC2P cards will reboot. Wait a few minutes for the reboot to complete.
Step 7 After the reboot is complete, log into the node using the "DLP-B60 Log into CTC" task on page 16-59.
Step 8 Complete the "NTP-B25 Set Up Name, Date, Time, and Contact Information" procedure on page 3-3 and "NTP-B25 Set Up Name, Date, Time, and Contact Information" procedure on page 3-3.
Step 9 Return to your originating procedure (NTP).
DLP-B246 Provision E-Series Ethernet Card Mode
Purpose
|
This task provisions an E-Series Ethernet card for multicard EtherSwitch Group, single-card EtherSwitch, or port-mapped mode.
|
Tools/Equipment
|
E-Series Ethernet cards must be installed.
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In network view, double-click the node containing the E-Series Ethernet card you want to provision.
Step 2 Double-click the Ethernet card that you want to provision.
Step 3 Click the Provisioning > Ether Card tabs.
Step 4 In the Card Mode area, choose one of the following:
•For multicard EtherSwitch circuit groups, choose Multicard EtherSwitch Group.
•For single-card EtherSwitch circuits, choose Single-card EtherSwitch.
•For port-mapped circuits, choose Port-mapped.
Step 5 Click Apply.
Step 6 If you are using multicard EtherSwitch circuits, repeat Steps 2 through 5 for all other Ethernet cards in the node that will carry the multicard EtherSwitch circuits.
Step 7 Repeat Steps 1 through 6 for other nodes as necessary.
Step 8 Return to your originating procedure (NTP).
DLP-B247 Change an Optical Card
Purpose
|
This task describes how to change an OC-N card while maintaining existing provisioning, including DCCs, circuits, protection, timing, and rings. This task is intended to be used when a slot is preprovisioned and you want to change the optical speed of the card, or when you have backed out of an automatic span upgrade.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Caution Physically removing an optical card can cause a loss of working traffic or a protection switch. See
Chapter 11, "Upgrade Cards and Spans" for information on upgrading traffic to a higher speed.
Note You cannot change a multiport card to a card with a smaller number of ports.
Step 1 If the card the active card in a 1+1 protection group, switch traffic away from the card:
a. Log into a node on the network. If you are already logged in, go to Step b.
b. Display the CTC node (login) view.
c. Click the Maintenance > Protection tabs.
d. Double-click the protection group that contains the reporting card.
e. Click the active card of the selected group.
f. Click Switch and Yes in the Confirmation dialog box.
Step 2 In node view, right-click the card that you want to remove and choose Change Card.
Step 3 From the Change Card drop-down list, choose the new card type and click OK. A Mismatched Equipment Alarm (MEA) will appear until you replace the card.
Step 4 Physically remove the card:
a. Open the card latches/ejectors.
b. Use the latches/ejectors to pull the card forward and away from the shelf.
Step 5 Return to your originating procedure (NTP).
DLP-B249 Provision IP Settings
Purpose
|
This task provisions IP settings, which includes the IP address, default router, DHCP access, firewall access, and SOCKS proxy server settings for an ONS 15327 node.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser
|
Caution All network changes should be approved by your network (or LAN) administrator.
Step 1 In node view, click the Provisioning > Network > General tabs.
Step 2 Complete the following information in the fields listed:
•IP Address—Type the IP address assigned to the ONS 15327 node.
•Suppress CTC IP Display—Check this check box if you want to prevent the node IP address from being displayed in CTC to users with Provisioning, Maintenance, or Retrieve security levels. (The IP address suppression is not applied to users with Superuser security level.)
•Default Router— If the ONS 15327 is connected to a LAN, enter the IP address of the default router. The default router forwards packets to network devices that the ONS 15327 cannot directly access. This field is ignored if any of the following are true:
–The ONS 15327 is not connected to a LAN.
–SOCKS proxy server is enabled and the ONS 15327 is provisioned as an ENE.
–OSPF is enabled on both the ONS 15327 and the LAN where the ONS 15327 is connected.
•Forward DHCP Request To—Check this check box to enable DHCP. Also, enter the DHCP server IP address in the Request To field. The check box is unchecked by default. If you will enable any of the gateway settings to implement the ONS 15327 SOCKS proxy server features, leave this field blank.
Note If you enable DHCP, computers connected to an ONS 15327 node can obtain temporary IP addresses from an external DHCP server. The ONS 15327 only forwards DHCP requests; it does not act as a DHCP server.
•MAC Address—(Display only) Displays the ONS 15327 IEEE 802 MAC address.
•Net/Subnet Mask Length—Type the subnet mask length (decimal number representing the subnet mask length in bits) or click the arrows to adjust the subnet mask length. The subnet mask length is the same for all ONS 15327s in the same subnet.
•XTC CORBA (IIOP) Listener Port—Sets the ONS 15327 Internet Inter-Orb Protocol (IIOP) listener port used for communication between the ONS 15327 and CTC computers. This field is generally not changed unless the ONS 15327 resides behind a firewall that requires a different port. See the "NTP-B27 Set Up the ONS 15327 for Firewall Access" procedure on page 3-6 for more information.
•Gateway Settings—Provisions the ONS 15327 SOCKS proxy server features. (SOCKS is a standard proxy protocol for IP-based applications.) Do not change these options until you review the SOCKS proxy server scenario in the "CTC Network Connectivity" chapter of the Cisco ONS 15327 Reference Manual. In SOCKS proxy server networks, the ONS 15327 is either an ENE, a GNE, or a proxy-only server. Provisioning must be consistent for each NE type.
•Enable SOCKS proxy server on port—If checked, the ONS 15327 serves as a proxy for connections between CTC clients and ONS 15327s that are connected by DCCs to the proxy ONS 15327. The CTC client establishes connections to DCC-connected nodes through the proxy node. The CTC client does not require IP connectivity to the DCC-connected nodes, only to the proxy ONS 15327. If Enable SOCKS proxy server on port is off, the node does not proxy for any CTC clients. When this box is checked, you can provision one of the following options:
–External Network Element (ENE)—Choose this option when the ONS 15327 is not connected to a LAN but has DCC connections to other ONS nodes. A CTC computer connected to the ENE through the XTC CRAFT or LAN port can manage nodes that have DCC connections to the ENE. However, the CTC computer does not have direct IP connectivity to these nodes or to any LAN/WAN that those nodes might be connected to.
–Gateway Network Element (GNE)—Choose this option when the ONS 15327 is connected to a LAN and has DCC connections to other nodes. A CTC computer connected to the LAN can manage all nodes that have DCC connections to the GNE, but the CTC computer does not have direct IP connectivity to them. The GNE option isolates the LAN from the DCC network so that IP traffic originating from the DCC-connected nodes and any CTC computers connected to them is prevented from reaching the LAN.
–SOCKS Proxy-Only—Choose this option when the ONS 15327 is connected to a LAN and the LAN is separated from the node by a firewall. The SOCKS Proxy Only is the same as the GNE option, except the SOCKS Proxy Only option does not isolate the DCC network from the LAN.
Step 3 Click Apply.
Step 4 Click Yes in the confirmation dialog box.
Both XTC cards reboot, one at a time, which takes 10 to 15 minutes. Eventually, a "Lost node connection, switching to network view" message appears.
Step 5 Click OK. The network view appears. The node icon is displayed in gray, during which time you cannot access the node.
Step 6 Double-click the node icon when it becomes green.
Step 7 Return to your originating procedure (NTP).
DLP-B250 Set Up or Change Open Shortest Path First Protocol
Purpose
|
This task enables the Open Shortest Path First (OSPF) routing protocol on the ONS 15327. Perform this task if you want to include the ONS 15327 in OSPF-enabled networks.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-B24 Verify Card Installation, page 3-2
DLP-B60 Log into CTC, page 16-59
You will need the OSPF Area ID, Hello and Dead intervals, and authentication key (if OSPF authentication is enabled) provisioned on the router that the ONS 15327 is connected to.
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 From node view, click the Provisioning > Network > OSPF tabs.
Step 2 On the top left side of the OSPF tab, complete the following:
•DCC/GCC OSPF Area ID Table—In dotted decimal format, enter the number that identifies the ONS 15327s as a unique OSPF area ID. It can be any number between 000.000.000.000 and 255.255.255.255. The number must be unique to the LAN OSPF area.
•SDCC Metric—This value is normally unchanged. It sets a cost for sending packets across the DCC, which is used by OSPF routers to calculate the shortest path. The default DCC metric is 100.
•LDCC Metric—Sets a cost for sending packets across the Line DCC. This value should always be lower than the Section DCC (SDCC) metric. The default SDCC metric is 33. It is usually not changed.
Step 3 In the OSPF on LAN area, complete the following:
•OSPF active on LAN—When checked, enables the ONS 15327 OSPF topology to be advertised to OSPF routers on the LAN. Enable this field on ONS 15327s that directly connect to OSPF routers.
•LAN Port Area ID—Enter the OSPF area ID (dotted decimal format) for the router port where the ONS 15327 is connected. (This number is different from the DCC OSPF Area ID.)
Step 4 By default, OSPF is set to No Authentication. If the OSPF router requires authentication, complete the following steps. If not, continue with Step 5.
a. Click the No Authentication button.
b. In the Edit Authentication Key dialog box, complete the following:
•Type—Choose Simple Password.
•Enter Authentication Key—Enter the password.
•Confirm Authentication Key—Enter the same password to confirm it.
c. Click OK.
The authentication button label changes to Simple Password.
Step 5 Verify that the OSPF priority and intervals settings match the priority and interval settings used by the OSPF router where the ONS 15327 is connected. If not, change the settings, as needed.
•Router Priority—Selects the designated router for a subnet.
•Hello Interval (sec)—Sets the number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
•Dead Interval—Sets the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.
•Transit Delay (sec)—Indicates the service speed. One second is the default.
•Retransmit Interval (sec)—Sets the time that will elapse before a packet is resent. Five seconds is the default.
•LAN Metric—Sets a cost for sending packets across the LAN. This value should always be lower than the DCC metric. Ten is the default.
Step 6 Under OSPF Area Range Table, create an area range table if one is needed:
Note Area range tables consolidate the information that is outside an OSPF area border. One ONS 15327 in the ONS 15327 OSPF area is connected to the OSPF router. An area range table on this node points the router to the other nodes that reside within the ONS 15327 OSPF area.
a. Under OSPF Area Range Table, click Create.
b. In the Create Area Range dialog box, enter the following:
•Range Address—Enter the area IP address for the ONS 15327s that reside within the OSPF area. For example, if the ONS 15327 OSPF area includes nodes with IP addresses 10.10.20.100, 10.10.30.150, 10.10.40.200, and 10.10.50.250, the range address would be 10.10.0.0.
•Range Area ID—Enter the OSPF area ID for the ONS 15327s. This is either the ID in the DCC OSPF Area ID field or the ID in the Area ID for LAN Port field.
•Mask Length—Enter the subnet mask length. In the Range Address example, this is 16.
•Advertise—Check if you want to advertise the OSPF range table.
c. Click OK.
Step 7 If the ONS 15327 OSPF area is not physically connected to Area 0, use the following steps to create a virtual link table that will provide the disconnected area with a logical path to Area 0:
a. Under OSPF Virtual Link Table, click Create.
b. In the Create Virtual Link dialog box, complete the following fields (OSPF settings must match OSPF settings for the ONS 15327 OSPF area):
•Neighbor—The router ID of the Area 0 router.
•Transit Delay (sec)—The service speed. One second is the default.
•Hello Int (sec)—The number of seconds between OSPF hello packet advertisements sent by OSPF routers. Ten seconds is the default.
•Auth Type—If the router where the ONS 15327 is connected uses authentication, choose Simple Password. Otherwise, choose No Authentication.
•Retransmit Int (sec)—Sets the time that will elapse before a packet is resent. Five seconds is the default.
•Dead Int (sec)—Sets the number of seconds that will pass while an OSPF router's packets are not visible before its neighbors declare the router down. Forty seconds is the default.
c. Click OK.
Step 8 After entering ONS 15327 OSPF area data, click Apply.
If you changed the Area ID, the XTC cards reset, one at a time. The reset takes approximately 10 to 15 minutes.
Step 9 Return to your originating procedure (NTP).
DLP-B251 Set Up or Change Routing Information Protocol
Purpose
|
This task enables Routing Information Protocol (RIP) on the ONS 15327. Perform this task if you want to include the ONS 15327 in RIP-enabled networks.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
You need to create a static route to the router adjacent to the ONS 15327 if the ONS 15327 needs to communicate its routing information to non-DCC-connected nodes.
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 From node view, click the Provisioning > Network > RIP tabs.
Step 2 Check the RIP Active check box if you are activating RIP.
Step 3 Choose either RIP Version 1 or RIP Version 2 from the drop-down list, depending on which version is supported in your network.
Step 4 Set the RIP metric. The RIP metric can be set to a number between 1 and 15 and represents the number of hops.
Step 5 By default, RIP is set to No Authentication. If the router that the ONS 15327 is connected to requires authentication, complete the following steps. If not, continue with Step 6.
a. Click the No Authentication button.
b. In the Edit Authentication Key dialog box, complete the following:
•Type—choose Simple Password.
•Enter Authentication Key—Enter the password.
•Confirm Authentication Key—Enter the same password to confirm it.
c. Click OK.
The authentication button label changes to Simple Password.
Step 6 If you want to complete an address summary, complete the following steps. If not, continue with Step 7. Complete the address summary only if the ONS 15327 is a GNE with multiple ONS 15327 ENEs attached with IP addresses in different subnets.
a. In the RIP Address Summary area, click Create.
b. In the Create Address Summary dialog box, complete the following:
•Summary Address—Enter the summary IP address.
•Mask Length—Enter the subnet mask length using the up and down arrows.
•Hops—Enter the number of hops. The smaller the number of hops, the higher the priority.
c. Click OK.
Step 7 Return to your originating procedure (NTP).
DLP-B253 Provision Section DCC Terminations
Purpose
|
This task creates the SONET SDCC terminations required for alarms, administration, data, signal control information, and messages. In this task, you can also set up the node so that it has direct IP access to a far-end non-ONS node over the DCC network.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note When SDCC is provisioned, a Line DCC (LDCC) termination is allowed on the same port, but is not recommended. Using SDCC and LDCC on the same port is only needed during a software upgrade if the software version does not support LDCC. You can provision SDCCs and LDCCs on different ports in the same node.
Step 1 In node view, click the Provisioning > Comm Channels > SDCC tabs.
Step 2 Click Create.
Step 3 In the Create SDCC Terminations dialog box, click the ports where you want to create the SDCC termination. To select more than one port, press the Shift key or the Ctrl key.
Note SDCC refers to the Section DCC, which is used for ONS 15327 DCC terminations. The SONET Line DCCs and the Section DCC (when not used as a DCC termination by the ONS 15327) can be provisioned as DCC tunnels. See the "DLP-B313 Create a DCC Tunnel" task on page 19-6.
Step 4 In the Port State area, click the Set to IS radio button to put the port in service.
Step 5 Verify that the Disable OSPF on DCC Link check box is unchecked.
Step 6 If the SDCC termination is to include a non-ONS node, check the Far End is Foreign check box. This automatically sets the far-end node IP address to 0.0.0.0, which means that any address can be specified by the far end. To change the default to a specific the IP address, see the "DLP-B25 Change a Section DCC Termination" task on page 16-23.
Step 7 In the Layer 3 box, perform one of the following:
•Check the IP box only—If the SDCC is between the ONS 15327 and another ONS node and only ONS nodes reside on the network. The SDCC will use Point-to-Point Protocol (PPP).
•Check the IP and OSI boxes—If the SDCC is between the ONS 15327 and another ONS node and third party NEs that use the OSI protocol stack are on the same network. The SDCC will use PPP.
•Check OSI box only—If the SDCC is between an ONS node and a third party NE that uses the OSI protocol stack. The SDCC will use the LAP-D protocol.
Note If OSI is checked and IP is not checked (LAP-D), no network connections will appear in network view.
Step 8 If you checked OSI, complete the following steps. If you checked IP only, continue with Step 9.
a. Click Next.
b. Provision the following fields:
–Router—Choose the OSI router.
–ESH—Sets the End System Hello (ESH) propagation frequency. End system NEs transmit ESHs to inform other end systems (ESs) and intermediate systems (ISs) about the NSAPs it serves. The default is 10 seconds. The range is 10 to 1000 seconds.
–ISH—Sets the Intermediate System Hello PDU propagation frequency. Intermediate system NEs send ISHs to other ESs and ISs to inform them about the IS NETs it serves. The default is 10 seconds. The range is 10 to 1000 seconds.
–IIH—Sets the Intermediate System to Intermediate System Hello PDU propagation frequency. The IS-IS Hello PDUs establish and maintain adjacencies between ISs. The default is 3 seconds. The range is 1 to 600 seconds.
–Metric—Sets the cost for sending packets on the LAN subnet. The IS-IS protocol uses the cost to calculate the shortest routing path. The default metric cost for LAN subnets is 20. It normally should not be changed.
c. If the OSI and IP boxes are checked, continue with Step 9. If only the OSI is checked, click Next and provision the following fields:
–Mode:
AITS—(Default) Acknowledged Information Transfer Service. Does not exchange data until a logical connection between two LAP-D users is established. This service provides reliable data transfer, flow control, and error control mechanisms.
UITS—Unacknowledged Information Transfer Service. Transfers frames containing user data with no acknowledgement. The service does not guarantee that the data presented by one user will be delivered to another user, nor does it inform the user if the delivery attempt fails. It does not provide any flow control or error control mechanisms.
–Role—Sets the LAP-D frame command/response (C/R) value when Mode is set to AITS. Set to the opposite of the mode of the NE at the other end of the SDCC.
–MTU—Sets the maximum number of octets in a LAP-D information frame. The range is 512 to 1500 octets. The default is 512. You normally should not change it.
–T200— Sets the time between Set Asynchronous Balanced Mode (SABME) frame retransmissions. The default is 0.2 seconds. The range is 0.2 to 20 seconds.
–T203—Provisions the maximum time between frame exchanges, that is, the trigger for transmission of the LAP-D keep-alive Receive Ready (RR) frames. The default is 10 seconds. The range is 4 to 120 seconds.
Step 9 Click Finish.
Note DCC Termination Failure (EOC) and Loss of Signal (LOS) alarms are present until you create all network DCC terminations and put the DCC termination OC-N ports in service.
Note There are four possibilities for the appearance of DCCs: green/solid, green/dashed, gray/solid, and gray/dashed. DCC appearance corresponds to the following states: active/routable, active/nonroutable, failed/routable, and failed/nonroutable. Circuit provisioning uses active/routable links. Selecting a node or span in the graphic area displays information about the node and span in the status area.
Step 10 Return to your originating procedure (NTP).
DLP-B254 XTC Active/Standby Switch Test
Purpose
|
This task verifies that the ONS 15327 XTC cards can effectively switch from one to another.
|
Tools/Equipment
|
The test set specified by the acceptance test procedure, connected and configured as specified in the acceptance test procedure.
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Step 1 From the View menu, choose Go to Network View.
Step 2 Click the Alarms tab.
a. Verify that the alarm filter is not on. See the "DLP-B227 Disable Alarm Filtering" task as necessary.
b. Verify that no unexplained alarms appear on the network. If alarms are present, investigate and resolve them before continuing. Refer to the Cisco ONS 15327 Troubleshooting Guide if necessary.
Step 3 Click the Conditions tab. Verify that the network does not have any unexplained conditions. If unexplained conditions are present, resolve them before continuing. Refer to the Cisco ONS 15327 Troubleshooting Guide if necessary.
Step 4 On the network view map, double-click the node containing the XTC cards you are testing to open the node in node view.
Step 5 Make a note of which XTC is active and which is standby by examining the LEDs on the shelf graphic. XTC cards are installed in Slot 5 and Slot 6. The active XTC has a green ACT LED, and the standby XTC has an amber SBY LED.
Step 6 On the shelf graphic, right-click the active XTC and choose Reset from the shortcut menu.
Step 7 In the Resetting Card dialog box, click Yes. After 20 to 40 seconds, a "lost node connection, changing to network view" message appears.
Step 8 Click OK. On the network view map, the node where you reset the XTC will be gray.
Step 9 After the node icon turns green (within 1 to 2 minutes), double-click it. On the shelf graphic, observe the following:
•The previous standby XTC has a green ACT LED.
•The previous active XTC LEDs go through the following LED sequence: NP (card not present), Ldg (software is loading), amber SBY LED (XTC is in standby mode). The LEDs should complete this sequence within 5 to 10 minutes.
Step 10 Verify that traffic on the test set connected to the node is still running. If a traffic interruption occurs, do not continue, refer to your next level of support.
Step 11 Repeat Steps 2 through 10 to return the active/standby XTC cards to their configuration at the start of the procedure.
Step 12 Verify that the XTC cards appear as noted in Step 5.
Step 13 Return to your originating procedure (NTP).
DLP-B256 View Ethernet Statistics PM Parameters
Purpose
|
This task enables you to view current statistical performance monitoring (PM) counts on an E-Series or G-Series Ethernet card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click an E-Series or G-Series Ethernet card. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Statistics subtab (Figure 18-9).
Figure 18-9 Statistics Subtab on the Card View Performance Tab
Step 4 Click Refresh. Performance monitoring statistics for each port on the card appear.
The PM parameter names appear on the left portion of the window in the Param column. The parameter numbers appear on the right portion of the window in the Port # columns. For PM parameter definitions refer to the "Performance Monitoring" chapter in the Cisco ONS 15327 Troubleshooting Guide.
Step 5 View the Port # columns to see the current PM statistics for each port.
Step 6 Return to your originating procedure (NTP).
DLP-B257 View Ethernet Utilization PM Parameters
Purpose
|
This task enables you to view line utilization PM counts on an E-Series or G-Series Ethernet card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click an E-Series or G-Series Ethernet card. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Utilization subtab (Figure 18-10).
Figure 18-10 Utilization Subtab on the Card View Performance Tab
Step 4 Click Refresh. Performance monitoring utilization values for each port on the card appear.
Step 5 View the Port # column to find the port you want to monitor.
Step 6 View the Prev-n columns to find Tx and Rx bandwidth utilization values for the previous time intervals.
Step 7 Return to your originating procedure (NTP).
DLP-B258 View Ethernet History PM Parameters
Purpose
|
This task enables you to view historical PM counts at selected time intervals on an E-Series or G-Series Ethernet card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click an E-Series or G-Series Ethernet card. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the History subtab (Figure 18-11).
Figure 18-11 History Subtab on the Card View Performance Tab
Step 4 Click Refresh. Performance monitoring statistics appear for each port on the card.
The PM parameter names appear on the left portion of the window in the Param column. The parameter numbers appear on the right portion of the window in the Port # columns. For PM parameter definitions refer to the "Performance Monitoring" chapter in the Cisco ONS 15327 Troubleshooting Guide.
Step 5 View the Port # columns to see the current PM statistics for each port.
Step 6 Return to your originating procedure (NTP).
DLP-B259 Refresh Ethernet PM Counts at a Different Time Interval
Purpose
|
This task changes the window view to display specified PM counts in time intervals depending on the interval option selected.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click an E-Series or G-Series Ethernet card. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Utilization tab or the History tab.
Step 4 Click the Interval drop-down list button.
Step 5 Choose one of four options:
•1 min: This option displays the specified PM counts in one-minute time intervals.
•15 min: This option displays the specified PM counts in fifteen-minute time intervals.
•1 hour: This option displays the specified PM counts in one-hour time intervals.
•1 day: This option displays the specified PM counts in one-day (24-hour) time intervals.
Step 6 Click Refresh. The PM counts refresh with values based on the chosen time interval.
Step 7 Return to your originating procedure (NTP).
DLP-B260 Set Auto-Refresh Interval for Displayed PM Counts
Purpose
|
This task changes the window auto-refresh intervals for updating the displayed PM counts.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click an Ethernet card, XTC card (for electrical PM counts), or an OC-N card. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Auto-refresh drop-down list and choose one of six options:
•None: This option disables the auto-refresh feature.
•15 Seconds: This option sets the window auto-refresh to 15-second time intervals.
•30 Seconds: This option sets the window auto-refresh to 30-second time intervals.
•1 Minute: This option sets the window auto-refresh to 1-minute time intervals.
•3 Minutes: This option sets the window auto-refresh to 3-minute time intervals.
•5 Minutes: This option sets the window auto-refresh to 5-minute time intervals.
Step 4 Click Refresh. The PM counts for the newly selected auto-refresh time interval appear.
Depending on the selected auto-refresh interval, the displayed PM counts automatically update when each refresh interval completes. If the auto-refresh interval is set to None, the displayed PM counts are not updated unless you click the Refresh button.
Step 5 Return to your originating procedure (NTP).
DLP-B261 Refresh PM Counts for a Different Port
Purpose
|
This task changes the window view to display PM counts for another port on a multiport card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click an XTC card (for electrical PM counts) or an OC-N card. The card view appears.
Step 2 Click the Performance tab.
Step 3 From the Port drop-down list, choose the desired port to highlight your selection.
Step 4 Click Refresh. The PM counts for the newly selected port appear.
Step 5 Return to your originating procedure (NTP).
DLP-B262 Filter the Display of Circuits
Purpose
|
This task filters the display of circuits in the ONS 15327 network, node, or card view Circuits window based on circuit name, size, type, direction, and other attributes.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 Navigate to the appropriate CTC view:
•To filter network circuits, from the View menu choose Go to Network View.
•To filter circuits that originate, terminate, or pass through a specific node, from the View menu choose Go to Other Node, then choose the node you want to search and click OK.
•To filter circuits that originate, terminate, or pass through a specific card, double-click the card on the shelf graphic in node view to open the card in card view.
Step 2 Click the Circuits tab.
Step 3 Set the attributes for filtering the circuit display:
a. Click the Filter button.
b. In the Circuit Filter dialog box, set the filter attributes:
•Name—Enter a complete or partial circuit name to filter circuits based on circuit name; otherwise leave the field blank.
•Direction—Choose one: Any (direction not used to filter circuits), 1-way (display only one-way circuits), or 2-way (display only two-way circuits).
•Status—Choose one: Any (status not used to filter circuits), DISCOVERED (display only discovered circuits), DISCOVERED_TL1 (display only TL1-created or TL1-like, CTC-created circuits), PARTIAL (display only partial circuits, that is, circuits missing a connection or span to form a complete path), or PARTIAL_TL1 (display only TL1-created circuit or a TL1-like CTC-created circuits that are missing a cross-connect or span to form a complete path). For more information about circuit statuses, see Table 19-7 on page 19-27. Although other statuses are described in the table, filtering is only supported for DISCOVERED, DISCOVERED_TL1, PARTIAL, and PARTIAL_TL1 circuits.
•State—Choose one: OOS (display only out-of-service circuits), IS (display only in-service circuits; optical channel network connections have IS status only), or OOS[PARTIAL] (display only circuits with cross-connects in mixed service states).
•Slot—Enter a slot number to filter circuits based on the source or destination slot; otherwise leave the field blank.
•Port—Enter a port number to filter circuits based on the source or destination port; otherwise leave the field blank.
•Type—Choose one: Any (type not used to filter circuits), STS (displays only STS circuits), VT (displays only VT circuits), VT Tunnel (displays only VT tunnels), or VT Aggregation Point (displays only VT aggregation points).
•Size—Check the appropriate check boxes to filter circuits based on size (circuit size is related to ONS node source and destination): VT1.5, STS-1, STS3c, STS-6c, STS-9c, STS-12c, STS-18c, STS-24c, STS-36c, STS-48c, or STS-192c. The check boxes that appear depend on what you entered in the Type field. If you chose Any, all sizes are available. If you chose VT, only VT1.5 is available. If you chose STS, only STS sizes are available, and if you chose VT Tunnel or VT Aggregation Point, only STS-1 is available.
Step 4 Click OK. Circuits matching the attributes in the Circuit Filter dialog box appear in the Circuits window.
Note To return to the original filter settings, click Restore Defaults in the Circuit Filter dialog box.
Step 5 To turn filtering off, click the Filter icon in the lower right corner of the Circuits window. Click the icon again to turn filtering on, and click the Filter button to change the filter attributes.
Step 6 Return to your originating procedure (NTP).
DLP-B263 Edit Path Protection Dual-Ring Interconnect Circuit Hold-Off Timer
Purpose
|
This task changes the amount of time a path selector switch is delayed for circuits routed on a path protection dual-ring interconnect (DRI) topology. Setting a switch hold-off time (HOT) prevents unnecessary back and forth switching when a circuit is routed through multiple path protection selectors.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-B44 Provision Path Protection Nodes, page 4-18
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Click the Circuits tab (in either node or network view).
Step 2 Click the path protection circuit you want to edit, then click Edit.
Step 3 In the Edit Circuit window, click the UPSR Selectors tab.
Step 4 Create a hold-off time for the circuit source and destination ports:
a. In the Holder Off Timer area, double-click the cell of the circuit source port (top row), then type the new hold-off time. The range is 0 to 10,000 ms in increments of 100.
b. In the Hold-Off Timer area, double-click the cell of the circuit destination port (bottom row), then type the hold-off time entered in Step a.
Step 5 Click Apply, then choose Close from the Edit Circuit window File menu.
Step 6 Return to your originating procedure (NTP).
DLP-B264 Provision Path Trace on Circuit Source and Destination Ports
Purpose
|
This task creates a path trace on STS circuit source ports and destination ports.
|
Tools/Equipment
|
ONS 15327 cards capable of transmitting and receiving path trace must be installed at the circuit source and destination ports. See Table 18-2 for a list of cards.
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note This task assumes you are setting up path trace on a bidirectional circuit and setting up transmit strings at the circuit source and destination.
Step 1 Click the Circuits tab (in either node or network view).
Step 2 For the STS circuit you want to monitor, verify that the source and destination ports are on a card that can transmit and receive the path trace string. See Table 18-2 for a list of cards.
Table 18-2 ONS 15327 Cards Capable of Path Trace
J1 Function
|
Cards
|
Transmit and Receive
|
XTC (DS-1) 1
G1000-2
|
Receive Only
|
OC3 IR 4 1310
OC12 IR 1310
OC12 LR 1550
OC48 IR 1310
OC48 LR 1550
|
If neither port is on a transmit/receive card, you will not be able to complete this task. If one port is on a transmit/receive card and the other is on a receive-only card, you can set up the transmit string at the transmit/receive port and the receive string at the receive-only port, but you will not be able to transmit in both directions.
Step 3 Choose the STS circuit you want to trace, then double-click it (or click Edit).
Step 4 In the Edit Circuit window, check the Show Detailed Map check box at the bottom of the window. A detailed map of the source and destination ports appears.
Step 5 Provision the circuit source transmit string:
a. In the detailed circuit map, right-click the circuit source port (the square on the left or right of the source node icon) and choose Edit J1 Path Trace (port) from the shortcut menu.
b. In the New Transmit String field, enter the circuit source transmit string. Enter a string that makes the source port easy to identify, such as the node IP address, node name, circuit name, or another string. If the New Transmit String field is left blank, the J1 transmits a string of null characters.
c. Click Apply, then click Close.
Step 6 Provision the circuit destination transmit string:
a. In the detailed circuit map, right-click the circuit destination port and choose Edit Path Trace from the shortcut menu.
b. In the New Transmit String field, enter the string that you want the circuit destination to transmit. Enter a string that makes the destination port easy to identify, such as the node IP address, node name, circuit name, or another string. If the New Transmit String field is left blank, the J1 transmits a string of null characters.
c. Click Apply.
Step 7 Provision the circuit destination expected string:
a. In the Circuit Path Trace window, enable the path trace expected string by choosing Auto or Manual from the Path Trace Mode drop-down list:
•Auto—The first string received from the source port is the baseline. An alarm is raised when a string that differs from the baseline is received.
•Manual—The string entered in the Current Expected String is the baseline. An alarm is raised when a string that differs from the Current Expected String is received.
b. If you set the Path Trace Mode field to Manual, enter the string that the circuit destination should receive from the circuit source in the New Expected String field. If you set the Path Trace Mode field to Auto, skip this step.
c. Check the Disable AIS and RDI if TIM-P is detected check box if you want to suppress the alarm indication signal (AIS) and remote defect indication (RDI) when the STS Path Trace Identifier Mismatch Path (TIM-P) alarm appears. Refer to the Cisco ONS 15327 Troubleshooting Guide for descriptions of alarms and conditions.
d. (Check box visibility depends on card selection) Check the Disable AIS on C2 Mis-Match check box if you want to suppress the AIS when a C2 mismatch occurs.
e. Click Apply, then click Close.
Note It is not necessary to set the format (16 or 64 bytes) for the circuit destination expected string; the path trace process automatically determines the format.
Step 8 Provision the circuit source expected string:
a. In the Edit Circuit window (with Show Detailed Map chosen) right-click the circuit source port and choose Edit Path Trace from the shortcut menu.
b. In the Circuit Path Trace window, enable the path trace expected string by choosing Auto or Manual from the Path Trace Mode drop-down list:
•Auto—Uses the first string received from the port at the other end as the baseline string. An alarm is raised when a string that differs from the baseline is received.
•Manual—Uses the Current Expected String field as the baseline string. An alarm is raised when a string that differs from the Current Expected String is received.
c. If you set Path Trace Mode to Manual, enter the string that the circuit source should receive from the circuit destination in the New Expected String field. If you set Path Trace Mode to Auto, skip this step.
d. Check the Disable AIS and RDI if TIM-P is detected check box if you want to suppress the AIS and RDI when the TIM-P alarm appears. Refer to the Cisco ONS 15327 Troubleshooting Guide for descriptions of alarms and conditions.
e. (Check box visibility depends on card selection) Check the Disable AIS on C2 Mis-Match check box if you want to suppress the AIS when a C2 mismatch occurs.
f. Click Apply.
Note It is not necessary to set the format (16 or 64 bytes) for the circuit destination expected string; the path trace process automatically determines the format.
Step 9 After you set up the path trace, the received string appears in the Received field on the path trace setup window. Figure 18-12 shows an example. The following options are available:
•Click Hex Mode to display path trace in hexadecimal format. The button name changes to ASCII Mode. Click it to return the path trace to ASCII format.
•Click Reset to reread values from the port.
•Click Default to return to the path trace default settings (Path Trace Mode is set to Off and the New Transmit and New Expected Strings are null).
Caution Clicking Default will generate alarms if the port on the other end is provisioned with a different string.
Note The Expect and Receive strings are updated every few seconds if the Path Trace Mode field is set to Auto or Manual.
Step 10 Click Close.
Figure 18-12 Setting Up a Path Trace
When you display the detailed circuit window, path trace is indicated by an M (manual path trace) or an A (automatic path trace) at the circuit source and destination ports. Figure 18-13 shows an example.
Figure 18-13 Detailed Circuit Window With Manual Expected String Enabled
Step 11 Return to your originating procedure (NTP).
DLP-B265 Change the Login Legal Disclaimer
Purpose
|
This task modifies the legal disclaimer statement shown in the CTC login dialog box so that it will display customer-specific information when users log into the network.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser only
|
Step 1 In node view, click the Provisioning > Security > Legal Disclaimer > HTML tabs.
Step 2 The existing statement is a default, non-customer-specific disclaimer. If you want to edit this statement with specifics for your company, you can change the text. Use the following HTML commands to format the text as needed:
•<b> begins boldface font.
•</b> ends boldface font.
•<center> aligns type in the center of the window.
•</center> ends the center alignment.
•<font=n> (where n = point size) changes the font to the new size.
•</font> ends the font size command.
•<p> creates a line break.
•<sub> begins subscript.
•</sub> ends subscript.
•<sup> begins superscript.
•</sup> ends superscript.
•<u> starts underline.
•</u> ends underline.
Step 3 If you want to preview your changed statement and formatting, click the Preview subtab.
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-B266 Change IP Settings
Purpose
|
This task changes the IP address, subnet mask, default router, DHCP access, firewall access, and SOCKS proxy server settings for the ONS 15327.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
B249 Provision IP Settings
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser only
|
Caution Changing the node IP address, subnet mask, or IIOP listener port causes the XTC cards to reboot. If Ethernet circuits using STP originate or terminate on E-Series Ethernet cards installed in the node, circuit traffic will be lost for several minutes while the spanning trees reconverge. Other circuits are not affected by XTC reboots.
Step 1 In node view, click the Provisioning > Network > General tabs.
Step 2 Change any of the following:
•IP Address
•Suppress CTC IP Display
•LCD IP Setting
•Default Router
•Forward DHCP Request To
•MAC Address
•Net/Subnet Mask Length
•TCC CORBA (IIOP) Listener Port
•Gateway Settings
See the "DLP-B249 Provision IP Settings" task for detailed field descriptions.
Step 3 Click Apply.
If you changed any of the network fields that will cause the node to reboot, the Change Network Configuration confirmation dialog box appears. If you changed a gateway setting, a confirmation appropriate to the gateway field appears. If you only changed the IP address fields, no confirmation dialog box appears.
Step 4 If a confirmation dialog box appears, click Yes.
If you changed the IP address, subnet mask length, or XTC CORBA (IIOP) listener port, both XTC cards will reboot, one at a time. Confirm that the changes appear. If the changes do not appear, repeat the task. Refer to the Cisco ONS 15327 Troubleshooting Guide as needed.
Step 5 Return to your originating procedure (NTP).
DLP-B267 Change to the Default Network View Background Map
Purpose
|
This task changes the background map to the default map of the CTC network view.
|
Tools/Equipment
|
None
|
Prerequisite procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser
|
Note If you modify the background image, the change is stored in your CTC user profile on the local computer. The change does not affect other CTC users on different computers.
Step 1 Click the Provisioning > Defaults tabs.
Step 2 Under Defaults Selector, choose CTC and then Network.
Step 3 Click the Default Value field and choose a default map from the drop-down list. Map choices are: Germany, Japan, Netherlands, South Korea, United Kingdom, and United States (default).
Step 4 Click Apply. The new network map appears.
Step 5 Click OK.
Step 6 If the ONS 15327 icons are not visible, right-click the network view and choose Zoom Out. Repeat until all the ONS 15327 icons are visible. (You can also choose Fit Graph to Window.)
Step 7 If you need to reposition the node icons, drag and drop them one at a time to a new location on the map.
Step 8 If you want to change the magnification of the icons, right-click the network view and choose Zoom In. Repeat until the ONS 15327 icons appear at the magnification you want.
Step 9 Return to your originating procedure (NTP).
DLP-B268 Apply a Custom Network View Background Map
Purpose
|
This task changes the background image or map on the CTC network view.
|
Tools/Equipment
|
None
|
Prerequisite procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Note You can replace the network view background image with any JPEG or GIF image that is accessible on a local or network drive. If you apply a custom background image, the change is stored in your CTC user profile on the local computer. The change does not affect other CTC users on different computers.
Step 1 From the View menu, choose Go to Network View.
Step 2 Right-click the network or domain map and choose Set Background Image.
Step 3 Navigate to the graphic file you want to use as a background.
Step 4 Select the file and click Open. The graphic file appears as the CTC background image.
Step 5 As needed, complete the following to view and move the node icons:
•If the node icons are not visible, right-click the network view and choose Zoom Out. Repeat until all of the node icons are visible.
•If you want to reposition the node icons, drag and drop them one at a time to a new location on the map.
•It you want to change the magnification of the icons, right-click the network view and choose Zoom In or Zoom Out. Repeat until the node icons appear at the magnification you want.
Step 6 Return to your originating procedure (NTP).
DLP-B269 Enable Dialog Box Do-Not-Display Option
Purpose
|
This task enables or disables the do-not-display dialog box preference for subsequent sessions.
|
Tools/Equipment
|
None
|
Prerequisite procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note If any user who has rights to perform an operation (for example, creating a circuit) selects the "Do not show this dialog again" check box on a dialog box, the dialog box does not appear for any other users who perform that operation on the network unless the command is overridden using the following task.
Step 1 From the Edit menu, choose Preferences.
Step 2 In the Preferences dialog box, click the General tab.
The Preferences Management area lists all dialog boxes where "Do not show this dialog again" was checked.
Step 3 Choose one of the following:
•Don't Show Any—Hides all do-not-display check boxes.
•Show All—Overrides do-not-display check box selections and displays all dialog boxes.
Step 4 Click OK.
Step 5 Return to your originating procedure (NTP).
DLP-B271 Change Security Policy on a Single Node
Purpose
|
This task changes the security policy for a single node, including idle user timeouts, user lockouts, password changes, and concurrent login policies.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser only
|
Step 1 In node view, click the Provisioning > Security > Policy tabs.
Step 2 If you want to modify the idle user timeout period, click the hour (H) and minute (M) arrows in the Idle User Timeout area for the security level you want to provision: RETRIEVE, MAINTENANCE, PROVISIONING, or SUPERUSER. The idle period time range is 0 and 16 hours, and 0 and 59 minutes. The user is logged out after the idle user timeout period is reached.
Step 3 In the User Lockout area, you can modify the following:
•Failed Logins Before Lockout—Displays the number of failed login attempts a user can make before the user is locked out from the node. You can choose a value between 0 and 10.
•Manual Unlock by Superuser—Allows a user with Superuser privileges to unlock a user manually who has been locked out from a node.
•Lockout Duration—Sets the amount of time the user will be locked out after a failed login. You can choose a value between 0 and 10 minutes, and 0 and 55 seconds (in five-second intervals). If you checked Manual Unlock by Superuser, Lockout Duration is disabled.
Step 4 In the Password Change area, you can modify the following:
•Prevent Reusing Last [ ] Passwords—Choose a value between 1 and 10 to set the number of different passwords the user must create before they can reuse a password.
•New Password must Differ from the Old Password—Choose the number of characters that must differ between the old and new password. The default number is 1.
•Cannot Change New Password for [ ] days—If checked, prevents users from changing their password for the specified period. The range is 20 to 95 days.
•Require Password Change on First Login to New Account—If checked, requires users to change their password the first time they log into their account.
Step 5 To require users to change their password at periodic intervals, check the Enforce Password Aging check box in the Password Aging area. If checked, provision the following parameters:
•Aging Period—Sets the amount of time that must pass before the user must change his or her password for each security level: RETRIEVE, MAINTENANCE, PROVISIONING, and SUPERUSER. The range is 20 to 95 days.
•Warning—Sets the number days the user will be warned to change his or her password for each security level. The range is 2 to 20 days.
Step 6 In the Other area, you can provision the following:
•Single Session Per User—If checked, limits users to one login session at one time.
•Disable Inactive User—If checked, disables users who do not log into the node for the period of time specified in the Inactive Duration box. The Inactive Duration range is 45 to 90 days.
Step 7 Click Apply. Confirm that the changes appear; if not, repeat the task.
Step 8 Return to your originating procedure (NTP).
DLP-B272 Change Security Policy on Multiple Nodes
Purpose
|
This task changes the security policy for multiple nodes, including idle user timeouts, user lockouts, password change, and concurrent login policies.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser only
|
Step 1 From the View menu, choose Go to Network View.
Step 2 Click the Provisioning > Security > Policy tabs. A read-only table of nodes and their policies appears.
Step 3 Click a node on the table that you want to modify, then click Change.
Step 4 If you want to modify the idle user timeout period, click the hour (H) and minute (M) arrows in the Idle User Timeout area for the security level you want to provision: RETRIEVE, MAINTENANCE, PROVISIONING, or SUPERUSER. The idle period time range is 0 and 16 hours, and 0 and 59 minutes. The user is logged out after the idle user timeout period is reached.
Step 5 In the User Lockout area, you can modify the following:
•Failed Logins Before Lockout—Displays the number of failed login attempts a user can make before the user is locked out from the node. You can choose a value between 0 and 10.
•Manual Unlock by Superuser—Allows a user with Superuser privileges to manually unlock a user who has been locked out from a node.
•Lockout Duration—Sets the amount of time the user will be locked out after a failed login. You can choose a value between 0 and 10 minutes, and 0 and 55 seconds (in five-second intervals). If you checked Manual Unlock by Superuser, Lockout Duration is disabled.
Step 6 In the Password Change area, you can modify the following:
•Prevent Reusing Last [ ] Passwords—Choose a value between 1 and 10 to set the number of different passwords the user must create before they can reuse a password.
•New Password must Differ from the Old Password—Choose the number of characters that must differ between the old and new password. The default number is 1.
•Cannot Change New Password for [ ] days—If checked, prevents users from changing their password for the specified period. The range is 20 to 95 days.
•Require Password Change on First Login to New Account—If checked, requires users to change his or her password the first time they log into the account.
Step 7 To require users to change their password at periodic intervals, check the Enforce Password Aging check box in the Password Aging area. If checked, provision the following parameters:
•Aging Period—Sets the amount of time that must pass before the user must change his or her password for each security level: RETRIEVE, MAINTENANCE, PROVISIONER, and SUPERUSER. The range is 20 to 95 days.
•Warning—Sets the number days the user will be warned to change his or her password for each security level. The range is 2 to 20 days.
Step 8 In the Other area, you can provision the following:
•Single Session Per User—If checked, limits users to one login session at one time.
•Disable Inactive User—If checked, disables users who do not log into the node for the period of time specified in the Inactive Duration box. The Inactive Duration range is 45 to 90 days.
Step 9 In the Select Applicable Nodes area, uncheck any nodes where you do not want to apply the changes.
Step 10 Click OK.
Step 11 In the Security Policy Change Results dialog box, confirm that the changes are correct, then click OK.
Step 12 Return to your originating procedure (NTP).
DLP-B273 Modify SNMP Trap Destination
Purpose
|
This task modifies the Simple Network Management Protocol (SNMP) trap destinations on an ONS 15327 including community name, default UDP port, and SNMP trap version.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view, click the Provisioning > SNMP tabs.
Step 2 Click the trap that you want to modify in the Trap Destinations dialog box.
For a description of SNMP traps, refer to the Cisco ONS 15327 Troubleshooting Guide.
Step 3 In the Selected Destination area, you can modify the following:
•Community
•UDP port
•Trap version (SNMPv1 or SNMPv2)
Note The community name is a form of authentication and access control. The community name assigned to the ONS 15327 is case-sensitive and must match the community name of the network management system (NMS).
Note The default UDP port for SNMP is 162.
Note Refer to your NMS documentation to determine which trap version to use.
Step 4 If you want to allow the ONS 15327 SNMP agent to accept SNMP SET requests on certain MIBs, check the Allow SNMP Sets check box. If the box is not checked, SET requests are rejected.
Step 5 If you want to set up the SNMP proxy feature to allow network management, message reporting, and performance statistic retrieval across firewalls, check the Allow SNMP Proxy check box.
Step 6 Click Apply. SNMP settings are now configured.
Step 7 To view SNMP information for each node, click the node IP address in the Trap Destinations area of the Trap Destinations screen. Confirm that the changes appear; if not, repeat the task.
Step 8 Return to your originating procedure (NTP).
DLP-B293 Perform a Manual Span Upgrade on a Two-Fiber BLSR
Purpose
|
This task upgrades a two-fiber BLSR span to a higher optical rate. To downgrade an optical span, complete this task but choose a lower-rate card in Step 5 and install a lower-rate card in Step 8.
|
Tools/Equipment
|
Higher-rate cards
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard. Statement 206
Caution Do not perform any other maintenance operations or add any circuits during a span upgrade.
Note If any of the XTC cards reboot during the span upgrade, you must manually reset each one when the span upgrade procedure is complete for all the nodes in the ring. See the "NTP-B113 Reset the XTC Using CTC" procedure on page 14-13 for card reset procedures.
Note All spans connecting the nodes in a BLSR must be upgraded before the bandwidth is available.
Step 1 Apply a Force switch to both span endpoints (nodes) on the span that you will upgrade first. See the "DLP-B303 Initiate a BLSR Force Ring Switch" task on page 19-2.
Step 2 Remove the fiber from both endpoints and ensure that traffic is still running.
Step 3 Remove the OC-N cards from both endpoints.
Step 4 At one endpoint, in node view right-click the OC-N card and choose Change Card.
Step 5 In the Change Card dialog box, choose the new OC-N card type.
Step 6 Click OK.
Step 7 Repeat Steps 4 through 6 at the second endpoint.
Step 8 Complete the "NTP-B218 Install the Optical and Ethernet Cards" procedure on page 1-11 to install the new OC-N cards in both endpoints.
Step 9 Verify that the receive signal falls within the acceptable range. See Table 1-1 on page 1-14 for OC-N card transmit and receive levels.
Step 10 Complete the "DLP-B44 Install Fiber-Optic Cables for BLSR Configurations" task on page 16-39. Wait for the IMPROPRMVL alarm to clear and the cards to become active.
Step 11 When cards in both endpoint nodes have been successfully upgraded and all facility alarms (LOS, SD, and SF) are cleared, complete the "DLP-B194 Clear a BLSR Force Ring Switch" task on page 17-81 at both endpoints.
Step 12 Repeat this task for each span in the BLSR. When you are done with each span, the upgrade is complete.
Step 13 Return to your originating procedure (NTP).
DLP-B295 Perform a Manual Span Upgrade on a Path Protection
Purpose
|
This task upgrades path protection spans to a higher optical speed. Repeat the task to upgrade each span in the ring to the higher optical rate. To downgrade an optical span, complete this task but choose a lower-rate card in Step 5 and install a lower-rate card in Step 7.
|
Tools/Equipment
|
Higher-rate cards
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard. Statement 206
Caution Do not perform any other maintenance operations or add any circuits during a span upgrade.
Note If any of the XTC cards reboot during the span upgrade, you must manually reset each XTC card when the span upgrade procedure is complete for all the nodes in the ring. See the "NTP-B113 Reset the XTC Using CTC" procedure on page 14-13 for card reset procedures.
Step 1 Complete the "DLP-B197 Initiate a Path Protection Force Switch" task on page 17-83 on the span that you will upgrade at both endpoints.
Step 2 Remove the fiber from both endpoint nodes in the span and ensure that traffic is still running.
Step 3 Remove the OC-N cards from both span endpoints.
Step 4 At one endpoint, in node view right-click the OC-N card and choose Change Card.
Step 5 In the Change Card dialog box, choose the new OC-N card type.
Step 6 Click OK.
Step 7 Complete the "NTP-B218 Install the Optical and Ethernet Cards" procedure on page 1-11 to install the new OC-N cards in both endpoints.
Step 8 Verify that the receive signal falls within the acceptable range. See Table 1-1 on page 1-14 for OC-N card transmit and receive signals.
Step 9 Complete the "DLP-B43 Install Fiber-Optic Cables for Path Protection Configurations" task on page 16-36. Wait for the IMPROPRMVL alarm to clear and the cards to become active.
Step 10 Complete the "DLP-B198 Clear a Path Protection Switch" task on page 17-84 at both endpoints when cards in both nodes have been successfully upgraded and all the facility alarms (LOS, SD, and SF) are cleared.
Step 11 Return to your originating procedure (NTP).
DLP-B296 Perform a Manual Span Upgrade on a 1+1 Protection Group
Purpose
|
This task upgrades a linear 1+ 1 span to a higher optical rate.
|
Tools/Equipment
|
Higher-rate cards
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard. Statement 206
Caution Do not perform any other maintenance operations or add any circuits during a span upgrade.
Note If any of the XTC cards reboot during the span upgrade, you must manually reset each one when the span upgrade procedure is complete for all the nodes in the ring. See the "NTP-B113 Reset the XTC Using CTC" procedure on page 14-13 for card reset procedures.
Note To downgrade an optical span, complete this task but choose a lower-rate card in Step 6 and install a lower-rate card in Step 9.
Step 1 Apply a Force switch on the ports that you will upgrade, beginning with the protect port:
a. In node view, click the Maintenance > Protection tabs.
b. Under Protection Groups, choose the 1+1 protection group.
c. Under Selected Group, choose the protect port (regardless if it is active or standby).
d. From Switch Commands, click Force.
e. Click Yes in the confirmation dialog box.
Note If the switching mode is bidirectional in the 1+1 protection group, apply the Force command to only one end of the span. If the Force command is applied to both ends when the switching mode is bidirectional, a switch of more than 50 ms in duration will result.
Note A Force switch request on a span or card (port) causes CTC to raise a FORCED-REQ condition. It is informational only; the condition will clear when the force switch command is cleared.
Step 2 Repeat Step 1 for each port you will upgrade.
Step 3 Remove the fiber from both ends of the span and ensure that traffic is still running.
Step 4 Remove the OC-N cards from both span endpoints.
Step 5 At one endpoint, in node view, right-click the OC-N slot and choose Change Card.
Step 6 In the Change Card dialog box, choose the new OC-N card type.
Step 7 Click OK.
Step 8 Repeat Steps 5 through 7 at the second endpoint.
Step 9 Complete the "NTP-B218 Install the Optical and Ethernet Cards" procedure on page 1-11 to install the new OC-N cards in both endpoints.
Step 10 Verify that the receive signal falls within the acceptable range. See Table 1-1 on page 1-14 for OC-N card transmit and receive signals.
Step 11 Complete the "DLP-B42 Install Fiber-Optic Cables in a 1+1 Configuration" task on page 16-35. Wait for the IMPROPRMVL alarm to clear and the cards to become standby.
Step 12 When cards on each end of the span have been successfully upgraded and all the facility alarms (LOS, SD, and SF) are cleared, remove the Force switch:
a. In node view, click the Maintenance > Protection tabs.
b. Under Protection Groups, choose the 1+1 protection group.
c. Under Selected Group, choose the port with the Force.
d. From Switch Commands, click Clear.
e. Click Yes in the confirmation dialog box.
Step 13 Repeat this task for any other spans in the 1+1 linear configuration.
Step 14 Return to your originating procedure (NTP).
DLP-B297 Perform a Manual Span Upgrade on an Unprotected Span
Purpose
|
This task manually upgrades unprotected spans to a higher optical rate.
|
Tools/Equipment
|
Higher-rate cards
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard. Statement 206
Caution Upgrading unprotected spans will cause all traffic running on those spans to be lost.
Caution Do not perform any other maintenance operations or add any circuits during a span upgrade.
Note If any of the XTC cards reboot during the span upgrade, you must manually reset each one when the span upgrade procedure is complete for all the nodes in the ring. See the "NTP-B113 Reset the XTC Using CTC" procedure on page 14-13 for card reset procedures.
Step 1 Remove the fiber from both endpoint nodes in the span.
Caution Removing the fiber will cause all traffic on the unprotected span to be lost.
Step 2 Remove the OC-N cards from both span endpoints.
Step 3 At one endpoint, in node view right-click each OC-N slot and choose Change Card.
Step 4 In the Change Card dialog box, choose the new OC-N type.
Step 5 Click OK.
Step 6 Repeat Steps 3 through 5 at the second endpoint.
Step 7 Complete the "NTP-B218 Install the Optical and Ethernet Cards" procedure on page 1-11 to install the new OC-N cards in both endpoints.
Step 8 Attach the fiber to the cards. Wait for the IMPROPRMVL alarm to clear and the cards to become active.
Step 9 Return to your originating procedure (NTP).
DLP-B298 Check the Network for Alarms and Conditions
Purpose
|
This task verifies that no alarms or conditions exist on the network.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-B60 Log into CTC, page 16-59
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Remote
|
Security Level
|
Retrieve or higher
|
Step 1 From the View menu, choose Go to Network View. Verify that all affected spans on the network map are green.
Step 2 Verify that the affected spans do not have active switches on the network map. Span ring switches are graphically displayed on the span with the letters "L" for lockout ring, "F" for FORCE ring, "M" for MANUAL ring, and "E" for EXERCISE ring.
Step 3 A second verification method can be performed from the Conditions tab. Click Retrieve Conditions and verify that no switches are active. Make sure the Filter button is not selected.
Step 4 Click the Alarms tab. Verify that no critical or major alarms are present, nor any facility alarms, such as LOS, LOF, AIS-L, AIS-P, SF, and SD. Make sure the Filter button is not selected.
If trouble is indicated (for example, a major alarm exists), resolve the problem before proceeding. See Chapter 7, "Manage Alarms," or, if necessary, refer to the Cisco ONS 15327 Troubleshooting Guide.
Step 5 Return to your originating procedure (NTP).
