Maintain the Node
Note
The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration. Cisco does not recommend using its path protection feature in any particular topological network configuration.
This chapter provides procedures for maintaining the Cisco ONS 15310-CL.
Before You Begin
Before performing any of the following procedures, investigate all alarms and clear any trouble conditions. Refer to the Cisco ONS 15310-CL Troubleshooting Guide as necessary.
This section lists the chapter procedures (NTPs). Turn to a procedure to view its tasks (DLPs).
1. C102 Back Up the Database—Complete as needed.
2. C103 Restore the Database—Complete as needed.
3. C132 View and Manage OSI Information—Complete as needed.
4. C104 Restore the Node to Factory Configuration—Complete as needed to clear the database and upload a blank database and the latest software.
5. C105 View the Audit Trail Records—Complete as needed.
6. C106 Off-Load the Audit Trail Record—Complete as needed.
7. C107 Off-Load the Diagnostics File—Complete as needed.
8. C108 Initiate or Clear an External Switching Command—Complete as needed.
9. C109 Clean Fiber Connectors—Complete as needed.
10. C134 Reset Cards Using CTC—Complete as needed to reset 15310-CL-CTX and Ethernet cards.
11. C114 View the Loopback Status on a 15310-CL-CTX Port—Complete as needed to view loopback status of 15310-CL-CTX electrical and optical ports.
12. C115 Switch the Node Timing Reference—Complete as needed to switch the node timing reference in order to perform maintenance or return to normal timing operation.
13. C116 View the ONS 15310-CL Timing Report—Complete as needed.
14. C137 Edit Network Element Defaults—Complete as needed to edit the factory-configured (default) network element (NE) settings for the Cisco ONS 15310-CL.
15. C138 Import Network Element Defaults—Complete as needed to import the factory-configured (default) NE settings for the Cisco ONS 15310-CL.
16. C139 Export Network Element Defaults—Complete as needed to export the factory-configured (default) NE settings for the Cisco ONS 15310-CL.
NTP-C102 Back Up the Database
Purpose
|
This procedure stores a backup version of the Cisco Transport Controller (CTC) software database on the workstation running CTC or on a network server.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
Required. Cisco recommends performing a database backup at approximately weekly intervals and prior to and after configuration changes.
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Maintenance or higher
|
Note You must back up and restore the database for each node on a circuit path in order to maintain a complete circuit.
Note The following parameters are not backed up and restored: node name, IP address, subnet mask and gateway, and Internet Inter-ORB Protocol (IIOP) port. If you change the node name and then restore a backed up database with a different node name, the circuits map to the new node name. Cisco recommends keeping a record of the old and new node names.
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node you want to back up. If you are already logged in, continue with Step 2.
Step 2 In node view, click the Maintenance > Database tabs.
Step 3 Click Backup.
Step 4 In the Backup Database window, click Browse.
Step 5 In the Save window, navigate to a local PC directory or network directory and type a database name (such as database.db) in the File name field.
Note The database file must have a *.db extension.
Step 6 Click Save.
Step 7 Click OK to confirm the path and file name.
Step 8 If you are overwriting an existing file, click OK in the confirmation dialog box.
Stop. You have completed this procedure.
NTP-C103 Restore the Database
Purpose
|
This procedure restores the 15310-CL-CTX software database.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
C102 Back Up the Database
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser
|
Note The following parameters are not backed up and restored: node name, IP address, subnet mask and gateway, and IIOP port. If you change the node name and then restore a backed up database with a different node name, the circuits map to the new renamed node. Cisco recommends keeping a record of the old and new node names.
Note Ethernet cards must be reset after a database restore. For information on restoring Ethernet cards, refer to the Cisco ONS 15310-CL Ethernet Card Software Feature and Configuration Guide.
Caution If you are restoring the database on multiple nodes, wait approximately one minute after the 15310-CL-CTX reboot has completed on each node before proceeding to the next node.
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you are restoring the database. If you are already logged in, continue with Step 2.
Step 2 In node view, click the Maintenance > Database tabs (Figure 13-1).

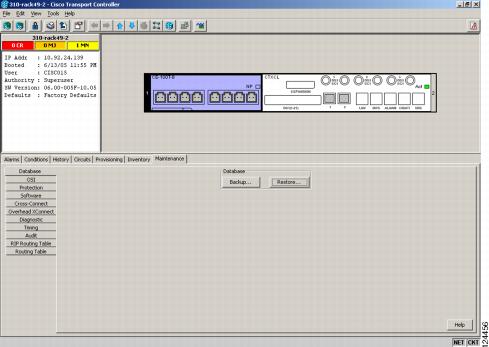

Figure 13-1 Restoring the 15310-CL-CTX Database
Step 3 Click Restore.
Step 4 Locate the database file stored on the workstation hard drive or on network storage.
Note To clear all existing provisioning, locate and upload the database found on the latest ONS 15310-CL software CD.
Step 5 Click the database file to highlight it.
Step 6 Click Open. The DB Restore dialog box appears.
Caution Opening a restore file from another node or from an earlier backup might affect traffic on the login node.
Step 7 Click Restore.
The Restore Database dialog box monitors the file transfer (Figure 13-2).
Figure 13-2 Restoring the Database—In-Process Notification
Step 8 Wait for the file to complete the transfer to the 15310-CL-CTX card. When the transfer completes, CTC switches to network view. Wait for the node to reconnect.
Stop. You have completed this procedure.
NTP-C132 View and Manage OSI Information
Purpose
|
This procedure allows you to view and manage Open System Interconnection (OSI) including the End System-to-Intermediate System (ES-IS) and Intermediate System-to-Intermediate System (IS-IS) routing information tables, the TID Address Resolution Protocol (TARP) data cache, and the manual area table.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
C102 Back Up the Database
NTP-C13 Set Up Computer for CTC, page 2-2
NTP-C131 Provision OSI, page 3-11
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note Additional information about the ONS 15310-CL implementation of OSI is provided in the "Management Network Connectivity" chapter of the Cisco ONS 15310-CL Reference Manual.
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49. If you are already logged in, continue with Step 2.
Step 2 Perform any of the following tasks as needed:
•DLP-C215 View IS-IS Routing Information Base, page 17-14
•DLP-C216 View ES-IS Routing Information Base, page 17-15
•DLP-C217 Manage the TARP Data Cache, page 17-16
Stop. You have completed this procedure.
NTP-C104 Restore the Node to Factory Configuration
Caution Cisco strongly recommends that you keep different node databases in separate folders. This is because the reinit tool chooses the first product-specific database in the specified directory if you use the Search Path field instead of the Package and Database fields. It is possible to accidentally copy an incorrect database if multiple databases are kept in the specified directory.
Caution Restoring a node to the factory configuration deletes all cross-connects on the node.
Caution If you are restoring the database on multiple nodes, wait until the 15310-CL-CTX card has rebooted on each node before proceeding to the next node.
Caution Cisco recommends that you take care to save the node database to safe location if you are not restoring the node using the database provided on the software CD.
Note The following parameters are not backed up and restored when you delete the database and restore the factory settings: node name, IP address, subnet mask and gateway, and IIOP port. If you change the node name and then restore a backed up database with a different node name, the circuits map to the new renamed node. Cisco recommends keeping a record of the old and new node names.
Step 1 If you are using Microsoft Windows, complete the "DLP-C169 Use the Reinitialization Tool to Clear the Database and Upload Software (Windows)" task on page 16-84.
Step 2 If you are using UNIX, complete the "DLP-C170 Use the Reinitialization Tool to Clear the Database and Upload Software (UNIX)" task on page 16-86.
Stop. You have completed this procedure.
NTP-C105 View the Audit Trail Records
Purpose
|
This procedure explains how to view audit trail records. Audit trail records prove useful for maintaining security, recovering lost transactions, and enforcing accountability. Accountability refers to tracing user activities; that is, associating a process or action with a specific user.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser
|
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you want to view the audit trail log. If you are already logged in, continue with Step 2.
Step 2 In the node view, click the Maintenance > Audit tabs.
Step 3 Click Retrieve.
A window containing the most recent audit trail records appears as shown in Figure 13-3.
Figure 13-3 Viewing the Audit Trail Records
A definition of each column in the Audit Trail log is listed in Table 13-1.
Table 13-1 Audit Trail Column Definitions
Column
|
Definition
|
Date
|
Date when the action occurred in the format MM/dd/yy HH:mm:ss
|
Num
|
Incrementing count of actions
|
User
|
User ID that initiated the action, or task name for system generated actions
|
P/F
|
Pass/Fail (that is, whether or not the action was executed)
|
Operation
|
Action that was taken
|
Step 4 Right-click the column headings if you want to display the list in ascending-to-descending or descending-to-ascending order.
Step 5 Left-click the column heading to display a shortcut menu containing the following options:
•Reset Sorting—Resets the column to the default setting.
•Hide Column—Hides the column from view.
•Reset Columns Order/Visibility—Displays all hidden columns.
•Row Count—Provides a numerical count of log entries.
Step 6 Shift-click the column heading if you want to display an incrementally sorted list.
Stop. You have completed this procedure.
NTP-C106 Off-Load the Audit Trail Record
Purpose
|
This procedure describes how to offload up to 640 audit trail log entries in a local or network drive file to maintain a record of actions performed for the node. If the audit trail log is not off-loaded, the oldest entries are overwritten after the log reaches capacity.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you want to off-load the audit trail log. If you are already logged in, continue with Step 2.
Step 2 In the node view, click the Maintenance > Audit tabs.
Step 3 Click Retrieve Tech Support Log.
Step 4 Click Archive.
Step 5 In the Archive Audit Trail dialog box, navigate to the directory (local or network) where you want to save the file.
Step 6 Enter a name in the File Name field.
Use .txt.gz as the extension. This creates a .gzip file. Use WinZip or GNU gzip to uncompress the file. The uncompressed file is readable in any application that supports text files, such as WordPad, Microsoft Word (imported), etc.
Step 7 Click Save.
The 640 entries are saved in this file. The next entries continue with the next number in the sequence, rather than starting over.
Note Archiving does not delete entries from the CTC audit trail log. However, entries can be self-deleted by the system after the log maximum is reached. If you archived the entries, you cannot reimport the log file back into CTC. View the log in a different application.
Stop. You have completed this procedure.
NTP-C107 Off-Load the Diagnostics File
Purpose
|
This procedure describes how to off-load a diagnostics file. The diagnostics file contains a set of debug commands run on a node and their result. This file is useful to the Cisco Technical Assistance Center (TAC) when they troubleshoot problems with the node.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Maintenance or higher
|
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you want to off-load the diagnostics file. If you are already logged in, continue with Step 2.
Step 2 In the node view, click the Maintenance > Diagnostic tabs.
Step 3 Click Retrieve Tech Support Log.
Step 4 In the Saving Diagnostic File dialog box, navigate to the directory (local or network) where you want to save the file.
Step 5 Enter a name in the File Name field.
You do not have to give the archive file a particular extension. It is a compressed file (.gzip) that can be read by Cisco TAC.
Step 6 Click Save.
The Retrieve Tech Support Log status window shows a progress bar indicating the percentage of the file being saved, then shows "Retrieve Tech Support Log complete."
Step 7 Click OK.
Stop. You have completed this procedure.
NTP-C108 Initiate or Clear an External Switching Command
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you want to apply a lock-on or lockout. If you are already logged in, continue with Step 3.
Step 2 To initiate a Manual or Force switch in a 1+1 protection group, complete the "DLP-C179 Initiate an Optical Protection Switch" task on page 16-92.
Step 3 To prevent traffic on a working or protect port from switching to the other port in the pair, complete the "DLP-C171 Apply a Lock-on" task on page 16-87.
Step 4 To prevent traffic from switching to the protect port, complete the "DLP-C172 Apply a Lockout" task on page 16-88.
Step 5 To remove a lock-on or lockout and return a protection group to its usual switching method, complete the "DLP-C173 Clear a Lock-on or Lockout" task on page 16-89.
Note A nonalarmed event (INHSWWKG or INHSWPR) is raised when a port is placed in a lock-on or lockout state.
Step 6 As needed, complete the "DLP-C166 Initiate a Path Protection Force Switch on a Span" task on page 16-81.
Step 7 As needed, complete the "DLP-C167 Clear a Path Protection Force Switch" task on page 16-82.
Note Refer to the "Port Protection" chapter in the Cisco ONS 15310-CL Reference Manual for a description of protection switching and switch state priorities.
Stop. You have completed this procedure.
NTP-C109 Clean Fiber Connectors
Purpose
|
This procedure cleans the fiber connectors.
|
Tools/Equipment
|
Inspection microscope
Type A Fiber Optic Connector Cleaner (CLETOP reel)
Optical swab
Optical receiver cleaning stick
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
None
|
Warning Class 1 laser product. Statement 1008
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
Caution Do not reuse the optical swabs. Keep unused swabs off of work surfaces.
Note Replace all dust caps whenever the equipment is not to be immediately used.
Step 1 Using an inspection microscope, inspect each fiber connector for dirt, cracks, or scratches.
Step 2 Replace any damaged fiber connectors.
Step 3 Complete the "DLP-C175 Clean Fiber Connectors with CLETOP" task on page 16-90 as necessary.
Step 4 Complete the "DLP-C176 Clean the Fiber Adapters" task on page 16-91 as necessary.
Note To clean multi-fiber optic connectors, complete the "DLP-C174 Clean Multi Fiber-Optic Cable Connectors" task on page 16-89 as necessary.
Stop. You have completed this procedure.
NTP-C134 Reset Cards Using CTC
Purpose
|
This procedure resets the 15310-CL-CTX card and Ethernet cards using soft and hard resets. A soft-reset reboots the card and reloads the operating system and the application software. A hard-reset temporarily removes power from the card and clears all buffer memory before it is physically reseated (15310-CL-CTX cards cannot be physically reseated).
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-C4 Install an Ethernet Card, page 1-6
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Maintenance or higher
|
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you are performing the software reset. If you are already logged in, continue with Step 2.
Step 2 As needed, complete the "DLP-C218 Soft-Reset the 15310-CL-CTX Using CTC" task on page 17-17.
Step 3 As needed, complete the "DLP-C219 Hard-Reset the 15310-CL-CTX Using CTC" task on page 17-18.
Step 4 As needed, complete the "DLP-C220 Soft-Reset an Ethernet Card Using CTC" task on page 17-19.
Step 5 As needed, complete the "DLP-C221 Hard-Reset an Ethernet Card Using CTC" task on page 17-19.
Stop. You have completed this procedure.
NTP-C114 View the Loopback Status on a 15310-CL-CTX Port
Purpose
|
Use this task to view the loopback status on a selected 15310-CL-CTX port.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you want to view the loopback status. If you are already logged in, continue with Step 2.
Step 2 In node view, double-click the 15310-CL-CTX card to display the card view.
Step 3 Depending on the port where the loopback is located, click one of the following tab sequences:
•Maintenance > DS1 > Loopback
•Maintenance > DS3 > Loopback
•Maintenance > EC1 > Loopback
•Maintenance > Optical > Loopback
The Number (#) and Service State columns identify the port number and current operating state (In-Service and Normal [IS-NR]; Out-of-Service and Management, Maintenance [OOS-MA,MT]; and Out-of-Service and Management, Disabled [OOS-MA,DSBLD]) of each port on the card. The Loopback Type column identifies the type of loopback (None or Terminal) applied to each port on the card.
Stop. You have completed this procedure.
NTP-C115 Switch the Node Timing Reference
Purpose
|
This procedure switches the node timing reference to enable maintenance on a timing reference or to return the node timing to normal operation.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-C23 Set Up Timing, page 3-7
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Maintenance or higher
|
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node that you want to monitor. If you are already logged in, continue with Step 2.
Step 2 As needed, use the following tasks to change the display of node timing maintenance information:
•DLP-C177 Manual or Force Switch the Node Timing Reference, page 16-91
•DLP-C178 Clear a Manual or Force Switched Node Timing Reference, page 16-92
Stop. You have completed this procedure.
NTP-C116 View the ONS 15310-CL Timing Report
Purpose
|
This procedure displays the current status of the ONS 15310-CL timing references.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-C23 Set Up Timing, page 3-7
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Retrieve or higher
|
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you want to view the node timing status. If you are already logged in, continue with Step 2.
Step 2 Click the Maintenance > Timing > Report tabs.
Step 3 In the Timing Report area you can view node timing information. The date and time of the report appear at the top of the report. The time stamp is the same as the alarms time stamp and can be configured using the "DLP-C75 Display Alarms and Conditions Using Time Zone" task on page 15-98. Table 13-2 describes the report fields and entries.
Step 4 To update the report, click Reset.
Table 13-2 ONS 15310-CL Timing Report
Item
|
Description
|
Options
|
Option Descriptions
|
Clock
|
Indicates the timing clock. The report section that follows applies to the timing clock indicated.
|
NE
|
The node timing clock.
|
BITS-1 Out
|
The BITS-1 Out timing clock.
|
Status
|
Indicates the status of the timing clock.
|
INIT_STATE
|
The timing reference has not been provisioned. For an NE reference, this status appears just before the first provisioning messages when the 15310-CL-CTX is booting. Timing is provisioned to the internal clock of the node.
|
HOLDOVER_STATE
|
The clock was locked onto a valid timing reference for more than 140 seconds when a failure occurred. Holdover state timing is a computation based on timing during Normal state combined with the node's internal clock. The node holds onto this frequency until the valid reference is restored. This status appears for NE references only.
|
FREERUN_STATE
|
The node is running off its internal clock without any modification except the calibrated value to bring timing to 0 PPM. Free-run state can occur when a Force switch to the Internal clock is initiated, all references fail without the 140 seconds of holdover data, or only internal timing references are defined. This status appears for NE references only.
|
NO_SYNC_STATE
|
A synchronization timing reference is not defined. BITS-1 Out defaults to this status until an OC-N card is defined as its reference on the Provisioning > Timing tab. This status appears for external references only.
|
NE_SYNCH_STATE
|
BITS-1 Out uses the same timing source as the NE. This appears when NE Reference is selected for BITS-1 Out Reference List on the Provisioning > Timing tab.
|
NORMAL_STATE
|
The timing reference is locked onto one of its provisioned references. The reference cannot be Internal or No Sync state.
|
Status (continued)
|
|
FAST_START_STATE
|
The node has switched references, but the reference is too far away to reach Normal state within an acceptable amount of time. Fast Start state is a fast acquisition mode to allow the node to quickly acquire the reference. After it achieves this goal, the node progresses to the Normal state.
|
FAST_START_FAILED_STATE
|
A timing reference is too far away to reach in Normal state. The Fast Start state could not acquire sufficient timing information within the allowable amount of time.
|
Status Changed At
|
Date and time of the last status change.
|
—
|
—
|
Switch Type
|
Type of switch.
|
AUTOMATIC
|
The timing switch was system-generated.
|
Manual
|
The timing switch was a user-initiated Manual switch.
|
Force
|
The timing switch was user-initiated Force switch.
|
Reference
|
Indicates the timing reference.
|
Two timing references are available on the Provisioning > Timing tab.
|
The timing references are One and Two, which correspond to BITS-1 and Internal Clock respectively.
|
Selected
|
Indicates whether the reference is selected.
|
Selected references are indicated with an X.
|
—
|
Facility
|
Indicates the timing facility provisioned for the reference on the Provisioning > Timing tab.
|
BITS-1
|
The timing facility is a building integrated timing supply (BITS) clock attached to the node's BITS-1 pins.
|
Internal clock
|
The node is using its internal clock.
|
State
|
Indicates the timing reference state.
|
IS
|
The timing reference is in service.
|
OOS
|
The timing reference is out of service.
|
Condition
|
Indicates the timing reference state.
|
OKAY
|
The reference is valid to use as a timing reference.
|
OOB
|
Out of bounds; the reference is not valid and cannot be used as a timing reference, for example, a BITS clock is disconnected.
|
LOS
|
Loss of signal; the reference is valid on a DS1, OC-3, or OC-12 facility used for timing.
|
Condition Changed
|
Indicates the date and time of the last status change in MM/DD/YY HH:MM:SS format.
|
—
|
—
|
SSM
|
Indicates whether SSM is enabled for the timing reference.
|
Enabled
|
Synchronization status messaging (SSM) is enabled.
|
Disabled
|
SSM is not enabled.
|
SSM Quality
|
Indicates the SSM timing quality.
|
Eight to ten SSM quality messages can appear.
|
For a list of SSM message sets, refer to the "Timing" chapter in the Cisco ONS 15310-CL Reference Manual.
|
SSM Changed
|
Indicates the date and time of the last SSM status change in MM/DD/YY HH:MM:SS format.
|
—
|
—
|
Stop. You have completed this procedure.
NTP-C137 Edit Network Element Defaults
Purpose
|
This procedure explains how to edit factory-configured NE defaults using the NE Defaults editor. The new defaults can be applied only to the node on which they are edited. They can also be exported to a file and imported for use on other nodes.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser
|
Note For a list of card and node default settings, refer to the "Network Element Defaults" appendix in the Cisco ONS 15310-CL Reference Manual. To change card settings individually (that is, without changing the defaults), see Chapter 9, "Change Port Settings." To change node settings, see Chapter 10, "Change Node Settings."
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you want to edit NE defaults.
Step 2 Click the Provisioning > Defaults tabs.
Step 3 Under Defaults Selector, choose a card type (if editing card-level defaults), CTC (if editing CTC defaults), or NODE (if editing node-level defaults). Clicking on the node name (at the top of the Defaults Selector column) lists all available NE defaults in the Default Name column. To selectively display the defaults for a given card type from a node-level or CTC-level, you can drill down the Defaults Selector tree structure.
Step 4 Locate a default that you want to change under Default Name.
Step 5 Click in the Default Value column for the default property you are changing and either choose a value from the drop-down list (when available), or type in the desired new value.
Note If you click Reset before you click Apply, all values will return to their original settings.
Step 6 Click Apply (click in the Default Name column to activate the Apply button if it is unavailable). You can modify multiple default values before applying the changes.
A pencil icon will appear next to any default value that will be changed as a result of editing the defaults file.
Note Changes to most node defaults reprovision the node when you click Apply. Changes made to card settings using the Defaults Editor do not change the settings for cards that are already installed or slots that are preprovisioned for cards, but rather, change only cards that are installed or preprovisioned thereafter. To change settings for installed cards or preprovisioned slots, see Chapter 9, "Change Port Settings."
Note Changing some NE defaults can cause CTC disconnection or a reboot of the node in order for the default to take effect. Before you change a default, view the Side Effects column of the Defaults editor (right-click a column header and select Show Column > Side Effects) and be prepared for the occurrence of any side effects listed for that default.
Step 7 If you are modifying node-level defaults, a dialog box appears telling you that applying defaults for node level attributes overrides current provisioning and asks if you want to continue. Click Yes.
Step 8 If you are modifying the IIOP Listener Port setting, a dialog box appears warning you that the node will reboot and asks if you want to continue. Click Yes.
Stop. You have completed this procedure.
NTP-C138 Import Network Element Defaults
Purpose
|
This procedure imports the NE defaults using the NE Defaults editor. The defaults can either be imported from the CTC software CD (factory defaults) or from a customized file exported and saved from a node.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser
|
Note For a list of card and node NE defaults, refer to the "Network Element Defaults" appendix in the Cisco ONS 15310-CL Reference Manual.
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you want to import NE defaults.
Step 2 Click the Provisioning > Defaults tabs.
Step 3 Click Import.
Step 4 If the correct file name and location of the desired file do not appear in the Import Defaults from File dialog box, click Browse and navigate to the file that you are importing.
Step 5 When the correct file name and location appear in the dialog box (the correct file name is 15310-defaults.txt if you are importing the factory defaults), click OK.
A pencil icon will appear next to any default value that will be changed as a result of importing the new defaults file.
Step 6 Click Apply.
Step 7 If the imported file fails to pass all tests, the problem field shows the first encountered problem default value that must be fixed. Change the problem default value and click Apply. Repeat until the imported file passes all tests successfully.
Note Changes to most node defaults reprovision the node when you click Apply. Changes made to card settings using the Defaults Editor do not change the settings for cards that are already installed or slots that are preprovisioned for cards, but rather, change only cards that are installed or preprovisioned thereafter. To change settings for installed cards or pre-provisioned slots, see Chapter 9, "Change Port Settings."
Note Changing some NE defaults can cause CTC disconnection or a reboot of the node in order for the default to take effect. Before you change a default, view the Side Effects column of the Defaults editor (right-click a column header and select Show Column > Side Effects) and be prepared for the occurrence of any side effects listed for that default.
Step 8 If you are modifying node-level defaults, a dialog box appears telling you that applying defaults for node level attributes overrides current provisioning and asks if you want to continue. Click Yes.
Step 9 If you are modifying the IIOP Listener Port setting, a dialog box appears warning you that the node will reboot and asks if you want to continue. Click Yes.
Stop. You have completed this procedure.
NTP-C139 Export Network Element Defaults
Purpose
|
This procedure exports the NE defaults using the NE Defaults editor. The exported defaults can be imported to other nodes.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Superuser
|
Note The defaults currently displayed are exported whether or not they have been applied to the current node.
Note The NE defaults can also be exported from the File > Export menu. These exported defaults are for reference only and cannot be imported.
Step 1 Complete the "DLP-C29 Log into CTC" task on page 15-49 at the node where you want to export NE defaults.
Step 2 Click the Provisioning > Defaults tabs.
Step 3 Click Export.
Step 4 If the desired file to export to does not appear in the Export Defaults to File dialog box (or does not yet exist) click Browse and browse to the directory where you want to export the data; then either choose or type in (to create) the file to export to [the defaults will be exported as a text file delimited by equals (=) signs].
Step 5 Click OK.
Stop. You have completed this procedure.
Feedback
