Provisioning Multi-VRFCE PE-CE Links

MPLS VPN MVRFCE PE-CE Link Overview

Network Topology

Prerequisite Tasks

Defining VPN for MVRFCE PE-CE Links

Creating MPLS VPN MVRFCE PE-CE Service Policies

Creating MVRFCE PE-CE Service Policies

Creating PE-NoCE Service Policies

Creating MPLS VPN MVRFCE PE-CE Service Requests

Creating MVRFCE PE-CE Service Requests

Creating MVRFCE PE-NoCE Service Requests

Provisioning Multi-VRFCE PE-CE Links

This chapter describes how to configure MPLS VPN Multi-VRFCE PE-CE links in the IP Solution Center (ISC) provisioning process. This chapter contains the following major sections:

•MPLS VPN MVRFCE PE-CE Link Overview

•Creating MPLS VPN MVRFCE PE-CE Service Policies

•Creating MPLS VPN MVRFCE PE-CE Service Requests

MPLS VPN MVRFCE PE-CE Link Overview

This section contains the following sections:

•Network Topology

•Prerequisite Tasks

To provision an MPLS VPN service in ISC, you must first create an MPLS VPN Service Policy. In ISC, a Service Policy is a set of default configurations for creating and deploying a Service Request.

ISC supports two MPLS VPN Service Policy Types: Regular PE-CE an MVRFCE PE-CE. The following scenarios focus on the MVRFCE PE-CE Policy Type.

An MVRFCE PE-CE Policy Type is a PE to CE link with three devices:

•PE

•Multi-VRF CE

•CE

This Policy Type has two options:

•CE Present enabled (One PE with one MVRFCE and one CE; three devices)

•CE Present disabled (One PE with one MVRFCE; two devices)

Figure 8-1 shows an example of an MVRFCE PE-CE link with three devices.

Figure 8-1 MVRFCE PE-CE Link

In an MVRFCE PE-CE link with CE Present enabled, interfaces FE 0/0, E 0/1, E 0/2 and FE 0/1 are configured as an MPLS VPN link in the Service Request process.

Figure 8-2 shows an example of a PE to MVRFCE link with no CE.

Figure 8-2 MVRFCE PE-CE Link with No CE

In an MVRFCE PE-CE link with CE Present disabled, interfaces FE 0/0, E 0/1, and E 0/2 are configured as an MPLS VPN link in the Service Request process.

Network Topology

Figure 8-3 shows an overview of the network topology in which the MPLS VPN MVRFCE PE-CE links are created.

Figure 8-3 Network Topology for MPLS VPN MVRFCE PE-CE Scenarios

The network topology in Figure 8-3 illustrates the lab environment of a service provider (Provider-X) and one customer (Cust-A). There is one Region (West-X) and one PE (mlpe2.cisco.com). Each customer device (one MVRFCE and one CE) represents a Site (mlce3-Site and mlce4-Site).

Prerequisite Tasks

Before you can create a Service Policy in ISC, you must complete the following Inventory Management tasks:

Step 1 Set up a Customer with a Site (see "Creating Customers, Sites, and CPEs" section).

Step 2 Set up a Provider with a Region (see"Creating New Provider PE" section).

Step 3 Import, create, or discover Devices (see "Creating Devices" section).

Step 4 Create CPE and PE (see "Adding New Customer CPE" section).

Step 5 Collect Configurations (see "Collecting Configurations" section).

Step 6 Create Resource Pools (see "Creating Resource Pools").

Step 7 CE routing communities (CERC) (see "Creating CE Routing Communities" section).

Step 8 Define a MPLS VPN (see "Creating MPLS VPN" section).

Defining VPN for MVRFCE PE-CE Links

During service deployment, ISC generates the Cisco IOS commands to configure the logical VPN relationships.

At the beginning of the provisioning process, before creating a Service Policy, a VPN must be defined within ISC. The first element in a VPN definition is the name of the VPN.

To create a VPN Name, follow these steps:

Step 1 Log in to ISC.

Step 2 Choose Service Inventory > Inventory and Connection Manager > VPNs.

The VPN window appears.

Step 3 Click Create to create a VPN.

The Create VPN window appears, as shown in Figure 8-4.

Figure 8-4 Create VPN

Step 4 Edit the following attributes:

•Name: Enter the VPN name.

•Customer: Click Select.

The Select Customer window appears.

Step 5 Choose a Customer and click Select.

Step 6 Click Next.

The VPNs window reappears showing that the VPN Name is associated to the Customer in this new VPN definition.

Creating MPLS VPN MVRFCE PE-CE Service Policies

This section contains the following sections:

•Creating MVRFCE PE-CE Service Policies

•Creating PE-NoCE Service Policies

Creating MVRFCE PE-CE Service Policies

Note Make sure the Editable check boxes are checked where available, so you can edit these attributes in the Service Request process.

Step 1 Log in to ISC.

Step 2 Choose Service Design > Policies.

The Policies window appears.

Step 3 From the Create drop-down list, choose MPLS Policy.

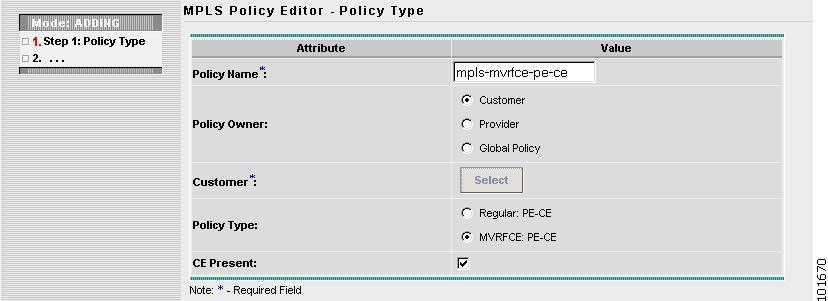

The MPLS Policy Editor - Policy Type window appears, as shown in Figure 8-5.

Figure 8-5 MPLS Policy Editor - Policy Type

Step 4 Edit the following attributes:

•Policy Name: Enter the policy name.

•Policy Owner: Choose the Policy Owner.

•Customer:

–Click Select to specify a customer.

The Customer for MPLS Policy window appears.

–Choose a customer and click Select.

•Policy Type: Choose the Policy Type. (Regular PE-CE)

•CE Present: Check to set CE as present.

Step 5 Click Next.

The MPLS Policy Editor - PE Interface window appears, as shown in Figure 8-6.

Figure 8-6 The MPLS Policy Editor - PE Interface

Step 6 Click Next.

The MPLS Policy Editor - Interface window appears.

Step 7 Click Next.

The MPLS Policy Editor - IP Address Scheme window appears for PE-MVRFCE.

a. Edit the attributes as indicated:

b. IP Numbering Scheme: Choose IP Numbered Scheme.

c. Automatically Assign IP Address: To have ISC automatically assign IP Addresses, click the check box.

d. IP Address Pool: Choose the IP Address Pool.

Step 8 Click Next.

Another set of MPLS Policy Editor - IP Address Scheme windows appear for MVRFCE-CE; same as the steps above.

Step 9 Click Next.

The MPLS Policy Editor - Routing Information window appears for PE-MVRFCE.

Step 10 Click Next to accept the defaults.

The MPLS Policy Editor - Routing Information window appears for MVRFCE-CE.

Step 11 Click Next to accept the defaults.

The MPLS Policy Editor - VRF and VPN Membership window appears.

Step 12 Click Finish.

The Policies window reappears showing that the MPLS VPN MVRFCE PE-CE Service Policy is complete.

Creating PE-NoCE Service Policies

Step 1 Log in to ISC.

Step 2 Choose Service Design > Policies.

The Policies window appears.

Step 3 From the Create drop-down list, choose MPLS Policy.

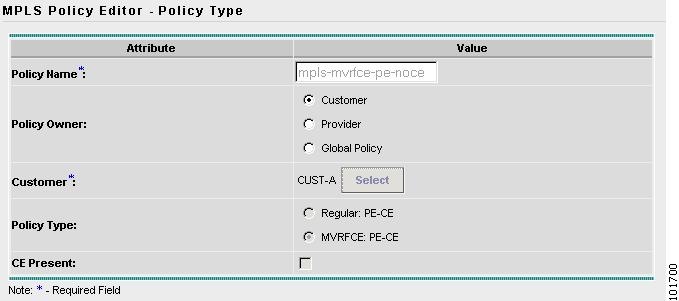

The MPLS Policy Editor - Policy Type window appears, as shown in Figure 8-7.

Figure 8-7 MPLS Policy Editor - Policy Type

Step 4 Edit the following attributes:

•Policy Name: Enter the policy name.

•Policy Owner: Choose the Policy Owner.

•Customer:

–Click Select to specify a customer.

The Customer for MPLS Policy window appears.

–Choose a customer and click Select.

•Policy Type: Choose the Policy Type. (Regular PE-CE)

•CE Present: Do not check to set CE as not present (NoCE).

Step 5 Click Next.

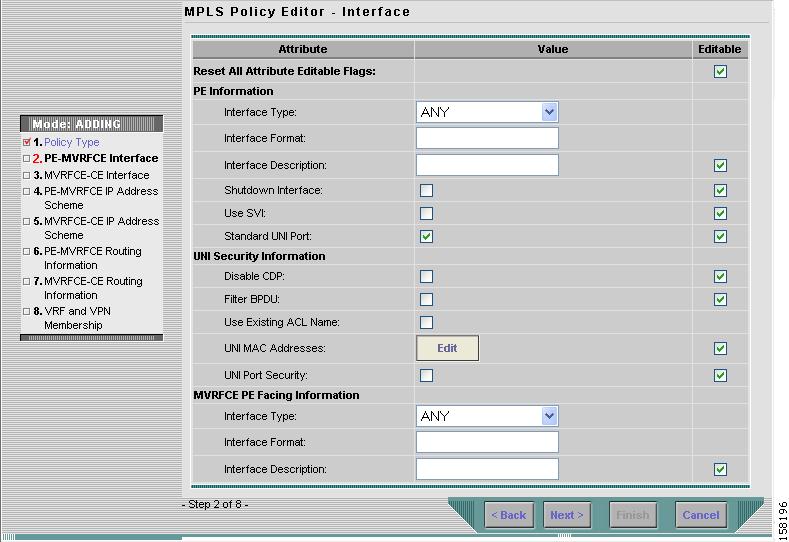

The MPLS Policy Editor - Interface window appears.

Step 6 Click Next to accept the defaults.

The MPLS Policy Editor - Interface window appears for MVRFCE-CE Facing Information.

Step 7 Click Next to accept the defaults.

The MPLS Policy Editor - IP Address Scheme window appears for PE-MVRFCE-CE Interface Address/Mask.

a. Edit the attributes as indicated:

b. IP Numbering Scheme: Choose IP Numbered Scheme.

c. Automatically Assign IP Address: To have ISC automatically assign IP Addresses, check the check box.

d. IP Address Pool: Choose the IP Address Pool.

Step 8 Click Next

The MPLS Policy Editor - IP Address Scheme window appears for MVRFCE-CE Interface Address/Mask.

a. Edit the attributes as indicated:

b. IP Numbering Scheme: Choose IP Numbered Scheme.

c. Automatically Assign IP Address: To have ISC automatically assign IP Addresses, check the check box.

d. IP Address Pool: Choose the IP Address Pool.

Step 9 Click Next.

The MPLS Policy Editor - Routing Information window appears for PE-MVRFCE Routing Information.

Step 10 Click Next to accept the defaults.

The MPLS Policy Editor - Routing Information window appears for MVRFCE-CE Routing Information.

Step 11 Click Next to accept the defaults.

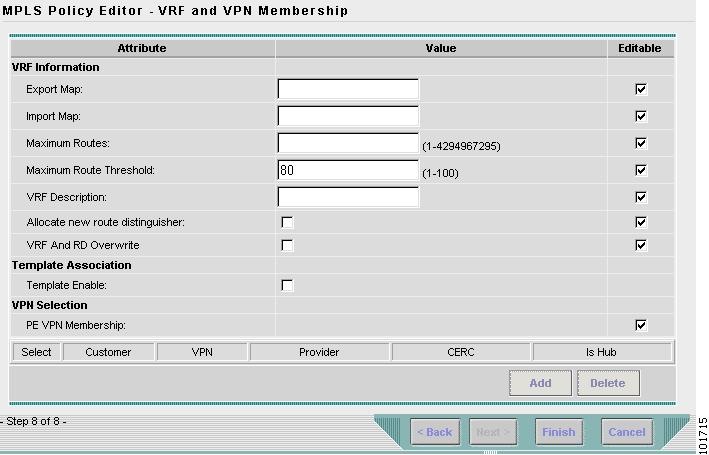

The MPLS Policy Editor - VRF and VPN Membership window appears, as shown in Figure 8-8.

Figure 8-8 The MPLS Policy Editor - VRF and VPN Membership

Step 12 Click Add to join a VPN.

The VPN dialog box appears.

Step 13 Click Join as Hub, then click Done.

The MPLS Policy Editor - VRF and VPN Membership window appears.

Click Finish.

The Policies window reappears showing that the MPLS VPN PE-NoCE Service Policy is complete.

Creating MPLS VPN MVRFCE PE-CE Service Requests

This section contains the following sections:

•Creating MVRFCE PE-CE Service Requests

•Creating MVRFCE PE-NoCE Service Requests

Creating MVRFCE PE-CE Service Requests

Step 1 Log in to ISC.

Step 2 Choose Service Inventory > Inventory and Connection Manager > Service Requests.

The Service Requests window appears.

Step 3 From the Create drop-down list, choose MPLS Policy.

The Select MPLS Policy window appears as shown in Figure 8-9.

Figure 8-9 Select MPLS Policy

Step 4 Choose the MPLS Policy. (mpls-mvrfce-pe-ce)

Step 5 Click OK.

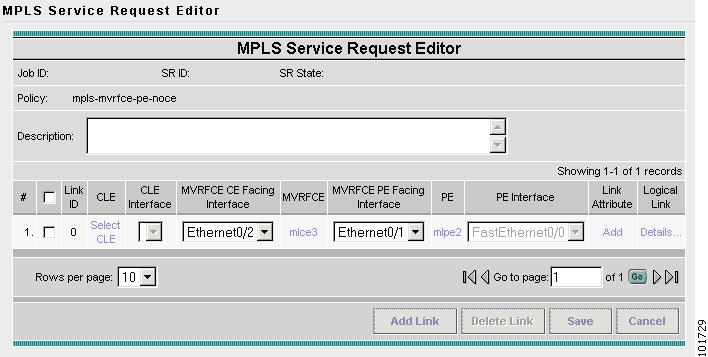

The MPLS Service Request Editor window appears.

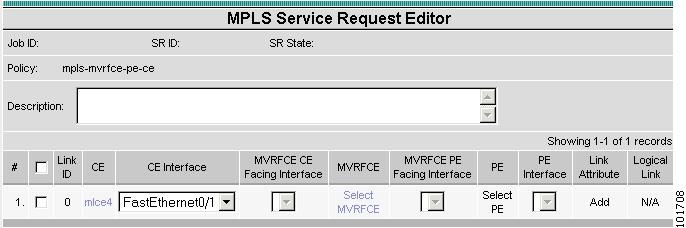

Step 6 Click Add Link.

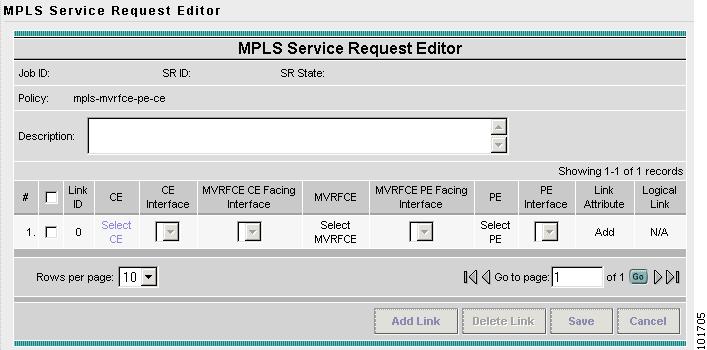

The MPLS Service Request Editor window appears, as shown in Figure 8-10.

Figure 8-10 MPLS Service Request Editor - Select CE

Step 7 Click Select CE.

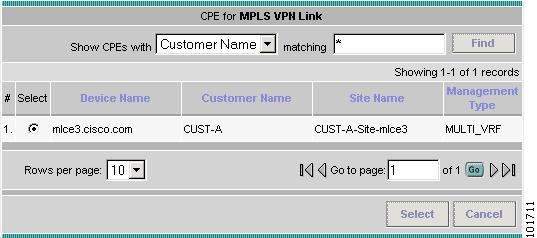

The CPE for MPLS VPN Link window appears.

Step 8 Choose the CPE Device and click Select.

The MPLS Service Request Editor window appears, as shown in Figure 8-11.

Figure 8-11 MPLS Service Request Editor - Select MVRFCE

Step 9 Choose the CE Interface from the drop-down list.

Step 10 Click Select MVRFCE.

The MVRFCE for MPLS VPN Link window appears, as shown in Figure 8-12.

Figure 8-12 PE for MPLS VPN Link

Step 11 Choose the MVRFCE and click Select.

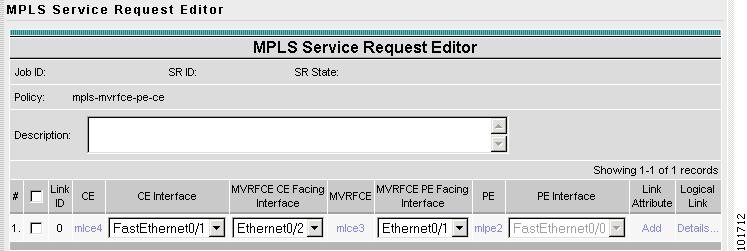

The MPLS Service Request Editor window appears, as shown in Figure 8-13.

Figure 8-13 MPLS Service Request Editor - Select MVRFCE CE Facing Interface

Step 12 Choose the MVRFCE CE Facing Interface from the drop-down list.

Step 13 Choose the MVRFCE PE Facing Interface from the drop-down list.

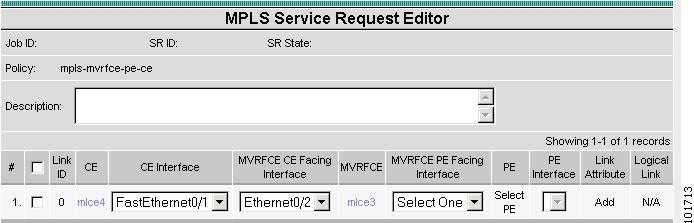

The MPLS Service Request Editor window appears, as shown in Figure 8-14.

Figure 8-14 PE for MPLS VPN Link

Step 14 Click Add in the Link Attribute cell.

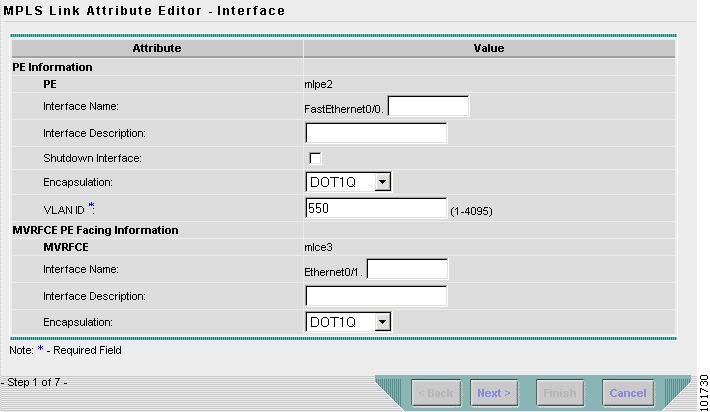

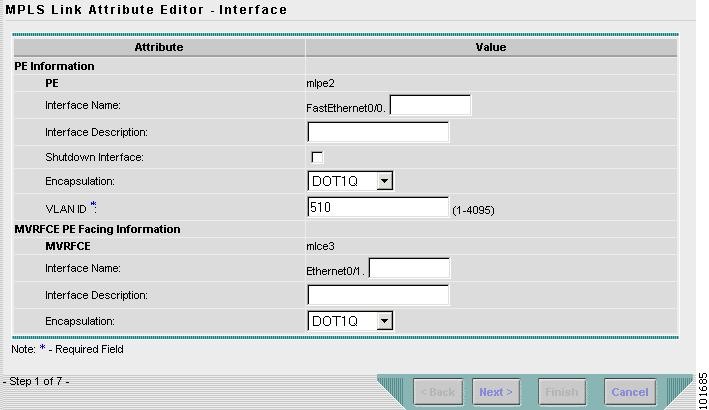

The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 8-15.

Figure 8-15 MPLS Link Attribute Editor - Interface

PE Information

Step 15 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q)

Step 16 VLAN ID: Enter the PE VLAN ID.

MVRFCE PE Facing Information

Step 17 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q))

Step 18 Click Next.

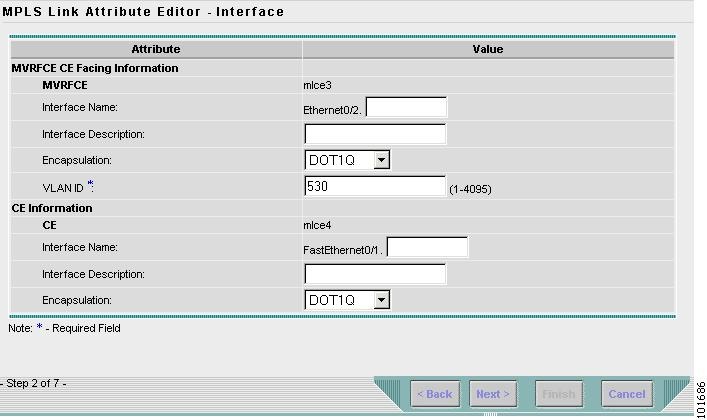

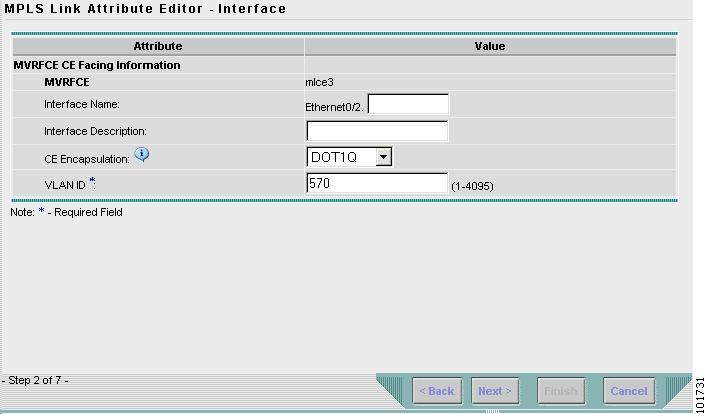

The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 8-16.

Figure 8-16 MPLS Link Attribute Editor - Interface

MVRFCE CE Information

Step 19 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q)

Step 20 VLAN ID: Enter the PE VLAN ID.

MVRFCE PE Facing Information

Step 21 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q)

Step 22 Click Next.

The MPLS Link Attribute Editor - IP Address Scheme window appears for PE-MVRF-CE interface address/mask.

Step 23 Accept the defaults and click Next.

The MPLS Link Attribute Editor - IP Address Scheme window appears for MVRFCE-CE interface address/mask.

Step 24 Accept the defaults and click Next.

The MPLS Link Attribute Editor - Routing Information window reappears for PE-MVRF-CE routing information.

Step 25 Accept the defaults and click Next.

The MPLS Link Attribute Editor - Routing Information window reappears for MVRFCE-CE routing information.

Step 26 Accept the defaults and click Next.

The MPLS Link Attribute Editor - VRF and VPN window appears.

Step 27 Click Add to join a VPN.

The Select CERCs window appears.

Step 28 Choose a Customer from the drop-down list.

Step 29 Choose a VPN from the drop-down list.

Step 30 Check to choose a VPN from the list.

Step 31 Click Join As Hub or Join As Spoke.

Step 32 Click Done. The MPLS Link Attribute Editor - VRF and VPN window reappears.

The MPLS Link Attribute Editor - VRF and VPN window reappears showing the VPN.

Step 33 Click Finish.

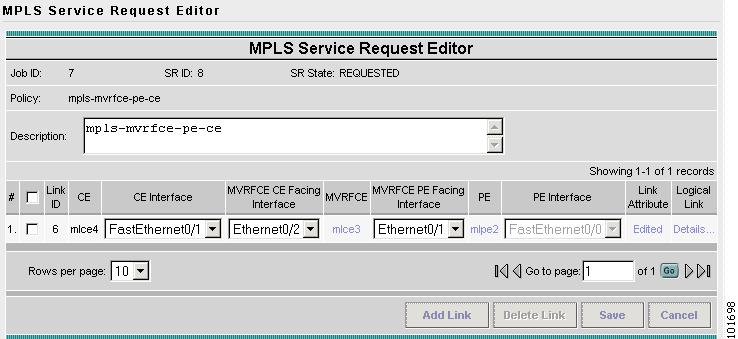

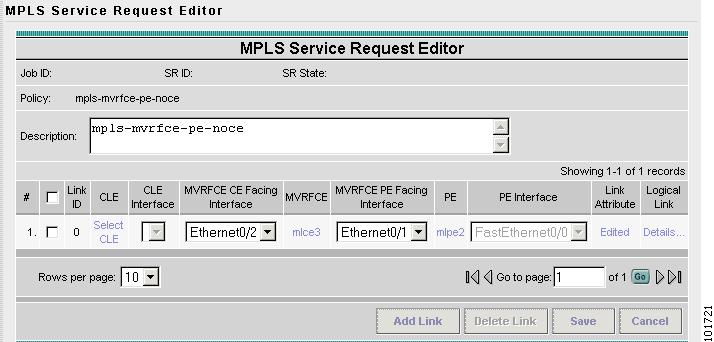

The MPLS Service Request Editor window reappears, as shown in Figure 8-17.

Figure 8-17 MPLS Service Request Editor

Step 34 Enter the Service Request description and click Save. (mpls-mvrfce-pe-ce)

The MPLS Service Requests window reappears showing that the MPLS VPN MVRFCE PE-CE Service Request is in the Requested state and ready to deploy.

Creating MVRFCE PE-NoCE Service Requests

Step 1 Log in to ISC.

Step 2 Choose Service Inventory > Inventory and Connection Manager > Service Requests.

The Service Requests window appears.

Step 3 From the Create drop-down list, choose MPLS VPN.

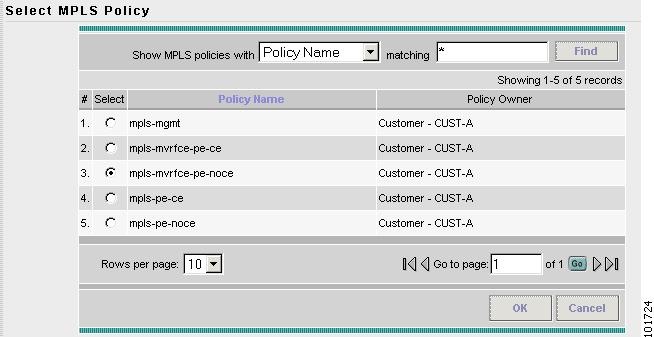

The Select MPLS Policy window appears, as shown in Figure 8-18.

Figure 8-18 Choose MPLS Policy

Step 4 Choose the MPLS Policy. (mpls-mvrfce-pe-noce)

Step 5 Click OK.

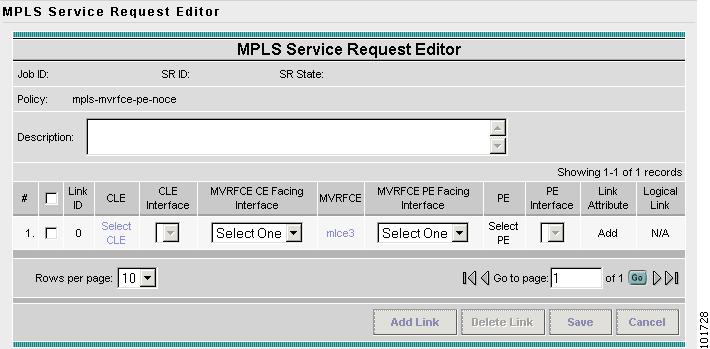

The MPLS Service Request Editor window appears.

Step 6 Click Add Link.

The MPLS Service Request Editor window appears, as shown in Figure 8-19.

Figure 8-19 MPLS Service Request Editor - Select MVRFCE

Step 7 Click Select MVRFCE.

The CPE for MPLS VPN Link window appears.

Step 8 Choose a MVRFCE and click Select.

The MPLS Service Request Editor window appears, as shown in Figure 8-20.

Step 9 Click Select MVRFCE.

Figure 8-20 MPLS Service Request Editor - MVRFCE CE Facing Interface

Step 10 Choose the MVRFCE CE Facing Interface from the drop-down list.

Step 11 Choose the MVRFCE PE Facing Interface from the drop-down list.

The MPLS Service Request Editor window appears, as shown in Figure 8-21.

Figure 8-21 MPLS Service Request Editor

Step 12 Click Add in the Link Attribute cell.

The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 8-22.

Figure 8-22 MPLS Link Attribute Editor - Interface

PE Information

Step 13 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q)

Step 14 VLAN ID: Enter the PE VLAN ID.

MVRFCE PE Facing Information

Step 15 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q))

Step 16 Click Next.

The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 8-23.

Figure 8-23 MPLS Link Attribute Editor - Interface

MVRFCE CE Information

Step 17 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q)

Step 18 VLAN ID: Enter the PE VLAN ID.

MVRFCE PE Facing Information

Step 19 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q)

Step 20 Click Next.

The MPLS Link Attribute Editor - IP Address Scheme window appears for PE-MVRF-CE interface address/mask.

Step 21 Click Next to accept the defaults.

The MPLS Link Attribute Editor - IP Address Scheme window appears for MVRFCE-CE interface address/mask.

Step 22 Click Next to accept the defaults.

The MPLS Link Attribute Editor - Routing Information window reappears for PE-MVRF-CE routing information.

Step 23 Click Next to accept the defaults.

The MPLS Link Attribute Editor - Routing Information window reappears for MVRFCE-CE routing information.

Step 24 Click Next to accept the defaults.

The MPLS Link Attribute Editor - VRF and VPN window appears.

Step 25 Click Add to join a VPN.

Step 26 Click Finish.

The MPLS Service Request Editor window reappears, as shown in Figure 8-24.

Figure 8-24 MPLS Service Request Editor

Step 27 Enter the Service Request description and click Save. (mpls-mvrfce-pe-noce)

The MPLS Service Requests window reappears showing that the MPLS VPN MVRFCE PE-NoCE Service Request is in the Requested state and ready to deploy.

	Cisco IP Solution Center MPLS VPN User Guide, 4.2
	Provisioning MVRFCE PE-CE Links
Cisco IP Solution Center MPLS VPN User Guide, 4.2 Index About This Guide Getting Started with MPLS VPN Provisioning Unmanaged Multi-VRF CE Creating Resource Pools Defining VPNs and CERCs MPLS VPN Service Policies MPLS VPN Service Requests Provisioning Regular PE-CE Links Provisioning MVRFCE PE-CE Links Provisioning Management VPN Provisioning Cable Services Provisioning Carrier Supporting Carrier Provisioning Multiple Devices Spanning Multiple Autonomous Systems Generating MPLS Reports Sample Configlets Troubleshooting MPLS VPN Service Request Transition States IP Solution Center¿MPLS VPN	Download this chapter Provisioning MVRFCE PE-CE Links Download the complete book Cisco IP Solution Center MPLS VPN User Guide, 4.2 - Entire Book in PDF (PDF - 3 MB) Table Of Contents Provisioning Multi-VRFCE PE-CE Links MPLS VPN MVRFCE PE-CE Link Overview Network Topology Prerequisite Tasks Defining VPN for MVRFCE PE-CE Links Creating MPLS VPN MVRFCE PE-CE Service Policies Creating MVRFCE PE-CE Service Policies Creating PE-NoCE Service Policies Creating MPLS VPN MVRFCE PE-CE Service Requests Creating MVRFCE PE-CE Service Requests Creating MVRFCE PE-NoCE Service Requests Provisioning Multi-VRFCE PE-CE Links This chapter describes how to configure MPLS VPN Multi-VRFCE PE-CE links in the IP Solution Center (ISC) provisioning process. This chapter contains the following major sections: •MPLS VPN MVRFCE PE-CE Link Overview •Creating MPLS VPN MVRFCE PE-CE Service Policies •Creating MPLS VPN MVRFCE PE-CE Service Requests MPLS VPN MVRFCE PE-CE Link Overview This section contains the following sections: •Network Topology •Prerequisite Tasks To provision an MPLS VPN service in ISC, you must first create an MPLS VPN Service Policy. In ISC, a Service Policy is a set of default configurations for creating and deploying a Service Request. ISC supports two MPLS VPN Service Policy Types: Regular PE-CE an MVRFCE PE-CE. The following scenarios focus on the MVRFCE PE-CE Policy Type. An MVRFCE PE-CE Policy Type is a PE to CE link with three devices: •PE •Multi-VRF CE •CE This Policy Type has two options: •CE Present enabled (One PE with one MVRFCE and one CE; three devices) •CE Present disabled (One PE with one MVRFCE; two devices) Figure 8-1 shows an example of an MVRFCE PE-CE link with three devices. Figure 8-1 MVRFCE PE-CE Link In an MVRFCE PE-CE link with CE Present enabled, interfaces FE 0/0, E 0/1, E 0/2 and FE 0/1 are configured as an MPLS VPN link in the Service Request process. Figure 8-2 shows an example of a PE to MVRFCE link with no CE. Figure 8-2 MVRFCE PE-CE Link with No CE In an MVRFCE PE-CE link with CE Present disabled, interfaces FE 0/0, E 0/1, and E 0/2 are configured as an MPLS VPN link in the Service Request process. Network Topology Figure 8-3 shows an overview of the network topology in which the MPLS VPN MVRFCE PE-CE links are created. Figure 8-3 Network Topology for MPLS VPN MVRFCE PE-CE Scenarios The network topology in Figure 8-3 illustrates the lab environment of a service provider (Provider-X) and one customer (Cust-A). There is one Region (West-X) and one PE (mlpe2.cisco.com). Each customer device (one MVRFCE and one CE) represents a Site (mlce3-Site and mlce4-Site). Prerequisite Tasks Before you can create a Service Policy in ISC, you must complete the following Inventory Management tasks: Step 1 Set up a Customer with a Site (see "Creating Customers, Sites, and CPEs" section). Step 2 Set up a Provider with a Region (see"Creating New Provider PE" section). Step 3 Import, create, or discover Devices (see "Creating Devices" section). Step 4 Create CPE and PE (see "Adding New Customer CPE" section). Step 5 Collect Configurations (see "Collecting Configurations" section). Step 6 Create Resource Pools (see "Creating Resource Pools"). Step 7 CE routing communities (CERC) (see "Creating CE Routing Communities" section). Step 8 Define a MPLS VPN (see "Creating MPLS VPN" section). Defining VPN for MVRFCE PE-CE Links During service deployment, ISC generates the Cisco IOS commands to configure the logical VPN relationships. At the beginning of the provisioning process, before creating a Service Policy, a VPN must be defined within ISC. The first element in a VPN definition is the name of the VPN. To create a VPN Name, follow these steps: Step 1 Log in to ISC. Step 2 Choose Service Inventory > Inventory and Connection Manager > VPNs. The VPN window appears. Step 3 Click Create to create a VPN. The Create VPN window appears, as shown in Figure 8-4. Figure 8-4 Create VPN Step 4 Edit the following attributes: •Name: Enter the VPN name. •Customer: Click Select. The Select Customer window appears. Step 5 Choose a Customer and click Select. Step 6 Click Next. The VPNs window reappears showing that the VPN Name is associated to the Customer in this new VPN definition. Creating MPLS VPN MVRFCE PE-CE Service Policies This section contains the following sections: •Creating MVRFCE PE-CE Service Policies •Creating PE-NoCE Service Policies Creating MVRFCE PE-CE Service Policies Note Make sure the Editable check boxes are checked where available, so you can edit these attributes in the Service Request process. Step 1 Log in to ISC. Step 2 Choose Service Design > Policies. The Policies window appears. Step 3 From the Create drop-down list, choose MPLS Policy. The MPLS Policy Editor - Policy Type window appears, as shown in Figure 8-5. Figure 8-5 MPLS Policy Editor - Policy Type Step 4 Edit the following attributes: •Policy Name: Enter the policy name. •Policy Owner: Choose the Policy Owner. •Customer: –Click Select to specify a customer. The Customer for MPLS Policy window appears. –Choose a customer and click Select. •Policy Type: Choose the Policy Type. (Regular PE-CE) •CE Present: Check to set CE as present. Step 5 Click Next. The MPLS Policy Editor - PE Interface window appears, as shown in Figure 8-6. Figure 8-6 The MPLS Policy Editor - PE Interface Step 6 Click Next. The MPLS Policy Editor - Interface window appears. Step 7 Click Next. The MPLS Policy Editor - IP Address Scheme window appears for PE-MVRFCE. a. Edit the attributes as indicated: b. IP Numbering Scheme: Choose IP Numbered Scheme. c. Automatically Assign IP Address: To have ISC automatically assign IP Addresses, click the check box. d. IP Address Pool: Choose the IP Address Pool. Step 8 Click Next. Another set of MPLS Policy Editor - IP Address Scheme windows appear for MVRFCE-CE; same as the steps above. Step 9 Click Next. The MPLS Policy Editor - Routing Information window appears for PE-MVRFCE. Step 10 Click Next to accept the defaults. The MPLS Policy Editor - Routing Information window appears for MVRFCE-CE. Step 11 Click Next to accept the defaults. The MPLS Policy Editor - VRF and VPN Membership window appears. Step 12 Click Finish. The Policies window reappears showing that the MPLS VPN MVRFCE PE-CE Service Policy is complete. Creating PE-NoCE Service Policies Step 1 Log in to ISC. Step 2 Choose Service Design > Policies. The Policies window appears. Step 3 From the Create drop-down list, choose MPLS Policy. The MPLS Policy Editor - Policy Type window appears, as shown in Figure 8-7. Figure 8-7 MPLS Policy Editor - Policy Type Step 4 Edit the following attributes: •Policy Name: Enter the policy name. •Policy Owner: Choose the Policy Owner. •Customer: –Click Select to specify a customer. The Customer for MPLS Policy window appears. –Choose a customer and click Select. •Policy Type: Choose the Policy Type. (Regular PE-CE) •CE Present: Do not check to set CE as not present (NoCE). Step 5 Click Next. The MPLS Policy Editor - Interface window appears. Step 6 Click Next to accept the defaults. The MPLS Policy Editor - Interface window appears for MVRFCE-CE Facing Information. Step 7 Click Next to accept the defaults. The MPLS Policy Editor - IP Address Scheme window appears for PE-MVRFCE-CE Interface Address/Mask. a. Edit the attributes as indicated: b. IP Numbering Scheme: Choose IP Numbered Scheme. c. Automatically Assign IP Address: To have ISC automatically assign IP Addresses, check the check box. d. IP Address Pool: Choose the IP Address Pool. Step 8 Click Next The MPLS Policy Editor - IP Address Scheme window appears for MVRFCE-CE Interface Address/Mask. a. Edit the attributes as indicated: b. IP Numbering Scheme: Choose IP Numbered Scheme. c. Automatically Assign IP Address: To have ISC automatically assign IP Addresses, check the check box. d. IP Address Pool: Choose the IP Address Pool. Step 9 Click Next. The MPLS Policy Editor - Routing Information window appears for PE-MVRFCE Routing Information. Step 10 Click Next to accept the defaults. The MPLS Policy Editor - Routing Information window appears for MVRFCE-CE Routing Information. Step 11 Click Next to accept the defaults. The MPLS Policy Editor - VRF and VPN Membership window appears, as shown in Figure 8-8. Figure 8-8 The MPLS Policy Editor - VRF and VPN Membership Step 12 Click Add to join a VPN. The VPN dialog box appears. Step 13 Click Join as Hub, then click Done. The MPLS Policy Editor - VRF and VPN Membership window appears. Click Finish. The Policies window reappears showing that the MPLS VPN PE-NoCE Service Policy is complete. Creating MPLS VPN MVRFCE PE-CE Service Requests This section contains the following sections: •Creating MVRFCE PE-CE Service Requests •Creating MVRFCE PE-NoCE Service Requests Creating MVRFCE PE-CE Service Requests Step 1 Log in to ISC. Step 2 Choose Service Inventory > Inventory and Connection Manager > Service Requests. The Service Requests window appears. Step 3 From the Create drop-down list, choose MPLS Policy. The Select MPLS Policy window appears as shown in Figure 8-9. Figure 8-9 Select MPLS Policy Step 4 Choose the MPLS Policy. (mpls-mvrfce-pe-ce) Step 5 Click OK. The MPLS Service Request Editor window appears. Step 6 Click Add Link. The MPLS Service Request Editor window appears, as shown in Figure 8-10. Figure 8-10 MPLS Service Request Editor - Select CE Step 7 Click Select CE. The CPE for MPLS VPN Link window appears. Step 8 Choose the CPE Device and click Select. The MPLS Service Request Editor window appears, as shown in Figure 8-11. Figure 8-11 MPLS Service Request Editor - Select MVRFCE Step 9 Choose the CE Interface from the drop-down list. Step 10 Click Select MVRFCE. The MVRFCE for MPLS VPN Link window appears, as shown in Figure 8-12. Figure 8-12 PE for MPLS VPN Link Step 11 Choose the MVRFCE and click Select. The MPLS Service Request Editor window appears, as shown in Figure 8-13. Figure 8-13 MPLS Service Request Editor - Select MVRFCE CE Facing Interface Step 12 Choose the MVRFCE CE Facing Interface from the drop-down list. Step 13 Choose the MVRFCE PE Facing Interface from the drop-down list. The MPLS Service Request Editor window appears, as shown in Figure 8-14. Figure 8-14 PE for MPLS VPN Link Step 14 Click Add in the Link Attribute cell. The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 8-15. Figure 8-15 MPLS Link Attribute Editor - Interface PE Information Step 15 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q) Step 16 VLAN ID: Enter the PE VLAN ID. MVRFCE PE Facing Information Step 17 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q)) Step 18 Click Next. The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 8-16. Figure 8-16 MPLS Link Attribute Editor - Interface MVRFCE CE Information Step 19 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q) Step 20 VLAN ID: Enter the PE VLAN ID. MVRFCE PE Facing Information Step 21 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q) Step 22 Click Next. The MPLS Link Attribute Editor - IP Address Scheme window appears for PE-MVRF-CE interface address/mask. Step 23 Accept the defaults and click Next. The MPLS Link Attribute Editor - IP Address Scheme window appears for MVRFCE-CE interface address/mask. Step 24 Accept the defaults and click Next. The MPLS Link Attribute Editor - Routing Information window reappears for PE-MVRF-CE routing information. Step 25 Accept the defaults and click Next. The MPLS Link Attribute Editor - Routing Information window reappears for MVRFCE-CE routing information. Step 26 Accept the defaults and click Next. The MPLS Link Attribute Editor - VRF and VPN window appears. Step 27 Click Add to join a VPN. The Select CERCs window appears. Step 28 Choose a Customer from the drop-down list. Step 29 Choose a VPN from the drop-down list. Step 30 Check to choose a VPN from the list. Step 31 Click Join As Hub or Join As Spoke. Step 32 Click Done. The MPLS Link Attribute Editor - VRF and VPN window reappears. The MPLS Link Attribute Editor - VRF and VPN window reappears showing the VPN. Step 33 Click Finish. The MPLS Service Request Editor window reappears, as shown in Figure 8-17. Figure 8-17 MPLS Service Request Editor Step 34 Enter the Service Request description and click Save. (mpls-mvrfce-pe-ce) The MPLS Service Requests window reappears showing that the MPLS VPN MVRFCE PE-CE Service Request is in the Requested state and ready to deploy. Creating MVRFCE PE-NoCE Service Requests Step 1 Log in to ISC. Step 2 Choose Service Inventory > Inventory and Connection Manager > Service Requests. The Service Requests window appears. Step 3 From the Create drop-down list, choose MPLS VPN. The Select MPLS Policy window appears, as shown in Figure 8-18. Figure 8-18 Choose MPLS Policy Step 4 Choose the MPLS Policy. (mpls-mvrfce-pe-noce) Step 5 Click OK. The MPLS Service Request Editor window appears. Step 6 Click Add Link. The MPLS Service Request Editor window appears, as shown in Figure 8-19. Figure 8-19 MPLS Service Request Editor - Select MVRFCE Step 7 Click Select MVRFCE. The CPE for MPLS VPN Link window appears. Step 8 Choose a MVRFCE and click Select. The MPLS Service Request Editor window appears, as shown in Figure 8-20. Step 9 Click Select MVRFCE. Figure 8-20 MPLS Service Request Editor - MVRFCE CE Facing Interface Step 10 Choose the MVRFCE CE Facing Interface from the drop-down list. Step 11 Choose the MVRFCE PE Facing Interface from the drop-down list. The MPLS Service Request Editor window appears, as shown in Figure 8-21. Figure 8-21 MPLS Service Request Editor Step 12 Click Add in the Link Attribute cell. The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 8-22. Figure 8-22 MPLS Link Attribute Editor - Interface PE Information Step 13 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q) Step 14 VLAN ID: Enter the PE VLAN ID. MVRFCE PE Facing Information Step 15 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q)) Step 16 Click Next. The MPLS Link Attribute Editor - Interface window appears, as shown in Figure 8-23. Figure 8-23 MPLS Link Attribute Editor - Interface MVRFCE CE Information Step 17 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q) Step 18 VLAN ID: Enter the PE VLAN ID. MVRFCE PE Facing Information Step 19 Encapsulation: Choose the PE Encapsulation from the drop-down list. (DOT1Q) Step 20 Click Next. The MPLS Link Attribute Editor - IP Address Scheme window appears for PE-MVRF-CE interface address/mask. Step 21 Click Next to accept the defaults. The MPLS Link Attribute Editor - IP Address Scheme window appears for MVRFCE-CE interface address/mask. Step 22 Click Next to accept the defaults. The MPLS Link Attribute Editor - Routing Information window reappears for PE-MVRF-CE routing information. Step 23 Click Next to accept the defaults. The MPLS Link Attribute Editor - Routing Information window reappears for MVRFCE-CE routing information. Step 24 Click Next to accept the defaults. The MPLS Link Attribute Editor - VRF and VPN window appears. Step 25 Click Add to join a VPN. Step 26 Click Finish. The MPLS Service Request Editor window reappears, as shown in Figure 8-24. Figure 8-24 MPLS Service Request Editor Step 27 Enter the Service Request description and click Save. (mpls-mvrfce-pe-noce) The MPLS Service Requests window reappears showing that the MPLS VPN MVRFCE PE-NoCE Service Request is in the Requested state and ready to deploy.
	© 1992-2008 Cisco Systems, Inc. All rights reserved. Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks of Cisco Systems, Inc.
