To access tasks for managing configuration and image update Jobs, log into the system (see "Logging In" section on page 2-1). Then, from the Home page, click the Jobs tab.
The Jobs Functional Overview page appears showing:
•Query Job
•Cancel/Stop Job
•Restart Job
•Delete Completed Job
Step 1 From the Jobs Functional Overview page, click Query Job.

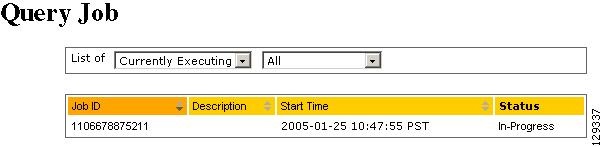

The Query Job page appears (see Figure 5-1).
Figure 5-1 Query Job
Step 2 Use the drop-down arrow in the left menu to select available list of jobs:
•Currently Executing
•Stopped
•Completed
Step 3 Use the drop-down arrow in the right menu to select the type of listing:
•All
•Image Jobs
•Config Jobs
•Delete Files Jobs
•Query Inventory Jobs
Step 1 From the Jobs Functional Overview page, click Cancel/Stop Job.

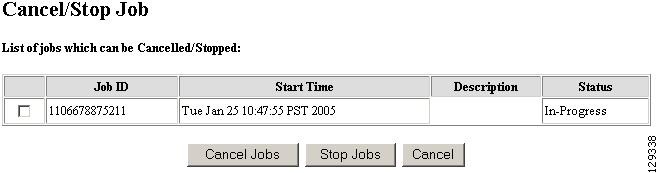

The Cancel/Stop Job page appears (see Figure 5-2).
Figure 5-2 Cancel/Stop Job
Step 2 Check to select the Job you want to cancel or stop, then click Cancel Jobs, or Stop Jobs.
Step 1 From the Jobs Functional Overview page, click Restart Job.

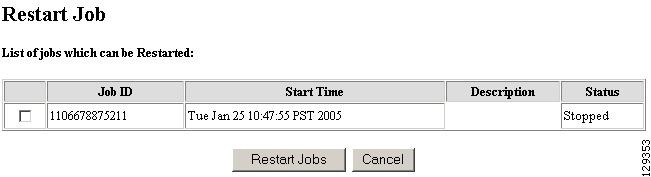

The Restart Job page appears (see Figure 5-3).
Figure 5-3 Restart Job
Step 2 Check to select the Job you want to restart, then click Restart Jobs.
Step 3 After the Cisco Configuration Engine restarts, the prior in-progress job will be in stopped state. Restarting such a job will make the job invalid.
Step 1 From the Jobs Functional Overview page, click Delete Completed Jobs.

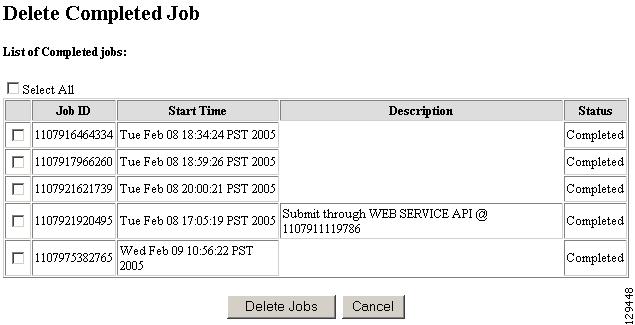

The Delete Completed Jobs page appears (see Figure 5-4).
Figure 5-4 Completed Jobs List
Step 2 Check to select the completed jobs you want to delete, then click Delete Jobs.
