Managing VLANs

This chapter describes the VLAN functionality supported by the Cisco 12000/10720 Router Manager application and guides you through the process of creating and configuring VLAN objects. VLANs support logical grouping of network nodes to reduce broadcast traffic and allow more control in implementing security policies.

The main advantages of VLANs are efficient traffic separation and excellent bandwidth utilization. VLANs improve scaling by logically segmenting the physical LAN structure into sub-networks so that the packets are switched between ports within the same VLAN. This proves to be beneficial for security, broadcast containment, and accounting.

The Cisco 12000/10720 Router Manager facilitates the configuration of VLANs and also manages these VLANs that are provisioned from the EMS. Cisco 12000/10720 Router Manager also provides a synchronization facility so that the VLAN information is retrieved from the entire network, when the sync is initiated for the first time.

This chapter provides the following information:

•Launching the VLAN Windows

•VLAN Synchronization

•Deploying VLAN objects

•VLAN Configuration

•VLAN Performance

•Reparenting VLANs and VLAN Sub-Interfaces

•Deleting VLAN Objects

Launching the VLAN Windows

Table 13-1 displays each object type that can be used to open the Cisco 12000/10720 Router Manager windows that allow you to view performance, configuration, and synchronization of the VLAN objects.

Note Table 13-1 lists the menu options for launching the VLAN dialogs from the VLAN view.

These windows have to be launched from the VLAN objects in the VLAN view. For example, the VLAN Performance window can be launched from a Site and Chassis, but cannot be launched from a module or an Interface object.

Table 13-1 Launching the VLAN Windows

Cisco 12000/10720 Router Manager Window/Task
Objects (that can be selected) to Open the Window
Menu Options to Select to Open Window
Site
Chassis
12000 Series
Chassis
10720
Module
Interface


VLAN Performance

Yes

Yes

Yes

No

No

Cisco 12000/10720 Manager>Performance>
VLAN Management>Performance

VLAN Configuration

Yes

No

No

No

No

Cisco 12000/10720 Manager>Configuration>
VLAN Management>Configuration

VLAN Synchronization

Yes

No

No

No

No

Cisco 12000/10720 Manager>Configuration>
VLAN Management>Synchronize


VLAN Synchronization

VLAN synchronization is provided to synchronize the EM with the VLAN information present in the network. The synchronization process gets the VLAN information from the devices in the network and all the previous VLAN information is lost.

Once the VLAN synchronization is completed, all the VLAN objects and the sub-interfaces are deployed under a DefaultDomain. See "VLAN View" section for more details on domains.

Note It is recommended that synchronization should not to be performed at a time when there is heavy load on the system i.e., when all the chassis are in the performance logging state.

The first time sync is a clean sync which means that the VLAN information from the entire network is cleaned up and then retrieved.

VLAN synchronization happens only on the chassis which are in the managed state i.e., normal or performance logging state.

To synchronize the VLAN objects, proceed as follows:

Step 1 Right click on a domain in the VLAN view and choose Cisco 12000/10720 Manager>
Configuration>VLAN Management>Synchronize.

The VLAN synchronization dialog can be launched from the VLAN view or see Table 13-1 for information on which objects allow you to launch the VLAN Synchronize window.

Figure 13-1 VLAN Synchronize Window

Step 2 Click Synchronize to initiate the synchronization process.

An Information window appears seeking confirmation whether to proceed with the synchronization or not

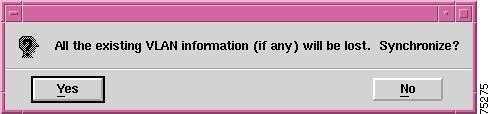

Figure 13-2 VLAN Synchronize

Step 3 Click Yes to continue with synchronization.

Caution Choosing Yes, initiates the VLAN synchronization process and all the previous performance data and the information related to the VLAN objects is lost.

The status of the synchronization process is displayed in the Synchronization Status area in the VLAN Synchronization window.

All the sub-interface objects are created under the VLAN objects that are created under the DefaultDomain in the VLAN view and the sub-interfaces are created under the parent interface in the Component Managed view.

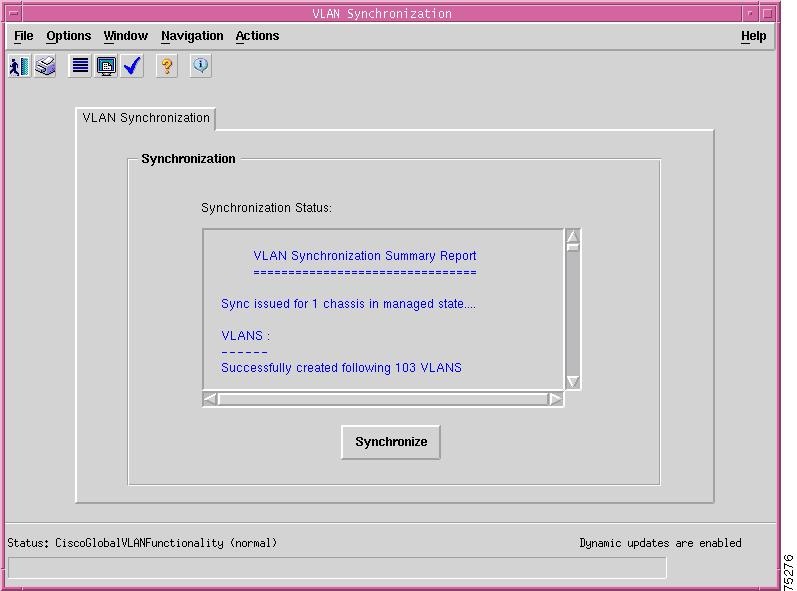

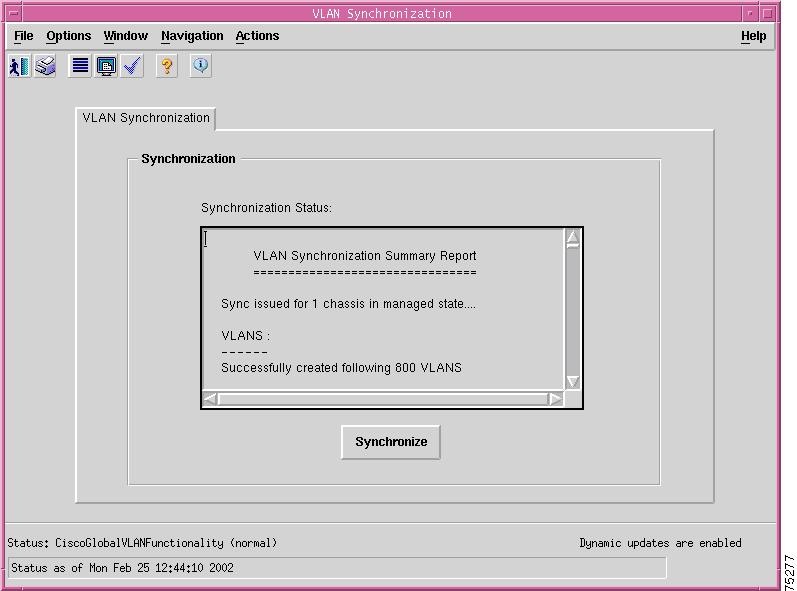

Figure 13-3 VLAN Synchronize—Status Window

Deploying VLAN objects

Cisco 12000/10720 Router Manager provides deployment wizard dialogs to deploy a Domain, VLAN and a VLAN sub-interface. All the VLAN related objects are displayed in the VLAN view.

See "VLAN View" section for more details on VLAN view. A domain is deployed independent of any object. Deploying a VLAN object, typically involves the following steps:

•Deploying a Domain

•Deploying a VLAN and a Sub-Interface Object Under an Existing Domain

Deploying a Domain

To deploy a domain:

Step 1 Place the cursor in the VLAN view to determine the objects you can deploy in the VLAN view.

Step 2 Choose Deployment>Cisco 12000/10720 Manager >Deploy VLAN Related Objects.

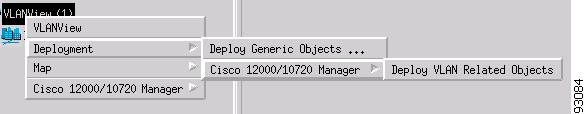

Figure 13-4 Deploying a VLAN object

The Deployment Wizard - Templates window appears (see Figure 13-5) displaying a list of available VLAN object deployment profiles. Deployment profiles are templates that prompt you for the appropriate information required to deploy the selected object successfully.

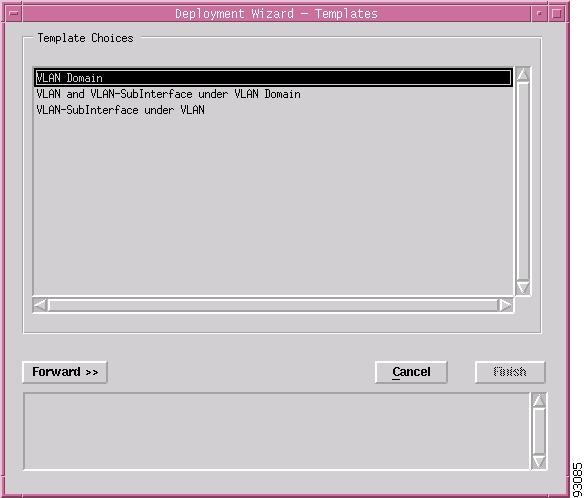

Figure 13-5 Deployment Wizard—Templates Window

Step 3 Choose the deployment profile Template for VLAN domain to deploy a Domain (shown in Figure 13-6).

Step 4 Click Forward.

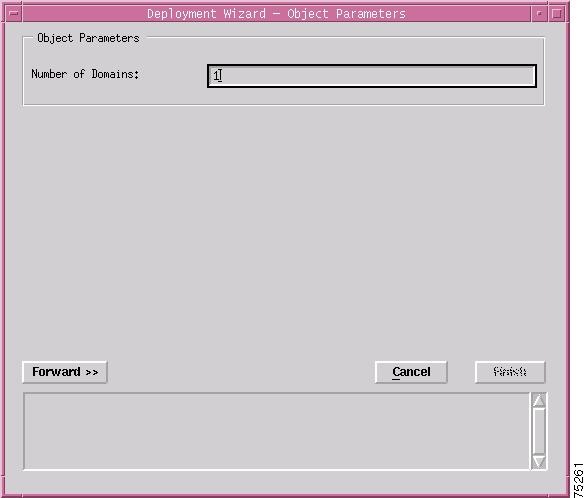

Figure 13-6 Deployment Wizard—Object Parameters Window

Step 5 Enter the number of Domains required. A single domain was entered in this example.

Step 6 Click Forward.

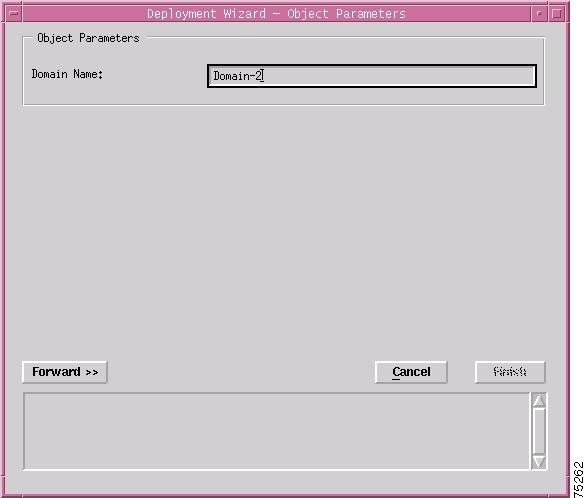

Figure 13-7 Deployment Wizard—Object Parameters Window

Step 7 Enter a Domain name. Each Domain must have a unique name. In this example the domain is called Domain-2.

Step 8 Click Forward.

The Deployment - Wizard Summary window appears. The Summary window provides details of the object you are about to deploy.

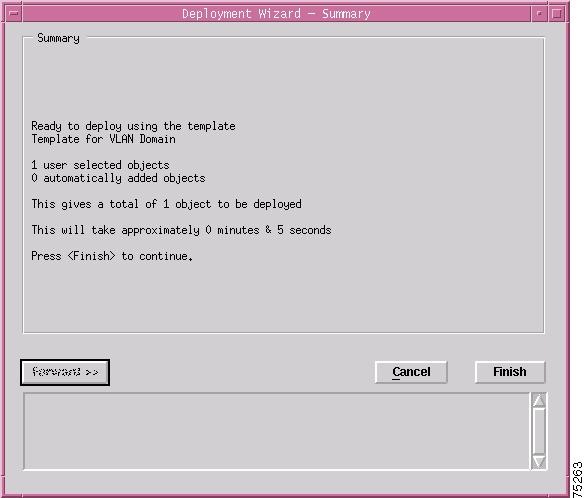

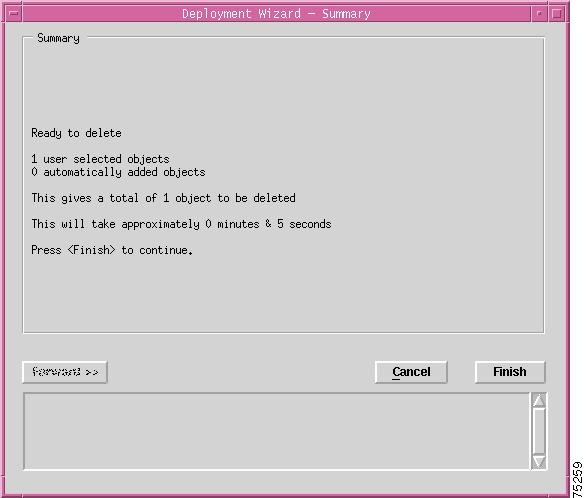

Figure 13-8 Deployment Wizard—Summary

Step 9 Click Finish (when the Deployment Summary information is displayed) to complete deployment and close the Deployment Wizard - Summary window.

The new domain object (that is, Domain-2) is created and displayed in the Map Viewer window under the VLAN view.

Deploying a VLAN and a Sub-Interface Object Under an Existing Domain

To deploy a VLAN object and a VLAN sub-interface object from a domain:

Step 1 Make sure that the IOS usernames and passwords are correctly set in the Management Information.

Step 2 Place the cursor on the domain to determine the objects you can deploy in the VLAN view.

Step 3 Click and hold down the right mouse button.

Step 4 Choose Deployment>Cisco 12000/10720 Manager >Deploy VLAN Related Objects.

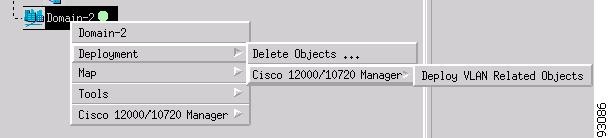

Figure 13-9 Deploying a VLAN object

The Deployment Wizard - Templates window appears (see Figure 13-5) displaying a list of available VLAN object deployment profiles.

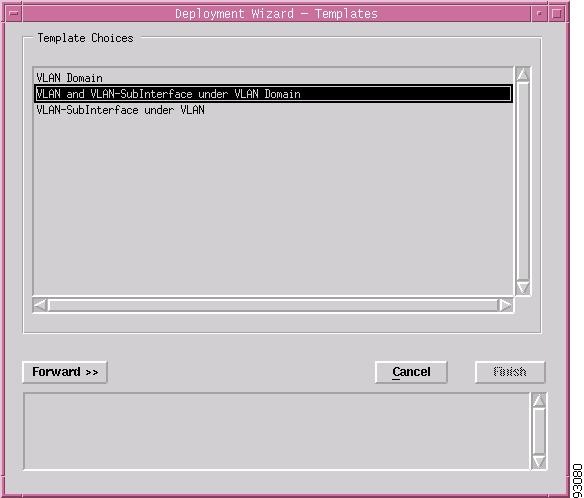

Figure 13-10   Deployment Wizard—Templates Window

Step 5 Choose the deployment profile VLAN and VLAN-SubInterface under VLAN Domain to deploy a VLAN object (shown in Figure 13-6).

You can deploy a sub-interface under a VLAN object by using the VLAN SubInterface under VLAN as shown in Figure 13-10.

Step 6 Click Forward.

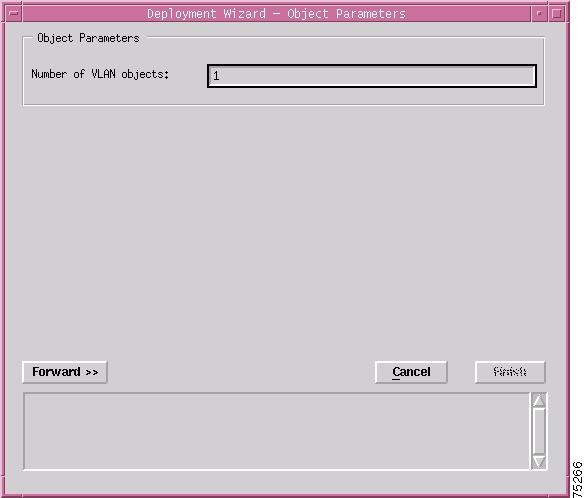

Figure 13-11   Deployment Wizard—Object Parameters Window

Step 7 Enter the number of VLAN objects required to be deployed. A single VLAN object was entered in this example.

Step 8 Click Forward.

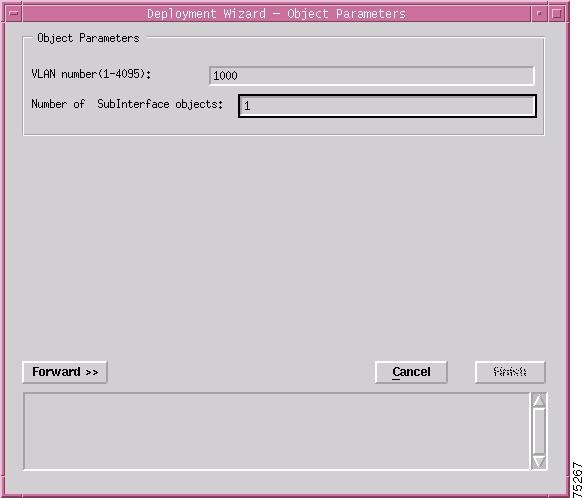

Figure 13-12   Deployment Wizard—Object Parameters Window

Step 9 Enter the VLAN number. The VLAN number should be in the range of 1 to 4095.

Step 10 Enter the number of SubInterface objects that should be deployed under the VLAN object.

Step 11 Click Forward.

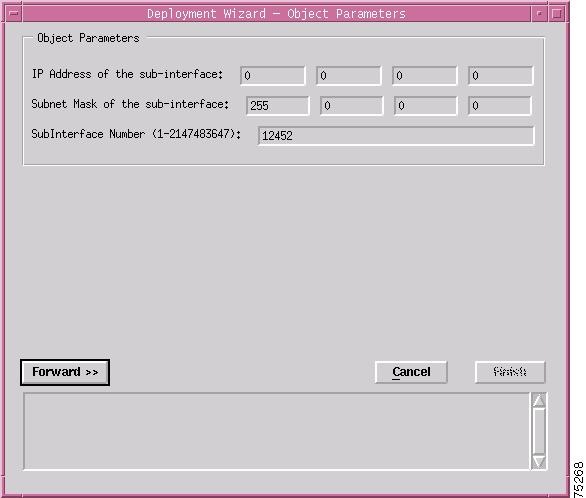

Figure 13-13   Deployment Wizard—Object Parameters

Step 12 Enter the IP address of the sub-interface to be deployed under the VLAN object.

Step 13 Enter the subnet mask of the sub-interface.

Note These are optional fields.

Step 14 Enter the sub-interface number. The number can range between 1 to 2147483647.

Step 15 Click Forward.

Figure 13-14   Deployment Wizard—Views

Step 16 Choose Select.

An Object Selector window appears.

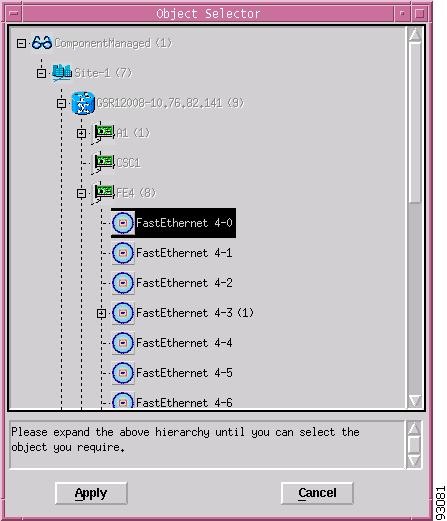

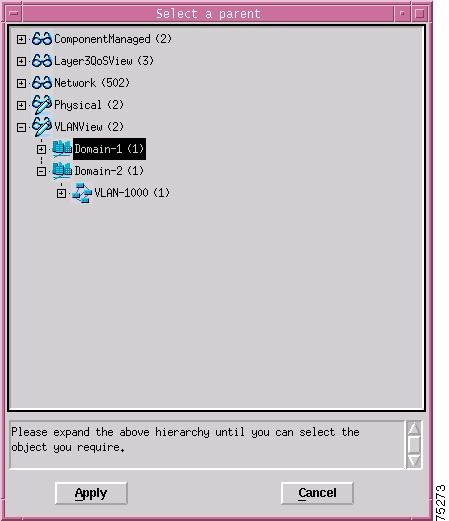

Figure 13-15   Object Selector Window

Step 17 Navigate down the hierarchy until you find the interface you wish to deploy the VLAN object under.

Step 18 Click on the object, then click Apply.

The Deployment Wizard, Component Managed field appears.

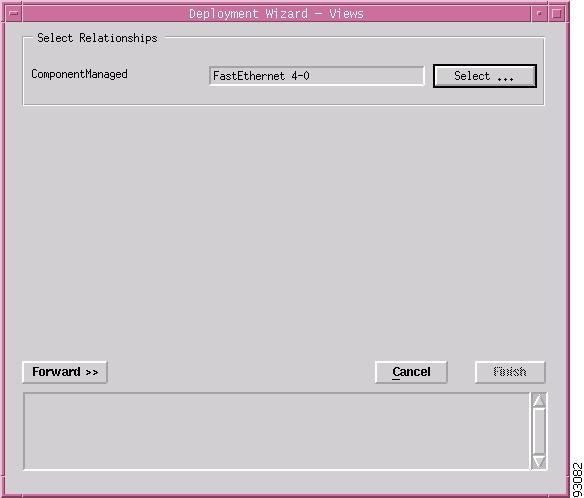

Figure 13-16   Deployment Wizard—Views

Step 19 Click Forward.

The Deployment - Wizard Summary window appears. The Summary window provides details of the object you are about to deploy.

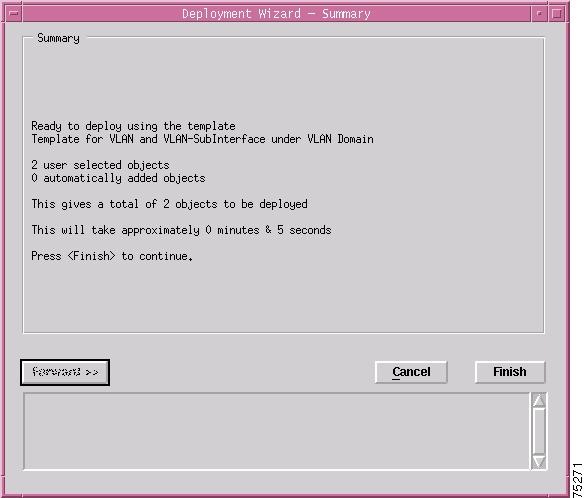

Figure 13-17   Deployment Wizard—Summary

Step 20 Click Finish (when the Deployment Summary information is displayed) to complete deployment and close the Deployment Wizard - Summary window.

The new VLAN object and the sub-interface object is created and displayed in the Map Viewer window.

For managing sub-interface objects, use the same dialogs as those for the interfaces.

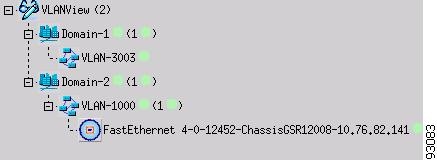

Figure 13-18   Example showing the newly deployed Domain, VLAN and Sub-interface

VLAN Configuration

The Configuration window allows you to commission or decommission any VLAN objects in a specific domain. It also allows the performance logging to be enabled/disabled for the sub-interfaces under a VLAN object. All the state changes ripple down to the sub-interface child objects.

The VLAN Configuration section provides the following information:

•Viewing the VLAN Configuration Window

•Commissioning a VLAN

•Decommissioning a VLAN

•Start Performance Logging

•Stop Performance Logging

•VLAN Configuration Window—Detailed Description

Viewing the VLAN Configuration Window

To view the VLAN Configuration window:

Step 1 Right click on a VLAN object in the VLAN view and choose Cisco 12000/10720 Manager>Configuration>VLAN Management>Configuration.

See Table 13-1 for information on which objects allow you to launch the VLAN Configuration window. The VLAN Configuration window appears with the Configuration tab displayed.

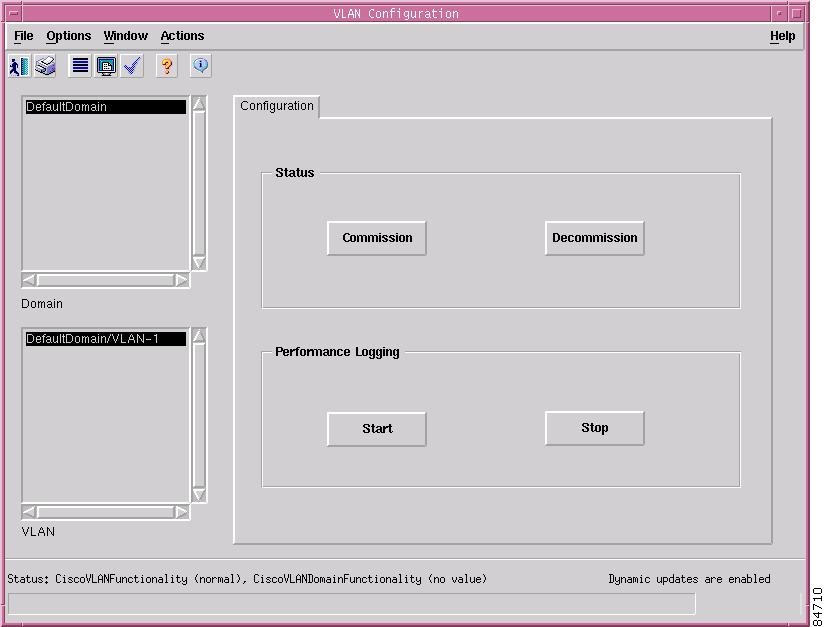

Figure 13-19   VLAN Configuration Window

Step 2 Choose a Domain and VLAN from the list boxes displayed at the left of the window.

Commissioning a VLAN

You can select VLANs in many ways. You can select:

•Multiple VLANs (from the VLAN object selector list) which allows you to commission all of the selected VLANs simultaneously.

•Multiple VLANs in a list by holding down the Shift key and then selecting the first and last VLAN in the list.

•Multiple individual VLANs by holding down the Ctrl key and clicking on the individual VLANs. Multiple selection of domains is possible in the VLAN configuration window.

To commission a VLAN:

Step 1 Open the VLAN Configuration window.

See "Viewing the VLAN Configuration Window" section for further details.

Step 2 Choose a Domain and VLAN from the list boxes displayed at the left of the window.

Step 3 Choose Commission to commission the selected VLAN.

An Action Report window appears confirming that the commissioning action was completed successfully.

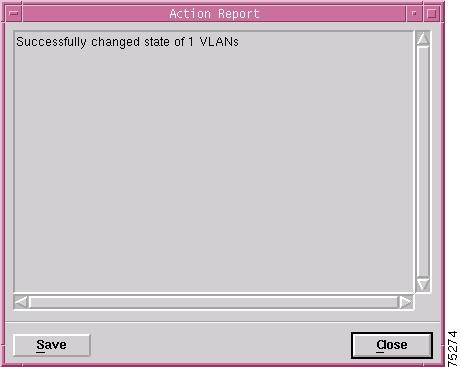

Figure 13-20   Action Report Window

Step 4 Click Close to close the Action Report window.

Decommissioning a VLAN

You can select VLANs in many ways. You can select:

•Multiple VLANs (from the VLAN object selector list) which allows you to commission all of the selected VLANs simultaneously.

•Multiple VLANs in a list by holding down the Shift key and then selecting the first and last VLAN in the list.

•Multiple individual VLANs by holding down the Ctrl key and clicking on the individual VLANs. Multiple selection of domains is possible in the VLAN configuration window.

To decommission a VLAN:

Step 1 Open the VLAN Configuration window.

See "Viewing the VLAN Configuration Window" section for further details.

Step 2 Choose a Domain and VLAN from the list boxes displayed at the left of the window.

Step 3 Choose Decommission to decommission the selected VLAN.

An Action Report window appears confirming that the decommissioning action was completed successfully.

Figure 13-21   Action Report Window

Step 4 Choose Close to close the Action Report window.

Start Performance Logging

You can select VLANs in many ways. You can select:

•Multiple VLANs (from the VLAN object selector list) which allows you to commission all of the selected VLANs simultaneously.

•Multiple VLANs in a list by holding down the Shift key and then selecting the first and last VLAN in the list.

•Multiple individual VLANs by holding down the Ctrl key and clicking on the individual VLANs. Multiple selection of domains is possible in the VLAN configuration window.

To start performance logging:

Step 1 Open the VLAN Configuration window.

See "Viewing the VLAN Configuration Window" section for further details.

Step 2 Choose a Domain and VLAN from the list boxes displayed at the left of the window.

Step 3 Choose Start to start performance polling on the VLAN.

An Action Report window appears confirming that the state of the VLAN object was successfully changed.

There is no performance data gathered on the VLANs but all the sub-interfaces (in the Normal state) under the VLAN move to the performance logging state and the performance data is gathered for the sub-interfaces.

Figure 13-22   Action Report Window

Step 4 Choose Close to close the Action Report window.

Stop Performance Logging

You can select VLANs in many ways. You can select:

•Multiple VLANs (from the VLAN object selector list) which allows you to commission all of the selected VLANs simultaneously.

•Multiple VLANs in a list by holding down the Shift key and then selecting the first and last VLAN in the list.

•Multiple individual VLANs by holding down the Ctrl key and clicking on the individual VLANs. Multiple selection of domains is possible in the VLAN configuration window.

To stop performance logging:

Step 1 Open the VLAN Configuration window.

See "Viewing the VLAN Configuration Window" section for further details.

Step 2 Choose a Domain and VLAN from the list boxes displayed at the left of the window.

Step 3 Choose Stop to stop the performance polling on the VLAN.

An Action Report window appears confirming that the state of the VLAN object was successfully changed.

Figure 13-23   Action Report Window

Step 4 Choose Close to close the Action Report window.

VLAN Configuration Window—Detailed Description

The VLAN Configuration window displays a single Configuration tab.

Configuration Tab

The Configuration tab (see Figure 13-19) displays two areas: Status and Performance Logging.

Status

The Status area contains two action buttons:

Commission—Commissions the selected VLAN.

Decommission—Decommissions the selected VLAN.

Performance Logging

The Performance Logging area contains two action buttons:

Start—Starts the performance polling for the selected VLAN.

Stop—Stops the performance polling for the selected VLAN.

VLAN Performance

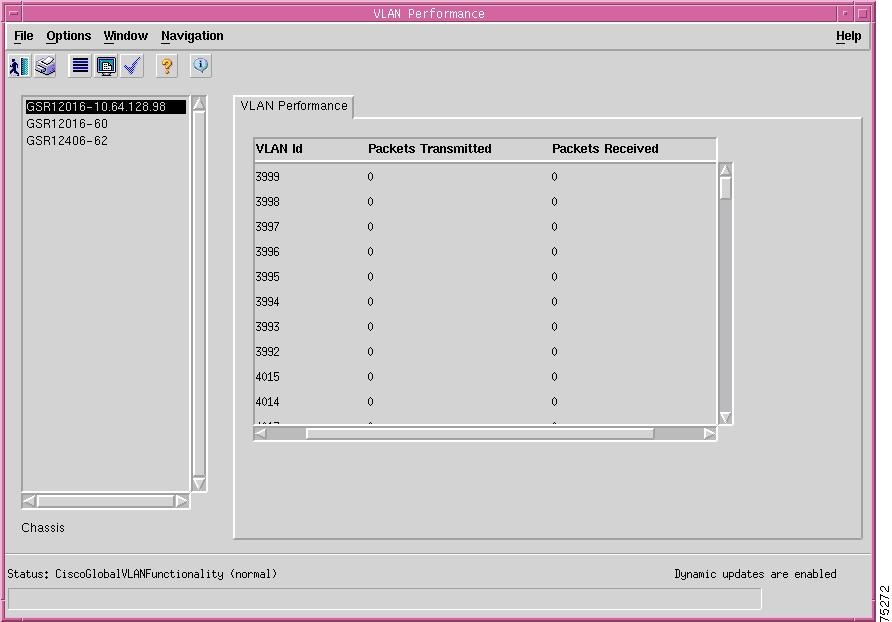

The VLAN Performance window displays the current performance information for all the VLANs on a selected chassis. Performance polling is not done on a VLAN object, instead, when a VLAN object is moved to the performance polling state, all the child sub-interfaces are also moved into the performance polling state.

The VLAN Performance section provides the following information:

•Viewing the VLAN Performance Window

•VLAN Performance Window—Detailed Description

Viewing the VLAN Performance Window

The VLAN performance data is available on a per chassis basis and the performance data is received directly from the device. The VLAN performance window displays the statistics for all the VLANs configured on a selected chassis.

To view the VLAN Performance window:

Step 1 Right click on a VLAN object in the VLAN view and choose Cisco 12000/10720 Manager>Perfomance>VLAN Management> Performance.

See Table 13-1 for information on which objects allow you to launch the VLAN Performance window. The VLAN Performance window appears, with the VLAN Performance tab displayed.

Figure 13-24   VLAN Performance Window

Step 2 Choose a Chassis from the list box displayed at the left of the window.

The performance information for the selected chassis is displayed.

VLAN Performance Window—Detailed Description

The VLAN Performance window (see Figure 13-24) displays a single VLAN Performance tab. The VLAN Performance tab has a single tabular area with the following fields:

VLAN Id—Identifier for the VLAN object.

Packets transmitted—The number of packets transmitted by this VLAN.

Packets Received—The number of packets received by this VLAN.

The performance data for the VLAN sub-interfaces can be viewed in the Generic Interface Performance dialog. See "Generic Interface Performance" section for further information.

Reparenting VLANs and VLAN Sub-Interfaces

After the VLAN synchronization process is completed, all the VLAN objects and their corresponding sub-interface objects are placed under a single domain called the DefaultDomain. Reparenting allows you to relocate a VLAN object under a domain or a sub-interface object under a VLAN as per the requirements.

Caution It is strongly recommended that the user does not move any VLAN related objects out of VLANView. This could result in unexpected behavior.

Reparenting is basically used to relocate the VLAN and sub-interface objects under different domains after synchronization.

To reparent a sub-interface object under a VLAN, it is mandatory that the vlan id of the parent VLAN object should be identical. The VLAN object must be placed under a different domain.

For example, if you have deployed two domains, D1 and D2. D1 has a VLAN object V1 with sub-interface E1 placed under it and D2 has a VLAN object V2. It will not be possible to place E1 from domain D1 under V2 in domain D2 as the VLAN ids of the VLAN objects are different.

However, if a VLAN object is deployed in D2 having id as V1, it would be possible for you to place sub-interface object E1 under V1 in domainD2.

To reparent a VLAN object:

Step 1 Right click on a VLAN object in the VLAN view and choose View Manipulation>Reparent Object(s).

The Reparent dialog can be launched from a VLAN or sub-interface object.

Figure 13-25   VLAN—Reparent Objects Window

Step 2 Select a parent object from the list of VLAN objects displayed under the specific domain in the VLAN view.

Step 3 Choose Apply.

Deleting VLAN Objects

A VLAN or sub-interface object can be deleted only if it is in the decommissioned state. To decommission a sub-interface object, see the "Decommissioning an Interface" section.

To delete an existing VLAN or a sub-interface object:

Step 1 Choose the VLAN objects you wish to delete within the VLAN view. See "VLAN View" section for details of the VLAN view.

Step 2 Choose Deployment>Delete Objects.

The Deployment Wizard appears with a summary of what will be deleted.

Figure 13-26   Deployment Wizard—Summary

Step 3 Click Finish, and the VLAN object is deleted. If deletion fails, another interface might be currently using the VLAN object, therefore you cannot delete the object.

Note Similarly, a domain can be deleted provided the VLAN and sub-interface objects are decommissioned.
