IP PBX Mode Attribute for SRST Mode
IP Phone Information Attribute for Shared Lines
Feature VSA for Supplementary Services

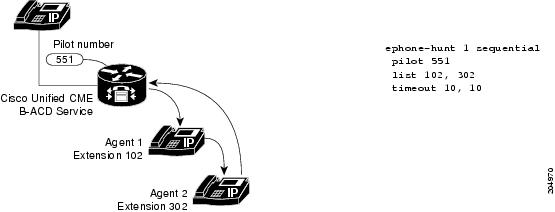

Cisco Unified CME B-ACD and Hunt Groups
VSA Definitions
First Published: February 20, 2001Last Updated: October 28, 2008This chapter lists the VSAs supported by Cisco voice products.
Finding Support Information for Platforms and Cisco IOS and Catalyst OS Software Images
Use Cisco Feature Navigator to find information about platform support and Cisco IOS and Catalyst OS software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.
Contents
•
Feature VSA for Supplementary Services
Note
•
•
Cisco Voice VSAs
Table 6 lists (in alphabetical order) the VSAs used by Cisco voice calls.
Table 6 VSAs Supported by Cisco Voice Calls
account-code
1
String
56222
Account code entered using the Acct soft key during call setup or when connected to an active call.
acom-level
1
Integer -1 to 45 (dB)
42
Average ACOM level, in dB, for the call (ACOM is the combined loss achieved by the echo canceler). The value -1 indicates that the level cannot be determined or level detection is disabled.
authorized-services
1
1: Framed
2: Voice
3: Fax
4: Modem passthru2
Services that are authorized for the user by the RPMS server. There can be multiple instances of this VSA in an access-accept packet.
backward-call-indicators=text
1
cha:t1,sta:t2,cpc:t3, e2ei:t4,e2em:t5,inter :t6,iupu:t7,h:t8,acc: t9,eco:t10,sccpm:t11
where:
t1: Charge indicator
t2: Called-party status indicator
t3: Called-party category indicator
t4: End-to-end information indicator
t5: End-to-end method indicator
t6: Interworking indicator
t7: ISDN user part indicator
t8: Hold indicator
t9: ISDN access indicator
t10: Echo control device indicator
t11: SCCP method indicatorcha:y,sta:f,cpc :o,e2ei:n,e2em: n,inter:y,iupi: n,h:n,acc:n,eco :n,sccpm:u
The BCI VSA is generated by the gateway's RADIUS client and, where available, is sent to the RADIUS server in stop accounting messages for call legs 1 and 4. The BCI VSA is also included in interim-update packets.
call-id=value
1
String. Syntax is per RFC 2543.
CBA33553-65FC07 02-0-1F4D0B30@1 98.78.252.51 or
82BABC3E-720311 D8-801D8402F4B5 1A50@yahoo.com
Value of the Call-ID header.
calling-party-category=text1
[,country:text2,national-value:
text3]1
String:
[,country:<country code>,national-value: national code]
calling-party-c ategory=29,coun try:TH*,nationa l-value:FA
The CPC VSA is generated by the gateway's RADIUS client and, where available, is sent to the RADIUS server in start and stop accounting messages for call legs 1 and 4.
text1 contains the best-fit calling party category value extracted from the Generic Transparency Descriptor (GTD) CPC and stored in a TDUserContainer.
If Field Compatibility Information (FDC) is populated and the FDC parameter value is CPC and the FDC field value is cpc, then the optional fields enclosed in [ ] are added to the CPC VSA.
country contains the 3-character country code representing the country variant extracted from the GTD Protocol Name (PRN) country field and stored in a TDUserContainer.
text2 contains the national value extracted from the GTD FDC data field and stored in a TDUserContainer.
call-origin-endpt
1
String
192.168.1.1
Originating gateway or gatekeeper of a leg 3 VoIP call. Contains either the IP address of the originating gateway or the interzone ClearToken (IZCT) of the originating gatekeeper zone.
call-origin-endpt-type
1
1: IP address
2: IZCT1
Type of information contained in call-origin-endpt.
charge-number=text
1
Integer
3035550199
The CHN VSA is generated by the gateway's RADIUS client and, where available, is sent to the RADIUS server in start and stop accounting messages for call legs 1 and 4.
charged-units
1
Unsigned integer
0
Number of charged units for this connection. For incoming calls or if charging information is not supplied by the switch, the value of this object is zero.
Cisco-NAS-port
2
String of characters and numbers
BRI0/0:1
Incoming port identification on NAS or gateway. The syntax is as follows:
signalling type controller: timeslot group/control channel: bearer channel
This VSA has the same function as RADIUS attribute 5, and uses strings assigned by Cisco IOS software to its hardware ports.
codec-bytes
1
Unsigned integer
160
Payload size of the voice packet.
coder-type-rate=string
1
String
For voice calls:
g729r8
g729br8
g729ar8
g729abr8
g729br8
g726r16
g726r24
g726r32
g711alaw
g711ulaw
g728
g723r63
g723r53
g723ar63
g723ar53
clear-channel
gsm
gsmfr
gsmefr
transparent
no-upspeed
voice
none
For fax calls:
2400
4800
7200
9600
12000
14400
disable
g711ulaw
Negotiated coder rate. Specifies the transmit rate of voice/fax compression to its associated call leg for the call.
disconnect-text
1
String
normal call clearing
ASCII text describing the reason for call termination.
early-packets
1
Unsigned integer
1
Number of received voice packets that arrived too early to store in jitter buffer during the call.
feature-vsa
1
String
"feature-vsa=fn :TWC,ft:10/28/2 005 01:30:27.775,cg n:1011011006,cd n:1011011007,fr s:0,fid=36,fcid :411CC18B468911 DA801DE37EC374A 8C6,
legID:13"Captures feature-specific information. There can be multiple instances of this VSA in a start or stop record. For information, see the "Feature VSA for Supplementary Services" section.
gapfill-with-interpolation
1
## ms
0 ms
Duration, in ms, of voice signal played out with signal synthesized from parameters or samples of data preceding and following in time because of voice data not received on time (or lost) from the voice gateway for this call.
gapfill-with-prediction
1
## ms
0 ms
Duration, in ms, of voice signal played out with signal synthesized from parameters or samples of data preceding in time because of voice data not received on time (or lost) from the voice gateway for this call.
An example of such playout is frame-erasure or frame-concealment strategies in G.729 and G.723.1 compression algorithms. This counter object locks at the maximum value, which is approximately two days.
gapfill-with-redundancy
1
## ms
0 ms
Duration, in ms, of voice signal played out with signal synthesized from redundancy parameters available because of voice data not received on time (or lost) from the voice gateway for this call.
gapfill-with-silence
1
## ms
0 ms
Duration, in ms, of voice signal replaced with signal played out during silence because of voice data not received on time (or lost) from voice gateway for this call.
gk-xlated-cdn
1
String
8539663
The gatekeeper presented called number in the ACF RAS message. The GK/GKTMP could modify the called number by appending a prefix or it could be left unchanged.
gk-xlated-cgn
1
String
7324501661
The gatekeeper presented calling number in the ACF RAS message. The GK/GKTMP could modify the calling number which is carried in the ACF nonstandard parameter.
gtd-gw-rxd-cnn
1
Integer
Values:
noa:ff
npi:g, pi:h
si:i, #:e
where:
ff: 0-34
g: 0,1
h: 0-3
i: 1,2,3,4,252
e: number in E.164 format4505550121
GTD connected number.
gw-collected-cdn
1
String
4088539663
The gateway (application) collected destination number that will eventually be used for routing the call. Only applicable for 2-stage calls.
gw-final-xlated-cdn
1
Integer
Values:
ton:d
npi:aa
#:e
where:
d = 0-7
aa = 0-15
e = number in E.164 format8539663
Called number to be sent out of the gateway.
gw-final-xlated-cgn
1
Integer
Values:
ton:d
npi:aa
pi:b
si:c
#:e
where:
d = 0-7
aa = 0-15
b = 0-3
c = 0-3
e = number in E.164 format7324501661
Calling number to be sent out of the gateway.
gw-rxd-cdn
1
Integer
Values:
ton:d
npi:aa
#:e
where:
d = 0-7
aa = 0-15
e = Number in E.164 format18008567335
Called number as received by the gateway in the incoming signaling message before any translation rules are applied.
gw-rxd-cgn
1
Integer
Values:
ton:d
npi:aa
pi:b
si:c
#:e
where:
d = 0-7
aa = 0-15
b = 0-3
c = 0-3
e = Number in E.164 format5102261709
Calling number as received by the gateway in the incoming signaling message before any translation rules are applied.
h323-billing-model=value
109
0 = Credit customer (post-paid)
1 = Debit card (prepaid)
2 = Limited service (prepaid)1
Type of billing service for a specific call.
h323-call-origin=value
26
answer=Legs 1 and 3
originate=Legs 2 and 4
callback=Legs 1 and 3answer
Gateway's behavior in relation to the connection that is active for this leg.
For example, answer on leg 1; originate on leg 2; callback on leg 1.
h323-call-type=value
27
Telephony
VOIP
VOFR
VOIP
Protocol type or family used on this leg of the call.
h323-conf-id=value
24
16-byte number in hexadecimal notation with one space between each 4-byte integer
0f332211 0a332255 89767673 898783ff
Unique call identifier generated by the gateway. Used to identify the separate billable events (calls) within a single calling session. In Cisco IOS call-control application programming interface (Cisco IOS CCAPI), this value is called the globally unique identifier (GUID). The h323-conf-id is different from the h323-incoming-conf-id. For example, in long pound calls (calls in which you press the # key to make a new call) with a prepaid application, a new h323-conf-id value is generated for each new call. The new value is generated in the leg following authorization (either leg 2 or leg 4) and is subsequently passed to each downstream leg. Gateway-retries because of a connection request failure do not result in a new value; each retry uses the same h323-conf-id value.
h323-connect-time=value1
28
hh:mm:ss:mmm ZON DDD MMM ## YYYY
18:27:30:094 PST Fri Aug 25 2000
Connect time in Network Time Protocol (NTP) format: hour, minutes, seconds, microseconds, time_zone, day, month, day_of_month, and year.
h323-credit-amount=value2
101
Decimal digits in format n.nn or n
1000.00 = one thousand; 1000 = 1000 cents or 10.00
Amount of credit (in currency) that the account contains.
h323-credit-time=value3
102
Integer in decimal notation
300
Number of seconds for which the call is authorized.
h323-currency=value
110
3-character value from ISO 4217
USD
Currency for use with h323-credit-amount.
h323-disconnect-cause=value
30
2-character, ASCII-encoded hexadecimal number representing a Q.931 code. Range: 01 to A0 (which is 1to 160 decimal)
4
Q.931 disconnect cause code retrieved from CCAPI. The source of the code is the disconnect location such as a PSTN, terminating gateway, or SIP.
h323-disconnect-time=value
29
hh:mm:ss:mmm ZON DDD MMM ## YYYY
18:27:30.094 PST Fri Aug 25 2000
Disconnect time in NTP format: hour, minutes, seconds, microseconds, time_zone, day, month, day_of_month, year.
h323-gw-id=value
33
Character string
bowie.cisco.com , AS5300_5
Domain name server (DNS) name or local name of the voice gateway that is sending the VSA.
h323-incoming-conf-id=value
1
16-byte number in hexadecimal notation with one space between each 4-byte integer
57166451 A69E11D6 808D87CA 50D5D35A
Unique number for identifying a calling session on a gateway, where a session is closed when the calling party hangs up. Is used to do the following:
•
•
The value used for legs 1 and 2 on the originating gateway can differ from that for legs 3 and 4 on a terminating gateway. The h323-incoming-conf-id is different from h323-conf-id. For example, the h323-incoming-conf-id value remains the same in the start/stop records for long pound calls.
h323-ivr-in=value_1:value_2
1
Customer defined
color:red
User-definable AV pairs sent from the RADIUS server to the voice gateway. You can read and use the value at the gateway with a customized Tcl IVR script.
h323-ivr-out=value_1:value_2
1
Customer defined
color:blue
User-definable AV pairs sent from the voice gateway to the RADIUS server. You can set (write) the value with a customized Tcl IVR script.
h323-preferred-lang=value
107
2-character code from ISO 639-1
en
Language to use when playing the audio prompt specified by the h323-prompt-id.
h323-prompt-id=value
104
Integer in decimal notation
27
Index into an array that selects prompt files used at the gateway.
h323-redirect-ip-address=value
108
Numerals in dotted decimal notation
192.168.175.16
IP address for an alternate or redirected call.
h323-redirect-number=value
106
E.164 format (decimal digits with no spacing characters)
14085550111
Phone number to which the call is redirected; for example, to a toll-free number or a customer service number.
h323-remote-address=value
23
Numerals in dotted decimal notation: nnn.nnn.nnn.nnn
10.10.17.128
IP address of the remote gateway.
h323-remote-id=value
1
String
joshi4.mydomain
DNS name or locally defined hostname of the remote gateway.
h323-return-code=value
103
Decimal numbers
0
Return codes are instructions from the RADIUS server to the voice gateway. For a list of return code values, see Table 19 on page 112.
h323-setup-time=value
25
hh:mm:ss.mmm ZON DDD MMM ## YYYY
18:27:28.032 UTC Wed Dec 9 1998
Setup time in NTP format: hour, minutes, seconds, microseconds, time_zone, day, month, day_of_month, year.
h323-time-and-day=value
105
Decimal number:
hh:mm:ss
10:36:57
Time of day at the dialed number or at the remote gateway in the format: hour, minutes, seconds.
h323-voice-quality=value
31
Decimal numbers from ICPIF table of G.113
5
Value representing impairment/calculated planning impairment factor (ICPIF) of the voice quality on the connection provided by lower-layer drivers (such as the digital signal processor). Low numbers represent better quality.
hiwater-playout-delay
1
## ms
65 ms
High-water mark Voice Playout FIFO Delay during the voice call.
in-carrier-id
1
String
carrier A
Carrier ID of the trunk group through which the call arrived or the partnering voice service provider identifier of the incoming VoIP call.
incoming-area
1
String
ingress-zone
Gatekeeper identifier, or the source zone or area, of the incoming VoIP call.
incoming-req-uri=value
1
String. Syntax is as per RFC 2543.
sip:5550112@cis co.com;user=pho ne
Request-URI as given in the incoming request-line, including any url-parameters.
info-type
1
String. Values are:
1=other (not described)
2=speech
3=unrestrictedDigital
4=unrestrictedDigital56
5=restrictedDigital
6=audio31
7=audio7
8=video
9=packetSwitched2
Type of information carried by media.
in-intrfc-desc
1
String (replaces in-portgrp-id)
desc-A
Description assigned to the voice port of the incoming call.
in-portgrp-id=text
1
ASCII string associated with the port on the gateway used by this call.
<Service Provider ID>
Description associated with the incoming hardware telephony port that is used with this leg of the call.
Note
internal-error-code
1
String
1.1.179.2.37.0
Cause of failed calls. For more information, see the "Internal Error Codes" section.
in-trunkgroup-label
1
String
trunk-1
Contains the trunk group label associated with the group of voice ports from which the incoming time-division multiplexing (TDM) call arrived on the gateway.
ip-pbx-mode
1
String. Values:
cme
srstsrst
Identifies whether call record is generated by a Cisco Unified SRST or Cisco Unified CME router.
ip-phone-info
1
String
"ip-phone-info= dn:shared,usr:j smith,tag:7"
SCCP phone involved in a call on a shared line. For information, see the "IP Phone Information Attribute for Shared Lines" section.
isup-carrier-id=text
1
String
1212
The CID VSA is generated by the gateway's RADIUS client and, where available, is sent to the RADIUS server in start and stop accounting messages for call legs 1 and 4.
late-packets
1
Unsigned integer
0
Number of received voice packets that arrived too late to play out with codec during the call.
local-hostname
1
String
hostname.com
Local hostname accessed or used by the SNMP MIBs.
logical-if-index
1
Integer
30
ifIndex value of the logical interface through which this call was made. For ISDN media, this is the ifIndex of the B channel that was used for this call.
lost-packets
1
Unsigned integer
0
Number of lost voice packets during the call.
lowater-playout-delay
1
## ms
25 ms
Low-water mark Voice Playout FIFO Delay during the voice call.
max-bit-rate
1
Integer
Maximum bandwidth used by video call.
method=value
1
String
INVITE
Method name as specified in the request-line.
next-hop-dn=value
1
String of the form
FQDN[:port]
[/protocol]where FQDN is a host, domain name, or dotted IP address (for other field descriptions, see prev-hop-ip)
next-hop-dn=
company.comDomain name (DN) or fully qualified domain name (FQDN) where the request is forwarded. When DNS SRV is used to resolve the address, then this contains the DN name. (Note that this means that the FQDN is not included.)
If only a DNS A query is used to resolve the next hop IP address, then this is the FQDN name. If no resolution is needed, meaning that a dotted IP address was found in a static route entry or the request-uri, then this attribute is not included in the accounting message.
next-hop-ip=value
1
String (same syntax as prev-hop-ip)
192.168.16.2
Next-hop IP address where the request is forwarded.
noise-level
1
Integer -100..8
-74
Average noise level for the call, in dBm.
ontime-rv-playout
1
Unsigned integer (ms)
27460
Duration, in ms, of voice playout from data received on time for this call, in ms. This plus the durations for the GapFills entries provides the Total Voice Playout Duration for Active Voice.
originating-line-info=text
1
String
0
The OLI VSA is generated by the gateway's RADIUS client and, where available, is sent to the RADIUS server in start and stop accounting messages for call legs 1 and 4.
outgoing-area
1
String
egress-zone
Gatekeeper identifier, or the destination zone or area, of the outgoing VoIP call.
outgoing-req-uri=value
1
String. Syntax is as per RFC 2543.
sip:5550112@
cisco.com;
user=phoneRequest-URI used in the outgoing request-line, including any url-parameters.
out-carrier-id
1
String
carrier B
Carrier ID field of the trunk group through which the call leaves the gateway or the partnering voice services provider identifier of the outgoing VoIP call.
out-intrfc-desc
1
String (replaces out-portgrp-id)
desc-B
Description assigned to the voice port of the outgoing call.
out-portgrp-id=text
1
ASCII string associated with the port on the gateway used by this call.
<Service Provider ID>
Description associated with the outgoing hardware telephony port that is used with this leg of the call.
Note
out-trunkgroup-label
1
String
trunk-2
Trunk-group label associated with the group of voice ports from which the outgoing TDM call leaves on the gateway.
peer-address
1
E.164 format (decimal digits with no spacing characters)
4085550164
Number that this call was connected to. If the number is not available, then it has a length of zero.
peer-id
1
Integer
1
ID value of the peer table entry to which this call was made. If a peer table entry for this call does not exist, the value of this object is zero.
peer-if-index
1
Integer
84
ifIndex value of the peer table entry to which this call was made. If a peer table entry for this call does not exist, the value is zero.
prev-hop-ip=value
1
String of the form
ip-address[:port][/pr otocol]
where "port" is an optional parameter giving the transport layer port number and the default is 5060.
where "protocol" is an optional parameter giving the transport layer protocol and the default is UDP.
Valid values: TCP and UDP; because the proxy does not support TCP, this parameter is never included.
10.10.16.2:
5061/UDPPrevious hop IP address, as seen by the proxy. What would normally be placed in the "received" parameter when the proxy detected that the sender does not agree with the top-most via.
prev-hop-via=value
1
String. Syntax is as per RFC 2543.
10.10.137.18:
5060"Sent-by" portion of topmost via when the request arrived at the proxy.
receive-delay
1
## ms
25 ms
Average Playout FIFO Delay plus the decoder delay during the voice call.
redirecting-number=text
1
noa=t1,npi=t2,pi=t3,#=t4
noa=3,npi=5,pi= 1,#=3035550112
The RGN VSA is generated by the gateway RADIUS client and, where available, is sent to the RADIUS server in start accounting messages for all call legs.
The text contains the redirecting number extracted from the redirect number parameter. The redirecting number is encoded in the text value.
For example, redirecting-number=noa=t1,npi=t2,pi=t3,#=t4
where:
•
•
•
•
release-source
1
1: Calling party located in PSTN
2: Calling party located in VoIP network
3: Called party located in PSTN
4: Called party located in VoIP network
5: Internal release in POTS leg
6: Internal release in VOIP leg
7: Internal call-control application (Tcl or VoiceXML script)
8: Internal release in VoIP AAA
9: Console command line (CLI or MML)
10: External RADIUS server
11: External network management application
12: External call control agent
1
If a call was released by the calling party, called party, or an internal or external source.
remote-media-address
1
String
remote-media-ad dress
Remote-media gateway IP address.
remote-media-id
1
String
remote-media-id
Remote-media gateway DNS name.
remote-media-udp-port
1
Integer 0...65535
19366
Remote-media gateway UDP port.
remote-udp-port
1
Integer 0...65535
19366
Remote system UDP listener port to which voice packets are transmitted.
resource-service
1
1: Reservation
2: Query2
What the client is requesting from the RPMS server.
round-trip-delay
1
## ms
2 ms
Voice-packet round-trip delay, in ms, between the local and remote device on the IP backbone during the call.
session-protocol
1
Available strings:
other
cisco
h323
multicast
sipv2
sdp
frf11-trunk
cisco-switched
MarsAnalog
C1000Isdn
aal2-trunk
cisco
Session protocol used for calls between the local and remote router through the IP backbone. Always equal to "sip" for SIP or "Cisco" for H.323.
sip-hdr=value
1
String including SIP header formatted as per RFC 2543.
sip-hdr=Max-For wards: 5
Arbitrary message header from the incoming request. Includes the complete header line. Whether a message header is included in accounting records is controlled by the configuration.
subscriber=value
1
String from T1/CAS (Channel Associated Signaling) or E1/R2 line/signal.
Coin
T1/Channel Associated Signaling (CAS) or E1/R2 signal information about a subscriber.
transmission-medium-req=text
1
String
0
TMR VSA is generated by the gateway's RADIUS client and, where available, is sent to the RADIUS server in start and stop accounting records for call legs 1 and 4.
tx-duration
1
### ms
300 ms
Duration, in ms, of transmit path open from this peer to the voice gateway for the call.
vad-enable
1
enable/disable
enable
Whether or not voice-activity detection (VAD) is enabled for the voice call.
voice-tx-duration
1
### ms
100 ms
Duration, in ms, for this call. This value divided by tx-duration equals the Voice Utilization Rate.
1 A timestamp that is preceded by an asterisk (*) or a dot (.) might not be accurate. An asterisk (*) means that after a gateway reboot, the gateway clock was not manually set and the gateway has not synchronized with an NTP server yet. A dot (.) means the gateway NTP has lost synchronization with an NTP server.
2 How the gateway behaves in response to this value is controlled by the Tcl IVR script. TclWare scripts for debit_card (prepaid) applications use this value; current credit_card (postpaid) applications do not look at the value in this VSA.
3 How the gateway behaves in response to this value is controlled by the Tcl IVR script. TclWare scripts for debit_card (prepaid) applications expect a positive value in this VSA. Credit_card (postpaid) applications expect the value "-1" (negative-one) in this VSA.
IP PBX Mode Attribute for SRST Mode
The IP PBX Mode attribute (ip-pbx-mode) identifies whether the router generating a call record is either a Cisco Unified SRST or Cisco Unified CME router.
Cisco Unified Communications Manager generates call records for all phones under its control. If the WAN link fails, phones fall back to Cisco Unified SRST or Cisco Unified CME in SRST fallback mode. When the phones register to the Cisco Unified SRST router, the router generates call records with the ip-pbx-mode value reported as either "cme" or "srst" in the stop records for all calls using SCCP.
For Cisco Unified CME in SRST fallback mode, IP phones that automatically learn their configuration from Cisco Unified Communications Manager during fallback are reported as "srst." If an IP phone is manually configured in Cisco Unified CME, the ip-pbx-mode is reported as "cme." Typically, you do not configure IP phones manually on the Cisco Unified SRST router.
The mode is determined at call setup for incoming calls, and at connect for outgoing call legs. You can filter call records on this attribute to identify the CDRs generated by the Cisco Unified SRST router for IP phones that rehomed after the WAN link went down. You can combine the filtered records from the Cisco Unified SRST router with the call records from Cisco Unified Communications Manager to generate a complete report.
If the connection to Cisco Unified Communications Manager is lost after a call is established to an external phone on a PSTN trunk, the ip-pbx-mode attribute is not reported in the call record. The ip-pbx-mode attribute is reported only after the phone registers to the Cisco Unified SRST router.
The router generates the ip-pbx-mode in call records only when there is a SCCP leg involved in the call. For non-SCCP-controlled ports connected to the Cisco Unified SRST router, CDRs are generated regardless of the state of the WAN link to Cisco Unified Communications Manager. The ip-pbx-mode is blank in file-based accounting records and omitted in RADIUS accounting records when the WAN link is up or when the call does not involve SCCP.
IP Phone Information Attribute for Shared Lines
The Shared-Line feature in Cisco Unified CME allows multiple phones to share the same directory number. The IP phone information attribute (ip-phone-info) identifies the phone involved in a call on a shared line. It reports the username associated with the phone as defined by the name command and indicates whether the call is going to or from the shared line. Because the username field can be blank, the ephone tag associated with the directory number is also reported.
This information is generated for all calls, whether or not a shared line is involved. It is reported for each call leg as a composite VSA in RADIUS start and stop records and as an attribute in file-based accounting stop records.
Table 7 lists (in sequential order) the attribute-value (AV) pairs that are included in ip-phone-info.
Note
Feature VSA for Supplementary Services
The feature VSA (feature-vsa) is a composite VSA in CDRs that captures accounting information about the supplementary services used for all the call legs involved in a call. It includes a feature correlation ID that enables you to track each of the supplementary features invoked on the different call legs of a call within a single gateway.
The feature VSA is written as a simple string containing AV pairs separated by commas; each AV pair uses a colon (:) delimiter. The specific AV pairs included in the feature VSA depend on the type of supplementary feature. There can be multiple instances of this VSA in RADIUS start and stop records. File-based accounting generates only stop records.
Cisco IOS Release 12.4(9)T and later releases support the following supplementary features:
•
•
•
•
•
•
Cisco IOS Release 12.4(20)T and later releases support hairpin call transfers using the trunk optimization feature, for the following types of calls:
•
•
•
Cisco IOS Release 12.4(22)T and later releases support the Hold and Resume features.
•
•
The feature VSA captures the hold and resume event including the time stamp, the reason for the event based on the user's supplementary service request, and which user put the caller on hold.
The hold duration is determined by the difference between the Hold time stamp and the Resume time stamp. For Call Transfers, the duration is the difference between the hold time stamp and the disconnect time stamp. You can use this information to identify how long a caller is put on hold and help determine the efficiency of your support personnel.
For an example of a CDR for Hold and Resume, see the "Hold and Resume CDR: Example" section on page 58.
Note
Feature VSA Examples
The following examples show the format of the feature VSA for different types of calls. Display this output by using the debug radius accounting command or the gw-accounting syslog command.
Basic Two-Way Call
Oct 28 01:30:27.779: RADIUS: Cisco AVpair [1] 127 "feature-vsa=fn:TWC,ft:10/28/2005 01:30:27.775,cgn:1011011006,cdn:1011011007,frs:0,fid=36,fcid:411CC18B468911DA801DE37EC374A 8C6,legID:13"
Basic Call Transfer
Oct 28 01:31:10.271: RADIUS: Cisco AVpair [1] 179 "feature-vsa=fn:CXFER,ft:10/28/2005 01:31:10.247,frs:0,fid:40,xconsID:1,fcid:411CC18B468911DA801DE37EC374A8C6,legID:14,
xrson:0,xsts:5,Xor:1011011007,Xee:1011011006,Xto:1011011008"Basic Call Forwarding
Oct 28 02:42:03.479: RADIUS: Cisco AVpair [1] 191 "feature-vsa=fn:CFNA,ft:10/28/2005 02:42:03.467,frs:0,fid:332,fcid:3E775493469311DA812EE37EC374A8C6,legID:9D,frson:3,fdcnt:1, fwder:1011011009,fwdee:1011011006,fwdto:1011011008,frm:1011011009"
Hold
"feature-vsa=fn:HOLD,ft:11/05/2007
12:01:47.747,frs:0,fid:17,fcid:C655249C8B1011DC800AF5E95DD6F9BF,legID:4,hrson:1,holding:50 00,held:3000,sl:1,usr:mbrown,tag:5"
Resume
"feature-vsa=fn:RESUME,ft:11/05/2007
12:01:52.415,frs:0,fid:20,fcid:C91D6D008B1011DC800BF5E95DD6F9BF,legID:4,hrson:0,holding:50 00,held:3000,sl:1,usr:jsmith,tag:7"
Transfer at Alert
May 28 22:26:38.706: RADIUS: Cisco AVpair [1] 167 "feature-vsa=fn:HP_XFER_ALERT,ft:05/28/2008 14:26:31.106,frs:0,fid:42,xconsID:,fcid:E802FCF32C3B11DD8021A71BF42E2491,legID:14,xrsn:0,
xsts:5,Xor:1001,Xee:C803,Xto:5003Transfer at Connect
May 28 22:26:38.706: RADIUS: Cisco AVpair [1] 167 "feature-vsa=fn:HP_XFER_CONNECT,ft:05/28/2008 14:26:31.106,frs:0,fid:42,xconsID:,fcid:E802FCF32C3B11DD8021A71BF42E2491,legID:14,xrsn:0,
xsts:5,Xor:1001,Xee:C803,Xto:5003Transfer Recall
May 28 22:26:38.706: RADIUS: Cisco AVpair [1] 167 "feature-vsa=fn:HP_XFER_RECALL_ALERT,ft:05/28/2008 14:26:31.106,frs:0,fid:42,xconsID:,fcid:E802FCF32C3B11DD8021A71BF42E2491,legID:14,xrsn:0,
xsts:5,Xor:1001,Xee:C803,Xto:5003
Feature VSA Attributes
Table 8 lists (in alphabetical order) the attributes that can be included in the feature VSA. The particular attributes that are included in each instance of the VSA are feature-specific.
Note
•
•
Feature Correlation ID
The feature correlation ID (fcid) identifies a given feature across all call legs in a call. It is similar to the GUID defined by the h323-conf-id attribute and it allows the call legs to be correlated based on the specific features invoked for the call. For any given feature, the feature VSA carries a unique feature correlation ID, which a postprocessing system can use to correlate the records.
For example, a simple two-way call generates two start records and two stop records. Each record carries a feature VSA of type TWC and all call legs for the two-way call carry the same feature correlation ID. When another feature is invoked during the two-way call, that feature gets a new feature correlation ID, which is common across the participating legs.
Figure 5 shows an example of how the feature correlation ID is used in a Call Forward No Answer scenario. In this figure, A and B are in a two-way call, and B invokes Call Forward No Answer to C. The CFNA VSA is captured on legs A and C stop records. A, B and C would have the same feature correlation ID (fcid:1) for their TWC VSA. The CFNA VSA would have a different feature correlation ID (fcid:2). This is present in A and C stop records.
When the records for A are processed by the accounting system, it would detect that there is a basic two-way call between A and B. It would also detect that there is a CFNA to C in A's stop record. The new forwarded-to leg has the same feature correlation ID for CFNA (fcid:2). It is also carries the same feature correlation ID (fcid:1) for the TWC VSA on the forwarded-to leg.
Figure 5 Feature Correlation ID in Call Forward No Answer Scenario
Cisco Unified CME B-ACD and Hunt Groups
Cisco IOS Release 12.4(20)T and later releases allow the correlation of multiple call records for calls routed to Cisco Unified CME Basic Automatic Call Distribution (B-ACD) and hunt groups. The feature correlation ID is the same across all call legs for a given feature.
Figure 6 shows an example of a hunt group used with the B-ACD service.
Figure 6 B-ACD Hunt Group Example
In this example, a call comes into the B-ACD service and proceeds as follows, generating the call records shown:
1.
000210: May 31 01:24:01.831: RADIUS: Cisco AVpair [1] 121 "feature-vsa=fn:TWC,ft:05/30/2008 18:24:01.743,cgn:771,cdn:551,frs:0,fid:1,fcid:15CD126F2DE711DD8002931556F18823,legID:1"
000311: May 31 01:24:11.855: RADIUS: Cisco AVpair [1] 156 "feature-vsa=fn:CFA,ft:05/30/2008 18:24:01.843,frs:0,fid:2,fcid:15CD126F2DE711DD8002931556F18823,legID:2,frson:1,fdcnt:1,fwder:,
fwdee:771,fwdto:102,frm:551"
000313: May 31 01:24:11.855: RADIUS: Cisco AVpair [1] 127 "feature-vsa=fn:TWC,ft:05/30/2008 18:24:01.843,cgn:771,cdn:551,frs:0,fid:4,fcid:15CD126F2DE711DD8002931556F18823,legID:2"
2.
000334: May 31 01:24:11.855: RADIUS: Cisco AVpair [1] 157 "feature-vsa=fn:CFNA,ft:05/30/2008 18:24:11.851,frs:0,fid:6,fcid:15CD126F2DE711DD8002931556F18823,legID:2,frson:3,fdcnt:2,fwder:,
fwdee:771,fwdto:302,frm:551"
000441: May 31 01:24:21.867: RADIUS: Cisco AVpair [1] 157 "feature-vsa=fn:CFNA,ft:05/30/2008 18:24:11.851,frs:0,fid:6,fcid:15CD126F2DE711DD8002931556F18823,legID:3,frson:3,fdcnt:2,fwder:,
fwdee:771,fwdto:302,frm:551"
000443: May 31 01:24:21.867: RADIUS: Cisco AVpair [1] 127 "feature-vsa=fn:TWC,ft:05/30/2008 18:24:11.855,cgn:771,cdn:102,frs:0,fid:9,fcid:15CD126F2DE711DD8002931556F18823,legID:3"
3.
000606: May 31 01:24:50.899: RADIUS: Cisco AVpair [1] 154 "feature-vsa=fn:CFA,ft:05/30/2008 18:24:42.087,frs:0,fid:14,fcid:15CD126F2DE711DD8002931556F18823,legID:7,frson:1,fdcnt:1,
fwder:,fwdee:771,fwdto:102,frm:"
000608: May 31 01:24:50.899: RADIUS: Cisco AVpair [1] 128 "feature-vsa=fn:TWC,ft:05/30/2008 18:24:42.087,cgn:771,cdn:551,frs:0,fid:13,fcid:2DD915072DE711DD800E931556F18823,legID:7"
4.
000657: May 31 01:24:57.611: RADIUS: Cisco AVpair [1] 119 "feature-vsa=fn:TWC,ft:05/30/2008 18:24:57.611,cgn:102,cdn:,frs:0,fid:16,fcid:37193E252DE711DD8011931556F18823,legID:8"
000693: May 31 01:24:58.023: RADIUS: Cisco AVpair [1] 122 "feature-vsa=fn:TWC,ft:05/30/2008 18:24:58.015,cgn:102,cdn:202,frs:0,fid:17,fcid:37193E252DE711DD8011931556F18823,legID:9"
000753: May 31 01:24:59.127: RADIUS: Cisco AVpair [1] 128 "feature-vsa=fn:CXFER,ft:05/30/2008 18:24:59.119,frs:0,fid:18,xconsID:1,fcid:0000,legID:7,xrsn:0,xsts:5,Xor:102,Xee:771,Xto:202"
000791: May 31 01:24:59.143: RADIUS: Cisco AVpair [1] 119 "feature-vsa=fn:TWC,ft:05/30/2008 18:24:57.611,cgn:102,cdn:,frs:0,fid:16,fcid:37193E252DE711DD8011931556F18823,legID:8"
000916: May 31 01:25:02.595: RADIUS: Cisco AVpair [1] 156 "feature-vsa=fn:CXFER,ft:05/30/2008 18:24:59.127,frs:0,fid:23,xconsID:1,fcid:15CD126F2DE711DD8002931556F18823,legID:9,xrsn:0,
xsts:2,Xor:102,Xee:771,Xto:202"
000978: May 31 01:25:02.599: RADIUS: Cisco AVpair [1] 156 "feature-vsa=fn:CXFER,ft:05/30/2008 18:24:59.119,frs:0,fid:21,xconsID:1,fcid:15CD126F2DE711DD8002931556F18823,legID:1,xrsn:0,
xsts:5,Xor:102,Xee:771,Xto:202"
000980: May 31 01:25:02.599: RADIUS: Cisco AVpair [1] 154 "feature-vsa=fn:CFA,ft:05/30/2008 18:24:42.087,frs:0,fid:14,fcid:15CD126F2DE711DD8002931556F18823,legID:1,frson:1,fdcnt:1,
fwder:,fwdee:771,fwdto:102,frm:"Store-and-Forward Fax VSAs
Table 9 lists (in alphabetical order) the fax VSAs used by Cisco voice products.
T.38 Fax Statistics VSAs
The T.38 Fax Statistics feature provides the ability to gather detailed statistics about fax success indicator for T.38 fax relay calls for voice gateways with NextPort Digital Signal Processors (DSPs). The fax statistics and success indicator are available to CDRs through VSAs and added to the call log. These changes provide detailed CDRs that are useful for diagnostic purposes and give service providers more flexibility in their billing methods for fax relay calls.
RADIUS accounting functions allow statistics to be sent as VSAs at the start and end of sessions, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session. These accounting records are recorded in CDRs. This feature adds several VSAs specifically for T.38 fax relay calls with SIP and H.323 signaling.
This feature interoperates with third-party gateways and therefore the Cisco gateway is able to report T.38 fax success and failure based on the following:
•
•
•
The accounting template is expanded to include the new statistics so that the end user can choose the statistics they wish to use.
Table 10 lists (in alphabetical order) the T.38 fax-statistics VSAs used by Cisco voice products.
Internal Error Codes
Internal error codes (IEC) identify errors that cause a gateway to release or refuse to accept a call. The following example shows a partial RADIUS stop accounting record for an IEC:
[Vendor 9/1] cisco-avpair = "internal-error-code=1.1.179.2.37.0"The IEC value takes the form of a dotted string of decimal numbers:
version.entity.category.subsystem.errorcode.diagnosticcodeTable 11 describes the six fields that identify the components of the IEC.
Note
VSA Release History
Table 12 lists each voice VSA (in alphabetical order) and the Cisco IOS release in which the VSA was introduced. Use this table when you configure the RADIUS server to understand which VSAs are supported, or if you want to upgrade to a later Cisco IOS release when new VSAs are introduced.
