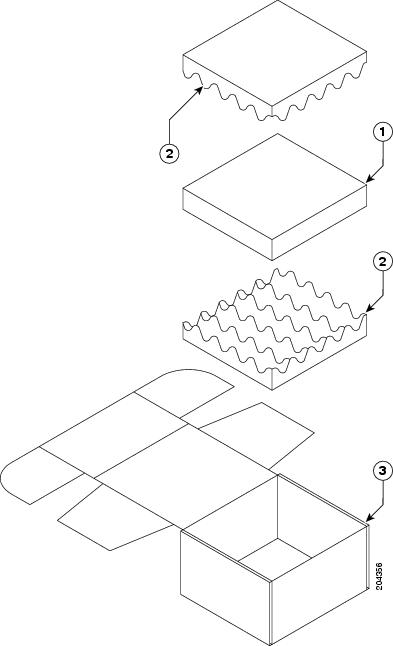

Packing a SPA for Shipment

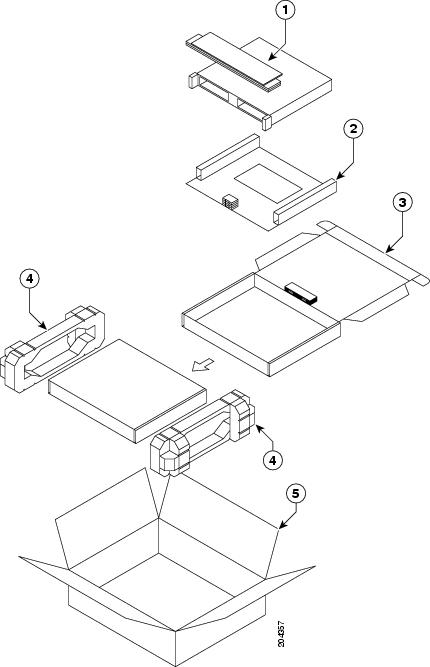

Packing a SIP for Shipment

Troubleshooting the Installation

This chapter describes how to troubleshoot the installation of SIPs and SPAs on the Cisco ASR 1000 Series Aggregation Services Routers. This chapter contains the following sections:

•Troubleshooting the Hardware

•Using debug Commands

•Packing a SPA for Shipment

•Packing a SIP for Shipment

For additional troubleshooting information, also refer to the Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide.

Troubleshooting the Hardware

This section describes troubleshooting the installation of the SIPs and SPAs. Possible problems, observations and comments, and solutions are indicated for the following troubleshooting symptoms:

•SIP is Deactivated

•SIP Transitions Repeatedly from On to Off

•Troubleshooting the Cisco WebEx Node for ASR 1000 Series Hardware

•Reformatting the Hard Disk Drive on the Cisco WebEx Node SPA

SIP is Deactivated

Table 7-1 describes the possible problems and solutions for a deactivated SIP.

Table 7-1 Possible Problems for a Deactivated SIP

SIP Is Deactivated

Possible Problem

Observations and Comments

Solutions

SPA is not fully seated in the SIP

Output of the show diag slot command

SPA STATUS LED is off

Follow this procedure:

•Remove the SPA from the SIP.

•Inspect the SIP and the SPA. Verify there are no bent pins or parts and that there is nothing lodged in the two devices that could prevent a good connection.

•Insert the SPA in the SIP by sliding the SPA all the way into the SIP until the SPA is firmly seated in the SPA interface connector. When fully seated in the SIP, the SPA might be slightly behind the SIP faceplate.

SPA is not supported on the SIP

Error message indicating the SPA is not supported

Output of the show diag slot command

SIP STATUS LED is off

Install a SPA supported on the SIP.

SPA is not at the minimum hardware revision level

Error message indicating the SPA is not at the minimum FPGA revision level

Output of the show hw-module subslot fpd command

Output of the show diag slot command

SPA STATUS LED is off

Follow the FPD upgrade process to update the FPGA.

For more information about performing FPD upgrades, refer to the "Upgrading Field-Programmable Devices" chapter in the Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide.

SPA is misconfigured

Refer to the configuration section of the SPA installation and configuration guide. Also, refer to the Cisco IOS software configuration documentation listed in the "Related Documentation" section on page xi.

SIP Transitions Repeatedly from On to Off

Table 7-2 describes the possible problems and solutions when a SIP is transitioning from on to off state.

Table 7-2 Possible Problems for Symptom of SIP Transitions

Possible Problem

Observations and Comments

Solutions

SIP is booting up; this is normal operation

SIP STATUS LED alternates green, amber, or off

Wait 30 seconds until the boot process completes and the STATUS LED stays on.

SIP does not go beyond the bootup stage

SIP STATUS LED transitions continue and alternates green, amber, or off

Follow the recommended action for the displayed error message.

Troubleshooting the Cisco WebEx Node for ASR 1000 Series Hardware

This section describes some of the possible hardware problems that can occur with the Cisco WebEx Node for ASR 1000 Series (also called the Cisco WebEx Node SPA) hardware. It includes the following problems:

•Cisco WebEx Node SPA is in "Out of Service" State

•Cisco WebEx Node SPA Has Issued Hardware Error Messages

•Hard Disk Drive Errors on the Cisco WebEx Node SPA

•Collecting show tech-support Output From the Cisco WebEx Node SPA Console

Cisco WebEx Node SPA is in "Out of Service" State

Both hardware and software problems can cause "out of service" states on the Cisco WebEx Node SPA.

To verify the out-of-service reason for the Cisco WebEx Node SPA, use the show hw-module subslot all oir command as shown in the following example:
Router# show hw-module subslot all oir
Module        Model                Operational Status
------------- -------------------- ------------------------
subslot 0/0   SPA-2X1GE-V2         ok
subslot 0/1   SPA-WMA-K9           ok
subslot 1/1   SPA-WMA-K9           out of service (failed too many time)
Table 7-3 describes the possible problems and solutions for hardware-based out-of-service states. For more information about other software-based out-of-service states, refer to the troubleshooting chapter for the Cisco WebEx Node SPA in the Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide.
Table 7-3 Possible Problems for Hardware-Based Out-of-Service States on the Cisco WebEx Node SPA
Possible Problem

Observations and Comments

Solutions

SPA is not inserted correctly.

The show hw-module subslot all oir command displays a "failed too many time" reason code for the out of service operational status.

Other than a SPA installation problem, other possible reasons for a HW-INIT-TIMEOUT include corruption of the power controller (ADM1066) on the SPA or corruption of the Complex Programmable Logic Device (CPLD) image during an FPD upgrade.

1. Verify the installation of the SPA and attempt to reseat it in the SIP.

2. If reinstallation of the SPA does not correct the problem, run the show logging command to look for other error messages that might indicate the reason for the failure (a HW_INIT_TIMEOUT is most common).

3. Check for physical connector damage, such as a bent pin on the SPA.

The FPD image was corrupted for some of the following possible reasons:

•SPA was removed during an FPD upgrade

•A reload of the router occurred during an FPD upgrade.

•A power failure occurred on the router during an FPD upgrade.

The show hw-module subslot all oir command displays a "failed too many time" reason code for the out of service operational status and the show logging command shows a HW-INIT-TIMEOUT failure.

The following is an example of a HW-INIT-TIMEOUT message:

*Mar 3 23:27:05.903: %SPA_OIR-6-ONLINECARD: SPA (SPA-WMA-K9) online in subslot 1/1
*Mar 3 23:27:16.488: %SPA_OIR-3-HW_INIT_TIMEOUT: subslot 1/0
*Mar 3 23:27:21.488: %SPA_OIR-3-RECOVERY_RELOAD: subslot 1/0: Attempting recovery by reloading SPA
*Mar 3 23:27:21.489: %SPA_OIR-6-OFFLINECARD: SPA (SPA-WMA-K9) offline in subslot 1/0

1. Enter the upgrade hw-module subslot fpd bundled command to start recovery of the FPD upgrade.

If the problem was due to an FPD image corruption problem, then the SPA should boot normally after the upgrade is complete.

2. If the FPD upgrade completes successfully but you still have an error, then the SPA probably has a hardware problem.
Temperature or voltage sensors have values that are not in the range of safe operation for the Cisco WebEx Node SPA.

•The show hw-module subslot all oir command displays an "Environmental limits exceeded" reason code.

•The show hw-module subslot sensors command displays the actual values for the temperature and voltage on the Cisco WebEx Node SPA, as shown in the following example:

Router# show hw-module subslot 0/0 sensors
SPA-WMA-K9[0/0] temperature sensor 0, reading: 31C
SPA-WMA-K9[0/0] temperature sensor 1, reading: 36C
SPA-WMA-K9[0/0] temperature sensor 2, reading: 48C
SPA-WMA-K9[0/0] temperature sensor 3, reading: 51C
SPA-WMA-K9[0/0] temperature sensor 4, reading: 57C
SPA-WMA-K9[0/0] temperature sensor 5, reading: 32C
SPA-WMA-K9[0/0] nominal: 3.300V, reading: 3.257V
SPA-WMA-K9[0/0] nominal: 2.500V, reading: 2.454V
SPA-WMA-K9[0/0] nominal: 5.000V, reading: 5.038V
SPA-WMA-K9[0/0] nominal: 1.200V, reading: 1.195V
SPA-WMA-K9[0/0] nominal: 1.100V, reading: 1.097V
SPA-WMA-K9[0/0] nominal: 1.000V, reading: 0.998V
SPA-WMA-K9[0/0] nominal: 0.900V, reading: 0.892V
SPA-WMA-K9[0/0] nominal: 1.800V, reading: 1.785V
1. Enter the show logging | include TEMP_SHUTDOWN command and look for a temperature shutdown error message.

The following is an example of an error message due to excessive temperature:

*Jan 27 17:46:22.285: %SPA-0-TEMP_SHUTDOWN: SIP1/1: SPA-WMA-K9[1/1] temperature too high on sensor 2. (90C) SPA has been shut down.
Tip If you do not find a temperature shutdown error message, it's possible that the logging buffer has overflowed from too many warning messages. Enter the show logging | include TEMP_WARNING command to confirm.

2. If you find a temperature error message, then verify that the fan within the power supply is working correctly.

Refer to the "Troubleshooting the Cooling Subsystem" section of the "Troubleshooting Initial Startup Problems" chapter in the Cisco ASR 1000 Series Aggregation Services Router Hardware Installation Guide.

3. If no temperature error message is found, enter the show logging | include VOLT_SHUTDOWN command to find a voltage shutdown error message.

If an error messages indicates a voltage problem, then the SIP could be providing an unstable voltage to the SPA, or there might be a hardware problem on the Cisco WebEx Node SPA itself.

Try installing the SPA into another SIP and see if the problem continues. If the problem still occurs, then there is a voltage problem on the Cisco WebEx Node SPA.
Cisco WebEx Node SPA Has Issued Hardware Error Messages

There are several different error messages for the Cisco WebEx Node SPA that might appear in the output of the show logging command. Table 7-4 provides an example of error messages of the SPA_CPU_ERR type.

For more information about other system error messages for the Cisco WebEx Node SPA, refer to the System Messages for Cisco IOS XE document.

Table 7-4 SPA_CPU_ERR Messages on the Cisco WebEx Node SPA

Possible Problem

Observations and Comments

Solutions

Hardware problem on the Cisco WebEx Node SPA.

The show logging command shows a SPA_CPU_ERR message for the SPA_SRVCS_ENGINE facility, as shown in the following example:

*Mar 24 23:52:06.527: %SPA_SRVCS_ENGINE-3-SPA_CPU_ ERR: SIP0/1: SPA-WMA-K9[0/1]: SPA CPU HW errors: Octeon L2D ECC double bit (core 4): fadr: 0x23e86, syn0: 0x0, syn1: 0xe7c00
*Mar 24 23:52:06.527: %SPA_SRVCS_ENGINE-3-HW_ERR: SIP0/1: SPA-WMA-K9[0/1]: A Hardware device error was detected by SPA CPU, trying to recover the SPA by reload.

1. Look up the error message in the Error Message Decoder tool or in the System Messages for Cisco IOS XE document.

2. Record the message exactly as it appears on the console.

3. Collect the output from the show tech-support command on the Cisco WebEx Node SPA console and contact Cisco technical support to create a Return Materials Authorization (RMA) case.

For information about running the show tech-support command on the Cisco WebEx Node SPA console, see the "Collecting show tech-support Output From the Cisco WebEx Node SPA Console" section.

Hard Disk Drive Errors on the Cisco WebEx Node SPA

The Cisco WebEx Node SPA has a hard disk drive (HDD) used by the Cisco WebEx Node application. It stores logs and provides a cache for meeting data.

Table 7-5 describes the possible problems and solutions associated with the HDD that the Cisco ASR Series 1000 Routers can detect during a boot of the Cisco WebEx Node SPA.
Table 7-5 Possible HDD Problems on the Cisco WebEx Node SPA
Possible Problem

Observations and Comments

Solutions
File System Check Error

The system routinely checks for file system integrity during a SPA boot, or when the system detects a previous unclean shutdown operation of SPA.

Most of the time errors in the file system can be corrected automatically during SPA bootup, but there are cases that manual intervention is required to fix file system errors.

When this type of error occurs, the following syslog message is logged on IOS:

*Apr 14 22:42:17.415: %SPA_SE1-3-DISK_CHECK_ERROR: SIP0/1: SPA-WMA-K9[0/1]: Disk file system check error detected, manual execution of disk checking operation will be required to correct this problem. The SPA will continue operating with reduced disk space.
1. Access the Cisco WebEx Node SPA system console using the hw-module subslot service-engine session command, as shown in the following example:

Router# hw-module subslot 0/1 service-engine session
MontaVista(R) Linux(R) Carrier Grade Edition 5.0 (custom)
Linux/mips64 2.6.21_mvlcge500-octeon-mips64_octeon_v2_be
Vegas Shell -- CGE 5.0 Version
Copyright (c) 1985-2008 by Cisco Systems, Inc.
All rights reserved.
2. From the SPA console, run the fsck disk VEGAS shell command, and respond to the prompts as shown in the following example:

Timesaver The fsck disk command supports an option to respond "yes" to all prompts to allow you to run the fsck disk automatically without any manual response.

service-spa# fsck disk
Running file system check on /dev/sda2 partition ...
e2fsck 1.40 (29-Jun-2007)
APPLICATION contains a file system with errors, check forced.
Pass 1: Checking inodes, blocks, and sizes
Inode 7 has illegal block(s). Clear<y>? yes
Illegal block #24716 (1515870810) in inode 7. CLEARED.
Illegal block #24717 (1515870810) in inode 7. CLEARED.
Illegal block #24718 (1515870810) in inode 7. CLEARED.
Illegal block #24719 (1515870810) in inode 7. CLEARED.
Illegal block #24720 (1515870810) in inode 7. CLEARED.
Illegal block #24721 (1515870810) in inode 7. CLEARED.
Illegal block #24722 (1515870810) in inode 7. CLEARED.
Illegal block #24723 (1515870810) in inode 7. CLEARED.
Illegal block #24724 (1515870810) in inode 7. CLEARED.
Illegal block #24725 (1515870810) in inode 7. CLEARED.
Illegal block #24726 (1515870810) in inode 7. CLEARED.
Too many illegal blocks in inode 7.
Clear inode<y>? yes
Restarting e2fsck from the beginning...
Resize inode not valid. Recreate<y>? yes
APPLICATION contains a file system with errors, check forced.
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
Free blocks count wrong for group #0 (28103, counted=28104).
Fix<y>? yes
Free blocks count wrong (242639, counted=242640).
Fix<y>? yes
APPLICATION: ***** FILE SYSTEM WAS MODIFIED *****
APPLICATION: 12/125696 files (0.0% non-contiguous), 8367/251007 blocks
3. Exit the SPA console using the exit command, as shown in the following example:

service-spa# exit
Router#
4. Reload the Cisco WebEx Node SPA using the hw-module subslot reload command.
File System Mounting Error

The following message appears on the console:

*Apr 15 23:14:31.721: %SPA_SE1-3-DISK_MOUNT_ERROR: SIP0/0: SPA-WMA-K9[0/0]: Disk mount error detected, manual execution of disk checking operation might be required to correct this problem. The SPA will continue operating with reduced disk space.

Follow the recommended steps for the File System Check Error.

HDD loosens during handling of the SPA

The system cannot detect the disk and displays the following message on the console:

*Apr 15 23:00:06.664: %SPA_SE1-3-DISK_NOT_PRESENT: SIP0/0: SPA-WMA-K9[0/0]: Cannot detect the presence of disk drive on the SPA. Please check for loose cable connection to the drive. The SPA will continue operating without the disk.

1. Check for a loose cable connection to the HDD on the SPA, and reconnect the cable.

2. Collect the output from the show tech-support command on the Cisco WebEx Node SPA console and contact Cisco technical support.

For information about running the show tech-support command on the Cisco WebEx Node SPA console, see the "Collecting show tech-support Output From the Cisco WebEx Node SPA Console" section.

Other HDD hardware errors

For other hardware errors on the HDD, you might see the following message on the console:

*Apr 15 23:04:06.678: %SPA_SE1-3-DISK_UNKNOWN_STAT E: SIP0/0: SPA-WMA-K9[0/0]: The disk drive on the SPA doesn't seems to be on known operational state. Please check for loose cable connection to the drive. The SPA will continue operating without the disk.

1. Check for a loose cable connection to the HDD on the SPA, and reconnect the cable.

2. Collect the output from the show tech-support command on the Cisco WebEx Node SPA console and contact Cisco technical support.

For information about running the show tech-support command on the Cisco WebEx Node SPA console, see the "Collecting show tech-support Output From the Cisco WebEx Node SPA Console" section.
Collecting show tech-support Output From the Cisco WebEx Node SPA Console

When reporting a problem to Cisco technical support, you should first obtain the output of the show tech-support command from the WebEx Node SPA console. The following example show how to run the command and redirect the output to a file on a TFTP server:
service-spa# show tech-support > tftp://tftpboot_server/show-tech-output-2009-06-71.txt
Trying to connect to tftp server......
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!
!!!!!!!
TFTP put operation was successful
 153782 bytes copied
service-spa#
Reformatting the Hard Disk Drive on the Cisco WebEx Node SPA

Note This procedure is only recommended if a manual file system repair does not fix file system errors.

Prerequisites

Before you can format the hard disk on a Cisco WebEx Node SPA, the disk must be unmounted not in use. If you attempt to format the disk while the disk is mounted, you will receive a warning as shown in the following example:
service-spa# format disk
Do you want to format [y/n]: y
%WARNING: cannot perform disk formatting operation as there are partitions mounted and
being used by the system.
To prepare the disk for formatting, complete the following steps:

Step 1 Access the SIP console using the request platform software console attach command as shown in the following example:
Router# request platform software console attach 0/0
#
# Connecting to the SPA console on 0/0.
# Enter Control-C to exit the console connection.
#
Router>
Step 2 Enter the enable command and run the test hw-module subslot bay disk-repair set command as shown in the following example:
Router> enable
Router# test hw-module subslot 0 disk-repair set
WARNING: This command is not intended for production use
and should only be used under the supervision of
Cisco Systems technical support personnel.
 SPA is set to not mount disk filesystem on next reboot. Please reload to take effect!
Router#
Step 3 Return to the RP console by entering Control-C and then reload the SPA using the hw-module subslot reload command as shown in the following example:
<Control-C>
Router# hw-module subslot 0/0 reload
Step 4 Confirm the following message appears on the router console:
*Apr 7 08:23:49.974: %SPA_SE1-3-SKIPPED_DISK_MOUNT: SIP0/0: SPA-WMA-K9[0/0]: Disk mounting
operation has been skipped for manual disk repair operation. Please follow the procedures
on hardware configuration guide on how to enter into service engine console to continue
with the disk repair operation.
Step 5 Access the Cisco WebEx Node SPA's VEGAS shell console using the hw-module subslot service-engine session command as shown in the following example:
Router# hw-module subslot 0/0 service-engine session
MontaVista(R) Linux(R) Carrier Grade Edition 5.0 (custom)
Linux/mips64 2.6.21_mvlcge500-octeon-mips64_octeon_v2_be
        Vegas Shell  --  CGE 5.0 Version
        Copyright (c) 1985-2008 by Cisco Systems, Inc.
        All rights reserved.
Step 6 Run the format disk command and confirm the operation as shown in the following example:
service-spa# format disk
Do you want to format [y/n]: y
Drive /dev/sda already has 4 partitions. Need to delete them to re-create new ones!
Delete partition 4 ...
Delete partition 3 ...
Delete partition 2 ...
Delete partition 1 ...
Creating partitions in /dev/sda ....
Creating APPLICATION partition on /dev/sda1 ...
mke2fs 1.40 (29-Jun-2007)
Filesystem label=APPLICATION
OS type: Linux
Block size=4096 (log=2)
Fragment size=4096 (log=2)
125696 inodes, 251007 blocks
12550 blocks (5.00%) reserved for the super user
First data block=0
Maximum filesystem blocks=260046848
8 block groups
32768 blocks per group, 32768 fragments per group
15712 inodes per group
Superblock backups stored on blocks:
        32768, 98304, 163840, 229376
Writing inode tables: done
Creating journal (4096 blocks): done
Writing superblocks and filesystem accounting information: done
This filesystem will be automatically checked every 34 mounts or
180 days, whichever comes first.  Use tune2fs -c or -i to override.
Creating CONFIG partition on /dev/sda2 ...
mke2fs 1.40 (29-Jun-2007)
Filesystem label=CONFIG
OS type: Linux
Block size=1024 (log=0)
Fragment size=1024 (log=0)
26208 inodes, 104420 blocks
5221 blocks (5.00%) reserved for the super user
First data block=1
Maximum filesystem blocks=67371008
13 block groups
8192 blocks per group, 8192 fragments per group
2016 inodes per group
Superblock backups stored on blocks:
        8193, 24577, 40961, 57345, 73729
Writing inode tables: done
Creating journal (4096 blocks): done
Writing superblocks and filesystem accounting information: done
This filesystem will be automatically checked every 20 mounts or
180 days, whichever comes first.  Use tune2fs -c or -i to override.
Creating DATA partition on /dev/sda4 ...
mke2fs 1.40 (29-Jun-2007)
Filesystem label=DATA
OS type: Linux
Block size=4096 (log=2)
Fragment size=4096 (log=2)
30146560 inodes, 60269855 blocks
3013492 blocks (5.00%) reserved for the super user
First data block=0
Maximum filesystem blocks=0
1840 block groups
32768 blocks per group, 32768 fragments per group
16384 inodes per group
Superblock backups stored on blocks:
        32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
        4096000, 7962624, 11239424, 20480000, 23887872
Writing inode tables: done
Creating journal (32768 blocks): done
Writing superblocks and filesystem accounting information: done
This filesystem will be automatically checked every 37 mounts or
180 days, whichever comes first.  Use tune2fs -c or -i to override.
Creating SWAP space in /dev/sda3 ...
Setting up swapspace version 1, size = 2056315904 bytes
***********************************
Format operation result: SUCCESSFUL
***********************************
service-spa#
Using debug Commands

The debug hw-module subslot command is intended for use by Cisco technical support personnel. For more information about the debug hw-module subslot command, see the Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide.

Caution Because debugging output is assigned high priority in the CPU process, it can render the system unusable. For this reason, use debug commands only to troubleshoot specific problems or during troubleshooting sessions with Cisco technical support staff. Moreover, it is best to use debug commands during periods of lower network traffic and fewer users. Debugging during these periods decreases the likelihood that increased debug command processing overhead will affect system use.

Packing a SPA for Shipment

This section provides step-by-step instructions for packing a SPA for shipment. Before beginning this procedure, you should have the following original Cisco packaging materials:

•Clamshell inner container

•Foam cushion (2)

•Exterior carton

Note For information on removing a SPA, see the "SPA Installation and Removal" section on page 6-2.

Caution The Cisco original packaging is to be used for the shipment of all SPAs and cable-management brackets. Failure to properly use Cisco packaging can result in damage or loss of a product.

Caution During this procedure, wear grounding wrist straps to avoid ESD damage to the card.

See Preventing Electrostatic Discharge Damage, page 4-8 for information about preventing ESD.

Note These instructions assume that the SPA and cable-management brackets have been removed from the router according to the recommended procedures specified in this guide.

To pack a SPA for shipment, see Figure 7-1 and perform the following steps:

Step 1 Open the clamshell container and place the SPA into the appropriate cavity.

Caution Always handle the SPA by the carrier edges and handle; never touch the SPA components or connector pins.

Step 2 Close the clamshell container.

Step 3 Check that the clamshell container is fully closed. Apply tape or a label closure over the opening to ensure that the container stays closed during shipping.

Step 4 Place one foam cushion in the bottom of the exterior carton.

Step 5 Place the clamshell container into the carton on top of the foam.

Step 6 Place the second foam cushion on top of the clamshell.

Step 7 Close the exterior carton.

Step 8 Apply tape over the exterior carton flap to ensure that the carton stays closed during shipping.

Figure 7-1 Packing a SPA for Shipment

1

Clamshell

2

Cushion foam

3

Exterior carton

Packing a SIP for Shipment

This section provides step-by-step instructions for packing a SIP for shipment. Before beginning this procedure, you should have the following original Cisco packaging materials:

•Static shielding bag

•Corrugated spacer

•Bottom support

•Smaller inner carton

•Two foam packing cushions

•Larger exterior carton

Note For information on removing a SIP, see the "SIP Installation and Removal" section on page 5-8.

Caution The Cisco original packaging is to be used for the shipment of all SIPs. Failure to properly use Cisco packaging can result in damage or loss of a product.

Caution During this procedure, wear grounding wrist straps to avoid ESD damage to the card.

See Preventing Electrostatic Discharge Damage, page 4-8 for information about preventing ESD.

Note These instructions assume that the SIP has been removed from the router according to the recommended procedures specified in this guide.

To pack a SIP for shipment, see Figure 7-2, and perform the following steps:

Step 1 Insert the SIP into the static shielding bag. (Not shown in diagram.)

Step 2 Place the bottom support into the smaller inner carton.

Step 3 Place the bagged SIP onto the bottom support.

Step 4 Place the corrugated spacer on top of the bagged SIP.

Step 5 Close the smaller inner carton and tape the sides closed.

Step 6 Place the sealed smaller inner carton containing the SIP into the two foam packing cushions (the carton only fits one way).

Step 7 Place the sealed smaller inner carton and packing cushions into the larger exterior carton, and seal the larger exterior carton with tape for shipment.

Figure 7-2 Packing a SIP for Shipment

1

Corrugated spacer

2

Bottom support for inner carton

3

Inner carton

4

Foam packing cushions

5

Exterior carton
