Cisco Application Control Engine Module Installation Note
Product Numbers: ACE10-6500-K9, ACE20-MOD-K9
This document describes how to install the Cisco Application Control Engine (ACE) module. Unless otherwise noted, ACE module refers to the ACE10-6500-K9 (ACE10) or ACE20-MOD-K9 (ACE20) module.
You can install an ACE module module in the following chassis:
•
A Catalyst 6500 series switch with IOS software version 12.2(18)SXF4 or later, or 12.2(33)SXH or later. You can install the ACE module in all Catalyst 6500 series models, including the E and non-E switch chassis as detailed in the "Preparing to Install a Module" section.
•A Cisco 7600 series router with IOS software release 12.2(18)SXF4 or 12.2(33)SRB. You can install the ACE module in all Cisco 7600 series router models.
Note ACE10-6500-K9 and ACE20-MOD-K9 modules can occupy the same chassis.
Contents
This document contains the following sections:
•Supervisor Engine and IOS Support for the ACE Module
•Virtual Switching System Support
•NEBS Level 3 Compliance
•Front Panel Description
•System and Environmental Requirements
•Preparing to Install a Module
•Installing a Module
•Removing the Module
•Accessing the ACE Command-Line Interface
•Related Documentation
•Translated Safety Warnings
•Obtaining Documentation, Obtaining Support, and Security Guidelines
Supervisor Engine and IOS Support for the ACE Module
Table 1 and Table 2 summarize the Supervisor engine model and IOS version support for the ACE module in the Catalyst 6500 series switch and the Cisco 7600 series router, respectively.
Table 1 Supervisor Engine and IOS Support for the ACE Module in a Catalyst 6500 Series Switch with a Multilayer Switch Feature Card (MSFC3)
Supervisor Engine Model
|
Minimum Required IOS Version
|
Other IOS Version Support
|
WS-SUP720
|
12.2(18)SXF4 (or later)
|
12.2(33)SXH (or later), 12.2(33)SXI1 (or later)
|
WS-SUP720-3B
|
WS-SUP720-3BXL
|
VS-S720-10G-3C
|
12.2(33)SXH (or later)
|
VS-S720-10G-3CXL
|
Table 2 Supervisor Engine, Route Switch Processor (RSP), and IOS Support for the ACE Module in a Cisco 7600 Series Router with an MSFC3
Supervisor Engine or RSP
|
Minimum Required IOS Version
|
Other IOS Version Support
|
WS-SUP720
|
12.2(18)SXF4 (or later)
|
12.2(33) SRB (or later)
Not supported: 12.2(33)SXH1
|
WS-SUP720-3B
|
WS-SUP720-3BXL
|
RSP720
|
12.2(33)SRC (or later)
|
None
|
For more information about Cisco IOS releases, see the Release Notes for Cisco IOS Release 12.2SXF and Rebuilds and the Release Notes for Cisco IOS Release 12.2(33)SXH and Later Releases.
Virtual Switching System Support
The ACE10 and the ACE20 running ACE software version A2(1.2) or later and installed in a Catalyst 6500 series switch running IOS software version 12.2(33)SXI or later support the Virtual Switching System (VSS). VSS is a system virtualization technology that allows the pooling of multiple Catalyst 6500 switches into a single virtual switch for increased operational efficiency by simplifying the network. Inter-chassis Supervisor switchover (SSO) boosts non-stop communication. For more information about VSS, see the Cisco IOS Version 12.2(33)SXI Configuration Guide.
Safety Overview
|
Warning
|
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071
SAVE THESE INSTRUCTIONS
|
Waarschuwing
|
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen.
BEWAAR DEZE INSTRUCTIES
|
Varoitus
|
TÄRKEITÄ TURVALLISUUSOHJEITA
Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla.
SÄILYTÄ NÄMÄ OHJEET
|
Attention
|
IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.
CONSERVEZ CES INFORMATIONS
|
Warnung
|
WICHTIGE SICHERHEITSHINWEISE
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
BEWAHREN SIE DIESE HINWEISE GUT AUF.
|
Avvertenza
|
IMPORTANTI ISTRUZIONI SULLA SICUREZZA
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento.
CONSERVARE QUESTE ISTRUZIONI
|
Advarsel
|
VIKTIGE SIKKERHETSINSTRUKSJONER
Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten.
TA VARE PÅ DISSE INSTRUKSJONENE
|
Aviso
|
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.
GUARDE ESTAS INSTRUÇÕES
|
¡Advertencia!
|
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo.
GUARDE ESTAS INSTRUCCIONES
|
Varning!
|
VIKTIGA SÄKERHETSANVISNINGAR
Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning.
SPARA DESSA ANVISNINGAR
|
|
|
|
|
|
|
|
|
|
|
Aviso
|
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.
GUARDE ESTAS INSTRUÇÕES
|
Advarsel
|
VIGTIGE SIKKERHEDSANVISNINGER
Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed.
GEM DISSE ANVISNINGER
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NEBS Level 3 Compliance
Table 3 lists the NEBS Level 3 compliance and ETSI environmental requirements for the ACE module.
Table 3 NEBS Compliance and ETSI 300-019 Environmental Requirements
Specification
|
Description
|
Comments
|
NEBS Criteria Levels
|
SR-3580 NEBS level 3 (GR-63-CORE, issue 3, GR-1089-CORE, issue 4)
|
|
Verizon NEBS Compliance
|
Telecommunications Carrier Group (TCG) Checklist
|
|
Qwest NEBS requirements
|
Telecommunications Carrier Group (TCG) Checklist
|
|
ATT NEBS requirements
|
ATT TP76200 level 3, TP7645 and TCG Checklist
|
|
Front Panel Description

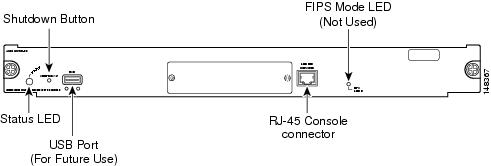

Figure 1 illustrates the front panel of the ACE10-6500-K9 module. Figure 2 illustrates the front panel of the ACE20-MOD-K9 module.
Figure 1 ACE10-6500-K9 Front Panel
Figure 2 ACE20-MOD-K9 Front Panel
This section contains the following topics that describe the individual components on the front panel:
•Status LED
•Shutdown Button
•USB Port
•RJ-45 Console Connector
•FIPS LED
Status LED
When you power up the ACE module, it initializes various hardware components and communicates with the Supervisor 720 engine. The Status LED indicates the Supervisor 720 engine operations and the initialization results. During the normal initialization sequence, the status LED changes from off to red, orange, and green.
Note For information on the Supervisor 720 engine LEDs, see the Catalyst 6500 Series Switch Module Installation Guide or the Cisco 7600 Series Router Module Installation Guide.
Table 4 describes the Status LED operation.
Table 4 Status LED Description
LED Color
|
Description
|
Off
|
Indicates one of the following conditions:
•The module is waiting for the supervisor engine to provide power.
•The module is offline.
•The module is not receiving power, which may be caused by one of the following:
–Power is not available to the module.
–Module temperature is over the limit1 .
|
Red
|
Indicates one of the following conditions:
•The module is released from reset by the supervisor engine and is booting.
•The boot code failed to run.
|
Orange
|
Indicates one of the following conditions:
•The module is initializing hardware or communicating with the supervisor engine.
•A fault occurred during the initialization sequence.
•The module failed to download its Field Programmable Gate Arrays (FPGAs) at startup. The module continues with the remainder of the initialization sequence and provides the module online status from the supervisor engine.
•The module has not received the module online status from the supervisor engine. This problem may be caused by the supervisor engine detecting a failure in an external loopback test that it issued to the module.
|
Green
|
The module is operational; the supervisor engine has provided module online status.
|
Green to Orange
|
The module is disabled through the supervisor engine command-line interface (CLI) using the no power enable module command.
|
Shutdown Button
Caution Do not remove the ACE module from the Catalyst 6500 series switch or the Cisco 7600 series router until the module has shut down completely and the Status LED is orange. To avoid damaging the ACE module, you must correctly shut down the module before you remove it from the chassis or before you disconnect the power. You may damage the ACE module if you remove it from the switch before it completely shuts down.
The Shutdown button manually shuts down the ACE module. To properly shut down the ACE module to prevent data loss, enter the no power enable module command in Configure mode at the switch or router CLI.
If the ACE module fails to respond to this command, shut down the module by using a small pointed object (such as a paper clip) to access the Shutdown button on the front panel of the ACE module. The shutdown procedure may take several minutes. The Status LED turns off when the module shuts down.
USB Port
The USB port is intended for future use.
RJ-45 Console Connector
The RJ-45 Console port is used to initially configure the ACE module. The initial ACE module configuration must be made through a direct connection to the Console port. After the initial configurations, you can make an Secure shell (SSH) or Telnet connection to the module to further configure it.
The Console port uses an 8-pin RJ-45 connector to connect the ACE module to a terminal. Two RJ-45 console cables are included as part of the ACE module accessory kit.
The settings for the Console port are 9600 baud, 8 data bits, 1 stop bit, no parity. The Console port settings are fixed and cannot be changed.
FIPS LED
The Federal Information Processing Standards (FIPS) LED is not used. This LED is on the front panel of an ACE10-6500-K9 module only.
System and Environmental Requirements
The following sections describe the system and environmental requirements for the ACE module:
•System Requirements
•Supported Hardware and Software
•Power Requirements
•Memory Requirements
•Environmental Requirements
System Requirements
AnACE module module occupies a slot in the Catalyst 6500 series switch or Cisco 7600 series router chassis. ACE10-6500-K9 and ACE20-MOD-K9 modules can occupy the same chassis. A single chassis supports a maximum of four ACE modules.
Note An ACE20-MOD-K9 module in a Cisco 7600 series router requires a minimum ACE software release of 3.0(0)A1(4)a.
Before you install the ACE module with preloaded software in the Catalyst 6500 series switch or Cisco 7600 series router chassis, ensure that the chassis contains the following:
•Supervisor Engine 720 with Cisco IOS software and a Multilayer Switch Feature Card (MSFC3). The ACE module supports the following models of Supervisor 720 engines: WS-SUP720, WS-SUP720-3B, WS-SUP720-3BXL, VS-S720-10G-3C, VS-S720-10G-3CXL.
•Any module that has ports to connect to the server and client networks.
For more information on the Catalyst 6500 series switch, see the Catalyst 6500 Series Switches Installation Guide at this URL:
http://www.cisco.com/en/US/products/hw/switches/ps708/prod_installation_guides_list.html
For more information on the Cisco 7600 series router, see the Cisco 7600 Series Router Installation Guide at this URL:
http://www.cisco.com/en/US/products/hw/routers/ps368/prod_installation_guides_list.html
Supported Hardware and Software
Table 5 lists the minimum ACE module software release, and supported hardware and Cisco IOS software version for the ACE module.
Table 5 Supported Hardware and Software
Product Description
|
Product Number
|
Minimum ACE Software Release Required
|
Cisco IOS Release
|
Catalyst 6500 Series Switch
|
Cisco 7600 Series Router
|
ACE module
|
ACE10-6500-K9
|
3.0(0)A1(2) for the Catalyst 6500 series switch, 3.0(0)A1(4)a for the Cisco 7600 series router
|
Cisco IOS Release
12.2(18)SXF4 or later or 12.2(33)SXH or later or 12.2(33)SXI or later
|
Cisco IOS Release 12.2(18)SXF4 or later or 12.2(33)SRB or later or 12.2(33)SRC or later
|
ACE20-MOD-K9
|
3.0(0)A1(4)a
|
Console cable
|
72-876-01
|
Not applicable
|
Not applicable
|
Not applicable
|
Accessory kit (contains two console cables)
|
800-05097-01
|
Not applicable
|
Not applicable
|
Not applicable
|
Power Requirements
An ACE module module operates on power supplied by the Catalyst 6500 series switch or the Cisco 7600 series router. The power consumption of the ACE module is 220W (751 BTU/hr).
Memory Requirements
The ACE module memory is not configurable.
Environmental Requirements
Table 6 lists the environmental requirements for the ACE module.
Table 6 ACE module Environmental Requirements
Item
|
Specification
|
Temperature, ambient operating
|
0o to 40oC (32o to 104oF)
|
Temperature, ambient nonoperating
|
-40o to 70oC (-40o to 158oF)
|
Humidity (RH), ambient (noncondensing) operating
|
10% to 85%
|
Nonoperating relative humidity (noncondensing)
|
5% to 95%
|
Preparing to Install a Module
Before installing an ACE module module in the Catalyst 6500 series switch or Cisco 7600 series router, ensure that the following items are available:
•Management station available through a Telnet or a console connection to perform the configuration tasks
•Phillips-head screwdriver
•Wrist strap or other grounding device
•Antistatic mat or antistatic foam
When you handle a module, always use a wrist strap or other grounding device to prevent electrostatic discharge (ESD).
Caution During this procedure, wear grounding wrist straps to avoid ESD damage to the modules.
Caution Do not directly touch the backplane with your hand or any metal tool or you may shock yourself.
All Catalyst 6500 series switches and Cisco 7600 series routers support hot swapping, allowing you to install, remove, and replace modules without turning off chassis power. For more information on removing the modules from a switch, see the "Removing the Module" section.
When the software detects that a module has been installed or removed, it automatically runs diagnostic and discovery routines, acknowledges the presence or absence of the module, and resumes switch operation.
The Catalyst 6503 or 6503-E switch chassis has three horizontal slots. The Catalyst 6504 or 6504-E switch, or Cisco 7604 router chassis has four horizontal slots. In these chassis, the slots can be used as follows:
•Slot 1, the top-most slot, is reserved for the Supervisor 720 engine.
•Slot 2 can be used for a redundant supervisor engine.
•If a redundant supervisor engine is not required, the following slots are available for modules:
–Slots 2 and 3 on the 3-slot chassis
–Slots 2 through 4 on the 4-slot chassis
•Empty slots require filler panels to maintain consistent airflow through the chassis.
The Catalyst 6506 or 6506-E switch, or Cisco 7606 router chassis has six horizontal slots. The Catalyst 6509 or 6509-E switch chassis has nine horizontal slots. The Catalyst 6509-NEB and Catalyst 6509-NEB-A switches or the Cisco 7609 router have nine vertical slots, which are numbered 1 to 9 from right to left. Install vertical modules with the component side facing to the right. In these chassis, the slots can be used as follows:
•Slot 5 is reserved for the Supervisor 720 engine.
•Slot 6 can be used for a redundant supervisor engine.
•If a redundant supervisor engine is not required, the following slots are available for modules:
–Slots 1 through 4 and slot 6 on the 6-slot chassis
–Slots 1 through 4 and slots 6 through 9 on the 9-slot chassis
•Empty slots require filler panels to maintain consistent airflow through the switch chassis.
The Catalyst 6513 switch or Cisco 7613 router chassis has 13 horizontal slots. In these chassis, the slots can be used as follows:
•Slot 7 is reserved for the Supervisor 720 engine.
•Slot 8 can be used for a redundant supervisor engine.
•If a redundant supervisor engine is not required, slots 1 through 6 and slots 8 through 13 are available for modules.
•Empty slots require filler panels to maintain consistent airflow through the chassis.

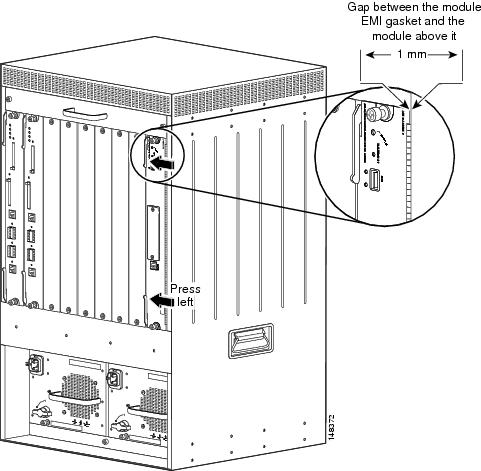

Installing a Module

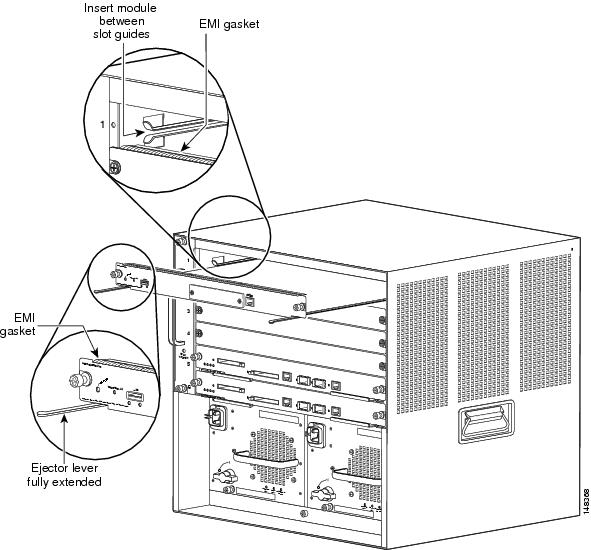

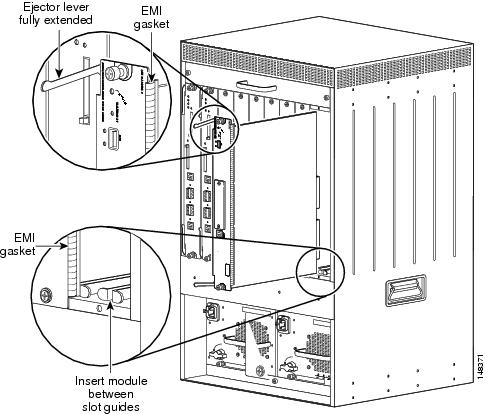

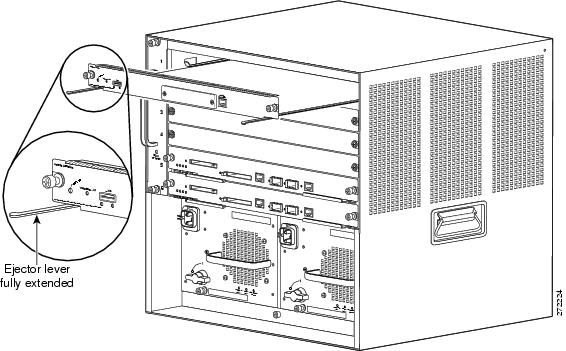

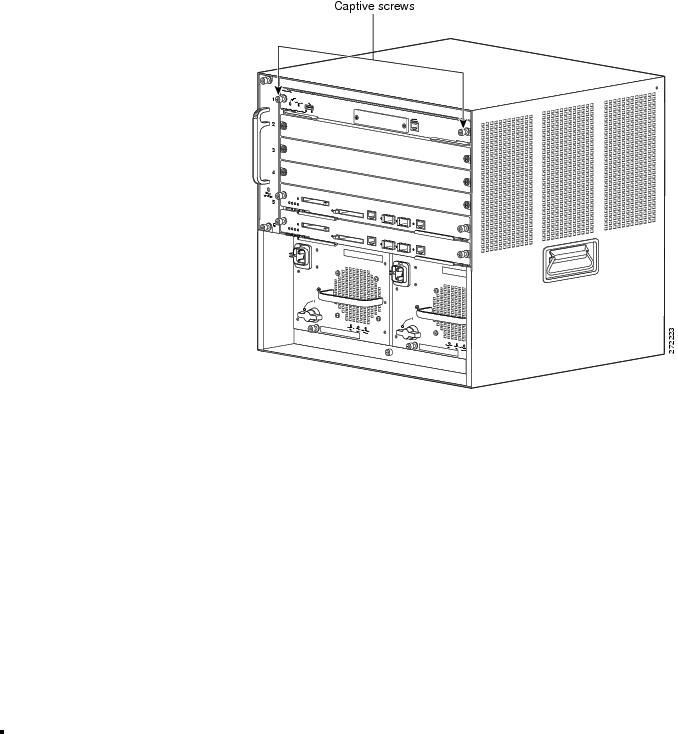

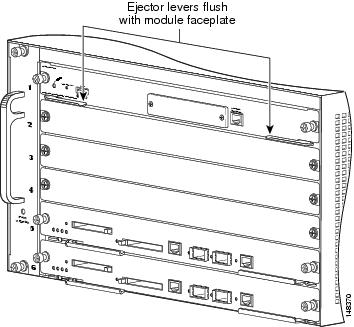

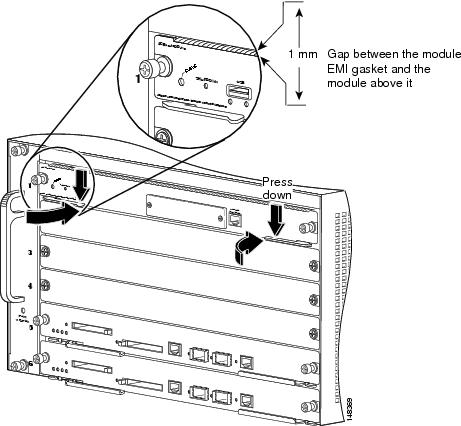

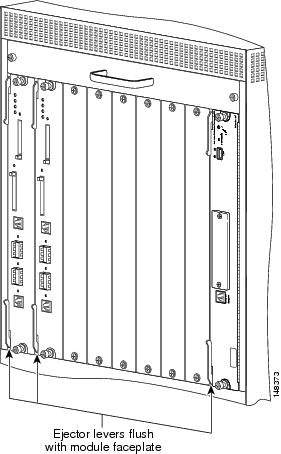

This section describes how to install an ACE module module in the Catalyst 6500 series switch or Cisco 7600 series router.
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments.
Caution To prevent ESD damage, handle modules by the carrier edges only.
Caution During this procedure, wear grounding wrist straps to avoid ESD damage to the module. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.
To install a module in the chassis, perform these steps:
Step 1 Choose a slot for the module.
Step 2 Verify that there is enough clearance to accommodate any interface equipment that you will connect directly to the module ports. If possible, place the modules between the empty slots that contain only the module filler panels.
Step 3 Verify that the captive installation screws are tightened on all modules installed in the chassis. This action ensures that the EMI gaskets on all modules are fully compressed to maximize the opening space for the replacement module.
Note If the captive installation screws are loose, the EMI gaskets on the installed modules push adjacent modules toward the open slot, reducing the opening size and making it difficult to install the replacement module.
Step 4 Remove the filler panel by removing the two Phillips pan-head screws from the filler panel.
Step 5 Open both ejector levers fully on the module (see Figure 3).
Figure 3 Positioning the Module in a Horizontal Slot Chassis
Step 6 Depending on the orientation of the slots in the chassis (horizontal or vertical), perform one of the following sets of substeps:
Horizontal slots
a. Position the module in the slot. Ensure that you align the sides of the module carrier with the slot guides on each side of the slot (see Figure 3).
b. Carefully slide the module into the slot until the EMI gasket along the top edge of the module makes contact with the module in the slot above it and both ejector levers have closed to approximately
45 degrees with respect to the module faceplate (see Figure 4).
Figure 4 Clearing the EMI Gasket in a Horizontal Slot Chassis
c. Using the thumb and forefinger of each hand, grasp the two ejector levers and press down to create a small (0.040 inch [1 mm]) gap between the EMI gasket and the module above it (see Figure 4).
Caution Do not press down too firmly on the levers because you may bend or damage them.
d. While pressing down on the left and right ejector levers, simultaneously close them to fully seat the module in the backplane connector. The ejector levers are fully closed when they are flush with the module faceplate (see Figure 5).
Figure 5 Ejector Levers Fully Closed in a Horizontal Slot Chassis
Note Failure to fully seat the module in the backplane connector may result in error messages.
e. Tighten the two captive installation screws on the module. Make sure that the ejector levers are fully closed before tightening the captive installation screws.
When you install an ACE module into a chassis, it runs a startup sequence that requires no intervention. At the successful conclusion of the startup sequence, the green Status LED lights and remains on. If the Status LED is not green or is off, see Table 4 to determine the module status.
Vertical slots
a. Position the module in the slot (see Figure 6). Make sure that you align the sides of the module carrier with the slot guides on the top and bottom of the slot.
Figure 6 Positioning the Module in a Vertical Slot Chassis
b. Carefully slide the module into the slot until the EMI gasket along the right edge of the module makes contact with the module in the slot adjacent to it. Close both ejector levers to approximately 45 degrees with respect to the module faceplate (see Figure 6).
c. Using the thumb and forefinger of each hand, grasp the two ejector levers and exert a slight pressure to the left, deflecting the module approximately 0.040 inches (1 mm) to create a small gap between the module EMI gasket and the module adjacent to it (see Figure 7).
Figure 7 Clearing the EMI Gasket in a Vertical Slot Chassis
Caution Do not exert excessive pressure on the ejector levers because you may bend or damage them.
d. While pressing on the ejector levers, simultaneously close them to fully seat the module in the backplane connector. The ejector levers are fully closed when they are flush with the module faceplate (see Figure 8).
Figure 8 Ejector Levers Fully Closed in a Vertical Slot Chassis
e. Tighten the two captive installation screws on the module. Make sure that the ejector levers are fully closed before tightening the captive installation screws.
When you install an ACE module into the chassis, it runs a startup sequence that requires no intervention. At the successful conclusion of the startup sequence, the green Status LED lights and remains on. If the Status LED is not green or is off, see Table 4 to determine the module status.
Removing the Module
This section describes how to remove an existing module from a chassis slot.
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments.
Caution During this procedure, wear grounding wrist straps to avoid ESD damage to the module.
Caution Do not directly touch the backplane with your hand or any metal tool or you may shock yourself.
To remove a module from the chassis, perform these steps:
Step 1 Before you remove the module from the chassis, enter the no power enable module command in configure mode at the switch or router CLI to properly shut down the module to prevent data loss.
Step 2 Verify that the captive installation screws on all of the modules in the chassis are tight.
This step assures that the space that is created by the removed module is maintained.
Note If the captive installation screws are loose, the electromagnetic interference (EMI) gaskets on the installed modules push the modules toward the open slot, reducing the opening size and making it difficult to install the replacement module.
Step 3 Loosen the two captive installation screws on the module.
Step 4 Depending on the orientation of the slots in the chassis (horizontal or vertical), perform one of the following sets of substeps:
Horizontal slots
a. Place your thumbs on the left and right ejector levers, and simultaneously rotate the levers outward to unseat the module from the backplane connector.
b. Grasp the front edge of the module with one hand, and slide the module part of the way out of the slot. Place your other hand under the module to support its weight. Do not touch the module circuitry.
Vertical slots
a. Place your thumbs on the ejector levers that are located at the top and bottom of the module, and simultaneously rotate the levers outward to unseat the module from the backplane connector.
b. Grasp the edges of the module, and slide the module straight out of the slot. Do not touch the module circuitry.
Step 5 Place the module on an antistatic mat or antistatic foam, or immediately reinstall it in another slot.
Step 6 If the slot from which you removed the module is to remain empty, install a filler panel to keep dust out of the chassis and to maintain proper airflow through the chassis.
Warning Blank faceplates (filler panels) serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards and faceplates are in place.
Accessing the ACE Command-Line Interface
The software interface for the ACE module is the command-line interface (CLI). You access the ACE module CLI by performing one of these tasks:
•Establishing a direct serial connection between your terminal and the ACE by making a serial connection to the console port on the front of the ACE.
•Establishing a remote connection using the SSH or Telnet protocols from a PC.
Unless your Catalyst 6500 series switch or Cisco 7600 series router is located in a fully trusted environment, we recommend that you configure the ACE module using SSH encryption.
See the Cisco Application Control Engine Module Administration Guide for details about accessing the ACE module, performing initial set up, and establishing remote access.
Related Documentation
For information on caveats for the ACE module and the maximum number of modules supported in a Catalyst 6500 series switch or Cisco 7600 series router, see the Release Note for the Cisco Application Control Engine Module.
For information about the configuration of the ACE module, refer to the following documents:
•Cisco Application Control Engine Module Expansion Card and ROMMON Upgrade Installation Note
•Cisco Application Control Engine Module Getting Started Guide
•Cisco Application Control Engine Module Administration Guide
•Cisco Application Control Engine Module Virtualization Configuration Guide
•Cisco Application Control Engine Module Routing and Bridging Configuration Guide
•Cisco Application Control Engine Module Server Load-Balancing Configuration Guide
•Cisco Application Control Engine Module Security Configuration Guide
•Cisco Application Control Engine Module SSL Configuration Guide
•Cisco Application Control Engine Module System Message Guide
•Cisco Application Control Engine Module Command Reference
•Cisco CSM-to-ACE Conversion Tool User Guide
•Cisco CSS-to-ACE Conversion Tool User Guide
To understand the Cisco IOS command-line interface and Cisco IOS command modes, see the Catalyst 6500 Series Switch Cisco IOS Software Configuration Guide or the Cisco 7600 Series Router Cisco IOS Software Configuration Guide.
Translated Safety Warnings
|
Warning
|
Invisible laser radiation present. Statement 1016
|
Waarschuwing
|
Onzichtbare laserstraling aanwezig.
|
Varoitus
|
Näkymättömiä lasersäteitä.
|
Attention
|
Rayonnement laser actif mais invisible.
|
Warnung
|
Unsichtbare Laserstrahlung.
|
Avvertenza
|
Radiazione laser invisibile.
|
Advarsel
|
Usynlig laserstråling.
|
Aviso
|
Radiação laser invisível presente.
|
¡Advertencia!
|
Existe radiación láser invisible.
|
Varning!
|
Nu pågående osynlig laserstrålning.
|
|
|
|
|
|
|
|
|
|
Warning
|
Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
|
Waarschuwing
|
Lege vlakplaten en afdekpanelen vervullen drie belangrijke functies: ze voorkomen blootstelling aan gevaarlijke voltages en stroom binnenin het frame, ze bevatten elektromagnetische storing (EMI) hetgeen andere apparaten kan verstoren en ze leiden de stroom van koellucht door het frame. Het systeem niet bedienen tenzij alle kaarten, vlakplaten en afdekkingen aan de voor- en achterkant zich op hun plaats bevinden.
|
Varoitus
|
Tyhjillä tasolaikoilla ja suojapaneeleilla on kolme tärkeää käyttötarkoitusta: Ne suojaavat asennuspohjan sisäisille vaarallisille jännitteille ja sähkövirralle altistumiselta; ne pitävät sisällään elektromagneettisen häiriön (EMI), joka voi häiritä muita laitteita; ja ne suuntaavat tuuletusilman asennuspohjan läpi. Järjestelmää ei saa käyttää, elleivät kaikki tasolaikat, etukannet ja takakannet ole kunnolla paikoillaan.
|
Attention
|
Ne jamais faire fonctionner le système sans que l'intégralité des cartes, des plaques métalliques et des panneaux avant et arrière ne soient fixés à leur emplacement. Ceux-ci remplissent trois fonctions essentielles : ils évitent tout risque de contact avec des tensions et des courants dangereux à l'intérieur du châssis, ils évitent toute diffusion d'interférences électromagnétiques qui pourraient perturber le fonctionnement des autres équipements, et ils canalisent le flux d'air de refroidissement dans le châssis.
|
Warnung
|
Blanke Faceplates und Abdeckungen haben drei wichtigen Funktionen: (1) Sie schützen vor gefährlichen Spannungen und Strom innerhalb des Chassis; (2) sie halten elektromagnetische Interferenzen (EMI) zurück, die andere Geräte stören könnten; (3) sie lenken den kühlenden Luftstrom durch das Chassis. Das System darf nur betrieben werden, wenn alle Karten, Faceplates, Voder- und Rückabdeckungen an Ort und Stelle sind.
|
Avvertenza
|
Le piattaforme bianche e i panelli di protezione hanno tre funzioni importanti: Evitano l'esposizione a voltaggi e correnti elettriche pericolose nello chassis, trattengono le interferenze elettromagnetiche (EMI) che potrebbero scombussolare altri apparati e dirigono il flusso di aria per il raffreddamento attraverso lo chassis. Non mettete in funzione il sistema se le schede, le piattaforme, i panelli frontali e posteriori non sono in posizione.
|
Advarsel
|
Blanke ytterplater og deksler sørger for tre viktige funksjoner: de forhindrer utsettelse for farlig spenning og strøm inni kabinettet; de inneholder elektromagnetisk forstyrrelse (EMI) som kan avbryte annet utstyr, og de dirigerer luftavkjølingsstrømmen gjennom kabinettet. Betjen ikke systemet med mindre alle kort, ytterplater, frontdeksler og bakdeksler sitter på plass.
|
Aviso
|
As faces furadas e os painéis de protecção desempenham três importantes funções: previnem contra uma exposição perigosa a voltagens e correntes existentes no interior do chassis; previnem contra interferência electromagnética (EMI) que poderá danificar outro equipamento; e canalizam o fluxo do ar de refrigeração através do chassis. Não deverá operar o sistema sem que todas as placas, faces, protecções anteriores e posteriores estejam nos seus lugares.
|
¡Advertencia!
|
Las placas frontales y los paneles de relleno cumplen tres funciones importantes: evitan la exposición a niveles peligrosos de voltaje y corriente dentro del chasis; reducen la interferencia electromagnética (EMI) que podría perturbar la operación de otros equipos y dirigen el flujo de aire de enfriamiento a través del chasis. No haga funcionar el sistema a menos que todas las tarjetas, placas frontales, cubiertas frontales y cubiertas traseras estén en su lugar.
|
Varning!
|
Tomma framplattor och skyddspaneler har tre viktiga funktioner: de förhindrar att personer utsätts för farlig spänning och ström som finns inuti chassit; de innehåller elektromagnetisk interferens (EMI) som kan störa annan utrustning; och de styr riktningen på kylluftsflödet genom chassit. Använd inte systemet om inte alla kort, framplattor, fram- och bakskydd är på plats.
|
|
|
|
|
|
|
|
|
Obtaining Documentation, Obtaining Support, and Security Guidelines
For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
This document is to be used in conjunction with the documents listed in the "Related Documentation" section.
CCDE, CCENT, CCSI, Cisco Eos, Cisco HealthPresence, Cisco Ironport, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco Nurse Connect, Cisco Stackpower, Cisco StadiumVision, Cisco TelePresence, Cisco Unified Computing System, Cisco WebEx, DCE, Flip Channels, Flip for Good, Flip Mino, Flip Video, Flip Video (Design), Flipshare (Design), Flip Ultra, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn, Cisco Store, and Flip Gift Card are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0907R)
Copyright © 2008-2009 Cisco Systems, Inc. All rights reserved.
