Cisco uBR Advanced RF Switch Software Configuration Guide

Introduction

The Cisco uBR Advanced RF Switch (Cisco UBR-RFSW-ADV) provides N+1 line card redundancy switching for the Cisco uBR10012 universal broadband router. The Cisco UBR-RFSW-ADV is a rack-mount unit controlled by the Cisco uBR10012 router. The Cisco UBR-RFSW-ADV is located between the Cisco uBR10012 router and the cable plant. All the Cisco uBR10012 RF downstream (DS) and RF upstream (US) ports are connected to one side of the Cisco UBR-RFSW-ADV while the cable plant is connected to the other side.

All Cisco UBR-RFSW-ADV configurations are executed on the Cisco uBR10012 router.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the Feature Information Table at the end of this document.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to http:/​/​tools.cisco.com/​ITDIT/​CFN/​. An account on http:/​/​www.cisco.com/​ is not required.

Prerequisites for Configuring the Cisco UBR-RFSW-ADV

  • The performance routing engine (PRE) must work on stateful switchover (SSO) or route processor redundancy (RPR) mode.
  • At least two line cards must be configured with Hot-standby Connection-to-Connection Protocol (HCCP).
  • Two PREs must be installed in the Cisco uBR10012 router.
  • At least two line cards must be installed in the Cisco uBR10012 router.

Restrictions for Configuring the Cisco UBR-RFSW-ADV

The AUX port on the Cisco uBR10012 router cannot be used for the ISDL or modem.

Information About Configuring the Cisco UBR-RFSW-ADV

This section describes components, images and the IDs used in the communication between the Cisco uBR10012 router and Cisco UBR-RFSW-ADV.

AUX Port

The AUX port is an RS-232 serial port with an RJ-45 style connector provided on all PRE cards shipped with the Cisco uBR10012 router. This AUX port provides a readily-usable RS-232 interface that is used to connect to the Cisco UBR-RFSW-ADV. All commands are issued from the PRE to the Cisco UBR-RFSW-ADV using this AUX serial interface.

Golden Image

The image on the Cisco UBR-RFSW-ADV that is downloaded as part of the factory settings is called the Golden Image. This image is read-only and cannot be deleted or replaced using the CLI. In the case of an image (non-golden) download failure, you can boot the Cisco UBR-RFSW-ADV using the golden image. The letter g at the beginning of the image name indicates that it is a golden image. The two types of golden image are:

  • gcv—Golden Controller Version
  • gsv—Golden Switch Version

Alternate Image

The images that can be copied to or deleted from the Cisco UBR-RFSW-ADV are called the Alternate Image. The letter a at the beginning of the image name indicates that it is an alternate image.The two types of alternate image are:
  • acv—Alternate Controller Version
  • asv—Alternate Switch Version

To download an image (non-golden), see Downloading the Image from the Cisco CMTS to the Cisco UBR-RFSW-ADV.

Active Image

The image on the Cisco UBR-RFSW-ADV that is currently in use is called the Active Image. This image can be deleted or replaced only after another image is set as active.

Module ID

The Module ID is an unique index ID for the switch cards, which indicates the physical position in the Cisco UBR-RFSW-ADV for the switch card.

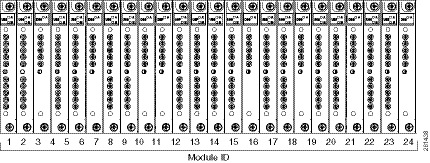

Figure 1. Module ID. The following figure shows the Module ID.

Slot ID

The switch cards in the Cisco UBR-RFSW-ADV are separated into eight slots. Each slot includes two upstream switch cards and one downstream switch card. Each slot is mapped to a line card on the Cisco uBR10012 router. The protect slot Id is zero.

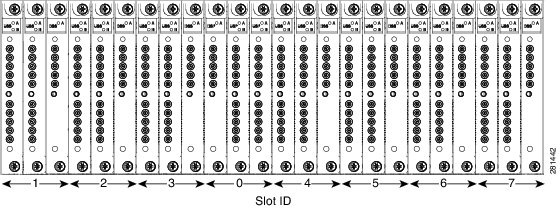

Figure 2. Slot ID. The following figure shows the Slot ID.

Group ID

To control the upstream and downstream relays, the two upstream switch cards and one downstream switch card in a slot are divided into five groups. The 20 upstream are divided into four groups and the downstream belongs to the fifth group.

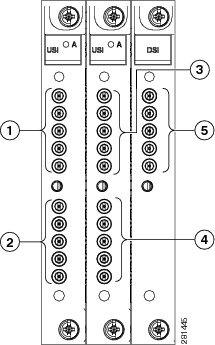

Figure 3. Group ID—Protect Switch Card. The following figure shows the Group ID on the Protect Switch Card.



1

Group 5 (DS0 to DS4)

4

Group 1 (US0 to US4)

2

Group 3 (US10 to US14)

5

Group 2 (US5 to US9)

3

Group 4 (US15 to US19)

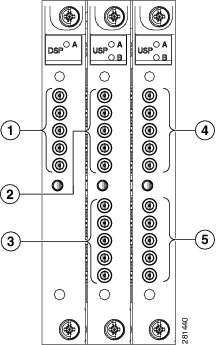

Figure 4. Group ID—Working Switch Card. The following figure shows the Group ID on the Working Switch Card.

1

Group 1 (US0 to US4)

4

Group 4 (US15 to US19)

2

Group 2 (US5 to US9)

5

Group 5 (DS0 to DS4)

3

Group 3 (US10 to US14)


The following table shows the default mapping between the slot ID of the Cisco UBR-RFSW-ADV and the line card on the Cisco uBR10012 router.

Table 1 Default Mapping between the Cisco UBR-RFSW-ADV with the Line Card on the Cisco uBR10012 Router

Slot ID on the Cisco UBR-RFSW-ADV

Line Card on the Cisco uBR10012 Router

1

8/0

2

8/1

3

7/0

4

7/1

5

6/0

6

6/1

7

5/0

0

5/1

How to Configure the Cisco UBR-RFSW-ADV

This section describes how to configure the Cisco UBR-RFSW-ADV.

Downloading the Image from the Cisco CMTS to the Cisco UBR-RFSW-ADV

Before You Begin

This procedure is used when an existing image on the Cisco UBR-RFSW-ADV is corrupt or out-of-date and needs to be replaced with an image available on the Cisco CMTS.

Copying a switch image to Cisco UBR-RFSW-ADV starts downloading the image immediately and takes approximately three minutes to complete the download to each switch card and an hour to load the image on all the 24 switch cards.


Note

Wait until the image is downloaded fully and loaded on all the switch cards before proceeding further.

Following describes the LED state indicating image download status:

  • Controller card LED flashes Green and the Switch card LED flashes Red—Image loading on the switch card is in progress.
  • Controller card LED flashes Green and the Switch card LED flash changes from Red to Blue to Green—Image loading is complete on the switch card.
  • Controller card LED illuminates Green and all the Switch card LEDs illuminate Green—Image loading is complete on all the switch cards.

Prerequisites

  • The show hccp channel-switch state command output must show the current state as RFSW Ready and the switch card state as Normal.
  • Only a valid image for the Cisco UBR-RFSW-ADV must be downloaded from the Cisco CMTS.

Note

After data transfer, the Cisco UBR-RFSW-ADV validates the downloaded data to check if it is a valid image and reports the state to the Cisco CMTS. You can view the image using the show hccp channel-switch image command.

Restrictions

Only four images can reside on the Cisco UBR-RFSW-ADV; two images for the controller and two images for the switch card.

SUMMARY STEPS

    1.    enable

    2.    cable rfswitch copy filename_cmts to-rfsw filename_rfsw

    3.    end


DETAILED STEPS
     Command or ActionPurpose
    Step 1enable


    Example:
    Router> enable


    Enables privileged EXEC mode.

    Enter your password if prompted.


    Step 2cable rfswitch copy filename_cmts to-rfsw filename_rfsw


    Example:
    Router# cable rfswitch copy disk0:acv2.11 to-rfsw acv2.11


    Copies an image from the Cisco CMTS router to the Cisco UBR-RFSW-ADV.

    • filename_cmts—Filename of the image that is copied to the Cisco UBR-RFSW-ADV from the Cisco CMTS router.
    • filename_rfsw—Filename for the image that is copied to the Cisco UBR-RFSW-ADV from the Cisco CMTS router.

    Step 3end


    Example:
    Router# end


    Returns to privileged EXEC mode.


    What to Do Next

    Troubleshooting Tips

    1. If you get an error message that the file cannot be opened or read, check the filename on the Cisco CMTS router.
    2. If you get an error message that the image file cannot be downloaded to the Cisco UBR-RFSW-ADV, verify the connection state using the show hccp channel-switch state command. This command output must show the current state as RFSW Ready, the switch card state as Normal, and the AUXRFSW poll state as Succ. If the state is Fail, check the connection.
    3. If the downloaded controller image is not visible, try copying the image again to Cisco UBR-RFSW-ADV.
    4. If you get an error message that the file is an invalid image, contact the Cisco Technical Assistance Center (TAC).

    Uploading the Image from the Cisco UBR-RFSW-ADV to the Cisco CMTS Router

    Before You Begin

    This procedure is used when an existing image in the Cisco UBR-RFSW-ADV needs to be copied to the Cisco CMTS router for future use.

    Prerequisites

    • The Cisco UBR-RFSW-ADV must be connected to the Cisco CMTS router.
    • The show hccp channel-switch state command output must show the current state as RFSW Ready and the switch card state as Normal.

    Restrictions

    • Only the image name listed in the show hccp channel-switch image command output can be used for uploading.
    SUMMARY STEPS

      1.    enable

      2.    configure terminal

      3.    cable rfswitch copy filename_cmts from-rfsw filename_rfsw

      4.    end


    DETAILED STEPS
       Command or ActionPurpose
      Step 1enable


      Example:
      Router> enable


      Enables privileged EXEC mode.

      Enter your password if prompted.


      Step 2configure terminal


      Example:
      Router# configure terminal


      Enters global configuration mode.


      Step 3cable rfswitch copy filename_cmts from-rfsw filename_rfsw


      Example:
      Router# cable rfswitch copy disk0:gcv2.11 from-rfsw gcv2.11


      Copies an image on the Cisco UBR-RFSW-ADV to the Cisco CMTS.

      • filename_cmts—Filename for the image that is copied to the Cisco CMTS from the Cisco UBR-RFSW-ADV.
      • filename_rfsw—Filename of the image that is copied from the Cisco UBR-RFSW-ADV to the Cisco CMTS.

      Step 4end


      Example:
      Router# end


      Returns to privileged EXEC mode.


      What to Do Next

      You may copy the uploaded image to a server using ftp/tftp/rcp for backup.

      Troubleshooting Tips
      • If you get an error message that the image file does not exist on the Cisco UBR-RFSW-ADV, verify if the image name is listed in the show hccp channel-switch image command output.
      • If you get an error message that the image file cannot be uploaded from the Cisco UBR-RFSW-ADV, verify the connection state using the show hccp channel-switch state command. The switch card state must be Normal. If the state is Absent, check the physical link between the PRE and the Cisco UBR-RFSW-ADV.
      • If you get an error message that the image file upload or write to the Cisco CMTS router failed, there is insufficient space on the Cisco CMTS router. Ensure that you have sufficient space to upload an image to the Cisco CMTS router.

      Deleting the Image on the Cisco UBR-RFSW-ADV

      Before You Begin

      Prerequisites

      • The show hccp channel-switch state command output must show the state as Ready.

      Restrictions

      • You cannot delete the active image on the Cisco UBR-RFSW-ADV.
      • You cannot delete the golden image on the Cisco UBR-RFSW-ADV.
      SUMMARY STEPS

        1.    enable

        2.    cable rfswitch delete filename_rfsw

        3.    end


      DETAILED STEPS
         Command or ActionPurpose
        Step 1enable


        Example:
        Router> enable


        Enables privileged EXEC mode.

        Enter your password if prompted.


        Step 2cable rfswitch delete filename_rfsw


        Example:
        Router# cable rfswitch delete acv2.11


        Deletes an image on the Cisco UBR-RFSW-ADV.

        filename_rfsw—Filename of the image on the Cisco UBR-RFSW-ADV that needs to be deleted.


        Step 3end


        Example:
        Router# end


        Returns to privileged EXEC mode.


        What to Do Next

        Proceed to the Querying for the Image List on the Cisco UBR-RFSW-ADV.

        Troubleshooting Tips

        • If you get an error message that the image file is read-only on the Cisco UBR-RFSW-ADV, you cannot delete this image file because it is the golden image.
        • If you get an error message that the image file is the active image on the Cisco UBR-RFSW-ADV, you cannot delete this image.

        Setting the Active Image on the Cisco UBR-RFSW-ADV

        Before You Begin

        Prerequisites

        • The show hccp channel-switch state command output must show the current state as RFSW Ready and the switch card state as Normal.
        • The image you set as active must reside on the Cisco UBR-RFSW-ADV.
        SUMMARY STEPS

          1.    enable

          2.    cable rfswitch set-active filename_rfsw

          3.    cable rfswitch reboot

          4.    end


        DETAILED STEPS
           Command or ActionPurpose
          Step 1enable


          Example:
          Router> enable


          Enables privileged EXEC mode.

          Enter your password if prompted.


          Step 2cable rfswitch set-active filename_rfsw


          Example:
          Router# cable rfswitch set-active gcv2.11


          Sets an image as active on the Cisco UBR-RFSW-ADV.

          filename_rfsw—Filename of the image on the Cisco UBR-RFSW-ADV that is to be set as active.


          Step 3cable rfswitch reboot


          Example:
          Router# cable rfswitch reboot


          Reboots the Cisco UBR-RFSW-ADV.


          Step 4end


          Example:
          Router# end


          Returns to privileged EXEC mode.


          What to Do Next

          Proceed to the Querying for the Image List on the Cisco UBR-RFSW-ADV section and then to the Enabling the Cisco UBR-RFSW-ADV section.

          Troubleshooting Tips

          If you get an error message that the image file does not exist on the Cisco UBR-RFSW-ADV, verify if the image name is listed in the show hccp channel-switch image command output. If it is not listed, download the image from the Cisco CMTS router (see Downloading the Image from the Cisco CMTS to the Cisco UBR-RFSW-ADV section).

          Enabling the Cisco UBR-RFSW-ADV

          Before You Begin

          In the default configuration, the Cisco UBR-RFSW-ADV is disabled. When the Cisco UBR-RFSW-ADV is enabled, the Cisco CMTS router polls the Cisco UBR-RFSW-ADV to check if it is connected and running.

          Restriction:

          You cannot use AUX port 1 on the Cisco uBR10012 router as a console port after the Cisco UBR-RFSW-ADV is enabled and it starts using AUX port 1 for communication.

          SUMMARY STEPS

            1.    enable

            2.    configure terminal

            3.    redundancy

            4.    linecard-group id cable

            5.    rf-switch auxport enable

            6.    end


          DETAILED STEPS
             Command or ActionPurpose
            Step 1enable


            Example:
            Router> enable


            Enables privileged EXEC mode.

            Enter your password if prompted.


            Step 2configure terminal


            Example:
            Router# configure terminal


            Enters global configuration mode.


            Step 3redundancy


            Example:
            Router(config)# redundancy


            Enables global N+1 redundancy and enters redundancy configuration mode.


            Step 4linecard-group id cable


            Example:
            Router(config-red)# linecard-group 1 cable


            Assigns the HCCP group to all interfaces on the cable interface line card, or Cisco Broadband Processing Engine (BPE).


            Step 5rf-switch auxport enable


            Example:
            Router(config-red-lc)# rf-switch auxport enable


            Enables the Cisco UBR-RFSW-ADV. In the default configuration, the Cisco UBR-RFSW-ADV is disabled.

            When the Cisco UBR-RFSW-ADV is enabled, the Cisco CMTS router starts polling the Cisco UBR-RFSW-ADV at a set interval to check its status.


            Step 6end


            Example:
            Router# end


            Returns to privileged EXEC mode.


            What to Do Next

            Proceed to the Querying for the Image List on the Cisco UBR-RFSW-ADV.

            Troubleshooting Tips

            • The following commands can help troubleshoot the Cisco UBR-RFSW-ADV:
              • debug hccp rfswitch hello—Displays debug messages related to HELLO messages of the Cisco UBR-RFSW-ADV every three seconds.
              • debug hccp rfswitch—Displays debug messages related to a Cisco UBR-RFSW-ADV event, message, and failure.
            • If the Cisco CMTS router stops receiving a response from the Cisco UBR-RFSW-ADV, it implies that there is communication problem between the Cisco CMTS and the Cisco UBR-RFSW-ADV. Check the state using the show hccp channel-switch state command. The output should show the state as Normal. If the output shows the state as Absent, check the cable connection. If you still see communication problem contact TAC.

            Configuring the Protect Line Card

            Before You Begin

            The slot mapping between the protect line card on the Cisco CMTS router and the protect switch cards on the Cisco UBR-RFSW-ADV is not required.

            SUMMARY STEPS

              1.    enable

              2.    configure terminal

              3.    redundancy

              4.    linecard-group id cable

              5.    member subslot slot/subslot protect

              6.    end


            DETAILED STEPS
               Command or ActionPurpose
              Step 1enable


              Example:
              Router> enable


              Enables privileged EXEC mode.

              Enter your password if prompted.


              Step 2configure terminal


              Example:
              Router# configure terminal


              Enters global configuration mode.


              Step 3redundancy


              Example:
              Router(config)# redundancy


              Enables global N+1 redundancy and enters redundancy configuration mode.


              Step 4linecard-group id cable


              Example:
              Router(config-red)# linecard-group 1 cable


              Assigns the HCCP group to all interfaces on the cable interface line card, or Cisco Broadband Processing Engine (BPE).


              Step 5member subslot slot/subslot protect


              Example:
              Router(config-red-lc)# member subslot 5/0 protect


              Configures all the interfaces on the specified line card to function as HCCP protect interfaces in the redundancy scheme.

              On the Cisco uBR10012 router, the valid values are:
              • slot—5 to 8
              • subslot—0 or 1

              Step 6end


              Example:
              Router# end


              Returns to privileged EXEC mode.


              What to Do Next

              Proceed to the Configuring the Slot Mapping for the Working Line Cards.

              Configuring the Slot Mapping for the Working Line Cards

              Before You Begin

              The slot mapping can be configured using the CLI and hence the physical cabling between the Cisco CMTS and the Cisco UBR-RFSW-ADV is flexible. You can cable any line card on the Cisco CMTS to any slot on the Cisco UBR-RFSW-ADV. You need not configure the mapping for the protect line card on the Cisco CMTS router.

              SUMMARY STEPS

                1.    enable

                2.    configure terminal

                3.    redundancy

                4.    linecard-group id cable

                5.    member subslot slot/subslot protect

                6.    member subslot slot/subslot working [rfsw-slot slot_id ]

                7.    end


              DETAILED STEPS
                 Command or ActionPurpose
                Step 1enable


                Example:
                Router> enable


                Enables privileged EXEC mode.

                Enter your password if prompted.


                Step 2configure terminal


                Example:
                Router# configure terminal


                Enters global configuration mode.


                Step 3redundancy


                Example:
                Router(config)# redundancy


                Enables global N+1 redundancy and enters redundancy configuration mode.


                Step 4linecard-group id cable


                Example:
                Router(config-red)# linecard-group 1 cable


                Assigns the HCCP group to all interfaces on the cable interface line card, or Cisco Broadband Processing Engine (BPE).


                Step 5member subslot slot/subslot protect


                Example:
                Router(config-red-lc)# member subslot 5/0 protect


                Configures all the interfaces on the specified line card to function as HCCP protect interfaces in the redundancy scheme.

                On the Cisco uBR10012 router, the valid values are:
                • slot—5 to 8
                • subslot—0 or 1

                Step 6member subslot slot/subslot working [rfsw-slot slot_id ]


                Example:
                Router(config-red-lc)# member subslot 6/1 working rfsw-slot 3


                Configures all interfaces on the specified line card to function as HCCP working interfaces in the redundancy scheme.

                On the Cisco uBR10012 router, the valid values are:
                • slot—5 to 8
                • subslot—0 or 1

                Repeat this step for each working line card in the Cisco CMTS router.

                If you cable the cards in the Cisco UBR-RFSW-ADV and the Cisco CMTS router according to the default mapping, you need not use the rfsw-slot slot_id option to configure the slot mapping.

                To configure a non-default 7+1 mapping, use the rfsw-slot slot_id option. This enables you to cable any line card on the Cisco CMTS router to any Cisco UBR-RFSW-ADV slot (rfsw-slot). The valid value for the slot_id is from 1 to 8.


                Step 7end


                Example:
                Router# end


                Returns to privileged EXEC mode.



                Examples

                The following example shows how to configure the line card in slot/subslot 7/1 on the Cisco uBR10012 router as the working card and map it to slot 7 on the Cisco UBR-RFSW-ADV.

                Router> enable
Router# configure terminal
Router(config)# redundancy
Router(config-red)# linecard-group 1 cable
Router(config-red-lc)# rf-switch auxport enable
Router(config-red-lc)# member subslot 5/0 protect
Router(config-red-lc)# member subslot 7/1 working rfsw-slot 7
Router(config-red-lc)# exit
Router(config-red)# exit
Router(config)# exit

                Verifying the Cisco UBR-RFSW-ADV Configurations

                This section describes how to verify the Cisco UBR-RFSW-ADV configuration.

                Querying the Cisco UBR-RFSW-ADV Version

                To query for the version of the Cisco UBR-RFSW-ADV from the Cisco CMTS router, use the show hccp channel-switch version command.

                Router# show hccp channel-switch version

Controller:
 Controller Golden Firmware: gcv3.0, Controller Alternate Firmware:acv3.0
 Switch Golden Firmware: gsv3.0, Switch Alternate Firmware:asv3.0
  Ctrl    Switch  Bootload  Watchdog  Temperature Voltage    Uptime      Serial
  Version Version Version   Error                 Monitoring
  3.0     3.0     3.0       255       33          12.2V      46:21       AFL15448001

SwitchCards:
  Type Slot Bootload TotalPower Relay         Coil Fail   Tempe  TotalRelay Uptime Serial
       id   Version  Cycle      pos           Register    rature Cycle
  U0   0    1.2      247        -----RSRRSR   -----PPPPPP 0      4457       0d0h   AFL15515020
  U10  0    1.2      247        -----RSRRSR   -----PPPPPP 0      4420       0d0h   AFL15515013
  DS   0    1.2      250        -----RRRSSR   -----PPPPPP 0      7533       0d0h   AFL15512017
  U0   1    1.2      340        SSSSS-SSSSS   PPPPP-PPPPP 33     2472       0d0h   AFL15514160
  U10  1    1.2      240        SSSSS-SSSSS   PPPPP-PPPPP 33     2352       0d0h   AFL15514163
  DS   1    1.2      265        ------RRRRR   ------PPPPP 33     2382       0d0h   AFL15491025
  U0   2    1.2      249        SSSSS-SSSSS   PPPPP-PPPPP 34     2339       0d0h   AFL15514236
  U10  2    1.2      257        SSSSS-SSSSS   PPPPP-PPPPP 34     2340       0d0h   AFL15514223
  DS   2    1.2      254        ------RRRRR   ------PPPPP 34     2361       0d0h   AFL15431001
  U0   3    1.2      262        SSSSS-SSSSS   PPPPP-PPPPP 35     2315       0d0h   AFL15514214
  U10  3    1.2      255        SSSSS-SSSSS   PPPPP-PPPPP 36     2316       0d0h   AFL15514215
  DS   3    1.2      251        ------RRRRR   ------PPPPP 34     2313       0d0h   AFL15491078
  U0   4    1.2      237        SSSSS-SSSSS   PPPPP-PPPPP 35     2324       0d0h   AFL15514213
  U10  4    1.2      255        SSSSS-SSSSS   PPPPP-PPPPP 35     2314       0d0h   AFL15514221
  DS   4    1.2      245        ------RRRRR   ------PPPPP 37     2326       0d0h   AFL15491092
  U0   5    1.2      236        SSSSS-SSSSS   PPPPP-PPPPP 35     2281       0d0h   AFL15514212
  U10  5    1.2      279        SSSSS-SSSSS   PPPPP-PPPPP 34     2333       0d0h   AFL15514228
  DS   5    1.2      247        ------RRRRR   ------PPPPP 34     2315       0d0h   AFL15491064
  U0   6    1.2      256        SSSSS-SSSSS   PPPPP-PPPPP 33     2333       0d0h   AFL15514224
  U10  6    1.2      258        SSSSS-SSSSS   PPPPP-PPPPP 34     2314       0d0h   AFL15514230
  DS   6    1.2      268        ------RRRRR   ------PPPPP 33     2310       0d0h   AFL15491044
  U0   7    1.2      293        RRRRR-RRRRR   PPPPP-PPPPP 33     2369       0d0h   AFL15514227
  U10  7    1.2      325        RRRRR-RRRRR   PPPPP-PPPPP 33     2403       0d0h   AFL15514235
  DS   7    1.2      315        ------SSSSS   ------PPPPP 33     2383       0d0h   AFL15491108

                Viewing the Cisco UBR-RFSW-ADV State

                To view the current state of the Cisco UBR-RFSW-ADV, use the show hccp channel-switch state command.

                Router# show hccp channel-switch state

Current State: RFSW Ready
Current Protected Slot: 7

The switchcard information in RFSW:
    Slot Id Module Id Type       HCCP Conf  State
    0       12        Upstream   Yes        Protecting
    0       11        Upstream   Yes        Protecting
    0       10        Downstream Yes        Protecting
    1       1         Upstream   Yes        Normal
    1       2         Upstream   Yes        Normal
    1       3         Downstream Yes        Normal
    2       4         Upstream   Yes        Normal
    2       5         Upstream   Yes        Normal
    2       6         Downstream Yes        Normal
    3       7         Upstream   Yes        Normal
    3       8         Upstream   Yes        Normal
    3       9         Downstream Yes        Normal
    4       13        Upstream   Yes        Normal
    4       14        Upstream   Yes        Normal
    4       15        Downstream Yes        Normal
    5       16        Upstream   Yes        Normal
    5       17        Upstream   Yes        Normal
    5       18        Downstream Yes        Normal
    6       19        Upstream   Yes        Normal
    6       20        Upstream   Yes        Normal
    6       21        Downstream Yes        Normal
    7       22        Upstream   Yes        In Protecting
    7       23        Upstream   Yes        In Protecting
    7       24        Downstream Yes        In Protecting

Failed Message Number: 21
Hello Message Interval: 3 seconds
AUXRFSW poll state: Succ

                Querying for the Image List on the Cisco UBR-RFSW-ADV

                To query the image list on the Cisco UBR-RFSW-ADV from the Cisco CMTS router, use the show hccp channel-switch image command.

                The Cisco CMTS router queries the Cisco UBR-RFSW-ADV after the:

                • The Cisco UBR-RFSW-ADV is discovered using Hello messages.
                • Image is downloaded to the Cisco UBR-RFSW-ADV.
                • Image is deleted from the Cisco UBR-RFSW-ADV.

                The image list retrieved by this query is saved on the Cisco CMTS.

                Router# show hccp channel-switch image

file size     file mode     file state       file name
6402          Write                          asv3.0
47246         Write                          acv3.0
6406          Read          Active           gsv3.0
47238         Read          Active           gcv3.0

                Viewing the Command History on the Cisco CMTS Router

                To view the command history on the Cisco CMTS router, use the show hccp channel-switch command-history local command.

                Router# show hccp channel-switch command-history local

timestamp            state      command
2010-06-13 07:47:17  Succ       type:FILE_OPEN, slot:1, group:0x00
2010-06-13 07:47:27  Succ       type:FILE_CLOSE, slot:0, group:0x00
2010-06-13 07:48:11  Succ       type:FILE_OPEN, slot:2, group:0x00
2010-06-13 07:48:51  Fail       type:FILE_CLOSE, slot:0, group:0x00
2010-06-13 09:46:01  Succ       type:RESET_SLOT, slot:7, group:0x1F
2010-06-13 09:48:17  Succ       type:RESET_SLOT, slot:7, group:0x1F
2010-06-13 18:47:23  Succ       type:RESET_SLOT, slot:4, group:0x1F

                Viewing the Counters on the Cisco UBR-RFSW-ADV

                To view the switch over counters on the Cisco UBR-RFSW-ADV, use the show hccp channel-switch counter command.

                The Cisco CMTS router queries the Cisco UBR-RFSW-ADV periodically and saves the result on the Cisco CMTS router.

                Router# show hccp channel-switch counter

The counter of switchover for all slot/group in rf switch.
  slot id group 1 group 2 group 3 group 4 group 5
  0       16491   16491   16491   16491   16491
  1       2383    2383    2383    2383    2383
  2       2360    2360    2360    2360    2360
  3       2351    2351    2351    2351    2351
  4       2348    2348    2348    2348    2348
  5       2343    2343    2343    2343    2343
  6       2354    2354    2354    2354    2354
  7       2352    2352    2352    2352    2352

                Configuration Examples for the Cisco UBR-RFSW-ADV

                This section describes the configuration examples for the Cisco UBR-RFSW-ADV.

                Example: Cisco UBR-RFSW-ADV Configuration

                The following is a sample output of the Cisco UBR-RFSW-ADV configuration set on the Cisco uBR10012 router:

                Router> enable
Router# configure terminal
Router(config)# redundancy
Router(config-red)# linecard-group 1 cable
Router(config-red-lc)# rf-switch auxport enable
Router(config-red-lc)# member subslot 5/0 protect
Router(config-red-lc)# member subslot 7/1 working rfsw-slot 7
Router(config-red-lc)# exit
Router(config-red)# exit
Router(config)# exit

Router# show running-config

Building configuration...

Current configuration : 104392 bytes
.
.
.
!
card 1 2jacket-1
card 1/1 24rfchannel-spa-1
card 1/1 2cable-dtcc
card 2/1 2cable-dtcc
card 3/0 1gigethernet-hh-1
card 3/1 1gigethernet-hh-1
card 4/0 1gigethernet-hh-1
card 4/1 1gigethernet-hh-1
card 5/0 5cable-mc520h-d
card 6/0 5cable-mc520u-d
card 7/0 5cable-mc520h-d
card 7/1 5cable-mc520h-d
card 8/0 5cable-mc520h-d
.
.
.
!
redundancy
 linecard-group 1 cable
  rf-switch auxport enable
  member subslot 5/0 protect
  member subslot 7/1 working rfsw-slot 7
  member subslot 5/0 protect config 8/0
  mode sso
!

                Example: Cisco UBR-RFSW-ADV Ready State

                The following is sample output of the show hccp channel-switch state command:

                Router# show hccp channel-switch state

Current State: RFSW Ready
Current Protected Slot: 0

The switchcard information in RFSW:
Slot Id Module Id Type       HCCP Conf State
0       12        Upstream   Yes       Normal
0       11        Upstream   Yes       Normal
0       10        Downstream Yes       Normal
1       1         Upstream   Yes       Normal
1       2         Upstream   Yes       Normal
1       3         Downstream Yes       Normal
2       4         Upstream   Yes       Normal
2       5         Upstream   Yes       Normal
2       6         Downstream Yes       Normal
3       7         Upstream   Yes       Normal
3       8         Upstream   Yes       Normal
3       9         Downstream Yes       Normal
4       13        Upstream   Yes       Normal
4       14        Upstream   Yes       Normal
4       15        Downstream Yes       Normal
5       16        Upstream   Yes       Normal
5       17        Upstream   Yes       Normal
5       18        Downstream Yes       Normal
6       19        Upstream   Yes       Normal
6       20        Upstream   Yes       Normal
6       21        Downstream Yes       Normal
7       22        Upstream   Yes       Normal
7       23        Upstream   Yes       Normal
7       24        Downstream Yes       Normal

Failed Message Number: 21
Hello Message Interval: 3 seconds
AUXRFSW poll state: Succ

                Example: Cisco UBR-RFSW-ADV with Active Protect Card

                The following is sample output of the show hccp channel-switch state command:

                Router# show hccp channel-switch state

Current State: RFSW Ready
Current Protected Slot: 5

The switchcard information in RFSW:
Slot Id Module Id Type       HCCP Conf State
0       12        Upstream   Yes       Protecting
0       11        Upstream   Yes       Protecting
0       10        Downstream Yes       Protecting
1       1         Upstream   Yes       Normal
1       2         Upstream   Yes       Normal
1       3         Downstream Yes       Normal
2       4         Upstream   Yes       Normal
2       5         Upstream   Yes       Normal
2       6         Downstream Yes       Normal
3       7         Upstream   Yes       Normal
3       8         Upstream   Yes       Normal
3       9         Downstream Yes       Normal
4       13        Upstream   Yes       Normal
4       14        Upstream   Yes       Normal
4       15        Downstream Yes       Normal
5       16        Upstream   Yes       In Protecting
5       17        Upstream   Yes       In Protecting
5       18        Downstream Yes       In Protecting
6       19        Upstream   Yes       Normal
6       20        Upstream   Yes       Normal
6       21        Downstream Yes       Normal
7       22        Upstream   Yes       Normal
7       23        Upstream   Yes       Normal
7       24        Downstream Yes       Normal

Failed Message Number: 22
Hello Message Interval: 3 seconds
AUXRFSW poll state: Succ

                Troubleshooting Examples for the Cisco UBR-RFSW-ADV

                This section describes the troubleshooting examples for the Cisco UBR-RFSW-ADV.

                Troubleshooting: Link Failure Between the Cisco uBR10012 Router and the Cisco UBR-RFSW-ADV

                Problem    The state is RFSW INIT in the show hccp channel-switch state command output.
                Router# show hccp channel-switch state

Current State: RFSW INIT
Current Protected Slot: 0

The switchcard information in RFSW:
Slot Id Module Id Type       HCCP Conf State
0       12        Upstream   Yes       Absent
0       11        Upstream   Yes       Absent
0       10        Downstream Yes       Absent
1       1         Upstream   Yes       Absent
1       2         Upstream   Yes       Absent
1       3         Downstream Yes       Absent
2       4         Upstream   No        Absent
2       5         Upstream   No        Absent
2       6         Downstream No        Absent
3       7         Upstream   No        Absent
3       8         Upstream   No        Absent
3       9         Downstream No        Absent
4       13        Upstream   No        Absent
4       14        Upstream   No        Absent
4       15        Downstream No        Absent
5       16        Upstream   No        Absent
5       17        Upstream   No        Absent
5       18        Downstream No        Absent
                Possible Cause    Power is down on the Cisco UBR-RFSW-ADV.
                Solution    Power on the Cisco UBR-RFSW-ADV.
                Possible Cause    The physical link between the Cisco CMTS router and the Cisco UBR-RFSW-ADV is down.
                Solution    Check if the RS-232 cable, which is a Cisco-style rolled cable with RJ-45 cables on both ends, is used between the Cisco CMTS router and the Cisco UBR-RFSW-ADV.

                Troubleshooting: Switch Card not Installed on the Cisco UBR-RFSW-ADV

                Problem    The state is Absent for some switch cards in the show hccp channel-switch state command output.
                Router# show hccp channel-switch state

Current State: RFSW Ready
Current Protected Slot: 0

The switchcard information in RFSW:
Slot Id Module Id Type       HCCP Conf State
0       12        Upstream   Yes       Absent
0       11        Upstream   Yes       Absent
0       10        Downstream Yes       Absent
1       1         Upstream   Yes       Absent
1       2         Upstream   Yes       Absent
1       3         Downstream Yes       Absent
2       4         Upstream   No        Absent
2       5         Upstream   No        Absent
2       6         Downstream No        Absent
3       7         Upstream   Yes       Normal
3       8         Upstream   Yes       Normal
3       9         Downstream Yes       Normal
4       13        Upstream   Yes       Normal
4       14        Upstream   Yes       Normal
4       15        Downstream Yes       Normal
5       16        Upstream   Yes       Normal
5       17        Upstream   Yes       Normal
5       18        Downstream Yes       Normal
6       19        Upstream   Yes       Normal
6       20        Upstream   Yes       Normal
6       21        Downstream Yes       Normal
7       22        Upstream   Yes       Normal
7       23        Upstream   Yes       Normal
7       24        Downstream Yes       Normal

Failed Message Number: 21
Hello Message Interval: 3 seconds
AUXRFSW poll state: Succ
                Possible Cause    The switch card is removed from the Cisco UBR-RFSW-ADV or is not working.
                Solution    Insert a new switch card to check its state.

                Troubleshooting: Cisco UBR-RFSW-ADV Does not Relay the Switch Card

                Problem    The cable modems go offline after a line card switchover.
                Possible Cause    The connection between the Cisco UBR-RFSW-ADV and the Cisco CMTS is broken.
                Solution    Check the link between the Cisco UBR-RFSW-ADV and the Cisco CMTS. The connection state must be Ready. If the state is not ready, reboot the Cisco UBR-RFSW-ADV using the cable rfswitch reboot command or upgrade the Cisco UBR-RFSW-ADV image.

                Where to Go Next

                Additional References

                Related Documents

                Related Topic Document Title

                Cisco IOS commands

                Cisco IOS Master Commands List, All Releases

                Cisco Cable-specific IOS commands

                Cisco IOS CMTS Cable Command Reference

                Cisco uBR Advanced RF Switch

                Technical Assistance

                Description Link

                The Cisco Support website provides extensive online resources, including documentation and tools for troubleshooting and resolving technical issues with Cisco products and technologies.

                To receive security and technical information about your products, you can subscribe to various services, such as the Product Alert Tool (accessed from Field Notices), the Cisco Technical Services Newsletter, and Really Simple Syndication (RSS) Feeds.

                Access to most tools on the Cisco Support website requires a Cisco.com user ID and password.

                http:/​/​www.cisco.com/​cisco/​web/​support/​index.html

                Feature Information for the Cisco UBR-RFSW-ADV

                Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http:/​/​tools.cisco.com/​ITDIT/​CFN/​. An account on http:/​/​www.cisco.com/​ is not required.


                Note

                The below table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

                Table 2 Feature Information for the Cisco UBR-RFSW-ADV
                Feature Name Releases Feature Information

                Cisco uBR Advanced RF Switch

                Cisco IOS Release 12.2(33)SCG

                The Cisco UBR-RFSW-ADV provides N+1 line card redundancy for the Cisco CMTS.

                The following commands were introduced or modified:

                • cable rfswitch copy
                • cable rfswitch delete
                • cable rfswitch reboot
                • cable rfswitch set-active
                • rf-switch auxport enable
                • show hccp channel-switch

                Obtaining Documentation and Submitting a Service Request

                For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

                http:/​/​www.cisco.com/​en/​US/​docs/​general/​whatsnew/​whatsnew.html

                Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0.

                THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

                THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

                The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

                NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

                IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

                Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: http:/​/​www.cisco.com/​go/​trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)

                Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.
