Technical Specifications

Antenna type	Dipole
Operating frequency range	5150–5850 MHz
Nominal input impedance	50 Ohms
2:1 VSWR bandwidth	5150–5850 MHz
Gain	3.5 dBi
Polarization	Linear, vertical
E-plane 3-dB beamwidth	40 degrees
H-plane 3-dB beamwidth	Omni-directional
Connector type	RP-TNC plug
Length	5.3 in. (13.4 cm)
Radome length	3.4 in. (8.6 cm)
Width	0.62 in. (1.5 cm)
Operating temperature	-22–158°F (-30–70°C)
Storage temperature	-40–185°F (-40–85°C)
Environment	Indoor, office

Azimuth and Elevation Patterns

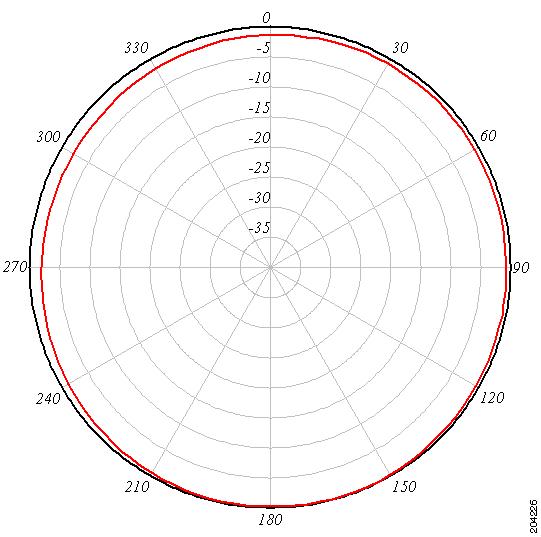

H-Plane Pattern

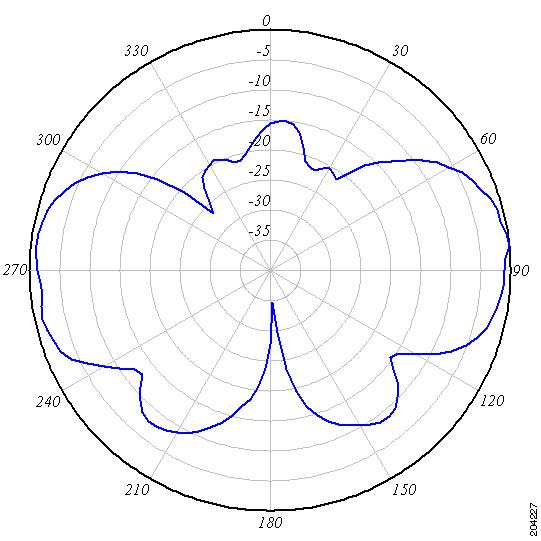

E-Plane Pattern

System Requirements

This antenna is designed for use with Cisco Aironet access points and bridges, but can be used with any 5 GHz Cisco Aironet radio device that uses RP-TNC connectors.

Features

The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its joint. The articulated base is shown in the following illustration.

Installing the Antenna

• This antenna operates in the 5 GHz frequency range. Connect this antenna to a 5 GHz antenna connector, which is identified by a blue dot. Connecting this antenna to a 2.4 GHz antenna connector degrades radio performance and could damage the radio.

To install the antenna:

1. Verify that the connector to which you are connecting the antenna is a 5-GHz connector (identified by a blue dot near the access point RP-TNC connector).

2. Align the antenna connector with the RP-TNC connector on the access point.

3. Engage the antenna connector threads with the RP-TNC connector.

4. Tighten the antenna hand tight.

5. Adjust the antenna’s articulated mount to the desired position.
