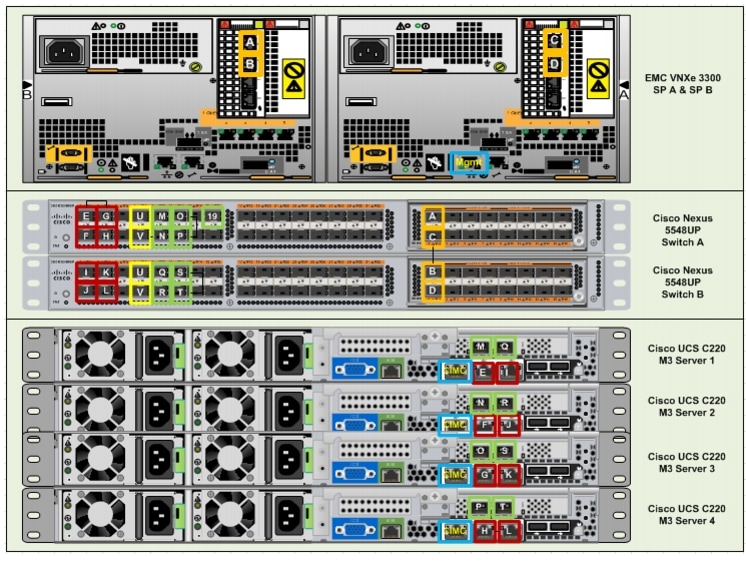

Cabling Information

Prepare and Configure the Cisco Nexus 5548UP Switch

Initial Setup of Cisco Nexus Switches

Enabling Features and Global Configuration

Set Global Configurations

Configure VLANs

Configure Port-Channels

Configure Virtual Port Channels

Configure Adapter FEX

Enabling Switch for Adapter-FEX

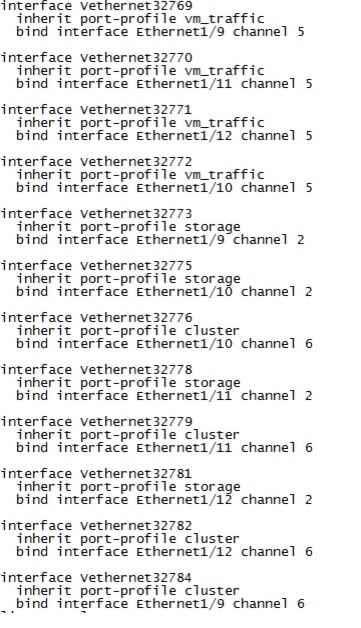

Configuring the Switch for Adapter-FEX

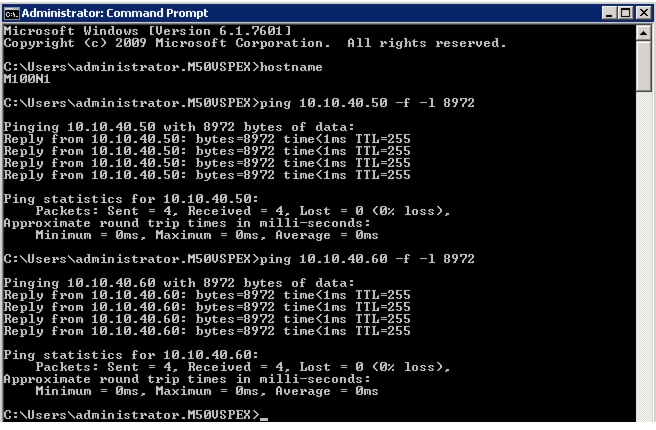

Enable Jumbo Frames

Infrastructure Servers

Prepare the Cisco UCS C220 M3 Servers

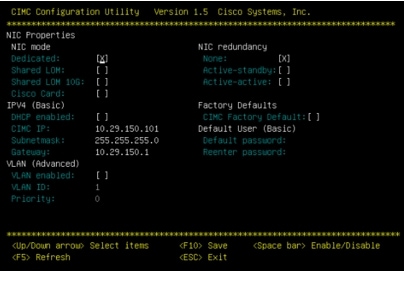

Configuring Cisco Integrated Management controller (CIMC)

Enable Virtualization Technology in BIOS

Configuring RAID

SQL Server Installation

Microsoft System Center VMM

Installing the VMM Server and VMM Administrator Console

Install Microsoft Windows Server on Cisco UCS C220 M3 Servers

Installation of Microsoft Windows Server 2008 R2 SP1

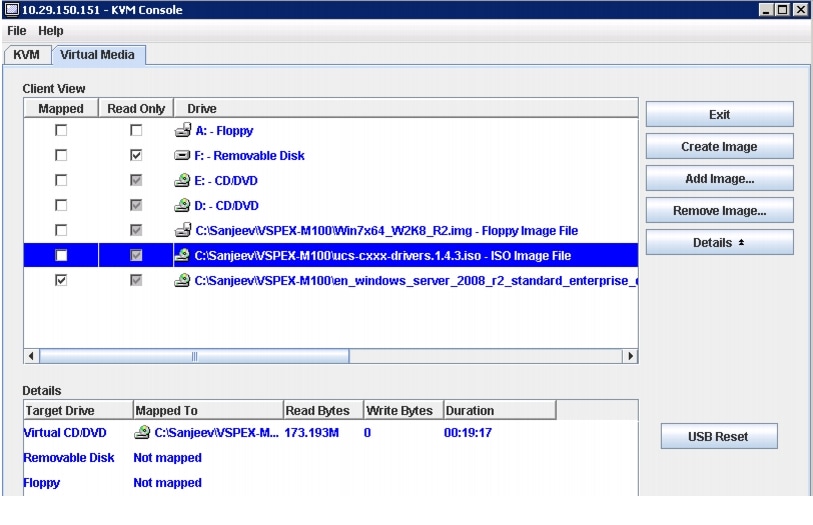

Device Driver Installation

Network Configuration

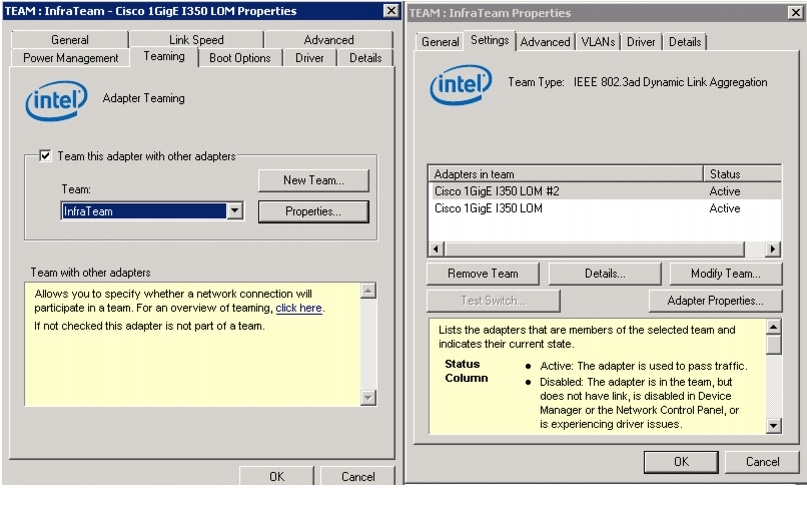

NIC Teaming of Cisco 1 GigE LOM

Creating and Configuring vNICs on Cisco P81E VIC

Host Rename and Domain Join

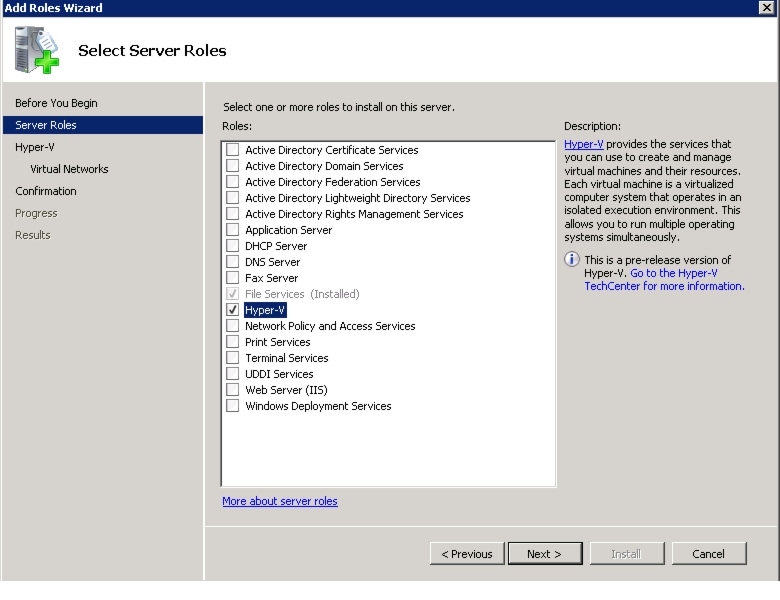

Install Roles and Features

Enable iSCSI Initiator

Prepare the EMC VNXe3300 Storage

Initial Setup of EMC VNXe

Create Storage Pools

Configure Advanced Features—Link Aggregation and Jumbo Frames

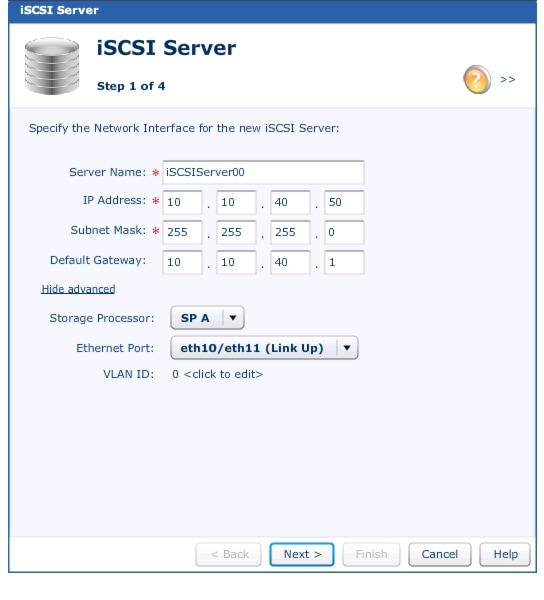

Create iSCSI Servers

Create Microsoft Hyper-V Datastores

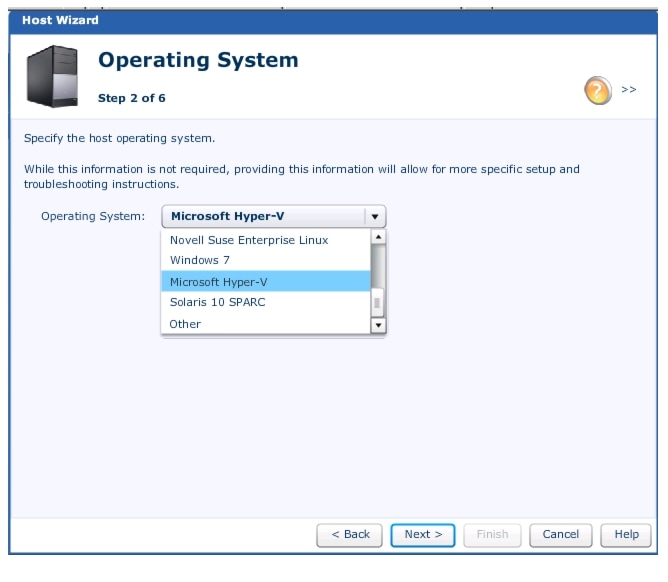

Create Hosts and Provide Host Access

Microsoft Windows Failover Cluster Setup

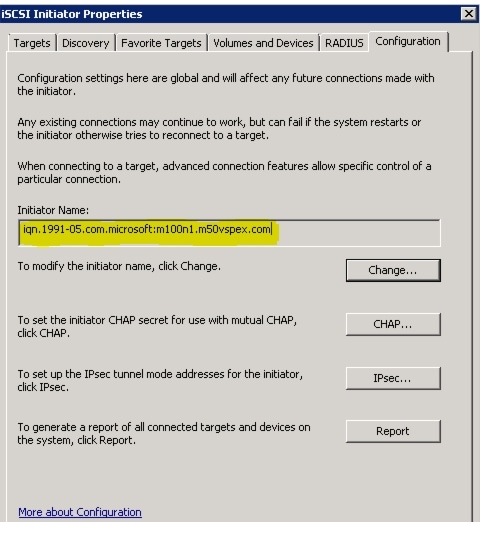

iSCSI Initiator Configuration

Cluster Validation

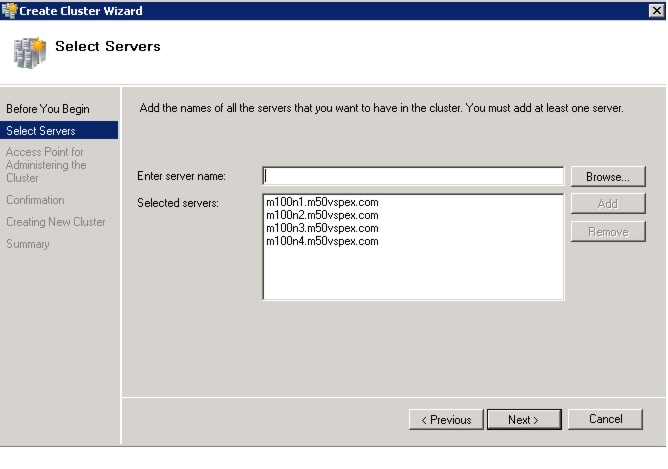

Failover Cluster Setup

Microsoft System Center-2012 VMM Configuration

Add Microsoft Hyper-V Hosts and Cluster

Create a Template for Virtual Machine Deployment

Create a Virtual Machine Template

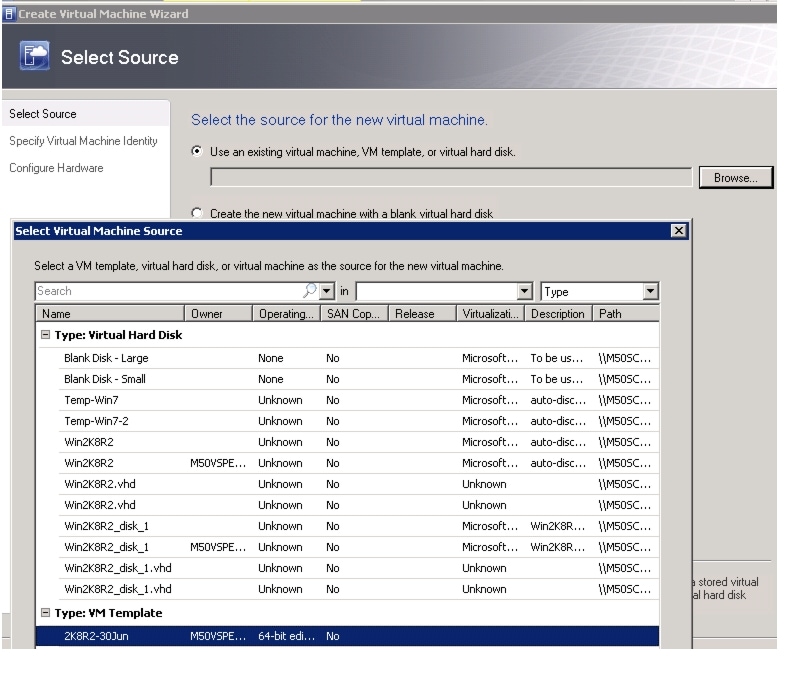

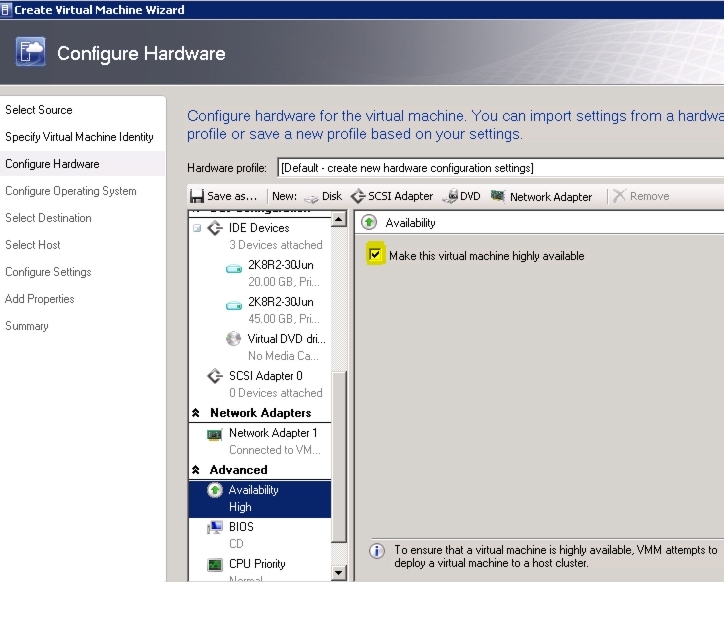

Create a Highly Available Virtual Machine from a Template

VSPEX M50 Configuration Details

Cabling Information

Prepare and Configure the Cisco Nexus 3048 Switch

Initial Setup of Cisco Nexus Switches

Enable Features, Jumbo Frames and Global Configuration

Configure VLANs

Configure Port Channels

Add Port Channel Configurations

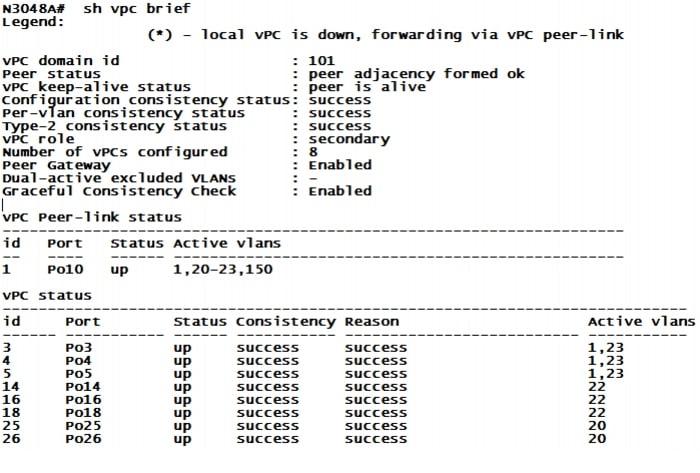

Configure Virtual Port Channels

Infrastructure Servers

Active Directory Domain Controller

Microsoft SQL Server

Microsoft System Center VMM

Prepare the Cisco UCS C220 M3 Servers

Configure Cisco Integrated Management controller (CIMC)

Configure RAID

Enable Virtualization Technology in BIOS

Installing Microsoft Windows Server OS on UCS C220 M3 Servers

Device Driver Installation

Network Configuration

NIC Teaming of Cisco 1 GigE LOM

NIC Teaming of Broadcom BCM5709C NetXtreme II GigE adapter

Host Rename and Domain Join

Install Roles and Features

Enable iSCSI initiator

Prepare the EMC VNXe3150 Storage

Initial Setup of EMC VNXe

Create Storage Pools

Configure Advanced features—Link Aggregation and Jumbo Frames

Create iSCSI Servers

Create Hosts

Create Hyper-V Datastores

Microsoft Windows Failover Cluster Setup

iSCSI Initiator Configuration

Cluster Validation

Failover Cluster setup

Microsoft System Center-2012 VMM Configuration

Validating Cisco Solution for EMC VSPEX Microsoft Hyper-V Architectures

Post Install Checklist

Verify the Redundancy of the Solution Components

Cisco Validation Test Profile

Bill of Material

Customer Configuration Data Sheet

References


Cisco Solution for EMC VSPEX Microsoft Hyper-V
Architectures
Design for 50 and 100 Virtual Machines
Last Updated: October 3, 2013

Building Architectures to Solve Business Problems

About the Authors

Sanjeev Naldurgkar, Technical Marketing Engineer, Server Access Virtualization Business Unit, Cisco Systems

Sanjeev has over 12 years of experience in information technology, his focus areas include UCS, Microsoft product technologies, server virtualization, and storage technologies. Prior to joining Cisco, Sanjeev was Support Engineer at Microsoft Global Technical Support Center. Sanjeev holds a Bachelor's Degree in Electronics and Communication Engineering and Industry certifications from Microsoft, and VMware.

Tim Cerling, Technical Marketing Engineer, Datacenter Group, Cisco Systems

Tim's focus is on delivering customer-driven solutions on Microsoft Hyper-V and System Center products. He has been in the IT business since 1979. He started working with Windows NT 3.5 on the DEC Alpha product line during his 19 year tenure with DEC, and he has continued working with Windows Server technologies since then with Compaq, Microsoft, and now Cisco. During his twelve years as a Windows Server specialist at Microsoft, he co-authored a book on Microsoft virtualization technologies - Mastering Microsoft Virtualization. Tim holds a BA in Computer Science from the University of Iowa.

Acknowledgements

For their support and contribution to the design, validation, and creation of the Cisco Validated Design, we would like to thank:

Vadiraja Bhatt-Cisco

Mehul Bhatt-Cisco

Vijay Kumar D-Cisco

Hardik Patel-Cisco

TJ Singh-Cisco

Bathu Krishnan-Cisco

Sindhu Sudhir-Cisco

Kevin Phillips-EMC

John Moran-EMC

Kathy Sharp-EMC

About Cisco Validated Design (CVD) Program


The CVD program consists of systems and solutions designed, tested, and documented to facilitate faster, more reliable, and more predictable customer deployments. For more information visit www.cisco.com/go/designzone.

ALL DESIGNS, SPECIFICATIONS, STATEMENTS, INFORMATION, AND RECOMMENDATIONS (COLLECTIVELY, "DESIGNS") IN THIS MANUAL ARE PRESENTED "AS IS," WITH ALL FAULTS. CISCO AND ITS SUPPLIERS DISCLAIM ALL WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THE DESIGNS, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

THE DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE. USERS ARE SOLELY RESPONSIBLE FOR THEIR APPLICATION OF THE DESIGNS. THE DESIGNS DO NOT CONSTITUTE THE TECHNICAL OR OTHER PROFESSIONAL ADVICE OF CISCO, ITS SUPPLIERS OR PARTNERS. USERS SHOULD CONSULT THEIR OWN TECHNICAL ADVISORS BEFORE IMPLEMENTING THE DESIGNS. RESULTS MAY VARY DEPENDING ON FACTORS NOT TESTED BY CISCO.

Cisco Solution for EMC VSPEX Microsoft Hyper-V Architectures


Executive Summary

Cisco solution for the EMC VSPEX is a pre-validated and modular architecture built with proven best of-breed technologies to create and complete an end-to-end virtualization solution. The end-to-end solutions enable you to make an informed decision while choosing the hypervisor, compute, storage and networking layers. VSPEX eliminates the server virtualization planning and configuration burdens. The VSPEX infrastructures accelerate your IT Transformation by enabling faster deployments, greater flexibility of choice, efficiency, and lower risk. This Cisco Validated Design document focuses on the Microsoft Hyper-V architecture for 50 and 100 virtual machines with Cisco solution for the EMC VSPEX.

Introduction

As part of an effort to improve and enhance the performance and capabilities of its product line, Cisco and EMC from time to time release revisions of its hardware and software. Therefore, some functions described in this guide may not be supported by all revisions of the software or hardware currently in use. For the most up-to-date information on product features, refer to your product release notes.

Target Audience

The reader of this document is expected to have the necessary training and background to install and configure Microsoft Hyper-V, EMC VNXe series storage, Cisco Nexus 5548UP and 3048switches, and Cisco Unified Computing System (UCS) C220 M3 rack servers. External references are provided wherever applicable and it is recommended that the reader be familiar with these documents.

Readers are also expected to be familiar with the infrastructure and database security policies of the customer installation.

Purpose

This document describes the steps required to deploy and configure a Cisco solution for the EMC VSPEX for Microsoft Hyper-V architectures. The document covers two types of Microsoft Hyper-V architectures:

Microsoft Hyper-V for 50 virtual machines

Microsoft Hyper-V for 100 virtual machines

The readers of this document are expected to have sufficient knowledge to install and configure the products used, configuration details that are important to the deployment models mentioned above.

Business Needs

The VSPEX solutions are built with proven best-of-breed technologies to create complete virtualization solutions that enable you to make an informed decision in the hypervisor, server, and networking layers. The VSPEX infrastructures accelerate your IT transformation by enabling faster deployments, greater flexibility of choice, efficiency, and lower risk.

Business applications are moving into the consolidated compute, network, and storage environment. The Cisco solution for the EMC VSPEX using Microsoft Hyper-V helps to reduce every component of a traditional deployment. The complexity of integration management is reduced while maintaining the application design and implementation options. Administration is unified, while process separation can be adequately controlled and monitored. The following are the business needs for the Cisco solution for EMC VSPEX Microsoft Hyper-V architectures:

Provide an end-to-end virtualization solution to utilize the capability of the unified infrastructure components.

Provide a Cisco VSPEX for Microsoft Hyper-V Infrastructure as a Service (IaaS) solution for efficiently virtualizing 50 or 100 virtual machines for varied customer use cases.

Provide a reliable, flexible, and scalable reference design.

Solution Overview

The Cisco solution for EMC VSPEX using Microsoft Hyper-V provides an end-to-end architecture with Cisco, EMC, and Microsoft technologies that demonstrate support for up to 50 and 100 generic virtual machines and provides high availability and server redundancy.

The following are the components used for the design and deployment:

Cisco C-series Unified Computing System servers

Cisco Nexus 5000 series or 3000 series switches depending on the scale of the solution

Cisco virtual Port Channels for network load balancing and high availability

EMC VNXe3150 or VNXe3300 storage components as per the scale needs

Microsoft Windows Server 2008 R2 SP1 Hyper-V

Microsoft SQL Server 2008 R2 SP1 database

Microsoft System Center 2012 Virtual Machine Manager

The solution is designed to host scalable, mixed application workloads. The scope of this CVD is limited to the Cisco solution for EMC VSPEX Microsoft Hyper-V solutions for 50 and 100 virtual machines only.

Technology Overview

This section describes the various technologies used in this solution and their benefits.

Cisco Unified Computing System

The Cisco Unified Computing System is a next-generation data center platform that unites computing, network, storage access, and virtualization into a single cohesive system. The platform, optimized for virtual environments, is designed using open industry-standard technologies and aims to reduce total cost of ownership (TCO) and increase business agility. The system integrates a low-latency; lossless 10 Gigabit Ethernet unified network fabric with enterprise-class, x86-architecture servers. It is an integrated, scalable, multi chassis platform in which all resources participate in a unified management domain.

The main components of the Cisco UCS are:

Computing—The system is based on an entirely new class of computing system that incorporates rack mount and blade servers based on Intel Xeon 5500/5600 Series Processors. The Cisco UCS servers offer the patented Cisco Extended Memory Technology to support applications with large datasets and allow more virtual machines per server.

Network—The system is integrated onto a low-latency, lossless, 10-Gbps unified network fabric. This network foundation consolidates LANs, SANs, and high-performance computing networks which are separate networks today. The unified fabric lowers costs by reducing the number of network adapters, switches, and cables, and by decreasing the power and cooling requirements.

Virtualization—The system unleashes the full potential of virtualization by enhancing the scalability, performance, and operational control of virtual environments. Cisco security, policy enforcement, and diagnostic features are now extended into virtualized environments to better support changing business and IT requirements.

Storage access—The system provides consolidated access to both SAN storage and Network Attached Storage (NAS) over the unified fabric. By unifying the storage access the Cisco Unified Computing System can access storage over Ethernet, Fibre Channel, Fibre Channel over Ethernet (FCoE), and iSCSI. This provides customers with choice for storage access and investment protection. In addition, the server administrators can pre-assign storage-access policies for system connectivity to storage resources, simplifying storage connectivity, and management for increased productivity.

The Cisco Unified Computing System is designed to deliver:

A reduced Total Cost of Ownership (TCO) and increased business agility.

Increased IT staff productivity through just-in-time provisioning and mobility support.

A cohesive, integrated system which unifies the technology in the data center.

Industry standards supported by a partner ecosystem of industry leaders.

Cisco C220 M3 Rack Mount Servers

Building on the success of the Cisco UCS C220 M3 Rack Servers, the enterprise-class Cisco UCS C220 M3 server further extends the capabilities of the Cisco Unified Computing System portfolio in a 1-rack-unit (1RU) form factor. And with the addition of the Intel® Xeon® processor E5-2600 product family, it delivers significant performance and efficiency gains. Figure 1 shows the Cisco UCS C220 M3 rack server.

Figure 1 Cisco UCS C220 M3 Rack Mount Server

The Cisco UCS C220 M3 also offers up to 256 GB of RAM, eight drives or SSDs, and two 1GE LAN interfaces built into the motherboard, delivering outstanding levels of density and performance in a compact package.

I/O Adapters

The Cisco UCS rack mount server has various Converged Network Adapters (CNA) options. The UCS P81E Virtual Interface Card (VIC) option is used in this Cisco Validated Design.

This Cisco UCS P81E VIC is unique to the Cisco UCS rack mount server system. This mezzanine card adapter is designed around a custom ASIC that is specifically intended for virtualized systems. As is the case with the other Cisco CNAs, the Cisco UCS P81E VIC encapsulates fibre channel traffic within the 10-GE packets for delivery to the Ethernet network.

UCS P81E VIC provides the capability to create multiple VNICs (up to 128) on the CNA. This allows complete I/O configurations to be provisioned in virtualized or non-virtualized environments using just-in-time provisioning, providing tremendous system flexibility and allowing consolidation of multiple physical adapters.

System security and manageability is improved by providing visibility and portability of network policies and security all the way to the virtual machines. Additional P81E features like VN-Link technology and pass-through switching, minimize implementation overhead and complexity. Figure 2 shows the Cisco UCS P81E VIC.

Figure 2 Cisco UCS P81e VIC

Cisco Adapter Fabric Extender

Cisco Adapter FEX extends the Cisco FEX technology into traditional rack servers. The Cisco Adapter FEX technology enables the server adapter to be logically partitioned into multiple virtual network interface cards (vNICs). Each vNIC behaves like a physical NIC port and meets the network connectivity needs for each application, so that security and quality of service (QoS) policies can be applied for each vNIC and each application.

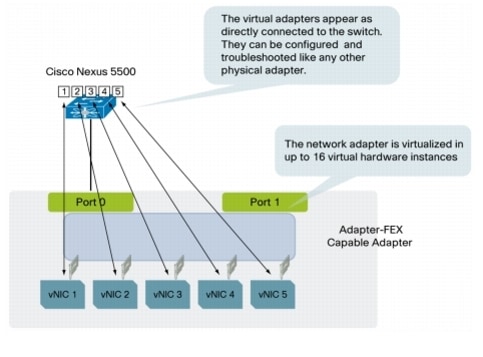

Figure 3 Network Adapter vNICs as Physical Ports on the Cisco Nexus 5500 Series

Figure 3 shows that a server with the virtualized adapters (called vNICs) can offer an operating system a number of virtual adapters, and with the A-FEX technology, vNICs are presented as directly connected interfaces to the Cisco Nexus 5500 series switches. All the switching between vNICs occurs on the upstream Cisco Nexus 5500 series switches, as though they were interfaces of a remote linecard or fabric extenders. In addition to this, all the features right from access control lists (ACLs) to private VLANs, quality of service (QoS), and so on, are available on the remote interfaces.

The redundancy or teaming configuration is not required on the operating system anymore since it is implemented in hardware and controlled by the Cisco Nexus 5500 series switches.

The provisioning model allows the network administrator to define profiles with specific network definitions (mode access or trunk, VLAN, and so on). The server administrator has the choice of defining the number of vNICs and the profile to map them with.

Cisco Nexus 5548UP Switch

The Cisco Nexus 5548UP is a 1RU 1 Gigabit and 10 Gigabit Ethernet switch offering up to 960 gigabits per second throughput and scaling up to 48 ports. It offers 32 1/10 Gigabit Ethernet fixed enhanced Small Form-Factor Pluggable (SFP+) Ethernet/FCoE or 1/2/4/8-Gbps native FC unified ports and three expansion slots. These slots have a combination of Ethernet/FCoE and native FC ports. The Cisco Nexus 5548UP switch is shown in Figure 4.

Figure 4 Cisco Nexus 5548UP Switch

Cisco Nexus 3048 Switch

The Cisco Nexus® 3048 Switch is a line-rate Gigabit Ethernet top-of-rack (ToR) switch and is part of the Cisco Nexus 3000 Series Switches portfolio. The Cisco Nexus 3048, with its compact one-rack-unit (1RU) form factor and integrated Layer 2 and 3 switching, complements the existing Cisco Nexus family of switches. This switch runs the industry-leading Cisco® NX-OS Software operating system, providing customers with robust features and functions that are deployed in thousands of data centers worldwide. The Cisco Nexus 3048 switch is shown in Figure 5.

Figure 5 Cisco Nexus 3048 Switch

Microsoft Windows Server 2008 R2 SP1 Hyper-V

Microsoft Hyper-V is an integral part of Windows Server and provides a foundational virtualization platform that enables you to transition to the cloud. With Windows Server 2008 R2 you get a compelling solution for core virtualization scenarios - production server consolidation, dynamic datacenter, business continuity, VDI, and test & development.

Microsoft Hyper-V provides you better flexibility with features like live migration and cluster shared volumes for storage flexibility.

Microsoft Hyper-V also delivers greater scalability with support for up to 64 logical processors, 2 TB of RAM, NUMA awareness, and improved performance with support for dynamic memory and enhanced networking support.

Microsoft System Center 2012 Virtual Machine Manager

Microsoft System Center 2012 Virtual Machine Manager (VMM) is a management solution for the virtualized datacenter. This solution enables you to configure and manage your virtualization host, networking, and storage resources in order to create, deploy, and manage virtual machines and services to private clouds that you have created.

EMC Storage Technologies and Benefits

The EMC VNX™ family is optimized for virtual applications delivering industry-leading innovation and enterprise capabilities for file, block, and object storage in a scalable, easy-to-use solution. This next-generation storage platform combines powerful and flexible hardware with advanced efficiency, management, and protection software to meet the demanding needs of today's enterprises.

The EMC VNXe™ series is powered by Intel Xeon processor, for intelligent storage that automatically and efficiently scales in performance, while ensuring data integrity and security.

The EMC VNXe series is purpose-built for the IT manager in smaller environments and the VNX series is designed to meet the high-performance, high-scalability requirements of midsize and large enterprises. The EMC VNXe and VNX storage arrays are multi-protocol platform that can support the iSCSI, NFS, and CIFS protocols depending on the customer's specific needs. The solution was validated using NFS for data storage.

The EMC VNXe series storage arrays have the following customer benefits:

Next-generation unified storage, optimized for virtualized applications

Capacity optimization features including compression, deduplication, thin provisioning, and application-centric copies

High availability, designed to deliver five 9s availability

Multiprotocol support for file and block

Simplified management with EMC Unisphere™ for a single management interface for all network-attached storage (NAS), storage area network (SAN), and replication needs

Software Suites

The following are the available EMC software suites:

Remote Protection Suite—Protects data against localized failures, outages, and disasters.

Application Protection Suite—Automates application copies and proves compliance.

Security and Compliance Suite—Keeps data safe from changes, deletions, and malicious activity.

Software Packs

Total Value Pack—Includes all protection software suites, and the Security and Compliance Suite.

This is the available EMC protection software pack.

EMC Avamar

EMC's Avamar® data deduplication technology seamlessly integrates into virtual environments, providing rapid backup and restoration capabilities. Avamar's deduplication results in vastly less data traversing the network, and greatly reduces the amount of data being backed up and stored; resulting in storage, bandwidth and operational savings.

The following are the two most common recovery requests used in backup and recovery:

File-level recovery—Object-level recoveries account for the vast majority of user support requests. Common actions requiring file-level recovery are—individual users deleting files, applications requiring recoveries, and batch process-related erasures.

System recovery—Although complete system recovery requests are less frequent in number than those for file-level recovery, this bare metal restore capability is vital to the enterprise. Some of the common root causes for full system recovery requests are—viral infestation, registry corruption, or unidentifiable unrecoverable issues.

The Avamar System State protection functionality adds backup and recovery capabilities in both of these scenarios.

Architectural Overview

This Cisco Validated Design discusses the deployment model for the following two Microsoft Hyper-V server virtualization solutions:

Microsoft Hyper-V solution for 50 virtual machines

Microsoft Hyper-V solution for 100 virtual machines

Table 1 lists the mix of hardware components, their quantities and software components used for different solutions:

Table 1 Hardware and Software Components for Various Solutions

Components
Hyper-V 50 VMS
Hyper-V 100 VMs

Servers

Three Cisco C220 M3 servers

Four Cisco C220 M3 servers

Adapters

2 Cisco GigE I350 LOM

1 Broadcom NetXtreme II 5709 quad-port per server

2 Cisco GigE I350 LOM

1 Cisco UCS P81E VIC per server

Network Switches

Two Cisco Nexus 3048 switches

Two Cisco Nexus 5548UP switches

Storage

EMC VNXe3150

EMC VNXe3300

Network Speed

1 GE

10 GE

Hypervisor

Microsoft Windows Server 2008 R2 SP1 Hyper-V

Microsoft Windows Server 2008 R2 SP1 Hyper-V


Table 2 lists the various hardware and software components which occupies different tiers of the Cisco solution for EMC VSPEX using Microsoft Hyper-V architectures under test.

Table 2 Hardware and Software Components of Hyper-V Architectures

Vendor
Name
Version
Scope of VSPEX solution

Cisco

C220 M3 servers

1.4(4a).1 - CIMC

C220M3.1.4.4c.0 - BIOS

Both Microsoft Hyper-V 50 VMs and Microsoft Hyper-V 100 VMs

Cisco

Cisco Nexus 5548UP Switches

5.1(3)N1(1a)

Only Microsoft Hyper-V 100 VMs

Cisco

Cisco Nexus 3048 Switches

5.0(3)U2(2b)

Only Microsoft Hyper-V 50 VMs

EMC

EMC VNXe3150

2.2.0.16150

Only Microsoft Hyper-V 50 VMs

EMC

EMC VNXe3300

2.2.0.16150

Only Microsoft Hyper-V 100 VMs

EMC

EMC Avamar

6.0.0-592

Both Microsoft Hyper-V 50 VMs and Microsoft Hyper-V 100 VMs

EMC

Data Domain OS

5.1.0.9-282511

Both Microsoft Hyper-V 50 VMs and Microsoft Hyper-V 100 VMs

Microsoft

Windows Server 2008 R2

2008 R2 SP1

Both Microsoft Hyper-V 50 VMs and Microsoft Hyper-V 100 VMs

Microsoft

System Center VMM

SCVMM 2012 with update Rollup1

Both Microsoft Hyper-V 50 VMs and Microsoft Hyper-V 100 VMs

Microsoft

Microsoft Windows Server 2008 R2

2008 R2 SP1

Both Microsoft Hyper-V 50 VMs and Microsoft Hyper-V 100 VMs

Microsoft

Microsoft SQL server

2008 R2 SP1

Both Microsoft Hyper-V 50 VMs and Microsoft Hyper-V 100 VMs


Table 3 outlines the C220 M3 server configuration details (per server basis) across all the Microsoft Hyper-V architectures.

Table 3 Cisco UCS C220 M3 Server Hardware Configuration

Component
Capacity

Memory (RAM)

64 GB (8X8 MB DIMM)

Processor

2 x Intel® Xenon ® E5-2650 CPUs, 2 GHz, 8 cores, 16 threads

Network Adapter

2 x Cisco 1GigE 1350 LOM (LAN on Motherboard)

Local Storage

2 x 600 GB SAS 15k RPM hard disk.


Storage Guidelines

The architecture diagrams in this section show the physical disk layout. Disk provisioning on the EMC VNXe series is simplified through the use of wizards, so that administrators do not choose which disks belong to a given storage pool. The wizard may choose any available disk of the proper type, regardless of where the disk physically resides in the array

The reference architecture uses the following configuration:

Disk allocations for different architectures. The following are the different architectures:

50 VMs—Forty-five 600 GB SAS disks are allocated to a single storage pool as nine 4+1 RAID 5 groups (sold as 5-disk packs).

100 VMs—Seventy-seven 600 GB SAS disks are allocated to a single storage pool as eleven 6+1 RAID 5 groups (sold as 7-disk packs) for 100 virtual machines architecture.

E MC recommends that in addition to the above numbers at least one hot spare disk is allocated for each 30 disks of a given type.

The EMC VNX/VNXe family is designed for five 9s availability by using redundant components throughout the array. All of the array components are capable of continued operation in case of hardware failure. The RAID disk configuration on the array provides protection against data loss due to individual disk failures, and the available hot spare drives can be dynamically allocated to replace a failing disk.

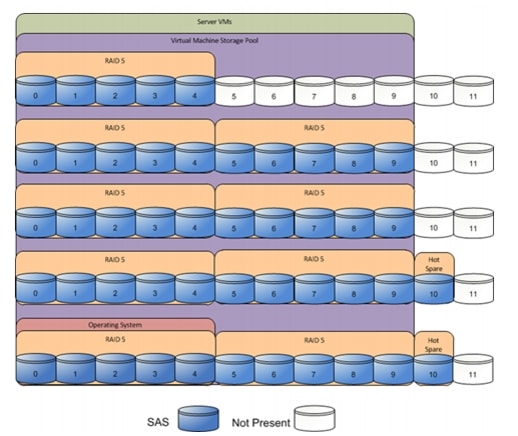

Figure 6 Storage Architecture for 50 VMs on EMC VNXe3150

Figure 7 Storage Architecture for 100 VMs on EMC VNXe3300

Table 4 provides the datastores size details for the two types of architectures laid out in Figure 6 and Figure 7.

Table 4 Datastores Details for the Microsoft Hyper-V Architectures

Parameters
50 Virtual Machines
100 Virtual Machines

Disk capacity & type

600 GB SAS

600 GB SAS

Number of disks

45

77

RAID type

4 + 1 RAID 5 groups

6 + 1 RAID 5 groups

Number of RAID Groups

9

11


Both reference architectures assume that there is an existing infrastructure / management network available where a virtual machine or physical machine hosting SCVMM server, Database server, and Microsoft Windows Active Directory / DNS server are present. Figure 8 and Figure 9 show high level solution architecture for up to 50 and up to 100 virtual machines, respectively.

Figure 8 Reference Architecture for 50 Virtual Machines

Figure 9 Reference Architecture for 100 Virtual Machines

As it is evident in the above diagrams, following are the high level design points of Microsoft Hyper-V architectures:

Only Ethernet is used as network layer 2 media to access storage as well as TCP/IP network

Infrastructure network is on a separate 1GE uplink network

Network redundancy is built in by providing two switches, two storage controllers and redundant connectivity for data, storage, and infrastructure networking.

This design does not dictate or require any specific layout of infrastructure network which hosts the SCVMM, Database, and Active Directory servers. However, design does require accessibility of certain VLANs from the infrastructure network to reach the servers.

Microsoft Windows Server 2008 R2 SP1 Hyper-V is used as hypervisor operating system on each server and is installed on local hard drives. Typical load is 25 virtual machines per server.

Architecture for 50 Microsoft Hyper-V Virtual Machines

Figure 10 shows the logical layout of 50 Microsoft Hyper-V virtual machines. Following are the key aspects of this solution:

Three Cisco C220 M3 servers are used.

The solution uses two Cisco Nexus 3048 switches, dual-port Cisco 1GigE I350 LOM and quad-port Broadcom 1Gbps NIC. This results in the 1Gbps solution for the storage access.

Virtual port-channels on storage side networking provide high-availability and load balancing.

NIC teaming of the adapters on the host provide load balancing and redundancy as shown in Figure 10. Team 1 has two LoM ports for host management and VM access, separated via VLANs. Team 2 has two Broadcom ports for all cluster traffic.

EMC VNXe3150 is used as a storage array.

Figure 10 Cisco Solution for 50 Virtual Machines Using Microsoft Hyper-V

Architecture for 100 Microsoft Hyper-V Virtual Machines

Figure 11 shows the logical layout of 100 Microsoft Hyper-V virtual machines. Following are the key aspects of this solution:

Four Cisco C220 M3 servers are used.

The solution uses two Cisco Nexus 5548UP switches and 10 Gbps Cisco VIC adapters. This results in the 10Gbps solution for the storage access and network and makes live migration and storage access much faster compared to the 1 Gbps solution.

Virtual port-channels on storage side networking provide high-availability and load balancing.

Cisco VIC P81E supports Adapter-FEX feature of Cisco Nexus 5500 series switches. It provides NIC level redundancy at the adapter level. On the switch side the ports are set to vntag mode. Each vNIC carved out of NIV enabled Cisco VIC P81E creates a corresponding virtual ethernet interfaces on the switch with unique virtual links or channels. 2 vNICs allow storage traffic, 1 vNIC allows cluster traffic and one vNIC allows VM traffic.

NIC Teaming of Cisco 1GigE I350 LOM port provides load balancing and redundancy as shown in the Figure 11. This teamed NIC allows management VLAN traffic. The EMC VNXe3300 is used as a storage array.

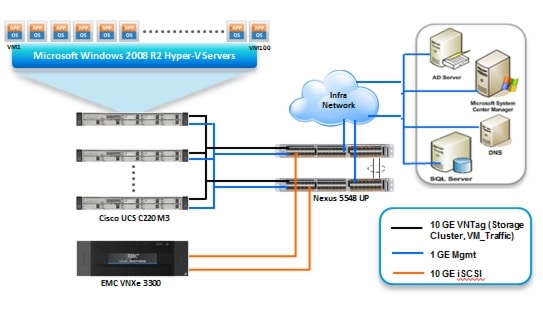

Figure 11 Cisco Solution for 100 Virtual Machines Using Microsoft Hyper-V

Sizing Guidelines

It is important to define a reference workload in virtual infrastructures. Not all servers perform the same tasks, and it is impractical to build a reference that takes into account every possible combination of workload characteristics.

Defining a Reference Workload

To simplify the discussion, we have defined a representative reference workload. By comparing your actual usage to this reference workload, you can extrapolate which reference architecture to choose.

For the VSPEX solutions, the reference workload was defined as a single virtual machine. Table 5 provides the characteristics of the virtual machine:

Table 5 Virtual Machine Characteristics

Characteristics
Value

Virtual machine operating system

Microsoft Windows Server 2008 R1 SP1

Virtual processor per virtual machine (vCPU)

1

RAM per virtual machine

2 GB

Available storage capacity per virtual machine

100 GB

I/O operations per second (IOPS) per VM

25

I/O pattern

Random

I/O read/write ratio

2:1


This specification for a virtual machine is not intended to represent any specific application. Rather, it represents a single common point of reference to measure other virtual machines.

Applying the Reference Workload

When considering an existing server that will move into a virtual infrastructure, you have the opportunity to gain efficiency by correctly sizing the virtual hardware resources assigned to that system.

The reference architectures create a pool of resources sufficient to host a target number of reference virtual machines. It is entirely possible that your virtual machines may not exactly match the specifications above. In that case, you can say that a single specific virtual machine is the equivalent of some number of reference virtual machines, and assume that the number of virtual machines have been used in the pool. You can continue to provision virtual machines from the pool of resources until it is exhausted. Consider these examples:

Example 1 Custom Build Application

A small custom-built application server needs to move into this virtual infrastructure.
The physical hardware supporting the application is not being fully utilized at present. A
careful analysis of the existing application reveals that the application can use one
processor, and needs 3 GB of memory to run normally. The IO workload ranges between 4 IOPS
at idle time to 15 IOPS when busy. The entire application is only using about 30 GB on
local hard drive storage.
Based on these numbers, following resources are needed from the resource pool:
- CPU resources for 1 VM
- Memory resources for 2 VMs
- Storage capacity for 1 VM
- IOPS for 1 VM
In this example, a single virtual machine uses the resources of two of the reference VMs.
If the original pool had the capability to provide 100 VMs worth of resources, the new
capability is 98 VMs.

Example 2 Point of Sale System

The database server for a customer's point-of-sale system needs to move into this virtual
infrastructure. It is currently running on a physical system with four CPUs and 16 GB of
memory. It uses 200 GB storage and generates 200 IOPS during an average busy cycle.
The following are the resources needed from the resource pool to virtualize this
application:
- CPUs of 4 reference VMs
- Memory of 8 reference VMs
- Storage of 2 reference VMs
- IOPS of 8 reference VMs
In this case the one virtual machine uses the resources of eight reference virtual
machines. If this was implemented on a resource pool for 50 virtual machines, there are 42
virtual machines of capability remaining in the pool.

Example 3 Web Server

The customer's web server needs to move into this virtual infrastructure. It is currently
running on a physical system with two CPUs and 8GB of memory. It uses 25 GB of storage and
generates 50 IOPS during an average busy cycle.
The following are the requirements to virtualize this application:
- CPUs of 2 reference VMs
- Memory of 4 reference VMs
- Storage of 1 reference VMs
- IOPS of 2 reference VMs
In this case the virtual machine would use the resources of four reference virtual
machines. If this was implemented on a resource pool for 100 virtual machines, there are
96 virtual machines of capability remaining in the pool.

Summary of Examples

The three examples presented show the flexibility of the resource pool model. In all the three cases the workloads simply reduce the number of available resources in the pool. If all the three examples were implemented on the same virtual infrastructure, with an initial capacity of 100 virtual machines they can all be implemented, leaving the capacity of eighty six reference virtual machines in the resource pool.

In more advanced cases, there may be trade-offs between memory and I/O or other relationships where in increasing the amount of one resource decreases the need for another. In these cases, the interactions between resource allocations become highly complex, which is out of the scope of this document. However, once the change in the resource balance has been examined, and the new level of requirements is known; these virtual machines can be added to the infrastructure using the method described in the examples. You can also use the Microsoft Assessment and Planning (MAP) toolkit to assist in the analysis of the current workload. You can download the toolkit from the following Microsoft link:

http://www.microsoft.com/map

Networking Configuration Guidelines

This document provides details for setting up a redundant, highly-available configuration. As such, references are made as to which component is being configured with each step whether that be A or B. For example, SP A and SP B, are used to identify the two EMC VNXe storage controllers that are provisioned with this document while the Nexus A and Nexus B identify the pair of Cisco Nexus switches that are configured. Additionally, this document details steps for provisioning multiple UCS hosts and these are identified sequentially, M100N1 and M100N2, and so on. Finally, when indicating that the reader should include information pertinent to their environment in a given step, this is indicated with the inclusion of <italicized text> as part of the command structure. See the following example for the VLAN create command on the Cisco Nexus Switch:

switchA(config)# vlan {vlan-id | vlan-range}
switchA(config)# vlan <storage VLAN ID>

This document is intended to allow the reader to fully configure the customer environment. In order to do so, there are various steps which will require you to insert your own naming conventions, IP addresses, and VLAN schemes, as well as record appropriate iSCSI IQN or MAC addresses. Table 8 details the list of VLANs necessary for deployment as outlined in this guide.

VSPEX Configuration Guidelines

To configure the Cisco solution for EMC VSPEX Microsoft Hyper-V architectures, follow these steps:

1. Pre-Deployment Tasks

2. Cabling Information

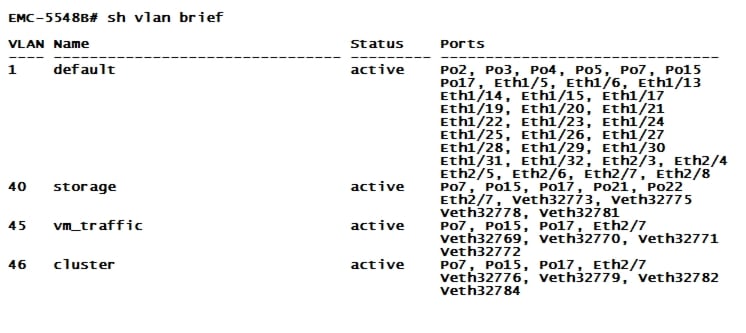

3. Prepare and Configure the Cisco Nexus 5548UP Switch

4. Infrastructure Servers

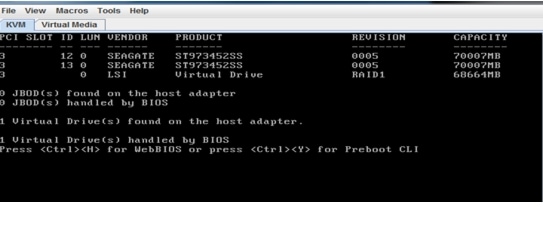

5. Prepare the Cisco UCS C220 M3 Servers

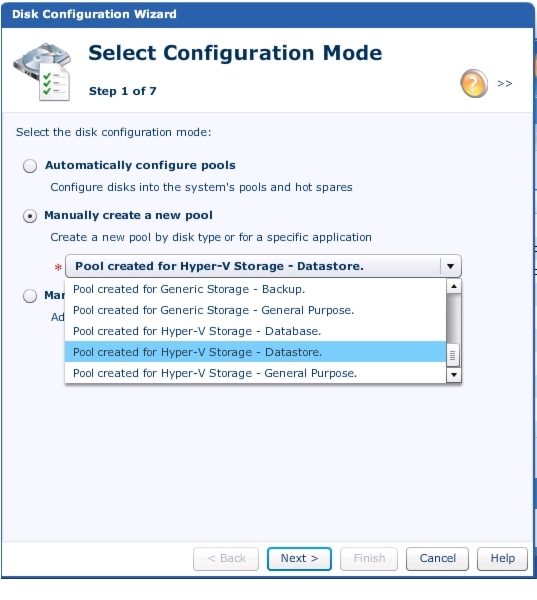

6. Prepare the EMC VNXe3300 Storage

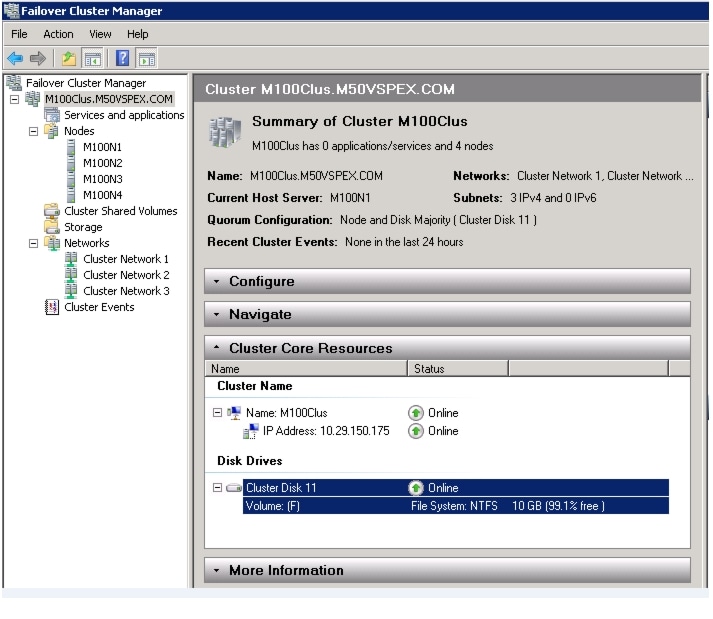

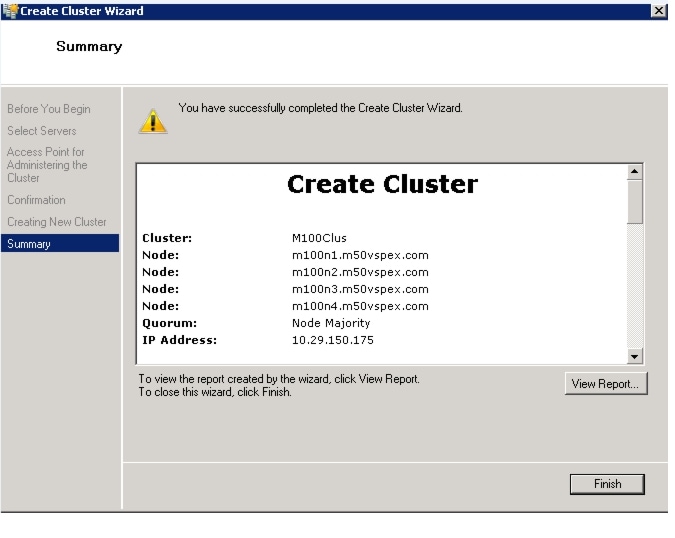

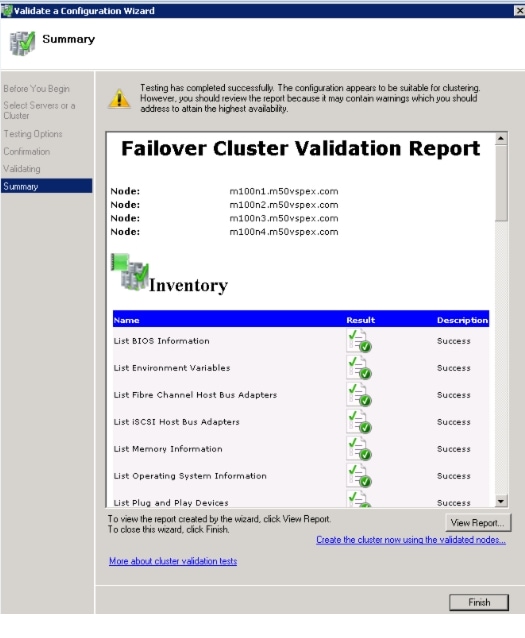

7. Microsoft Windows Failover Cluster Setup

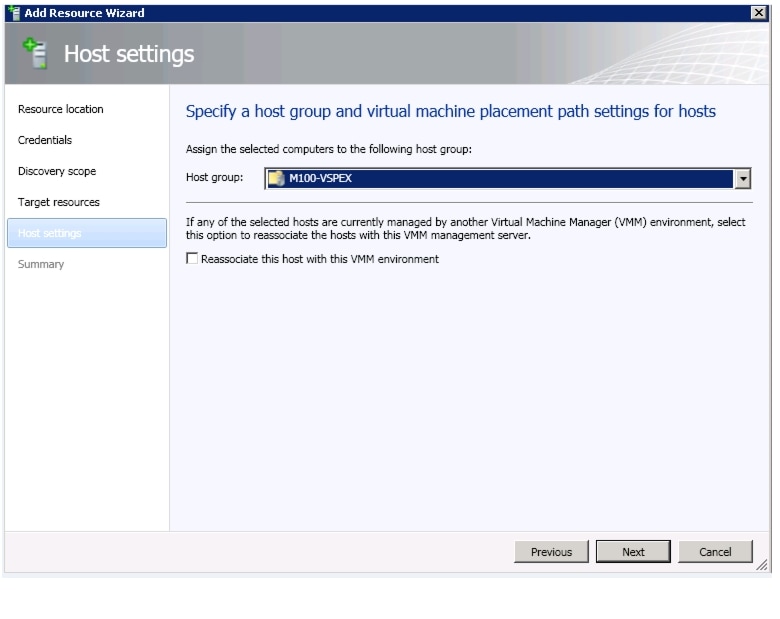

8. Microsoft System Center-2012 VMM Configuration

9. Validating Cisco Solution for EMC VSPEX Microsoft Hyper-V Architectures

The above steps are described in the following sections.

Pre-Deployment Tasks

Pre-deployment tasks include procedures that do not directly relate to environment installation and configuration, but whose results will be needed at the time of installation. Examples of pre-deployment tasks are collection of hostnames, IP addresses, VLAN IDs, license keys, installation media, and so on. These tasks should be performed before the customer visit to decrease the time required onsite.

Gather documents—Gather the related documents listed in the Preface. These are used throughout the text of this document to provide detail on setup procedures and deployment best practices for the various components of the solution.

Gather tools—Gather the required and optional tools for the deployment. Use following table to confirm that all equipment, software, and appropriate licenses are available before the deployment process.

Gather data—Collect the customer-specific configuration data for networking, naming, and required accounts. Enter this information into the Customer Configuration Data worksheet for reference during the deployment process.

Customer Configuration Data

To reduce the onsite time, information such as IP addresses and hostnames should be assembled as part of the planning process.

The Customer Configuration Data section provides a table to maintain a record of relevant information. This form can be expanded or contracted as required, and information may be added, modified, and recorded as deployment progresses.

Additionally, complete the EMC VNXe Series Configuration Worksheet, available on the EMC online support website, to provide the most comprehensive array-specific information.

VSPEX M100 Configuration Details

Cabling Information

The following information is provided as a reference for cabling the physical equipment in a VSPEX M100 environment. The tables in this section include both local and remote device and port locations in order to simplify cabling requirements.

This document assumes that out-of-band management ports are plugged into an existing management infrastructure at the deployment site.

Follow the cabling directions in this section. Failure to do so will result in necessary changes to the deployment procedures that follow because specific port locations are mentioned.

Before starting, ensure that the configurations match the cabling details provided in the tables and figures in this section.

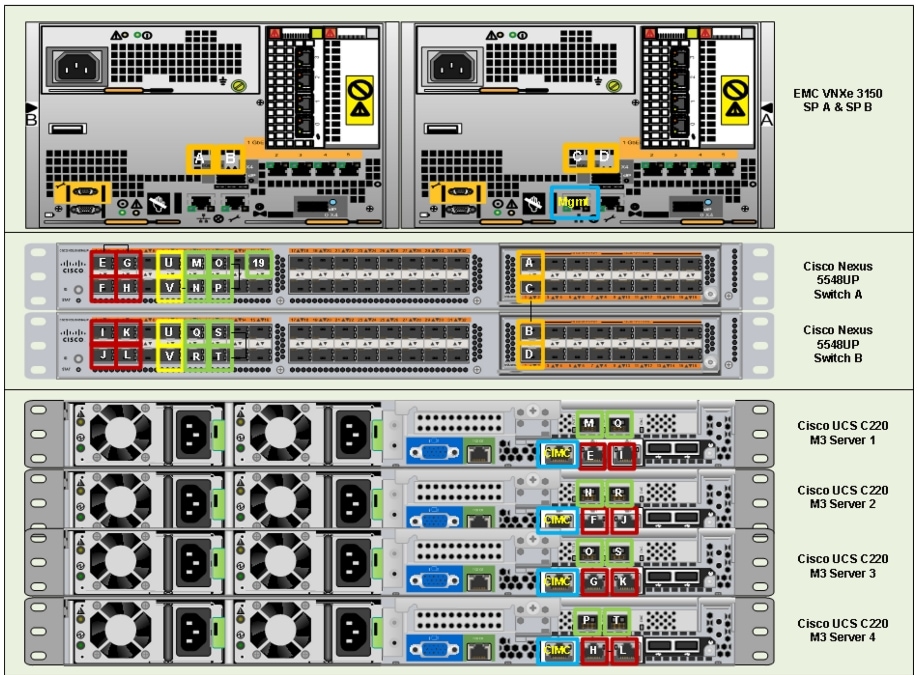

Figure 12 shows the VSPEX M100 cabling diagram. The alphabets labeled indicate connections to the end points rather than port numbers on the physical device. For example, connection A is a 10 Gb target port connected from EMC VNXe3300 SP B to Cisco Nexus 5548 A and connection R is a 10 Gb target port connected from Cisco VIC P81E uplink port 1 on Server 2 to Cisco Nexus 5548 B. Connections U and V are 10 Gb vPC peer-links connected from Cisco Nexus 5548 A to Cisco Nexus 5548 B.

Figure 12 Cabling Details for VSPEX Microsoft Hyper-V 100 Virtual Machines

Table 6 and Table 7 show that there are five major cabling in these architectures:

Inter switch links

Data connectivity for servers (trunk links)

Management connectivity for servers

Storage connectivity

Infrastructure connectivity

Table 6 provides the Cisco Nexus 5548 A Ethernet Cabling Information Local Device Local Port Connection Remote.

Table 6 Cabling details for 100 VMs on Cisco Nexus 5548UP A

Cable ID
Switch Interface
VLAN
Mode
Speed (Gbps)
Port Channel
Remote Device port

E

Eth1/1

1

Access

1(D)

2

C220 Server1- 1GE LOM 1

F

Eth1/2

1

Access

1(D)

3

C220 Server2- 1GE LOM 1

G

Eth1/3

1

Access

1(D)

4

C220 Server3- 1GE LOM 1

H

Eth1/4

1

Access

1(D)

5

C220 Server4- 1GE LOM 1

U

Eth1/7

1,40,45,46

Trunk

10(D)

7

VPC peer link

V

Eth1/8

1,40,45,46

Trunk

10(D)

7

VPC peer link

M

Eth1/9

1,40,45,46

vntag

10(D)

-

C220 Server1- P81E VIC Port 0

N

Eth1/10

1,40,45,46

vntag

10(D)

-

C220 Server2- P81E VIC Port 0

O

Eth1/11

1,40,45,46

vntag

10(D)

-

C220 Server3- P81E VIC Port 0

P

Eth1/12

1,40,45,46

vntag

10(D)

-

C220 Server4- P81E VIC Port 0

(not shown)

Eth1/15

1,40,45,46

Trunk

10(D)

15

Uplink to Infrastructure network

(not shown)

Eth1/17

1,40,45,46

Trunk

10(D)

17

Uplink to Infrastructure network

A

Eth2/1

40

Access

10(D)

21

EMC VNXe3300 (eth10) - SP B

C

Eth2/2

40

Access

10(D)

22

EMC VNXe3300 (eth10) - SP A


Table 7 Cabling details for 100 VMs on Cisco Nexus 5548UP B

Cable ID
Switch Interface
VLAN
Mode
Speed (Gbps)
Port Channel
Remote Device port

I

Eth1/1

1

Access

1(D)

2

C220 Server1- 1GE LOM 1

J

Eth1/2

1

Access

1(D)

3

C220 Server2- 1GE LOM 1

K

Eth1/3

1

Access

1(D)

4

C220 Server3- 1GE LOM 1

L

Eth1/4

1

Access

1(D)

5

C220 Server4- 1GE LOM 1

U

Eth1/7

1,40,45,46

Trunk

10(D)

7

VPC peer link

V

Eth1/8

1,40,45,46

Trunk

10(D)

7

VPC peer link

Q

Eth1/9

1,40,45,46

vntag

10(D)

-

C220 Server1- P81E VIC Port 0

R

Eth1/10

1,40,45,46

vntag

10(D)

-

C220 Server2- P81E VIC Port 0

S

Eth1/11

1,40,45,46

vntag

10(D)

-

C220 Server3- P81E VIC Port 0

T

Eth1/12

1,40,45,46

vntag

10(D)

-

C220 Server4- P81E VIC Port 0

(not shown)

Eth1/16

1,40,45,46

Trunk

10(D)

15

Uplink to Infrastructure network

(not shown)

Eth1/18

1,40,45,46

Trunk

10(D)

17

Uplink to Infrastructure network

A

Eth2/1

40

Access

10(D)

21

EMC VNXe3300 (eth10) - SP B

C

Eth2/2

40

Access

10(D)

22

EMC VNXe3300 (eth10) - SP A


Prepare and Configure the Cisco Nexus 5548UP Switch

The following section provides a detailed procedure for configuring the Cisco Nexus 5548 switches for use in EMC VSPEX Microsoft Hyper-V 100 VMs.

Figure 13 shows two switches configured for vPC. In vPC, a pair of switches acting as vPC peer endpoints looks like a single entity to port-channel-attached devices, although the two devices that act as logical port-channel endpoint are still two separate devices. This provides hardware redundancy with port-channel benefits. Both switches form a vPC Domain, in which one vPC switch is Primary while the other is secondary.


Note The configuration steps detailed in this section provides guidance for configuring the Cisco Nexus 5548 UP running release 5.1(3)N1(1a).


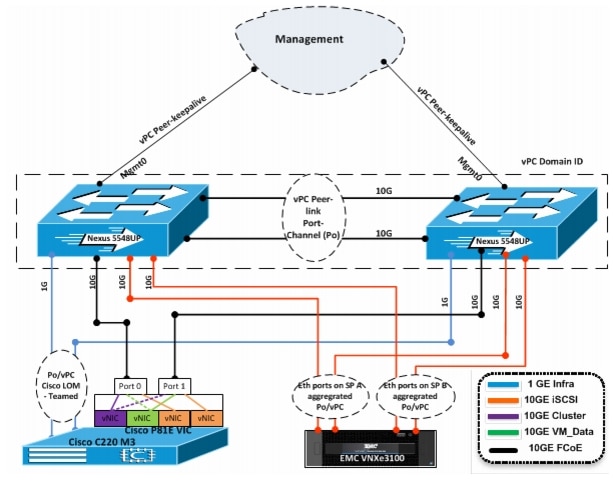

Figure 13 Networking Configuration for Microsoft Hyper-V 100 Virtual Machines

Initial Setup of Cisco Nexus Switches

These steps provide details for the initial setup on both Cisco Nexus 5548 switches.

For Cisco Nexus A and Cisco Nexus B

After booting and connecting to the serial or console port of the switch, the NX-OS setup should automatically start.

1. Enter yes to enforce secure password standards.

2. Enter the password for the admin user.

3. Enter the password a second time to commit the password.

4. Enter yes to enter the basic configuration dialog.

5. Create another login account (yes/no) [n]: Enter.

6. Configure read-only SNMP community string (yes/no) [n]: Enter.

7. Configure read-write SNMP community string (yes/no) [n]: Enter.

8. Enter the switch name: <Nexus A Switch name> Enter.

9. Continue with out-of-band (mgmt0) management configuration? (yes/no) [y]: Enter.

10. Mgmt0 IPv4 address: <Nexus A mgmt0 IP> Enter.

11. Mgmt0 IPv4 netmask: <Nexus A mgmt0 netmask> Enter.

12. Configure the default gateway? (yes/no) [y]: Enter.

13. IPv4 address of the default gateway: <Nexus A mgmt0 gateway> Enter.

14. Enable the telnet service? (yes/no) [n]: Enter.

15. Enable the ssh service? (yes/no) [y]: Enter.

16. Type of ssh key you would like to generate (dsa/rsa):rsa.

17. Number of key bits <768-2048> :1024 Enter.

18. Configure the ntp server? (yes/no) [y]: n Enter

19. NTP server IPv4 address: <NTP Server IP> Enter.

20. Enter basic FC configurations (yes/no) [n]: Enter.

21. Would you like to edit the configuration? (yes/no) [n]: Enter.

22. Be sure to review the configuration summary before enabling it.

23. Use this configuration and save it? (yes/no) [y]: Enter.

24. Configuration may be continued from the console or by using SSH. To use SSH, connect to the mgmt0 address of Nexus A or B.

25. Log in as user admin with the password previously entered.

Enabling Features and Global Configuration

For Cisco Nexus A and Cisco Nexus B

1. Type config t to enter the global configuration mode.

2. Type feature lacp.

3. Type feature interface-vlan

4. Type feature vpc.

Set Global Configurations

These steps provide details for setting global configurations.

For Cisco Nexus A and Cisco Nexus B

1. From the global configuration mode, type spanning-tree port type network default to make sure that, by default, the ports are considered as network ports in regards to spanning-tree.

2. Type spanning-tree port type edge bpduguard default to enable bpduguard on all edge ports by default.

3. Type spanning-tree port type edge bpdufilter default to enable bpdufilter on all edge ports by default.

Configure VLANs

The steps in this section provide details for creating the VLANs as per the below given reference Table 8.

Table 8 VLANs for EMC VSPEX Microsoft Hyper-V M100 Setup

VLAN Name
VLAN Purpose
ID used in this Document
Host NICs in VLANs

storage

For iSCSI traffic

40

2 Cisco VNICs

VM_traffic

For VM data

45

1 Cisco VNIC

cluster

For live migration

46

1 Cisco VNIC

default

For management and cluster

1

2 Cisco 1 GigE 1350 LOM in team



Note For details on network addresses, see the section Customer Configuration Data Sheet. This section provides tabulated record of relevant information (to be filled at the customer's end). This form can be expanded or contracted as required, and information may be added, modified, and recorded as the deployment progresses.


For Nexus A and Nexus B

1. Type config-t.

2. Type vlan <storage VLAN ID>.

3. Type name storage

4. Type exit.

5. Type vlan <cluster VLAN ID>.

6. Type name cluster

7. Type exit.

8. Type vlan <vm_trafficr VLAN ID>.

9. Type name VM_traffic

10. Type exit.

Configure Port-Channels

Create Port-Channels

For Cisco Nexus 5548 A and Cisco 5548 B

1. From the global configuration mode, type interface Po7.

2. Type description vPC peer-link.

3. Type exit.

4. Type interface Eth1/7-8

5. Type channel-group 7 mode active.

6. Type no shutdown.

7. Type exit.

8. Type interface Po2.

9. Type description <Cisco 1GigE LOM 1 on UCS Server 1 - For Nexus A>/<Cisco 1GigE LOM 2 on UCS Server 1 - For Nexus B>

10. Type exit.

11. Type interface Eth1/1.

12. Type channel-group 2 mode active.

13. Type no shutdown.

14. Type exit

15. Type interface Po3.

16. Type description<Cisco 1GigE LOM 1 on UCS Server 2 - For Nexus A>/<Cisco 1GigE LOM 2 on UCS Server 2 - For Nexus B>.

17. Type exit.

18. Type interface Eth1/2.

19. Type channel-group 3 mode active.

20. Type no shutdown.

21. Type exit.

22. Type interface Po4.

23. Type description <Cisco 1GigE LOM 1on UCS Server 3 - For Nexus A>/<Cisco 1GigE LOM 2 on UCS Server 3 - For Nexus B>.

24. Type exit.

25. Type interface Eth1/3.

26. Type channel-group 4 mode active.

27. Type no shutdown.

28. Type exit

29. Type interface Po5.

30. Type description <Cisco 1GigE LOM 1on UCS Server 4>.

31. Type exit.

32. Type interface Eth1/4.

33. Type channel-group 5 mode active.

34. Type no shutdown.

35. Type exit

36. Type interface Po15.

37. Type description <Infrastructure Network>.

38. Type exit.

39. Type interface Eth1/15.

40. Type channel-group 15 mode active.

41. Type no shutdown.

42. Type exit

43. Type interface Po17.

44. Type description < Infrastructure Network>.

45. Type exit.

46. Type interface Eth1/17.

47. Type channel-group 17 mode active.

48. Type no shutdown.

49. Type exit

50. Type interface Po21.

51. Type description <VNXe Storage Processor B>

52. Type exit.

53. Type interface Eth2/1.

54. Type channel-group 21 mode active.

55. Type no shutdown.

56. Type exit

57. Type interface Po22.

58. Type description <VNXe Storage Processor A>

59. Type exit.

60. Type interface Eth2/2.

61. Type channel-group 22 mode active.

62. Type no shutdown.

63. Type exit

Add Port Channel Configurations

These steps provide details for adding Port Channel configurations.

For Cisco Nexus A and Cisco Nexus B

1. From the global configuration mode, type interface Po7.

2. Type switchport mode trunk.

3. Type switchport trunk allowed vlan <storage VLAN ID, cluster VLAN ID, vm_traffic VLAN ID >.

4. Type spanning-tree port type network.

5. Type no shutdown.

6. Type exit.

7. Type interface Po15.

8. Type switchport mode trunk.

9. Type switchport trunk allowed vlan < mgmt. VLAN ID vm_traffic VLAN ID >.

10. Type spanning-tree port type network.

11. Type no shut.

12. Type exit.

13. Type interface Po17.

14. Type switchport mode trunk.

15. Type switchport trunk allowed vlan < mgmt. VLAN ID, vm_traffic VLAN ID >.

16. Type spanning-tree port type network.

17. Type no shut.

18. Type exit.

19. Type interface Po2.

20. Type switchport mode access.

21. Type spanning-tree port type edge.

22. Type no shut.

23. Type exit.

24. Type interface Po3.

25. Type switchport mode access.

26. Type spanning-tree port type edge.

27. Type no shut.

28. Type exit.

29. Type interface Po4.

30. Type switchport mode access.

31. Type spanning-tree port type edge.

32. Type no shut.

33. Type exit.

34. Type interface Po5.

35. Type switchport mode access.

36. Type spanning-tree port type edge.

37. Type no shut.

38. Type exit.

39. Type interface Po21.

40. Type switchport mode access.

41. Type switchport access vlan <storage VLAN ID>

42. Type spanning-tree port type edge.

43. Type no shut.

44. Type exit.

45. Type interface Po22.

46. Type switchport mode access.

47. Type switchport access vlan <storage VLAN ID>

48. Type spanning-tree port type edge.

49. Type no shut.

Configure Virtual Port Channels

These steps provide details for configuring virtual Port Channels (vPCs).

For Cisco Nexus A and Cisco Nexus B

1. From the global configuration mode, type vpc domain <Nexus vPC domain ID>.

2. Type peer-keepalive destination <Nexus B mgmt0 IP> source <Nexus A mgmt0 IP>.

3. Type exit.

4. Type interface Po7.

5. Type vpc peer-link.

6. Type exit.

7. Type interface Po15.

8. Type vpc 15.

9. Type exit.

10. Type interface Po17.

11. Type vpc 17.

12. Type exit.

13. Type interface Po2.

14. Type vpc 2.

15. Type exit.

16. Type interface Po3.

17. Type vpc 3.

18. Type exit.

19. Type interface Po4.

20. Type vpc 4.

21. Type exit.

22. Type interface Po5.

23. Type vpc5.

24. Type exit.

25. Type interface Po21.

26. Type vpc 21.

27. Type exit.

28. Type interface Po22.

29. Type vpc 22.

30. Type exit.

31. Type copy run start

At this point of time, all ports and port-channels are configured with necessary VLANs, switchport mode and vPC configuration. Validate this configuration using the "show port-channel summary" and "show vpc" commands as shown in Figure 14.

Figure 14 Show VLAN Brief Output

Ensure that on both switches, all required VLANs are in "active" status and right set of ports and port-channels are part of the necessary VLANs.

Port-channel configuration can be verified using "show port-channel summary" command. Figure 15 shows the expected output of this command.

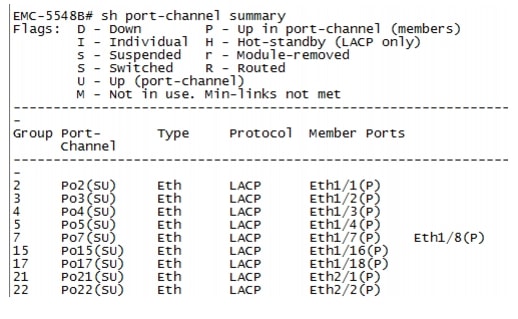

Figure 15 Show Port Channel Summary Output

In this example, port-channel 7 is the vPC peer-link port-channel, port-channels 2, 3, 4 and 5 are connected to the Cisco 1GigE I350 LOM on the host, port-channels 15 and 17 are connected to the infrastructure network, and port-channels 21 and 22 are connected to the storage array. Make sure that state of the member ports of each port-channel is "P" (Up in port-channel). Note that port may not come up if the peer ports are not properly configured. Common reasons for port-channel port being down are:

Port-channel protocol mis-match across the peers (LACP v/s none)

Inconsistencies across two vPC peer switches. Use "show vpc consistency-parameters {global | interface {port-channel | port} <id>} command to diagnose such inconsistencies.

vPC status can be verified using "show vpc" command. Example output is shown in Figure 16.

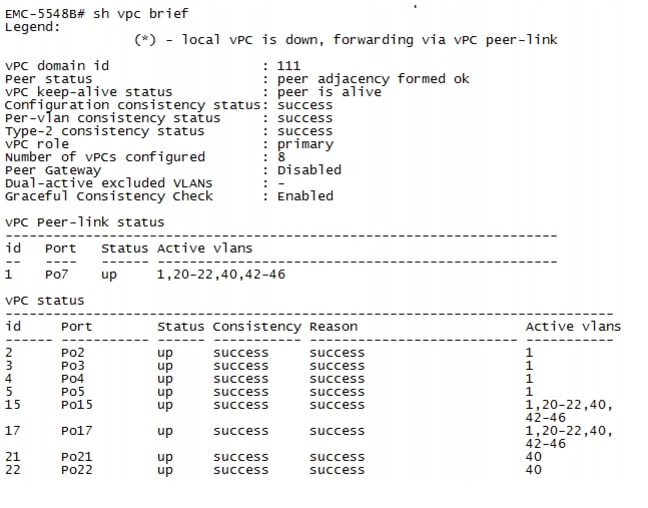

Figure 16 Show vPC Brief Output

Ensure that the vPC peer status is "peer adjacency formed ok" and all the port-channels, including the peer-link port-channel, have their status as "up".

Configure Adapter FEX

The Cisco NX-OS Adapter-FEX feature combines the advantages of the FEX link architecture with server I/O virtualization to create multiple virtual interfaces over a single Ethernet interface. This allows you to deploy a dual port NIC on the server and to configure more than two virtual interfaces that the server sees as a regular Ethernet interface. The advantage of this approach is that it allows you to reduce power and cooling needs and to reduce the number of network ports.

Adapter-FEX can be thought of as a way to divide a single physical link into multiple virtual links or channels. Each channel is identified by a unique channel number and its scope is limited to the physical link.

The physical link connects a port on a server network adapter with an Ethernet port on the switch. This allows the channel to connect a vNIC on the server with a vEthernet interface on the switch.

Packets on each channel are tagged with a VNTag that has a specific source virtual interface identifier (VIF). The VIF allows the receiver to identify the channel that the source used to transmit the packet.

For more information on Adapter-FEX, check the below URLs:

Cisco Nexus 5000 Series NX-OS Adapter-FEX Software Configuration Guide, Release 5.1(3)N1(1)

http://www.cisco.com/en/US/docs/switches/datacenter/nexus5000/sw/adapter-fex/513_n1_1/b_Configuring_Cisco_Nexus_5000_Series_Adapter-FEX_rel_5_1_3_N1.pdf

Cisco Adapter Fabric Extender

http://www.cisco.com/en/US/prod/collateral/switches/ps9441/ps9670/data_sheet_c78-657397.html

This section provides information about how to enable and configure the Cisco Nexus 5500 series for Adapter-FEX. After completing the following steps in this section you will carve out vNICs on Cisco VIC P81E adapter (explained in the later section "Creating and configuring vNICs on Cisco P81E VIC") using the below created port-profiles.

Enabling Switch for Adapter-FEX

Following steps show enabling the virtualization feature on both the Cisco Nexus switches.

For Cisco Nexus A and Cisco Nexus B

1. Type Configure terminal

2. Type install feature-set virtualization

3. Type feature-set virtualization

4. Type vethernet auto-create

Configuring the Switch for Adapter-FEX

Following steps show creation of port-profiles on both the switches and put the FEX interfaces into vntag mode for NIC.

For Cisco Nexus A and Cisco Nexus B

1. Type Configure terminal

2. Type port-profile type vethernet <port-profile name- storage>

3. Type switchport access vlan <storage VLAN ID>

4. Type state enabled

5. Type exit

6. Type port-profile type vethernet <port-profile name- cluster>

7. Type switchport access vlan <cluster VLAN ID>

8. Type state enabled

9. Type exit

10. Type port-profile type vethernet <port-profile name- vm_traffic>

11. Type switchport access vlan <vm_traffic VLAN ID>

12. Type state enabled

13. Type exit

14. Type interface ethernet1/9-12

15. Type switchport mode vntag

16. Type exit

17. Type copy run start

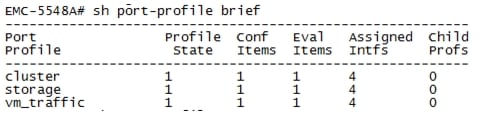

Figure 17 Port-Profile Brief Output

Enable Jumbo Frames

Cisco solution for EMC VSPEX Microsoft Hyper-V architectures require MTU set at 9000 (jumbo frames) for efficient storage and live migration traffic. MTU configuration on Cisco Nexus 5000 series switches fall under global QoS configuration. You may need to configure additional QoS parameters as needed by the applications.

The following commands enable jumbo frames on the Cisco Nexus switches.

For Cisco Nexus A and Cisco Nexus B

switch(config)#policy-map type network-qos jumbo
switch(config-pmap-nq)#class type network-qos class-default
switch(config-pmap-c-nq)#mtu 9216
switch(config-pmap-c-nq)#exit
switch(config-pmap-nq)#exit
switch(config)#system qos
switch(config-sys-qos)#service-policy type network-qos jumbo

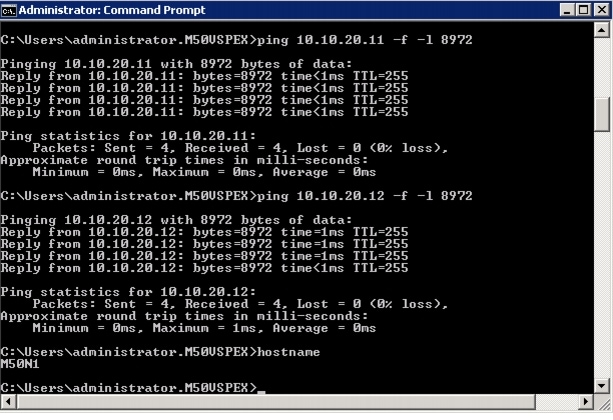

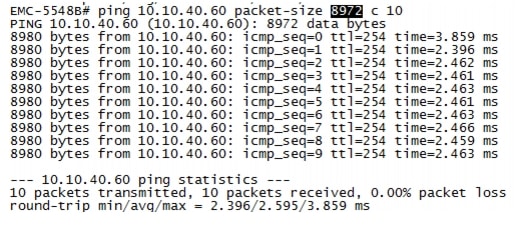

Figure 18 Validate Jumbo Frames Support in the Storage Processors

Infrastructure Servers

Most environments will already have an Active Directory in their infrastructure either running on a virtual machine or on a physical server. This section will not cover the installation of an Active Directory Domain Controller, however it will cover the brief installation of standalone SQL Server 2008 R2 SP1 and System Center VMM 2012 on Microsoft Windows Server 2008 R2 SP1. The following infrastructure servers were used to validate the VSPEX Microsoft Hyper-V architectures.

Table 9 Infrastructure Server Details Used for the VSPEX Solution

Server Name
Role
OS

M50AD.M50VSPEX.COM

Domain Controller, DNS and DHCP

Microsoft Windows Server 2008 R2 SP1

M50DB.M50VSPEX.COM

SQL Server for SCVMM

Microsoft Windows Server 2008 R2 SP1

M50SCVMM.M50VSPEX.COM

SCVMM - 2012

Microsoft Windows Server 2008 R2 SP1



Note For details on network addresses, see the section Customer Configuration Data Sheet.


Prepare the Cisco UCS C220 M3 Servers

Preparing the Cisco C220 M3 servers is a common step for all the Hyper-V architectures. Firstly, you need to install the C220 M3 server in a rack. For more information on mounting the Cisco C220 servers, see the installation guide on details about how to physically mount the server: http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C220/install/install.html

To prepare the servers, follow these steps:

1. Configuring Cisco Integrated Management controller (CIMC)

2. Enable Virtualization Technology in BIOS

3. Configuring RAID

These steps are discussed in detail in the following sections.

Configuring Cisco Integrated Management controller (CIMC)

This section describes procedures to prepare the Cisco UCS C220 M3 servers.

Connecting and Powering on the Server (Standalone Mode)

For connecting and powering on the server (Standalone Mode), follow these steps:

1. Attach a supplied power cord to each power supply in your server.

2. Attach the power cord to a grounded AC power outlet.

3. Connect a USB keyboard and VGA monitor using the supplied KVM cable connected to the KVM connector on the front panel.

4. Press the Power button to boot the server. Watch for the prompt to press F8.

5. During bootup, press F8 when prompted to open the BIOS CIMC Configuration Utility.

6. Set the "NIC mode" to Dedicated and "NIC redundancy" to None.

7. Choose whether to enable DHCP for dynamic network settings or to enter static network settings.

8. Press F10 to save your settings and reboot the server.

Figure 19 CIMC Configuration Utility

Once the CIMC IP is configured, the server can be managed using the https based Web GUI or CLI.


Note The default username for the server is "admin" and the default password is "password". Cisco strongly recommends changing the default password.


Enable Virtualization Technology in BIOS

Microsoft Hyper-V requires an x64-based processor, hardware-assisted virtualization (Intel VT enabled), and hardware data execution protection (Execute Disable enabled).

To enable Intel ® VT and Execute Disable in BIOS, follow these steps:

1. Press the Power button to boot the server. Watch for the prompt to press F2.

2. During bootup, press F2 when prompted to open the BIOS Setup Utility.

3. Choose Advanced > Processor Configuration.

Figure 20 Cisco UCS C220 M2 KVM Console

4. Enable Execute Disable and Intel VT as shown in Figure 20.

Configuring RAID

The RAID controller type is Cisco UCSC RAID SAS 2008 and supports 0, 1, 5 RAID levels. We need to configure RAID level 1 for this setup and set the virtual drive as boot drive.

To configure RAID controller, follow these steps:

1. Using a web browser, connect to the CIMC using the IP address configured in the CIMC Configuration section.

2. Launch the KVM from the CIMC GUI.

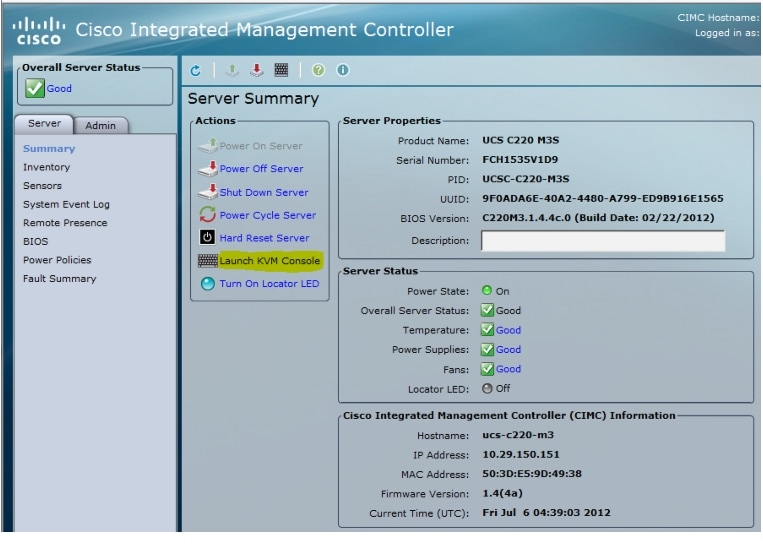

Figure 21 Cisco UCS C220 M2 CIMC GUI

3. During bootup, press <Ctrl> <H> when prompted to configure RAID in the WebBIOS.

Figure 22 KVM Console Showing Cisco UCS C220 M2 Server Booting

4. Choose the adapter and click Start.

Figure 23 Adapter Selection for RAID Configuration

5. Choose the "New Configuration" radio button and click Next.

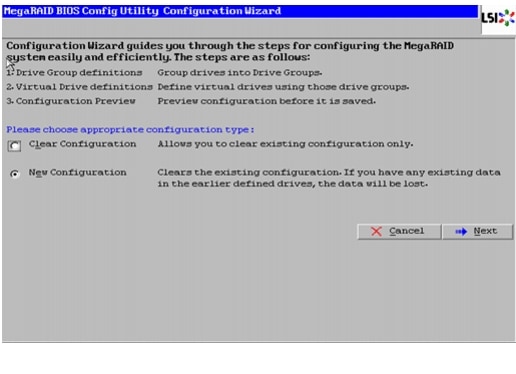

Figure 24 MegaRAID BIOS Config Utility Configuration

6. Click Yes and then click Next to clear the configuration.

Figure 25 Confirmation Window for Clearing the Configuration

7. If you choose the "Automatic Configuration" radio button and the "Redundancy when possible" option from the "Redundancy" drop-down list and if only two drives are available, the WebBIOS creates a RAID 1configuration.

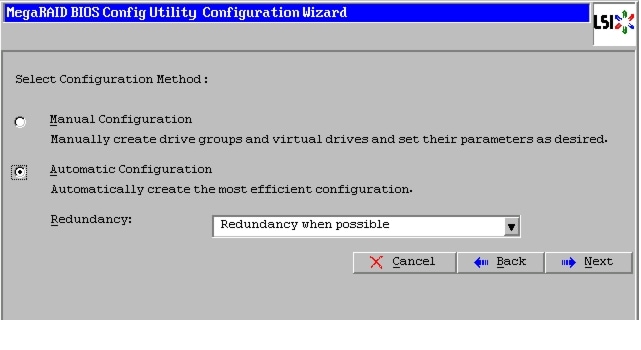

Figure 26 Selecting the Configuration Method

8. Click Accept when you are prompted to save the configuration.

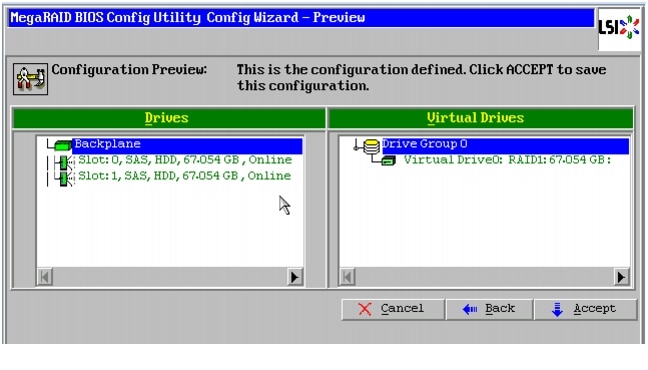

Figure 27 Configuration Preview

9. Click Yes when you are prompted to initialize the new virtual drives.

10. Choose the "Set Boot Drive" radio button for the virtual drive created above and click Go.

Figure 28 Setting the Boot Option for Virtual Drives

11. Click Exit and reboot the system.

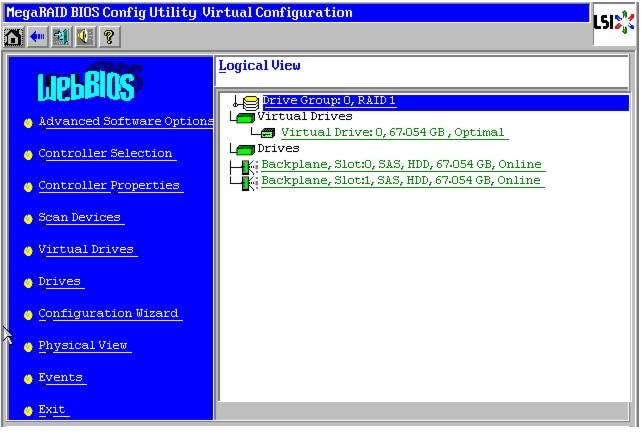

Figure 29 Virtual Drive Configuration in WebBIOS

SQL Server Installation

This document will not go into details and best practices for SQL server installation and configuration. Consult your DBA team to ensure your SQL deployment is configured for best practices according to your corporate standards. For more information on the system requirements for the VMM database, see the Microsoft TechNet link:

http://technet.microsoft.com/en-us/library/gg610574

1. Run setup, choose Installation > New Installation...

1. When prompted for feature selection, install ALL of the following:

2. Database Engine Services

3. Management Tools - Basic and Complete (for running queries and configuring SQL services)

4. On the Instance configuration, choose a default instance, or a named instance. Default instances are fine for testing and labs. Production clustered instances of SQL will generally be a named instance. For the purposes of the POC, choose default instance to keep things simple.

5. On the Server configuration screen, set SQL Server Agent to Automatic. Click "Use the same account for all SQL Server Services, and input the SQL service account and password (see the section Customer Configuration Data Sheet).

6. On the Collation Tab - make sure SQL_Latin1_General_CP1_CI_AS is selected, as that is the ONLY collation supported.

7. On the Account provisioning tab - add a domain user account or a group you already have set up for SQL admins.

8. On the Data Directories tab - set your drive letters correctly for your SQL databases, logs, TempDB, and backup.

9. Setup will complete.

10. Apply any service pack or update for SQL 2008 R2 SP1.

11. Once the installation is complete, configure a remote instance for of SQL server for VMM as given in the below URL:

http://technet.microsoft.com/en-us/library/cc764295.aspx

12. If you are using a domain administrator account or the local system account, SPN (Service Principal Name) for the server is registered in the Active Directory directory service. See the link on Microsoft KB article to register the SPN:

http://support.microsoft.com/kb/909801

Microsoft System Center VMM

System Center 2012 - Virtual Machine Manager (VMM) is a management solution for the virtualized datacenter. It enables you to configure and manage your virtualization host, networking, and storage resources in order to create and deploy virtual machines and services to private clouds that you have created. For an overview of System Center 2012 - VMM, see the Microsoft TechNet link:

http://technet.microsoft.com/en-us/library/gg671827

This section deals with the installation of the System Center Virtual Machine Manager 2012 on a virtual machine running Microsoft Windows Server 2008 R2 SP1 OS. However, this section does not cover how to create and build a Microsoft Windows Server 2008 R2 with SP1 in a virtual environment.

Before installing a VMM management server, ensure that the computer meets the minimum hardware requirements and that all the prerequisite software is installed. For information about hardware and software requirements for VMM, see the link:

http://technet.microsoft.com/en-us/library/gg610592

Installing the VMM Server and VMM Administrator Console

To install the VMM Server and VMM administrator console, follow these steps:

1. Join the Microsoft Windows Server 2008 R2 virtual machine to the Active Directory domain and login with the domain administrator credentials.

2. To start the Microsoft System Center 2012 Virtual Machine Manager Setup Wizard, on your installation media, right-click setup.exe, and click Run as administrator.

3. In the main setup page, click Install. If you have not installed Microsoft .NET Framework 3.5 SP1, VMM prompts you to install it now.

4. In the "Select features to install" page, choose the VMM management server check box and click Next.

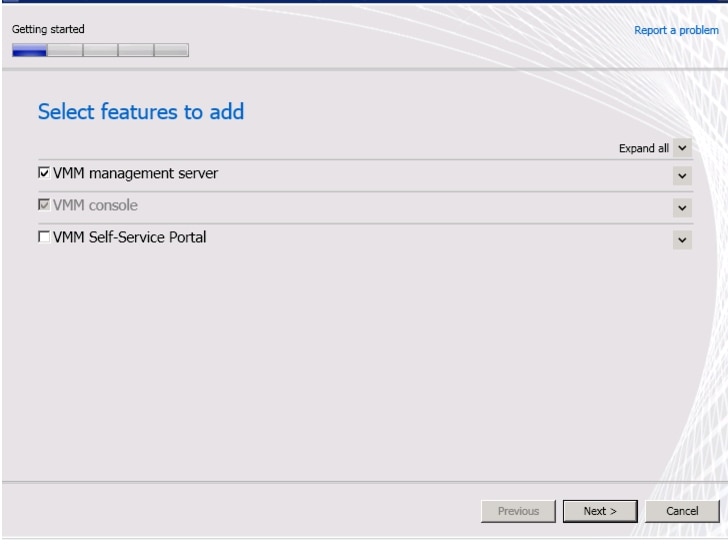

Figure 30 Selecting Feature in Microsoft SCVMM 2012 Setup Wizard

5. In the "Installation location" page, use the default path or type a different installation path for the VMM program files and click Next.

6. In the "Database configuration" page, enter the database "Server name" and provide the appropriate credentials (See the section Customer Configuration Data Sheet). Choose the "New database" radio button and click Next.

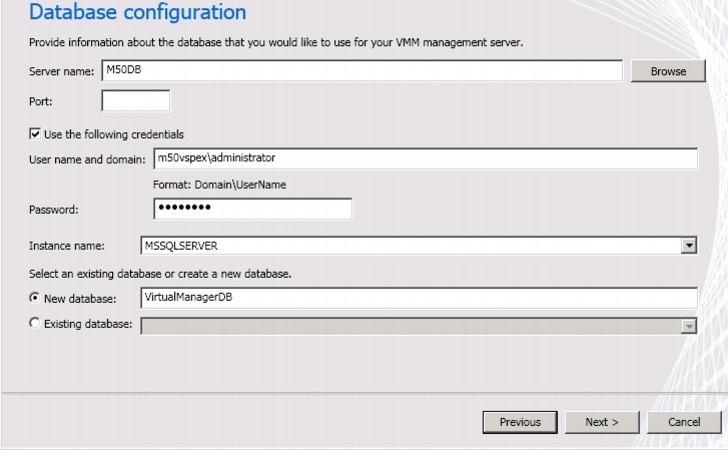

Figure 31 Database Configuration in Microsoft SCVMM 2012 Setup Wizard

7. In the "Configure service account and distributed key management" page, specify the account that will be used by the Virtual Machine Manager Service.

Figure 32 Configuring Service Account in Microsoft SCVMM 2012 Setup Wizard

For more information about which type of account to use, under "Specifying a Service Account for VMM", see the link:

http://technet.microsoft.com/library/gg697600.aspx

8. In the "Port configuration" page, provide unique port numbers for each feature and that are appropriate for your environment and click Next.

9. In the "Library configuration" page, choose whether to create a new library share or to use an existing library share on the computer.

10. In the "Installation summary" page, review your selections and click Install to install the VMM management server.

11. In the "Setup completed successfully" page, click Close to finish the installation.

For more information on installing the System Center 2012 - VMM, see the TechNet article:

http://technet.microsoft.com/en-us/library/gg610617.aspx

Install Microsoft Windows Server on Cisco UCS C220 M3 Servers

This section describes installation of Microsoft Windows Server 2008 R2 SP1 along with driver installation.

Installation of Microsoft Windows Server 2008 R2 SP1

To install Microsoft Windows Server 2008 R2 Sp1 on all the Cisco UCS C220 M3 bare metal server using the virtual media, follow these steps:

1. Find the drivers for your installed devices on the Cisco UCS C-Series Drivers DVD that came with your C-Series server or download them from: http://www.cisco.com/cisco/software/navigator.html and extract them to a local machine such as your laptop.

2. Log in to CIMC Manager using your administrator user ID and password.

Figure 33 CIMC Manager Login Page

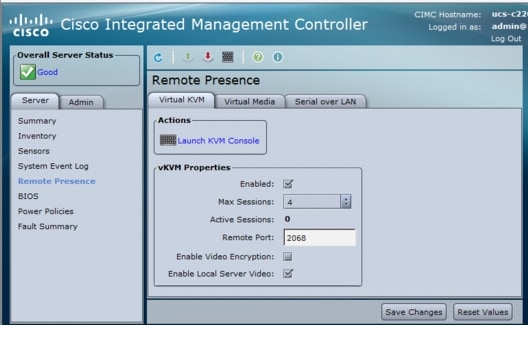

3. Enable the Virtual Media feature, which enables the server to mount virtual drives:

a. In the CIMC Manager Server tab, click Remote Presence.

b. In the "Remote Presence" pane, choose the Virtual Media tab and check the Enable Virtual Media Encryption check box.

c. Click Save Changes.

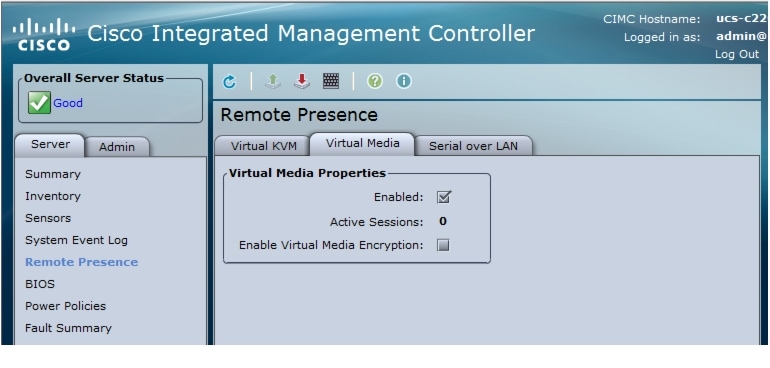

Figure 34 Enabling Virtual Media in CIMC

4. In the "Remote Presence" pane, choose the Virtual KVM tab and click Launch KVM Console.

Figure 35 Setting Virtual KVM Properties in CIMC

5. When the "Virtual KVM Console" window launches, choose the Virtual Media tab.

6. In the "Virtual Media" window, provide the path to the Windows installation image by clicking Add Image. Use the dialog to navigate to your Microsoft Windows 2008 R2 SP1 ISO file and choose it.

The ISO image is displayed in the "Client View" pane.

Figure 36 Adding an ISO Image in CIMC

7. When the mapping is complete, power cycle the server so that the BIOS recognizes the media that you just added.

8. In the "Virtual KVM Console" window, watch during bootup for the F2 prompt and then press F2 to enter the BIOS setup. Wait for the setup utility screen to appear.

9. In the "BIOS Setup utility" screen, choose the Boot Options tab and verify that the virtual DVD device that you added in the step 6 is listed as a bootable device.

10. Move the device to the top under "Boot Option Priorities" as shown in Figure 37.

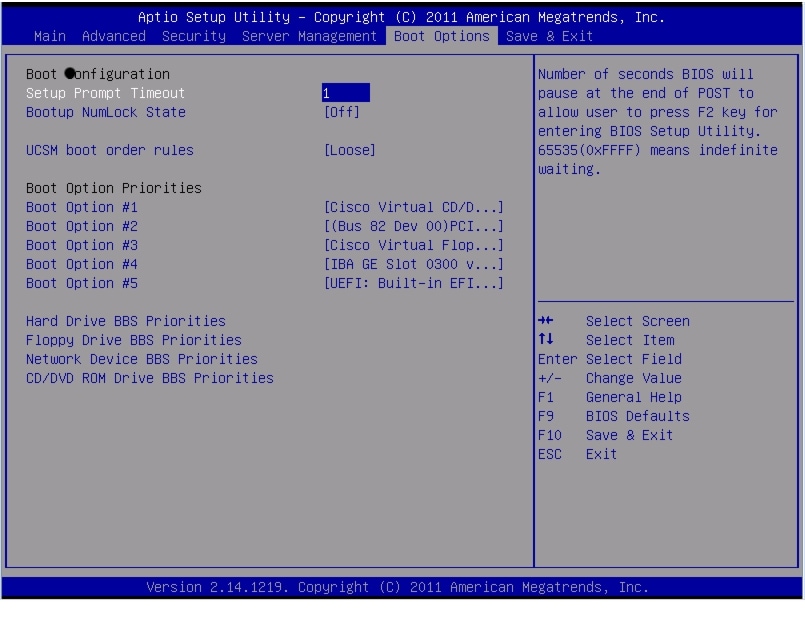

Figure 37 Cisco UCS C220 M3 BIOS Setup Utility

11. Exit the BIOS Setup utility.

The Microsoft Windows installation begins when the image is booted.

12. Press Enter when prompted to "boot from CD".

Figure 38 prompt to Boot from CD

13. Observe the Windows installation process and respond to prompts in the wizard as required for your preferences and company standards.

14. When Windows prompts you with "Where do you want to install Windows?", install the drivers for your mass storage device.

To install the drivers, follow these steps:

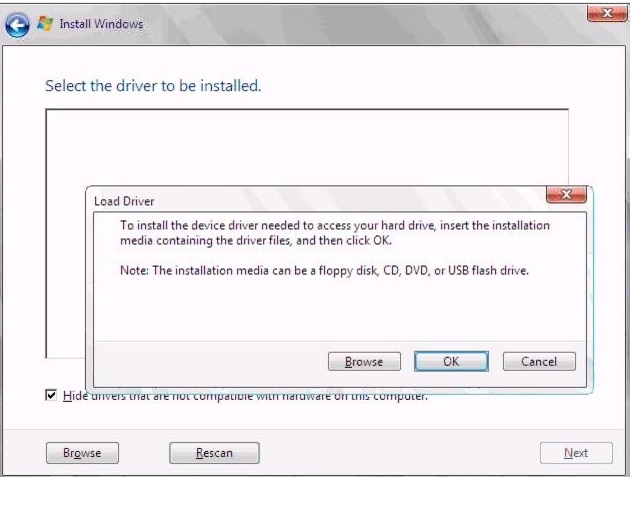

Figure 39 Load Drivers for Installing Microsoft Windows

a. In the "Install Windows" window, click Load Driver.

You are prompted by a "Load Driver" dialog to choose the driver to be installed. In the next steps, you first define a virtual device with your driver ISO image.

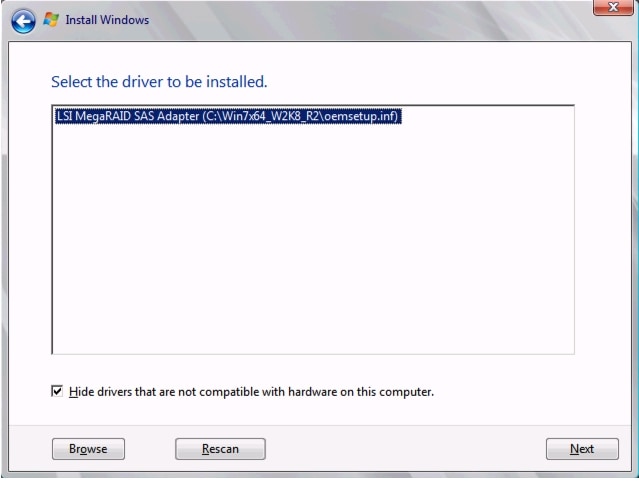

Figure 40 Selecting Drivers for Installing Microsoft Windows

b. If not already open, open a KVM Virtual Media window as you did in Step 5.

c. In the "Virtual Media" window, unmount the virtual DVD that you mapped in Step 6 (uncheck the check box under Mapped).

d. In the "Virtual Media" window, click Add Image.

e. Use the dialog to navigate to the location where you saved the Cisco driver ISO image for your mass storage device in Step 1 and choose it.

The ISO appears in the "Client View" pane.

f. In the "Virtual Media" window, check the check box under "Mapped" to mount the driver ISO that you just chose. Wait for mapping to complete, as indicated in the "Details" pane. After mapping is complete, you can choose the device for Windows installation.

Figure 41 Adding an ISO Image in CIMC

g. In the "Load Driver" dialog that you opened in Step a, click Browse.

h. Use the dialog to choose the virtual DVD device that you just created.

i. Navigate to the location of the drivers, choose them, and click OK.

Windows loads the drivers and when finished, the driver is listed under the prompt "Select the driver to be installed".

Driver Path - CDROM Drive:\ \Windows\Storage\LSI\2008M\W2K8R2\x64

j. After Windows loads the drivers, choose the driver for your device from the list in the "Install Windows" window and click Next. Wait while the drivers for your mass storage device are installed, as indicated by the progress bar.

Figure 42 Selecting Drivers for Microsoft Windows Installation

15. After driver installation finishes, unmap the driver ISO and map the Windows installation image.

To unmap the driver ISO and map the Windows installation image, follow these steps:

a. In the "Virtual Media" window, uncheck the check box under "Mapped" that corresponds to the driver ISO.

b. In the "Virtual Media" window, check the check box under "Mapped" that corresponds to your Windows installation image (the same one that you defined in Step 6).

Wait for the mapping to complete. Observe the progress in the "Details" pane.

c. In the "Install Windows" window, choose the disk or partition where you want to install Windows from the list, and then click Next.

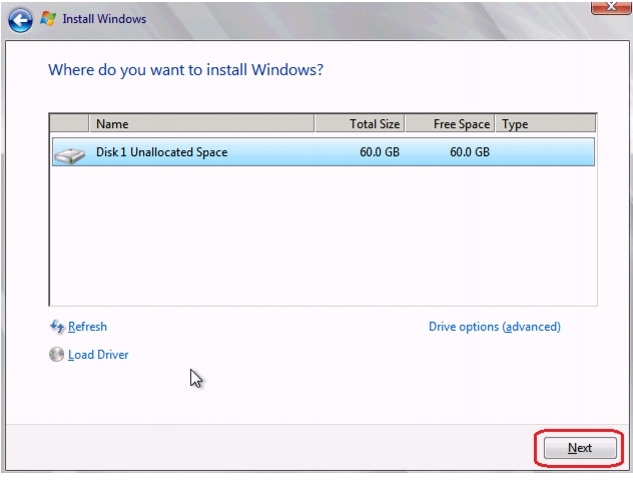

Figure 43 Allocating Disk Space for installing Microsoft Windows

16. Complete the Windows installation according to the requirements and standards of your company. Continue to observe the Windows installation process and answer prompts as required for your preferences. Verify that Windows lists the drivers that you added.

17. After the Windows installation is complete, Windows reboots the server again and you are prompted to press Ctrl-Alt-Del and to log in to access the Windows desktop. Use the login that you supplied during the Windows installation process.

Device Driver Installation

The Cisco UCS C220 M3 in VSPEX M100 solution contains two Cisco 1GigE I350 LOM (LAN-on-motherboard) and a Cisco VIC P81E adapter for which you need to install the drivers. This section explains how to locate and install the chipset and adapter drivers for Microsoft Windows Server 2008 R2 SP1.

Figure 44 Device Manager

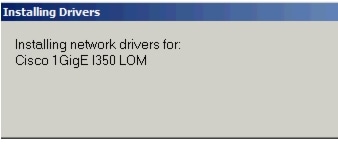

To locate and install the chipset and adapter drivers for Microsoft Windows Server 2008 R2 SP1, follow these steps:

1. Use a Windows File Manager to navigate to the folder where you extracted the Cisco driver package that you got from the Cisco UCS C-Series Drivers DVD or downloaded from Cisco.com in Step 1 of the Installation of Microsoft Windows Server 2008 R2 SP1 section. Drivers for all of the devices are included in the folders named for each device.

2. Install Intel chipset drivers from the ...\Windows\ChipSet\Intel\C220\W2K8R2\setup.exe and reboot the server.

3. Install the LAN on motherboard (LOM) drivers from ...\Windows\Network\Intel\I350\W2K8R2\x64\PROWinx64.exe and reboot the server if prompted.

Figure 45 LOM Drive Installation

4. Install the drivers for Cisco P81E VIC from ...\D:\Windows\Network\Cisco\P81E\W2K8R2\x64 folder.

5. Repeat the driver installation process for each device that still needs drivers, as indicated by yellow flags in the Microsoft Windows Server 2008 R2 SP1 Device Manager.

Network Configuration

This section provides steps to configure the NICs and assign IP addresses on all the Windows host servers.

As shown in Figure 46 (for complete diagram, see Figure 13, the two Cisco 1GigE I350 LOM are connected to different switches and teamed at the host side for redundancy and load balancing.

At the Cisco VIC P81E adapter with two 10 GigE uplink ports, four vNICs are created. Cisco Nexus 5500 series switches with Adapter-FEX feature and Cisco VIC P81E in NIV mode provides redundancy at the adapter level. In Figure 46, the vNIC in purple and the vNIC in green shown as solid lines connecting to uplink ports 0 and 1, respectively, indicate active links. The dotted line connection to uplink ports 2 and 1 for these vNICs indicate standby links. It failovers to standby link in the event of active link failing, thus providing redundancy at the adapter level.

Figure 46 Cisco UCS C220 M3 Network Adapters Configuration

NIC Teaming of Cisco 1 GigE LOM

Teaming of the Cisco 1 GigE LOMs provides redundancy and doubles the available bandwidth. This teamed adapter is used for Microsoft Hyper-V host management.

For NIC teaming of Cisco 1 GigE LOMs, follow these steps:

1. Open Server Manager > Diagnostics > Device Manager.

2. Right-click the Cisco 1gigE I350 LOM. Choose the Teaming tab in the "Cisco 1GigE I350 LOM Properties" window.

3. Check the "Team this adapter with other adapters" check box and click New Team.

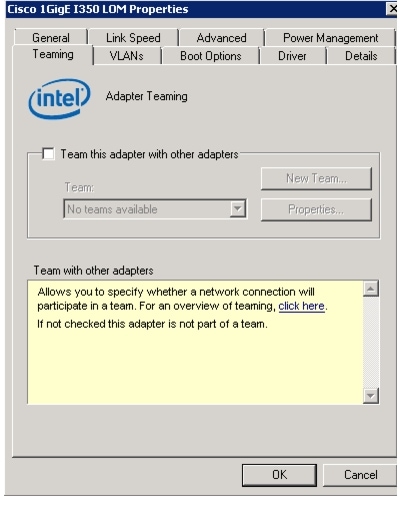

Figure 47 Cisco 1GigE I350 LOM Properties

4. Check the "Cisco1GigE I350 LOM # 2" check box in the "New Team Wizard" window.

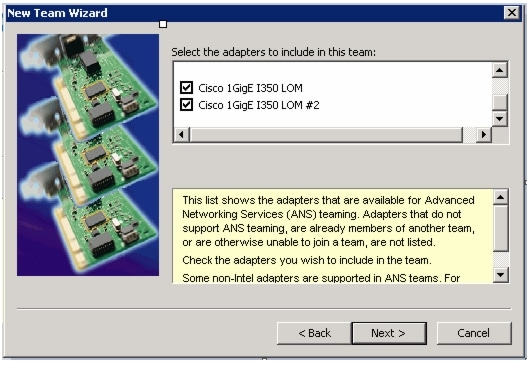

Figure 48 Selecting Adapters for Teaming

5. Choose "IEEE 802.3ad Dynamic Link Aggregation" from the "Select a team type:" list and click Next.

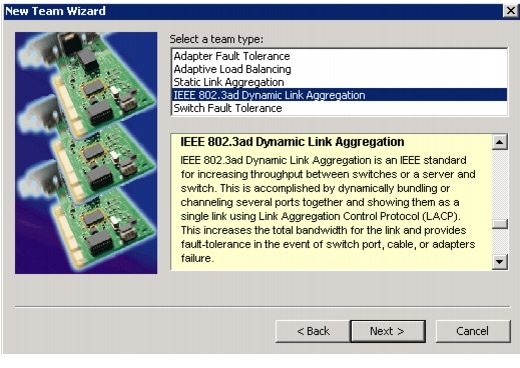

Figure 49 Selecting the Type of Adapter Teaming

A new team will be created as shown in Figure 50.

Figure 50 Cisco 1GigE I350 LOM Team Properties

6. Choose the teamed adapter, right-click and choose Properties.

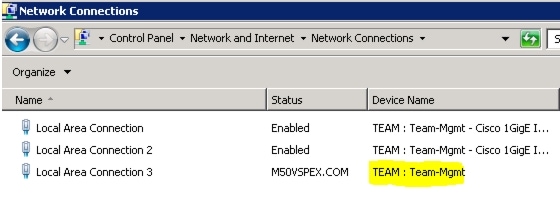

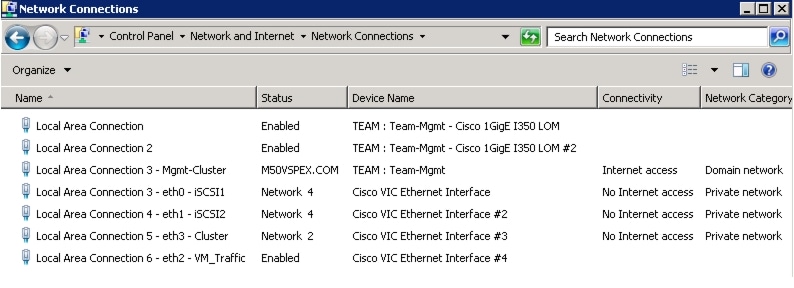

Figure 51 Network Connections page after NIC teaming

7. Choose Internet Protocol Version 4 (TCP/IPv4) > Properties and assign an IP address from the management VLAN (VLAN 1) subnet.

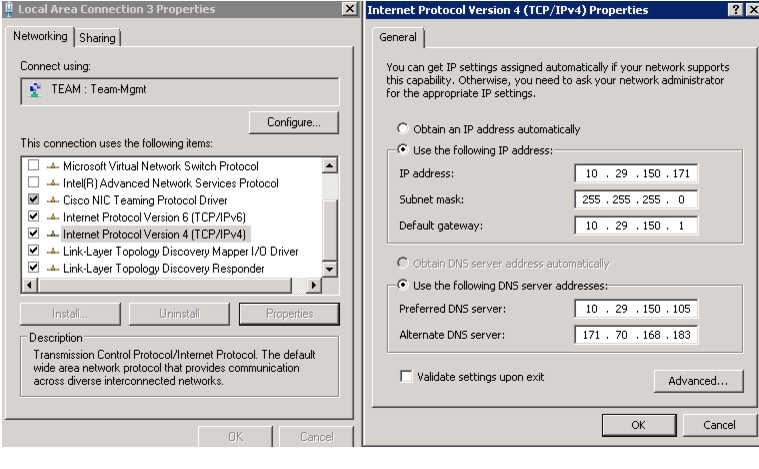

Figure 52 Assigning IP Address to the Teamed Adapter

8. Repeat the above steps to complete the configuration of Cisco 1GigE I350 LOM on all the Cisco UCS C220 M3 servers.

After completion of the above steps successfully, the status of the port-channel summary output on both Cisco Nexus A and B looks like the one shown in Figure 53.

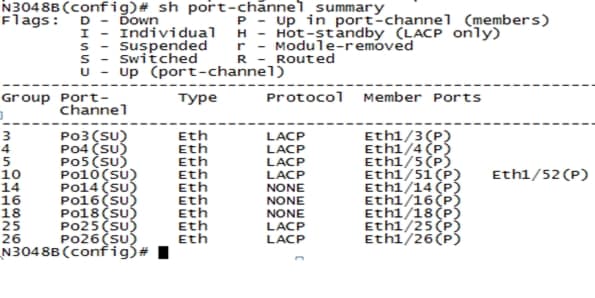

Figure 53 Show Port Channel Summary Output

This Cisco LOM teamed adapter will be used for the host management.


Note Before enabling the Microsoft Hyper-V role, NIC teaming must be completed.


Creating and Configuring vNICs on Cisco P81E VIC

Cisco P81E VIC supports the Adapter FEX feature and functionality that is enabled on both the Cisco Nexus 5500 series switches. Adapter-FEX can be thought of as a way to divide a single physical link into multiple virtual links or channels. Each channel is identified by a unique channel number and its scope is limited to the physical link. The physical link connects a port on a server network adapter with an Ethernet port on the switch. This allows the channel to connect a vNIC on the server with a Ethernet interface on the switch. Packets on each channel are tagged with a VNTag that has a specific source virtual interface identifier (VIF). The VIF allows the receiver to identify the channel that the source used to transmit the packet.

Table 10 Mapping of Port Profiles on Cisco Nexus Switches with vNICs on Server Adapter

vNIC
MTU
Uplink
Port-profile Name
Channel Number
Uplink Failover

eth0

9000

Uplink_0

storage

1

Disabled

eth1

9000

Uplink_1

storage

2

Disabled

eth2

1500

Uplink_0

vm_traffic

5

Enabled

eth3

9000

Uplink_1

cluster

6

Enabled


Referring to Table 10, the following steps explain how to modify the existing vNICs properties and create two additional vNICs on Cisco P81E VIC for the VSPEX M100 configuration.

To modify the existing vNICs properties and create the additional vNICs, follow these steps:

1. Using a web browser, connect to the CIMC using the IP address configured in the CIMC Configuration section.

2. Click Inventory on the left pane under the Server tab and choose the Network Adapters tab on the right pane.

3. Choose UCS VIC P81E under the "Adapter Cards".

4. Click Modify Adapter Properties under the General tab and enable the Network Interface Virtualization (NIV) mode on the network adapter as shown in Figure 54.

Figure 54 Enabling NIV Mode for Adapter Cards

5. Reboot the server.

6. Once the server is up, repeat the above steps 1 -3. Now choose the vNICs tab. Choose eth0 and click Properties.

7. Set the MTU size as "9000", uplink port as "0", channel number as "1" in the MTU, Uplink Port, and Channel Number fields respectively. Choose "storage" from the "Port-Profile" drop-down list. Do not "Enable Uplink Failover" for the port-profile name storage.

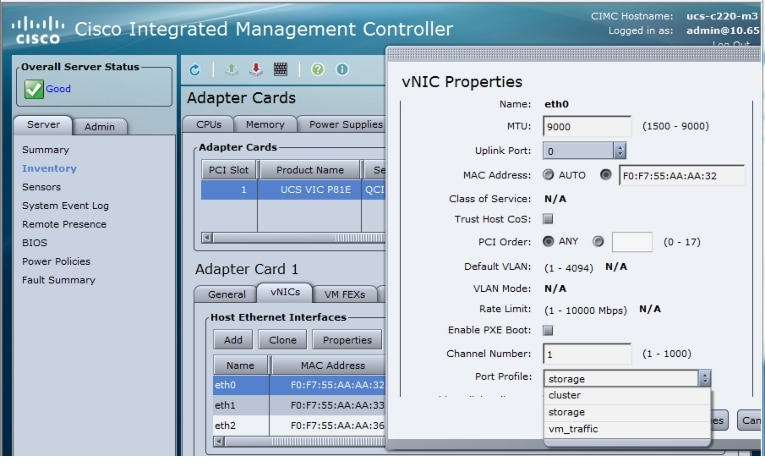

Figure 55 vNIC Properties

8. Choose eth1 and click Properties.

9. Set the MTU size as "9000", uplink port as "1", and channel number as "2" in the MTU, Uplink Port, and Channel Number fields respectively. Choose "storage" from the "Port-Profile" drop-down list. Do not "Enable Uplink Failover" for the port-profile name storage.

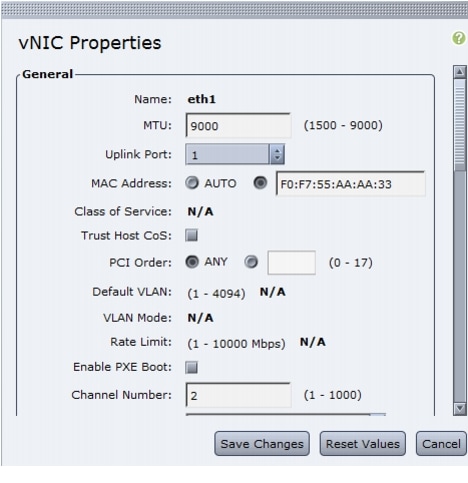

Figure 56 CIMC- vNIC Properties 1

10. Create a third vNIC eth2 for the vm_traffic port-profile by clicking Add. Enter a name for the vNIC in the Name field. Set the MTU to "1500", uplink port to "0" in the MTU and Uplink Port fields respectively. Enter a unique channel number in the Channel Number field.

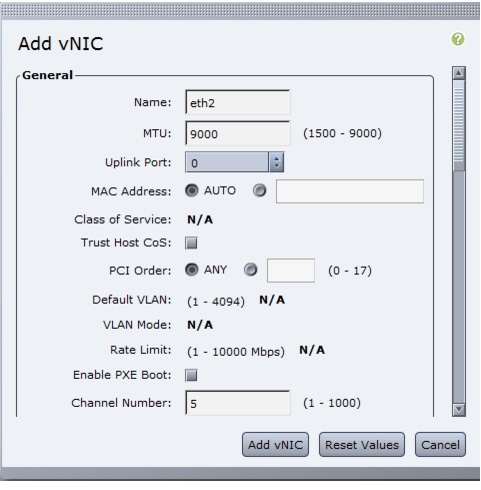

Figure 57 Adding vNIC

11. Scroll down and choose "vm_traffic" from the "Port-Profile" drop-down list. Check the Enable Uplink Failover check box. Enter a value for "Failback Timeout". Click Add vNIC. This vNIC will be used to create virtual switch in Microsoft Hyper-V virtual network manager.

Figure 58 Adding vNIC 1

12. Similarly, create a fourth vNIC eth3 with the parameters as defined in the Table 10. Eth3 vNIC will be used for live migration in failover cluster setup.

13. Repeat the steps 1 -12 to complete the task on other Cisco UCS C220 M3 Servers.

The switches respond by creating a VevEthernet interface for each vNIC on the server network adapter and associate the port-profile and channel number to the VevEthernet interface. Figure 59 shows the Cisco Nexus switch's partial running-config output showing the veEthernet interfaces created for each vNICs on the four Cisco UCS C220 M3 servers.

Figure 59 Running-config Showing veEthernet Interfaces on Cisco Nexus Switch

14. Assign static IP addresses to the NICs as per their VLAN participation. Ping to verify if the assigned IP addresses are working properly. (Optionally, rename the NICs on all the other servers for easy identification and make sure they are consistent to avoid any problems with clustering.

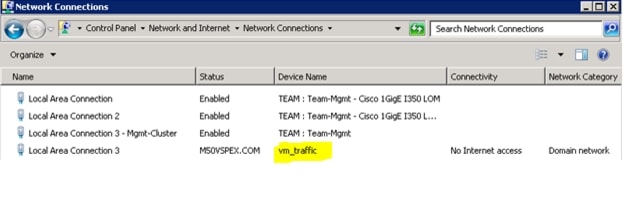

Figure 60 Renaming the NICs for Easy Identification

15. Ping to validate if the assigned IPs are working properly. Figure 61 shows ping status from a host to both storage processors SP A (10.10.40.50) and SP B (10.10.40.60) with jumbo frames.

Figure 61 Jumbo Frame Validation from Source Switch to Destination Storage

Host Rename and Domain Join

This section covers step-by-step instructions to rename and join the hosts to a domain.

To rename and join the hosts to a domain, follow these steps:

1. Rename the Windows hostname on all the servers as per your naming convention. The four servers' hostnames are in this document are M100N1, M100N2, M100N3, and M100N43.

2. Open the Server Manager and click Change System Properties.

Figure 62 Changing System Properties in Server Manager Window

3. Click Change under the Computer Name tab in the "System Properties" window.

Figure 63 System Properties Window

4. Under "Member of", choose the "Domain" radio button. Type the name of the domain you want your servers to join and click OK.

5. Provide the appropriate credentials in the "Windows Security" pop-up screen and click OK.

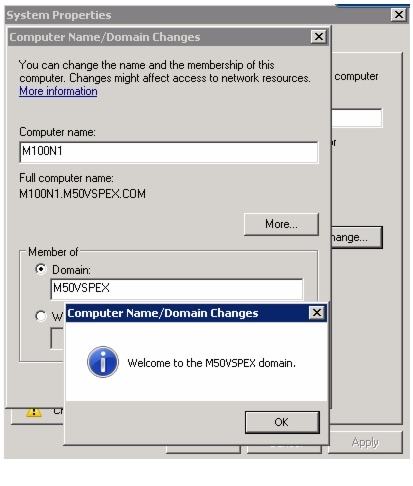

Figure 64 Specifying the Domain

6. Click OK in the "Welcome" screen and then restart the server to apply these changes.

7. Login to the server and apply/update any latest hotfixes on all the Windows Server 2008 R2 SP1.

8. Repeat the above steps on all other servers to rename the host and join to the domain.

Install Roles and Features

To install roles and features, follow these steps:

1. Click Start > Server Manager.

2. In the Features selection page of the "Add Features Wizard", check the "Failover Clustering" and "Multipath I/O" check boxes. Click Next.

3. In the "Confirmation selection" page, click Install.

Figure 65 Adding Features to the Server

4. Click Start > Administrative Tools > MPIO.

5. Choose the Discover Multi-Paths tab, check the "Add support for iSCSI devices" check box, and click Add. You will be prompted to reboot the server.

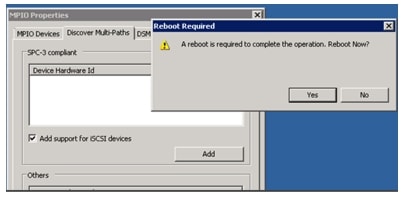

Figure 66 Enabling iSCSI Support in MPIO Properties Window

6. After rebooting, if you open the MPIO Control Panel applet, you should see the iSCSI bus listed as a device.

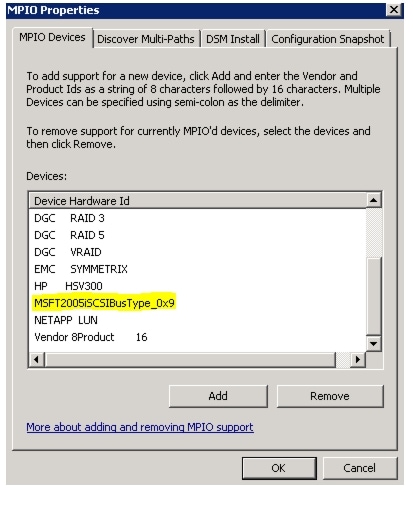

Figure 67 MPIO Properties Window

7. Click Start > Server Manager.

8. In the "Roles Summary" view of the "Server Manager" window, click Add Roles.

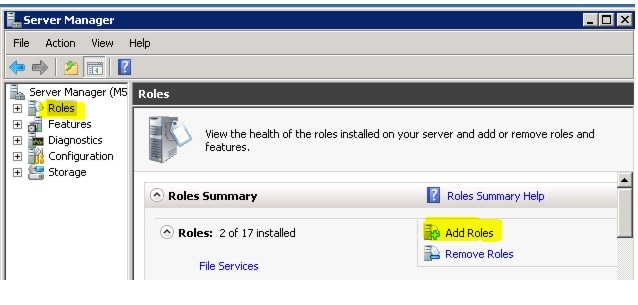

Figure 68 Adding Roles in the Server Manager Window

9. In the "Server Roles" selection page, check the "Hyper-V" check box and click Next.

Figure 69 Selecting Roles for the Server

10. In the Hyper-V > Virtual Networks page, click Next without choosing any Ethernet cards.

11. In the "Confirmation Selection" page, click Install and reboot the server when prompted.

12. Login to the server and click Start > Administrative Tools > Hyper-V Manager.

13. In the "Hyper-V Manager", choose the server and click Virtual Network Manager.

14. In "New virtual network", choose External from the "What type of virtual network do you want to create" list and click Add.

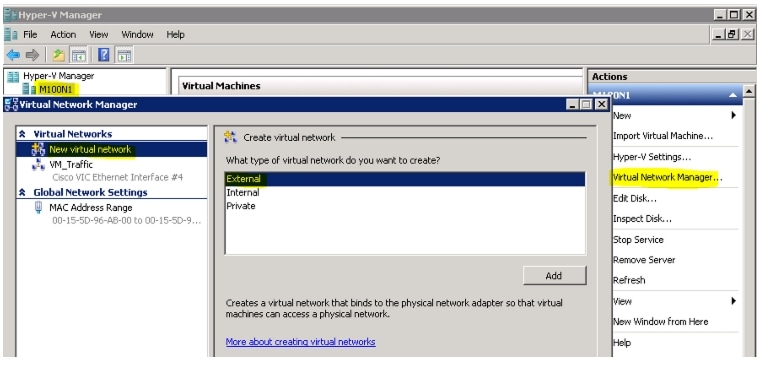

Figure 70 Adding New Virtual Networks

15. Type a name and choose the "External" radio button. From the drop-down list, choose the NIC assigned to vm_traffic VLAN and click Next.

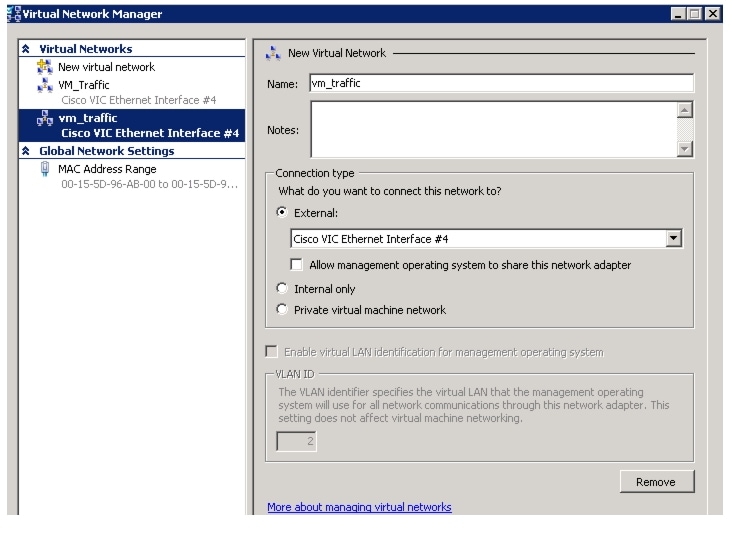

Figure 71 Add Virtual Networks in Virtual Network Manager 1

16. Repeat the above steps on all other servers to install the roles and features.

Enable iSCSI Initiator

To enable iSCSI initiator, follow these steps:

1. Enable the ISCSI Initiator by clicking Start > Administrative Tools > iSCSI initiator. Click Yes to start the Microsoft iSCSI service.

2. Repeat the above step on all other servers and note down the initiator name. This is required to create the hosts.

Figure 72 Configuring iSCSI Initiator

Prepare the EMC VNXe3300 Storage

This section explains the following topics:

Preparing the storage array

Aggregating data ports for high-availability

Creating storage pools for Hyper-V datastores

Creating iSCSI server and assigning host access privileges

Initial Setup of EMC VNXe

To configure the initial setup of the EMC VNXe, follow these steps:

1. Connect the eEthernet cables from the management and data ports to the network as shown in Figure 72.

2. Assign an IP address to the management interface or Download and run the Connection Utility to establish an IP address for managing the EMC VNXe storage system. The Connection Utility can be downloaded directly from the product support page:

http://www.emc.com/support-training/support/emc-powerlink.htm

3. Connect to the EMC VNXe system through a web browser using the management IP address.

Figure 73 EMC Unisphere GUI


Note The SP A and SP B network data ports must be connected to the same subnet. In general, both SPs should have mirrored configurations for all front-end cabling (including VLANs) in order to provide Failover.


Create Storage Pools

Create a pool with the appropriate number of disks as shown in the EMC storage layout in Figure 74.

1. In Unisphere, choose System > Storage Pools.

2. Choose Configure Disks.

3. Manually create a new pool by Disk Type for SAS drives in the "Select Configuration Mode" screen of the "Disk Configuration Wizard".

Figure 74 Selecting the Disk Configuration Mode

4. Choose "Pool created for Hyper-V Storage - Datastore".

5. Specify a name for the pool in the "Name" field.

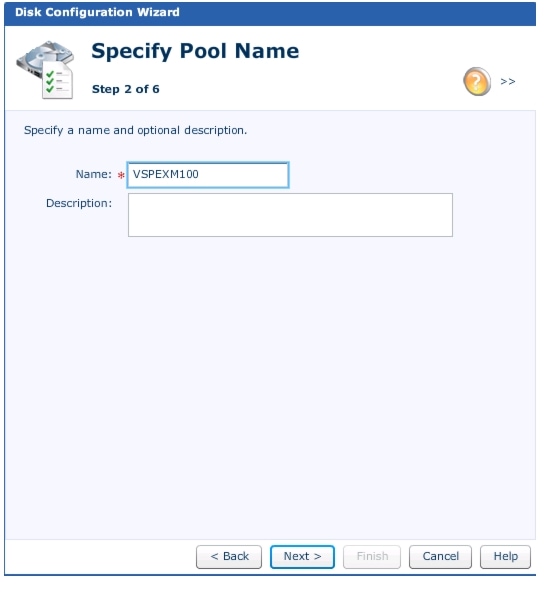

Figure 75 Specifying Pool Name in the Disk Configuration Wizard

6. Choose "Balanced Perf/Capacity" in the "Select Storage Type" window. The validated configuration uses a single pool with 77drives.

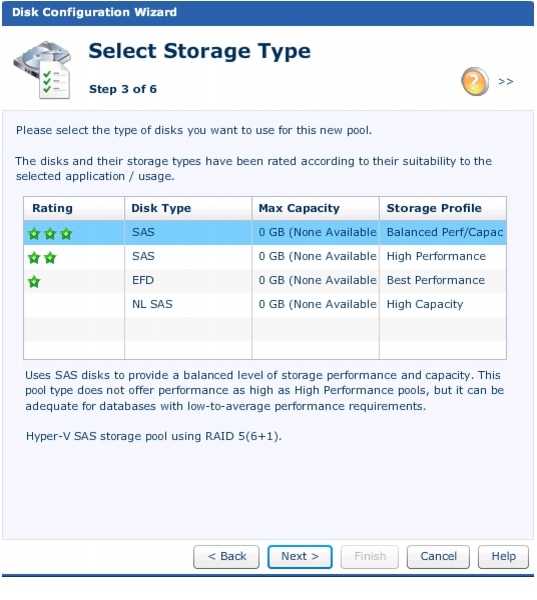

Figure 76 Selecting Storage Type in the Disk Configuration Wizard

Figure 77 shows the details of the storage pool you have created.

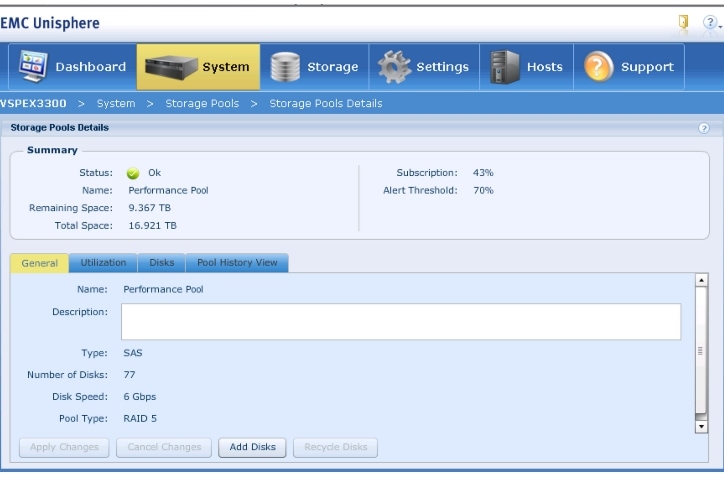

Figure 77 Window Showing Storage Pools Details

Figure 78 Window Showing Storage Pools in EMC Unisphere


Note You should also create your Hot Spare disks at this point.



Note As a performance best practice, all the drives in the pool should be of the same size.


Configure Advanced Features—Link Aggregation and Jumbo Frames

To configure advanced features - link aggregation and jumbo frames, follow these steps:

1. In Unisphere choose Settings > More Configuration > Advanced Configuration.

2. Choose eth10 and set the MTU size to "9000" in the MTU field.

3. Choose eth11 and set the MTU size to "9000" in the MTU field.

4. Check the "Aggregrate with eth10" check box.

Figure 79 Advanced Configuration Window in EMC Unisphere

Create iSCSI Servers

To create iSCSI servers, follow these steps:

1. In Unisphere, choose Settings > iSCSI Server Settings > Add iSCSI Server.

2. Type the server name, IP address, subnet mask and default gateway for the new iSCSI server in the Server Name, IP address, Subnet Mask and Default Gateway fields respectively. Choose "SP A" from the "Storage Processor" drop-down list and choose the aggregated ports from the "Ethernet Port" drop-down list as shown in Figure 80.

Figure 80 Adding iSCSI Server for Storage Processor - A

3. Click Add iSCSI Server again. Type the server name, IP address, subnet mask and default gateway for the new iSCSI server in the Server Name, IP address, Subnet Mask and Default Gateway fields respectively. Choose "SP B" from the "Storage Processor" drop-down list and choose the aggregated ports from the "Ethernet Port" drop-down list as shown in Figure 81.

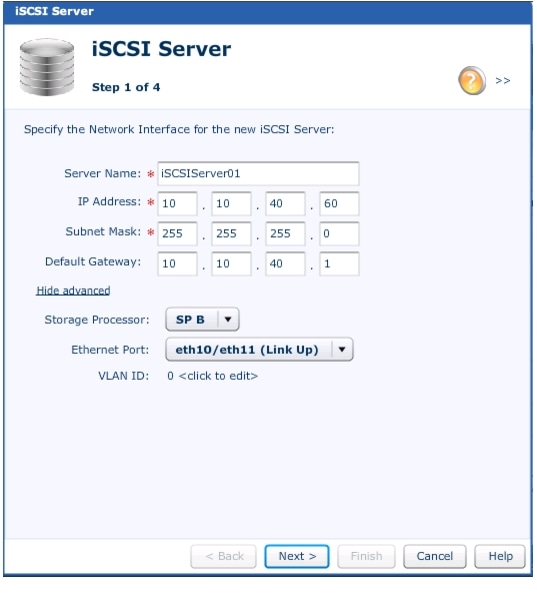

Figure 81 Adding iSCSI Server for Storage Processor - B


Note In the EMC VNXe storage systems, for fail safe networking (FSN) and high availability features to work, the peer ports on both the storage processors must belong to the same subnet. For more information about high availability in the EMC VNXe storage systems, see: http://www.emc.com/collateral/hardware/white-papers/h8178-vnxe-storage-systems-wp.pdf


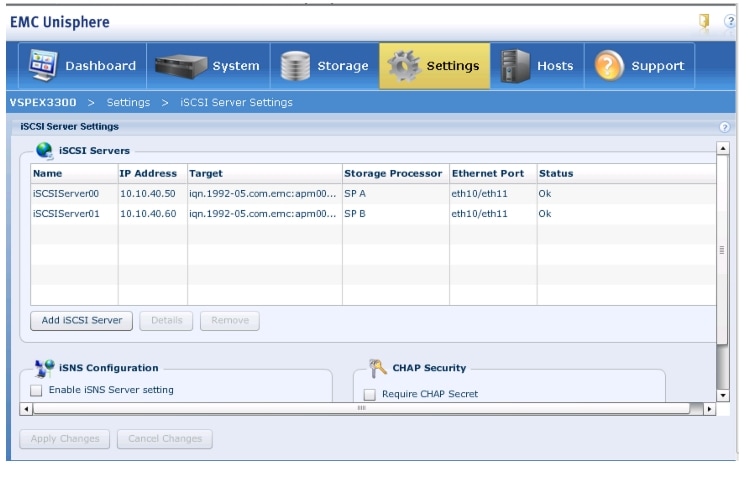

Figure 82 iSCSI Server Settings Window in EMC Unisphere

Create Microsoft Hyper-V Datastores

To create Hyper-V datastores, follow these steps:

1. In Unisphere, choose Storage > Hyper-V> Create.

2. Specify a name for the Hyper-V datastore in the Name field and click Next.

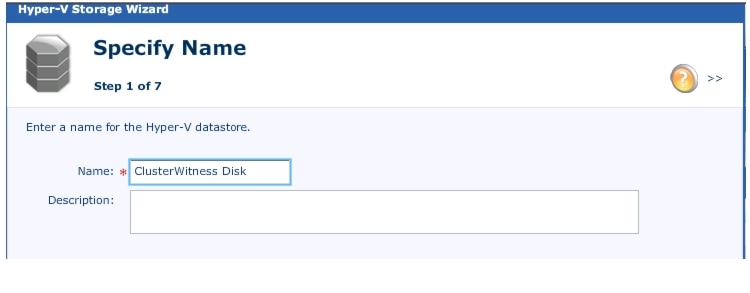

Figure 83 Specifying Hyper-V Datastore Name

3. Choose the pool and iSCSI server. Enter "10GB" in the Size field. Do not enable Thin Provisioning and click Next.


Note The default size of the Hyper-V datastore is 100 GB. The maximum size possible is 1.999 TB and the minimum size required is 10 GB.


Figure 84 Configuring Storage Pool and Size for the Datastore

4. Change protection by choosing the "Do not configure protection storage for this storage resource" radio button. If you need additional protection, then additional storage would be required. For more information, see the EMC VNXe Storage Configuration Guide.

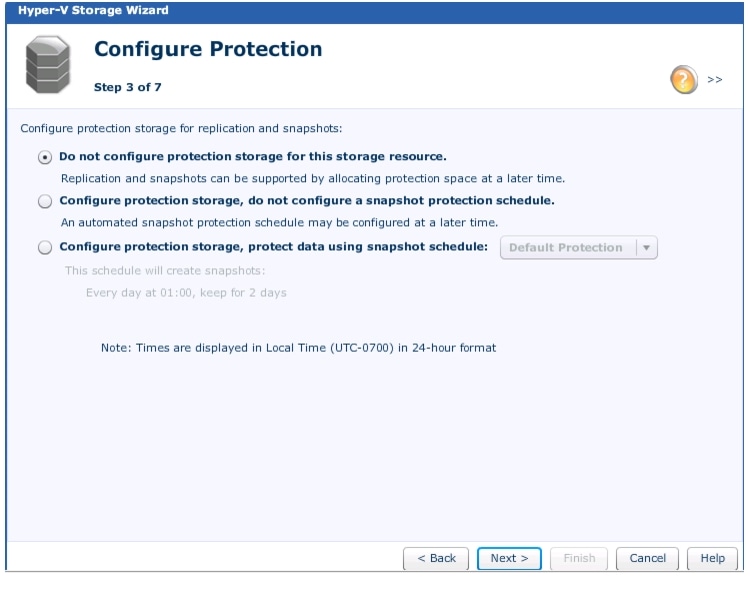

Figure 85 Setting Configure Protection

5. Click Next in the "Configure Host Access" screen as no host are connected. "Configure Host Access" will be completed in the EMC VNXe3300 Deployment Procedure in the later section.

6. Repeat the above steps and create 10 Hyper-V datastores for Cluster Shared Volumes of 750GB size.


Note We recommend 750 GB size Hyper-V datastore for CSV. You can create bigger size datastores.


Figure 86 Hyper-V Datastores for Cluster Shared Volume

Create Hosts and Provide Host Access

To create hosts and provide host access, follow these steps:

1. In EMC Unisphere, click the Hosts tab and click Create Host.

The "Host Wizard" page appears.

2. In the Name and Description fields, type the name and description of the new host. Click Next.

The "Operating System" page appears.

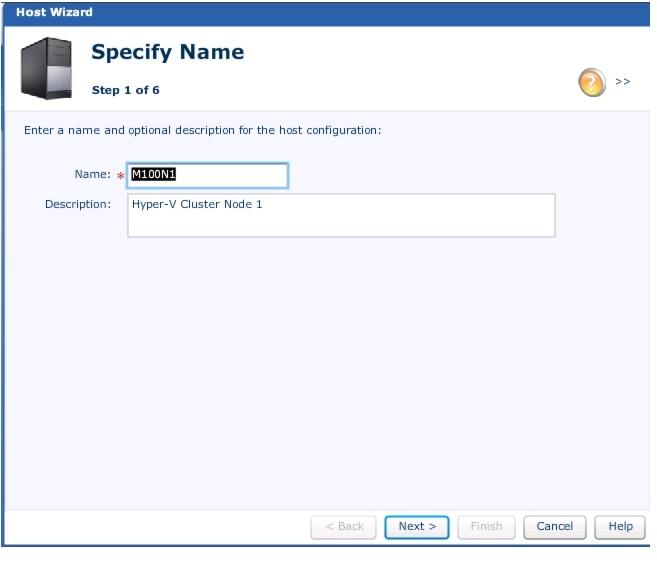

Figure 87 Specifying Name for Host Configuration

3. Choose the host OS from the "Operating System" drop-down list. Click Next.

The "Network Address" page appears.

Figure 88 Specifying Host Operating System

4. Choose the "Network Name" or "IP Address" radio button to enter the details of the host.

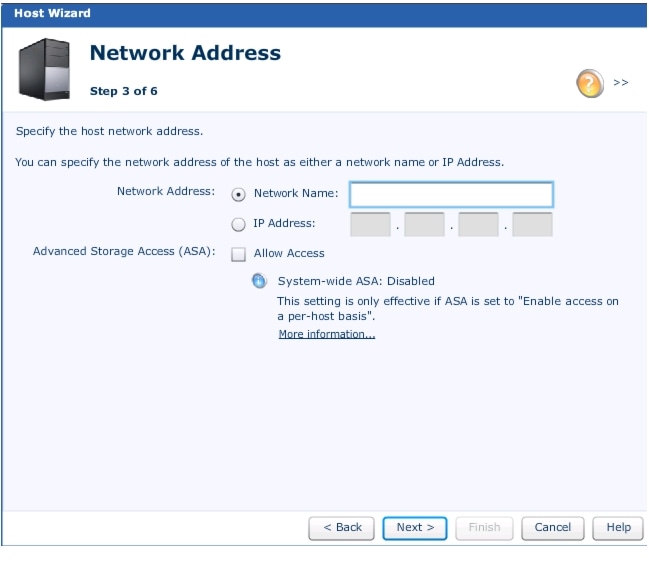

Figure 89 Specifying the Host Network Address

5. Enter the IQN of the Hyper-V host in the IQN field. The host IQN can be found in the Configuration tab of the iSCSI initiator. Enter the CHAP secret password if required in your environment in the CHAP Secret field.

The "Summary" page appears.

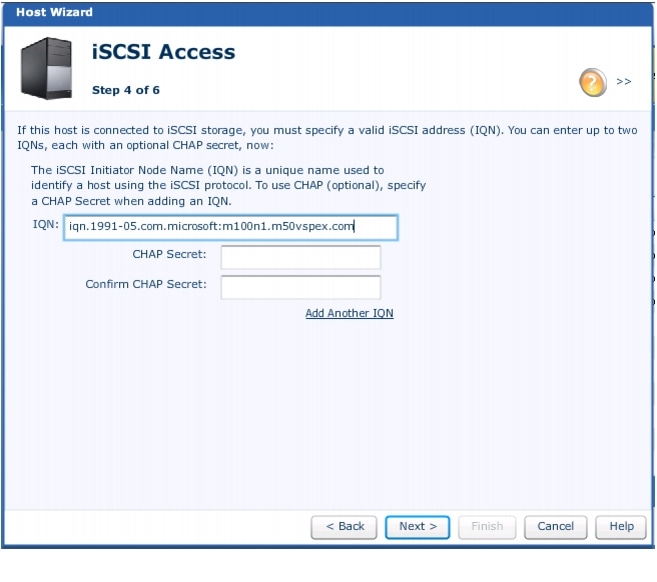

Figure 90 Specifying iSCSI Unique Number (IQN)

6. Review the host details and click Finish.

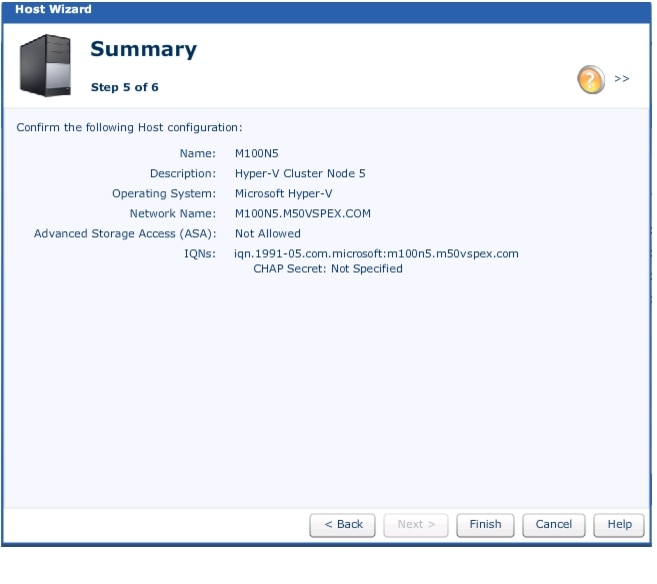

Figure 91 Host Configuration Summary

7. Repeat the above steps to create Host list for all Hyper-V hosts.

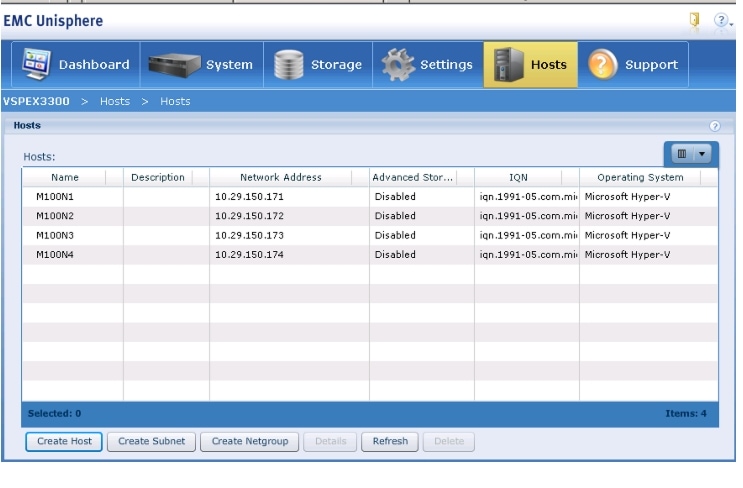

Figure 92 Hosts Window Listing All the Hyper-V Hosts

8. Click Storage > Microsoft Hyper-V.

9. Choose an Allocated Hyper-V Datastore and click Details.

10. Click the Host Access tab.

11. From the "Access" column drop-down list, choose "Hyper-V Datastore" for all the hosts participating in a Microsoft Windows Hyper-V cluster.

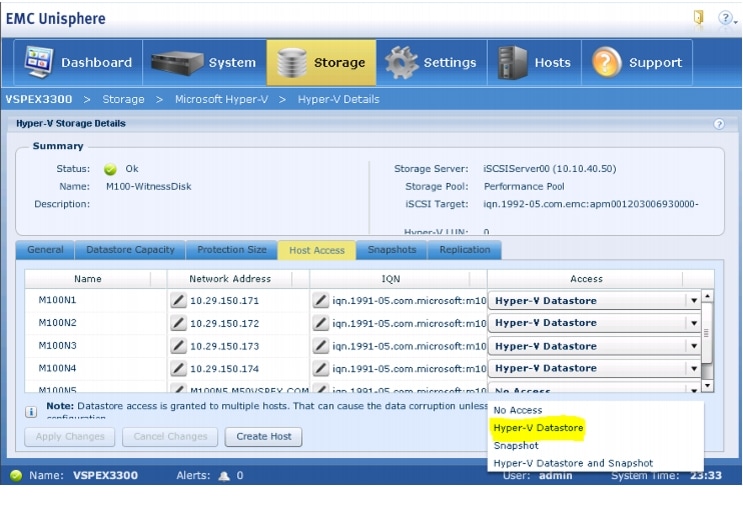

Figure 93 Hyper-V Datastore Details Window

12. Repeat the above steps to provide Host Access for all the Hyper-V datastores created earlier.

Microsoft Windows Failover Cluster Setup

iSCSI Initiator Configuration

To connect iSCSI targets and configure advanced settings, follow these steps:

1. Login to the Microsoft Windows Server 2008 R2 Hyper-V host.

2. Click Start > Administrative Tools > iSCSI initiator.

3. In the "iSCSI Initiator Properties" dialog box, click Discovery and then click Discover Portal.

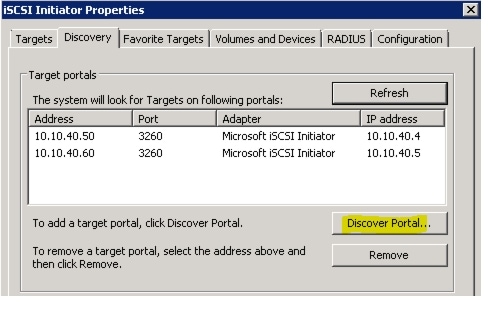

Figure 94 Adding Target Portal in iSCSI Initiator Properties Window

4. In the "IP address" or "DNS" name field, enter the EMC VNXe iSCSI Server IP for SP A created earlier in the EMC VNXe3300 Deployment Procedure and click Advanced.

Figure 95 Changing the Default Settings of Target Portal

5. The Advanced Settings dialog box appears. Complete the following in the Advanced Setting window:

a. Choose "Microsoft iSCSI Initiator" from the Local adapter list box.

b. Choose the "IP address" of the first NIC connected to the iSCSI server from the Initiator IP list box.

c. If you are required to use the CHAP, enter the details else ignore and click Ok.

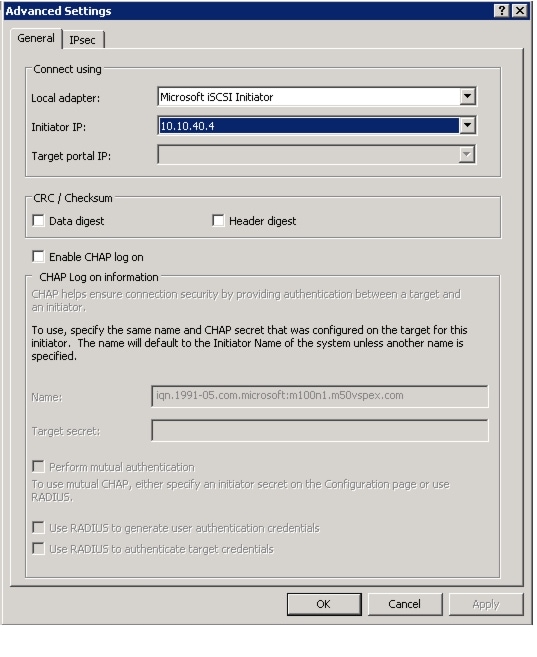

Figure 96 Advanced Settings Window

6. In the "iSCSI Initiator Properties" dialog box, verify the "Target Portals" details that are displayed in the "Discovery" window.

7. Choose the Targets tab, and then choose the VNXe as the target name.

8. Click Connect.

The "Connect To Target dialog box" appears.

9. Complete the following in the Targets Window:

a. Choose "Add this connection to the list of Favorite Targets".

b. Clear Enable multi path and click Ok. In the Targets tab of the iSCSI Initiator Properties dialog box, verify that the status of the target shows connected.

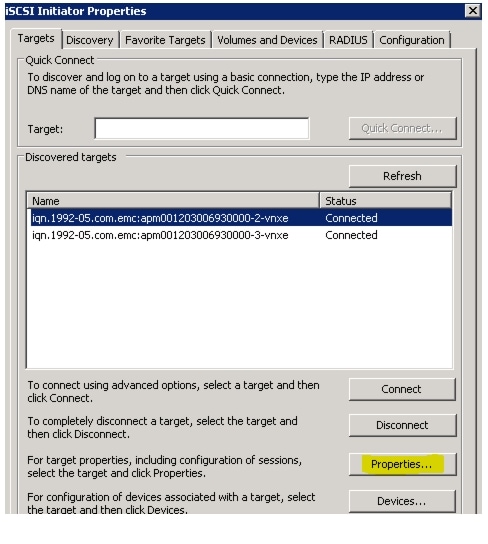

Figure 97 Window Displaying Discovered Targets

10. Repeat steps from 2-7 to add target portal IP of the VNXe iSCSI Server IP for SP B using the second NIC configured for iSCSI.

11. Choose the Targets tab, and then choose the first "VNXe" target name.

12. Click Properties and in the Properties dialog box click Add Session.

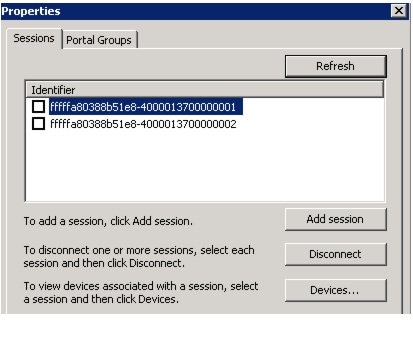

Figure 98 iSCSI Initiator Properties Displaying Session Identifiers

13. Choose "Add this connection" to the list of Favorite Targets and click Advanced.

The Advanced Settings dialog box appears.

14. Complete the following in the Advanced Settings window:

a. Choose "Microsoft iSCSI Initiator" from the Local adapter list box.

b. Choose the "IP address" of the second NIC connected to the iSCSI server from the Initiator IP list box.

c. Choose the "Target portal IP" of the VNXe iSCSI Server IP for SP A in the Target portal IP list box. Click Ok.

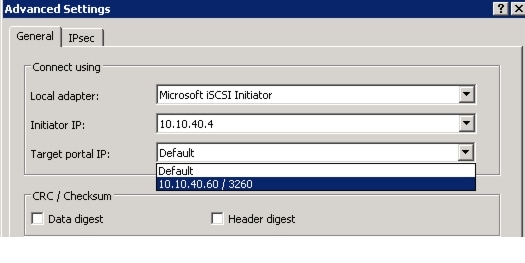

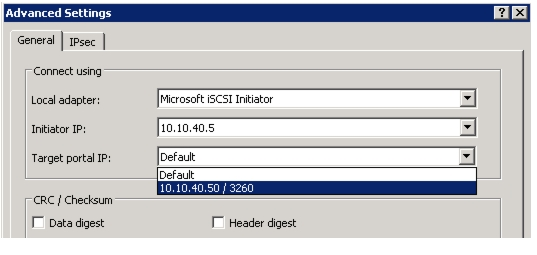

Figure 99 Advanced Settings Window

15. Choose "Targets" and then enter the second "VNXe" target name.

16. Click Properties and in the Properties dialog box click Add Session.

Figure 100 Status of the Discovered Targets

17. Choose "Add this connection" to the list of Favorite Targets and click Advanced.

The Advanced Settings dialog box appears.

18. Complete the following in the Advanced Settings window:

a. Choose "Microsoft iSCSI Initiator" from the Local adapter list box.

b. Choose the IP address of the first NIC connected to the iSCSI server from the Initiator IP list box.

c. Choose the Target portal IP of the VNXe iSCSI Server IP for SP B in the Target portal IP list box. Click Ok.

Figure 101 Advanced Settings

Figure 102 shows the partial output of command mpclaim.exe -b captured in a file.

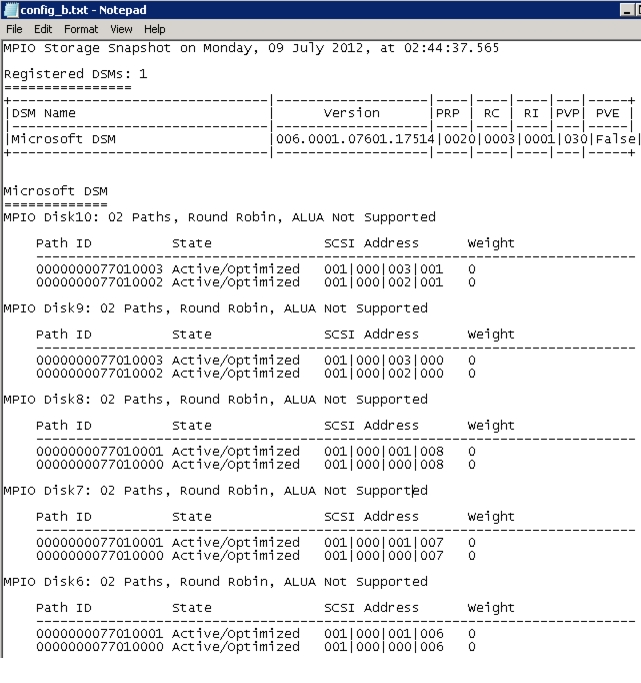

Figure 102 mpclaim.exe Configuration Output

19. Login to the "Windows Hyper-V host" and open "Server Manager".

20. In "Server Manager", expand "Storage" and click Disk Management.

21. In the "Disk Management" right window pane, choose and right-click all the SAN disks to online and initialize them.

Once all the disks are initialized, format with the NTFS file system and assign drive letters to them.

22. Login to other Hyper-V hosts to which the same above SAN disks are provisioned and bring them online.

Cluster Validation

Table 11 Microsoft Windows Failover Cluster Details

Cluster Node Name
Node IP Address
Cluster IP Address
Cluster Name

M100N1.M50VSPEX.COM

10.29.150.171

10.29.150.175

M100Clus

M100N2.M50VSPEX.COM

10.29.150.172

M100N3.M50VSPEX.COM

10.29.150.173

M100N4.M50VSPEX.COM

10.29.150.174


For cluster validation, follow these steps:

1. Login to M100N1 host using a domain administrative account with local privileges.

2. Open Server Manager and browse to Features > Failover Cluster Manager.

3. Validate cluster feasibility:

a. Choose "Validate a Configuration", and click Next.

b. Add all the nodes one at a time into the Enter server name text field, and click Next

c. Choose "Run all tests" and click Next.

d. Click Next > Next.

e. Review the report and resolve any issues found by the validation wizard before continuing.


Note The warning in Figure 103 is expected because the iSCSI NICs are on the same subnet. For failsafe and HA feature of the EMC VNXe storage to work, the peer ports on both storage processors must be on the same subnet and that is the reason for iSCSI NICs to be on same subnet.


f. Click Finish.

Figure 103 Failover Cluster Validation Report

Failover Cluster Setup

To setup a failover cluster, follow these steps:

1. In the Failover Cluster Manager, choose Create a Cluster.

2. In the "Welcome" screen, click Next.

3. Add all the nodes one at a time into the Enter server name text field and click Next.

Figure 104 Selecting Servers for Adding into the Cluster

4. Enter the "Cluster Name", "Cluster IP", and click Next.

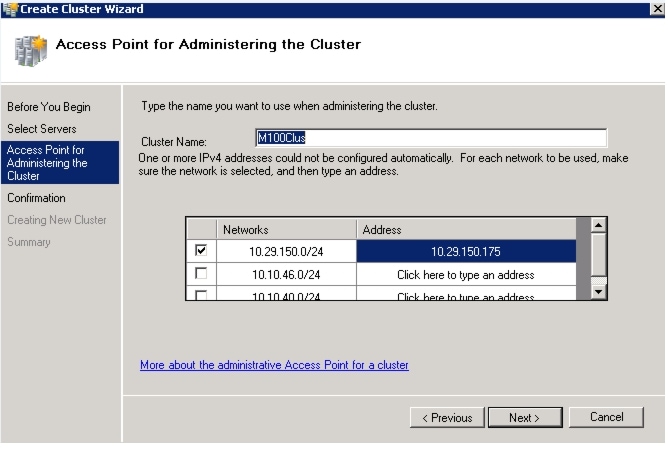

Figure 105 Cluster Details

5. In the "Confirmation" page, review and click Next.

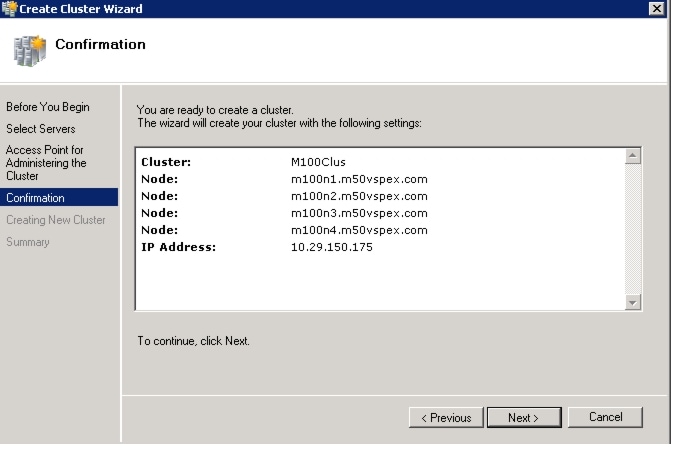

Figure 106 Confirmation Window for Creating Cluster

6. In the "Summary" window click Finish.

Figure 107 Window Showing Summary of the Created Cluster

7. In the "Failover Cluster Manager", right-click the cluster name, choose More Actions, Configure Cluster Quorum Settings and click Next.

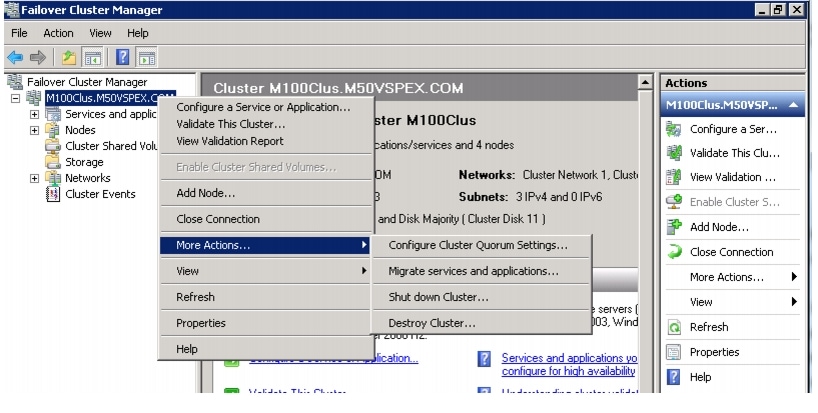

Figure 108 Failover Cluster Manager

8. In the "Select Quorum Configuration" page, choose the "Node and Disk Majority" radio button and click Next.

Figure 109 Configure Quorum Configuration

9. In the "Configure Storage Witness" page choose the 10GB disk and click Next.

10. In the "Confirmation" page review and click Finish.

Figure 110 Failover Cluster Manager Online Status

11. To enable the Cluster Shared Volume, open "Failover Cluster Manager" from the node that currently owns the cluster.

12. In the "Configure Section" choose Enable Cluster Shared Volumes.

13. Check the check box "I have read the above notice" and click Ok.

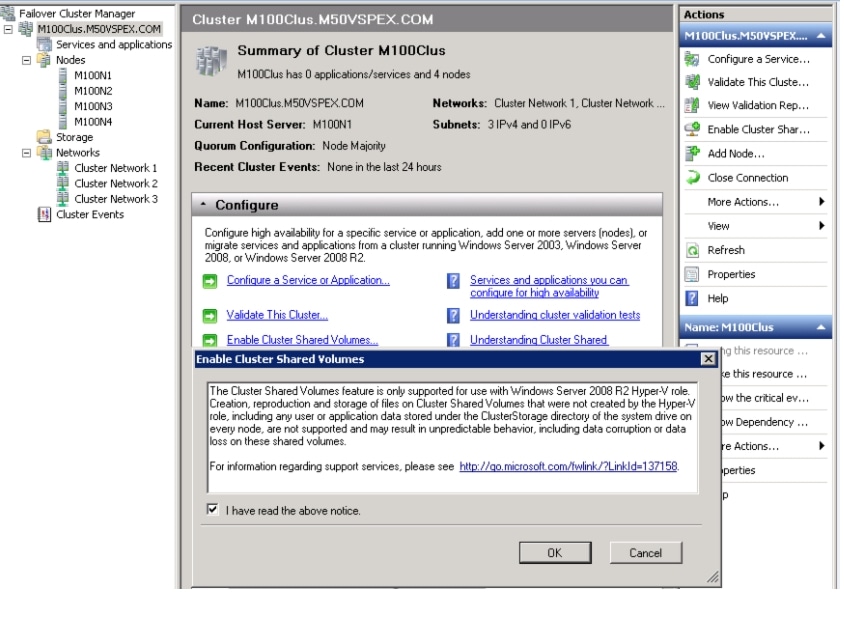

Figure 111 Enabling Cluster Shared Volumes (CSV)

14. Right-click "Cluster Shared Volumes" and choose Add Storage.

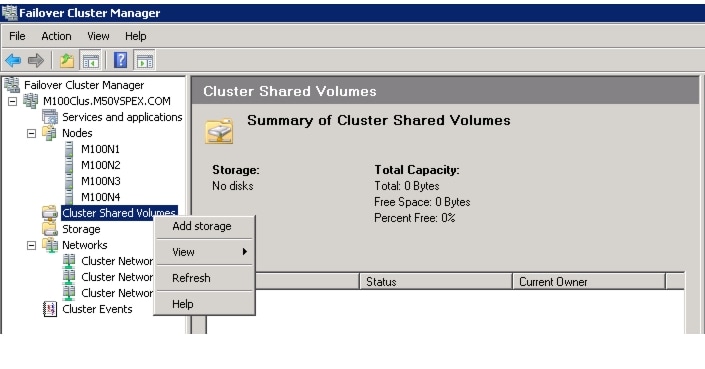

Figure 112 Adding Storage to CSV

15. Choose all the volumes under "Available disks" and click Ok.

Figure 113 Select Available Disks For CSV Storage

16. Once all the disks are added successfully, the status shows Online.

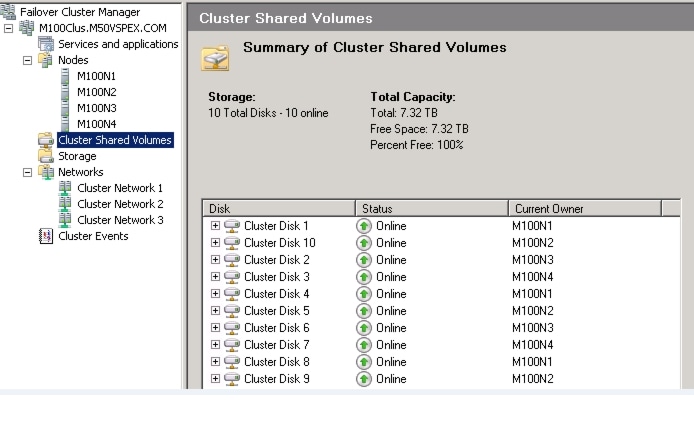

Figure 114 Window Showing CSV Disk Status

17. Rename the cluster networks (optional).

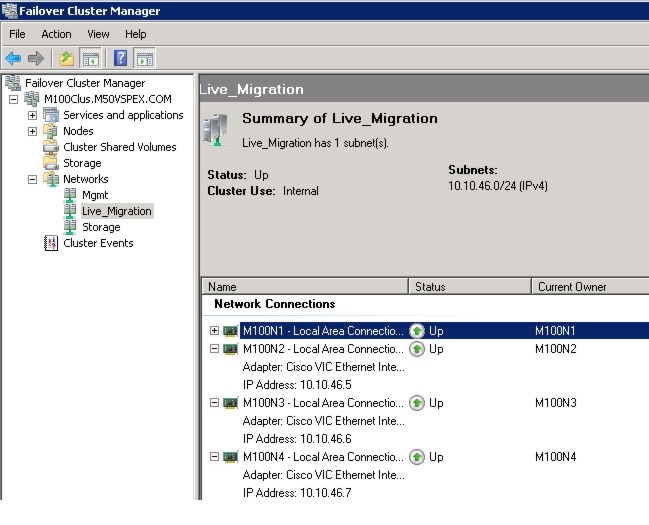

Figure 115 Live Migration Summary in Failover Cluster Manager

Microsoft System Center-2012 VMM Configuration

This section provides configuration details of Microsoft System Center Virtual machine Manager (VMM).

Add Microsoft Hyper-V Hosts and Cluster

To add Microsoft Hyper-V hosts and cluster, follow these steps:

1. Create a "Host Group" and click Add Hyper-V Hosts and Clusters.

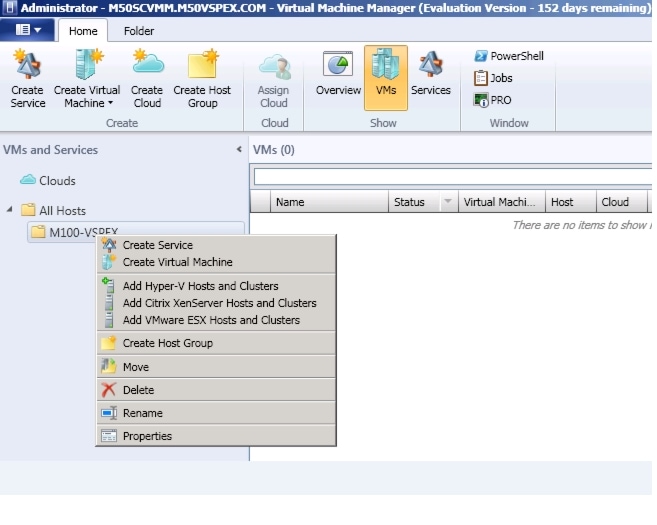

Figure 116 Create a Host Group in SCVMM

2. In the "Resource location" page of the "Add Resource Wizard", choose the radio button "Windows server computers in a trusted Active directory domain" and click Next.

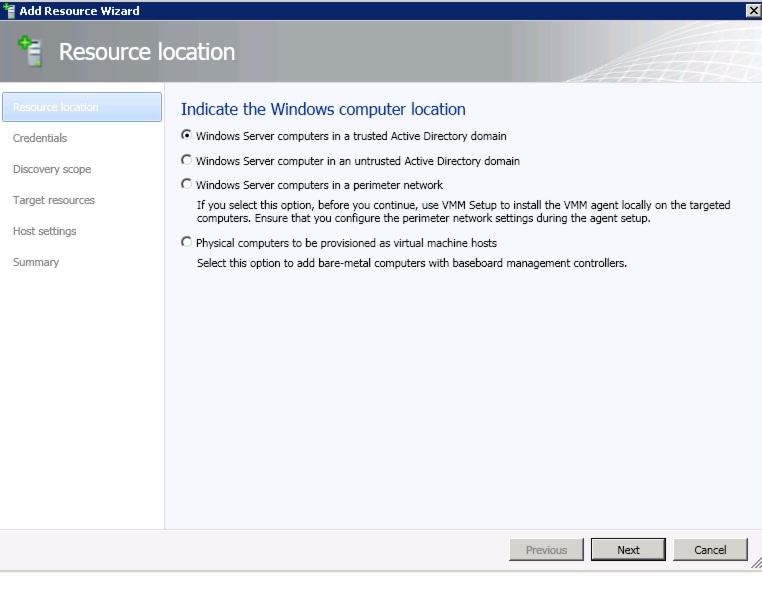

Figure 117 Selecting Resource Location

3. In the "Credentials" page of the "Add Resource Wizard", provide the appropriate credentials and click Next.

4. In the "Discovery" page of the "Add Resource Wizard", choose the radio button "Specify Windows Server Computer by Name" and enter the cluster name created in the previous sections and click Next.

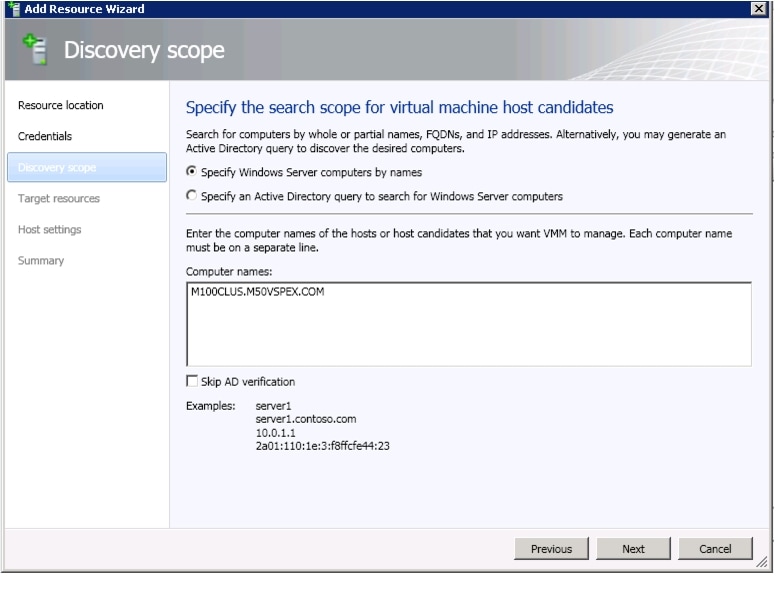

Figure 118 Specifying Discovery Scope for VM Hosts

5. In the "Target Resources" page of the "Add Resource Wizard" choose the "cluster name" and click Next.

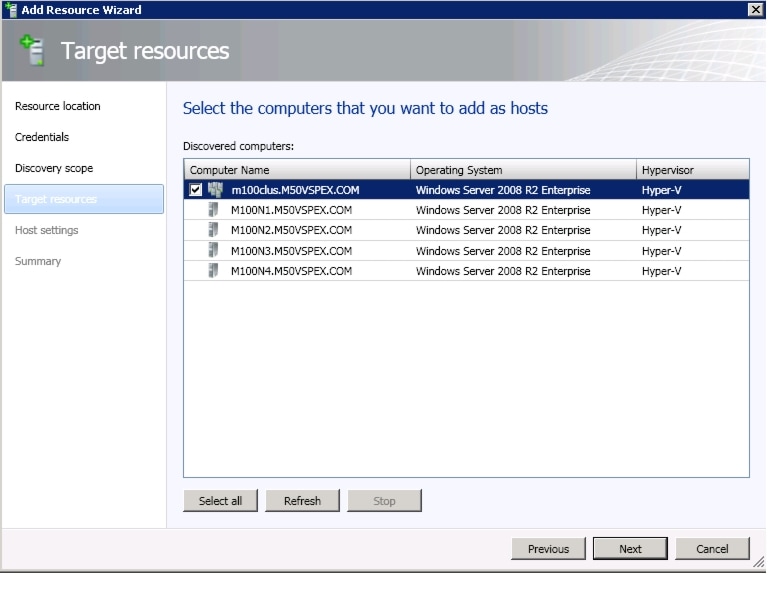

Figure 119 Target Resources to Add as Hosts

6. In the "Host Settings" page of the "Add Resource Wizard" choose the "Host group" created in step 1 and click Next.

Figure 120 Specifying Host Group and VM Path for Hosts

Create a Template for Virtual Machine Deployment

This section covers how to create A Virtual Machine, A Virtual Machine Template, and Highly Available Virtual Machines from the Template.

To create a virtual machine from a blank .vhd file, follow these steps:

1. Open the VMs and Services workspace.

2. In the Home tab, in the "Create" group, click the Create Virtual Machine drop-down list, and then click Create Virtual Machine.

The "Create Virtual Machine" wizard appears.

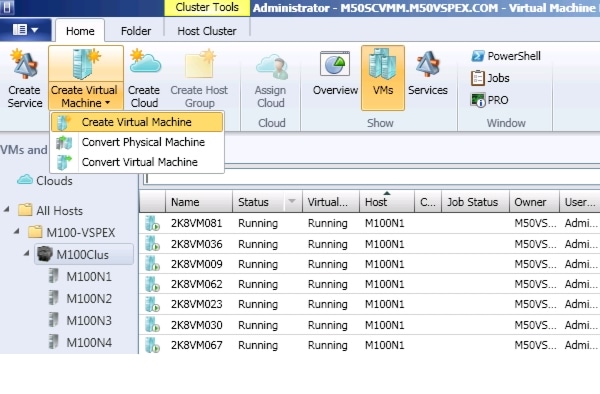

Figure 121 Create Virtual Machine

3. In the "Select Source" page, choose the radio button "Create the new virtual machine with a blank virtual hard disk" and click Next.

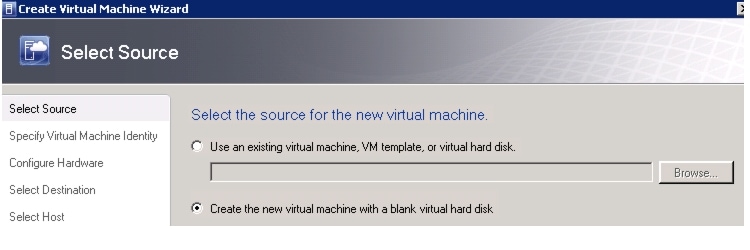

Figure 122 Selecting Source for New VM

4. In the "Specify Virtual Machine Identity" page, enter the virtual machine name and optional description, and then click Next.

5. In the "Configure Hardware" page, perform any one of the following, and click Next.

a. To use an existing hardware profile, in the Hardware profile list, click the desired profile.

b. Configure hardware settings manually.

6. In the "Select Destination" page, choose to place the virtual machine on a virtual machine host.

a. In the "Select Host" page, review the placement ratings and transfer type, click the Desired Host, and then click Next.

b. In the "Configure Settings" page, under "Locations", either accept the default virtual machine path on the host for the virtual machine files, or click Browse to specify a different location. If desired, choose the "Add this path" to the list of default virtual machine paths on the host check box.

Under Machine Resources, click Virtual Hard Disk. You can accept the default values, or choose a different destination path on the host for the .vhd file. To change the .vhd file name, enter a new name in the File name box.

c. In the "Select Networks" page (if it appears), optionally choose the desired logical network, the virtual network, and the VLAN ID (if applicable), and click Next.

d. In the "Add Properties" page, configure the action to take when the host starts or stops, and the operating system that you install on the virtual machine. Click Next.

e. In the "Summary" page, confirm the settings and click Create.

7. Install the Operating System on the Virtual Machine created above with latest updates and service pack. Install any Roles and Features, applications and enable any required services to make this a golden image for template creation.

Create a Virtual Machine Template

This section covers on how-to create a virtual machine template from an existing virtual machine that is deployed on a host.

To create a virtual machine template, follow these steps:

1. Shutdown the VM for template creation and Open the Library workspace.

2. In the Virtual Machine tab, choose and right-click the VM that needs to be converted to a template and click Create and then Create VM Template.

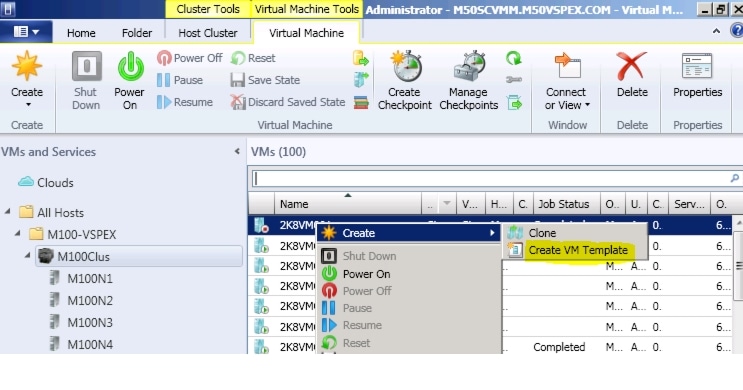

Figure 123 Creating VM Template

A warning message is displayed "creating a template destroys the source virtual machine, and any user data on the source virtual machine may be lost".

3. To continue, click Yes.

4. In the "VM Template Identity" page, provide a name for the virtual machine template, and click Next.

5. In the "Configure Hardware" page click Next.

6. In the "Configure Operating System" page, configure the guest operating system settings.

If you have an existing guest operating system profile that you want to use, in the Guest OS profile list, click the desired guest operating system profile.

7. After you have configured the guest operating system settings, click Next.

8. In the "Select Library Server" page, click the "library server" for the virtual machine, and click Next.

9. In the "Select Path" page, click Browse, click a "library share" and optional folder path, click OK, and click Next.

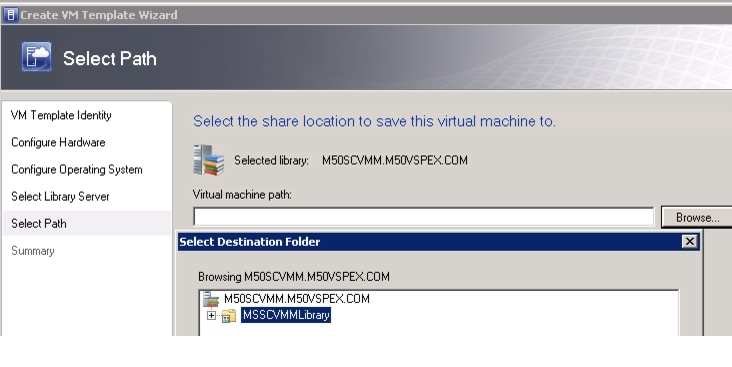

Figure 124 Selecting Location for Saving the VM

10. In the "Summary" page, confirm the settings, and click Create.

11. In the "Templates" tab, choose and right-click the template created above and click Properties. Make the necessary changes like making the VM highly available as shown in Figure 125.

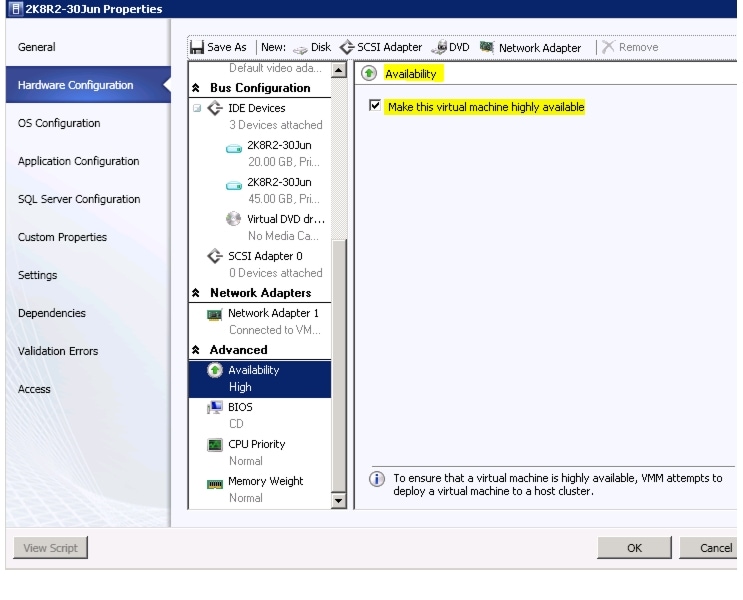

Figure 125 Modifying Template Properties for VM High Availability

Create a Highly Available Virtual Machine from a Template

You can use the following procedure to create a virtual machine from a virtual machine template in System Center 2012 - Virtual Machine Manager (VMM).

To create a highly available virtual machine from a template, follow these steps:

1. Open the VMs and Services workspace.

2. In the "Home" tab, in the "Create group" click the Create Virtual Machine drop-down button, and then click Create Virtual Machine.

The "Create Virtual Machine Wizard" opens.

3. In the "Select Source" page, ensure that you choose "Use an existing virtual machine", "VM template", or "virtual hard disk", and then click Browse.

4. In the "Select Virtual Machine Source" dialog box, click the appropriate virtual machine template, and then click Ok.

Figure 126 Selecting Source for Virtual Machine

5. In the "Select Source" page, click Next.

6. In the "Specify Virtual Machine Identity" page, enter the virtual machine name and optional description, and click Next.

7. In the Configure Hardware page, configure the hardware settings.

If you have an existing hardware profile with settings that you want to use, in the Hardware profile list, click the desired hardware profile.

8. After you have configured the hardware settings, click Next.

Figure 127 Configuring Hardware for the VM

In the "Configure Operating System" page, configure the guest operating system settings. If you have an existing guest operating system profile that you want to use, in the Guest OS profile list, click the desired guest operating system profile.

9. After you have configured the guest operating system settings, click Next.

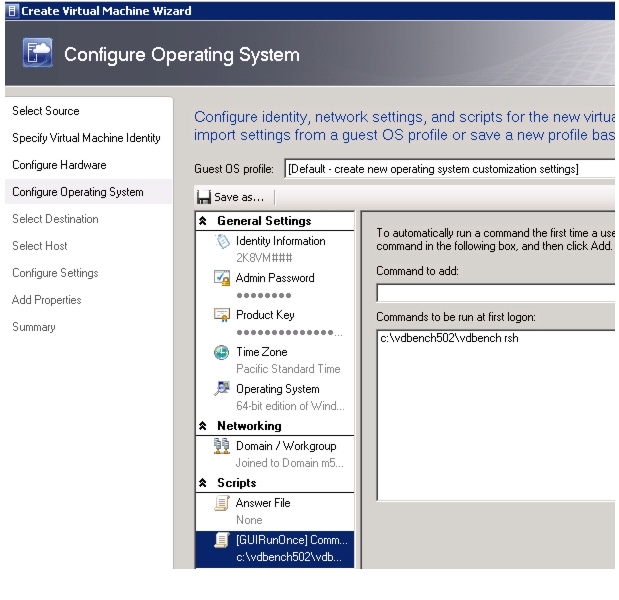

Figure 128 Configuring OS for the VM

10. In the "Select Destination" page, choose whether to place the virtual machine on a virtual machine host.

11. In the "Select Host" page, review the placement ratings and transfer type, click a desired host that is available for placement, and click Next.

12. In the "Configure Settings" page, follow these steps:

a. Under Locations, click the Virtual Machine Location.

b. Either accept the default virtual machine path on the host for the virtual machine files, or click Browse to specify a different location.

c. If desired, choose "Add this path" to the list of default virtual machine paths on the host check box.

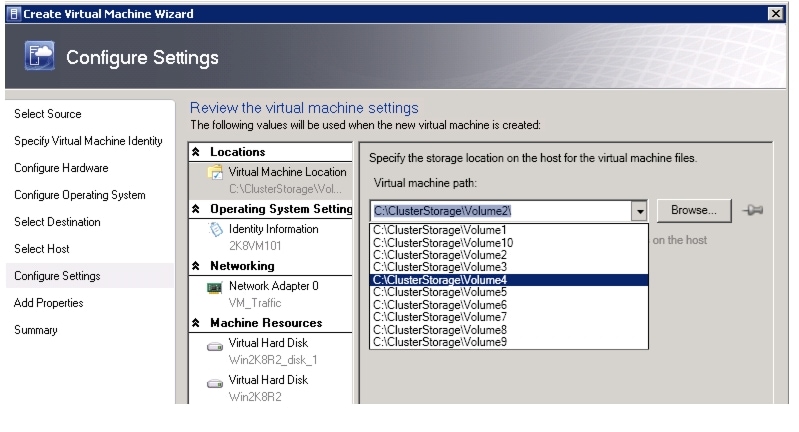

Figure 129 Window Showing VM Settings

d. Under Operating System Settings, click Identity Information.

You can either accept or change the computer name.

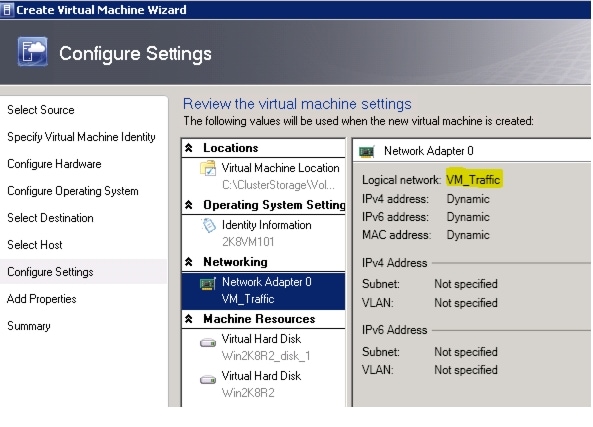

Figure 130 Window Showing Virtual Machine Settings

e. Under "Networking", click a network adapter to view the configured network settings.

f. Under "Machine Resources", click Virtual Hard Disk, review and optionally modify the settings, and click Next.

g. In the "Add Properties" page, configure the action to take when the host starts or stops.

h. In the "Summary" page, confirm the settings and click Create.

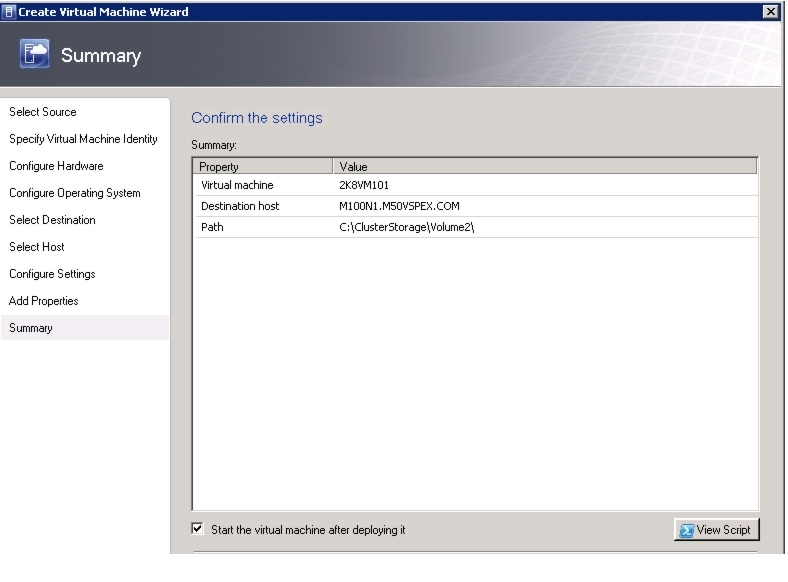

Figure 131 Virtual Machine Settings Confirmation Window

13. Figure 132 shows the100 highly available VMs deployed from a VM template.

Figure 132 100 Highly Available Virtual Machines in the SCVMM Console

14. Figure 133 shows the highly available VMs as seen in the "Failover Cluster Manager".

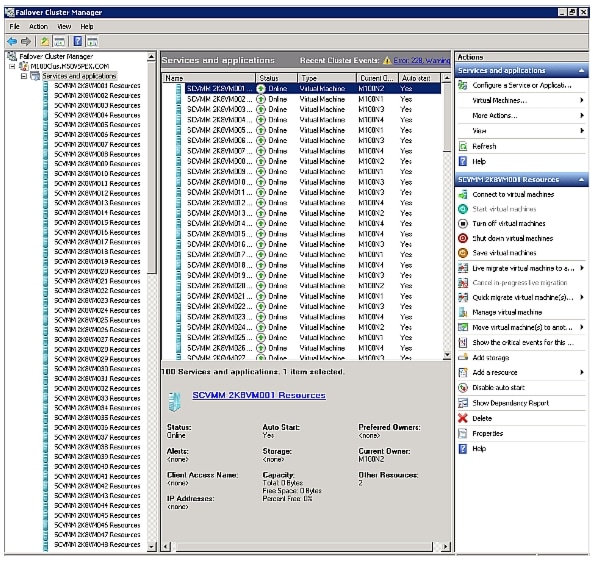

Figure 133 100 Highly Available Virtual Machines in the Failover Cluster Manager

VSPEX M50 Configuration Details

Cabling Information

This information is provided as a reference for cabling the physical equipment in a VSPEX M50 environment. The tables in this section include both the local and remote device and the port locations in order to simplify cabling requirements.

This document assumes that out-of-band management ports are plugged into an existing management infrastructure at the deployment site.

Ensure that you follow the cable directions in this section. Failure to do so results in the necessary changes to the deployment procedures that follow because specific port locations are mentioned. Before starting, ensure that the configuration matches what is described in the tables and diagrams in this section.

Figure 134 shows the VSPEX M50 cabling diagram. The labels indicate connections to end points rather than port numbers on the physical device.

For example, connection A is a 1 Gb target port connected from the EMC VNXe3150 SP B to Cisco Nexus 3048 A and connection R is a 1 Gb target port connected from Broadcom NIC 3 on Server 2 to Cisco Nexus 3048 B. Connections W and X are 10 Gb vPC peer-links connected from Cisco Nexus 3048 A to Cisco Nexus 3048 B

Figure 134 Cabling Details for VSPEX Microsoft Hyper-V 50 Virtual Machines

Table 12 and Table 13 lists five major cabling sections in these architectures:

1. Inter switch links

2. Data connectivity for servers (trunk links)

3. Management connectivity for servers

4. Storage connectivity

5. Infrastructure connectivity

Table 12 Cisco Nexus 3048 A Ethernet Cabling Information Local Device Local Port Connection Remote

Cable ID on both ends
Ethernet Interface
VLAN
Mode
Speed
Port Channel
Remote Device Port

E

Eth1/3

1, 23

trunk

1G

3

C220 Server1- 1GE LOM 1

F

Eth1/4

1,23

trunk

1G

4

C220 Server2- 1GE LOM 1

G

Eth1/5

1,23

trunk

1G

5

C220 Server3- 1GE LOM 1

W

Eth1/51

1,20,22,23

trunk

10G

10

VPC peer link

X

Eth1/52

1,20,22,23

trunk

10G

10

VPC peer link

K

Eth1/13

20

access

1G

--

C220 Server1- Broadcom NIC 1

L

Eth1/15

20

access

1G

--

C220 Server2- Broadcom NIC 1

M

Eth1/17

20

access

1G

--

C220 Server3- Broadcom NIC 1

Q

Eth1/14

22

access

1G

14

C220 Server1- Broadcom NIC 3

R

Eth1/16

22

access

1G

16

C220 Server2- Broadcom NIC 3

S

Eth1/18

22

access

1G

18

C220 Server3- Broadcom NIC 3

Not shown

Eth1/9

1,20,22,23

trunk

10G

15

Uplink to Infrastructure n/w

Not shown

Eth1/10

1,20,22,23

trunk

10G

17

Uplink to Infrastructure n/w

A

Eth1/25

20

access

1G

25

EMC VNXe3150 (eth2) - SPB

C

Eth1/26

20

access

1G

26

EMC VNXe3150 (eth2) - SPA


Table 13 Cisco Nexus 3048 B Ethernet Cabling Information Local Device Local Port Connection Remote

Cable ID on both ends
Ethernet Interface
VLAN
Mode
Speed
Port Channel
Remote Device Port

H

Eth1/3

1, 23

trunk

1G

3

C220 Server1- 1GE LOM 2

I

Eth1/4

1,23

trunk

1G

4

C220 Server2- 1GE LOM 2

J

Eth1/5

1,23

trunk

1G

5

C220 Server3- 1GE LOM 2

Y

Eth1/51

1,20,22,23

trunk

10G

10

VPC peer link

Z

Eth1/52

1,20,22,23

trunk

10G

10

VPC peer link

N

Eth1/13

20

access

1G

--

C220 Server1- Broadcom NIC 2

O

Eth1/15

20

access

1G

--

C220 Server2- Broadcom NIC 2

P

Eth1/17

20

access

1G

--

C220 Server3- Broadcom NIC 2

T

Eth1/14

22

access

1G

14

C220 Server1- Broadcom NIC 4

U

Eth1/16

22

access

1G

16

C220 Server2- Broadcom NIC 4

V

Eth1/18

22

access

1G

18

C220 Server3- Broadcom NIC 4

Not shown

Eth1/9

1,20,22,23

trunk

10G

15

Uplink to Infrastructure n/w

Not shown

Eth1/10

1,20,22,23

trunk

10G

17

Uplink to Infrastructure n/w

B

Eth1/25

20

access

1G

25

EMC VNXe3150 (eth10) - SPB

D

Eth1/26

20

access

1G

26

EMC VNXe3150 (eth10) - SPA


Connect all the cables as outlined in Figure 134 and in Table 12 and Table 13.

Prepare and Configure the Cisco Nexus 3048 Switch

The following section provides a detailed procedure for configuring the Cisco Nexus 3048 switches for use in EMC VSPEX M50 solution.

Figure 135 shows two Cisco Nexus switches configured for vPC. In vPC, a pair of switches acting as vPC peer endpoints looks like a single entity to port-channel-attached devices, although the two devices that act as logical port-channel endpoint are still two separate devices. This provides hardware redundancy with port-channel benefits. Both switches form a vPC Domain, in which one vPC switch is Primary while the other is secondary.


Note The configuration steps detailed in this section provides guidance for configuring the Cisco Nexus 3048 running release 5.0(3)U2(2b).


Figure 135 Networking Configuration for EMC VSPEX M50

Initial Setup of Cisco Nexus Switches

See the corresponding section in the VSPEX M100 Configuration Details to complete the initial setup on both Cisco Nexus 3048 switches.

Enable Features, Jumbo Frames and Global Configuration

See the corresponding section in the VSPEX M100 Configuration Details to complete the global configuration on both Cisco Nexus 3048 switches.

Configure VLANs

In this VSPEX M50 configuration, create 3 VLANs on both the Cisco Nexus switches using the below table as reference. Storage VLAN is for iSCSI traffic between the host iSCSI NICs and the storage array. Cluster VLAN is for the cluster communication traffic (heartbeat, CSV, and live migration) between the failover cluster nodes. VM_traffic VLAN is for the virtual machines data traffic. Default VLAN is used by the host for management and infrastructure traffic.

Table 14 VLANs for EMC VSPEX Microsoft Hyper-V M50 Setup

VLAN Name
VLAN Purpose
ID used in this document
Network Address
Host NICs participating in VLAN

Storage

For iSCSI traffic

20

10.10.20.0/24

2 Broadcom NICs

Cluster

For Live Migration

22

10.10.22.0/24

2 Broadcom NICs in team

Vm_traffic

For VM data

23

10.10.23.0/24

2 Cisco 1GigE I350 LOM in team and on trunk link

Default

For Mgmt,& Cluster

1

10.29.150.0/24


For Cisco Nexus A and Cisco Nexus B

1. Type config-t.

2. Type vlan <storage VLAN ID>.

3. Type name storage

4. Type exit.

5. Type vlan <cluster VLAN ID>.

6. Type name cluster

7. Type exit.

8. Type vlan <vm_traffic VLAN ID>.

9. Type name vm_traffic

10. Type exit.

Configure Port Channels

This section describes configuring port-channels on both the Cisco Nexus switches.

Create Port Channels

For Cisco Nexus A and Cisco Nexus B

From the global configuration mode, type interface Po10.

1. Type description vPC peer-link.

2. Type exit.

3. Type interface Eth1/51-52.

4. Type channel-group 10 mode active.

5. Type no shutdown.

6. Type exit.

7. Type interface Po3.

8. Type description <Cisco 1GigE LOM 1 on UCS Server 1 - For Nexus A>/< Cisco 1GigE LOM 2 on UCS Server 1 - For Nexus B>

9. Type exit.

10. Type interface Eth1/3

11. Type channel-group 3 mode active.

12. Type no shutdown.

13. Type exit.

14. Type interface Po4.

15. Type description < Cisco 1GigE LOM 1 on UCS Server 2 - For Nexus A>/< Cisco 1GigE LOM 2 on UCS Server 2 - For Nexus B>.

16. Type exit.

17. Type interface Eth1/4.

18. Type channel-group 4 mode active.

19. Type no shutdown.

20. Type exit.

21. Type interface Po5.

22. Type description <Cisco 1GigE LOM 1 on UCS Server 3 - For Nexus A>/< Cisco 1GigE LOM 2 on UCS Server 3 - For Nexus B >.

23. Type exit.

24. Type interface Eth1/5.

25. Type channel-group 5 mode active.

26. Type no shutdown.

27. Type exit.

28. Type interface Po14.

29. Type description <Broadcom NIC 3 on UCS Server 1- For Nexus A>/< Broadcom NIC 4 on UCS Server 1 - For Nexus B>

30. Type exit.

31. Type interface Eth1/14.

32. Type channel-group 14 mode active.

33. Type no shutdown.

34. Type exit.

35. Type interface Po16.

36. Type description <Broadcom NIC 3 on UCS Server 2- For Nexus A>/< Broadcom NIC 4 on UCS Server 2 - For Nexus B >.

37. Type exit.

38. Type interface Eth1/16.

39. Type channel-group 16 mode active.

40. Type no shutdown.

41. Type exit.

42. Type interface Po18.

43. Type description <Broadcom NIC 3 on UCS Server 3- For Nexus A>/< Broadcom NIC 4 on UCS Server 3 - For Nexus B >.

44. Type exit.

45. Type interface Eth1/18.

46. Type channel-group 18 mode active.

47. Type no shutdown.

48. Type exit.

49. Type interface Po25.

50. Type description <VNXe Storage Processor B>.

51. Type exit.

52. Type interface Eth1/25.

53. Type channel-group 25 mode active.

54. Type no shutdown.

55. Type exit.

56. Type interface Po26.

57. Type description <VNXe Storage Processor A>

58. Type exit.

59. Type interface Eth1/26.

60. Type channel-group 26 mode active.

61. Type no shutdown.

62. Type exit.

Add Port Channel Configurations

These steps provide details for adding Port Channel configurations.

For Cisco Nexus A and Cisco Nexus B

From the global configuration mode, type interface Po10.

1. Type switchport mode trunk.

2. Type switchport trunk allowed vlan <default VLAN ID, storage VLAN ID, cluster VLAN ID, vm_traffic VLAN ID>.

3. Type spanning-tree port type network.

4. Type no shutdown.

5. Type exit.

6. Type interface Po3.

7. Type switchport mode trunk.

8. Type switcport trunk allowed vlan <default VLAN ID, vm_traffic VLAN ID>.

9. Type spanning-tree port type edge.

10. Type no shut.

11. Type exit.

12. Type interface Po4.

13. Type switchport mode trunk.

14. Type switcport trunk allowed vlan <default VLAN ID, vm_traffic VLAN ID>.

15. Type spanning-tree port type edge.

16. Type no shut.

17. Type exit.

18. Type interface Po5.

19. Type switchport mode trunk.

20. Type switcport trunk allowed vlan <default VLAN ID, vm_traffic VLAN ID>.

21. Type spanning-tree port type edge.

22. Type no shut.

23. Type exit.

24. Type interface Po14.

25. Type switchport mode access.

26. Type switchport access vlan <cluster VLAN ID>.

27. Type spanning-tree port type edge.

28. Type no shut.

29. Type exit.

30. Type interface Po16.

31. Type switchport mode access.

32. Type switchport access vlan <cluster VLAN ID>.

33. Type spanning-tree port type edge.

34. Type no shut.

35. Type exit.

36. Type interface Po18.

37. Type switchport mode access.

38. Type switchport access vlan <cluster VLAN ID>.

39. Type spanning-tree port type edge.

40. Type no shut.

41. Type interface Po25.

42. Type switchport mode access.

43. Type switchport access vlan <storage VLAN ID>.

44. Type spanning-tree port type edge.

45. Type no shut.

46. Type interface Po26

47. Type switchport mode access.

48. Type switchport access vlan <storage VLAN ID>.

49. Type spanning-tree port type edge.

50. Type no shut.

Configure Virtual Port Channels

These steps provide details for configuring virtual Port Channels (vPCs).

For Cisco Nexus A and Cisco Nexus B

From the global configuration mode, type vpc domain <Nexus vPC domain ID>.

1. Type peer-keepalive destination <Nexus B mgmt0 IP> source <Nexus A mgmt0 IP>.

2. Type exit.

3. Type interface Po10.

4. Type vpc peer-link.

5. Type exit.

6. Type interface Po3.

7. Type vpc 3.

8. Type exit.

9. Type interface Po4.

10. Type vpc 4.

11. Type exit.

12. Type interface Po5.

13. Type vpc 5.

14. Type exit.

15. Type interface Po14.

16. Type vpc 14.

17. Type exit.

18. Type interface Po16.

19. Type vpc 16.

20. Type exit.

21. Type interface Po18.

22. Type vpc18.

23. Type exit.

24. Type interface Po25.

25. Type vpc .

26. Type exit.

27. Type interface Po26

28. Type vpc 26.

29. Type exit.

30. Type copy run start.

At this point of time, all ports and port-channels are configured with necessary VLANs, switchport mode and vPC configuration. Validate this configuration using the "show port-channel summary" and "show vpc" commands as shown in Figure 137 and Figure 138.

Figure 136 Command for Showing VLAN Details

Ensure that on both switches, all required VLANs are in "active" status and right set of ports and port-channels are part of the necessary VLANs.

Port-channel configuration can be verified using "show port-channel summary" command. Figure 137 shows the expected output of this command.

Figure 137 Command for Showing Port Channel Summary

In this example, port-channel 10 is the vPC peer-link port channel, port channels 3, 4 and 5 are connected to the Cisco 1GigE I350 LOM on the host, port channels 14, 16 and 18 are connected to the Broadcom NICs on the host, and port channels 25 and 26 are connected to the storage array. Make sure that state of the member ports of each port channel is "P" (Up in port-channel).


Note The port may not come up if the peer ports are not properly configured.


Common reasons for port channel port being down are:

Port channel protocol mis-match across the peers (LACP v/s none)

Inconsistencies across two vPC peer switches. Use show vpc consistency-parameters {global | interface {port-channel | port} <id>} command to diagnose such inconsistencies.

vPC status can be verified using "show vpc" command. Figure 138 shows an example output.

Figure 138 Command for Showing vPC Details

Make sure that vPC peer status is "peer adjacency formed ok" and all the port-channels, including the peer-link port-channel, have status "up".

Infrastructure Servers

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Active Directory Domain Controller

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Microsoft SQL Server

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Microsoft System Center VMM

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Prepare the Cisco UCS C220 M3 Servers

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Configure Cisco Integrated Management controller (CIMC)

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Configure RAID

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Enable Virtualization Technology in BIOS

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Installing Microsoft Windows Server OS on UCS C220 M3 Servers

See the corresponding section in the VSPEX M100 Configuration Details to complete the task.

Device Driver Installation

VSPEX M50 solution contains Cisco GigE I350 LOM and quad-port Broadcom BCM5709C NetXtreme II GigE adapter.

To install device drivers follow these steps:

1. See the corresponding section in the VSPEX M100 Configuration Details and execute the steps 1 to 3 to install the chipset drivers and drivers for Cisco GigE I350 LOM.

2. To install the Broadcom drivers follow these steps:

a. Download the Broadcom Management Applications Installer (x64) from the URL given below and install.

http://www.broadcom.com/support/ethernet_nic/netxtremeii.php

b. Remove any existing drivers and install the Broadcom Management Applications Installer (x64) downloaded in the above step. In addition to the Broadcom device drivers, the installer installs the management applications.

Network Configuration

This section provides steps to configure the NIC teaming of Cisco 1 GigE I350 LOM adapters and Broadcom BCM5709C NetXtreme II GigE adapters and assign IP addresses on all the Windows host servers.

NIC Teaming of Cisco 1 GigE LOM

See the corresponding section in the VSPEX M100 Configuration Details to complete the task. Assign an IP address to this teamed adapter from the management VLAN subnet.

NIC Teaming of Broadcom BCM5709C NetXtreme II GigE adapter

In this section, only the NICs connected to "cluster" VLAN is teamed.


Note NICs connected to the "storage" VLAN are not teamed and instead Microsoft MPIO feature is used for redundancy and load balancing.


To team the Broadcom NICs connected to the "cluster" VLAN follow these steps:

1. Click Start > All Programs > Broadcom Advanced Control Suite 4.

2. Choose and right-click a "NIC" and click Create Team as shown in Figure 139.

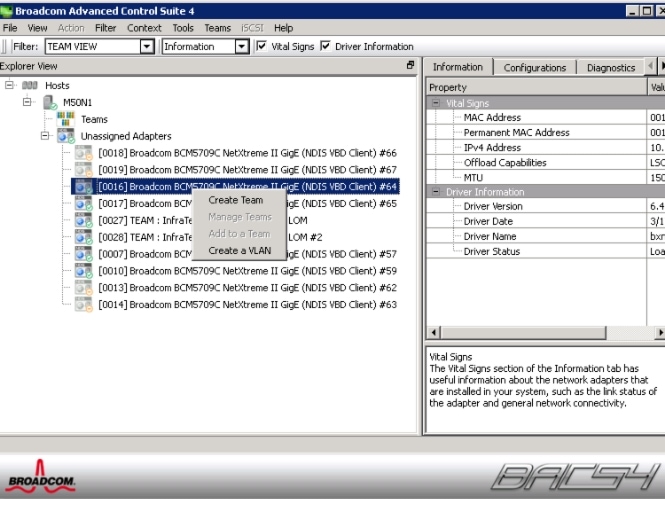

Figure 139 Teaming Broadcom Adapters

3. In the "Welcome to the Broadcom Teaming Wizard" page click Next.

4. Enter a Name for the Team and click Next.

5. In the "Team Type" page, choose FEC/GEC Generic Trunking and click Next.

6. In the next screen, choose the second NIC (Connected to "cluster VLAN") and click Add. Set the MTU to 9000.

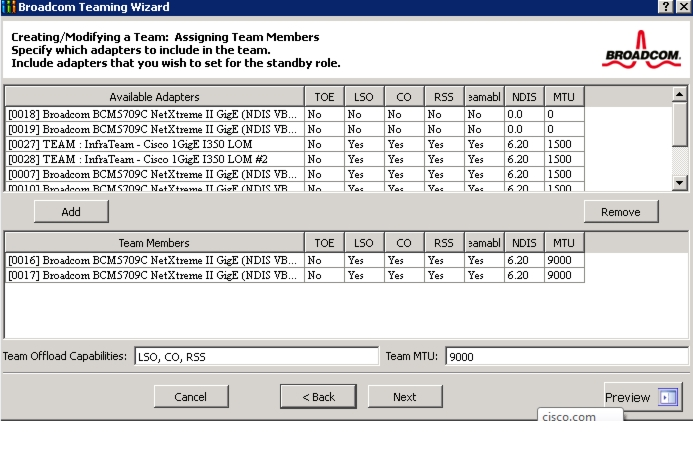

Figure 140 Selecting Broadcom Adapters for Teaming

7. In the next screen click Do not configure a standby member and click Next.

8. Choose "No for Configure LiveLink" and click Next.

9. Choose "Skip Manage VLAN in Manage VLAN" and click Next.

10. Choose "Commit changes to system" and Exit the wizard.

11. Click Preview to validate and then click Finish.

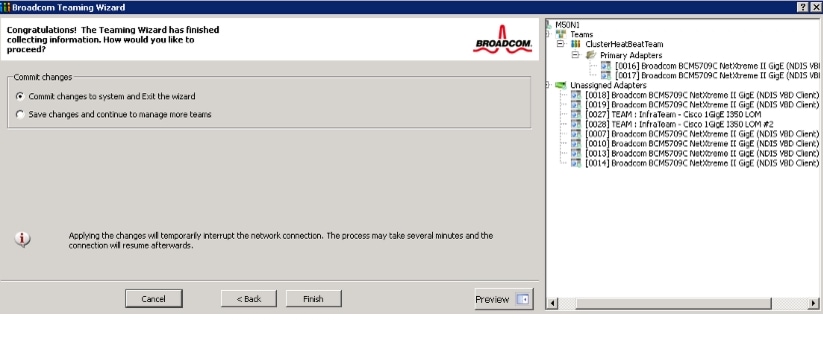

Figure 141 Confirmation Window to Commit Changes

12. Validate the team as shown in Figure 142.

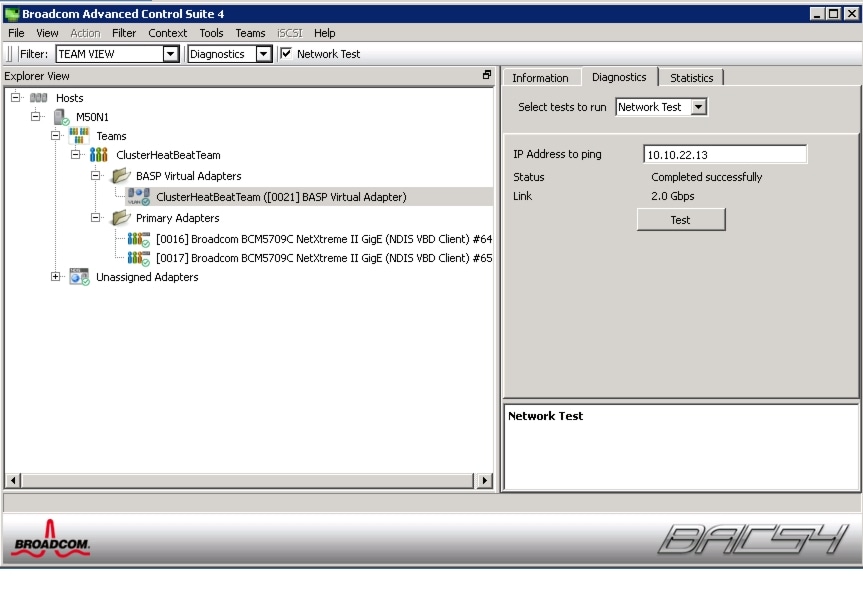

Figure 142 Window Showing Teamed Broadcom Adapters

13. Assign an IP address to the teamed adapter.

Host Rename and Domain Join

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task

Install Roles and Features

See the steps in the corresponding section of VSPEX M100 Configuration Details and complete the steps from 1 to 13.

In step 14, choose the teamed Cisco 1GigE I350 LOM adapter for the External Connection type for creating a virtual switch. Choose "Allow management operating system to share the network adapter".

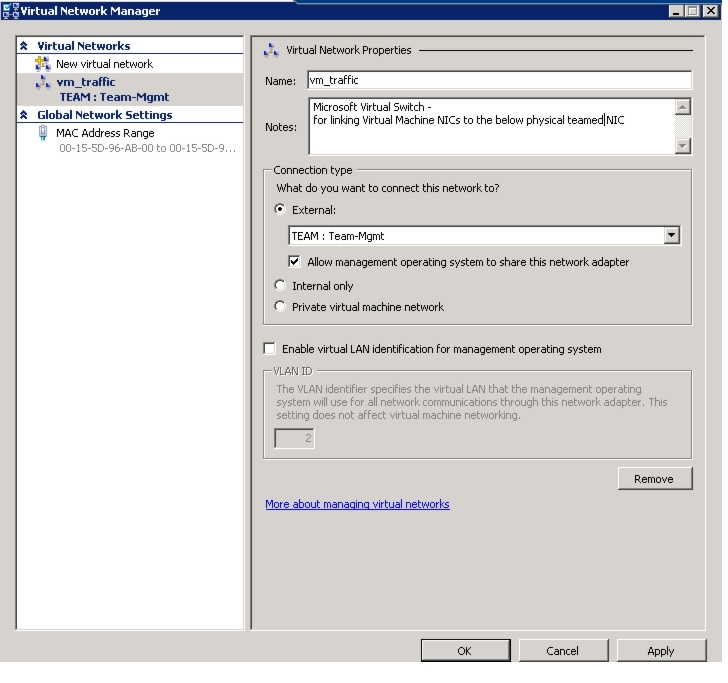

Figure 143 Microsoft Hyper-V Virtual Network Manager

The above step also creates a virtual NIC for the host machine and retains the static IP address assigned in the earlier step for host management. Note, this NIC in management VLAN allows host management traffic.

Figure 144 Control Panel Network Connections

Enable iSCSI initiator

See the corresponding section of VSPEX M100 Configuration Details to complete the task.

Prepare the EMC VNXe3150 Storage

The interface and configuration of the EMC VNXe3150 is very similar to the EMC VNXe3300, so see the section "Prepare the EMC VNXe3300 storage" in VSPEX M100 Configuration Details to complete the task.

Initial Setup of EMC VNXe

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Create Storage Pools

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task. Here you create a single storage pool using 45 disks.

Configure Advanced features—Link Aggregation and Jumbo Frames

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

Create iSCSI Servers

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task

Create Hosts

See the steps in the corresponding section of the VSPEX M100 Configuration Details to complete the task

Create Hyper-V Datastores

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task. For the 50 Virtual Machines configuration create six 750GB Hyper-V datastores for CSV and another small datastore for the cluster witness disk.

Microsoft Windows Failover Cluster Setup

See the steps in the corresponding section of VSPEX M100 Configuration Details to complete the task.

iSCSI Initiator Configuration

See the steps in the corresponding section of the VSPEX M100 Configuration Details to complete the task

Cluster Validation

See the corresponding section of VSPEX M100 Configuration Details to complete the task

Failover Cluster setup

See the corresponding section in the VSPEX M100 Configuration Details to complete the task.

Microsoft System Center-2012 VMM Configuration

See the corresponding section in the VSPEX M100 Configuration Details to complete the task. You need to ensure to connect the VM vNICs to the vm_traffic VLAN. This can be achieved by following the steps while creating the VM or editing the settings for the VM. This step is to allow traffic from management VLAN and vm_traffic VLAN to pass through the teamed Cisco 1GigE I350 LOM. On the other end of the Cisco Nexus switch port where the teamed adapters are connected are configured as trunk ports to allow multiple VLAN traffic.

In the settings for VM, choose "Enable Virtual LAN Identification" and enter 23 in the field for VLAN ID.

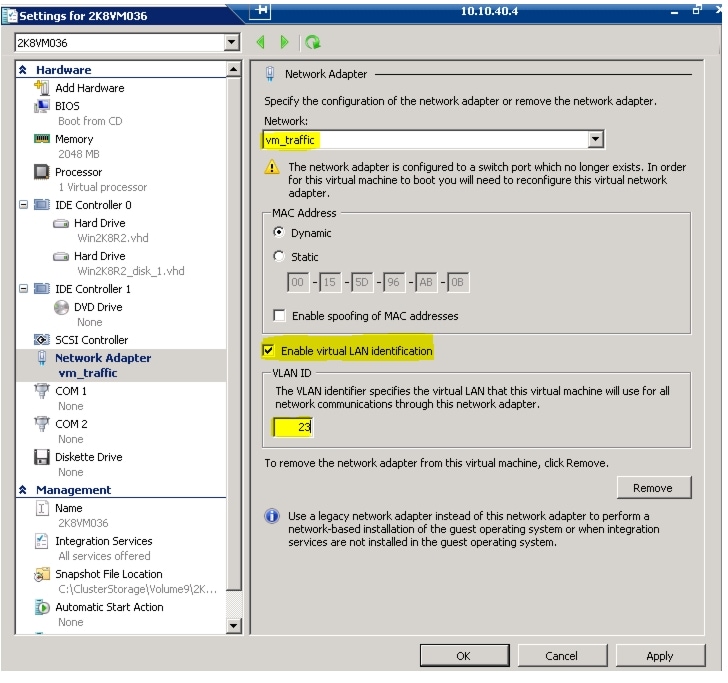

Figure 145 Window Showing Network Adapter Settings

Validating Cisco Solution for EMC VSPEX Microsoft Hyper-V Architectures

This section provides a list of items that should be reviewed once the solution has been configured. The goal of this section is to verify the configuration and functionality of specific aspects of the solution, and ensure that the configuration supports core availability requirements.

Post Install Checklist

The following configuration items are critical to functionality of the solution, and should be verified prior to deployment into production.

For post install checklist follow these steps:

1. Test Live Migration of VMs from one host to other using SCVMM.

2. Restart hosts and check if VMs migrate to available hosts.

3. Ping with "do not fragment switch" to validate if jumbo frames are supported end-to-end on storage and cluster VLANs.

4. Deploy a single virtual machine using the System Center Virtual Machine Manager (SCVMM) interface.

Figure 146 Validating Jumbo Frames Support

Verify the Redundancy of the Solution Components

The following redundancy checks were performed at the Cisco lab to verify solution robustness:

1. Administratively shutdown one of the two data links connected to the server. Ensure that connectivity is not affected. Upon administratively enabling the shutdown port, the traffic should be rebalanced. This can be validated by clearing interface counters and showing the counters after forwarding some data from virtual machines on the Cisco Nexus switches.

2. Administratively shutdown one of the two data links connected to the storage array. Ensure that storage is still available from all the Microsoft Hyper-V hosts. Upon administratively enabling the shutdown port, the traffic should be rebalanced.

3. Reboot one of the two Cisco Nexus switches while storage and network access from the servers are going on. The switch reboot should not affect the operations of storage and network access from the VMs. Upon rebooting the switch, the network access load should be rebalanced across the two switches.

4. Reboot the active storage processor of the EMC VNXe storage array and make sure that all the iSCSI targets are still accessible during and after the reboot of the storage processor.

5. Fully load all the virtual machines of the solution. Shutdown one of the Microsoft Hyper-V nodes in the cluster. All the VMs running on that host should be migrated to other active hosts. No VM should lose any network or storage accessibility during or after the migration.


Note In 50 virtual machines architectures, there is enough head room for memory in other servers to accommodate 25 additional virtual machines. However, for 100 virtual machines solution, memory would be oversubscribed when one of the Hyper-V nodes in the cluster goes down. So, for 100 virtual machines solution, dynamic memory features should be used to oversubscribe physical memory on the remaining hosts.


Cisco Validation Test Profile

"vdbench" testing tool was used with the Microsoft Windows 2008 R2 SP1 server to test scaling of the solution in Cisco labs. The details on the test profile used is displayed in Table 15.

Table 15 VDBench Details

Profile characteristic
Value

Number of virtual machines

50 or 100 depending on architecture

Virtual machine OS

Microsoft Windows Server 2008 R2 SP1

Processors per virtual machine

1

Number of virtual processors per physical CPU core

4

RAM per virtual machine

2 GB

Average storage available for each virtual machine

75 GB

Average IOPS per virtual machine

25 IOPS

Number of datastores to store virtual machine disks

10 CSVs

Disk and RAID type for datastores

RAID 5, 600 GB, 15k rpm, 3.5-inch SAS disks


Bill of Material

Table 16 gives details of the components used in the CVD for 50/100 virtual machines configuration.

Table 16 Component Description

Description
Part #

UCS C220 M3 rack servers

UCSC-C220-M3S

CPU for C220 M3 rack servers

UCS-CPU-E5-2650

Memory for C220 M3 rack servers

UCS-MR-1X082RY-A

RAID local storage for rack servers

UCSC-RAID-11-C220

Cisco VIC adapter for 100 VMs solutions

N2XX-ACPCI01

Broadcom 1Gbps adapter for 50 VMs solution

N2XX-ABPCI03-M3

Cisco Nexus 5548UP switches for 100 VMs solutions

N5K-C5548UP-FA

Cisco Nexus 3048 switches for 50 VMs solution

N3K-C3048TP-1GE

10 Gbps SFP+ multifiber mode

SFP-10G-SR


For more information on the part numbers and options available for customization, see Cisco C220 M3 server specsheet at:

http://www.cisco.com/en/US/prod/collateral/ps10265/ps10493/C220M3_SFF_SpecSheet.pdf

Customer Configuration Data Sheet

Before you start the configuration, gather some customer-specific network and host configuration information. Table 17, Table 18, Table 19, Table 20, Table 21, Table 22 provide information on assembling the required network and host address, numbering, and naming information. This worksheet can also be used as a "leave behind" document for future reference.

The EMC VNXe Series Configuration Worksheet should be cross-referenced to confirm customer information.

Table 17 Common Server Information

Server Name
Purpose
Primary IP


Domain Controller




DNS Primary




DNS Secondary




DHCP




NTP




SMTP




SNMP




vCenter Console




SQL Server



Table 18 Microsoft Hyper-V Server Information

Server Name
Purpose
Primary IP
Private Net (storage) addresses


Microsoft Hyper-V Host 1




Microsoft Hyper-V Host 2




Microsoft Hyper-V Host 3




Microsoft Hyper-V Host 4



Table 19 Array Information

Array name


Admin account



Management IP



Storage pool name



Datastore name



iSCSI Server IP



Table 20 Network Infrastructure Information

Name
Purpose
IP
Subnet Mask
Default Gateway


Cisco Nexus 5548UP Switch A




Cisco Nexus 5548UP Switch B



Table 21 VLAN Information

Name
Network Purpose
VLAN ID
Allowed Subnets

vlan-infra

Management and cluster traffic



Vlan-vm_traffic

For VM data traffic



vlan-storage

For iSCSI traffic



vlan-cluster

For CSV and Live Migration



Table 22 Service Accounts

Account
Purpose
Password (optional, secure appropriately)


Microsoft Windows Server administrator




Array administrator




SCVMM administrator




SQL Server administrator



References

Cisco Unified Computing System:

http://www.cisco.com/en/US/solutions/ns340/ns517/ns224/ns944/unified_computing.html

Cisco UCS C-Series Servers Documentation Roadmap

http://www.cisco.com/go/unifiedcomputing/c-series-doc

Cisco Nexus:

http://www.cisco.com/en/US/products/ps9441/Products_Sub_Category_Home.html

Cisco Nexus 5000 Series NX-OS Software Configuration Guide:

http://www.cisco.com/en/US/docs/switches/datacenter/nexus5000/sw/configuration/guide/cli/CLIConfigurationGuide.html

EMC VNXe3xxx series resources

http://www.emc.com/storage/vnx/vnxe-series.htm#!resources

EMC VNX5xxx series resources

http://www.emc.com/storage/vnx/vnx-series.htm#!resources

Network Adapter Virtualization Design (Adapter-FEX) with Cisco Nexus 5500 Switches

http://www.cisco.com/en/US/prod/collateral/switches/ps9441/ps9670/guide_c07-690080_ns1118_Networking_Solutions_White_Paper.html

Configuring Port Channels

http://www.cisco.com/en/US/docs/switches/datacenter/sw/5_x/dcnm/interfaces/configuration/guide/if_portchannel.html

Configuring Port Profiles

http://www.cisco.com/en/US/docs/switches/datacenter/sw/5_x/dcnm/interfaces/configuration/guide/if_portprofile.html

Configuring vPCs

http://www.cisco.com/en/US/docs/switches/datacenter/sw/5_x/dcnm/interfaces/configuration/guide/if_vPC.html

System Center 2012 - Virtual Machine Manager

http://technet.microsoft.com/en-us/library/gg610610

Microsoft SQL Server installation guide

http://msdn.microsoft.com/en-us/library/ms143219.aspx
