WLAN Radio Frequency Design Considerations


This chapter describes the basic radio frequency (RF) information necessary to understand RF considerations in various wireless local area network (WLAN) environments. This chapter includes information on the following topics:

Regulatory domains and frequencies

Understanding the IEEE 802.11 standards

RF spectrum implementations including 802.11b/g and 802.11a

Planning for RF deployment

Manually fine-tuning WLAN coverage

Radio Resource Management (RRM)

RF Basics

In the United States, there are three bands allocated for unlicensed industrial, scientific, and medical (ISM) usage. These ISM bands are defined as follows:

900 MHz (902 to 928 MHz)

2.4 GHz (2.4 to 2.4835 GHz) (IEEE 802.11b/g operates in this frequency range)

5 GHz (5.15 to 5.35 and 5.725 to 5.825 GHz) (IEEE 802.11a operates in this frequency range)

Each range has different characteristics. The lower frequencies exhibit better range, but with limited bandwidth and thus lower data rates. The higher frequencies exhibit less range and are subject to greater attenuation from solid objects.

The following sections cover some of the specific RF characteristics used by 802.11 radios for improving communications in the 2.4 and 5 GHz frequency ranges.This section provides a summary of regulatory domains and their operating frequencies.

Regulatory Domains

Devices that operate in unlicensed bands do not require any formal licensing process, but when operating in these bands, the user is obligated to follow the government regulations for that region. The regulatory domains in different parts of the world monitor these bands according to different criteria, and the WLAN devices used in these domains must comply with the specifications of the relevant governing regulatory domain. Although the regulatory requirements do not affect the interoperability of IEEE 802.11b/g and 802.11a-compliant products, the regulatory agencies do set certain criteria in the standard. For example, the emission requirements for WLAN to minimize the amount of interference a radio can generate or receive from another radio in the same proximity. It is the responsibility of the vendor to get the product certified from the relevant regulatory body. Table 3-1 summarizes the current regulatory domains for Wi-Fi products. The main regulatory domains are FCC, ETSI, and the MKK.

Besides following the requirements of the regulatory agencies, many vendors also ensure compatibility with other vendors through the Wi-Fi certification program (www.wi-fi.org).

Table 3-1 Regulatory Domains

Regulatory Domain
Geographic Area

Americas or FCC (United States Federal Communication Commission)

North, South, and Central America, Australia and New Zealand, various parts of Asia and Oceania

Europe or ETSI (European Telecommunications Standards Institute)

Europe (both EU and non EU countries), Middle East, Africa, various parts of Asia and Oceania

Japan (MKK)

Japan

China

People's Republic of China (Mainland China)

Israel

Israel

Singapore1

Singapore

Taiwan1

Republic of China (Taiwan)


1 The regulations of Singapore and Taiwan for wireless LANs are particular to these countries only for operation in the 5 GHz band. Singapore and Taiwan are therefore only regulatory domains for 5 GHz operation; for operation in 2.4 GHz, they fall into the ETSI and FCC domains, respectively.


Note See the Cisco website for compliance information and also check with your local regulatory authority to find out what is permitted within your country. The information provided in Table 3-2 and Table 3-3 should be used as a general guideline.


Operating Frequencies

The 2.4 GHz band regulations have been relatively constant, given the length of time it has been operating. The FCC allows for 11 channels, ETSI allows for up to 13 channels, and Japan allows up to 14 channels, but requires a special license to operate in channel 14.

For 802.11a, countries are moving to open the frequency range 5.250-5.350 GHz (UNII-2) and the frequency range 5.470 to 5.780 GHz for additional 802.11a channels. These various frequencies are covered in more detail in the specific 802.11 sections in this chapter.

802.11b/g Operating Frequencies and Data Rates

Ratified in September 1999, the 802.11b standard operates in the 2.4 GHz spectrum and supports data rates of 1, 2, 5.5, and 11 Mbps. 802.11b enjoys broad user acceptance and vendor support. 802.11b technology has been deployed by thousands of enterprise organizations, which typically find its speed and performance acceptable for their current applications.

The 802.11g standard, which was ratified in June 2003, operates in the same spectrum as 802.11b and is backward-compatible with the 802.11b standard. 802.11g supports the additional data rates of 6, 9, 12, 18, 24, 36, 48, and 54 Mbps.

Table 3-2 lists the various 802.11b/g channel frequencies and specifies whether a regulatory agency allows their use in their domain. Note that not all of these frequencies are available for use in all regulatory domains.

Table 3-2 Operating Frequency Range for 802.11b and 802.11g

Channel Identifier
Center Frequency
FCC (America)
ESTI (EMEA)
TELEC (Japan)
MOC (Israel Outdoor) 1

1

2412

X

X

X



2

2417

X

X

X



3

2422

X

X

X



4

2427

X

X

X



5

2432

X

X

X

X

6

2437

X

X

X

X

7

2442

X

X

X

X

8

2447

X

X

X

X

9

2452

X

X

X

X

10

2457

X

X

X

X

11

2462

X

X

X

X

12

2467



X

X

X

13

2472



X

X

X

142

2484



X



1 Israel allows channels 1 through 13 indoors.

2 Japan requires a special license for channel 14.

802.11a Operating Frequencies and Data Rates

Operating in the unlicensed portion of the 5 GHz radio band, 802.11a is immune to interference from devices that operate in the 2.4 GHz band, such as microwave ovens, many cordless phones, and Bluetooth (a short-range, low-speed, point-to-point, personal-area-network wireless standard). Because the 802.11a standard operates in a different frequency range, it is not compatible with existing 802.11b or 802.11g-compliant wireless devices, but it does mean that 2.4-GHz and 5-GHz equipment can operate in the same physical environment without interference.

Choosing between these two technologies (802.11b/g and 802.11a) does not involve a one-for-one trade-off. They are complementary technologies and will continue to coexist in future enterprise environments. Those responsible for implementing these technologies must be able to make an educated choice between deploying 2.4 GHz-only networks, 5 GHz-only networks, or a combination of both. Organizations with existing 802.11b networks cannot simply deploy a new 802.11a network for existing APs and expect to have their 802.11a 54 Mbps coverage in the same areas as their 11Mbps 802.11b coverage. The technical characteristics of both these bands simply do not allow for this kind of coverage interchangeability.

802.11a provides data rates of 6, 9, 12, 18, 24, 36, 48, with a maximum data rate of 54 Mbps, though generally at shorter ranges for a given power and antenna gain, but it has up to 23 nonoverlapping channels (depending on the geographic area) compared to the three nonoverlapping channels of 802.11b/g. This results in increased network capacity, improved scalability, and the ability to create microcellular deployments without interference from adjacent cells.

The 5 GHz band in which 802.11a operates is divided into several different sections. Each of the Unlicensed National Information Infrastructure (UNII) bands presented in Table 3-3 was originally intended for different uses, but all can currently be used by indoor 802.11a with appropriate power restrictions. Initially, the FCC defined only the UNII-1, UNII-2, and UNII-3 bands, each of which had four channels. The channels were spaced 20 MHz apart with an RF spectrum bandwidth of 20 MHz, thereby providing nonoverlapping channels.

There are differing limitations on these three UNII bands. Restrictions vary between them for transmit power, antenna gain, antenna styles, and usage. The UNII-1 band is designated for indoor operations, and initially had a restriction of permanently attached antennas. The UNII-2 band was designated for indoor or outdoor operations, and permitted external antennas. The UNII-3 band was intended for outdoor bridge products and permitted external antennas, but the UNII-3 band can now be used for indoor or outdoor 802.11a WLANs as well.

The channels in UNII-1 (5.150 to 5.250 GHz) are 36, 40, 44, and 48. The channels in UNII-2 (5.250-5.350 GHz) are 52, 56, 60, 64 and require Dynamic Frequency Selection (DFS) and Transmitter Power Control (TPC). The channels in the new frequency range (5.470-5.725 GHz) are 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 also require DFS and TPC. The channels in UNII-3 are 149, 153, 157, 161, 165 (5.725-5.825) and do not require DFS and TPC. Not all channels in a given range can be used in all of the regulatory domains. Figure 3-1 shows the various channels in the UNII-1, 2, and 3 bands, along with the additional 11 new channels.

In February of 2004, the FCC released a revision to the regulations covering the 5 GHz 802.11a channel usage. This revision added 11 additional channels, bringing the available channels capacity to 23 channels (see Figure 3-1).

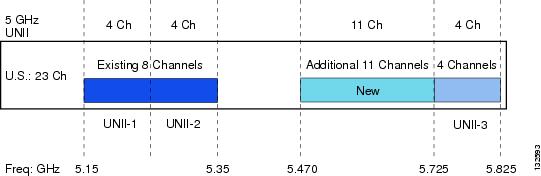

Figure 3-1 802.11 Channel Capacity

The new additional 11 channels are for indoor/outdoor use. To use the 11 new channels, however, radios must comply with two features that are part of the 802.11h specification: TPC and DFS. DFS is required to avoid radar that operates in this frequency range, but it can also be used for other purposes, such as dynamic frequency planning. 802.11h has been supported since Cisco Unified Wireless Network Software Release 3.1.

DFS dynamically instructs a transmitter to switch to another channel whenever a particular condition (such as the presence of a radar signal) is met. Before transmitting, the DFS mechanism of a device monitors its available operating spectrum, listening for a radar signal. If a signal is detected, the channel associated with the radar signal is vacated or flagged as unavailable for use by the transmitter. The transmitting device continuously monitors the environment for the presence of radar, both prior to and during operation. Portions of the 5 GHz band are allocated to radar systems, which allows WLANs to avoid interference with incumbent radar users in instances where they are collocated.

TPC allows the AP to negotiate power levels with a WLAN client during that association process. The AP can inform that WLAN client of the range of allowable transmit power to be used with that AP, and may reject clients unable to meet those levels. The WLAN client is able to adjust its transmit power level within the range specified in the TPC negotiations. This ensures that interference from the WLAN is minimized and allows the WLAN client to optimize battery life.

For more information on FCC regulation updates, see the following URL: http://www.cisco.com/en/US/products/hw/wireless/ps469/products_white_paper0900aecd801c4a88.shtml.

Table 3-3 shows the standard 802.11a frequencies.

Table 3-3 Operating Frequency Range for 802.11a

Channel ID

36

40

44

48

52

56

60

64

100

104

108

112

116

120

124

128

132

136

140

149

153

157

161

Center Freq.
MHz

5180

5200

5220

5240

5260

5280

5300

5320

5500

5520

5540

5560

5580

5600

5620

5640

5660

5680

5700

5745

5765

5785

5805

Band

UNII-1

UNII-2

UNNII-3


Table 3-4 shows the specific frequency bands and channel numbers for a few specific regulatory domains.

Table 3-4 Additional Frequency Bands and Channel Numbers for Other Regulatory Domains

Regulatory Domain
Frequency Band
Channel Number
Center Frequency

Japan

U-NII lower bands

36

40

44

48

5.180

5.200

5.220

5.240

Singapore

U-NII lower band

36

40

44

48

5.180

5.200

5.220

5.240

Taiwan



52

56

60

64

5260

5280

5300

5320

EMEA 1
Australia
New Zealand

Same as USA

Same as USA

Same as USA

EMEA 2 1

U-NII lower band

36

40

44

5.180

5.200

5.220

1 Some EMEA countries, such as Denmark and Germany, are limited to 20 mW.


Understanding the IEEE 802.11 Standards

IEEE 802.11 is the working group within the Institute for Electrical and Electronics Engineers (IEEE) responsible for wireless LAN standards at the physical and link layer (Layer 1 and Layer 2) of the OSI model, as compared to the Internet Engineering Task Force (IETF, which works on network layer (Layer 3) protocols. Within the 802.11 working group are a number of task groups that are responsible for elements of the 802.11 WLAN standard. Table 3-5 summarizes some of the task group initiatives.

For more information on these working groups, see the following URL: http://www.ieee802.org/11/

Table 3-5 IEEE 802.11 Task Group Activities

Task Group
Project

MAC

To develop one common MAC for WLANs in conjunction with a physical layer entity (PHY) task group

PHY

To develop three WLAN PHYs—Infrared, 2.4 GHz FHSS, 2.4 GHz DSSS

a

To develop PHY for 5 GHz UNII band

b

To develop higher rate PHY in 2.4 GHz band

c

To cover bridge operation with 802.11 MACs (spanning tree)

d

To define physical layer requirements for 802.11 operation in other regulatory domains (countries)

e

To enhance 802.11 MAC for QoS

f

To develop recommended practices for Inter Access Point Protocol (IAPP) for multi-vendor use

g

To develop higher speed PHY extension to 802.11b (54 Mbps)

h

To enhance 802.11 MAC and 802.11a PHY-Dynamic Frequency selection (DFS), Transmit Power control (TPC)

i

To enhance 802.11 MAC security and authentication mechanisms

j

To enhance the 802.11 standard and amendments to add channel selection for 4.9 GHz and 5 GHz in Japan

k

To define RRM enhancements to provide interfaces to higher layers for radio and network measurements

k

To define Radio Resource Measurement enhancements to provide interfaces to higher layers for radio and network measurements

m

To perform editorial maintenance, corrections, improvements, clarifications, and interpretations relevant to documentation for 802.11 family specifications

n

Focus on high throughput extensions (>100MB/s at MAC SAP) in 2.4GHz and/or 5GHz bands

o

To provide Fast Handoffs in Voice over WLAN (goal is around 50ms)

p

Focus on vehicular communications protocol aimed at vehicles, such as toll collection, vehicle safety services, and commerce transactions via cars

r

To develop a standard specifying fast BSS transitions and fast roaming

s

To define a MAC and PHY for meshed networks that improves coverage with no single point of failure

t

To provide a set of performance metrics, measurement methodologies, and test conditions to enable manufacturers, test labs, service providers, and users to measure the performance of 802.11 WLAN devices and networks at the component and application level

u

To provide functionality and interface between an IEEE 802.11 access network (Hotspot) and any external network

v

To provide extensions to the 802.11 MAC/PHY to provide network management for stations (STAs)

w

To provide mechanisms that enable data integrity, data origin authenticity, replay protection, and data confidentiality for selected IEEE 802.11 management frames including but not limited to: action management frames, deauthentication and disassociation frames


Direct Sequence Spread Spectrum

Direct sequence spread spectrum (DSSS) encodes redundant information into the RF signal. This provides the 802.11 radio with a greater chance of understanding the reception of a packet, given background noise or interference on the channel. Every data bit is expanded into a string of bits, or chips, called a chipping sequence or barker sequence. The chipping rate mandated by IEEE 802.11 is 11 chips per bit. It uses binary phase-shift keying (BPSK)/quadrature phase-shift keying (QPSK) at the 1 and 2 Mbps rates and 8 chips (complimentary code keying-CCK) at the 11 and 5.5 Mbps rate. This means that at 11 Mbps, 8 bits are transmitted for every one bit of data. The chipping sequence is transmitted in parallel across the spread spectrum frequency range.

IEEE 802.11b Direct Sequence Channels

14 channels are defined in the IEEE 802.11b direct sequence (DS) channel set. Each DS channel transmitted is 22 MHz wide, but the channel separation is only 5 MHz. This leads to channel overlap such that signals from neighboring channels can interfere with each other. In a 14-channel DS system (11 usable channels in the US), only three nonoverlapping (and thus, non-interfering) channels 25 MHz apart are possible (channels 1, 6, and 11).

This channel spacing governs the use and allocation of channels in a multi-AP environment, such as an office or campus. APs are usually deployed in a cellular fashion within an enterprise, where adjacent APs are allocated nonoverlapping channels. Alternatively, APs can be co-located using channels 1, 6, and 11 to deliver 33 Mbps bandwidth to a single area (but only 11 Mbps to a single client), if 802.11g was used in the same manner the aggregate bandwidth would be 162Mbps with a maximum data rate of 54Mbps). The channel allocation scheme is illustrated in Figure 3-2.

Figure 3-2 IEEE 802.11 DSS Channel Allocations

IEEE 802.11g

802.11g provides for a higher data rate (up to 54 Mbps) in the 2.4-GHz band, the same spectrum as 802.11b. 802.11g is backward-compatible with 802.11b and provides additional data rates of 6, 9, 12, 18, 24, 36, 48, and 54 Mbps. At higher data rates, 802.11g uses the same modulation technique, orthogonal frequency division multiplexing (OFDM), as 802.11a (see IEEE 802.11a OFDM Physical Layer).

Table 3-6 lists 802.11g modulation and transmission types for the various data rates.

Table 3-6 802.11g Modulation and Transmission Types

Modulation
Transmission Type
Bits per Subchannel
Data Rate (Mbps)

BPSK

DSSS

NA

1

QPSK

DSSS

NA

2

CCK

DSSS

NA

5.5

BPSK

OFDM

125

6

BPSK

OFDM

187.5

9

CCK

DSSS

NA

11

QPSK

OFDM

250

12

QPSK

OFDM

375

18

16-QAM

OFDM

500

24

16-QAM

OFDM

750

36

64-QAM

OFDM

1000

48

64-QAM

OFDM

1125

54


IEEE 802.11a OFDM Physical Layer

IEEE 802.11a defines requirements for the physical layer of the OSI model, operating in the 5.0 GHz UNII frequency, with data rates ranging from 6 Mbps to 54 Mbps. It uses Orthogonal Frequency Division Multiplexing (OFDM), which is a multi-carrier system (compared to single carrier systems). OFDM allows subchannels to overlap, providing a high spectral efficiency. The modulation technique allowed in OFDM is more efficient than spread spectrum techniques used with 802.11b.

IEEE 802.11a Channels

The 802.11a channel shows the center frequency of the channels. The frequency of the channel is 10 MHz on either side of the dotted line. There is 5 MHz of separation between channels, as shown in Figure 3-3.

Figure 3-3 Channel Set Example

For the US-based 802.11a standard, the 5 GHz unlicensed band covers 300 MHz of spectrum and supports 12 channels. As a result, the 5 GHz band is actually a conglomerate of three bands in the USA: 5.150-to-5.250 GHz (UNII 1), 5.250-to-5.350 GHz (UNII 2), and 5.725-to-5.875 GHz (UNII 3).

RF Power Terminology

Terms such as dB, dBi, and dBm are used to describe the amount of change in power measured at points in a system, as perceived by the radio or compared to a reference power level, respectively. The following sections cover their differences and provide a rule of thumb for their use, in addition to providing an explanation of effective isotropic radiated power (EIRP).

dB

The term decibel (dB) is mainly used for attenuation or amplification of the power level. dB is a logarithmic ratio of a signal to another standardized value. For example, dBm is where the value is being compared to 1 milliWatt, and dBw is where the value is being compared to 1 Watt.

The math is as follows:

Power (in dB) = 10 * log10 (signal/reference)

Plugging in some numbers (signal 100mW, reference 1mW) gives a value in dB of 20 (100 = 10 squared; taking the exponent 2 and multiplying by 10 gives you 20).

Remember that it is logarithmic (meaning that it increases or decreases exponentially and not linearly), and it is a ratio of some value to a reference. Also, remember that it is multiplied by 10.

Given that it is logarithmic, there are some general rules of thumb. An increase or decrease of 3 dB means that the signal doubled (double the power) or halved, respectively. An increase or decrease of 10dB means that the signal went up by 10 times or down to 1/10th the original value.

Indoor WLAN and outdoor WLAN deployments both offer separate challenges in RF deployments, and need to be analyzed separately. However, there are some rules of thumb for indoor use. For every increase of 9dB, the indoor coverage area should double. For every decrease of 9dB, the indoor coverage area should be cut in half.

dBi

The term dBi is used to describe the power gain rating of antennas. The real antennas are compared to an isotropic antenna (a theoretical or imaginary antenna) that sends the same power density in all directions, thus the use of dBi.

Antennas are compared to this ideal measurement, and all FCC calculations use this measurement (dBi). For example, a Cisco omni-directional AIR-ANT4941 has a gain of 2.2 dBi, meaning that the maximum energy density of the antenna is 2.2 dB greater than an isotropic antenna.

dBm

The term dBm uses the same calculation as described in the dB section, but has a reference value of 1 milliWatt.

So, taking into consideration the example previously given in the dB section, if the power jumped from 1 mW to 100mW at the radio, the power level would jump from 0 dBm to 20 dBm.

Besides describing transmitter power, dBm can also describe receiver sensitivity. Receiver sensitivity is in minus dBm (-dBm), because the signal reduces in value from its point of transmission. The sensitivity indicates the lowest power the receiver can receive before it considers the signal unintelligible.

Effective Isotropic Radiated Power

Although transmitted power based on the radio setting is rated in either dBm or milliwatts, the maximum energy density coming from an antenna from a complete system is measured as effective isotropic radiated power (EIRP), which is a summation of the dB values of the various components. EIRP is the value that regulatory agencies, such as the FCC or ETSI, use to determine and measure power limits, expressed in terms of maximum energy density within the first Fresnel of the radiating antenna. EIRP is calculated by adding the transmitter power (in dBm) to antenna gain (in dBi) and subtracting any cable losses (in dB). For example, if you have a Cisco Aironet bridge connected to a solid dish antenna by a 50 foot length of coaxial cable, plugging in the numbers gives the following:

Bridge—20 dBm

50 Foot Cable—3.3 dBm (negative because of cable loss)

Dish Antenna—21 dBi

EIRP—37.7dBm

For more information, see the following URL: http://www.cisco.com/en/US/tech/tk722/tk809/technologies_tech_note09186a00800e90fe.shtml

Planning for RF Deployment

Many of the RF-design considerations are interdependent or implementation-dependent. As a result, there is no "one-size-fits-all" template for the majority of requirements and environments.

Cisco Wireless Control System (WCS) provides integrated RF prediction tools that can be used to create a detailed wireless LAN design, including LWAPP AP placement, configuration, and performance/coverage estimates. IT staff can import real floor plans into Cisco WCS and assign RF characteristics to various building components to increase design accuracy.

Graphical heat maps help IT staff visualize anticipated wireless LAN behavior for easier planning and faster rollout. WCS also supports irregular shaped buildings by offering drawing tools to help organizations easily design and support WLAN deployments in such buildings. Figure 3-4 shows an example of the planning tool.

Figure 3-4 Planning Tool

Different Deployment Types of Overlapping WLAN Coverage

How much overlapping WLAN coverage you set in your wireless network depends on the usage, though with limited exceptions, all designs should be deployed to minimize retransmission and data rate shifting. Wireless networks can be deployed for location management, voice, or data-only networks, or a combination of all three. The difference is in the pattern in which the APs are laid out, and the amount of RF overlap in the coverage area. When planning a WLAN deployment consideration should be given to future uses of the WLAN deployment.

Converting a WLAN deployment to support additional services beyond a data-only deployment is not simply a matter of adding APs; it can require an additional site survey and the possible relocation of existing APs.

Data-Only Deployment

Data-only deployments do not require a large amount of overlap. This is because 802.11 clients respond to a lower signal from a nearby AP by stepping down their rate and taking a longer time to transmit. The required overlap is determined by the WLAN data rate requirement described in WLAN Data Rate Requirements. For data-only networks, the rule of thumb for separation of APs is typically 120-130 feet, but, when making your estimation for AP separation, remember to factor in objects that affect RF coverage, such as wall densities, machinery, elevators, or even wide-open space with steel cages, because your results can vary depending on the RF environment. RRM has been developed for this type of deployment and it is very useful for controlling the RF coverage.

Voice/Deployment

Figure 3-5 shows the voice network pattern and overlap.

Figure 3-5 Single Floor Site Survey for Voice

The APs are grouped closer together and have more overlap than a data-only installation, because voice clients should roam to a better AP before dropping packets. You generally also want to run smaller cells than in the past, and ensure the overlapping cell edges at or above -67 dBm. This accomplishes a number of things including greater homogeneity across a single cell and reducing processor load in the handheld, which increases link stability and reduces latency. Although only one AP might be required for a defined area, Cisco recommends that you have two APs on nonoverlapping channels with a received signal strength indication (RSSI) above 35 at all times in your installation, for redundancy and load balancing purposes. For the 7920 voice deployment, Cisco recommends that you have a Received Signal Strength Indication (RSSI) above 35 at all time in your installation. This is to ensure that the VoIP phone has good reception as well as allowing some over-subscription and enhances roaming choices for the phone.

Remember that designing for low noise background is as important as relatively high energy density within the cell. This means that a good baseline power setting for the AP is in the 35-50 mW range. This generally requires approximately 15 percent more APs than if you deployed a coverage model at 100 mW.

Pre-site surveys are useful for identifying and characterizing certain challenging areas and potential sources for interference, such as existing WLANs, rogues, and non-802.11 interference from sources such as microwave ovens and many cordless telephones. Following a design that should be reviewed and approved by all stakeholders, post-site surveys should be considered as an excellent audit mechanism to ensure that the coverage model complies with the intended functional requirements as set forth by the stakeholders.

When making your estimation for separation, remember to factor in objects that affect RF coverage such as wall densities, machinery, elevators, or even wide open spaces with steel cages, because your results may vary depending on the RF environment. Be sure to include transient dynamics such as forklifts, large groups of people, or large objects moved through the area by crane or similar load bearing devices. A WLC is often a very effective method for preliminary site evaluation, by allowing a fast deployment of a WLAN infrastructure that can then be used to make RF measurements of the area; a hand-walked site survey is also effective insurance for complex areas such as those commonly found in healthcare, retail, and manufacturing.

For more information on a wireless voice deployment, see Chapter 9 "VoWLAN Design Recommendations," as well as the 7920 deployment guide at the following URL: http://www.cisco.com/en/US/docs/voice_ip_comm/cuipph/7920/5_0/english/design/guide/7920ddg.html

Location-Based Services Deployments

The third type of deployment is the location-based services (LBS) deployments, which may be the most complex of current applications because it relies not only on excellent cell coverage, but optimal location of APs. Location management deployments can simultaneously track thousands of devices by using the WLAN infrastructure. Examples include Wi-Fi tag type deployments or asset tracking deployments to locate equipment or devices via the wireless network and/or simply to indicate where wireless clients are throughout the wireless network in relation to a drawing or diagram. This can be used to make the wireless infrastructure more secure by providing the location of a rogue client or APs, and greatly improve client troubleshooting capabilities.

For a location management deployment, the APs are laid out in a staggered pattern. Figure 3-6 shows a typical pattern. The staggered pattern allows for more accurate estimation of the location of a device.

Figure 3-6 Example of a Single Floor Location Management Deployment

For a discussion of location-based services, see Chapter 13 "Cisco Unified Wireless Location-Based Services," and the whitepaper entitled Wi-Fi Location Based Services 4.1 Design Guide, which can be found at the following URL: http://www.cisco.com/en/US/docs/solutions/Enterprise/Mobility/wifich1.html.

The Cisco 7921G and the Cisco 7920 are Cisco VoWLAN handsets. Their use is one of the most common reasons for deploying QoS on a WLAN.

For more information on the 7920 and 7921G handsets, see the following:

Cisco Unified Wireless IP Phone 7921G Version 1.0(2)

http://www.cisco.com/en/US/products/hw/phones/ps379/products_data_sheet0900aecd805e315d.html

Cisco Unified Wireless IP Phone 7920 Version 3.0

http://www.cisco.com/en/US/products/hw/phones/ps379/products_data_sheet09186a00801739bb.html

Deploying VoWLAN infrastructure involves more than simply providing QoS on WLAN. A voice WLAN needs to consider site survey coverage requirements, user behavior, roaming requirements, and admission control. These are covered in the following guides:

Design Principles for Voice Over WLAN

http://www.cisco.com/en/US/solutions/collateral/ns340/ns394/ns348/net_implementation_white_paper0900aecd804f1a46.html

Cisco Unified Wireless IP Phone 7921G Adminstration Guide

http://www.cisco.com/en/US/docs/voice_ip_comm/cuipph/7921g/5_0_1/english/administration/guide/21adm501.html

Cisco Wireless IP Phone 7920 Design and Deployment Guide

http://www.cisco.com/en/US/docs/voice_ip_comm/cuipph/7920/5_0/english/design/guide/7920ddg.html

WLAN Data Rate Requirements

Data rates affect AP coverage areas. Lower data rates (such as 1 Mbps) can extend the coverage area farther from the AP than higher data rates (such as 54 Mbps) as illustrated in Figure 3-7(which is not drawn to scale). Therefore, the data rate (and power level) affects coverage and consequently the number of APs required for the installation, as illustrated in Figure 3-8 for different data rates. As part of the planning process, consider the required data rates, the required range, and the required reliability.

Data Rate Compared to Coverage Area

Different data rates are achieved by the AP using different encoding techniques on the wireless link, allowing data to be more easily recovered from noise; this can be seen in the different receiver sensitivities for the different data rates. The number of symbols, or chips, sent out for a packet at the 1 Mbps data rate is greater than the number of symbols used for the same packet at 11 Mbps. This means that sending data at the lower bit rates takes more time than sending the equivalent data at a higher bit rate. And when there is more than one client associated to the radio, the lower rate client affects the higher rate clients' maximum data throughput by taking longer to transmit a packet of the same length.

The actual diameter of the coverage, as shown in Figure 3-7, depends on factors such as environment, power level, and antenna gain.

Figure 3-7 Data Rate Compared with Coverage

For example, indoors using the standard antennas on the NIC card and APs, the diameter of the 1 Mbps circle is approximately 700 feet (210 m), and the diameter of the 11 Mbps circle is about 200 feet (60 m). This does depend upon the type of indoor environment. An open office plan building is different from one with offices and solid walls. Increasing the gain of the antenna can increase the distance and change the shape of the radiation pattern to be focused in specific directions rather than being radiated evenly.

AP Density for Different Data Rates

The minimum required reliable data rate has a direct impact upon the number of APs needed in the design, along with power setting, antenna gain, and location. Figure 3-8 shows coverage comparison and AP density for different data rates. Although six APs with a minimum data rate of 11 Mbps might adequately service an area, it might take twice as many APs to support a minimum data rate of 24 Mbps, and more again to support a minimum data rate of 48 Mbps for the same coverage area.

Figure 3-8 Coverage Comparison and AP Density for Different Data Rates

The data rate you choose depends on the type of application to be supported, but should not be greater than the typical requirements because there is trade-off in coverage. In a typical WLAN environment, the higher data rates give maximum throughput and should minimize performance-related support issues. The physical facility and/or whether the network is client-centric generally dictates range requirements; some clients might not support the higher data rates, longer ranges, or the delay and jitter rates of an infrastructure element such as an AP.

It might seem logical to choose the default configuration of APs and clients, thereby allowing all data rates. However, there are three key reasons for limiting the data rate to the highest rate at which full coverage is obtained:

Broadcast and multicast (if enabled) are sent at the lowest associated data rate (to ensure that all clients can receive the packets). This reduces the throughput of the WLAN because traffic must wait until frames are processed at the slower rate.

Clients that are farther away, and therefore accessing the network at a lower data rate, decrease the overall throughput by causing delays while the lower bit rates are being serviced. It might be better to force the clients to roam to a closer AP so as not to impact the performance of the rest of the network.

If a 54 Mbps service is specified and provisioned with APs to support all data rates (for example), clients at lower rates can associate with the APs that can create a coverage area greater than planned, thereby increasing the security exposure (by allowing association from outside the building) and potentially interfering with other WLANs.

Client Density and Throughput Requirements

Wireless APs have two characteristics that make actual client data throughput slower than the data rate:

APs have an aggregate throughput less than the data rate because 802.11 provides a reliable transport mechanism that ACKs all packets, thereby halving the throughput on the channel.

APs are similar to shared hubs. That is, the channel is shared by all the clients associated to that AP on that channel, thus collisions slow data throughput.

With this in mind, you must have an estimate of the maximum number of active associations (active clients). This can be adjusted more or less according to the particular application.

Each cell provides an aggregate amount of throughput that is shared by all the client devices that are within the cell and associated to a given AP. This basically defines a cell as a collision domain. After deciding on the minimum data rate, be sure to consider how much throughput should, on average, be provided to each user of the wireless LAN.

Take the example of a simple barcode scanning application; 25 Kbps may be more than sufficient bandwidth for such an application because using an 802.11b AP at 11 Mbps of data rate results in an aggregate throughput of 5-6 Mbps. A simple division results in a maximum number of 200 users that can theoretically be supported. This number cannot in fact be achieved because of the 802.11 management overhead associated with the large number of clients and packet collisions. For a 1 Mbps system, 20 users can use the same AP for similar bandwidth results.

You can increase the potential per-user throughput by decreasing the number of users contending for the aggregate throughput provided by a single AP. This can be done by decreasing the size of the coverage area, or adding a second AP on a non-overlapping channel in the same coverage area. To reduce the coverage area, the AP power or antenna gain can be reduced, resulting in fewer clients in that coverage area. This means you need more APs for the same overall area, increasing the cost of deployment. An example of this is shown in Figure 3-9.

Figure 3-9 Changing the Output Power to Increase Client Performance


Note Client power should be adjusted to match the AP power settings. Maintaining a higher setting on the client does not result in higher performance and it can cause interference in nearby cells.


WLAN Coverage Requirements

Different enterprises have different coverage requirements. Some need a WLAN to cover specific common areas, while others need WLANs to cover each floor of a building or to cover the entire building including stairwells and elevators, or to cover the entire campus including car parks and roads. Apart from impacting the number of APs required, the coverage requirements can introduce other requirements, such as specialized antennas, outdoor enclosures, and lightning protection.

Power Level and Antenna Choice

Power level and antenna choice go hand-in-hand to determine AP placement. Together, these two variables determine where and how powerful the RF is in any given place in the environment. Along with choosing the correct antenna to produce the required coverage area, Cisco recommends the use of RRM to control the power level and provide the optimal channel/power plan. For more information, see Radio Resource Management (Auto-RF).

An antenna gives the wireless system three fundamental properties:

Gain—A measure of increase in power introduced by the antenna, over a theoretical antenna that transmits the RF energy equally in all directions.

Direction—The shape of the antenna transmission pattern. Different antenna types have different radiation patterns that provide various amounts of gain in different directions.

Polarization—Indicates the direction of the electric field. An RF signal has both an electric and magnetic field. If the electric field is orientated vertically, the wave is said to be vertically polarized.

A good analogy for an antenna is the reflector in a flashlight. The reflector concentrates and intensifies the light beam in a particular direction similar to what a parabolic dish antenna does to an RF source in a radio system.

Gain and direction mandate range, speed, and reliability; polarization affects reliability and isolation of noise.

Omni-Directional Antennas

Omni-directional antennas have a different radiation pattern compared to isotropic antennas; the isotropic antenna is theoretical and all physical antennas are different to the isotropic antenna. The omni-directional antenna features a radiation pattern that is nearly symmetric about a 360 degree axis in the horizontal plane, and 75 degrees in the vertical plane (assuming the dipole antenna is standing vertically). The radiation pattern of an omni-directional antenna generally resembles a donut in shape.

Regarding antenna choice, you must consider the RF pattern produced by the antenna because the type of antenna (omni or directional) affects RF coverage by focusing the bulk of the RF energy in a specific direction, pattern, and density.

For example, the omni-directional antenna shown in Figure 3-10 shows an omni-directional antenna RF radiation pattern in the vertical and horizontal direction. This is an actual measurement, so it does not follow the donut lines perfectly, but does show from where this shape comes. As described above, other RF-affecting variables (people in the room, amount of devices stored in the facility, leaves on trees for outdoor deployment, interference from different RF sources, and so on) may affect the real RF coverage pattern.

Figure 3-10 Omni-Directional RF Pattern

Looking at the pattern in Figure 3-10, this may be the incorrect antenna to use on a wall, especially if it is mounted along an exterior wall where the pattern can radiate outside of the building. This can open up the wireless network to hackers outside the building and compromise the wireless network.

Patch Antennas

The patch antenna is a type of directional antenna. Patch antennas not only radiate away from the wall or place where they are mounted, but also have rear and side lobes that produce a weakened but still potentially useful RF region. Figure 3-11 shows the real horizontal pattern of a diversity patch wall mount antenna. Although most of the coverage area is in front of the patch antenna, notice the back and side RF pattern from the center area. Again, antenna selection is important because it defines the radiation pattern and where wireless connectivity is possible.

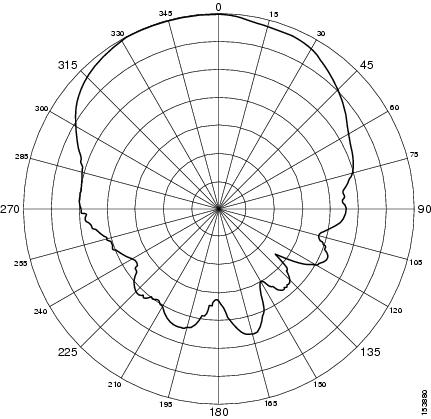

Figure 3-11 Patch Wall Mount Antenna Horizontal Plane

For more information on antenna selection, see the Cisco Antenna Selection Guide at the following URL:

http://www.cisco.com/en/US/prod/collateral/wireless/ps7183/ps469/product_data_sheet09186a008008883b.html

Security Policy Requirements

A good RF design can effectively minimize unintended RF radiation in areas not requiring coverage. For example, if WLAN coverage is required only in buildings and not outside, then the amount of RF coverage outside of the buildings can be minimized by using the correct power setting, AP placement and directional antennas pointing inwards towards the center of the building or areas. By tuning RF transmit levels and using the correct antenna for the coverage area, you can reduce the amount of RF that radiates outside the buildings to decrease the security exposure. This can reduce the exposure of wireless network to hackers outside the building or coverage area, and avoid a compromise of the wireless network.

RF Environment

The performance of the WLAN and its equipment depends on its RF environment, equipment, selection, coverage design, quality of audits, configurations, and quality of deployment. The following are some examples of adverse environmental variables that can disrupt wireless communications by either providing interference on the channel or in some way changing the RF characteristics of the signal:

2.4 GHz cordless phones

Walls fabricated from wire mesh and stucco

Filing cabinets and metal equipment racks

Transformers

Heavy duty electric motors

Fire walls and fire doors

Concrete

Refrigerators

Sulphur plasma lighting (Fusion 2.4 GHz lighting systems)

Air conditioning duct-work

Other radio equipment

Microwave ovens

HVAC ducting

Large transient elements such as forklifts or metal fabrications

Other WLAN equipment

A site survey might be required to ensure that the required data rates are supported in all of the required areas, often driven by the environmental variables mentioned above, although a WLC is an excellent resource for site pre-planning and initial identification of RF challenges as well as channel and power settings.

RF Deployment Best Practices

Some design considerations can be addressed by general best practice guidelines. The following applies to most situations:

The number of users versus throughput and a given AP. A common recommended number of users per AP is 15 to 25 for data-only users only and, for the 7920 VoIP (or similar voice devices) wireless handset, 7 to 8 voice users when data is present. This number should be used as a guideline and may vary depending on the handset in use. Check your handset requirements.

The AP data rates should be limited to those designed and for which the site survey was performed. Enabling lower data rates can cause increases in co-channel interference and greater throughput variations for clients.

The number of APs depends on coverage and throughput requirements, which can vary. For example, Cisco System's internal information systems (IS) group currently uses six APs per 38,000 square feet of floor space for data-only operation.


Note Based on the variability in environments, Cisco recommends that a site survey be performed to determine the number of APs required and their optimal placement.


Manually Fine-Tuning WLAN Coverage

A number of factors can affect the WLAN coverage, as follows:

Channel and data rate selection

Overlapping WLAN coverage for location management, voice, or data-only

Power level

Antenna choice (omni-directional, or directional antenna)

For a given data rate and location, the WLAN designer may alter power levels and/or elect to use a different antenna, to effect changes to the coverage area and/or coverage shape. Altering power levels or channel selection can be done manually as described below, or the Cisco Wireless Controller can do this automatically via the Radio Resource Management (RRM) algorithms, also referred to as Auto-RF. Cisco recommends the use of Radio Resource Management (RRM) to control the power level and channel, keeping in mind that the channel changing algorithm is highly dampened so that only a very disruptive (and persistent) interference source would cause a change to the channel topology, which in turn would cause clients to reassociate and any voice calls to be dropped. Changes in AP power do not impact clients. (See Radio Resource Management (Auto-RF) for more details).

Channel and Data Rate Selection

Channel selection depends on the frequencies that are permitted for a particular region. For example, the North American and ETSI 2.4 GHz channel sets permit allocation of three nonoverlapping channels: 1, 6, and 11 while the 5 GHz channel set permits 23 channels.

The channels should be allocated to the coverage cells as follows:

Overlapping cells should use nonoverlapping channels.

Where channels must be re-used in multiple cells, those cells should have minimal overlap with each other. Figure 3-12 shows this pattern. In 802.11a deployments, adjacent channels should be avoided as overlapping cells.

Recommendations for Channel Selection

Channel selection can be done manually, as described below.

Figure 3-12 Channel Allocated To APs

A site survey should be conducted using the same frequency plan as intended for the actual deployment. Some sites have high noise backgrounds which may prohibit the use of one or more channels. This provides a better estimate of how a particular channel at a particular location will react to the interference and the multipath. Channel selection also helps in planning for co-channel and the adjacent channel interference, and provides information about where you can reuse a frequency (see Figure 3-13).

In multi-story buildings, check the cell overlap between floors, especially where windows may be located, according to these rules/guidelines. Careful pre-planning and selection of AP location might be required in approximately 10 percent of the cases. Multi-story structures such as office towers, hospitals, and university classroom buildings introduce a third dimension to coverage planning. The 2.4 GHz waveform of 802.11b and 802.11g can pass through many walls. The 5 GHz waveform of 802.11a has approximately half the tendency for a given power to transmit suitable amounts of energy through walls because of its higher frequency. With 2.4 GHz Wi-Fi LANs in particular, you must not only avoid overlapping cells on the same floor, but also on adjacent floors when coverage models include cells that cover windows on both floors. With only three channels, this can be achieved through careful three-dimensional planning.

As a final step, after setting up the WLAN network, you should always retest the site using the selected channels and check for any interference. Keep in mind that the RRM algorithms are logical and subject to the physical topology of the network. It thus takes into account the three-dimensional placement of APs and provides the optimal channel/power setting for the sampling interval.

Manual Channel Selection

Figure 3-13 shows a screenshot of the web page for configuring one of the 802.11b/g radios under the wireless selection. On the top right-hand side, channel 11 has been manually selected and the transmit power is set to 1, the highest level (8 sets the AP to the lowest level).


Note The assignment method should normally be left at the global setting, unless there is a desire to manually control these settings. This allows the controller to dynamically change the channel number and transmit power as determined by the RRM. See Radio Resource Management (Auto-RF) for more information.


Figure 3-13 Channel Assignment

It is also possible to implement a dual-band deployment scheme, as shown in Figure 3-14. The top left portion of the diagram shows the 802.11b/g-only deployment, which uses the three nonoverlapping channels (channels 1, 6, and 11) to map out a pattern that has the least co-channel interference; that is, interference from an AP close by that is on the same channel, that is operating at sufficient power levels with its coverage pattern overlapping with that of another access point. It also shows an 802.11a deployment, which uses the eight nonoverlapping channels. The right side of the diagram illustrates how the channels would be mapped in a dual-band deployment.

Figure 3-14 Dual Band Deployment Diagram

Data Rate Selection

Figure 3-15 is a screenshot of the web page of the global 802.11b/g parameters. The data rate settings are shown on the right side of the screen.

Figure 3-15 Data Rate Assignment

Mandatory, Supported, and Disabled Rate Modes

You can use the data rate settings to choose which data rates the wireless device can use for data transmission. There is a direct correlation between data rates, range, and reliability. The lower the data rate, the greater the reliability and range for a given power setting. Sites vary for specifics, but a reasonable rule of thumb for carpeted space is an order of magnitude of increased reliability for every time you halve the data rate. Range is generally affected by a factor of a 30 percent increase (approximately) for every halving of data rate. Managing the square footage of the area covered within a -67 dBm edge can be effectively managed using this technique. Setting the data rates to match client, application, or user needs is an effective RF design element that should be considered before deploying APs.

Data rates are expressed in megabits per second. You can set each data rate to one of three modes:

Mandatory—Allows transmission at this rate for all packets, both unicast and multicast. The data rate on at least one of the APs must be set to Mandatory, and all clients that associate to the AP must be able to physically support this data rate on their radio to use the network. Additionally, for the wireless clients to associate to the AP, they must be able to currently receive packets at the lowest mandatory rate and their radios must physically support the highest mandatory data rate. If more than one data rate is set to mandatory, multicast and broadcast frames are sent at the highest common mandatory transmission rate of all associated clients (the lowest mandatory receive rate of all of the clients). This allows all clients to receive broadcast packets. The lowest mandatory rate is normally set at 1 Mb/s.

Supported—Allows transmission at this rate for unicast packets only. The AP transmits only unicast packets at this rate; multicast and broadcast packets are transmitted at one of the data rates set to mandatory. The wireless clients always attempt to transmit and receive at the highest possible data rate. They negotiate with the AP for the highest data rate set to supported or mandatory to transmit and receive unicast packets. The wireless client devices are able to receive broadcast or multicast packets at any mandatory rate at or below the negotiated rate.

Disabled—The AP does not transmit data at this rate.

Lowest and Highest Mandatory Rate Settings

Multiple clients associated to the AP can have different transmission rates, depending on interference, obstacles, or their distance from the AP. For example, if an 802.11b client is far from the AP and can only transmit and receive at a speed of 1 Mb/s because of the distance, it would be able to associate to the AP because the lowest mandatory rate (see Figure 3-15) is set to 1 Mb/s. If a second 802.11g client associates to the AP at 54 Mb/s, the AP would transmit broadcasts and multicasts at 1 Mb/s because this is the highest mandatory rate that all clients can receive. If the lowest mandatory rate was set to 5.5 Mb/s, the 802.11b client would not be able to associate to the AP because it could not receive broadcast packets at the lowest mandatory rate.

In Figure 3-15, note that the highest mandatory setting is 11 Mb/s. The highest mandatory rate tells the AP what rate the client radios must be able to physically transmit at. This does not mean that they are actually transmitting and receiving packets at that rate, it just means that the radio physically supports that rate; the wireless client needs only to be able to receive packets at the lowest mandatory rate. 802.11b devices would be able to associate to the AP shown in Figure 3-15 because their radios can physically transmit at 11 Mb/s. If a higher data rate (such as 18Mb/s) was set to mandatory, only 802.11g clients would be able to associate to the APs.

Setting any of the OFDM rates (rates above 11mb/s) to mandatory disables 802.11b connectivity. This can, for example, allow the administrator to exclude 802.11b clients from the AP by requiring an 802.11g data rate or setting a minimum transmission rate of all clients by disabling 802.11 rates. The reason this might be done is that the same 1500 byte packet at a lower data rate takes a longer time to transmit, and thus, lowers the effective data rate for all wireless clients associated to the AP.

Radio Resource Management (Auto-RF)

In the Cisco WLAN "split MAC" architecture (see Chapter 2 "Cisco Unified Wireless Technology and Architecture,") the processing of 802.11 data and management protocols and access point capabilities is distributed between a lightweight access point and a centralized WLAN controller. More specifically, time-sensitive activities, such as probe response and MAC layer encryption, are handled at the access point. All other functions are sent to the controller, where system-wide visibility is required.

Real-time RF management of a WLAN network requires system-wide visibility and is implemented at the controller level. The controller learns about the necessary information for an effective RF channel/power plan via information forwarded by the APs in the RF network group.


Note An RF network group (or RF group) is not the same as a mobility group. A mobility group defines a mobility domain of 1-25 controllers in which a client would not be required to change IP address during a roaming event. This is accomplished by building Ethernet over IP tunnels for forwarding client data from an "anchor" controller to the "foreign" controller handling the new AP servicing the client.


Radio Resource Management (RRM), also known as Auto-RF, can adjust the channel (dynamic channel assignment) and power (dynamic transmit power control) to maintain the RF coverage area. It adjusts the power level of the AP to maintain a baseline signal strength with neighboring APs at -65 dBm (configurable) (See Overview of Auto-RF Operation). It adjusts the channel of the AP when it notices nearby interference sources on the channel on which the AP is currently located. It continues to optimize the RF coverage for the best reception and throughput for the wireless network.


Note The transmit power control and dynamic frequency management performed by RRM are not the TPC and DFS required for operation in the UNII-2 bands that are defined in 802.11h.


RRM understands that the RF environment is not static. As different RF affecting variables change (people in the room, amount of devices stored in the facility, leaves on trees for outside deployment, interference from different RF sources, and so on), the RF coverage adjusts to these variables and changes with them. Because these variables change continuously, monitoring for the RF coverage and adjusting it periodically is necessary.

WLC software Release 4.185 introduced significant number of enhancements to Radio Resource Management (Auto-RF). For details on the changes and operation, see the following URL:

http://www.cisco.com/en/US/tech/tk722/tk809/technologies_tech_note09186a008072c759.shtml.

Overview of Auto-RF Operation

Each controller is configured with an RF network group name (called RF Network Name under the WLC Controller -> General menu). In each RF group (if Group Mode is enabled), the controllers elect a leader and form an RF domain. The function of the leader is to collect the network-wide neighbor information from a group of controllers and do the channel/power computation for an optimal system-wide map. If Group Mode is not enabled, the controllers run computations based only on the neighbor data gathered from the APs connected via LWAPP, trying to optimize the signal to -70 dBm between APs.

The APs transmit Radio Resource Management (RRM) neighbor packets at full power at regular intervals. These messages contain a field that is a hash of the RF group name, BSSID, and time stamp. The APs accept only RRM neighbor packets sent with this RF network name.

When neighboring APs receive neighbor messages, they validate them before forwarding them to the controller. If they can validate the message hash and confirm that it belongs to the same RF group, the packet is sent to the controller; otherwise, the AP drops the neighbor packet. The APs then forward the validated messages to the controller, filling in the LWAPP packet status field with the SNR and RSSI of the received neighbor packet.

Table 3-7 provides a summary of the various functions of the devices in the system.


Note TPC performs only downward power level adjustments. Coverage hole detection and correction increases power levels on APs.


Auto-RF should not be confused with Rogue Detection (channel scanning), which is done separately from the auto-RF algorithm. APs perform rogue detection by periodically monitoring all country-specific channels (channel scanning). The APs goes "off-channel" for a period not greater than 60 ms to listen to the other channels. Packet headers collected during this time are sent to the controller, where they are analyzed to detect rogue access points, whether service set identifiers (SSIDs) are broadcast or not, rogue clients, ad-hoc clients, and interfering access points.

By default, each access point spends approximately 0.2 percent of its time off-channel. This is statistically distributed across all access points so that no two adjacent access points are scanning at the same time, which can adversely affect WLAN performance. Packets received by the AP from clients are forwarded to the controller with the LWAPP status field filled in, which provides the controller with radio information including RSSI and signal-to-noise ratio (SNR) for all packets received by the AP during reception of the packet.

Table 3-7 Device Function

Device
Functions

RF Group Leader

Collects data from WLCs in the RF group and analyzes it for TX Power Control (TPC) and Dynamic Channel Assignment (DCA) system-wide. TPC adjusts power levels only downward.

Local WLC

Collects data and runs the Coverage Hole Detection and Correction algorithm. Adjusts power levels upward if necessary for clients

Light-weight access point

Sends neighbor messages on all channels at full power at configured interval

Verifies neighbor hash on received neighbor messages

Scans configured channels for noise, interference, and IDS/rogue detection and alerts if profile fails


Auto-RF Variables and Settings

Auto-RF can be turned on and off via the global setting on the Channel Selection (Wireless > 802.11b/g/n > Configure) web page (see Figure 3-13). You can manually set the channel and transmit level for the AP from this web page. Additionally, it can be turned off and on from the global Auto-RF web page. Remember that Auto-RF is per band and RF group computations are done for both the 802.11b/g band and another set of computations for 802.11a. The two radios do not have to share to have the same configuration. But these configurations are applied to every AP associated to the controller. Auto-RF configuration variables are shown on the global parameters Auto-RF configuration page (see Figure 3-16).

The first set of variables on the Auto-RF configuration web page corresponds to the RF group. These determine whether the controller joins the dynamic grouping with the other controllers. The dynamic grouping helps the controller find out about APs that are neighbors but might be associated to another controller in the mobility group. If this is disabled, the controller only optimizes the parameters of the access points that it knows about (that is, the ones that are associated to it). The group leader indicates the MAC address of the elected leader. You can find the MAC address of the controller on the inventory web page (you can reach the web page by clicking on Controller at the top menu and then Inventory).

The Auto-RF configuration web page is divided into three pages, or sections, with a scroll bar that is used to move among the three pages. The first page (see Figure 3-16) is for dynamic channel assignment. This allows the controller to automatically change the channel that the AP is on (for more information, see Dynamic Channel Assignment).

Figure 3-16 Auto-RF (Page 1)

Following the RF channel assignment is the section for assigning the transmit (tx) power level (see Figure 3-17). On this web page, the power level can be fixed for all APs, or it can be automatically adjusted. The web page also indicates the number of neighbors the AP has and the power thresholds for which it is adjusting.

Figure 3-17 Auto-RF (Section 2)

The third web page is for profile thresholds.

Figure 3-18 Auto-RF (Section 3)

The WLC analyzes the information passed to it by the APs and determines a pass or fail status for each of these thresholds. These pass/fail profiles are best seen in the output of the show ap auto-rf radio ap_name command (see the following sample). The same information can be seen in graphical form on the Monitor > 802.11b/g Radios > Detail web page.

Sample show ap auto-rf Command Output

show>ap auto-rf 802.11b <access point name>
Number of Slots . . . . . . . . . . . . . . . . . . . . 2
AP Name . . . . . . . . . . . . . . . . . . . . . . . . <AP name>
MAC Address . . . . . . . . . . . . . . . . . . . . . . 00:0b:85:1b:df:c0
Radio Type . . . . . . . . . . . . . . . . . . . . . . . RADIO_TYPE_80211b/g
Noise Information
    Noise Profile . . . . . . . . . . . . . . . . . . . . PASSED
    Channel 1 . . . . . . . . . . . . . . . . . . . . . . -93 dBm
    Channel 2 . . . . . . . . . . . . . . . . . . . . . . -90 dBm
 .
 .
 .
    Channel 11 . . . . . . . . . . . . . . . . . . . . . . -95 dBm
Interference Information
    Interference Profile . . . . . . . . . . . . . . . . . FAILED
    Channel 1 . . . . . . . . . . . . . . . . . . . . . . -69 dBm @ 31 % busy
    Channel 2 . . . . . . . . . . . . . . . . . . . . . . -58 dBm @ 26 % busy
 .
 .
 .
    Channel 11	. . . . . . . . . . . . . . . . . . . . . -68 dBm @ 26 % busy
Load Information
    Load Profile . . . . . . . . . . . . . . . . . . . . . PASSED
    Receive Utilization . . . . . . . . . . . . . . . . . . 0 %
    Transmit Utilization . . . . . . . . . . . . . . . . . . 0 %
    Channel Utilization . . . . . . . . . . . . . . . . . . 26 %
    Attached Clients . . . . . . . . . . . . . . . . . . .  2 clients
Coverage Information
    Coverage Profile . . . . . . . . . . . . . . . . . .  .. PASSED
    Failed Clients . . . . . . . . . . . . . . . . . . . . . 0 clients
Client Signal Strengths
    RSSI -100 dBm. . . . . . . . . . . . . . . . . . . . . . 0 clients
    RSSI -92 dBm . . . . . . . . . . . . . . . . . . . . . . 0 clients
 .
 .
 .
    RSSI -52 dBm . . . . . . . . . . . . . . . . . . . . . . 1 clients
Client Signal To Noise Ratios
    SNR 0 dBm . . . . . . . . . . . . . . . . . . . . . . .  0 clients
    SNR 5 dBm . . . . . . . . . . . . . . . . . . . . . . .  0 clients
    SNR 10 dBm . . . . . . . . . . . . . . . . . . . . . . . 0 clients
 .
 .
 .
    SNR 45 dBm . . . . . . . . . . . . . . . . . . . . . . . 1 clients
Nearby APs
Radar Information
Channel Assignment Information
    Current Channel Average Energy . . . . . . . . . . . . . -68 dBm
    Previous Channel Average Energy . . . . . .. . . . . . . -51 dBm
    Channel Change Count . . . . . . . . . . . . . . . . . . 21
    Last Channel Change Time . . . . . . . . . . . . . . . . Thu Mar 9 12:18:03 2006
    Recommend Best Channel . . . . . . . . . . . . . . . . . 11
RF Parameter Recommendations
    Power Level . . . . . . . . . .. . . . . . . . . . . . . 1
    RTS/CTS Threshold . . . . . . . . . . . . . . . . . . . . 2347
    Fragmentation Threshold . . . . . . . . . . . . . . . . . 2346
    Antenna Pattern . . . . . . . . . . . . . . . . . . . . . 0



The following sections describe some of the Auto-RF variables.

Dynamic Channel Assignment

The 802.11 MAC layer uses Carrier-Sense Multiple Access/Collision Avoidance (CSMA/CA). With CSMA/CA, two APs on the same channel (in the same vicinity) get approximately half the capacity of two APs on different channels because of the shared wireless channel. This is caused by the 802.11 MAC sensing that the channel is busy, and deferring sending frames until the channel has become free. If the 802.11 MAC defers traffic that is not part of its own AP cell, this is considered interference. Interference from another AP on the same channel is commonly called co-channel interference, and is to be expected in most 2.4 GHz 802.11 deployments, because there are insufficient non-overlapping channels to prevent some channel overlap from occurring. One of the goals of design, planning, and dynamic radio management is to minimize the amount of co-channel overlap, which minimizes co-channel interference and therefore maximizes AP traffic capacity. The Cisco Unified Wireless Network addresses this problem and other co-channel interference issues by dynamically allocating AP channel assignments to avoid conflict. Because the WLC, or a designated WLC (RF Group Leader), has system-wide visibility, it can control how channels are "reused" to minimize co-channel interference.

The WLC examines a variety of real-time RF characteristics to efficiently handle channel assignments, including the following:

Noise—This limits signal quality at the client and AP, and can vary in range and periodicity. There are numerous potential types and effects of interference. An increase in noise reduces the effective cell size. The WLC, at regular intervals, reassesses the RF environment of an AP, and optimizes channel selection to avoid noise sources while still maintaining overall system capacity. Channels that become unusable because of excessive noise can be avoided. If other wireless networks are present, the WLC shifts its channel usage to complement the other networks. For example, if one network is on Channel 6, the adjacent WLAN is assigned Channel 1 or 11. This increases the capacity of the network by limiting the sharing of frequencies. If a channel is used so much that no capacity is available, the WLC might choose to avoid this channel.

Client load—Client load is taken into account when changing the channel structure to minimize the impact on the clients currently on the WLAN system. The WLC periodically monitors the channel assignment in search of the best assignments. Change occurs only if it significantly improves the performance of the network or corrects the performance of a poorly performing AP.

The WLC combines the RF characteristic information to make system-wide decisions. The end result is an optimal channel configuration in a three-dimensional space, where APs on the floor above and below factor into an overall WLAN configuration.

Interference Detection and Avoidance

Interference (as it pertains to a Cisco Unified Wireless deployment) is defined as unwanted RF signals in the same frequency band that can lead to a degradation or loss of service. These signals can either be from 802.11 or non-802.11 sources such as certain microwave ovens or many cordless phones. It can, in certain instances, also include various sources of electromagnetic interference (EMI) such as arc welders or federal/military radar facilities. APs are constantly scanning all channels looking for major sources of interference.

If the amount of 802.11 interference hits a predefined threshold, the WLC attempts to rearrange channel assignments to optimize system performance in the presence of the interference. This might result in adjacent APs being on the same channel, but logically this represents a better scenario than staying on a channel that is otherwise totally unusable because of an interfering AP.

For example, the WLC can respond to a rogue AP on channel 11 by shifting nearby APs to channel 1 or channel 6.

Dynamic Transmit Power Control

Appropriate AP power levels are essential to maintaining a coverage area, not only to ensure correct (not maximum) amount of power covering an area, but also to ensure that excessive power is not used, which would add unnecessary interference to the radiating area. AP power settings are also used to control network redundancy by helping to ensure real-time failover in the event of the loss of an AP. The WLC is used to dynamically control the AP transmit power level based on real-time WLAN conditions. In normal instances, power can be minimized to gain extra capacity and reduce interference among the APs. RRM attempts to balance APs so that they see their neighbors at -65 dBm. If an AP outage is detected, power can be automatically increased on surrounding APs to fill the coverage gap created by the loss of the AP.

RRM algorithms are designed to create the optimal user experience. For example, if the power of an AP is turned down to Level 4 (where Level 1 = highest and Level 8 = lowest) and the received signal strength indicator (RSSI) value of a user drops below an acceptable threshold, the AP power is increased to provide a better experience to that client. When Dynamic Transmit Power Control (DTPC) is enabled, the access points add channel and transmit power information to beacons. Client devices using DTPC receive the information and adjust their settings automatically.

Coverage Hole Detection and Correction

The coverage hole detection and correction algorithm is aimed at determining coverage holes based on the quality of client signal levels and then increasing the transmit power of the APs to which those clients are associated.

The algorithm determines whether a coverage hole exists when client SNR levels pass below a given SNR threshold. The SNR threshold is considered on an individual AP basis and based primarily on the transmit power of each AP.

When the average SNR of a single client dips below the SNR threshold for at least 60 seconds, this is seen as an indication that the WLAN client does not have a viable location to which to roam. The AP transmit power of that client is increased, correcting the coverage hole.

Client and Network Load Balancing

The IEEE 802.11 standard does not define the process or reasons for client roaming, and therefore it cannot be easily predicted what clients will do in any given situation. For example, all users in a conference room can associate with a single AP because of its close proximity, ignoring other APs that are farther away but with greater free capacity.

The WLC has a centralized view of client distribution across all APs. This can be used to influence where new clients attach to the network if there are multiple "good" APs available. If configured, the WLC can proactively use AP probe responses to guide clients to the most appropriate APs to improve WLAN performance. This results in a smooth distribution of capacity across an entire wireless network. Keep in mind that this load balancing is done at client association, not while a client is connected.
