Upgrading Memory in Cisco 800 Series Routers

Table Of Contents

Upgrading Memory in Cisco 800 Series Routers

Organization

Warning and Safety Information

Opening the Chassis

Upgrading the Flash Memory

Locating the Flash Memory Slot

Locating the StrataFlash Memory Slot

Installing Flash Memory

Installing StrataFlash Memory

Installing a Mini-Flash Memory Module

Removing a Mini-Flash Memory Module

Installing a StrataFlash Memory Module

Removing a StrataFlash Memory Module

Upgrading the DRAM

Locating the DRAM Slot

Installing the DRAM

Closing the Chassis


Upgrading Memory in Cisco 800 Series Routers


This document describes how to upgrade flash memory and dynamic RAM (DRAM) for the Cisco 800 series routers:

Cisco 801-804 routers

Cisco 836 routers

Cisco 805 routers

Cisco 837 routers

Cisco 806 routers

Cisco 851 routers

Cisco 811-813 routers

Cisco 857 routers

Cisco 826 routers

Cisco 871 routers

Cisco 827 routers

Cisco 876 routers

Cisco 828 routers

Cisco 877 routers

Cisco 831 routers

Cisco 878 routers



Note The memory on the Cisco SOHO routers cannot be upgraded.



Note To upgrade memory in Cisco 880 series routers, see the Installing Memory and Power Over Ethernet in Cisco 880 Series Integrated Services Routers document at:
http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/memory/880FRU.html


Organization

The following sections are included in this document:

Warning and Safety Information

Opening the Chassis

Upgrading the Flash Memory

Upgrading the DRAM

Closing the Chassis

Warning and Safety Information

To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information (RCSI) document that accompanied your Cisco router. The following warning information is included in the RCSI:


Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030



Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Statement 94


Opening the Chassis

To upgrade the flash memory and dynamic RAM (DRAM), you must open the router chassis. You must provide a number 1 Phillips screwdriver and an antistatic mat.

The model shown in the following procedure is a Cisco 804 router, but the other Cisco 800 series routers are similar to it. Follow these steps to open the chassis:


Step 1 Make sure that the power switch is turned to standby and that the power supply cable is disconnected.

Step 2 Disconnect all cables from the router back panel.

Step 3 Use the Phillips screwdriver to remove the two screws. Figure 1 shows the chassis screw locations. The chassis screw locations are the same on all Cisco 800 series routers.

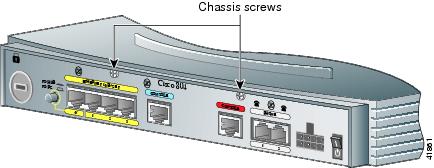

Figure 1 Removing the Chassis Screws

Step 4 Gently push the top of the router away from you and then lift it up from the bottom of the router.

Step 5 Place the router bottom on an antistatic mat.


Upgrading the Flash Memory

This section describes how to upgrade the flash memory in a Cisco 800 series router.


Note The Cisco SOHO series routers do not support flash and StrataFlash memory upgrade.


Table 1 shows the flash memory options for each Cisco 800 series router platform.

Table 1 Flash Memory Options

Platform
Flash Memory Card Options
Default Flash Memory
Maximum Flash Memory

Cisco 801-804 routers

4 MB or 8 MB

8 MB
(4 MB of onboard flash memory and a 4-MB flash memory card)

12 MB

Cisco 805 routers

4 MB or 8 MB

8 MB
(4 MB of onboard flash memory and a 4-MB flash memory card)

12 MB

Cisco 806 routers

8 MB

8 MB
(onboard flash only)

16 MB

Cisco 811-813 routers

4 MB or 8 MB

8 MB
(4 MB of onboard flash memory and a 4-MB flash memory card)

12 MB

Cisco 826, 827, and 828 routers

4 MB or 8 MB

8 MB
(onboard flash only)

16 MB

Cisco 827-4V routers

4 MB or 8 MB

12 MB
(8 MB onboard flash memory and 4-MB flash memory card)

16 MB

Cisco 831, 836, and 837 routers

4 MB, 8 MB, or 16 MB

12 MB
(8 MB onboard flash memory and a 4-MB flash memory card)

24 MB

Cisco 851 and 857 routers

4 MB, 16 MB, or 32 MB

20 MB
(onboard flash memory only)

20 MB

Cisco 871, 876, 877, and 878 routers

4 MB, 8 MB, 16 MB, or 32 MB

24 MB
(20 MB of onboard flash memory and a 4-MB flash memory card)

52 MB


You can order upgrade kits and have trained and qualified personnel add the flash memory.

Table 2 identifies the flash memory upgrade kits available for the Cisco 801-806, 811-813, and 826-828 routers.

.

Table 2 Flash Memory Upgrade Kits for Cisco 801-806, 811-813, and 826-828 Routers

Description
Cisco Part Number

4-MB flash memory module

MEM800-4F=

8-MB flash memory module

MEM800-8F=


Table 4 identifies the flash memory upgrade kits available for the Cisco 831, 836, and 837 routers.

Table 3 Flash Memory Upgrade Kits for Cisco 831, 836, and 837 Routers

Description
Cisco Part Number

4-MB flash memory module

MEM830-4F=

8-MB flash memory module

MEM830-8F=

16-MB flash memory module

MEM830-16F=


Table 4 identifies the flash memory upgrade kits available for the Cisco 871, 876, 877, 878 routers.

Table 4 Flash Memory Upgrade Kits for Cisco 871, 876, 877, 878 Routers

Description
Cisco Part Number

4-MB flash memory module

MEM870-4F=

8-MB flash memory module

MEM870-8F=

16-MB flash memory module

MEM870-16F=

32-MB flash memory module

MEM870-32F=


Locating the Flash Memory Slot

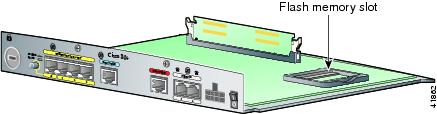

Figure 2 shows where the flash memory module can be installed on the router motherboard. The flash memory slot location is similar on all Cisco 800 series routers. The connector type may vary for some Cisco 800 series routers and will look slightly different from the one illustrated below.

Figure 2 Location of Flash Memory Slot

Locating the StrataFlash Memory Slot

Figure 3 shows where the StrataFlash memory module can be installed on the router motherboard. The StrataFlash memory slot location is similar on all Cisco 800 series routers. The orientation of the connector may vary for some Cisco 800 series routers, with the opening turned inward instead of outward as illustrated below.

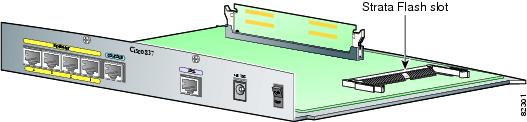

Figure 3 Location of StrataFlash Memory Slot

Installing Flash Memory

To upgrade the flash memory, you must install a mini-flash memory module on the router motherboard, as shown in Figure 4.

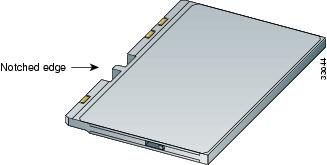

Figure 4 Mini-Flash Memory Module

Installing StrataFlash Memory

To upgrade the StrataFlash memory, you must install a- StrataFlash memory module on the router motherboard, as shown in Figure 5.

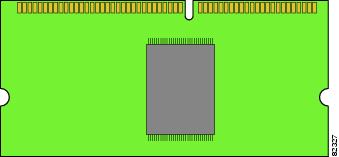

Figure 5 StrataFlash Memory Module

Installing a Mini-Flash Memory Module

Follow these steps to install a mini-flash memory module:


Step 1 Insert the notched edge of the module into the slot at an angle, as shown in Figure 6.

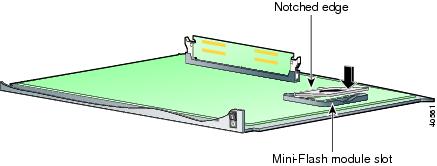

Figure 6 Installing a Mini-Flash Memory Module

Step 2 Firmly press down the unnotched edge of the module until you hear a click.


Removing a Mini-Flash Memory Module

Follow these steps to remove a mini-flash memory module:

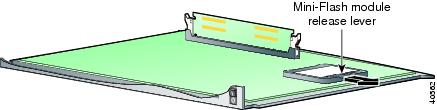

Step 1 Put your finger on the mini-flash module release lever and push up. See Figure 7.

Figure 7 Removing a Mini-Flash Module

Step 2 Firmly pull the release lever away from the module until the module pops up and away from the
module slot.


Installing a StrataFlash Memory Module

Follow these steps to install a StrataFlash memory module:


Step 1 Insert the notched edge of the module into the slot at an angle, as shown in Figure 8. Make sure the module is fully seated and makes good contact.

Figure 8 Installing a StrataFlash Memory Module

Step 2 Firmly press down the unnotched edge of the module until you hear a click. The indents must be fully in the notches.


Removing a StrataFlash Memory Module

Follow these steps to remove a StrataFlash memory module:


Step 1 Place your thumbs on the levers at the two sides of the slot, and push open, as shown in Figure 9.

Figure 9 Removing a StrataFlash Memory Module

Step 2 Firmly pull the release lever away from the module until the module pops up. You can then remove the module from the module slot.


Upgrading the DRAM

This section describes how to upgrade the DRAM in Cisco 800 series routers. Check the board to see whether it already has a DRAM module.


Note The Cisco SOHO series routers do not support DRAM upgrade.


Table 5 shows the DRAM memory options for each model of the Cisco 800 series routers.

Table 5 DRAM Memory Options

Platform
DRAM Memory Card Options
Default DRAM Memory
Maximum DRAM Memory

Cisco 801-804 routers

4 MB or 8 MB

8 MB
(4 MB of onboard DRAM and a 4-MB DRAM memory card)

12 MB

Cisco 805 routers

4 MB or 8 MB

8 MB
(onboard DRAM only)

16 MB

Cisco 806 routers

4 MB, 8 MB, or 16 MB

32 MB
(16 MB of onboard DRAM and a 16-MB DRAM memory card)

32 MB

Cisco 811-813 routers

4 MB or 8 MB

8 MB
(onboard DRAM only)

16 MB

Cisco 826, 827, and 827H routers

4 MB, 8 MB, or 16 MB

The default memory depends on the firmware:

For Cisco IOS Base IP and IP firmware, 20 MB
(16 MB of onboard DRAM and a 4-MB DRAM memory card)

For Cisco IOS IP Plus and 3DES firmware, 24 MB (16 MB of onboard DRAM and an 8-MB DRAM memory card)

32 MB

Cisco 827-4V routers

4 MB, 8 MB, 16 MB, or 32 MB

48 MB
(16 MB onboard DRAM and 32-MB DRAM memory card)

48 MB

Cisco 828 Router

4 MB, 8 MB, or 16 MB

The default memory depends on the firmware:

For Cisco IOS Base IP and IP firmware, 20 MB (16 MB of onboard DRAM and a 4-MB DRAM memory card)

For Cisco IOS 3DES and IP Plus firmware, 24 MB (16 MB of onboard DRAM and an 8-MB DRAM memory card)

32 MB

Cisco 8311 , 836, and 837 routers

4 MB, 8 MB, or 16 MB

64 MB
(onboard DRAM only)

80 MB

Cisco 851 and 857 routers

64 MB or 128 MB

64 MB
(onboard DRAM only)

64 MB

Cisco 871, 876, 877, and 878 routers

64 MB or 128 MB

128 MB
(onboard DRAM only)

256 MB

1 early 831 versions shipped with only 32MB onboard DRAM


Because of the height restriction of the actual DRAM component, you must order the additional DRAM from Cisco Systems.

You can order upgrade kits and have trained and qualified personnel add the memory.

Table 7 identifies the DRAM upgrade kits available for Cisco 801-806, 811-813, 826-828, 831, 836, and 837 routers.

.

Table 6 Dynamic RAM Upgrade Kits for Cisco 801-806, 811-813, and 826-828, 831, 836, and 837 Routers

Description
Cisco Part Number

4-MB DRAM module

MEM800-4D=

8-MB DRAM module

MEM800-8D=

16-MB DRAM module

MEM820-16D=


Table 7 identifies the DRAM upgrade kits available for Cisco 871, 876, 877, 878 routers.

.

Table 7 Dynamic RAM Upgrade Kits for Cisco 871, 876, 877, 878 Routers

Description
Cisco Part Number

64-MB DRAM module

MEM870-64D=

128-MB DRAM module

MEM870-128D=


Locating the DRAM Slot

Figure 10 shows where the DRAM module can be installed on the router motherboard. The DRAM socket location is similar on all Cisco 800 series routers.

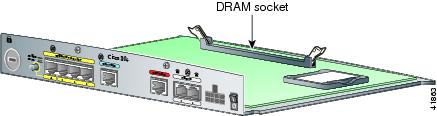

Figure 10 Location of DRAM

Installing the DRAM

To upgrade the DRAM, you must install the dual in-line memory module (DIMM) on the router motherboard.

Follow these steps to install a DIMM:


Step 1 If a DIMM is already installed in the slot, firmly push the slot guides away from the DIMM and down toward the motherboard, as shown in Figure 11, until the DIMM pops out of the slot.

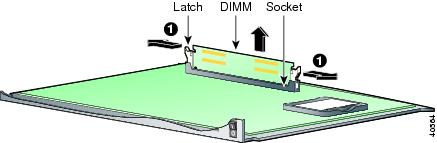

Figure 11 Removing a DIMM

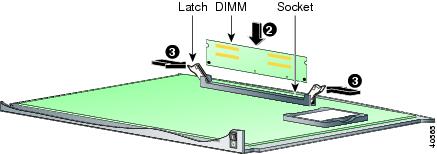

Step 2 Insert the new DIMM into the slot, making sure that the notches on the edge of the DIMM are inserted over the bars inside the slot, as shown in Figure 12.


Note The DIMM orientation for the Cisco 801-804 and 805 routers is 180 degrees opposite the DIMM orientation for the Cisco 827 router.


Figure 12 Installing a DIMM

Step 3 Firmly press the DIMM into the slot until the two slot guides on each side move up and over the DIMM edges, and you hear a click. If the guides do not move up and over the DIMM edges, move them with your hands.


Closing the Chassis

Follows these steps to close the chassis:


Step 1 Place the router cover upside down, with the front of the cover facing you.

Notice the two rectangular tabs near the bottom of the front cover.

Step 2 Pick up the router bottom and turn it upside down, with the back panel facing away from you.

Notice the two hooks along the router bottom.

Step 3 Hold the front of the router bottom at an angle so that the hooks slip under the tabs on the front cover, as shown in Figure 13.

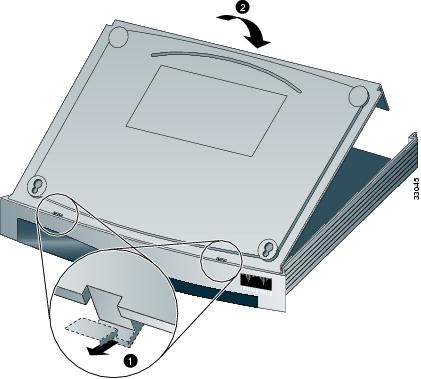

Figure 13 Closing the Chassis

Step 4 Lower the back of the router bottom.

The router bottom and the bottom of the front cover should be aligned.

Step 5 Turn the router chassis over so that the back panel is facing you.

Step 6 Replace the two screws that you removed when you opened the chassis. (See Figure 1.)
