Getting Started with the VQE Startup Configuration Utility
This chapter explains how to use the Cisco VQE Startup Configuration Utility to perform the initial configuration tasks needed to get the two categories of Cisco CDE110 servers running with the Cisco VQE software:
•
VQE-S server—CDE110 hosting VQE Server
•
In a VQE deployment, use of the VQE Tools server with VCPT and VCDS is optional.
Note
For information on the manual initial VQE configuration tasks, see Appendix D, "Manual Initial VQE System Configuration."Read the following sections for information on CDE110 configuration and on using the VQE Startup Configuration Utility:
•
•
•
•
•
•
•
•
•
•
•
Note
For information on upgrading a Cisco CDE110 from Cisco VQE Release 2.1 or 3.0 to Release 3.1, see the Release Notes for Cisco CDA Visual Quality Experience Application, Release 3.1.This chapter assumes that the Cisco CDE110 hardware has been installed as described in the Cisco Content Delivery Engine 110 Hardware Installation Guide, including connecting cables and connecting power.
Web Browser, Screen Resolution, and Other Requirements
To access the VQE-S Application Monitoring Tool (VQE-S AMT or AMT) or the VQE Channel Provisioning Tool (VCPT), you need a web browser. For these tools, the following web browsers are supported:
•
•
The minimum screen resolution required for VQE-S AMT and VCPT is 1024 x 768 pixels.
For VQE-S AMT, Adobe Flash Player must be installed on the computer that hosts the browser accessing AMT. Flash Player is required to display the Channels Status Summary graph of active, inoperative, and inactive channels in the AMT VQE-S Status window. Adobe Flash Player is free and can be found at this URL:
http://www.adobe.com/shockwave/download/download.cgi?P1_Prod_Version=ShockwaveFlash
Configuring Terminal Emulation Software
The RJ-45 serial ports on the Cisco CDE110 front and back panels can be used for administrative access to the CDE110 through a terminal server. Terminal emulation software must be configured as follows:
•
•
•
•
•
Security Restrictions for Logins and Root Privileges
For security reasons, the following restrictions apply to VQE:
•
•
If you want to add user accounts to the wheel group so that additional users can use su and sudo, log in as root and issue the following command:
[root@system]# usermod -G wheel usernameIn the preceding, username specifies the user who will be added to the wheel group.
Prerequisites
Before you start the initial VQE software configuration, the following items should be accomplished for the CDE110 that hosts VQE-S and the CDE110 that hosts the VQE Tools:
•
•
Connecting Cables to the CDE110
The following cable connections are used on the Cisco CDE110 that hosts VQE-S and on the CDE110 that hosts the VQE Tools:
•
–
Note
–
•
•
Note
•
For the location of connectors on the Cisco CDE110 front and back panels, see the Cisco Content Delivery Engine 110 Hardware Installation Guide.
Setting Up SSL Certificates with the VQE Startup Configuration Utility
Secure Sockets Layer (SSL) certificates must be deployed on the CDE110s for HTTPS to operate. You can let the Cisco VQE Startup Configuration Utility do most of the creation and deployment, or you can do the creation and deployment tasks yourself. For information on your options for SSL certificates with the startup utility, see the "Using the Cisco VQE Startup Configuration Utility for SSL Certificates" section.
Setting Up SSL Certificates
VQE-S Application Monitoring Tool (VQE-S AMT or AMT) and VQE Channel Provisioning Tool (VCPT) require Secure Sockets Layer (SSL) certificates from a certificate authority (CA). The CA can be you or someone in your company, or can be a commercial CA, such as VeriSign.
On the CDE110s hosting VQE-S and VCPT, the HTTP server is not usable until the SSL certificates and other required SSL files are created and deployed.
Before AMT and VCPT can be used, you need to either deploy your own SSL certificate or deploy a commercial SSL certificate. The procedures that you use are explained in the following sections:
•
•
•
•
You perform the procedures for deploying CA certificates on the VQE-S hosts and the VCPT hosts. As an alternative if you are setting up the certificates manually, you can create the needed files on one host and copy them to the other hosts.
The Open Source toolkit from the OpenSSL Project collaborative is used to generate, sign, and install your own CA certificates and to generate the Certificate Signing Request for commercial certificates. The Open Source toolkit is installed on the VQE-S and VCPT hosts. For more information on the Open Source toolkit and for documentation on toolkit commands, go to the following URL:
http://www.openssl.org
Using the Cisco VQE Startup Configuration Utility for SSL Certificates
If you use the Cisco VQE Startup Configuration Utility, the utility allows you to choose different ways to create and deploy SSL certificates:
•
For an explanation of the tasks involved with using Option 1, see the "Step-by-Step Example: VQE Startup Configuration Utility's Option 1 for Preparing SSL Certificates" section.
•
–
–
•
•
–
•
–
–
–
Step-by-Step Example: VQE Startup Configuration Utility's Option 1 for Preparing SSL Certificates
This section provides a step-by-step example of the tasks that you perform when you choose Option 1 for SSL certificates preparation with the VQE Startup Configuration Utility. With Option 1, the utility creates and deploys a self-signed SSL certificate (vqe.cert), private key (server.key), and stackedChain.pem file on the CDE110 server.
To use the VQE Startup Configuration Utility to create and deploy self-signed SSL certificates, do the following:
Step 1
Prepare SSL certificate for HTTPS service. Choose from following options:1. Generate a self-signed SSL certificate and deploy now. You will need to manually copy the certificate to the trusted VCPT host later and import it into its truststore.2. Generate a certificate signing request and proceed. No SSL certificate will be deployed, you will need to sign the generated CSR file externally and manually deploy it.3. Skip this step now and manually deploy SSL certificate later. Refer to VQE-S User's Guide for instructions. VCPT host will not be able to push SDP configurations to VQE-S without SSL certificate in place.Please enter your choice: [1|2|3] 1Generating a 2048 bit RSA private key...The utility creates these files in the /etc/opt/certs directory:
•
•
•
The VQE Startup Configuration Utility continues to execute until the initial configuration is completed. Finish the initial system configuration and verification of the CDE110 hosting VQE-S before performing the next step.
Step 2
Prepare SSL certificate for HTTPS service. Choose from following options:1. Generate a self-signed SSL certificate and deploy now. You will need to manually copy the certificate to the trusted VCPT host later and import it into its truststore.2. Generate a certificate signing request and proceed. No SSL certificate will be deployed, you will need to sign the generated CSR file externally and manually deploy it.3. Skip this step now and manually deploy SSL certificate later. Refer to VQE-S User's Guide for instructions. VCPT host will not be able to push SDP configurations to VQE-S without SSL certificate in place.Please enter your choice: [1|2|3] 1Generating a 2048 bit RSA private key...The utility creates these files in the /etc/opt/certs directory:
•
•
•
An empty trustedca file is also created in the /etc/opt/certs directory. This file will be used on the VCPT host.
The VQE Startup Configuration Utility continues to execute until the initial configuration is completed. Finish the initial system configuration and verification of the CDE110 hosting VCPT before performing the next step.
Step 3
Step 4
$ cd /etc/opt/certs$ keytool -import -keystore trustedca -alias vqe1 -file vqe.cert
Note
When keytool runs, it asks for a keystore password (enter any arbitrary password you want) and asks if you trust this certificate (answer yes).
The trustedca file, where keytool writes it output, is used only on the VCPT host and must be located in the /etc/opt/certs directory.
Step 5
[root@system]# service httpd restartStep 6
Note
a.
https://ip_address_of_VQES_hostThe VQE-S Application Monitoring Tool login screen should be displayed.
b.
https://ip_address_of_VCPT_hostThe VQE Channel Provisioning Tool login screen should be displayed.
c.
The send operation should be successful if the SSL certificates were created and deployed correctly.
Creating Your Own Certificate Authority
Note
This task to create your own certificate authority (CA) is only performed once for all instances of VQE-S and VCPT. The CA that you create can be used to sign server certificates on all CDE110 servers hosting VQE-S or VCPT.
To create a CA certificate, follow these steps:
Step 1
Step 2
$ openssl genrsa -des3 -out ca.key 4096The command prompts you to enter a pass phrase to protect the private key. The pass phrase will be needed every time this CA signs a certificate request.
The openssl genrsa command saves the ca.key file in your current working directory.
The generated key is a 4096-bit RSA key, which is encrypted using Triple-DES and stored in PEM format so that it is readable as ASCII text.
Step 3
$ openssl req -new -x509 -days 365 -key ca.key -out ca.crtThe command prompts for the following X.509 attributes of the certificate. It is recommended that you provide valid input for X.509 information. Use a period (.) to indicate blank input.
•
•
•
•
•
•
The openssl req command saves the ca.crt file in your current working directory.
Generating and Deploying Your Own SSL Certificates
When you act as your own certificate authority, you can sign multiple Certificate Signing Requests for the VQE-S hosts and the VCPT hosts. Generating and deploying your own SSL certificates involves three tasks:
1.
2.
3.
These tasks are explained in the following three sections. We recommend that these tasks be repeated for each CDE110 host so that there is a unique set of files generated for each host. You can create the needed sets of files on one host and copy them to the other hosts.
Generating a Certificate Signing Request
To generate a Certificate Signing Request, follow these steps:
Step 1
$ openssl genrsa -des3 -out server.key 1024To bypass the pass-phrase requirement, omit the -des3 option when generating the private key. Bypassing the pass phrase is desirable when you want the Apache web server to be autostarted without human intervention. Otherwise, someone must enter a pass phrase on every restart.
The openssl genrsa command saves the server.key file in your current working directory.
Note
Step 2
$ openssl req -new -key server.key -out server.csrThe command prompts for the same X.509 attributes that were specified when you created your CA certificate in the "Creating Your Own Certificate Authority" section. It is recommended that you provide valid input for X.509 information. Use a period (.) to indicate blank input.
Note
The openssl req command saves the server.csr file in your current working directory.
The command creates a public/private key pair. The private key (server.key) is stored locally on the server machine and is used for decryption. The public portion, in the form of a Certificate Signing Request (server.csr), is used for certificate enrollment with the CA.
Tip
Signing the Certificate Signing Request
The Certificate Signing Request (CSR) can be signed by commercial CA entities, such as VeriSign, or by your own CA as created in the "Creating Your Own Certificate Authority" section.
Note
We recommend that the system time of each CDE110 be synchronized with Network Time Protocol (NTP). The system time when the signing of the Certificate Signing Request occurs must be later than the system time when the CA was created.To sign the Certificate Signing Request with the self-created certificate authority, issue the following command:
$ openssl x509 -req -days 365 -in server.csr -CA ca.crt -CAkey ca.key -set_serial 01 -out server.crtThe openssl x509 command saves server.crt in your current working directory.
In the example above, the serial number of the signed server certificate is set to 01. Each time you execute this command, you must change the serial number, especially if you sign another certificate before a previously-signed certificate is expired.
Installing the Certificates, Private Key, and Keystore
The certificate needs to be in a certain format and reside in a designated directory to be used by the VQE Server-related or the VCPT-related software.
To install the server and CA certificates, the private key and the keystore, follow these steps:
Step 1
$ cat server.crt ca.crt > stackedChain.pem
Note
The stackedChain.pem file content must be in this order:
-----BEGIN CERTIFICATE-----<SSL Server Cert Contents>-----END CERTIFICATE----------BEGIN CERTIFICATE-----<CA Cert Contents>-----END CERTIFICATE-----The stackedChain.pem file looks something like the following:
-----BEGIN CERTIFICATE-----MIIDvjCCAaYCAQEwDQYJKoZIhvcNAQEFBQAwZTELMAkGA1UEBhMCVVMxDTALBgNV... Omitted contents .../kzgDk5wO1CbTwuxPIY1piy0Os1Q5EWk3VVAmv4tNMT9bANeKDUiVyYyOi1NIiHA36w=-----END CERTIFICATE----------BEGIN CERTIFICATE-----MIIGGDCCBACgAwIBAgIJAPtvlrCRokk4MA0GCSqGSIb3DQEBBQUAMGUxCzAJBgNV... Omitted contents ...KV+sxNECGE40iWIvd1dXDA1O34qhAwkVD6/bxw==-----END CERTIFICATE-----
Note
Step 2
$ keytool -import -keystore trustedca -alias rootca -file ca.crtThe CA certificate (ca.crt) specified in the -file argument is the CA certificate that you created in the "Creating Your Own Certificate Authority" section.
The keytool command creates a new keystore with the CA certificate. The resulting file is named trustedca.
Step 3
•
–
–
•
–
–
–
Deploying Commercial SSL Certificates
As an alternative to acting as your own certificate authority (CA), commercial certificate authorities, such as VeriSign, can issue and sign Secure Sockets Layer (SSL) certificates.
Deploying a commercial certificate involves these steps:
1.
2.
3.
Commercial CA: Installing the Certificates, Private Key, and Keystore
When you get the signed certificates back from the commercial CA, you need to install them and the private key and keystore.
To install the certificates, private key, and keystore, follow these steps:
Step 1
$ cat server.crt ca.crt > stackedChain.pem
Note
The stackedChain.pem file content must be in this order:
-----BEGIN CERTIFICATE-----<SSL Server Cert Contents>-----END CERTIFICATE----------BEGIN CERTIFICATE-----<CA Cert Contents>-----END CERTIFICATE-----The stackedChain.pem file looks something like the following:
-----BEGIN CERTIFICATE-----MIIDvjCCAaYCAQEwDQYJKoZIhvcNAQEFBQAwZTELMAkGA1UEBhMCVVMxDTALBgNV... Omitted contents .../kzgDk5wO1CbTwuxPIY1piy0Os1Q5EWk3VVAmv4tNMT9bANeKDUiVyYyOi1NIiHA36w=-----END CERTIFICATE----------BEGIN CERTIFICATE-----MIIGGDCCBACgAwIBAgIJAPtvlrCRokk4MA0GCSqGSIb3DQEBBQUAMGUxCzAJBgNV... Omitted contents ...KV+sxNECGE40iWIvd1dXDA1O34qhAwkVD6/bxw==-----END CERTIFICATE-----
Note
Step 2
$ keytool -import -keystore trustedca -alias rootca -file ca.crtThe CA certificate (ca.crt) specified in the -file argument is the commercial CA certificate that you get from the vendor.
The keytool command creates a new keystore with the CA certificate. The resulting file is named trustedca.
Step 3
•
–
–
•
–
–
–
VQE-S Server: Routing Configuration Overview
For a VQE-S server, the VQE Startup Configuration Utility supports two routing types: static routes and OSPF routing. This section provides overview information on how you can configure static routes or OSPF routing on a VQE-S server. It includes these topics:
•
•
•
At initial system startup, the VQE Startup Configuration Utility can be used to configure static routes or OSPF routing. After initial system startup, the VQE Configuration Tool can be used to modify the routing implementation.
Types of Routes on a VQE-S Server
On the VQE-S server, three types of routes are used:
•
•
•
The VQE-S also joins the multicast RTP streams from the distribution network. This interaction is between the VQE-S server and the edge router. It takes place through the use of IGMP joins and does not involve routing with the local routing daemon on the VQE-S server. This interaction is outside the scope of this discussion.
Figure 2-1 shows the types of routes used on a VQE-S server.
Figure 2-1 Routes Used on a VQE-S Server
Static Routes on a VQE-S Server
Prior to Cisco VQE Release 3.1, the routes on a VQE-S server were configured using static routes. Though static routes can still be chosen as the routing type, the use of static routes for the access routes and feedback target routes has some limitations.
For the access routes, use of static routes requires that the VQE-S server be configured for the static routes to the access network. In contrast, with OSPF routing, the edge router advertises a default route to the access network through a routing protocol, allowing load balancing across the VQE-S interfaces and not requiring an extra configuration step.
For the feedback target routes, the use of static routes on the edge router means that repair services on the VQE-S for all feedback targets are assumed to always be available as long as the VQE-S interfaces are up. In some cases, although the interfaces are up, the VQE-S may not be able to handle requests for one or more feedback targets. The VQE-S itself can not add or withdraw the routes as services become available or unavailable for particular feedback targets. Another limitation of the use of static routes for feedback targets is that it requires the customer to take the extra step of configuring the edge router for feedback target addresses. In the worst case, this approach can require that each feedback target have a separate static route configured on the router if the feedback target addresses are not summarizable.
For information on static route configuration on the edge router, see the "For Static Routes: Guidance for Configuring Feedback Targets on the Attached Router" section.
OSPF Routing on VQE-S Server

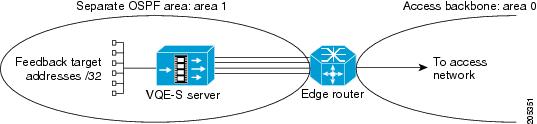

Starting with Release 3.1, Cisco VQE supports a dynamic routing feature, which uses OSPF, on the VQE-S server. The use of OSPF routing eliminates the limitations of static routing, which are described in the preceding section, "Static Routes on a VQE-S Server". Specifically, OSPF routing can be used on the VQE-S for the following:
•
•
With dynamic routing, the feedback target routes can be advertised based on the actual capabilities of the VQE-S to process requests for services sent to those targets by adding and removing feedback target routes as needed.
On the VQE-S server, the Quagga routing package provides the OSPF routing capability. The VQE Startup Configuration Utility and the Configuration Tool simplify the OSPF configuration on the VQE-S server. After you enter a values for OSPF configuration parameters, such as the OSPF area and router ID, these tools perform the configuration tasks for you. For information on the OSPF configuration parameters for the VQE-S server, see the "OSPF Configuration (VQE-S Host Only)" section.
For information on OSPF configuration on the edge router, see the "For OSPF Routing: Guidance for Configuring the Attached Router" section.
Load Balancing and Redundancy with Multiple VQE-S Servers
When more than one VQE-S server provides Unicast Retransmission Rapid Channel Change or both services for a set of channels, the VQE-S servers and edge router can load balance the requests from VQE Clients on the set-top boxes and provide failover protection if a VQE-S server fails.
In the VCPT channel definition, each channel is associated with a unique feedback target (FBT) IP address. The VQE Clients on the set-top boxes use the FBT addresses to request Unicast Retransmission and RCC services for a particular channel. The FBT address is a unique IP anycast address that VQE Server configures on its host Cisco CDE110 based on the channel information that is sent to it by VCPT or another channel-provisioning server. An anycast address is a unicast address that is assigned to multiple interfaces. With the appropriate routing topology, packets addressed to an anycast address are delivered to a single interface (in this case, the nearest VQE Server's Ethernet interface that is identified by the address).
The use of anycast IP addresses and Equal Cost Multipath (ECMP) routing allows multiple VQE Servers in a single facility to balance the load among themselves and to provide failover protection in case of a server failure. As an example, Figure 2-2 shows a redundant pair of VQE-S servers, each providing Unicast Retransmission and RCC services for the same set of three channels. On both VQE-S servers, each channel is defined to have the same anycast IP address: A for channel 1, B for channel 2, and C for channel 3.

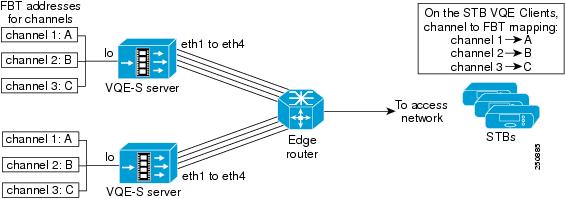

Figure 2-2 Redundant VQE-S Servers for Service Failover and Load Balancing
When OSPF routing is configured on the VQE-S servers, the FBT routes are advertised from the VQE-S to the edge router. In this example, both VQE-S servers advertise FBT routes for a particular channel. If the services for that channel become unavailable on one VQE-S, that VQE-S withdraws the route. This allows the other VQE-S to take over services for that channel. If one VQE-S server fails, the second VQE-S server services the requests directed to the three feedback target addresses.
With OSPF routing and ECMP on the edge router, the router uses multi-interface load splitting on different interfaces with equal cost paths. ECMP provides load-balancing of output traffic on the edge router interfaces that are attached to the VQE-S traffic interfaces on the CDE110 server. If three Ethernet interfaces on each of the two VQE-S servers were configured for VQE-S traffic, the edge router would load balance set-top box requests for VQE-S services over the six available Ethernet interfaces.
VQE Tools Server: Routing Configuration Overview
On the VQE Tools server, the following routes are used:
•
•
The VQE Tools server uses one or more static routes to the management network. The static route to the management network can also be used to provide the external access. The VQE Startup Configuration Utility and VQE Configuration Tool can be used to configure one or more static routes.
Using the VQE Startup Configuration Utility
The Cisco VQE Startup Configuration Utility runs automatically the first time you log in to a CDE110 server. The CDE110 server has the VQE software pre-installed. The utility is available on the CDE110 that hosts VQE-S and on the CDE110 that hosts VQE Tools. We recommend that you use the VQE Startup Configuration Utility rather than try to do the initial configuration manually because the utility simplifies your work and is known to produce correct results.
Caution
Before using the VQE Startup Configuration Utility, do the following so that you understand how the startup configuration utility works and what information you need to collect before powering on the VQE-S or VCPT server:
•
•
•
•
•
The VQE Startup Configuration Utility displays the Root Menu after you finish entering configuration values. The Root Menu allows you to view the values that you have specified and to change values that are not correct.
After using the VQE Startup Configuration Utility, perform the verification tasks in the following sections:
•
•
Configuration Parameters
This section provides information on the configuration parameters present in the VQE Startup Configuration Utility. Before using the VQE Startup Configuration Utility, read the descriptions of the configuration parameters in this section.
Tip
In the explanations that follow, these conventions are used for the configuration parameters.
•
•
Note
Passwords for root and the vqe User IDs
The password for root is set when the CDE110 boots normally for the first time (when you log in as root) and before the VQE Startup Configuration Utility executes.
The vqe username is a predefined Linux user ID that the system administrator can use to log in to VQE-S AMT and VCPT.
The root and vqe user passwords have the following requirements: A valid password should be a mix of uppercase and lowercase letters, digits, and other characters. You can use an eight-character long password with characters from at least three of these four classes, or a seven-character long password containing characters from all the classes. An uppercase letter that begins the password and a digit that ends it do not count towards the number of character classes used.
The password can be a passphrase. A passphrase should be at least three words with a combined total length of 12 to 40 characters.
Hostname for the CDE110
The hostname is used in multiple Linux configuration files. Allowed range is 3 to 200 characters.
Domain Name System (DNS) IP Addresses and a Search Domain
The IP addresses of one or more DNS servers and an optional search domain. Allowed range for the search domain is 3 to 200 characters.
System Timezone and Current System Time
The timezone and current system time that will be used for this CDE110. The VQE Startup Configuration Utility prompts for the needed information.
NTP Server IP Addresses
The IP addresses of one or more Network Time Protocol (NTP) servers.
Note
SNMP Read-only Community String, Location, Contact, and Trap-Listener IP Addresses or Hostnames (Optional)
If your deployment will use SNMP, you specify the following:
•
•
•
•
For more information on SNMP for the CDE110, see Appendix B, "Using Net-SNMP."
Ethernet Interface Configurations IP Addresses and Prefix Lengths
For one or more of the Ethernet ports on the Cisco CDE110, you specify an IP address and prefix length (for example, 1.2.3.4/32). The four ports are named eth1, eth2, eth3, and eth4 as shown in Figure 2-3.
•
•
•
Figure 2-3 Ethernet Port Numbering for Software Configuration
IP Address and Prefix Length and Gateway Address for a Static Route for a Management Network (Optional)
Note
If your deployment will make use of a management network, the VQE Startup Configuration Utility can configure static routes for the management network. You specify the following:
•
10.1.0.0/16
•
As an example of gateway (next hop) IP address, if Ethernet interface eth4 were used for the management network, you would specify the IP address of the router interface that is directly attached to eth4.
Note
SSL Certificates Options
Secure Sockets Layer (SSL) certificates must be created and deployed for VQE-S AMT or VCPT to be accessed using HTTPS. The VQE Startup Configuration Utility gives you three options for creating and deploying the certificates. For information on the three options and using the utility for creating and deploying SSL certificates, see the "Using the Cisco VQE Startup Configuration Utility for SSL Certificates" section.
VQE-S Traffic Routing Type (VQE-S Host Only)
Specifies whether static routes or OSPF routing will be used as the routing type for VQE-S traffic.
•
•
For information about routing on the VQE-S host, see the "VQE-S Server: Routing Configuration Overview" section.
Default Gateway IP Addresses for Multipath Static Routes (VQE-S Host Only)
If static routes are chosen as the routing type, you specify the IP addresses for the interfaces on the router that is directly attached to the VQE-S host. Specify as many gateway (next hop) router interfaces as are reachable through the CDE110 Ethernet interfaces that have been configured with an IP address and prefix length.
Note
VQE-S uses Equal Cost Multipath (ECMP) to load-balance its output traffic across all the gateway router interfaces that are specified. If a default route (the gateway IP address) is configured for each Ethernet interface that is available to VQE-S for Unicast Retransmissions, RCC, and other VQE-S traffic, ECMP load balances output traffic across all of the listed gateway interfaces.
For more information on ECMP configuration, see the "Configuring Static Routes for VQE-S Traffic" section on page D-6.
OSPF Configuration (VQE-S Host Only)
If OSPF is chosen as the routing type, Table 2-1 describes the parameters that can be configured. For detailed information on the OSPF parameters, see the following Quagga documentation:
http://www.quagga.net/docs/quagga.pdf
Trusted Channel-Provisioning Server (VQE-S Host Only)
If your IPTV deployment will use VCPT or another channel-provisioning server to send channel information to the VQE Servers, you specify the IP addresses of the trusted channel-provisioning servers. The VQE Startup Configuration Utility configures the CDE110 that hosts VQE-S so that only trusted HTTPS clients (from the trusted channel-provisioning servers) can send channel information to the VQE-S host.
For more information on VCPT and how it sends channel information, see the "VQE Channel Provisioning Tool and Channel Information" section on page 1-14.
Ethernet Interfaces That Will Be Used for VQE-S Traffic (VQE-S Host Only)
You specify which of the CDE110 Ethernet interfaces will be available for VQE-S traffic. The interface names are eth1, eth2, eth3, and eth4.
Note
Automatic Start of VQE Services on a Reboot
After you finish specifying values for the configuration items, the VQE Startup Configuration Utility displays the following menu:
VQE Configuration Tool Root Menu:1) System Parameters2) Network Parameters3) Configure VQE Password4) Generate SSL Certificate5) VQE-S ParametersS) Save/Apply and reboot systemEnter your choice:When you have completed the configuration items, you choose S) Save/Apply and reboot system. The VQE Startup Configuration Utility saves your configuration in the VCDB file, applies the VCDB values to the configuration files under /etc, and reboots the CDE110 system. Each time the VQE-S or VQE Tools host reboots, the services listed in Table 2-3 and Table 2-3 will be started.
Note
Pre-Configuration Worksheets
Before using the VQE Startup Configuration Utility, complete the pre-configuration worksheets in Table 2-4 for a VQE-S host and Table 2-5 for a VQE Tools host before the first normal boot. The use of a VQE Tools server and VCPT is optional.
For information on the configuration items in Table 2-4 and Table 2-5, see the "Configuration Parameters" section.
VQE Startup Configuration Utility Root Menu
After you have used the VQE Startup Configuration Utility to specify values for the configuration items, the utility displays the Root Menu. The Root Menu allows you to view the values that you have specified and to change values that are not correct. The Root Menu on a VQE-S server is as follows:
VQE Configuration Tool Root Menu:1) System Parameters2) Network Parameters3) Configure VQE Password4) Generate SSL Certificate5) VQE-S ParametersS) Save/Apply and reboot systemEnter your choice:This Root Menu and its behavior are similar to the standard VQE Configuration Tool Root Menu and behavior. The two differences are the numbered choices 3 and 4 are only present in the VQE Startup Configuration Utility, and the Save/Apply choice in the VQE Startup Configuration Utility includes a reboot of the system.
Note
The Root Menu choices allow you to do the following:
•
•
•
To view and change parameter values, you can select choices 1, 2, 3, and 5 as many times as you wish.
Note
Table 2-6 provides more information about the choices on the Root Menu. You enter the number or letter for your choice.
Table 2-6 Root Menu Choices
1) System Parameters
Allows you to view the current system parameter values that you have set, and to change or set the system parameters values:
1) Hostname
2) DNS Server(s)
3) DNS Search Domain
4) Timezone
5) NTP Server(s)
6) SNMP RO Community String
7) SNMP System Location
8) SNMP System Contact
9) SNMP Trap Listener(s)2) Network Parameters
Allows you to view the current network parameter values that you have set, and to change or set the network parameters values:
1) Eth1 Interface
2) Eth2 Interface
3) Eth3 Interface
4) Eth4 Interface
5) Management Route(s)
6) VQE-S Traffic Routing Type
7) Static Routing Parameters
8) OSPF Parameters3) Configure VQE Password
Allows you to set the password for the vqe username. Once you select this menu choice, you must enter the password value even if you choose to keep the current password.
4) Generate SSL Certificate
Allows you to create and deploy a Secure Sockets Layer (SSL) certificate for VQE-S AMT or VCPT, or to generate a Certificate Signing Request file (server.csr).
5) VQE-S Parameters
Allows you to view the current VQE-S parameter values that you have set, and to change or set the VQE-S parameters values:
1) Trusted VCPT host(s)
2) Log Priority *
3) Excess Bandwidth Fraction *
4) VQE-S Traffic Interfaces
* The VQE Startup Configuration Utility does not allow you to set the values of these parameters in the set of parameters that were previously displayed. You can supply values at this point if you want or accept the defaults. For more information on these values, see the vcdb.conf.sample file and Appendix A, "VQE, System, and Network Parameters."5) Save/Apply and reboot the system
Saves the changes you have made to the parameters in the VQE Configuration Database (VCDB), applies parameter values to the configuration files under /etc, and reboots the CDE110 system.
On the VQE-S Host: Verifying Status of VQE and System Services
After the VQE Startup Configuration Utility finishes and the CDE110 that hosts VQE-S reboots, it is recommended that you perform some quick checks to ensure that VQE and system services are running.
To verify the status of VQE services on the VQE-S host, follow these steps:
Step 1
Step 2
[root@system]# service sshd statussshd (pid 21165 21110 20595 20569 2777) is running...Step 3
[root@system]# service httpd statushttpd (pid 9665 9664 9663 9661 9660 9658 9657 9656 3978) is running...Step 4
[root@system]# service tomcat5 statusTomcat is running...Step 5
[root@system]# service snmpd statussnmpd (pid 2754) is running...Step 6
[root@system]# service snmpsa statusThe SNMP subagent is running.Step 7
[root@system]# service watchquagga statuswatchquagga (pid 2513) is running...[root@system]# service ospfd statusospfd (pid 7104) is running...[root@system]# service zebra statuszebra (pid 7072) is running...Step 8
[root@system]# service vqes statusprocess_monitor (pid 21853) is running...Step 9
[root@system]# ps -ef | grep vqeroot 17928 17896 0 Jun02 pts/1 00:00:00 tail -f vqe.logroot 21853 1 0 Jun03 ? 00:00:00 /opt/vqes/bin/process_monitorvqes 21903 21853 0 Jun03 ? 00:00:00 mlb --interface eth1 eth2 eth3 eth4 --xmlrpc-port 8052 --unicast-reservation 20 --ssm --log-level 4root 21914 21853 0 Jun03 ? 00:00:04 vqes_dp --max-pkts 1000000 --log-level 4 --rtp-inactivity-tmo 300vqes 21944 21853 0 Jun03 ? 00:00:00 vqes_cp --cp-uid 499 --cp-gid 499 --xmlrpc-port 8051 --cfg /etc/opt/vqes/vqe_channels.cfg --er-cache-time 3000 --rtp-hold-time 100 --client-er-policing --client-er-tb-rate-ratio 5 --client-er-tb-depth 10000 --log-level 4 --rcc-mode conservative --igmp-join-variability 100 --max-client-bw 0 --max-idr-penalty 0 --rap-interval 2000 --excess-bw-fraction 20 --excess-bw-fraction-high-def 12 --rcc-burst-delay-to-send 10 --rtp-dscp 0 --rtcp-dscp 24In the preceding output, the VQE-S processes to check for are as follows:
•
•
•
•
•
Step 10
[root@system]# ps -elf | grep stun4 S vqes 21972 21959 0 75 0 - 3745 322792 Jul15 pts/1 00:00:00 stun_server --ss-uid 499 --ss-gid 499 --xmlrpc-port 8054 --log-level 4Step 11
[root@system]# service ntpd statusntpd (pid 2790) is running...Step 12
https://ip_address_of_VQES_hostLog in using the vqe username and password. (Any valid Linux username and password can be used to log in to the VQE-S Application Monitoring Tool.)
If you click System in the left pane, the VQE-S Application Monitoring Tool displays information on the VQE-S processes and channels. Figure 4-2 on page 4-4 shows an example. Because at this point no channel information has been sent to the VQE-S, no channels will be displayed.
Step 13
•
•
On the VQE Tools Host: Verifying Status of VQE and System Services
After the VQE Startup Configuration Utility finishes and the CDE110 that hosts VQE Tools reboots, it is recommended that you perform some quick checks to ensure that VQE and system services are running.
To verify the status of VQE services on the VQE Tools host, follow these steps:
Step 1
Step 2
[root@system]# service sshd statussshd (pid 21165 21110 20595 20569 2777) is running...Step 3
[root@system]# service httpd statushttpd (pid 9665 9664 9663 9661 9660 9658 9657 9656 3978) is running...Step 4
[root@system]# service tomcat5 statusTomcat is running...Step 5
[root@system]# service snmpd statussnmpd (pid 2754) is running...Step 6
[root@system]# service snmpsa statusThe SNMP subagent is running.Step 7
[root@system]# service ntpd statusntpd (pid 2790) is running...Step 8
https://ip_address_of_VCPT_hostLog in with a Linux username and password.
If you are able to log in successfully, VCPT is running correctly.
Step 9
•
•
Configuring VQE-S RTCP Exporter
VQE-S RTCP Exporter is the VQE-S software component responsible for sending the RTCP reports to an external device that hosts the video-quality monitoring (VQM) application. Use of RTCP Exporter is optional.
To monitor the RTCP Exporter, use the VQE-S Application Monitoring Tool (AMT). This tool displays RTCP Exporter configuration details and status as well as counters of exported packets. The VQE-S Application Monitoring Tool can also be used to enable or disable RTCP Exporter debugging.
To troubleshoot the RTCP Exporter, examine the Exporter syslog messages, which are sent to the VQE-S log file (/var/log/vqe/vqe.log). If more detailed troubleshooting is needed, enable RTCP Exporter debugging using the AMT tool and examine the debug messages, which are also sent to the VQE-S log file.
To configure and enable the RTCP Exporter on the Cisco CDE110 that hosts VQE-S, follow these steps:
Step 1
Step 2
For information on manually editing the vcdb.conf file, see the "Manually Editing the VCDB File" section on page 6-12. The parameters used for enabling the RTCP Exporter are not available in the VQE Configuration Tool.
Step 3
RTCP Exporter remains disabled unless both vqe.vqes.vqm_host and vqe.vqes.vqm_port are configured and are valid.
By default, the vcdb.conf file contains no RTCP Exporter parameters and RTCP Exporter is disabled.
Step 4
[root@system]# vqe_cfgtool -applyFor more information on the vqe_cfgtool command and the -apply option, see "Using the VQE Configuration Tool Command-Line Options" section on page 6-16.
Note
Configuring Other Parameters for the VQE-S Host
The set of parameters for the VQE-S host includes many parameters that are not configurable with the VQE Startup Configuration Utility. Many additional parameters are used, for example, to make adjustments to the VQE-S software facilities that perform Unicast Retransmission and Rapid Channel Change.
Read the following to get information on these additional parameters:
•
•
•
Configuring the Edge Router for VQE-S
This section provides some guidance on configuring the edge router that will be directly attached to the VQE-S host. Depending on whether OSPF routing or static routes are used on the VQE-S host, refer to one of the following sections:
•
•
For OSPF Routing: Guidance for Configuring the Attached Router
If OSPF routing is used for VQE-S traffic, the following sections provide guidance on configuring the edge router that is directly attached to VQE-S:
•
For detailed information on OSPF and the Cisco IOS commands used to configure the routing protocol, see the OSPF resources at:
http://www.cisco.com/en/US/tech/tk365/tk480/tsd_technology_support_sub-protocol_home.html
Note
VQE-S in Separate OSPF Area
The VQE-S server can be configured to be in a separate OSPF area by specifying the VCDB parameter network.ospf.area to be a non-zero value. With the VQE Startup Configuration Utility or Configuration Tool, this separate area with the VQE-S server can be defined as a normal area or a Not So Stubby Area. Figure 2-4 shows the VQE-S server in a separate OSPF area: area 1.
Figure 2-4 VQE-S Server in a Separate OSPF Area
When the VQE-S server is configured in a separate OSPF area, these guidelines for configuring the directly attached edge router apply:
•
•
With a NSSA, the edge router generates a default route to the access network and advertises the default route in the NSSA (in Figure 2-4, area 1). This default-route mechanism reduces the size of the VQE-S server routing table.
To configure the NSSA and to configure the edge router to advertise the default route in the NSSA, issue the following Cisco IOS commands on the edge router:
router ospf process-id
area area-id nssa no-summaryWhen no-summary is specified with area nssa, the edge router advertises the default route in the NSSA but does not inject summary routes into the area.
VQE-S in Area 0
When the VQE-S server is configured within OSPF area 0 (that is, when the network.ospf.area VCDB parameter value is zero, the default), these guidelines for configuring the directly attached edge router apply:
•
•
General Guidelines
The following are general edge router configuration guidelines:
•
•
interface name
ip ospf hello-interval 1
ip ospf dead-interval 4•
•
•
router ospf process-id
maximum-paths maximum-paths•
•
For Static Routes: Guidance for Configuring Feedback Targets on the Attached Router
When channels are configured with a channel-provisioning tool such as VQE Channel Provisioning Tool, it is required that you specify a unique feedback target (FBT) address for each channel. If static routes are used for VQE-S traffic, the router that is directly attached to the VQE-S host must have a static route configured for the FBT address so that the router can reach the target. If the FBT addresses are allocated within a contiguous address range, this configuration piece can be done with a single aggregated route.
For example, if the FBT addresses for the channels are assigned to be 8.86.1.1, 8.86.1.2, 8.86.1.3, ..., 8.86.1.250, then the single static route 8.86.1.0/24 configured on the directly attached router allows any of these FBT addresses to be reached. The commands on the router for the FBT addresses would be as follows:
configure terminalip route 8.86.1.0 255.255.255.0 11.2.9.2ip route 8.86.1.0 255.255.255.0 11.2.10.2ip route 8.86.1.0 255.255.255.0 11.2.11.2ip route 8.86.1.0 255.255.255.0 11.2.12.2For the preceding configuration example, the IP addresses 11.2.9.2, 11.2.10.2, 11.2.11.2, and 11.2.12.2 have been assigned to the Ethernet interfaces on the VQE-S host. See Figure D-3 on page D-6. These Ethernet interfaces are used for VQE-S traffic, including Unicast Retransmission and Rapid Channel Change traffic.
